L.O.A: 15,11 M (49,6')

LENGTH (HULL): 13,93 M (45,7')

BEAM: 3,95 M (13')

DRAUGHT: 1,10 M (3,6')

WEIGHT APPROX. 11 000 KG / 24250 Lbs

FUEL TANK: 1500 L / 396 Gal

WATER TANK: 350 L / 92 Gal

HOT WATER BOILER: 40 L / 10 Gal

HOLDING TANK: 120 L / 31 Gal

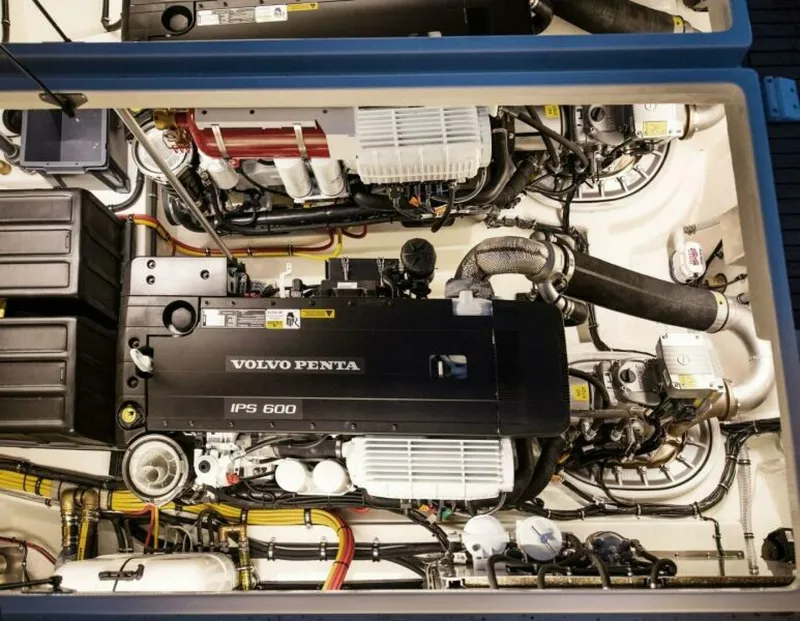

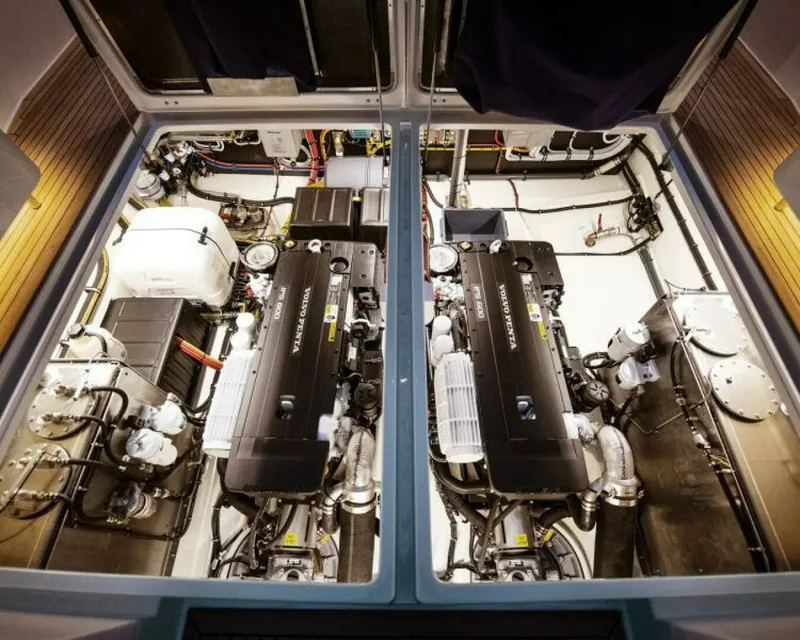

ENGINE ALTERNATIVES

2 × D6-440 (648 KW, 880 HP)

2 × IPS650 (706 KW, 960 HP)

2 × D8-IPS800 (882 KW, 1200 HP)

TOP SPEED (800-1200 HP) 36–41 K.T.

CRUISING SPEED (2 × 435 HP), K.T. 23–31

FUEL CONSUMPTION27 K.T. (2 × 435 HP), L/N.M. APPROX. 3,6

• Bridgedeck box behind pilothouse

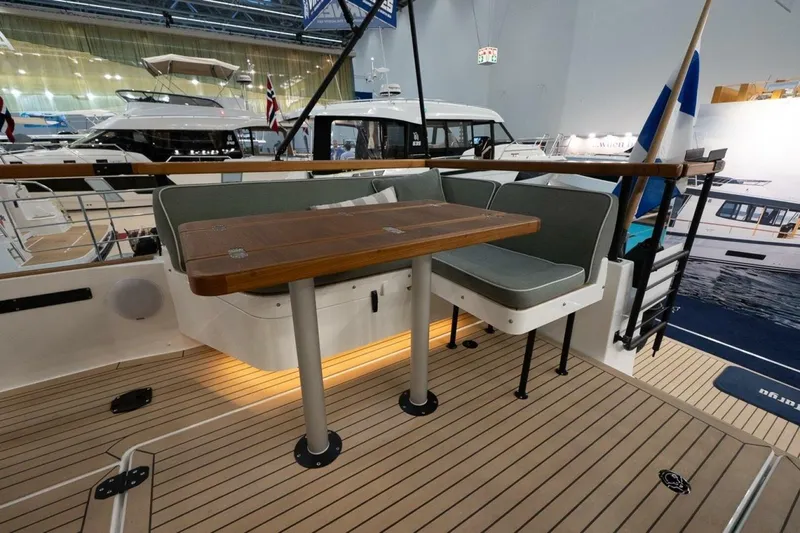

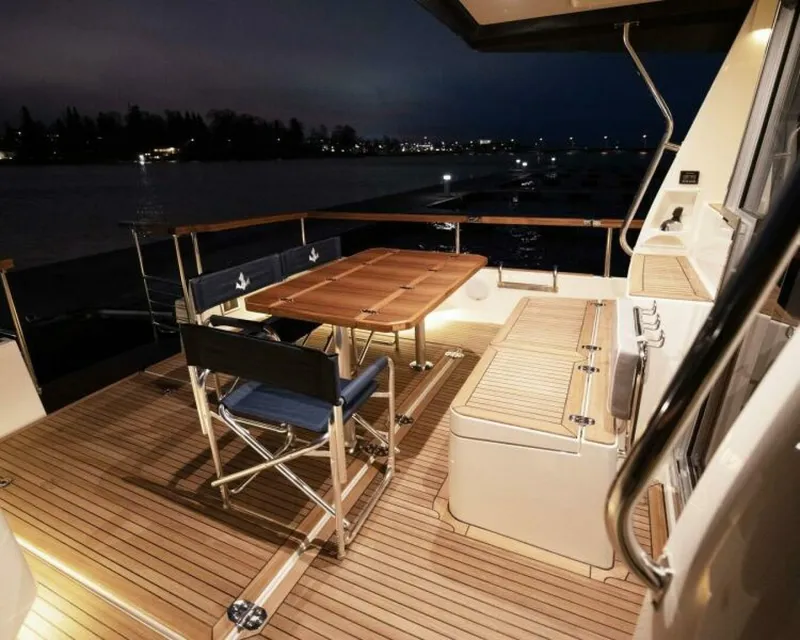

• Foldaway teak table for fore/aft deck
• Aft Door (AD) with FB
• Antifouling
• Bow ladder, foldable & side entrance ladder
• Handrails s/s on both sides of pilothouse roof

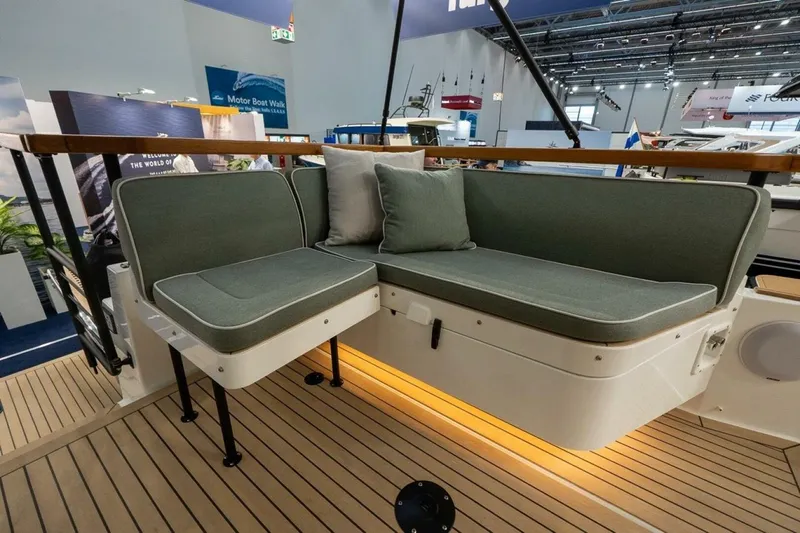

• Lockers/seats in aft deck corners
• Tip-up opening in teakrail, STBRD & PT
• Teakrail extended width around aft deck

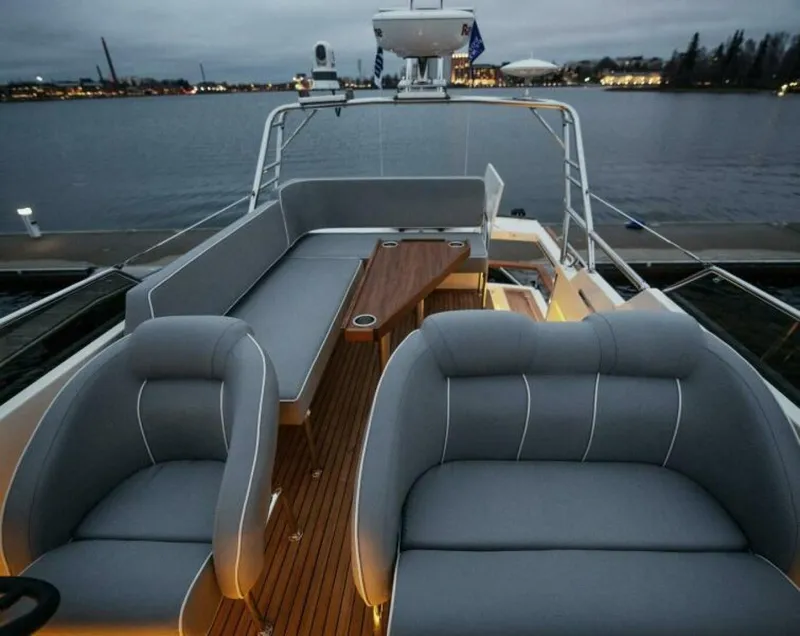

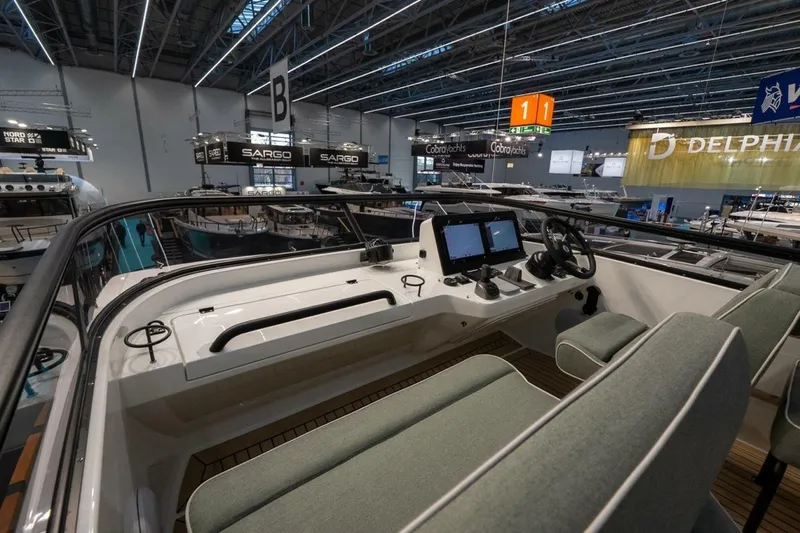

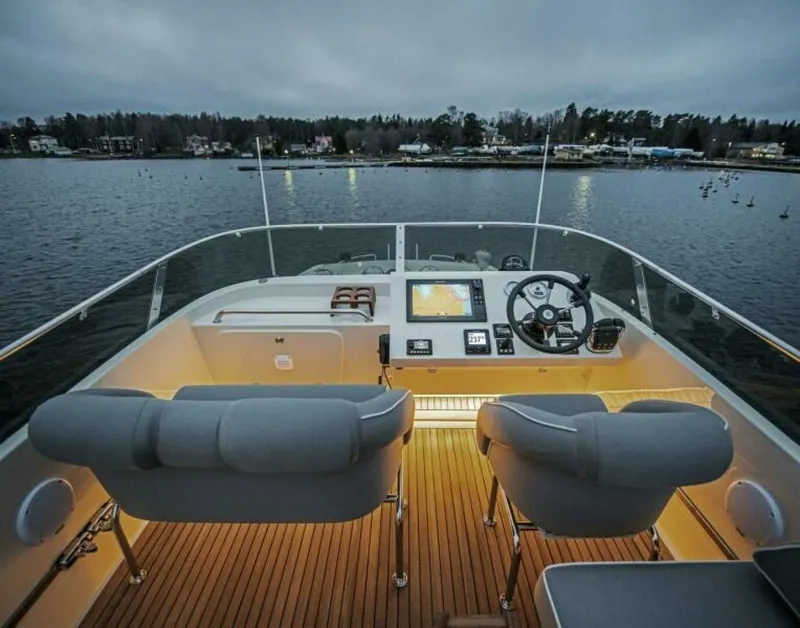

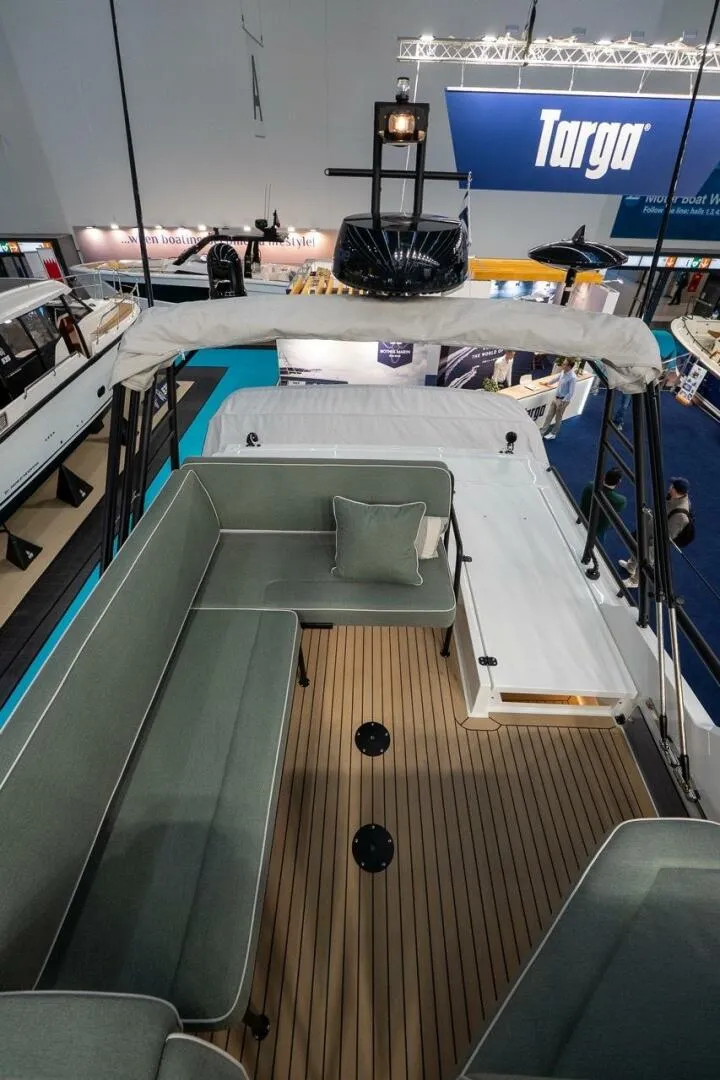

• Flybridge for 6 persons incl teak table
• Flybridge full cover tarpaulin, instrument & chair covers
• Urethane foam in stringers, hull sides & under berths
• Sun curtains polarized for front window & doors
• Curtains for aft side windows & aft window
• Spring mattress for 2 × double berths
• LED floor light in pilothouse, aft & fore cabin
• Portlights: 2 pcs non opening & 2 pcs openable in hull s/s
• Wempe clock, barometer & thermometer

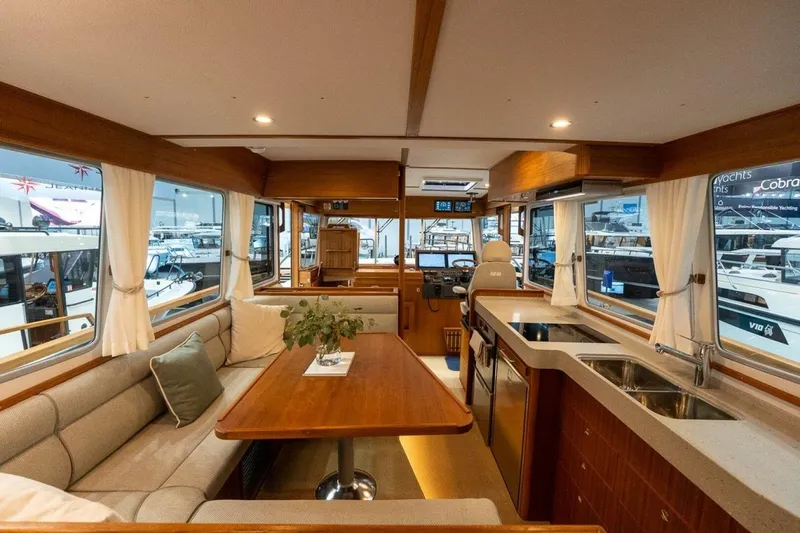

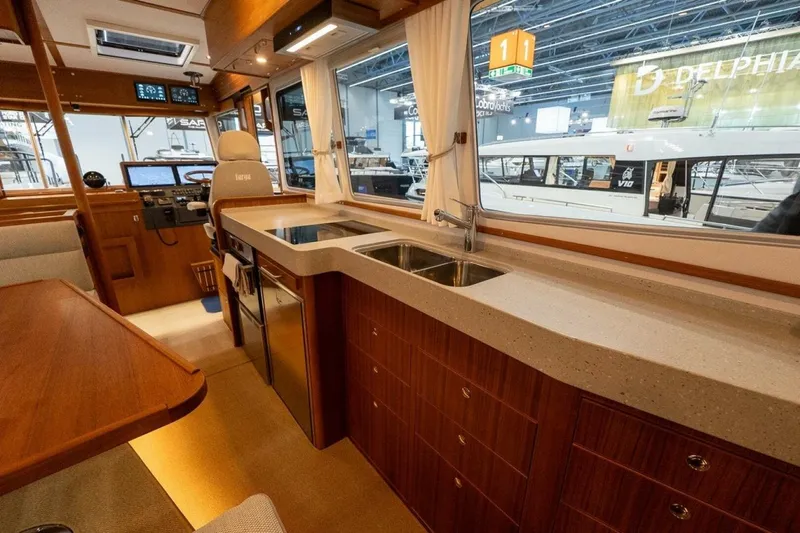

• Galley incl. water tank, sink, gas cooker & micro 230 V
• Refrigerator s/s 130 L
• Water heater 40 L

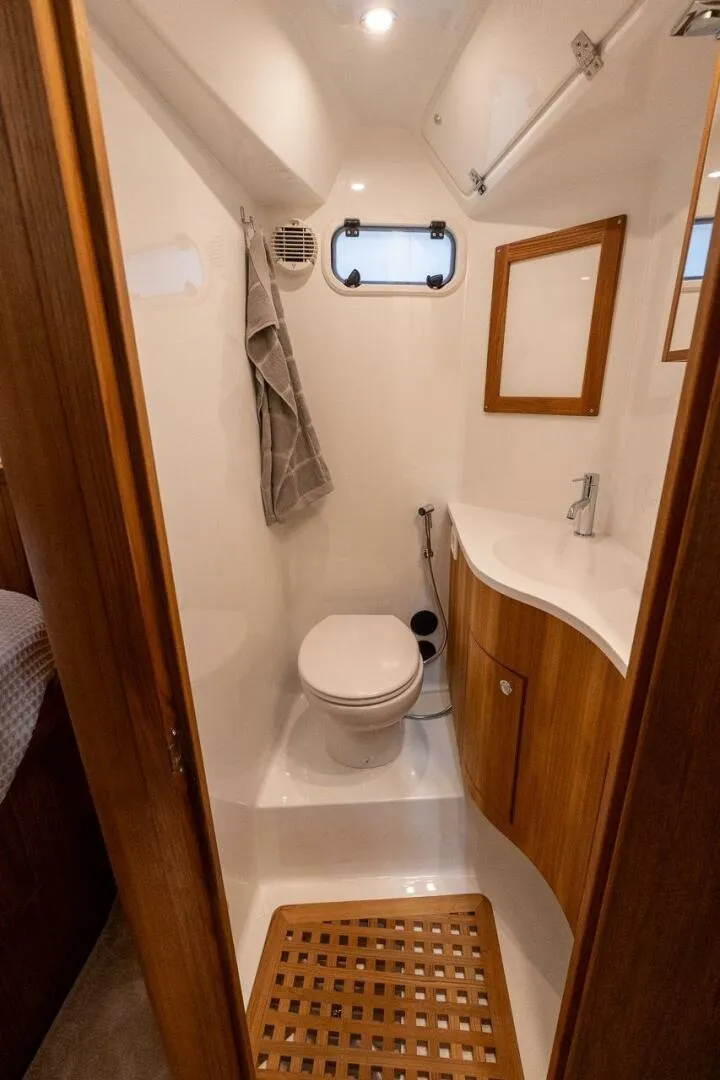

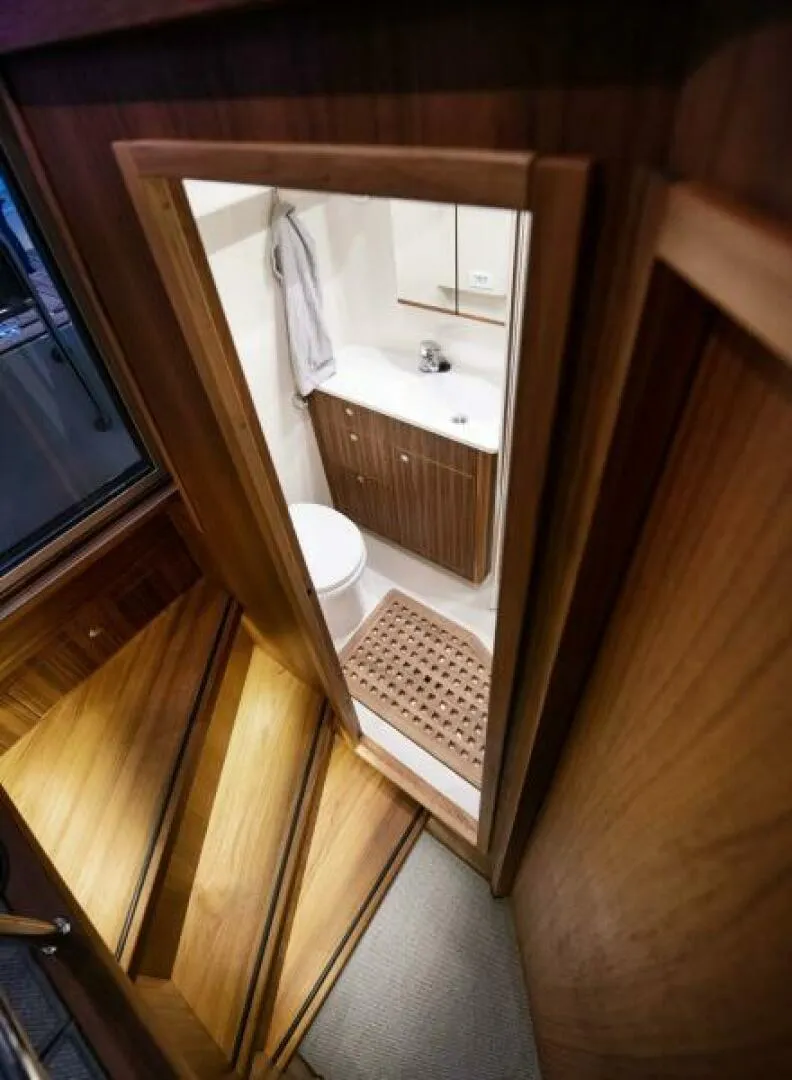

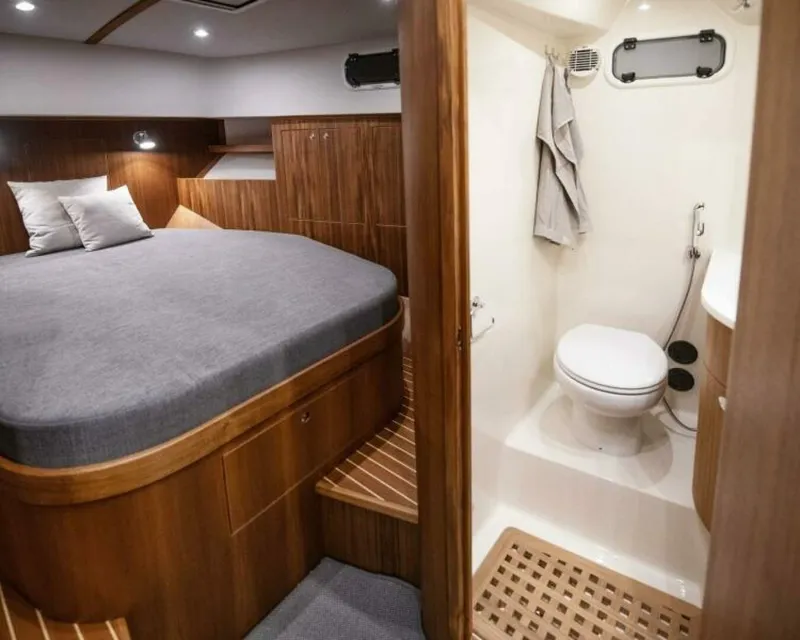

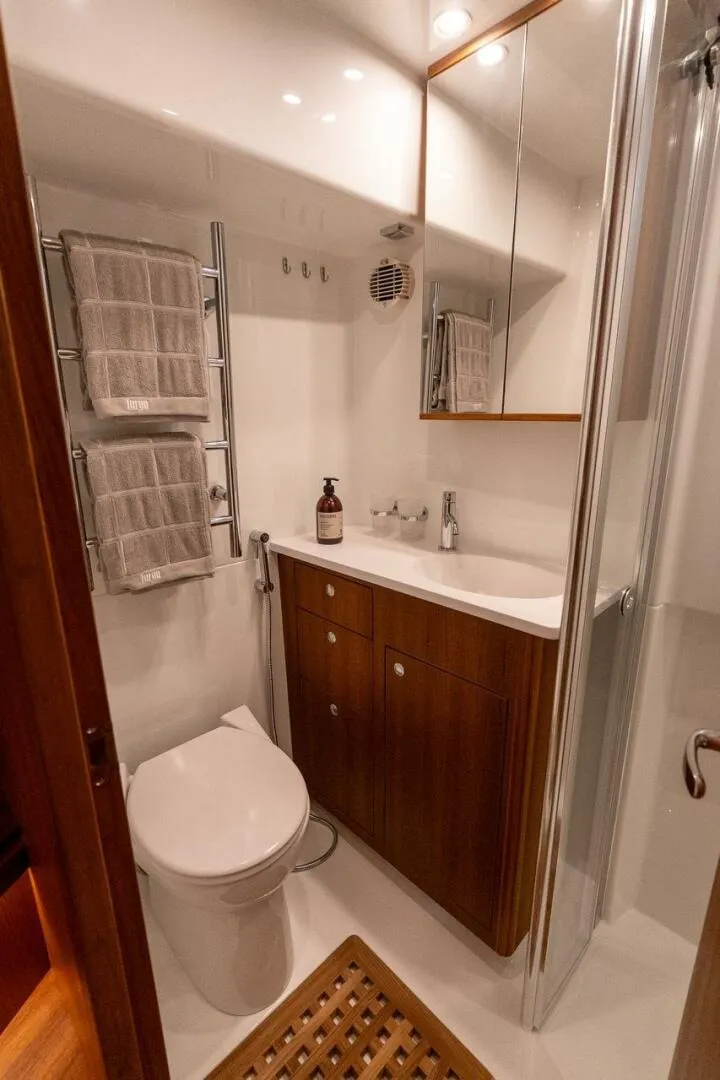

• Toilet in aft & fore cabin, electrical seawater flush
• Shower with glass shower doors in aft cabin toilet
• Targa dinner service for 6
• Shower on aft deck, fresh water
• Deck wash with hose, salt water
• Interceptor trim tabs
• Bow thruster (100 kg thrust) incl. back-up battery
• Shore power, 2 inlets & isolation transformer
• Battery charger 150 A + 25 A & inverter 3000 W
• Outlets: 230 V 9 pcs, USB 6 pcs & 12 V 1 pcs
• LED light cable under "roof cap" & LED deck lights
• Windscreen wipers incl wash system
• Diesel heater & double defroster/heater from engine
• Start battery 2 × 120 Ah GEL
• Service battery 4 × 120 Ah GEL (with cross-over switch)
• Bilge pump automatic 3 pcs & bilge pump manual 2 pcs
• Fire extinguisher automatic in engine room
• Fire extinguisher manual, 2 pcs

Layout Alternatives

• Comfort Fore Cabin with double berth (CFC)
• Extra large toilet in CFC incl shower & glass shower doors (only in combination with CFC)

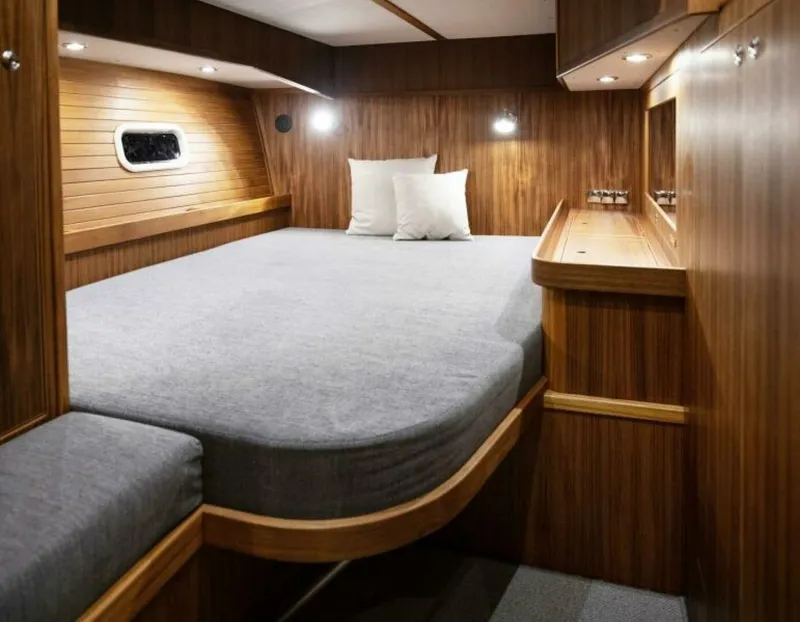

• "H-bed" version in "owner's cabin" (instead of std double berth, not in combination with 3C)

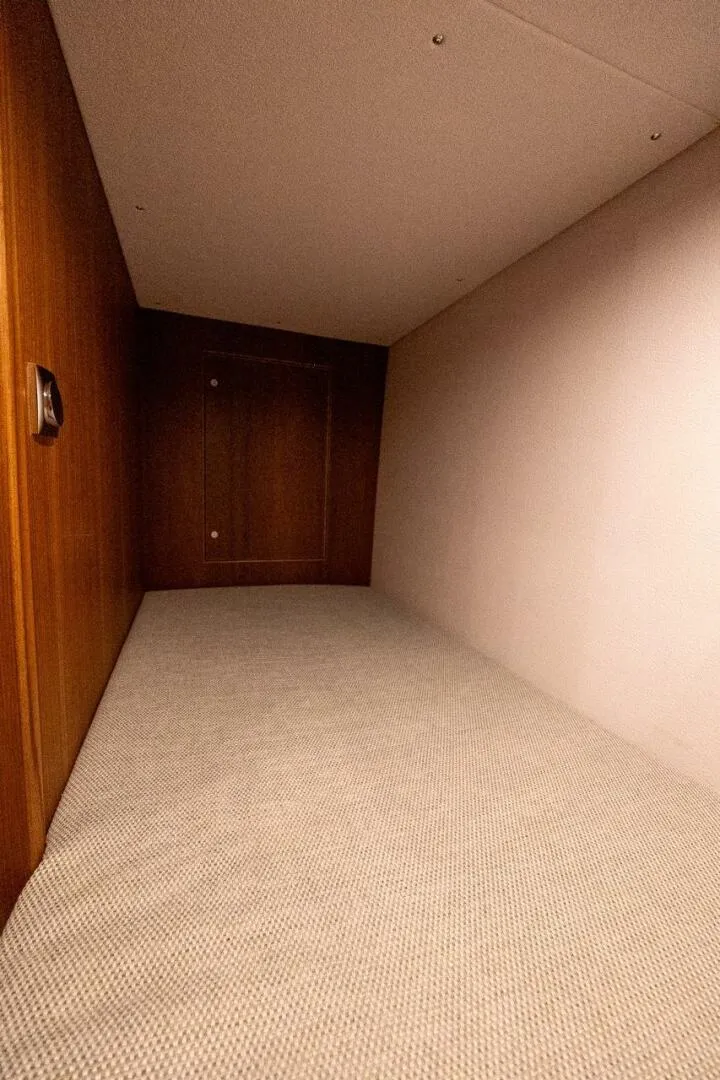

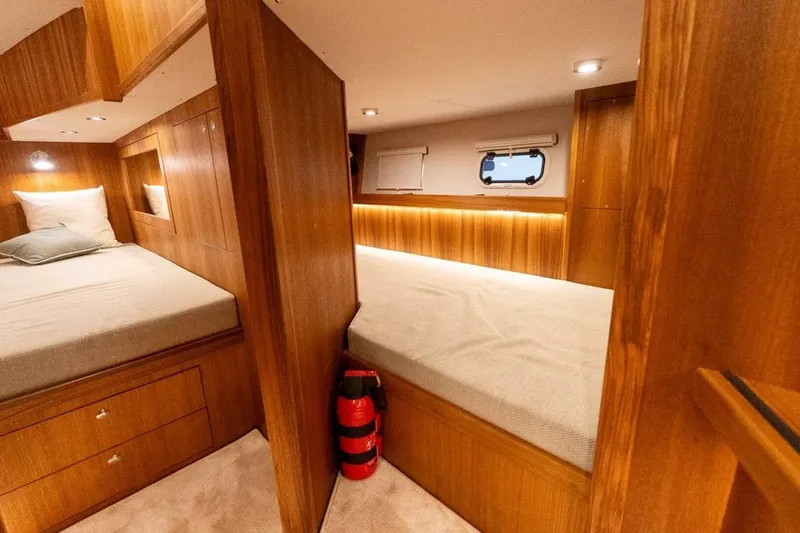

• 3-cabin layout (3C), midcabin with own entrance from pilothouse (not in combination with VP D8)
• Extended Roof, access to flybridge through hatch (ER)

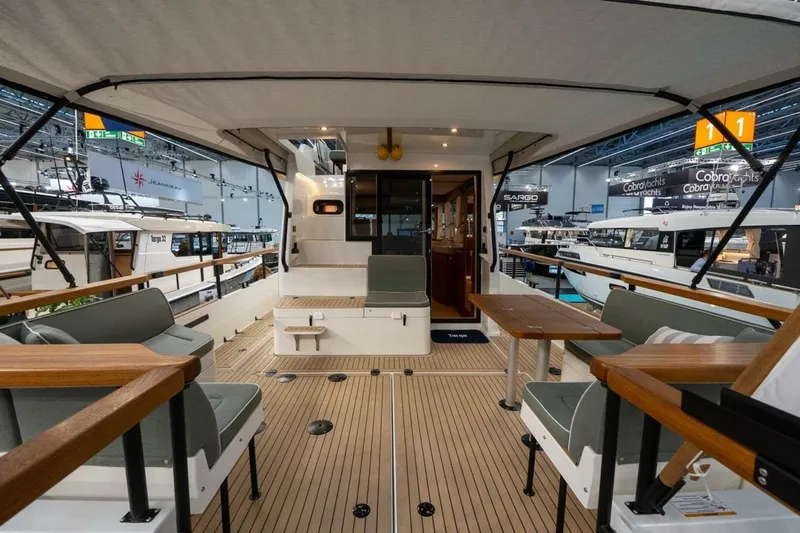

• "Hard Top" roof over aft deck, short model, maximum load 160 kg (HTS)
• "Hard Top" roof over aft deck, long model, maximum load 240 kg (HTL)
• Straight roof without flybridge (price reduction)

Exterior: Hull, Deck, and Pilothouse

• Non-standard colour: hull (e.g. dark blue or grey), single or double waterline (only single with VP D8)
• Non-standard colour: deck + top of seats 2-coloured (grey RAL 7030)
• Teak deck complete (laid teak with caulked seams)
• - Aft deck + side passages

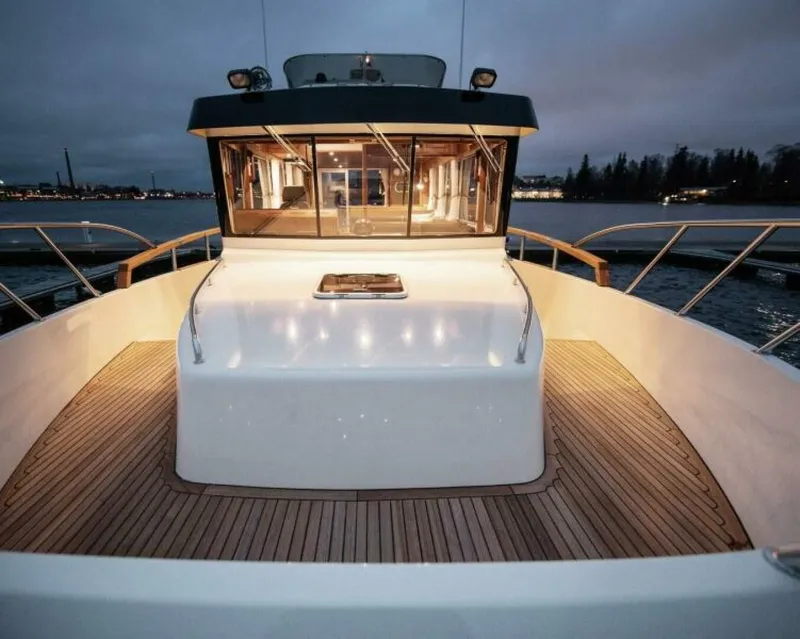

• - Fore deck
• - Flybridge + steps up to Flybridge
• Teak on front seats (not in combination with CFC)
• Teak on aft deck lockers/seats / 2 pcs
• Teak on "Bridgedeck box" behind pilothouse
• Teak on upper fore deck, between bow rails
• Teak on whole upper fore deck
• Teak on swimming platform (inspection hatch with DPI, no hatch with IPS)
• Teak on "Hard Top" roof over aft deck, short model (HTS)
• Teak on "Hard Top" roof over aft deck, long model (HTL)
• Outboard bracket on transom, max 10 HP
• Name decal on boat Sun shade for fore deck, canvas & 2 pcs s/s stanchions
• Sun shade for aft deck, canvas & 2 pcs s/s stanchions (in combination with ER or HTS)
• Retractable s/s bar & attachable sun shade canvas, aft end on HT-roof (in combination with HTS or HTL)
• Full cover aft deck "tent", in combination with ER (not in combination with A.13.b)
• Full cover aft deck "tent", in combination with HTL

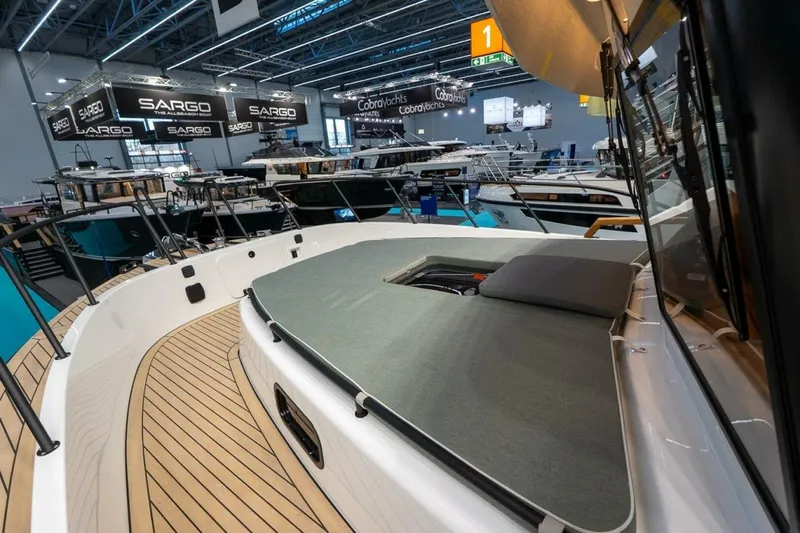

• Sun bathing mattress on CFC-roof, foldable (in combination with CFC)
• Cushions 3 pcs for aft deck seats, removable
• Back rest cushions for aft deck corner seats, removable
• Deck chairs 3 pcs with storage under STBRD side engine room hatch
• Black Line "mask" - black window frames with black tape between front & side windows
• Black Line complete - Black Line "mask" (A.15.a) with exterior s/s parts powder coated black

Interior: Pilothouse, Aft Cabin, 'Owners Cabin', & Fore Cabin

• Angled teak box for plotter in front of steering wheel (double price for 2 pcs of plotters)
• Carpet beige with trim in pilothouse & aft cabin (in addition to std carpet in "owner's cabin" & fore cabin)

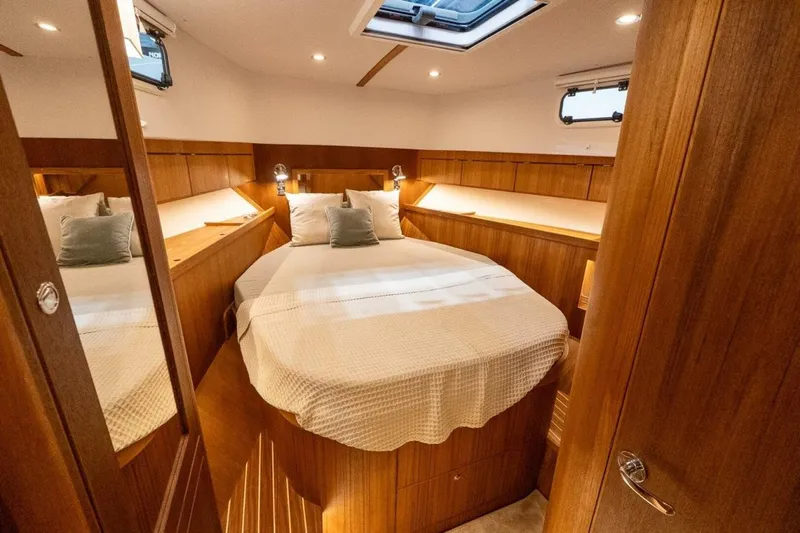

• Sleeping mattress & sheet for double berth in "owner's cabin" (on top of std spring mattress)
• Sleeping mattress & sheet for double berth in fore cabin (on top of std spring mattress)
• Pleated fabric blinds for side windows, aft of side doors (instead of std curtains)
• "Teak" jalousie for side windows, aft of side doors (instead of std curtains)

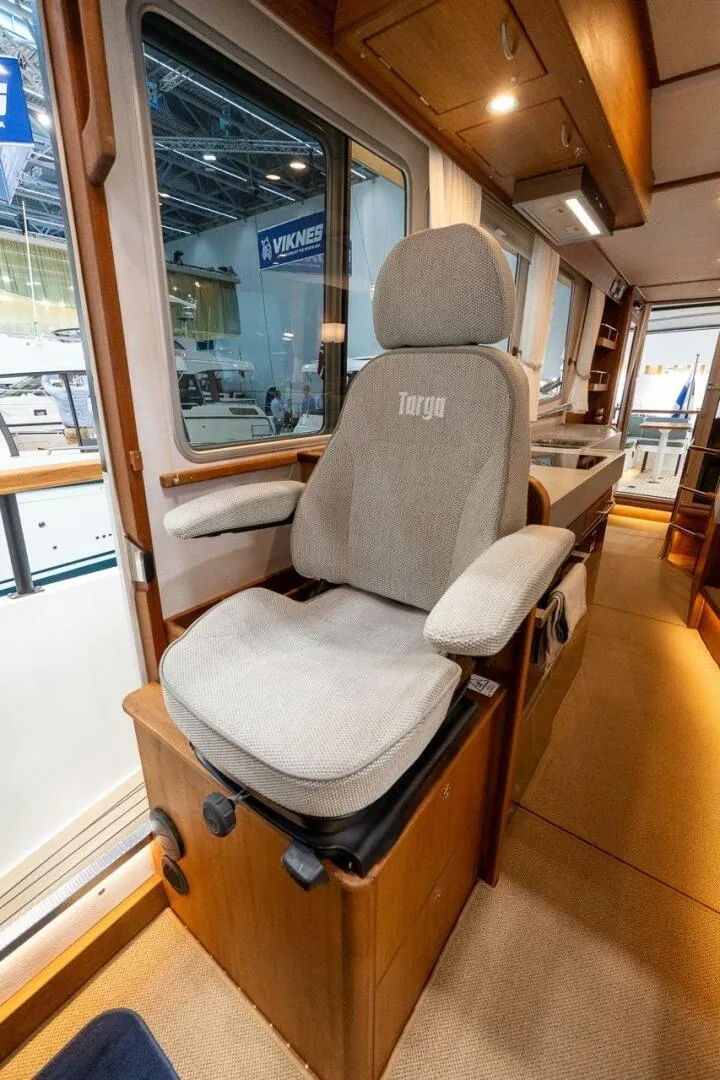

• Damped driver's chair KAB Sentinel mechanical 60 mm damping (instead of std chair)
• Damped driver's chair KAB 524 mechanical 100 mm damping (instead of std chair)
• Damped driver's chair KAB 856 Air 100+60 mm damping (instead of std chair)
• Damped driver's chair Grammer Avento Premium mechanical 80 mm damping (instead of std chair)
• Arm rests 2 pcs & neck rest for KAB chair
• Arm rests 2 pcs & neck rest for Grammer chair

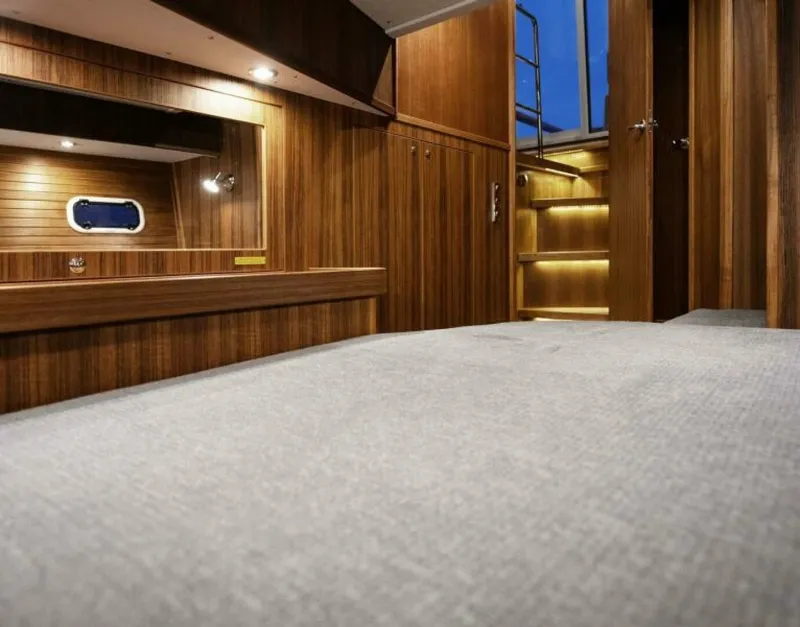

• Teak slats on berth hull sides in "owner's cabin" & aft cabin
• Teak slats on STBRD berth hull side in fore cabin (not in combination with CFC)
• Roof hatch on hinges Lewmar Pilot 60 incl sun shade & mosquito net / 2 pcs
• Contemporary interior

Galley, Water, Heat, & Sanitary

• Salt water pump & tap in galley 7 L/min/1,4 bar (in addition to std fresh water tap)

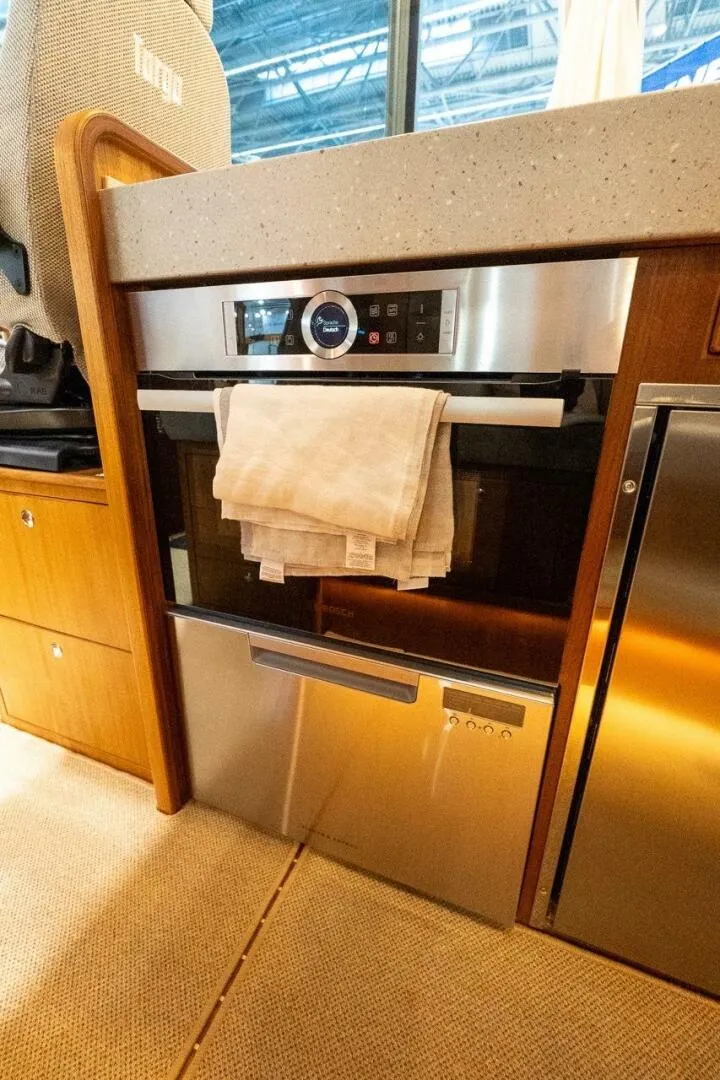

• Dish washer, drawer model

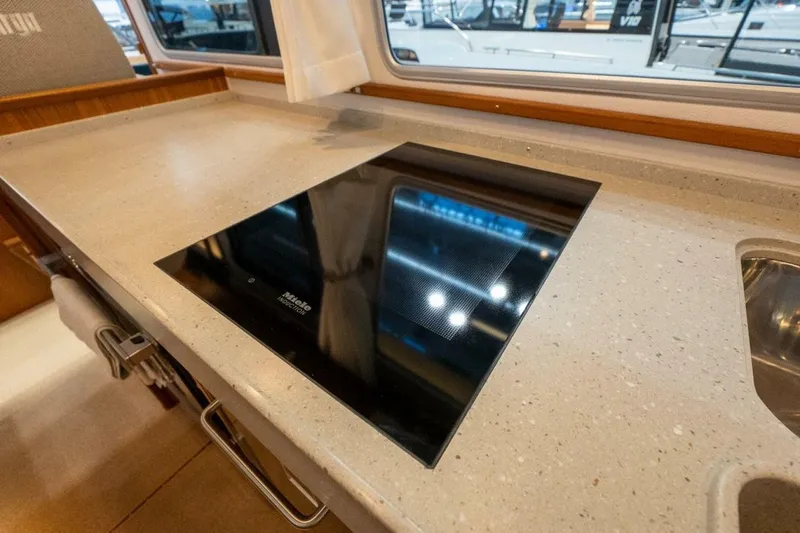

• Electric induction cook-top, two cooking zones, 230 V (instead of std gas cooker)
• Electric oven with grill & microwave oven functions, 230 V (instead of std 230 V micro oven)
• Gas oven (instead of std 230 V micro oven)
• Fridge box with thermostat in "Bridgedeck box"
• Fridge/freezer box with double thermostat in "Bridgedeck box"
• Ice maker "Isotherm"
• Electric towel rack in toilet / pcs (for fore and/or aft cabin toilet)
• Shower & shower curtain in fore cabin toilet (in addition to std bidet shower)
• Radiator heater 250 W/230 V oil filled / pcs (engine room, "owner's cabin" or fore cabin)
• Air condition S, Webasto BlueCool S-13 (13 000 BTU), blower vents in all cabins (extra cost for 3C)
• Air condition M, Webasto BlueCool S-20 (20 000 BTU), blower vents in all cabins (extra cost for 3C)
• Air condition L, Webasto V50 42000 BTU (24000+9000+9000), blower vents in all cabins (extra cost for 3C)

Technical Equipment & 'Various'

• Generator 4 kW, Fischer Panda 5000i.Neo PMS, 2500-3250 RPM
• Generator 6 kW, Fischer Panda 8000i PMS, 2200-2800 RPM
• Double shore power inlets 2 x 16 A incl Mass GI 7 (recommended for AC & electrical pantry equipment)
• Bow lights LED 12V 4W HD, s/s housing (equivalent to ~ 2 x 48 W halogen)
• Mag-Lite hand search light & charger (fitted close to driver's chair)
• LED lights: fore deck, aft deck & side gangways, 14 pcs (in addition to std 2 pcs & LED cables)
• Underwater lights on transom, Lumishore SMX 102, white colour / 2 pcs
• Long range running lights LED round - W-Light Booster 3 x 70 W, Ø 180 mm, on pilothouse roof
• Long range running lights LED - Vision X XPR-12M, 24" (610 mm), 120 W, on pilothouse roof
• Electrical search light Jabsco 255 SL dual beam (instead of std manual search light)
• Water alarm on fuel/water separator / 2 pcs
• Fuel decontaminator (microbe strainer) / 2 pcs
• Active Corrosion Protection (ACP) for DPI
• Active Corrosion Protection (ACP) for IPS (NOTE! Highly recommended by Volvo Penta)
• Anchor winch on transom STBRD electric Engbo Maxi 44 (1000 W) - 50 m rope + roller + 20 kg "Bruce" s/s anchor + panel in pilothouse & on aft deck
• Remote control wireless for anchor winch & bow thruster

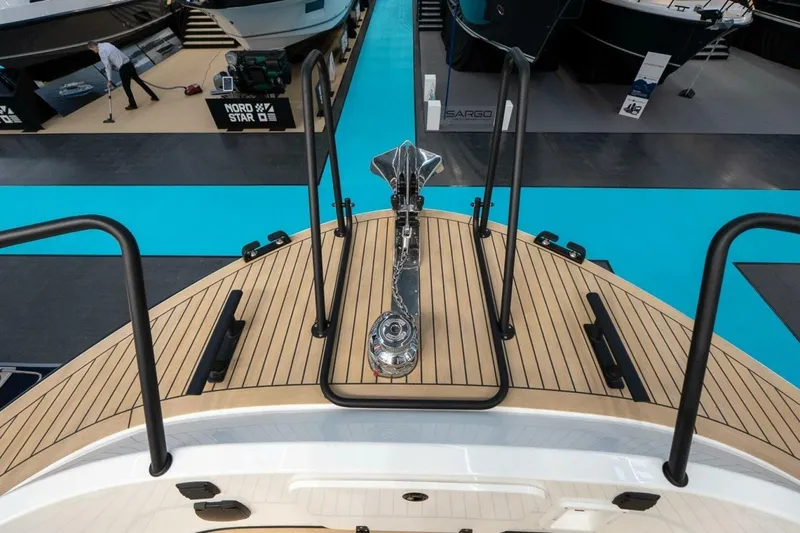

• Anchor winch on bow STBRD electric Lewmar V3 Gypsy/drum (1000 W) - 8 m s/s chain/40 m rope + roller + 20 kg "Delta" galvanized anchor + panel in pilothouse & on fore deck
• Upgrade to s/s Lewmar DTX anchor 20 kg (see D.12.c)
• Mooring winch electric Lewmar C3 Capstans (1000 W) incl foot pedals (for fore and/or aft deck)
• Belt roll "Ankarolina" (2,5 ton) 24 m fitted in aft deck locker/seat / pcs
• Lifebuoy model "Lifesaver" / pcs
• Life raft 6 person, ISO 9650 Type 2
• Life raft 8 person, ISO 9650 Type 2
• Propeller holder fitted in engine room
• Propeller pair "H" for VP DPI
• Propeller pair "T" for VP IPS
• Electric crane on "Hard Top" roof e.g. for dinghy, maximum lifting capacity 80 kg

Flybridge Options

• Panel for electrical winch on transom (D.11)
• Panel for electrical winch on bow (D.12)
• Jeepscreen full width foldable extra windshield incl "wind skirt"
• Side window/windshield for jeepscreen (see E.5.a)
• Bimini top, off-white

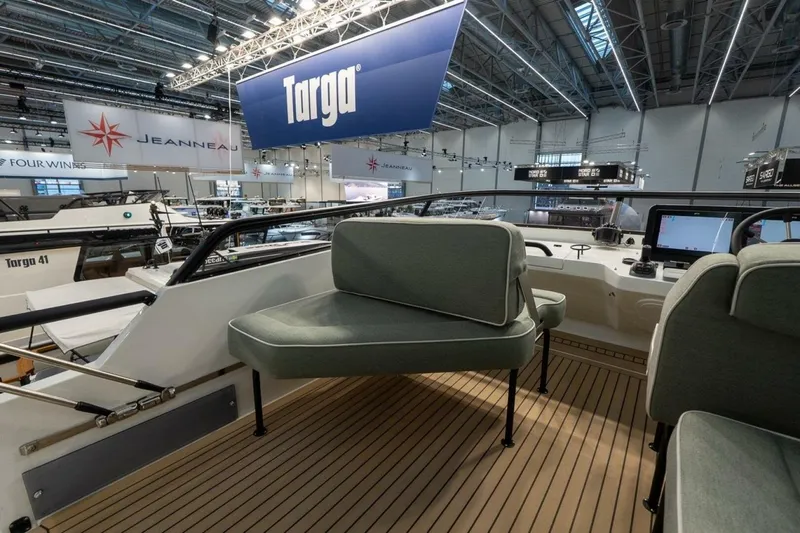

• "Nauti" driver's chair & "Nauti" passenger sofas (incl chair covers off white)
• "Nauti" driver's chair, "Nauti" passenger sofa & L-passenger sofa (incl chair covers off white)
• Teak slats behind chairs & sofa (only in combination with std glass fiber seats)
