The new 231 Bay Fox brings back the Bay boat line up with new innovative technology.

Bow:

• Stainless Steel Bow Eye
  • with chafe plate
• Anchor Compartment
  • with rope storage locker
• Trolling Motor Outlet & Harness
  • 12/24/36 volt
• LED Navigation Lights
• LED Livewell Light
• Large Casting Deck

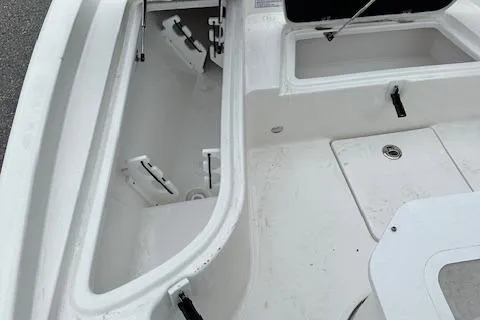

• Insulated Bow Storage Boxes
• Rod Storage Lockers
  • port and starboard

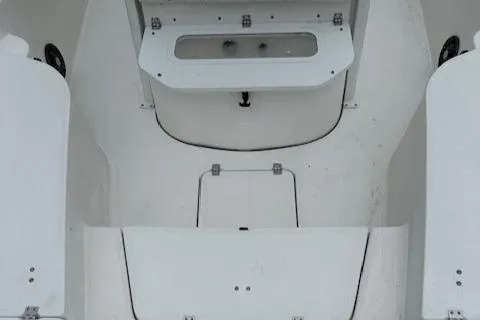

• In-floor Storage
  • with five gallon bucket
• Forward Console Seating
  • with contoured backrest
• Console Livewell
  • ten gallons
  • 800 GPH aerator
• Livewell Lid Window

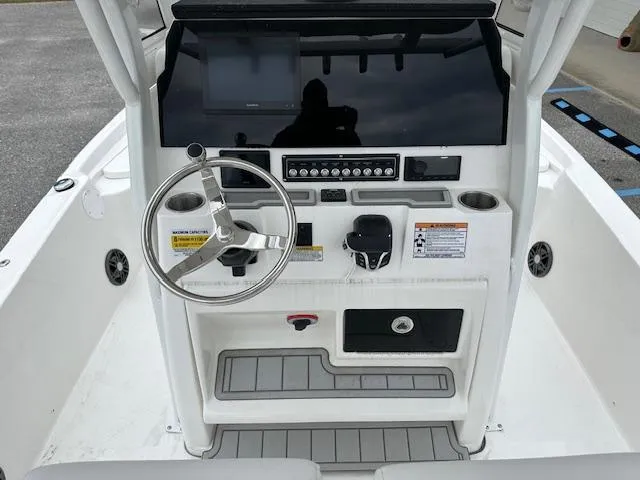

Helm:

• For Yamaha Mechanical Motors:
  • two digital gauges with backlighting
  • tachometer and speedometer with volt, fuel, and push button functions
• For Yamaha Digital Motors:
  • multifunction instrumentation with tachometer, speedometer, volt, fuel, and fuel management functions
  • display may vary with availability
• Acrylic Dash
• Fusion Stereo
  • with USB adapter
• Six Fusion Speakers in Deck
• Windscreen
• Top Mount Compass on Console
• Console Dash Shroud
• Dash Space for Flush Electronics
  • compatible for two 12" displays
• Stainless Steel Steering Wheel
  • with turning knob
• Lockable Console Door
• Horn
• Console Handrails
• Integrated Console Footrest
• 12-volt Power Point
• Battery Switch
• Console Courtesy Lights
• Pre-rigging for Two Batteries
• Portable Toilet
• Marine Grade Soft Mat Decking
  • and console accents
• Easy Access Battery Compartment
  • holds up to six batteries

Cockpit:

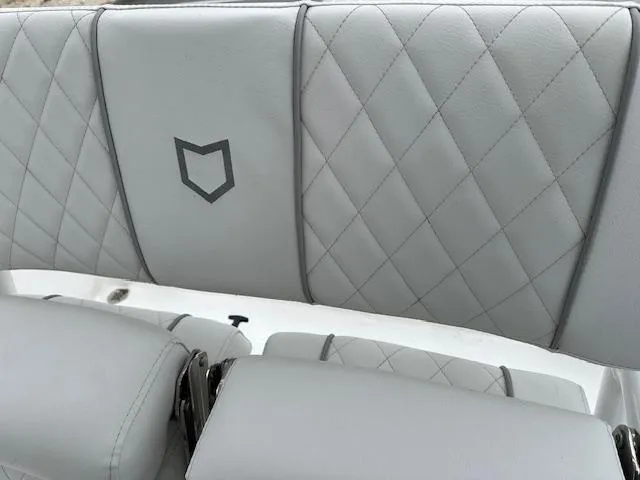

• Leaning Post Helm Seating
  • backrest
  • hinged bolsters
• 65-Quart Premium Cooler
  • stainless steel strapdown hardware
• Stainless Steel Compression Latches
• Six Cup Holders
• Four Stainless Steel Rod Holders

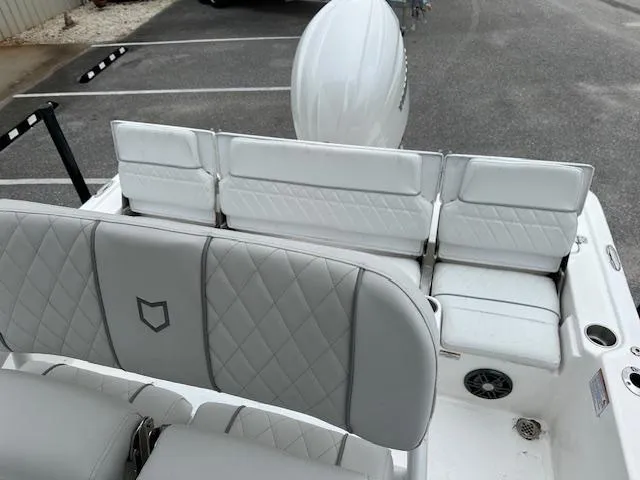

• Aft Bench Seat
  • easy access hinged cushions
• Self Bailing Cockpit
  • stainless steel grates
• Transom Livewell
  • 26 gallons
  • 800 GPH aerator
• Livewell Light

Transom:

• Transom Storage Compartments
  • plumbed and insulated for use as a cooler
• Raw Water Washdown
  • splashwell outlet
• Bulkhead Fittings for Hydraulic Hoses in splashwell
• Stainless Steel Transom Saver
• Stainless Steel Rear Boarding Telescopic Ladders
  • integrated hull platforms
• Marine Grade Soft Mat Decking
  • console accents
• Stainless Steel Through Bolted Grab Rail
• Electric Trim Tabs
• Stainless Steel U-bolts on Port and Starboard Transom

Bilge:

• Marine Fuel/Water Separating Filter
• 1100 GPH Bilge Pumps
  • primary and back up
• Electronic Automatic Float Switch
• Mechanical Float Switch
• Raw Water Pump

Other:

• Composite Hull & Deck
• Isothalic Gelcoat
• Vinyl Ester Barrier Coat
• Sand-grip Deck Surface
• Stainless Steel Rub Rail
• Stainless Steel Fasteners
• Stainless Steel Through Hulls
• Seven Stainless Steel Pull-up Cleats
• Limited Lifetime Hull Warranty

Note: Due to Sea Fox's continuous innovation and improvements, standard features and options can change without notice.

Bridge clearance: based on factory installed Ultima hard top, doesn't factor in optional outriggers

Dry weight is approximate & includes: boat plus factory options, but no motor(s), water, fuel, owner's gear, or batteries

Maximum weight is approximate & includes: boat plus factory options, full fresh water holding & fuel tanks, 2 batteries, but no motor(s

Dimensions

Centerline Length :
22' 4"

Beam :
8'-6"

Bridge Clearance :
94"

Deadrise :
15 degrees

Draft (hull) :
13"

Transom:
25"

Weight

Dry Weight :
2,150 lb

Maximum Weight :
3,146 lb

Capacity

Fuel Capacity :
55 gal

Persons Capacity :
8

Total Capacity :
2100 lbs

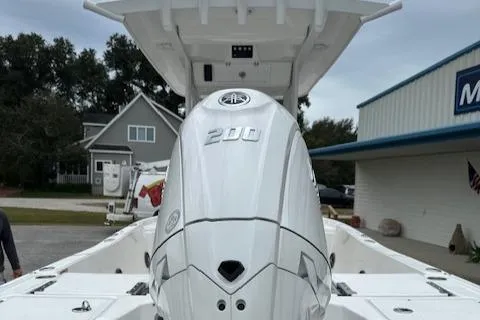

Engines

Maximum Horsepower :
250 hp
