• Length:24' 2"

• Deck Length: 22' 1"

• Deck Width: 8' 6"

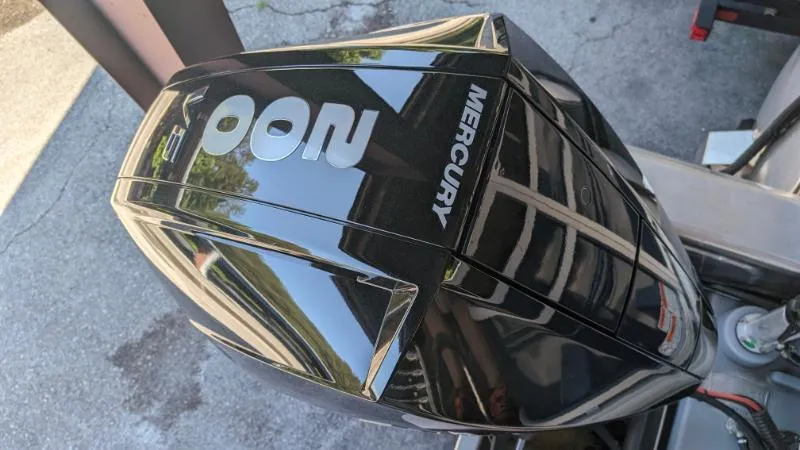

• Max. Recommended HP: 200 HP

• Fuel Capacity: 52 gal.

• Pontoon Log Length: 22' 3"

• Pontoon Log Diameter: 26"

• Pontoon Log Material: 0.1 5052 marine alloy

• Max. Person Capacity: 11 persons

• Max. Person Weight: 1575 lbs.

• Max. Person, Motor & Gear Weight: 2350 lbs.

• Interior Depth: 26"

• Average Dry Weight: 2880 lbs.

• Average Package Weight: 4875 lbs.

• Package Height: 9' 2"

• Package Width: 8' 6"

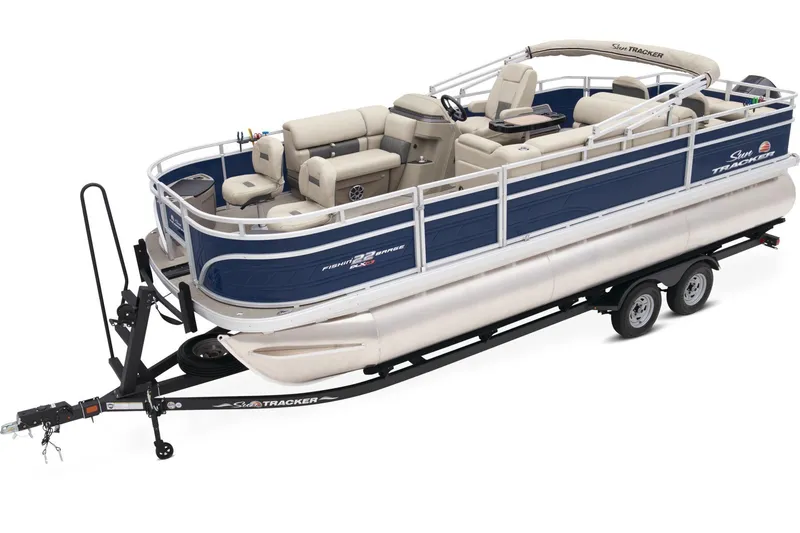

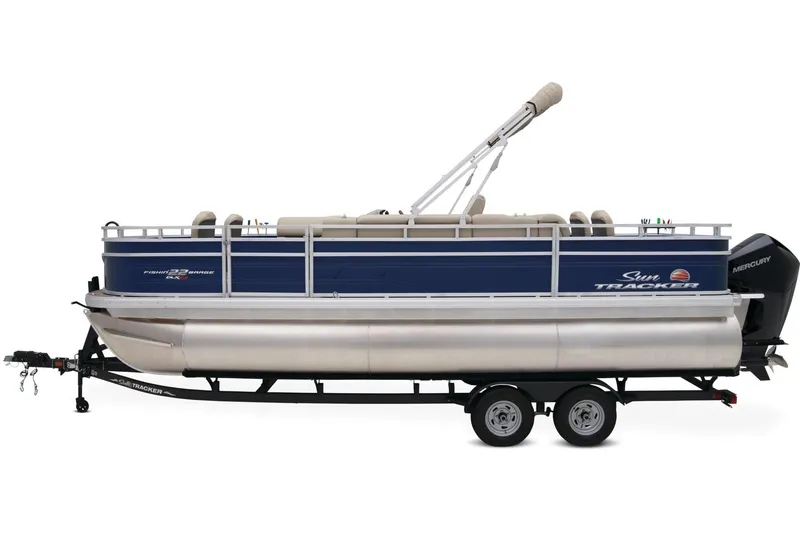

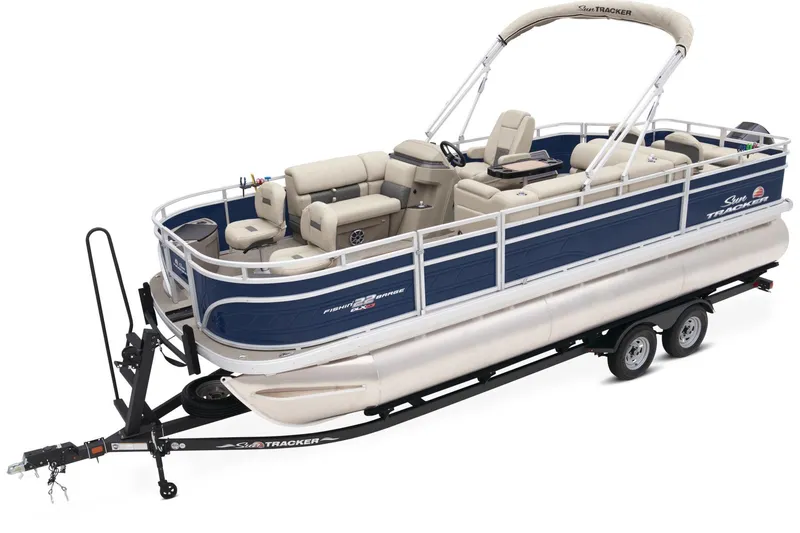

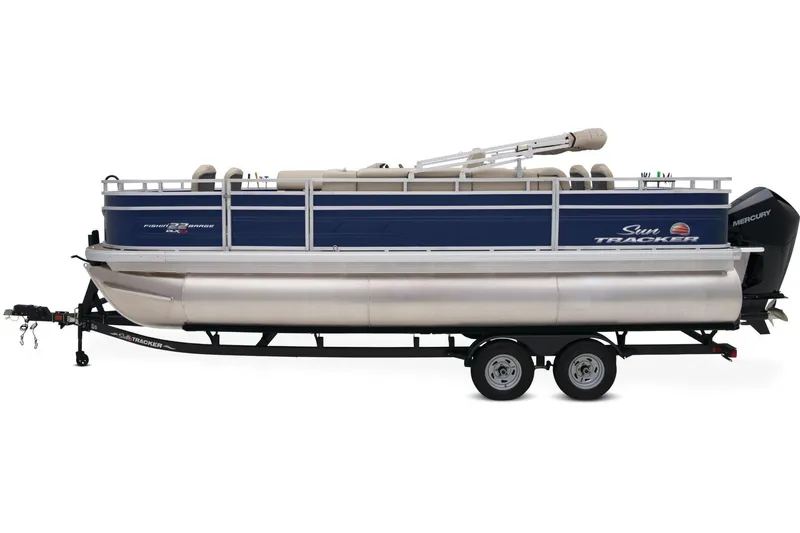

• Towing Length: 32' 4"

• Storage Length: 32' 4"

Comfort, Convenience & Peace of Mind

• 10+LIFE™ Limited Lifetime Warranty
• NMMA® certified

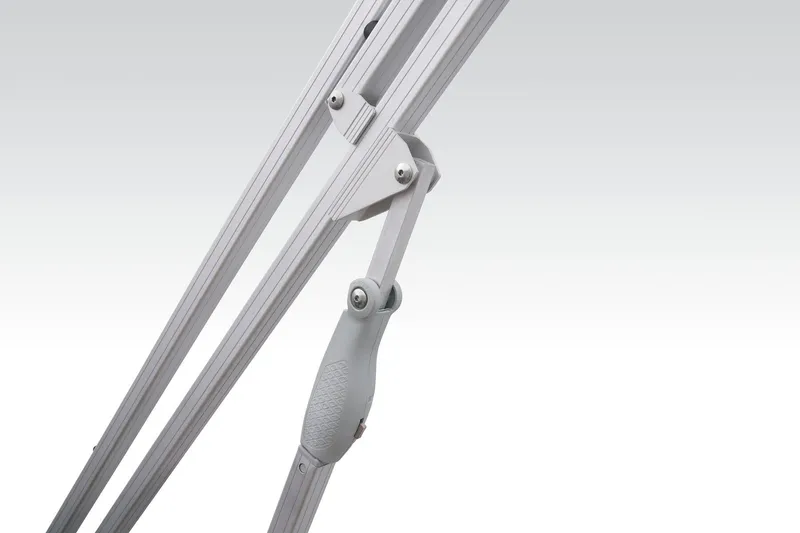

• NEW 10' (3.05 m) SUN TRACKER® QuickLift™ Bimini top w/LED courtesy lights, storage pockets & protective boot (color-coordinated Black w/Charcoal fencing or Sand w/Indigo Blue fencing)

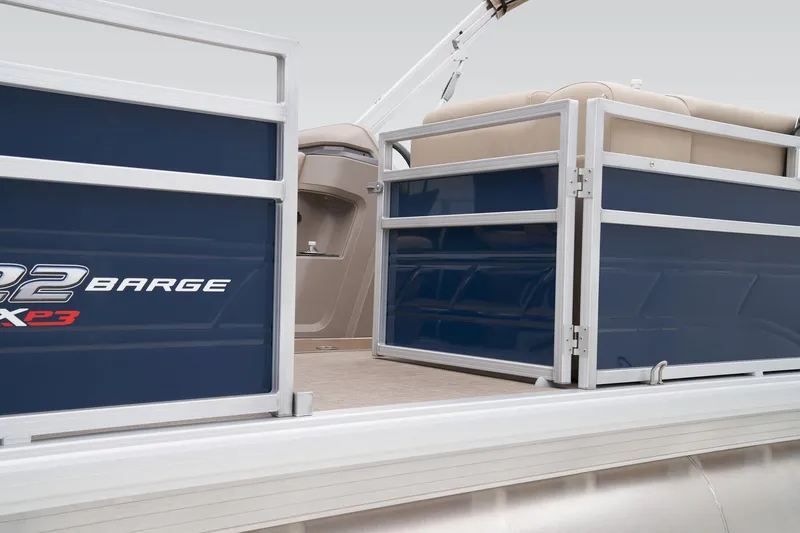

• Nylon gate latches & heavy-duty hinges that open inward

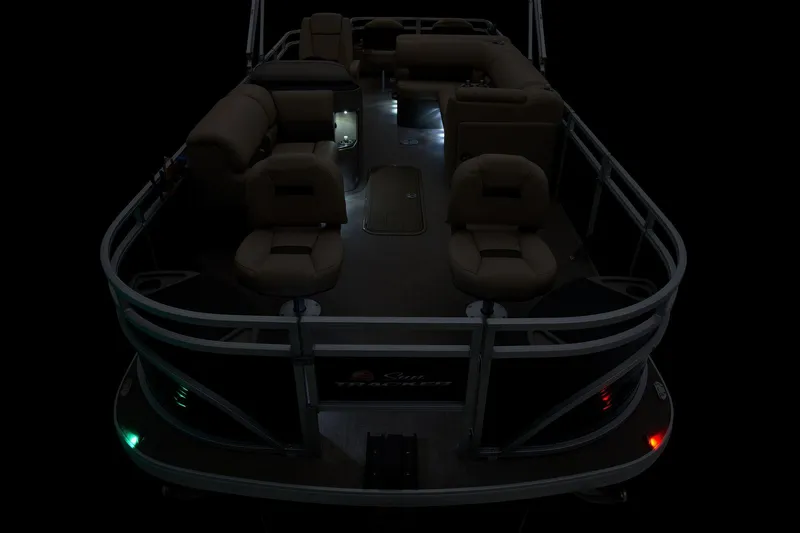

• Built-in LED docking lights

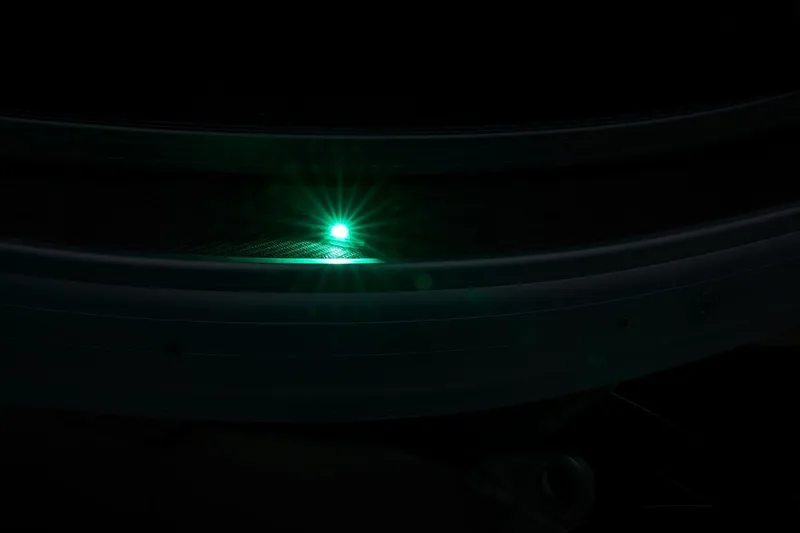

• Built-in LED navigation & anchor lights
• Mooring eye on starboard side for tie off
• 4 fold-down mooring cleats
• Port wheelchair-accessible gate
• Rear boarding platform w/4-step telescoping boarding ladder & grab rails
• NEW aft receptacle base for optional ski tow pylon
• Motor-stop safety lanyard
• Fire extinguisher
• Horn

Livewell System

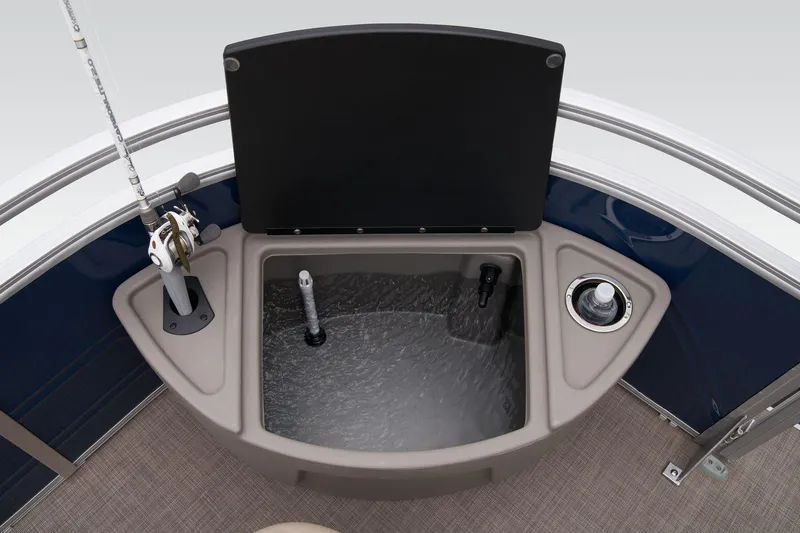

• Bow 16-gal. (60.57 L) aerated livewell w/shutoff valve, drink holder, rod holder & composite lid w/fish ruler
• Aft 16-gal. (60.57 L) aerated livewell w/removable bait bucket & shutoff valve

Console

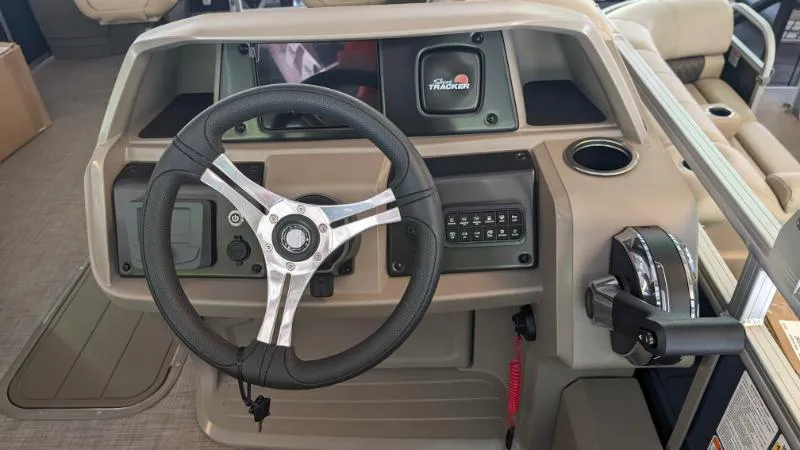

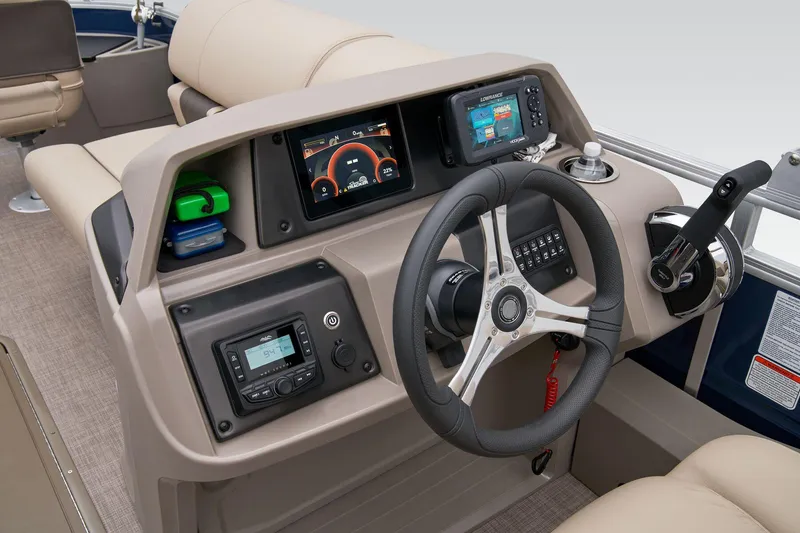

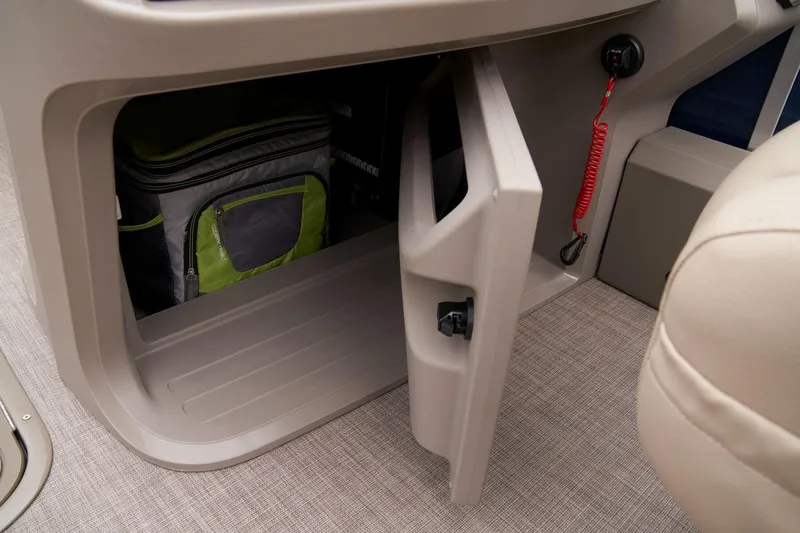

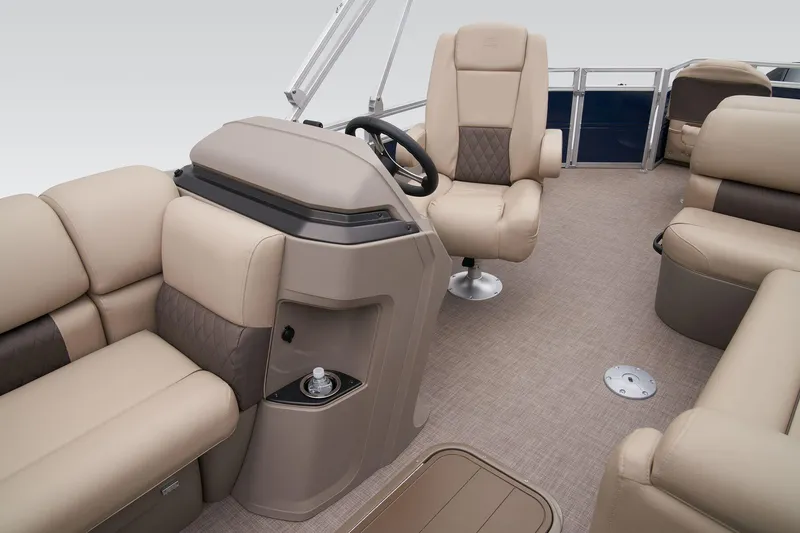

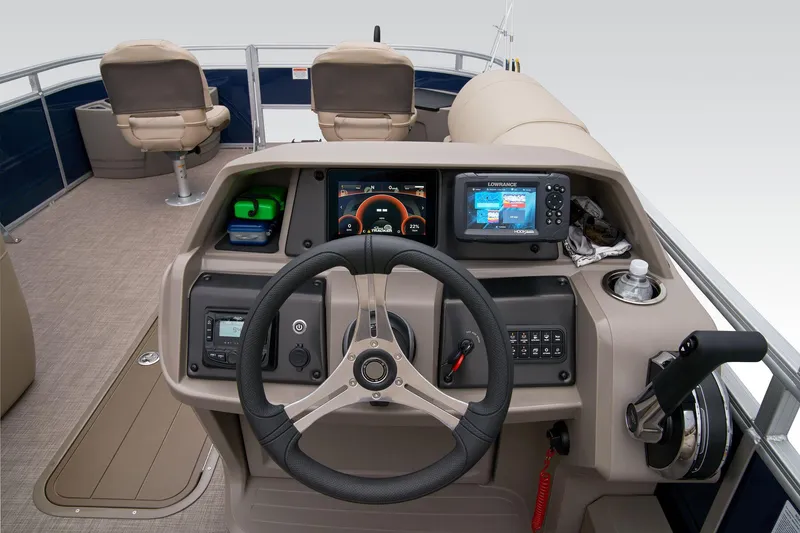

• NEW driver console w/integrated storage, drink holders, built-in footrest & ergonomically-positioned controls

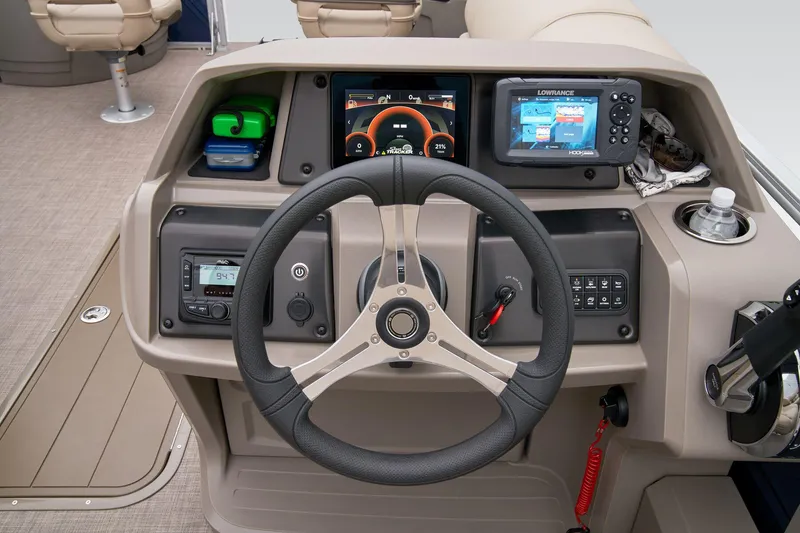

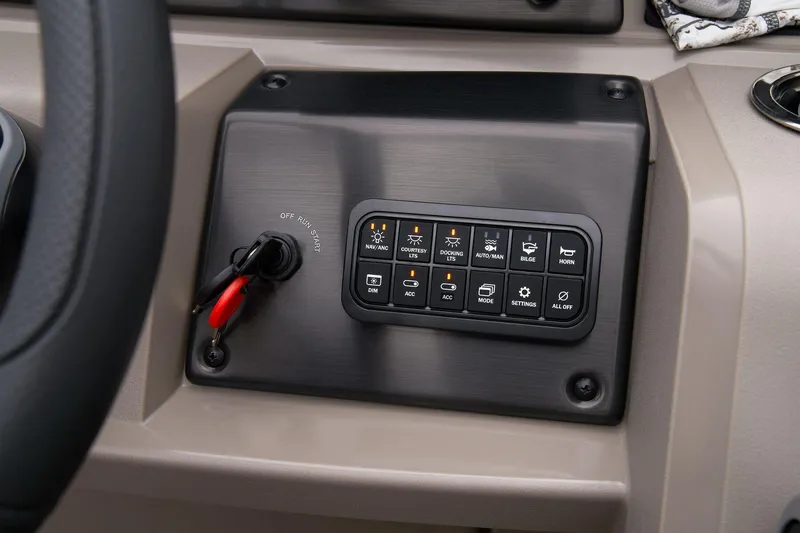

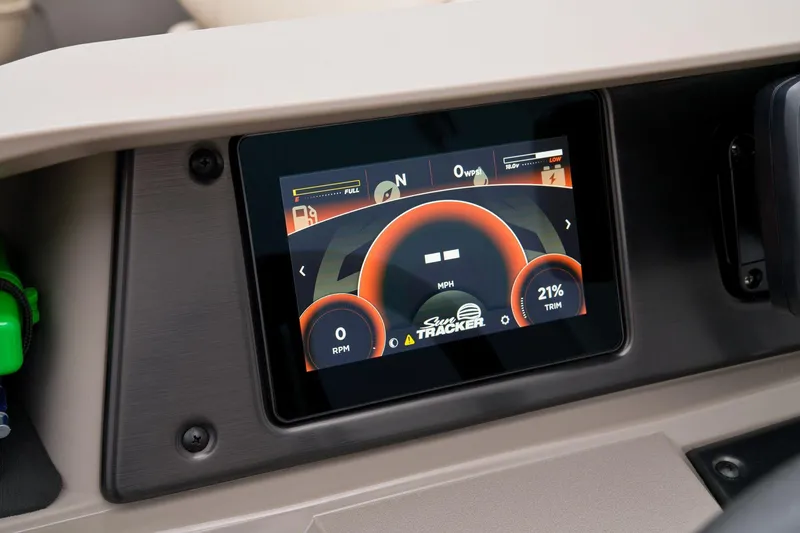

• NEW SUN TRACKER FLARE™ touchscreen gauge display & 12-button switch panel
• Tilt hydraulic steering w/deluxe soft-touch steering wheel

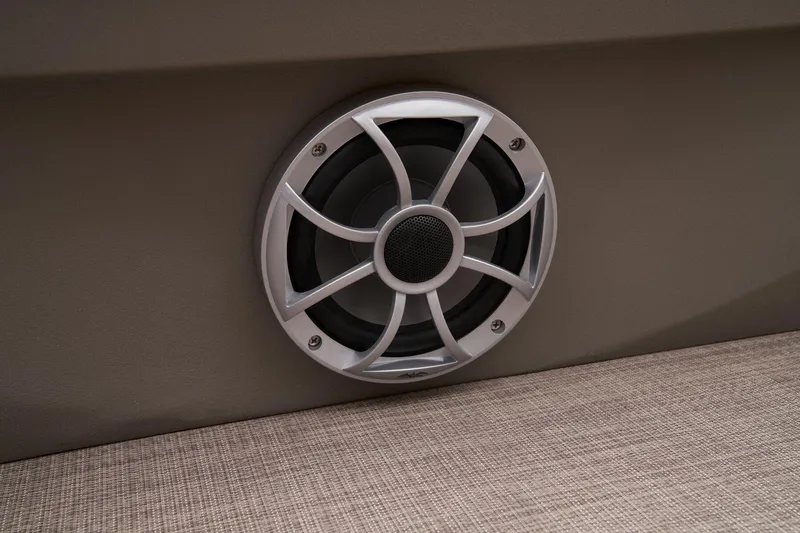

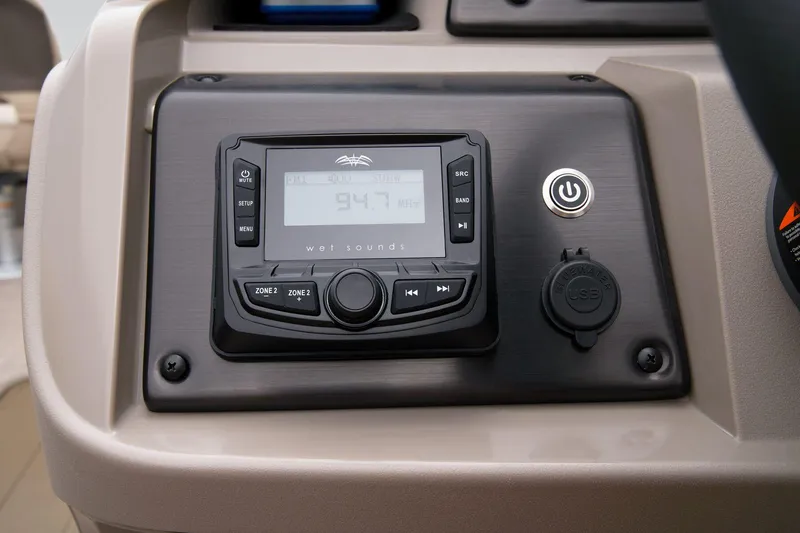

• NEW Wet Sounds® stereo w/Bluetooth® & two 6.5" (16.51 cm) upholstery speakers
• NEW master power on/off switch
• NEW recessed mobile phone cubbies
• USB charging port

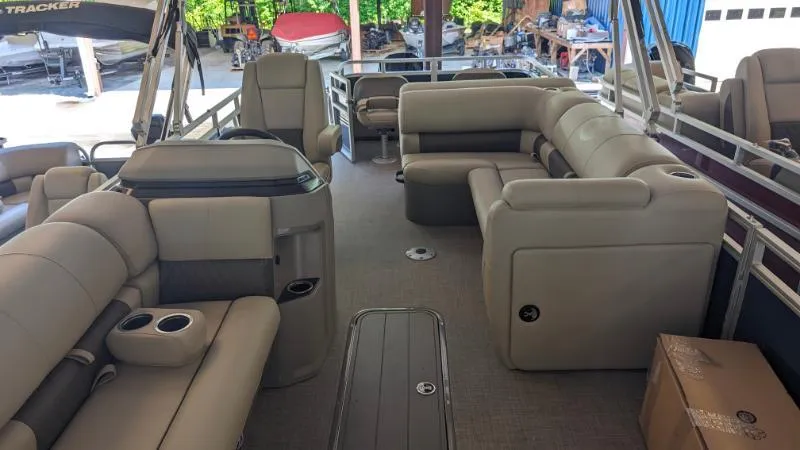

Interior

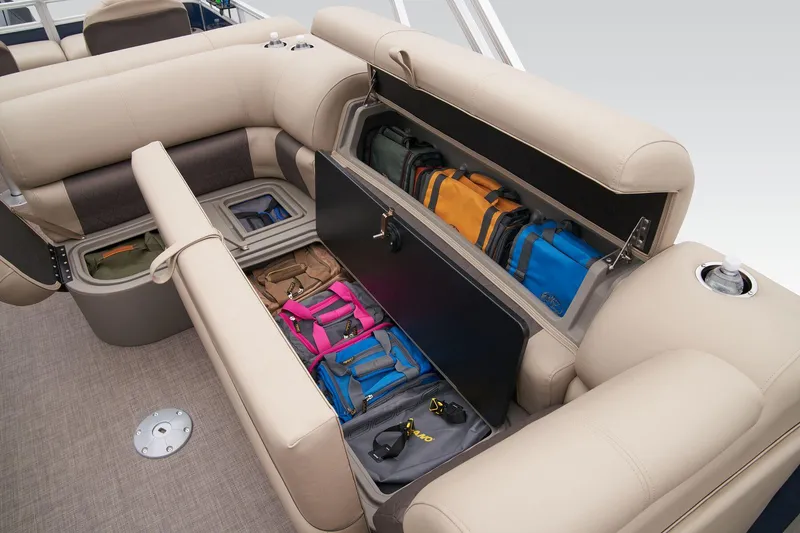

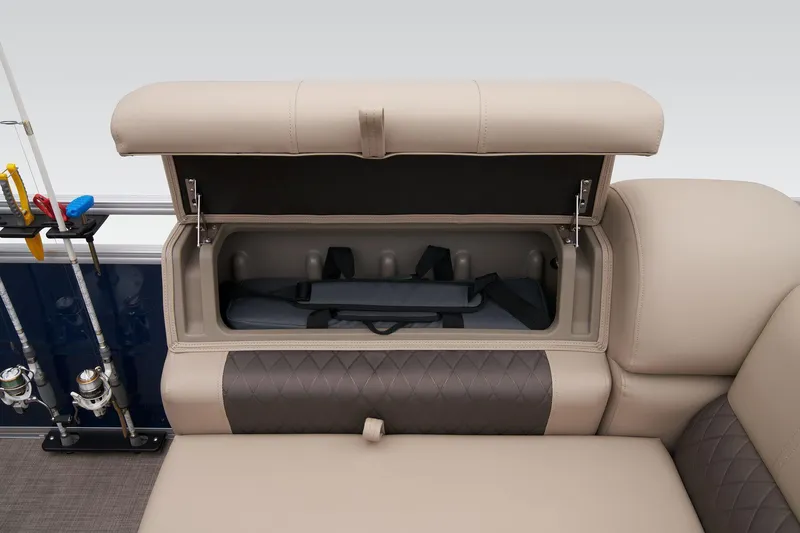

• Patented built-in STOW MORE™ seat-back storage system for all couches

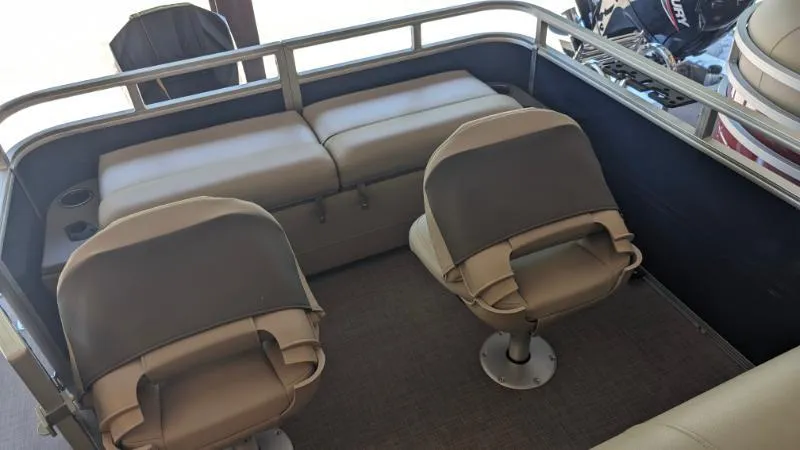

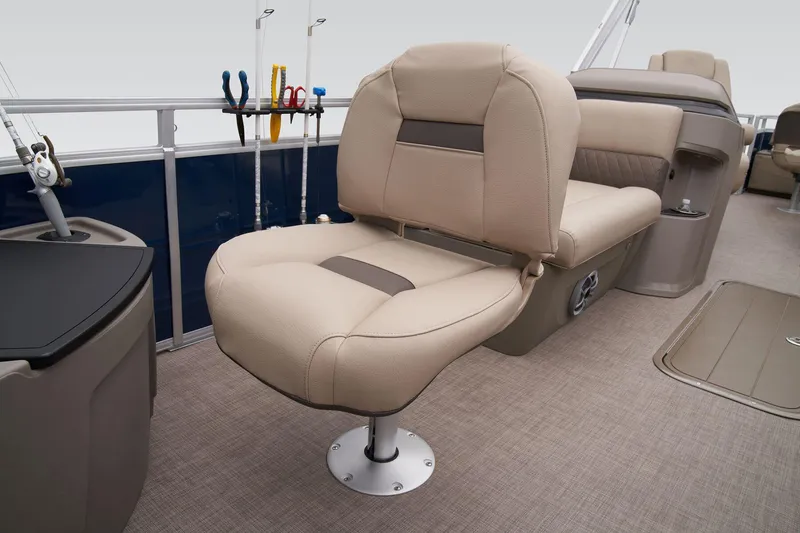

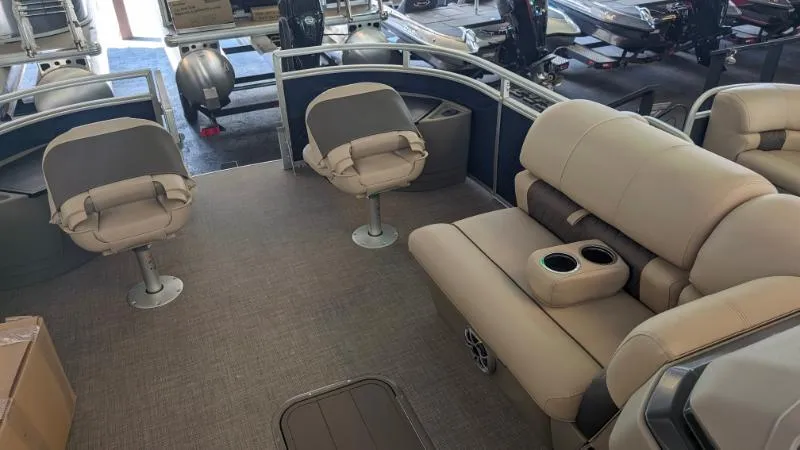

• 4 removable & folding fishing chairs w/heavy-duty 2-3/8" (6 cm) diameter pedestals

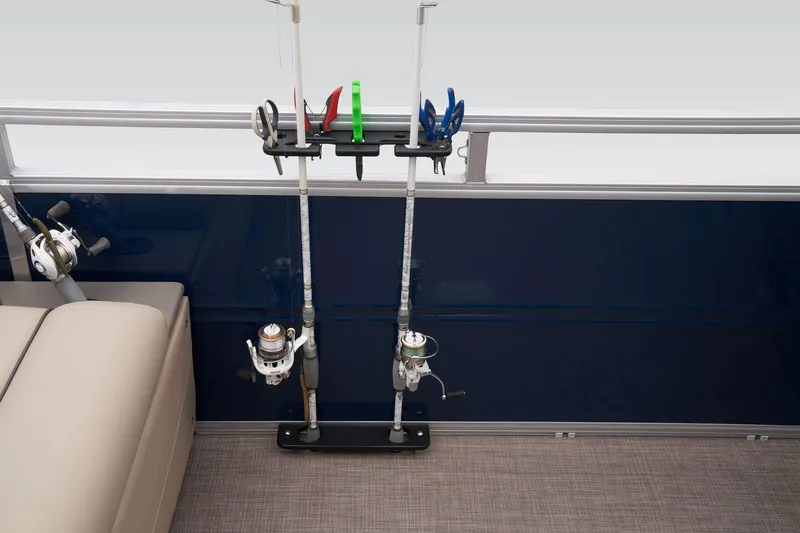

• Front fishing station w/2 pedestal seat bases; rail-mounted rod & tool holders; & starboard bow storage compartment w/drink holder, rod holder & composite lid w/fish ruler

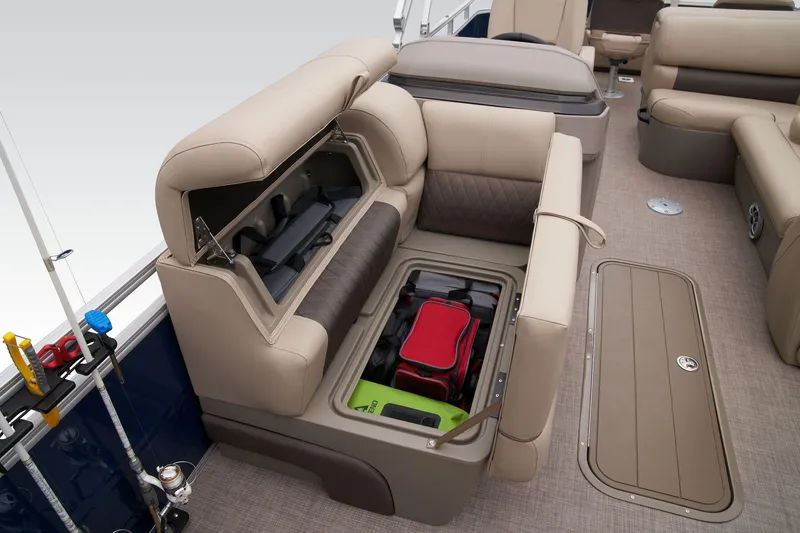

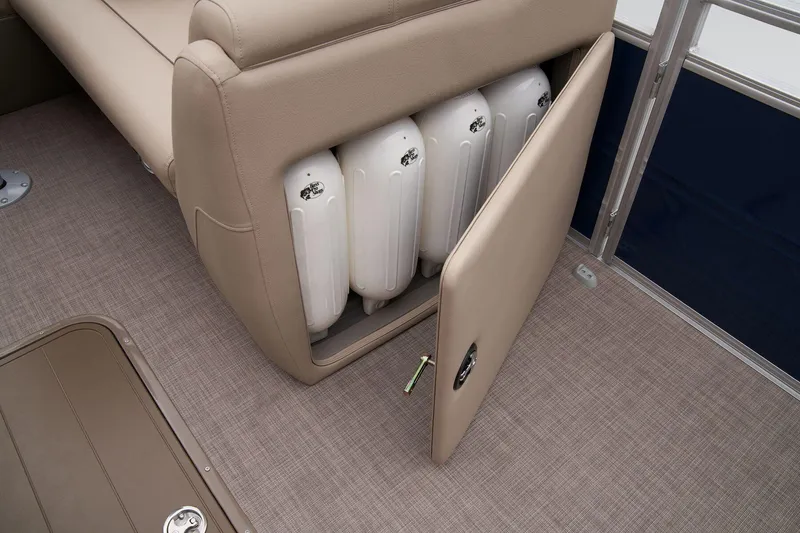

• Starboard console couch w/STOW MORE™ & underseat, lockable storage

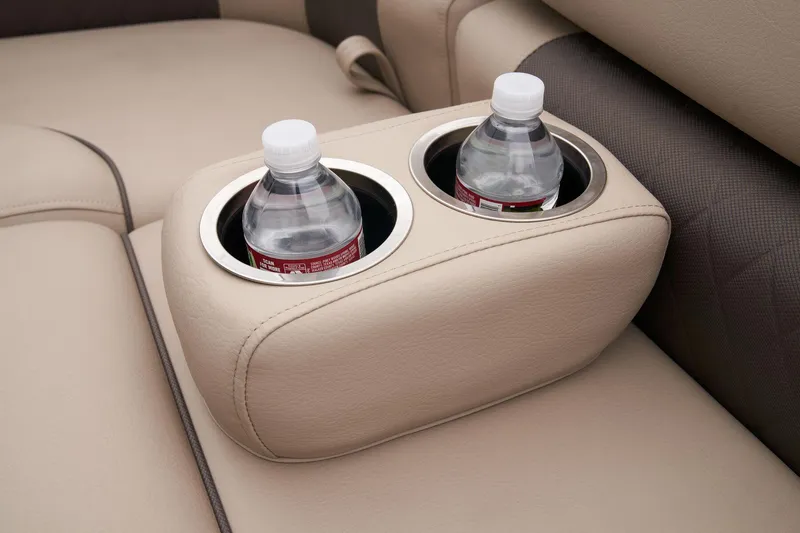

• Movable drink holder/armrest for couch seating

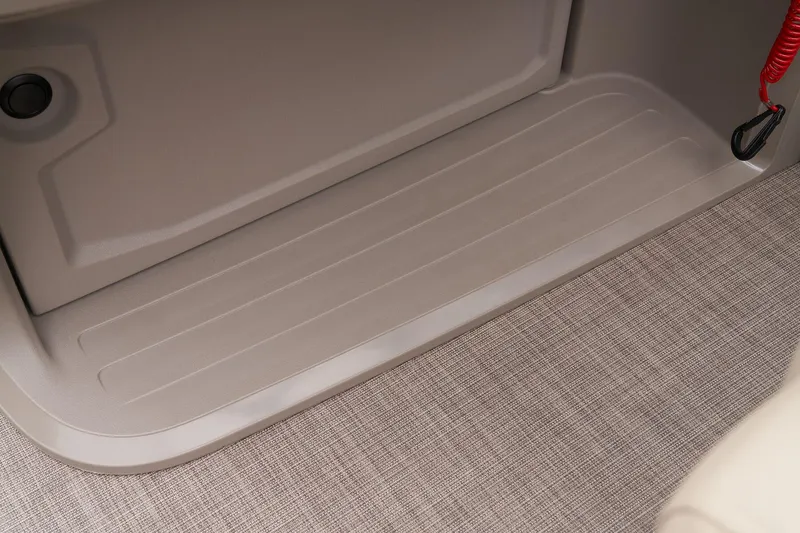

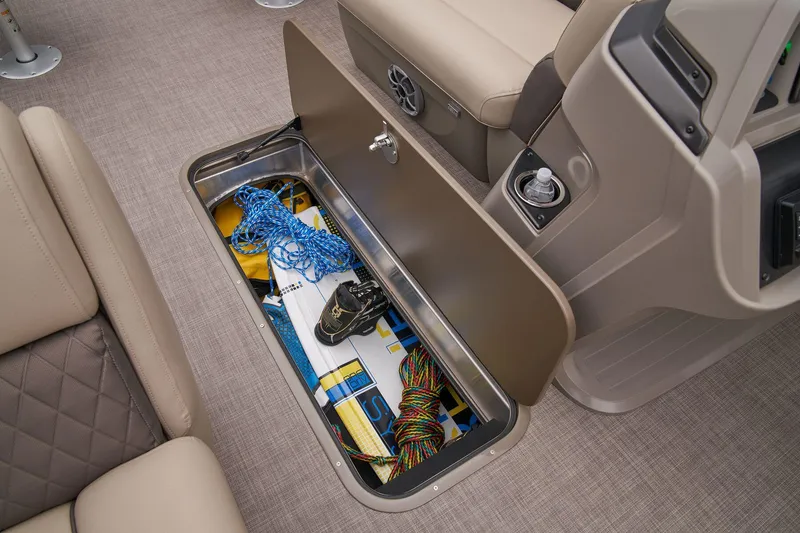

• 88" (2.24 m) long, 23" (58.42 cm) deep lighted in-floor storage compartment w/bilge pump in center log

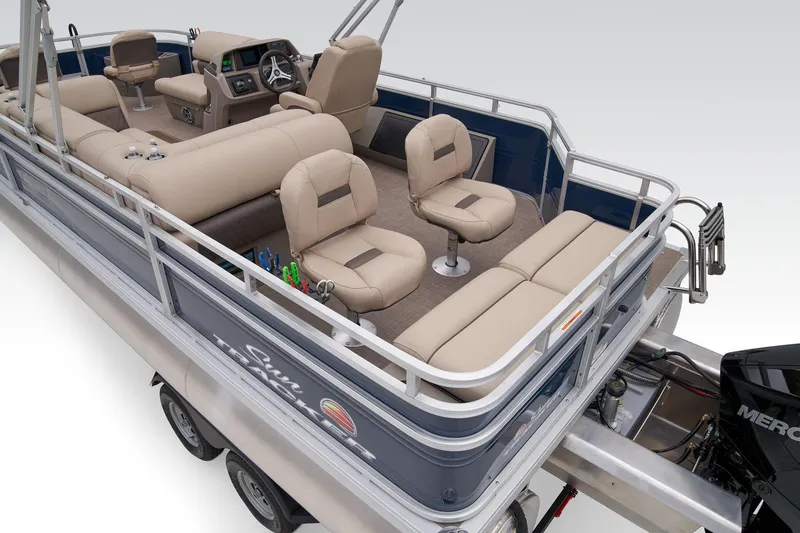

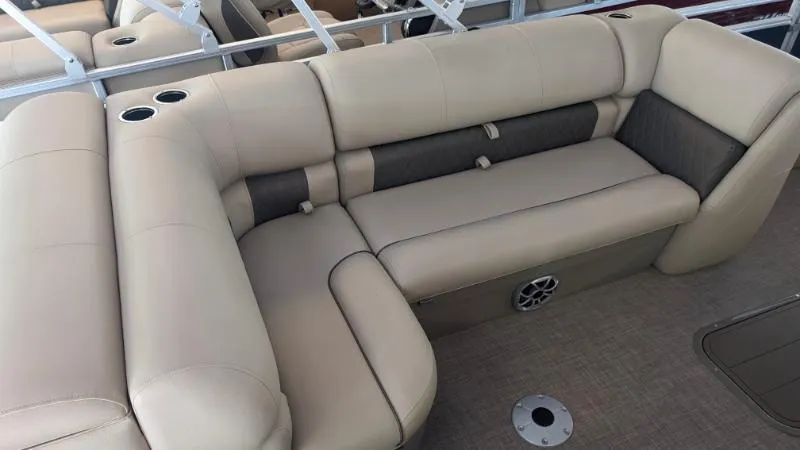

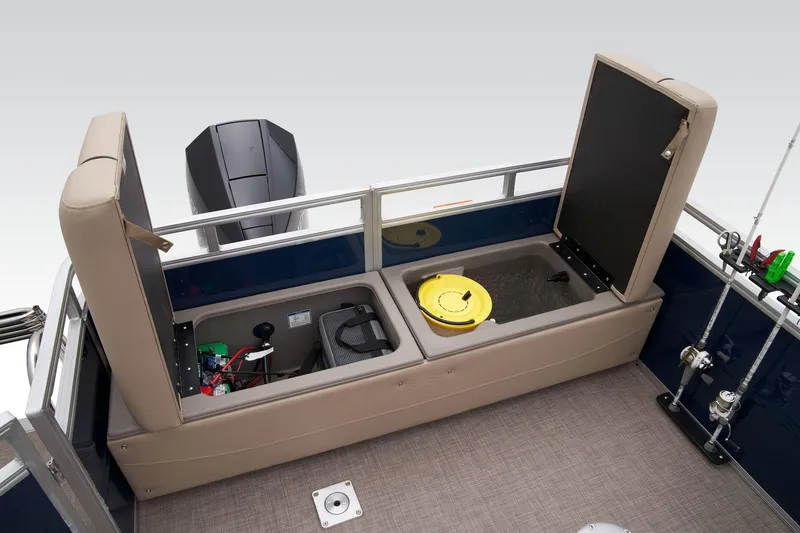

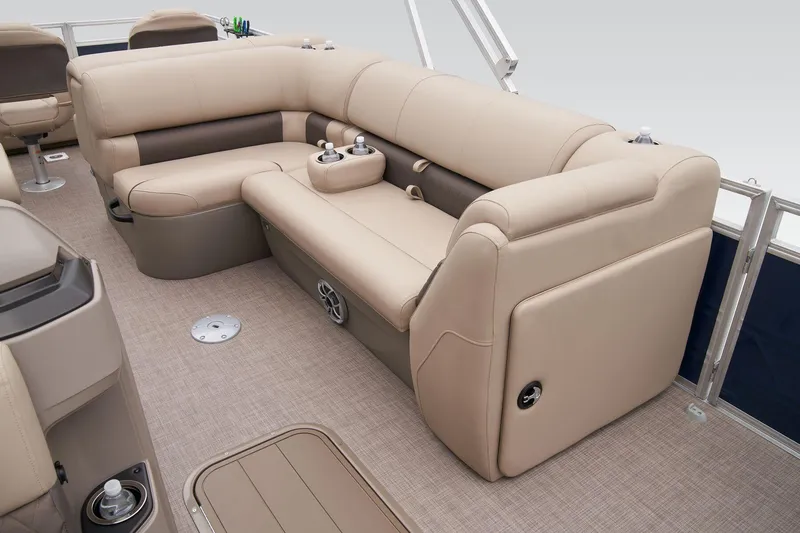

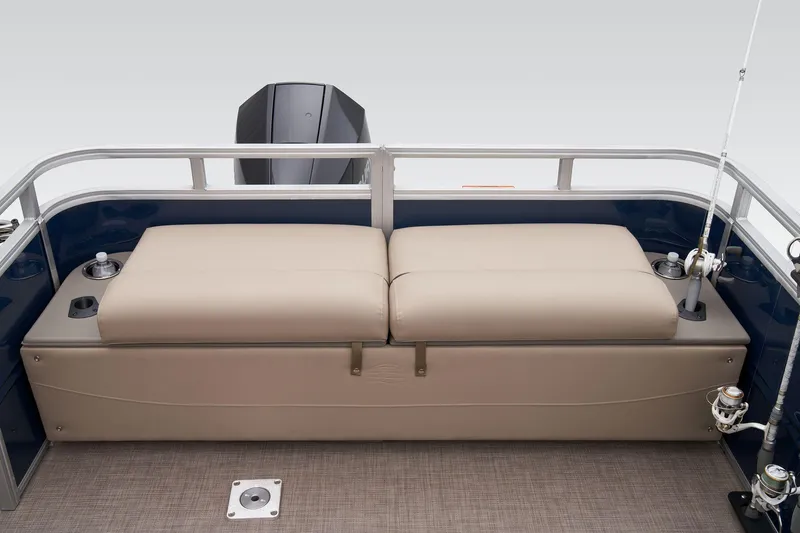

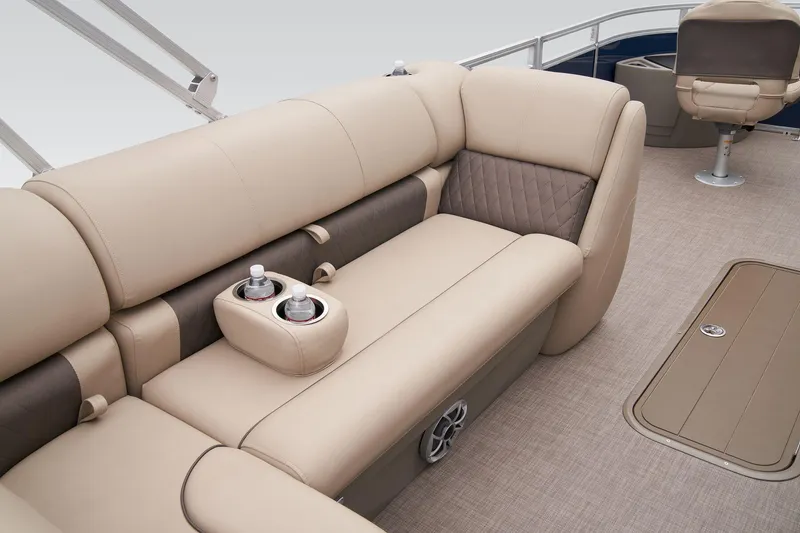

• Aft L-lounge couches w/STOW MORE™ & underseat storage

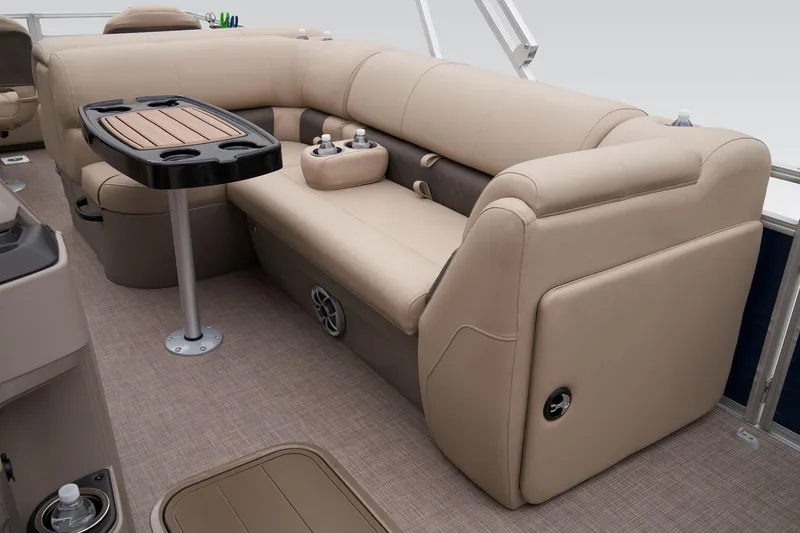

• Removable table w/soft-touch insert, 4 molded-in drink holders & 2 pedestal base locations

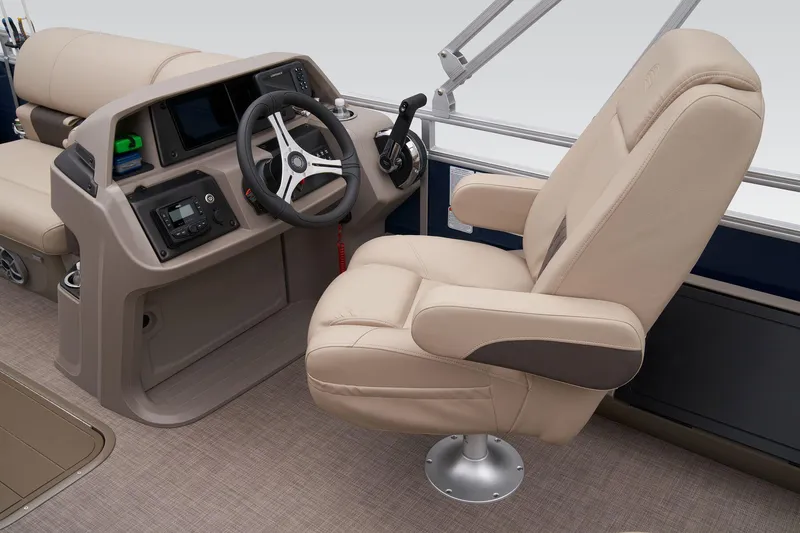

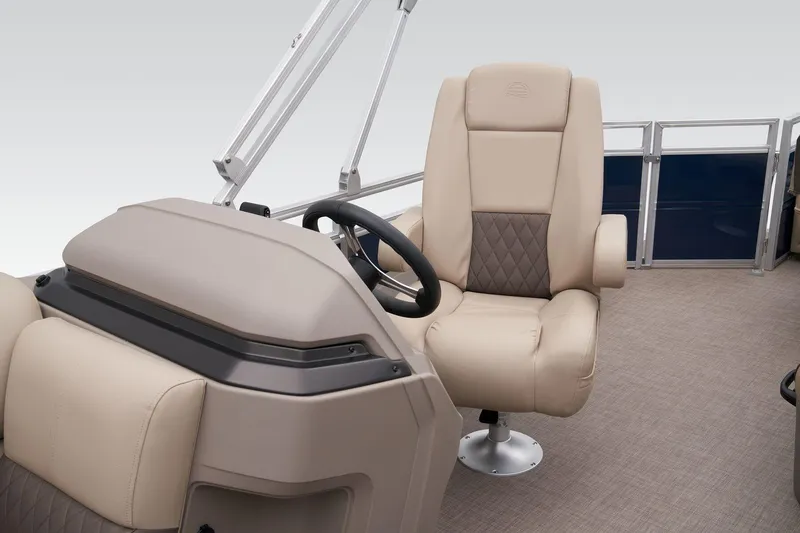

• Reclining, high-back swiveling helm bucket seat w/self-leveling armrests

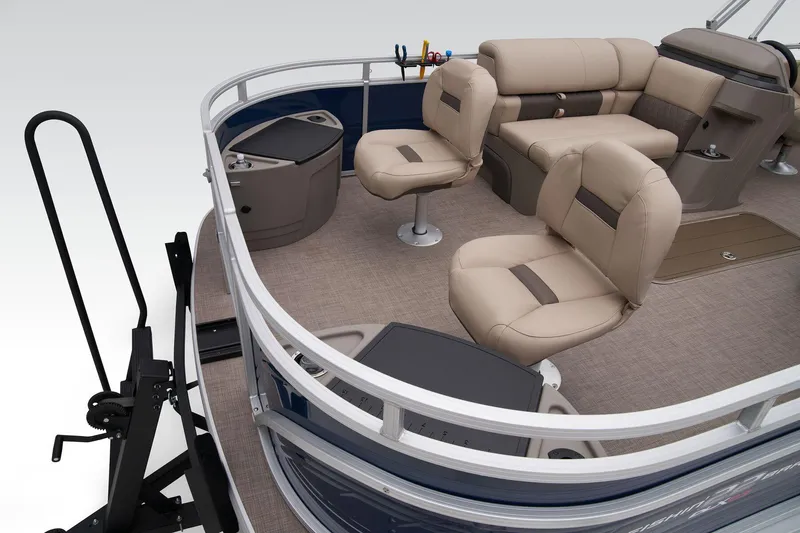

• Aft fishing station w/2 pedestal seat bases; rail-mounted rod & tool holders; STOW MORE™ tackle storage station; & rear-facing tackle storage

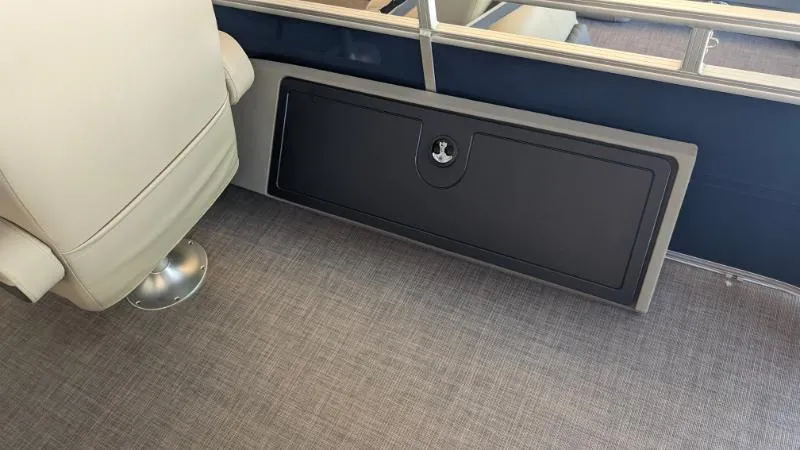

• Aft starboard lockable rod box for 6 rods to 7' 6" (2.29 m) w/lid, rod tube holders & organizer

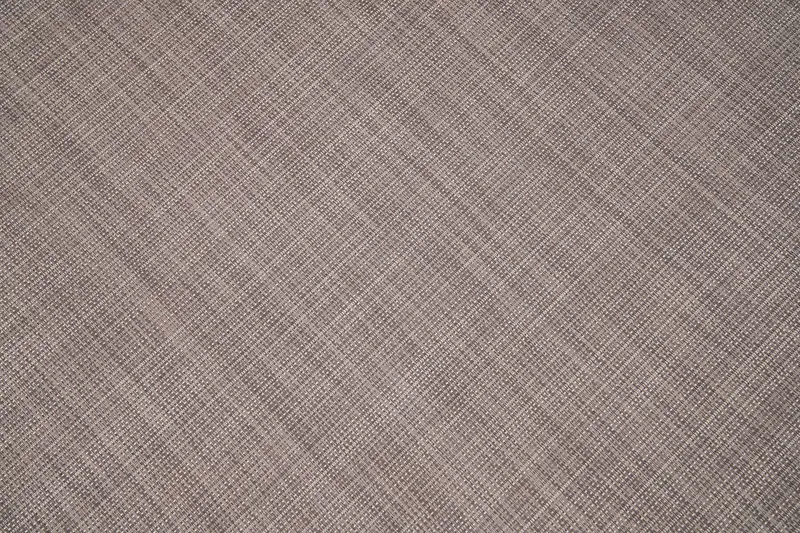

• Woven 16-oz. (.45 kg) marine-grade flooring throughout

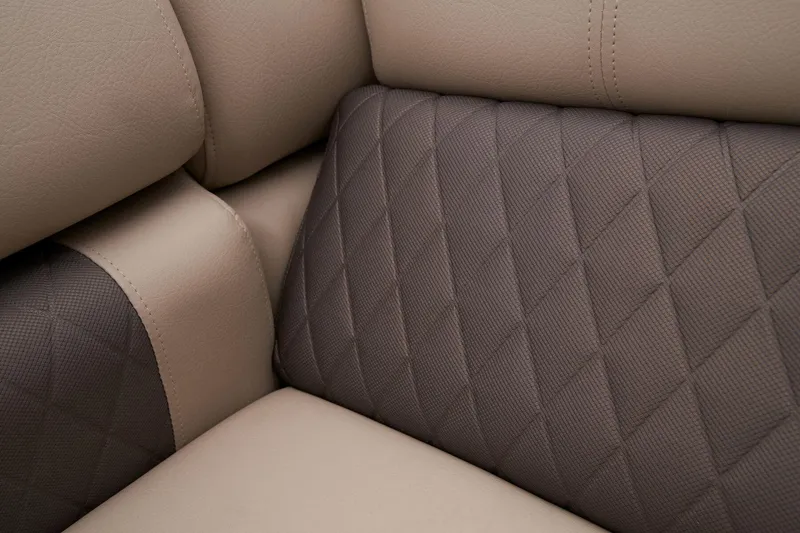

• Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam

Performance

• XP3 performance package – strakes on inboard side of outer logs & both sides of center tube
• Nose cone & motor pod wave/spray deflectors for a drier ride
• Factory-matched aluminum propeller

Construction & Exterior

• Color: Charcoal or Indigo Blue fencing

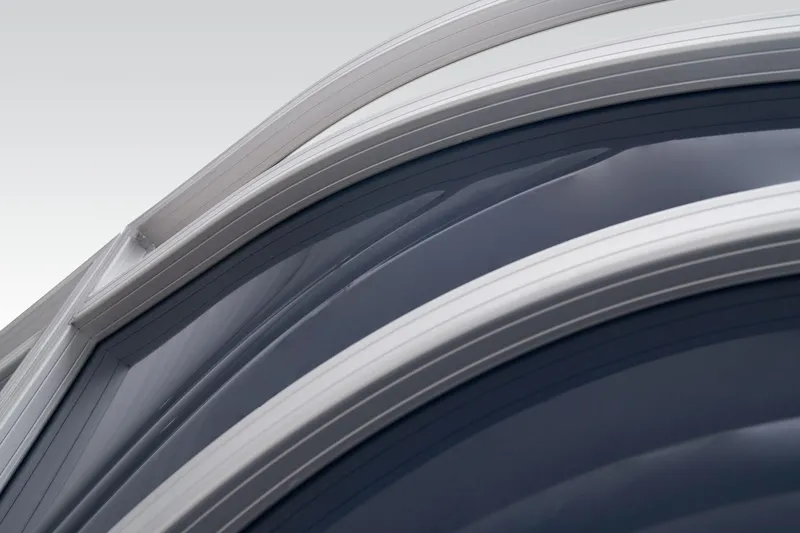

• NEW TRACK FORMED™ fence design w/high-sheen finish for long-lasting cosmetics

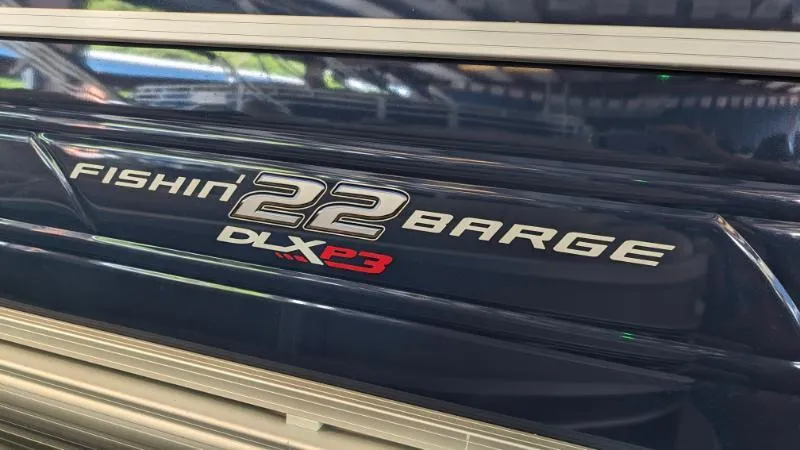

• Exterior styling w/XP3 graphics package
• Precision fit & finish via plasma & laser-cut parts & robotically-welded construction

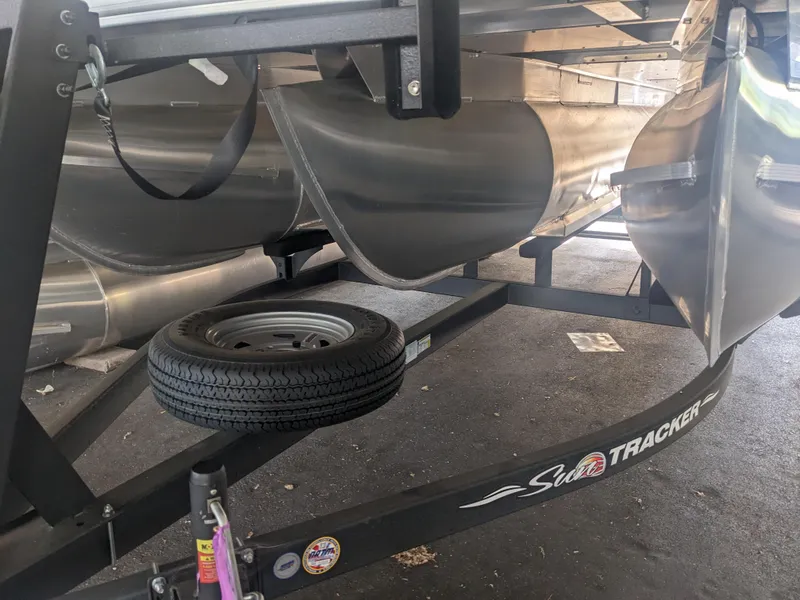

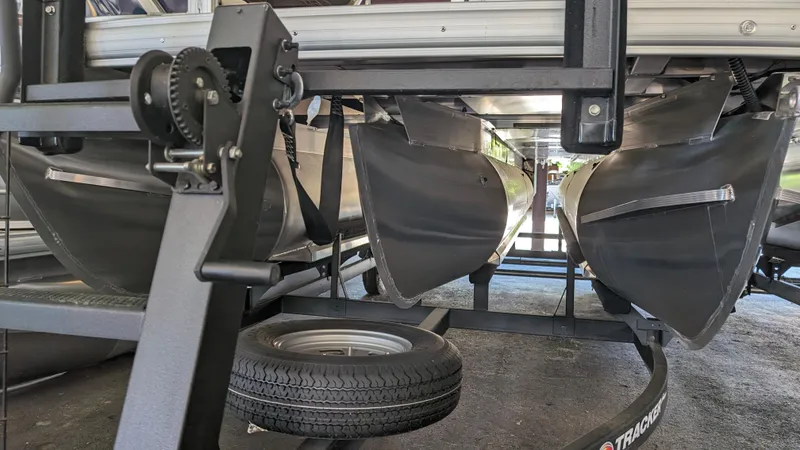

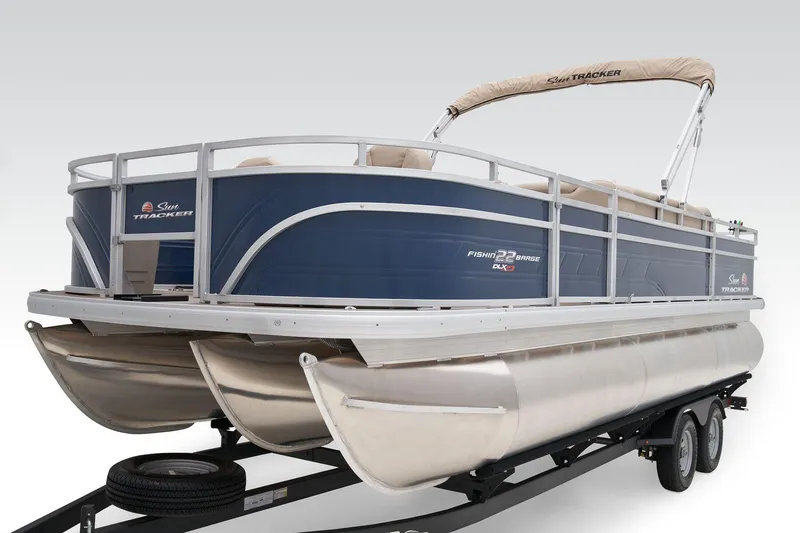

• Three 26" (66.04 cm) diameter XP3 high-performance multichambered pontoons w/welded-on lifting strakes & internal bracing for additional strength
• Factory-installed underpinning (under-deck shielding) for improved performance
• Rotomolded storage, furniture & console for superior strength & longevity
• Full-length, 1-piece longitudinal M-bracket deck supports
• Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets
• Heavy-duty aluminum U-channel reinforcement behind bow deck trim
• Extruded & anodized aluminum deck edging w/polished aft corner covers

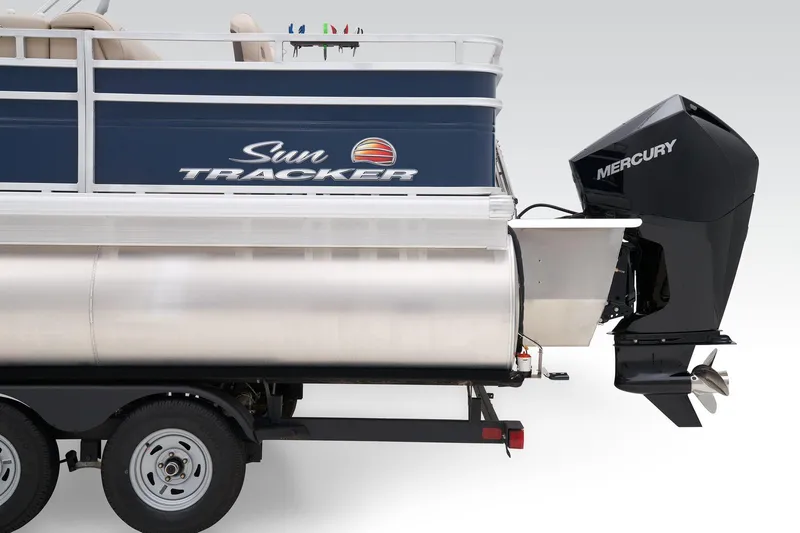

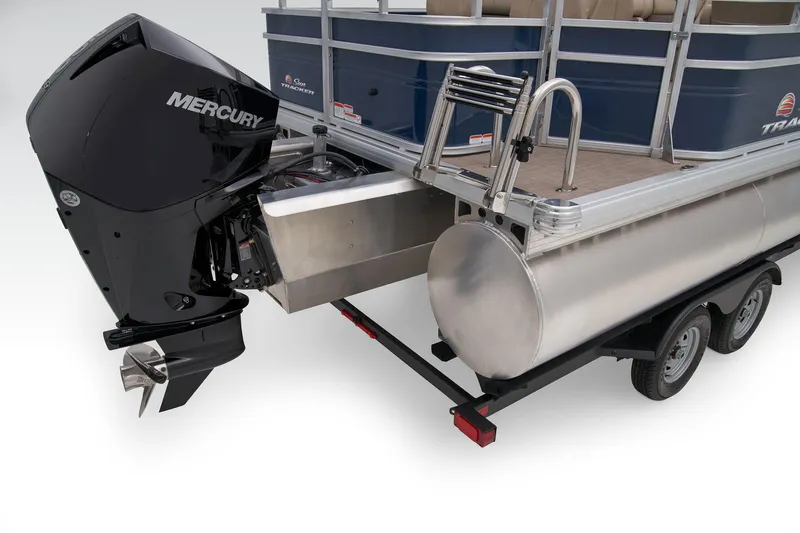

• All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
• All-aluminum box-beam transom for strength & longevity
• Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
• 1-1/4" (3.18 cm), .090" (.23 cm) anodized aluminum fence rails
• Elevated fence panels for deck drainage & ventilation
• Sound- & vibration-deadening fence insulation for a quiet ride
• Stainless or coated corrosion-resistant fasteners

Electrical

• 500 GPH (1892.71 LPH) Ultima automatic bilge pump

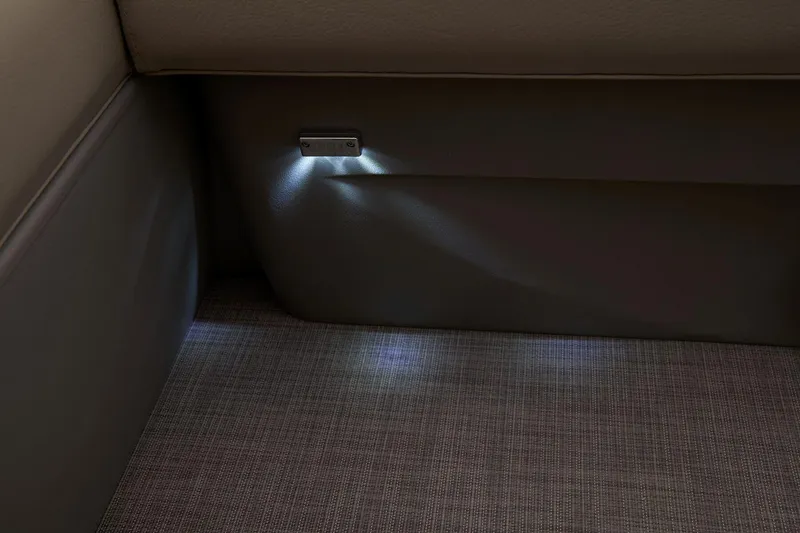

• Interior courtesy lighting
• Battery disconnect switch
• Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
• Protective abrasion-resistant wire wrap
• Water-resistant connectors
• Pre-wired for optional fishing package
