• Length:19' 0"

• Hull Length: 19' 0"

• Beam: 102"

• Max. Recommended HP: 225 HP

• Engine Shaft Length: 25"

• Inside Depth: 25"

• Hull Thickness: 0.125"

• Chine Width: 88"

• Fuel Capacity: 47 gal.

• Livewell Capacity: 20 gal.

• Baitwell Capacity: 7 gal.

• Total Person, Motor, Gear: 1920 lbs.

• Approximate Boat Weight: 2100 lbs.

• Rod Box Length - Port: 8' 6"

• Rod Box Length - Center: 7' 6"

• Max. Person Capacity: 7 persons

• Tandem Axle Trailer GVWR: 4700 lbs.

• Approximate Length On Trailer w/ Motor Down: 24' 4"

• Approx Length On Trailer w/Motor Down/Swing Tongue Open: 22' 3"

• Width On Trailer: 102"

• Height On Trailer: 84"

Custom Details

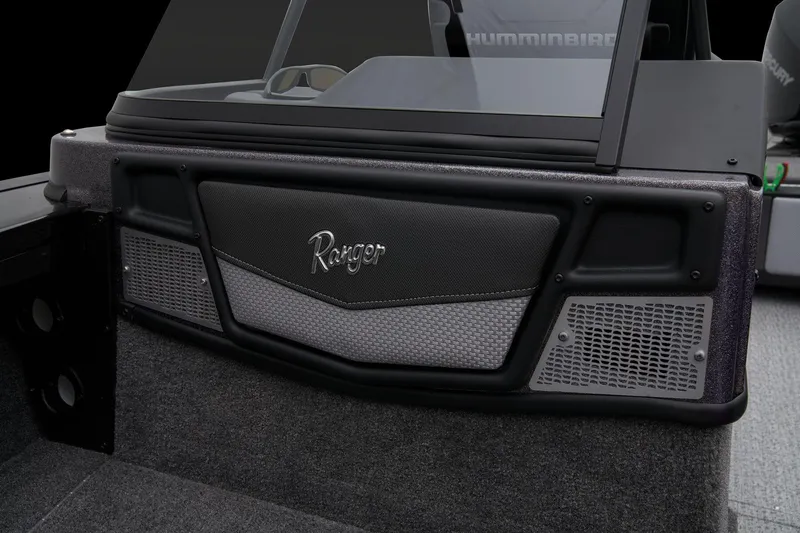

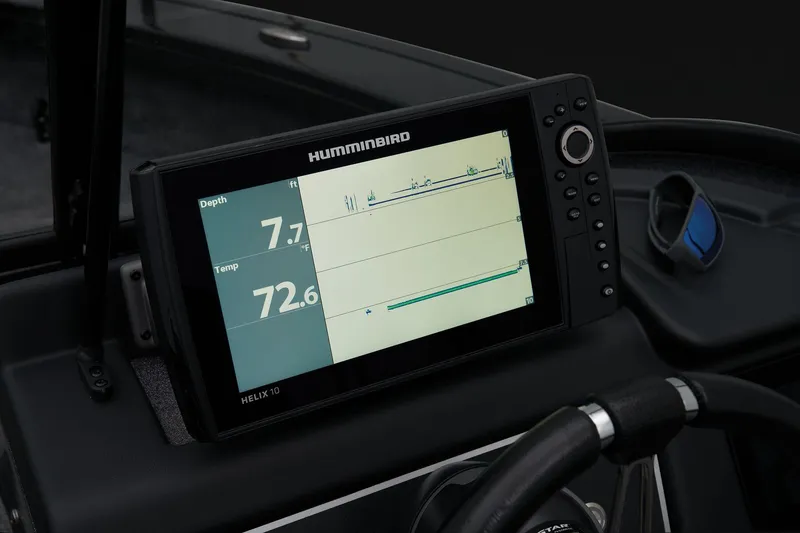

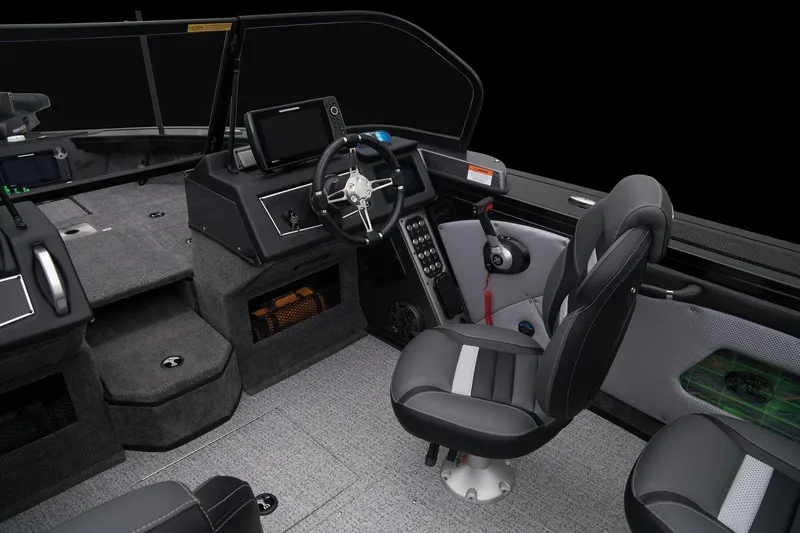

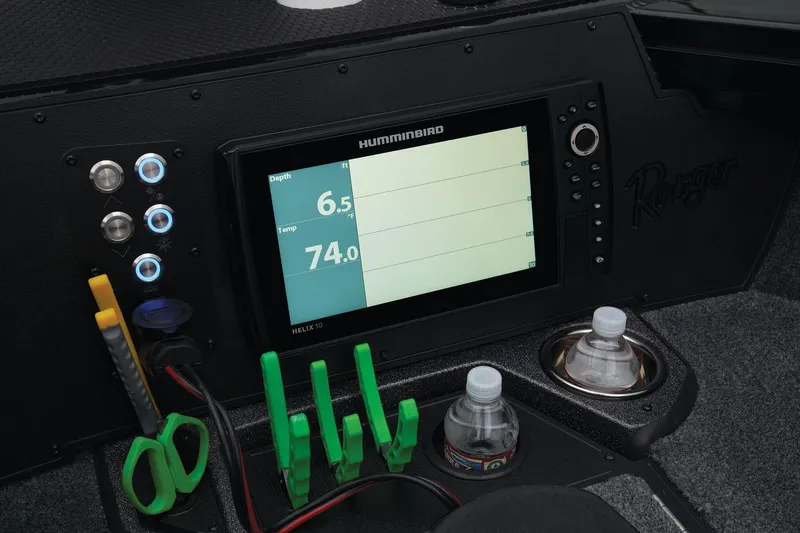

• Fiberglass consoles with poliflake finish, gimbal-mounted depthfinder & soft-touch switching

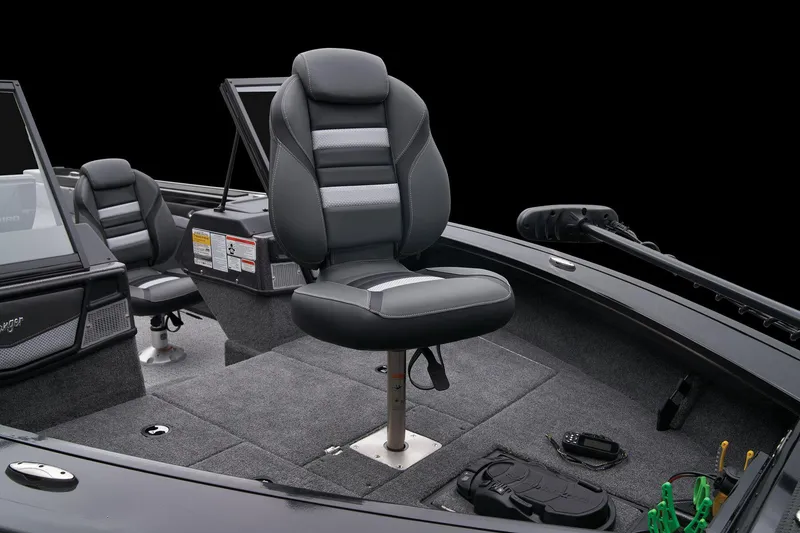

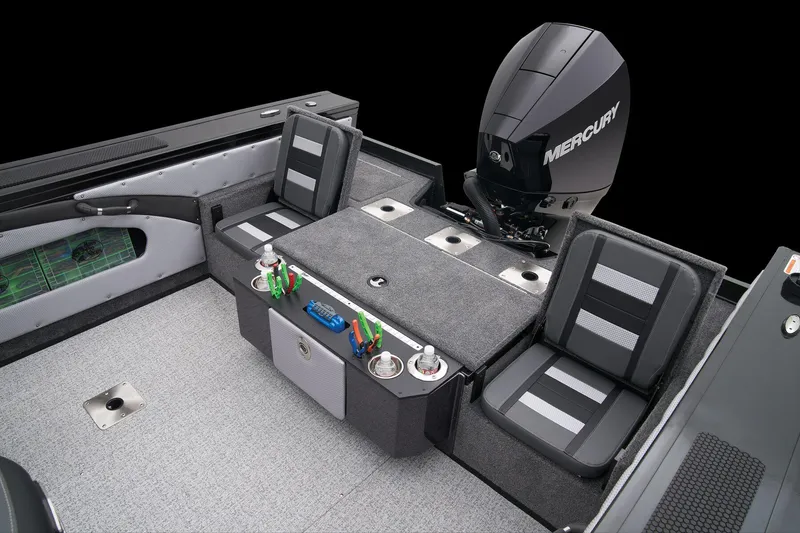

• Custom fitted marine upholstery- (2) matching fishing seats

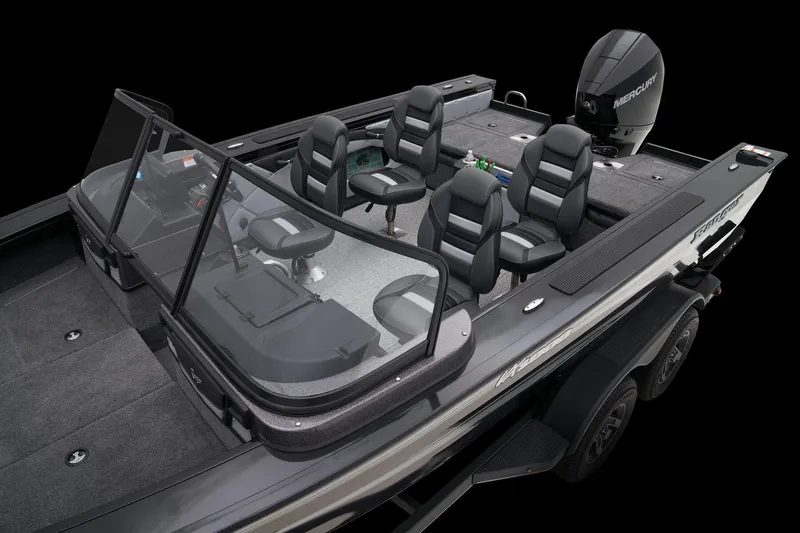

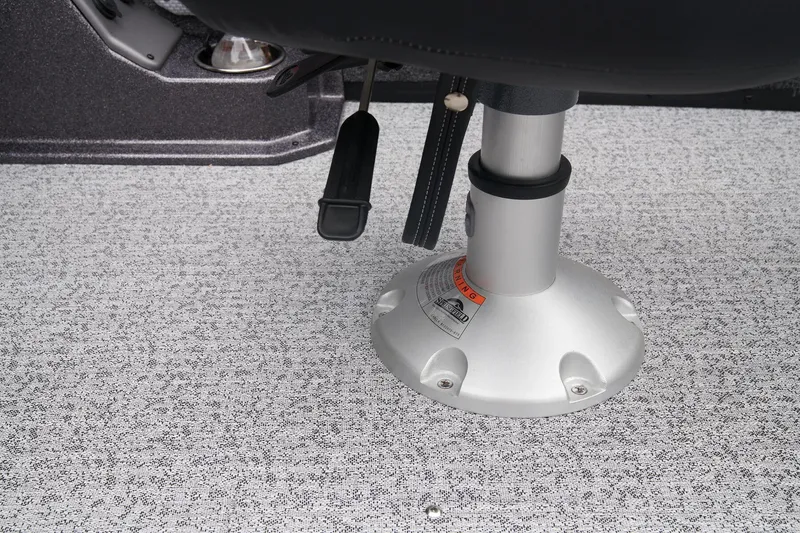

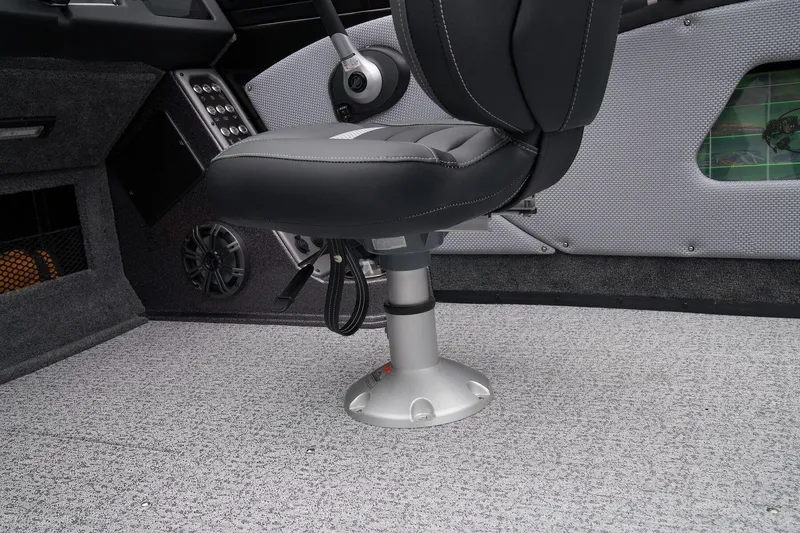

• Driver and passenger air ride seats w/ seat slides

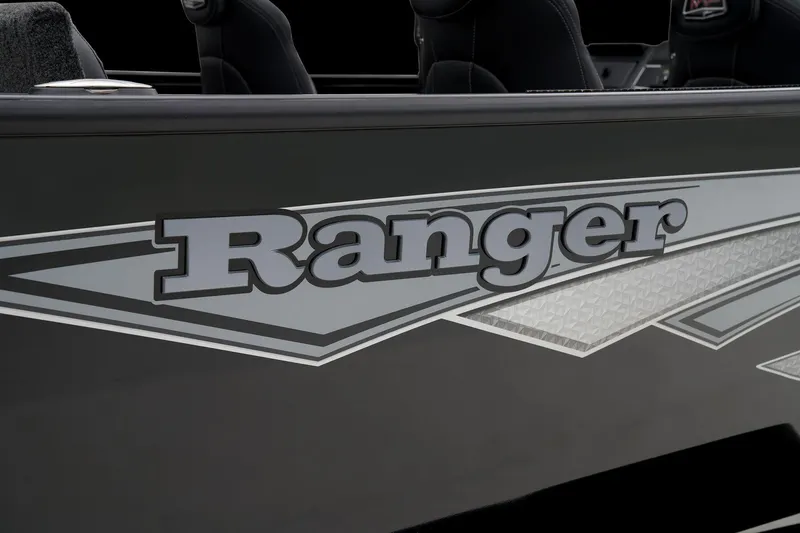

• High gloss paint w/ chrome Ranger® badging

• Choice of colors: white, crystal red, charcoal metallic, midnight blue, carbon, fusion electra lime green, fusion electra blue

• Durable marine grade carpet

• Non-skid marine grade vinyl cockpit flooring

• In-floor cooler

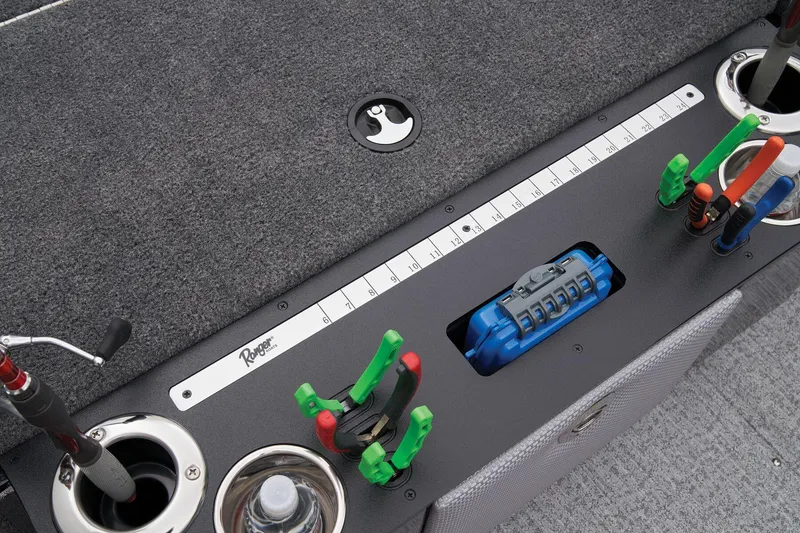

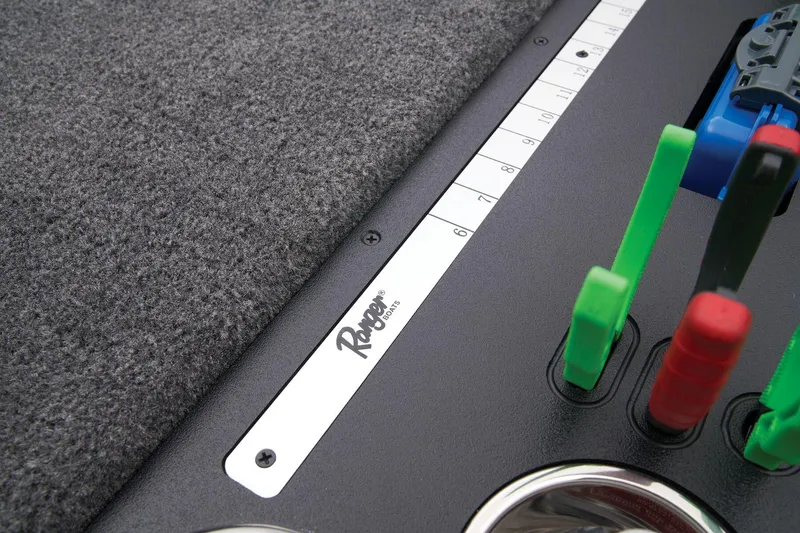

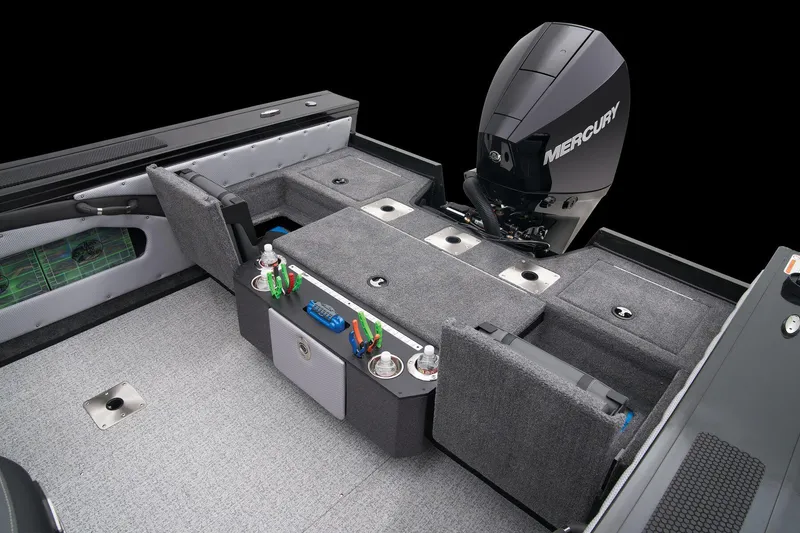

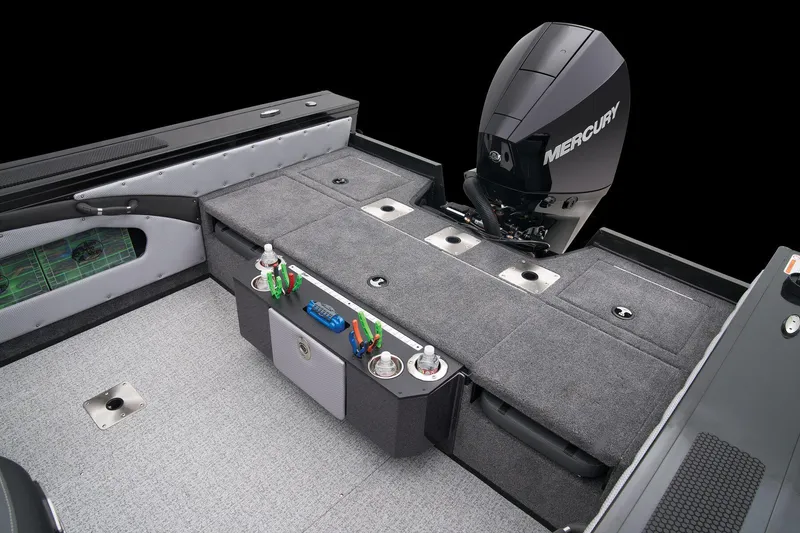

• Aft fiberglass storage center with flip-down lid, cup holders, tool holders, and measuring board on top

Electronics

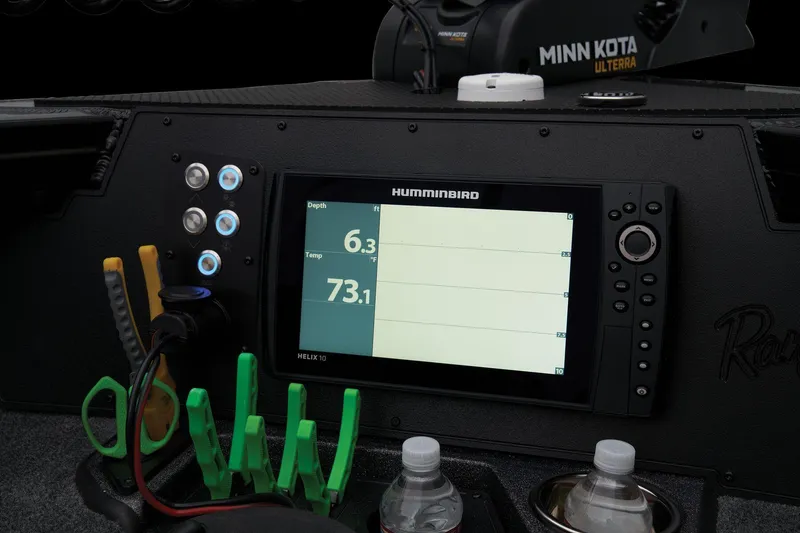

• Lowrance® HOOK Reveal 7 Combo console

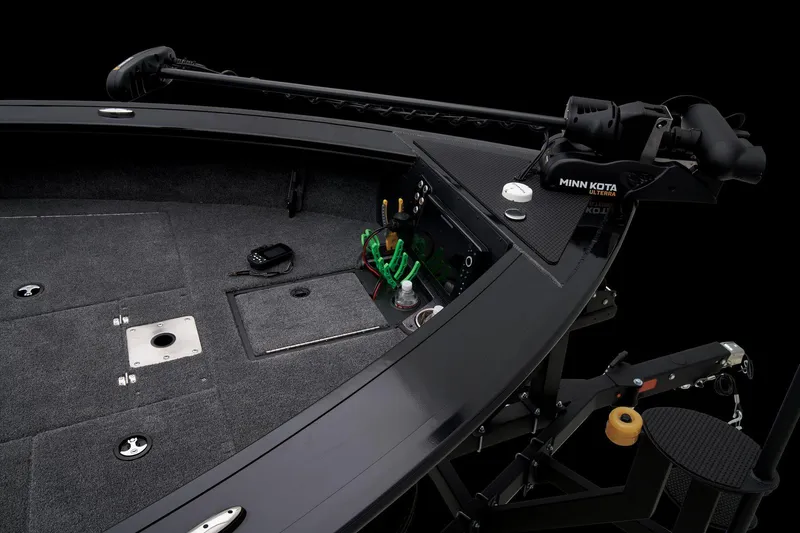

• MinnKota® Terrova 80lb / 60in / DSC / 24V trolling motor

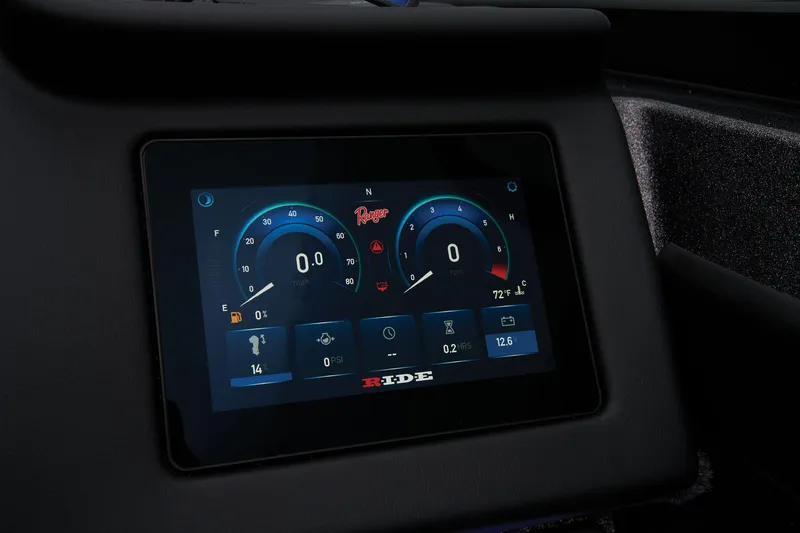

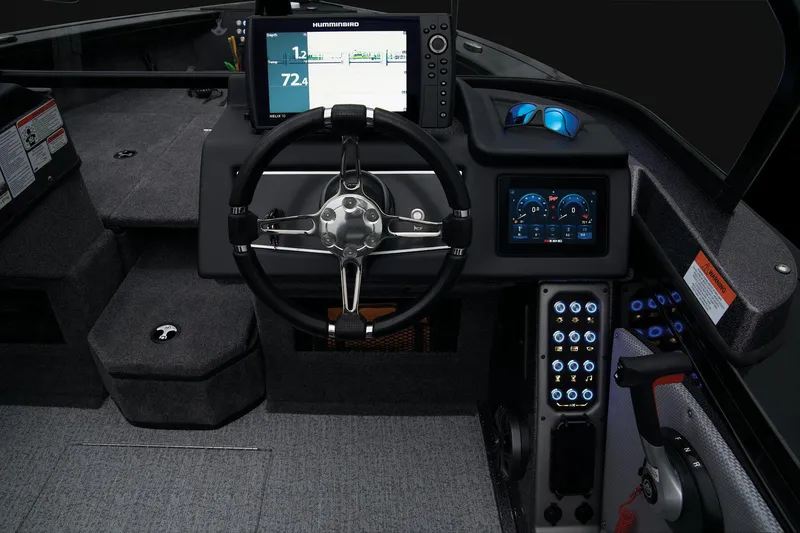

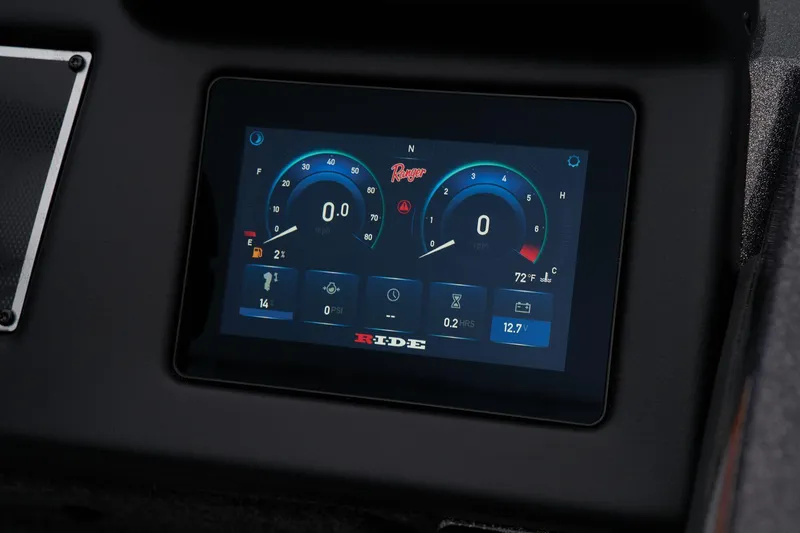

• Ranger System Monitor - 7" Touchscreen that displays all boat and engine data at a glance, eliminating the need for gauges

• 6-gauge trolling motor wiring

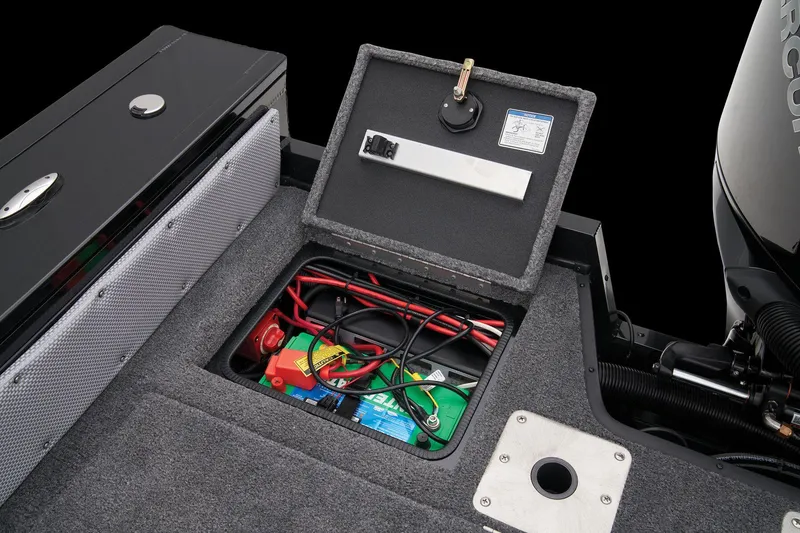

• Trolling motor battery trays

• On-board lithium charger, 6A x 3 bank charger

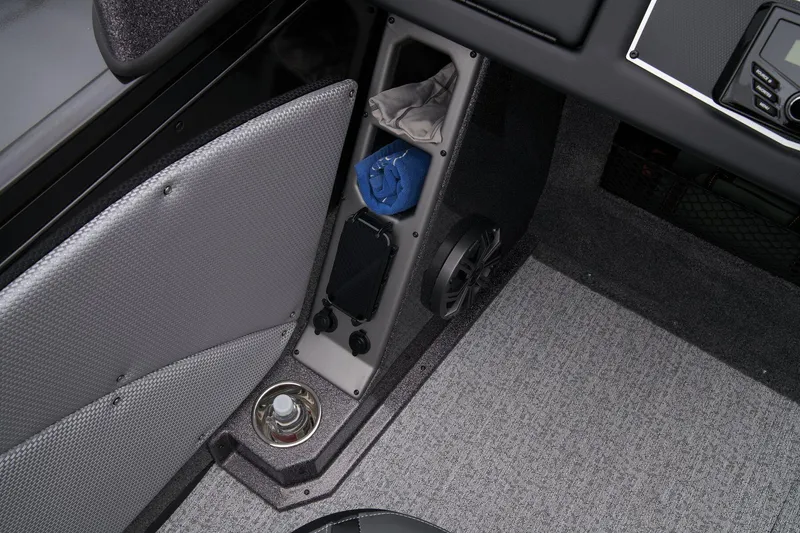

• 12V power and USB outlets on port and starboard side panels

• Bilge pump

• Removable navigation lights

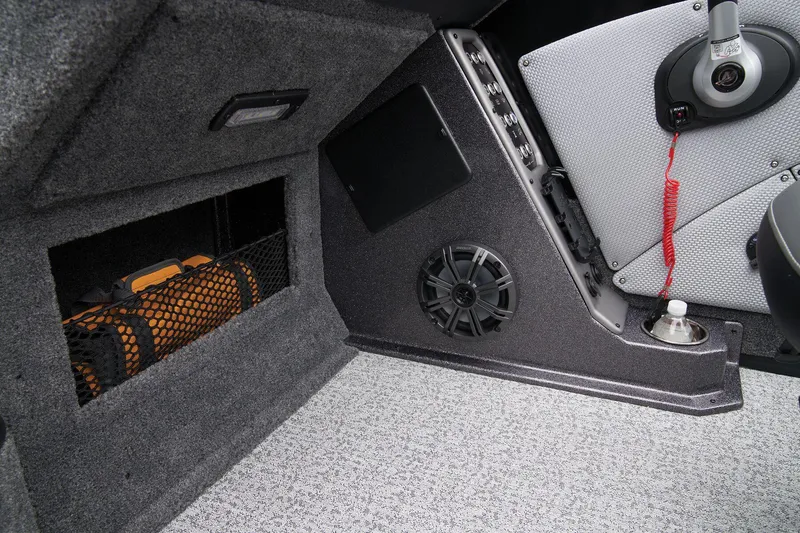

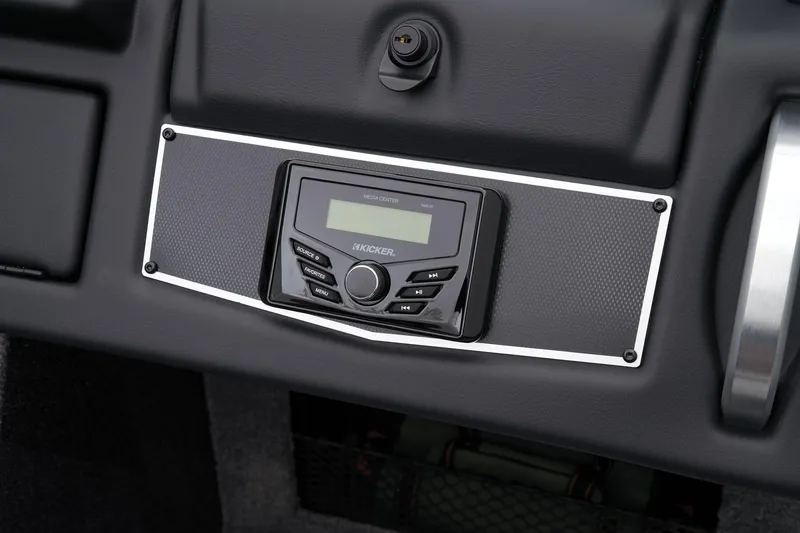

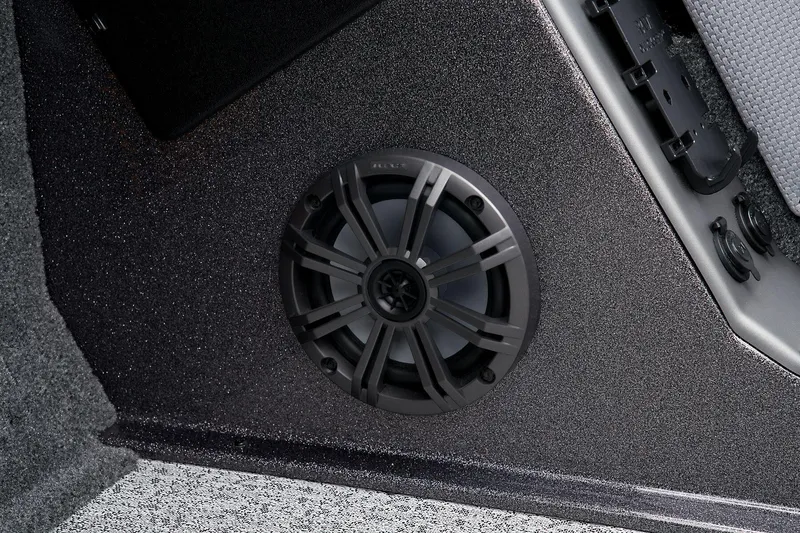

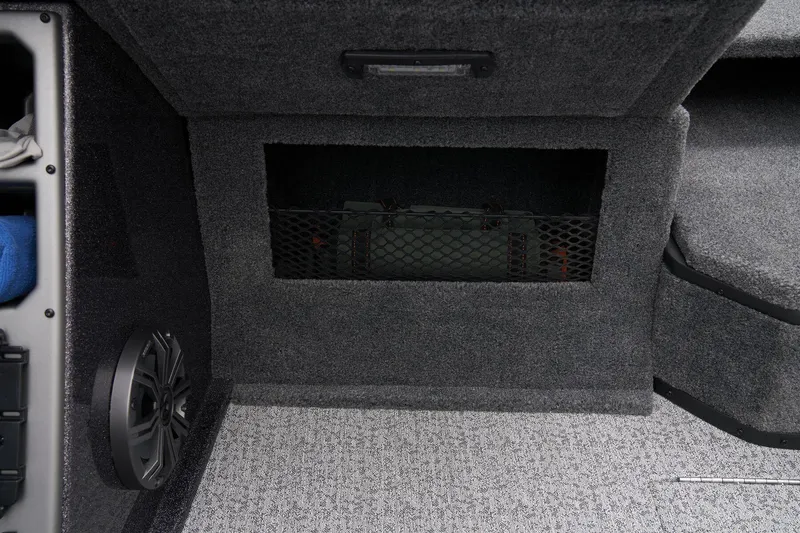

• Stereo w/ 2 speakers

Power/Performance

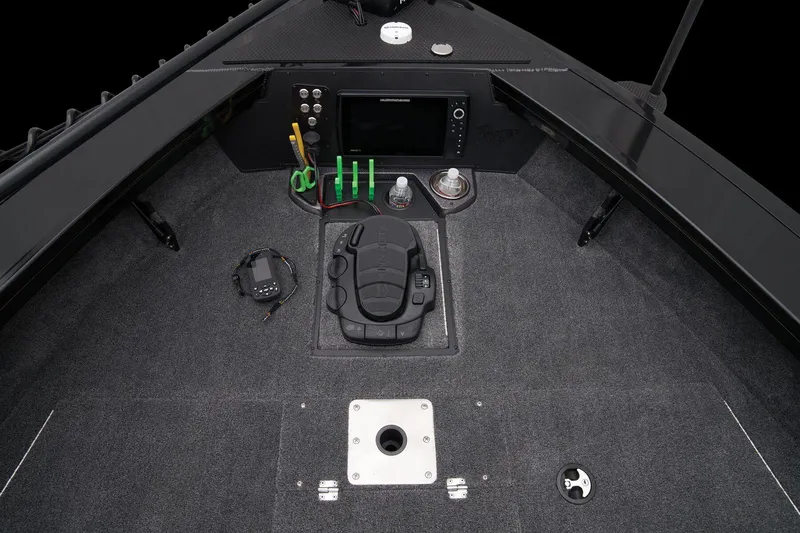

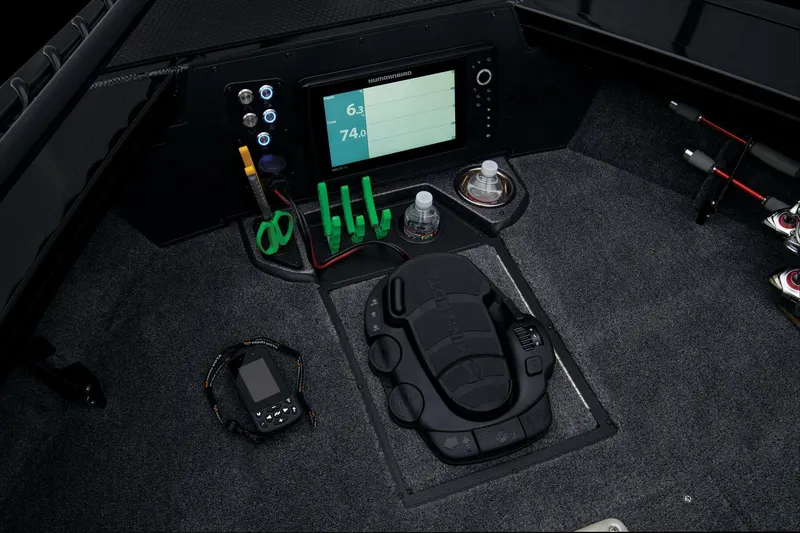

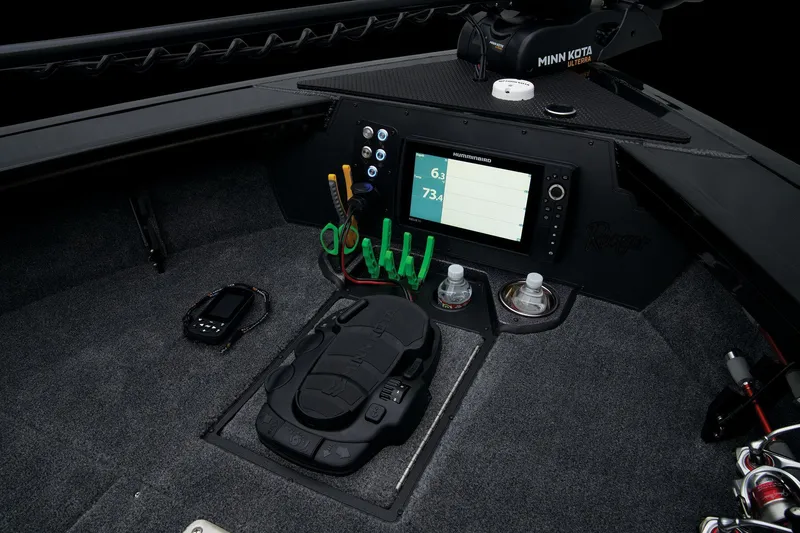

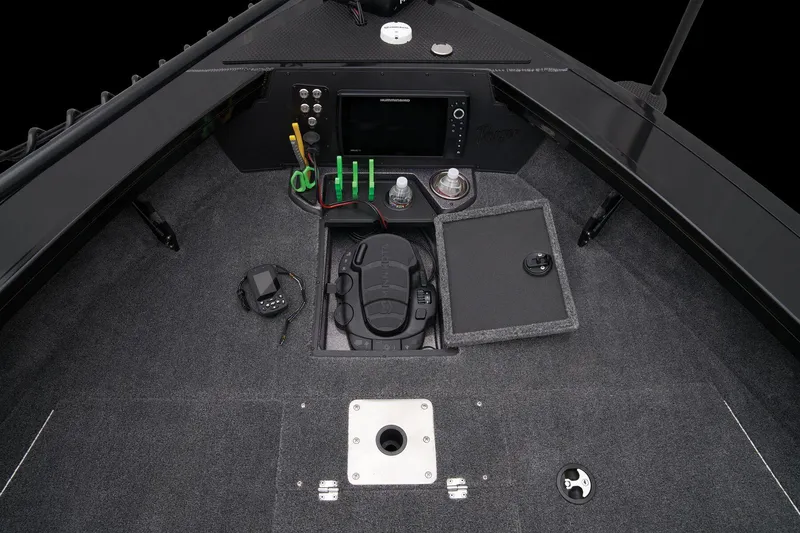

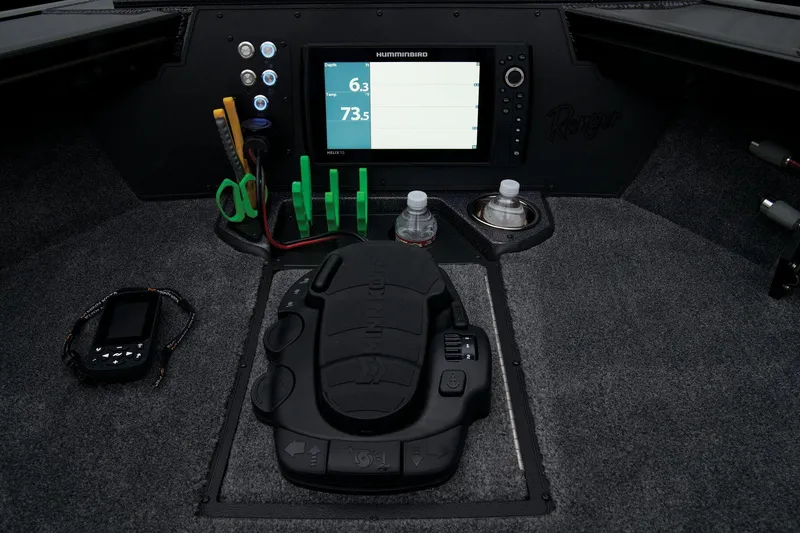

• Trolling Motor pedal storage (hinged lid over recessed trolling motor pedal, for use with digital-steer TMs)

• Competition steering wheel

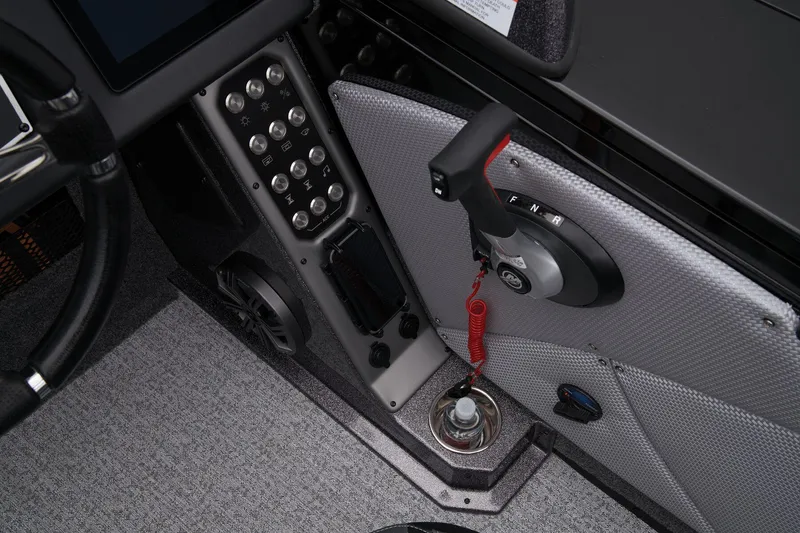

• Flush-mounted remote throttle control

• Stainless Steel Prop

• Power trim

• Bow trim & navigation switches

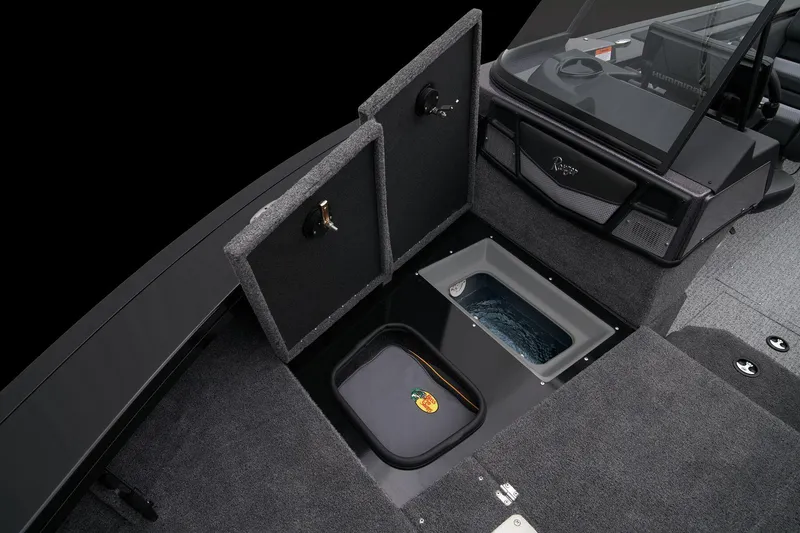

• Aerated livewell/ baitwell on front deck

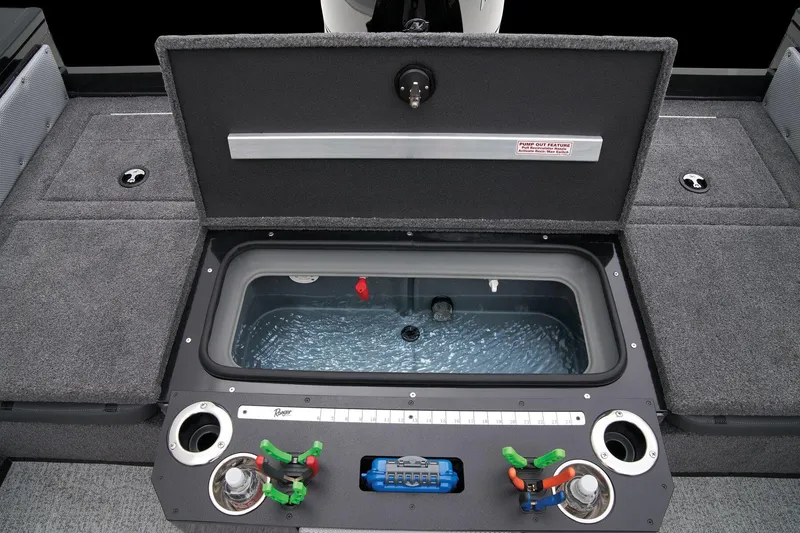

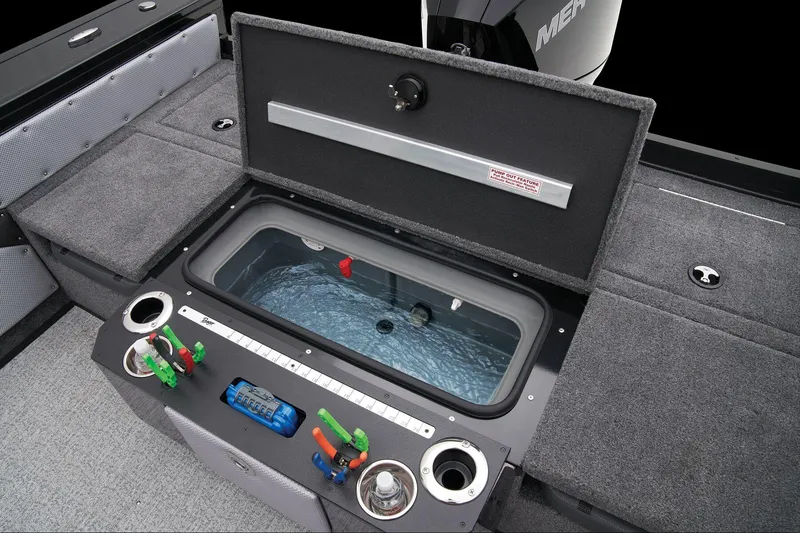

• Aerated divided livewell w/ timer on rear deck

Safety/Comfort

• Aluminum transom

• Automatic bilge

• Built-in horn assembly

• Pull-up tie cleats (4)

• Bow and stern eyes

• Grab handle at console

• All-aluminum floor & decks

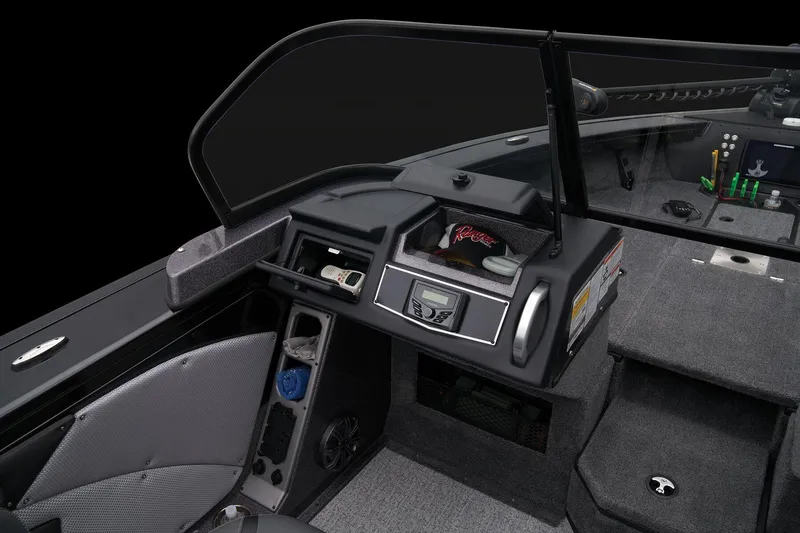

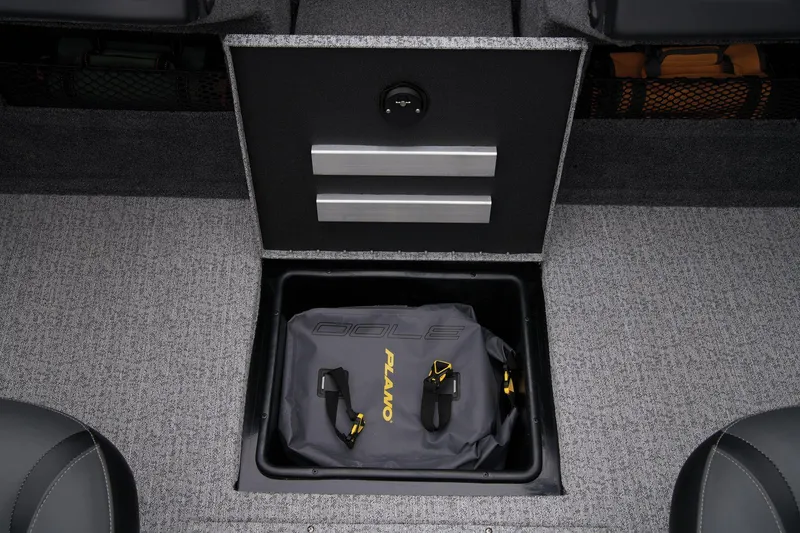

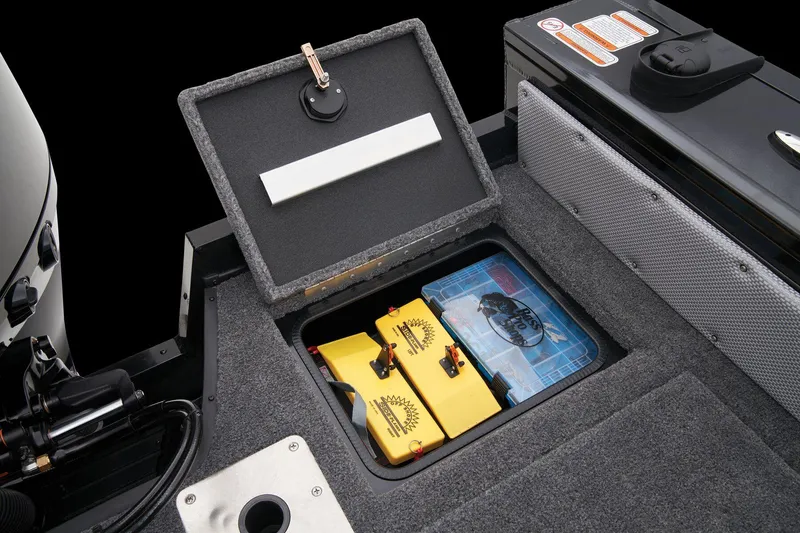

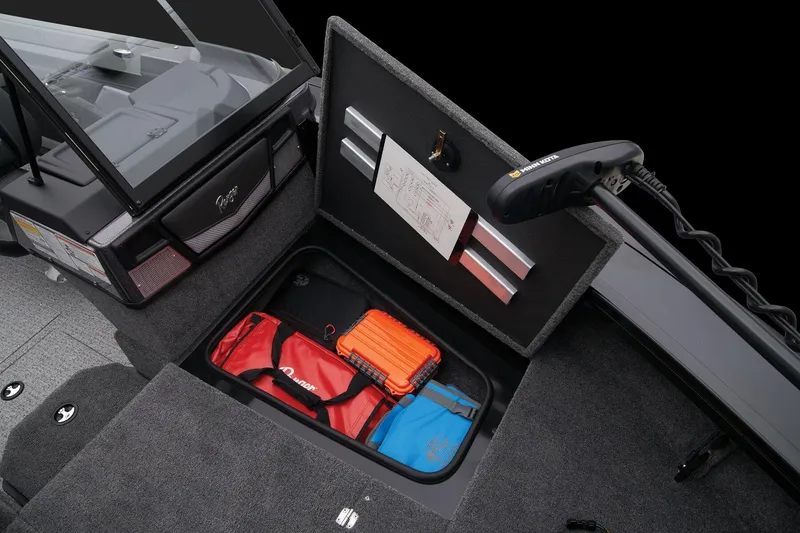

• Lockable storage

• Upright, level flotation

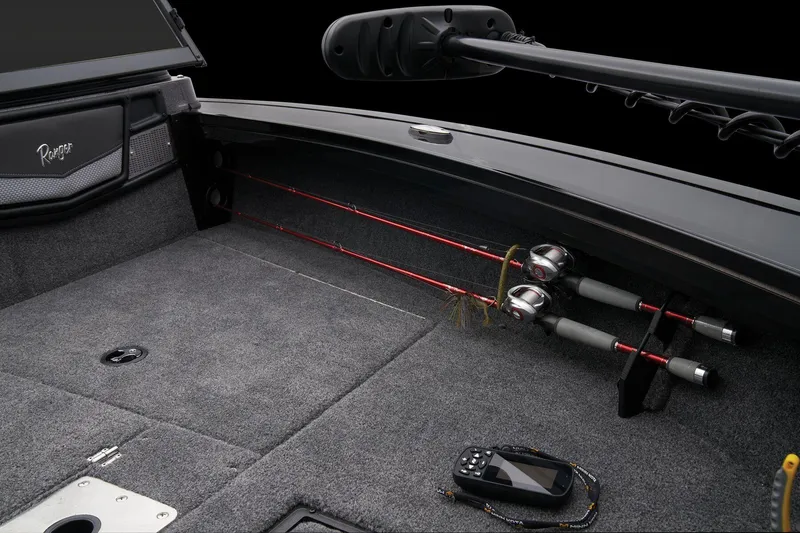

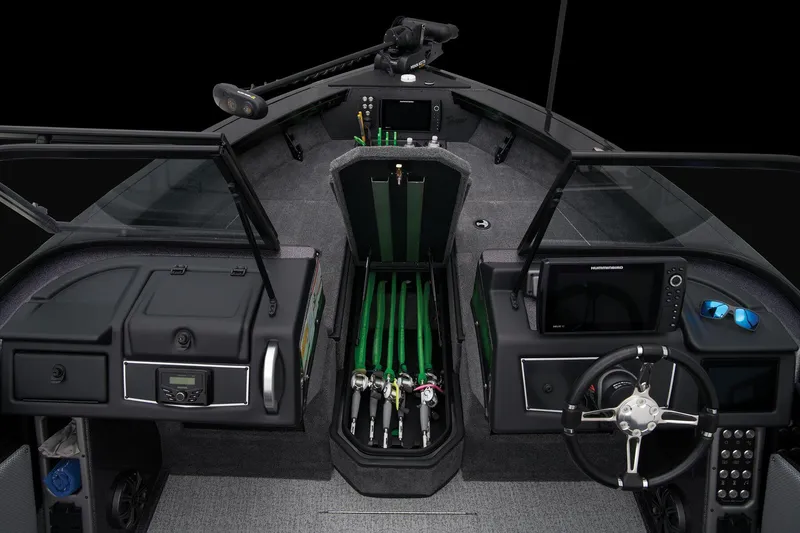

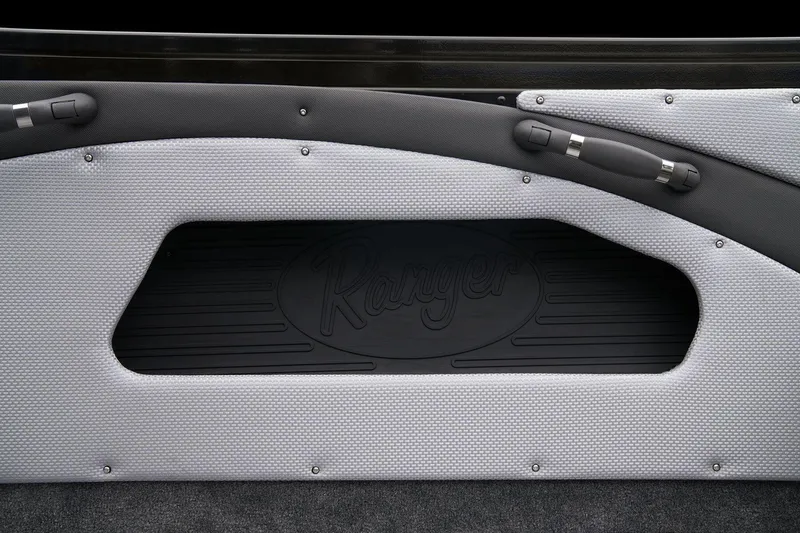

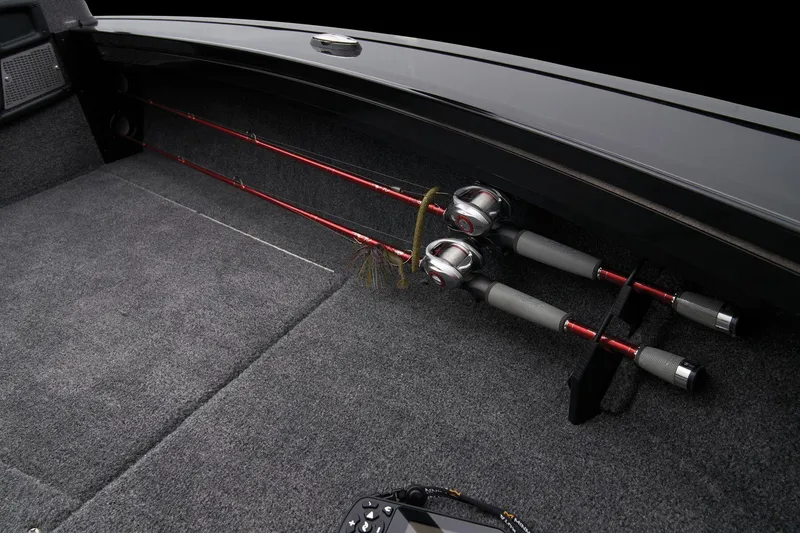

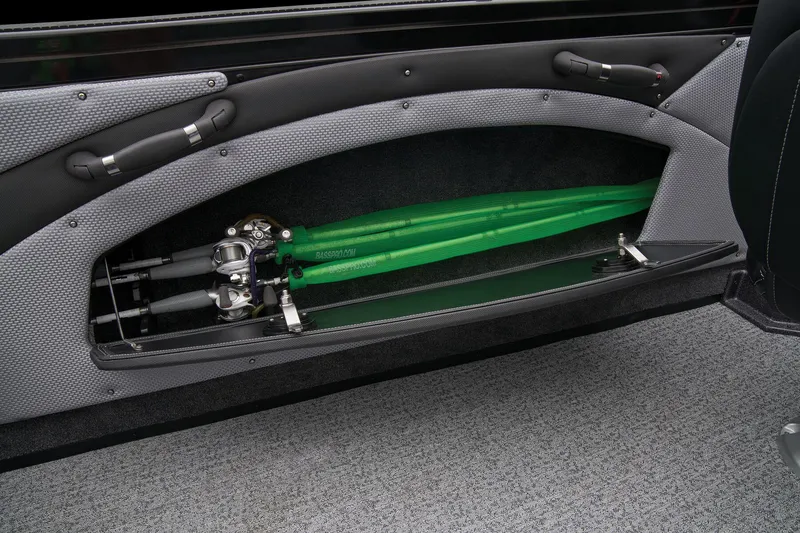

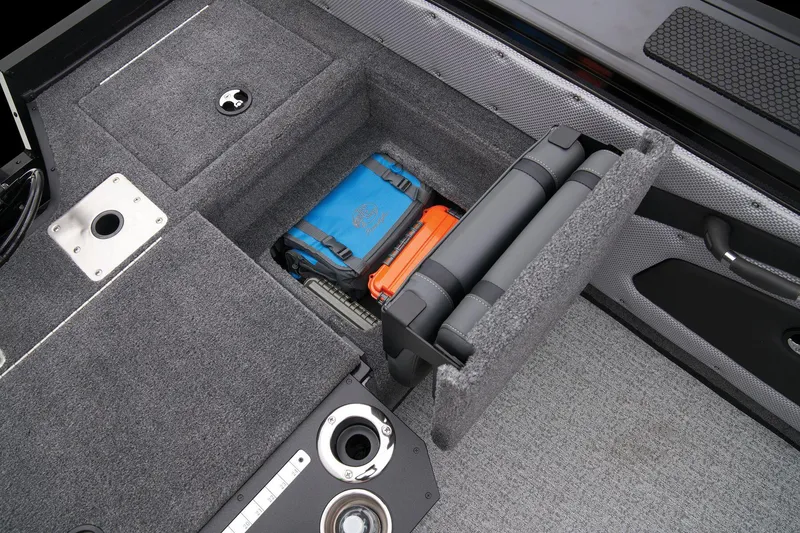

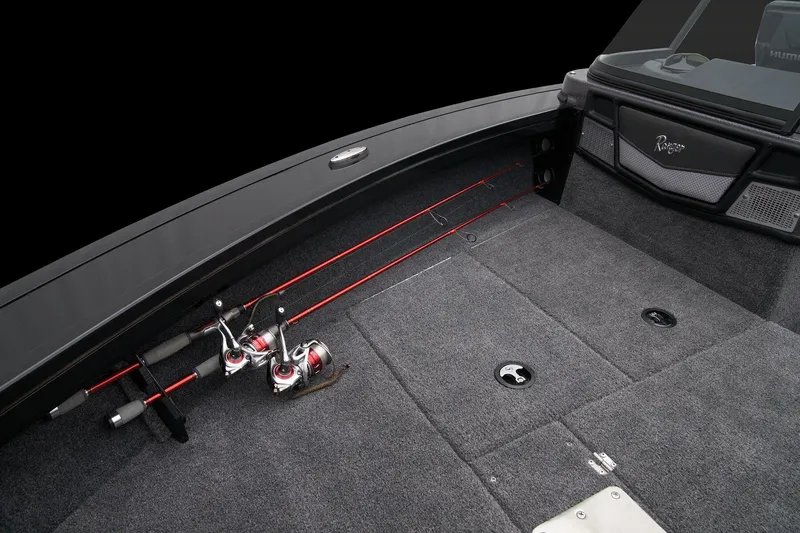

• Lockable rod storage

• 5052 H34 marine-grade .125" aluminum

• Foam-filled one-piece construction

• All-welded construction

• Remote drain plug

Trailer Features

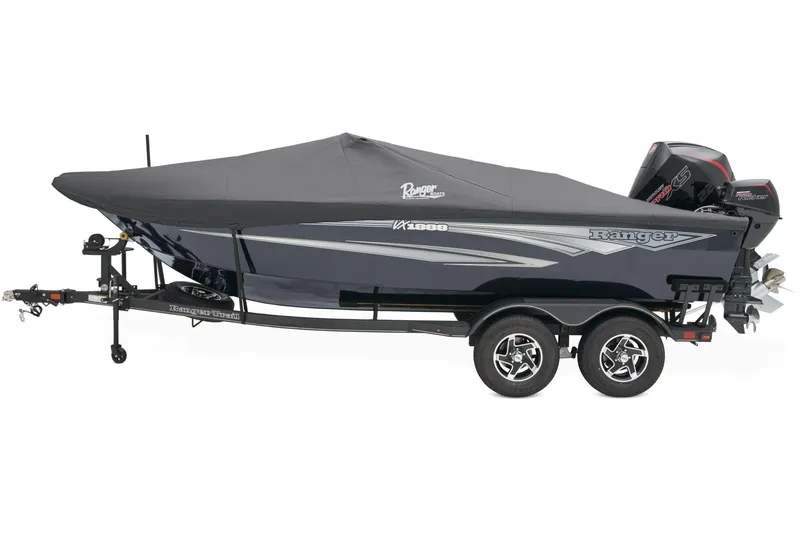

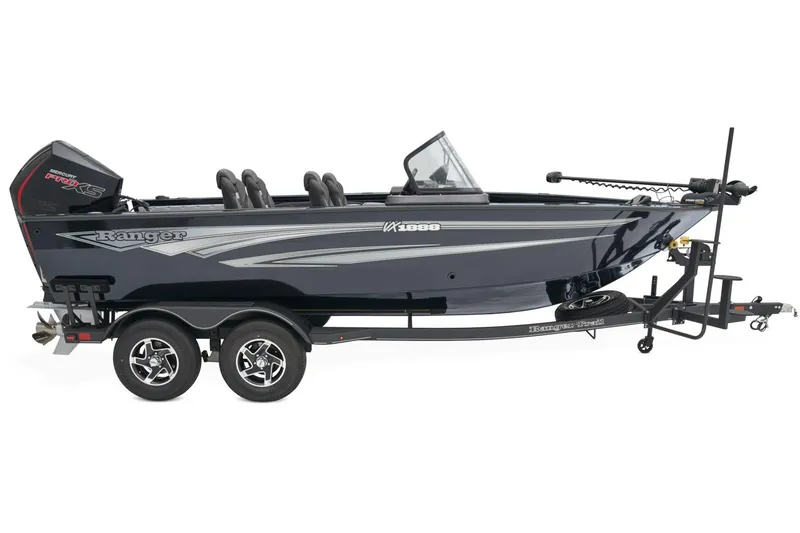

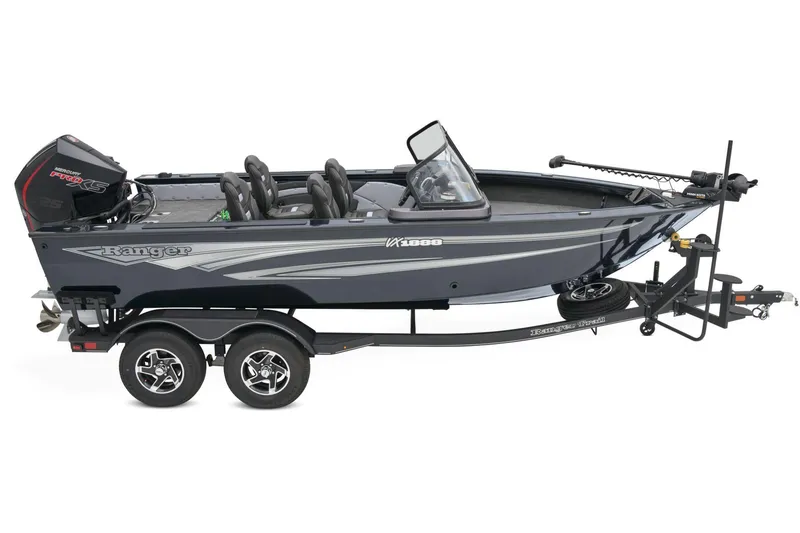

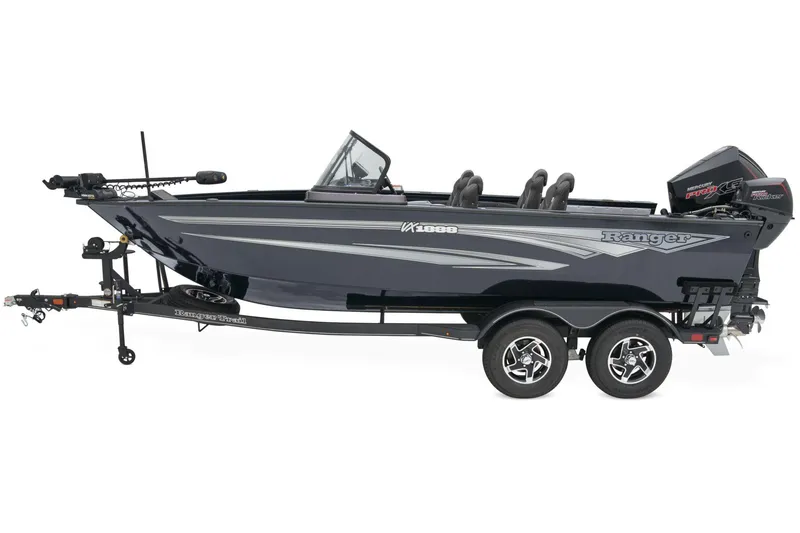

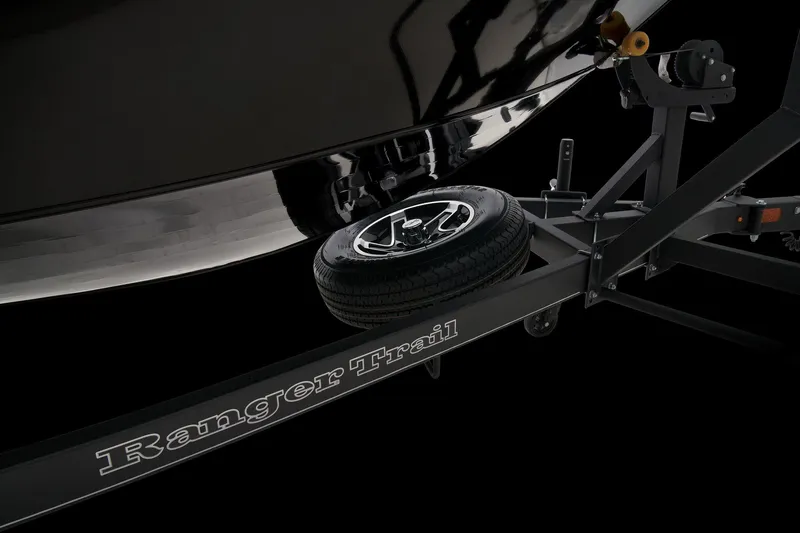

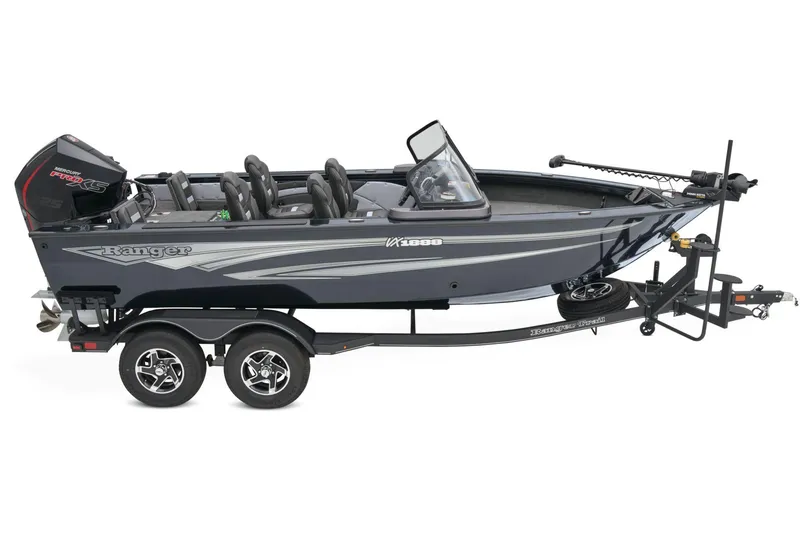

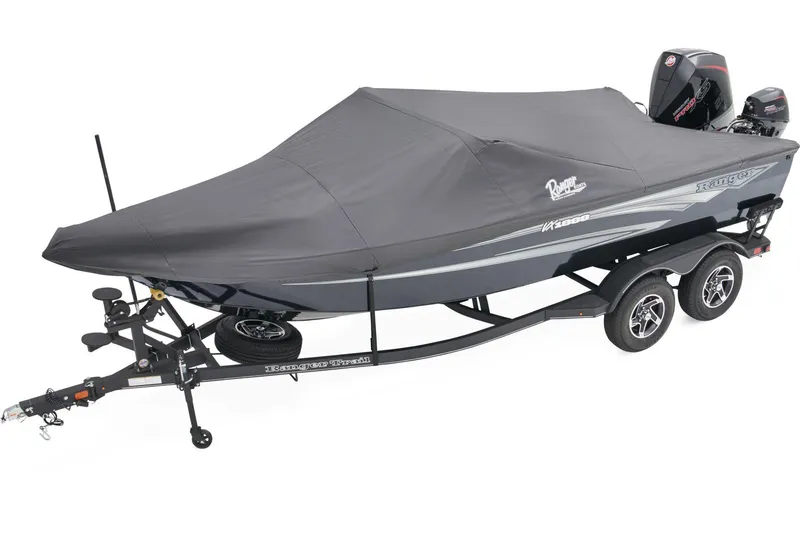

• Custom built Ranger Trail® trailer / tandem axle SM 4700

• 14" aluminum wheels

• Swing jack

• Retractable trailer tie downs

• Integrated load guides

• Swing-away tongue

• NMMA®/NATM certified

• Waterproof lights
