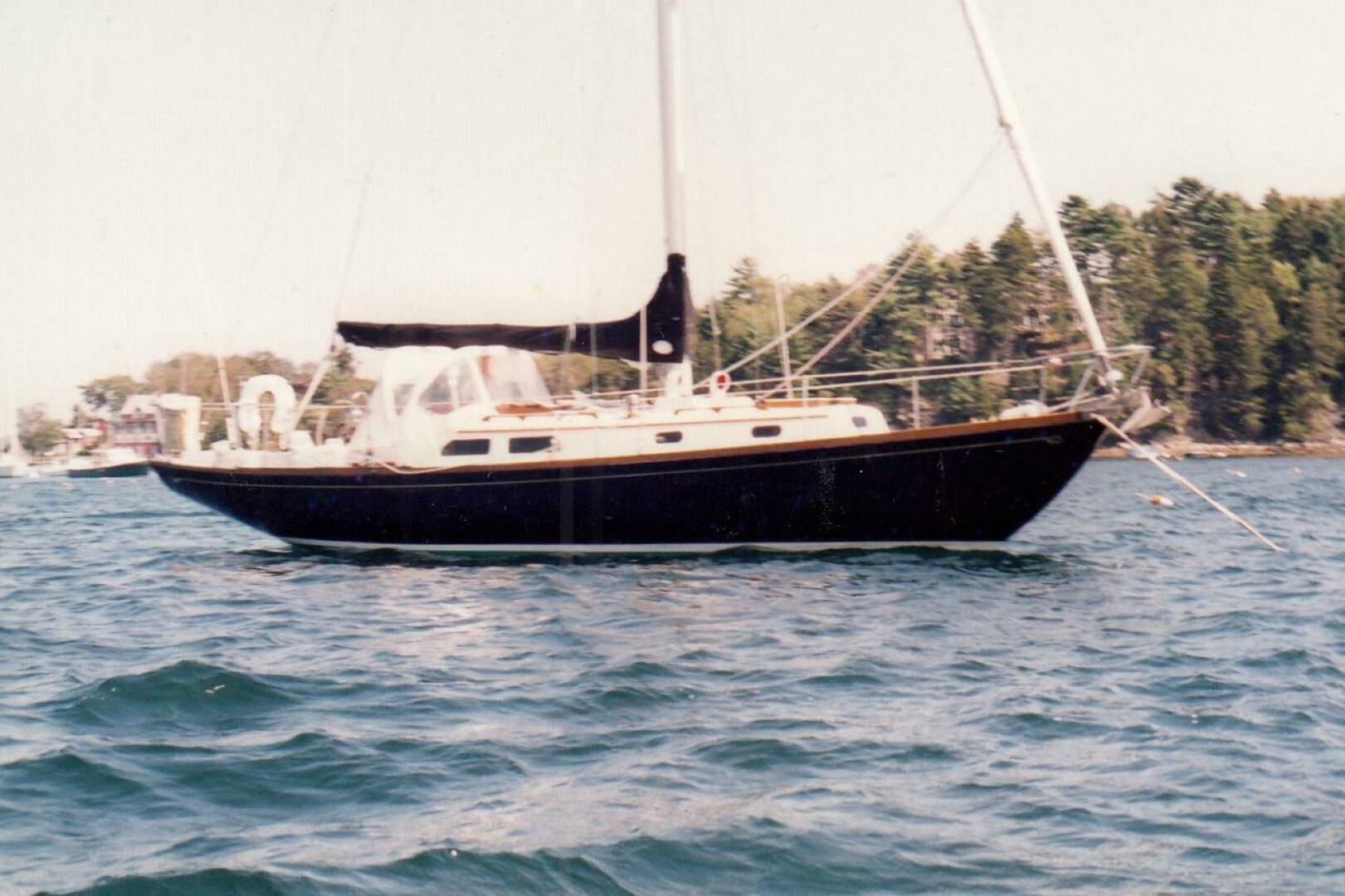

1967 Hinckley Yachts Pilot 35 Sloop (Hull #100) Sold Boat in Boothbay, ME 04537 US

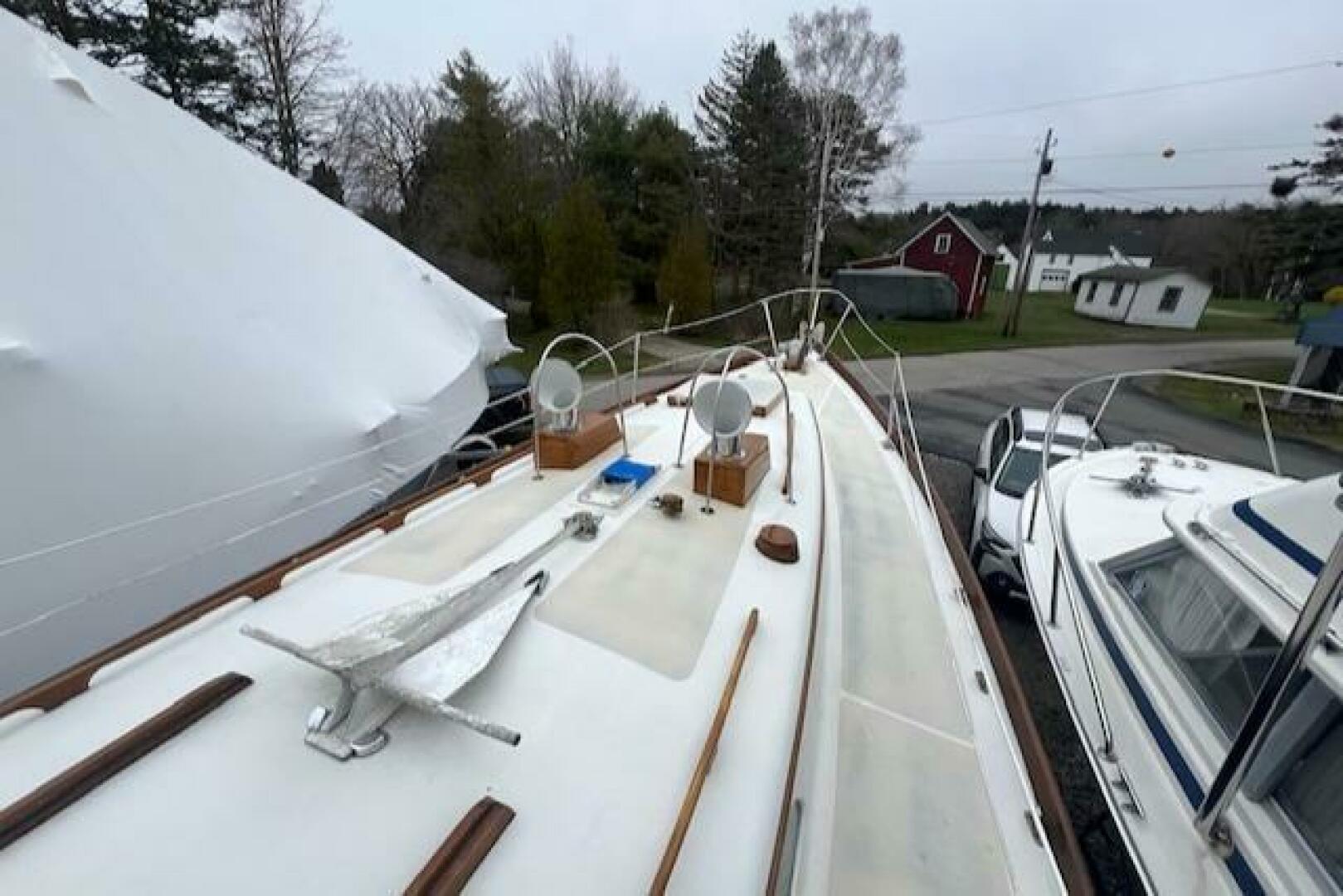

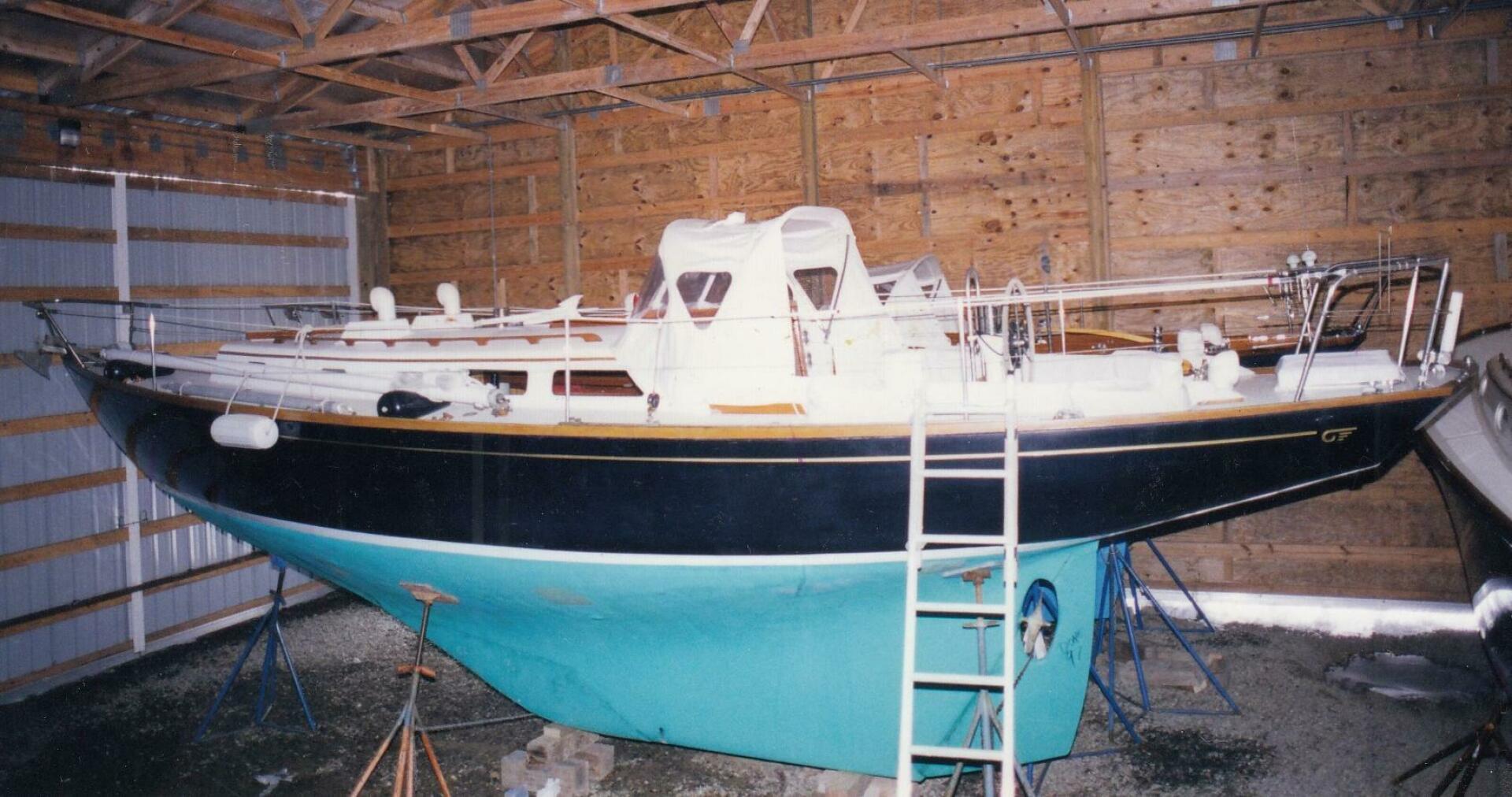

HULL & DECK

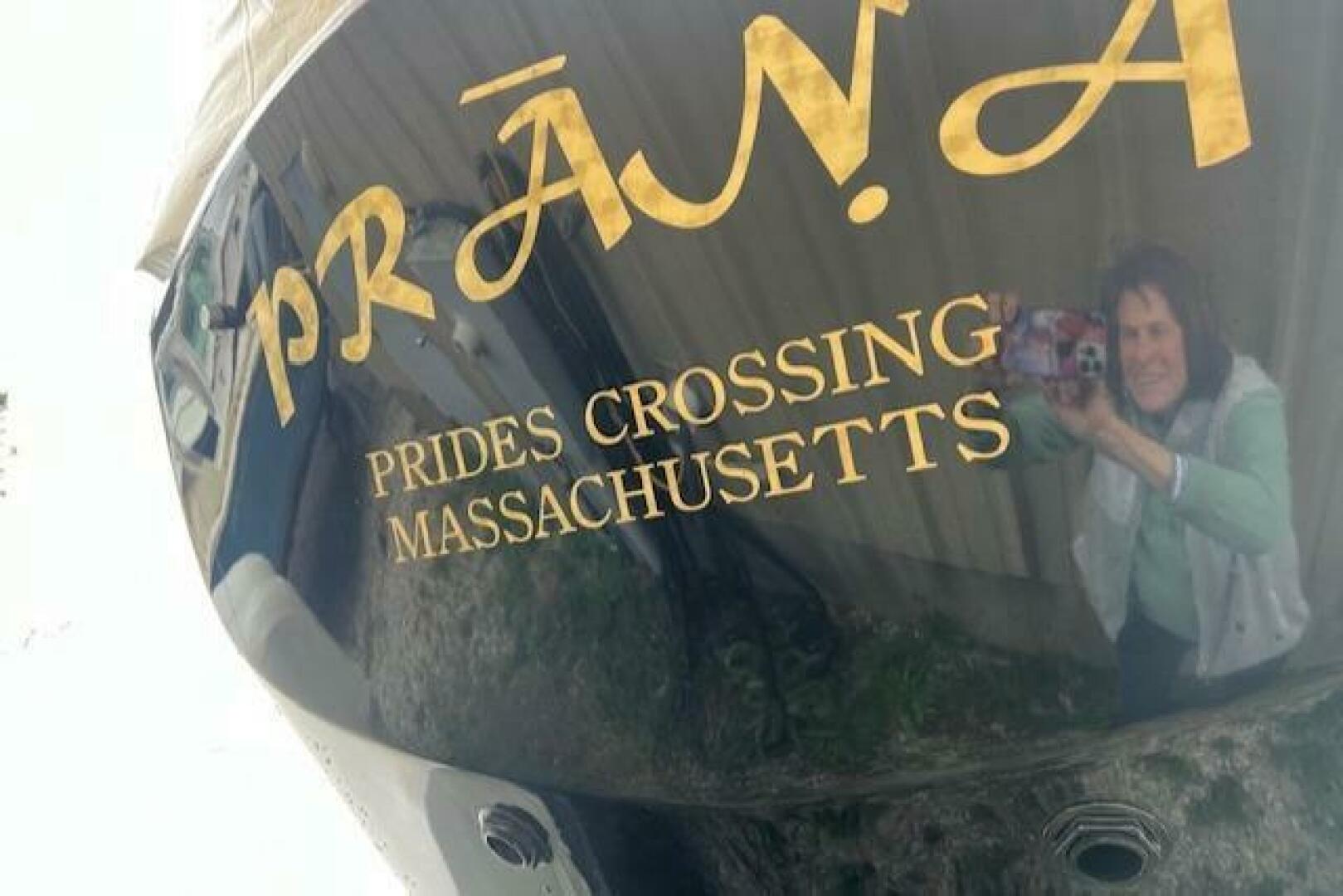

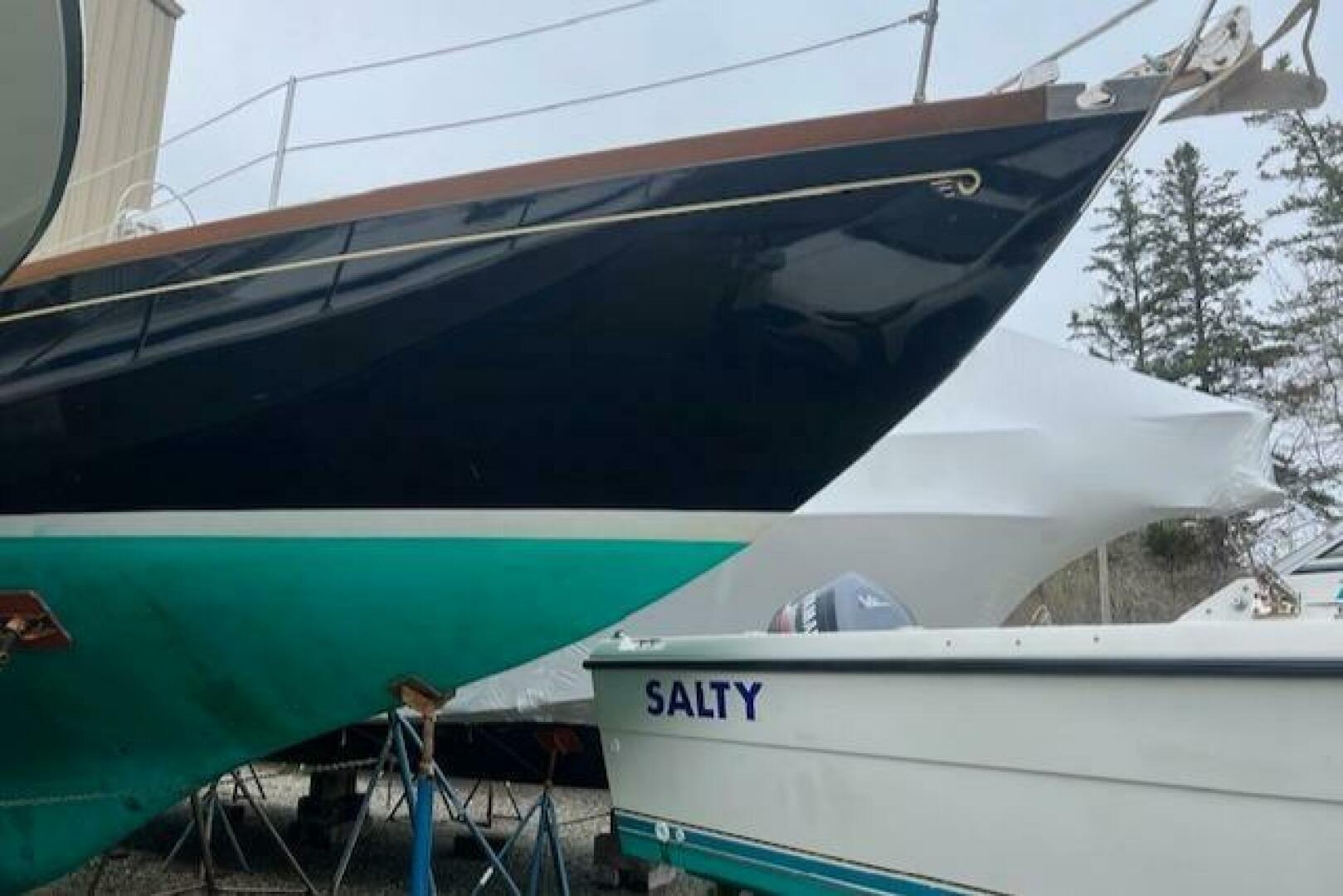

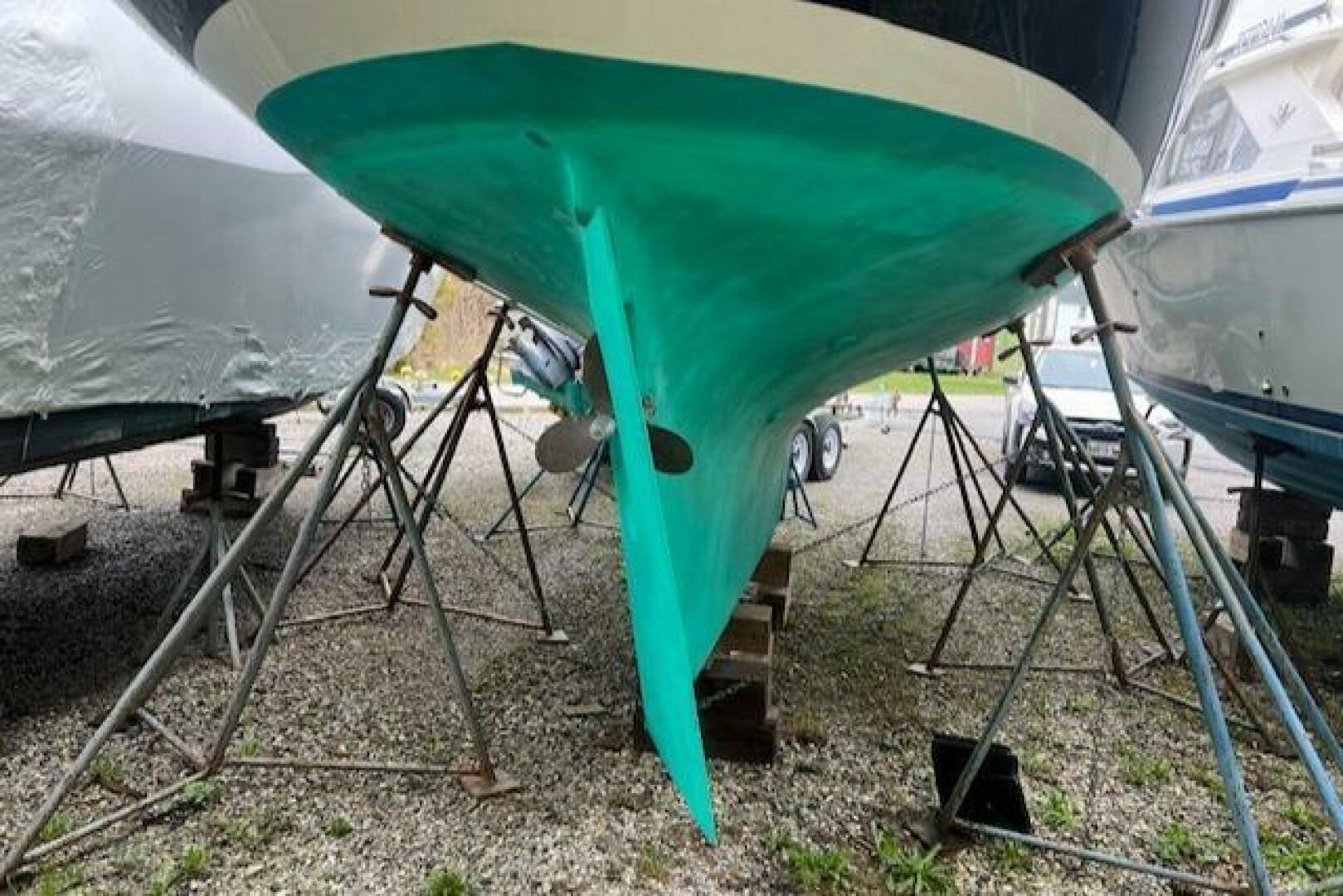

• 2017 Black awlgrip topsides, white boottop, green bottom.

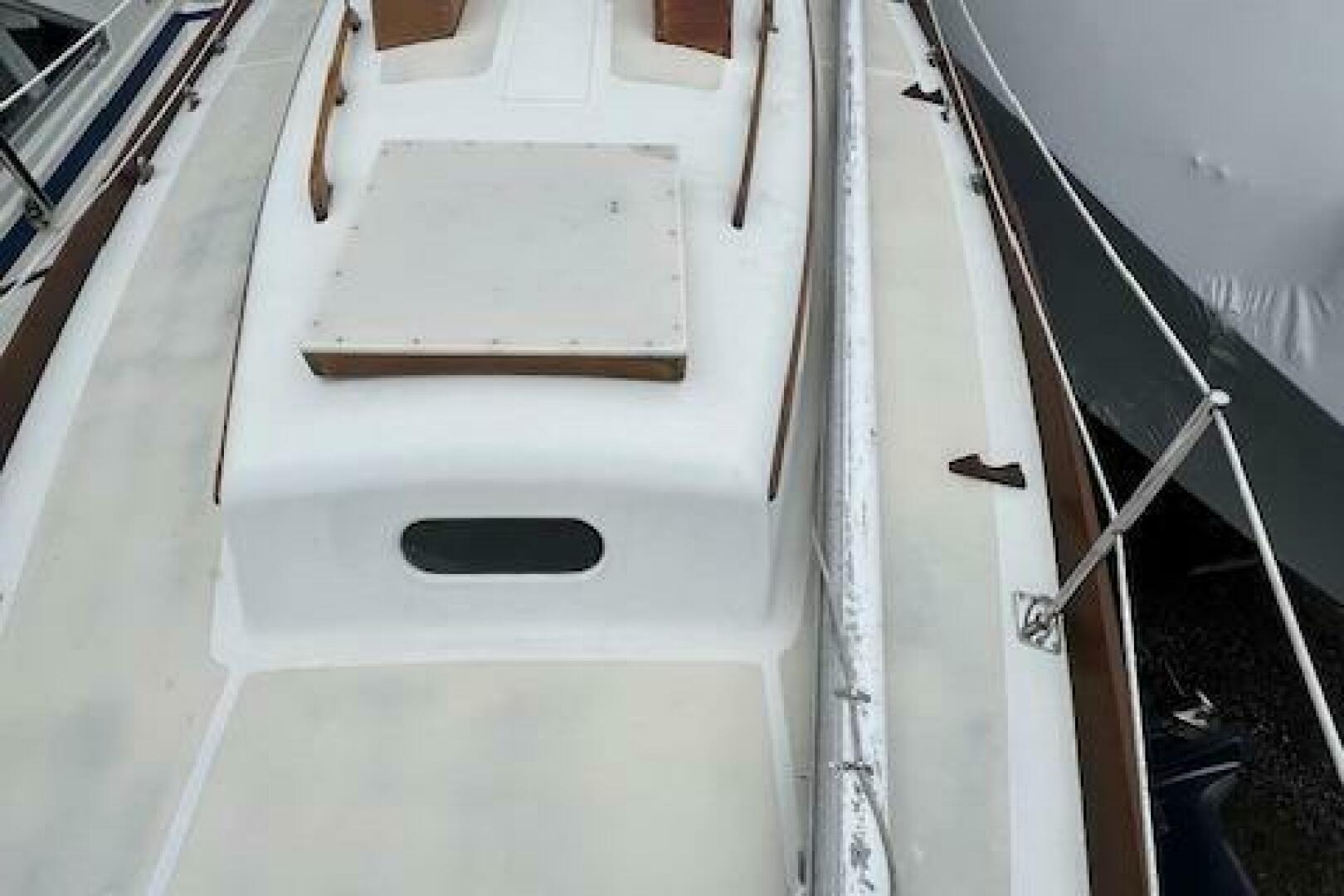

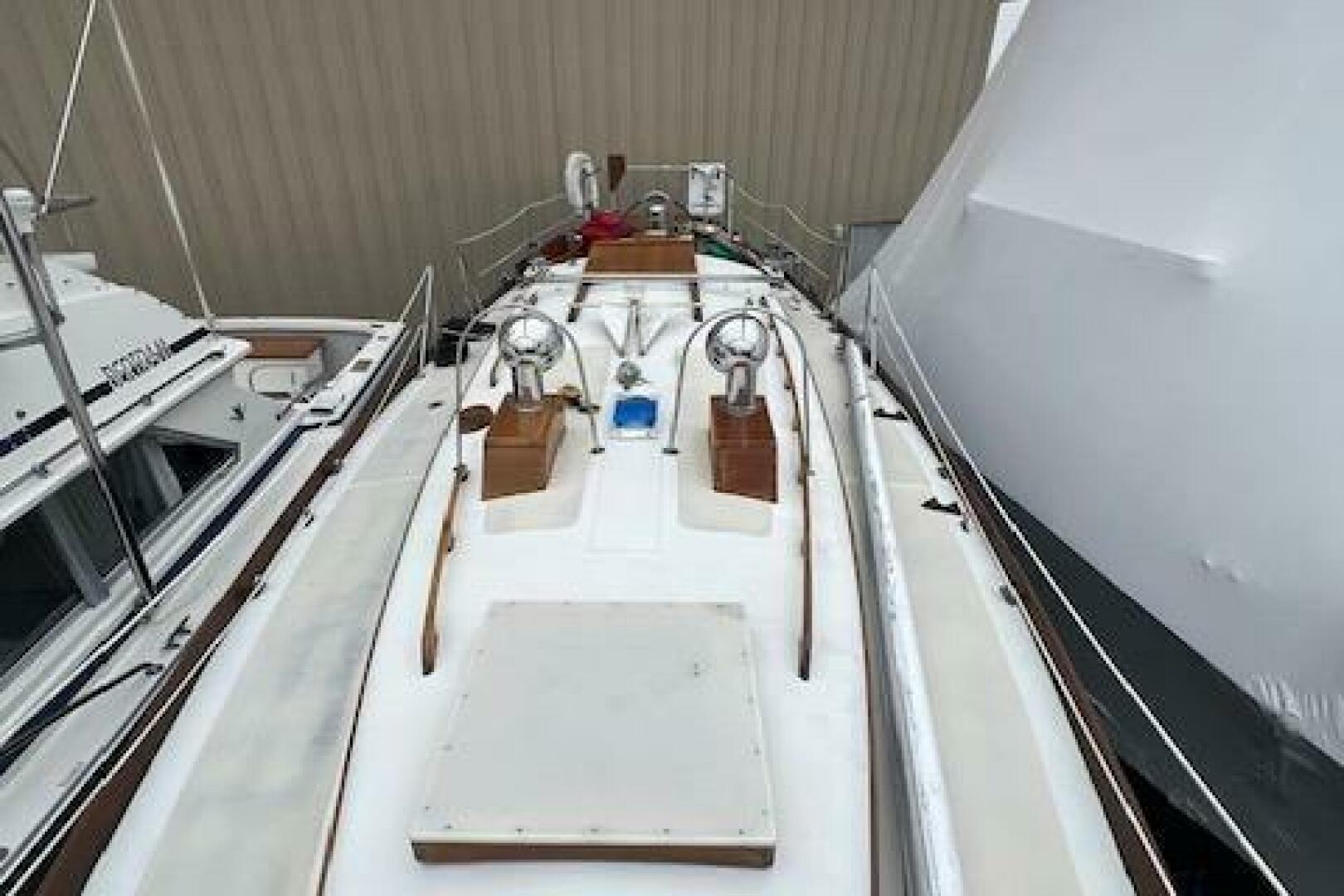

• Off white cabin house, deck, and cockpit; included moulded-in nonskid.
• All exterior teak is varnished, except the teak toerails are cetoled.
• Hand laid fiberglass hull.
• Off white deck is set in a flange in the hull, then fiberglassed and bolted to form a permanent hull deck joint.
• 4200 lbs lead ballast keel.
• Varnished teak cockpit coamings, hatches, handrails and eyebrows.
• S/S stemhead has integral S/S chocks.

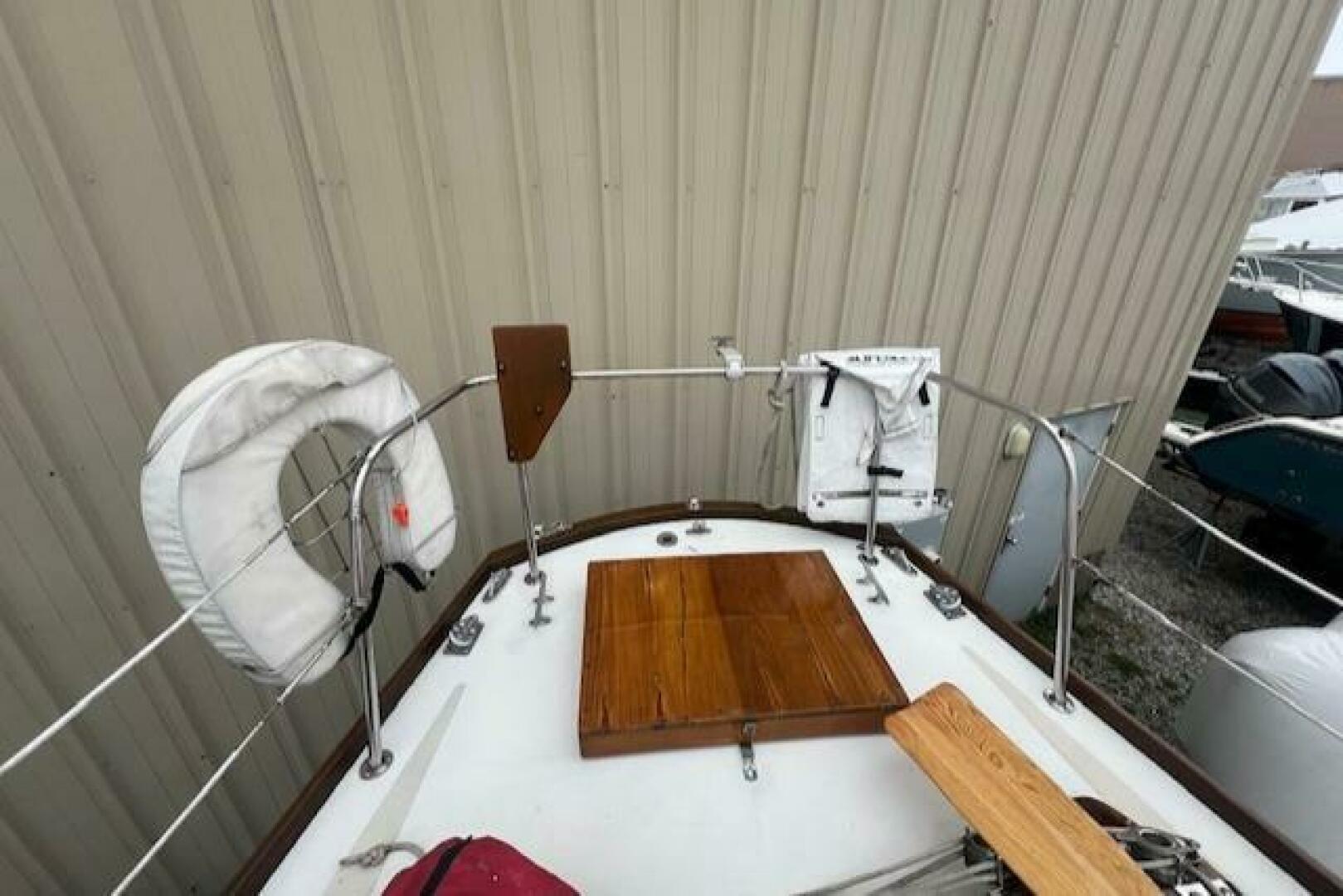

• S/S bow pulpit and stern pulpit.
• S/S stanchions with double lifelines and port and starboard gates.
• Fixed windows, with one opening port in enclosed head; recently rebedded.
• White cockpit Dodger and S/S frame.
• Teak companionway and lazarette hatch.
• Recently rebedded chainplates and all portlights.

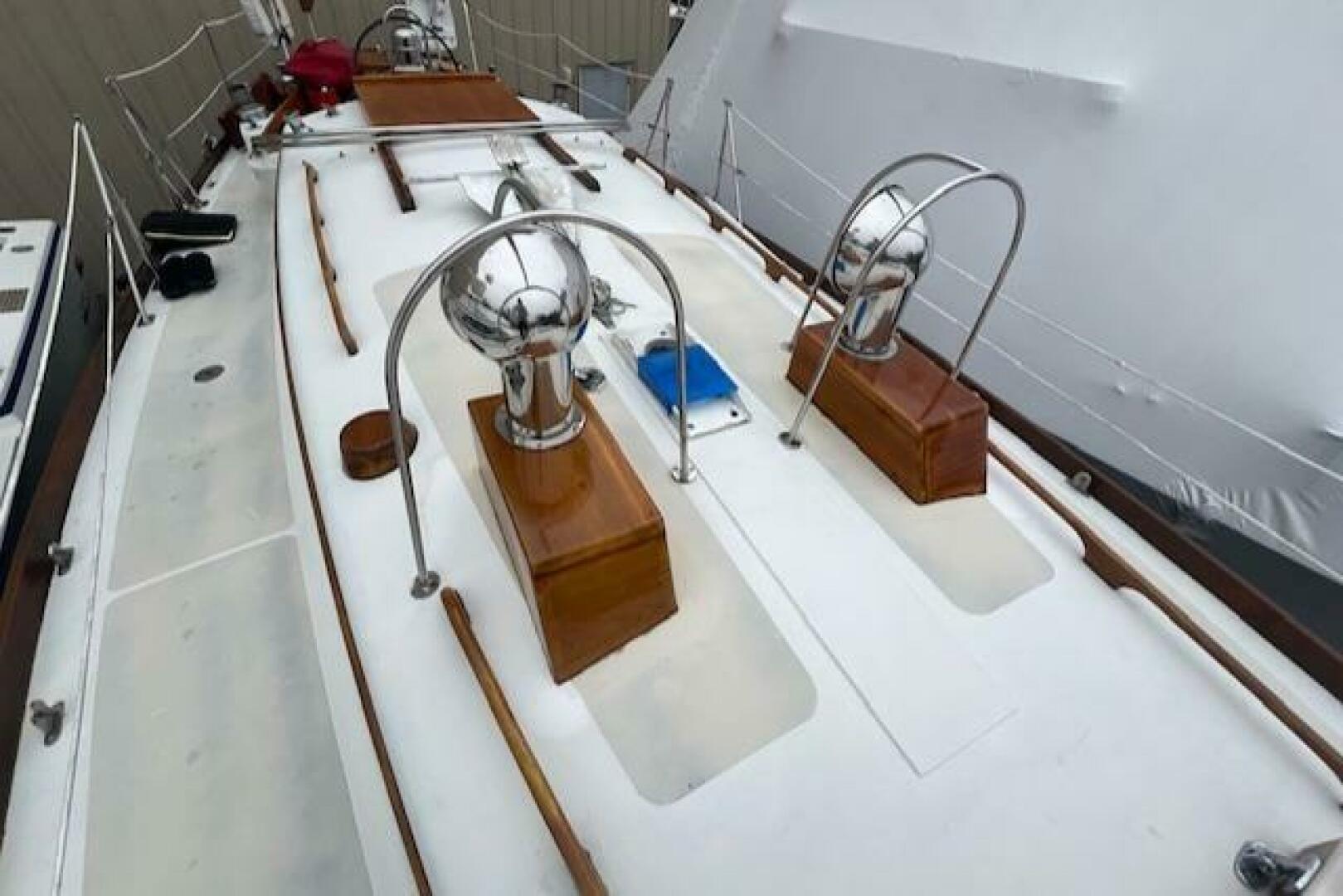

• Custom varnished teak dorade boxes with S/S cowl vents and S/S guards.
• Edson pedestal wheel steering with S/S pedestal guard and binnacle compass.
• Varnished teak table and drink holder.
• S/S steering wheel with elkhide.

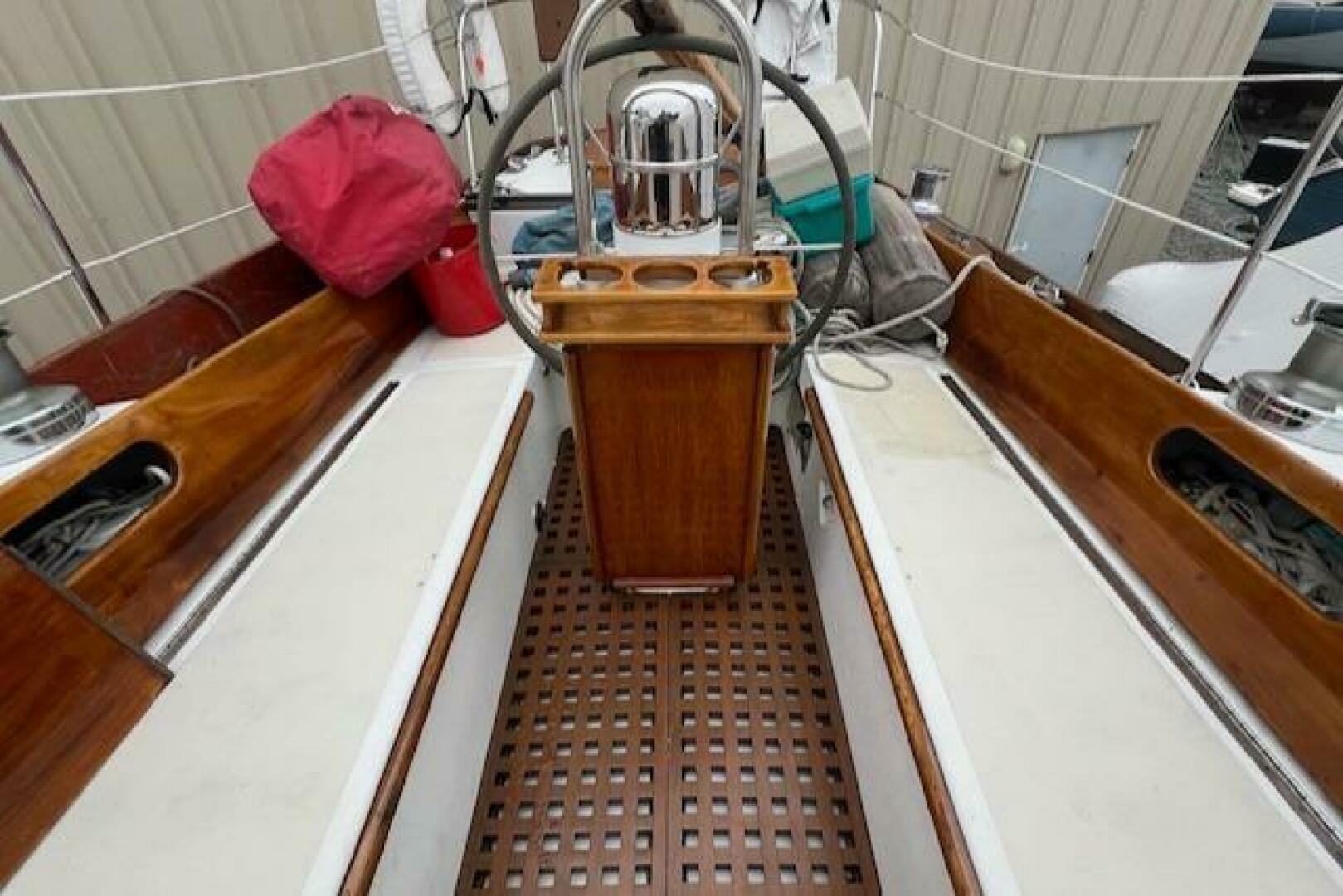

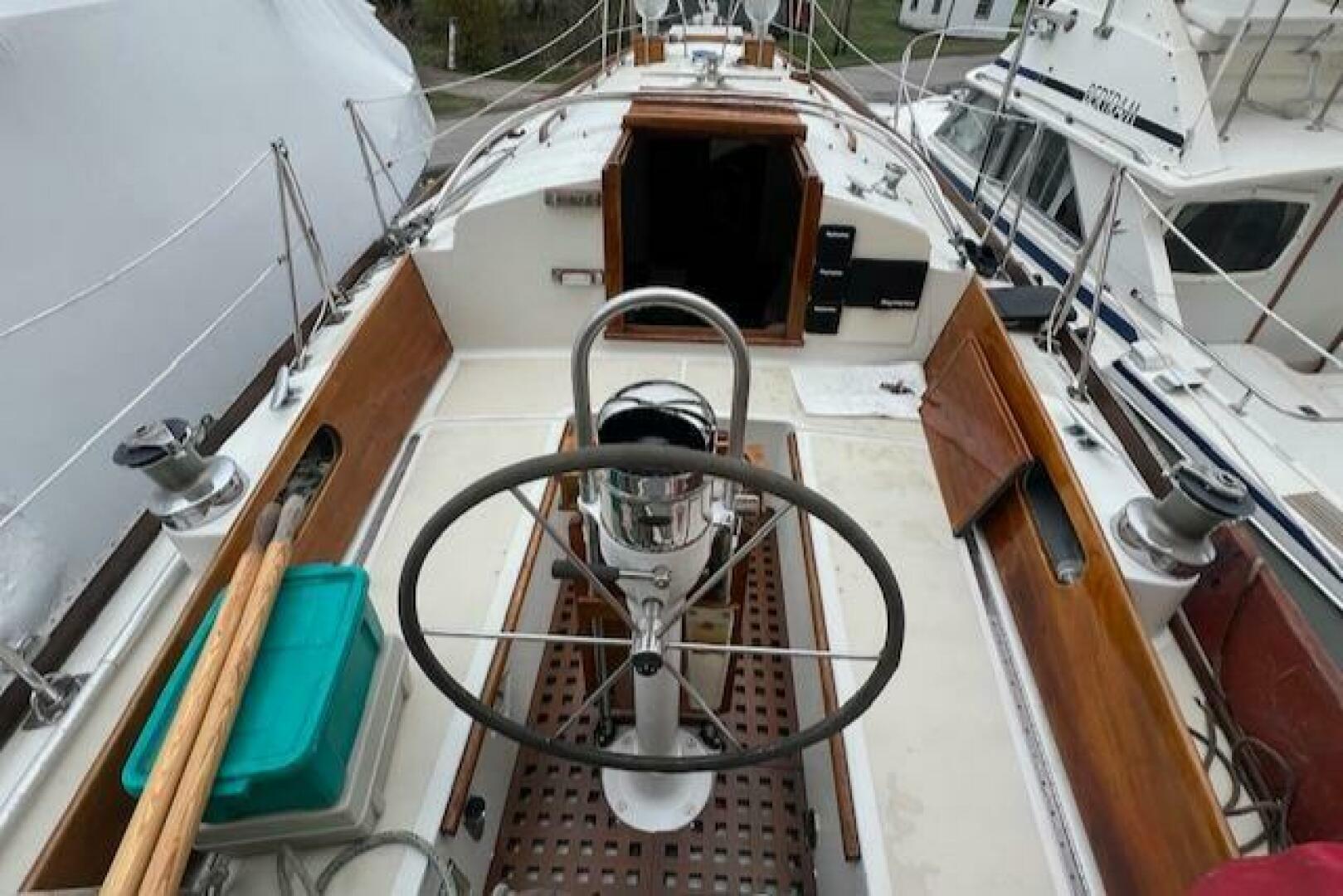

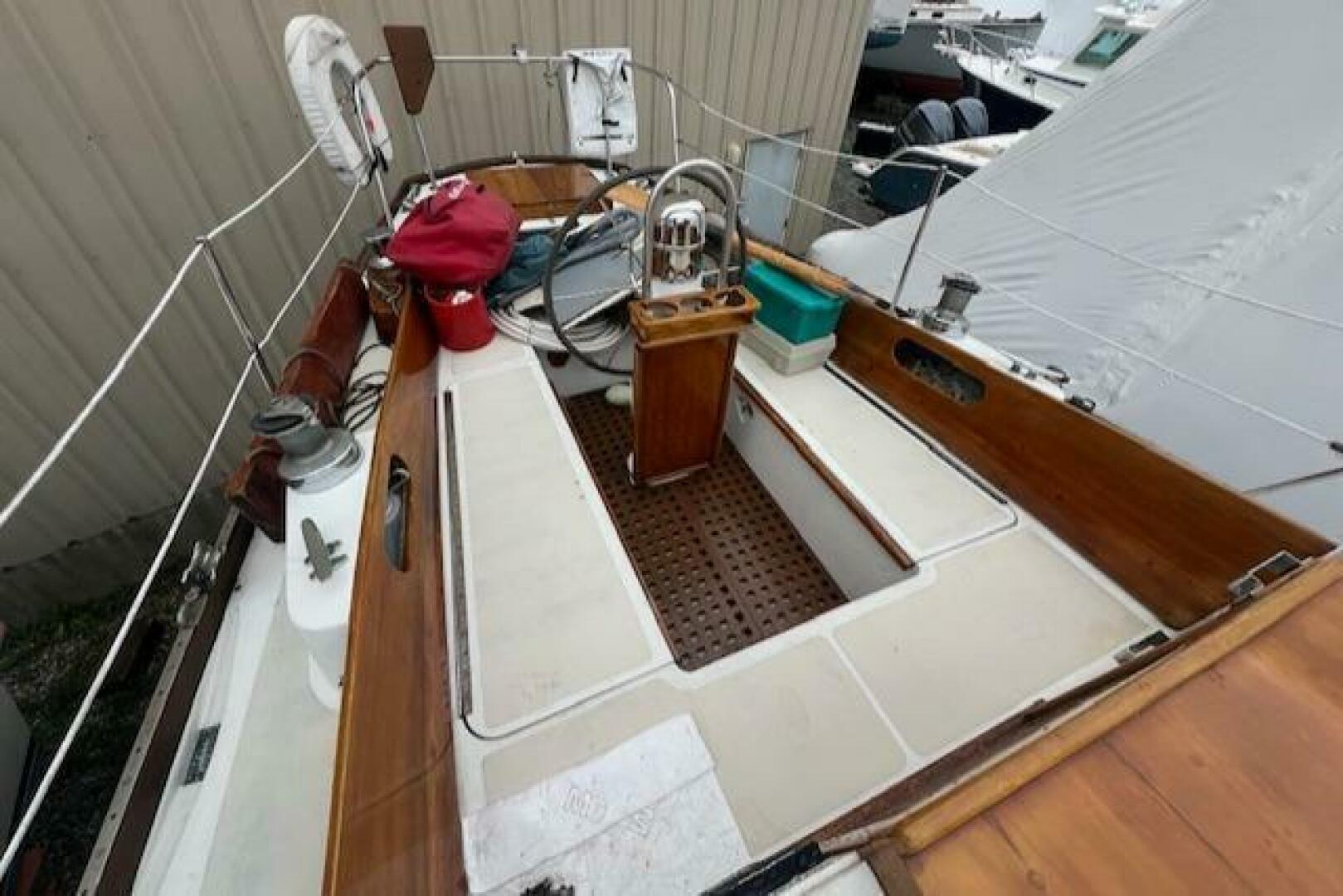

COCKPIT:

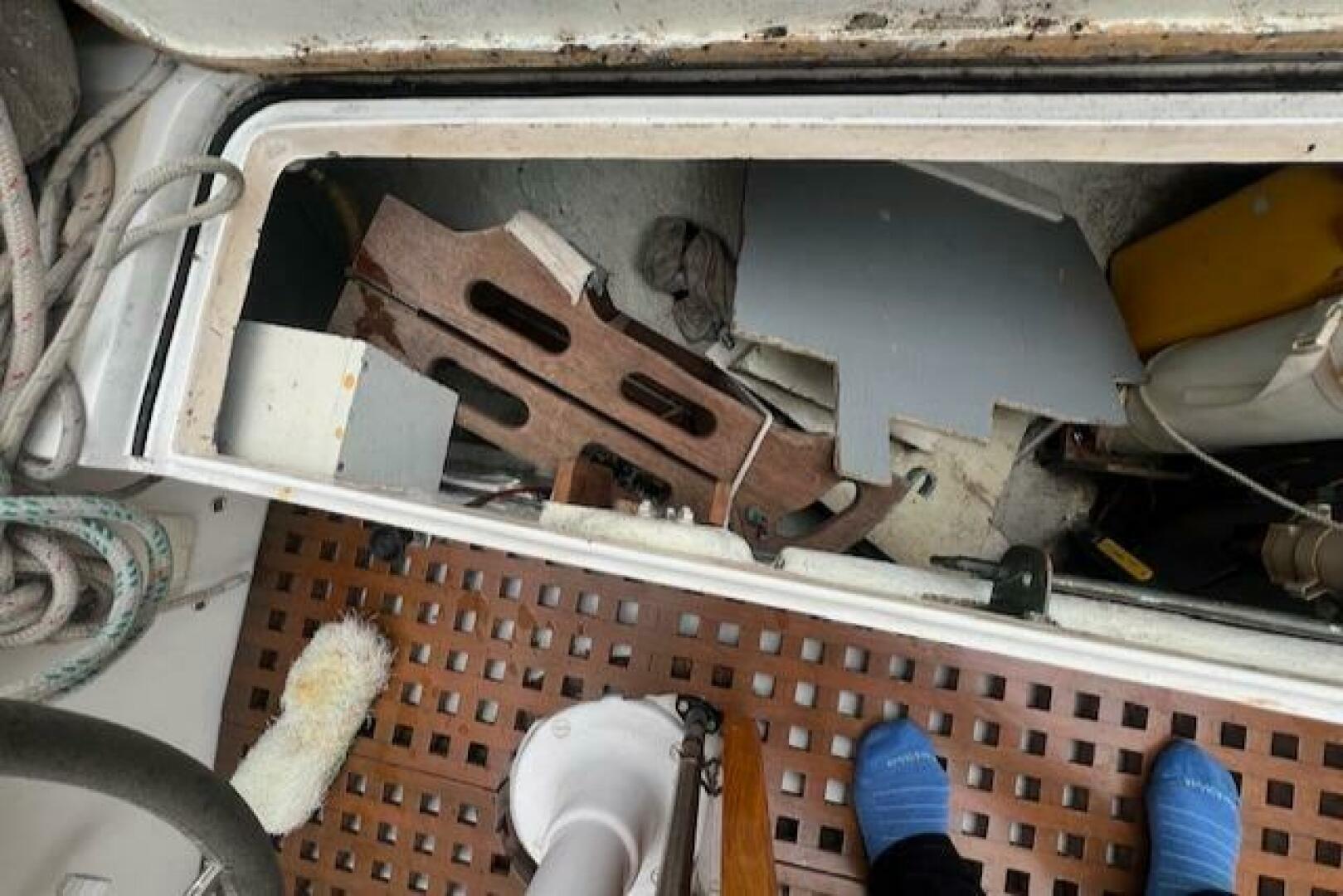

• Two large, teak trimmed, top opening watertight seats with non-skid surfaces that access deep sail and storage locker.
• The teak cockpit coamings have port and starboard winch pockets.
• Self-draining cockpit scuppers.
• Forward bulkhead mounted nav instruments.
• Cockpit grate is Cetoled.

Tankage

FUEL: 30 gallons in Monel tank (tank recently removed and cleaned). WATER: 70 gallons. HOLDING TANK: yes, new.

ENGINE & MECHANICAL

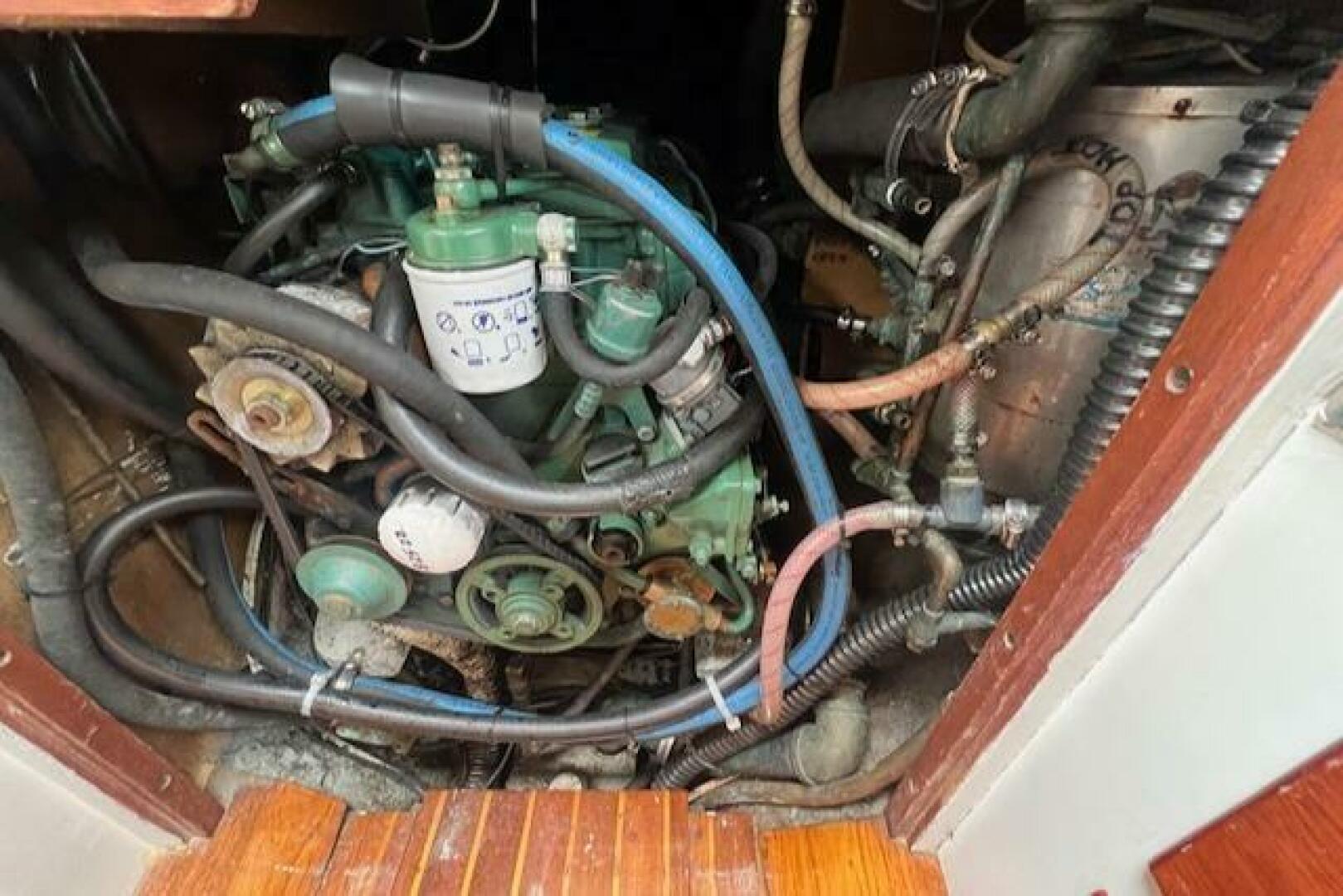

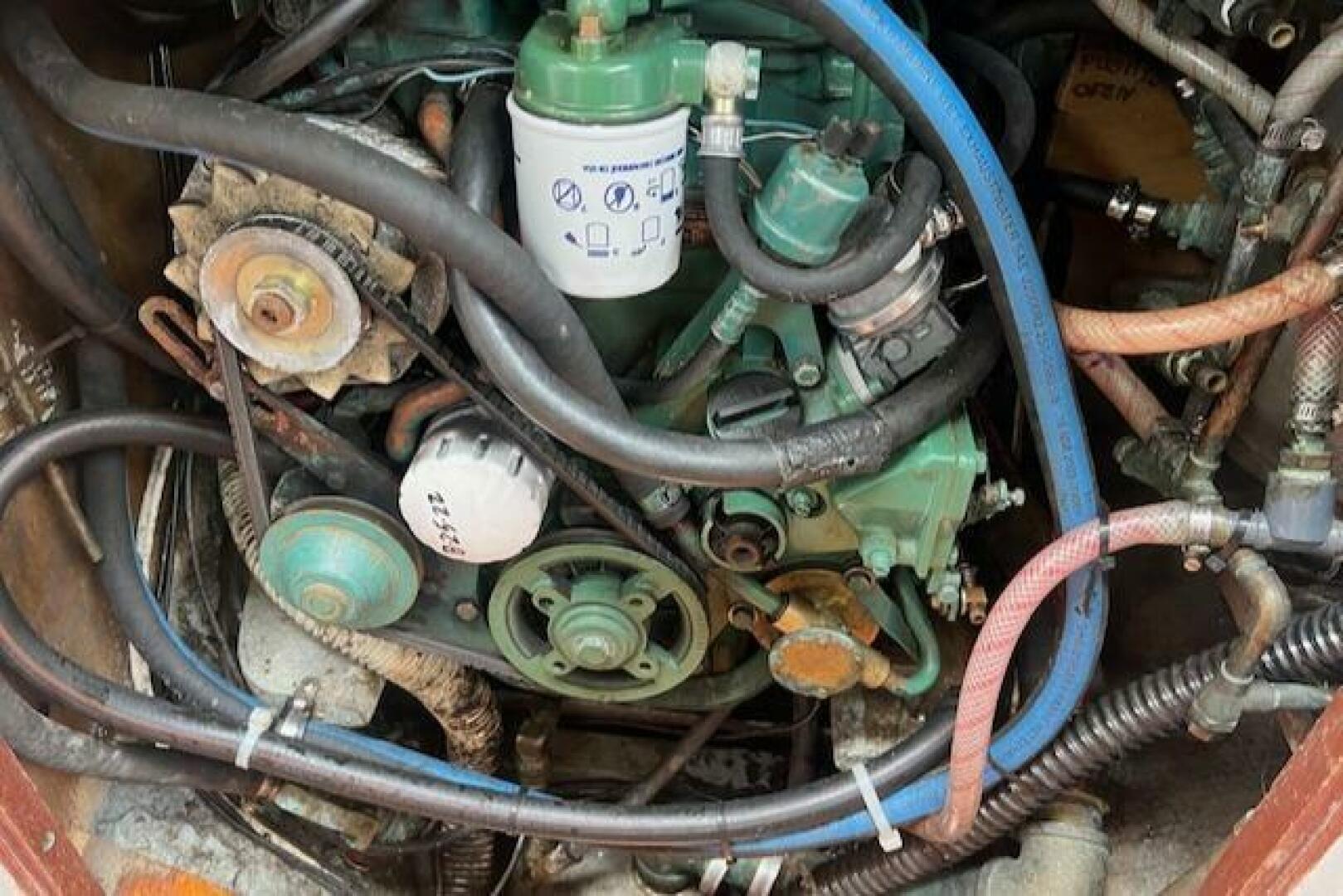

• 1998 Volvo Penta Model 2003 diesel, 28 hp, 3 cylinder, FWC.

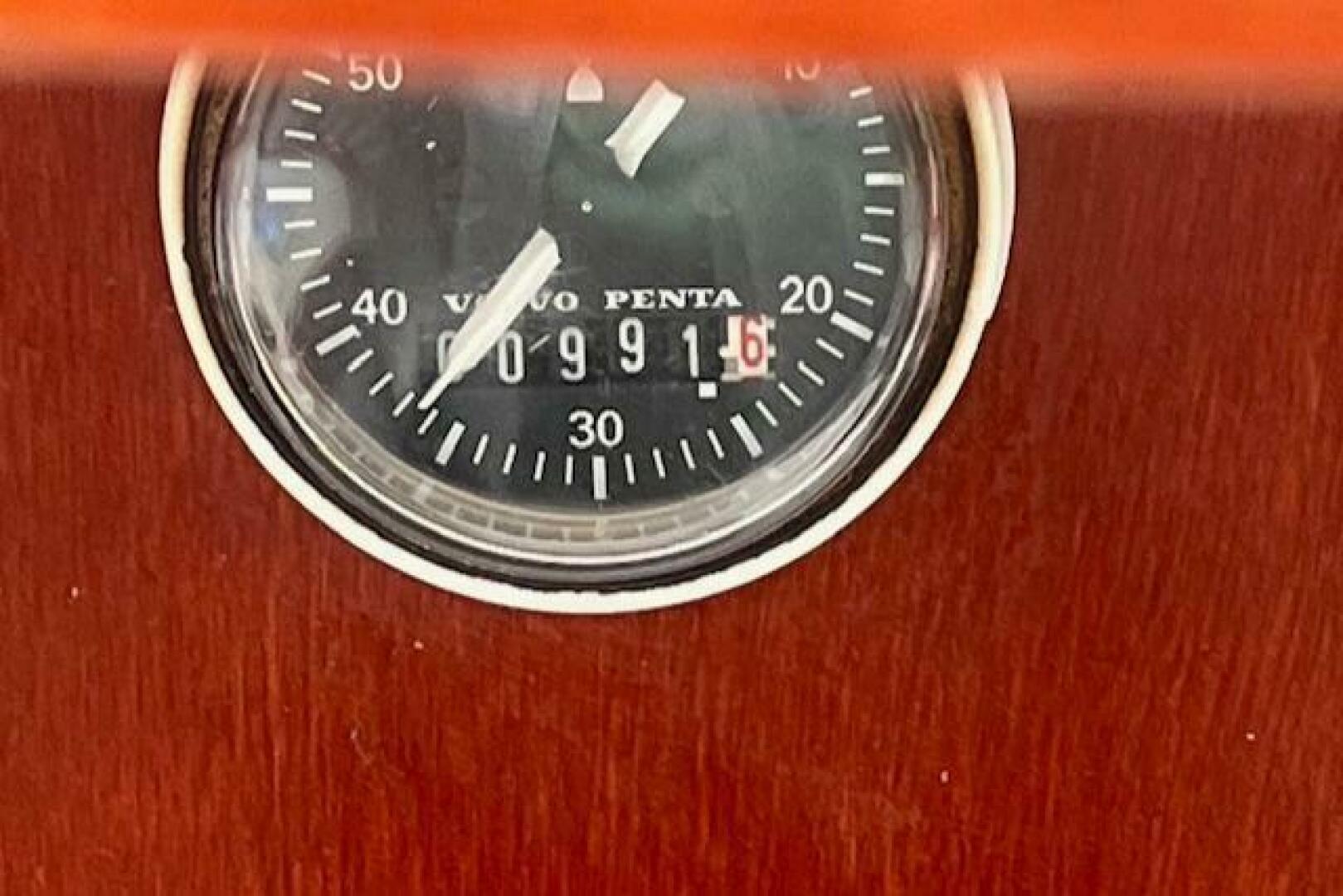

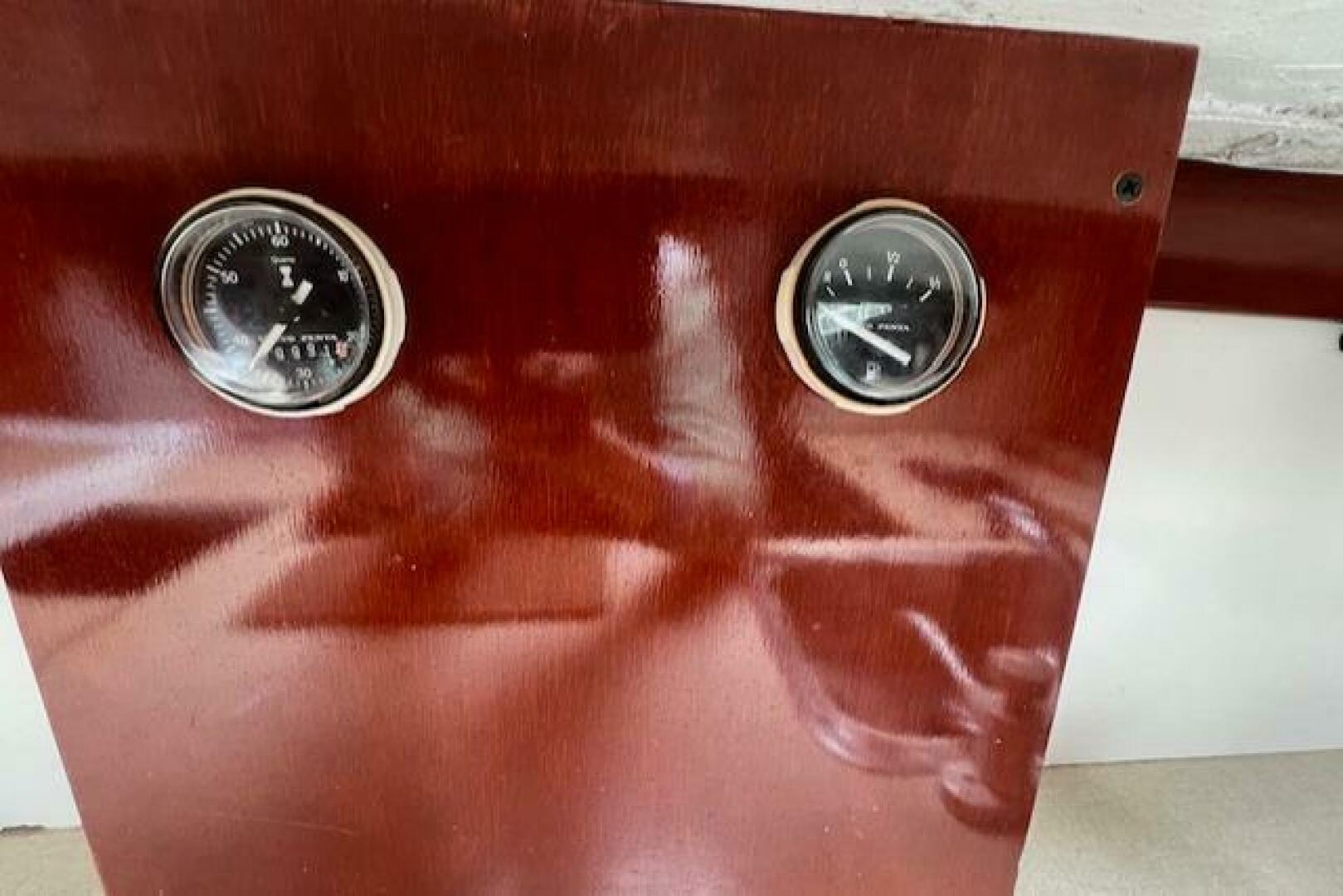

• 991 hours as seen on the hour meter.
• 2024 KGM32B Volvo transmission.
• Recent cutlass bearing.
• S/S shaft.

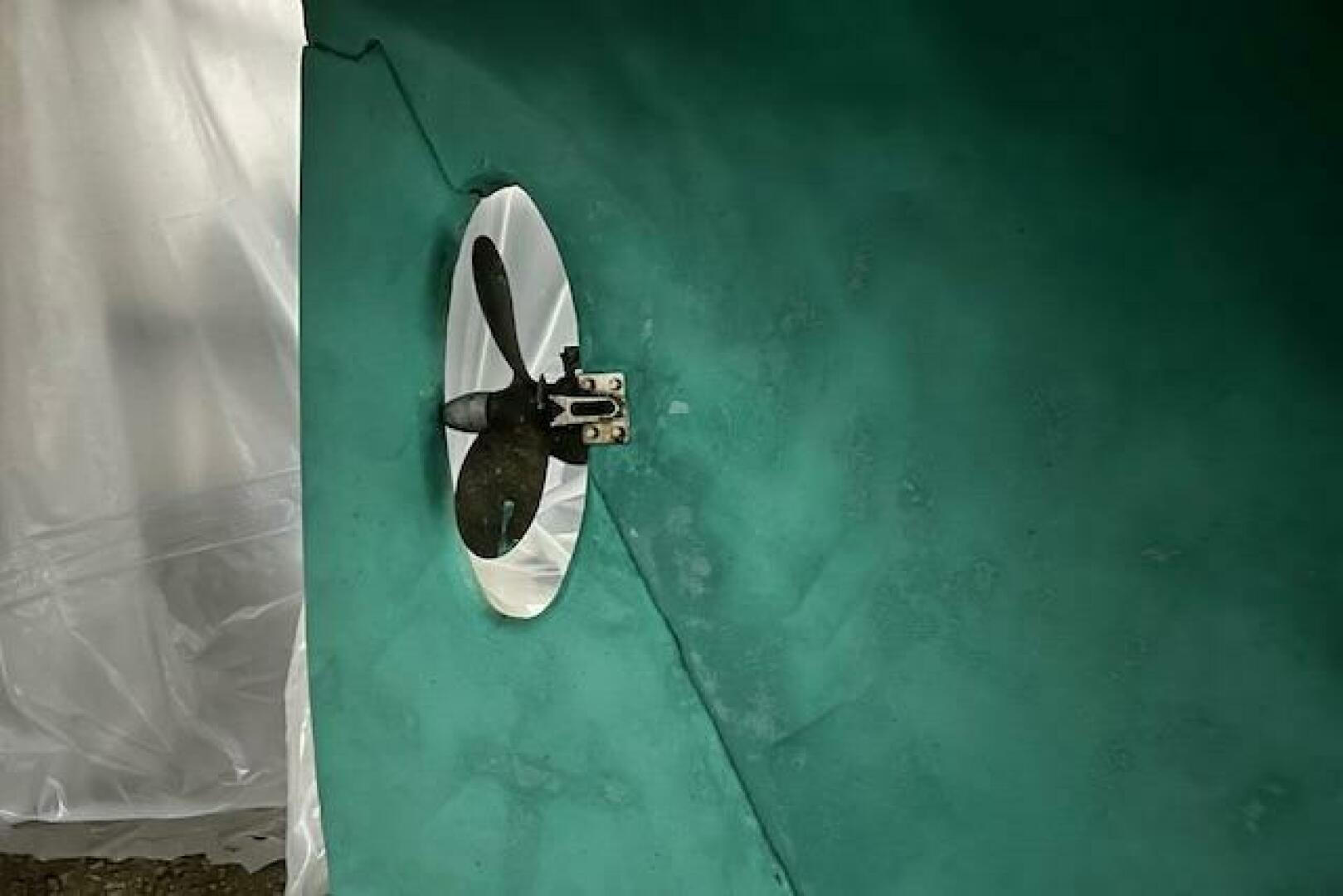

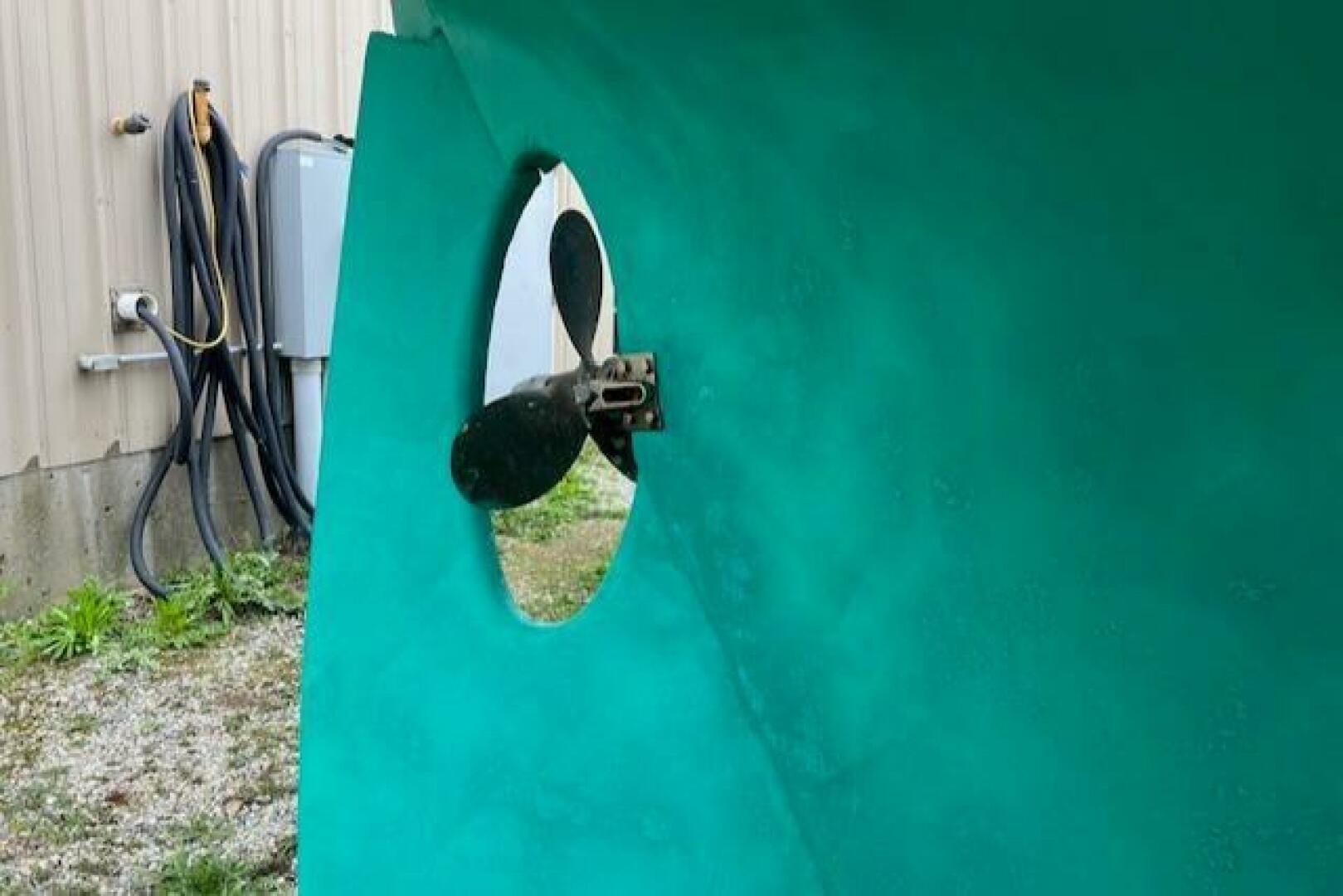

• New 3 blade fixed prop; spur cutters on shaft.
• Racor fuel filter, and remote oil filter for easy access.
• Raw water sea strainer.
• Rule electric bilge pump.
• Manual Gusher Whale bilge pump.
• Owner reports engine was rebuilt in 2001.
• Replaced head gaskets recently.
• New single lever shift and throttle controls and new ignition switch.

ELECTRICAL

• 12V DC system only.
• 3-12V gel cell batteries, (one start, two house).
• Engine alternator charges batteries.

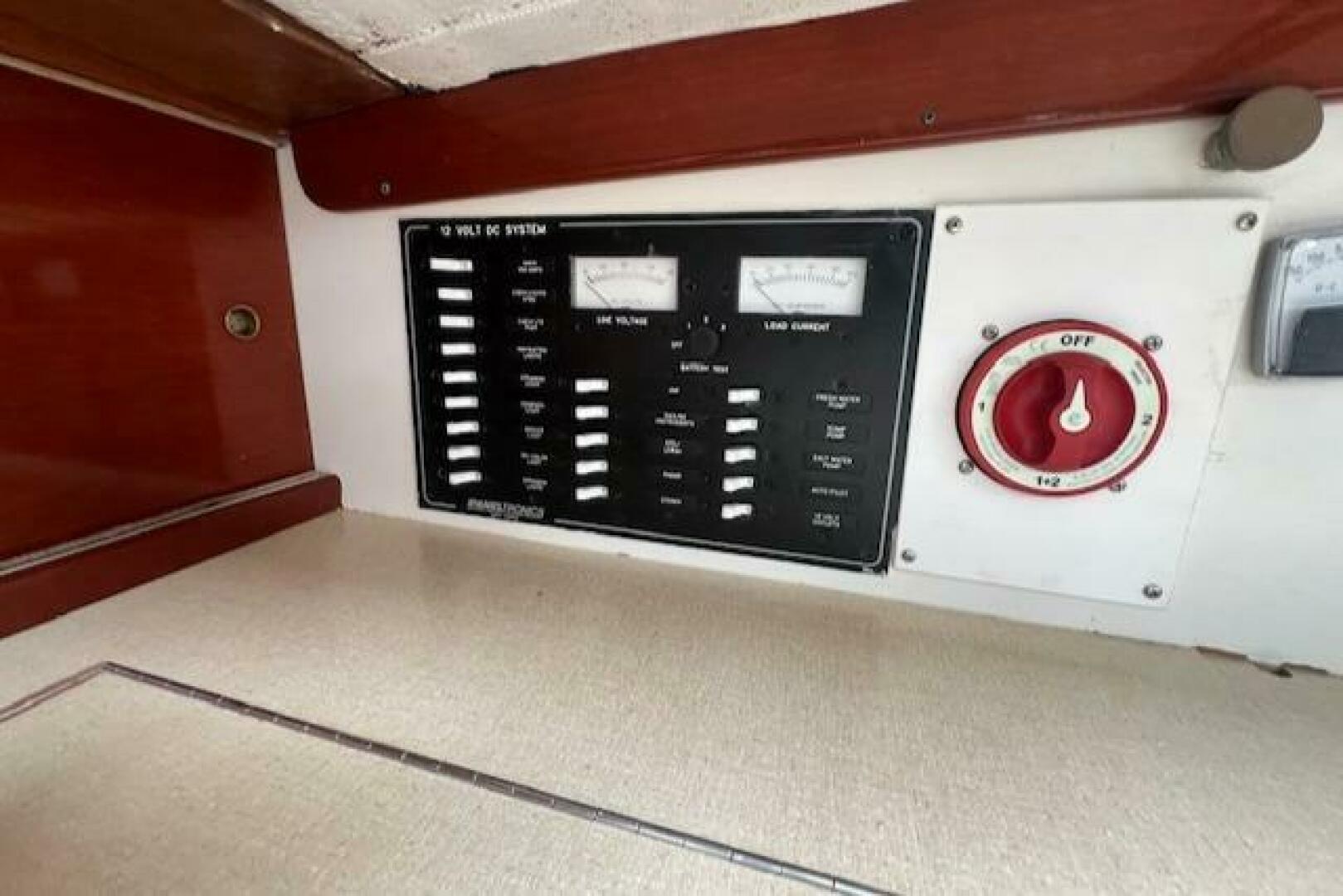

• Circuit breaker panel, installed new recently, with Guest Smart switch.

Accommodations

Interior finished in white painted bulkheads with varnished Mahogany trim and a 6 berth offshore-style interior layout. 6' interior headroom. Teak and holly cabin sole, varnished well. From forward cockpit, entry into the interior accommodations is through the companionway hatch into the main cabin; the companionway steps are movable for access to the engine area behind. Interior is well ventilated with opening overhead hatch, companionway hatch and dorade ventilation.

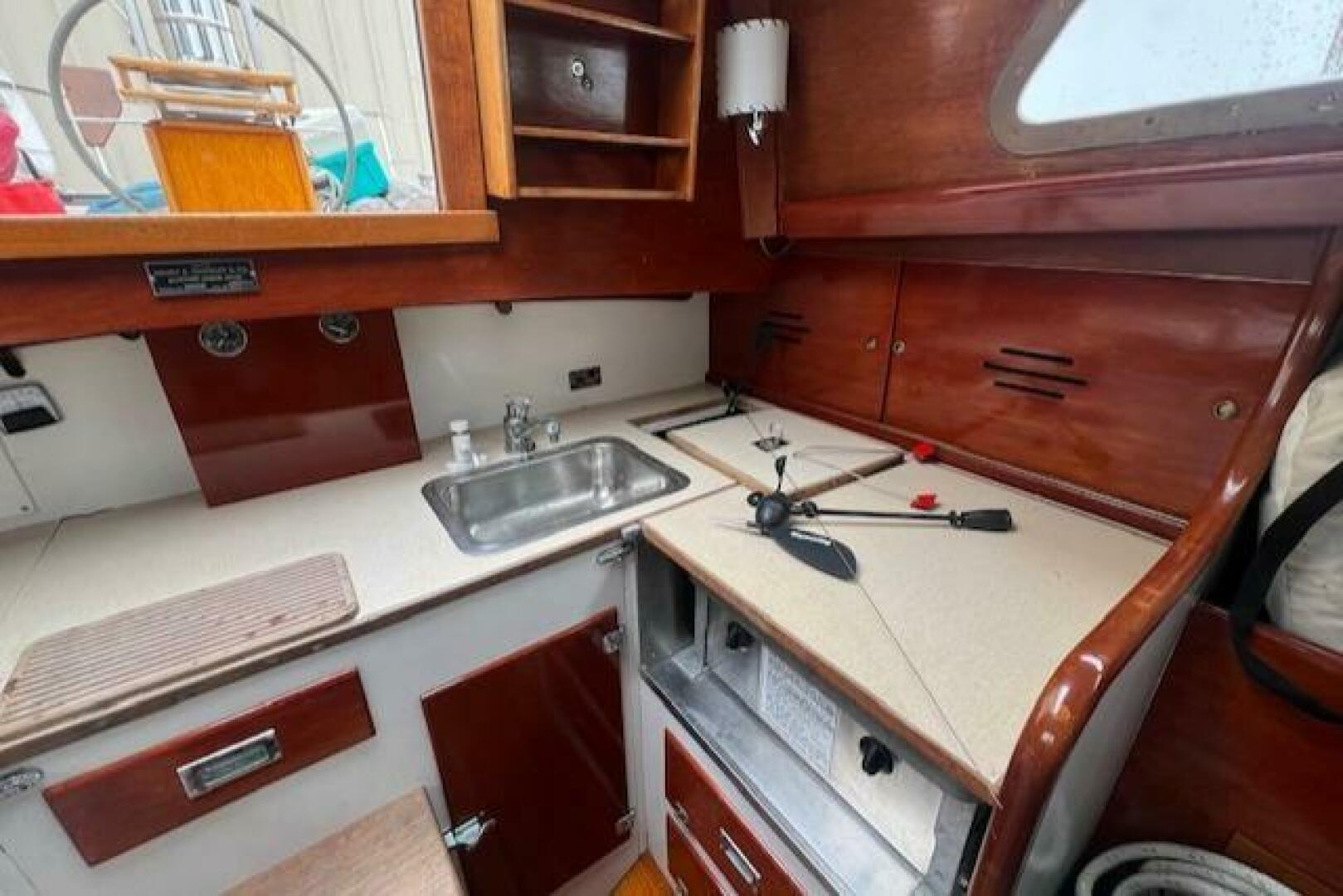

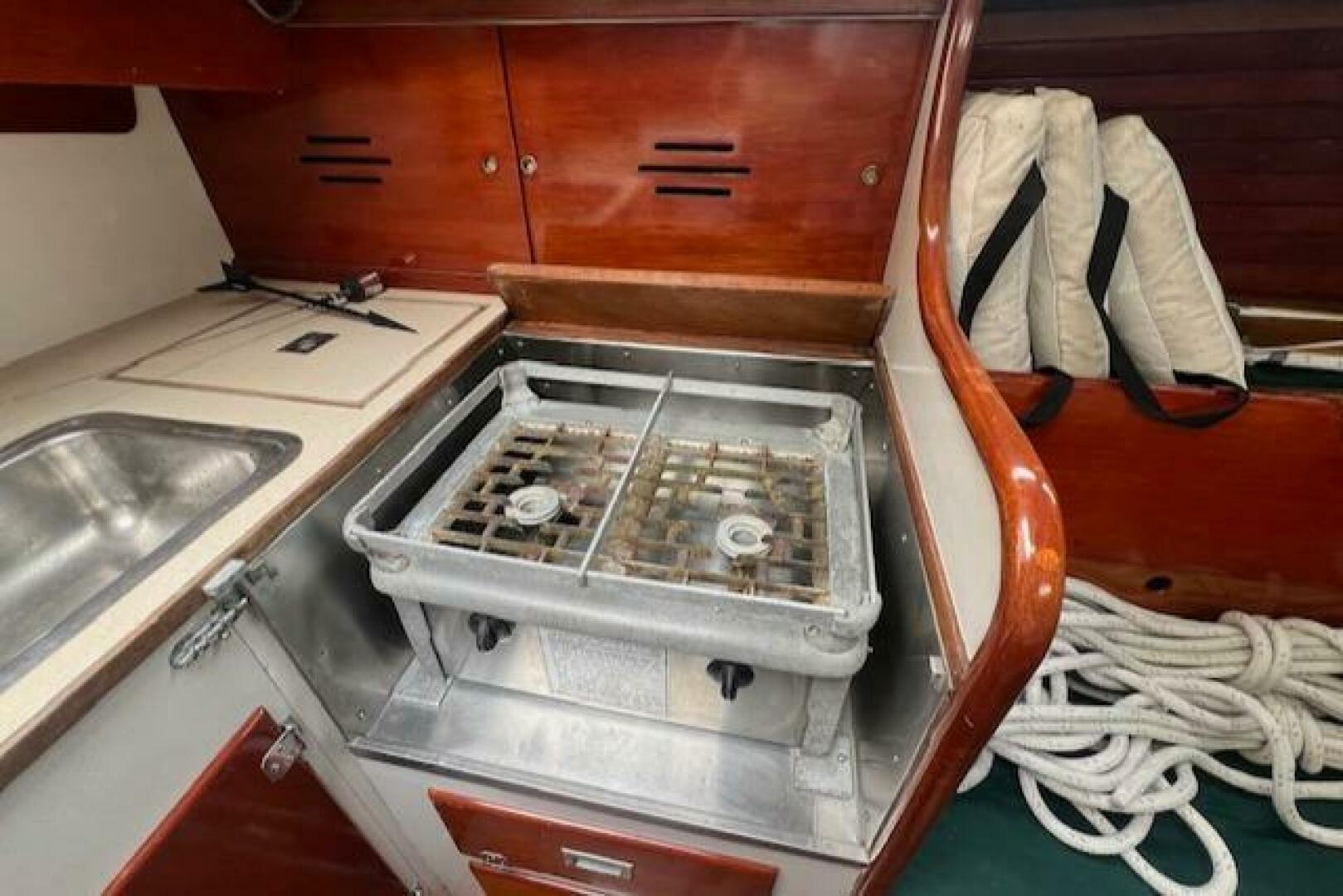

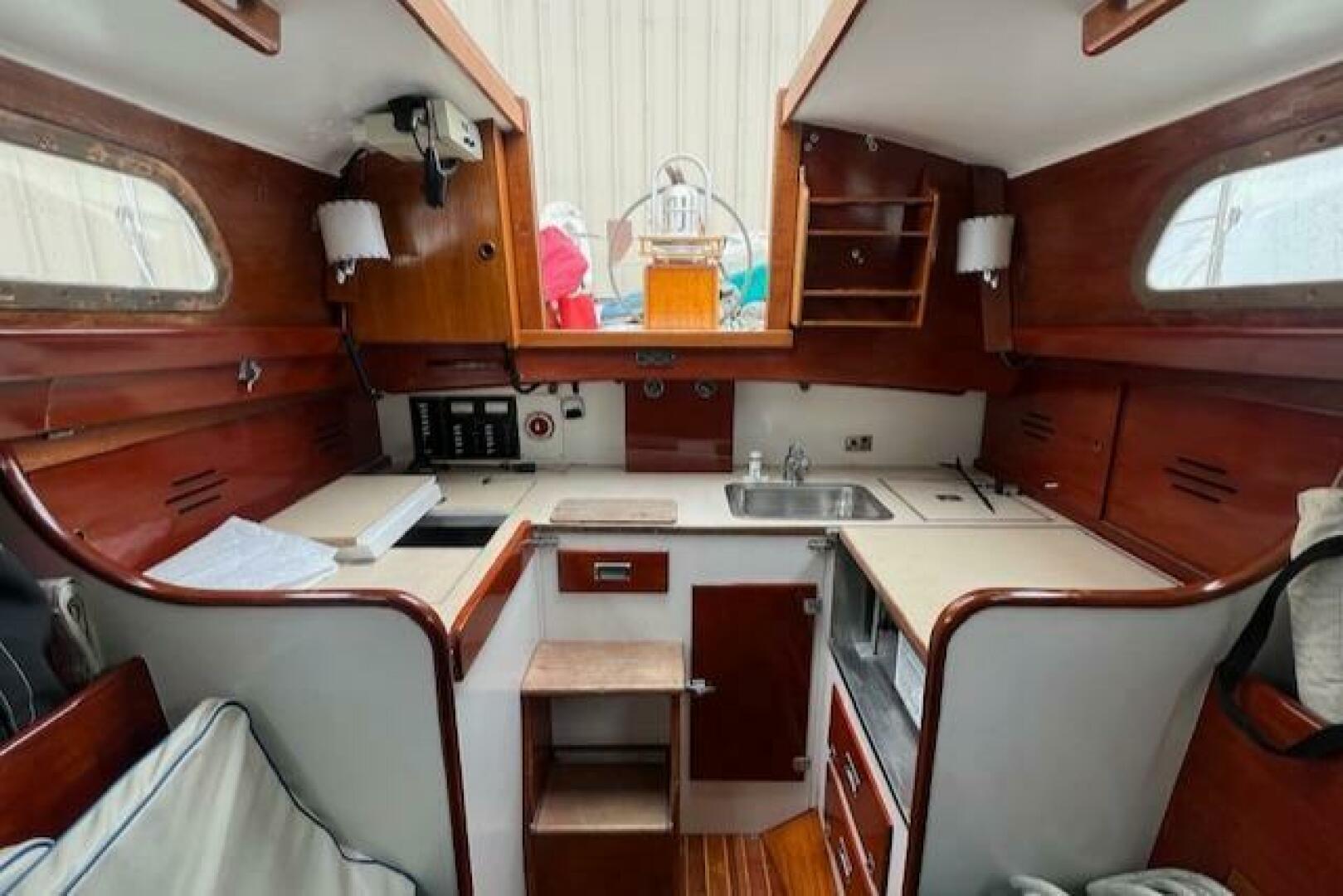

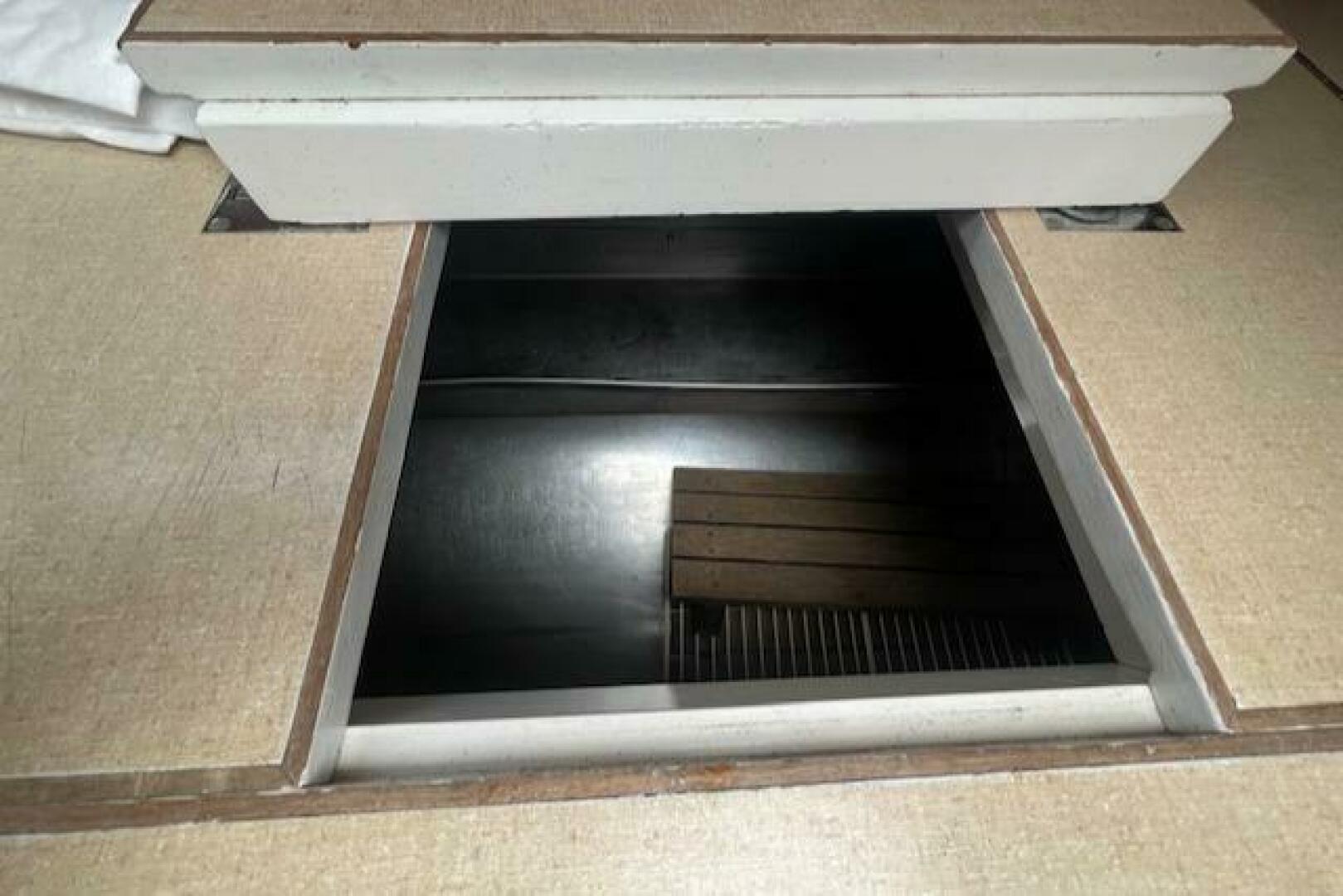

GALLEY: The full-width U-shaped galley features “linen” Formica countertop surfaces, including a hideaway stovetop cover, for plenty of galley workspace. Ports outboard and port and starboard companionway offer plenty of natural light and ventilation. Gimbaled 2 burner CNG stove top with counter cover. Two sliding door storage areas outboard of stove. S/S sink with fixtures and S/S light above; hot and cold pressure water. Freshwater pump, as back-up for galley sink. Electrical panel and instrument gauges. Top-loading, insulated S/S icebox with teak grates; drains to sump tank in bilge. Integrated in the starboard galley area is the nav area.

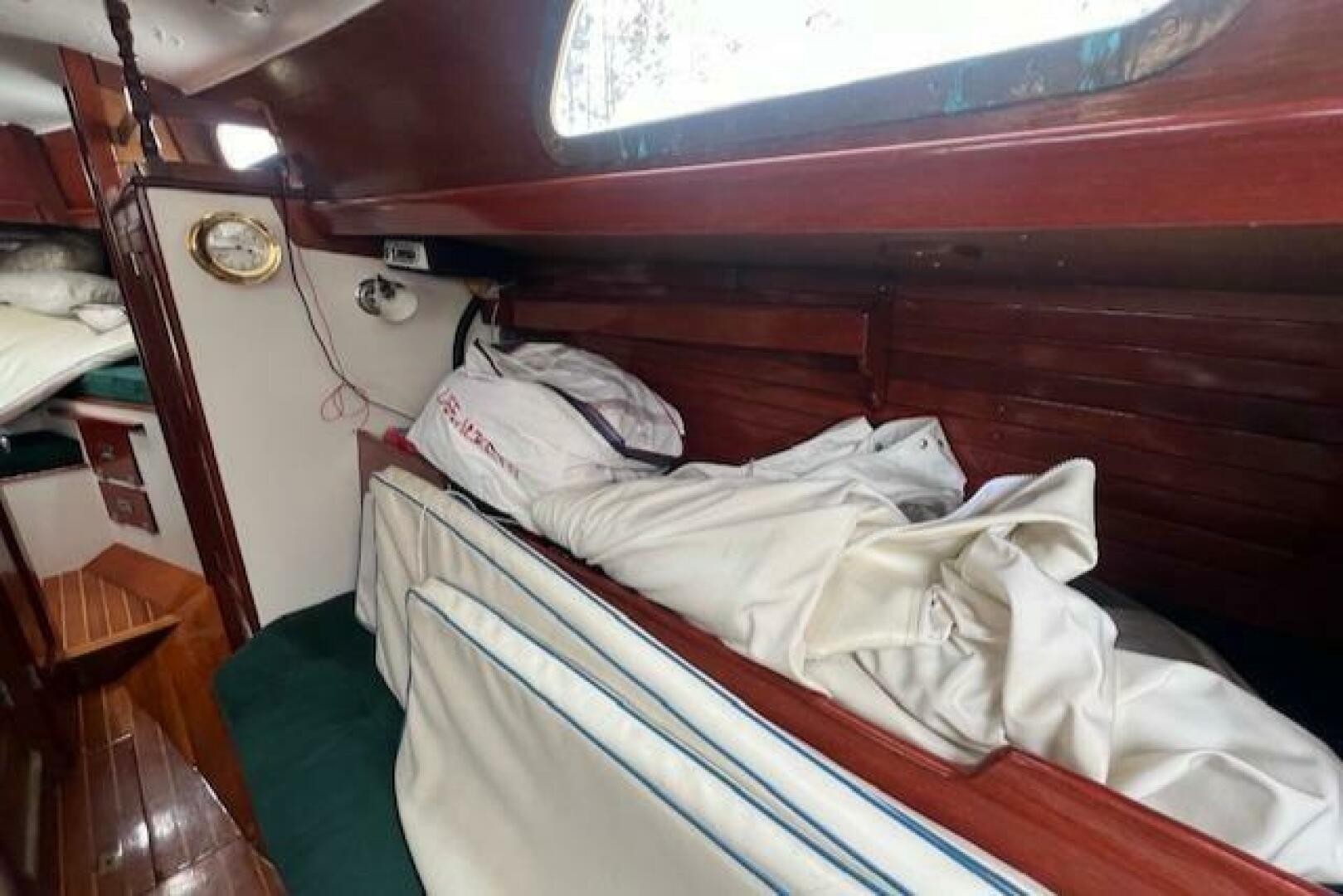

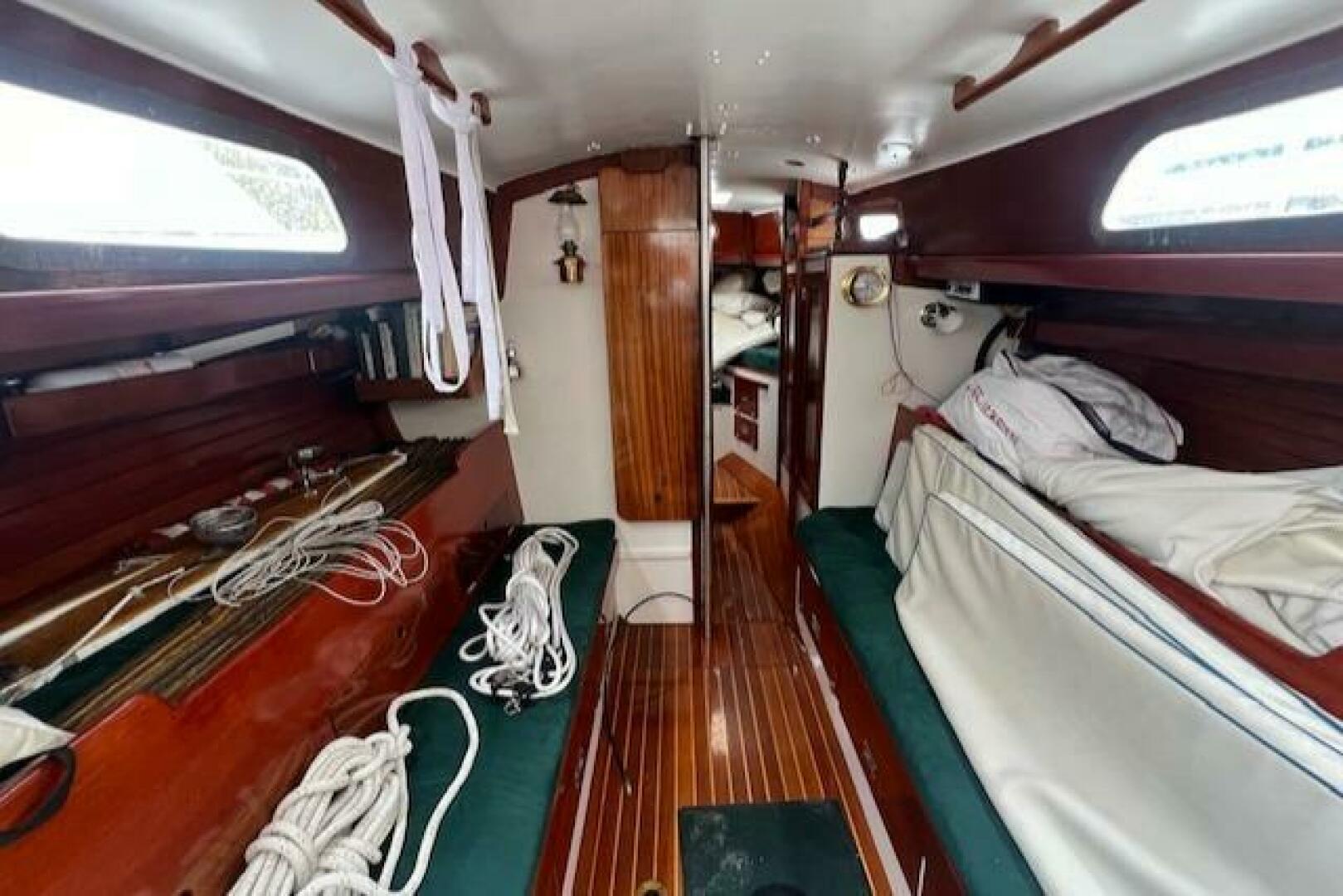

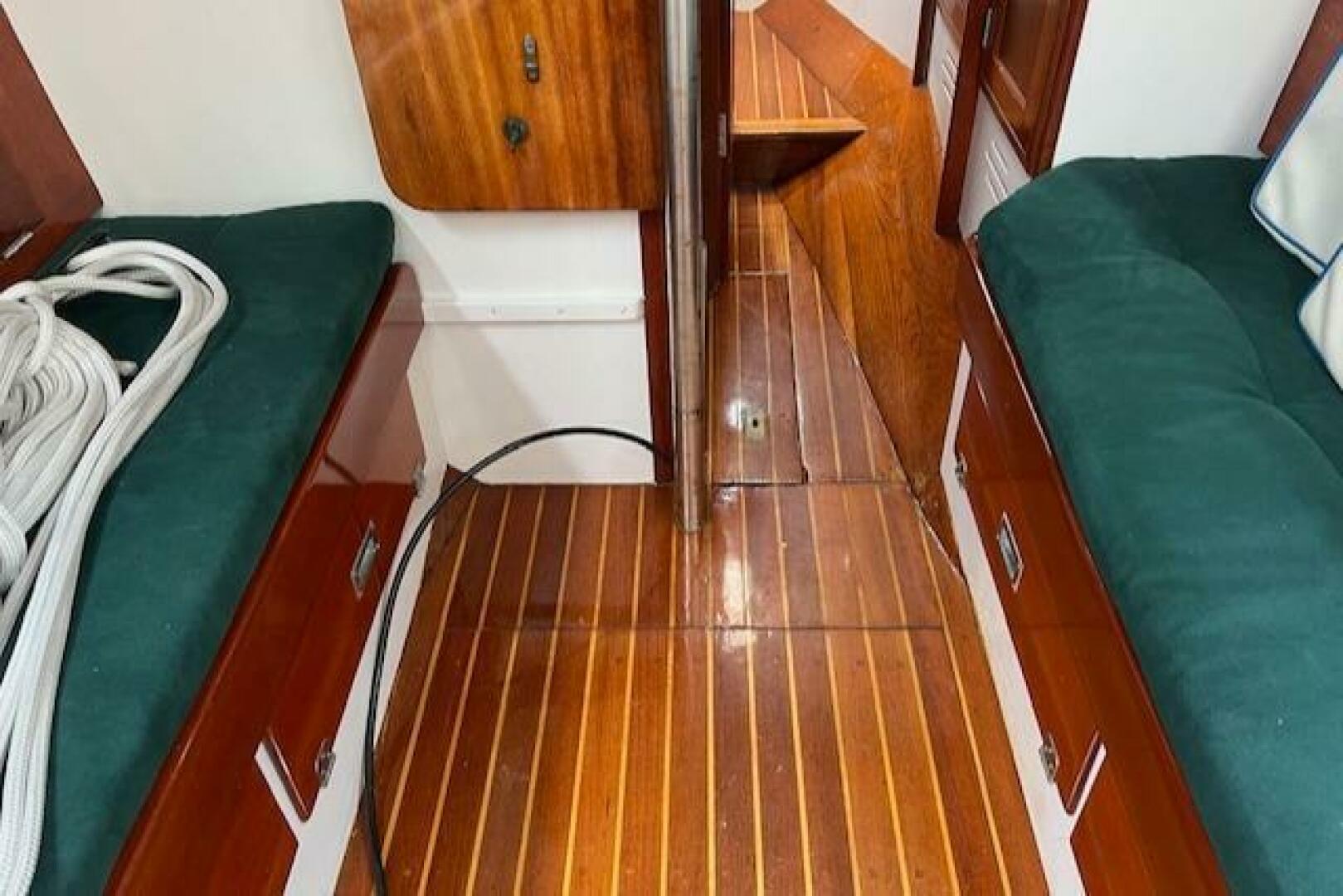

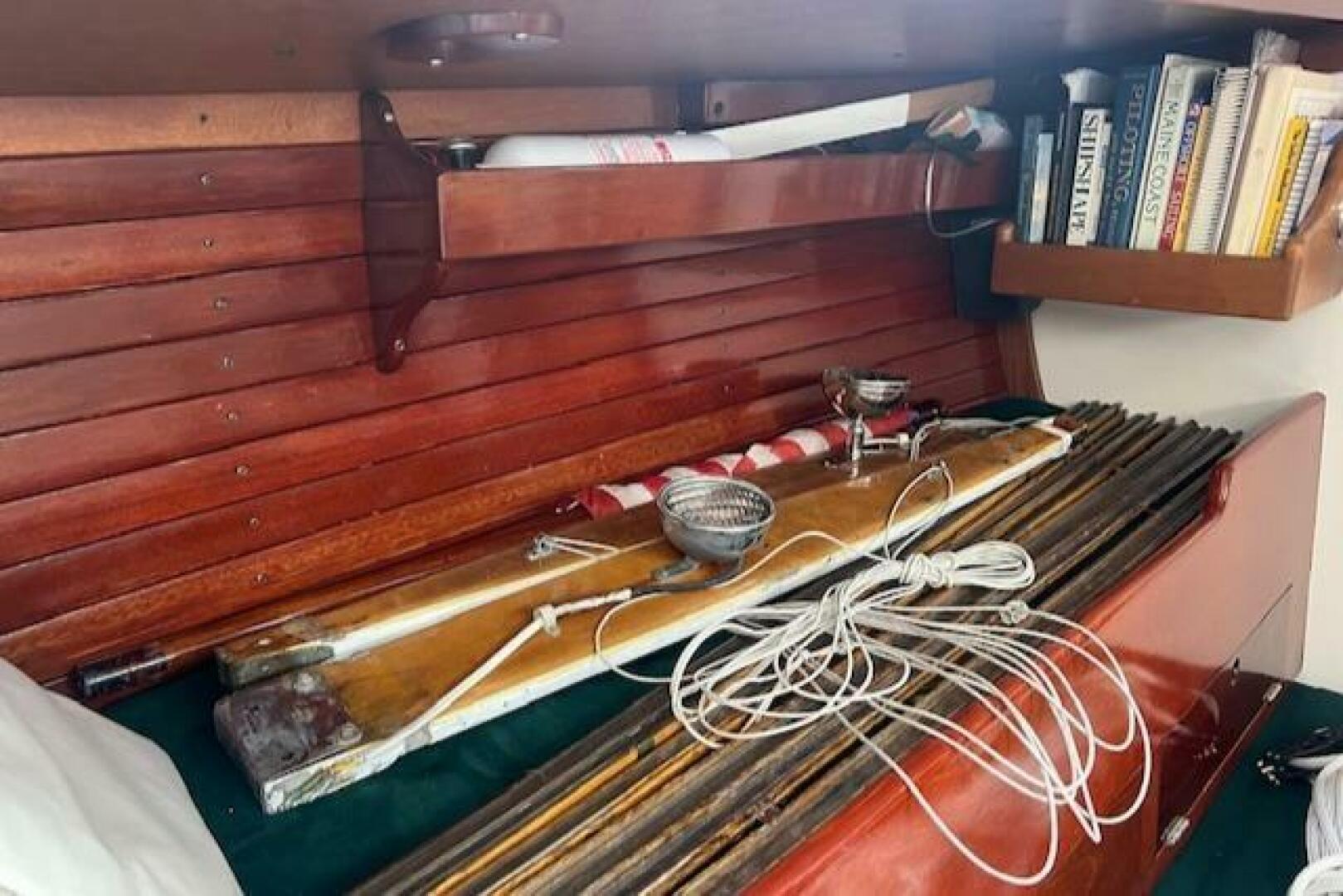

MAIN SALON: Fold-up varnished mahogany drop leaf table is mounted on the port forward bulkhead. Port and starboard transom settees with recently replaced forest green Ultrasuede; both settees slide out to full-width berths. Outboard pilot berths have shelf storage over outboard; pilot berths are covered with same forest green Ultrasuede. Pilot berths have drawer/locker storage below each berth. Large hanging locker is forward. 12V Frigast lighting, mounted port and starboard.

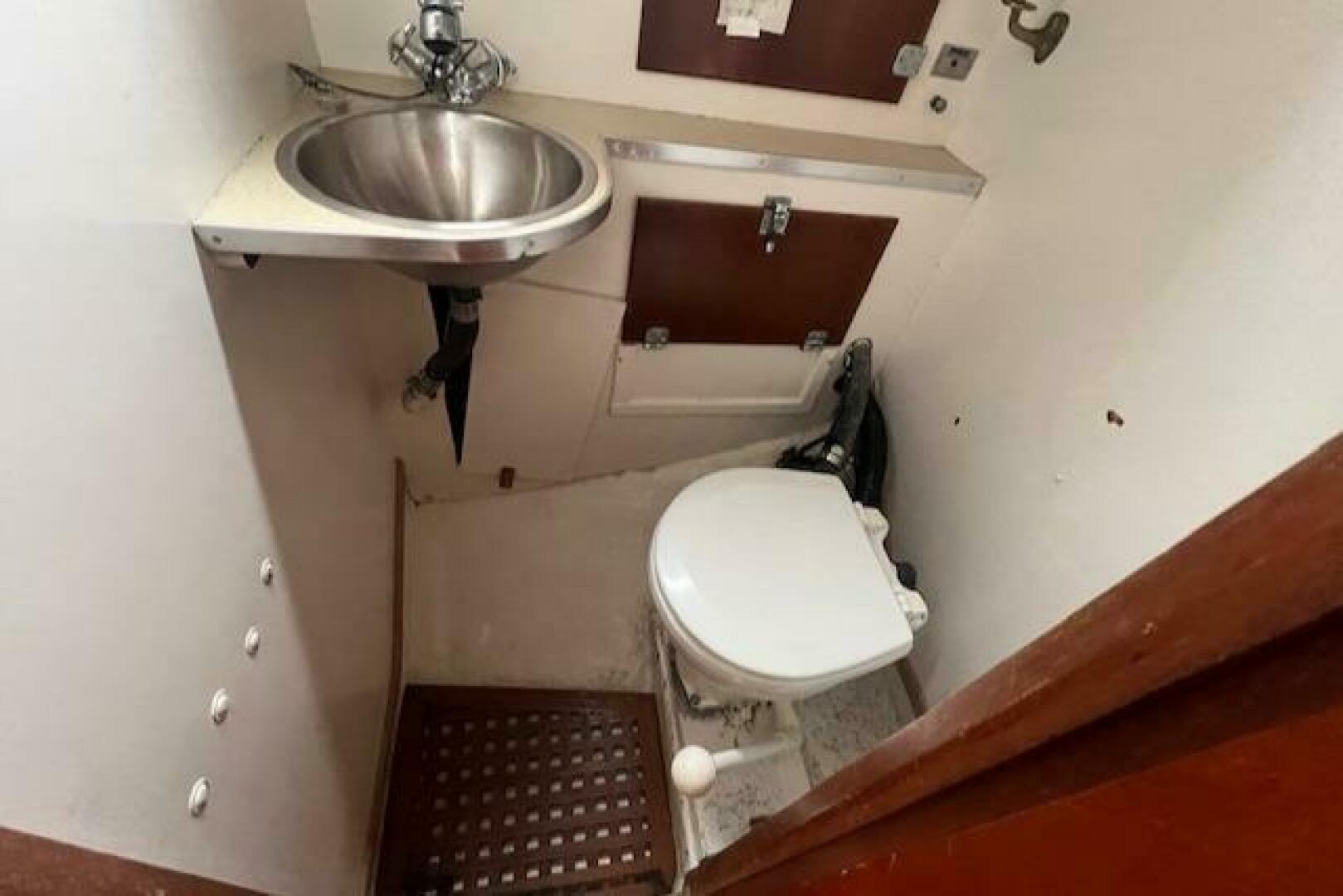

HEAD: Opposite the hanging locker is the private enclosed head finished with white mahogany bulkheads with teak shower grate and sump drain. S/S sink with fixtures; faucet/handheld telephone-type shower. Hot and cold pressure water. New shower sump pump. Overhead dorade ventilation. Opening portlight with screen. Solid mahogany door.

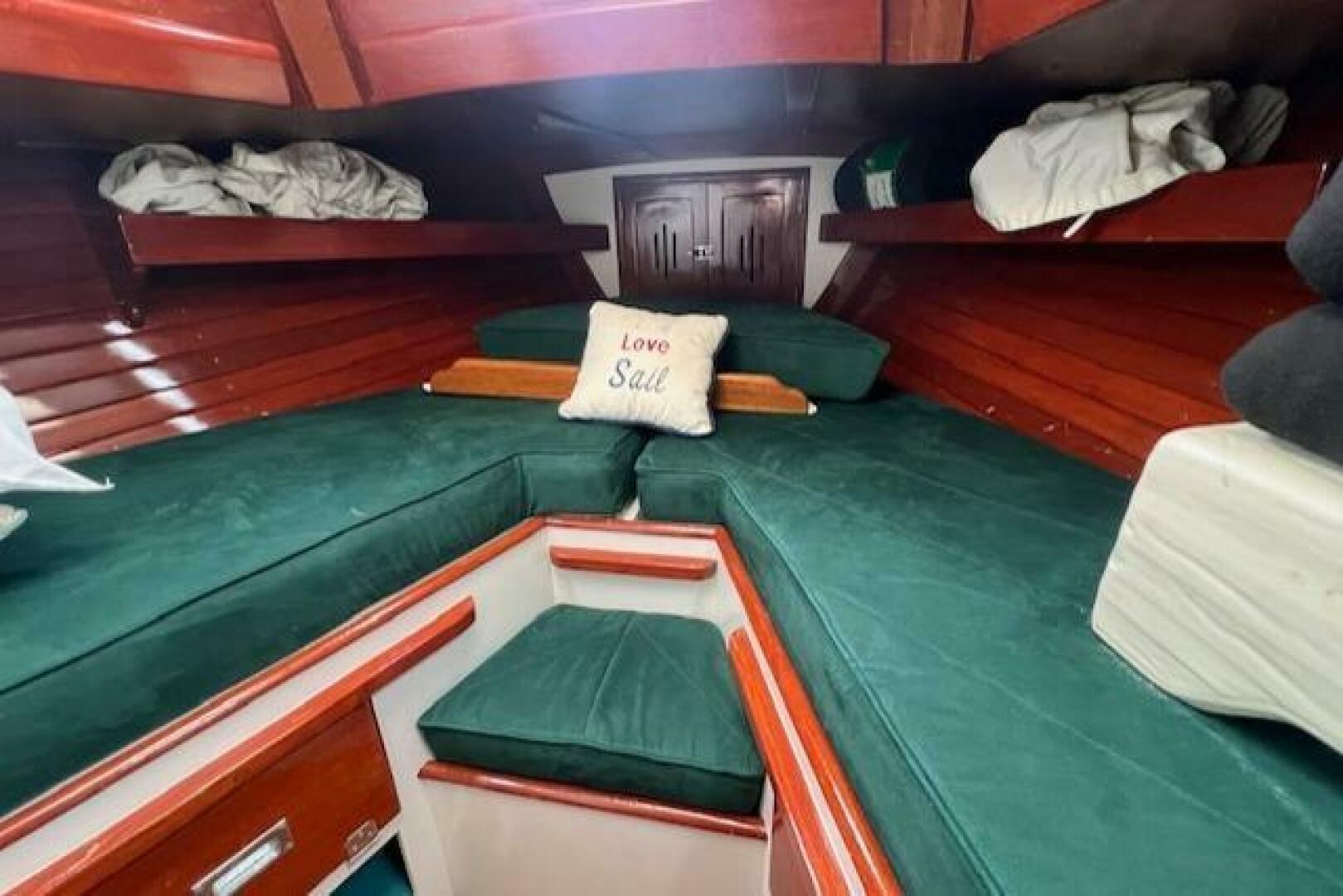

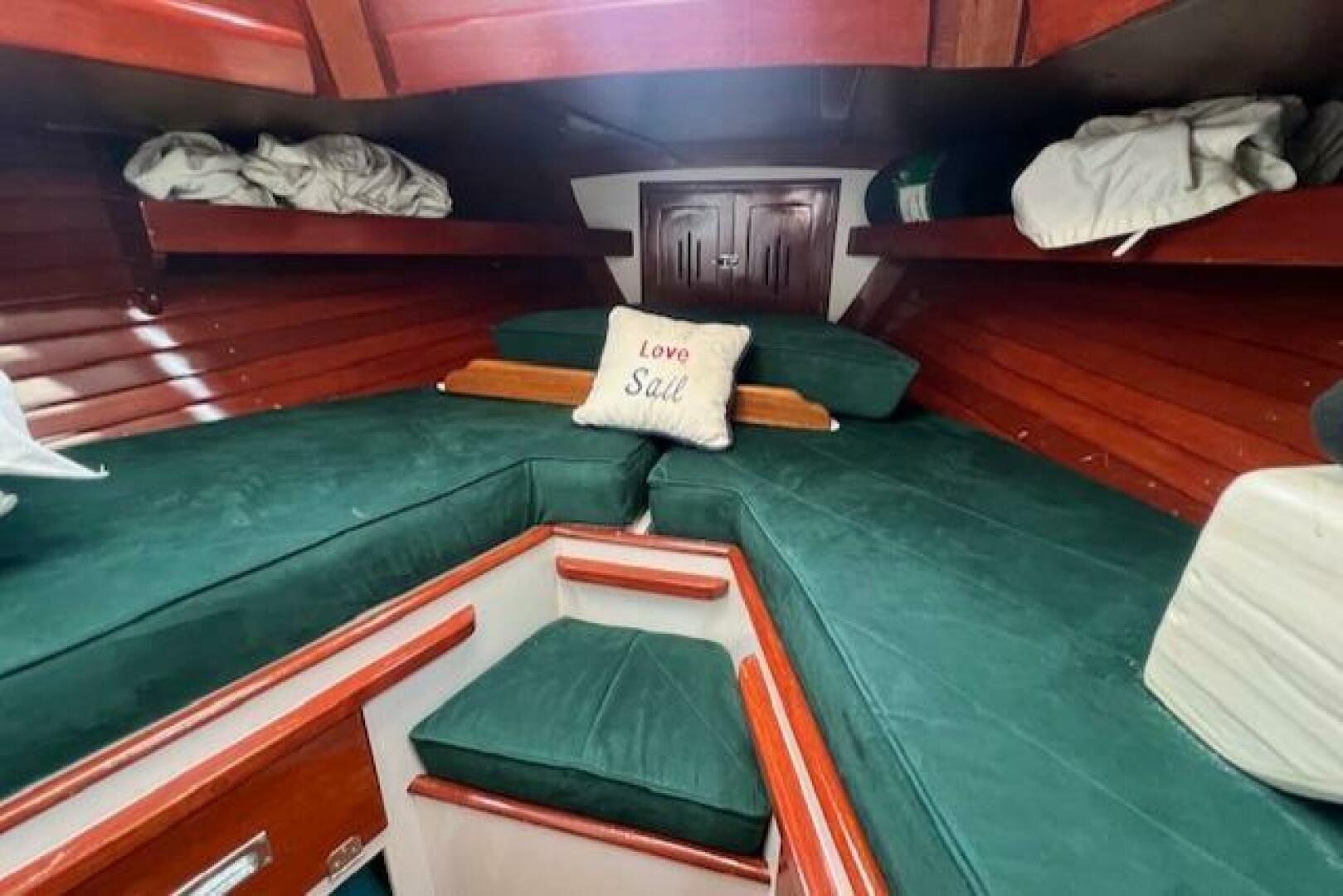

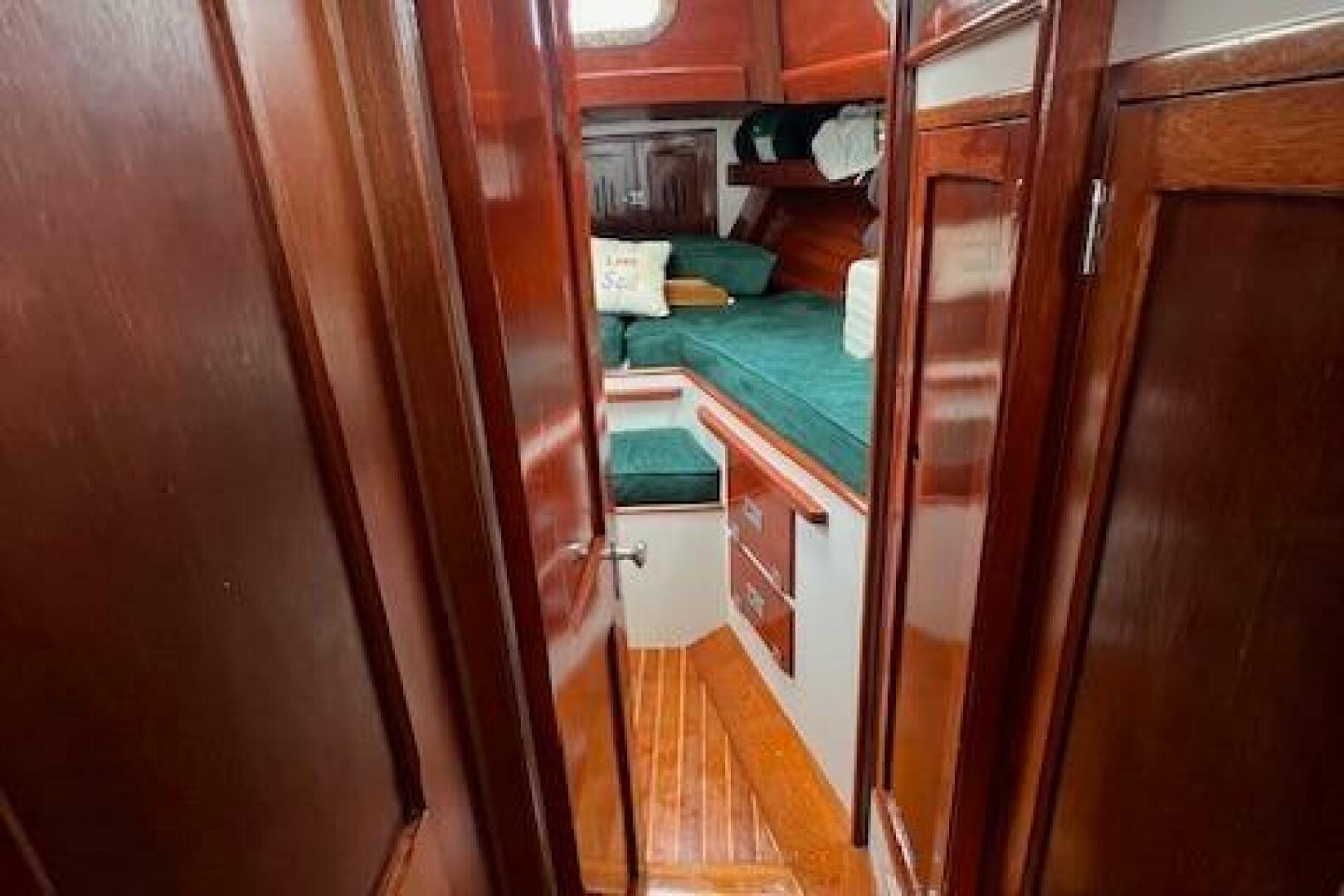

MASTER STATEROOM: (forward) A solid door separates this cabin from the rest of the accommodations; there is also forward vented double door access to the forepeak chain locker. This cabin features varnished mahogany joinerwork. It is bright and well ventilated with 3 bronze ports and an opening white translucent hatch with screen. Vee berth forward has a filler to form double berth; four upholstered cushions. Seat between vee berth, shelves outboard. Four storage areas beneath the berths. Hanging locker with storage above. Two reading lamps.

ELECTRONICS

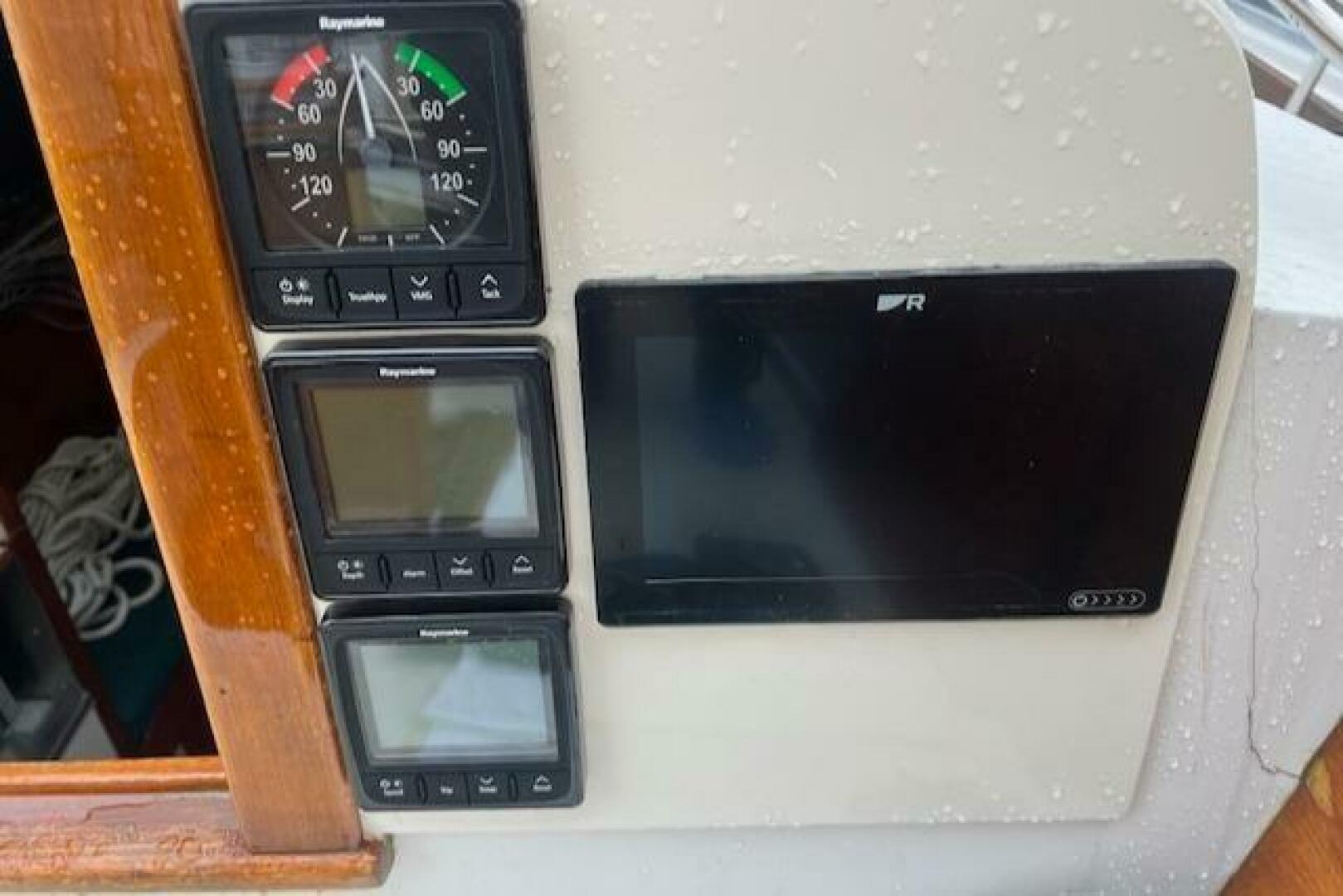

• 2022 Raytheon GPS-plotter, mounted on cockpit bulkhead.
• 2022 Raytheon depth, wind, speed.

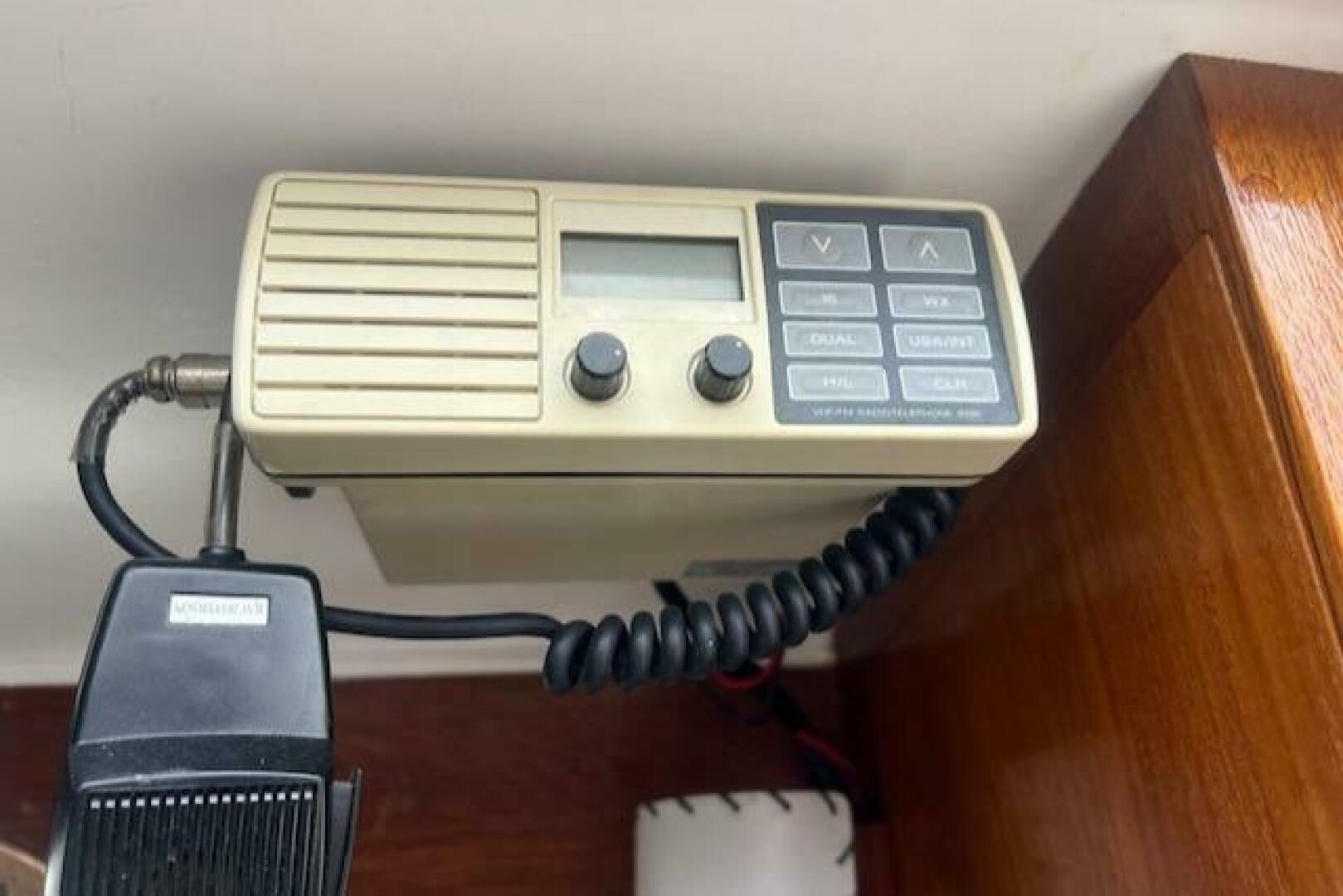

• Ray Jefferson VHF radio.
• Danforth Constellation 6” compass with chrome cover, binnacle mounted.
• Jensen AM/FM/CD player with two speakers.

SAILS & RIGGING

• Sails are 2001.
• Mainsail by North in average condition.
• 120% genoa by North.
• 150% genoa and cruising spinnaker off the boat, not used, but in good condition.
• Harken Roller furler for genoa.
• Halyards: jib, topping lift and spinnaker.
• Recently rebedded chainplates.
• Custom Traveller, recently installed.
• Aluminum mast and boom; spruce spreaders with lights.
• Standing rigging is permanently bonded to the keel with heavy copper stripping.
• Shroud rollers.
• WINCHES: Barient 27 S.T. sheet winches. Two Merriman chromed secondary winches. Reefing winch, boom mounted, internal haulout.

EQUIPMENT

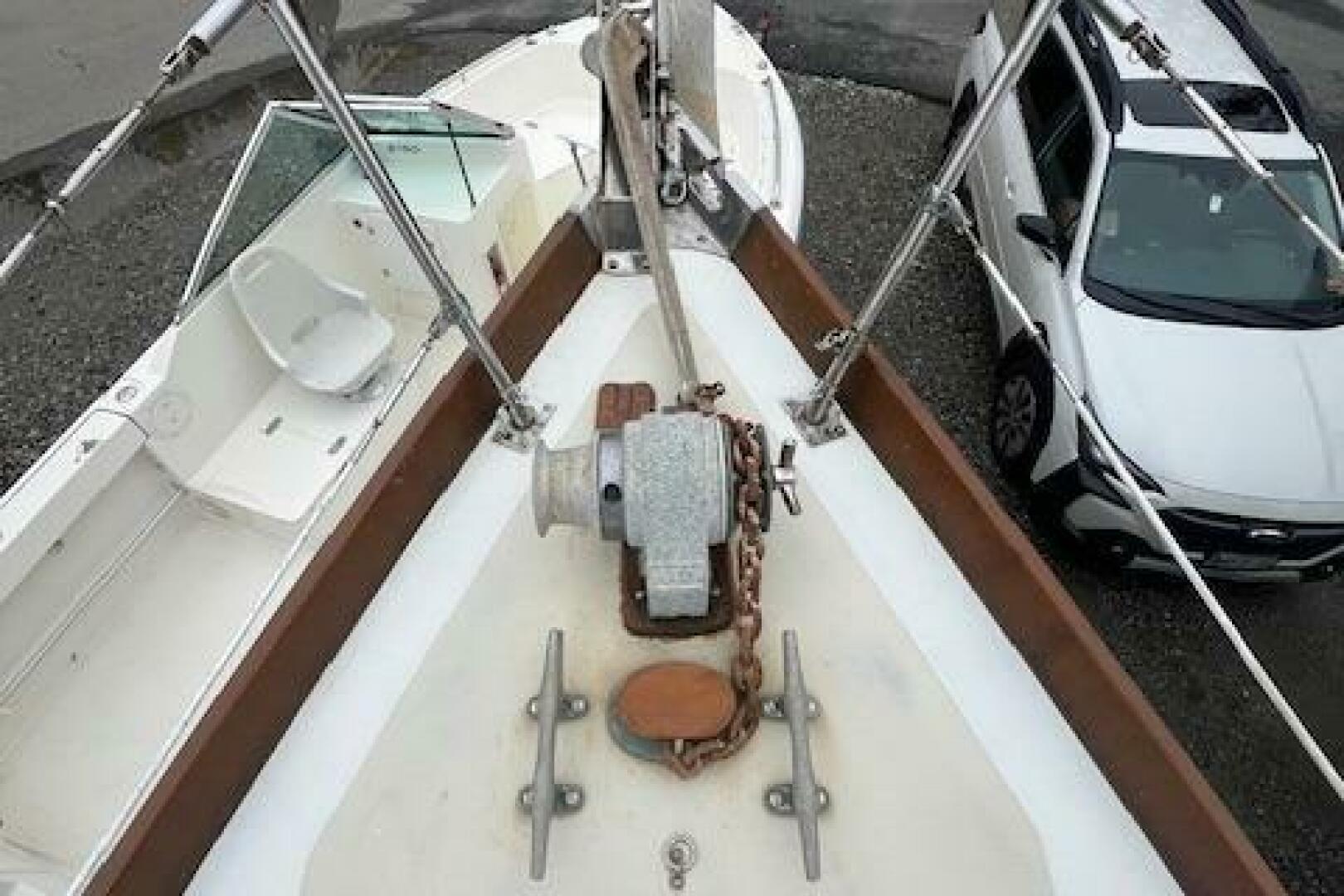

• Vetus manual anchor windlass with Hawse pipe.
• 35 lb CQR anchor on custom S/S bow roller with high tensile chain and nylon rode.
• 35 lb CQR anchor with 10´ chain and 150´ rode.
• 22 lb Danforth anchor, spare.
• Folding 5 step teak swim ladder.
• 1 horseshoe life ring.
• Life jackets.
• Lifesling.
• Anchor, bow, and spreader lights.
• Mast mounted windex.
• Boat hook.
• Docklines.
• Fenders.
• One fenderboard.
• 2 fire extinguishers.
• Emergency tiller.

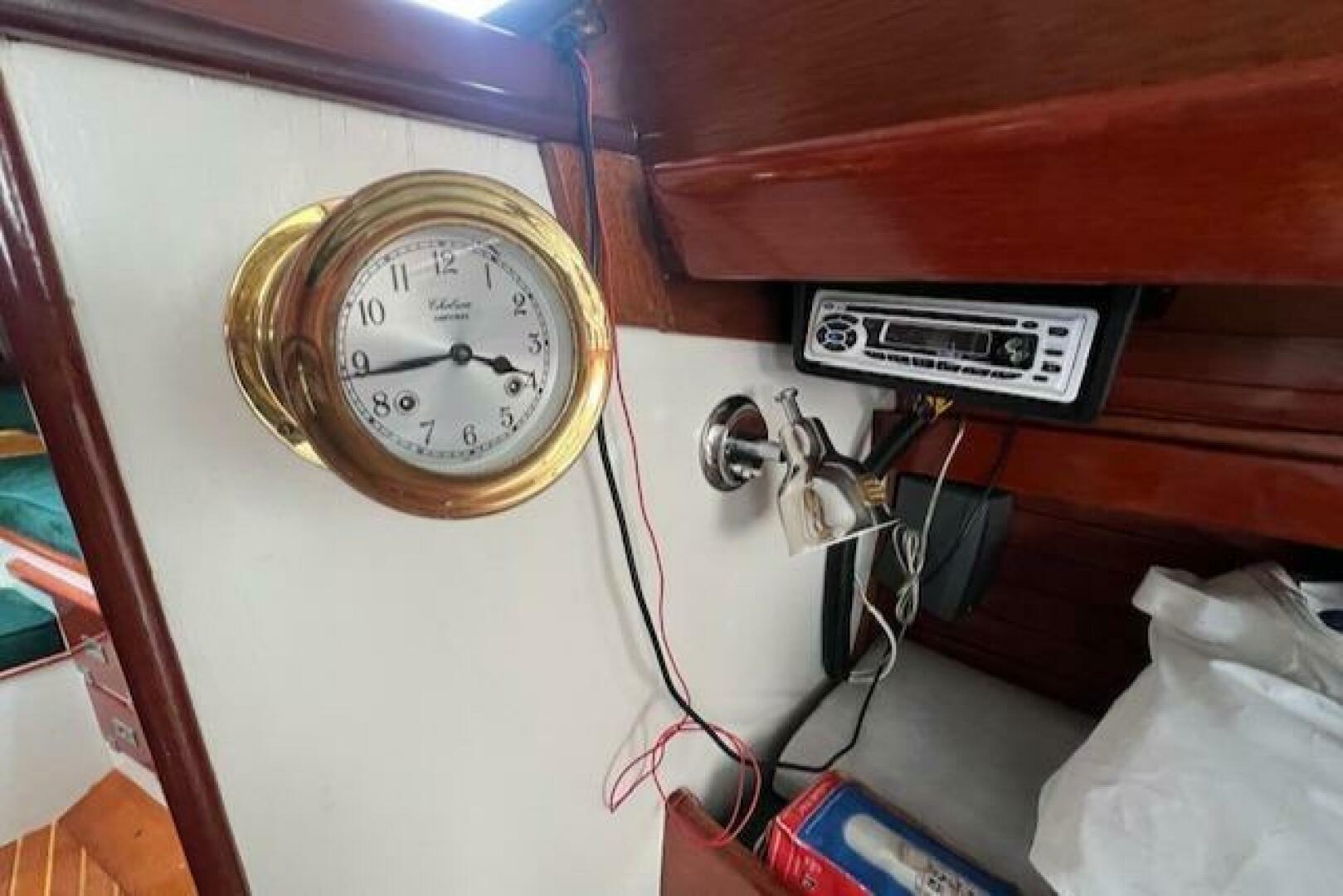

• Chelsea brass ship’s clock and barometer.
• Sunbrella toast-colored Dodger with fold-up window and cover that allow dodger to be stored on frame when not in use.
• Varnished teak folding cockpit table, binnacle mounted.
• Varnished teak drink holder, binnacle mounted.
• 2003 white with tan piping cockpit cushions.
• 4 cockpit cushions.
• Force 10 BBQ grill.
• Brass gimballed oil lamp.
• Ensign and staff.
• Fuel gauge.
• Awning.
• Winch handles.
• Radar reflector.
• 12V spotlight.

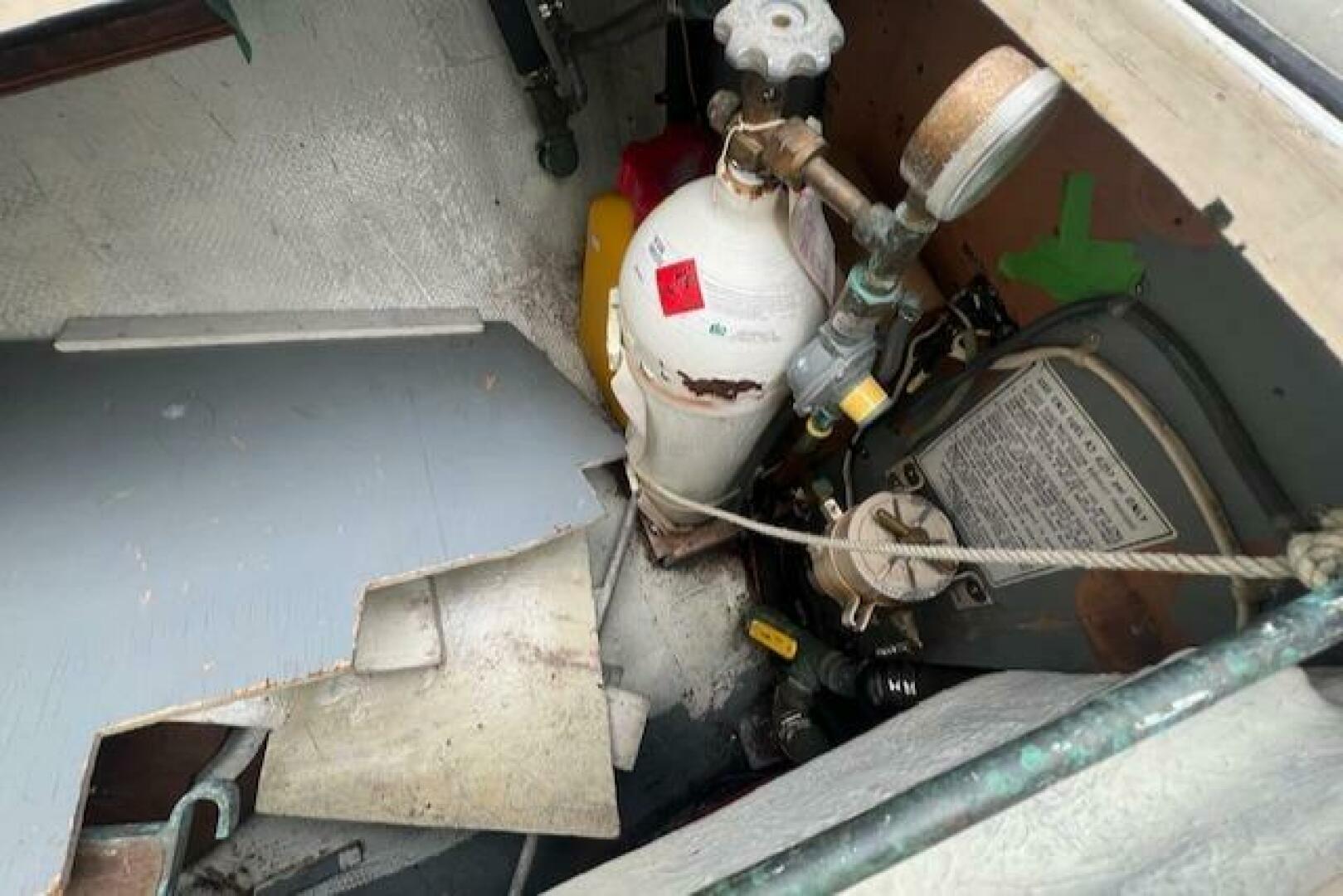

• One CNG bottle in cockpit locker.
