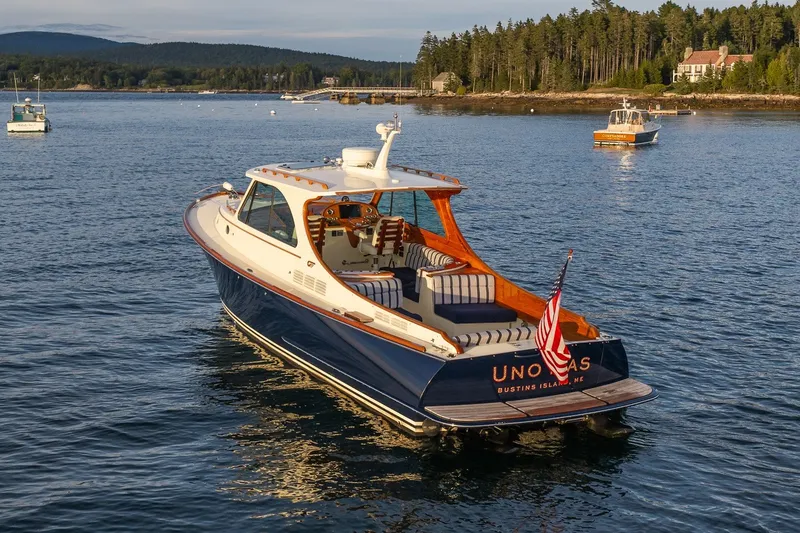

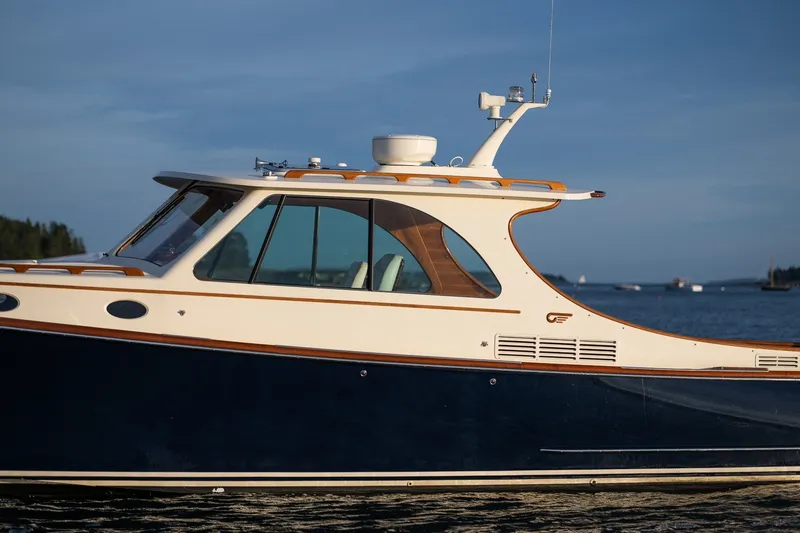

2018 Hinckley Yachts Picnic Boat 34 MKII Boat in Southwest Harbor, ME 04679 US

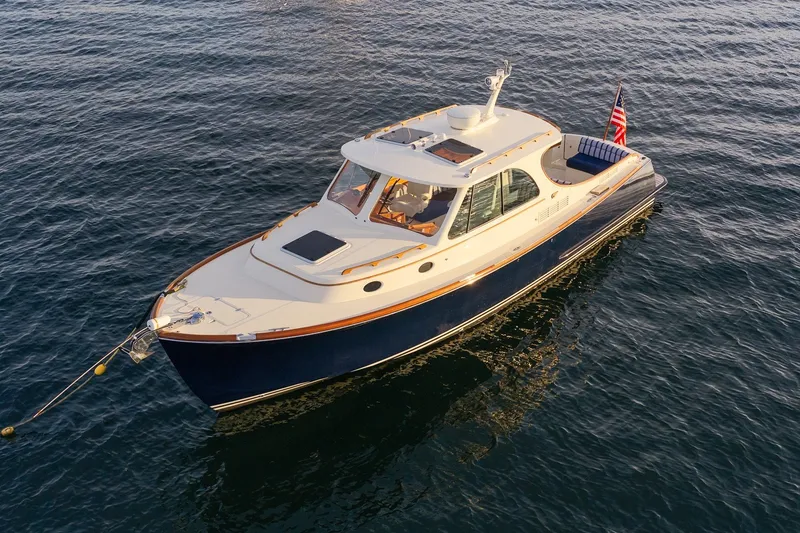

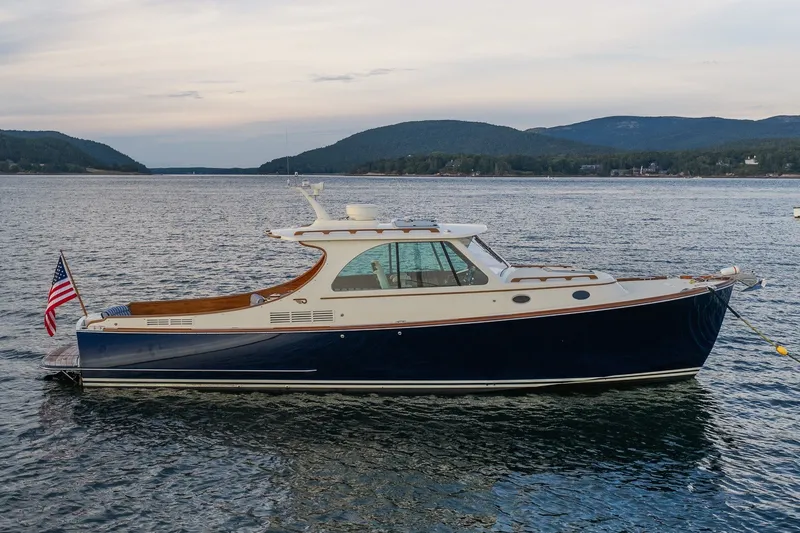

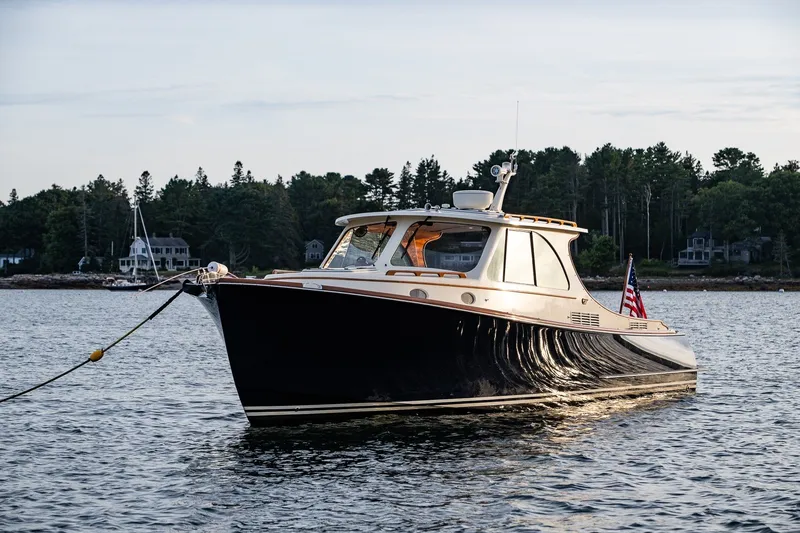

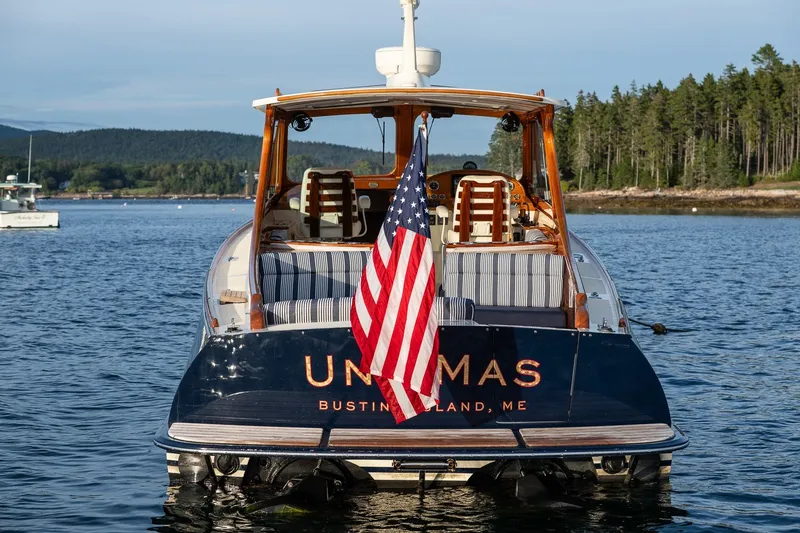

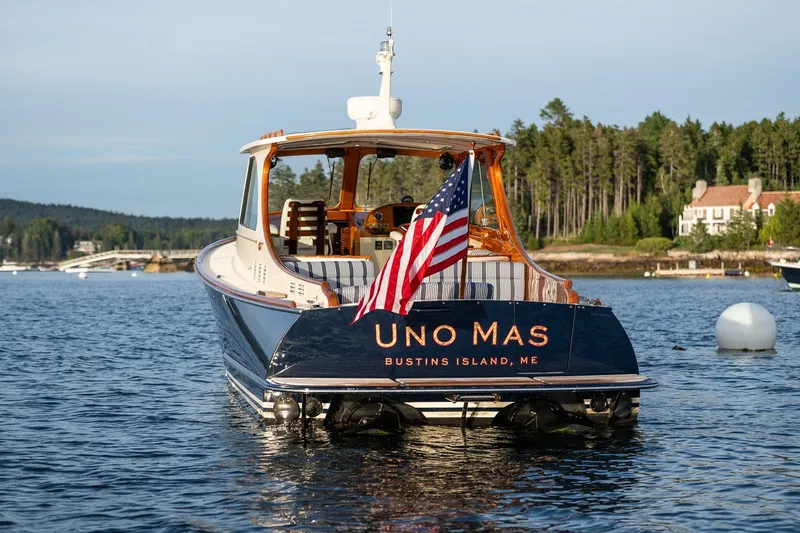

UNO MAS is a beautiful example of the Picnic Boat MKII, incorporating JetStick II with upgraded Yanmar 8LV-370hp engines that provide comfortable cruising at 30 knots and a top speed of almost 37 knots. Used lightly during summers in Maine, she has been stored with Hinckley Yachts Service inside a heated building and has been enrolled in the Hinckley Jetboat service package the past five years. Uno Mas is available as her owner is moving up to a larger Hinckley.

CONSTRUCTION:

Hull: Hinckley DualGuard Plus® Composite Construction- Aramid fiber/E-glass outer skin. Corecell M Foam for core and carbon fiber/e-glass internal skin. Laminated with vinylester resin using Seaman Composite Resin Infusion Molding Process (SCRIMP®).

• Stainless steel half round on fiberglass molded rub rail
• Quarterguard painted to match hull with stainless steel chafe strip
• Hinckley designed heavy-duty fiberglass swim platform painted to match hull color with teak inserts, stainless steel supports and half round chafe strips
• Stainless steel telescoping 3-step folding swim ladder that stores under platform
• Flag Blue hull with Cream double boot stripe and black bottom paint

Deck: E-glass outer and inner skin with Corecell M Foam for core. Laminated using Seaman Composite Resin Infusion Molding Process (SCRIMP®).

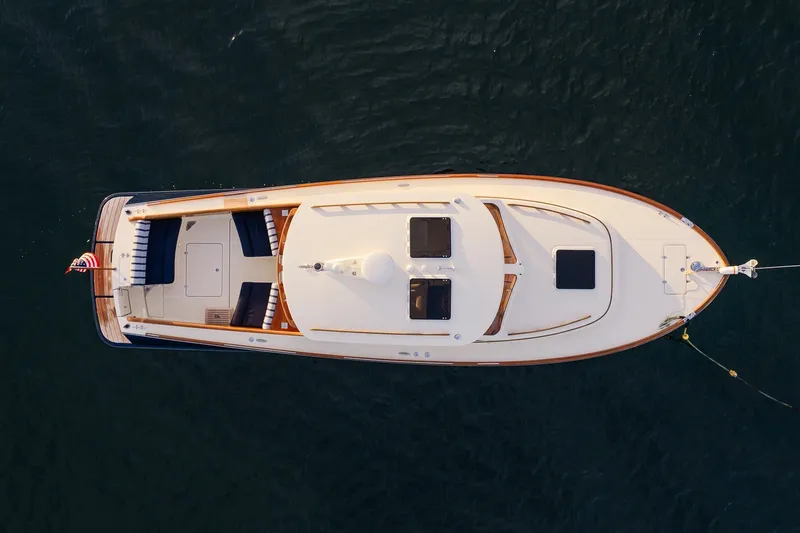

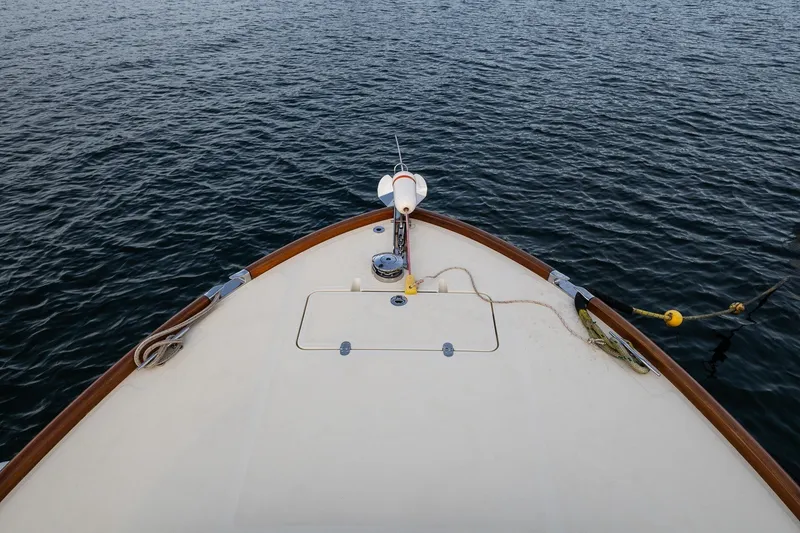

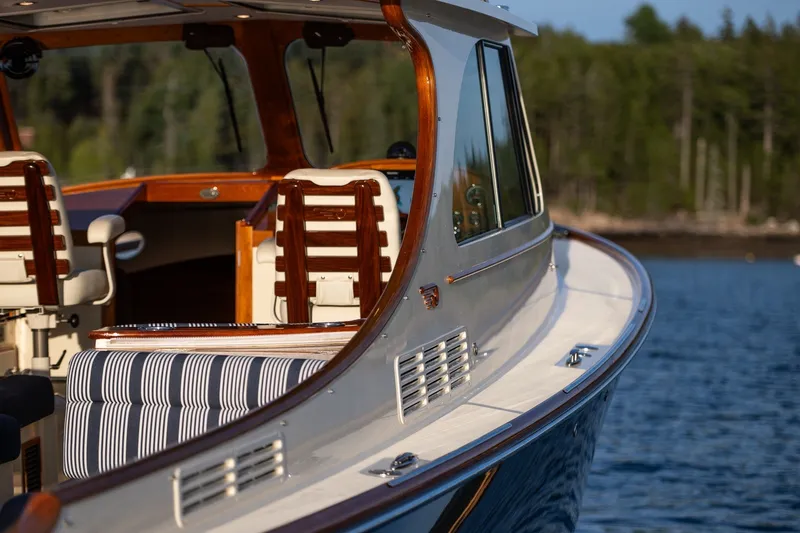

Deck Features:

• Light cream gelcoat deck wth molded in non-skid

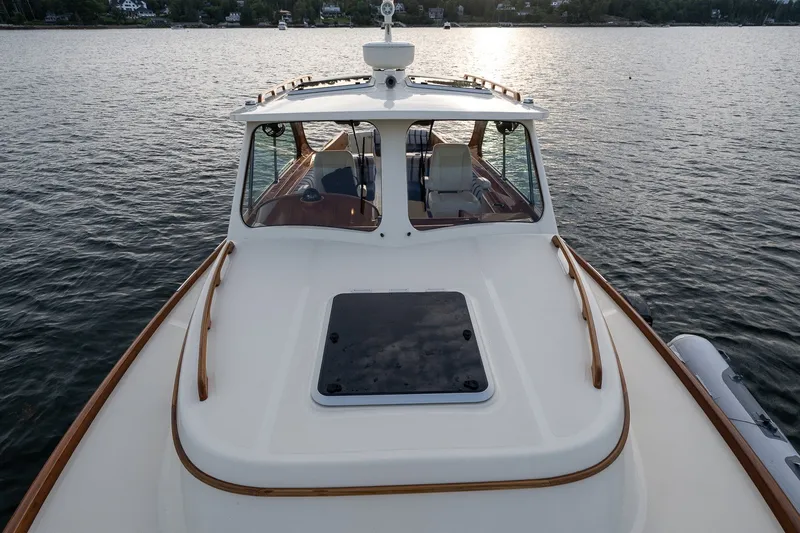

• Flush foredeck anchor locker with hinged hatch
• Rounded, tapered, varnished teak toe rail with Hinckley profile
• Varnished teak eyebrow molding around cabin top
• Varnished teak handrails on cabin house, pilothouse top and across aft end of pilothouse
• Custom Hinckley 316L stainless steel bow chocks
• Bow and stern fixed 316L stainless steel mooring cleats and "Pull-Up" mid-rail cleats
• Fender padeyes with chafe strips on toe rails

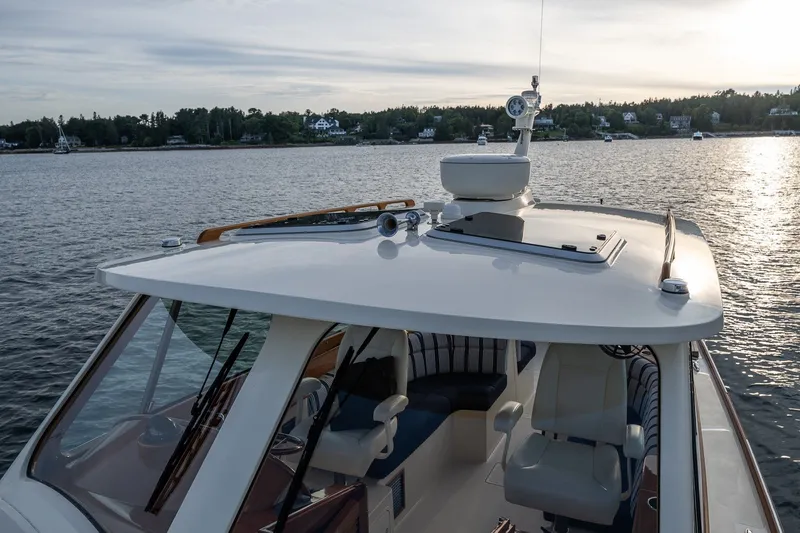

• Pilothouse top with Hinckley designed fiberglass mast with radome and GPS antenna painted to match deck color
• Three fixed ports on cabin house sides and one opening port in the head. Opening port in head has screen
• Painted stainless steel transom handrail
• (2) stainless steel rod holders mounted on port and starboard side decks

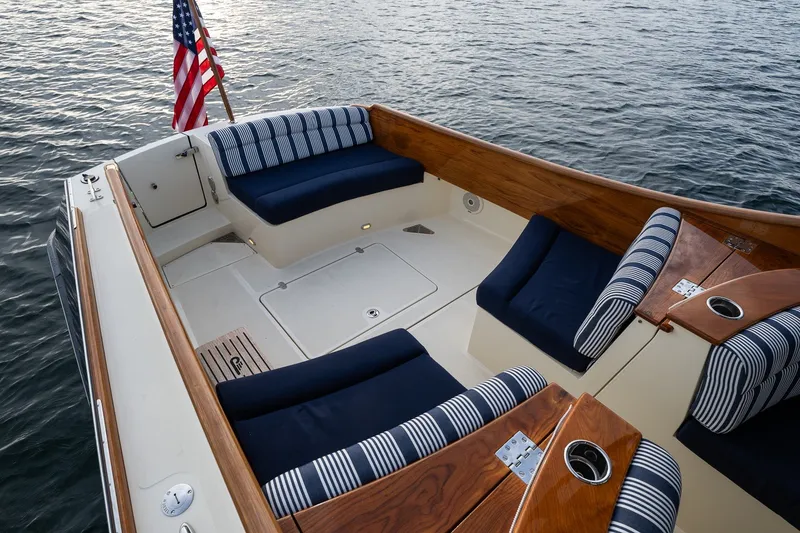

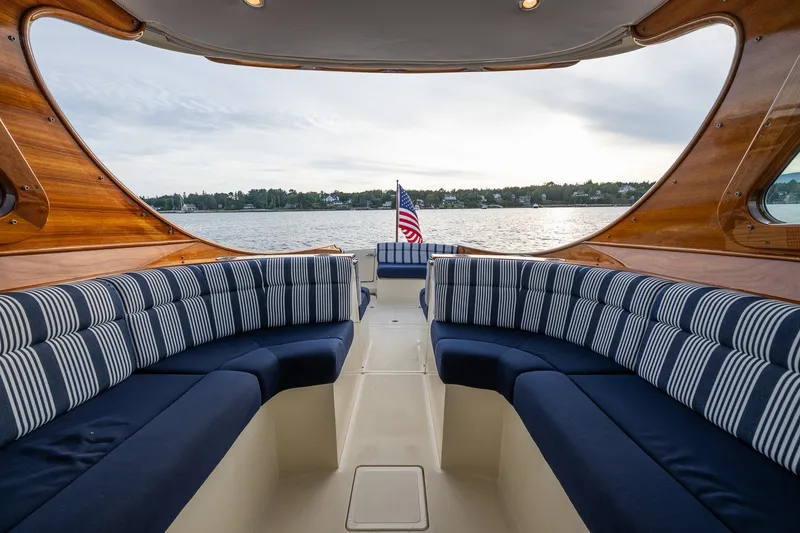

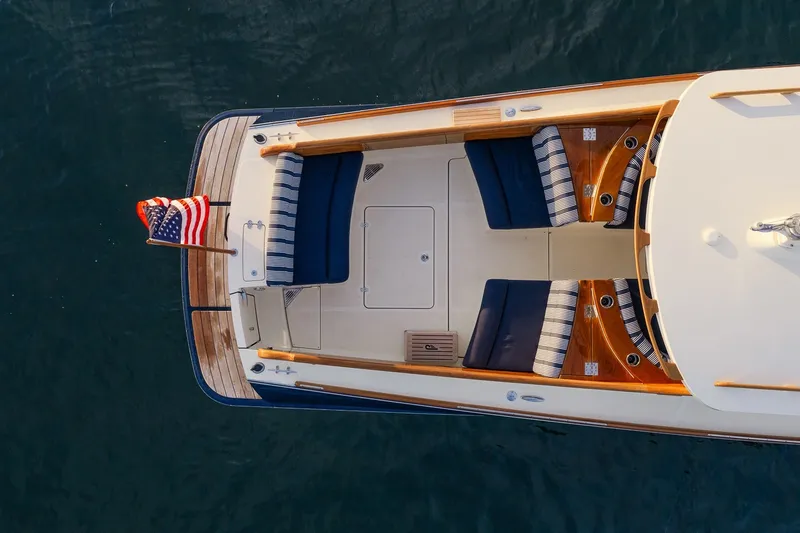

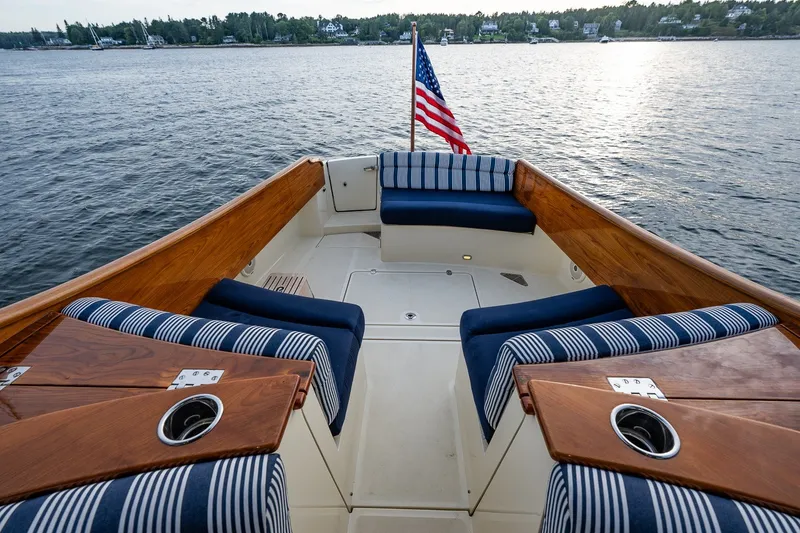

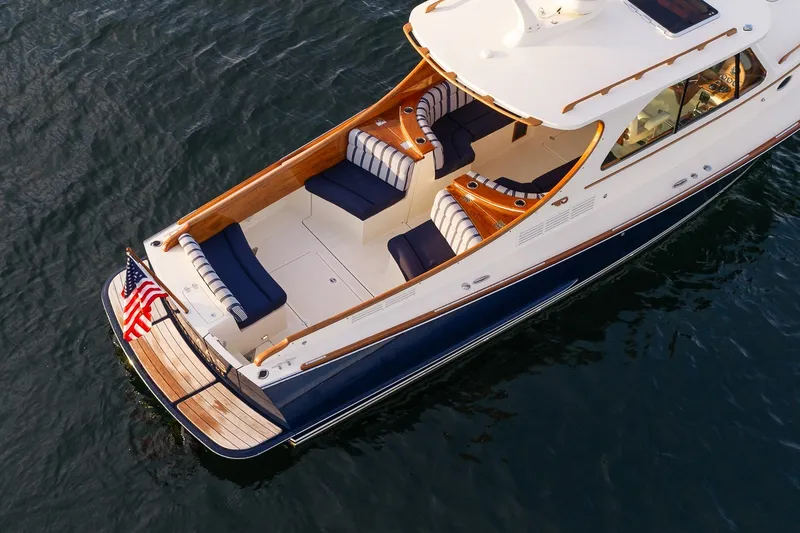

Cockpit:

The cockpit is set up for comfortable entertaining with both forward and aft facing seats. There is a transom door to provide easy access to the swim platform.

Cockpit features:

• Varnished teak cockpit coamings
• Starboard transom door to swim platform
• Hinckley custom built teak step box to aid boarding on port or starboard side
• Teak boarding step for port or starboard side deck
• Textured non-skid gelcoat deck
• Cockpit shower with hot and cold mixing valve at transom door
• Ample storage in stern seat lockers
• Stamoid cockpit cover
• Courtesy lights
• Cockpit speakers with individual zone control

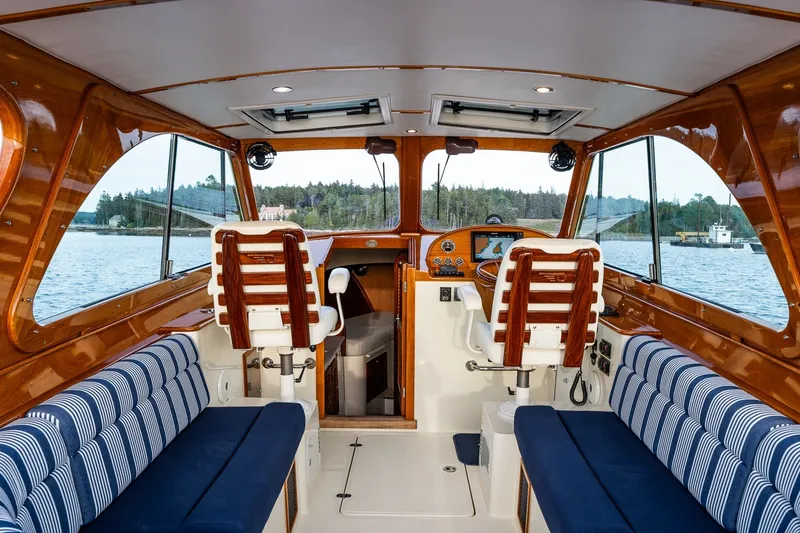

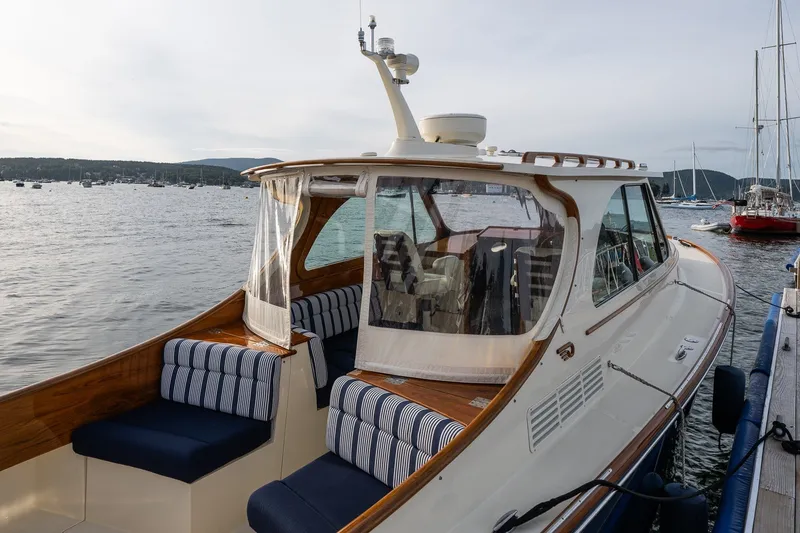

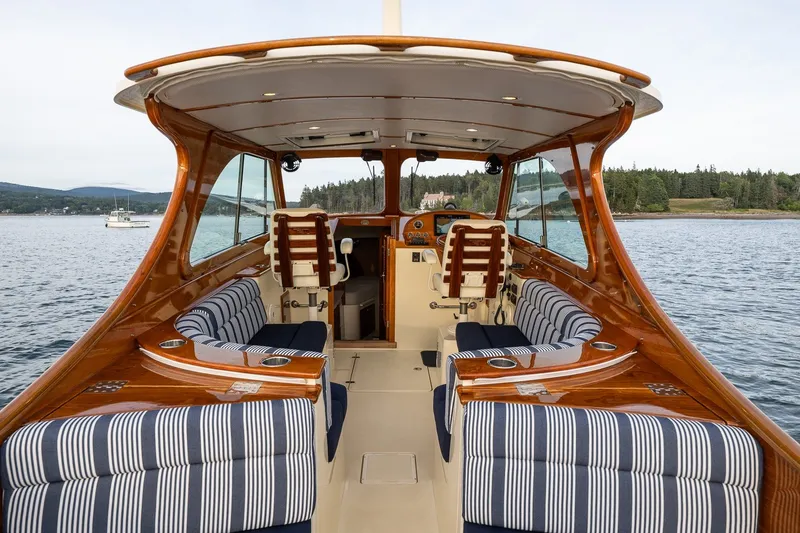

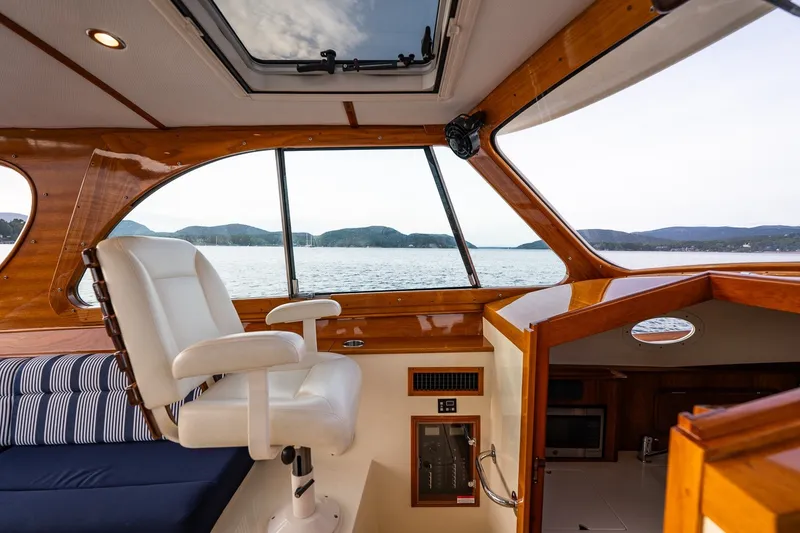

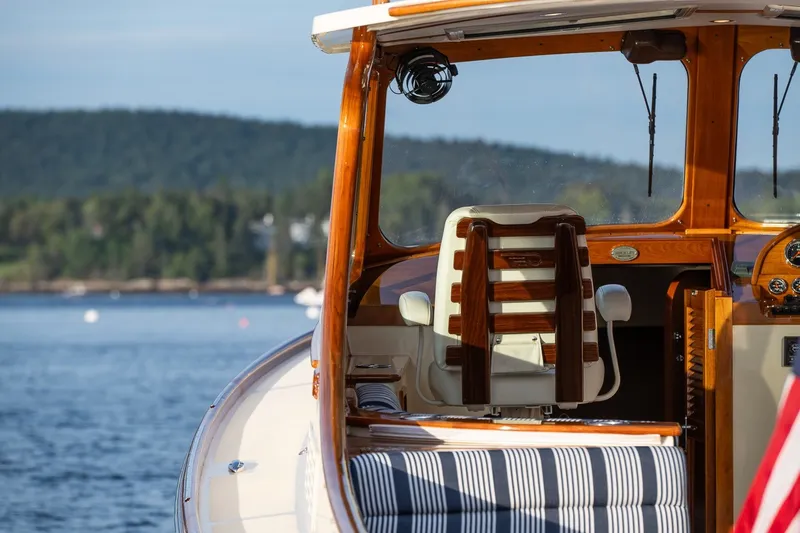

Pilothouse:

The pilothouse provides a seamless connection to the cockpit for entertaining but can also be enclosed with the removable aft drop curtain with door and provides protection from the elements and heating and cooling with reverse cycle air conditioning.

• Varnished teak dash and pilothouse side liners
• Four (4) Hinckley custom oversized frameless pilothouse windows- two fixed front windows and two manual sliding side windows
• Pilothouse front windows have heavy duty, self-parking, intermittent windshield wipers and fresh water washers
• (2) large overhead hatches with integrated retractable screens and shades

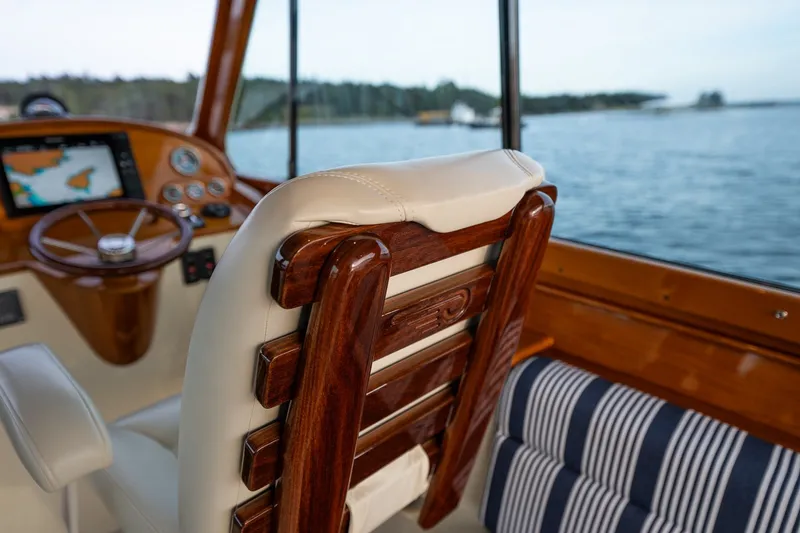

• Two Hinckley seats port and starboard with varnished teak ladder back design. Covered with Luxor Leather Vellum
• Cushioned settees port and starboard
• Insulated white acoustic overhead with varnished battens
• Lighting is five (5) overhead LED lights on dimmers
• Storage under pilothouse settees, port and starboard
• (6) Cup holders in the pilothouse and helm area
• Varnished teak locking companionway door
• Ivory Stamoid 3-piece drop curtains with Eisenglass windows
• Two (2) entertainment system speakers to port and starboard with independent zone control
• Reverse cycle air conditioning and heat for climate control with aft drop curtains in place

Helm Area (Portside)

• 12V outlet at helm
• Manual sliding side window with overhead hatch
• Storage compartment under port helm seat with door on inboard face
• Hinckley custom helm seat with adjustable (up/down/fore/aft)
• Glove box for storage of small items
• Vessel shore power and 120V breaker panel
• Stainless steel cup holder forward of glove box
• Stainless steel footrest integrated into helm area

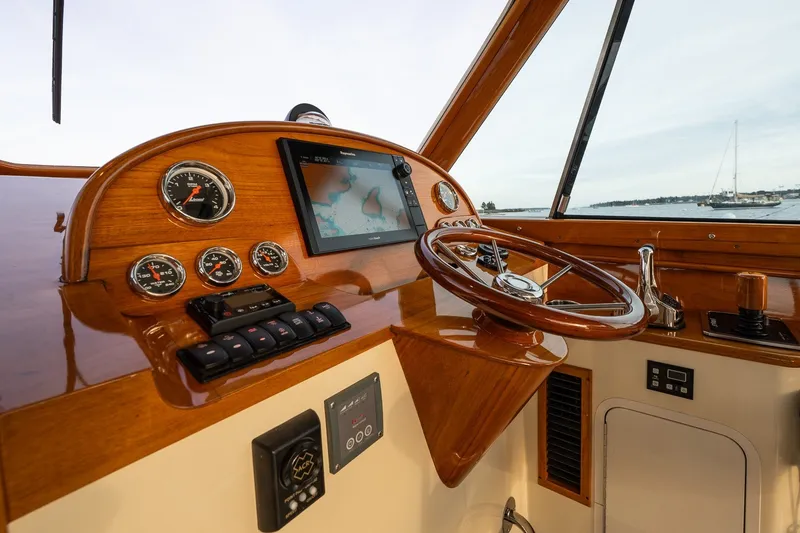

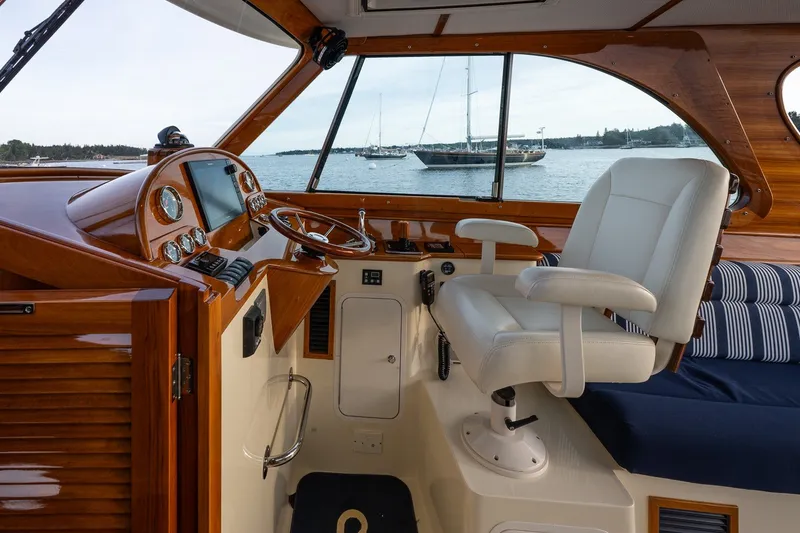

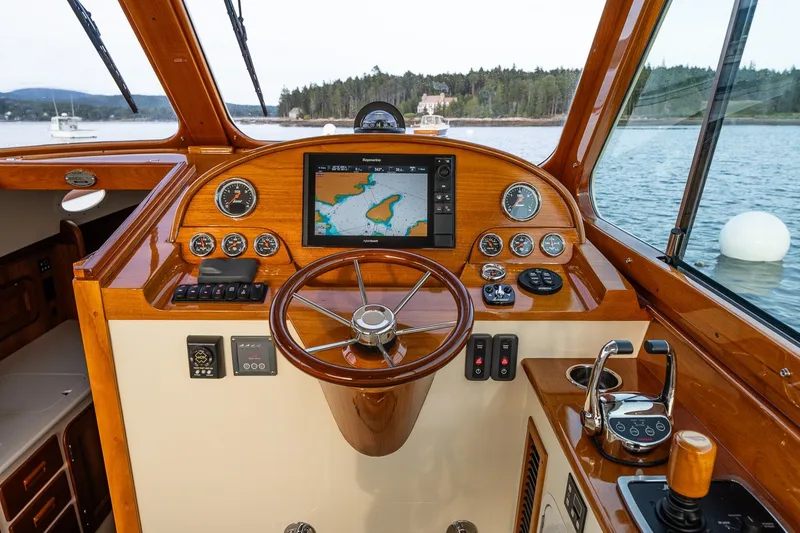

Helm Station (Starboard)

• Varnished teak instrument pod
• Stainless steel steering wheel with varnished wood rim

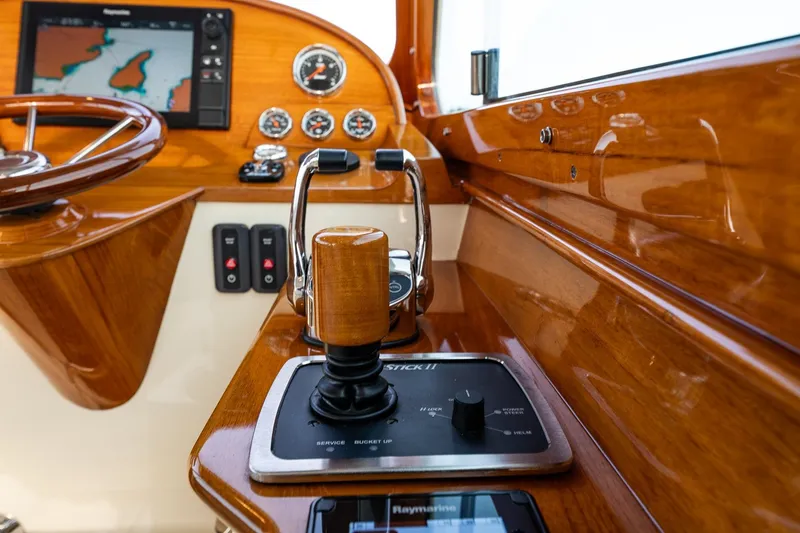

• Hinckley "JetStick II". The JetStick integrates forward and aft motion, steering, and bow thruster into single joystick. JetStick II adds "heading hold" and "hover lock" to the system as well as improved user controls.
• Yanmar dual throttle and shift engine controls
• Engine gauges, tachometer with digital engine data display, oil pressure, cooling water temperature, voltage, and fuel level
• Hinckley custom helm seat with up/down/fore/aft adjustment (and swivels), upholstery in Luxor Leather Vellum
• Storage compartment under helm seat with door on inboard face of compartment
• Glove box to starboard for storage of small items
• Manually operated sliding side window and overhead hatch
• Stainless steel cup holder at forward end of starboard shelf
• 12V charging plug and dual USB charging port in convenient recess under chartplotter
• Fusion stereo remote
• Wiper and spotlight controls
• Ritchie compass
• Trim tab controls
• Stainless footrest

Helm Electronics/Nav Equipment:

• Raymarine es127 hybrid touch 12.5" multifunction color Radar/Chart plotter with ClearPulse sonar fishfinder
• 4kw digital Radome and differential GPS antennae painted to match deck
• Raymarine p70 autopilot
• Standard Horizon VHF radio with RAM mic
• Lectrotab dual stainless steel electric tab system
• Exalto heavy duty wiper system control panel with integrated wash function
• Racor fuel filter water alarm indicator panel
• Fireboy fire suppression system override panel
• Ritchie compass mounted at helm

Entertainment Electronics:

• Fusion wired remote entertainment system remote with independent zone control
• Fusion MS-AV755 AM/FM/CD/DVD satellite receiver ready stereo with Bluetooth connection
• (3) Pairs of speakers - (2) in cabin, (2) in pilothouse and (2) in cockpit
• Fusion MS-NRX300 wired full function stereo remote mounted at helm

ACCOMMODATIONS:

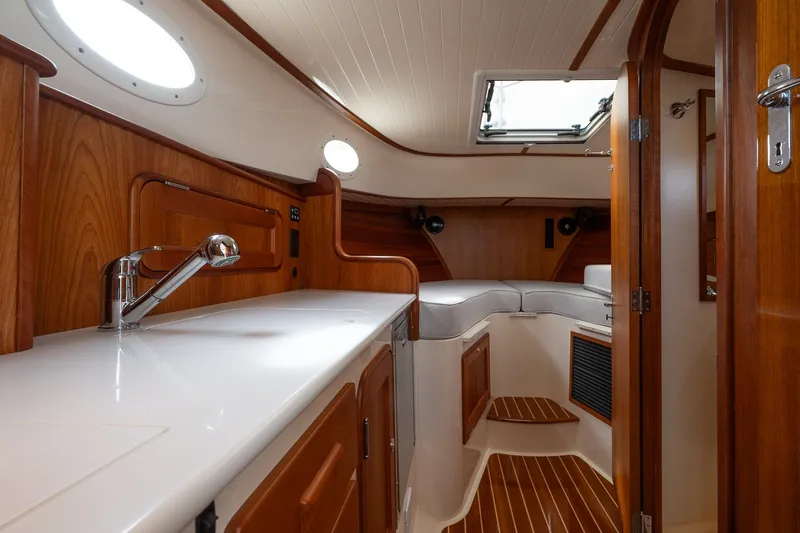

Entry to the Cabin below is through the pilothouse companionway and down two steps. The Galley is immediately to port with the private Head to starboard and the V-berth accommodations forward. The interior is finished in satin-varnished cherry with a varnished teak and tulipwood cabin sole and an off white V-groove smooth overhead. Flat panel cherry locker doors and (3) stainless steel bulkhead lights add to the cabin ambience and reverse cycle air conditioning provides comfort below when plugged into shore power or with generator. The companionway door is louvered and the top folds out of the way and removes easily from the bullet hinges for easy storage.

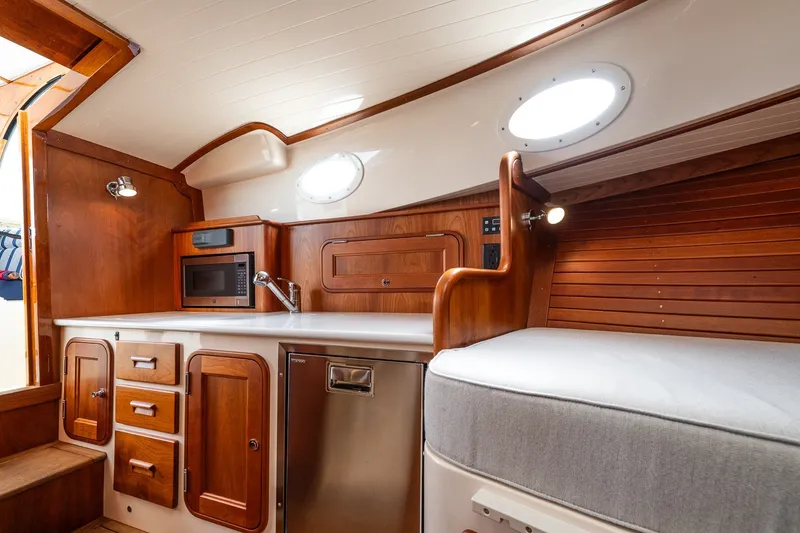

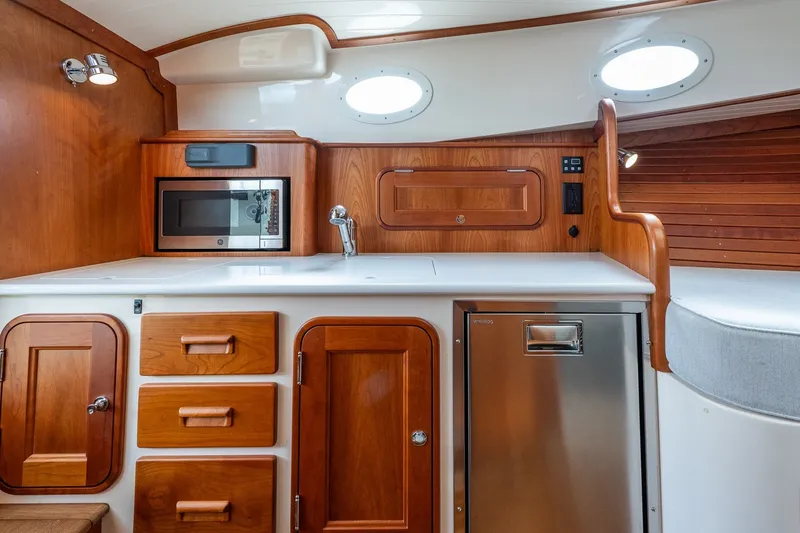

GALLEY (Port):

• Glacier White Corian countertop
• Single under mounted polished stainless steel bowl with Corian cover
• Single lever faucet with integrated sprayer nozzle
• Hot and cold pressure water
• Vitrifrigo stainless steel front loading refrigerator
• Single burner glass top cook stove with Corian cover
• GE microwave
• Large pantry locker outboard with cherry door
• 110-volt outlet
• 12-volt outlet
• (3) Cherry pullout drawers
• Red step-light in galley
• Additional storage is provided outboard and under the galley sink
• Companionway step are hinged to access storage space below
• Trash bin mounted below cooktop behind cherry door aft in galley
• Fixed port light
• Bulkhead mounted 12V led light

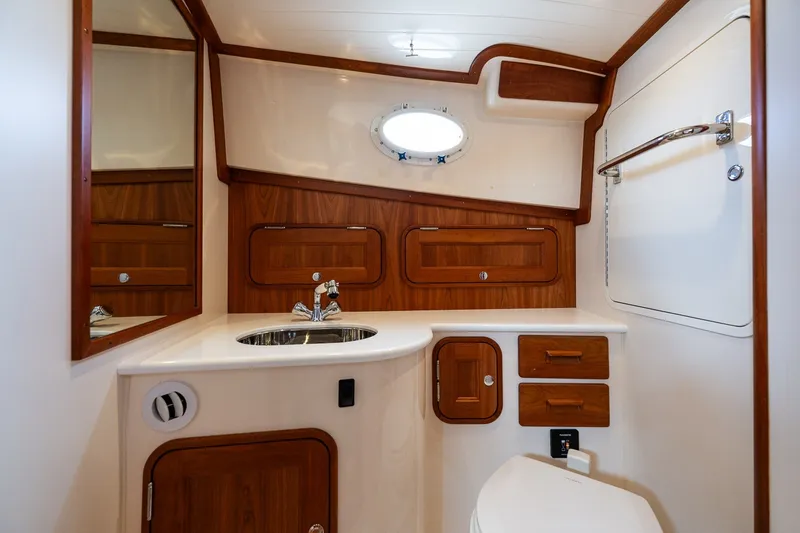

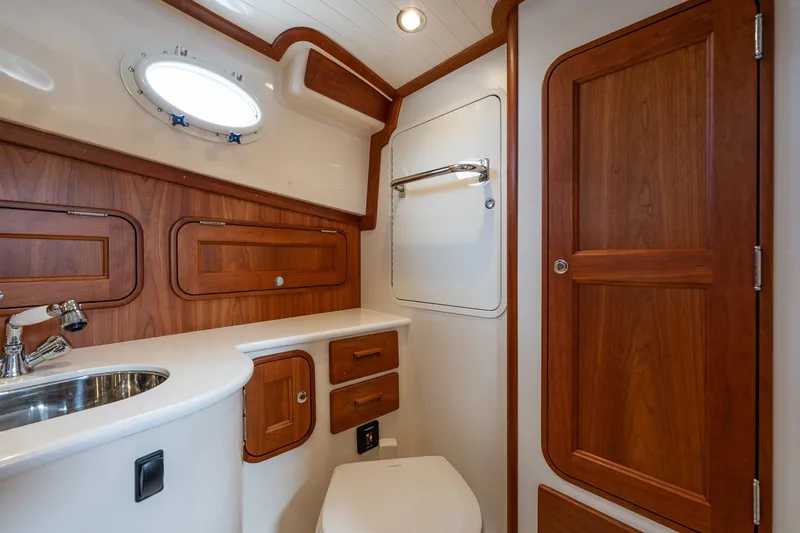

HEAD (Next aft starboard):

• Solid cherry paneled door
• Molded fiberglass sole for easy cleaning
• Corian Glacier White countertop with an under mounted stainless steel sink
• Grohe faucet/hand held shower provides hot & cold pressure water - bracket for shower mounted on bulkhead
• Vacuflush electric marine head plumbed to a custom 28-gallon polyethylene integrated holding tank with deck pump out fitting
• Mirror on the forward bulkhead with cherry frame
• Storage in cherry faced lockers above and below counter
• Hanging locker and drawer storage aft and inboard
• Opening port with screen
• (2) overhead lights with dimmer
• Towel bar
• Hanging locker with storage for companionway hatch

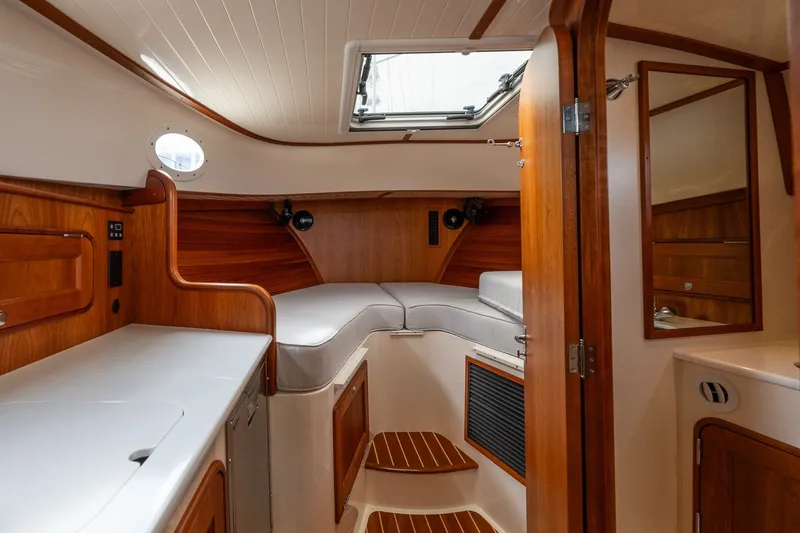

V-BERTH (Forward):

• V-berth with removable filler for full width berth
• Storage lockers under V-berth has easy-access cherry drop-front doors
• Large storage compartments located mid and forward areas under the berth
• Large overhead opening hatch with integrated retractable screen and shade provides ample natural light and ventilation
• Two (2) entertainment speakers mounted at head of berth with independent zone control
• Two (2) bulkhead mounted lights

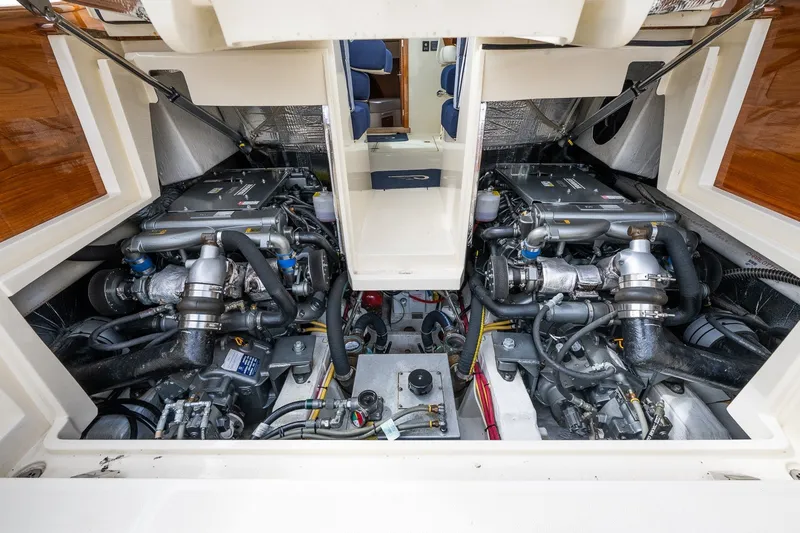

MECHANICAL:

• Upgraded twin Yanmar 8LV-370hp common rail diesel engines
• Hamilton 274 Jet Drives
• Twin ZF 220 transmissions
• Proportional hydraulic 7" bow thruster
• Dual hydraulic PTO pumps supply fluid to operate the bow thruster, Hamilton water jets and steering system, one pump on each engine for redundancy
• Hinckley "JetStick® II" control system, integrated with the proportional hydraulic bow thruster and water jets, system includes "Hover Lock" and "Heading Hold"
• Dual cylinder stainless steel trim tabs with indicator controls at helm
• Analog fuel, oil pressure, voltage, and water temperature gauges
• Alarms for low oil pressure and high engine temperature
• Power assist hydraulic steering system
• (3) Electric 1500-GPH 12-volt bilge pumps with float switches and high water alarm
• 12-volt automatic shower sump pump
• 28-gallon polyethylene holding tank
• 3-gallon stainless steel hot water heater - shore power, generator and engine heated
• 35-gallon polyethylene water tank
• 160-gallon polyethylene fuel tank
• Mylar-faced acoustical foam-lined insulation in engine room and bridge deck hatch
• Engine room forced-air exhaust fan
• Baffled and insulated air intake
• Automatic engine compartment fire suppression system, with automatic engine shut-down
• Racor fuel filters with water in fuel sensors and vacuum gauges with drag pointer
• 8,000 BTU reverse cycle air conditioning system for interior and (2) 8,000 BTU units for pilothouse (runs off shore power or generator)

ELECTRICAL:

Low resistance, copper wire and sacrificial zinc anode bonding system. Zinc saver.

12-volt system:

• Start - Two 12-volt Lifeline AGM Group 31 batteries with 880 CCA capability each
• House - Two 12-volt Lifeline AGM GPL-4DA with 210 amp hours
• Heavy-duty battery parallel switch allows for emergency starting
• 12-volt distribution panel using thermal-magnetic breakers with multi-function system meter
• Two 150 amp 12 Volt D.C. alternators, one for house battery and one for starting batteries
• Victron 3000 Watt pure sine wave inverter

120-volt system:

• 30- amp Victron Centaur charger for house and start batteries
• 30-amp - 110v shore power cord
• 110v outlets in head, galley and pilothouse
• Onan 5kW diesel generator with remote digital display

ADDITIONAL EQUIPMENT:

Ground Tackle System:

• Delta stainlee steel anchor with fixed stainless steel anchor roller
• 25' stainless steel chain with 150' 3-strand nylon rope
• Maxwell 12v electric windlass

Equipment

• Varnished bow burgee pennant staff with flush socket
• Stern mounted 4 ft. varnished teak ensign pole & flush socket
• Boat hook - mounted under side deck
• Dock lines
• Fenders with fleece covers
• Cockpit shower/water outlet with hot & cold mixing valve
• Life jackets
• Fire extinguishers
• 12-volt air horn with switch on dash
• Stamoid cockpit mooring cover
• Cabin sole cover
• Three-piece aft Stamoid and Eisenglass enclosure
• (3) Lumitec SeaBlazeX underwater lights
