1995 Catalina 36 MkII

Because the Catalina 36 is easily handled by a couple, has a big comfortable cockpit, a spacious interior with two private cabins and the intergrity to pursue cruising dreams, many experienced sailors consider the Catalina 36 the perfect boat for their sailing lifestyle.

The Catalina 36 mkII has all the important characteristics that made the original the most popular thirty-six foot sailboat in the world. The new Catalina 36 mkII is built in the same seakindly moderate displacement hull that tracks surely and performs well in a variety of conditions. The deck is classic trunk cabin configuration designed by sailors, not stylists, so it's proven, comfortable, and functional.

The 36 is the evolution of this successful design and incorporates the refinement that is possible only after building over 1,700 36's and listening carefully to owners comments and suggestions.

The new interior has an aft cabin with a large athwartship double berth, hanging locker and bureau.

The owners cabin forward is comfortable and well ventilated and has a private entrance to the head.

Cruisers love storage space and the Catalina 36 is renowned for it. There are ample drawers, lockers and bins for all your cruising provisions and gear. The galley and main cabin have received special attention to design and detail. The galley is functional "U" shape, with composite counter tops, sinks are near centerline for proper drainage underway. A large, refrigerated ice box is aft and a dry food locker is forward. A gimbaled, stainless steel LPG stove with oven is standard equipment. The main cabin can be arranged with a dinette or traditional table at your option. The two seats and game table to starboard can be made into a settee or berth with the cushions provided. The entertainment center cabinet can be fitted with a stereo and concealed TV. All interior teak has the warmth and durability only obtained with multiple coats of varnish.

All interior finishes and fabrics have been selected for quality, appearance and durability.

An important but often unconsidered aspect of boat ownership is maintenance. The new 36 has stainless stee; hand rails and anodized spars, reducing maintenance on deck and extending your sailing season.

The mechanical electrical and plumbing systems have been reengineered to increase dependability and accessibility. Engine access, for example, is excellent, with one piece insulated enclosure removed.

Aft of the engine a mechanical compartment contains the engine valves and filters. This makes maintenance and engine service easier.

The structural system and construction of the Catalina 36 is proven and straight forward. The hull structure is rugged, hand laminated, solid fiberglass; the keel is lead with integrally cast stainless steel bolts.

The mast is stepped through the deck on the keel and has inline spreaders and fore and aft lower shrouds, a sturdy arrangement that is easy to tune.

Board a Catalina 36, inspect her thoroughly and discover why the 36 inspect he thoroughly and discover why the neaw 36 has become the sailor's choice.

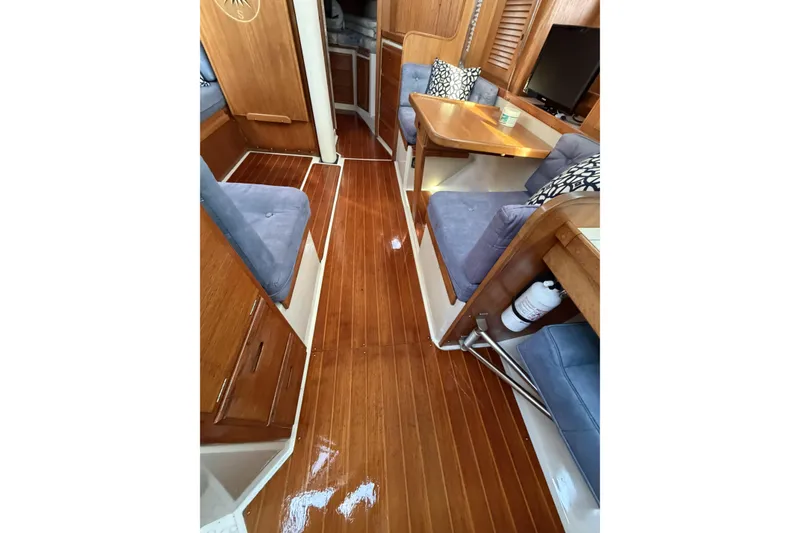

The inside of the 1995 Catalina 36 MKII is surprisingly spacious for a boat of her size due to the 12' beam carried well aft. To port is a well-equipped galley followed by a large L shaped dinette with a salon table that telescopes down to create an additional berth. To starboard, is the nav station followed by two single seats and a cocktail table. This table can also drop down to create a single berth or straight settee. Forward is a v-berth and head. Aft is the second cabin with a large berth. Lots of opening portlights and overhead hatches provide plenty of light and ventilation throughout.

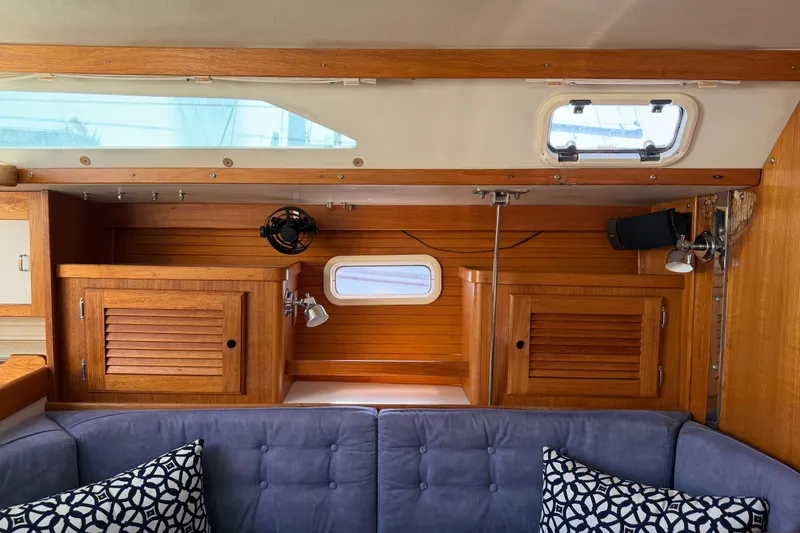

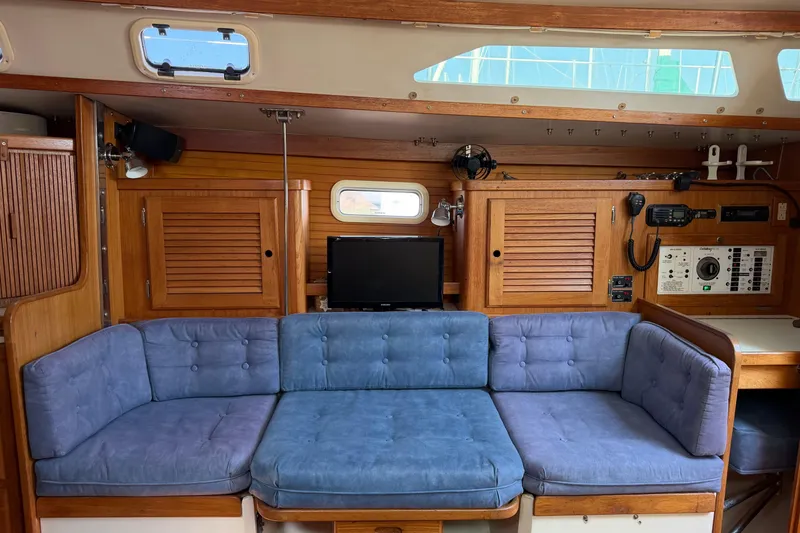

Salon

• Original, but well-preserved cushions throughout the main cabin

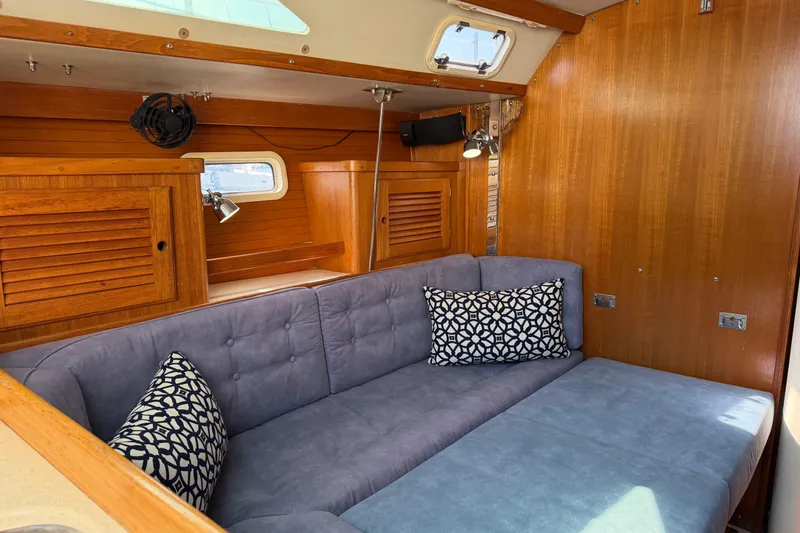

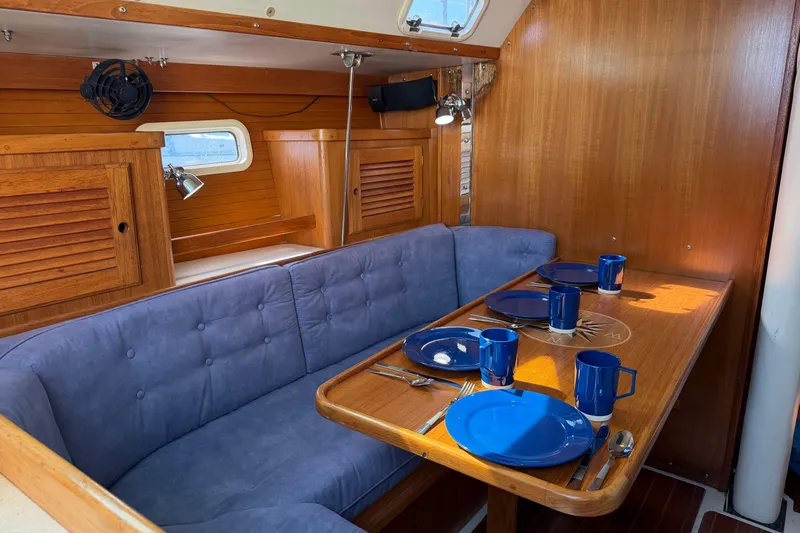

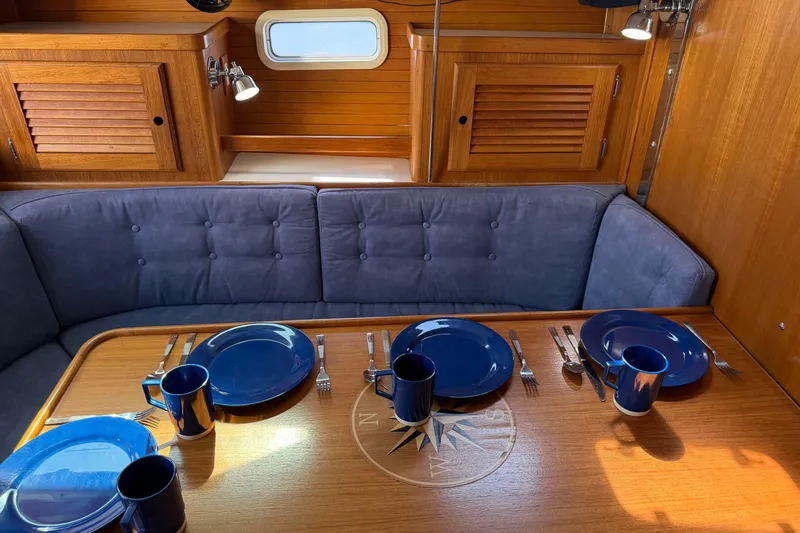

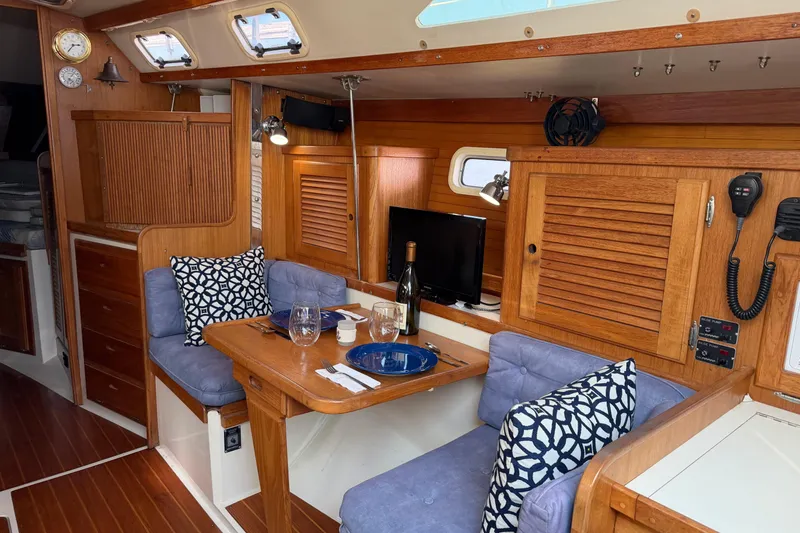

• Large L-shaped dinette to port with table that converts into a double bed sized berth when needed. This was an upgrade from the factory and allows for more seating and a bigger berth.

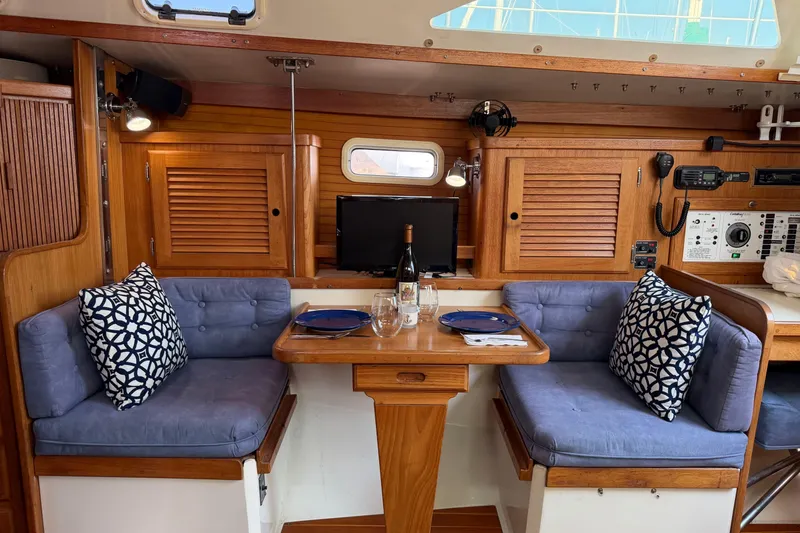

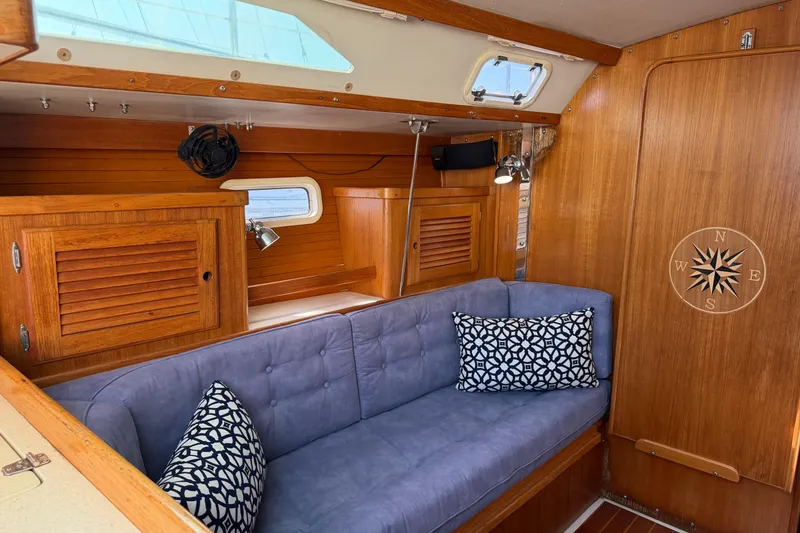

• Two single seats with a small table to starboard. The table drops down and can convert into a straight settee or a single berth.
• Entertainment center where the traditional TV console once was converted into coffee bar and storage area.
• Samsung TV on starboard side is connected to a masthead antenna that receives close-by local channels and can be connected to portable cell phones or tablets for streaming.

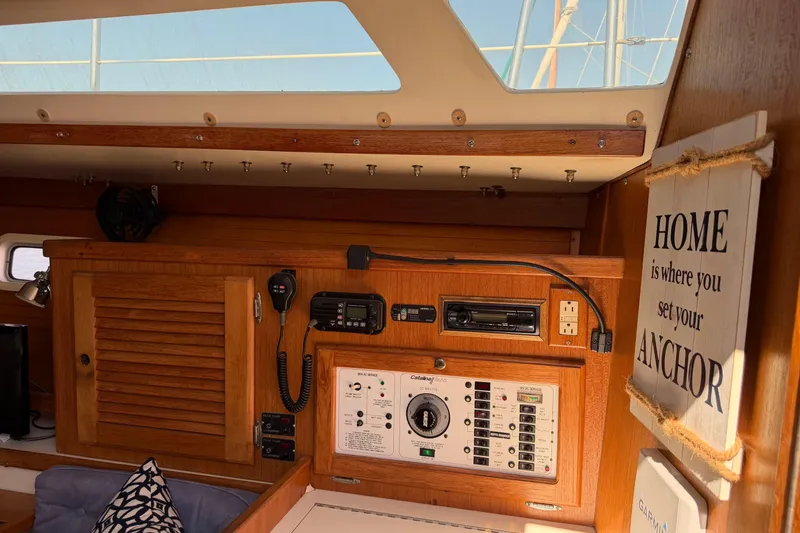

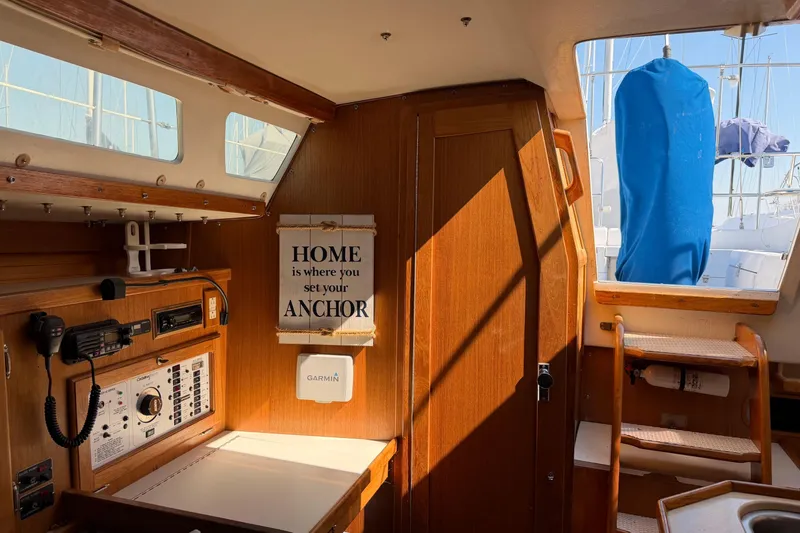

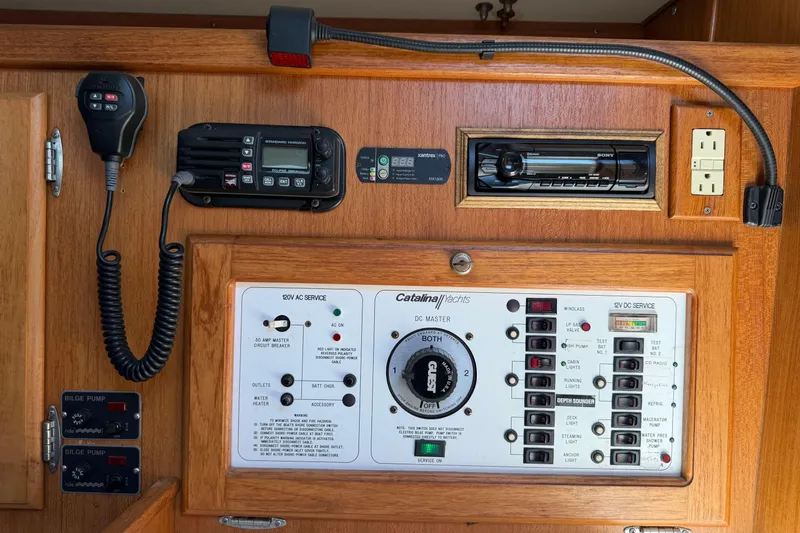

• Navigation station with chart table, breaker panels and swiveling chair that can be stowed while underway.
• Weems & Plath clock & barometer.
• Teak & holly sole with teak woodwork in great condition for a boat of this age. Overall, it was very clean and bright.
• 3 new LED cabin lights. (2023)
• 2-12V, 2-speed fans.
• USB charging outlets above starboard table. (2023)
• Fire extinguisher.
• Large overhead hatch with screen for ventilation.
• 3 opening ports with screens for ventilation
• Pair of Bose stereo speakers
• Pleated shades throughout boat on all ports for privacy.

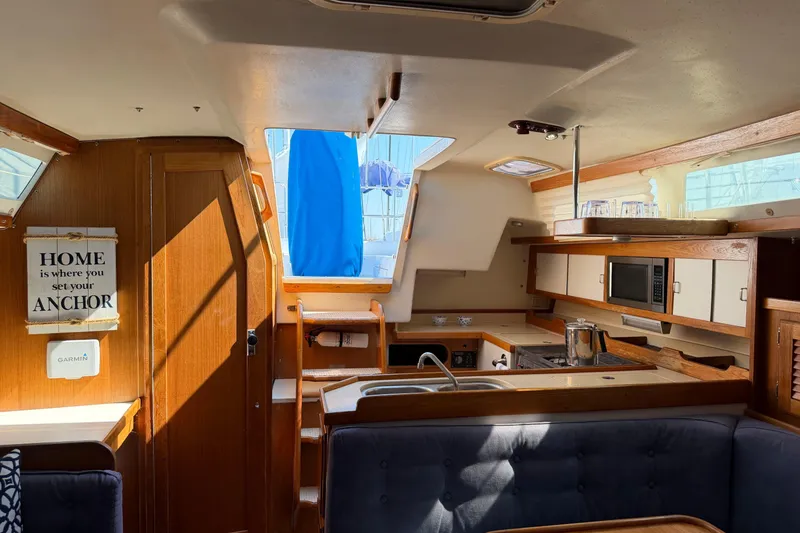

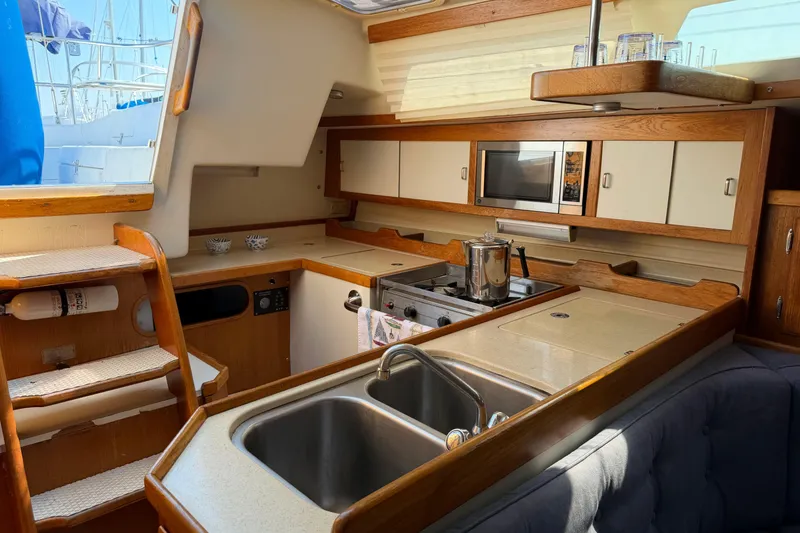

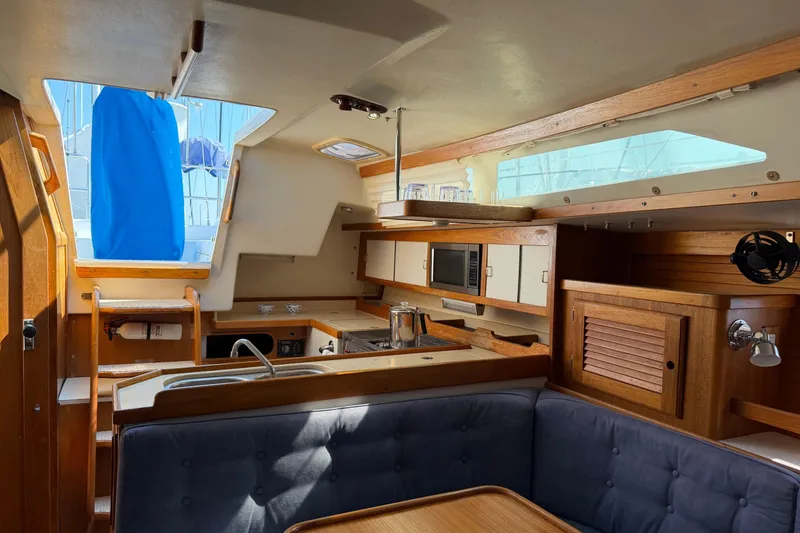

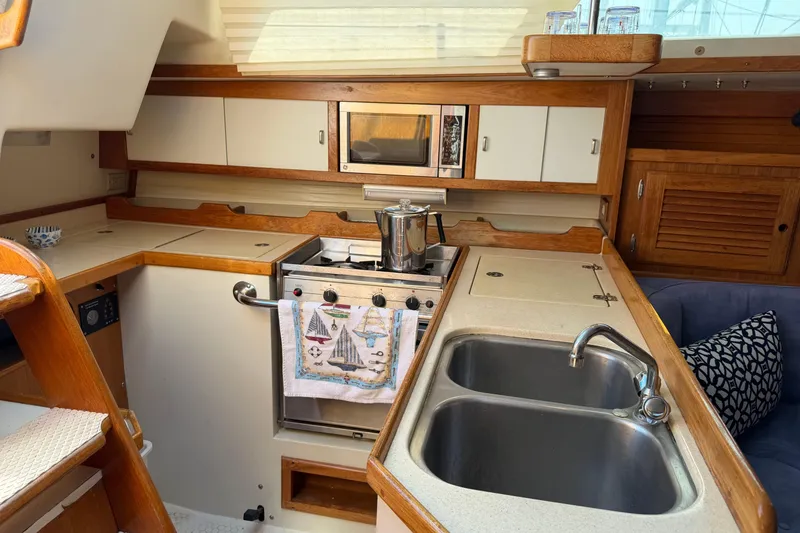

Galley

• Double stainless-steel sink with hot and cold faucets.
• Cambria stone countertop.
• 2-burner propane stove/oven.
• Adler Barbor 12V DC refrigeration cleverly disguised under a custom hinged top within the countertop.
• Large dry storage locker with hinged top within the countertop.
• Great storage throughout entire boat.
• Fire extinguisher.
• 1 opening hatch with screen for ventilation
• Microwave

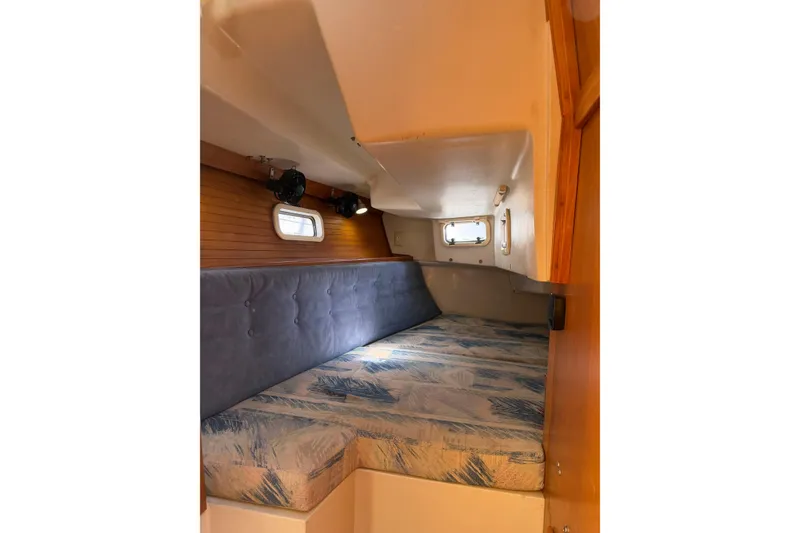

Forward cabin

• Large V-berth with 2-part mattress and new custom V-birth sheets.
• Hanging locker.
• Vanity mirror with storage behind & below.
• Private entrance to the head.
• Large overhead hatch with screen and removable air circulation tent.
• 2-12V, 2-speed cabin fans.
• 2 new LED cabin lights (2023)
• USB charging outlet (2023)
• Battery powered carbon monoxide/fire alarm (2022)
• Fire extinguisher

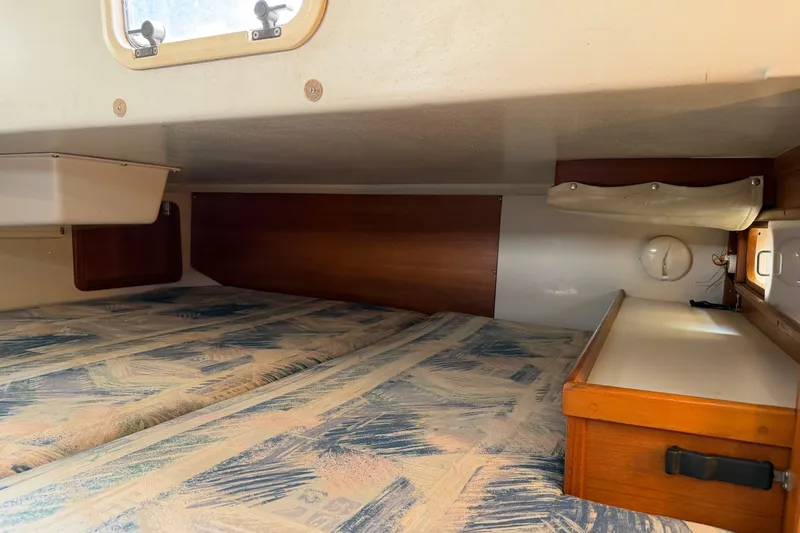

Aft Cabin

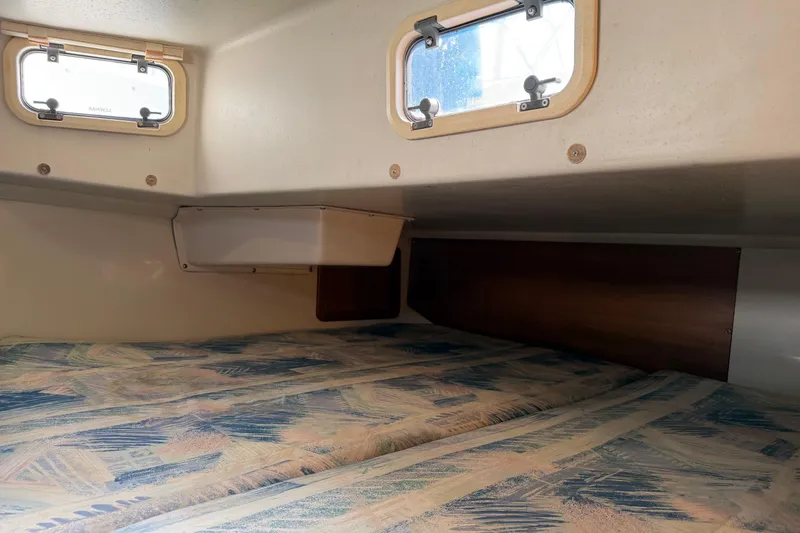

• Athwartships large berth.

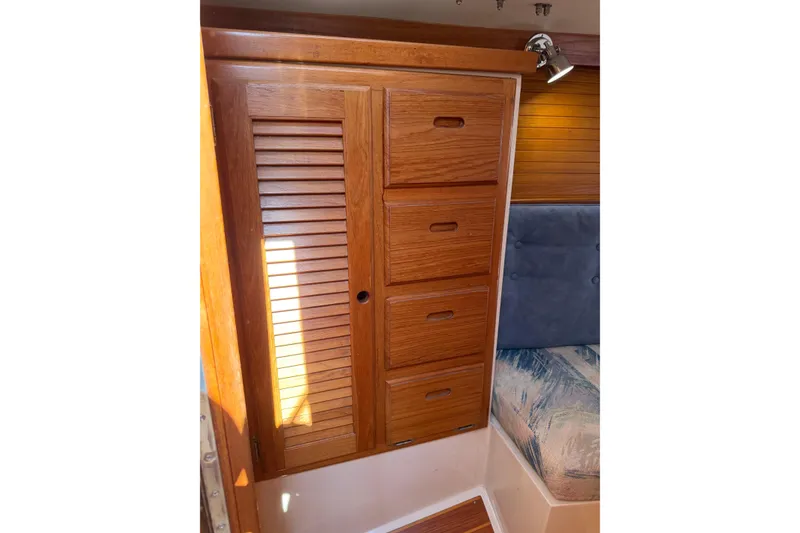

• Hanging locker with storage below
• 2 opening ports with screens for ventilation
• 1 opening hatch with screen for ventilation
• 2-12V, 2-speed cabin fans.
• Battery powered carbon monoxide/fire alarm (2022)

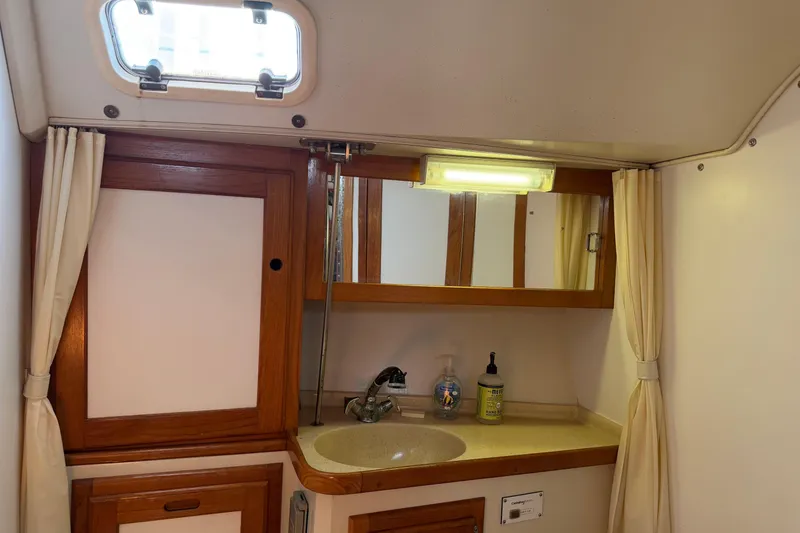

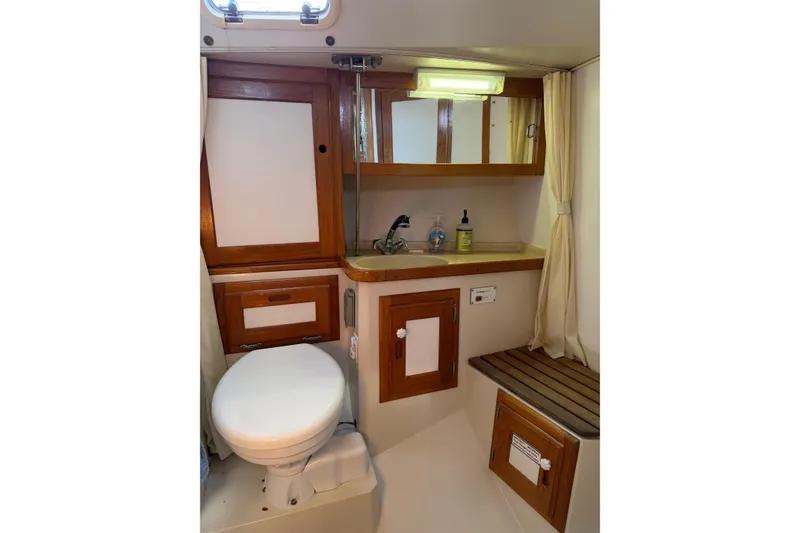

Head

• Molded sink & vanity with pull-out faucet for shower use.
• Shower with full curtain enclosure & seat.
• New electric marine head (2024) with 15-gallon holding tank.
• Macerator pump (not used as per laws on the Chesapeake Bay. It can be re-commissioned if needed for holding tank disposal in legally authorized waters.
• Replaced sanitation hoses (2018)
• Converted head to a freshwater flush, (2017) pulling from the forward water tank, to help eliminate the head smell. Can also pull from seawater via thru-hull if needed.
• Generous storage above sink and head.
• 1 opening port with screen for ventilation

Electrical and Plumbing

• Single 30-amp shore power service. New primary shore power inlet and ELIC installed (2023).
• New shore power cord cable ends (2023).
• 110-volt & 12-volt ships service.
• 2-12V, 2-speed cabin fans.
• New LED lighting throughout boat. (2023)
• Water heater with bypass valves for winterization
• Battery charger.
• 2 new house batteries. (2024)
• 2 Rule bilge pumps – new primary pump. (2024)
• Newly installed tank monitors for all 3 water tanks and black water tank. (2024)
• 2 battery-powered carbon monoxide/fire alarms. (2022)
• Sony radio & CD Player.
• 1800-watt inverter – needs to be replaced – Brand New, still in the box 2000-watt RENOGY sine wave inverter included with the boat
• Bypass valves installed for engine winterization

Electronics

• Garmin 74cv chart plotter with integrated fish finder (2019) Fully updated charts for the east coast and Chesapeake Bay. (2024)
• Raymarine ST6001 Autopilot .
• Raymarine ST60 Depth.
• Raymarine ST60 Speed.
• Raymarine ST60 Depth & Speed multi-instrument.
• Standard Horizon VHF at nav station .
• Ritchie compass at helm.
• Pair of Bose cockpit speakers mounted under aft perch seats.
• USB charging port in cockpit. (2023)
• New re-wired and updated engine pod at helm. (2021)
• Older Garmin chartplotter located at nav station used as backup and setting anchor drag alarm.

Mechanical

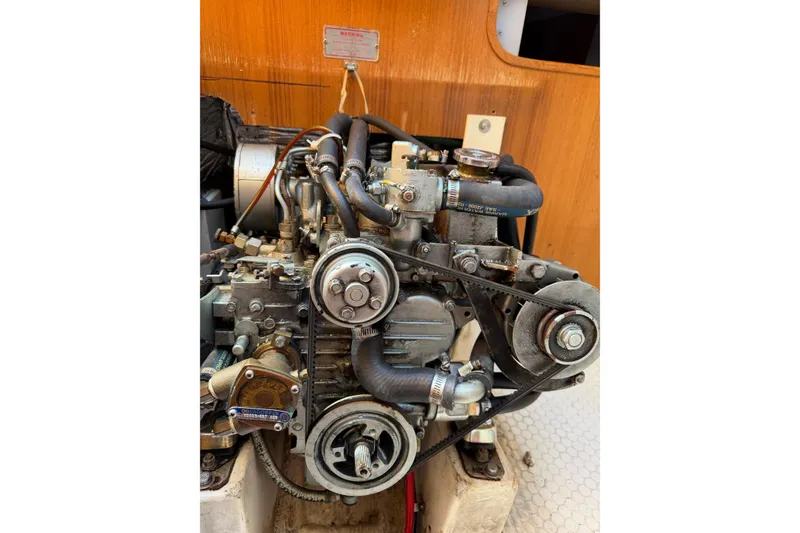

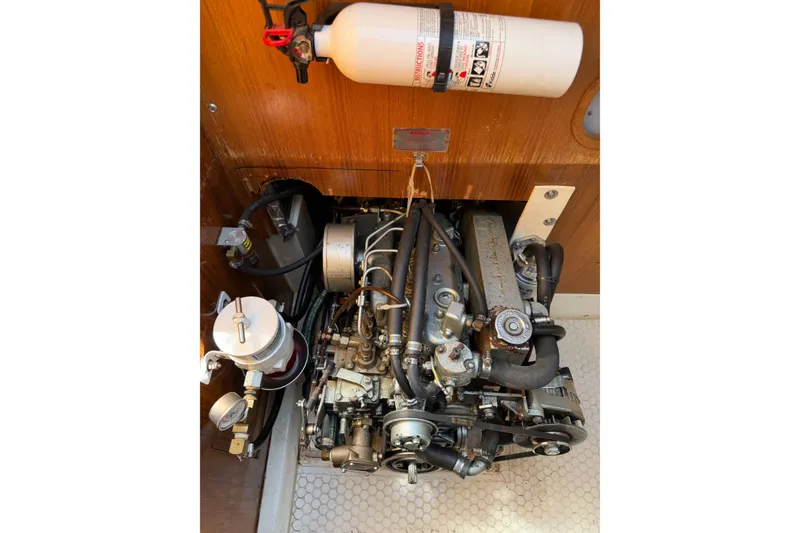

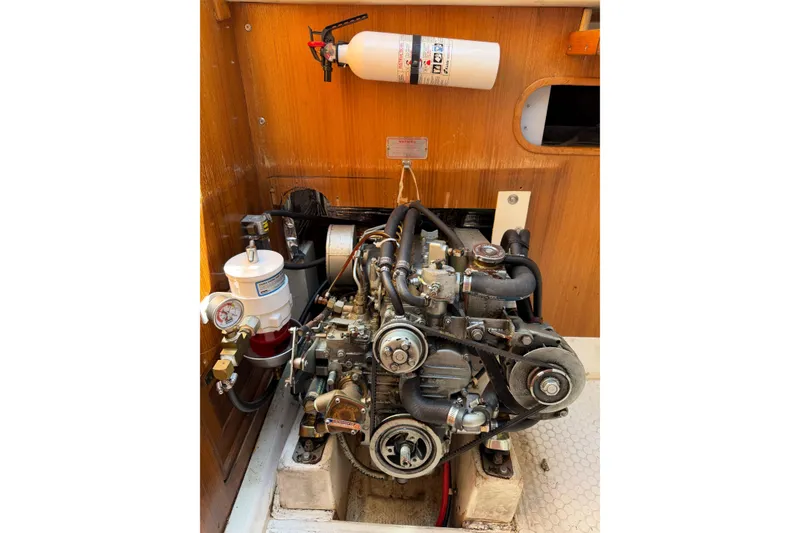

• Universal M35 diesel engine w/ 1567 hours
• New fuel gauge (2022)
• Replaced throttle and shift cables. (2024)
• Installed new upgraded engine raw water pump and all associated hoses. (2021)
• Replaced muffler, heat exchanger and manifold riser. (2021)

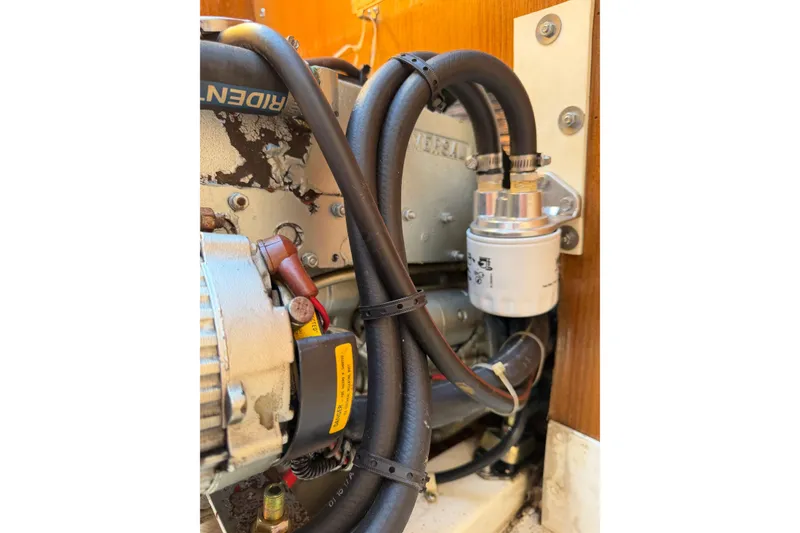

• Re-located oil filter from under engine to more easily serviceable location. (2020)

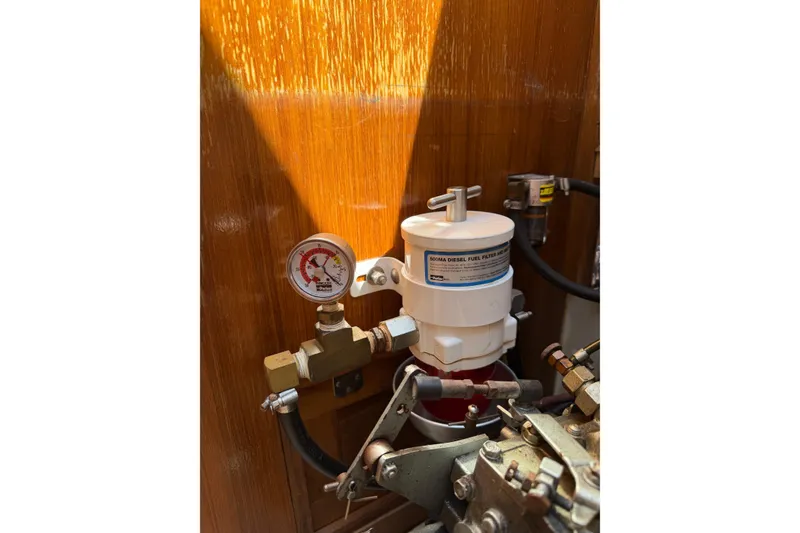

• Re-located primary fuel filter from hard-to-reach location under the aft berth to more easily accessible location in engine compartment. (2018)

Sails and Rigging

• Tall Rig
• Schaffer headsail furling system w/ 135% Genoa.
• Fully battened mainsail w/ 2 reef points.
• New 135% genoa furling sail. (2015)
• Sails are not new, but are in good condition; both were inspected, reconditioned in 2023.
• New Genoa UV cover. (2023)
• Dutchman flaking system. (lines replaced 2021 to accommodate mainsail pack)
• Installed mainsail pack. (2021)
• (2) Lewmar ST30 winches on cabin top.
• (2) Lewmar ST48 winches aft.
• New Genoa sheets and furling line. (2023)

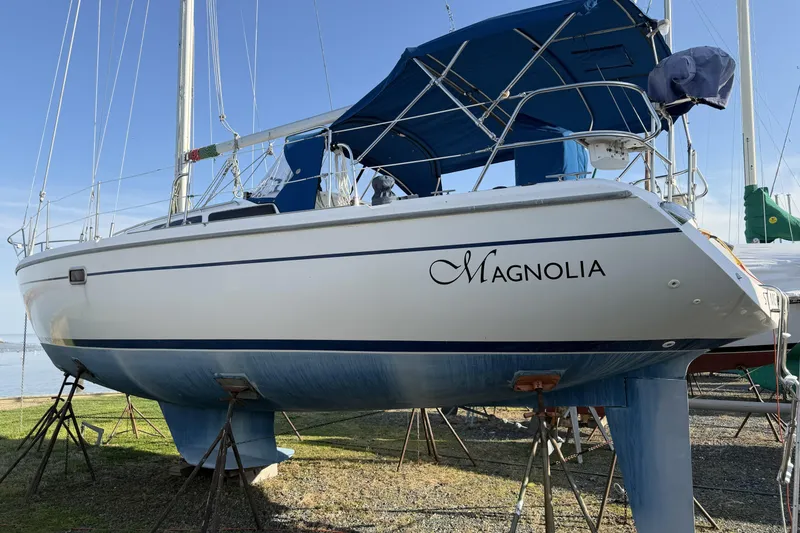

Deck and Cockpit

• 4' 6" shoal draft wing keel version.
• Solid fiberglass hull.

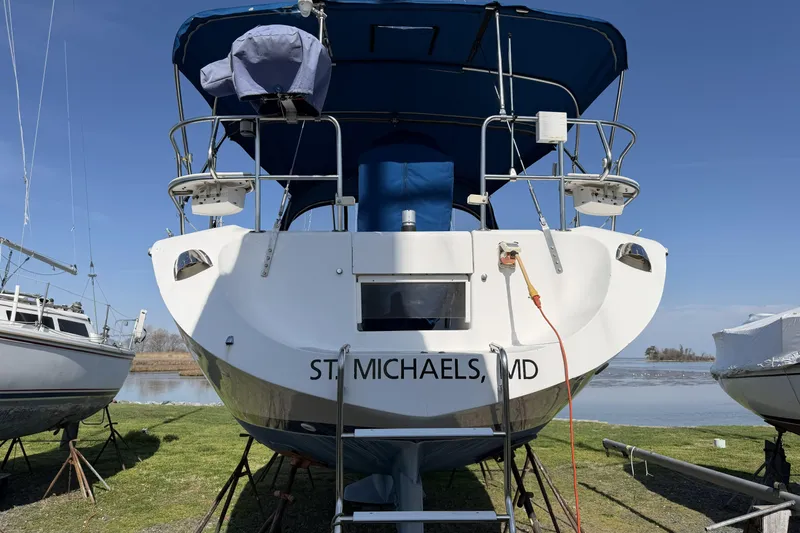

• The MKII version carries the 12' beam aft, and features a wide swim platform with swim ladder.
• Transom shower.
• Walk thru stern with removable helm seat platform.
• Helm seat installed at stern. (2018)
• Cockpit stern perch seats with cushions.
• Cockpit cushions.
• Large storage locker.
• New leather wrapped foldable helm wheel. (2022)
• Installed Zycor companion way doors with lock, screens and privacy inserts. (2022)
• Teak companionway hatch boards used during winter storage.
• Wide decks with non-skid deck surface.
• Double lifelines with Pelican hooks and port & starboard boarding gates.
• Outboard engine mount.
• Electric anchor windlass.
• 35# plow anchor.
• New dodger connector piece and bimini connector piece. (2018)
• New helm cover. (2024)

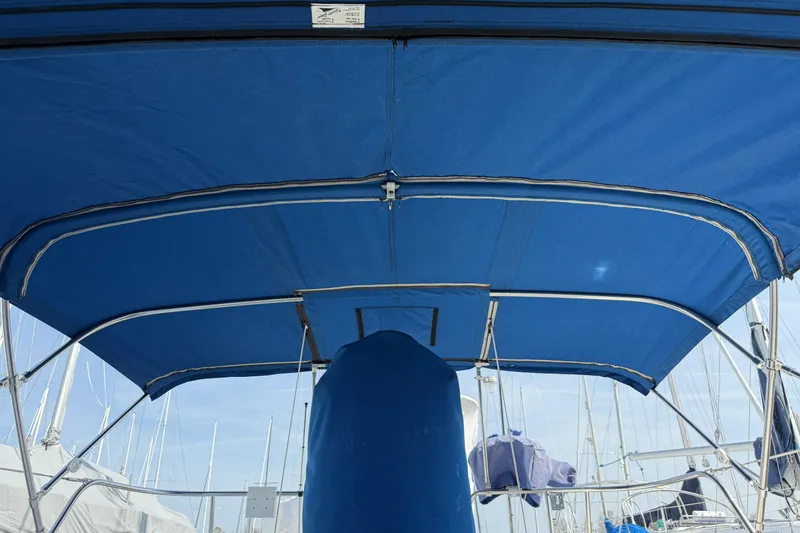

• Newly refurbished bimini. (2023)
• Bottom painted. (Spring 2025)
• Propane tank locker in cockpit.
• Fire extinguisher.

Additional Included Items

• Dinghy towing harness & lines.
• Bosun chair.
• Life sling.
• Magma propane grill.
• Boat hooks.
• Fenders.
• Dock lines.
• Life jackets.
• All manuals complete and on board.
