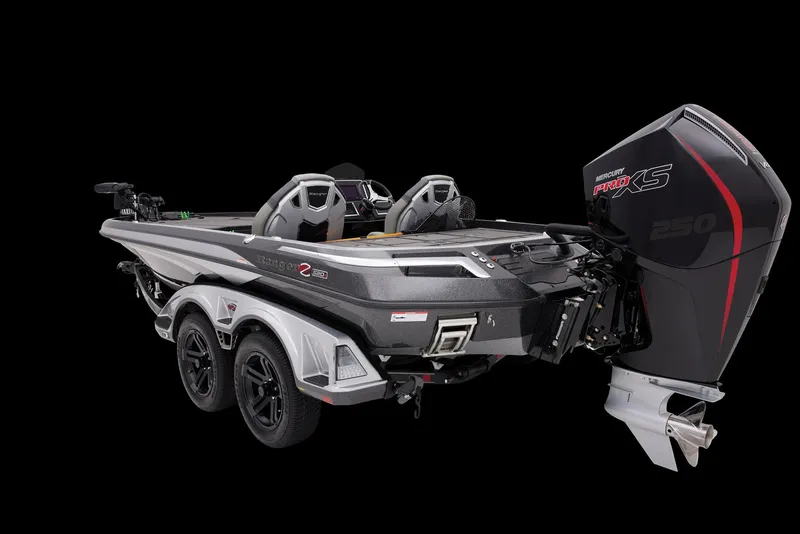

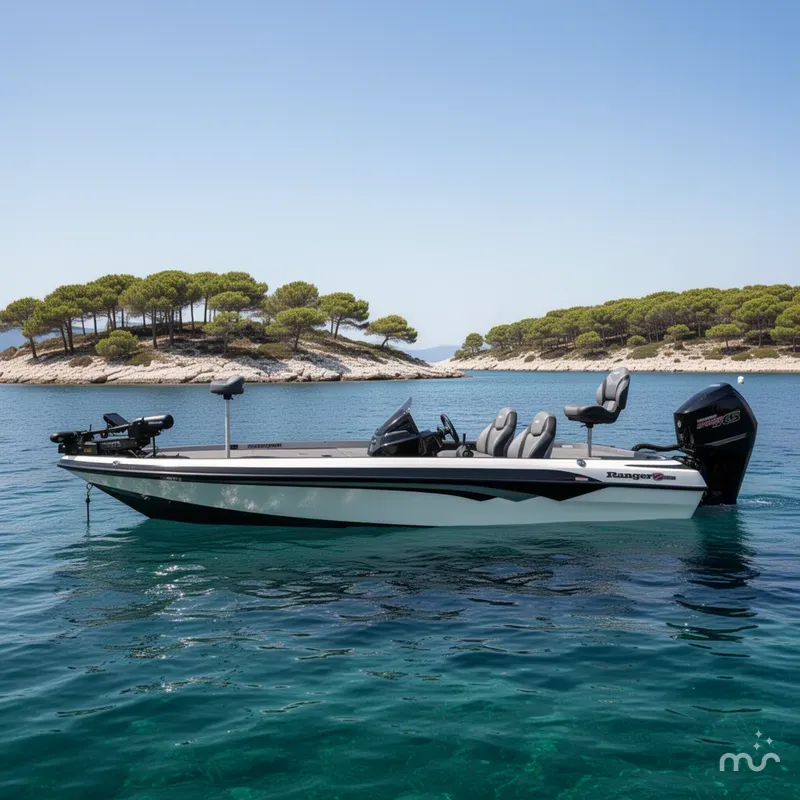

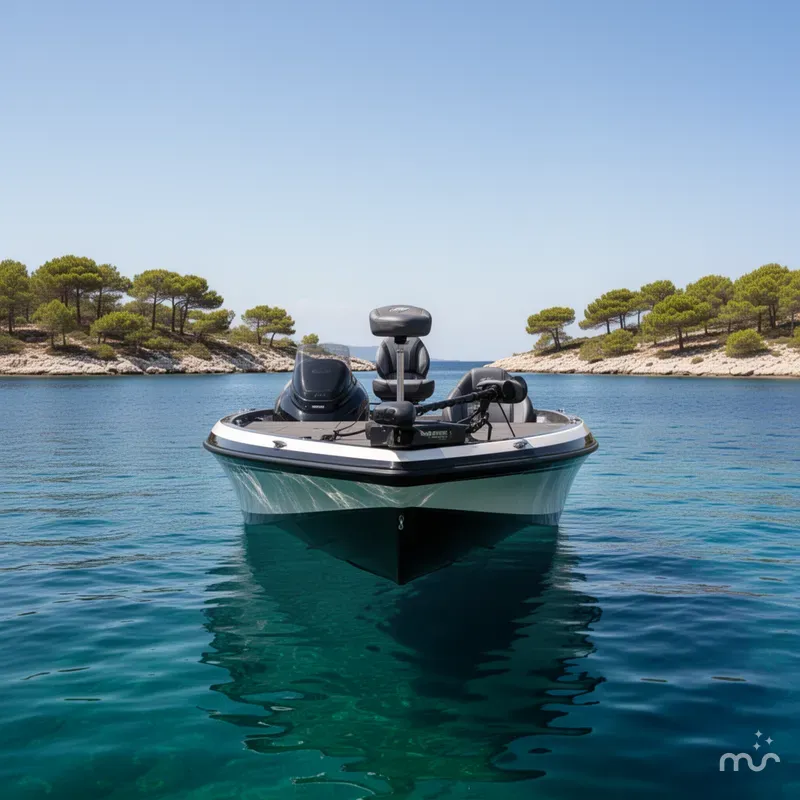

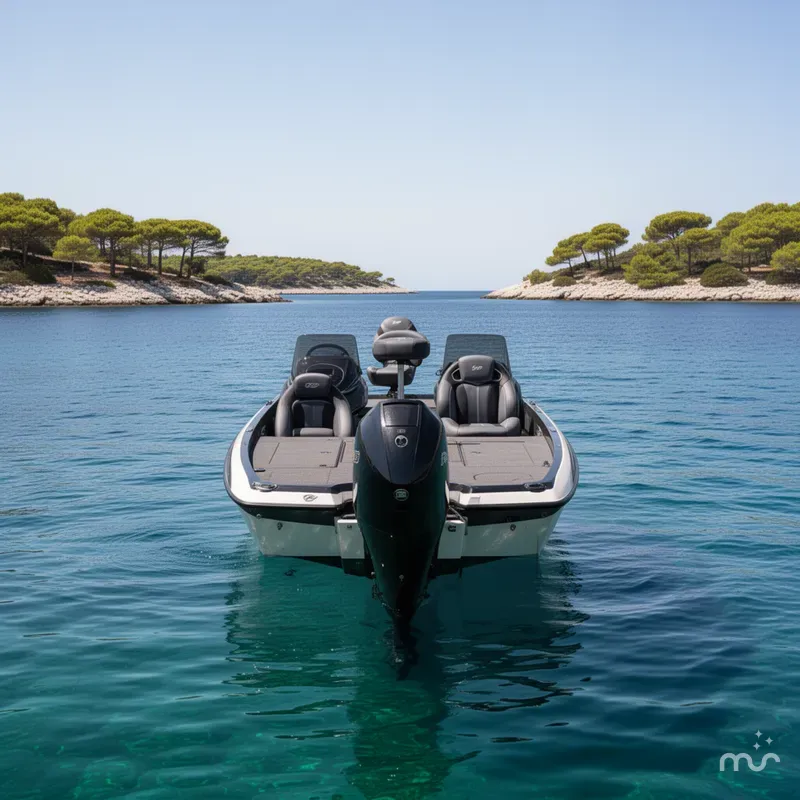

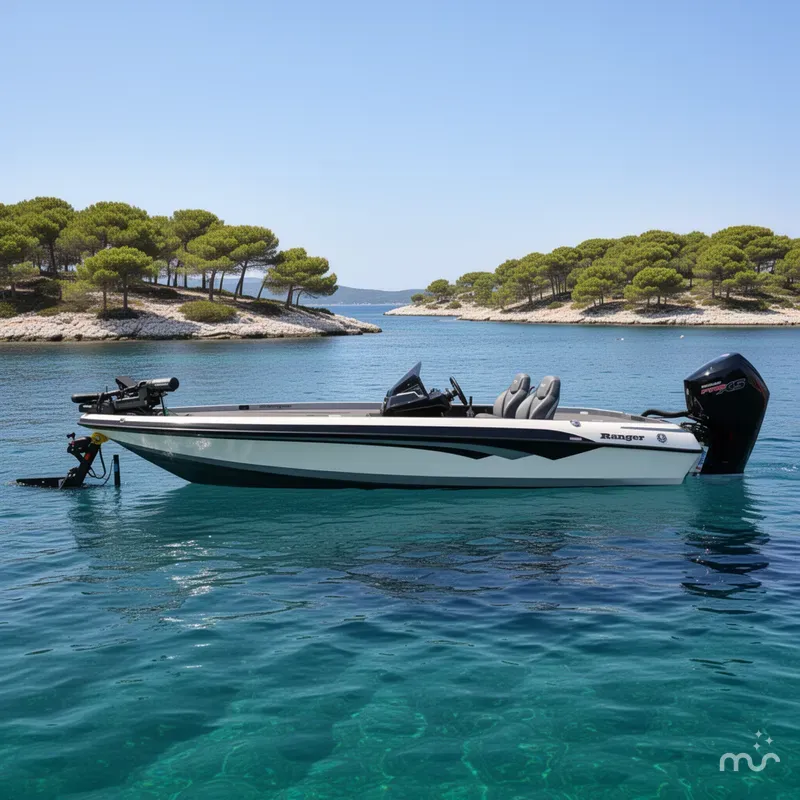

2025 Ranger Z520R
Price on request
Boat in White Bluff, TN 37187 US
Built in 2025
Z520R
1 Engine (--)
20.9 feet
Gas
Fiberglass/Reinforced
With an unmatched legacy and never-ending drive for domination, this is the ideal go-to for anglers at every level. The Ranger Z520R is the next chapter in bass boat evolution and a quantum leap in design, functionality and dominating performance at every level. From the outset, we took the legendary Z Comanche "C" hull and digitally scanned and perfected it, resulting in an instant hole shot and stronger top-end. For 2025 we've upped the ante even more by adding a host of top-tier touches to set apart this premium rig even more. New heated Cloud 9™ air ride SRS driver seating carries you in comfort, while a new non-skid traction pad graces the front deck for stylish functionality. Protecting your investment is a newly redesigned boat cover for even greater fit and security. Fishability gets an upgrade with a Minn Kota® Quest 115-pound thrust trolling motor and an optional dual BBT electronics mount keeps your graphs secure and easy to read in all conditions. Finally, a color-matched cockpit floor, push-to close latches, and compartment liner mats complement the peerless style of the Z520R. Every appreciable element of the cockpit, decks, and storage boxes has been revamped to complement the enhanced performance of the R Series. We've also gone to great lengths to incorporate more standard technology into the R Series, to not only raise the bar for the industry, but to give you greater comfort, convenience, and peace of mind. An all-new console carries dual graphs or a single 16" unit and the touchscreen Ranger R.I.D.E. system integrates total control over every boat and engine function. The all-new seats rest on easy-to-adjust slides and the color-matched fiberglass shellbacks take the aesthetic to a new level. A key fob and integrated push-to-start ignition let you start-up quicker and deliver greater security when you're on the road. Inside the coin box is a wireless phone charger, and in the battery box are standard lithium batteries. Storage boxes are demonstrably larger, thanks to a redesigned stringer system that builds on our One-Piece Feel Interloc™ Construction. The rod boxes feature our Echelon Rod Storage System with a tri-level storage shelf system that simplifies rod management and offers more room for sticks up to 9'. Inside and out, the Z520R ushers in the next generation of domination. The Z520R. It's a whole new era of Ranger.
-
Built to be Yours™ - Available with a wide array of custom-matched trolling motors, electronics, and accessories
-
Heated Cloud 9™ Air-Ride SRS Driver Seating
-
Push-to-Start Ignition
-
Ranger R.I.D.E. - integrating full-boat control and monitoring via 9" touchscreen
-

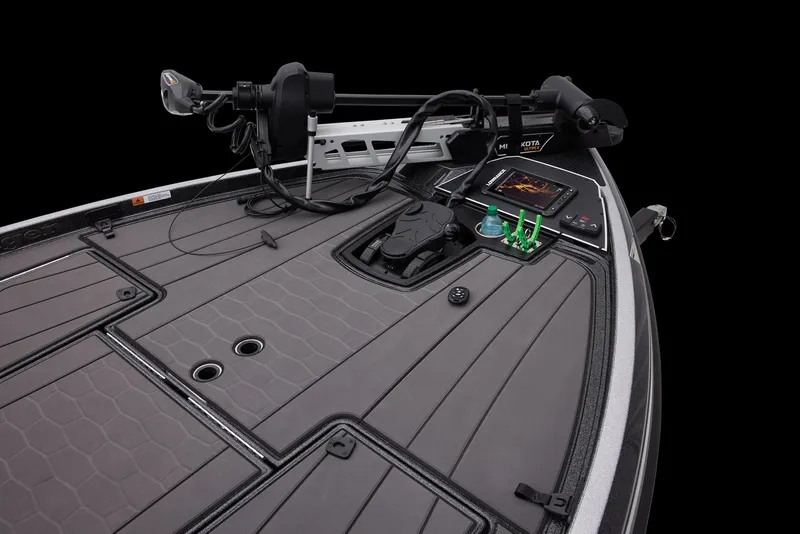

Traction Pad Front Deck Center Lid
-
Padded Front Casting Deck
-
Pultruded Fiberglass Transom
-
Push-to-Close Latches
-
Length:20' 11"
-
Beam: 96"
-
Max. Recommended HP: 250 HP
-
Engine Shaft Length: 20"
-
Inside Depth: 22"
-
Fuel Capacity: 54 gal.
-
Livewell Capacity: 31 gal.
-
Total Person, Motor, Gear: 1650 lbs.
-
Approximate Boat Weight: 1850 lbs.
-
Rod Box Length - Port: 8' 0"
-
Rod Box Length - Center Row 1: 8' 0"
-
Rod Box Length - Center Row 2: 7' 6"
-
Max. Person Capacity: 4 persons
-
Trailer GVWR: 5400 lbs.
-
Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate): 27' 1"
-
Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate): 25' 0"
-
Width On Trailer: 102"
Custom Details
-

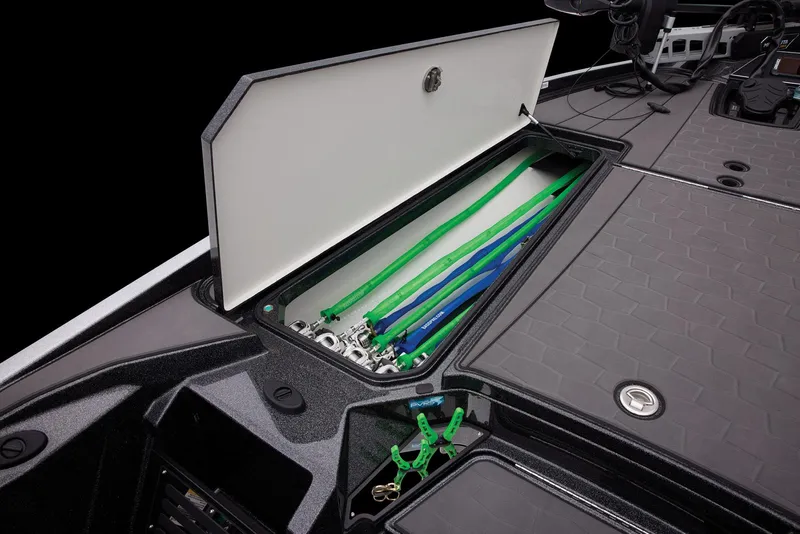

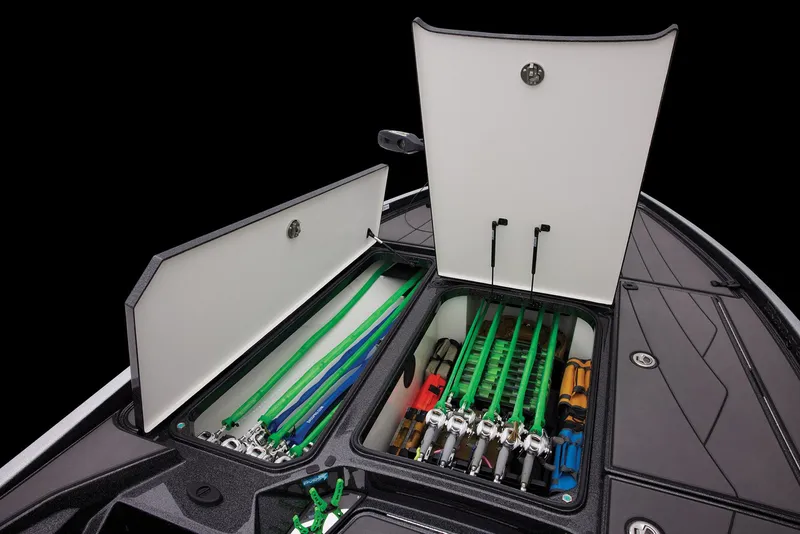

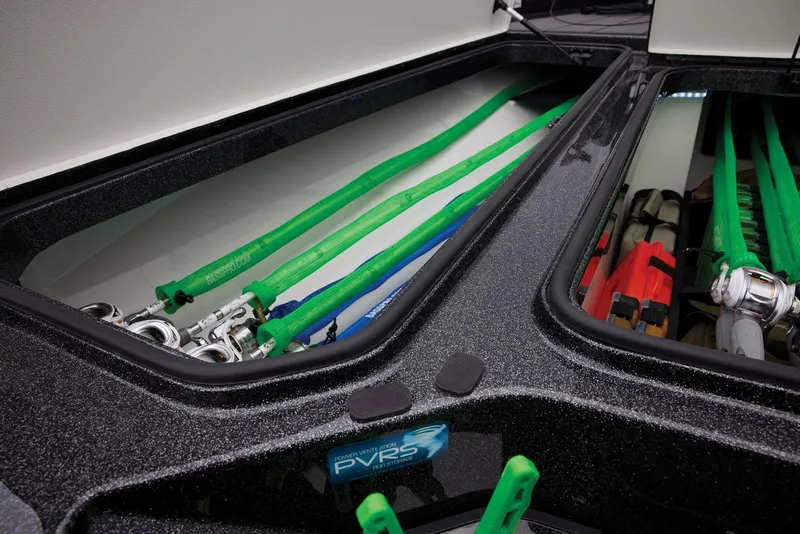

Ranger Echelon™ Rod Storage System - 3-tiered port & 2-tiered starboard rod lockers
-
Custom color package
-
Power Ventilation Rod Storage™
-

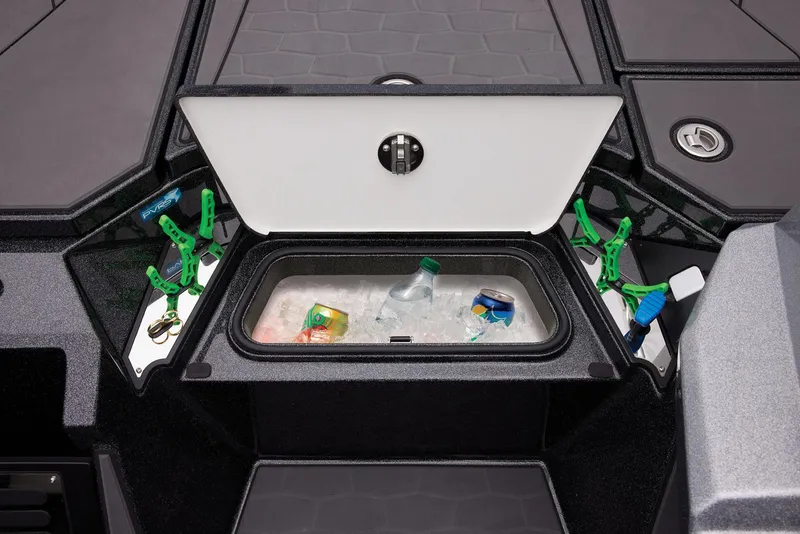

Insulated 40 qt. step-up cooler
-

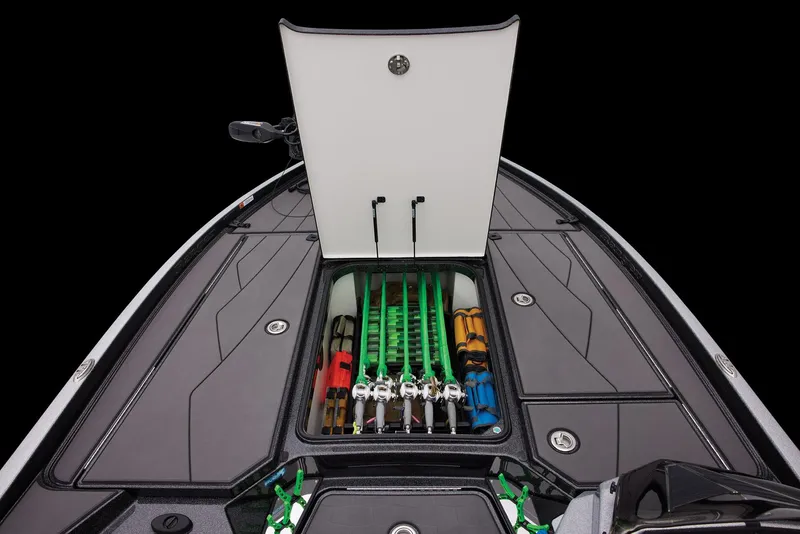

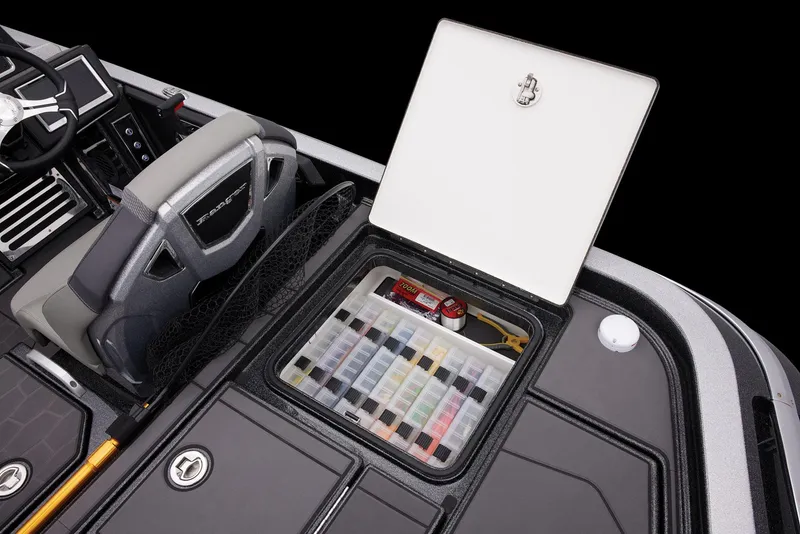

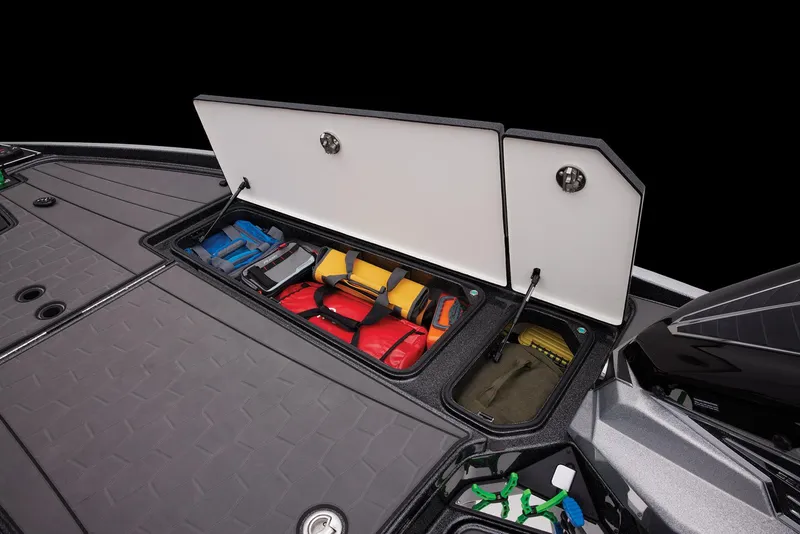

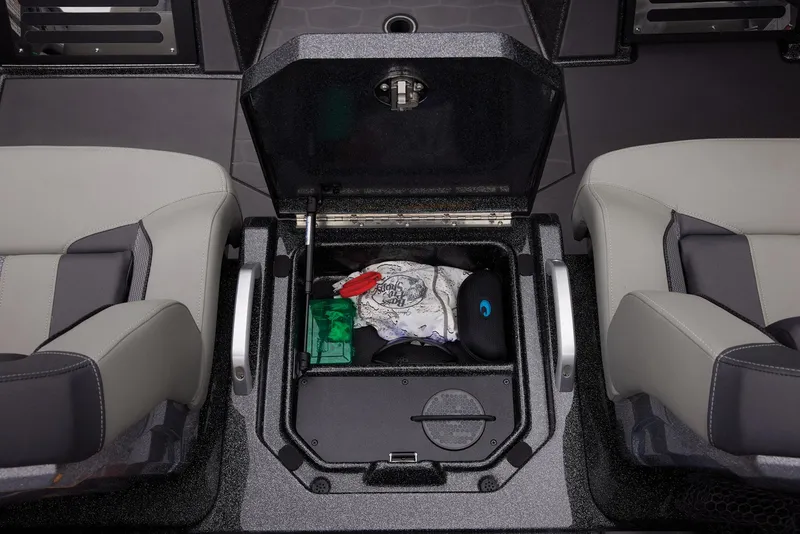

Integrated center-storage rod & tackle management system
-

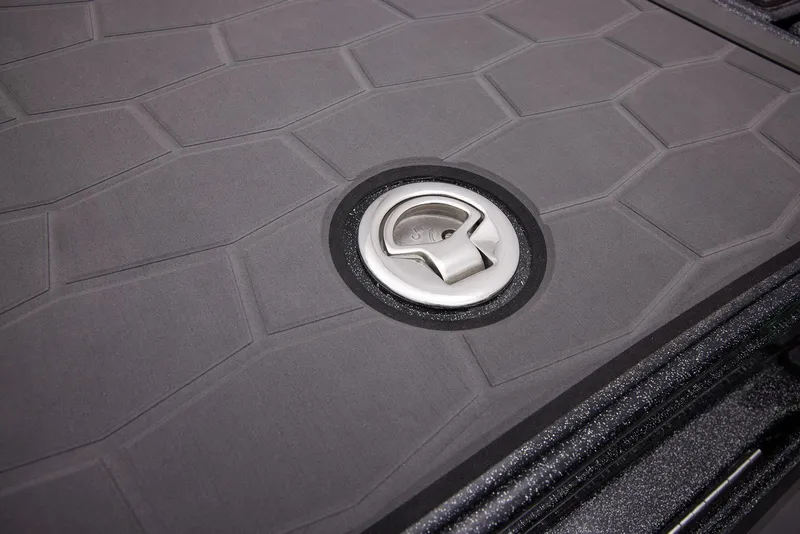

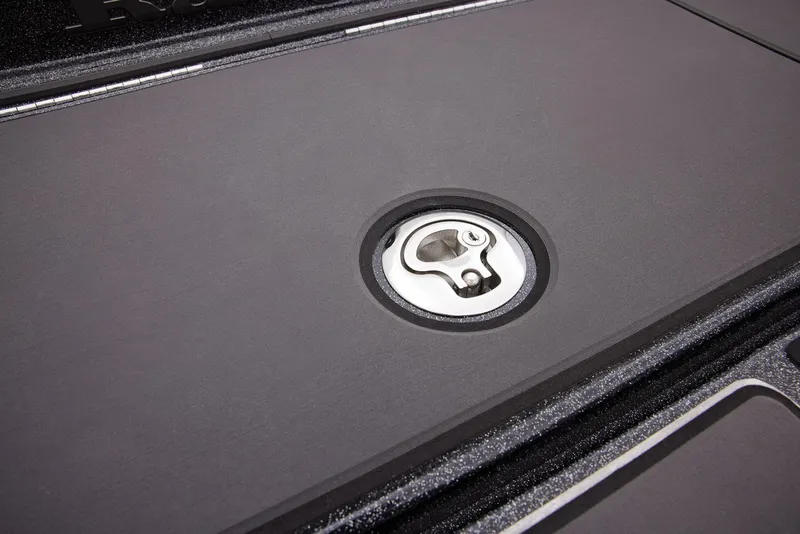

Stainless steel push-to-close locking latches
-
Traction Pad Front Deck Center Lid
-
Color-matched cockpit floor and compartment liner mats
-

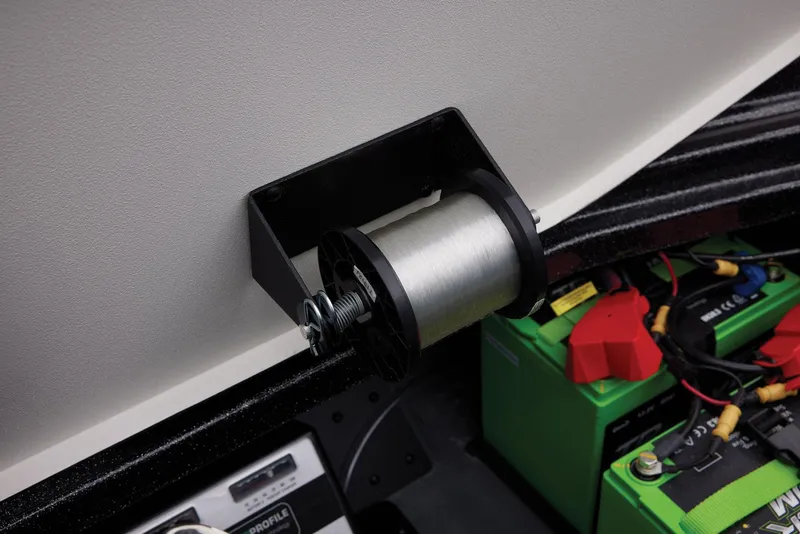

Integrated line spooling station under battery lid
-

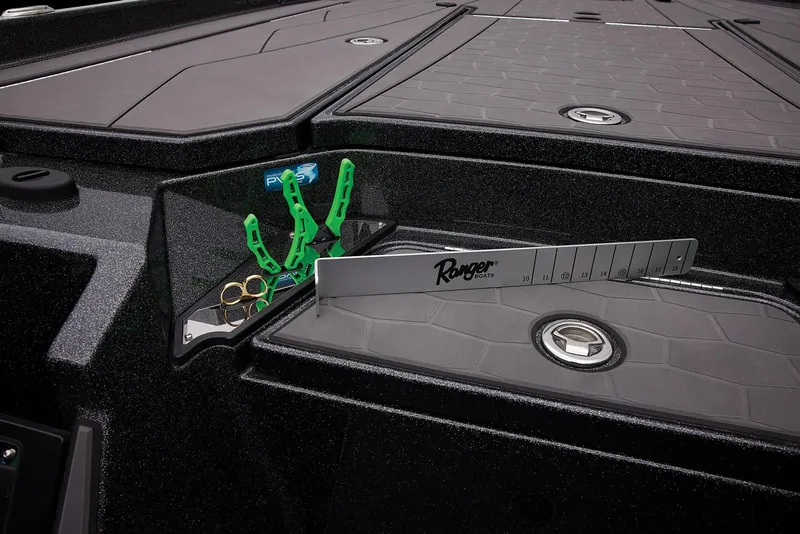

Ranger® tournament measuring board integrated at front deck step
-
Retractable rod buckles
-

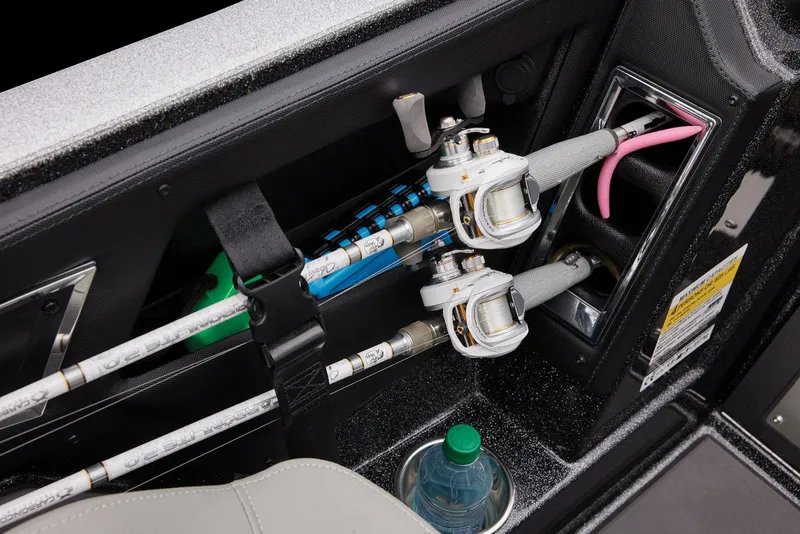

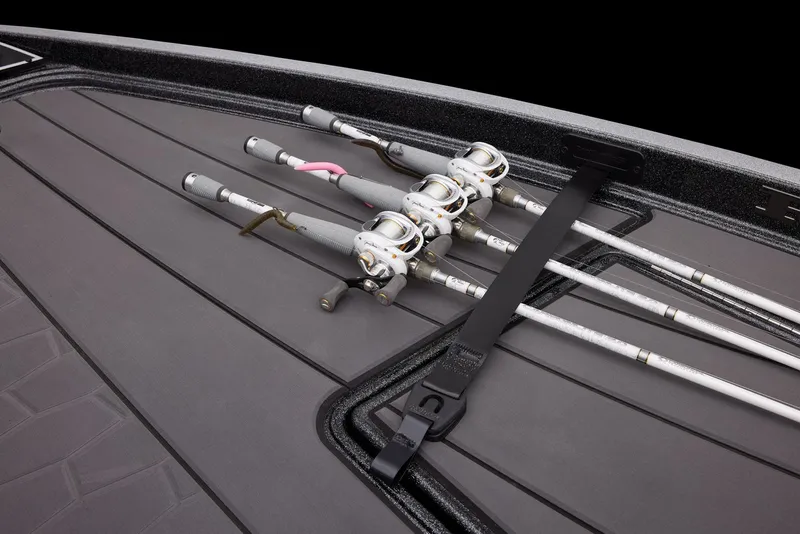

Runnin' rod rack w/ retractable strap
-
Remote drain plug
-
Tool holders at bow and front deck step
-
Pultrusion-reinforced decks, floors, transom & stringers
Electronics
-
Built to be Yours™ - Available with a wide array of custom-matched trolling motors, electronics, and accessories
-

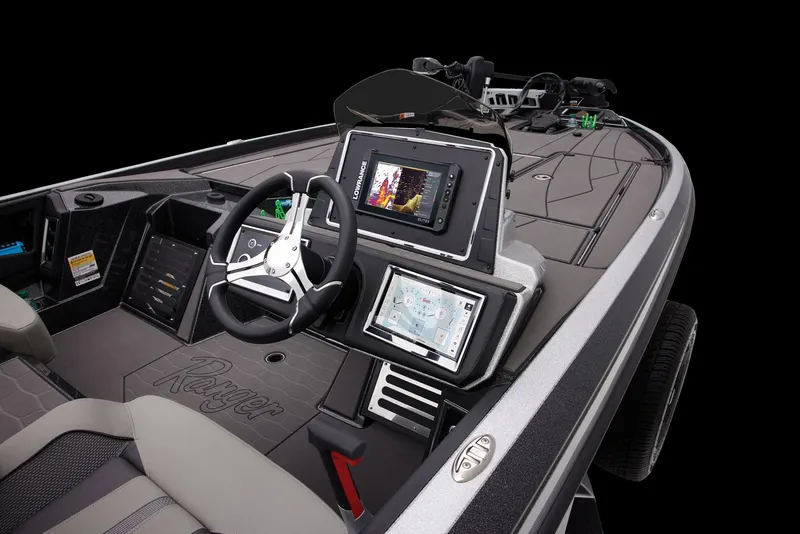

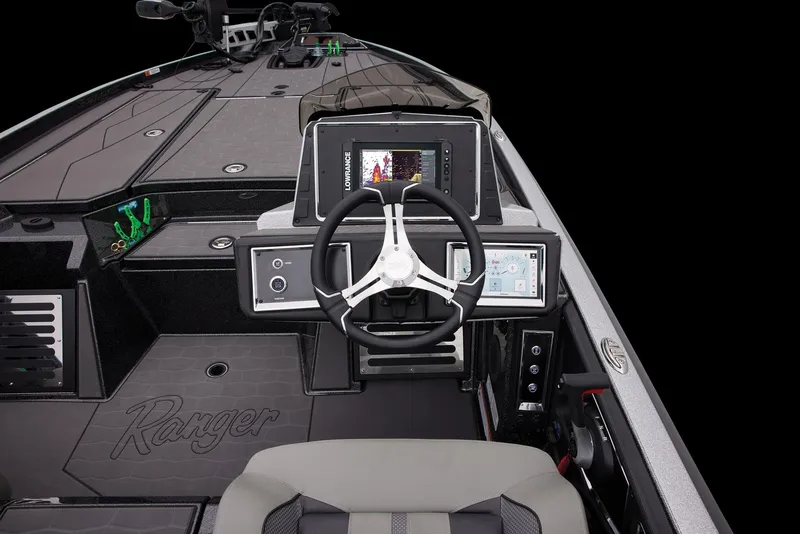

Ranger® R.I.D.E.™ (Ranger Intelligent Display Engine) -integrated full-boat network control and monitoring via 9" touchscreen
-
Push-to-Start Ignition with proximity Key Fob
-
Solid-state digital keypad at bow with push-button trim switches
-
Ranger® Umbilical™ dedicated bow-to-stern 6-gauge electronics wiring harness w/ 30A breaker
-
Lowrance® Elite FS™ 9 at bow
-

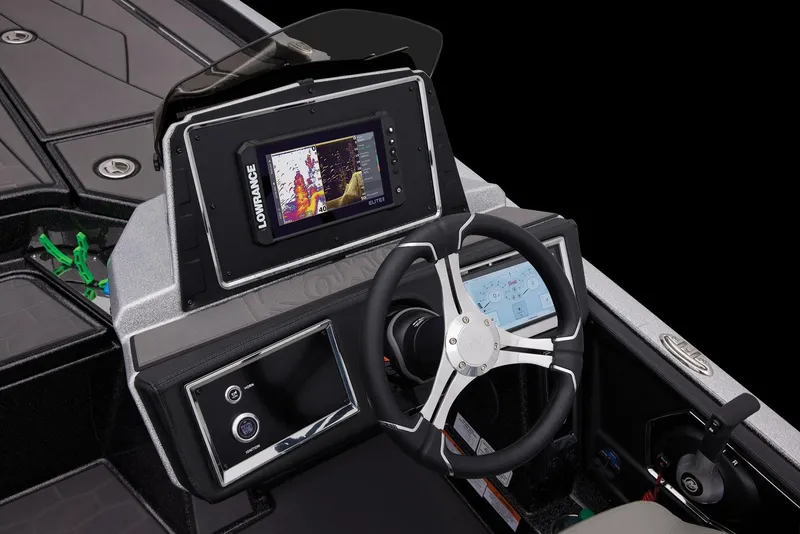

Lowrance® Elite FS™ 9 w/ Active Imaging HD at console
-

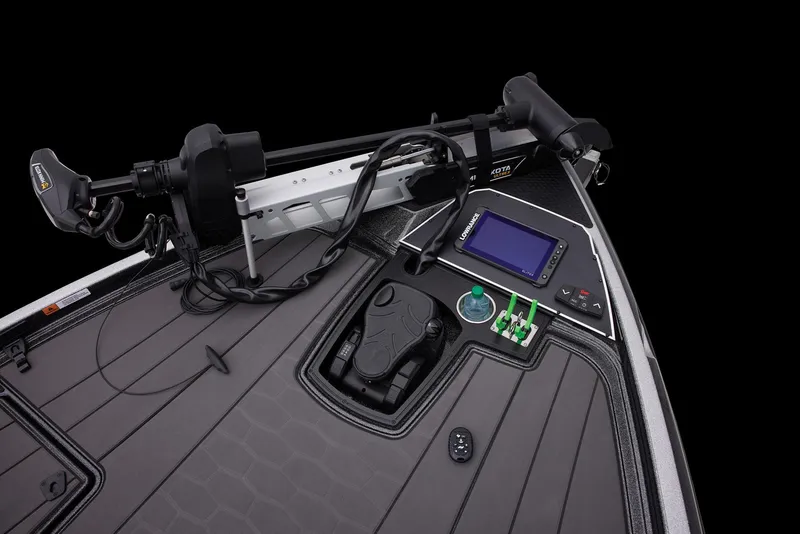

Minn Kota® Ultrex QUEST 115lb / 45" / DSC / 36V trolling motor
-
Heavy Duty 6-gauge trolling motor wiring harness w/ 60A breaker
-

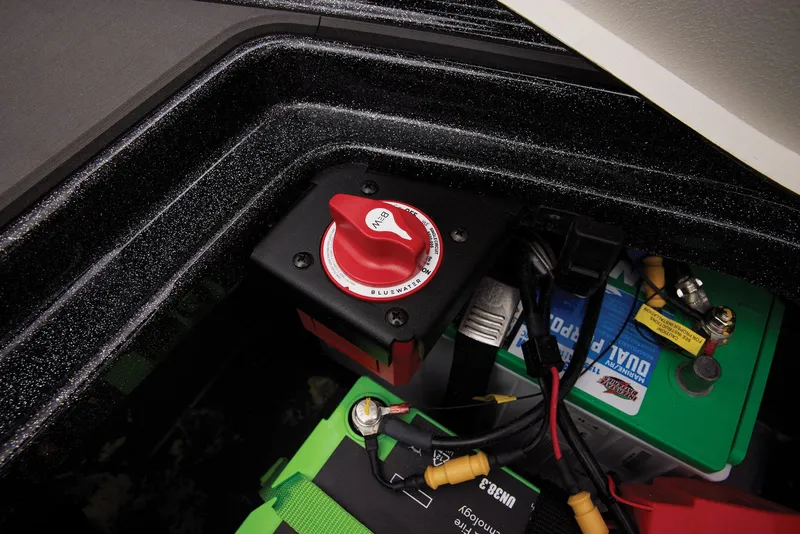

Master Power on/off battery disconnect switch
-
Auto-on LED storage compartment lighting & LED courtesy & livewell lighting
-

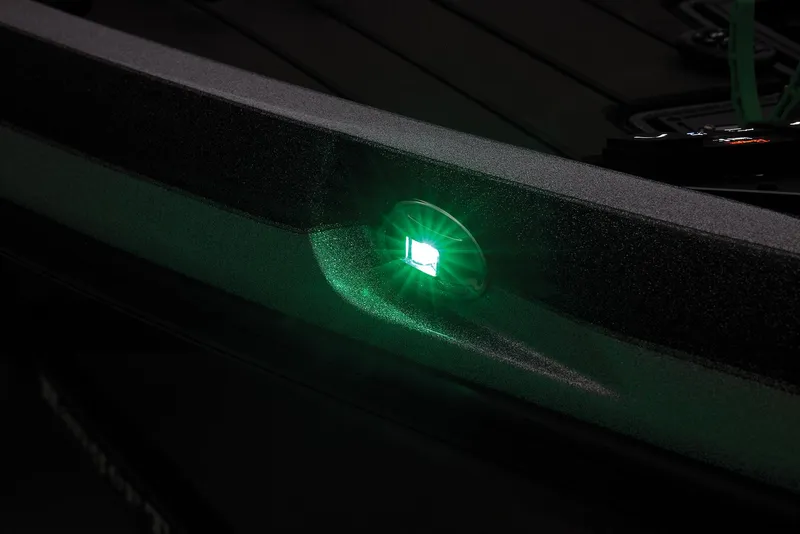

Integrated LED bow navigation lights & removable LED anchor light
-

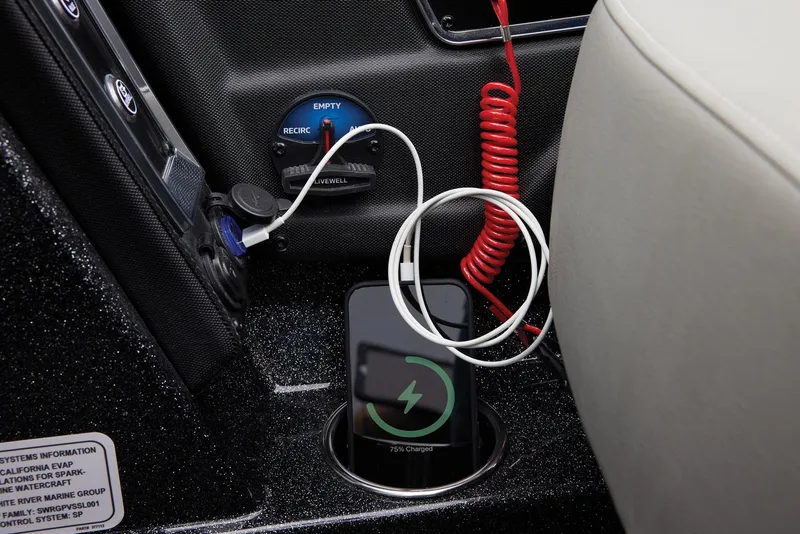

Wireless phone charging station in Coin Box
-
12V power receptacle with USB
-
NOCO™ GB40 jump starter w/ on-board USB charging
-

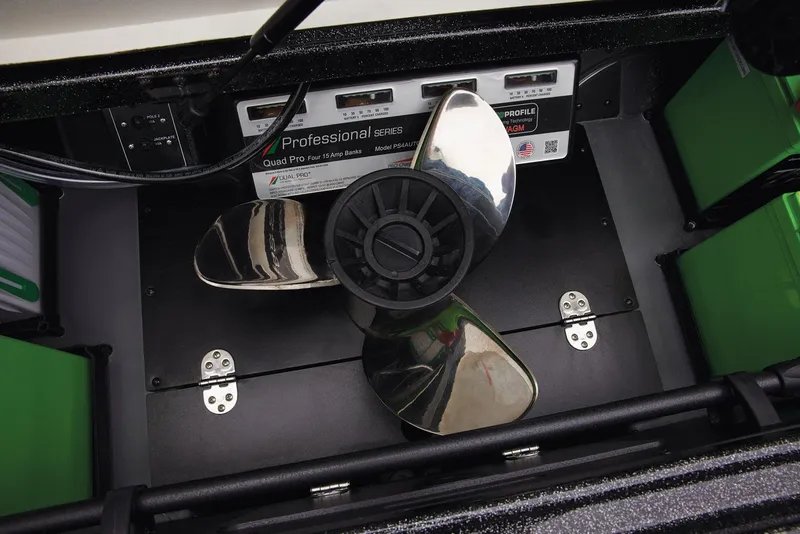

Dual Pro™ on-board 15A x 4 bank charger w/ auto-detect technology & remote charging port
Power/Performance
-
Pultruded Fiberglass Transom
-

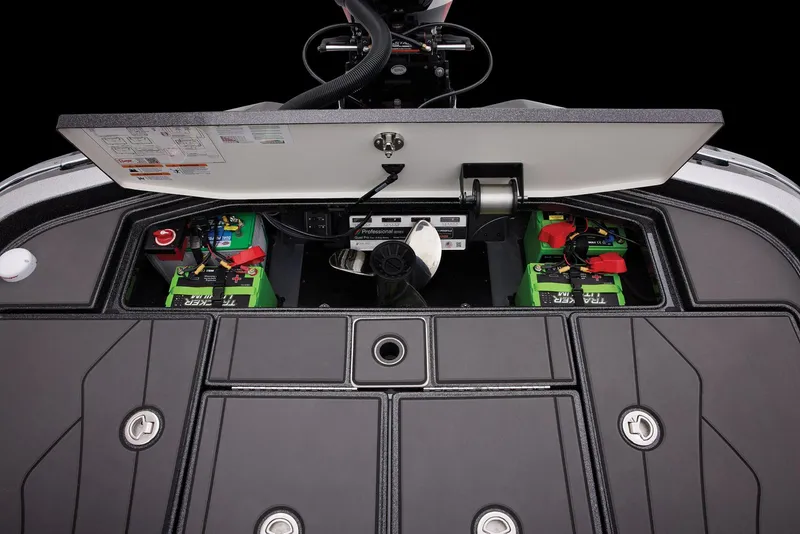

(3) Lithium 80AH trolling batteries w/trays
-
AGM Starting battery w/ tray
-
Backup manual ignition keyswitch
-
One-Piece-Feel™ Interloc Construction
-
Integrated engine setback
-
10" manual setback plate
-
Tilt hydraulic steering
-

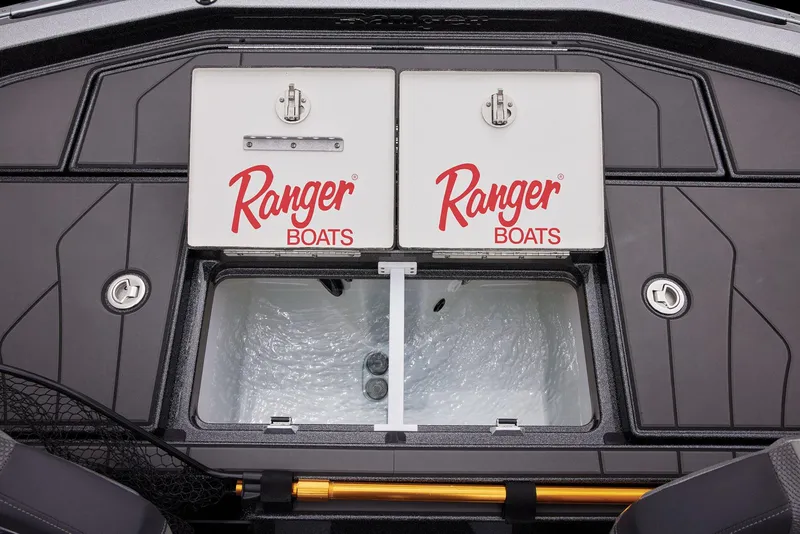

Recirculating aerated livewell w/ removable divider & integrated culling tag system
-
Pure Oxygen Generator
-
Venturi Aeration System
-

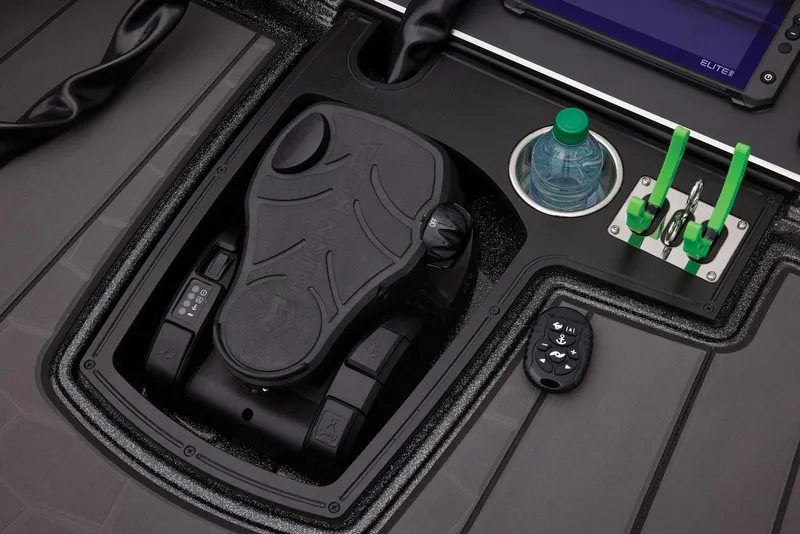

Recessed trolling motor foot pedal
-
High performance stainless steel prop
-
Foam-filled fiberglass stringer system
Safety/Comfort
-
Upright Level Flotation exceeding all USCG & NMMA standards
-
Heated Cloud-9™ Air-Ride Driver's Seat
-

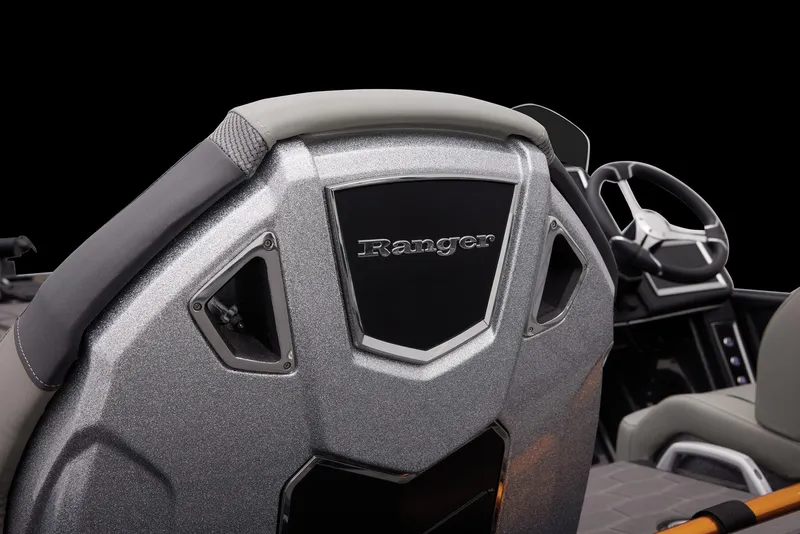

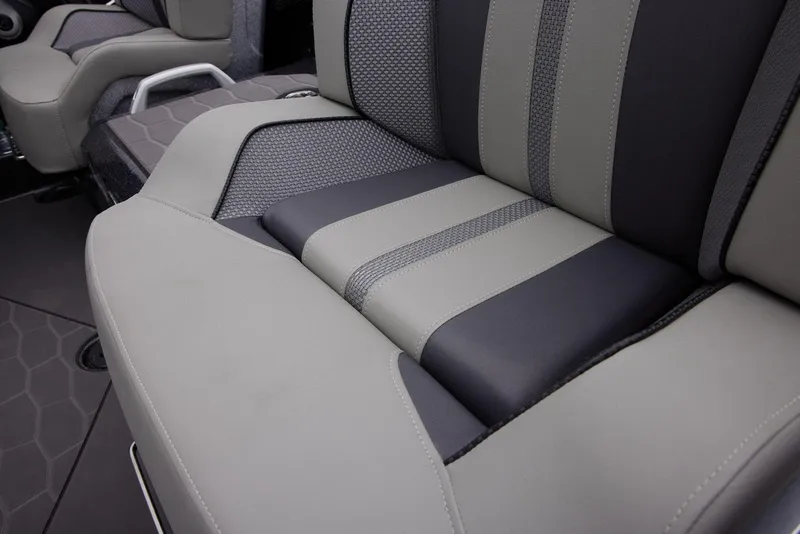

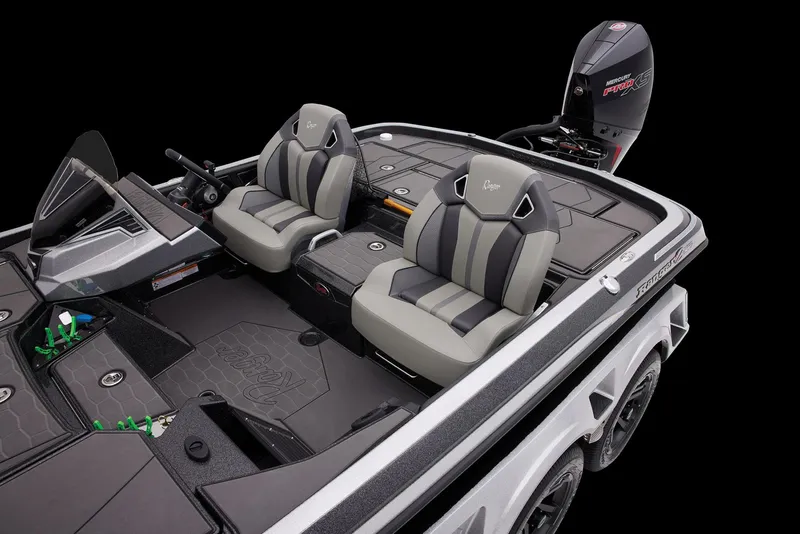

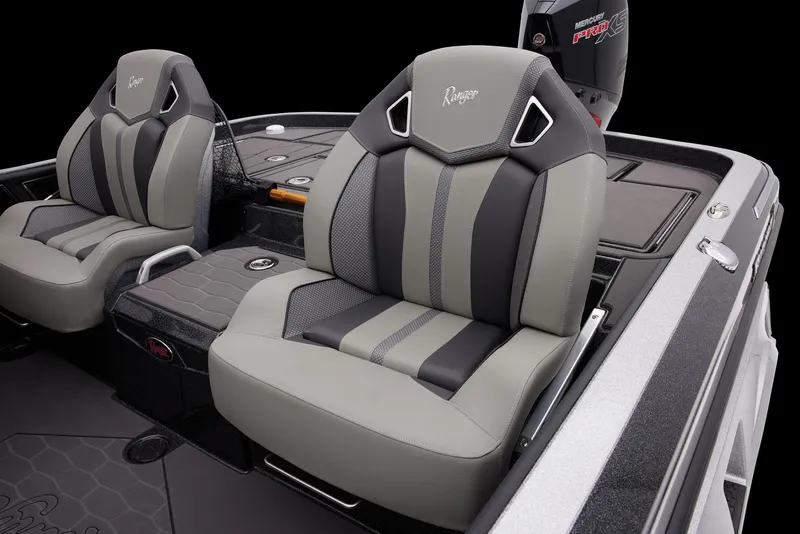

Custom-fitted Ranger® Soft Ride Seating™ system with driver & passenger seat slides & color-matched fiberglass seat shells
-
Custom bike seat & SRS fold-down on heavy duty pedestals
-
Padded front deck
-
Integrated grab handles
-
Rite Track Keel®
-

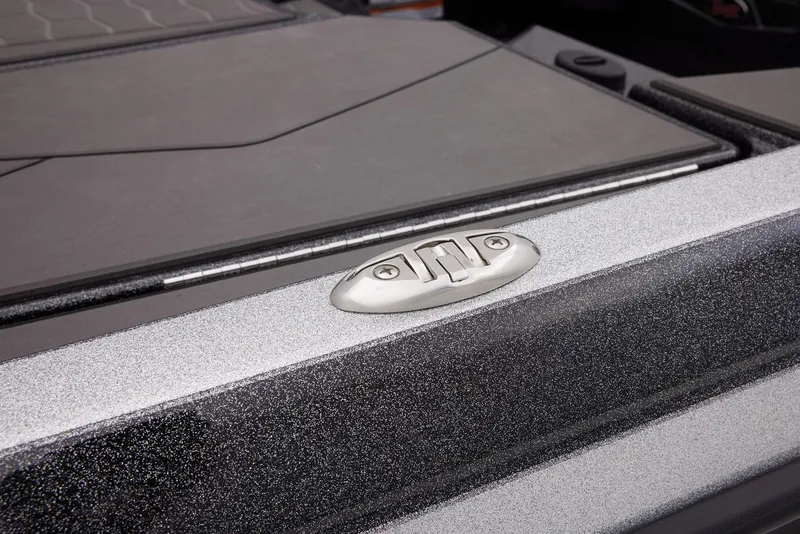

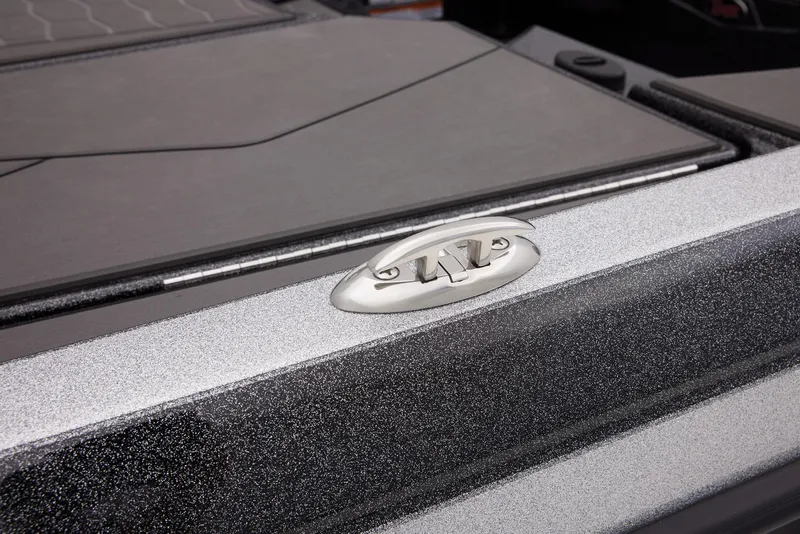

Pop-up tie cleats
-
Automatic and manual bilge pumps
-

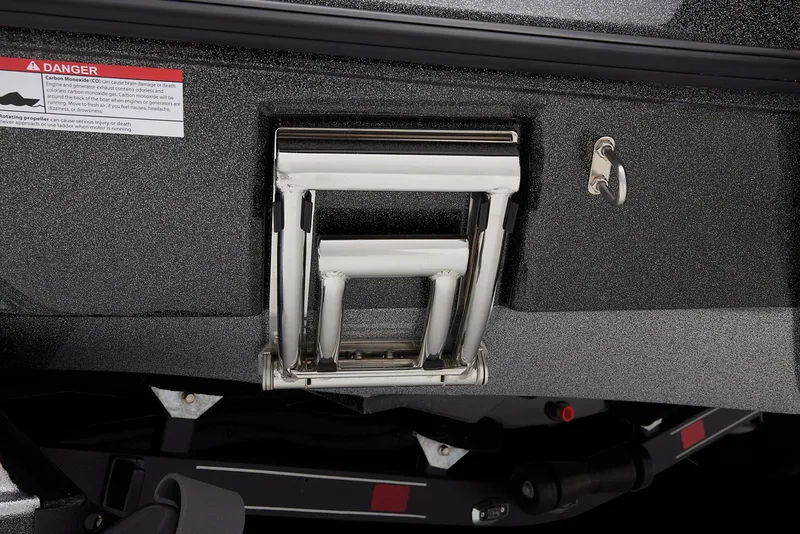

Integrated re-boarding ladder
-
Skid-resistant material on bow
-
Stainles steel bow & stern eyes
-
Stainless steel seat bases
-
NMMA® certified
Trailer Features
-

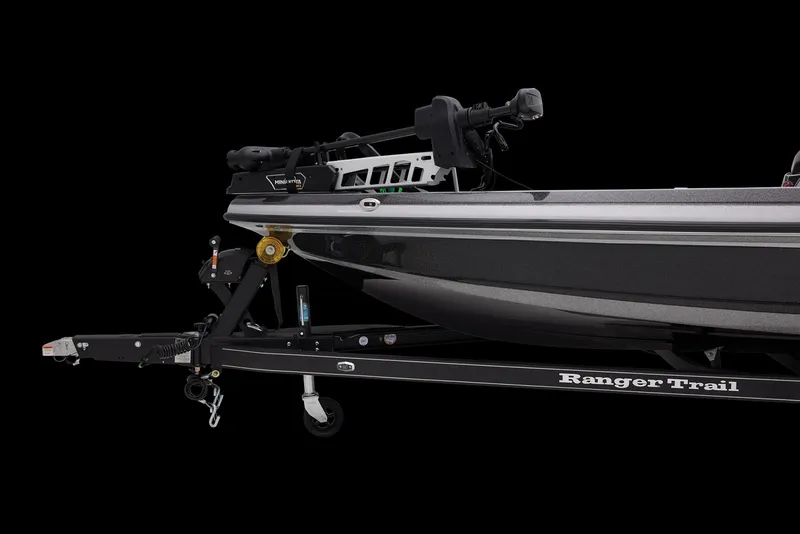

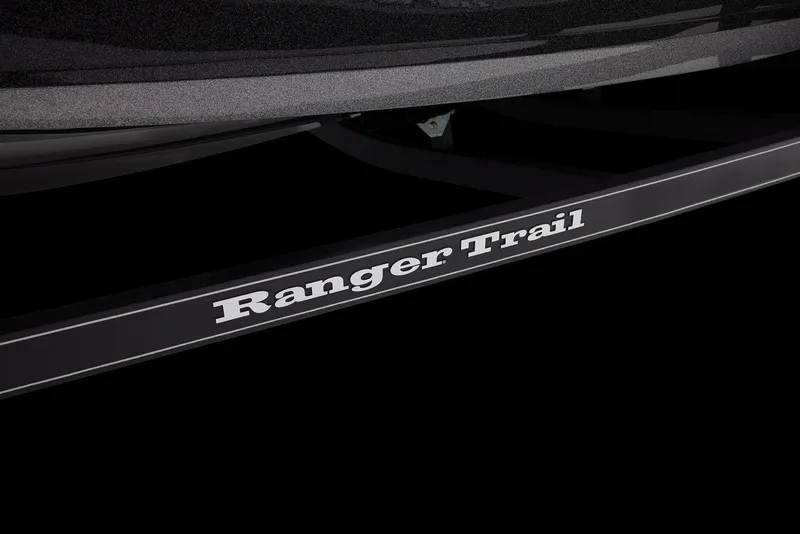

Ranger Trail® trailer w/ torsion axles and c-channel frame
-
Ranger® Road Armor Equipped® trailer protectant coating
-

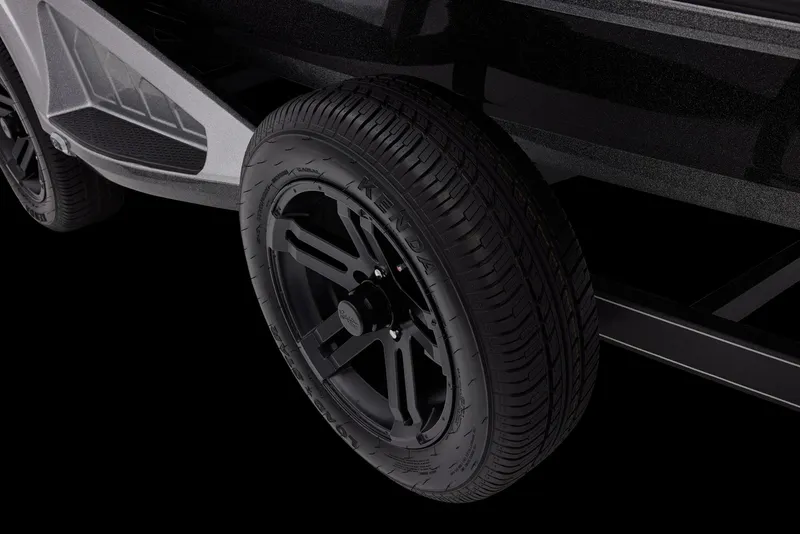

14" Raptor painted & machined aluminum wheels w/ matching spare
-
Ranger Trail® Vault® Hub lubrication system
-

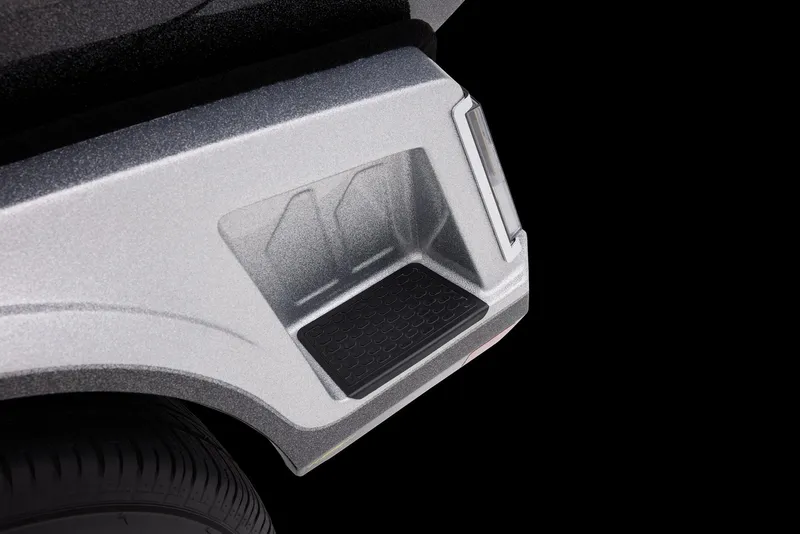

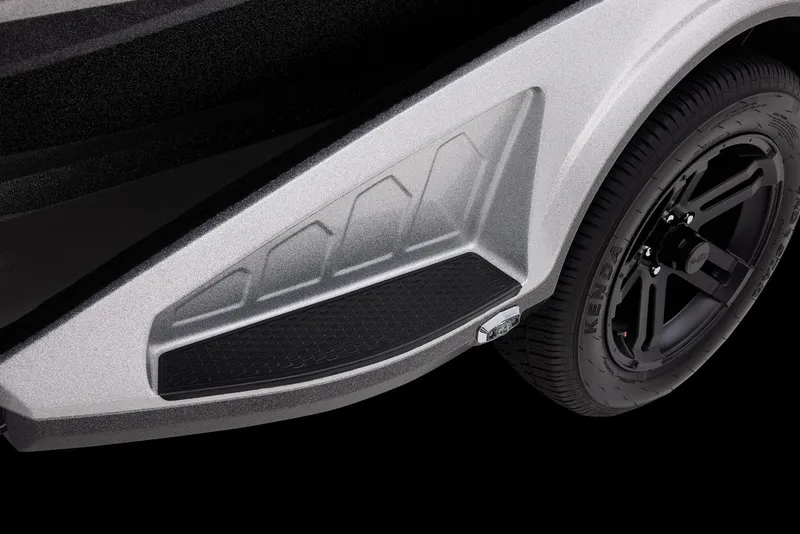

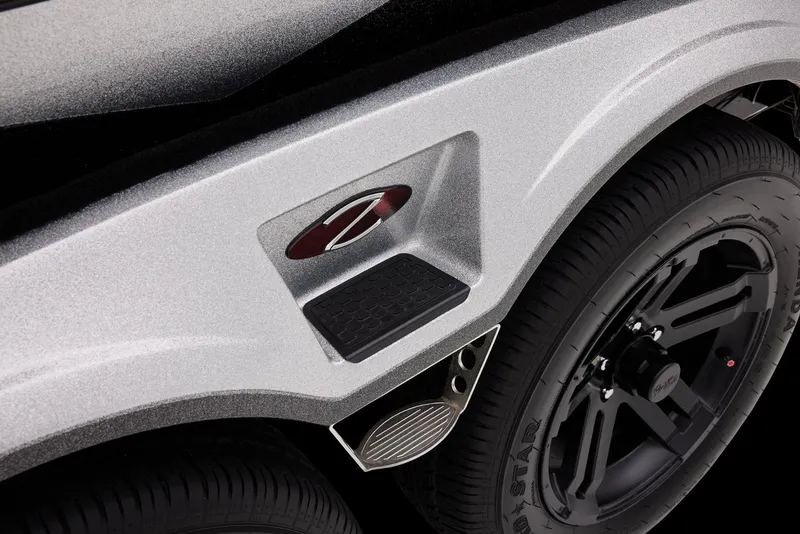

Fiberglass fenders w/ step pads
-

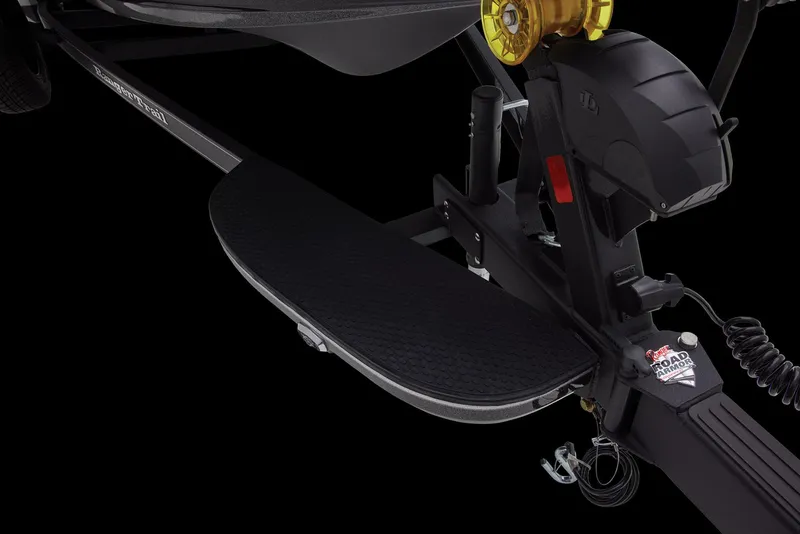

Fiberglass Bow Step - color-matched to fenders
-
Hydraulic surge disc brakes
-
Swing-away tongue
-
Integrated center-swing jack finished in black powdercoat
-
LED lighting
-
LED back-up lights
-
Stainless steel ratcheting tie-downs
-
NMMA®/NATM certified
2025 Ranger Z520R Video Tours
Overview from around the web 2025 Ranger Z520R
Customers are praising the 2025 Ranger Z520R for its exceptional performance on the water, highlighting its smooth handling and stability even in challenging conditions
Many appreciate the spacious and well-designed deck layout, which provides ample room for fishing and comfort during long trips. The boat's durable construction and high-quality materials receive positive remarks, ensuring reliability and longevity. Additionally, users commend the advanced features and technology integrated into the Z520R, making it both user-friendly and efficient. Overall, the 2025 Ranger Z520R is celebrated for combining power, comfort, and functionality, making it a top choice for serious anglers and boating enthusiasts.
The Biggest Pros and Cons
The 2025 Ranger Z520R offers a blend of performance, versatility, and innovative features, making it a standout choice for serious anglers. Here are some of the pros and cons to consider:
Pros
Exceptional Fishing Performance: Designed for tournament anglers, the Z520R features a wide beam and stable hull that provide excellent casting platforms and smooth handling in various water conditions.
Spacious Deck Layout: The boat offers ample deck space with multiple storage compartments, making it easy to organize tackle, gear, and electronics.
Advanced Electronics Integration: Equipped with modern console and bow electronics options, the Z520R supports multiple fish finders and advanced navigation systems.
Powerful Engine Options: Compatible with high-performance outboard motors, delivering impressive speed and fuel efficiency.
Durable Construction: Built with premium materials and Ranger’s signature craftsmanship, ensuring longevity and reliability.
Comfort Features: Ergonomically designed seating and adjustable consoles enhance comfort during long fishing trips.
Cons
Price Point: Positioned as a premium bass boat, the Z520R may have a higher price tag compared to entry-level models, which could be a consideration for budget-conscious buyers.
Size Limitations: While spacious for a bass boat, the 20- to 21-foot length might be less suitable for anglers needing a larger multi-purpose boat.
Learning Curve for Electronics: The advanced electronics suite can require some time to master for those new to high-tech fishing gear.
Made For
The 2025 Ranger Z520R is designed for serious anglers who demand top-tier performance and precision on the water. Ideal for tournament fishermen and avid bass anglers, this boat offers advanced features, exceptional stability, and ample storage to enhance every fishing experience. Whether you're casting in tight cover or cruising open waters, the Z520R delivers the power and versatility needed to elevate your game.
