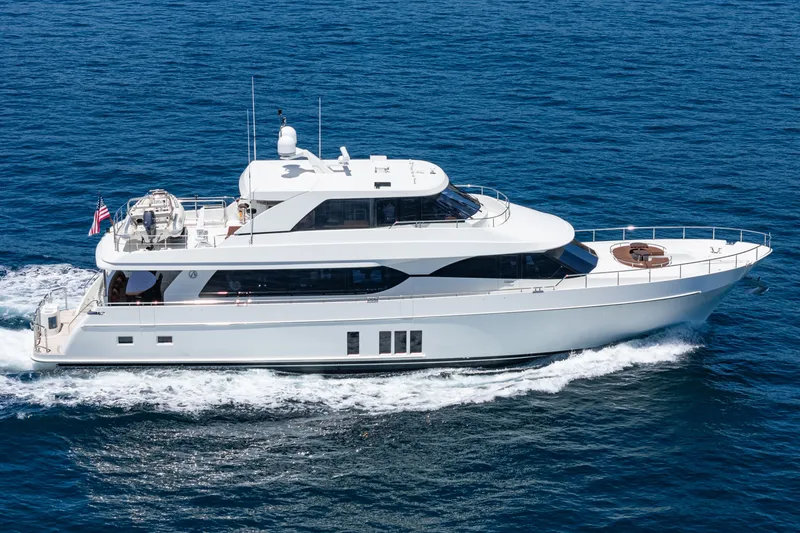

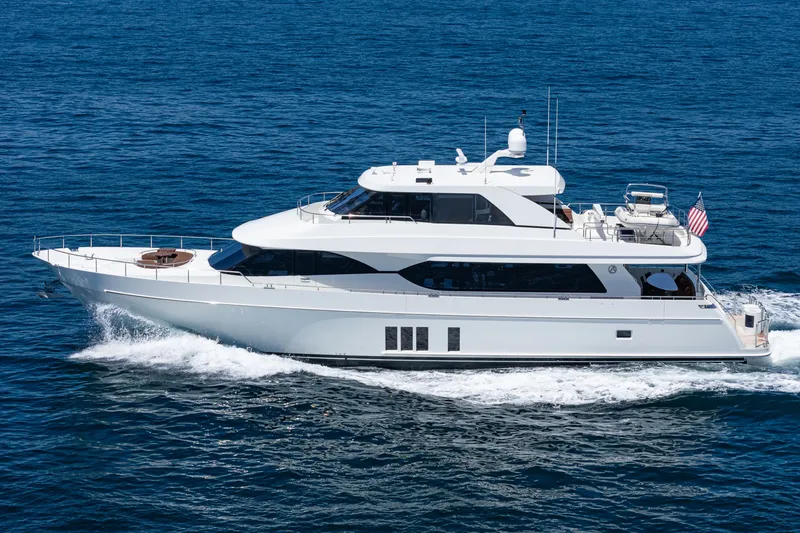

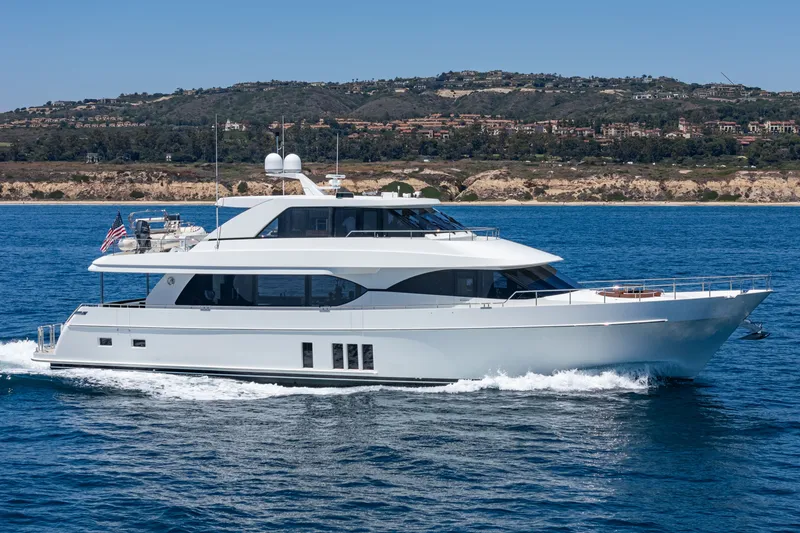

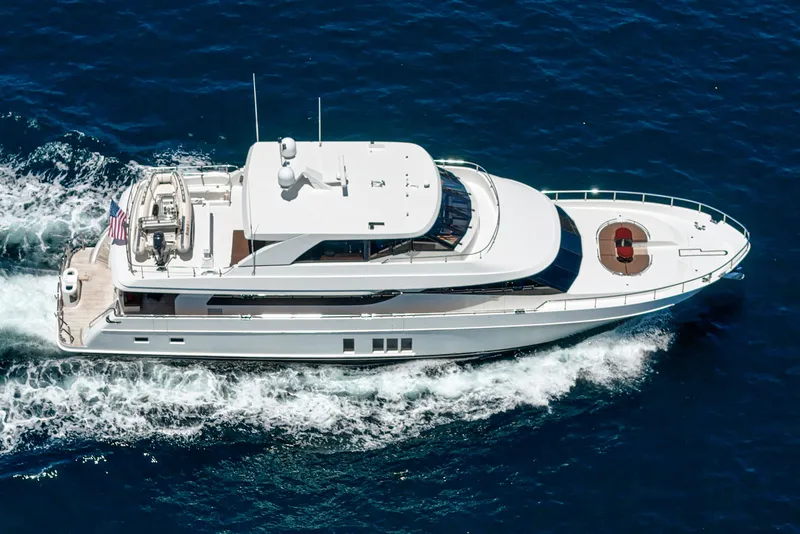

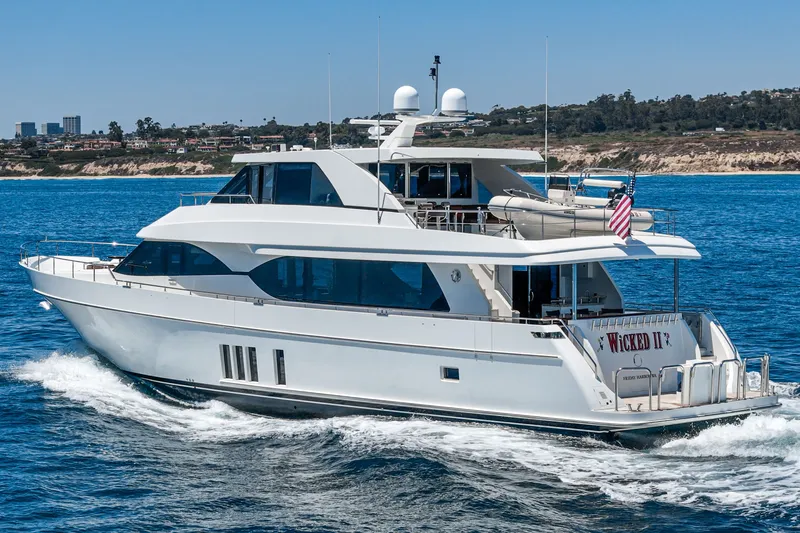

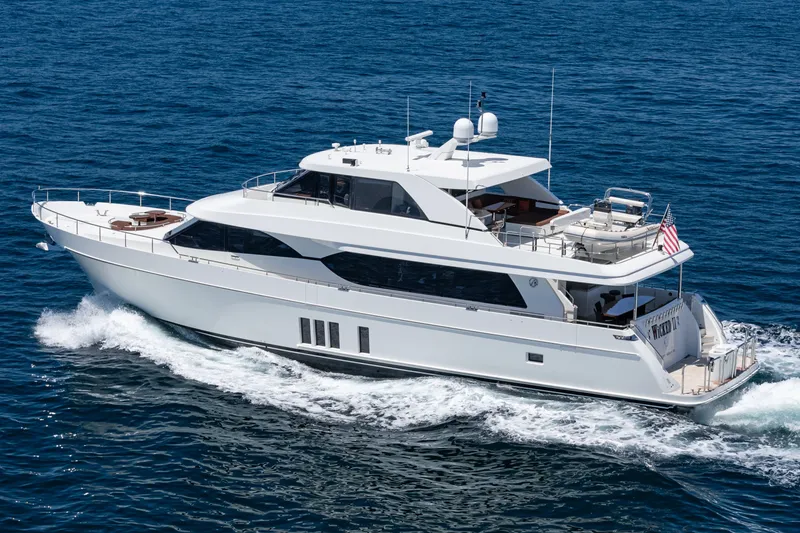

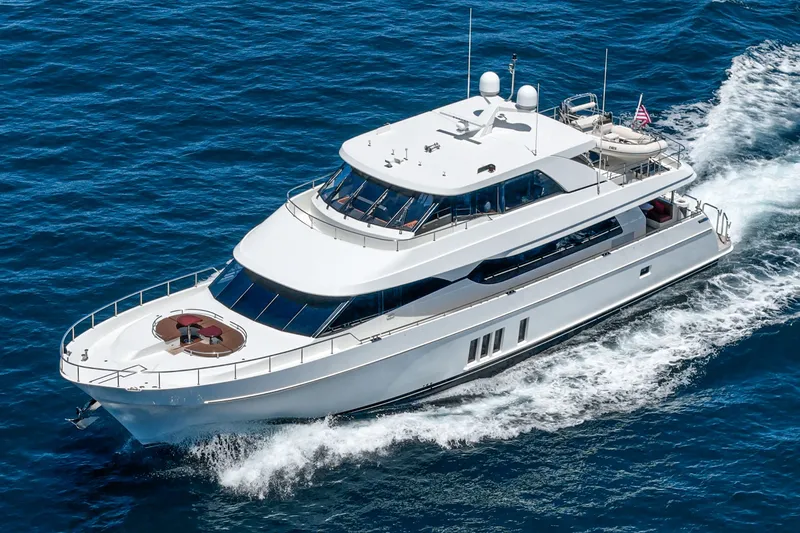

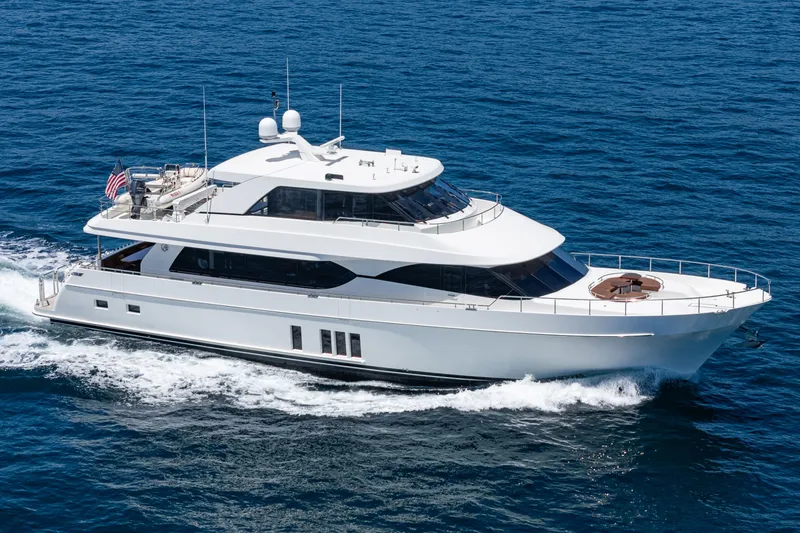

2015 Ocean Alexander 90 Skylounge Motoryacht Boat in Newport Beach, CA US

GENERAL:
•Vinylester resin with high-density structural foam. High density
allows for high temperature resistivity and particular advantage in
thermal and acoustic insulation. Usually only found in vessels
120’+ (New for 2014)
•Longitudinal and lateral fiberglass stringers filled with highdensity
foam
•Ocean Alexander employs various techniques to reduce sound
and vibration. Focusing on providing a quiet and comfortable
yachting environment through various proprietary techniques of
controlling sound and noise transmission. Some of these
techniques including multiple insulation barriers including
reflective materials, absorptive materials, dampening materials,
air pockets and flexible and isolation mounts. Ultimately resulting
in vibration/sounds levels that are industry leading and at times
1/2 to 1/10 of ISO-6954 requirements (Unique OA feature)
•Fiberglass with infusion lamination manufacturing technology
•Reinforced collision bulkhead
•Frameless window
•All exterior hardware to be S/S 316 or to manufacturer
requirements
•Weather-tight bulkheads with further sound and temperature
insulation
•Painted Exterior Surface with professional grade Alexseal
polyurethane paint and epoxy based primers. Highest gloss and
color retention compared with gelcoat or other paint brands
(Unique OA standard feature, not an optional upcharge like
competitors)
•Weather-tight bulkheads with further sound and temperature
insulation
•Marine grade aluminum beams for floors, walls and ceiling.
Provides greater rigidity and monolithic structure. Prevents
movements and “creaky” sounds while underway
•Use of cross-knit directional carbon fiber in high stress area for
added structural integrity and torsional strength
HULL / BOTTOM:
•Black boot top stripe
•Interior structural components all bonded to hull
•Three coats of Seahawk primer, hi-build epoxy barrier coat and
covered with three coats of Seahawk self-polishing bottom paint
(Unique OA feature, optional on competitors)
•Fiberglass rub rail w/ S/S striking plate
•Bronze through-hull fitting
DECK / PILOTHOUSE:
•White non-skid fiberglass decks

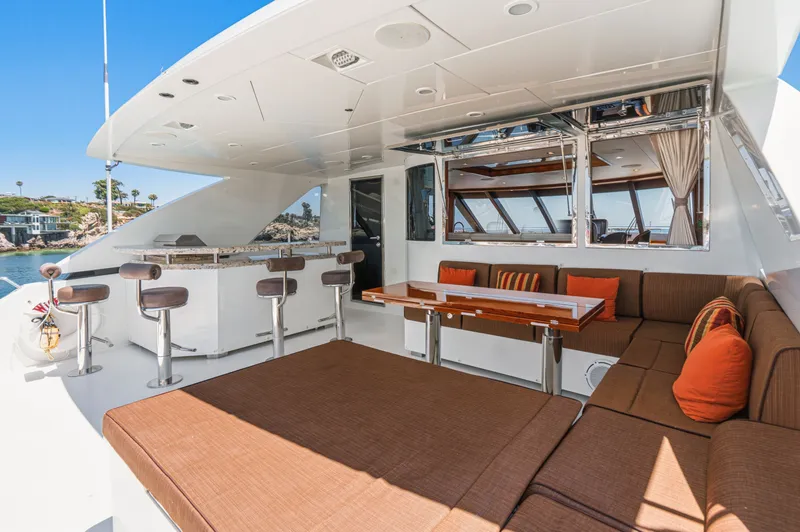

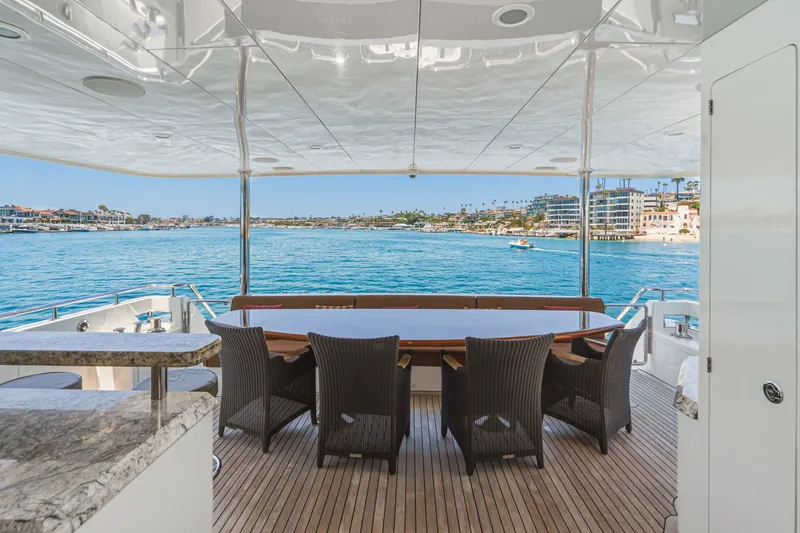

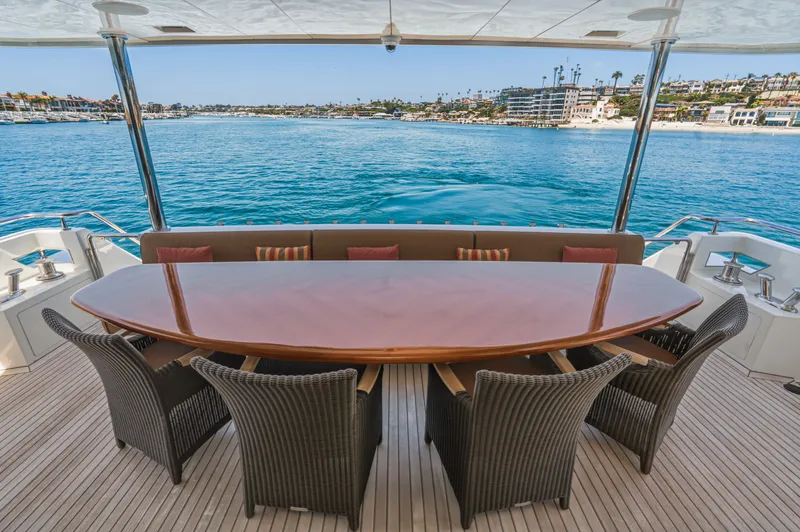

•Fiberglass settee with table on aft deck
•Swim ladder
•Fiberglass staircase from cockpit to flybridge

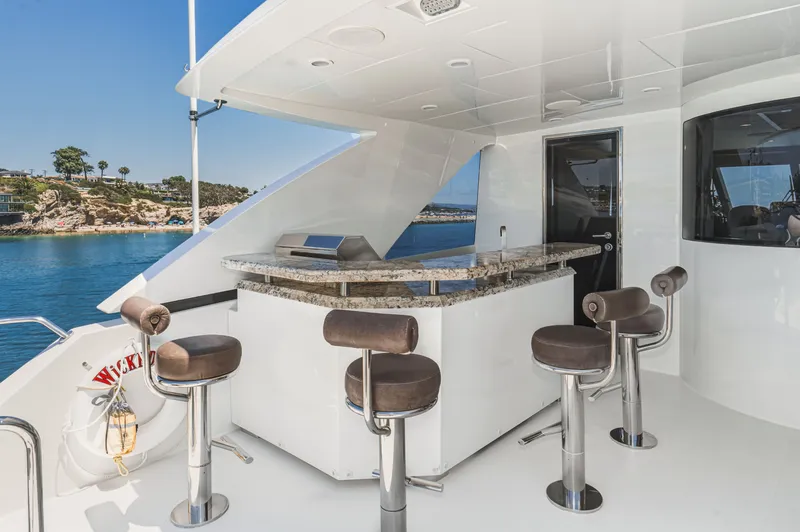

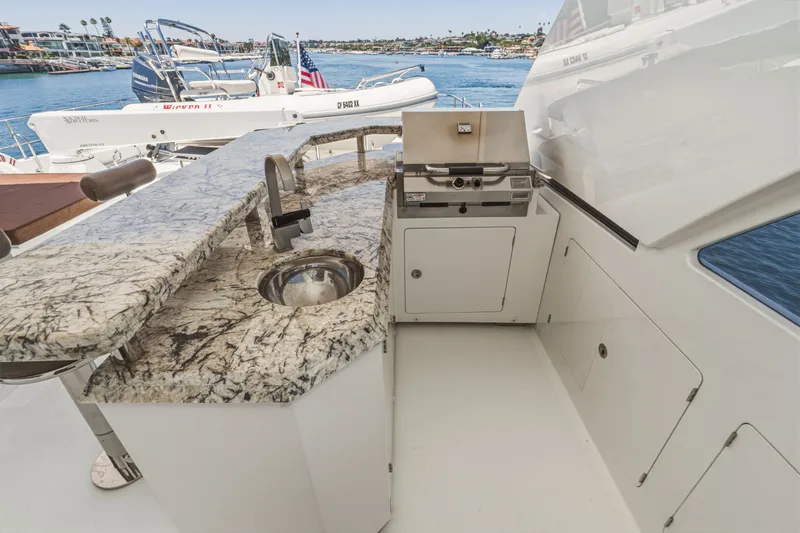

•Wet bar with sink & flip-down LCD 24” TV & DVD with
Satellite Receiver on flybridge

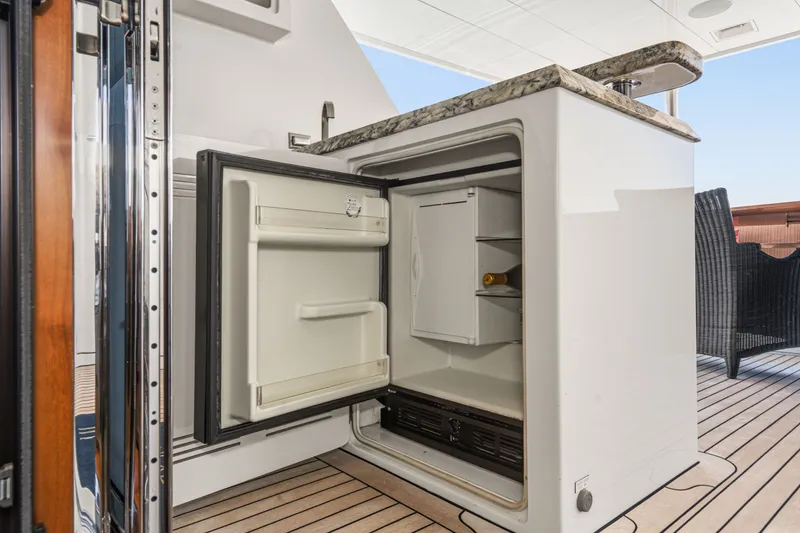

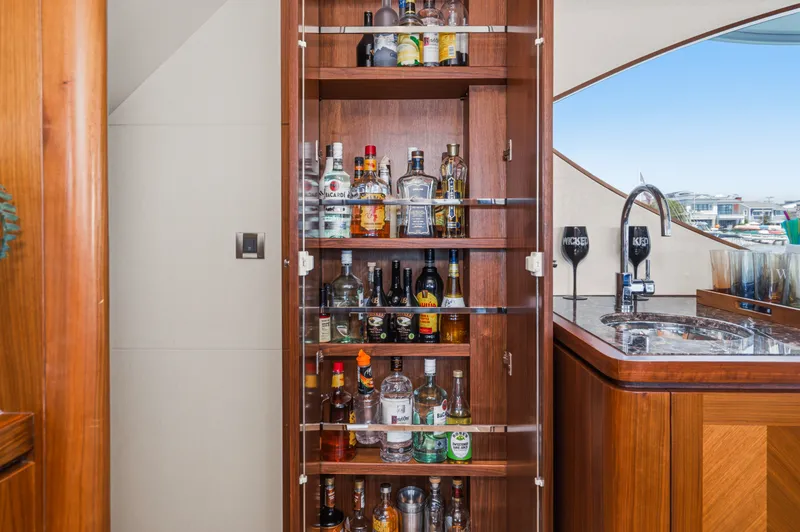

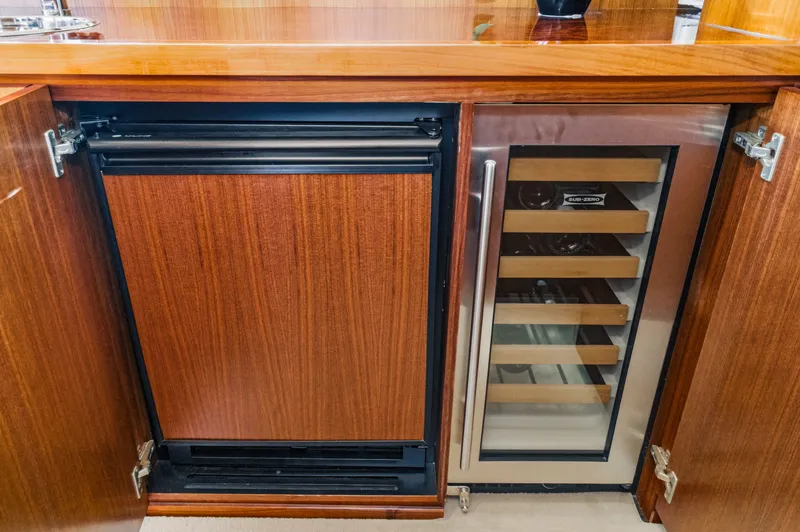

•Wet bar with sink and bar refrigerator on aft deck
•Updated exterior profile. Provides a refreshed and sharper look
in keeping with latest international design direction. (New for
2014 - design cues from 120)

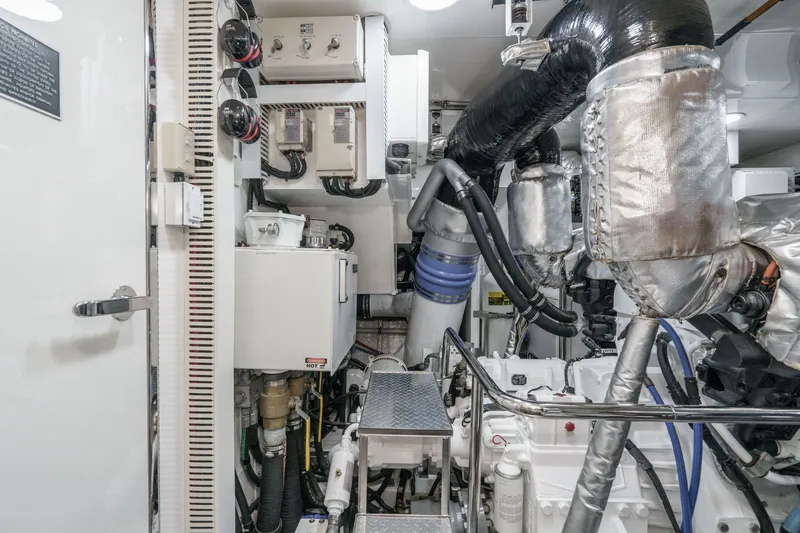

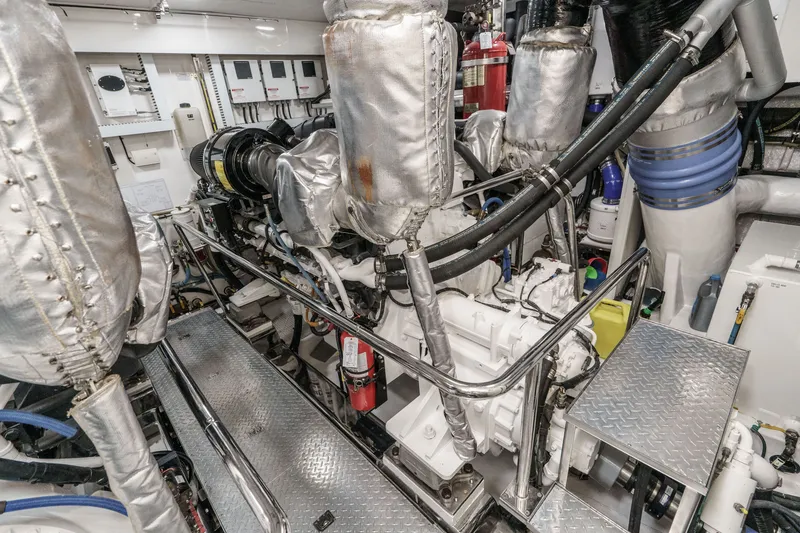

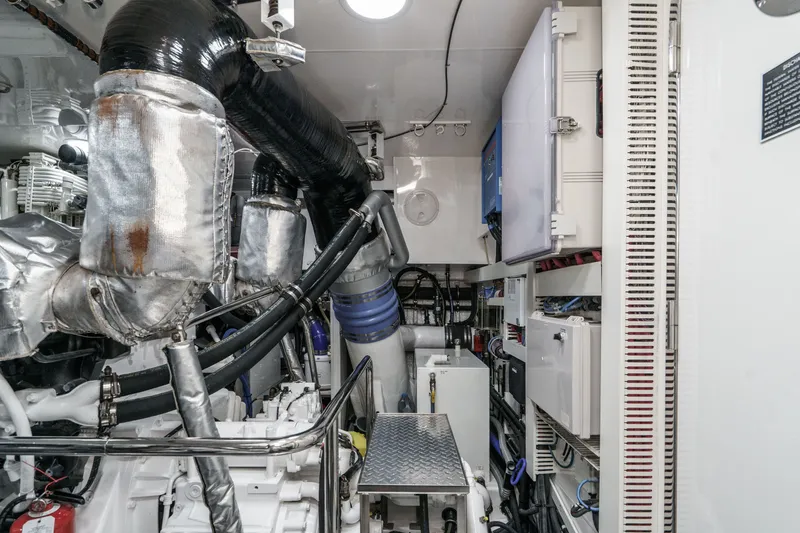

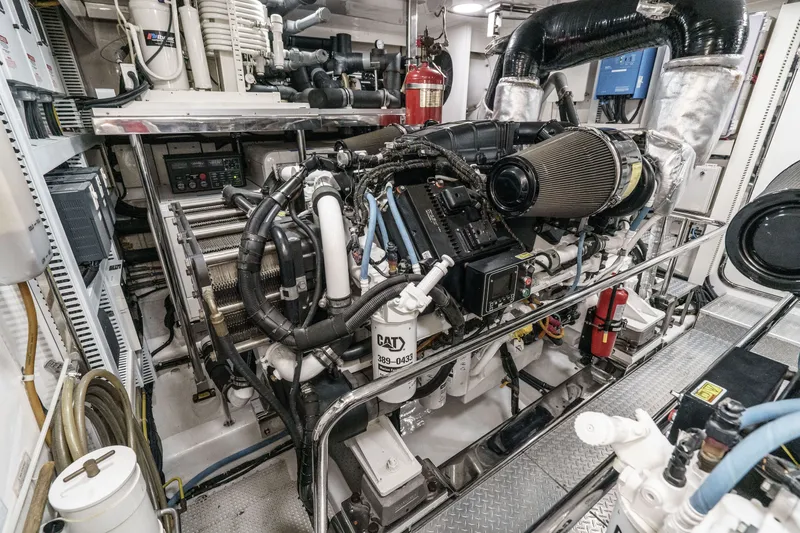

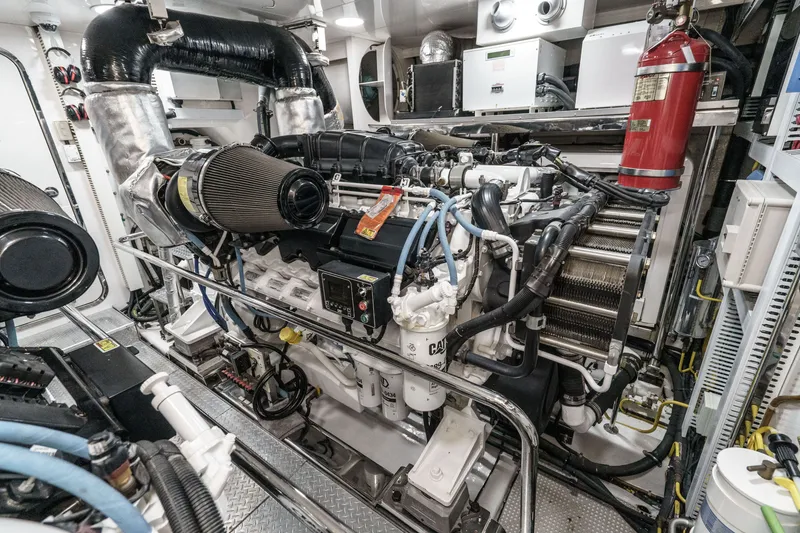

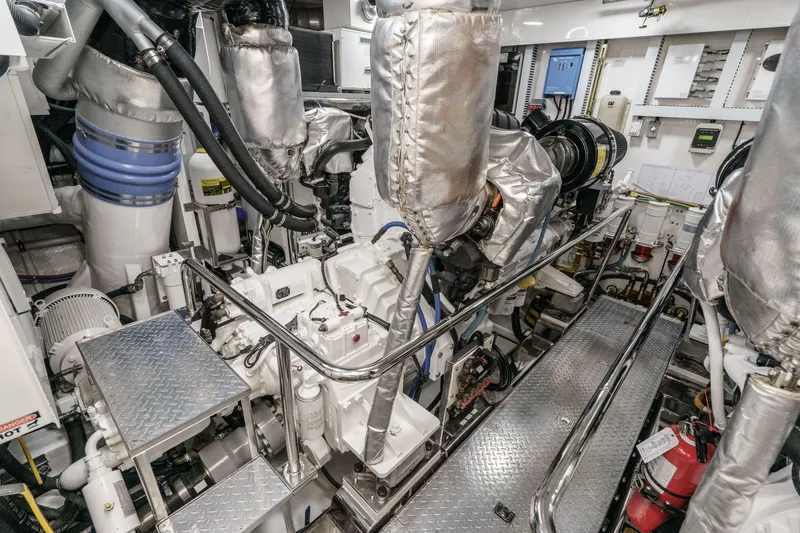

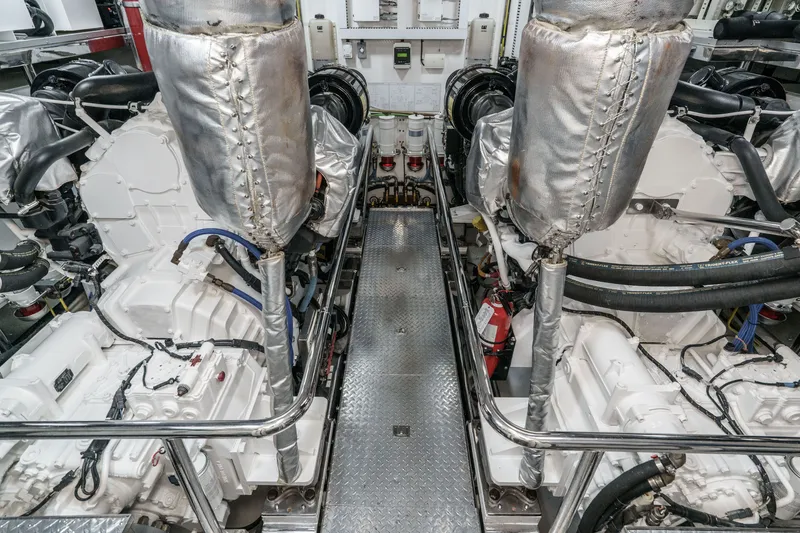

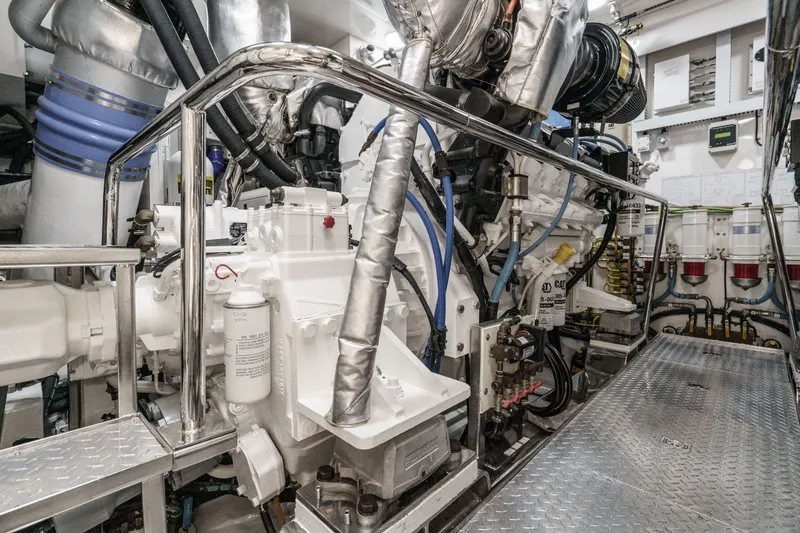

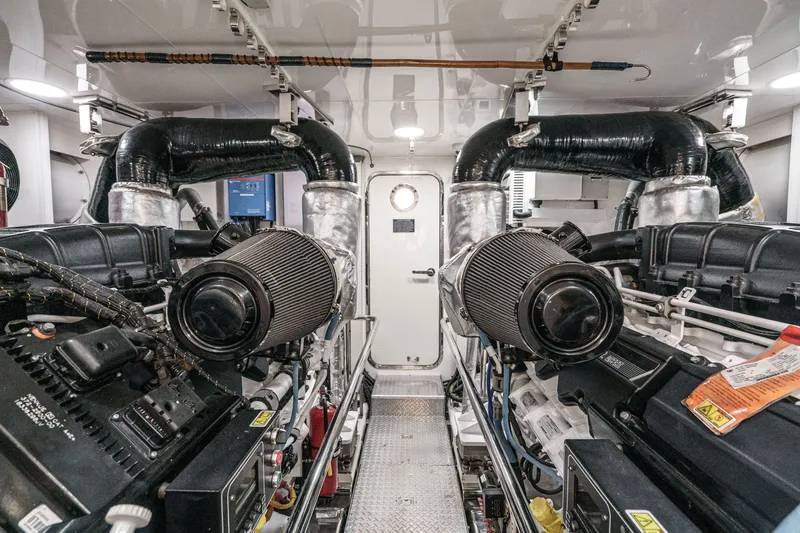

MAIN ENGINES:

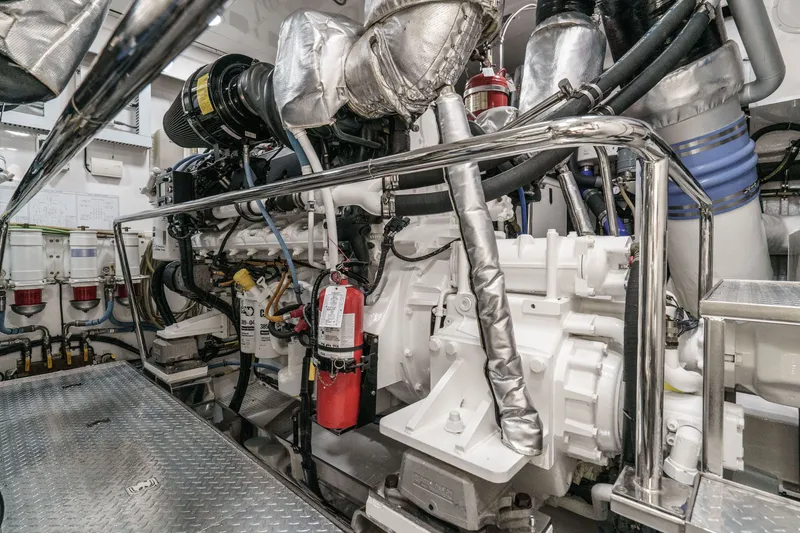

•Twin CAT® C-32Acert 1925HP
•Engine alarm system, for low oil pressure and high water
temperature
•S/S engine beds
•Lube oil change system for engines and generators with
approximately 45-gallon lube tank

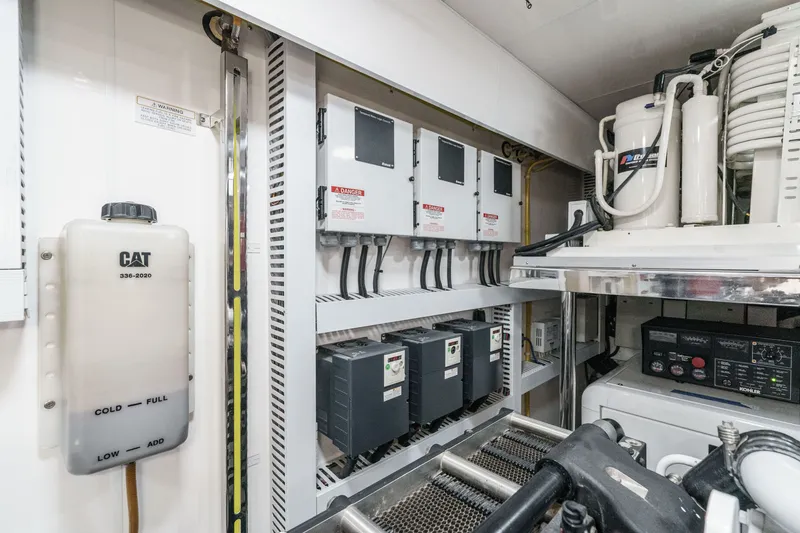

•Delta T intake/exhaust fans with variable frequency drives shall
be mounted to facilitate the pushing and/or pulling of air through
the machinery spaces and the providing of a high rate of air
exchange. Ducts shall have fire dampers installed with manual/
automatic triggering that shall be tied into the machinery shut
down circuits. Ducts in way of interior living space shall be
insulated and soundproofed. System of Delta-T water separator
grills used on intake and exhaust sides of system
•Adjustable/Reversible Delta T fans for engine exhaust located on
superstructure instead of hull side. Maximizes water protection
and salt spray, resulting in safer and lower maintenance ownership
(Unique OA feature)
•Stainless steel rails on side of engine and stainless steel engine
mounting plates
•Stabilizer with power take-off from both engines

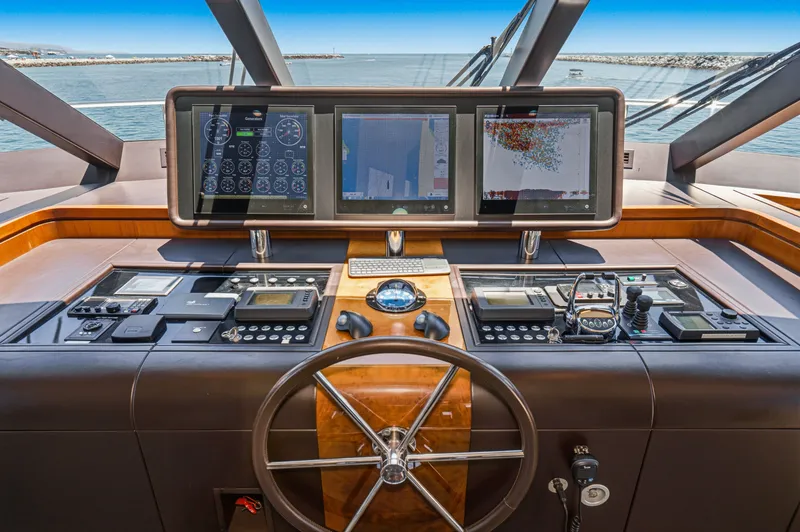

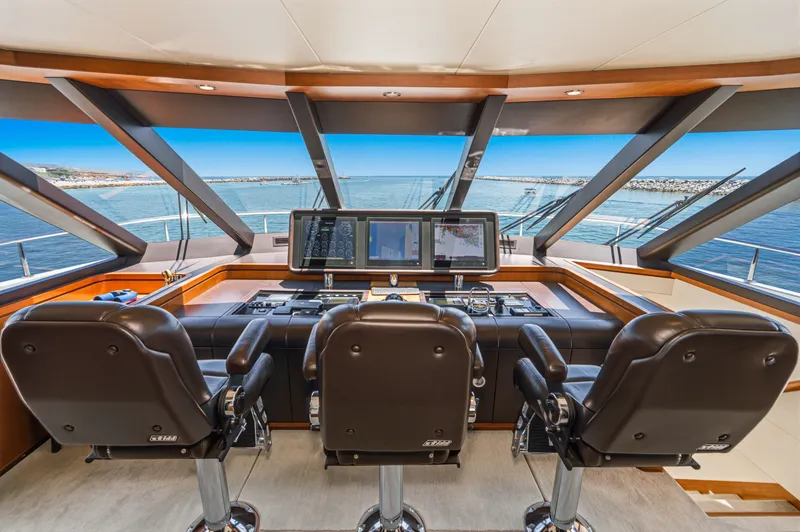

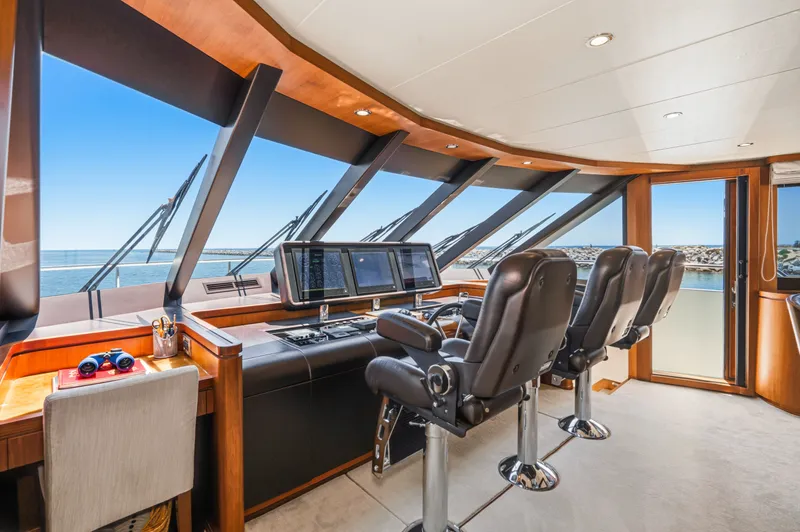

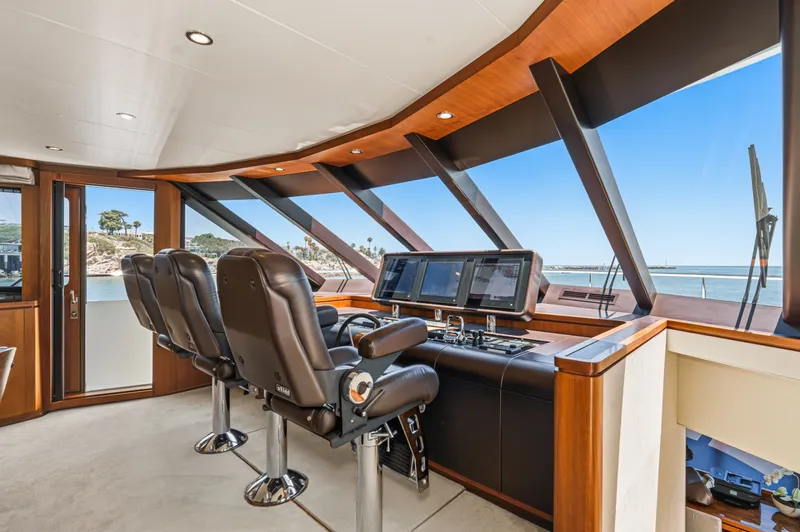

•Two control stations: FB & PH, with complete engine
instrumentation with lighted, modern switches.
STEERING / CONTROL:
•Hydraulic steering system
•Steering control station with complete instrumentation
•Wired Remote Engine/Thruster (non-proportional) controller w/
plug-in on Aft deck
•Additional plug-in location for skylounge & fore dinette Wired
Remote Engine/ Thruster
•S/S rudders w/integrated zinc plates
•Dripless seal for rudder post
•High performance computer designed and machined NiBrAl
propeller - Class “S”
•Interior steering wheel Ultraleather wrapped (same color as
dash), exterior stainless steering wheel on FB
•Maintenance free “dripless” seals for engine shaft packing
glands
•Propeller shaft Aqua 22HS. 22HS is a high-grade austenitic
alloy stainless steel that provides superior corrosion resistance
(comparable to Aqua 22) along with excellent toughness and high
strength (comparable with Aqua 17). A no compromised
approach adopted by the navies around the world
•Stidd® mechanical helm seats
Ocean Alexander reserve the right to make modification and improvements which may result differences from published specification.

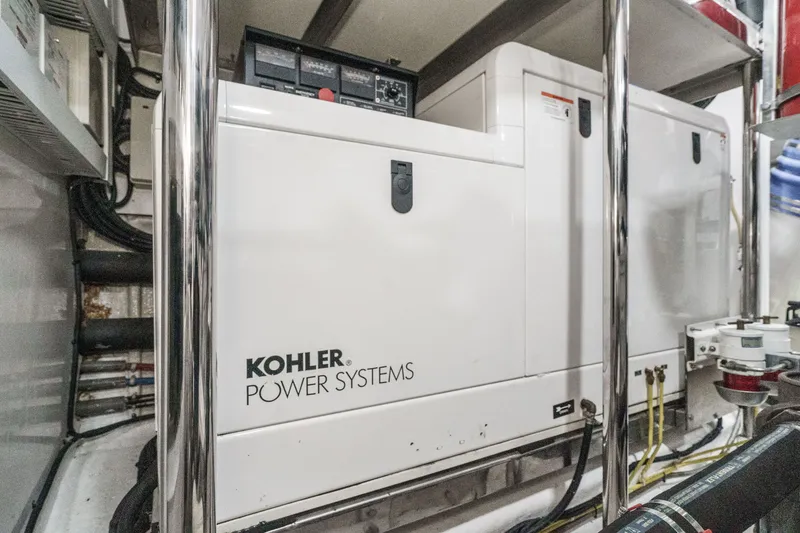

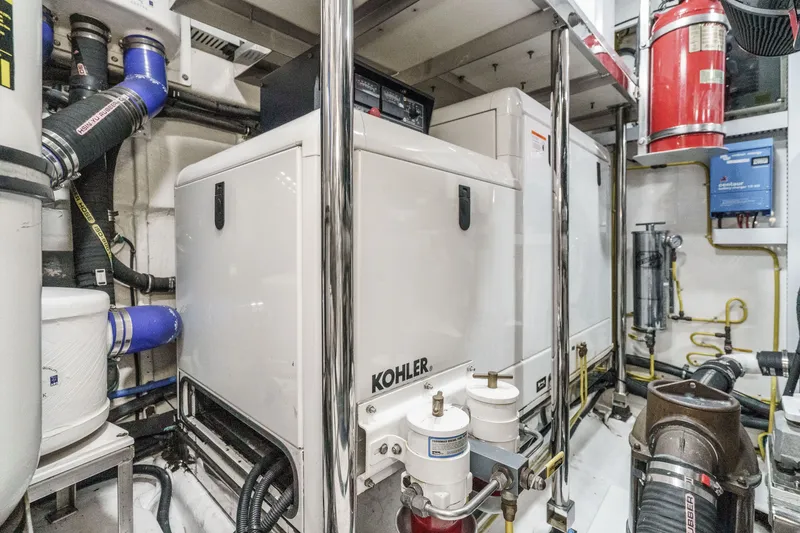

GENERATOR: MAJOR SERVICE ON GENS JUST COMPLETED 2026
•Kohler® 53KW (2x)
•Generator exhausts to be water-drop type per “Centek”, “Marine
Exhaust Co.” or equal
•Generator set resiliently mounted and installed with sound shield
& vibration dampener
WINDLASS / MOORING:
•Hydraulic windlass, VW4000C
•Stainless steel plow type anchors 350 lbs. w/ 300ft anchor chain
(1/2" HT) & chain stoppers.
•Integral roller and chain stopper with Muir® anchor winch
•Two Muir® VC2500 vertical electric rope winches for Aft Deck
•Reinforced anchor platform and anchoring system
•Chain counter
•Hands-free anchor chain wash system – allows for cleaning of
chain during anchor operation (New for 2014)
THRUSTER / STABILIZERS:
•ABT® hydraulic stabilizers w/zero speed system and ABT
thrusters (38HP bow and 38HP stern)
•ABT® thrusters (38HP bow and 38HP stern)
OTHER:
•Color-coded piping system for easy identification

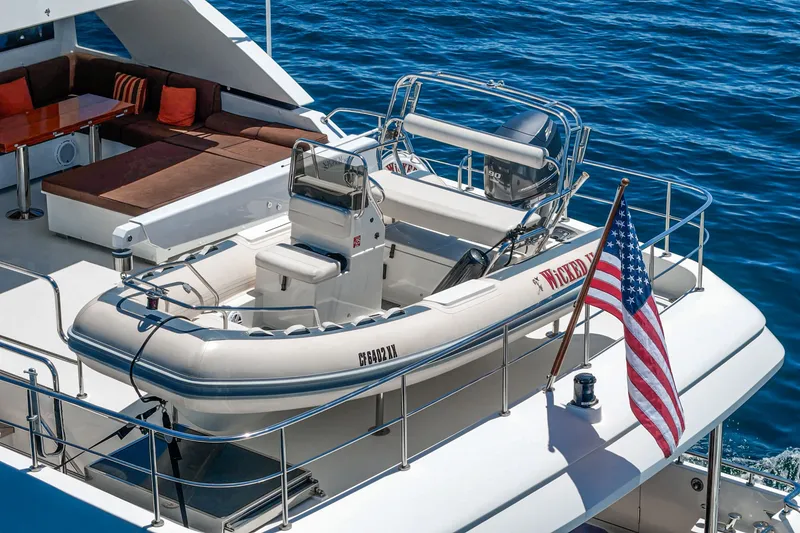

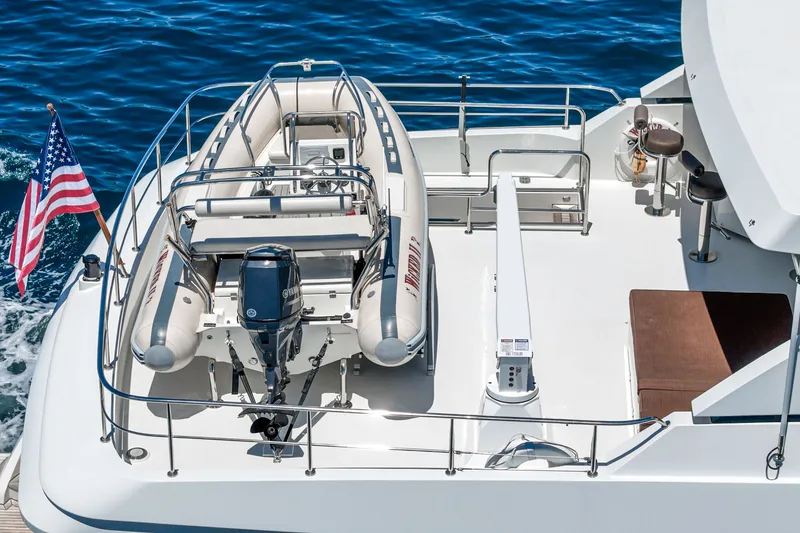

•Hydraulic 1750 lbs. yacht crane

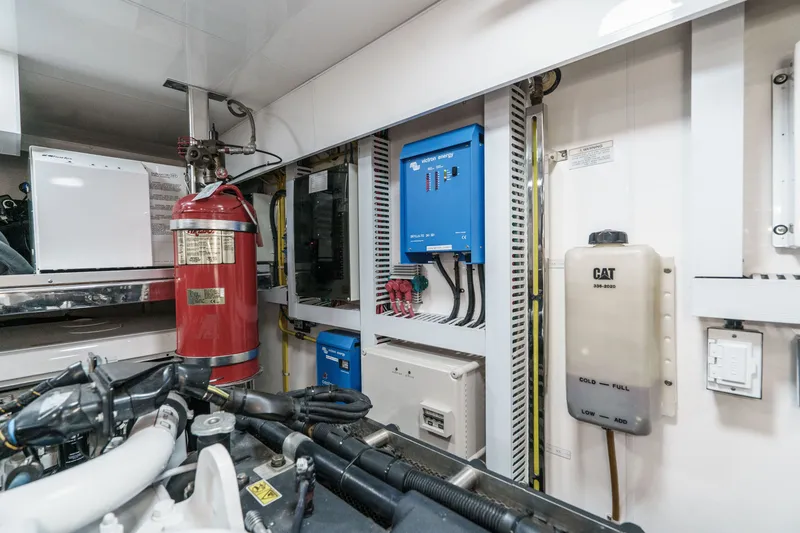

•Fire extinguisher system with engine-shutdown feature
•Sea Recovery 1400G/Day water maker w/auto fresh water flush
operation, PH Neutralizer, UV sterilizer and Commercial Prefilter
•Kahlenberg™ heavy-duty horn
•All engine room and bilge spaces shall be primed and top coated
with polyurethane paint system.

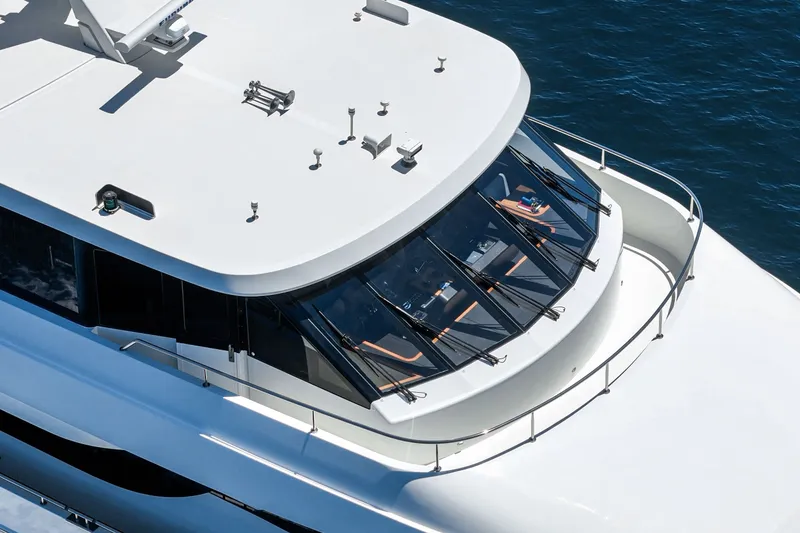

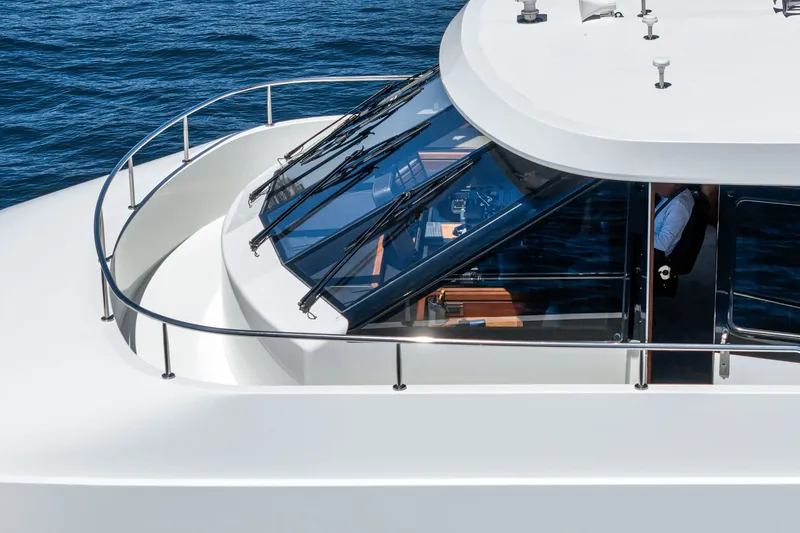

•Hepworth® heavy-duty commercial grade pantograph
windshield wipers & washers w/ intermittent function
•Detailed stringers in engine room & lazarette
•S/S cap on transverse stringers in central walkway
•2HP air compressor in engine room w/ multiple quick disconnect
outlets
•Ocean Alexander proprietary “dry bilge ventilation system” with
dedicated bilge exhaust to outside. This provides constant airflow
to keep the bilges dry and mildew free. Any moisture from
condensation is evacuated outside the yacht to keep a clean and
healthy cruising environment. (New for 2014)

FRESH WATER SYSTEM:
•2mm thickness 316 S/S water tank w/ sight gauge
•Headhunter™ pressure fresh-water system
•Fresh-water outlet with hose for engines & generator
•Cold fresh-water wash down at bow, stern and boat deck
•Dockside water connection
HOT WATER HEATER:
•Two 40-gallon water heater with high-density fiberglass
insulation w/ high efficiency heating element
FUEL SYSTEM:
•4.5mm thickness 5052 Aluminum fuel tanks with sight gauges
and tested to International Standards 33CFR 510(a) w/ high and
low fuel level alarm system

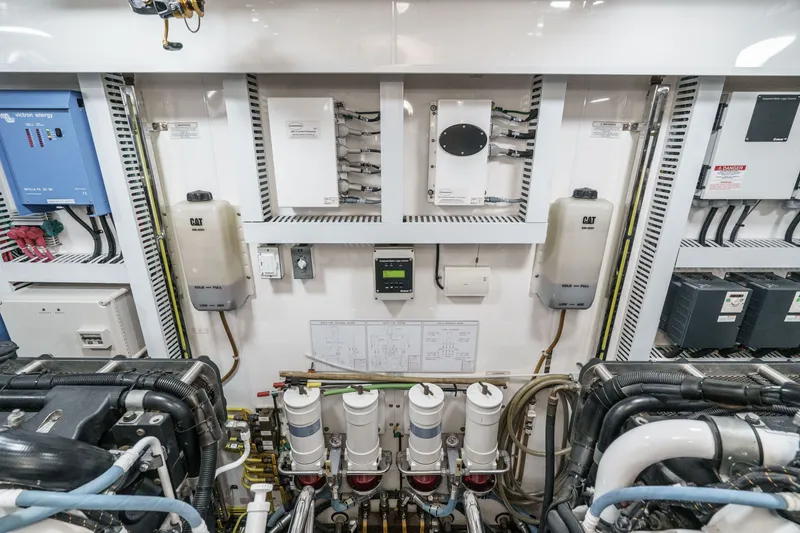

•Dual Racor® fuel/water separator with Y-valves for engine &
generator
•Gulfcoast™ Fuel polishing system based on US Military
Abrahams-M1 Tank design
•Sight gauges for all tanks
•Exceeding industry safety standards with Flame arrestor installed
in fuel system. Design to prevent ignition of fumes during
fueling/heavy operation. Usually found only in classed vessels
(New for 2014)
•Fuel system with venting and “catchment system” designed for
burps or overflow accidents
HOLDING TANK SYSTEM:
•ECOmar™ waste treatment system (600Gal/day)
BILGE / DISCHARGE:
•Oversized drains to overboard
•Automatic bilge pump - The vessel shall be outfitted with
automatic bilge pump with manual and automatic switches in each
space as divided by weather-tight bulkheads. High water alarms
will be mounted in each of these bilge zones
•High water bilge alarm at every Rule® bilge pump station
•One manual bilge pump
•Dry bilge area arrangement in center engine room
DECK / FLYBRIDGE:
•Both side filler for fuel tanks with individual tank vents

AC / DC SYSTEM:
•AC outlets throughout
•All primary AC & DC electrical wiring is appropriately labeled
throughout the yacht
•GFI (110V) AC outlet
•24 Volt system
•Engine battery isolation switches
•AGM Batteries with 40F to 140F operating temp and industry
leading low self discharge rates 1 to 3%
•Octoplex NEMA 2000 electrical control system. Based on
aerospace technology for remote activation, control and status
reporting of all AC and DC breakers. Monitors all power sources
(AC and DC) for voltage, frequency and amperage abnormalities
and provide visual and audio alerts. Includes enhanced circuit
breaker functionality with no-load indication, dimming and usage
information with touch screen monitors that are user
reconfigurable. Brown-out configurable control through auto load
shedding is included where operator designated equipment (e.g.
navigation and other essential systems) remains powered-on while
automatically switching other systems off. Octoplex NEMA 2000
Vessel system monitor system. Provides main access doors, bilge
level and battery monitoring of current, voltage and temp.
AIR CONDITIONING:
•Cruisair® chilled water system air conditioning w/ air handlers
for central air conditioner, rated for extreme Tropical climates
(Reverse Cycle capable for operating down to 40F)
•Refrigerant type is accepted worldwide under the Montreal
Protocols
•Dedicated engine room air conditioning
•Where possible A/C exits from custom made ceiling panels
hidden from view. Shortens A/C ducting thus improving
efficiency and speed of cooling by over 20%. Also reduces dB
reading by over 7 dB (New for 2014 – design cues from 120)
•Breath Easy fresh air system
SHORE POWER CONNECTER:
•Shore power receptacle 2 x 100 AMP on transom with
cablemaster
LIGHTING:
•24V LED lights (Aerospace quality, specially tuned color
temperature for Ocean Alexander)
•Convenience lights
•Flood light at back of boat deck
•International navigation lights
•ACR searchlight with remote Skylounge
•Four Underwater lights
•Spreader lights under wing mast

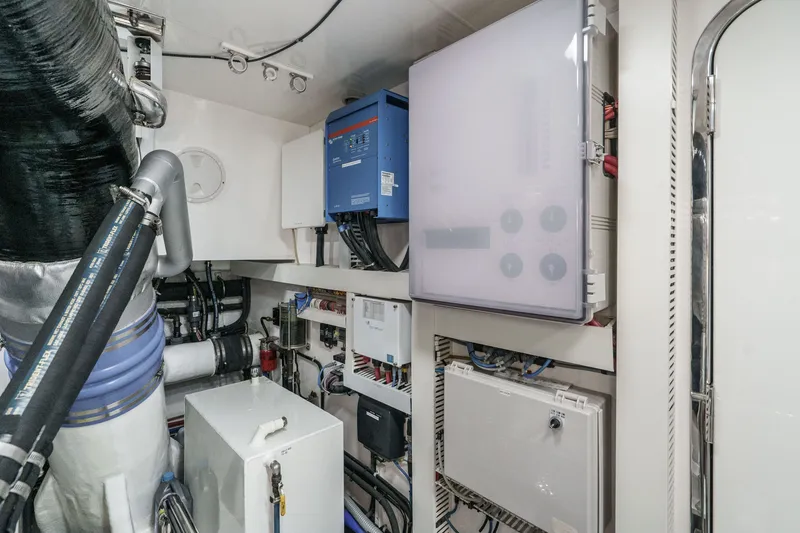

CHARGER:
•Inverter package
•Victron® 100 AMP Charger
•Victron® battery charger
BATTERY:
•Heavy-duty batteries
•Battery paralleling system w/ control switch
•Service battery switch
BONDING SYSTEM:
•Bonding system throughout
•The vessel's bonding and grounding systems shall include copper
straps secured to the hull and running the full length of the vessel
parallel to centerline. Engines, generators, metallic through hulls,
strainers, and pump bodies shall be connected to the bonding strap
using 8 AWG wire minimum or equivalent
NAVIGATION PACKAGE:
FURUNO Integrated with NMEA2000
•Apple Mac-mini PC Edition (New for 2014)
•Upgrade all Hatterland Series X Marine Monitors from 17” to
19” and upgrade to Touch capability skylounge (3x) (New for
2014)
•Furuno Navnet Black Box TZTBB Processor
•Furuno 12KW 72n.m UHD Digital Radar Array
•Furuno GP330B GPS/WAAS NMEA 2000 Sensor
•Furuno DFF1 Network Sounder with Furuno Digital Filtering
•Furuno BBWX2 Weather Receiver
•Furuno AIS Black Box Class B Full Duplex
•Icom 25W VHF with 30W hailer
•Furuno NavPilot 700 Autopilot
•Maretron Ultrasonic Wind/Weather
•Maretron GPS200 GPS/WAAS
•Furuno TZ Explorer MaxSea TimeZero Explorer Software
•KVH TracVision HD7 for DIRECTTV® HDTV

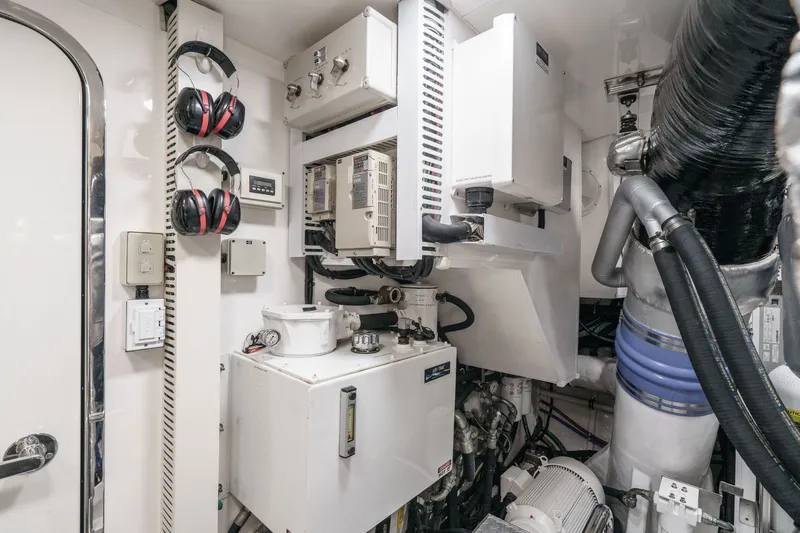

•DeckScan Marine Camera in Engine Room (2x) and Aft Deck
(1x)
•UPS electrical protection for navigation computer
•DIRECTTV® receiver
•Ritchie Compass 5"
N2KVIEW SAFETY & SECURITY MONITORING PKG:
•These security/safety automatic monitoring and alert abilities
include using Apple iPad or Android for remote access to operate,
view, and alarm Octoplex data and navigation system with a fully
customizable screen layout, and remote notification (cell phone)
accessibility.
•These monitoring abilities include: Main Engines and
Generators, AC Monitoring, DC House Bank Battery Monitoring,
Engine Room Weather-tight Bulkhead Doors, Tank Levels, Fire
System, Bilge Level (High-water), Exterior Door Sensors
OTHER:
•Vimar™ switches and outlets
•Smart Y-adaptor
•Isoboost package (100AMP+100AMP) w/galvanic protection
built-in
•Panasonic Intercom System includes Panasonic phone system
and Digital Panasonic Phones for connection in MSR, Guest
Staterooms, Crew, Salon, Galley & Skylounge

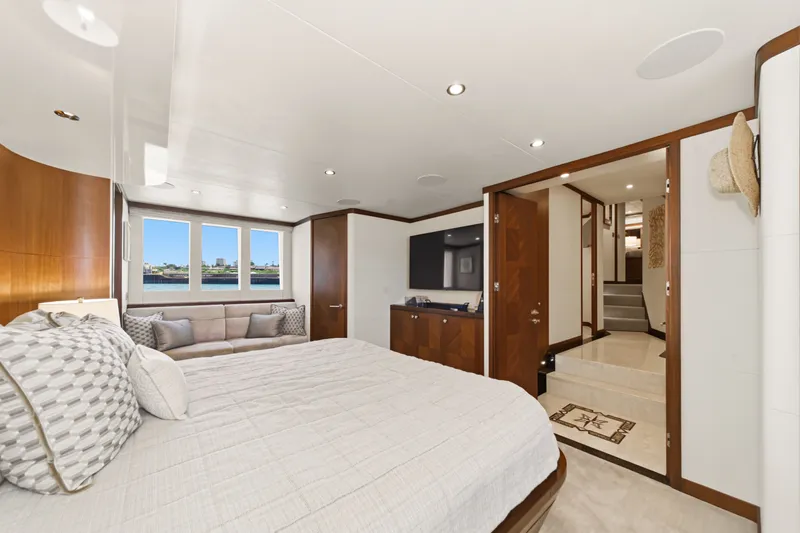

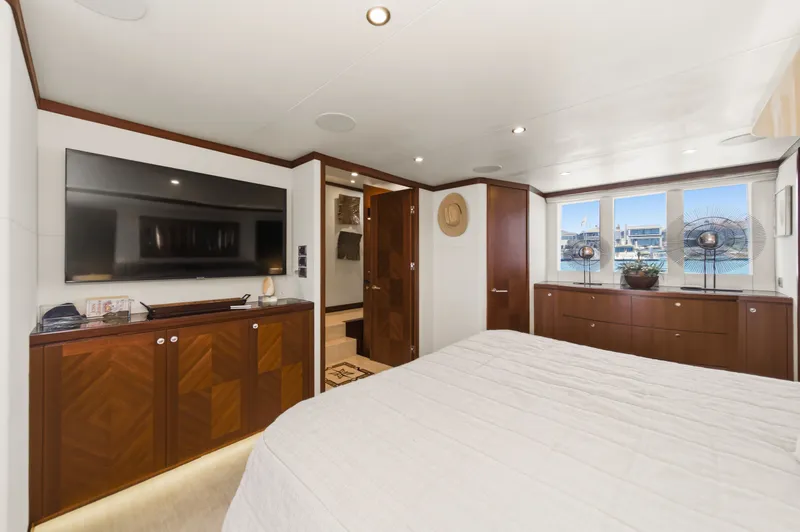

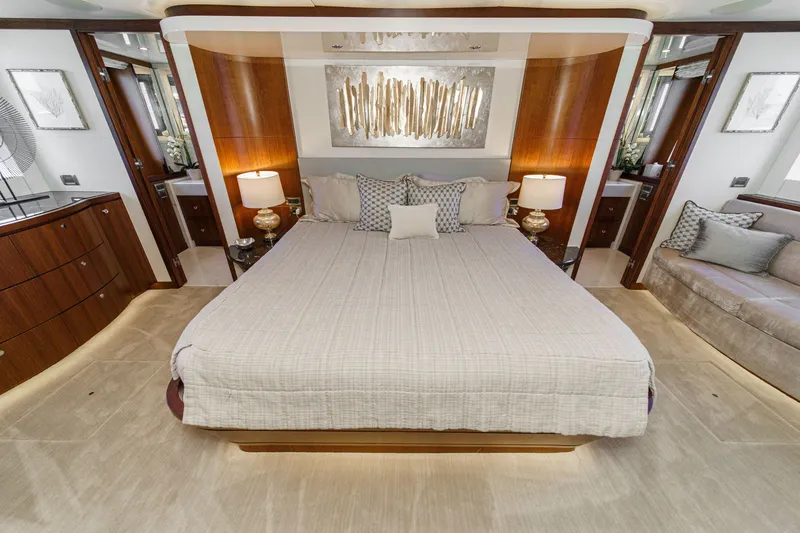

MASTER STATEROOM:
•LCD 50” TV with A/V System
•One Subwoofer
Floating” King-sized berth
•Two “floating” nightstands with Pin Marron Emperador marble
countertops
•Pin Marron Emperador marble countertop at TV cabinet and
port/STBD cabinets (New for 2014– design cues from 120)
•Bureau w/ chest of drawers at starboard side and Burl accents
•Hidden safe in hanging locker
•Walk-in closet on port side. Space enlarged by 85% through
utilizing space from fwd staterooms and under floorboards. (New
for 2014)
•Hanging closet space enlarged by 18% through utilizing space
under fwd staterooms floorboards or under stairs. (New for 2014)
•Enlarged windows with custom engineered solution
incorporating aluminum beams and “sandwiched glass”
construction technique from classed vessels. Allows of 28%
greater visibility and incoming light (New for 2014)
•Custom headboard with recessed indirect lighting
•Cedar-lined, twin full-height hanging locker with automatic
lighting
•Enlarged Master bathroom window with updated cabinetry to
take advantage of additional 320% additional window visibility
vs. previous port light (New for 2014)
•Electrical Roman shades

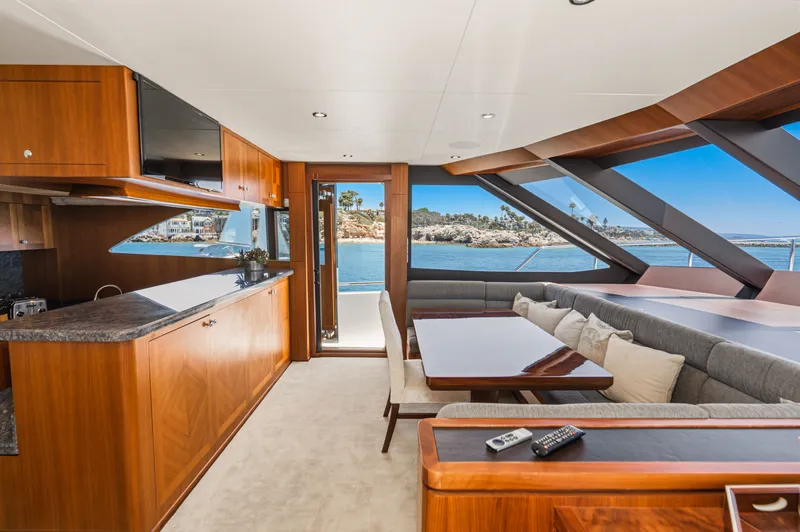

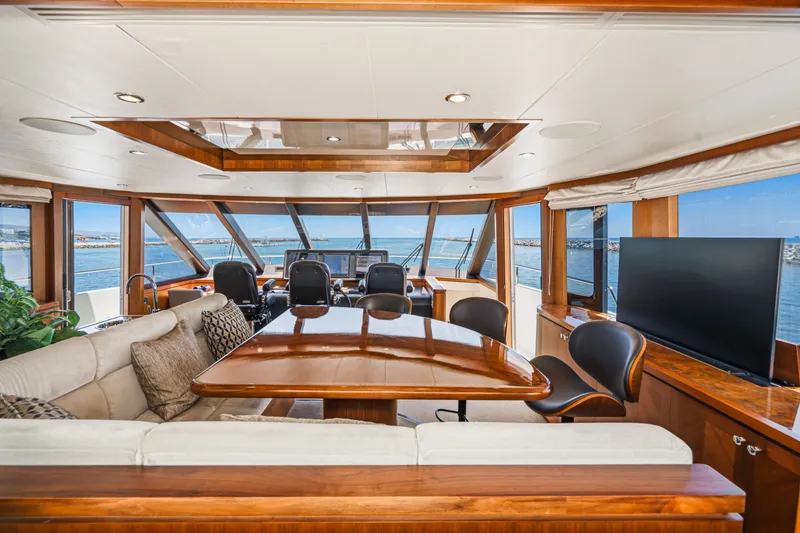

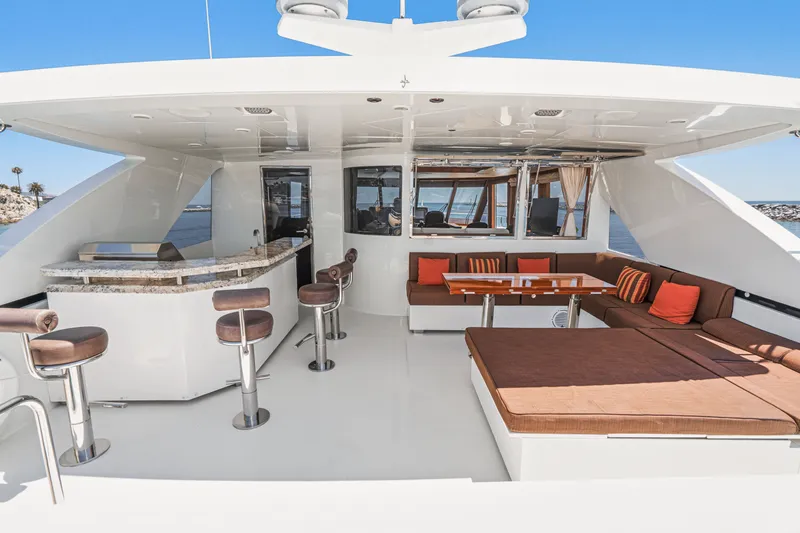

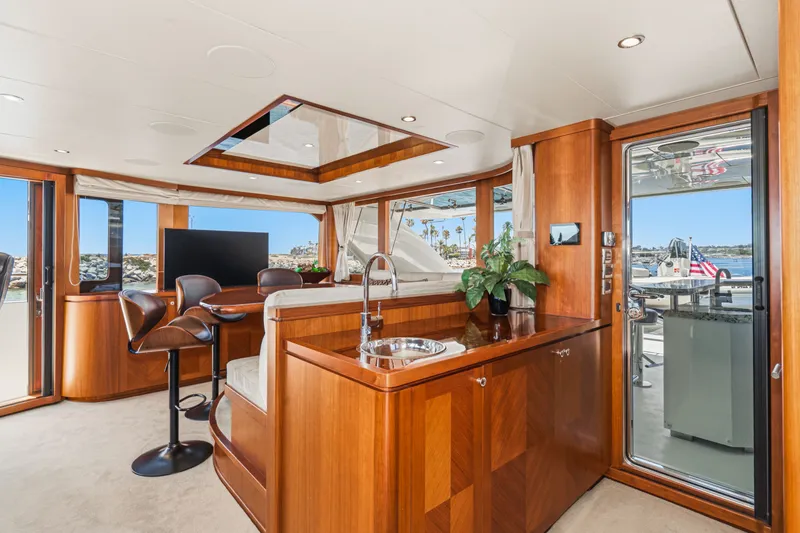

SKYLOUNGE:

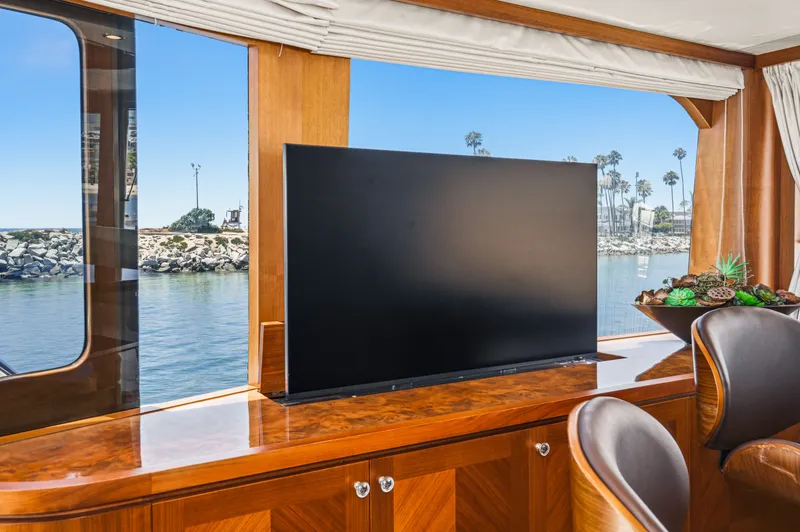

•LCD 46” TV with A/V System
•Cabinet including wet bar, Sub Zero™ wine cooler w/ panel
door and storage
•Boat deck sliding hatch
•Wood valance board
•Wood table
•Raised settee with table
•Day head
•Windshield defrosters
•Weather-tight doors w/ Phantom screen (for insects + pollen
protection) to Portugal bridge & boat deck
•Portugal bridge w/ settee & flip-up end tables
•Extra large aft windows

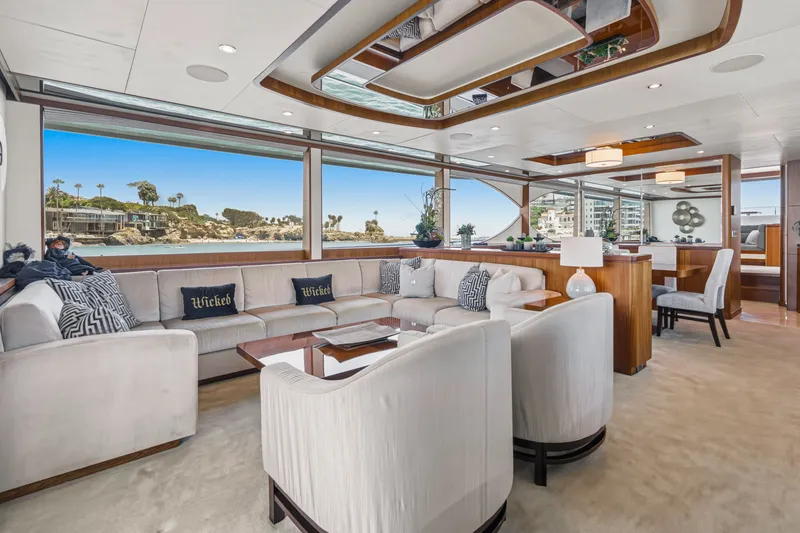

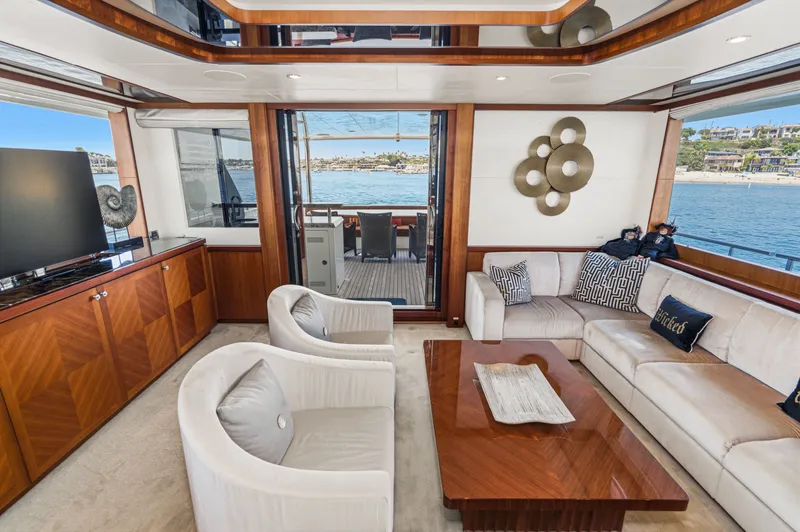

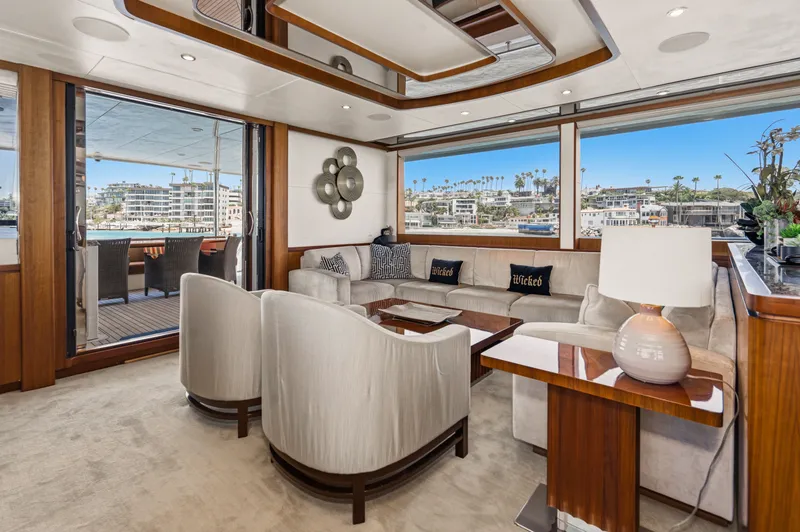

SALON:
•LCD 55” TV with Professional A/V System (Dolby true HD
DTS-HD XM/Sirius capable w/multiEQ that provides virtually
perfect acoustical environment for up to six individual seating
locations, also detects “out of phase inner” auto compensable to
match w/ subwoofer & speakers. HDMI 1.3 provides high
bandwidth HD video output) for true color HD reproduction.

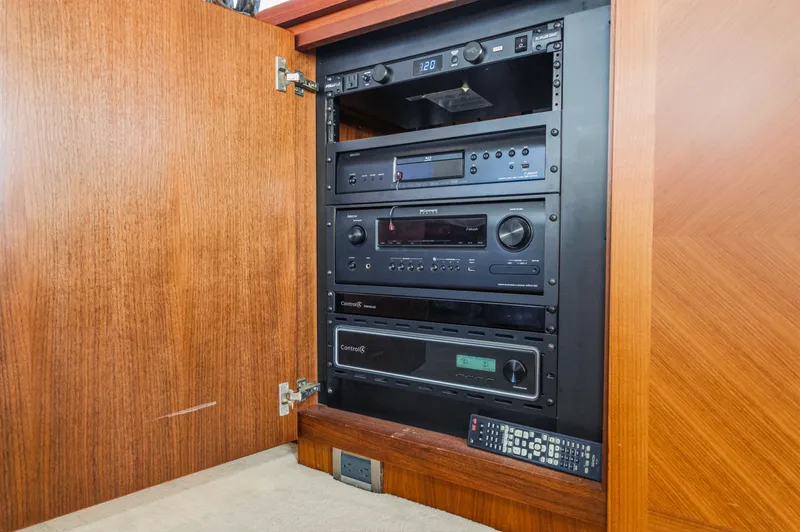

•Middle-Atlantic Media Rack for A/ V equipment (Professional
Studio quality rack provides ease in accessing various A/V
equipment. Reduces labor, damage w/ heavy duty 13-gauge S/S
and interlocking corners)
•Furman power conditioner (featuring multi-stage linear amplifier
tech & extreme voltage shutdown for yacht's unstable
shore/genset power )
•One Subwoofer
•Wood paneling and cabinetry
•Cabinets port and starboard of salon
•Pin Marron Emperador marble countertop at wet bar, TV
cabinet, and dining room divider cabinet
•Custom designed window mullion
•Decorative ceiling treatment
•Phantom screen (for insects + pollen protection) with dedicated
wood box for door
•Enlarged windows in salon with custom engineered solution
incorporation marine grade aluminum beams allowing for
industry leading window expanse. Incorporate (where possible)
A/C outlet from ceiling, provides unobstructed view to outside
(New for 2014 – design cues from 120)
•Sub Zero™ wine cooler
•Sub Zero™ refrigerator/freezer combo drawers
•Electrical Roman shades
•Additional salon dinning Boyd lighting fixture

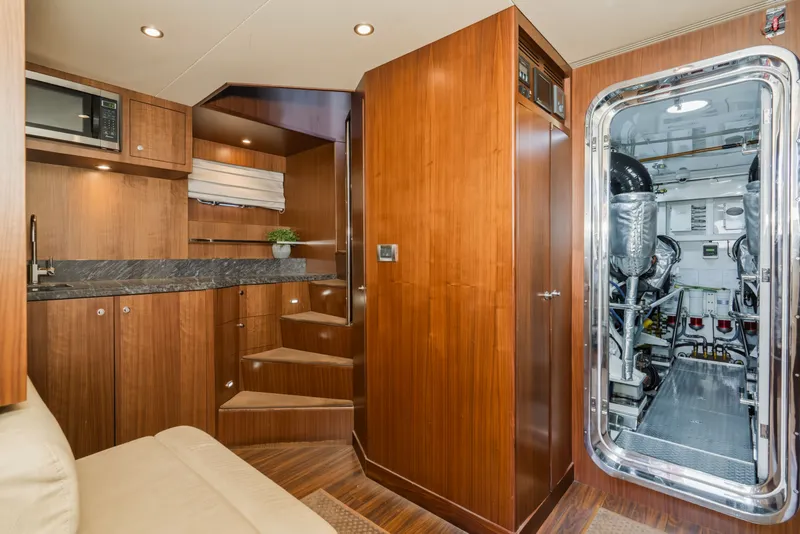

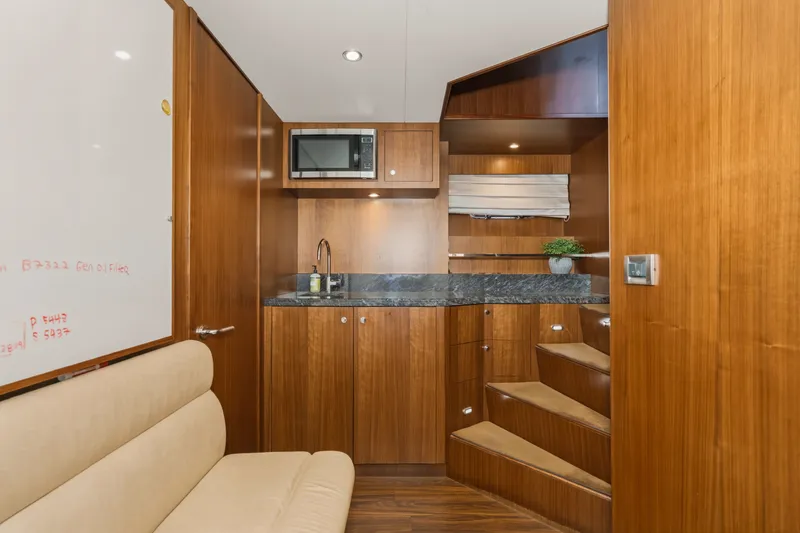

CREW QUARTERS (New for 2014):
•Cedar-lined hanging locker with automatic lighting
•Kitchenette (sink, microwave and refrigerator/icemaker)
•Storage locker
•Drawers under bunk
•Microwave Oven
•LCD 24” TV & DVD with Satellite Receiver
•Two person settee with a foldout table on wall
•Two crew staterooms: Captain and Mate/Multifunction
staterooms
•Captain quarters includes desk with storage and N2KView linked
Apple IPad for systems diagnostics/alerts/settings. Full height
hanging closet and queen size berth with storage under

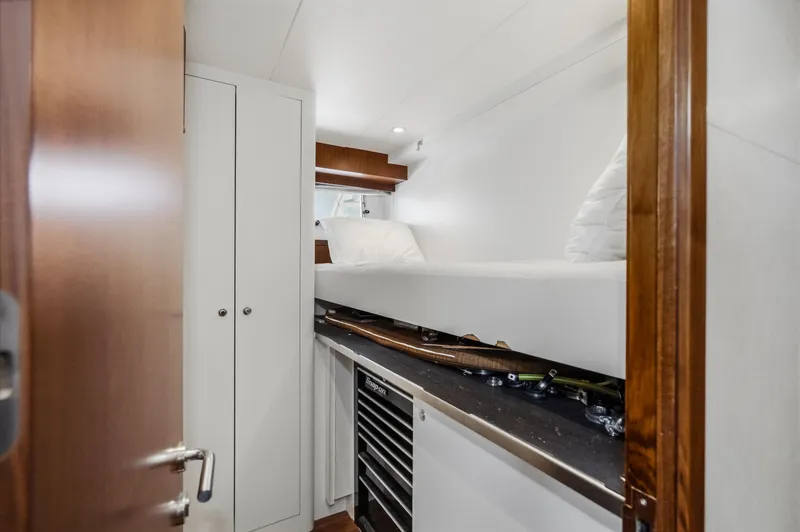

•Multifunction quarters include a Pullman that when folded
against bulkhead, reveal a stainless work bench with vice and
Snap-on tool chest. Multifunction staterooms can covert easily to
a working space. Also includes a wet locker (with ventilation and
separate water drain) and storage compartment. Both stateroom
fully air-conditioned
•Amtico flooring
•Puteulanus Jade granite countertop in lounge
•Extra storage under crew lounge countertop
•Snap-on® tool storage under crew working bench

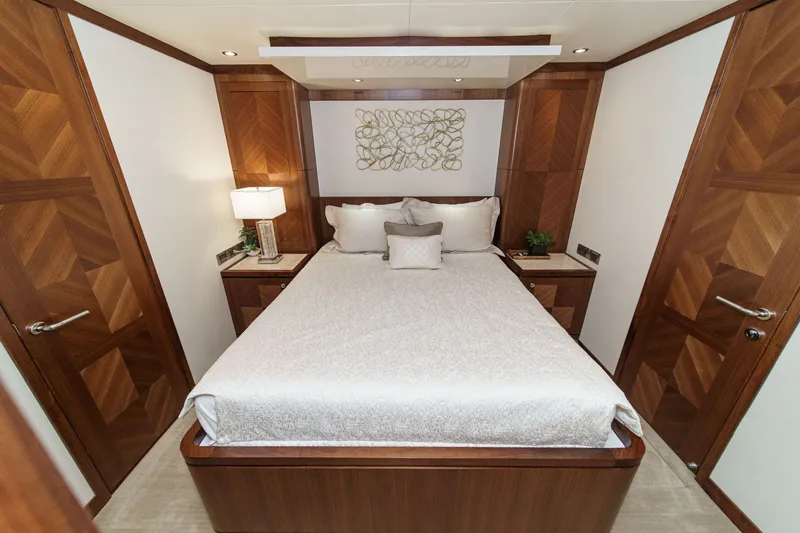

VIP / GUEST STATEROOM
•LCD 24” TV & DVD with Satellite Receiver on port wall beside
door (VIP)
•LCD 24” TV & DVD with Satellite Receiver on wall (Port
Guest)
•Audio stereo and video system
•Queen-sized berth w/ innerspring mattress
•Wood paneling and cabinetry
•Drawers under berth
•Cedar-lined hanging locker with automatic lighting
•Two “floating” nightstands with Pin Marron Emperador marble
tops in VIP, port guest, & starboard guest (one nightstand only)
INTERIOR DÉCOR:
•Wood paneling and cabinetry in semi-gloss
•Interior ceiling panels removable and finished with Diamond
faceted edging. Provides a sharper and structured tailored look.
(New for 2014 – design cues from 120)
•Evan Marshall designed interior pilot station and display pod.
With matching wood/Ultraleather and “floating” display pod.
Ergonomically designed and laid out to enhance pilot
experience/performance. (New for 2014 – design cues from 120)

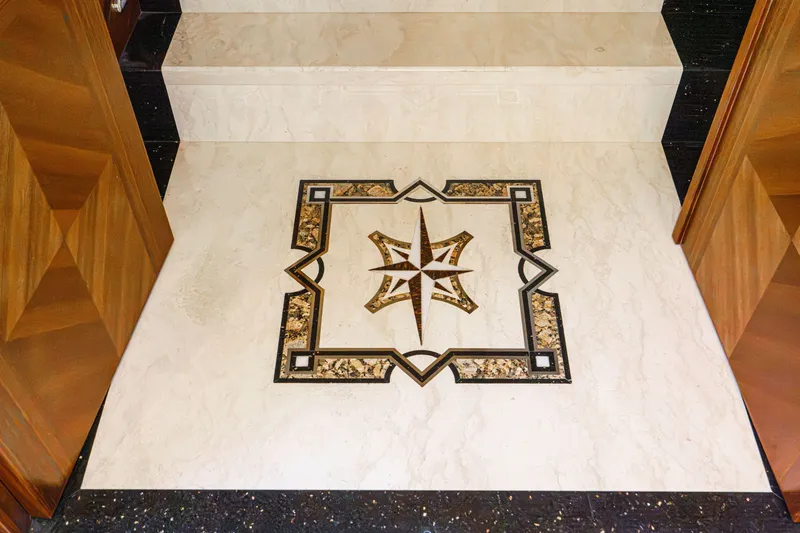

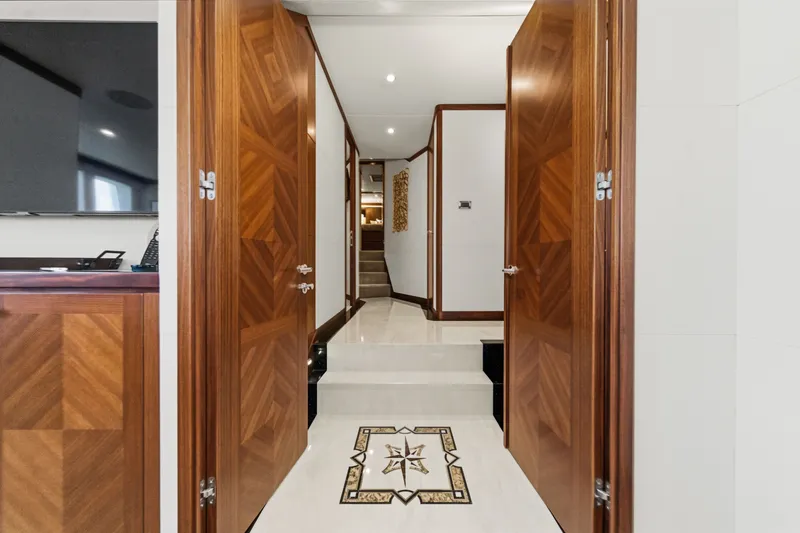

•Custom designed and water jet cut granite with stainless steel
insert in lower foyer and master bathrooms. (New for 2014 –
design cues from 120)
•Ocean Alexander Fresh Air system: with filtered fresh air drawn
from outside and vented to lower staterooms for constant fresh,
clean air. Makes for a clean and healthy environment that reduces
free radicals and increase oxygen levels. (New for 2014)
•High quality European door locks
•Cedar-lined, hanging locker with auto lighting
•Fabric covered walls for lower walkway walls
•Concealed hinges throughout interior cabinets
•Ergonomically designed innerspring mattresses and settees
•Innerspring mattresses for berths (independent his/her
construction allowing for disturb free movement during sleep)
•Washer/ dryer (Commercial quality, Energy star washer/dryer) in
lower foyer

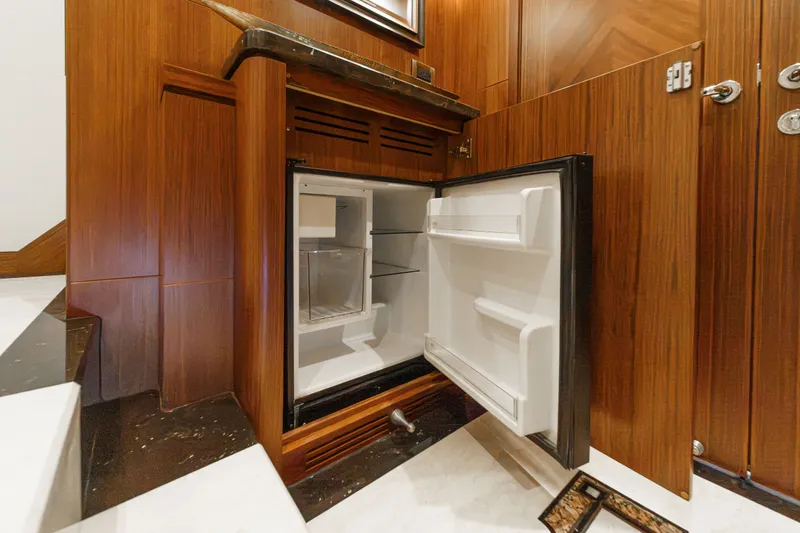

•Refrigerator/ice maker in lower foyer

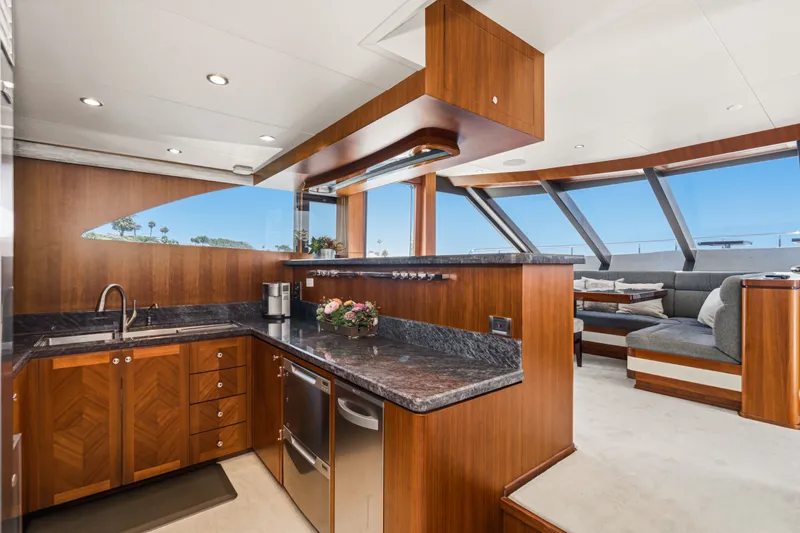

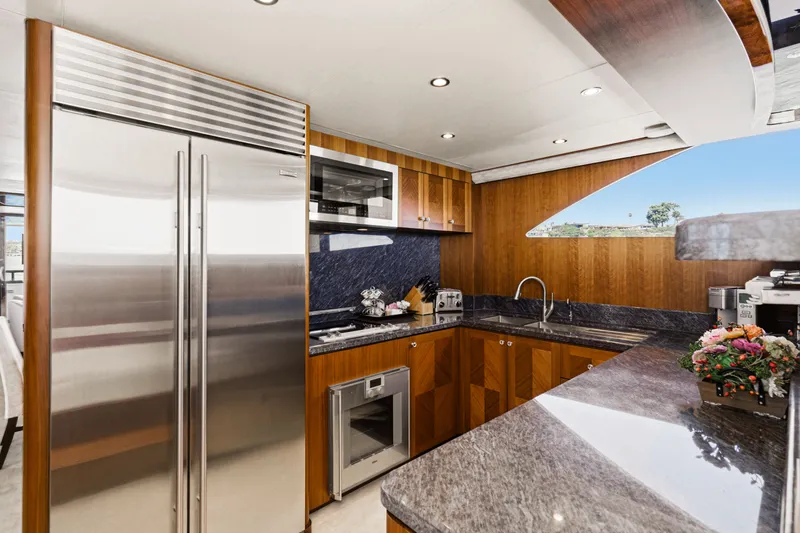

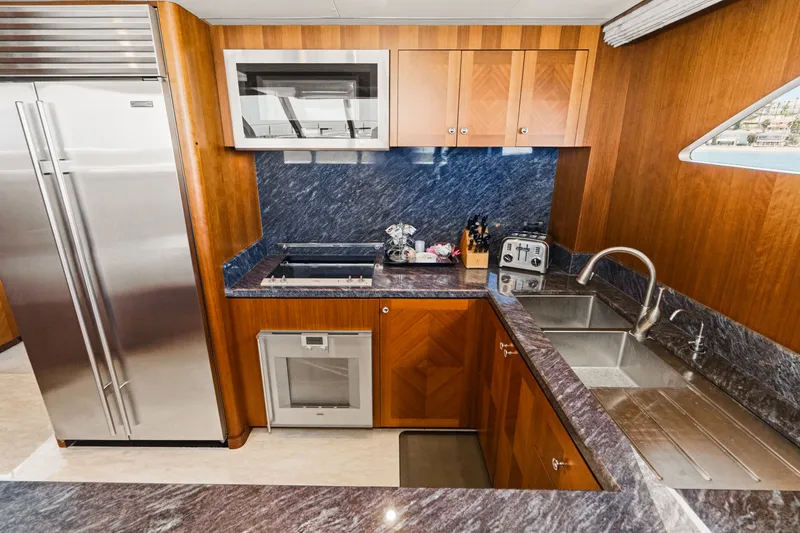

GALLEY:
•Wood panel and cabinetry
•Galley storage cabinetry w/hidden hinges
•Puteulanus Jade granite countertop
•Plantium Crepito granite flooring
•Wood flooring
•Clark® professional series kitchen sink w/ Franke™ pull out tap
•Exhaust blower
•Overhead dish locker fwd & aft
•30” Jenn-Air™ electric cook top
•24” Gaggeneau™ electric oven
•Sub-Zero® Refrigerator/ freezer
•Whirlpool™ garbage disposal
•30" JennAir Over-the Range Microwave with exhaust blower
•24” Fisher & Paykel™ dishwasher
•15” Whirlpool™ trash compactor
•Seagull™ water purifier (ADEX design award winner w/
filtration to 0.1 microns & EPA certification for microbiological
purification)
•Custom S/S potholder for cook-top
•Additional freezer fwd of dinette/under window
•German-imported Kessebohmer kitchen system (Magic Corner
Solution)
•Enlarge Country-Kitchen settee to U-shape and add small office
desk in lieu of lower helm
FORE DINETTE:
•Wood dinette table
•Phantom screen (for insects + pollen protection) with dedicated
wood box for door
•Weather-tight doors to side deck
•Wood flooring in forward dinette
•Pantograph doors

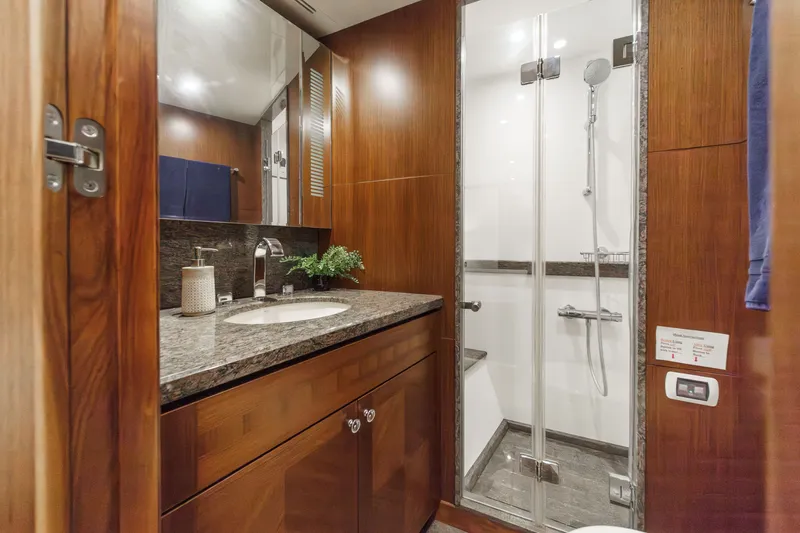

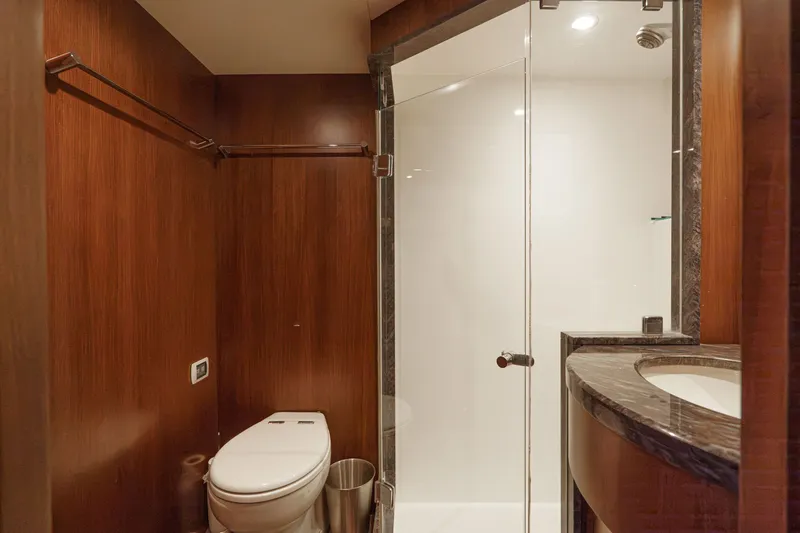

HEADS:
•Wood paneling and cabinetry
•Marble flooring in VIP (Plantium Crepito marble), port & stbd
guests(American Tabesco granite), salon & skylounge dayheads
(Chiampo blue marble)

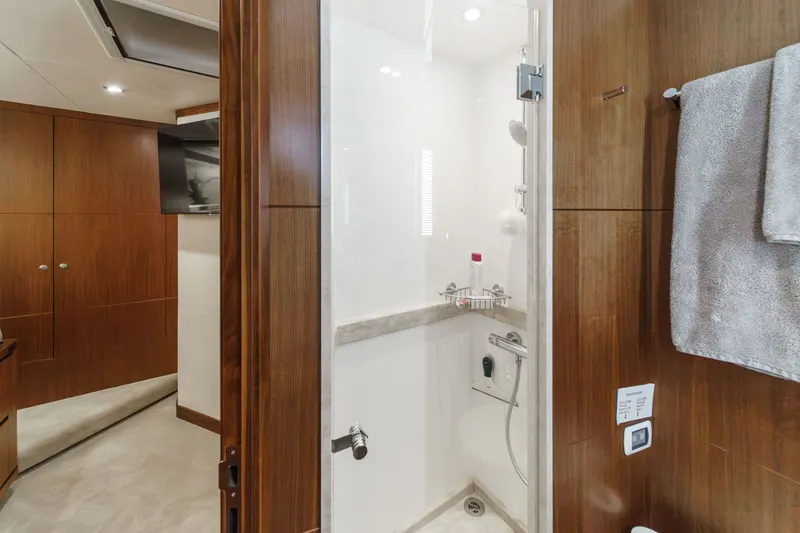

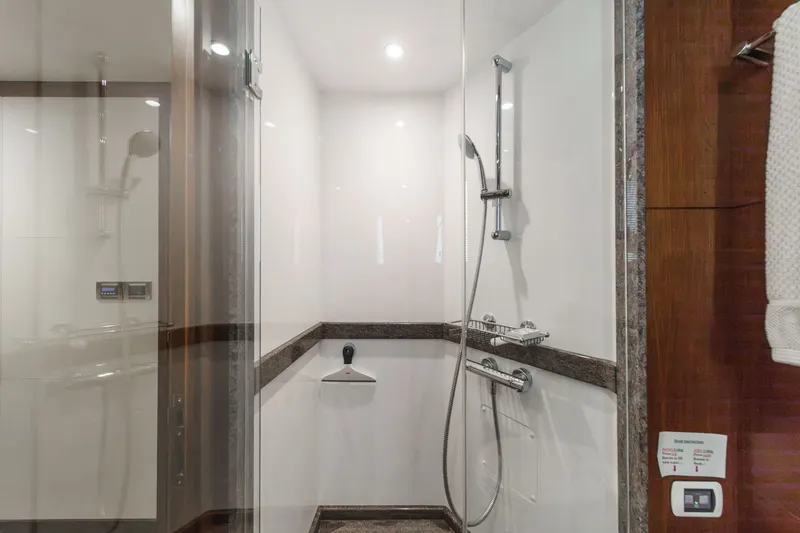

•Seamless fiberglass stall shower w/ one-piece glass door.
Industry leading seamless one-piece shower stall design provides
long term protection against moisture, water intrusion behind the
shower panels - leading to foul odors and water damage (Unique
OA feature)
•Shower door with Granite/marble frame. Shower door shall use
“crystal clear” glass custom made for Ocean Alexander. Providing
superior transparency and reflectiveness. Together with custom
made for Ocean Alexander “minimalist and transparent water
strips” provides a unique Ocean Alexander proprietary “Crystal
Shower” (New for 2014)
•Cabinet with mirror door above sink
•Air extraction in each head shall be by low noise extraction fans
•Planus™ toilet system throughout
•Custom bathroom fixtures

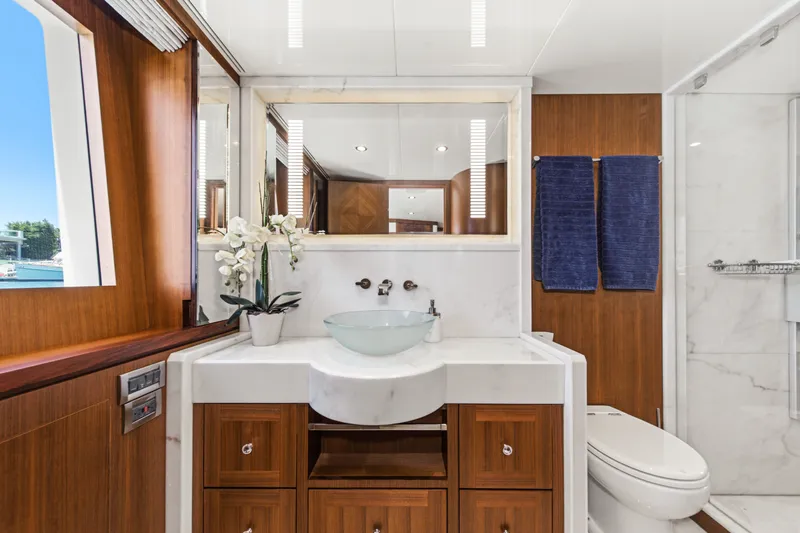

•Granite or marble countertops and back splash in heads with
Cifial™ & Grohe™ faucets and bone china sink (VIP-Plantium
Crepito marble, port & starboard guests- America Tabesco
marble), crew (Puteulanus Jade granite), salon dayhead (White
Aurora marble)
•Crew quarters w/private head, shower and refrigerator

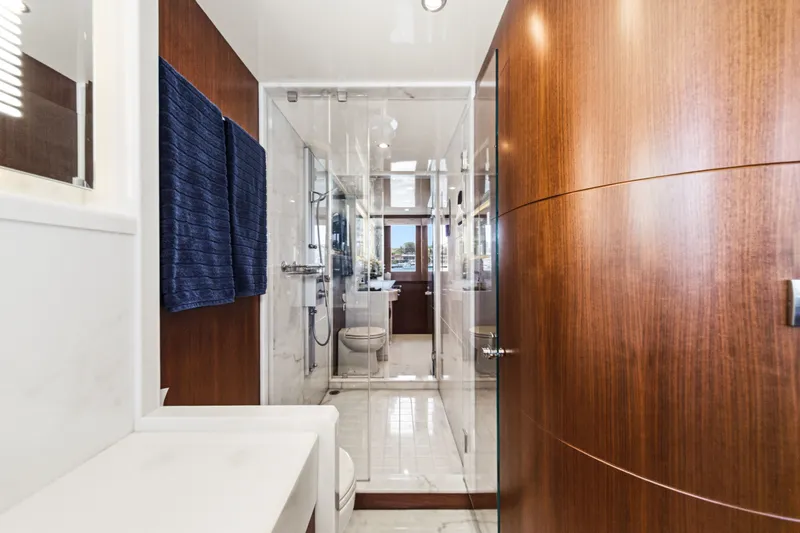

MASTER HEAD:
•Twin his-and-hers heads
•Vada wall mounted basin mixer
•Living house frosted glass wash bowl
•White Aurora marble accented MSR head w/ LED light guide
plate on two sides of head mirrors (design cues from 120)
•Lockers beside heads

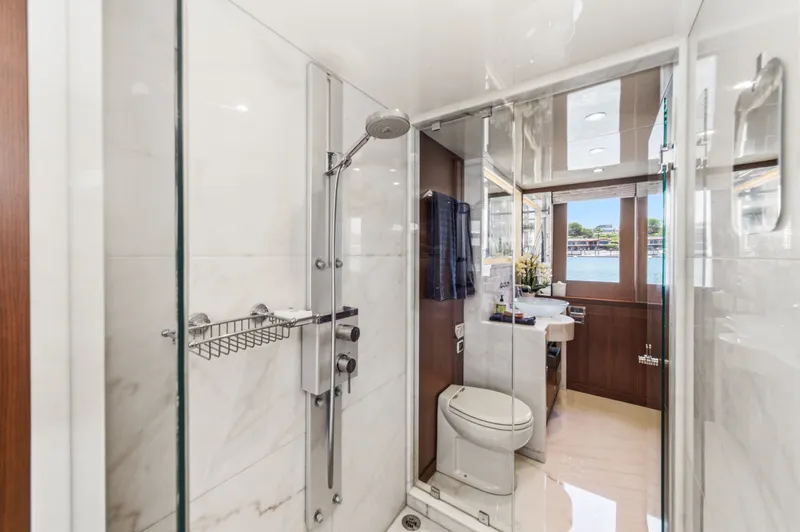

•Clear glass wall between shower room and head
•White Aurora marble wall in shower and Perspicuus Lux Lucis
granite heated floor in head
•Planus™ toilet
•Electrical Roman shades

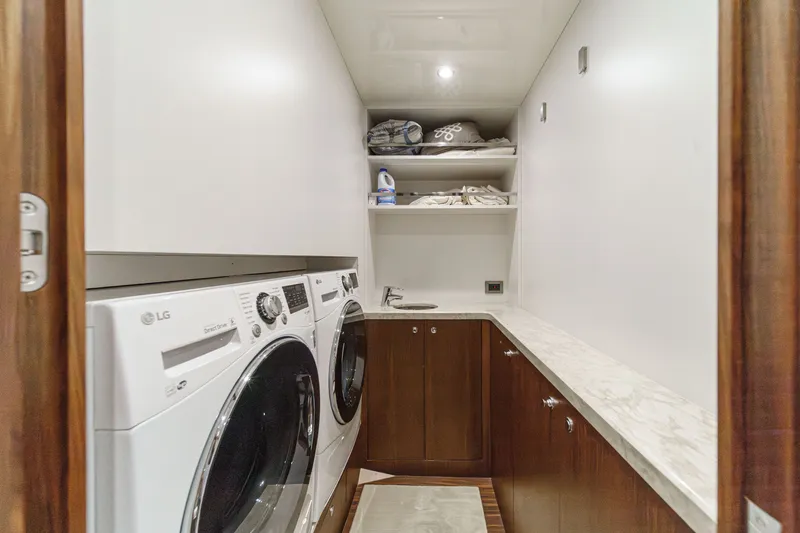

LAUNDRY ROOM (New for 2014):
•Custom design laundry room with dedicated pull down ironing
board, separate washer and dryer and sink/faucet
•Storage compartment for cleaning agents, folded towels and pull
out shelves
•Clothes hook and countertop
•Amtico floors and stain resistant laminate walls
EXTERIOR:
•Evan Marshall designed exterior pilot console and display pod -
with contrasting metallic dark grey and metallic silver and
“floating” display pod. Ergonomically designed and laid out to
enhance pilot experience/performance (New for 2014 – design
cues from 120)
•2” elliptical 316 Stainless steel handrails & stanchions, main
deck 1-1/2” on FB. Elliptical conforms better to human grip than
traditional round rails. Provides greater “grip strength” for safety
and comfort (Unique OA feature)
•316 stainless-steel cleats
•Fiberglass stairs to FB from cockpit
•Elec. stainless-steel sliding doors for salon
•Two teak flag poles, fore and aft.
•Teak and stainless swim ladder, foldable
•Weather-tight door on transom for access to engine room/ crew
quarters
•White non-skid fly bridge decks
•24” Electri-Chef™ electric barbecue
•Fiberglass stairway up to Flybridge
•Teak deck for aft deck and walkway to midship

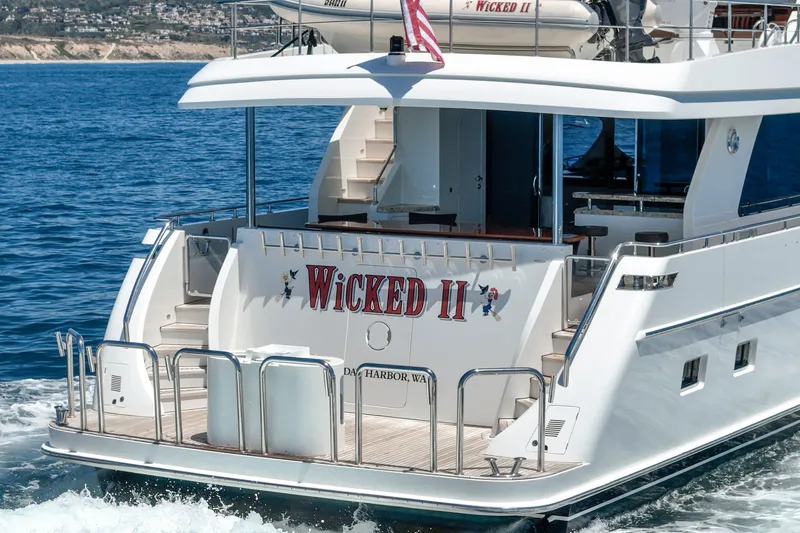

•Teak swim platform w/ teak steps
•Cockpit docking control

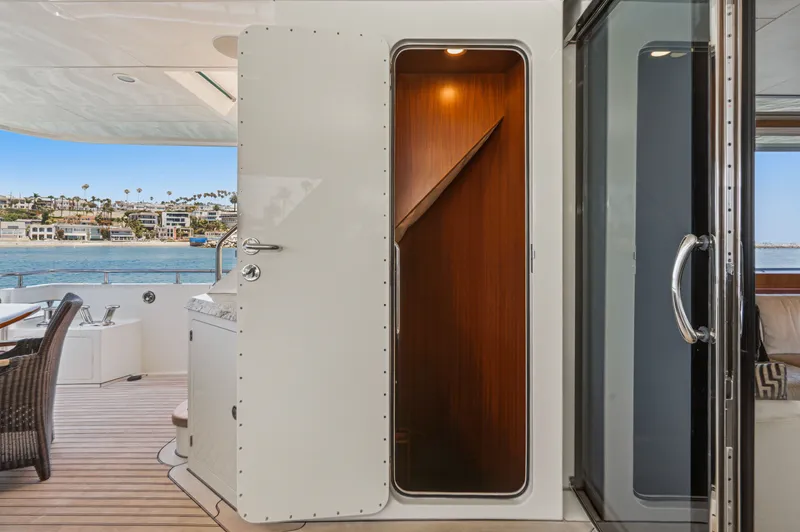

•High bulwark w/ flush-mounted deck lights, bulwark side doors
for boarding
•Side boarding gates in cockpit and midship
•Recessed boarding ladder on starboard gunnel
•Sunpad at boat deck w/ high gloss table

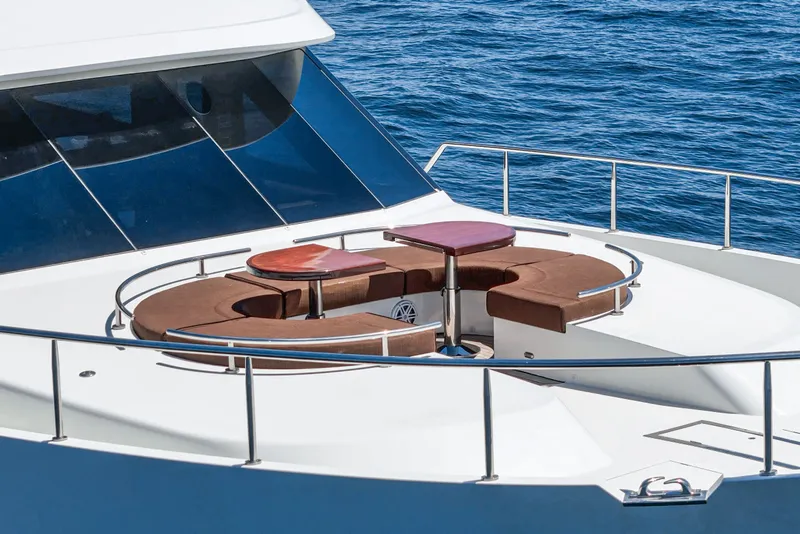

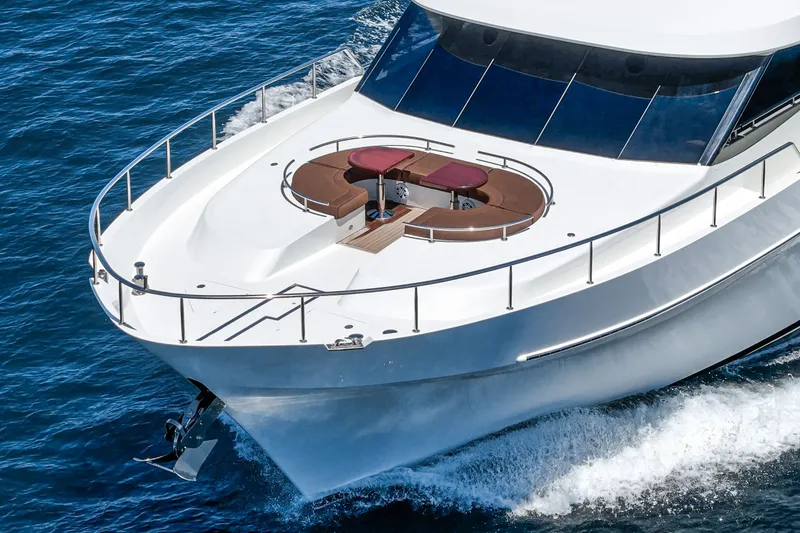

•Additional settee & table at bow
•Custom exterior canvas and windshield mesh covers
•Flybridge deck outboard storage increased by 54% via additional
storage lockers on port and starboard where possible (New for
2014)
•Exterior ceiling panels removable and finished with Diamond
faceted edging. Provides a sharper and structured tailored look.
Also allows for easy service of navigational electronics and
plumbing runs. (New for 2014 – design cues from 120)
•Anchor chute cover (New for 2014)
•Manual awning with custom made stainless steel poles and
marine-grade exterior “Batyline Crème” Ferrari mesh fabric
•S.S. “Ocean Alexander” plate onto boarding entrance
Ocean Alexander reserve the right to make modification and improvements which may result differences from published specification.
90012 Birth Spec 20131002
•S/S transom gates for pets/children protection from Aft-deck to
swimstep
•Chocks

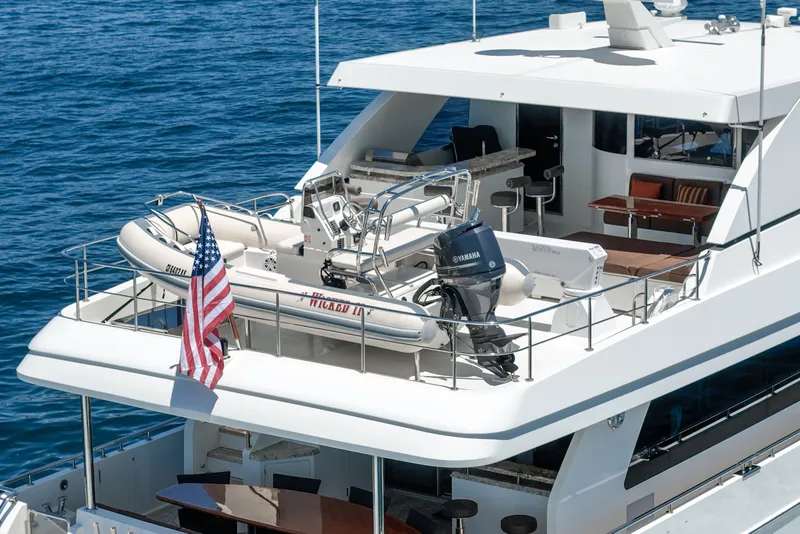

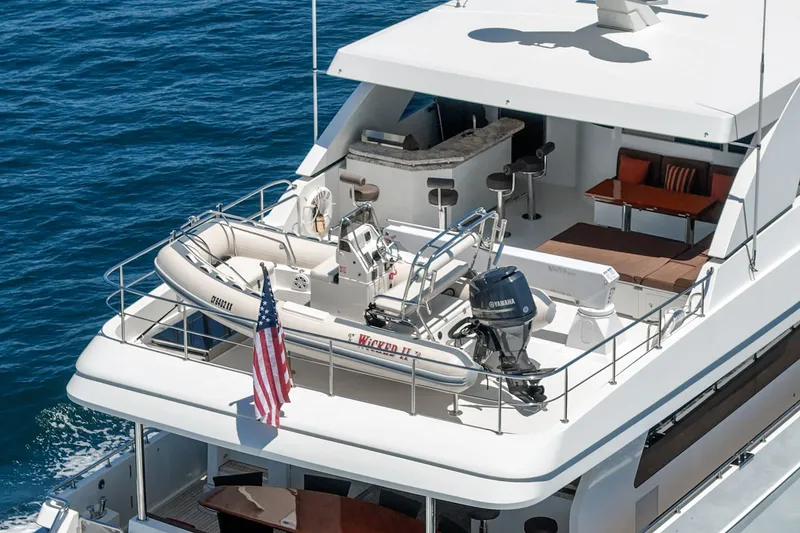

•15’ Tender with 70HP”
•10-man life raft

All personal property is excluded unless specifically identified and included in the sale agreement and listing specifications. Personal property refers to all items not permanently attached to the vessel including but not limited to: artwork, furnishings, and recreational or entertainment items. Advertisements, marketing materials, and/or other photography may depict the vessel with personal property, however, such personal property is excluded unless otherwise specifically included as provided herein.

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
