2027 MasterCraft X24 Boat in Mooresville, NC 28117 US
Built in 2027
X24
1 Engine (Ilmor)
24 feet
--
Fiberglass/Reinforced
2027 MasterCraft X24 | Ilmor 6.2L GDI | Stern Thruster | Z9 Power Tower w/ Premium Bimini | 4-Camera System | SurfStar | MAAX Transom Audio | Fully Loaded
Take your time on the water to the next level with this 2027 MasterCraft X24, a flagship-level 24-foot performance boat equipped with an exceptional combination of watersports technology, luxury, entertainment, and convenience.

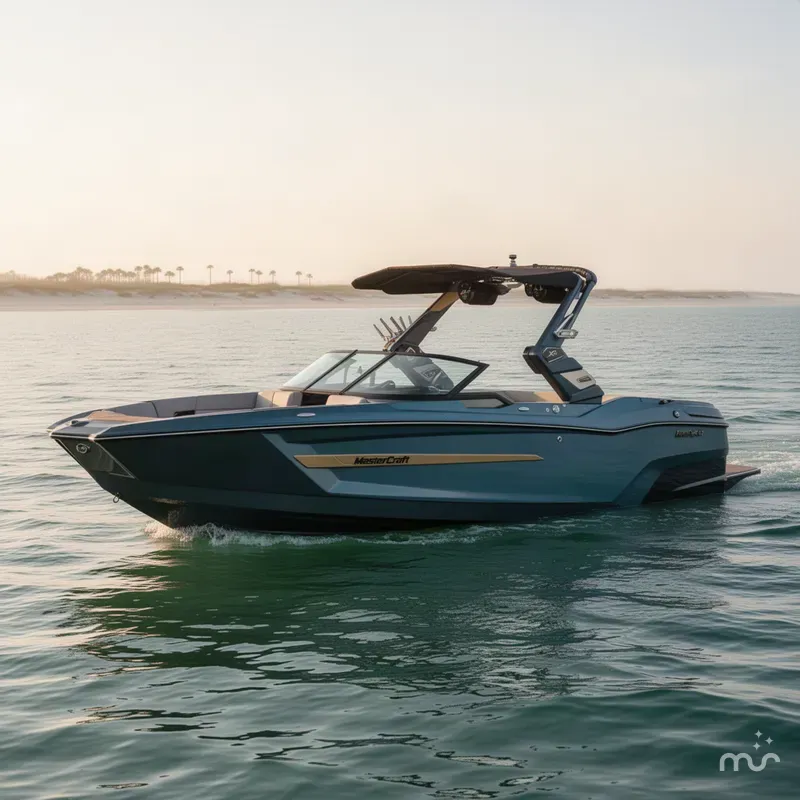

This X24 features a stunning Magnetic Blue Flake exterior with Gold Satin accents, a Magnetic Blue Z9 Power Tower, and a premium Coolfeel Beach Tan and Magnetic Blue interior. The Dune over Cappuccino SeaDek and coordinated detailing complete an upscale, sophisticated look.
Power comes from the Ilmor 6.2L GDI, paired with MasterCraft's advanced SurfStar System. SurfStar's wake-shaping devices, side-to-side switching, electric-over-hydraulic actuators with position sensing, attitude adjustment plate, and integrated ballast system give you the ability to dial in your surf experience with precision.
PERFORMANCE & TECHNOLOGY- Ilmor 6.2L GDI
- Stern Thruster
- SurfStar Wake-Shaping Devices
- SurfStar Side-to-Side Switching
- Electric-over-Hydraulic SurfStar Actuators with Position Sensing
- Attitude Adjustment Plate
- Stock Ballast & Plumbed Ballast Bags
- Tracking Fins
- 15" Center Touchscreen
- 12" Touchscreen
- MyDrive Encoder
- Integrated Navigation Maps
- Depth Finder
- Telematics
- Engine Flush Kit
- Z9 Power Tower
- Premium Bimini
- Z9 SoundPods - Black
- Dedicated 2-Channel Amplifier
- Standard Board Rack Configuration
This X24 is equipped with an upgraded audio package designed to deliver impressive sound throughout the boat and into the water.
- MAAX Transom Audio
- 4-Channel Amplifier
- Z9 SoundPods with 2-Channel Amplifier
- MasterCraft SoundStage
- Meridian 8.5" Speakers - 6
- Meridian 7" Speakers - 2
- Meridian 12" Subwoofers - 2
- Meridian 2-Channel Amplifier
- Meridian 8-Channel Amplifier
- Meridian Digital Signal Processor
- Zone Control
- Integrated Radio Controls
- Transom Remote
- Powered Helm Seat
- Heated Seats
- Heater
- Observer Display
- Activ-View Panoramic Plus with Gold
- Billet Walkthrough Door
- Premium Coolfeel Beach Tan Interior
- Coolfeel Magnetic Blue Pleats
- Dune over Cappuccino SeaDek
- Fender Clips
- Anchor
- Swim Platform Canvas
- Over-Tower Cover
- 110V Battery Charger
- 4-Camera System
- RGB Lighting Package
- Underwater Lights
- Docking Lights
- Stern Thruster
- 6" Pop-Up Cleats
- Auto Fire Extinguisher
- Handheld Fire Extinguisher
Magnetic Blue Flake / Gold Satin
- Magnetic Blue Hull Bottom
- Magnetic Blue Hull
- Magnetic Blue Flake Deck Exterior
- Magnetic Blue Flake Transom
- Magnetic Blue Flake Hull Wrap
- Magnetic Blue Flake Swim Platform
- Gold Satin Exterior Metal Accents
- Gold Satin Side Strake
- Magnetic Blue Z9 Power Tower
- Magnetic Blue Windshield
Coolfeel Beach Tan / Magnetic Blue
- Coolfeel Beach Tan Primary & Secondary
- Coolfeel Magnetic Blue Pleats
- Heathered Tan Accent & Trim
- Magnetic Blue Thread
- Magnetic Blue Monograms
- Dune over Cappuccino SeaDek
The MasterCraft X24 is designed for those who want more than just a great wake boat. With its expansive 24-foot layout, powerful Ilmor 6.2L, advanced SurfStar technology, and premium luxury features, the X24 provides the performance to satisfy serious riders while offering the comfort and entertainment features today's families expect.
The Stern Thruster makes low-speed maneuvering and docking easier, while the 4-camera system, powered helm seat, heated seats, heater, premium Z9 tower, MAAX transom audio, RGB lighting, and underwater lighting elevate the experience well beyond a typical watersports boat.
From surf sessions and wakeboarding to entertaining friends and relaxing with family, this X24 is equipped for every part of the day.
Factory-configured total price: $400,798.33
Boat Serial Number: US MBCPJHE1F626
Contact Dyer Marine in Mooresville, NC today for pricing, availability, additional information, or to schedule a private showing of this exceptional 2027 MasterCraft X24.
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
Price History
| Date | Event | Price |
|---|---|---|
| 8/29/26 | Initial price | $400,798 |
MasterCraft X24: BoatTEST Review
Overview
The Mastercraft X-24 is a premium towboat that represents the first model in the company's redesigned X-Series, evolving from the award-winning X-23. This new series features a comprehensive overhaul in terms of features, functionality, hull design, and wake performance, aiming to deliver versatile wave characteristics suitable for both elite athletes and beginners.
Wake and Ballast System
Central to the X-24's performance is its advanced Gen 2 surf system, which includes a six-ballast fast fill configuration. This system comprises one forward hard ballast tank, two aft hard tanks, two aft bags positioned above those tanks, and an innovative switchback tank that enables lateral ballast distribution for symmetrical wake formation. The ballast is managed by seven Johnson pumps, each capable of pumping 30 gallons per minute, allowing the boat to add approximately 4,300 pounds of ballast in under four minutes. Adjustable surf tabs at the stern control the wake profile, with independent left and right settings and a central attitude adjustment tab to manage bow rise, compensating for internal weight variations. All ballast and surf settings, along with GPS speed, are controlled via a seven-inch touchscreen at the helm, allowing operators to select from factory presets or customize wake parameters for specific riders with ease.
Power and Performance
The X-24 is powered by a single 430-horsepower Ilmor 6.2-liter GDI V8 engine. Its dimensions include a length overall of 26.2 feet, a beam of 8 feet 6 inches, and a draft of 2 feet 6 inches. The hull geometry has been refined to provide a deeper water entry, enhancing wake size. Performance testing revealed an endurance ranging from approximately 6.9 hours at 21.8 miles per hour (3,500 RPM) to 13.2 hours at 10.6 miles per hour (2,500 RPM). The top speed recorded was 38.2 miles per hour at 5,600 RPM, with the most economical cruising speed at 27 miles per hour (4,000 RPM). Acceleration was brisk, with a time to plane of 3.2 seconds, 0 to 20 mph in 4.8 seconds, and 0 to 30 mph in 7.2 seconds. Handling was responsive and smooth, with a three and a half turn lock-to-lock steering ratio and a 16-inch rudder, providing stable and predictable maneuvering even with full ballast.
Exterior Design and Deck Layout
The X-24 features a U-shaped bow finished in a tritone color scheme, complementing its modern aesthetic. The cockpit and deck areas continue the tri-tone vinyl upholstery theme with custom hand-stitching unique to the X-Series. Seating is abundant and versatile, accommodating up to 18 passengers with forward-facing chaise seats at the bow and wraparound corner seats in the cockpit that convert to aft-facing chaise lounges. Storage is ample, including a 62-inch compartment under the port-side seating for longer boards and a 36-quart cooler beneath the starboard bench. The cockpit flooring options include C-deck or color-matched decadence flooring. The swim platform is also C-deck treated and features built-in handholds and a 22-inch retractable swim ladder for easy water access. The premium tower includes an integrated bimini, two hanging speakers, clamping board racks, and a center tow pylon, with an optional camera mount available.
Helm and Controls
The helm is positioned to starboard and features a vinyl-wrapped dash with a tilt-mounted steering wheel. Instrumentation includes recessed analog gauges set in billet aluminum, complemented by a 7-inch touchscreen interface for controlling ballast, surf settings, and other boat functions. Manual switches provide redundancy in case of touchscreen failure. Additional helm amenities include a phone holder, drink holders, engine key, and shifter. The main battery shutoff and breaker panel are conveniently located to the left of the helm. The boat incorporates Mastercraft's BTS windshield design, favored by water sport enthusiasts for improved communication with individuals in the water and ease of docking. The windshield sides are rounded and finished with aluminum billets that double as grab handles, and a securely fitting wind dam is included.
Interior and Storage Features
The interior layout maximizes space through a pickle fork design, providing larger seating areas and storage compartments. Forward compartments include dedicated anchor storage, while the cockpit houses multiple storage areas beneath seating. The top storage locker creatively functions as a personal flotation device warmer by utilizing engine heat. The aft-facing bench converts into a spotter seat or a large lounging area with an optional filler cushion, and a tow pylon can be installed in this area. Additional storage and utility spaces beneath companion seating accommodate batteries, a fire extinguisher, a trash receptacle, and the tow pylon base.
Conclusion
The Mastercraft X-24 is a thoughtfully engineered towboat that blends advanced ballast and wake-shaping technologies with refined power and handling characteristics. Its versatile wake profiles cater to a wide range of water sport enthusiasts, from beginners to professional athletes. The spacious and well-appointed interior, combined with practical storage solutions and premium exterior features, make the X-24 well-suited for extended days on the water. Overall, it delivers a compelling package for those seeking high performance and comfort in a modern towboat.
