2004 Island Packet 420 Sold Boat in West Haverstraw, NY 10993 US

ISLAND PACKET YACHTS (and the IP 420, of course) were produced to the standards to qualify for the European "CE" Rating: Category "A" - Ocean". This is the highest level achievable and facilitates getting insurance for possible "offshore" voyaging as well.

Hull:

The ISLAND PACKET 420 was produced with the Company's proprietary "FULL FOIL KEEL" that provides enhanced directional stability, reduced draft, a reduced angle of heel and protection for the yacht's underbody, the rudder and the drive train. The "cutaway" underbody's spade rudder provides good control for the yacht and the reduced whetted surface does reduce parasitic drag as well. The LIVIN 2's bottom was stripped and epoxy barrier-coated in 2015.

• LIGHT IVORY Gel coat finish
• Hand laid-up fiberglass hull with proprietary pressure-fed resin infusion and tri-axle laminates with integral interior grid support structure
• Rub Rail, extruded VINYL molding with stainless steel striker plate
• "Scoop" Transom
• A "Full-Run" keel aka the proprietary ISLAND PACKET "Full Foil keel" with encapsulated interior lead ballast
• Spade rudder with steel support for lower section that extends from the "Full Foil Keel" assembly (note: also assists with the prevention of any lines fouling the drive train and rudder)
• DARK BLUE Boot-top
• BLACK Bottom paint
• Bottom stripped and epoxy barrier-coated (note: 2015)

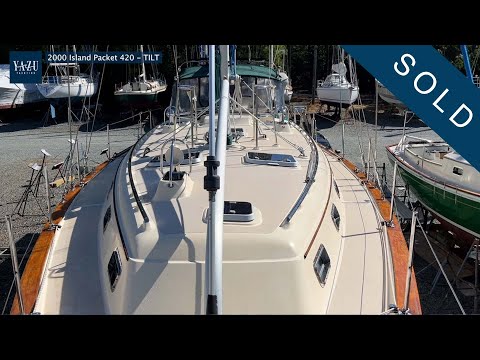

Deck:

• LIGHT IVORY Gel coat finish
• Contrasting non-skid deck, Light Ivory and Light Tan gel coat finishes and with the proprietary DURASHIELD Gelcoat system (note: also for hull topsides and interior)
• "Diamond" molded non-skid pattern for enhanced non-slip effectiveness
• Deck laminate cored with the proprietary POLYCORE (note: resin and micro-sphere matrix)
• Toe and Cap rails, teak (note: finished with (10) coats of AWLWOOD Marine Finish (note: by AWLGRIP, Spring, 2022)
• (12) Chafe plates, stainless steel, on toe rails for dock lines at cleat locations
• Teak step plates at Cockpit entrance, varnished (note: line boxes underneath for Coach-roof lines)
• Bow pulpit, double-rail, stainless steel
• Life lines, plastic-coated
• Stanchions, stainless steel
• (2) Boarding gates, port and starboard with single upper gate line
• Boarding gate, aft with single upper line
• (2) Body and Safety rails (note: at the mast area)
• (3) Dorade vents, stainless steel with guards, stainless steel (note: Factory Option for upgrade to stainless vis standard)
• (8) LEWMAR Ocean Series deck hatches with screens
• (6) Deck cleats for dock and mooring lines, 12" stainless steel
• (14) Opening ports with safety glass inserts, stainless steel
• (2) Grab and Safety rails, stainless steel (note: run the full length of the Coach roof)
• Deck hardware through-bolted with aluminum backing plates
• Sea Hood, molded fiberglass and sliding Companionway PLEXI hatch
• (3) Section Companionway drop boards, teak (note: custom teak rack storage aft under the Companionway entrance)
• Custom Companionway doors with screens, (2) pieces, hinged

Cockpit:

• Helm Station with custom teak seating, varnished (note: also provides access to the Emergency Tiller installation)
• Backrest and seat cushions
• Binnacle unit, fiberglass
• RICHIE Compass, 5" with cover
• WHITLOCK "Monarch" Wheel Steering System (note: geared assembly, no wire cables)
• Elkhide wrap for wheel (note: Factory Option)
• IMTRA Remote control for the MUIR Windlass
• SLEIPNER "SidePower" bow thruster control unit
• (1) Opening port, stainless steel (note: for Aft Cabin ventilation, port side aft)
• (2) Perch seats aft, port and starboard (note: with fiberglass seats)
• Stern rail with boarding gate, double-rail, stainless steel
• Control Panels: to starboard, for the YANMAR diesel and to starboard, for the FISCHER PANDA generator
• (2) Large Cockpit seat lockers, port and starboard
• (2) Cockpit scupper drains
• (4) Life line safety attachment points, stainless steel

Rig:

The ISLAND PACKET 420 is a cutter-rigged yacht and is equipped with a SPARCRAFT USA / CHARLESTON SPAR anodized aluminum roller-furling mainsail mast. The spar is keel-stepped with double spreaders, fore and aft lower shrouds, double backstays and internal halyards. There is a self-tending HOYT boom for the staysail.

• Mast Wedge for properly supporting the spar as it passes through the deck mast collar (note: by ISLAND PACKET)

Sailplan Data:

• Sail Area (100% fore and aft triangles): 924.05 Sq. Ft.
• Measure: I=55.00', P=47.50', J=18.92' and E=17.00'
• Air Draft (DWL to MH): 59' (note: approximate and does not include antennas and so forth)

Rigging:

• HARKEN Roller-furling for the mainsail, genoa and staysail (note: all control lines are lead aft)
• Standing rigging; 1x19 wire, stainless steel
• Dual backstays
• WICHARD Boom vang, block and tackle
• WICHARD hardware for vang and blocks
• (2) Flag halyards (note: one to each lower spreader, port and starboard)
• HARKEN Mainsheet Traveler System with 4:1 power and cross-hauls (note: mounted on the Coachroof forward of the Dodger)
• Running rigging (color-coded): (4) halyards (2x main, genoa and staysail), genoa sheets and staysail sheet, boom vang, mainsheet, traveler system cross-haul control lines, boom topping lift

Winches (LEWMAR Ocean Series):

• (2) L-54 CST (2) speed self-tailing Primaries / genoa sheets
• (2) L-16 CST (2) speed self-tailing for genoa and staysail roller-furling lines (note: mounted aft on Cockpit coaming caps)
• (2) L-44 CST (2) speed self-tailing for sail controls (note: mounted on Coachroof aft)
• (2) L-24 CST (2) speed self-tailing for main and jib halyards (note: mounted on mast)
• (2) L-16 CST (2) speed self-tailing for lines (note: mounted on Coachroof aft)
• (1) L-8C single-speed (note: mounted on the mast for staysail halyard)
• Winch handles, 10" (note: numerous HARKEN and LEWMAR)
• WINCHRITE Electric winch handle, 12VDC with charger

Sails (DOYLE SAILMAKERS):

The sails were purchased "new" in 2012 and first bent on in 2013. They are professionally stored and serviced every year. The sails are in exceptionally good condition given the yacht's light usage overall.

• Mainsail (note: with Dark Blue Tabling cover, SUNBRELLA)
• Genoa, 110% (note: with Dark Blue Tabling cover, SUNBRELLA)
• Staysail (note: with Dark Blue Tabling cover, SUNBRELLA)

The ISLAND PACKET 420 interior is finished with varnished teak furniture and the trademark Ivory Gelcoat application for the fiberglass surfaces. The interior furniture has just been detailed over the past Winter of 2022-2023 and early Spring, 2024.

• Headroom: 6'5"
• Teak interior furniture, varnished
• Cabin sole, teak and holly veneer, varnished
• Cabin sole at Companionway entrance, Galley and Aft Head areas: fiberglass
• ULTRALEATHER Light Beige for upholstery through the Salon (note: Factory Option with 5" dual density foam inserts)
• Cedar-lined hanging lockers throughout

Salon:

The Salon is accessed via the Companionway entrance via a removable teak step assembly for engine room access aft. The Galley is located at the base of the Companionway, starboard side and aft. The Nav Station is just forward and also to starboard. There is a "L" Settee and a Stool / Hassock to provide seating the large fold-up table that's mounted forward on the main transverse bulkhead, starboard side. It has a folding leaf to extend the table. There is a bookcase behind the table on the bulkhead. To port and opposite the Galley, is the Aft Head and just aft of that, the entrance to the Aft Cabin. There is a settee area just forward of the Aft Head.

• Teak and Holly sole forward of the Galley area
• Dust bin, with varnished teak veneer panel, removable, in fiberglass cabin sole
• "L" Shaped settee to starboard (note: converts to a double berth)
• Bench settee to port
• Bulkhead-mount table, teak, folding with a single leaf (note: bookcase behind the table)
• Berth Dimensions: Port side: Width 45" and Length 76" and Starboard side: Width 45" and Length 76" (note: dimensions with berth filler / backrest cushions in-place)

Fore / Master Cabin:

Located forward; the large double berth is on the starboard side. It is accessible from both sides for ease of entry.

• There are lockers aft on both the port and starboard sides
• Custom bedding to include BAMBOO Mattress by CARILOHA with 10" memory foam, linens and coverlets
• Berth Dimensions: Width 56" and Length 76"

Forward Head:

The Head is ensuite and to starboard. There is a separate shower area.

Forepeak:

On the forward transverse bulkhead for the Head, there is an entry hatch / door to access the Forepeak anchor locker and the windlass motor. There is ample storage space for the spare anchor and rode and other related gear.

Nav Station:

• Full chart size Nav table, adjustable
• Nav Station chair, adjustable, electric (note: control panel to starboard of the chair)
• ICOM VHF
• Navigator's Flex Light
• PANASONIC Stereo
• Repeaters for RAYMARINE electronics: Graphics, AWI / WS and TriData
• Electrical Panel with AC and DC functions and breakers

Galley Details (see "Galley" section)

Head Details (see "Heads" section)

Aft Head:

It is located aft and to port of the Companionway entrance. The Head may be accessed via the Aft Cabin or the Salon.

Aft Cabin:

It is located just aft of the Aft Head. The entrance is via a separate door that is to port. The large Pullman-style berth is located further aft and is athwartships. The cabin is ventilated by an opening port and a 12VDC HELLA fan. There are drawers and storage lockers.

• Berth Dimensions: Width 56" and Length 76"

Engine Room:

The YANMAR diesel is located under the Cockpit and the Companionway area. It is accessible via the Galley panel, by removing the Companionway steps and via a separate hatch in the Aft Cabin itself.

The Galley is located in the Salon, starboard side and at the base of the Companionway.

• FORCE 10 Stove / Oven, (3) burner, gimbaled, propane, stainless steel Safety bar for stove / oven, stainless steel
• Propane tank, 10# aluminum and installed on the side deck locker, starboard side amidships (note: provision for 2nd tank in locker)
• Remote propane gas shut-off solenoid switch
• ORIGO Microwave
• SEA-FROST Refrigeration, 12VDC and 110VAC
• MR. COFFEE coffee maker
• KRUPPS Toaster
• Hot and cold pressure water service
• Sprayer unit at sinks
• Manual pump for fresh water
• Sink, double with high-polish stainless steel
• Galleyware (note: all new, 2020)
• Large access lid for ice-chest / refrig area with hydraulic lift
• Electric drain pump for ice-chest
• Safety bar for stove / oven with safety belt attachment points, stainless steel
• Dish rack and cutlery drawers
• Trash bin, sliding in-out

The ISLAND PACKET 420 has (2 Heads, (1) for each Stateroom. Both are with ensuite access. The Fore Cabin / Master Head has a separate shower stall. The Aft Head has a hand-held shower unit with a curtain enclosure.

• (2) JABSCO "VacuFlush" Marine heads, electric (note: both Heads installed shortly after yacht purchase)
• Fresh-water flush for both Heads (note: feature installed after yacht purchase)
• Holding Tank: (60) USG (note: services both Heads)
• (2) "Y" valves for overboard discharge (note: where permissible)
• Macerator pump (note: Factory Option)
• Showers with (2) "Gray Water" boxes with float-activated electric pumps for discharge
• Vanities with "deep polish" stainless steel sinks
• Drawers
• Opening ports (note: one for each Head)
• Deck hatches (note: one for each Head)
• Teak seat, folding for Aft Head
• Seat for Forward Head shower
• ACRYLIC Door for the Forward Head Shower area
• Shower curtain for the Aft Head
• Fiberglass soles with teak gratings and drains for both Heads

There are (3) RAYMARINE Displays mounted in the console at the Companionway entrance: Speed / Log and Apparent Wind / Wind Speed and Depth Sounder.

The Helm Station has the following installations:

• ICOM VHF
• RAYMARINE Radar / Chartplotter and TriData displays

The Nav Station has the following equipment:

• ICOM VHF
• RAYMARINE Graphic, AWI / WS and TriData displays

Communication:

• VHF; ICOM MC-502 (note: unit at Nav Station and remote mic at Helm Station)
• AIS (Automatic Identification System)

Performance:

• RAYMARINE ST-60+ Speed / Log

Navigation:

• RAYMARINE ST-60+ AWI / WS
• RAYMARINE ST-60+ Depth Sounder
• RAYMARINE ST-60+ TriData (Depth / Speed / Trip)
• RAYMARINE RL-700 Radar and ChartPlotter (note: a) the software was updated several years ago to provide "color" vis "black and white" displays and b) the upgrade for a NAVTECH interface for a "plug and play" feature for a Laptop was also installed)

Autopilot:

• RAYMARINE ST-6001 with Remote Control

Entertainment:

• PANASONIC Stereo (note: 2x interior and 2x Cockpit speakers)
• (3) JENSEN Flat Screen SMART TV's (note: (1) for each Stateroom and Salon and all new, 2022)
• Direct TV

Electrical:

The ISLAND PACKET 420 has both a 12VDC Ship's Service and 115VAC Shore Power Systems.

Batteries, 12VDC; (4) Group 27 AGM sealed House / Utility, (1) Group 27 AGM Engine Start and (1) Group 27.

• Generator Start (note: batteries all new, 2019)
• Battery Charger, CHARLES 5000 Series 40 AH (3) step charger
• Alternator, BALMAR 110 AH dual fan
• Inverter
• PROMARINER Galvanic Isolator
• Shore power with (2) 30 AH hook-ups, (2) 50' 30 AH cords
• Reverse-polarity indicator (note: at Nav Station panel)
• Electrical Panel at Nav Station for all 12VDC and 110VAC functions

Generator:

As of early September, 2023, the generator had just been rebuilt and it was reinstalled on the LIVIN 2 in the Spring of 2024.

• FISCHER PANDA 6kW genset with sound shield
• Hours: 10-15 (note: approximate and since rebuild in 2023 and reinstallation, Spring, 2024)

HVAC:

• MARINEAIRE Reverse-Cycle heat and air conditioning, (2) zones (note: total 28,000 BTU's)
• (4) HELLA fans, 12VDC (note: installed in Salon and each Stateroom)

Bow Thruster:

• SLEIPNER "SidePower" bow thruster, (7.5) HP (note: a) new replacement in 2023, b) Factory Option with Joystick control mounted at the Helm Station binnacle and c) separate (2) Battery System 12VDC and with dedicated GUEST battery charger)

Plumbing:

• Fresh Water Capacity: 250 USG in (2) tanks
• SPOTLESS Filters at at the water fill; (1) filter and (1) softener (note: good for 5,000 US Gallons per filter charge)
• Cockpit shower with cold pressure water service (note: located in Cockpit, port side aft)

Pumps:

• Pressure water pump
• (2) Shower sump pumps
• (1) Ice-chest drainage pump
• Bilge pumps: (1) manual bilge pump (note: counted in the Cockpit), (1) electric/automatic bilge pump, electric

Lighting, Interior:

• Courtesy lights (note: switch at the Companionway entrance)
• (12) Reading lights throughout, silver finish, bulkhead-mounted
• Lights for Aft and Forward Heads
• Overhead lights for Galley, Salon, Aft and Forward Stateroom

Lighting, Exterior:

• AQUASIGNAL Nav lights
• Steaming light
• Masthead light
• Foredeck light

The ISLAND PACKET 420 is powered by a YANMAR 4JH3-TE Turbo (4) cylinder fwc (fresh-water cooled) marine diesel that is rated at 75 HP at 3,800 RPM's.

• Engine Hours: 500 (note: Summer, 2024)
• Fuel Capacity: 160 USG
• KANZAKI Transmission
• Propeller, MAXPROP (3) blade, feathering, bronze (note: purchased and installed shortly after yacht purchase)
• Spare propeller, (3) blade, bronze (note: original prop and stored in Fore Peak locker)
• Propeller shaft, stainless steel
• RACOR Fuel filter
• Cockpit Control Panel: gauges for RPM, engine temperature, alternator charge indicator, oil pressure, Circuit Breaker, Battery Parallel Indicator
• Single-Lever control for throttle and shift
• Engine room insulation, lead-lined foam

Ground Tackle:

• MUIR Anchor windlass, electric / mechanical (note: foot switches at "up" and "down" functions and hand-held remote control)
• CQR Plow anchor, 45# with 20' chain and 200' rode (note: custom stainless steel rode swivel included)
• Bow Anchor platform with SEASAFE double bow rollers, stainless steel
• DANFORTH Anchor with rode

Canvas:

The canvas was all new in 2017 by PATINO CANVAS, West Haverstraw, NY. The Dodger had custom semi-rigid POLYCABONATE 60 ml sections installed to replace the original 40 ml panel pieces over the Winter of 2024.

• Full Cockpit Enclosure, Blue SUNBRELLA with POLYCARBONATE heavy-duty 60 ml panels (note: stainless steel frame with vertical support covers, Blue SUNBRELLA)
• Pedestal / Binnacle / Wheel cover, Blue SUNBRELLA
• Winch covers, Blue SUNBRELLA

Safety:

• (2) FIRST ALERT CO2 monitors
• USCG Gear (note: include PFD's)
• Fire extinguishers
• (4) Cockpit line tether attachment points, stainless steel (note: for personal safety line attachments)
• Emergency Tiller

Misc.:

• Boat hook
• Dock lines and fenders
• Cleaning gear
• FAIRCLOUGH Winter Cover and frame
• KATO MARINE hoist, stainless steel with block and tackle (note: mounted at transom)
• Outboard motor mount (note: installed on stern rail)
• (2) Cockpit lights, 12VDC (note: mounted on stainless steel Dodger frame aft)
• Cockpit table, custom folding with (2) leaves, teak, varnished
• Drink holder, teak, varnished
• ISLAND PACKET Cockpit cushions, TEXALENE covers with 2" closed cell foam (note: Factory Option)
• Swim ladder, folding with rubber treads, stainless steel
• Yacht Ensign with stainless steel jackstaff
• MAGNA Barbeque

• Achilles Tender/Dinghy
• Seller's Personal Belongings

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
