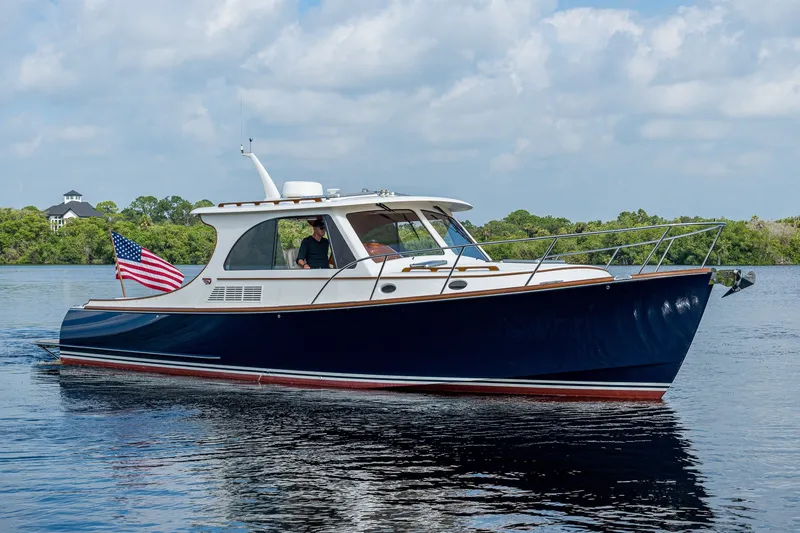

2022 Hinckley Yachts Picnic Boat 40 Boat in Fort Myers, FL 33901 US

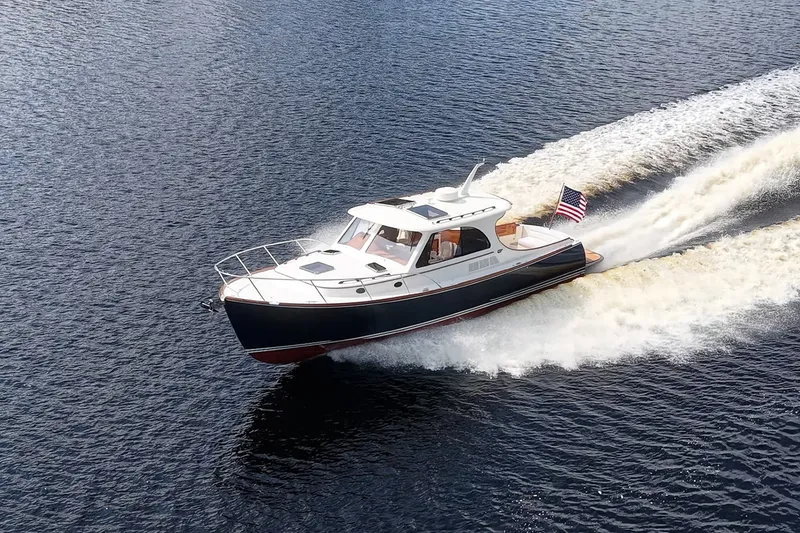

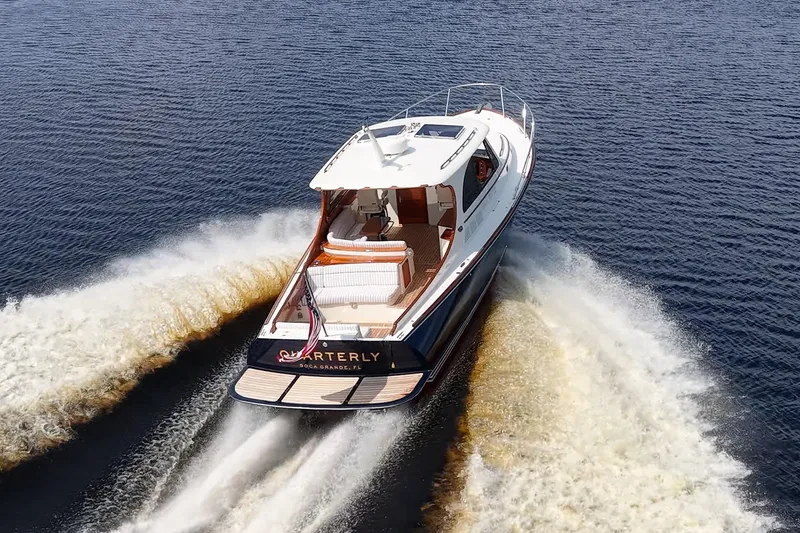

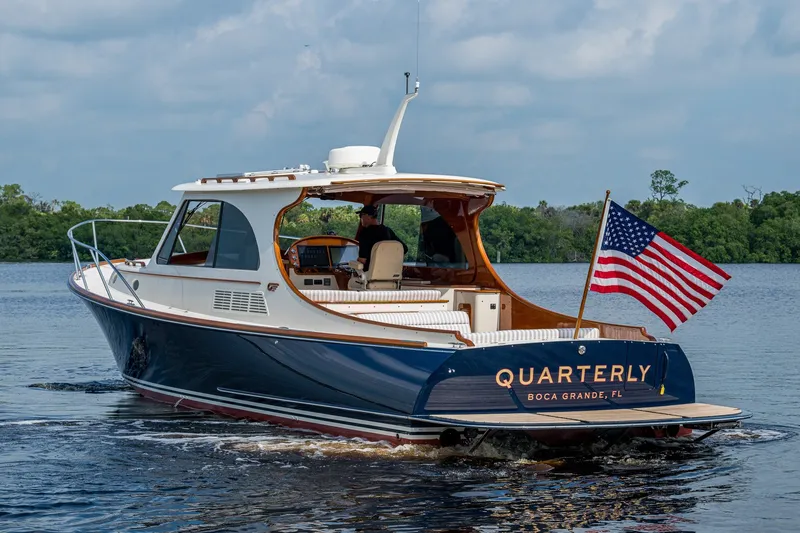

QUARTERLY is a 2022 Hinckley Picnic Boat 40 that combines timeless Downeast styling with the performance, shallow draft, and handling of Hinckley jet propulsion. Her Flag Blue Awlgrip hull, double Oyster White boot stripe, Polar White deck and pilothouse, and extensive varnished teak appointments create a classic Hinckley presentation.

A recent upgrade to Hinckley's JetStick 4 control system brings the latest generation of Hinckley control technology, including Smart Mode Selection, Heading Hold, Dockhold, and improved G-Lock functionality.

Her equipment package includes teak pilothouse and cockpit soles, an extended teak swim platform, varnished teak pilothouse side liners and cockpit coamings, a Seakeeper 6 gyro stabilizer, dual Garmin GPSMAP 8617 multifunction displays, pilothouse air conditioning, an Onan generator, a retractable SureShade, and premium interior and exterior fabrics. Upon completion of the certification process, QUARTERLY is offered with Hinckley Certified Pre-Owned status.

QUARTERLY significant features include:

• Post-build upgrade to Hinckley JetStick 4 control system.
• Pending Hinckley Certified Pre-Owned status.
• Twin Cummins QSB 6.7 480 hp diesel engines with Hamilton HJ322 waterjets.
• Seakeeper 6 gyro stabilizer.
• Dual Garmin GPSMAP 8617 touchscreen multifunction displays.
• Teak pilothouse and cockpit sole with traditional black seams.
• Extended swim platform with teak inserts and black seams.
• Retractable SureShade cockpit sunshade.
• Twin 12,000 BTU reverse-cycle air-conditioning units for the pilothouse.
• 7.5 kW Onan generator with sound shield and remote display/control panel.

DECK AND HULL

• Hinckley TriGuard epoxy composite construction with an Aramid fiber/E-glass outer skin, Corecell M foam core, and carbon-fiber inner skin, infused and post-cured with epoxy resin using the SCRIMP process.
• Deep-V hull form with 19-degree transom deadrise.
• Flag Blue Awlgrip hull finish with a double Oyster White Awlgrip boot stripe.
• Micron Extra red bottom finish.
• Polar White gelcoat deck and pilothouse.
• Teak pilothouse and cockpit sole with traditional black seams, sealed with SEMCO finish.
• Extended heavy-duty fiberglass swim platform with teak inserts, black seams, stainless-steel supports, and a telescoping folding swim ladder.
• Varnished teak cockpit coamings, exterior handrails, helm dash, wheel pod, and pilothouse interior side liners.

DECK FEATURES

• Hinckley-designed stainless-steel bow rail.

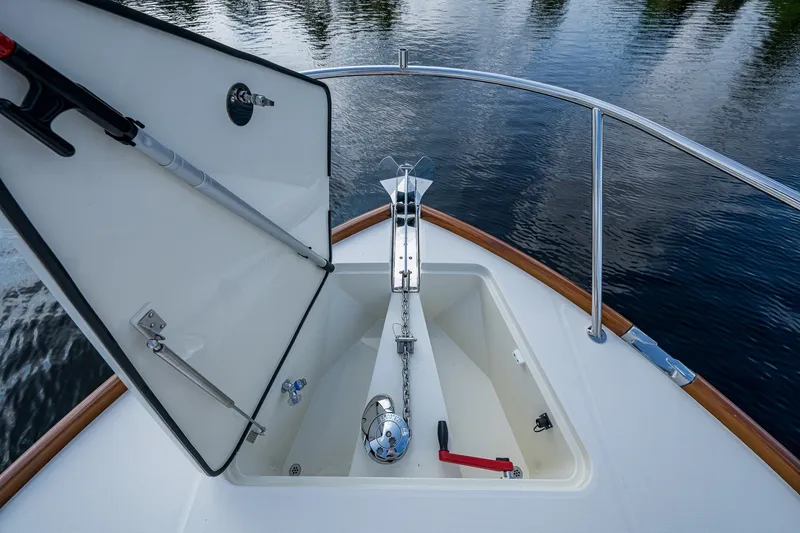

• Large forward anchor locker with dedicated fender storage and fresh-water washdown.
• Electric windlass operable from the helm or handheld remote.
• Polished stainless-steel anchor with chain and rode.
• Stainless-steel Hinckley bow chocks, bow and stern cleats, and pop-up midship cleats.
• Varnished teak exterior handrails in place of the standard stainless-steel handrails.
• Cream Stamoid window and windshield covers.
• 2026 upgraded mooring cover and the original cream Stamoid cockpit mooring cover.

PILOTHOUSE / SALON

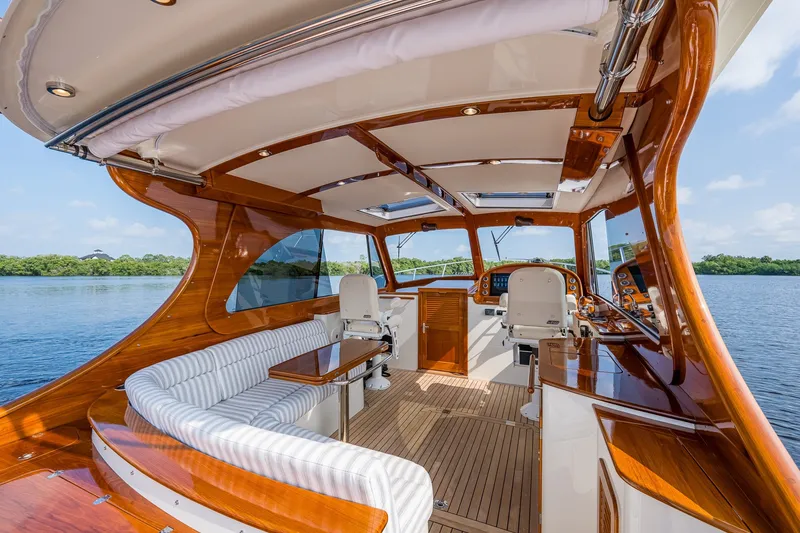

• Open pilothouse arrangement with excellent visibility and seamless flow to the aft cockpit.
• Teak pilothouse sole with traditional black seams.
• Varnished teak dash forward of the port and starboard helm seats and varnished lower helm wheel pod.
• Varnished teak interior side liners extending from the overhead to the side shelf.

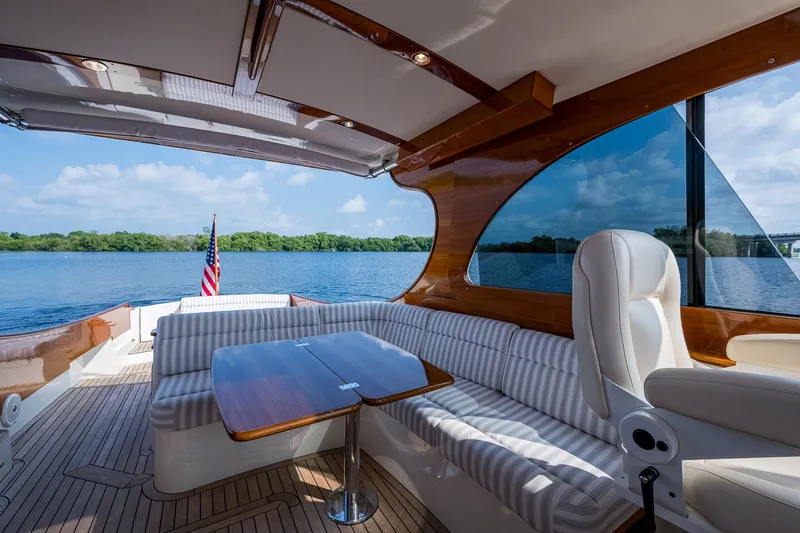

• Port L-shaped settee upholstered in Perennials Piccadilly Stripe White Sands with a folding teak table and polished stainless-steel pedestal.

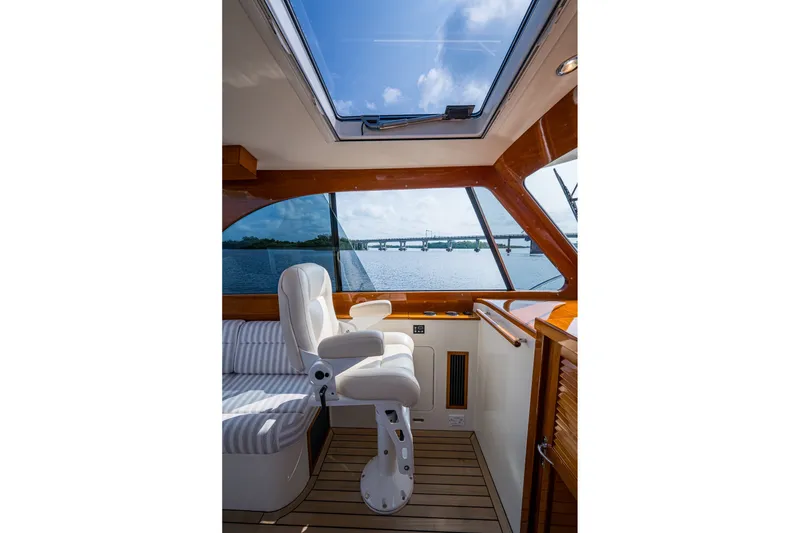

• Powered Stidd helm and companion seats with fore-and-aft and up-and-down adjustment, upholstered in Ultraleather Original Light Oyster.
• Two stainless-steel power hatches with power-dogging feature, screens, and sun covers.
• Port and starboard power sliding windows with cream Stamoid covers.
• Two 12,000 BTU reverse-cycle air-conditioning units with independent controls.
• Cream Stamoid/Eisenglass drop curtains for pilothouse enclosure.

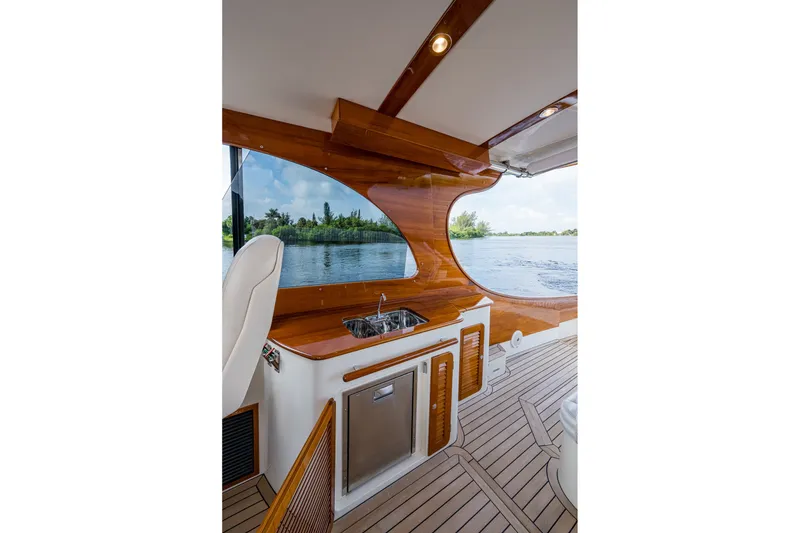

• Starboard amenity cabinet with countertop, stainless-steel sink, and storage.

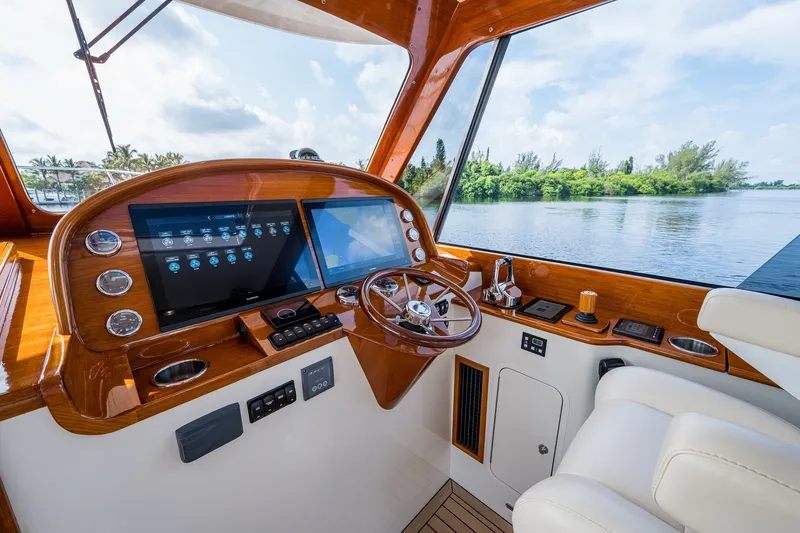

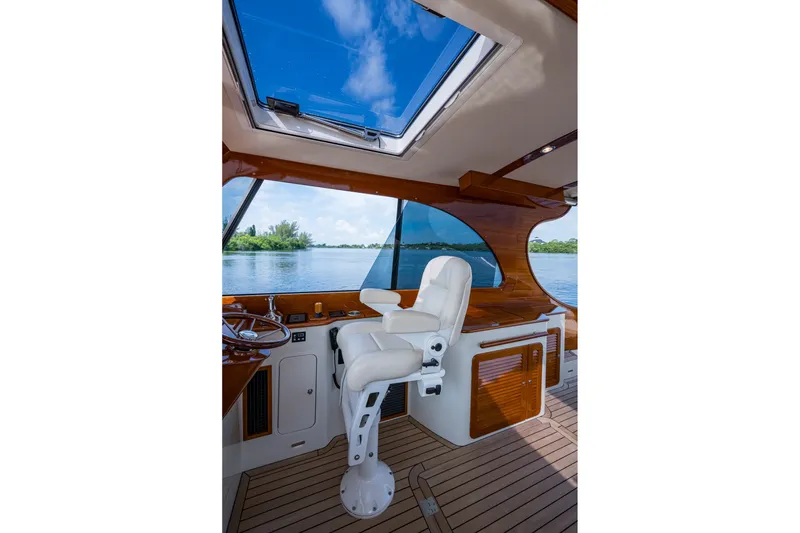

HELM STATION

• Post-build Hinckley JetStick 4 control system positioned adjacent to the starboard helm seat.
• Smart Mode Selection automatically transitions between helm steering and JetStick modes.
• Heading Hold maintains a linear course while steering sensitivity and tension adjust with vessel speed.
• Dockhold and improved G-Lock functions support confident singlehanded maneuvering and station keeping.
• Varnished teak helm pod with twin multifunction displays and engine instrumentation.
• Stainless-steel steering wheel with varnished teak rim.
• High-speed compass, engine controls, power-hatch and window switches, lighting controls, USB charging, and cup holders within easy reach.
• Seakeeper control display, remote spotlight control, autopilot control, and intermittent self-parking wiper controls located at the helm.

HELM ELECTRONICS & NAVIGATION EQUIPMENT

• Dual Garmin GPSMAP 8617 touchscreen multifunction displays in place of the standard single GPSMAP 8622 display.
• Garmin radar integrated with the multifunction displays.
• Garmin autopilot.
• Dual-frequency 1 kW sonar/depth transducer integrated with the Garmin system.
• Standard Horizon VHF radio with remote microphone.
• Airmar wind instrument networked with the Garmin system.
• Remote-controlled ACR LED spotlight mounted on the pilothouse roof.

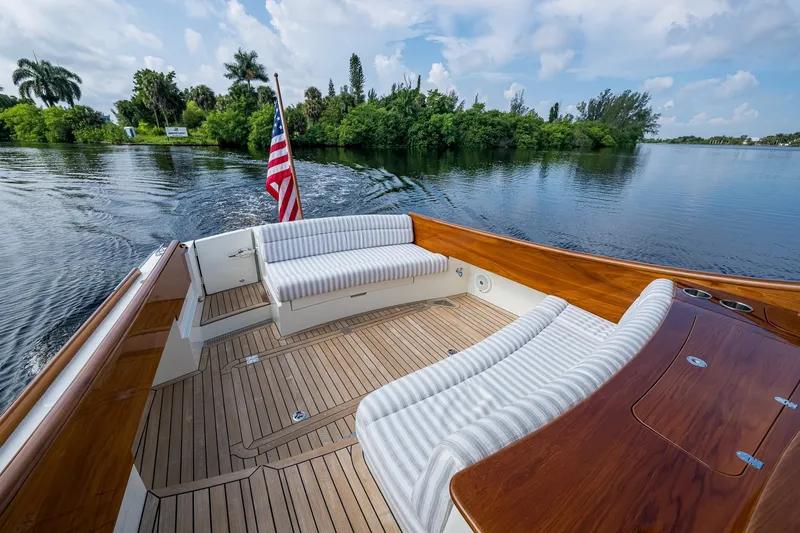

COCKPIT

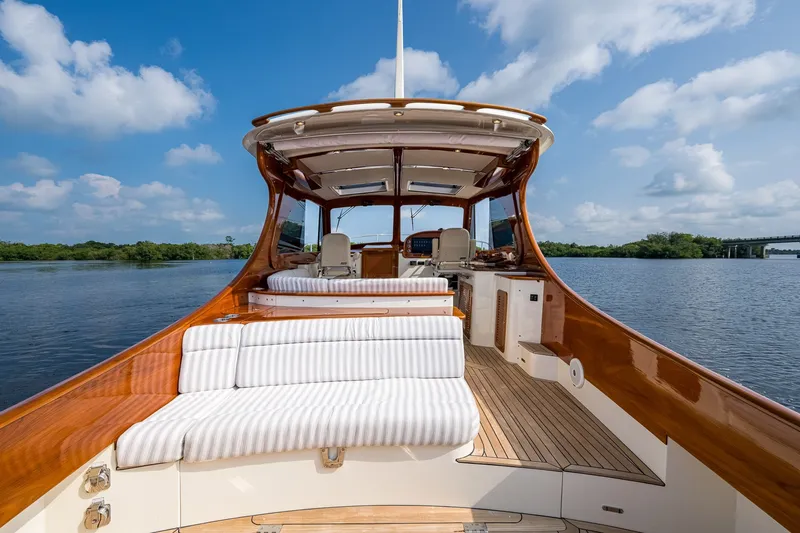

• Deep aft cockpit with opposing seating areas arranged for conversation and easy movement through the boat.
• Teak cockpit sole with traditional black seams and varnished teak coamings.
• Cockpit cushions upholstered in Perennials Piccadilly Stripe White Sands.
• Retractable SureShade finished in Sunbrella Natural for aft-cockpit sun protection.
• Transom boarding door providing direct access to the extended swim platform.
• Fresh-water washdown in the cockpit.
• Large centerline deck hatch for line and fender storage and access to the generator.
• Power-assisted engine-room hatch for convenient machinery access.
• Cream Stamoid cockpit mooring cover and cream Stamoid/Eisenglass pilothouse drop curtains.

INTERIOR BELOW

• Interior finished in satin-varnished cherry with a high-gloss teak-and-tulipwood cabin sole.
• Light-colored sound-absorbing headliner with dimmable low-voltage lighting.
• Three opening overhead stainless-steel hatches with screens and shades provide natural light and ventilation.
• Cherry storage lockers and a cedar-lined hanging locker support extended stays aboard.
• Dedicated 12,000 BTU reverse-cycle air-conditioning system serving the accommodations below.

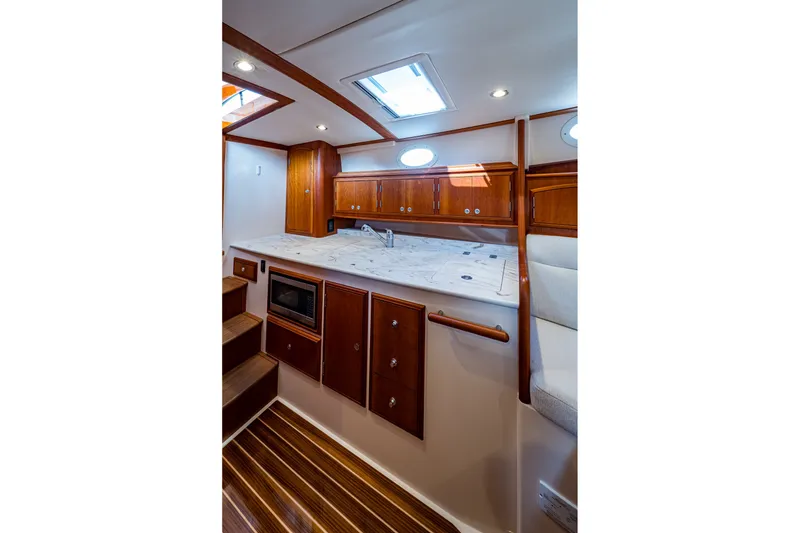

GALLEY

• Port-side galley with Corian Dune Prima countertop.
• Undermounted stainless-steel sink with hot and cold pressure water and a fitted countertop cover.
• Two-burner electric cooktop with fitted Corian cover.
• Top-loading 12-volt refrigerator with thermostatically controlled cold plate.
• Microwave oven and slide-out trash receptacle in the lower cabinetry.
• Dovetailed drawers, satin-varnished cherry cabinet fronts, overhead locker, and deep storage shelf.
• C-Zone digital switching display, battery breakers, and generator remote panel located adjacent to the galley.
• 110-volt GFI outlet and under-cabinet task lighting.

ACCOMMODATIONS

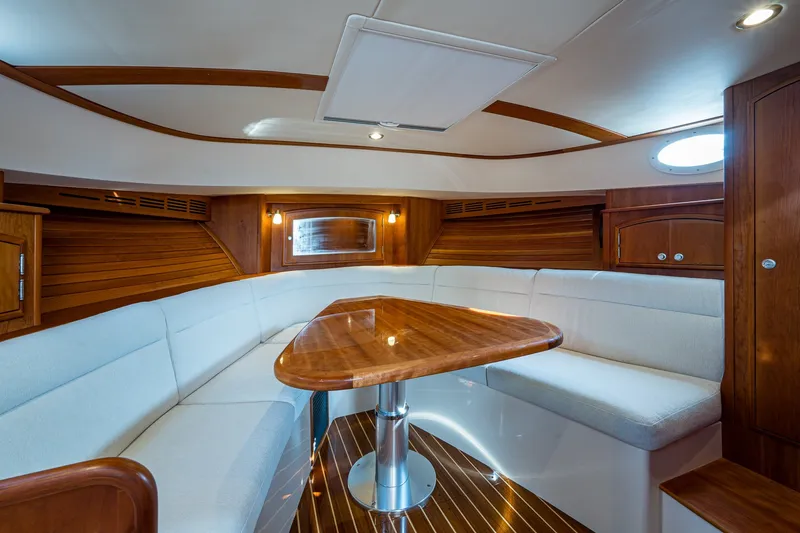

• Forward U-shaped settee converts to a generous double berth using an adjustable pedestal and dedicated filler cushion.
• Settee and berth cushions upholstered in Perennials Touchy Feely Sea Salt.
• Satin-varnished cherry battens and storage lockers surround the forward accommodation area.
• Three opening overhead hatches and cabin-side ports provide natural light and ventilation.
• Cedar-lined hanging locker located to starboard forward of the head.
• Accommodations for two overnight guests.

HEAD / HEADS

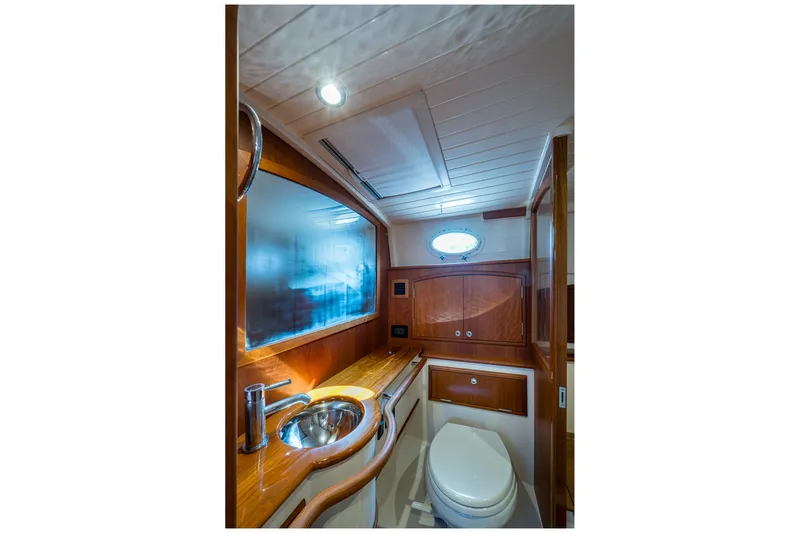

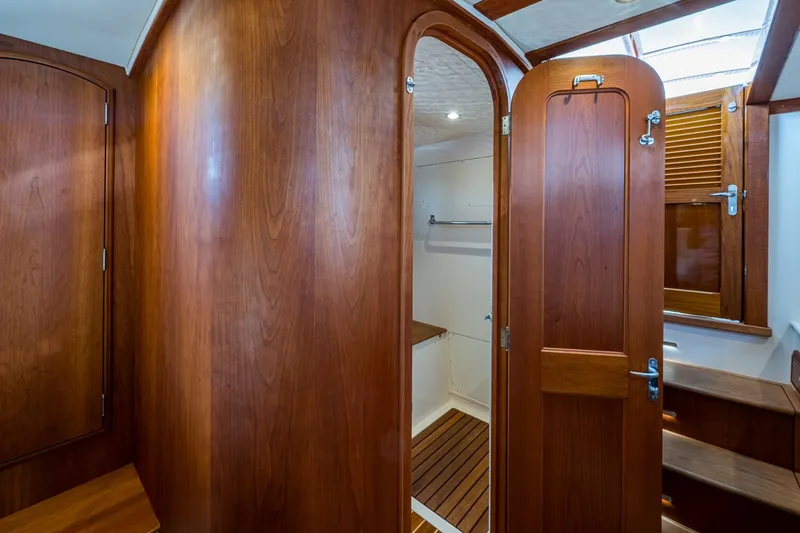

• Private head compartment to starboard with a lockable satin-varnished cherry door.
• Gloss-varnished cherry countertop with undermounted stainless-steel sink, hot and cold pressure water, mirrored panel, and top-loading trash receptacle.
• VacuFlush marine toilet connected to a 35-gallon holding tank.
• Overboard waste-discharge system for operation where legally permitted.
• Separate shower stall with partition, swing door, molded seat, removable teak grate, storage, and towel rack.
• Opening stainless-steel overhead hatch and screened portlight for light and ventilation.
• 110-volt outlet, ventilation fan, and dedicated storage compartments.

MECHANICAL EQUIPMENT

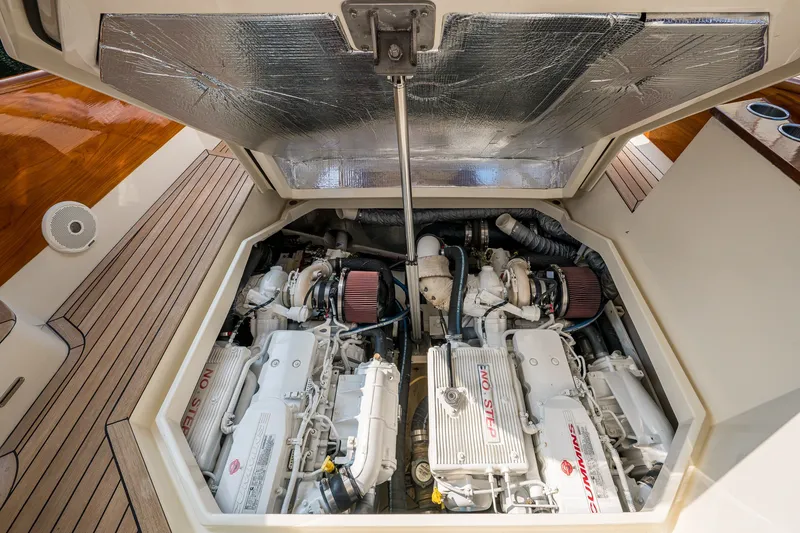

• Twin Cummins QSB 6.7 common-rail diesel engines rated at 480 hp each.
• Twin Hamilton HJ322 high-efficiency waterjets with reverse capability for back-flushing.
• Hinckley JetStick 4 control system, upgraded after the vessel's original build.
• Seakeeper 6 gyro stabilizer.
• 7.5 kW Onan generator with sound shield and remote display/control panel.
• Two 187-gallon polyethylene fuel tanks for a total capacity of approximately 375 gallons.
• Racor fuel filter/water separators with vacuum gauges and water-sensing alarms.
• One 12,000 BTU reverse-cycle air-conditioning unit for the interior and two 12,000 BTU reverse-cycle units for the pilothouse.
• Fresh-water washdowns in the anchor well and cockpit.

ELECTRICAL SYSTEM

• C-Zone digital switching for centralized control of DC systems.
• 12-volt DC and 110/240-volt, 50-amp AC electrical systems.
• Dedicated engine-starting batteries and AGM house battery bank.
• Engine-driven alternators with voltage regulation and battery-combining capability.
• Battery parallel switching for emergency starting.
• Twin 30 amp shore power outlets
• Inverter/charger serving the house battery bank and a dedicated charger for starting batteries.
• 110-volt outlets in the galley and head, plus an optional waterproof 110VAC outlet in the pilothouse.
• Low-resistance bonding system with sacrificial zinc anodes.

ENTERTAINMENT ELECTRONICS

• Fusion marine stereo with AM/FM, USB, Bluetooth, helm remote, and Garmin integration.
• Speakers serving the interior, pilothouse, and cockpit.
• SiriusXM capability integrated with the Fusion audio system.

PLUMBING

• Hot and cold pressurized freshwater system.
• 80-gallon polyethylene freshwater tank with remote level gauge.
• 10-gallon stainless-steel water heater heated by shore power or the engine.
• 35-gallon polyethylene holding tank with deck pump-out fitting and overboard discharge system.
• Automatic shower sump pump.
• Three automatic 1,500 GPH bilge pumps with float switches and high-water alarm.
• Manual emergency bilge pump located in the cockpit locker.
• Marelon seacocks and through-hull fittings below the waterline.

SOUND REDUCTION

• Engine room insulated with Mylar-faced acoustic foam.
• Extensive gasketing around the bridge deck and opening hatches to the engine room and bilges.
• Custom water-cooled exhaust silencers.
• Sound-absorbing overhead materials in the pilothouse and cabin.

SAFETY EQUIPMENT

• Automatic engine-room fire-suppression system with automatic engine shutdown.
• Automatic and manual emergency bilge-pumping systems.
• Portable dry-chemical fire extinguishers.
• USCG-approved visual distress signal kit.
• Kahlenberg air horn controlled from the helm.
• USCG-approved personal flotation devices and throwable flotation device.
• USCG-approved navigation and masthead lights.

ADDITIONAL EQUIPMENT

• Hinckley Certified Pre-Owned status to be completed before the vessel is offered as CPO.
• Premium fabric package in the cockpit, pilothouse, and accommodations below.
• Two 16-inch Perennials In The Loop Confetti throw pillows with red fringe.
• Two 18-inch Ultraleather Promessa Outdoor Marine Midnight throw pillows with red welt trim.
• Cream cockpit mooring cover, cream window and windshield covers, and cream Stamoid/Eisenglass drop curtains.
• Dock lines, fenders, and standard shipboard equipment.
