2016 Hinckley Yachts Picnic Boat 37 MKIII Boat in Stuart, FL 34994 US

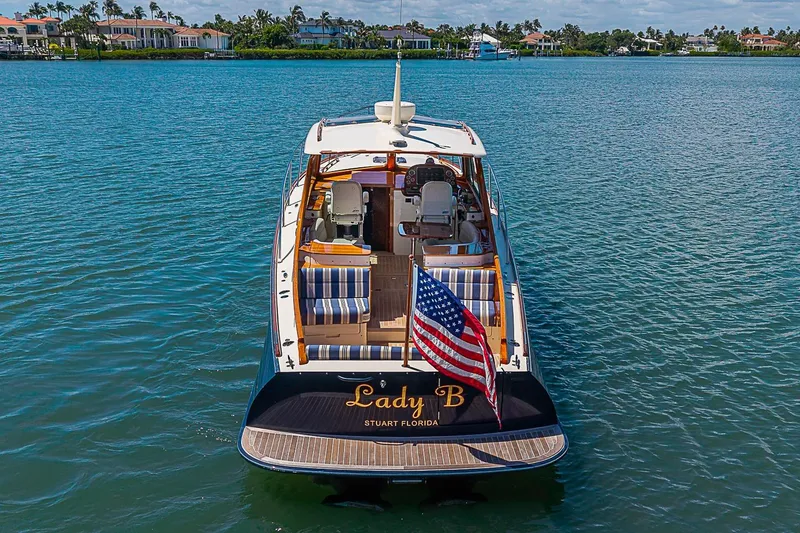

LADY B is an exceptionally well-maintained, lift-kept 2016 Picnic Boat 37 MKIII that is ready for immediate enjoyment. Thoughtfully optioned with desirable upgrades and tasteful custom touches, including stainless-steel Lowe door and drawer hardware typically reserved for larger Hinckley models, she represents a rare opportunity to acquire one of Hinckley's most sought-after designs.

LADY B is equally at home entertaining family and friends for a sunset cruise, exploring shallow-water destinations, or embarking on an extended weekend getaway. Her Yanmar 370HP engine package, JetStick® II controls with Hoverlock and Heading Hold, and beautifully appointed teak package make her a standout example of the Picnic Boat 37 MKIII. Meticulously cared for and highly equipped, LADY B offers her next owner the opportunity to step aboard and immediately begin creating lasting memories on the water.

INTRODUCTION

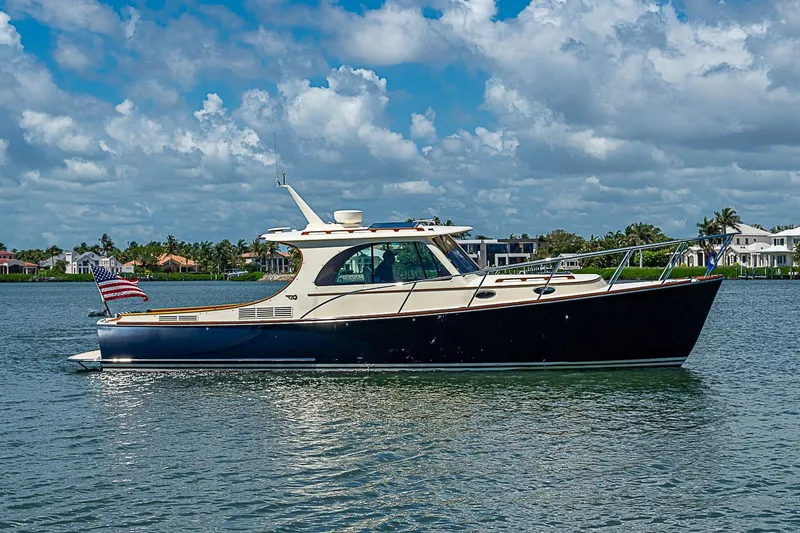

LADY B is a 2016 Hinckley Picnic Boat 37 MKIII and an outstanding example of Hinckley's iconic Picnic Boat series. She is equipped with several highly sought-after factory options, including the Island Queen berth arrangement, Yanmar 370HP common rail engines, cockpit refrigerator and cooler, teak decks, JetStick® II with Hoverlock and Heading Hold for effortless docking and maneuvering.

As one of the few Picnic Boat 37 MKIII models currently available with the Island Queen berth, LADY B offers a unique combination of comfort, performance, and value. Designed to provide exceptional seaworthiness and ease of ownership, her refined hull form delivers a soft, confident ride while maintaining the efficiency and handling that Hinckley owners appreciate. Her inviting pilothouse with facing settees, transom door, spacious cockpit, and easy engine access make her equally suited for entertaining, day cruising, or extended coastal adventures. Blending Hinckley craftsmanship with modern technology and proven performance, LADY B embodies everything that has made the Picnic Boat one of the most recognizable and respected yachts on the water.

DECK & HULL

Construction of the hull is Hinckley DualGuard® Composite Construction Kevlar E-glass hybrid outer skin. Aircraft grade end-grain balsa below the waterline. Carbon-fiber inner skin. SCRIMP® laminated with vinylester resin. Deck and cockpit are E-glass with balsa and closed-cell foam core, SCRIMPED with vinylester resin.

• Flag Blue Awlgrip hull
• Cream gelcoat cabin house and painted to match non-skid decks
• Cream double bootstripe to match decks
• Red bottom paint
• Marelon ball-valve seacocks with thru-hulls below water line and Marelon thru-hulls above the waterline
• Stainless steel half round on fiberglass molded rub rail

Swim Platform: Heavy-duty fiberglass swim platform has custom optioned teak deck with white caulk that improves the functionality and upgrades the overall look, stainless steel bracket and half round.

• Stainless steel telescoping 3-step folding swim ladder that stores under platform
• Custom optioned fore/aft teak deck package with white caulk that clads the top of the swim platform

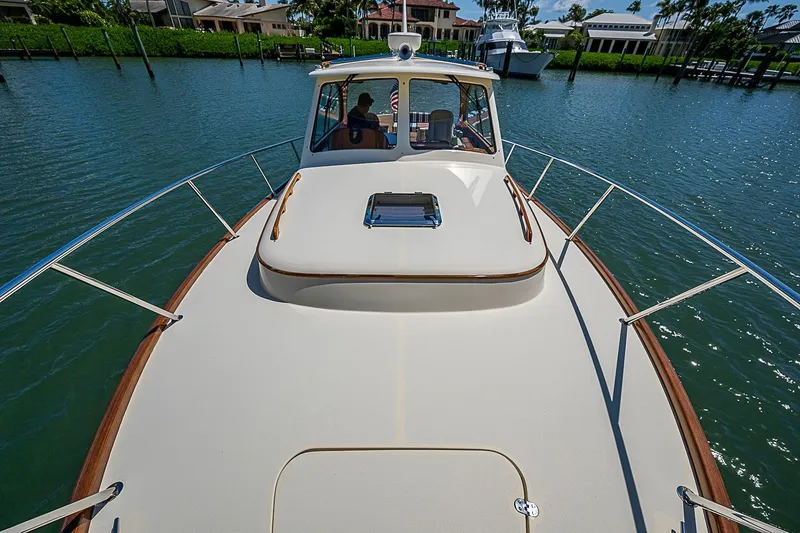

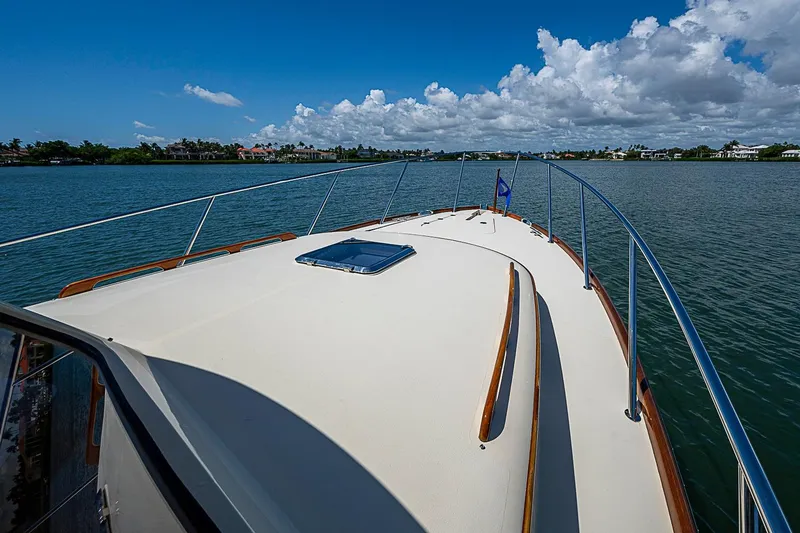

Deck Features

• Flush foredeck anchor locker with hinged hatch and fold-out anchor roller. Hinckley designed polished SS folding anchor roller with 12-volt windlass. Windlass controls at helm and handheld wireless remote. Polished SS Delta anchor with 25' SS chain and 150' rode.
• Rounded, tapered, varnished teak toe rail with Hinckley profile
• Varnished teak eyebrow molding around cabin top
• Varnished teak handrails on house top, cabin and aft end of pilothouse
• Four (4) elliptical ports on house sides with opening port in the head
• Hinckley pilothouse mast with Radome painted to match deck
• Large powered-opening side windows in Pilothouse
• (2) Stainless Steel electric opening hatches in the Pilothouse with Ocean Air Sky Screens
• Custom Hinckley 316L stainless steel bow chocks
• Bow, stern and 316L stainless steel mooring cleats - mid-rail easily reached from cockpit - pop-up mid ship cleats
• Fender padeyes with toe rail chafe strips
• Varnished full teak package including dash, pilothouse liners and cockpit coamings
• Teak decks in pilothouse and cockpit with black caulk
• Custom padded exterior handrail covers, five total

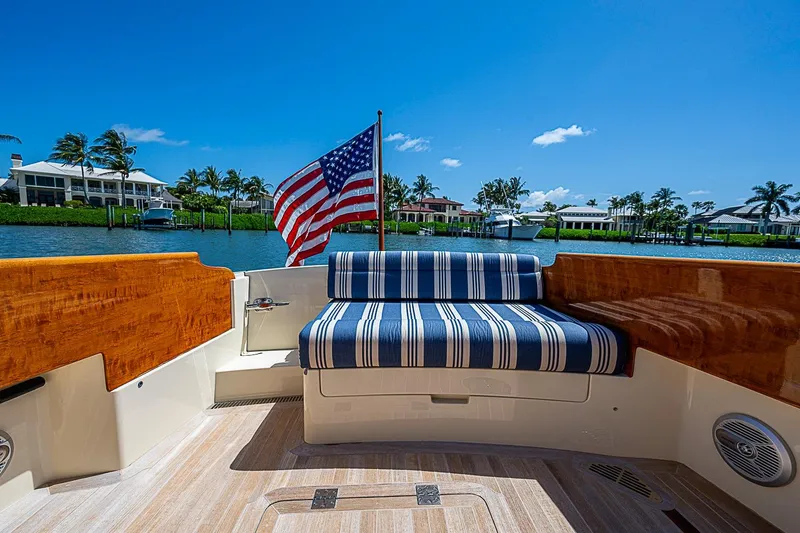

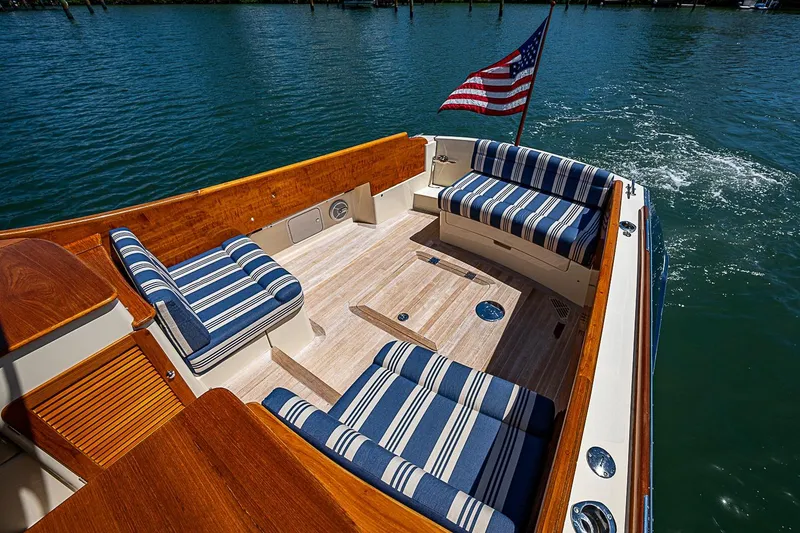

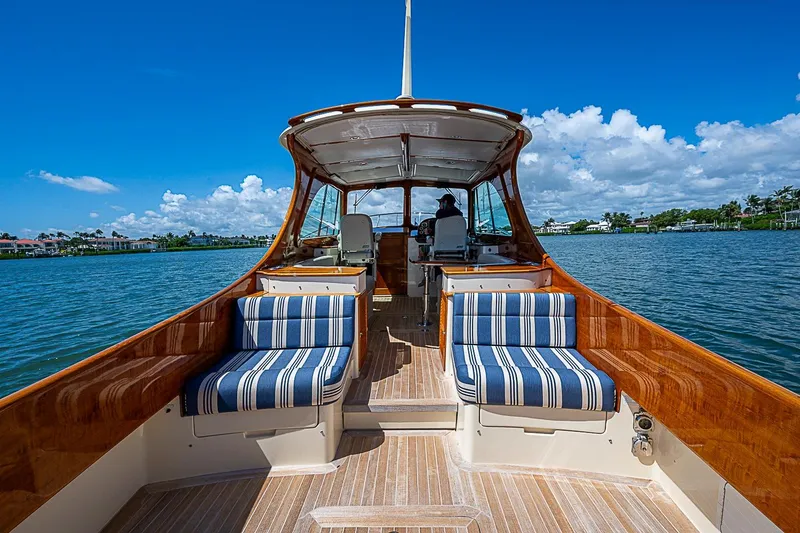

COCKPIT

The Cockpit features optional teak decks with white caulk and gloss varnished teak coamings. Ample cushioned seating at the transom, with removable cushions at transom door, aft facing seats are located at the forward end of the cockpit with storage below.

More cockpit features:

• Teak interior and gloss varnished teak cockpit coaming
• Teak decks in cockpit area with white caulk
• Starboard transom door from swim platform
• Optional receiver installed in port cockpit area for folding table with high/low base
• Swim platform clad in custom optioned fore/aft teak deck package with white caulk
• Optional 8" deep insulated and drained cooler in port amenity with hinged lid

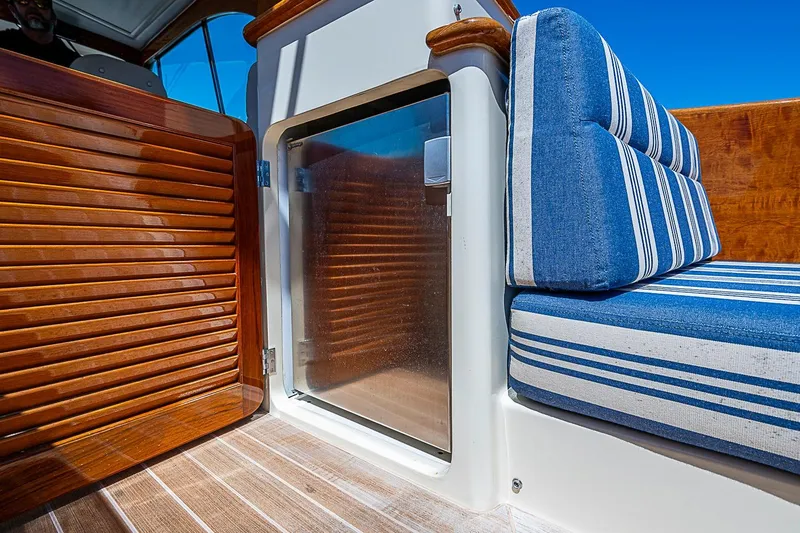

• Optional refrigerator installed in starboard amenity
• Cockpit cushions in Sunbrella Viento Nautical
• Teak boarding step for port or starboard side deck
• Courtesy lights under side decks port and starboard
• Cockpit/pilothouse lockers with varnished louvered teak doors
• Cockpit shower with mixing valve at stern seat
• Custom optioned line and fender storage tray system in lazarette
• Stamoid cockpit mooring cover
• Two speakers in cockpit with dedicated volume control
• Four stainless steel combination cup/fishing rod holders mounted on the port and starboard side decks

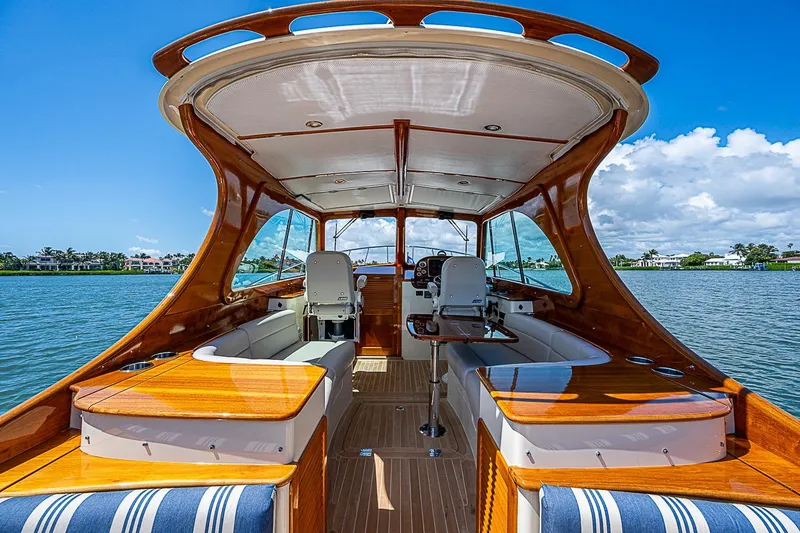

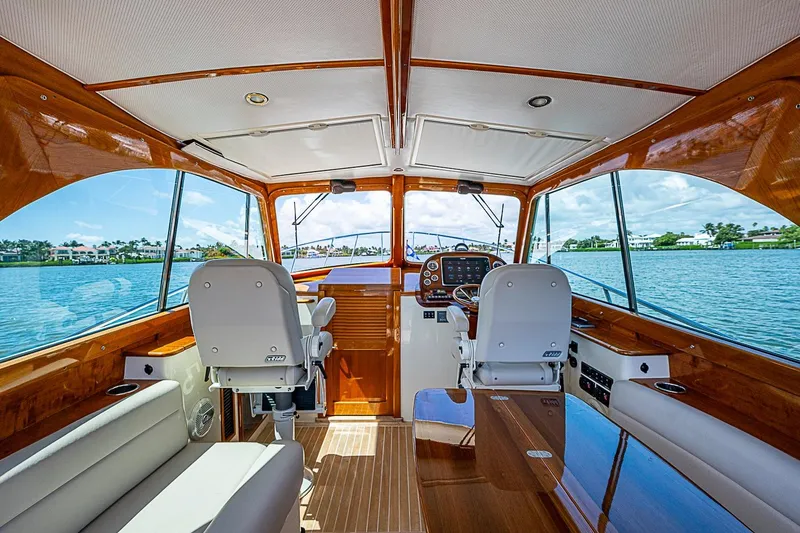

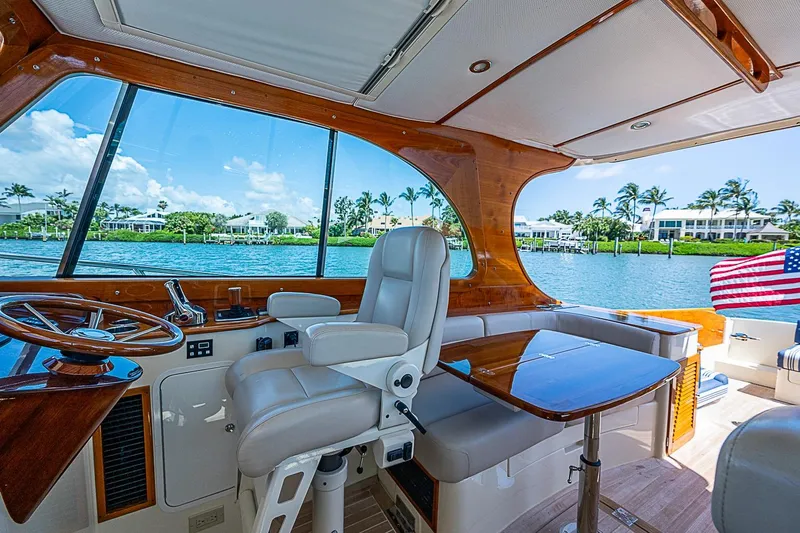

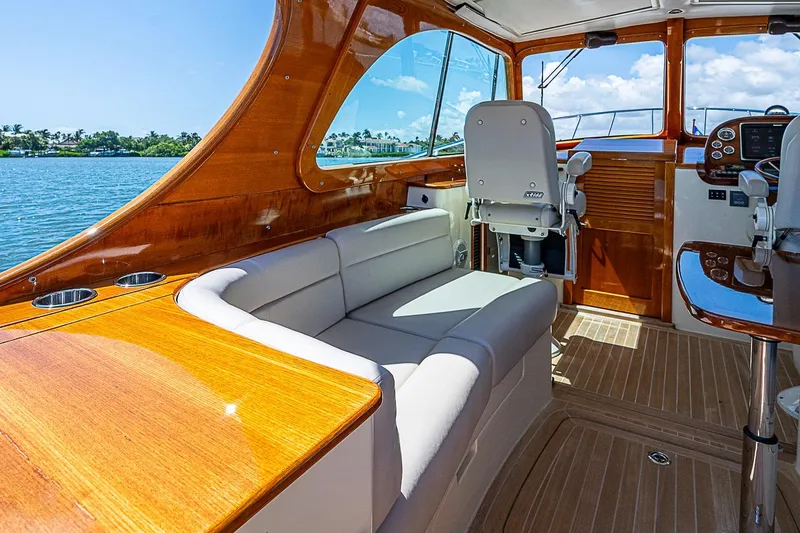

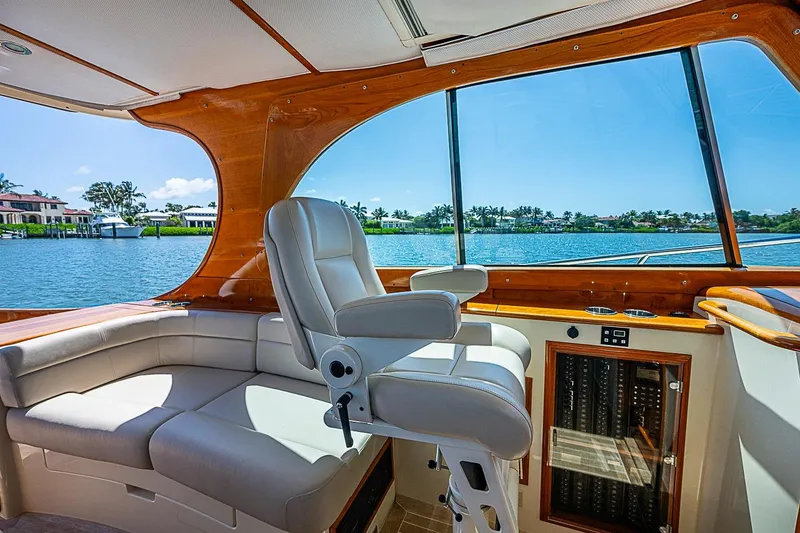

PILOTHOUSE

The Pilothouse is fully air condition with Sunbrella Cassidy Vineto Nautical upholstery at port and starboard. The optional teak decks with white caulk, full length overhead teak handrail and optional high/low table.

• Varnished teak pilothouse liners and dash
• Optional teak decks with white caulk throughout
• (4) Pilothouse windows with Green Tint include: (2) Powered electric sliding side windows and (2) Fixed, forward with heavy duty, self-parking, intermittent windshield wipers and fresh water washers
• Insulated white overhead has two optional (2) Electric opening oversized hatches with Ocean Air Sky screens/shades
• Optional Stidd seats with Luxor Leather Ostrich Doe for helmsman and navigator seats with integral folding footrests. Helm chair is power up/down and fore/aft adjustment
• Optional refrigerator installed in starboard amenity between cockpit and pilothouse
• Optional 8" deep insulated and drained cooler in port amenity between cockpit and pilothouse with folding lid and storage below.
• Pilothouse cushions in Sunbrella Viento Nautical
• Two 12,000 BTU air conditioning/reverse cycle heat units in pilothouse with separate controls for port and starboard
• Additional illumination is by four (4) overhead low-voltage halogen lights
• Storage lockers under pilothouse settees
• (10) Cup holders, three at each settee and two at each helm location
• Glove box/storage at port and starboard helm shelves
• Varnished teak locking companionway door
• Varnished teak handrail on centerline
• Stamoid 3-piece drop curtains with Eisenglass windows
• Custom teak dining folding dining table with high/low base

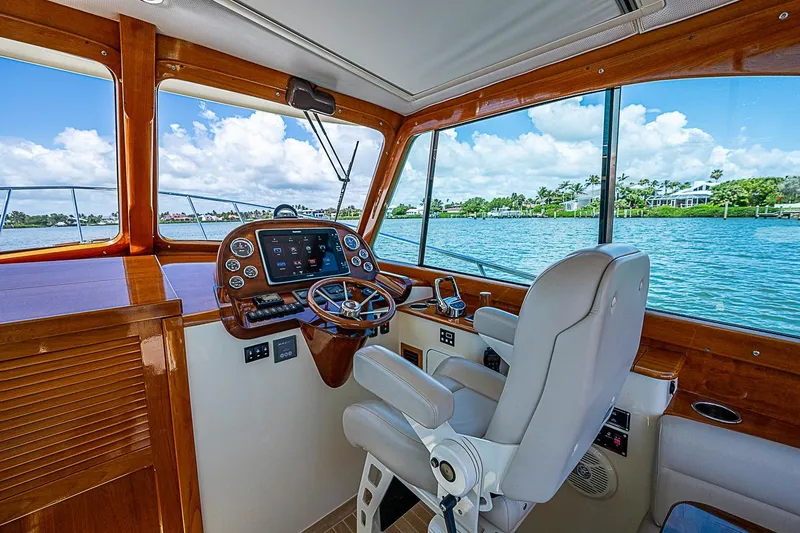

HELM STATION (STARBOARD)

• Varnished teak instrument pod
• Stainless steel 14" steering wheel with varnished wood rim
• Hinckley "JetStick II®" with H-Lock and Heading hold features
• Engine gauges, tachometer with hour meter, oil pressure, water temperature, nozzle indicator
• 12-volt "cigarette style" outlet near helm
• Glove box/storage with lid at aft end of starboard shelf
• (2) Cup holders

HELM ELECTRONICS AND NAVIGATION EQUIPMENT

• Raymarine e165 16" color Chartplotter/Radar with 4kw 24" color HD scanner
• Raymarine P70R Autopilot interfaced to GPS
• i70 Multifunction instrument display with depth interfaced with Raymarine equipment
• Standard Horizon Explorer Gx1600BVHF radio with RAM mic
• Racor fuel filter/water audible alarm with indicators for generator main engines
• High water bilge alarm with indicators for each bilge zone (3)

ENTERTAINMENT ELECTRONICS

• FUSION MS-AV750 stereo receiver with AM/FM/CD/DVD player with Bluetooth and aux input, satellite radio ready
• FUSION wired remote at helm with independent volume controls for pilothouse and cockpit
• All speakers for system are Alpine
• (3) Pairs of speakers - (1) pair in cabin forward, (1) pair in pilothouse forward, and (1) pair in cockpit. All speakers have remote volume control
• Independent climate controls at port and starboard helm

ACCOMMODATIONS & LAYOUT

The Queen Island Berth interior is finished in satin-varnished cherry with optional shear lockers located to port and starboard. The cabin sole is gloss varnished teak and tulipwood. This spacious cabin with 6'2" standing headroom is fully climate controlled via a single 10,000 BTU reverse-cycle air conditioning unit with outlets in the main cabin and the head. Entry is from the pilothouse companionway to the galley to port, private head to starboard and the island berth accommodations forward. Cabin has upgraded Lowe hardware package.

Entry is from the pilothouse companionway with the galley to port, private head to starboard, and the queen island berth forward. Cabin is air conditioned and heated with thermostat mounted at port hanging locker.

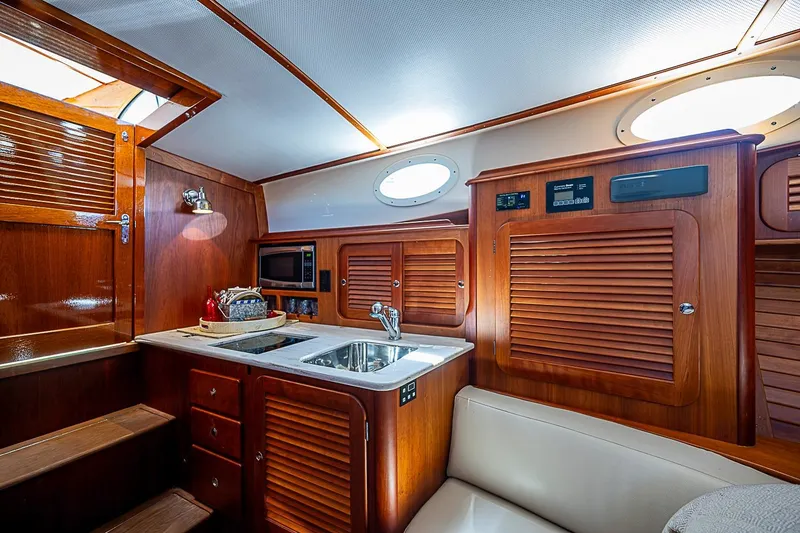

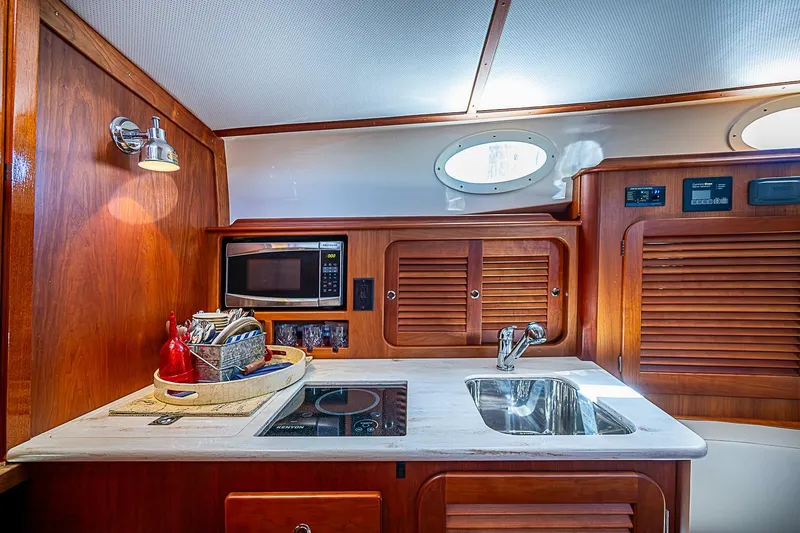

GALLEY (PORT)

The stove and sink are set in the countertop and have matching Corian cover that adds to the already ample counter space in the galley. Microwave built in outboard. The refrigeration is located aft and accessed by a counter lift-up top.

• Custom Corian "Witch Hazel" countertop in galley
• Stainless steel sink with Grohe fixtures, spray nozzle and hot and cold pressure water
• Adler Barbour refrigeration - 12-volt cold plate refrigerator in a self-draining insulated box
• 600-watt 110-volt microwave oven
• Mug and glass storage below microwave
• 110-volt outlet
• (3) Cherry pullout drawers
• Red step-light in galley
• Under counter pull-out garbage receptacle
• Additional storage provided outboard and under the galley sink
• Upgraded Lowe Hardware package with push button catches, full extension and soft-close drawer slides

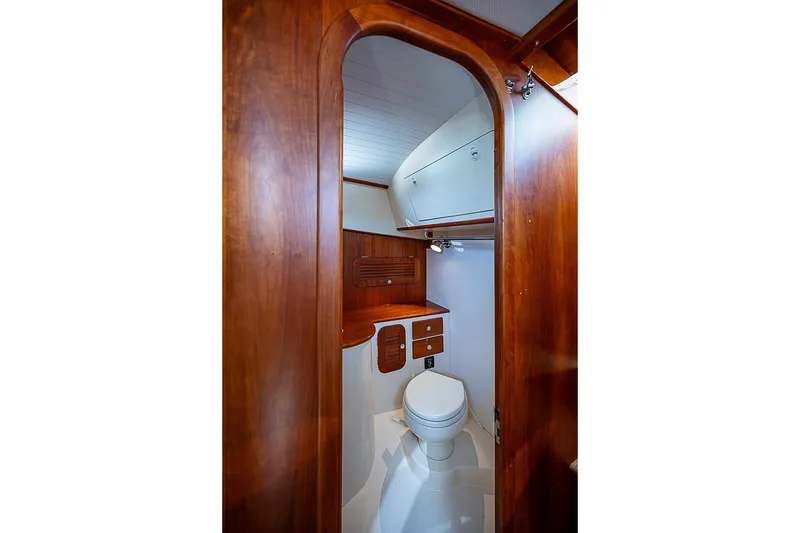

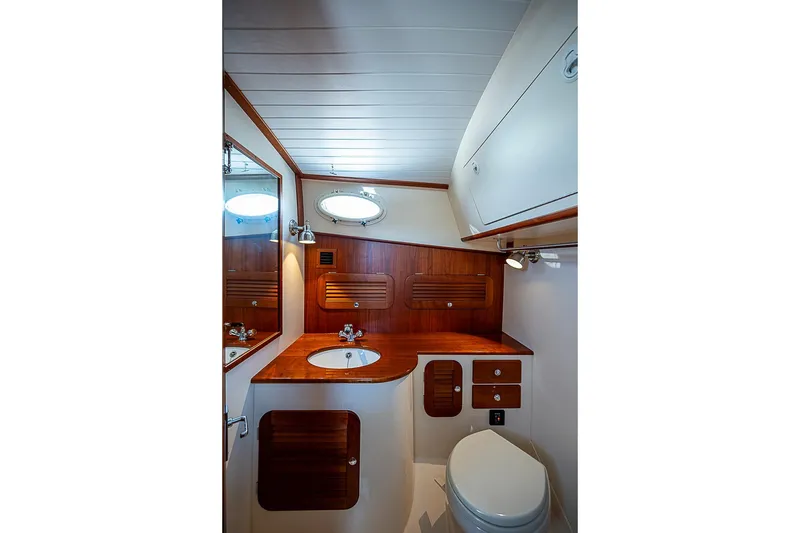

HEAD (Next aft starboard)

• Solid cherry door panel door
• Lowe door hardware
• Custom gloss varnished cherry countertop and under-mounted porcelain sink
• Grohe faucet/handheld shower provides hot & cold pressure water - bracket for shower bulkhead mounted
• Sealand Vacu-Flush electric marine head is plumbed to a 27-gallon holding tank and overboard discharge
• Mirror on the forward bulkhead with cherry frame
• Storage in cherry faced lockers above and outboard the vanity, a drawer with a cherry face beside the marine head, and a locker under the vanity
• 110-volt outlet
• Air conditioning/heat outlet in head
• Opening port with screen, as well as forced ventilation
• Stainless steel towel bar
• Two Frigast LED lights

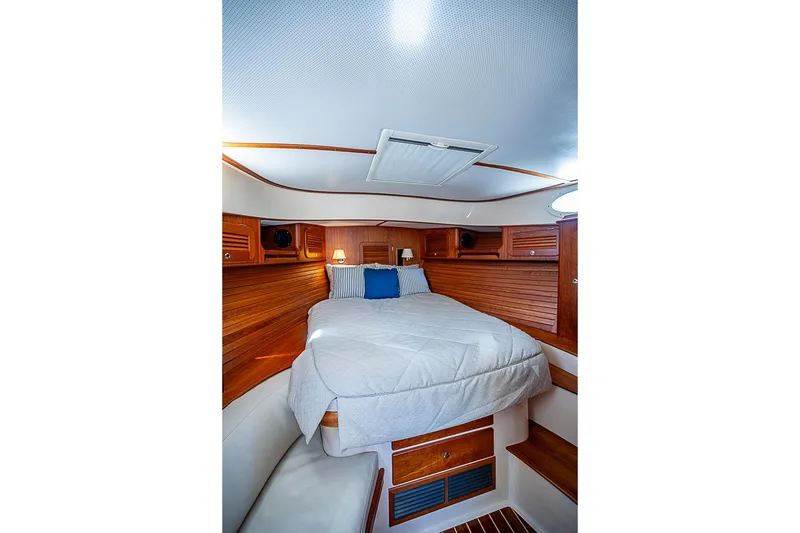

ISLAND QUEEN BERTH (Forward)

• Optional Island Queen berth with settee to port for easy access to the bunk
• Storage lockers under Island Queen berth have easy-access cherry front drawers
• Cedar-lined hanging locker is just aft of the berths to starboard
• Optional shear lockers located to port and starboard for additional storage
• Overhead stainless-steel opening hatch with Ocean Air Sky screen/shade
• Air conditioning/heat outlet in cabin with zone control located at galley aft face
• Mattress cover upholstered in Sunbrella - Canvas Navy
• Complimentary throw pillow
• Cabin seat upholstered in Sunbrella - Canvas Navy
• Optional Maia chrome swing arm lamps with LED bulbs and ivory shades

ELECTRICAL SYSTEM

Low resistance, copper wire and sacrificial zinc anode bonding system.

12-volt system:

• (2) 12-volt house batteries for a total of 420-amps
• Start - Two 12-volt AGM Group 31 batteries with 950 CCA capability
• House - Two 12-volt AGM Group 4D batteries - 210-amps each
• Heavy-duty battery parallel switch allows emergency starting
• (2) Two 180-amp 12 Volt D.C. alternators, one for house batteries and one for each starting battery
• 12-volt distribution panel includes thermo-magnetic breakers, volt and amp meter

110-volt AC electrical system:

• (2) 110-volt shore power inlet and relay
• (2) 30-amp shore power cord. (1) dedicated to house and charging loads and (1) dedicated to climate control systems
• Victron Multiplus inverter/charger with 100-amp 12-volt multi-stage battery charging capability
• 3000-watt pure sign wave inverter with control mounted in cabin
• Optional 110-volt outlet located at port helm

Optional Cummins Onan 9 KW generator with sound shield.

MECHANICAL EQUIPMENT & ENGINE DETAILS

• Twin Yanmar 8LV 370-hp common rail diesel engines
• Hamilton 274 Jet Drives
• Twin ZF 220 transmissions
• 7" hydraulic variable thrust bow thruster
• Hinckley custom "JetStick® II" control system is integrated with the bow thruster
• Dual cylinder trim tabs with indicator controls at helm
• Fuel filter/water separator with audible alarm panel at helm
• Yanmar multi-function displays. Separate analog tachometer, oil pressure, fuel tank gauge, and engine coolant temperature for each engine
• Fuel, oil pressure, and water temperature gauges
• Alarms for high-low oil pressure, and high engine water temperature and hydraulic pressure
• Manual hydraulic steering pump
• (3) Electric 1500-GPH 12-volt bilge pumps with float switches and high-water alarm
• Whale emergency bilge pump - mounted in cockpit locker
• In-line 12-volt automatic shower sump pump
• 27-gallon holding tank with overboard discharge
• 6-gallon stainless steel hot water heater - shore power and engine heated
• 40-gallon polyethylene water tank
• (2) 110-gallon polyethylene fuel tanks - total 220-gallons
• Mylar-faced acoustical foam-lined engine box insulation
• Engine box cover has double gaskets and an electric riser
• Engine box forced-air exhaust fan
• Baffled and insulated air intake
• Automatic engine compartment fire suppression system, with automatic engine shutdown
• Optional oil change kit
• Two 12,000 BTU air conditioning/reverse cycle heat units in pilothouse - separate controls for port and starboard
• Single 10,000 BTU reverse-cycle air conditioning unit with outlets in the main cabin and the head.

ADDITONAL EQUIPMENT

Ground Tackle System:

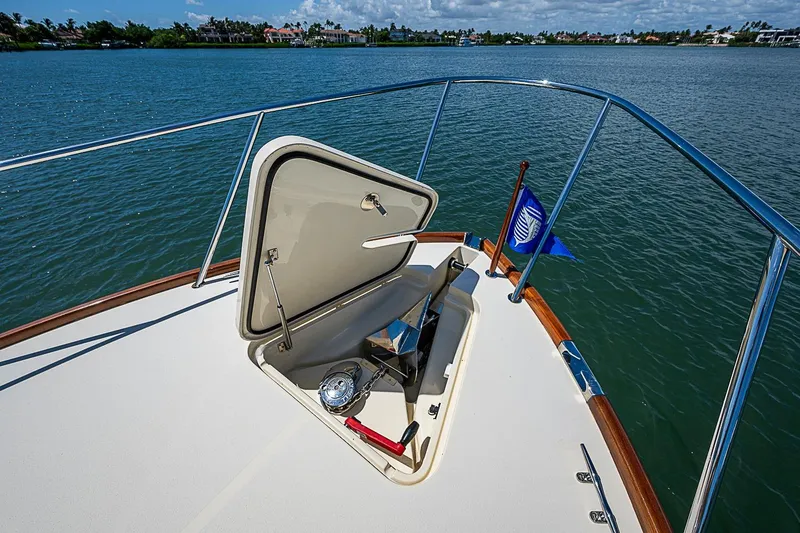

• Muir electric windlass package: Flush foredeck anchor locker houses a Muir electric windlass with polished stainless-steel Delta 22# anchor + 25' stainless steel chain & 150' anchor rode and polished stainless steel folding bow roller. The windlass can be operated from the helm station or a handheld wired remote at anchor locker.

Equipment:

• Compass: Ritchie, mounted at helm seat
• Fire extinguishers
• Flares
• Electric horn
• Life Jackets
• Lines
• Running Lights
• Fenders with fleece covers and Wichard snap hooks for each fender line
• Boat Hook: Mounted under side deck
