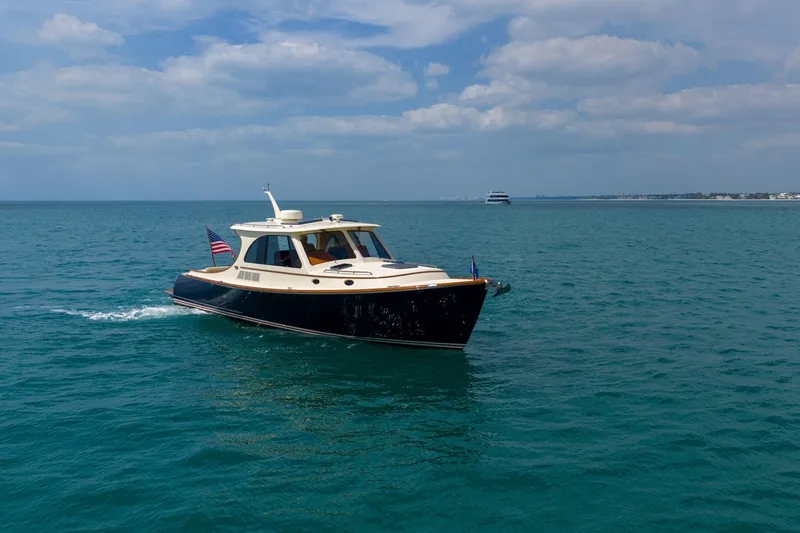

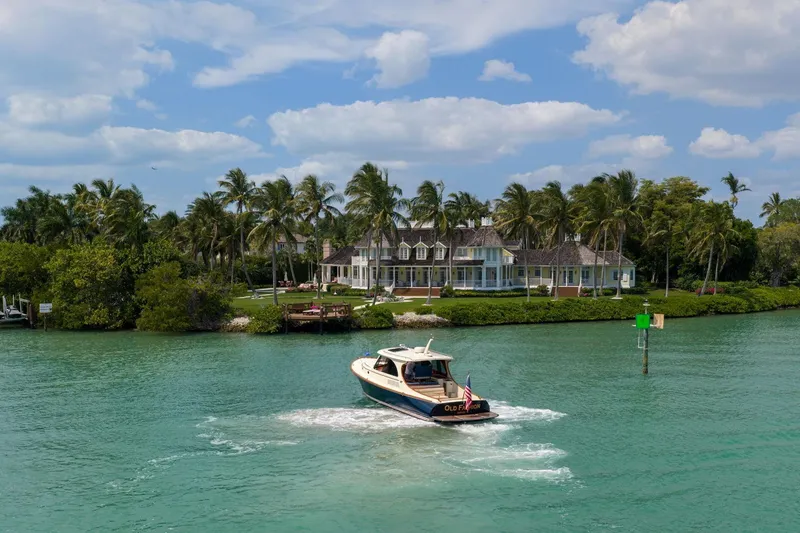

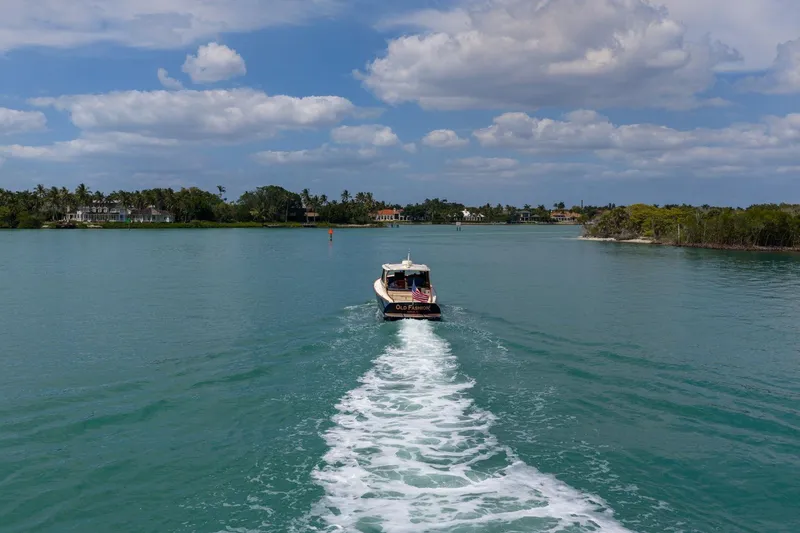

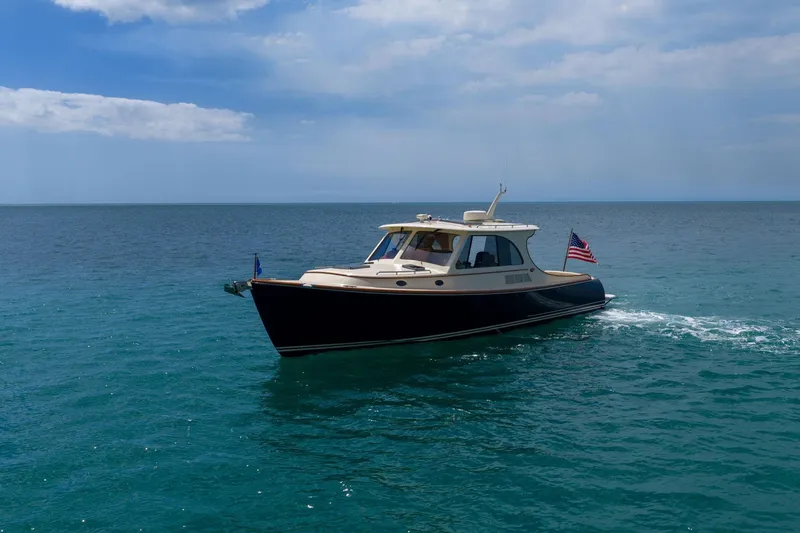

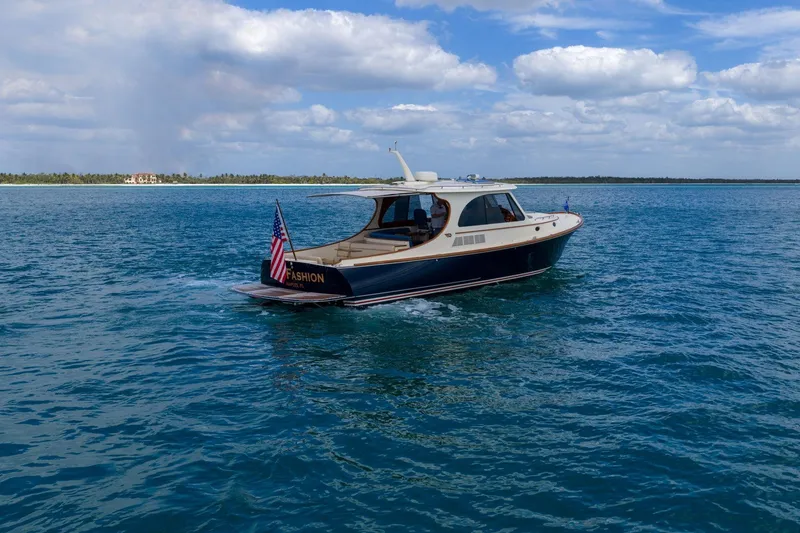

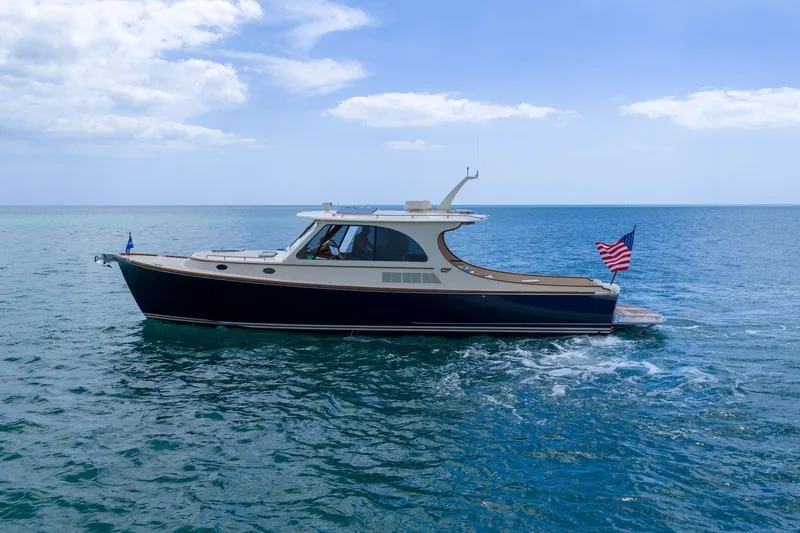

2020 Hinckley Yachts Picnic Boat 40

Step aboard this beautifully appointed 2020 Hinckley Picnic Boat 40, where timeless design meets modern performance. Thoughtfully engineered for comfort and capability, she delivers a refined, effortless ride-whether cruising the coastline or entertaining at anchor.

Featuring upgraded engines and Seakeeper 6 gyro stabilization, OLD FASHION offers impressive performance paired with exceptional stability in all conditions. Her classic teak decking and elegant finishes create a sophisticated, inviting atmosphere throughout.

Meticulously maintained by Hinckley Service and enrolled in the annual Jet Service Program, she conveys with a Hinckley Gold Level Certified Pre-Owned warranty for true peace of mind. Always stored indoors in a Category 5-rated facility, with bi-weekly washes and a recent ceramic coating, she presents in outstanding condition.

A rare opportunity to own a highly upgraded, exceptionally cared-for Picnic Boat 40.

HULL AND DECK FEATURES

• Hinckley TriGuard Epoxy Construction - Aramid fiber/E-glass outer skin with Corecell M Foam for core. Carbon fiber for inner skin infused and post-cured with epoxy resin using Seaman Composite Resin Infusion Molding Process (SCRIMP).
• Flag Blue hull paint with Double Cream top & bottom, Vivid Red middle stripe boot color.
• The bottom is finished with Micron CSC - Black.
• Optional teak decking with optional white seams in pilothouse, aft cockpit and swim platform.
• Optional extended fiberglass swim platform with stainless steel brackets and half round, and a stainless-steel telescoping 3-step folding swim ladder.
• She has a large forward anchor locker with additional fender storage, a remote windlass, and a collapsible boat hook.
• Two Stainless steel half-round Hinckley bow chocks on fiberglass molded rub rail.
• Four 12" Stainless steel (2) bow cleats and (2) stern
• Mid-deck cleats are stainless-steel pop-up models.
• Tapered teak high gloss toe rail with rounded Hinckley profile.
• There are five thoughtfully placed stainless steel handrails located (2) cabin top (2) pilot house top (1) trailing edge of pilothouse.
• Fenders are easily located in the forward anchor locker, aft deck hatch or self-deploying mid-ship via the easily assessable deck compartments located mid ship. Aft fenders are easily fastened by Wichard clips and stainless-steel D rings.
• Access to the aft cockpit is made through the transom door.
• Optional folding mast bracket
• Optional wake board tow hook on transom

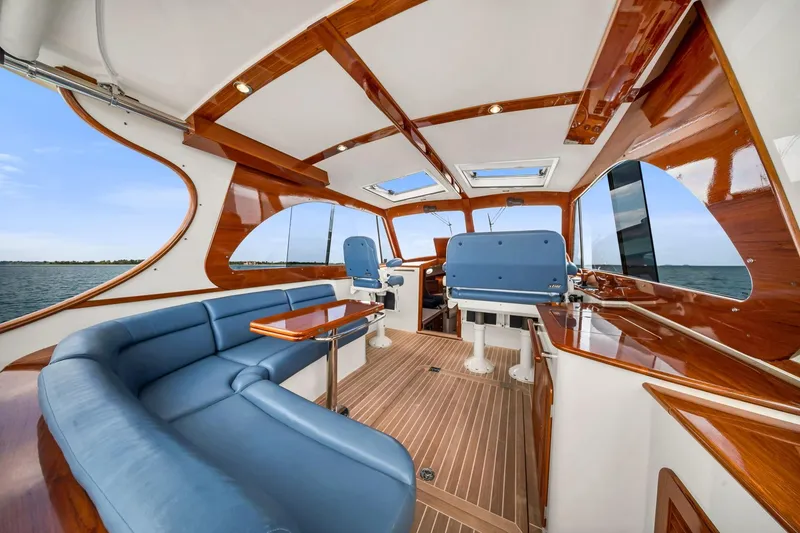

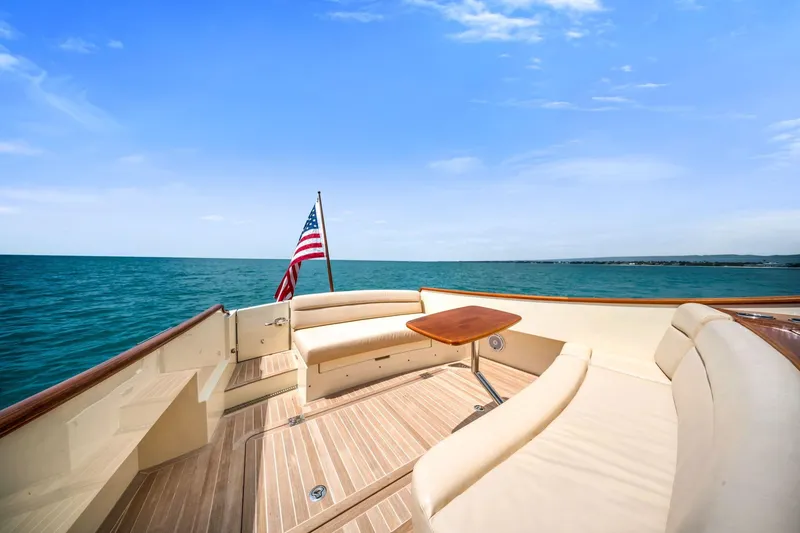

PILOTHOUSE and AFT COCKPIT FEATURES

• Optional teak forward dash, instrumentation and sideliners.
• Overhead are two large self-dogging power stainless steel hatches providing excellent ventilation including ocean air covers and screens.
• Two optional Marine 12,000 BTU reverse cycle air conditioning units are dedicated to the Pilothouse and have independent thermostatic controls located outboard each helm seat port and starboard.
• Forward are two large fixed frameless tempered windscreens with intermittent washer and wiper controls located at helm providing excellent visibility.
• Five dimmable LED lighting is located overhead in the insulated white headliner with a teak grab handle running centerline.
• The power Double Stidd helm chair is finished tastefully in LuxorLeather French Blue.
• A single matching power Stidd seat is located to port for the co-pilot.
• Port and Starboard large power sliding window provide additional ventilation and light

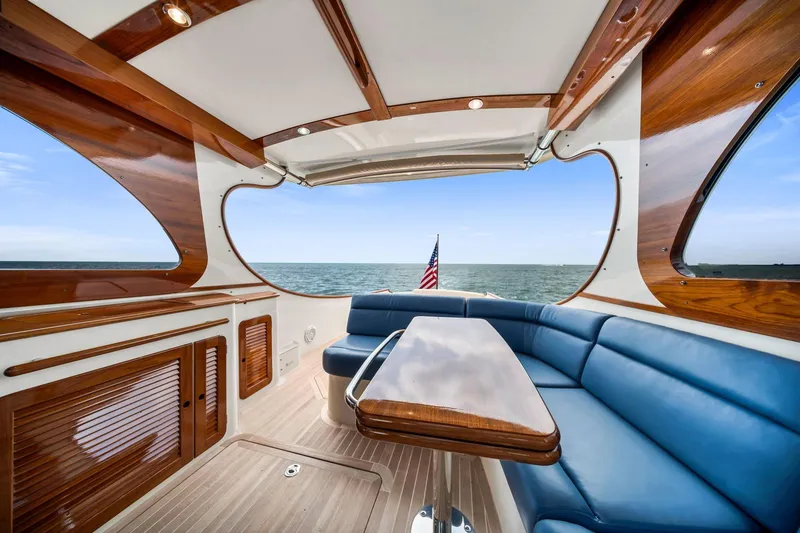

• The generous L-settee to port has rich LuxorLeather French Vanilla. The teak table is thoughtfully designed with an integrated stainless steel grab handle and folds outward to double its size when needed. The pedestal is polished stainless steel.
• The amenity cabinet with satin varnished teak countertop to starboard with stainless sink above and ample storage below with satin varnished teak louvered doors for bottle and glassware storage.
• Additional storage in located in the pilothouse deck hatch below.

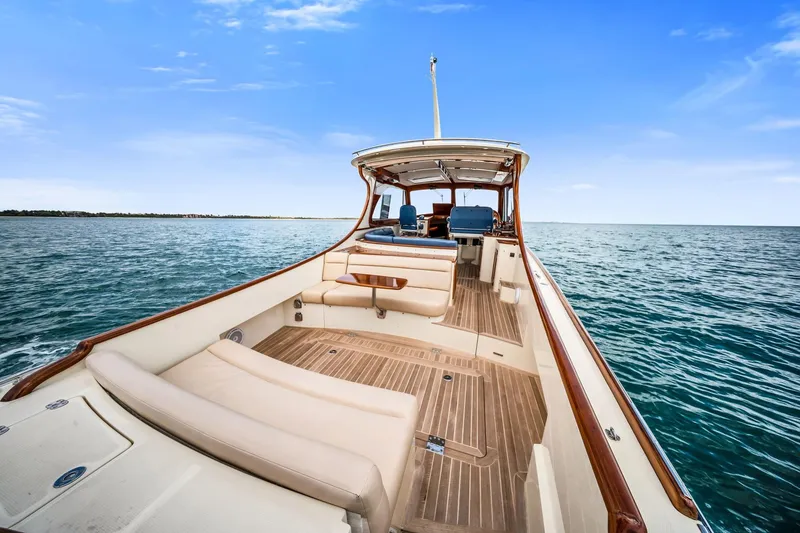

• Cockpit seatback cushions finished in LuxorLeather Silk
• Conveniently located on the shelf behind the rear-facing bench is an Ice chest with an adjacent champagne bucket with lid.
• Slide out trash receptacle is located inside of the louvered teak endcap door.
• Optional retractable electric SureShade provides sun protection to the aft cockpit.
• The Engine box is hinged at the rear facing aft settee an electric lift to provide for easy access to the engines compartment.
• There is a large centerline deck hatch with fender and line storage as well as providing access to the generator.
• There is a freshwater shower with hot and cold mixer located just inside the transom door.
• Two Stainless steel combination rod holder/cup holders are located on the aft side decks.
• A three-piece Ivory Stamiod /Eisenglass encloses the pilothouse when needed.
• Included are protective Stamoid ivory window and aft cockpit covers.

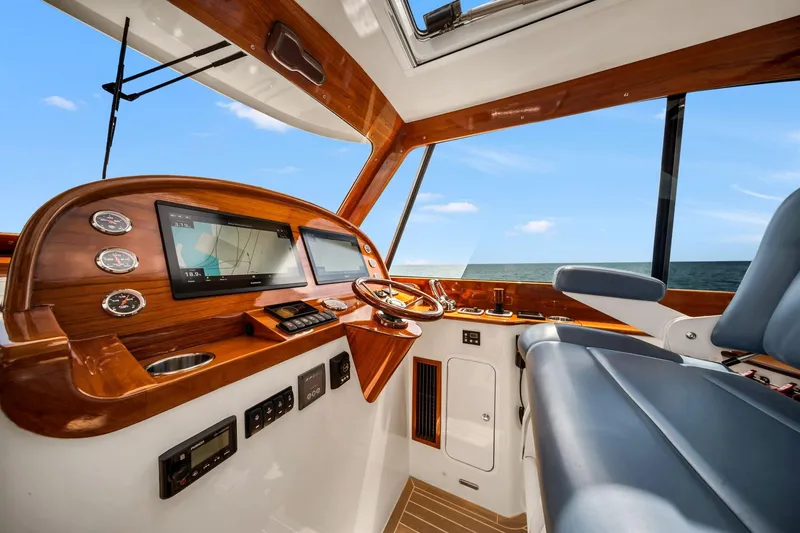

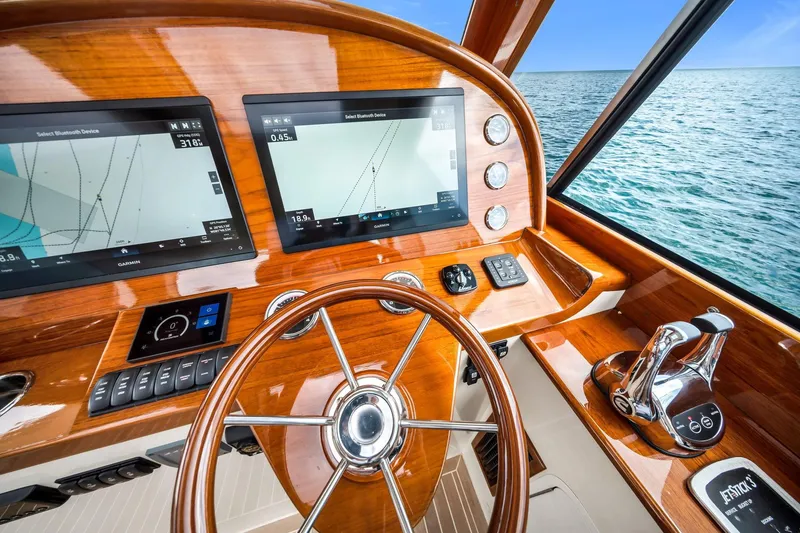

HELM STATION FEATURES

• OLD FASHION is equipped with Hinckley's Jetstick III control system located just forward of the starboard armrest. JetStick III's Electronic steering dynamically adjusts tension and sensitivity to optimize helm feel at all speeds. Military specifications sensors paired with GPS provide superior vessel handling in tight quarters while improving Hoverlock and Heading Hold features.
• The helm pod is located front and center with beautifully rounded and finished in high gloss teak. It contains twin plotters, engine multifunction gauges as well as the analog fuel/ temperature / electrical outputs.
• Danforth Constellation high-speed Compass.
• The dash contains additional switching for power hatches, windows and lighting controls.
• A USB charging station and two cup holders are purposefully placed within reach of helm.
• Display for the gyroscopic Seakeeper 6, ACR remote spotlight and Intermittent/self-parking wiper controls are also close at hand.
• A twin-engine binnacle is located along the starboard shelf.
• Auto-pilot is located just aft of the Jetstick III control system.
• The 14" Alpa leader stainless steel wheel is finished with gloss varnished teak rim.
• Optional Dual Garmin GPSMAP 8617 touchscreen chart plotters in lieu of single Garmin GPSMAP8622 with dual frequency 1KW traditional sonar/high-definition depth sounder
• Garmin 4kw 24" GMR X HD Raydome
• Garmin autopilot
• SiriusXM satellite weather for Garmin chart plotters
• Seakeeper 6 display
• Standard Horizon Explorer ram GX1600B VHF with Ram Mic
• Remote controlled ACR-100 spotlight LED spotlight mounted on roof and painted to match deck

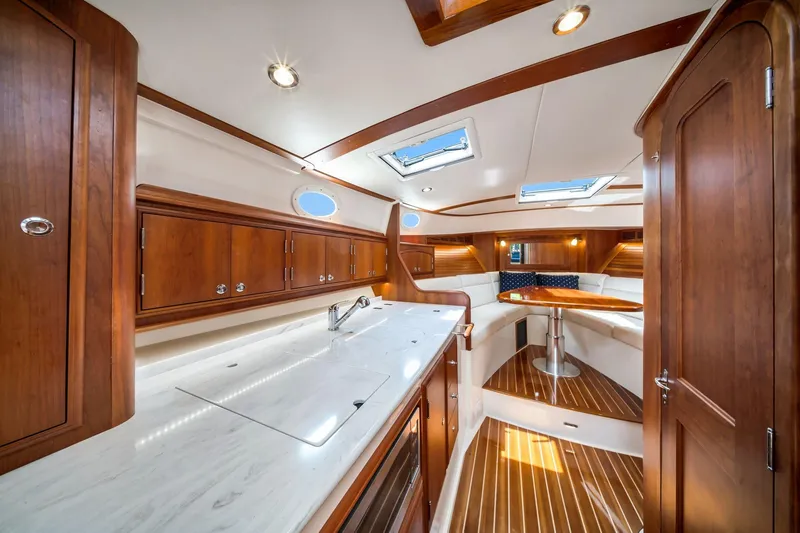

INTERIOR/GALLEY FEATURES

• Access to the cabin is through the locking high gloss teak louvered pilothouse door.
• The interior is finished with satin varnished cherry.
• The light cream sound-absorbent headliner overhead has dimmable low-voltage lighting overhead.
• The entry steps with courtesy light are raw teak and lead to a high gloss teak and tulipwood cabin sole.

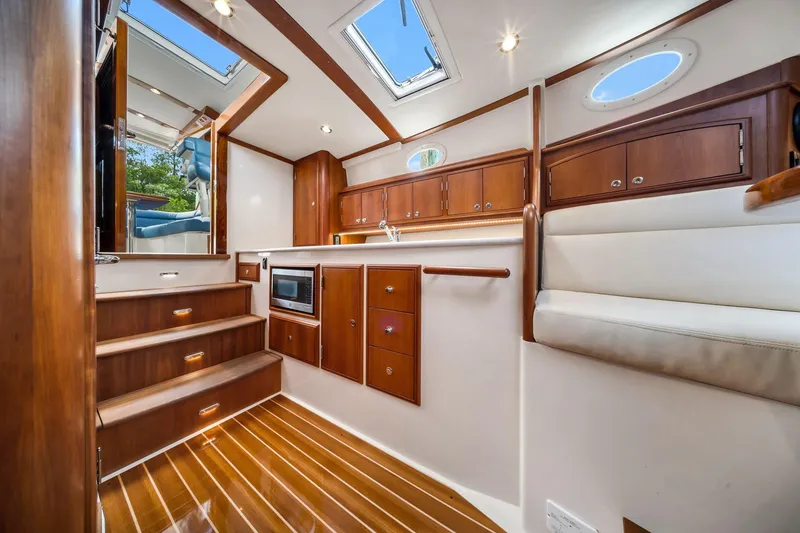

• The galley located to Port has a cabinet housing the C-Zone switching battery breakers as well as the remote for the generator. 12V lighting is provided underneath locker and illuminating the counter.
• The Corian Limestone Prima countertop has an under mounted stainless-steel sink with hot/cold Grohe facet and Kenon two burner electric cooktop and Top load 12V refrigerator with thermostatically controlled cold plate. Matching Corian covers are included for the sink and stove when not in use.
• A contemporary wooden handrail is provided below the counter forward of the sink.
• 110-volt GFI outlet mounted at aft bulkhead
• There are five LED bulkhead lights controlled individually at fixtures.
• A microwave oven and slide-out trash are located in the cabinet below.
• Additionally, there are five dovetailed cherry maple drawers with a cherry satin front.
• There is a locker shelf located above the galley countertop as well as a deep shelf behind.

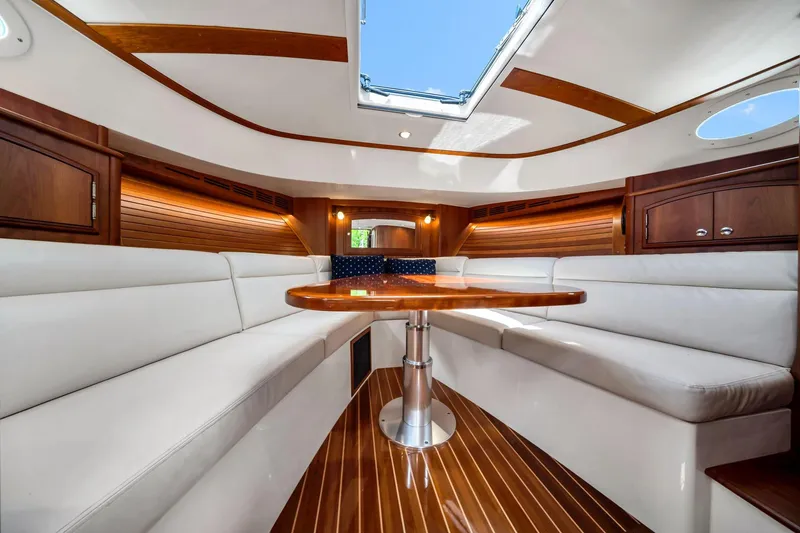

• Forward in the V-Berth is a large welcoming convertible settee with backrests finished in LuxorLeather French Vanilla.
• The V-Berth easily converts to a Queen Berth via the stainless steel electric pedestal.
• The outside walls of V-berth are finished tastefully with satin-varnished cherry battens with sheer lockers located above.
• A cedar lined hanging locker is located starboard forward of the Head.
• A dedicated Marine reverse cycle 12000 BTU air conditioning unit can be run off the inverter, shore power, or generator.
• There are three venting overhead stainless-steel hatches with Ocean air sky screens and three oval powder coated portals providing additional light from the cabin house.

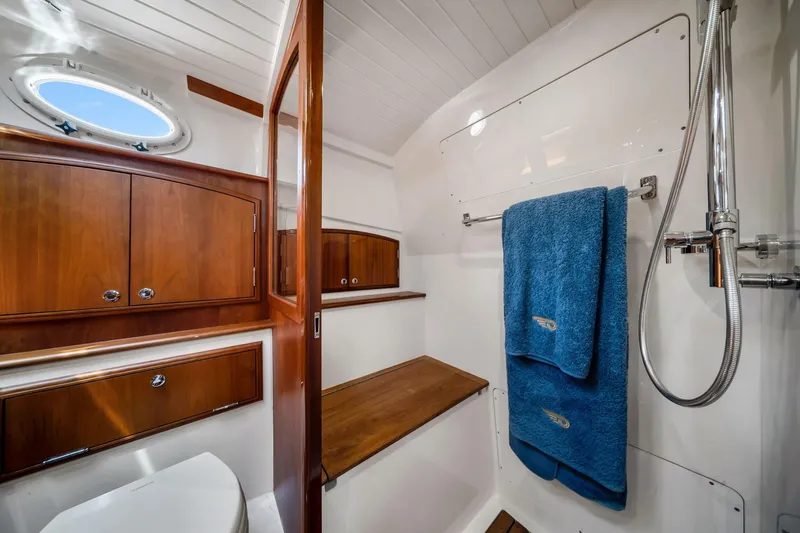

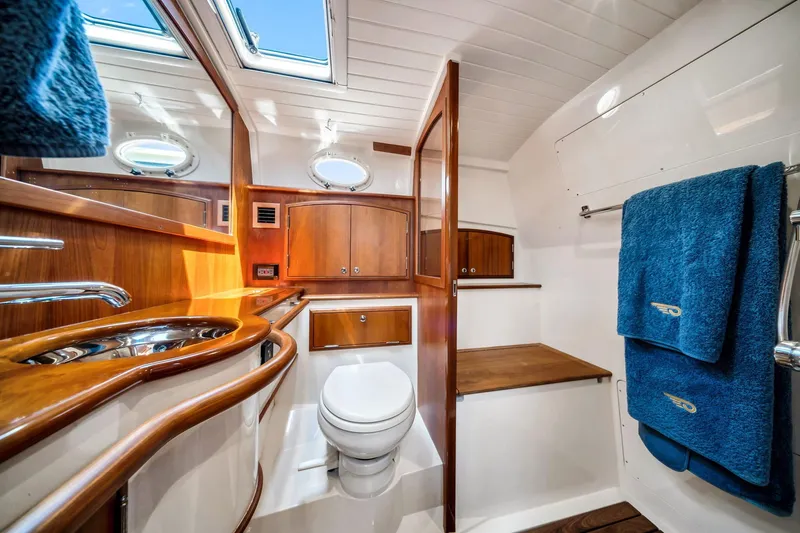

HEAD AND SHOWER FEATURES

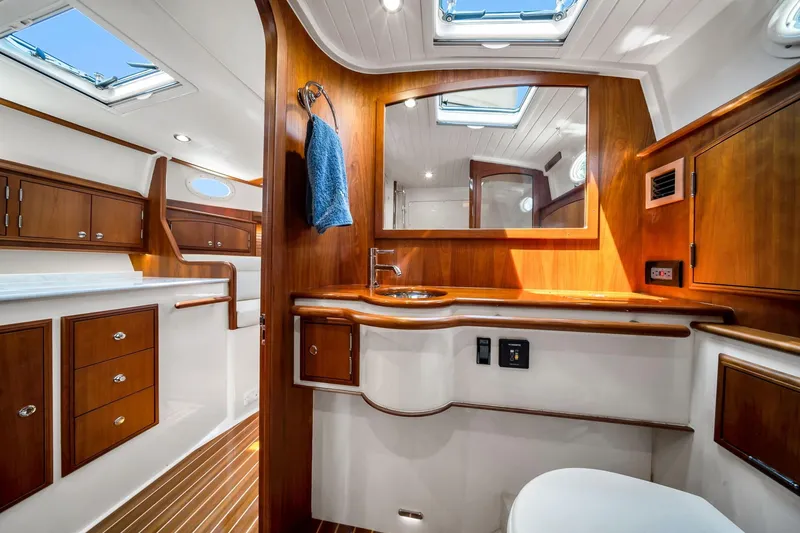

• The head is located starboard and accessed through a lockable satin inset paneled door cherry door with eyebrow top. Hooks are provided on the back of the door for towels.
• The ceiling is finished in moisture-compatible gelcoat white beadboard with dimmable low-voltage lighting.
• A large satin varnished cherry countertop is forward running port to starboard with cherry trimmed mirror above. The counter contains an under mounted polished stainless-steel sink hot/cold water and a top load trash receptacle with cherry lid.
• A Hella fan and 110V outlet are provided.
• Under the counter is a louvered storage compartment and dedicated swing out door for toilet paper
• A stainless-steel hatch with Ocean air Sky screen is located overhead, additionally there is screened port light mounted outboard on the cabin house both providing light and ventilation.
• A Sea land Vacu-flush marine head is plumbed to a holding tank with optional Y valve for overboard discharge.
• The shower is located aft and separated by a Plexiglass partition and swing door within the head.
• Drainage is through the recessed teak grate.
• A moisture resistant sheer locker is located above the shower seat.
• The shower seat itself has additional dry storage below.
• A stainless-steel towel rack is mounted on the aft bulkhead of the shower stall.
• Optional direct overboard pump out for offshore operation.

ENTERTAINMENT

• Premium Upgraded Fusion MS-RA 770 AM/FM stereo with USB connection and Bluetooth connectivity. Remote mounted at helm with Garmin integrations producing much improved acoustics over the standard stereo.
• (2) Fusion 6-inch speakers for interior
• (2) Fusion 7-inch speakers in the pilothouse
• (2) Fusion 7-inch speakers in the cockpit
• Sirius XM satellite radio for Fusion Stereo
• Premium sound with subwoofer and dedicated amplifiers

ELECTRICAL

• Distribution Panel: C-Zone digital switching giving full function of all DC systems on touchscreen located adjacent to galley. Full control via iPad/iPhone. Additionally, full control at Garmin display at helm or from owner's iPhone/iPad
• 12-Volt DC electrical system:
• (2) Lifeline GPL-31 starting battery for each main engine and includes generator.
• (2) 12-volt AGM-4D 210-amp/hr service batteries for a total of 420-amps for house accessories.
• Two 185-amp alternators charge each start and house batteries via Mastervolt.
• Heavy-duty battery parallel switches also allow emergency starting.
• 110/240-Volt 50-amp AC electrical system
• 50-A 125/250-volt AC shore power inlet.
• Victron Energy Multi-plus 3000-watt/50-amp 12-volt power inverter/battery charger for house batteries.
• 30-amp charger for start batteries
• 110-volt outlets.
• Onan 7.5 KW generator with sound shield.
• 35-amp alternator on generator
• Generator control panel in galley includes Start/stop controls and lighted warning panel.
• Low-resistance, heavy copper and sacrificial zinc anode electrical bonding system throughout boat.

MECHANICAL

• OPTIONAL twin Cummins 550 HP diesels with Common Rail technology. Upgraded (2) ZF 220 transmissions, reverse gear which enables jet back flushing. (31kn Cruise / 35kn WOT)
• Twin Hamilton 322 high efficiency jet drives.
• Cummins digital engine information interfaced to Garmin multifunction display(s). Separate analog tachometer, oil pressure, fuel tank level, and engine coolant temperature for each engine. Buzzer for low oil pressure and high engine coolant temperature.
• (2)187 U.S. gallon polyethylene fuel tanks with flush mount vents and fuel air separators.
• (2) Racor fuel filter. Water separators with vacuum gauges and water sensing alarms.
• Optional SeaKeeper 6 Gyro stabilizer
• Equipped with the optional Oil change kit for main engines and generator.
• (1) 12,000 BTU air conditioning with reverse cycle heat in cabin, powered by shorepower generator or inverter.
• (2) 12000 BTU reverse cycle air conditioning units for pilothouse.
• Optional Fresh water wash down in anchor well

PLUMBING

• Hot and cold pressure water.
• An 80-gallon polyethylene water tank with flush mount vent on the hull side and remote gauge.
• 10-gallon stainless steel hot water tank. Heated either via shore power or engine.
• 12-volt DC VacuFlush marine head with a 35-gallon polyethylene integrated holding tank with flush mount vent on hull side and pump out fitting on deck.
• 12-volt DC automatic shower sump pump.
• Three 1500 GPH, 12-volt pumps with safety float switches and high-water alarm.
• Manual pump mounted in cockpit locker.
• Marelon ball valve seacocks with thru hulls below the water line.
• Optional overboard waste discharge pump and seacock.

SOUND REDUCTION

• The engine room is insulated with Mylar faced with acoustic foam.
• Extensive gasketing for bridge deck and opening hatches to engine room and bilges
• Custom fiberglass, baffled, insulated and drained.
• Custom water-cooled exhaust silencers
• Sound absorbent material overhead in Pilothouse.
• Sound absorbent material overhead in Cabin.

SAFETY EQUIPMENT & ADDITIONAL EQUIPMENT

• Polished stainless steel 22# anchor with 25' of stainless-steel chain and 150' rode. The windless can be operated from the helm station or a handheld remote.
• Automatic fire extinguisher system for engine compartment with automatic shut-down.
• Emergency bilge pump
• Three 2-1/2 lb. dry chemical fire extinguishers
• USCG-approved flare kit.
• 12-volt Kahlenberg air horn with switch on dash.
• Six adult, two child type I PFDs and one Type IV throwable PFD.
• Four 25 foot and two 50-foot 5/8" docking lines.
• USCG-approved running and masthead lights.
• (4) 8" x 20" inflatable fenders with Polartec covers and Wichard snap hooks for each
