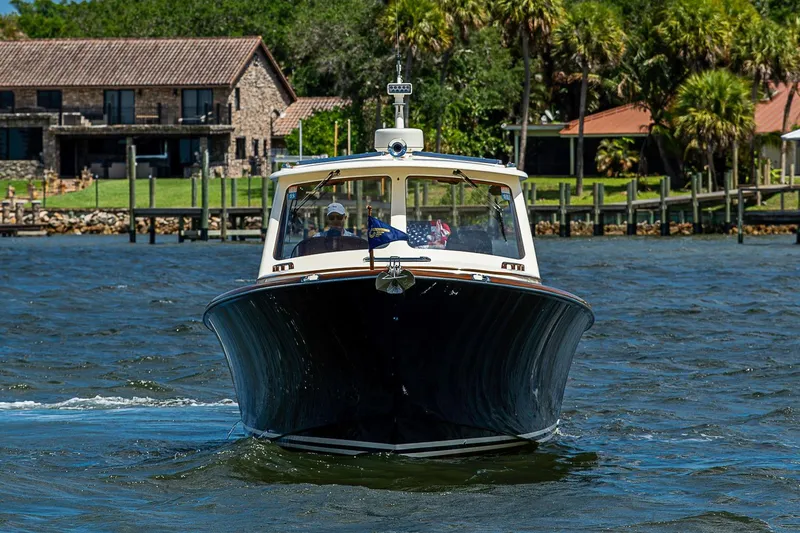

2013 Hinckley Yachts Picnic Boat 37 MKIII

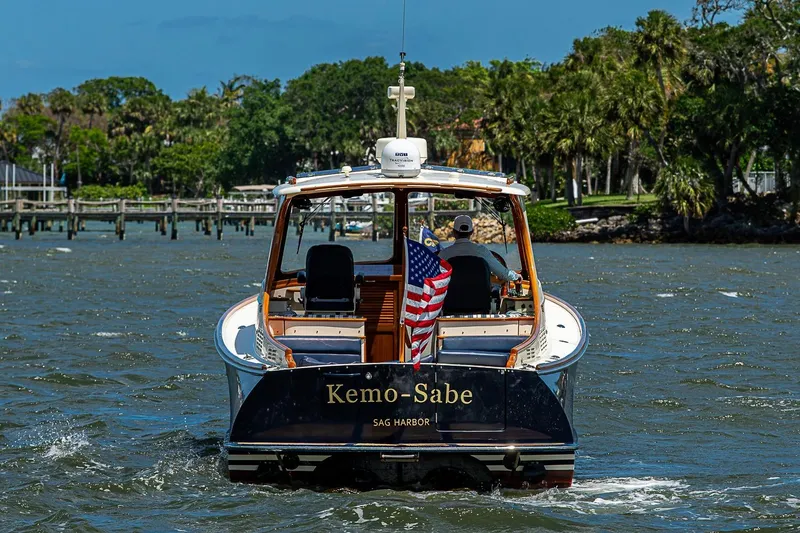

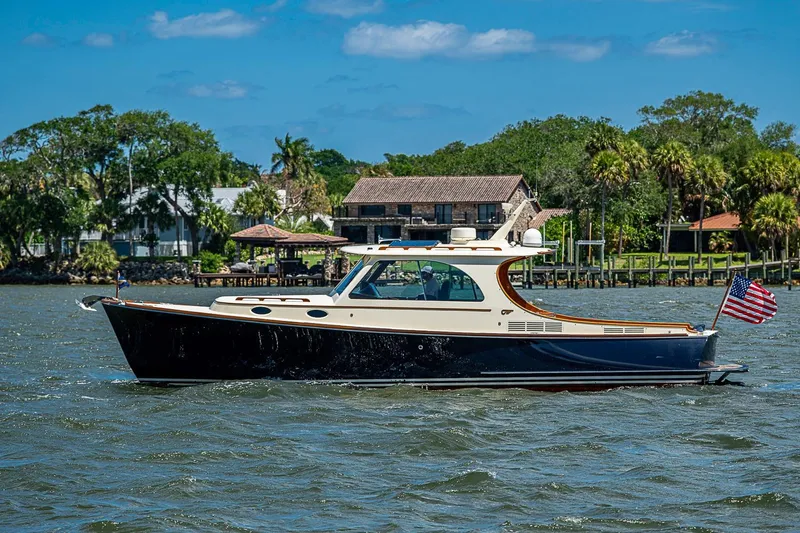

INTRODUCTION: KEMO-SABE is a beautifully maintained and exceptionally well-appointed Picnic Boat 37 MKIII. She is equipped with upgraded 370 HP Yanmar diesels, a generator, pilothouse air conditioning, Garmin electronics, a Queen Island berth, a high-gloss interior, and teak decks. KEMO-SABE is now ready for her next owner to enjoy.

DECK & HULL

Construction of the hull is Hinckley DualGuard® Composite Construction Kevlar E-glass hybrid outer skin. Aircraft grade end-grain balsa below the waterline. Carbon-fiber inner skin. SCRIMP® laminated with vinylester resin. Deck and cockpit are E-glass with balsa and closed-cell foam core, SCRIMPED with vinylester resin.

• Awlgrip Midnight Blue
• Cream gelcoat cabin house and deck
• Double "Cream" boot stripe to match deck
• Micron Red bottom (stripped, barrier coated, re done in 2024)
• Marelon ball-valve seacocks with thru-hulls below water line and Marelon thru-hulls above the waterline
• Stainless steel half round on fiberglass molded rub rail
• Stainless steel swim handle on transom painted to match hull
• Heavy-duty fiberglass swim platform has teak insert treads, stainless steel bracket and half round
• Stainless steel telescoping 3-step folding swim ladder that stores under platform

Deck Features

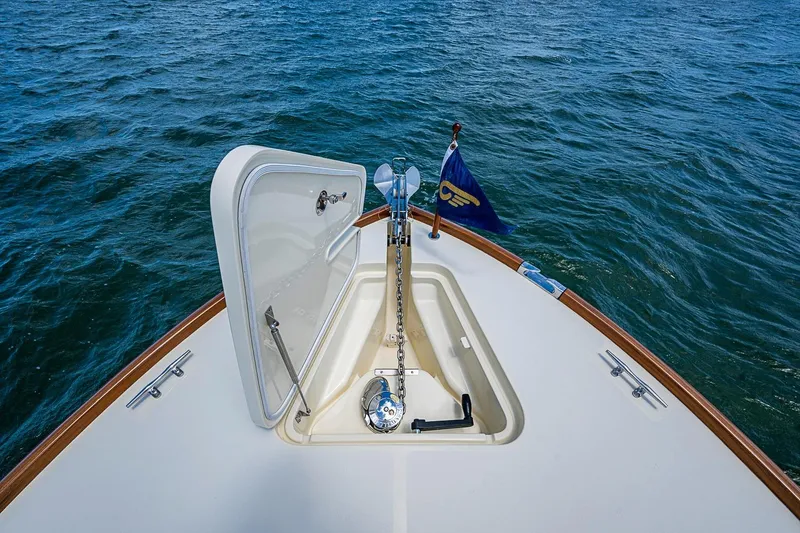

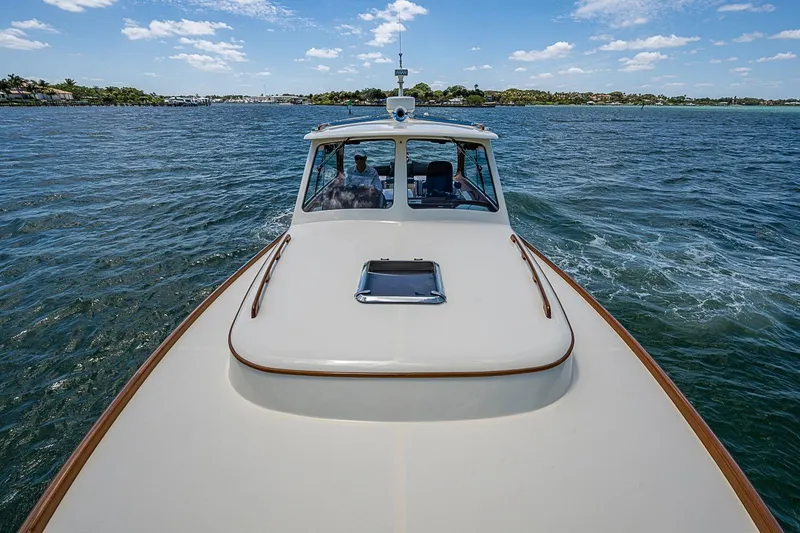

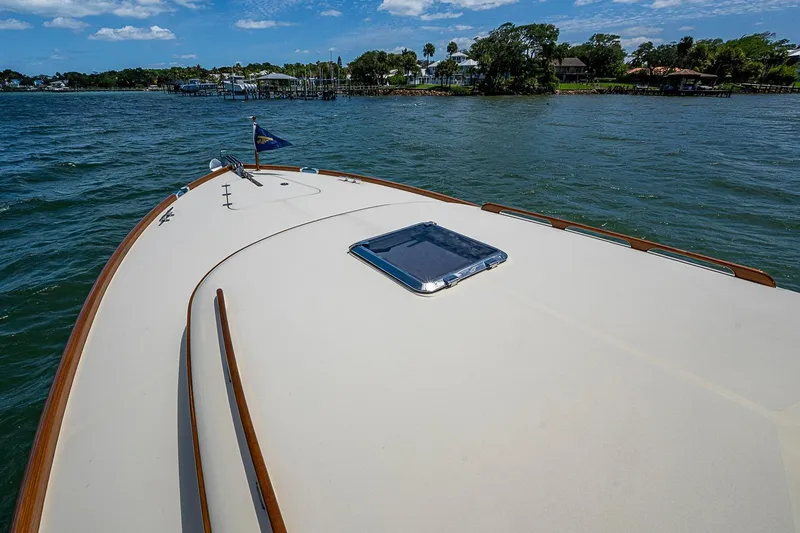

• Flush foredeck anchor locker with hinged hatch and fold-out anchor roller.
• Rounded, tapered, varnished teak toe rail with Hinckley profile
• Varnished teak eyebrow molding around cabin top
• Varnished teak handrails on house top, cabin and aft end of pilothouse
• Four (4) elliptical opening ports on house sides with screens
• Hinckley pilothouse mast with spotlight, Radome painted to match deck.
• Large side windows in Pilothouse open electrically
• (2) Stainless Steel electric opening hatches in the Pilothouse with powered Ocean Air Sky Screens
• Custom Hinckley 316L stainless steel bow chocks
• Bow, stern and 316L stainless steel mooring cleats - mid-rail easily reached from cockpit - pop-up mid ship cleats
• Fender padeyes with toe rail chafe strips
• LED spotlight - Masthead mounted with helm mounted electric remote control (NEW 2020)

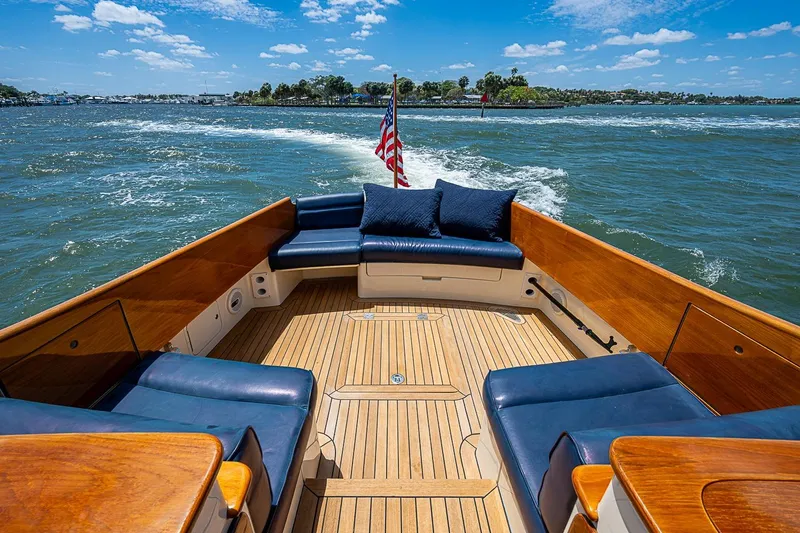

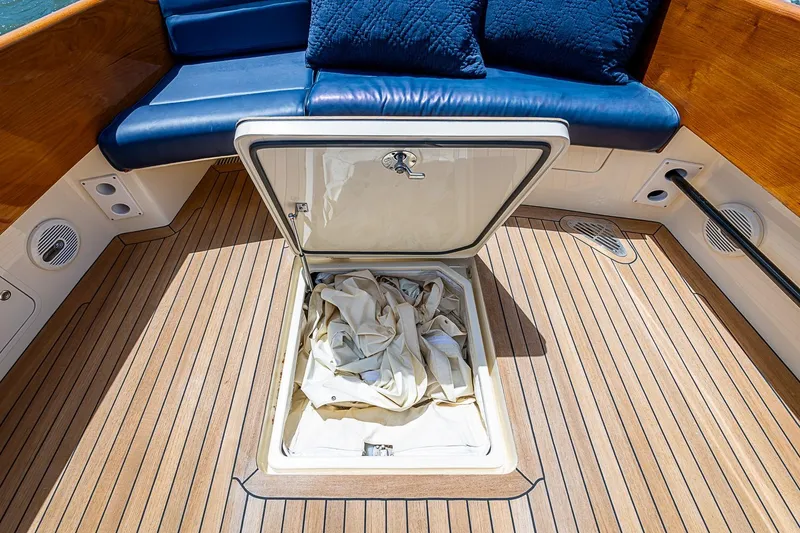

COCKPIT

The cockpit features cushioned seating at the transom with filler piece in front of transom door. Aft facing seats are located at the forward end of the cockpit.

• Teak deck, interior and teak cockpit coaming.
• Starboard transom door from swim platform
• Teak boarding step for port or starboard side deck
• Courtesy lights under side decks port and starboard
• Cockpit/pilothouse lockers with varnished louvered teak doors
• Cockpit shower with mixing valve at stern seat.
• Fishing rod holders port and starboard with rod storage under port side deck.
• Stamoid cockpit cover (NEW 2022)

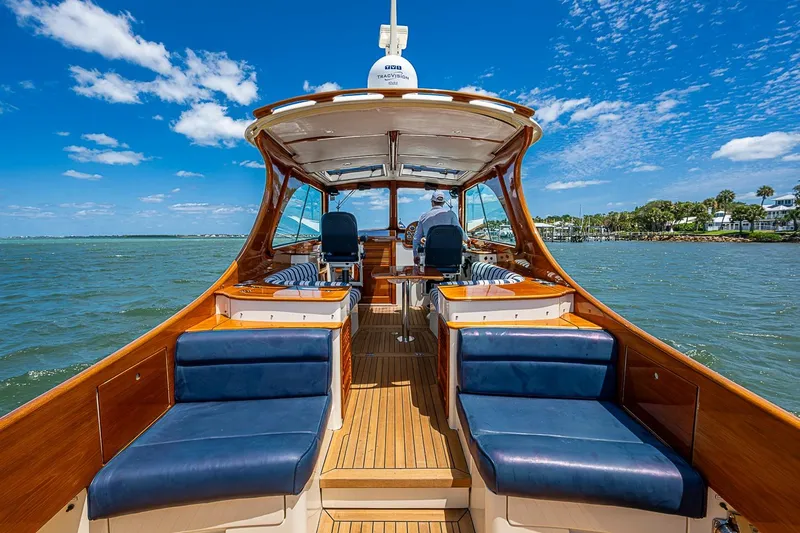

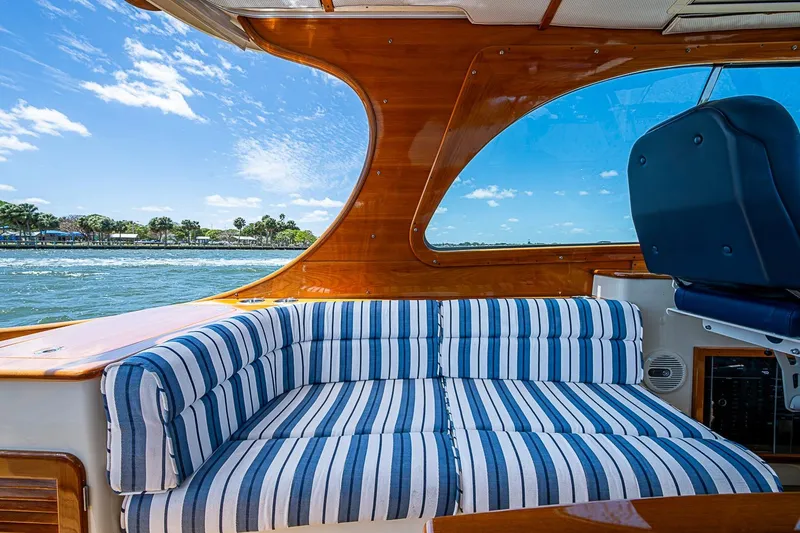

PILOTHOUSE

The Pilothouse is fully air-conditioned.

• Teak finished pilothouse deck, upper sides and dash.
• (4) Pilothouse windows: (2) Electric Sliding side windows and (2) Fixed, forward with heavy duty, self-parking, intermittent windshield wipers and freshwater washers.
• Sunbrella pilothouse cushions (NEW 2020)

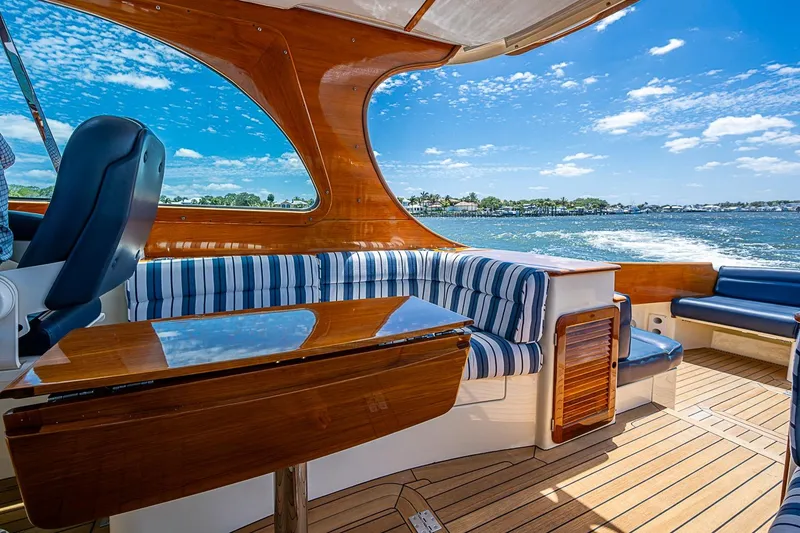

• Pilothouse dining table with flip down leaves; removable with storage bag
• Insulated white overhead has two (2) Electric opening hatches with Ocean Air Sky screens/shades
• 20,000 BTU air conditioning powered by onboard generator or shore power.
• Additional illumination is by four (4) overhead low-voltage halogen lights.
• Storage lockers under pilothouse settees
• (5) Cup holders
• Varnished teak locking companionway door with companionway
• (2) Varnished teak handrail on centerline
• Ivory Stamoid 5-piece drop curtains with Eisenglass windows

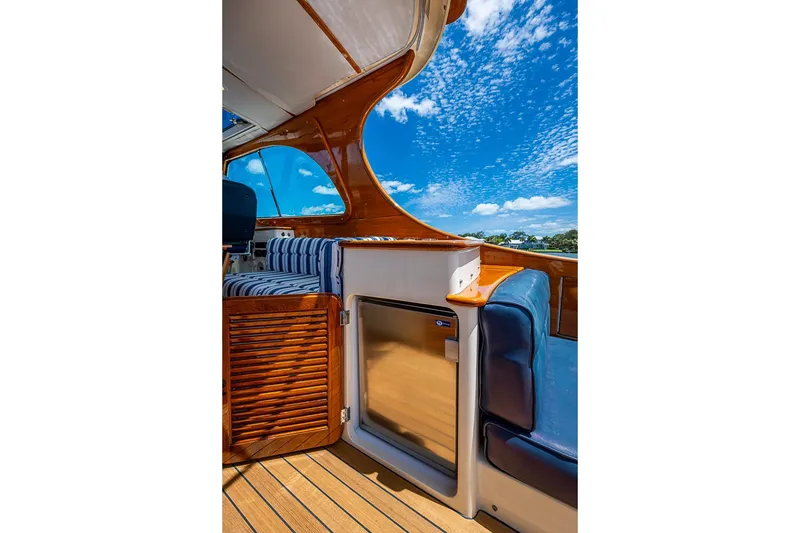

• Refrigerator mounted in starboard amenity.

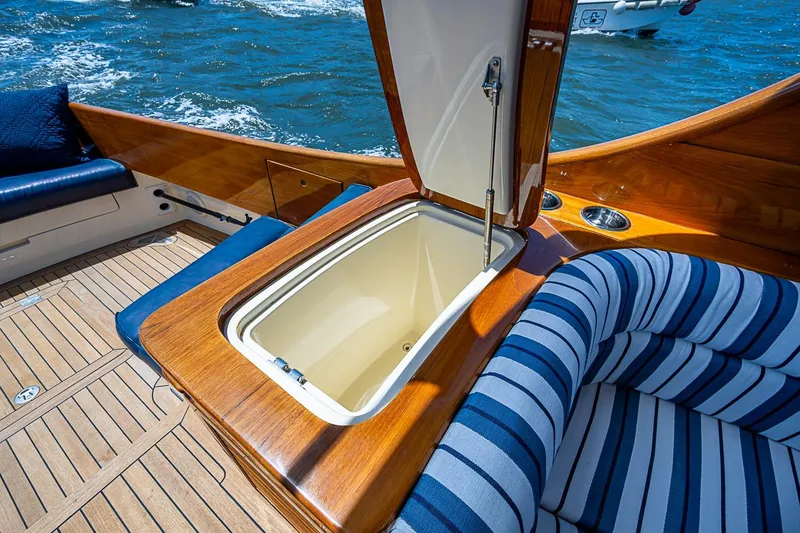

• Portside amenity has built- in self-draining drink cooler with stowage underneath.
• 110VAC and TV outlets.

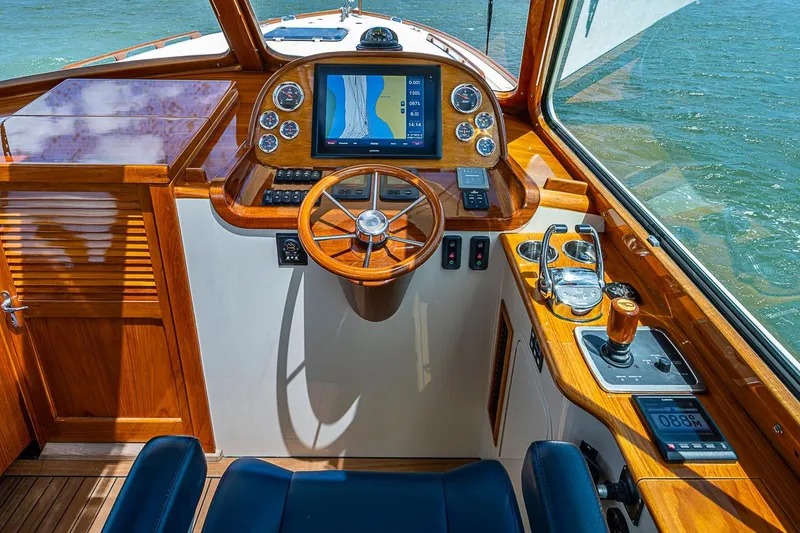

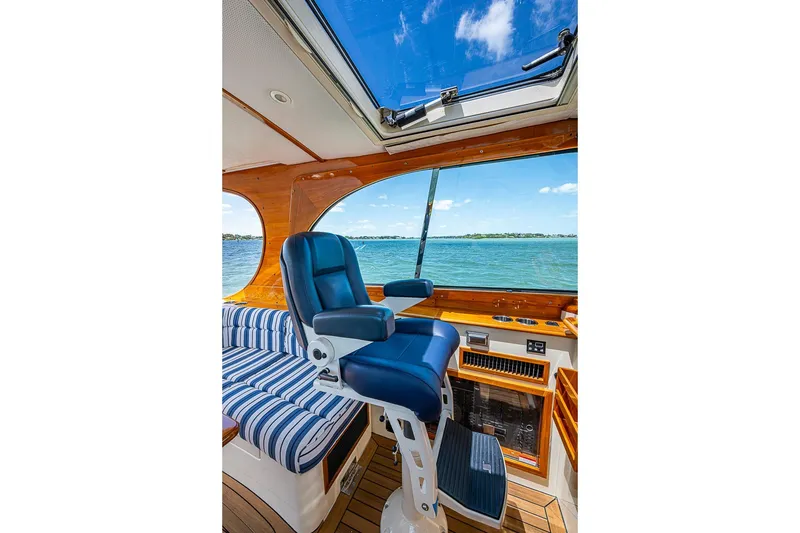

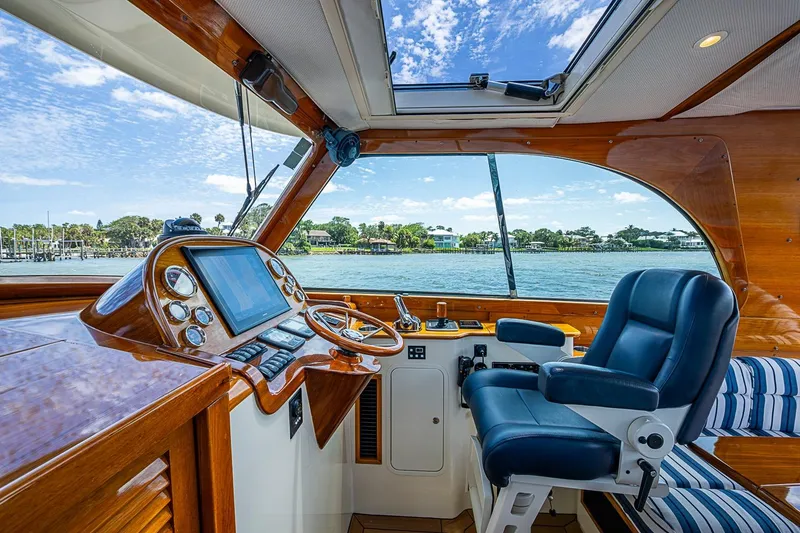

Helm Station

• Varnished teak instrument pod
• Stainless steel 14" steering wheel with varnished wood rim
• Hinckley JetStick II with H-Lock and Heading Hold
• Engine gauges, tachometer with hour meter, oil pressure, water temp., nozzle indicator
• Top-opening locker with chart storage
• 12-volt "cigarette style" outlet in chart pocket
• Varnished teak binocular holder



ELECTRONICS AND NAVIGATION EQUIPMENT

Navigation Equipment

• Garmin MFD Chartplotter, Radar, GPS
• Garmin Reactor 40 Autopilot (NEW 2020)
• Garmin Radar
• Icom M604 VHF radio and Commandmic III

Entertainment Equipment

• Alpine stereo system with Sirius Satellite radio, Bluetooth, AM/FM, Pandora
• (3) Pair of speakers - In V-berth forward bulkhead, pilothouse. Forward and pilothouse speakers have remote volume control
• 22" Sole' HD LCD TV with DVD player
• KVH M1 Satellite TV system with Direct TV network. Dome painted to match deck

ACCOMMODATIONS & LAYOUT

Custom Gloss Cherry interior

Generator remote, stereo, and air con controls hidden behind varnished louvered door

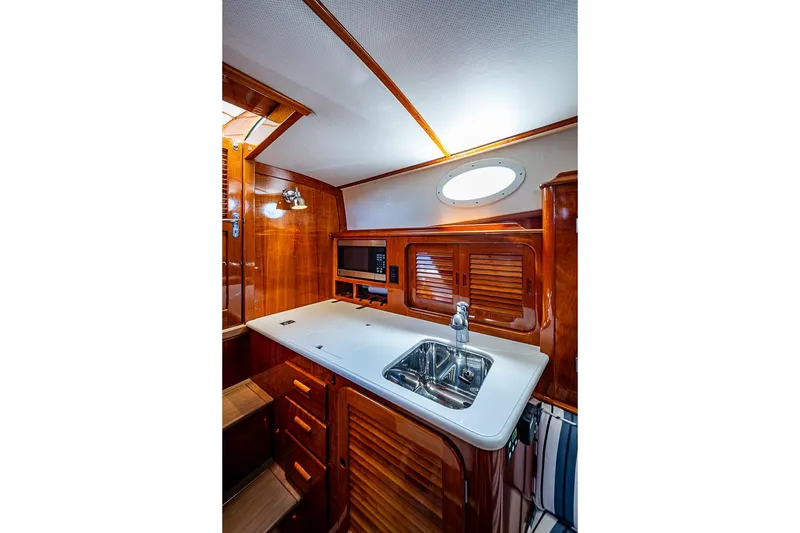

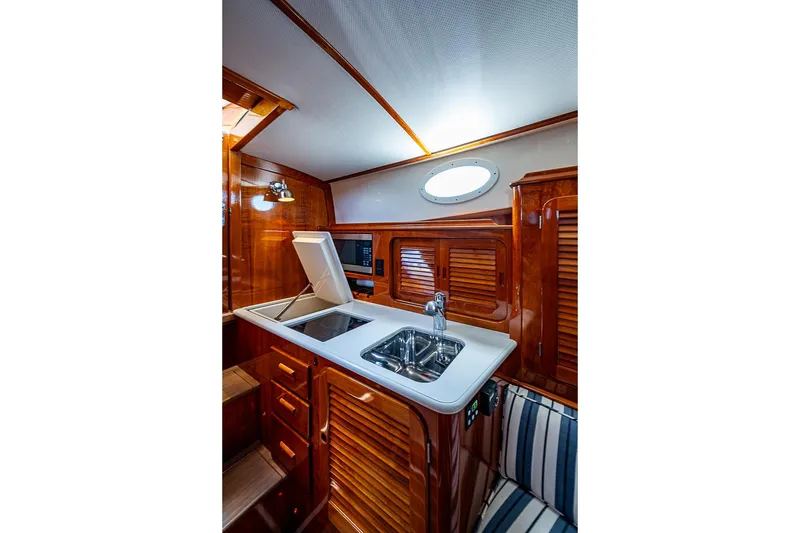

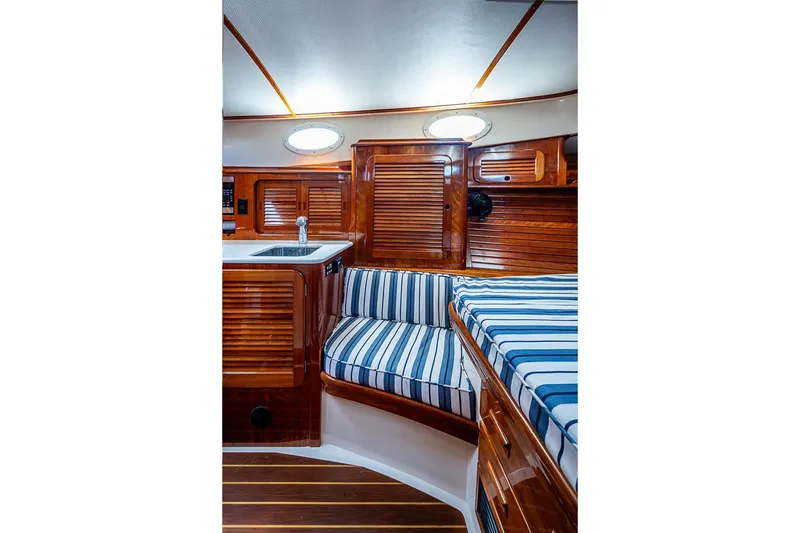

GALLEY

• Cameo White Corian countertop
• Stainless steel sink with Grohe fixtures, spray nozzle and hot and cold pressure water.
• Adler Barbour refrigeration - 12-volt cold plate refrigerator in a self-draining insulated box
• Single electric burner cook-top with Corian cover
• 600-watt 110-volt microwave oven
• 110-volt outlet
• Built-in bin for dish stowage
• Custom glass storage on shelf above microwave.
• (3) Cherry pullout drawers
• Red step-light in galley
• Under counter pull-out garbage receptacle
• Opening port with screen
• Additional storage is provided outboard and under the galley sink.
• A "pantry" locker with louvered door and several shelves separates the galley from the forward V-berth area and houses the stereo system.

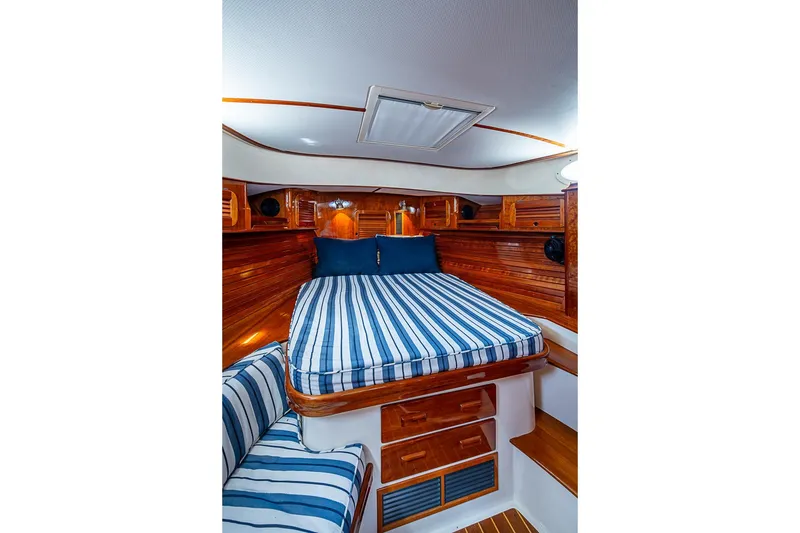

Queen Berth

• A very comfortable Queen berth
• Storage lockers under V-berth has easy-access cherry drop-front doors.
• Cedar-lined hanging locker is just aft of the V-berths to starboard.
• (2) Stereo speakers are mounted port and starboard on the forward bulkhead.
• (2) Hella fans - port and starboard bulkhead facing aft.
• Overhead opening hatch with Ocean Air Sky screen/shade.

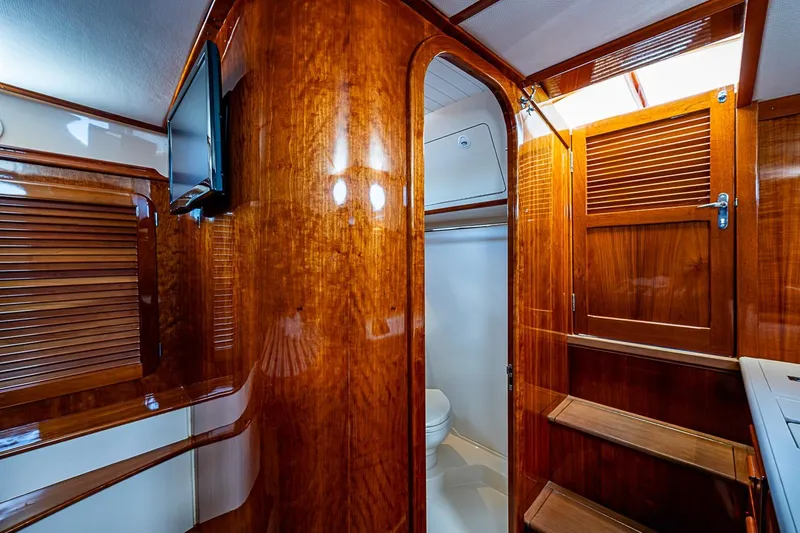

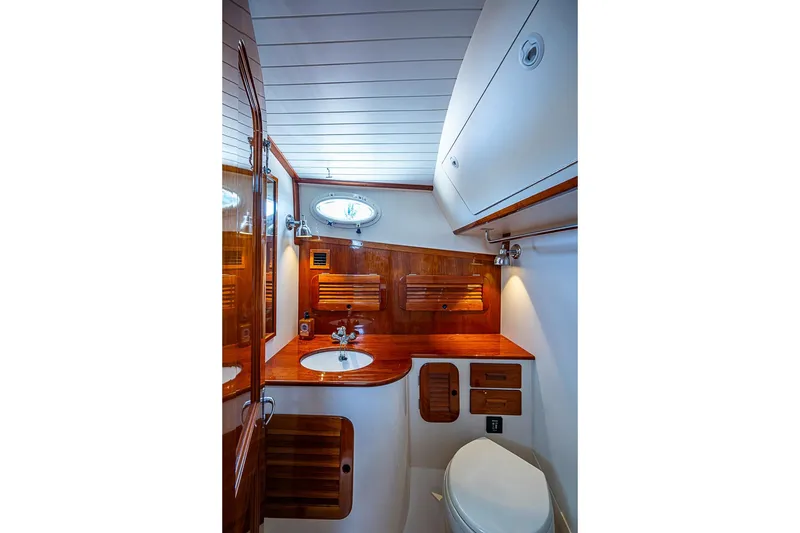

Head

• Solid cherry door panel door
• Molded fiberglass sole for easy cleaning.
• Varnished Cherry countertop and under-mounted porcelain sink.
• Grohe faucet/hand held shower provides hot & cold pressure water - bracket for shower bulkhead mounted
• Sealand Vacu-Flush electric marine head is plumbed to a 27-gallon aluminum holding tank and overboard discharge
• Mirror on the forward bulkhead with cherry frame.
• Storage is provided by cherry faced lockers above and outboard the vanity, a drawer with a cherry face beside the marine head, and a locker under the vanity.
• 110-volt outlet
• Opening port with screen, as well as forced ventilation.
• Stainless steel towel bar

ELECTRICAL SYSTEM

Low resistance, copper wire and sacrificial zinc anode bonding system. Zinc saver.

12-volt system:

• (3) 12-volt batteries for a total of 540-amps. (NEW 2022)
• Start - Two 12-volt AGM Group 31 batteries with 950 CCA capability.
• House - Two 12-volt AGM Group 4D batteries - 210-amps each.
• Heavy-duty battery parallel switch allows emergency starting.
• 80-amp battery alternator on engine.
• 12-volt distribution panel includes thermo-magnetic breakers, volt and amp meter.

110-volt AC electrical system

• 110-volt shore power inlet and relay.
• 50-amp shore power cord with Glendinning retractable power cord.
• Victron Multiplus inverter/charger with 100-amp 12-volt multi-stage battery charging capability.
• Onan 9kW generator and sound shield (574 hours)

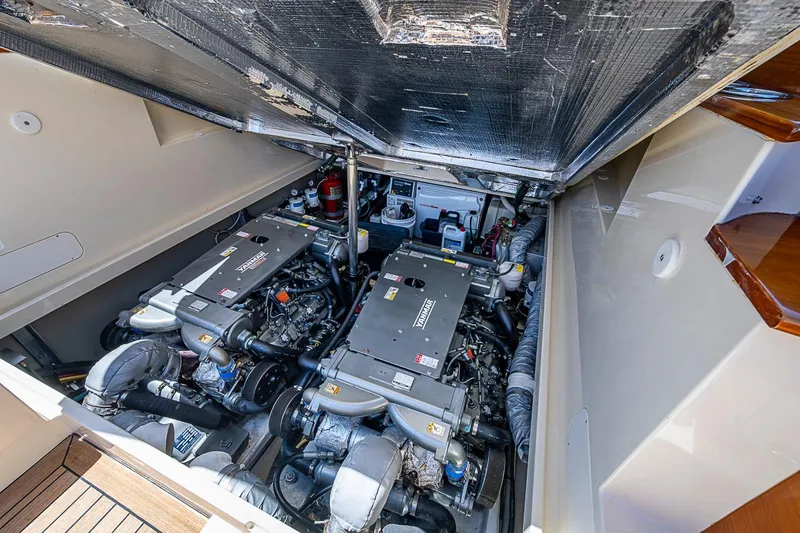

MECHANICAL EQUIPMENT & ENGINE DETAILS

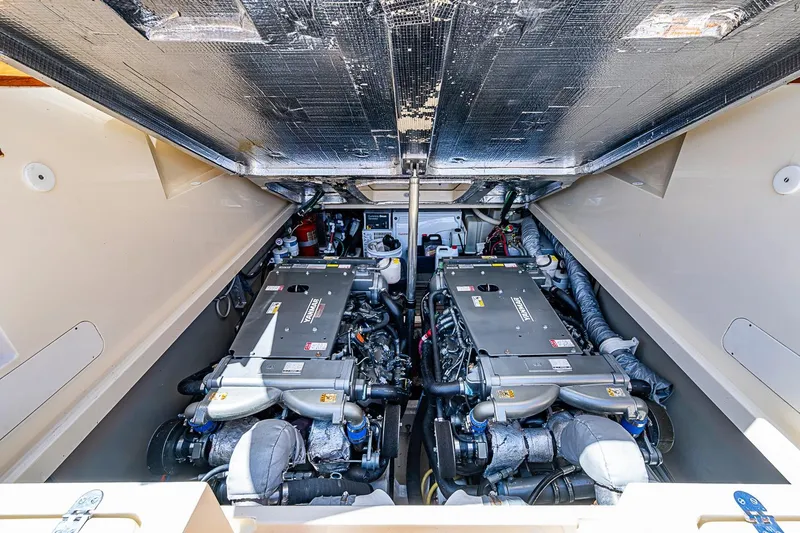

• Yanmar 8LV 370 hp diesel engines
• (2022) Cooler service and new hoses
• Hamilton 274 Jet Drives
• (2021) Heading sensor upgraded for better H-Lock performance
• (2021) bucket feedbacks upgraded to MK-60
• (2021) nozzle feedbacks upgraded
• (2011) G-11 modem installed for JetStick for remote access
• Twin ZF 63 transmissions
• 7" hydraulic variable thrust bow thruster
• Hinckley JetStick II control system with Hover Lock and Heading Hold
• Espar diesel heating system
• Dual cylinder trim tabs with indicator controls at helm
• Fuel filter/water separator
• Oil change kit
• Fuel, oil pressure, and water temperature gauges.
• Alarms for high-low oil pressure, and high engine water temperature and hydraulic pressure.
• Manual hydraulic steering pump.
• (3) Electric 1500-GPH 12-volt bilge pumps with float switches and high water alarm
• High pressure deck wash pump
• Whale emergency bilge pump - mounted in cockpit locker.
• In-line 12-volt automatic shower sump pump.
• 27-gallon aluminum holding tank with overboard discharge.
• 6-gallon stainless steel hot water heater - shore power and engine heated.
• 40-gallon polyethelelene water tank.
• (2) 110-gallon polyethelene fuel tanks - total 220-gallons.
• Mylar-faced acoustical foam-lined engine box insulation.
• Engine box cover has double gaskets and an electric riser.
• Engine box forced-air exhaust fan.
• Baffled and insulated air intake
• Automatic engine compartment fire suppression system, with automatic engine shut-down.
