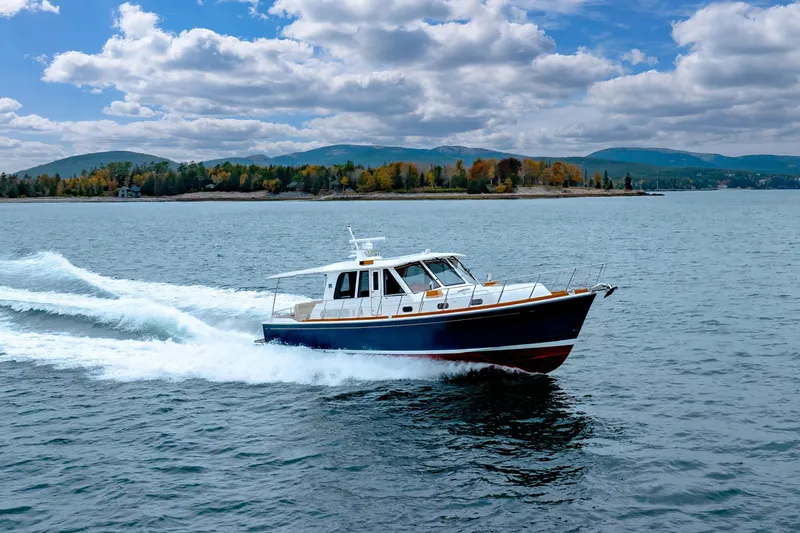

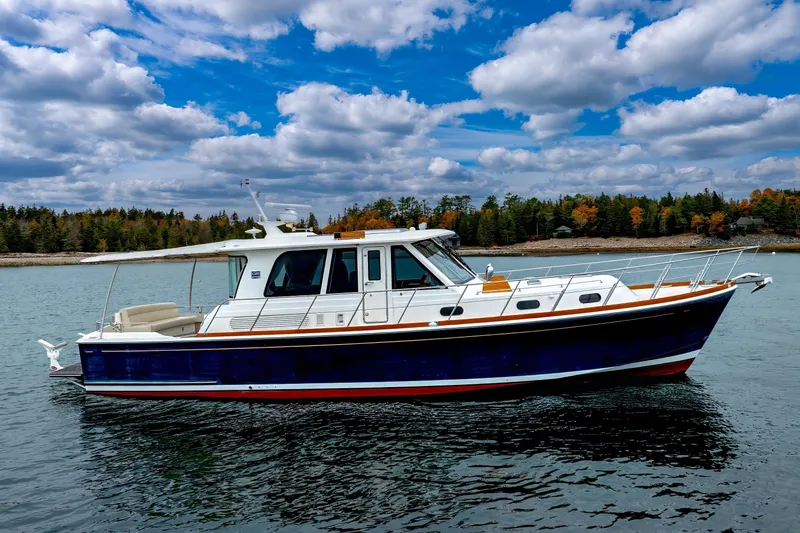

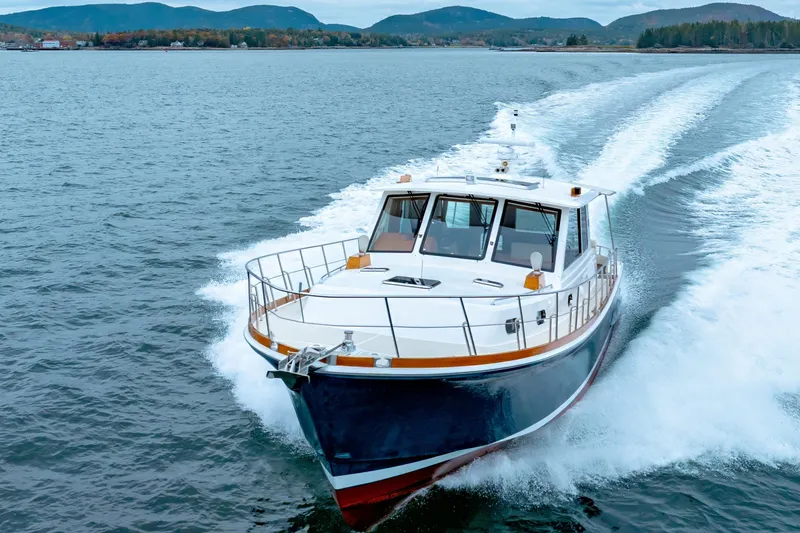

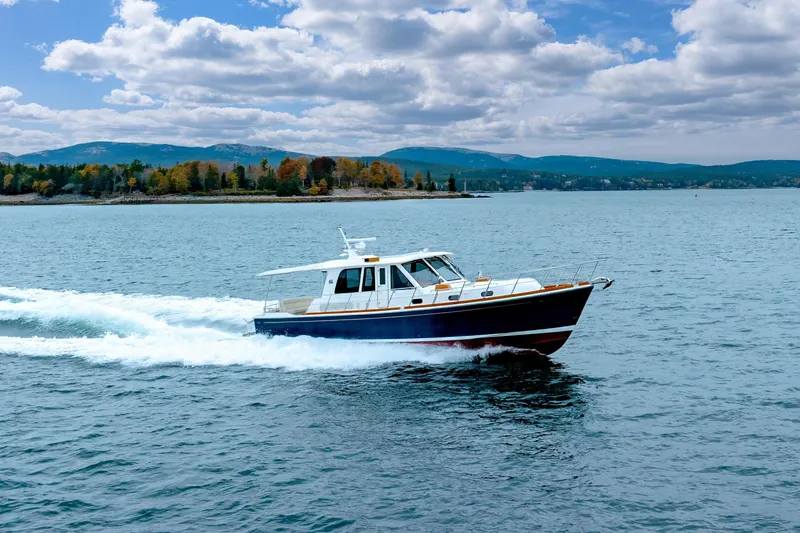

2014 Grand Banks 46 Eastbay SX

INTRODUCTION:

Step aboard this beautifully appointed Grand Banks 46 Eastbay SX and you'll immediately notice she's designed for effortless cruising and refined comfort. Her sought-after galley-down layout creates a spacious, open salon above, while below you'll find two elegant staterooms-each with its own private en suite head and separate stall shower-offering both privacy and convenience for you and your guests.

She's been thoughtfully upgraded for modern boating, including an AB 11' aluminum RIB/30hp Yamaha combo paired with a Freedom lift for easy launching, plus a generously sized utility room complete with an extra refrigeration capacity. Entertaining is a breeze thanks to a custom cockpit bimini and reliable Raymarine electronics guiding every journey. Throughout the yacht, the rich teak and holly varnished sole adds a timeless, luxurious feel underfoot.

The salon is a standout space-bright, inviting, and cleverly designed. A dagger opening aft window opens to create a seamless pass-through to the cockpit, perfect for social gatherings. Curved aft windows on both sides adjacent to lush seating includes a large U-shaped settee with a versatile table to port and a straight settee to starboard, all with abundant hidden storage. A beautifully crafted teak cabinet conceals a Samsung flatscreen TV that rises smoothly at the touch of a button. At the helm, a premium STIDD helmchair sits to starboard, complemented by a double companion seat and chart locker opposite. Custom blinds add a polished finishing touch throughout.

A few steps down, the U-shaped galley is both stylish and functional, featuring granite countertops with splashguards, an LP range, refrigerator drawers, a top-loading freezer, and a large stainless steel sink with a pull-out spray faucet. Storage is plentiful, with well-designed drawers and overhead lockers.

One of her most impressive features is the expansive utility room, cleverly tucked beneath the companionway stairs. Here you'll find additional refrigeration, and ample storage-ideal for extended cruising.

Forward, the master stateroom offers a serene retreat with an island queen centerline berth, cedar-lined hanging lockers, and abundant storage. The private en suite head includes a separate stall shower for added comfort. To starboard, the guest stateroom features twin side-by-side berths with individual reading lights, a cedar-lined hanging locker, and built-in drawer storage. The guest head, also with a stall shower, conveniently doubles as a day head with access from the companionway.

Every detail of this Eastbay SX has been carefully considered to deliver a seamless blend of luxury, functionality, and timeless style-perfect for the discerning cruising couple ready to explore in comfort.

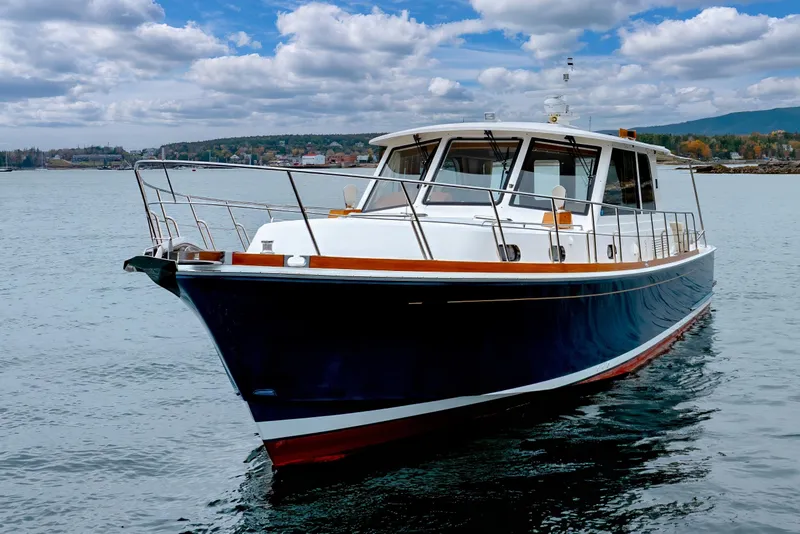

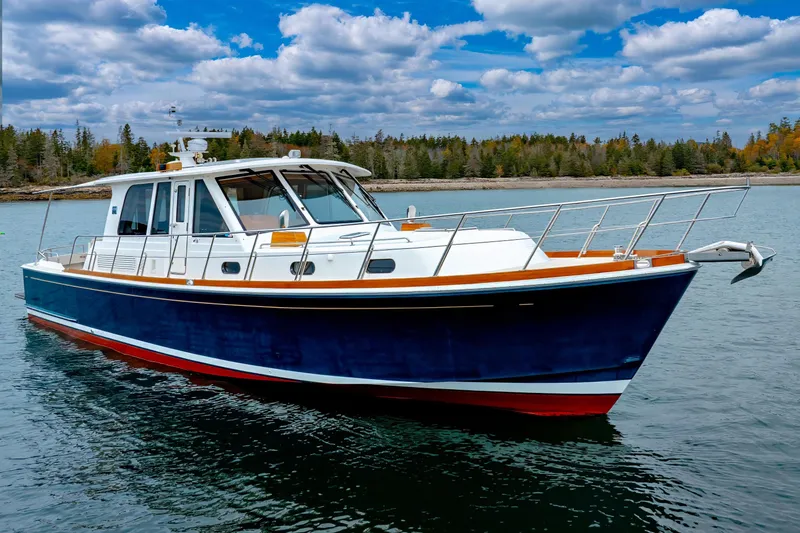

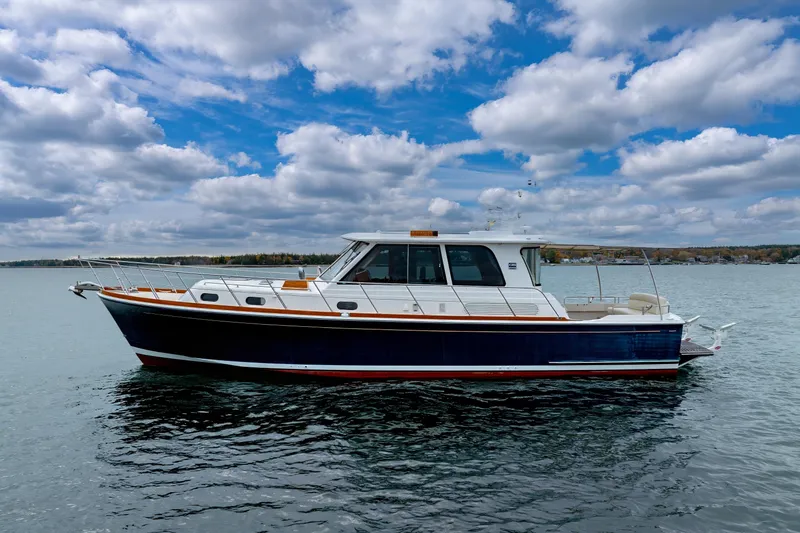

HULL and DECKS:

• Fiberglass hull with high density PVC foam core
• Dark blue hull with gold cove stripe
• White superstructure with contrasting nonskid on weather decks
• Single boot stripe in white Awlgrip

CONSTRUCTION:

• Fiberglass outer skin: Gel-coated, Cook Composites & Polymers
• Fiberglass: hand laid
• Hull bootstripe: painted Awlgrip
• Hull gelcoat color: "White" with "Green" cove stripe
• Hull lamination: Hydrex resin skin coat, Reichold
• Hull structural grid: fiberglass and core
• Hull: composite, fully cored, with cross-linked high density PVC foam core
• Quarter guard: FRP molded, with stainless steel rubrail

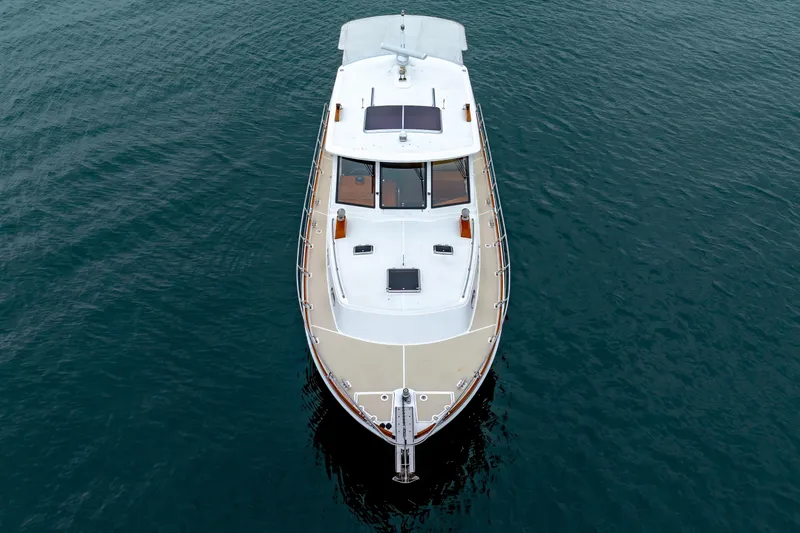

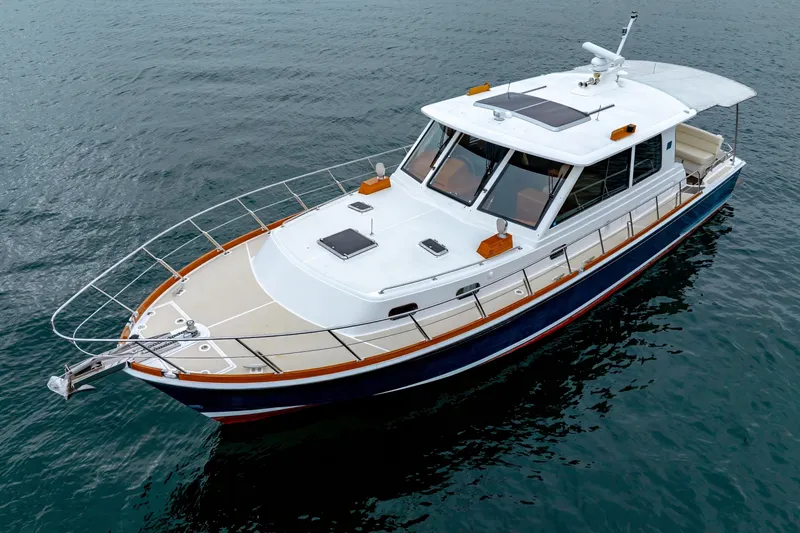

DECK:

RAMBLER'S exterior superstructure and smooth waterways are white gelcoat. The non skid is contrasting Moondust.

Pilothouse roof has customary Eastbay mast populated with open array radar, navigation lights, and antenna.

• A saltwater and deck wash spigot are in the foredeck windlass locker with short hose.
• Varnished toe rail in traditional Eastbay profile.
• Handrails on the cabin trunk are stainless steel.
• Seven Lewmar Ocean medium profile hatches.
• Six trunk cabin opening elliptical port lights.
• Varnished lantern boards

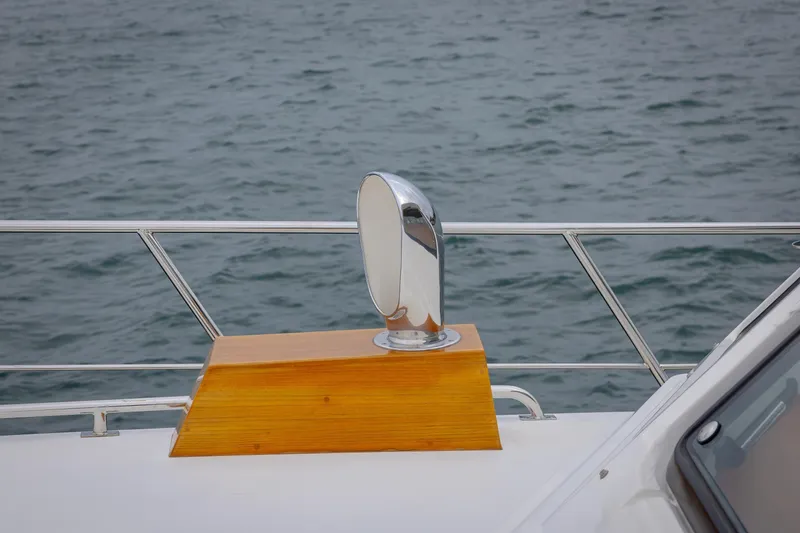

• Two varnished teak dorade boxes located on aft end of trunk cabin. SS ventialtion scoops fitted on top of boxes.
• Stainless steel line chocks and mooring cleats.
• Outboard transom locker with overboard drain.
• Stainless steel deck scupper drains

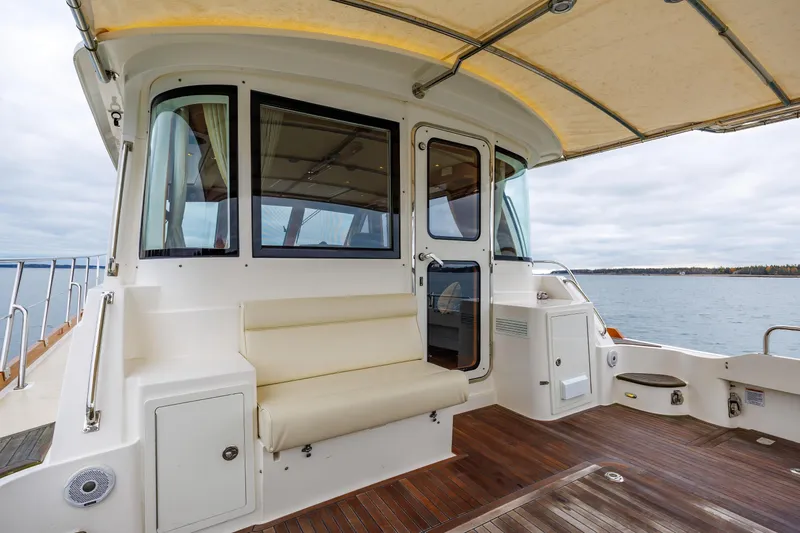

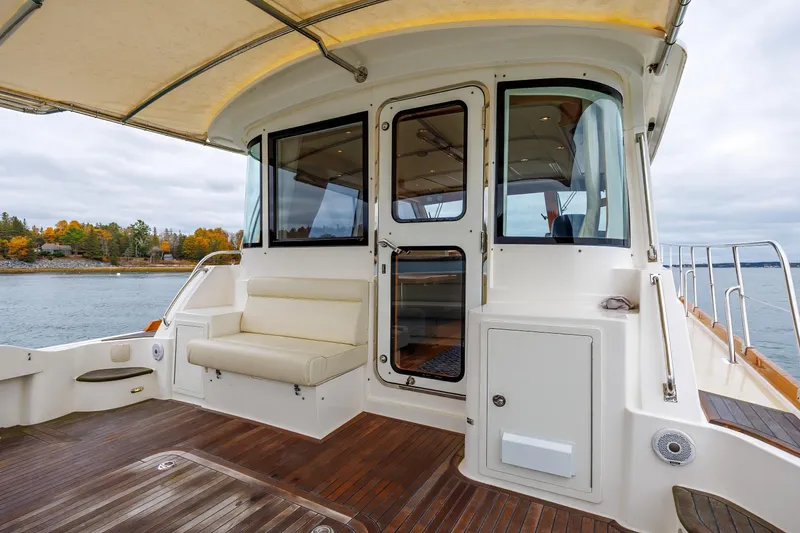

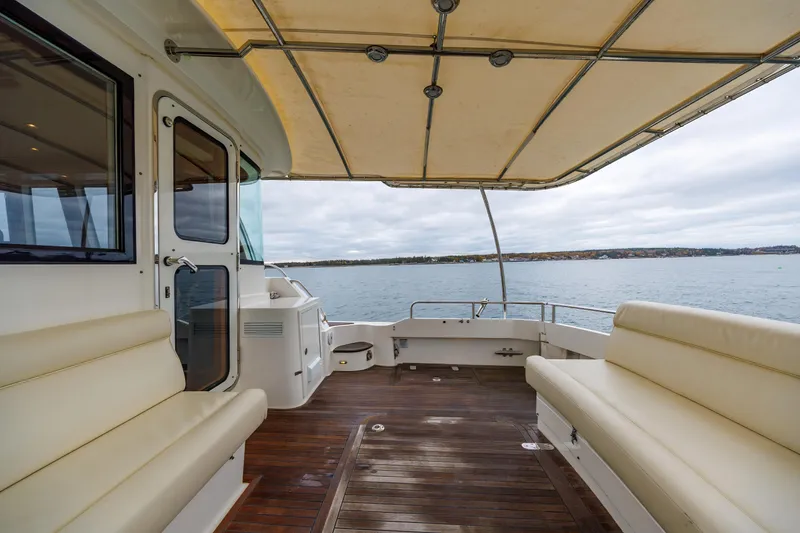

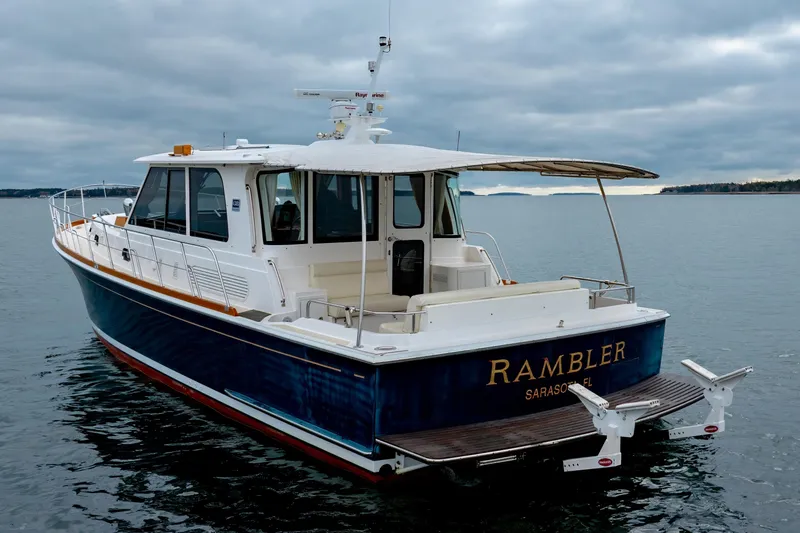

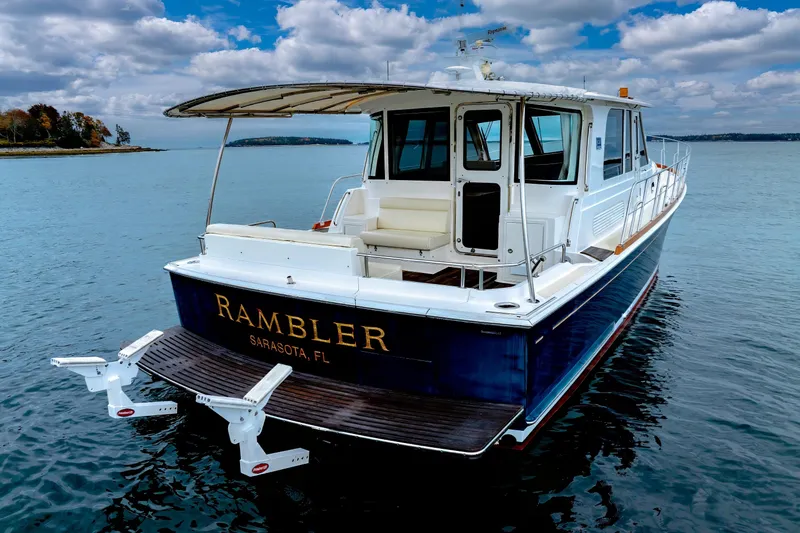

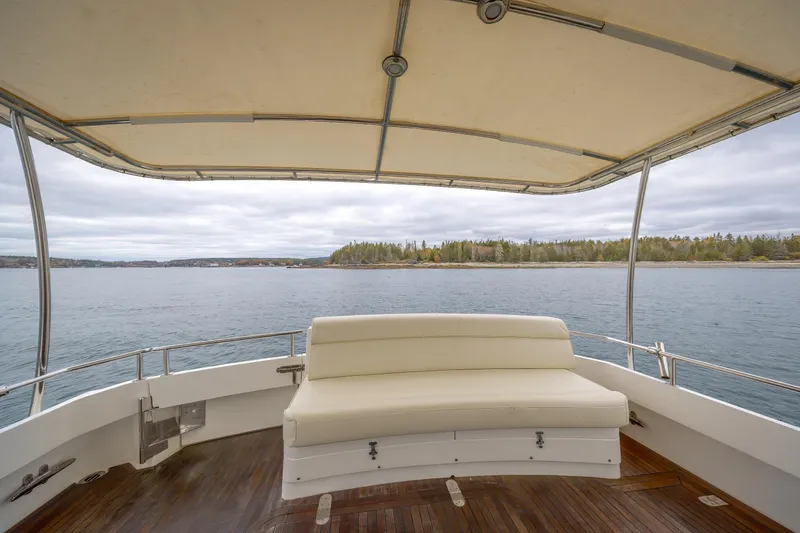

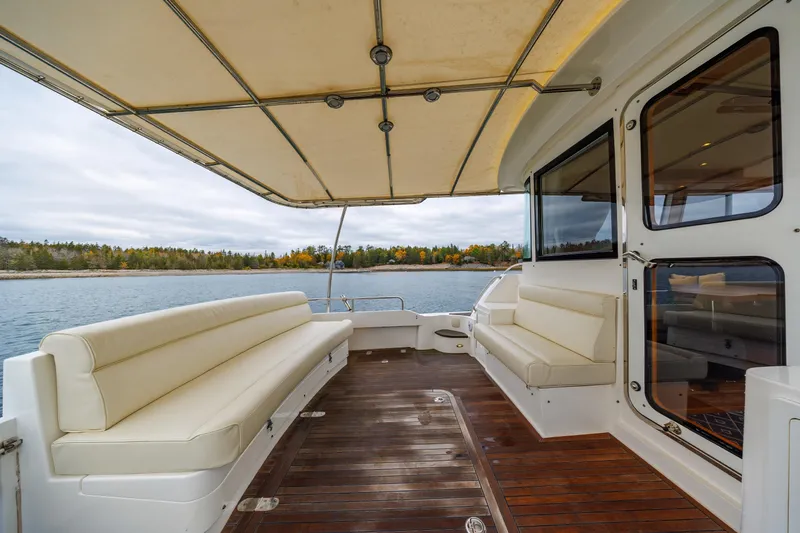

COCKPIT:

Entry to the cockpit is from a door on starboard corner of transom.

• Two spacious settees with upholstered cushions, one facing forward and one facing aft.
• Storage cabinets are located on either side of aft end of superstructure.
• Easy access to stern cleaks and deck hawse pipes for stern lines.
• Forward facing aft settee has a storage locker below the seat bottom cushion.
• Aft facing settee houses the LP locker beneath.
• Courtesy lighting is fitted around the cockpit perimeter.
• Fixed bimini fitted with canvas
• Glendinning Cable master shore cord reel hawse pipe is under starboard coaming.
• A cockpit sole hatch to access the mechanical spaces and storage of fenders.

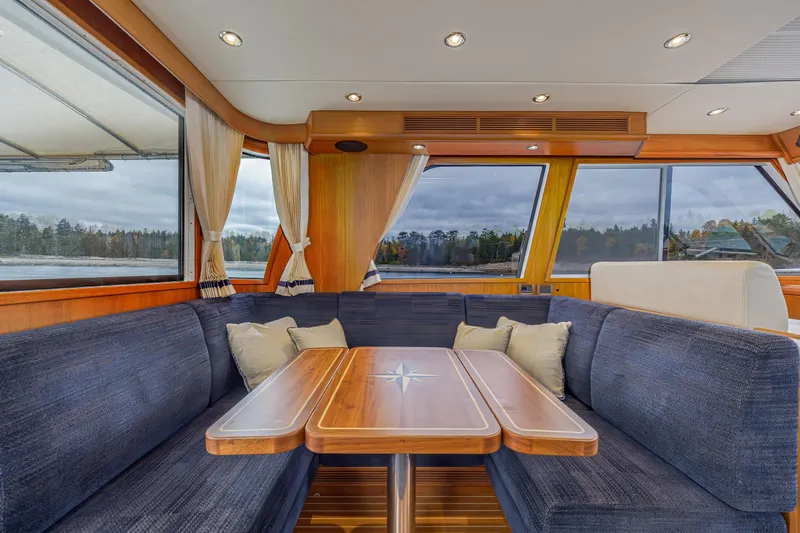

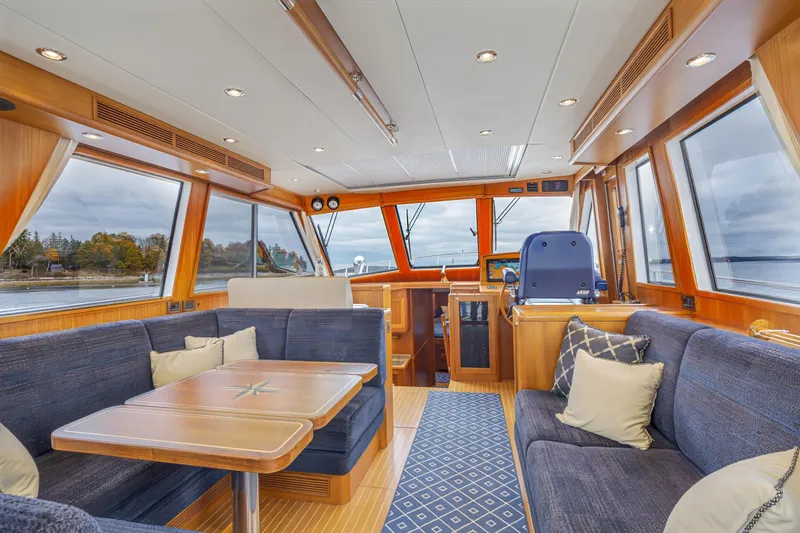

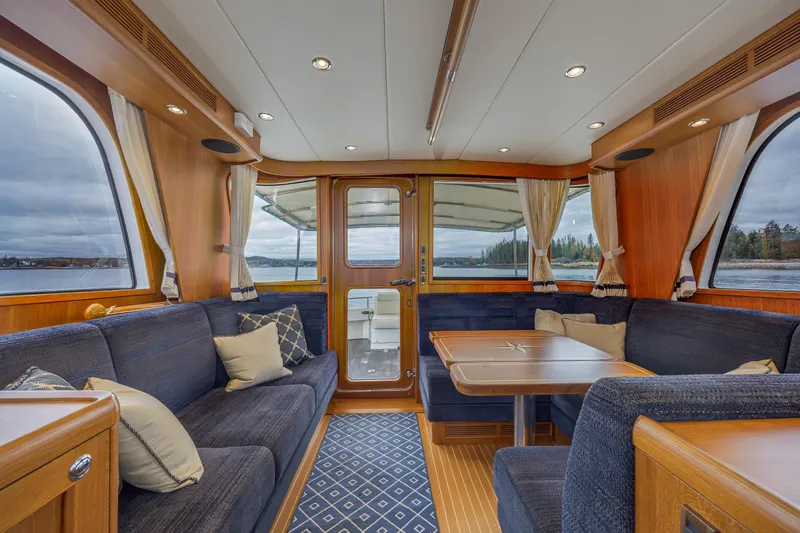

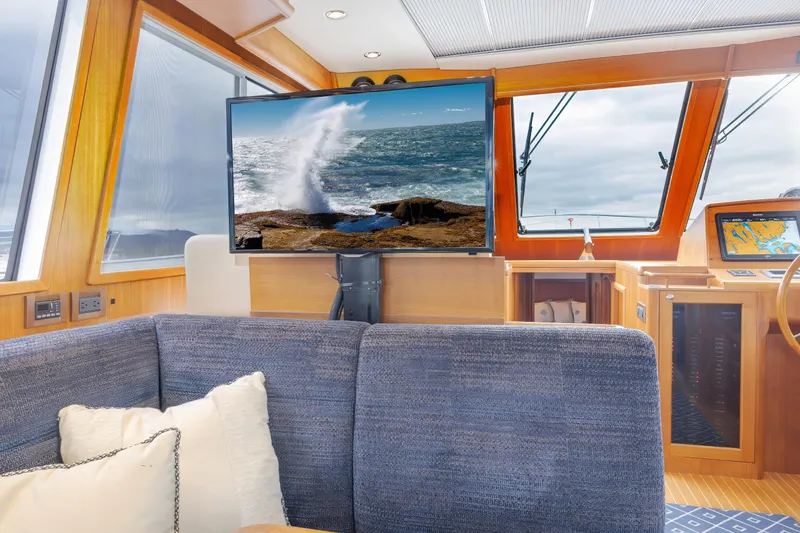

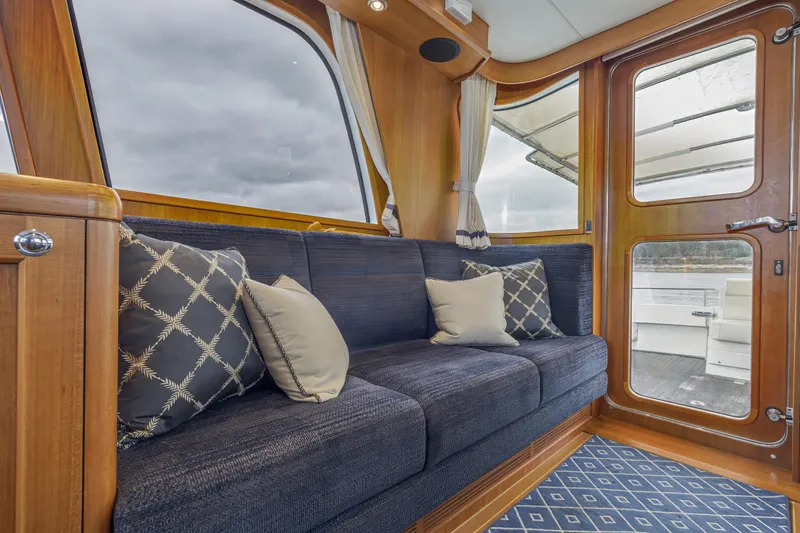

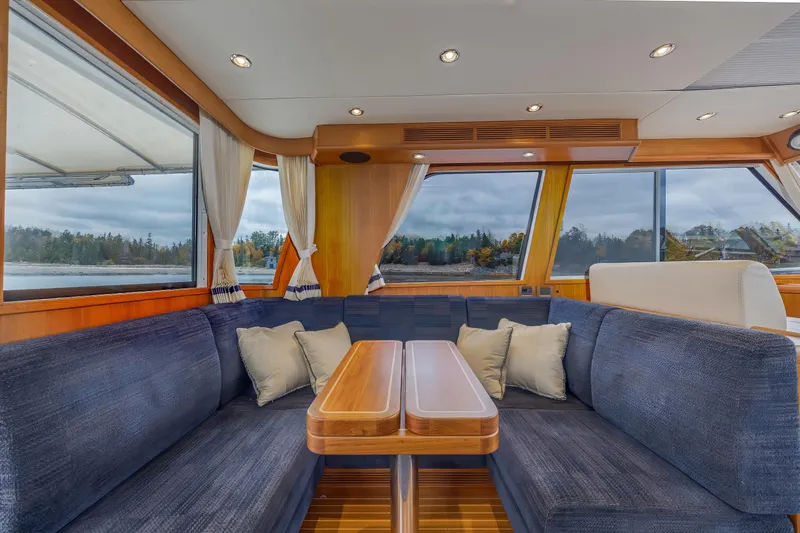

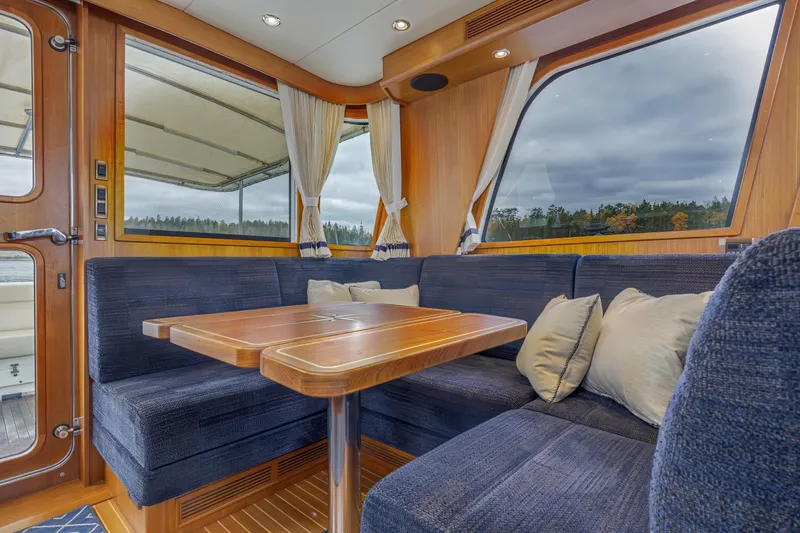

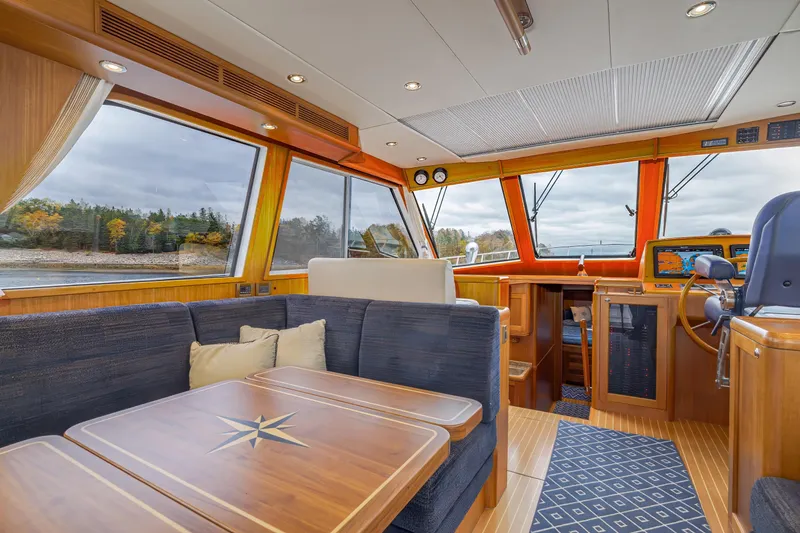

MAIN SALON:

The main salon has a U shaped settee to port and a long bench settee to starboard.

• Seats 4 to 6 around custom table with inlaid compass rose.
• Satin varnished teak table, leafs open to double size
• Curtains slide fitted to side windows to slide forward for privacy
• Storage within all seat bases.
• Ceiling valance house HVAC distribution ducts.

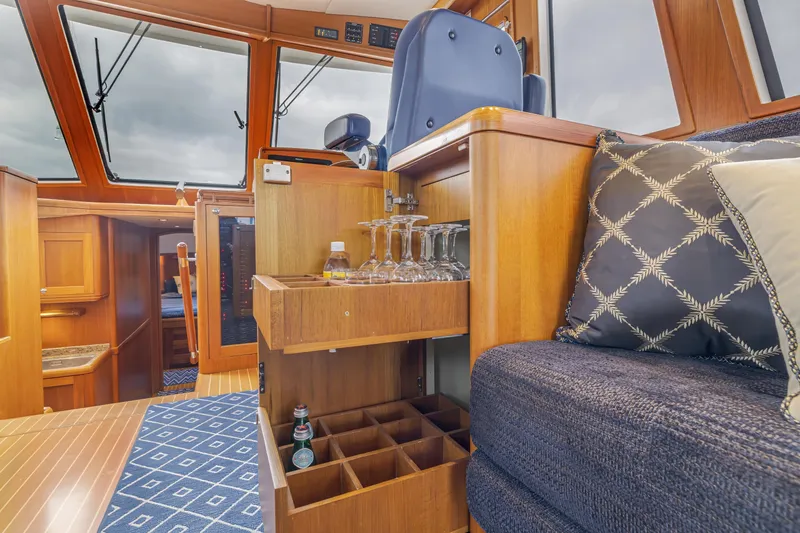

• Aft of helm are two storage cabinets, one for beverages and stemware; other for binocs, deck keys, etc.
• Storage locker forward beneath deck sole
• Gloss varnished teak dash and window trim
• (2) Varnished teak handrails in pilothouse, overhead port and starboard.
• Reverse-cycle air conditioning ducts port and starboard
• The port side window slides open
• Center window opens with powered actuator
• White noise-absorbent overhead.
• Single large power open/close overhead hatch with shade and screen assembly.
• Overhead recessed halogen lamps on dimmers provide lighting.
• Varnished teak overhead handrail

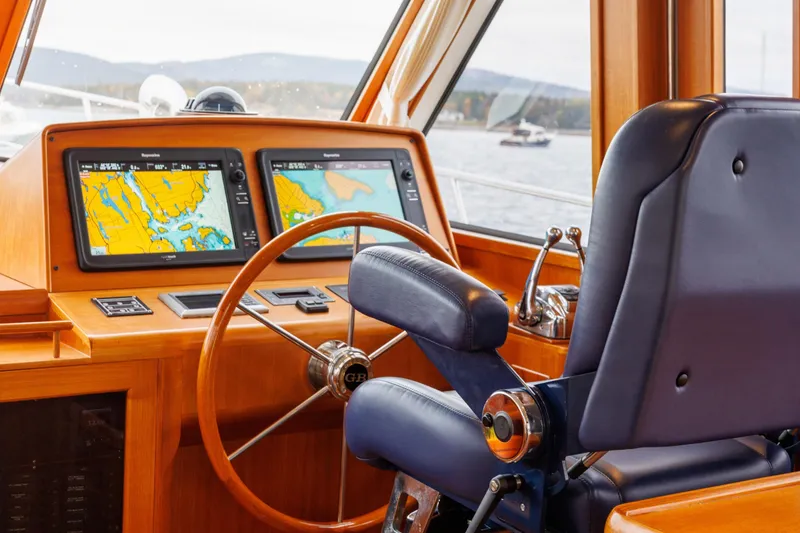

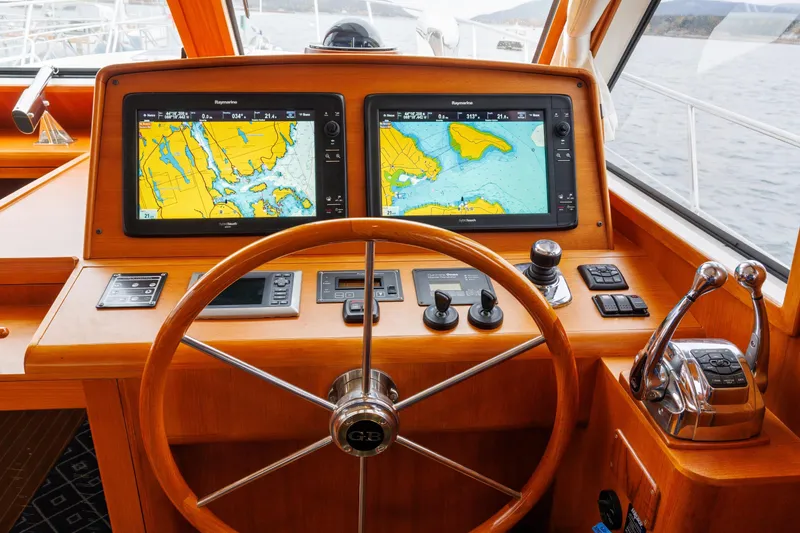

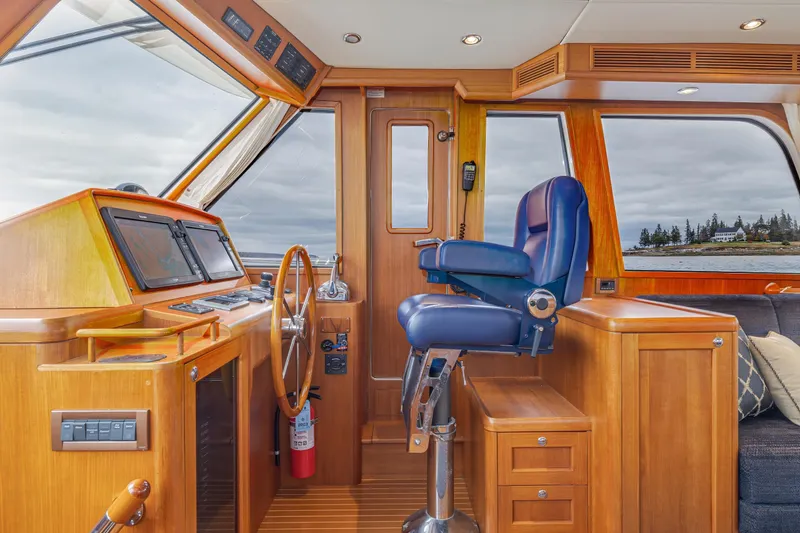

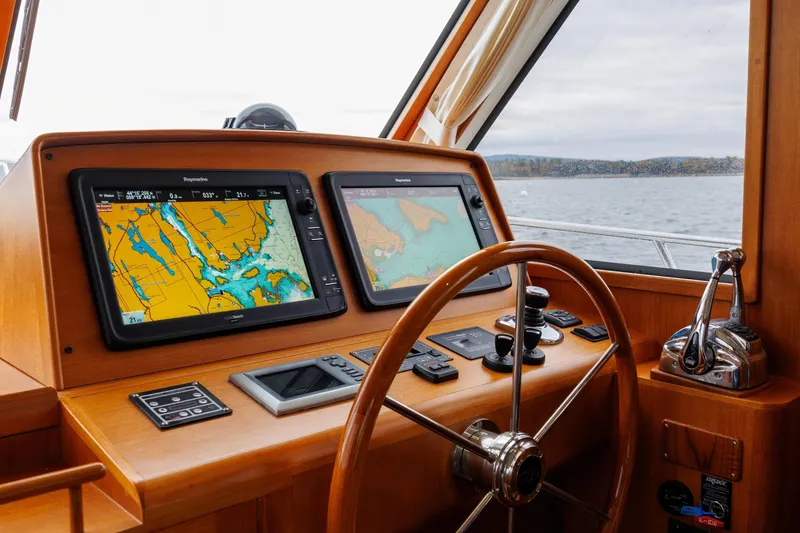

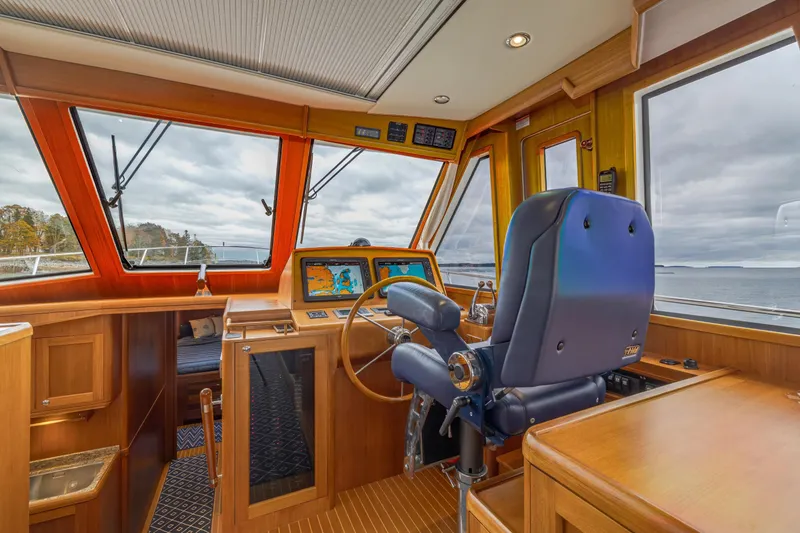

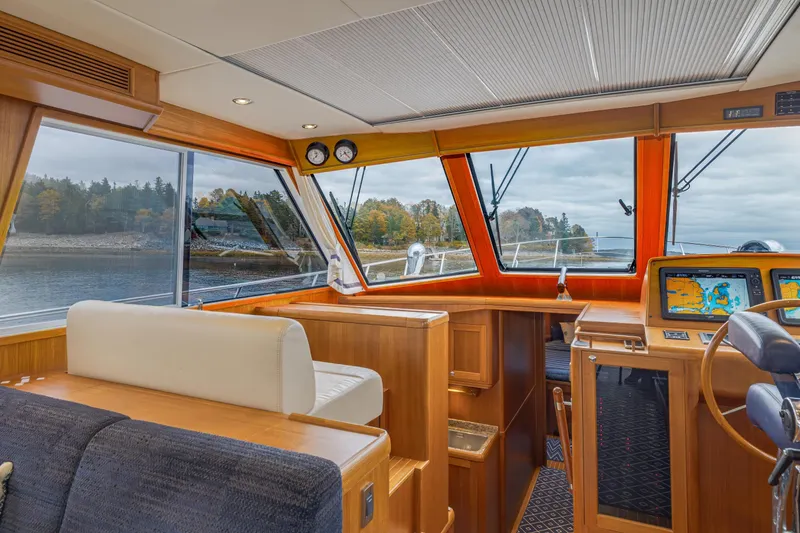

HELM ELECTRONICS, NAVIGATION, & SWITCHGEAR:

Satin varnished teak dash with fronted by a teak rimmed destroyer helm wheel.

• Stidd chair upholstered in Dark blue Ultraleather and mounted on polished chrome pedestal. Chair moves forward/aft, pedestal telescopes up/down.
• Exalto wiper control panel
• VesselView for engine monitoring
• Pursaan panel for tank levels
• Two Raymarine eS127 12" MFD
• Raymarine 4KW Super HD color 4' open array radar scanner
• Raymarine RS150 GPS sensor
• Zeus System autopilot
• Zeus System trim tab system
• Zeus Skyhook
• Raymarine CP-370 sounder module
• ICOM VHF with RAM mic and loud hailer/microphone speaker in pilot house top
• Cummins Vesselview for all engine data
• Exalto windshield wiper controls
• Ritchie SS-5000-12 Compass
• Fireboy override switch
• remote spotlight control
• Fireboy deploy and override switch

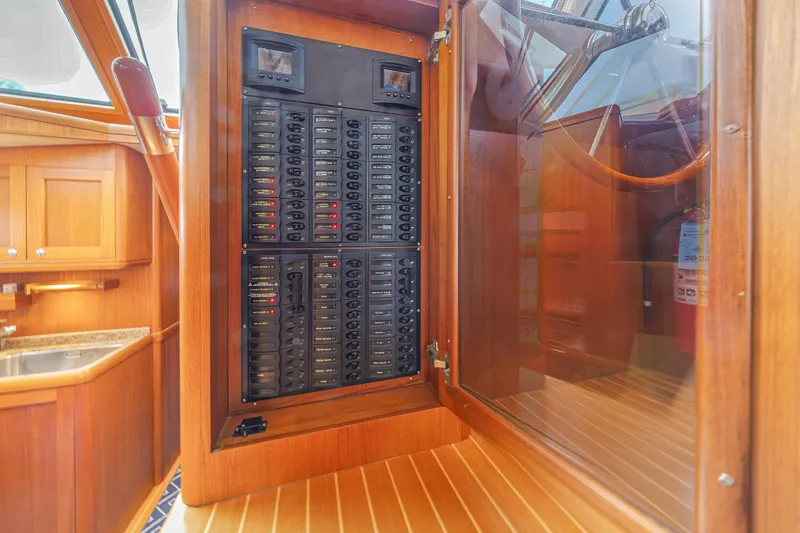

• AC and DC electrical panels are located just inboard of helm area, behind a hinged door with translucent lexan

Audio System:

• Fusion head unit
• Fusion speakers in cockpit
• Nile speakers in interior

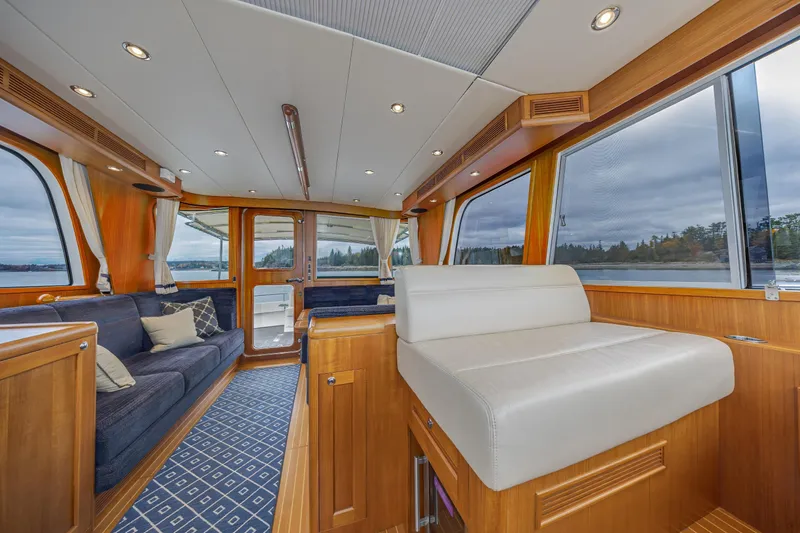

PORT SIDE NAV AREA:

• The elevated port settee seats two. A nav desk (with storage beneath) is situated forward of port settee
• A custom folding footrest is fitted on forward bulkhead below nav station.
• Nutrichef beverage fridge is located under settee and facing inboard

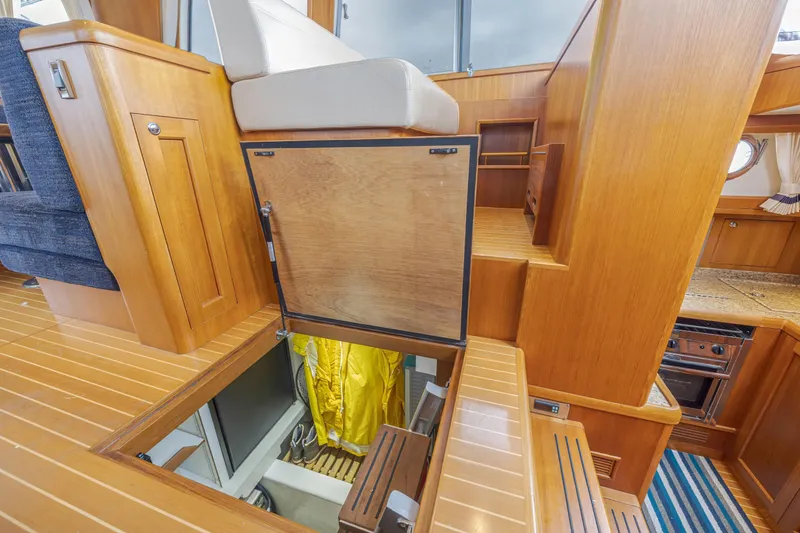

STORAGE AND UTILITY COMPARTEMNT:

Located below deck between port side nav and starboard helm is very spacious storage area.

• Large Vitrifrigo regrigerator
• Storage cabinets with sliding doors.
• 2 multi shelf banks with provision for adjusting shelf heights and quantity.
• Plenty of space for stowage of buckets, brushes, rods, and other sundry gear.

INTERIOR ACCOMMODATIONS:

• From the Pilothouse forward are the interior accommodations.
• Full galley to port
• Double berth guest cabin to starboard
• Day/guest head to starboard
• The master cabin and head is forward.

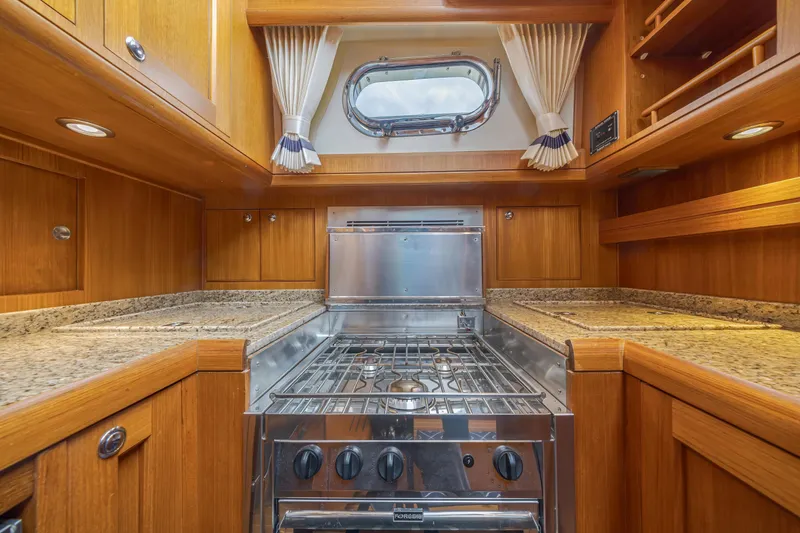

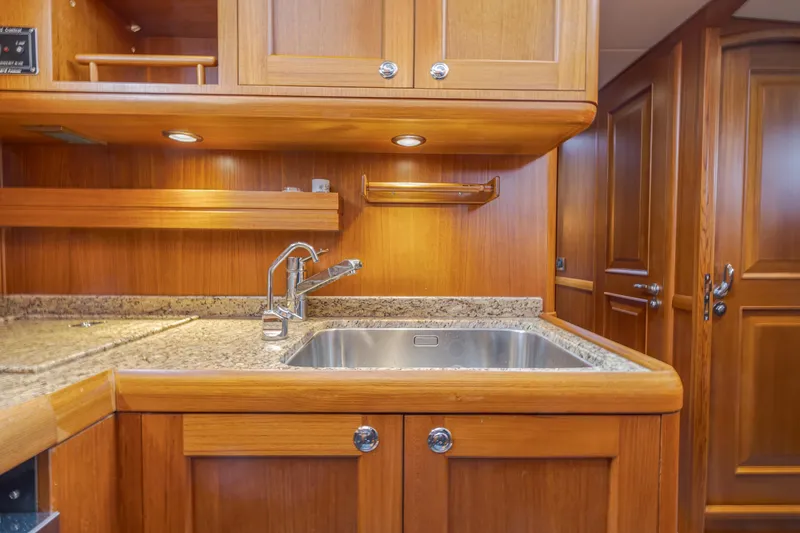

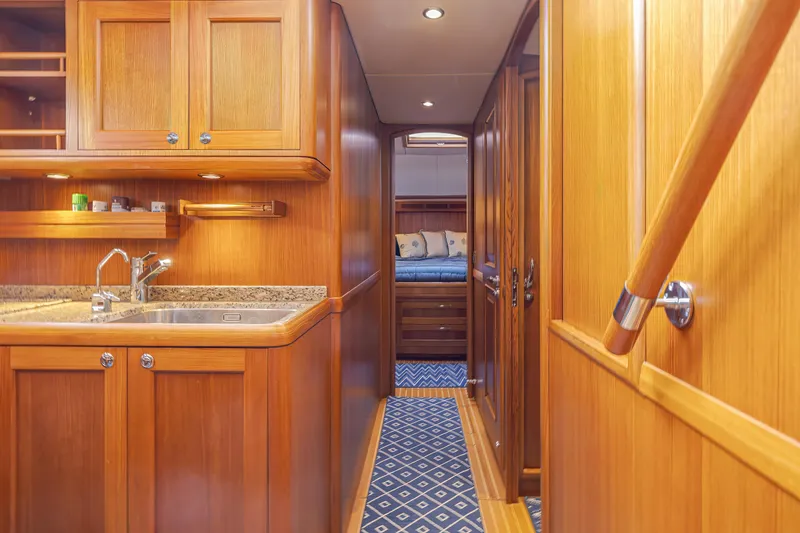

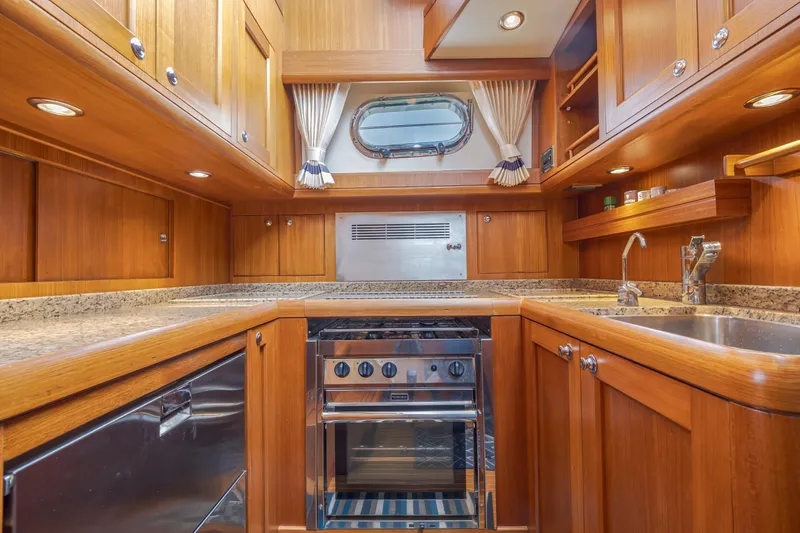

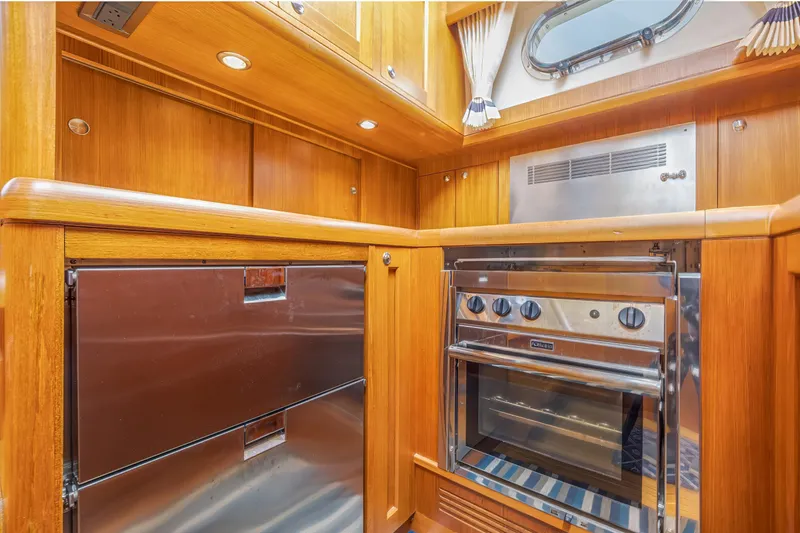

GALLEY:

To port is the U-shaped GALLEY finished in satin finished teak cabinetry with solid locker doors.

• Overhead recessed halogen lights on dimmer
• Aft facing counter is backed by storage lockers with sliding door access.
• Upper aft section has storage cabinet.
• Below is the double drawer Waeco galley fridge
• Range is located to port. Counter is hinged to cover when not in use. Underside of counter section is finished in SS for easy clean-up of cooking spatter.
• Waeco freezer is located under counter aft of range.
• Storage locker located under counter forward of range.
• Single bowl SS sink is in forward leg of counter.
• Utility storage below sink
• Storage cabinet is located above sink.
• Control panel for LP valve is outboard to port and facing aft.
• Opening portlight for ventilation

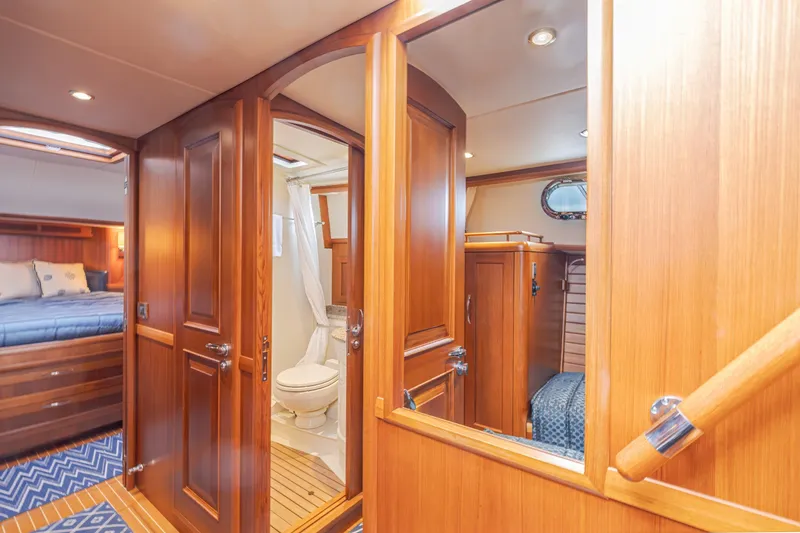

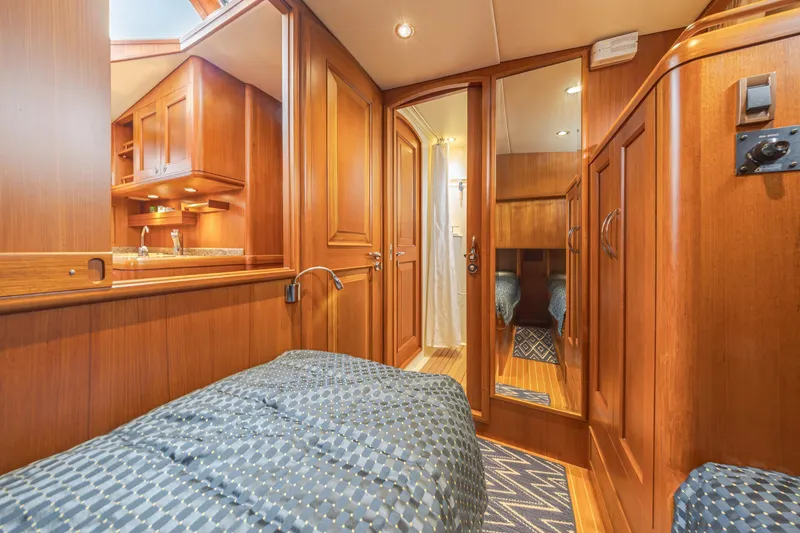

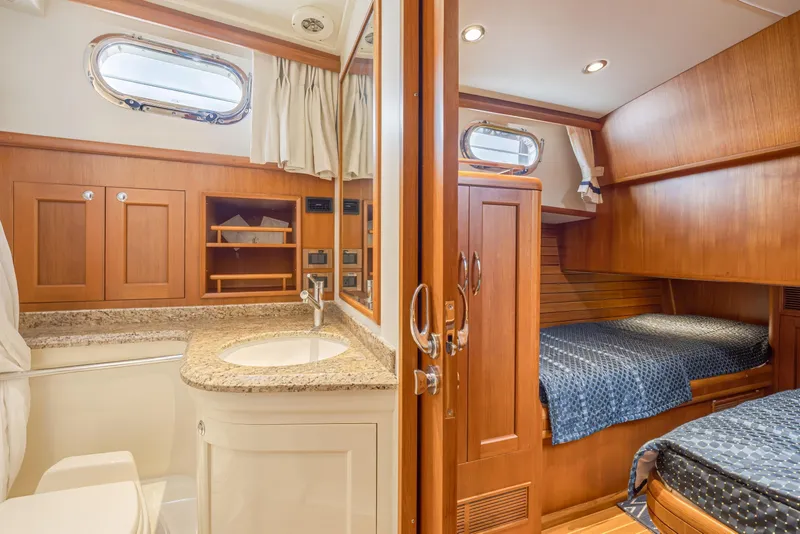

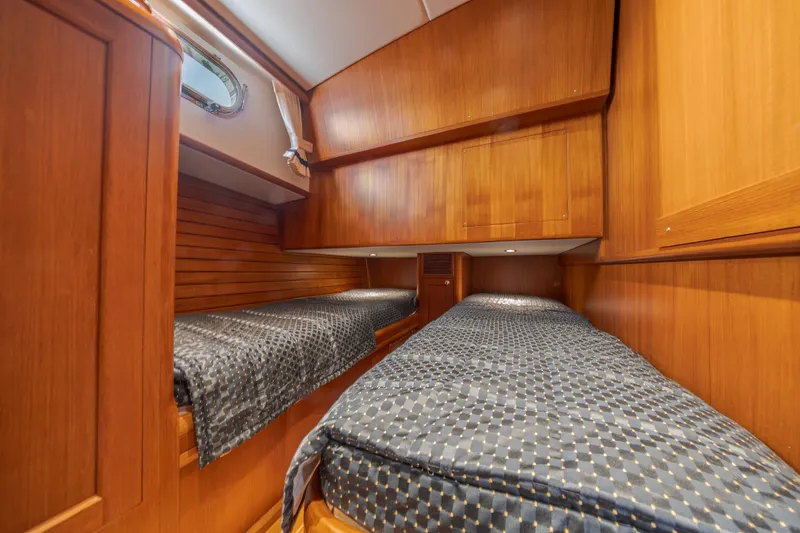

GUEST CABIN:

To starboard is the guest cabin with 2 single berths.

• Sandstone Corian countertop with Bone Corian undermounted sink, Grohe fixtures, with hot & cold pressure water
• Hanging locker is located forward and outboard.
• A full length mirror is located on forward bulkhead, facing aft.
• Cabin has a slide open panel to provide light from galley as well as easy monitoring of napping children.
• Divided storage locker outboard
• Recessed halogen lights on dimmer
• 110-volt outlet
• Opening portlight for ventilation.
• Private access to head

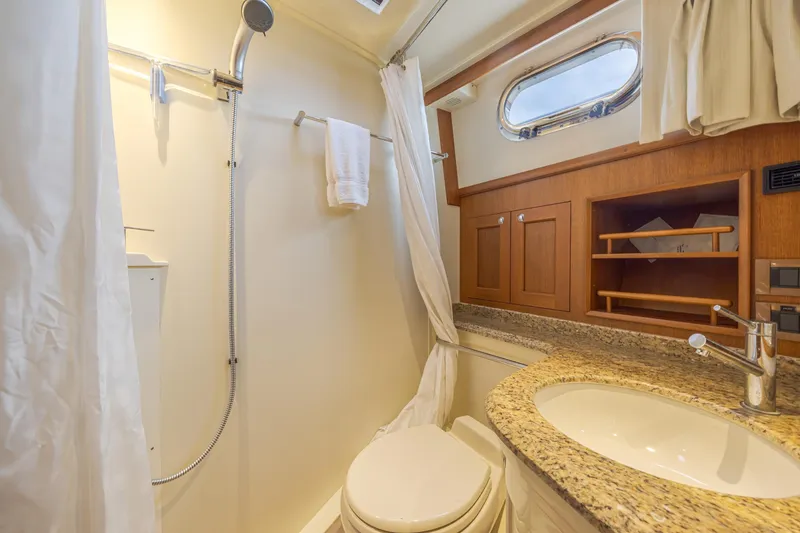

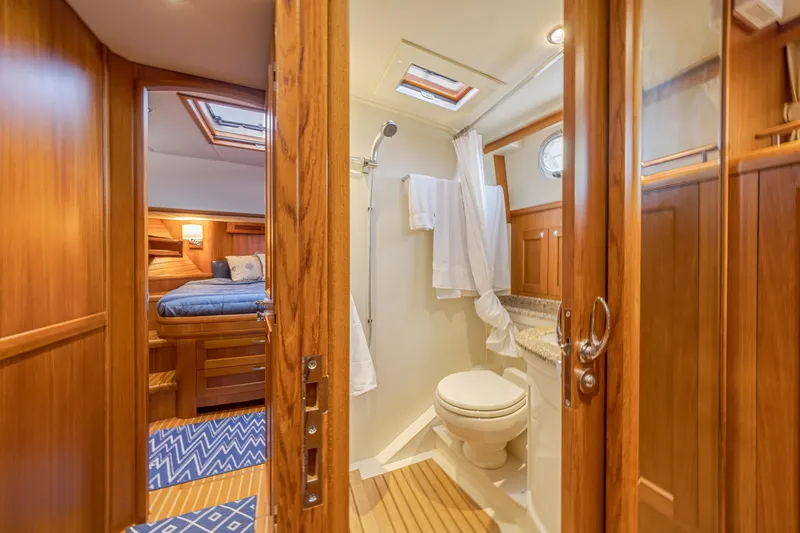

DAY/GUEST HEAD:

• Counter with white undermount sink
• Storage locker and shelves outboard of counter
• Teak slatted sole with shower drain beneath.
• Sliding door for access to aft cabin
• Hinged door for access from passageway.
• Shower curtain track to contain wetness.

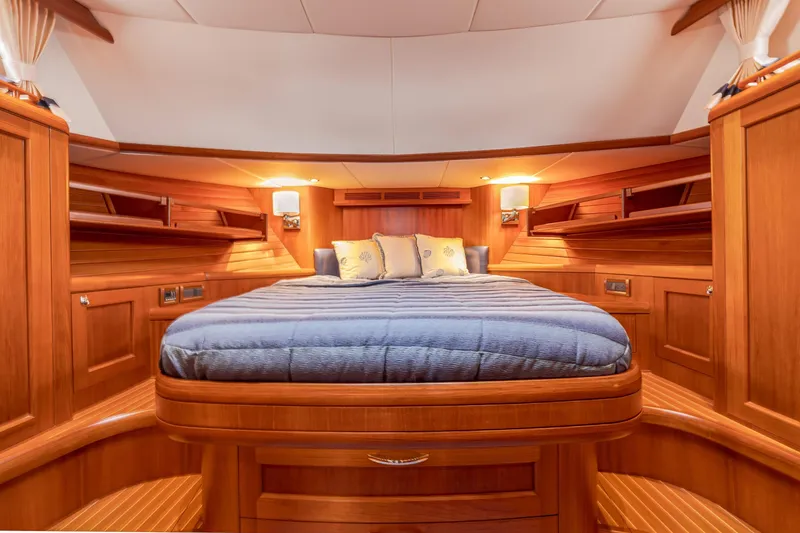

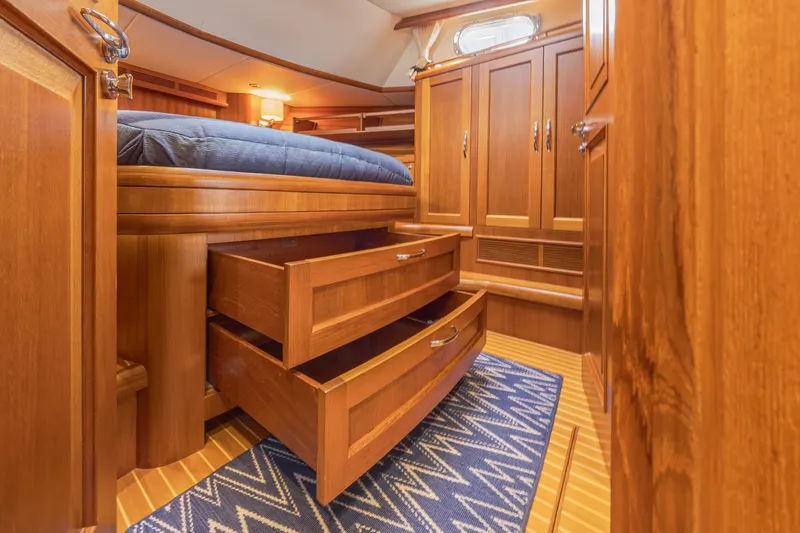

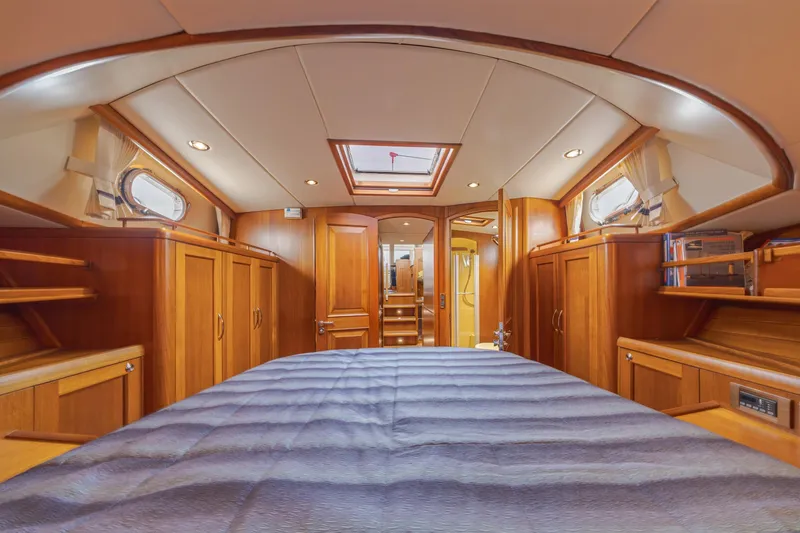

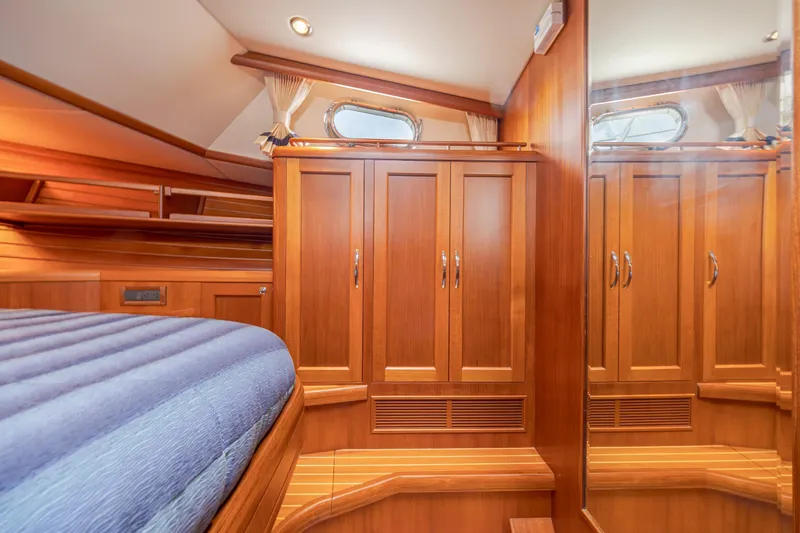

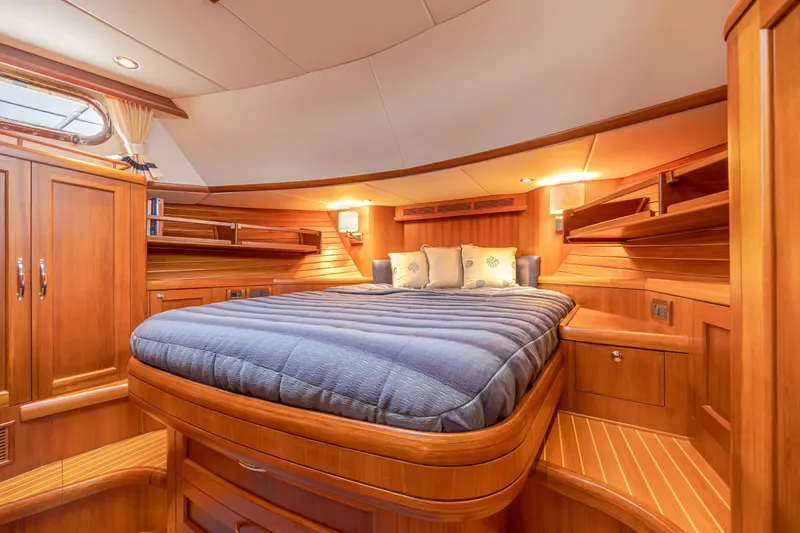

MASTER STATEROOM (Forward Cabin):

Forward, the solid teak door opens to the centerline Queen berth. Storage includes double doors forward to the chain/rope locker, port and starboard hanging lockers, and outboard shelves and compartments. The forward cabin has a large overhead hatch and there are oval opening window ports, starboard and portside for plenty of extra light and ventilation.

• Drawer bank below bunk at foot.

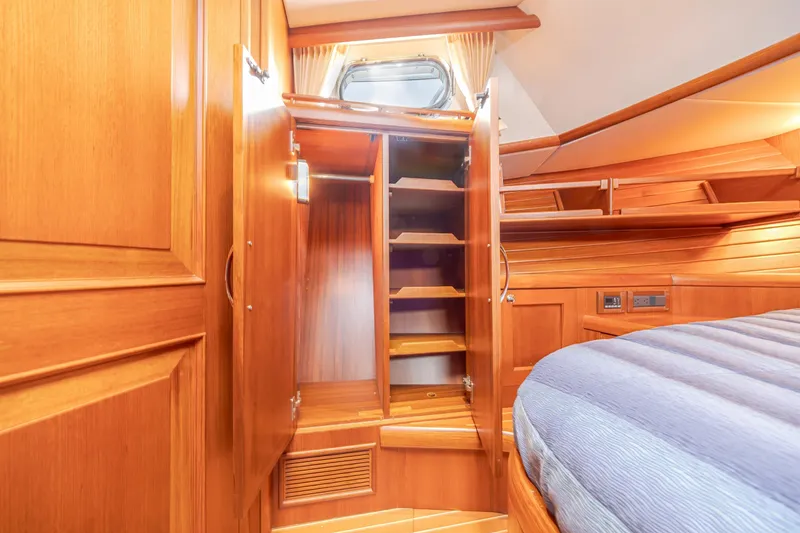

• Hanging lockers port and starboard have louvered doors and cedar lining and dome lights
• Outboard and slightly forward are smaller storage cabinets.
• Bookshelves are placed on either side of the berth.
• Six overhead flush mounted halogen lights as well as two reading lamps mounted on the forward bulkhead.
• Overhead opening hatch with shad and screen assembly.
• Air conditioning ducts located forward ither cooling or reverse-cycle heat. HVAC control panel is to port.
• Private Ensuite head entrance with door to the master stateroom

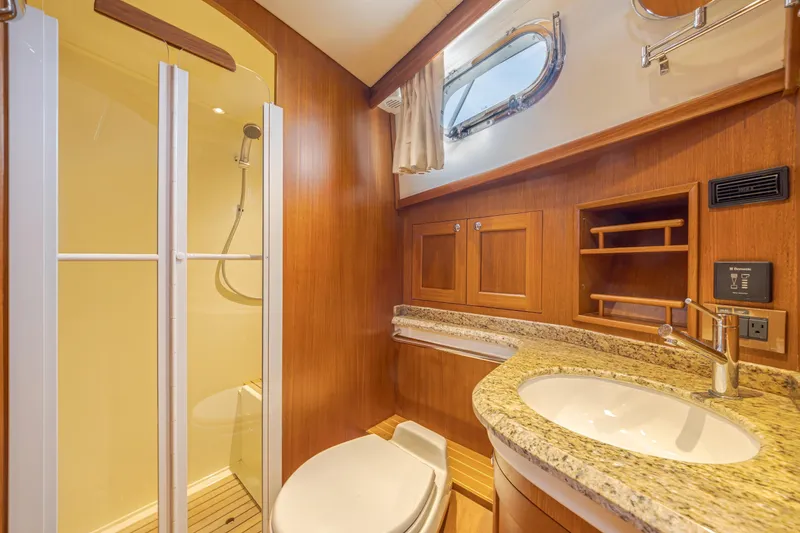

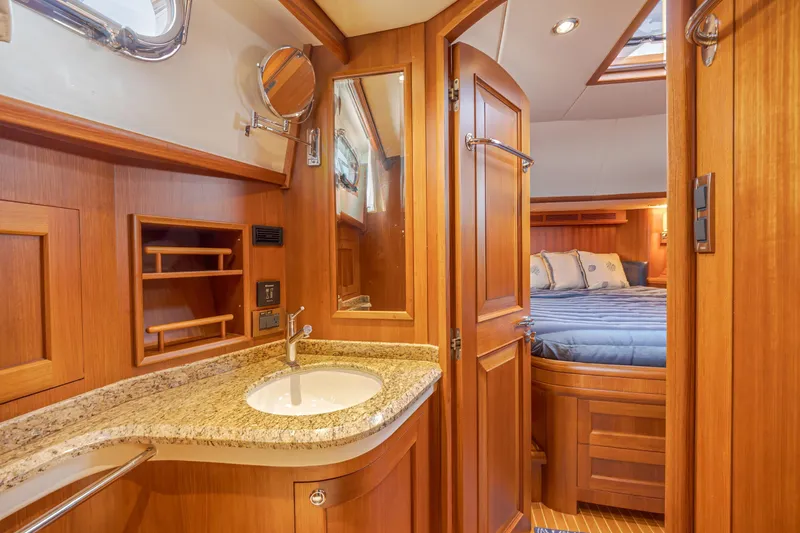

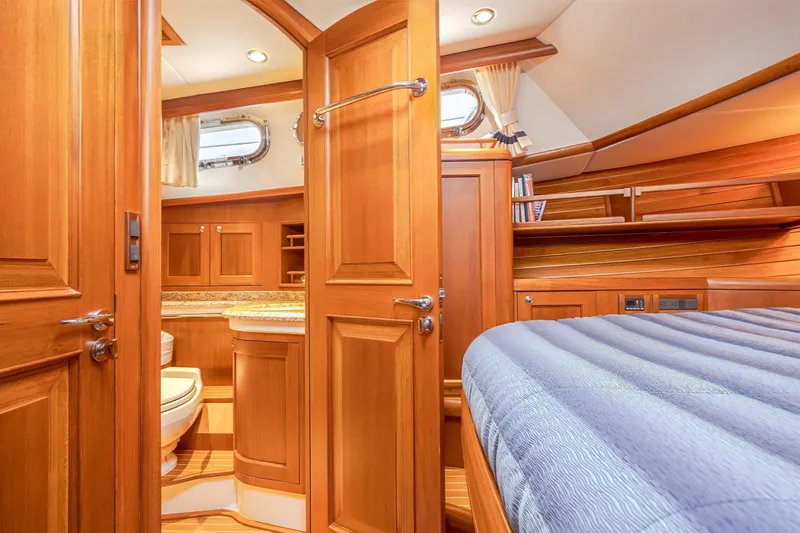

MASTER HEAD:

• Corian countertop
• Ample storage above and below counter level
• Overhead opening hatch for ventilation
• Opening portlight for additional ventilation

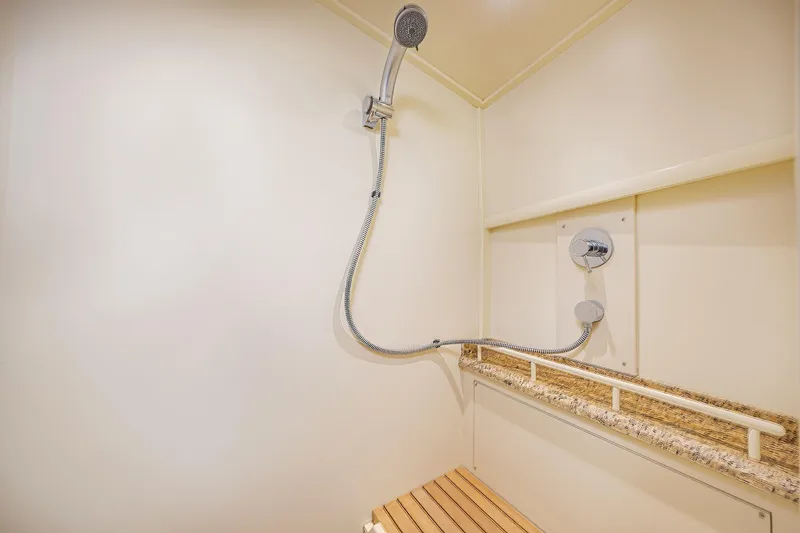

• Separate shower stall with bifold door
• Slatted teak seat in shower

ELECTRICAL SYSTEM & EQUIPMENT:

• House battery is comprised of three 8D AGM's
• Main engine start batteries are two 4D AGM's
  • Genset start battery is GPL24 AGM
  • BEP electrical DC circuits, 120/240 circuits and shore power/genset selector switch
  • BEP voltage and ammeter instruments
  • Mastervolt MassCombi inverter 12/2500-100
  • Mastervolt battery charger 12/100-3
• Glendinning shore cord system: CM7 with 75' of 50 amp cable
• 110v/15a GFCI protected outlets throughout

· Dual 12 volt 150 amp alternators on engines charge all batteries

· Egis ACR system regulates charging of start, house, and thruster batteries

• Promariner zinc saver system
• Cradlepoint Dual cell router with wifi
• CO detector by Seafire
• Cabin lights are Cantaluppi
• Salon reading lights are CABIN DENMARK
• Forward cabin reading light is CHELSOM
• Interior, exterior, and deck courtesy lights are Hella
• Navigation and anchor lights are Aquasignal
• Engine room lights are Hella
• Outlets and switches are Vimar
• Delta T Systems engine room ventilation
• Purasan monitoring for fuel and water tanks
• Waeco top load freezer in galley
• Waeco galley fridge
• Wine Enthusiast wine cooler in pilot house
• Vitrifrigo utility room freezer
• Jabsco galley blower
• GFI protected circuits in galley, engine room and head and in pilothouse.

MECHANICAL EQUIPMENT & ENGINE DETAILS:

• Twin Cummins QSC 600hp 8.3L diesels
• Zeus pod drive system
• Cummins Vessel View instrumentation for main engines
• Zeus counter rotating props on pd drives
• Zeus electric/hydraulic steering system
• Zeus trim tab system
• Centek Vernalift mufflers for main engines
• Racor 1000MA fuel filters for main engines
• Groco ARG-2500 seawater strainers for mains
• Delta T Systems engine room ventilation
• Onan MDKBM 11.5KW genset
• Racor 500MA fuel filter for genset
• Centek sweater separator and muffler for genset
• Groco BVS1000 seawater strainer for genset
• Groco oil change pump

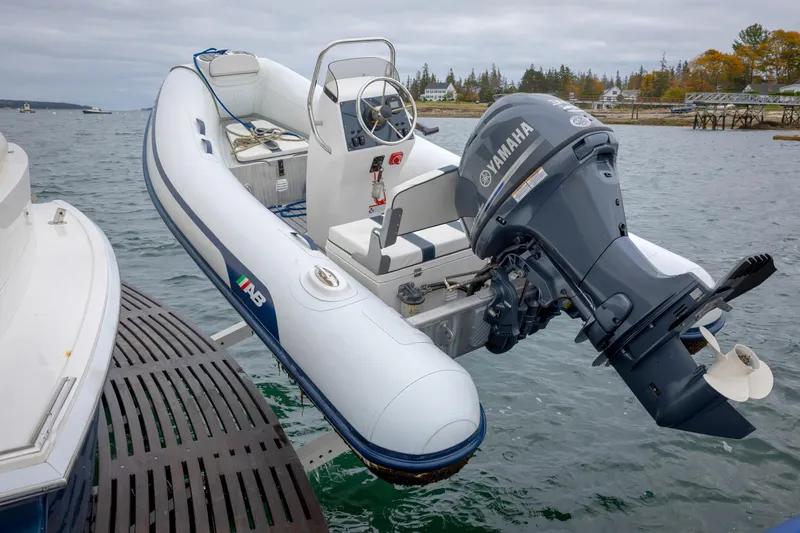

• Freedom hydraulic dinghy lift system
• Shurflo smart sensor water pump
• 20 gallon Seaward hot water heater
• Seagull IV freshwater purification system
• Whale shower drain pump
• Sealand Dometic Vacuflush head system
• Two-inch foam/lead fully insulated engine room and flexible engine mounts provide quiet, vibration-free cruising
• Exalto windshield wiper system and controls
• Rule high water bilge alarm
• Rule bilge pumps with float switches, three at 2000 GPH
• Whale emergency bilge pump
• Fireboy automatic fire extinguisher system in engine room. Manual activation cable at helm
• Four dry chemical fire extinguishers
• LP gas sniffer - in galley
• Engine room blower.
• Marine Air AC system: 16k and 12k btu units in main salon; 16k btu unit for fwd cabins
• Sealand waste system

TANKAGE:

• Two 250 gallon aluminum fuel tanks
• 145 gallon aluminum freshwater tank.
• 60 gallon Dometic holding tank
• 20 gallon Seaward insulated water heater
• SmartSwitch tank monitoring

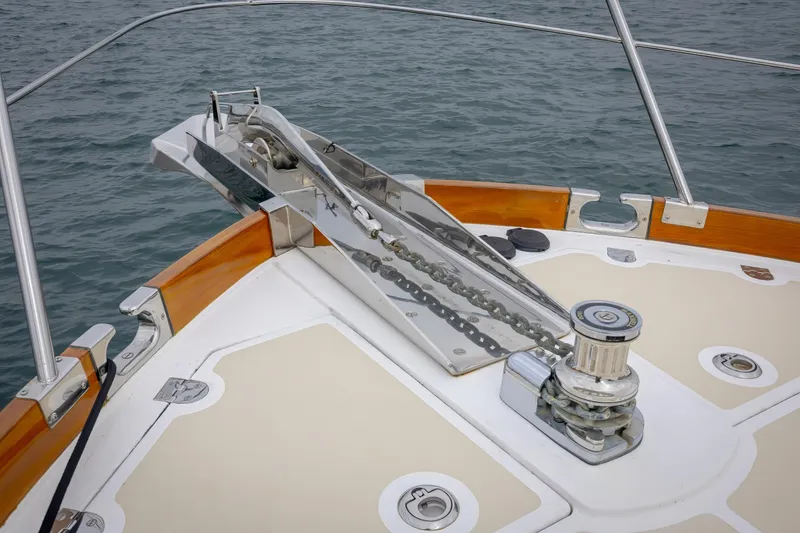

GROUND TACKLE:

• Maxwell VWC 1500 windlass with capstan on foredeck.
• Ultra polished stainless steel anchor
• Polished stainless steel anchor roller and pulpit

EQUIPMENT:

• ACR spotlight - mounted on pilothouse top with remote at helm
• Varnished teak bow burgee pole and stainless socket
• Varnished teak ensign pole and stainless steel socket
• Navigation lights
• Cockpit flood lights
• Dock lines
• Fenders
• AFI air horn, control switch on dash
• Brass bell
• Life jackets
