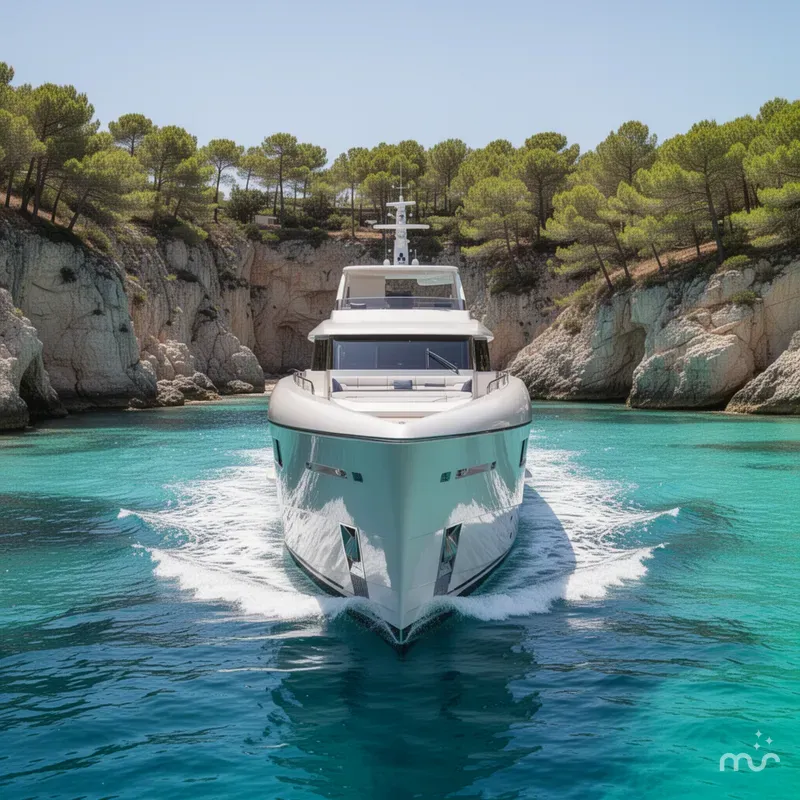

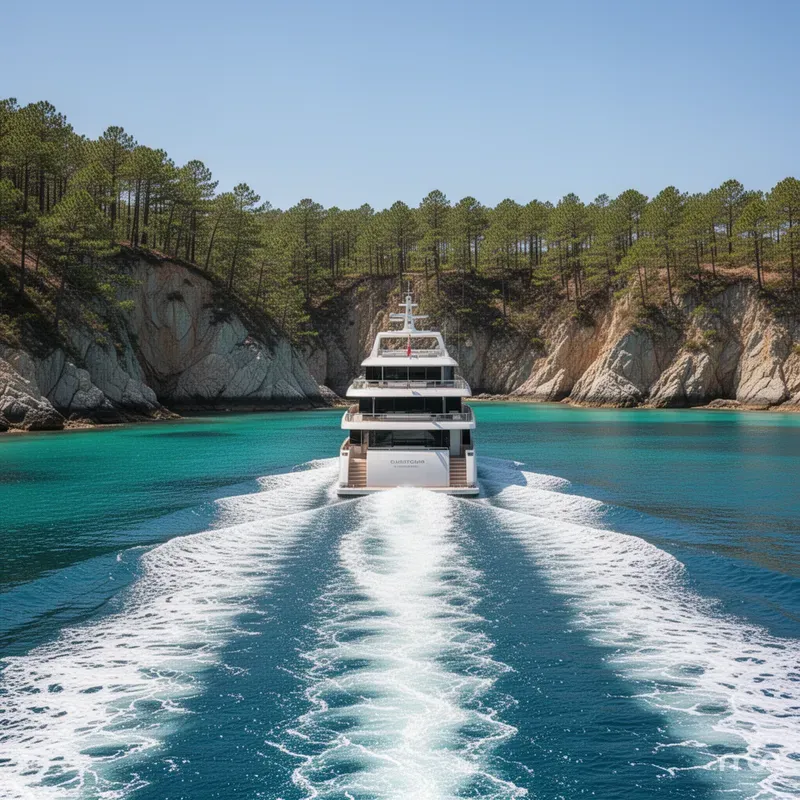

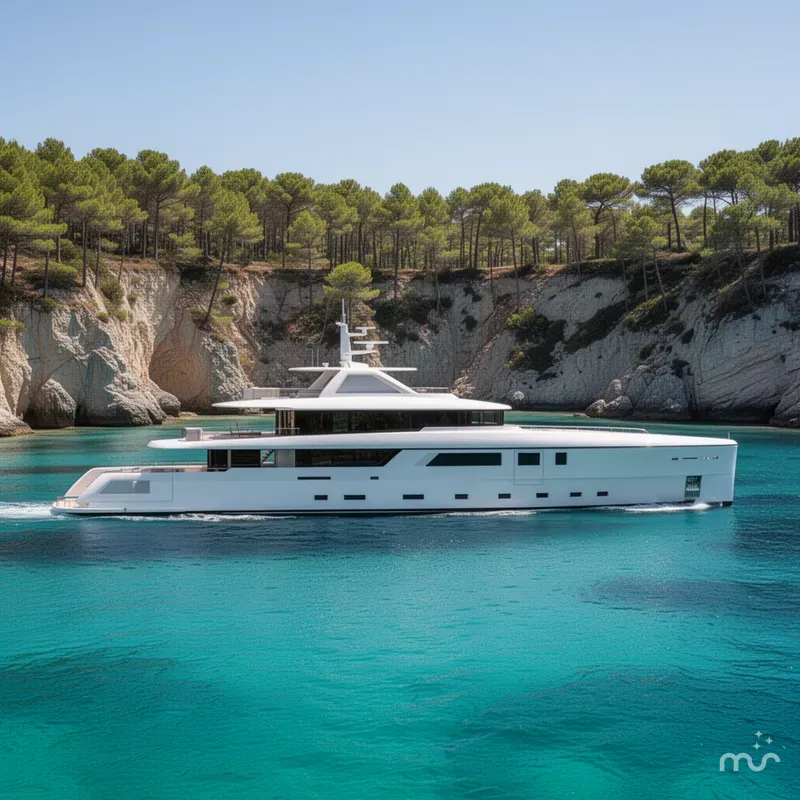

2028 Custom 150 Palm Beach

•    Yacht type Twin screw displacement motor yacht
•    Naval architecture Philippe Briand Ltd
•    Exterior Design Vitruvius Yachts Ltd
•    Interior Design TBD
•    Shipyard TBD
•    Accommodation Owner/Guests 10 persons in 5 cabins
•    Accommodation Crew 9 persons in 5 cabins
•    Hull construction High Strength Steel AH36
•    Superstructure construction Aluminum 5083 H111/H321
•    Class Lloyds Register
•    Notation 100A1 SSC YACHT MONO G6 LMC UMS

•    Length overall 46.00m
•    Waterline length 45.44m
•    Maximum beam 8.70m
•    Draft at 50% Load Condition 2.00m
•    Lightship displacement 327 to 335 t
•    Half load displacement 390 to 400 t
•    Full load displacement 420 to 430 t
•    Gross tonnage Approx. 480 GRT
•    Fuel capacity 60,000 l
•    Fresh water capacity 16,000 l
•    Black and grey water capacity 16,000 l
•    Maximum speed 15.7 kts
•    Cruising speed 12.0 kts
•    *Range at 11 knots 4500 nm

*Including 16l/h (40kW hotel load on delivery) genset consumption. Performances subject to confirmation with tank testing/ CFD studies and weather conditions.

•    Main Engines 2 x CAT 32 ACERT C-rating
•    Propulsion power 2 x 970kW
•    Propellers 2 x fixed-pitch
•    Auxiliary generators 2 x CAT C4.4- 100 (110V to 480V-60Hz) kW
•    Emergency generator 51 (110V to 480V-60Hz) kW
•    Bow thruster Electric- retractable
•    Bow thruster power 110 kW

Conceived and designed specifically for cruising in comfort in shoal draft locations, such as Bahamas, Florida & The Chesapeake, with a 6’6” half load draft, (with the props still protected). 5 x King staterooms, plus room for 9 crew with additional walk-in fridge/freezer space, allowing extended cruising.

Access via retractable aft gangway. Aft beach club with fresh/sea water pool, hull side fold down bathing platforms (port and starboard), lounge area, stairs to main deck on port and starboard, aft mooring area. Technical storage room accessible through deck hatches. Control room and engine room with direct access from main deck on portside.

Guest area: 4 king guests cabins each with en-suite bathroom (2 aft cabins convert from twins to king) served by one central corridor and central stairs leading to main deck. Service door leading to the crew area.

Crew area: service stairs up to main deck, laundry, walk-in fridge/freezer and additional storage space, crew mess and one central corridor leading to 4 double crew cabins each with en-suite bathroom.

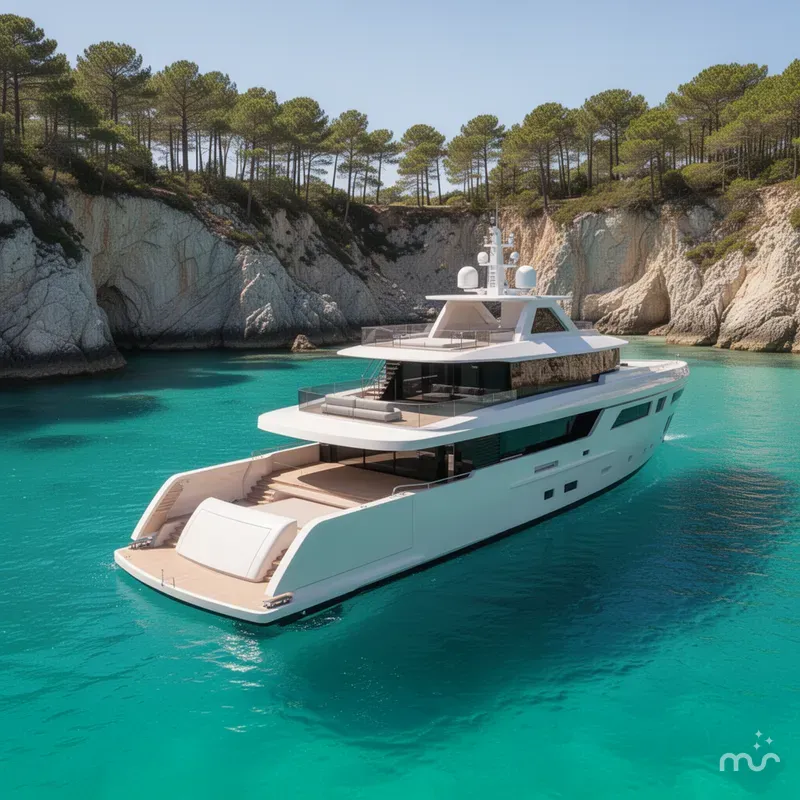

Access via stern passarelle or “Transformer” platform from the integral swim platform and/or bulwark gates port & stb’d. The aft beach club features a pool and sun pads, with opening bulkwarks, forming a large lounging area, surrounded by the sea.

Proceeding forward up steps to port and stb’d is the large covered aft deck, which features a convertible seating area that converts between a 10-guest lounge settee to 10 person dining area. A formal bar completes this outside entertaining haven. There is access to the Skylounge deck via stairs to port. Crew access is down the port side deck, into the mid-ship pantry area.

Full beam-full height fully glazed four-part sliding door to enter the main saloon. A 10 guest “convertible” lounging/dining area on portside. Lounge/settee area on starboard. Large full height sliding opening glazing on port and starboard side saloon walls.

Galley and pantry on portside with crew access door to side deck passageway.

Lobby with day head on starboard.

Access to the owner’s suite on starboard via office/dressing area. Full beam owner’s cabin fitted with private fold down balcony on starboard. His and her en-suite bathrooms forward.

Front garage accommodating a 6m tender, 2 x jet skis and with a Solas compliant sliding beam crane mounted on garage ceiling. 6m long fold-up shell door on portside for tender and toys launching.

Large sun protected aft terrace with lounge settees and covered 10 guests dining table. Full beam-full height fully glazed four-part sliding door entrance. Full beam upper deck saloon with bar on port and lounge settees on starboard. Large full height windows on port and starboard sides.

Pantry, lobby, day head and service corridor leading to the ship’s office, the captain’s cabin with en-suite bathroom and leading to the wheelhouse. Port side access for guests to access the fore-deck lounge area. Side doors on port and starboard from wheelhouse, to access the foldable side wing stations on port and starboard passageways. Portuguese bridge leading to the Foredeck guest lounging area featuring seating, sun-pads, sun awnings. Mooring pit forward with access to the garage below.

Large aft sunbathing area. Day head on starboard. Bar and BBQ area on port. Large sun protected fwd lounge area featuring a Jacuzzi tub with sun pads each side. Radar arch for antennas and aerial equipment supporting a hard top.

Built-in tanks, pump room and storage space, bow thruster compartment.

•    6m Castoldi tender
•    2 x Wave runners
•    4 x 12-man life rafts
•    Storage for Seabobs, diving gear, surfboards

Other equipment
•    1 x retractable transom gangway
•    1 x “Transformer” platform on integral swim platform
•    2 x Stainless steel HHP anchors, 360kg each (TBC)
•    1 x Telescopic forward mast
