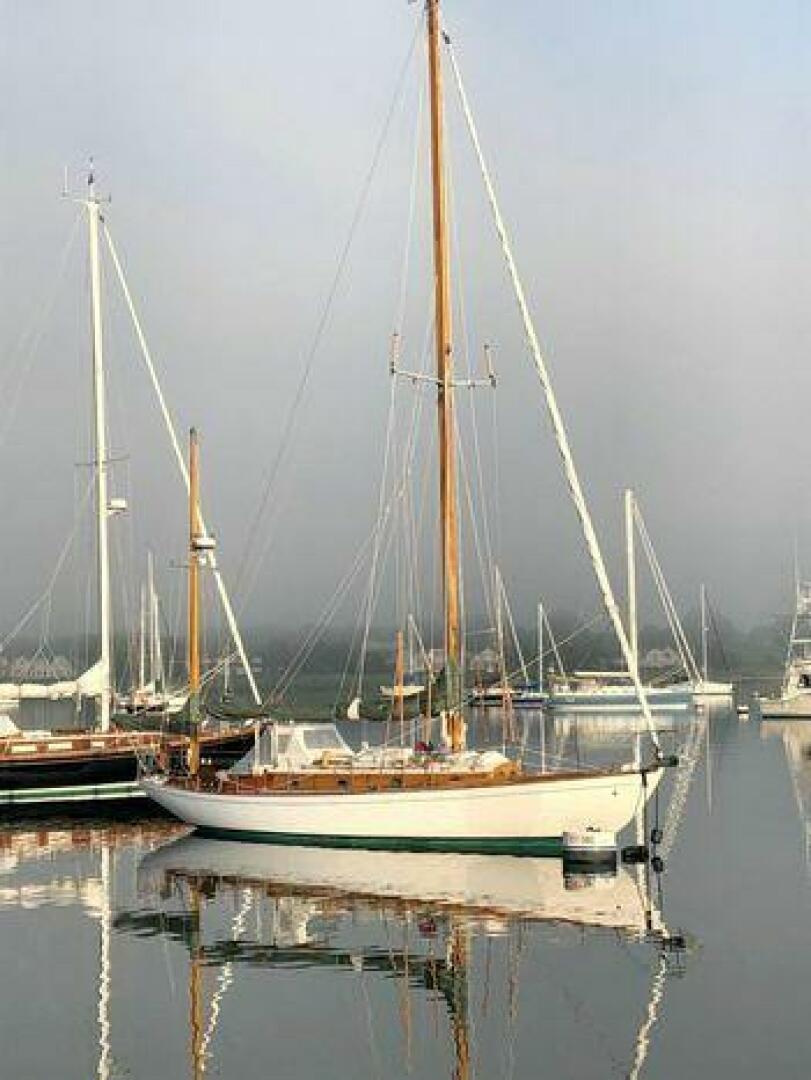

1962 Concordia Yawl Sold Boat in Stonington, CT 06378 US

Woodwind (Hull #89) was built in 1962 at Abeking and Rasmussen Shipyard, Lemwerder, Germany. A carvel planked hull with African Mahogany planks upon white oak stem lower planks port and starboard; laminated white oak frame and beams with silicon bronze fastenings. Three keel bolts completely removed and replaced with stainless steel or bronze (where appropriate in 2003). .

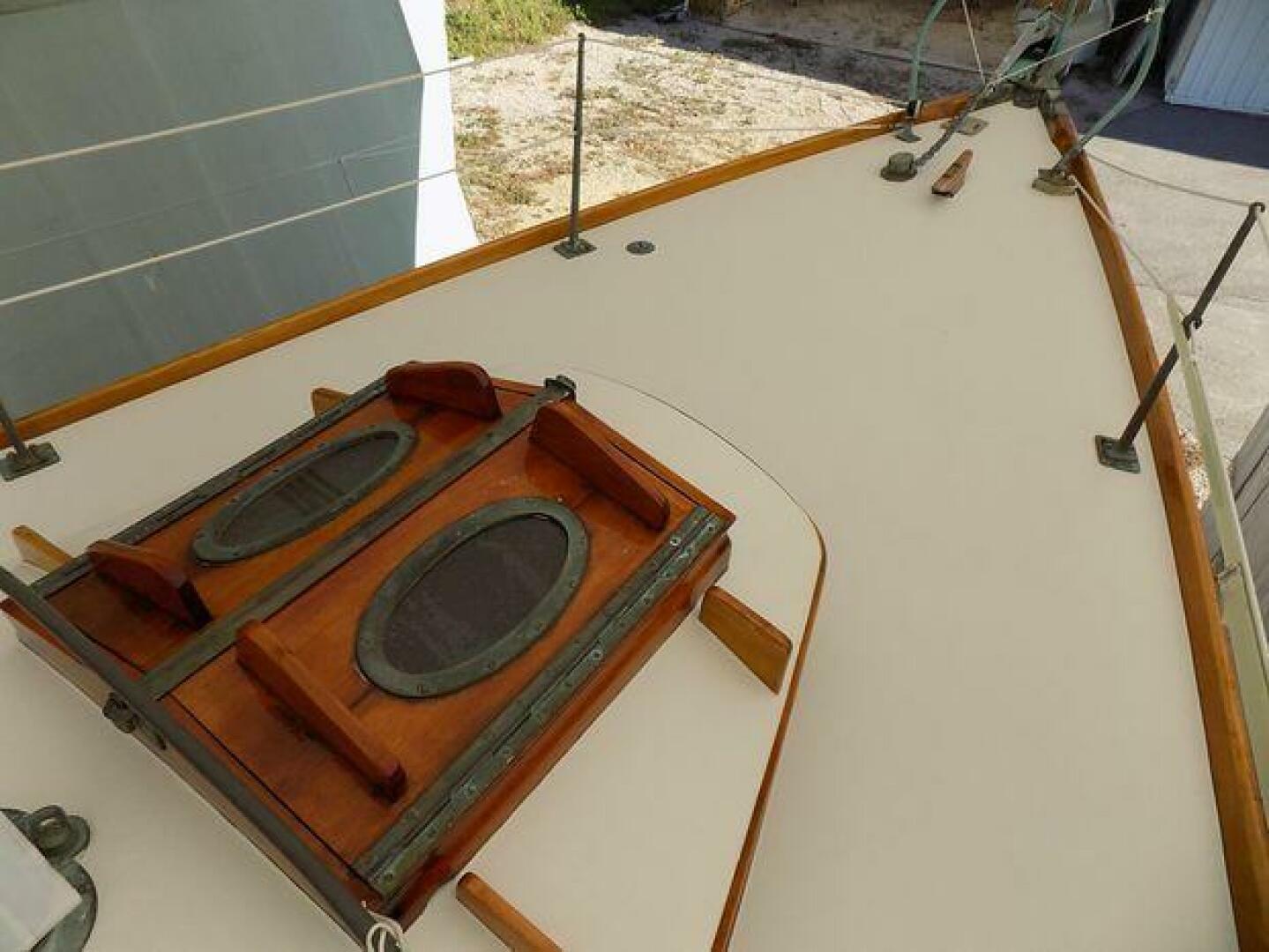

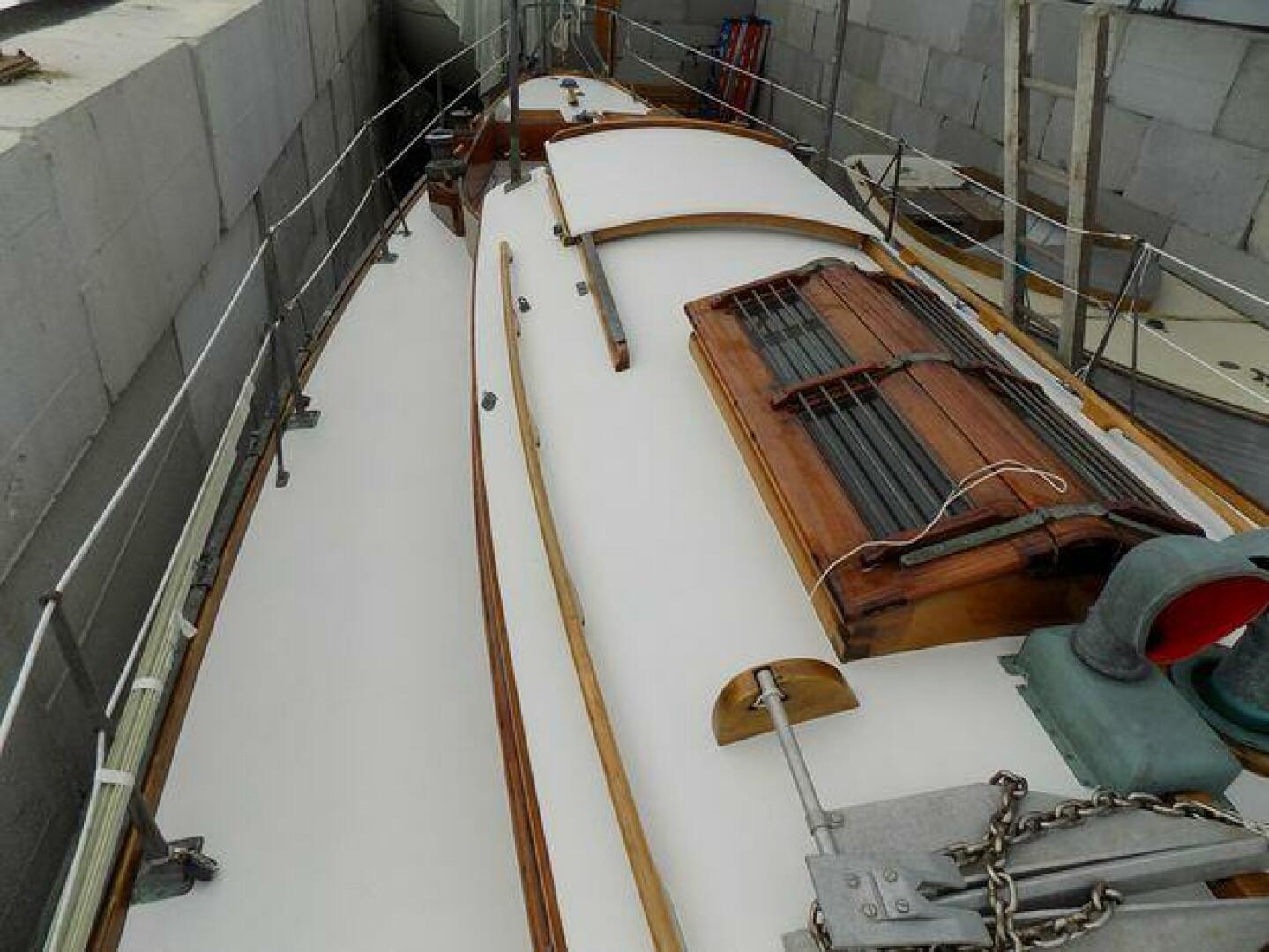

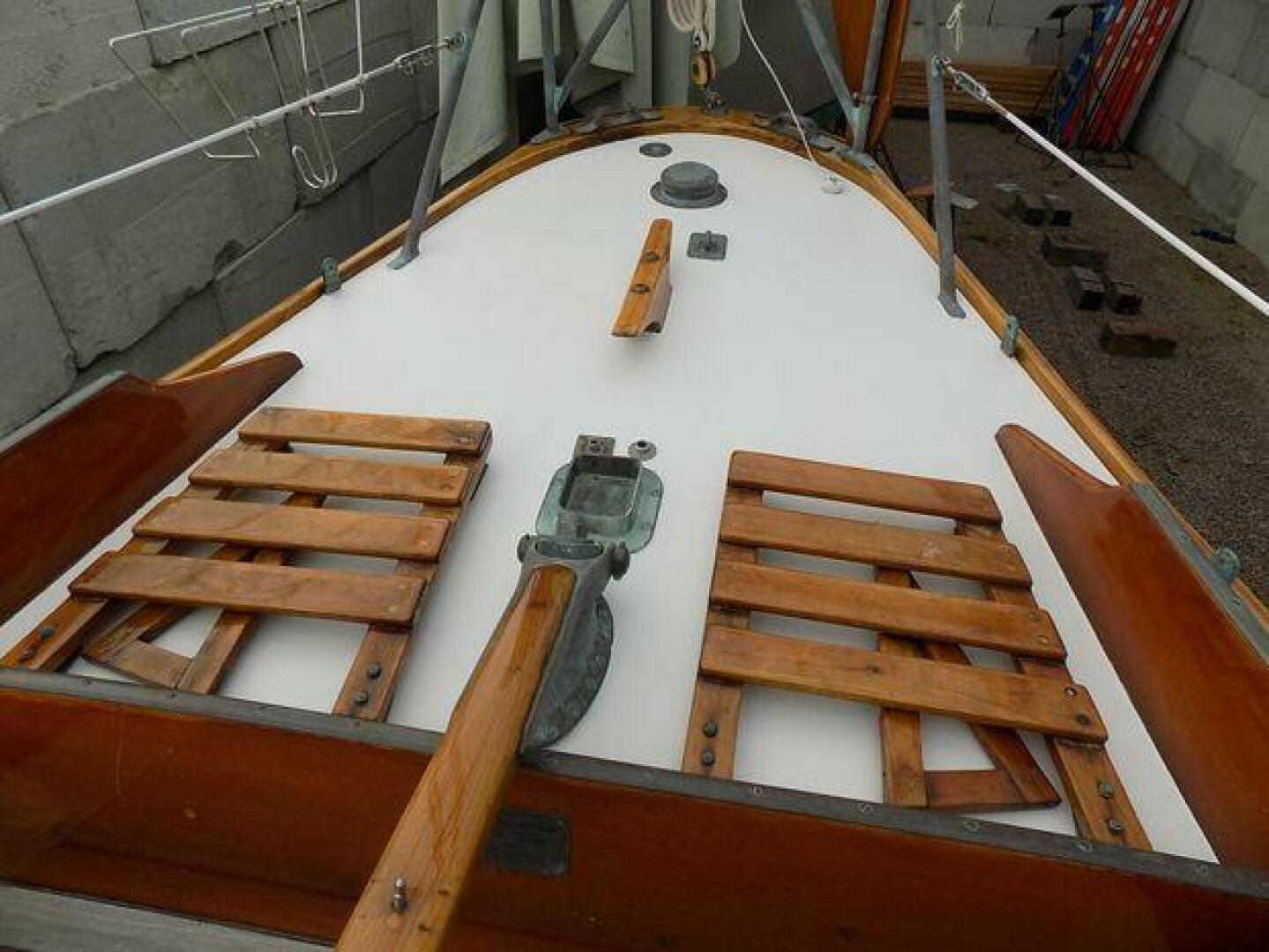

Full iron keel with bronze skeg and three bladed Max-Prop (feathering) propeller set in rudder aperture. Mahogany rudder. The superstructure is varnished mahogany with painted Dynel decks (synthetic fiber) overlaid on planked mahogany. The cabin top is planked cedar with a canvas overlay. All deck trim, coamings, and hatches are mahogany. The decks were painted November 2022. The self-bailing cockpit was rebuilt in 2009 with teak lockers and teak sole (with new frames under cockpit 2010). There is a bridge deck.

The interior is bright finished raised knotty pine bulkheads with locust trim and painted cedar overheads. The cabin sole is teak planking (original). The decks are natural solid teak planks over oak frames. Bronze stanchions with varnished teak toerails, handrails and trim. Bronze taff and bow rails. Tanks are Monel (nickel-copper alloy). Woodwind is finished in white, navy blue boot top with green anti-fouling bottom paint.

A detailed and comprehensive record of Woodwinds repairs, improvements and maintenance since 2002 is available.

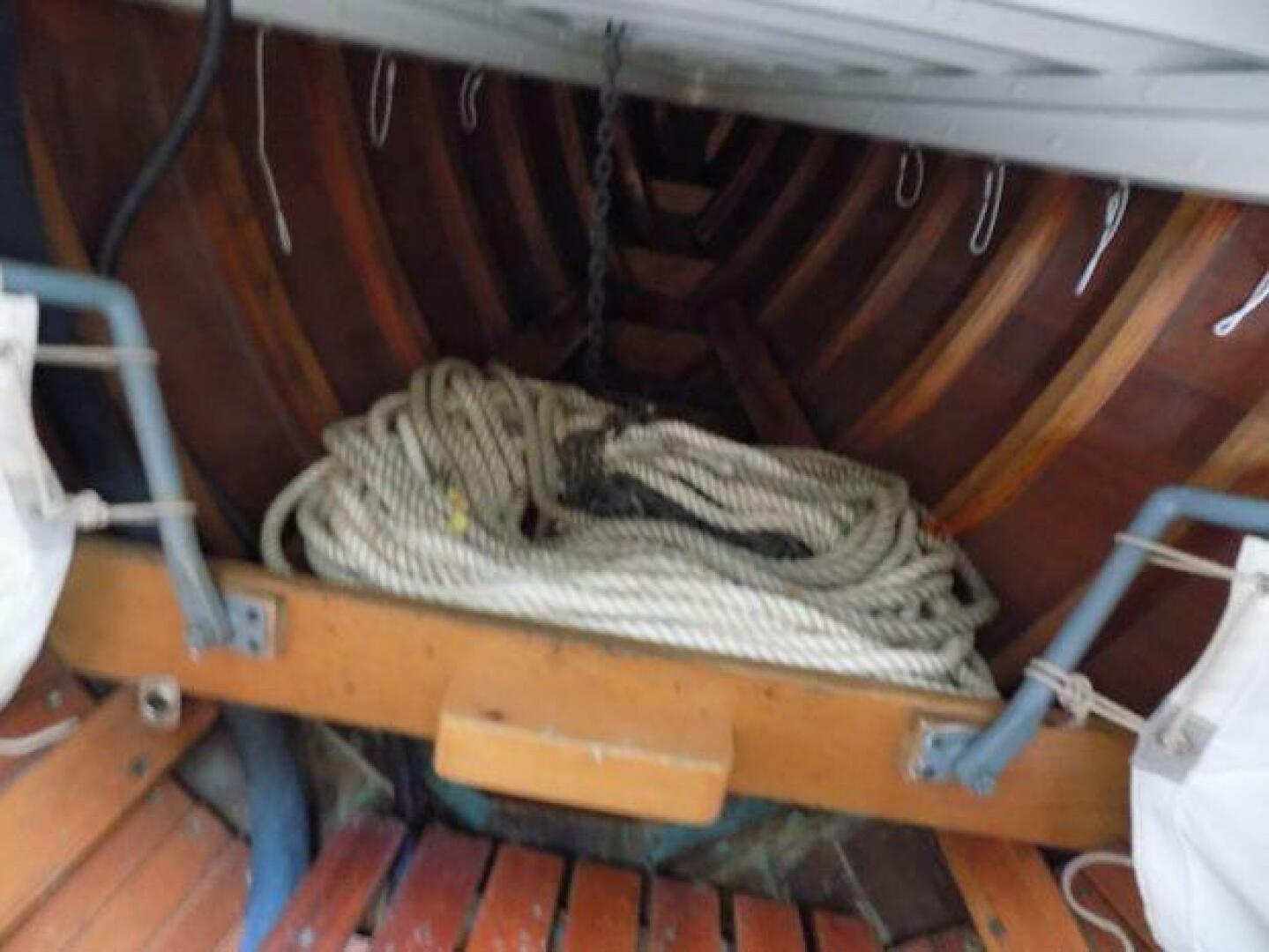

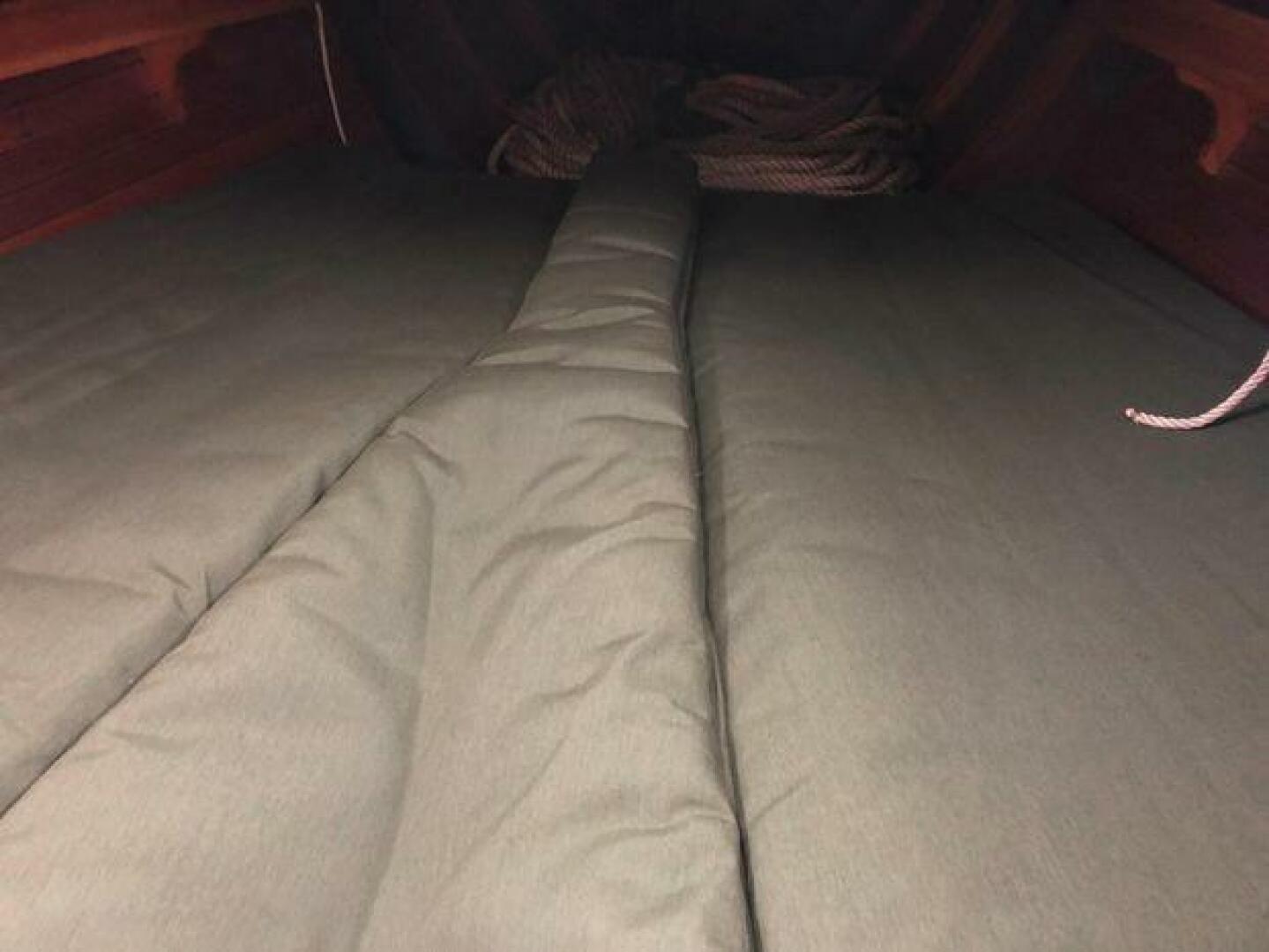

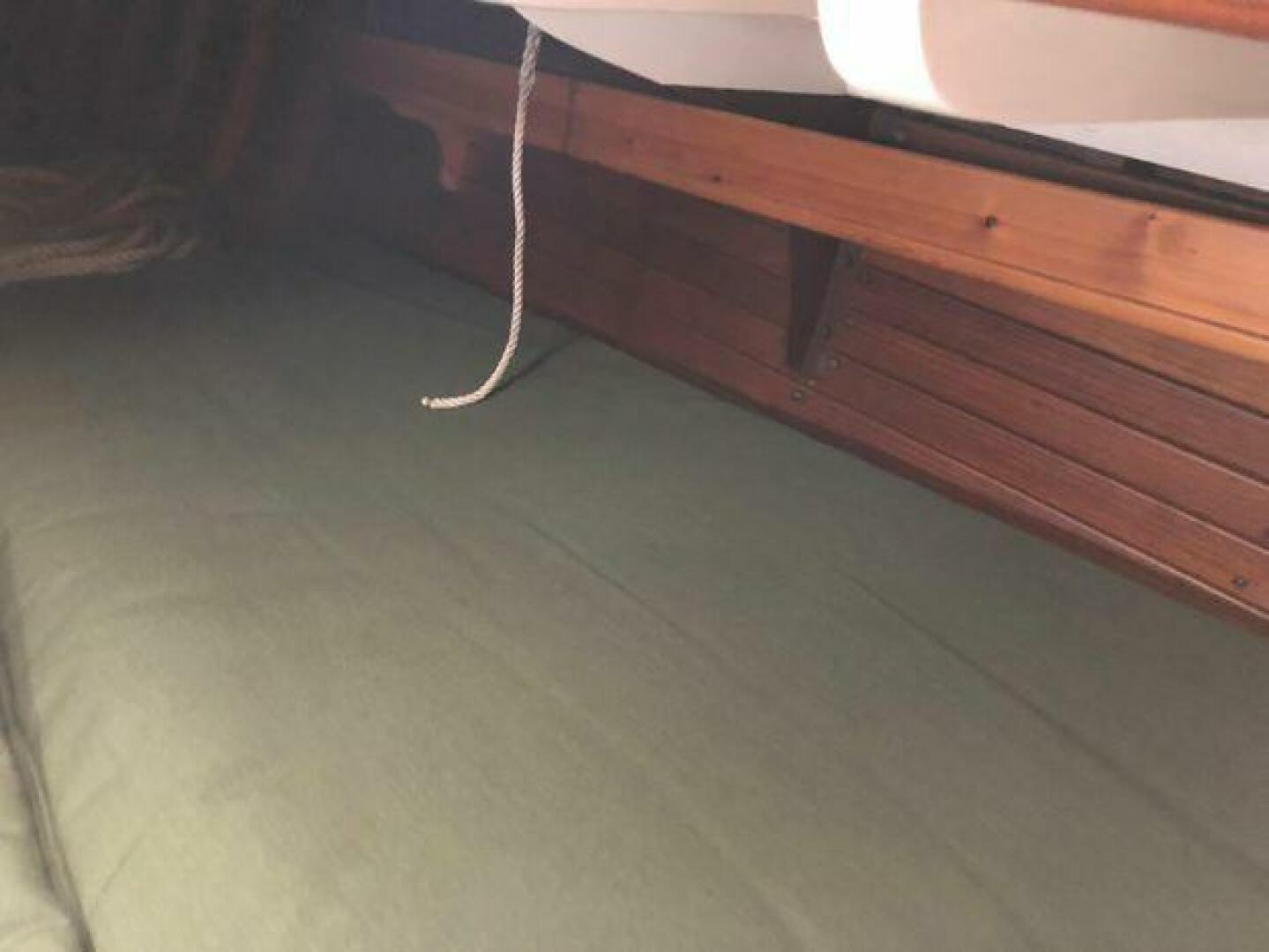

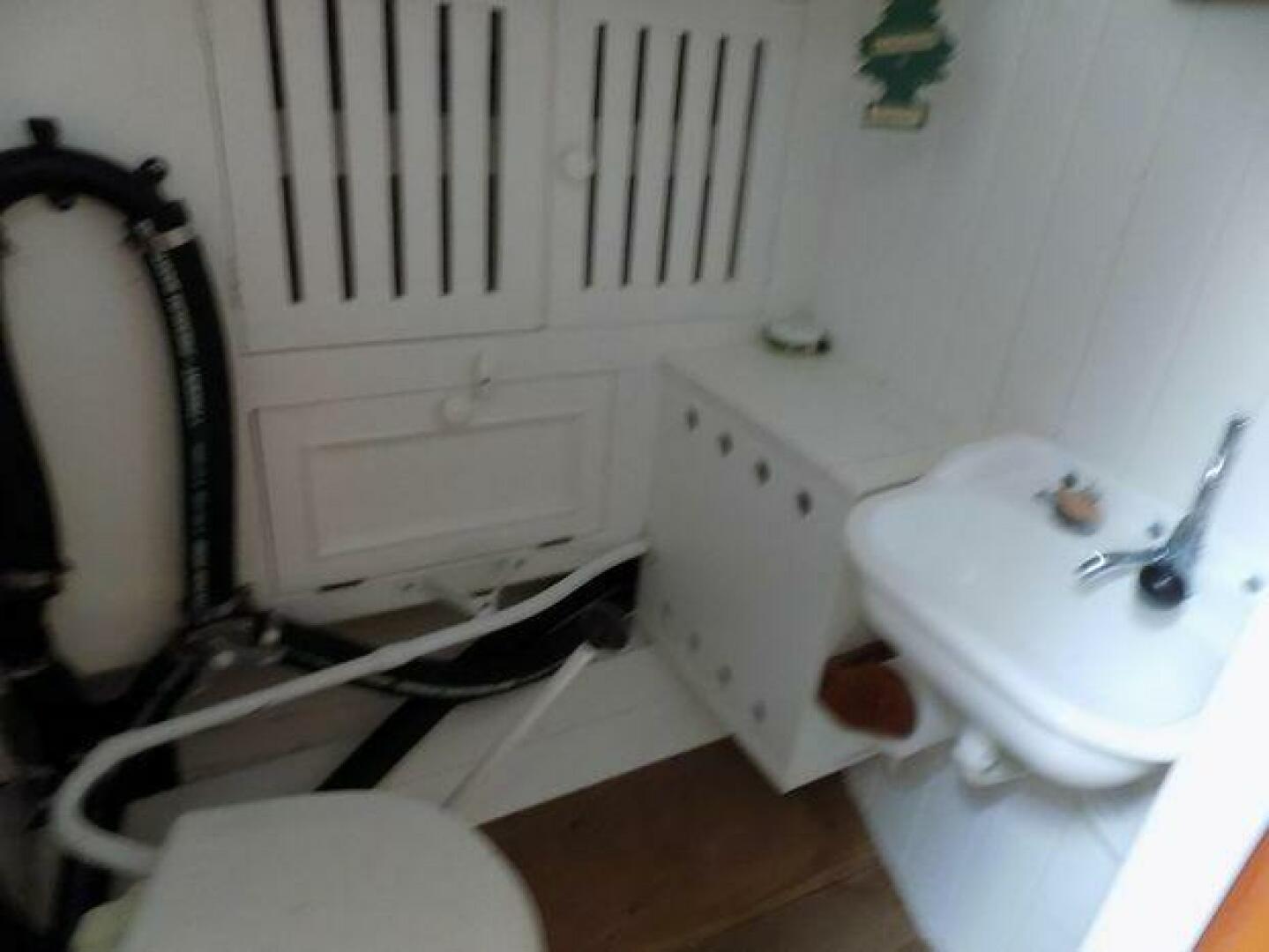

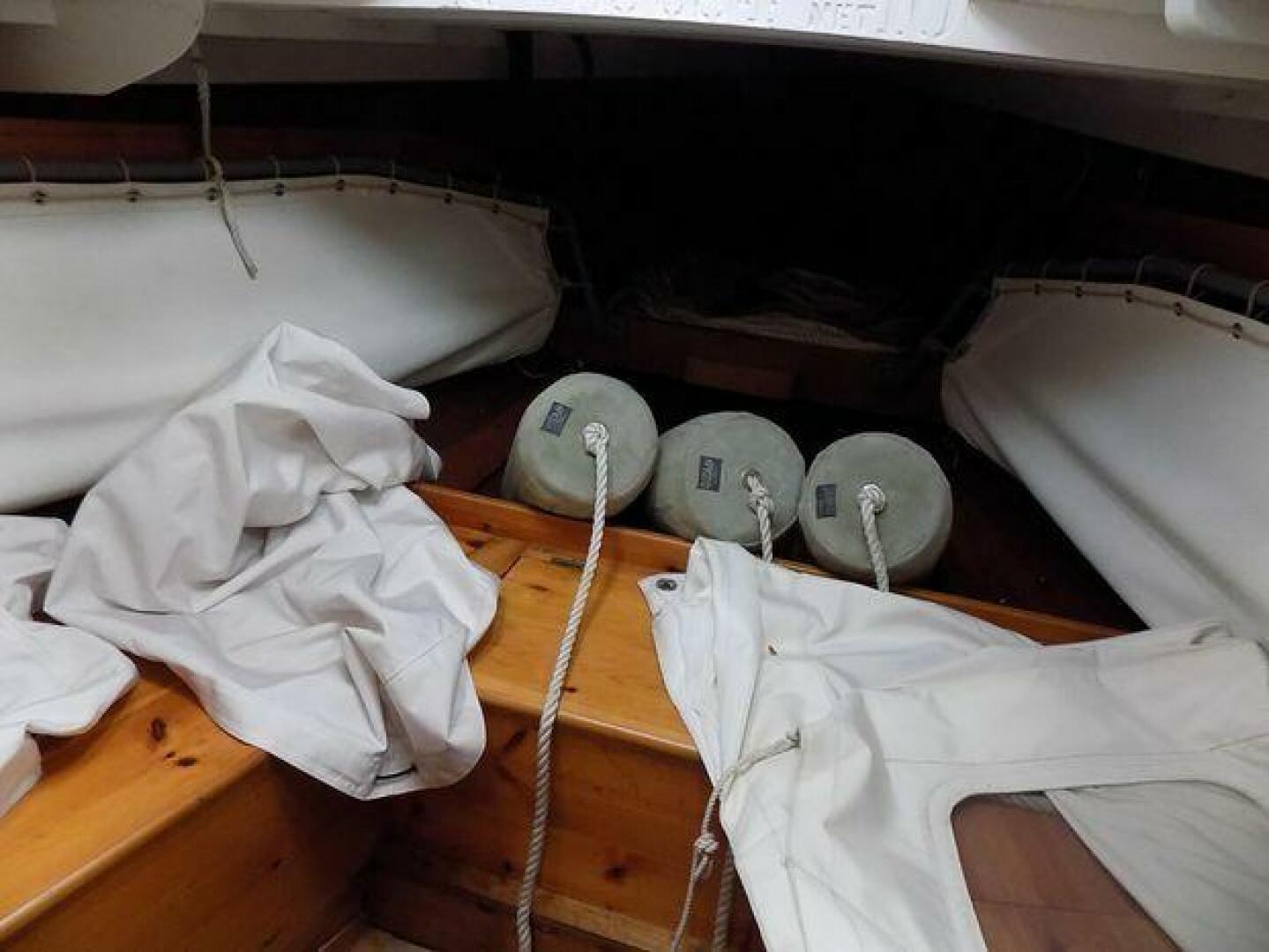

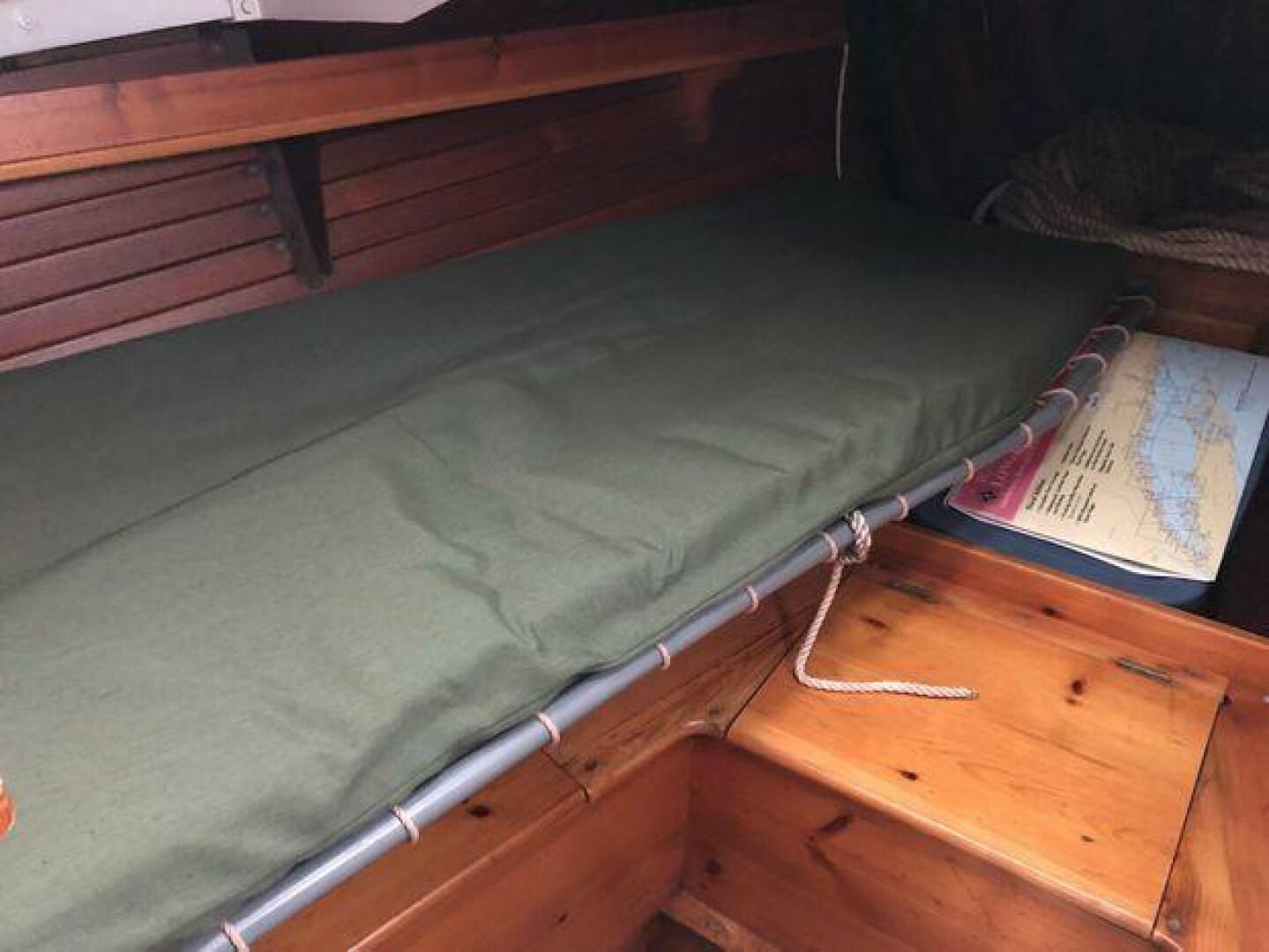

Woodwind has a distinctive, bright and well ventilated interior with comfortable berths for four. The forepeak has a sail bin and stowage forward, followed by two pipe berths with lockers beneath. There are V berth inserts to convert forepeak bunk space into a double berth. The forward cabin has reading lights, mahogany overhead hatch providing ambient light and ventilation, and two round bronze opening ports forward. Next to port thru paneled locust door is the enclosed head with manual toilet (with deck pump out, and macerator for overboard discharge), vintage vanity, medicine cabinet, linen hamper, locker space and opening bronze portlight. To starboard across from the head are two hanging lockers.

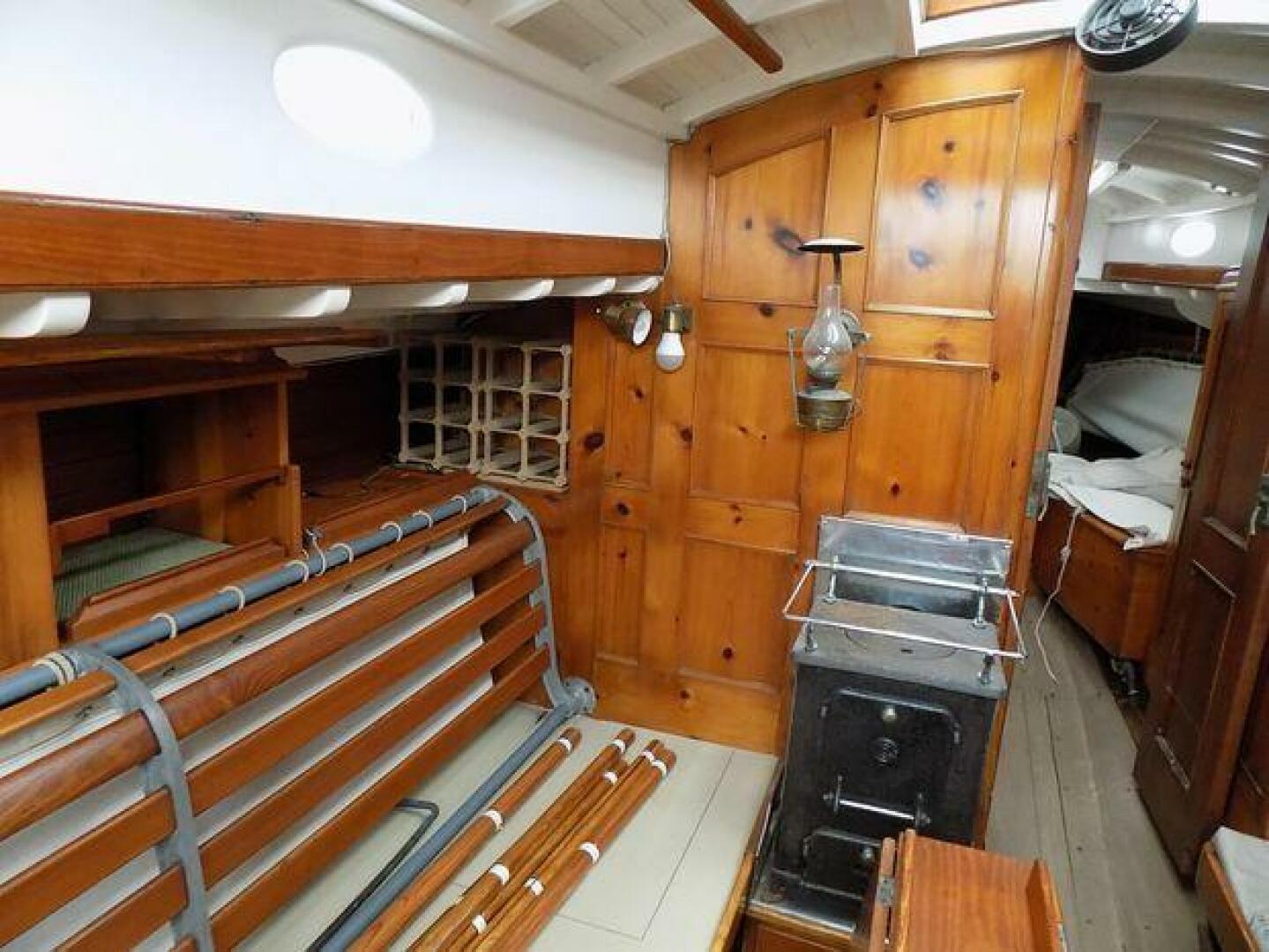

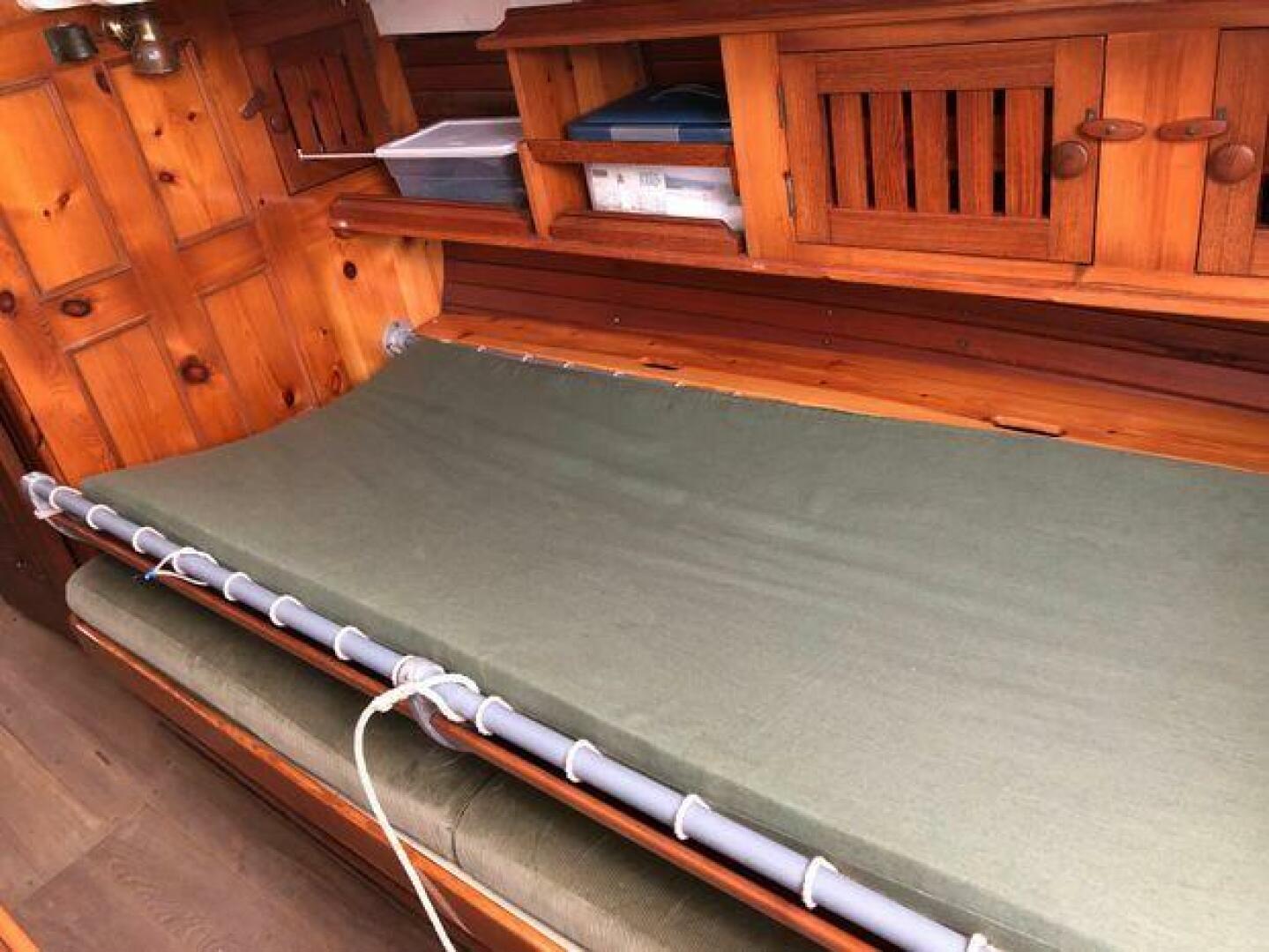

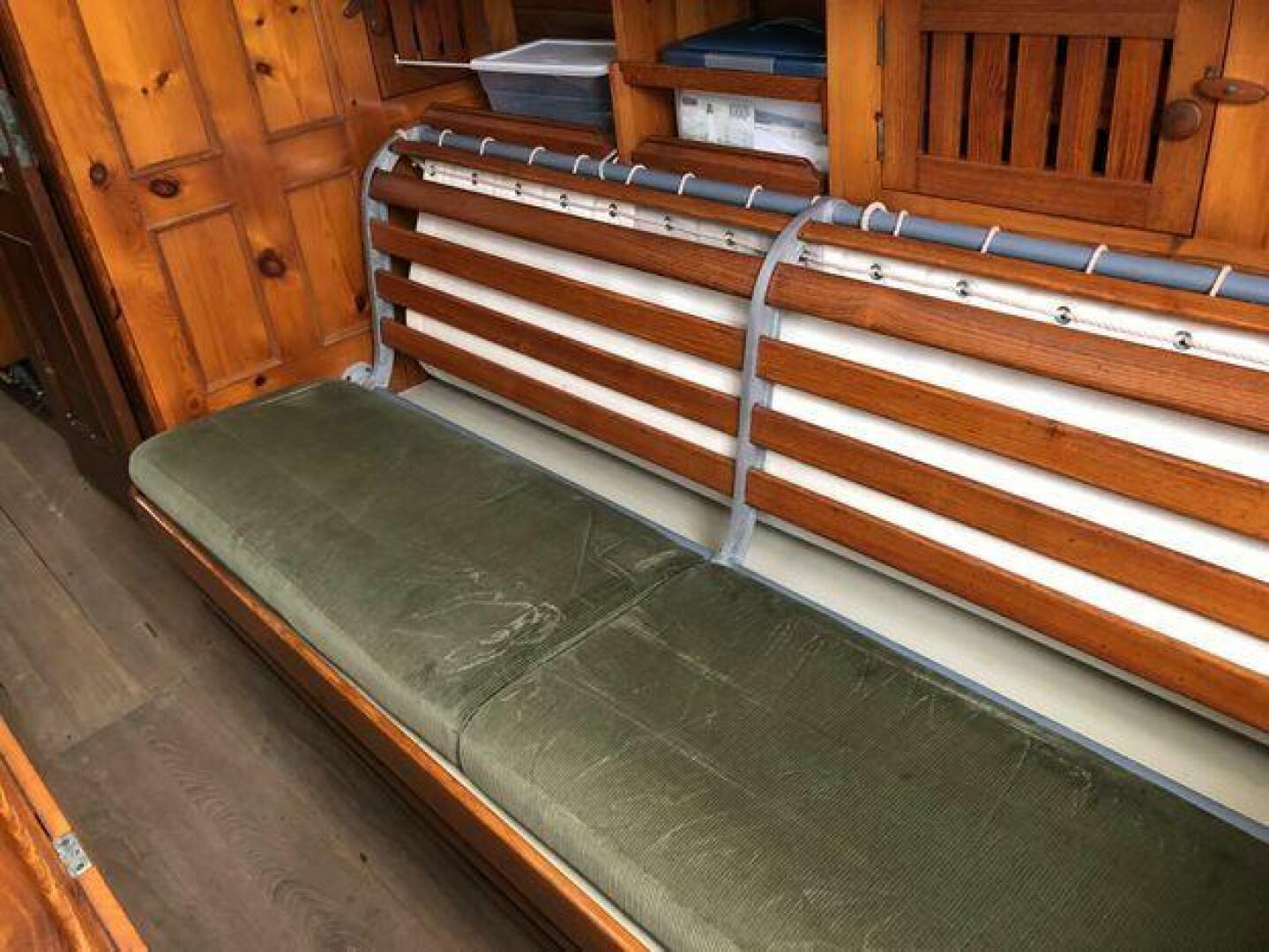

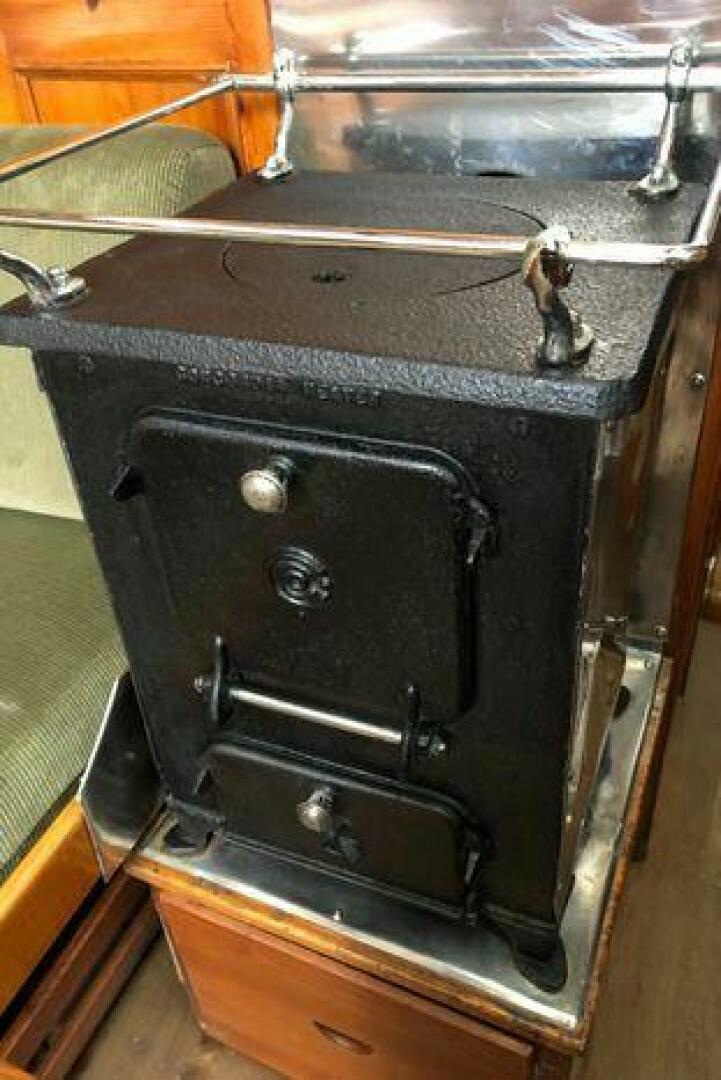

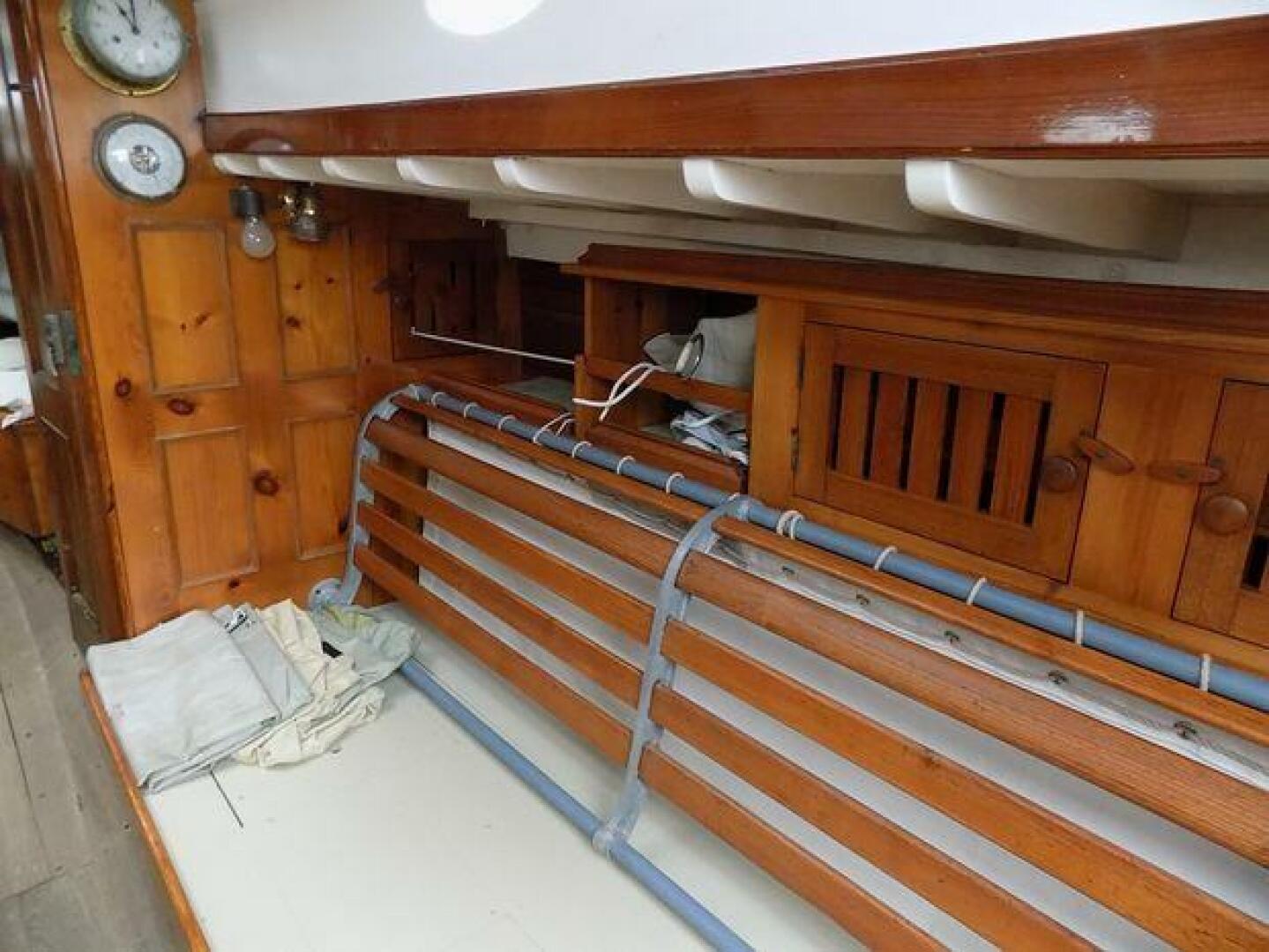

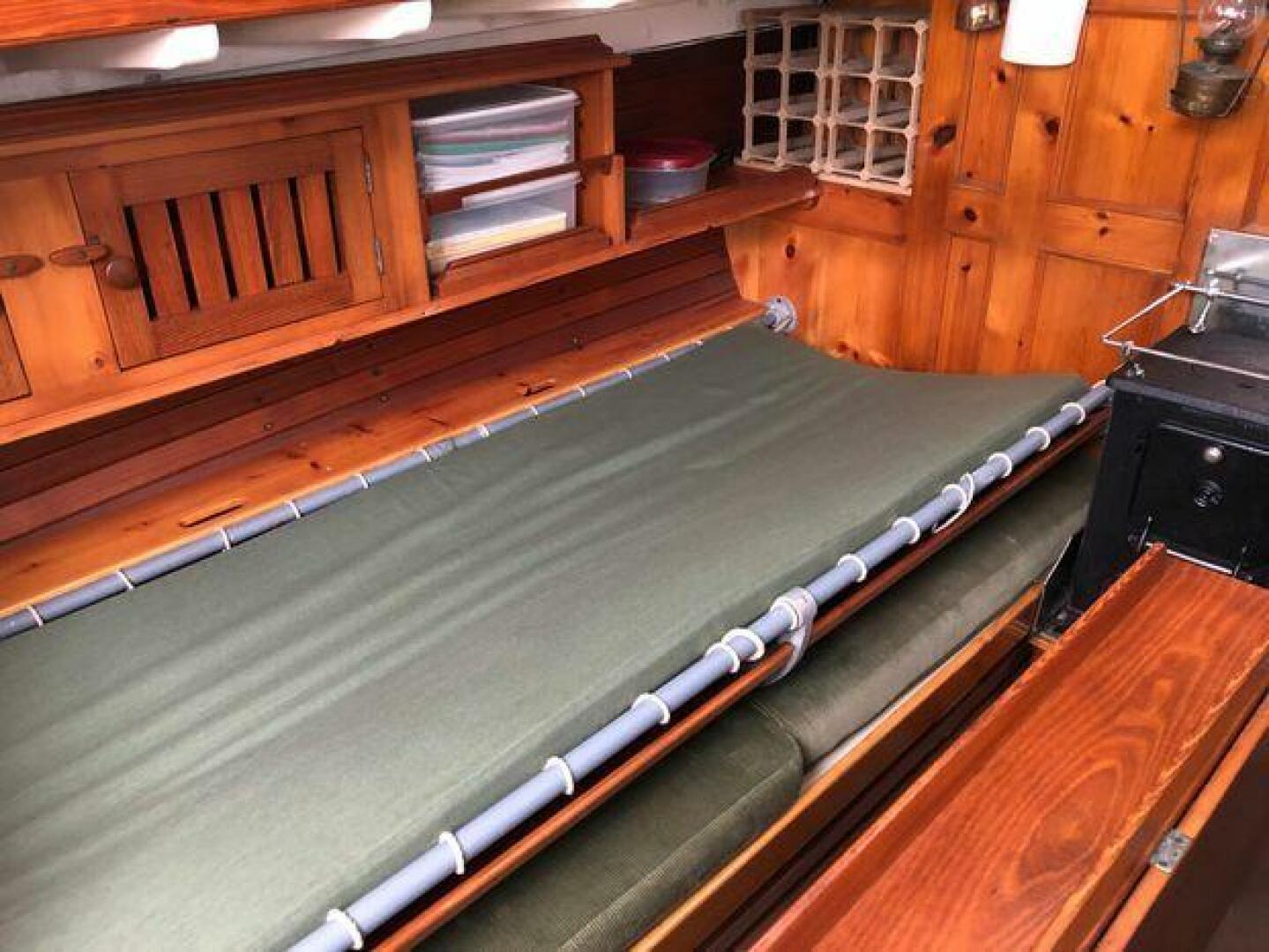

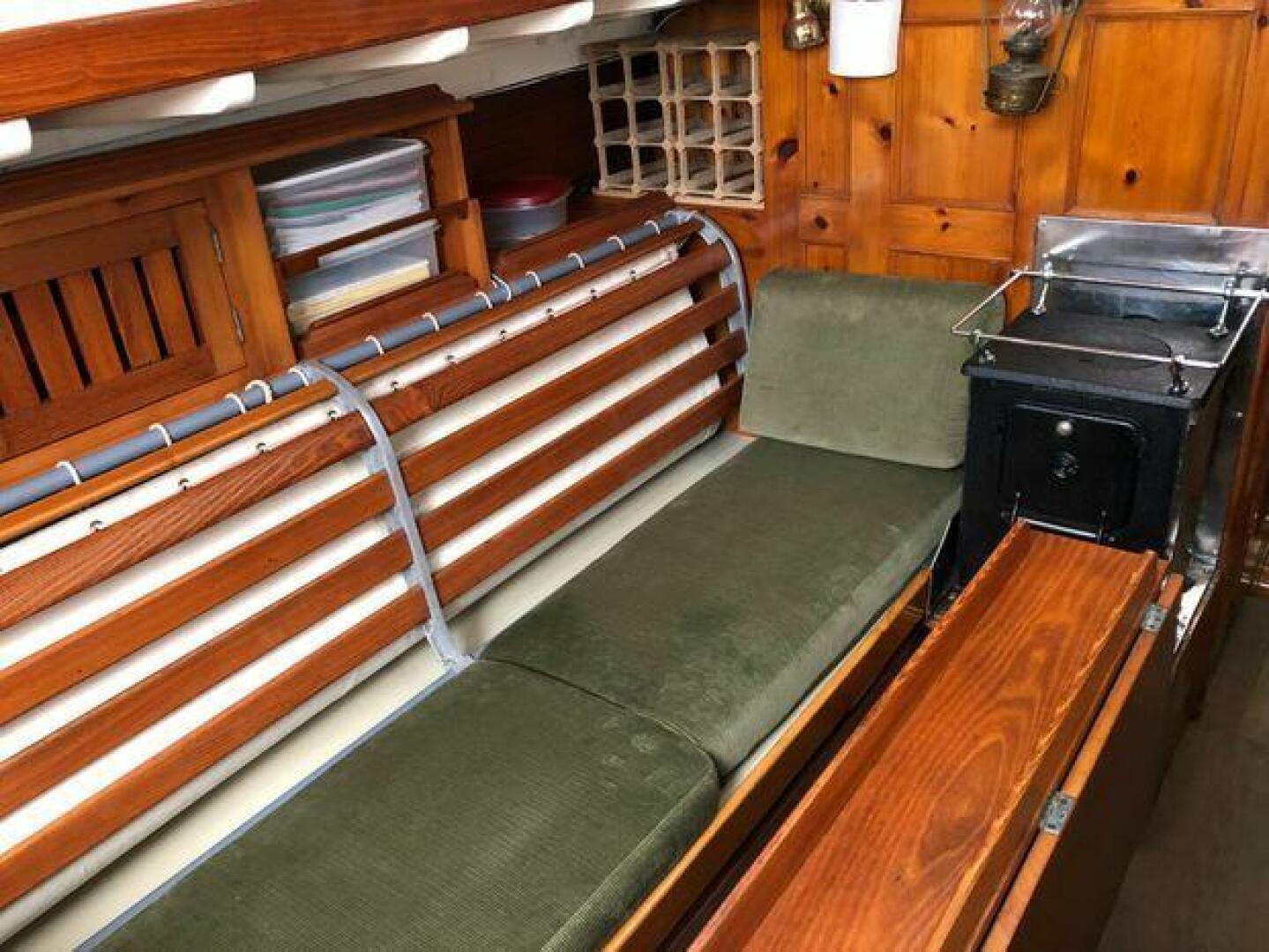

The main cabin has the traditional and very comfortable Pullman/Concordia style berths port and starboard. These can be stowed out of sight to double as backrests for settees. There is a varnished cherry fixed drop leaf table just port of centerline, and a cast iron Concordia solid fuel cabin heater/stove is set forward and slightly to port in the main saloon which vents via Charley Noble. Outboard of the berths are shelves and slatted lockers. Headroom is 6’3′′ in main saloon. The settee cushions are sea foam green corduroy and include back and side bolsters (reupholstered 2003) . Forepeak mattresses were reupholstered in 2013, main saloon mattresses in 2003. Interior 12 volt lamps and brass oil lamp. The main saloon has a large varnished wood butterfly hatch aft of mainmast.

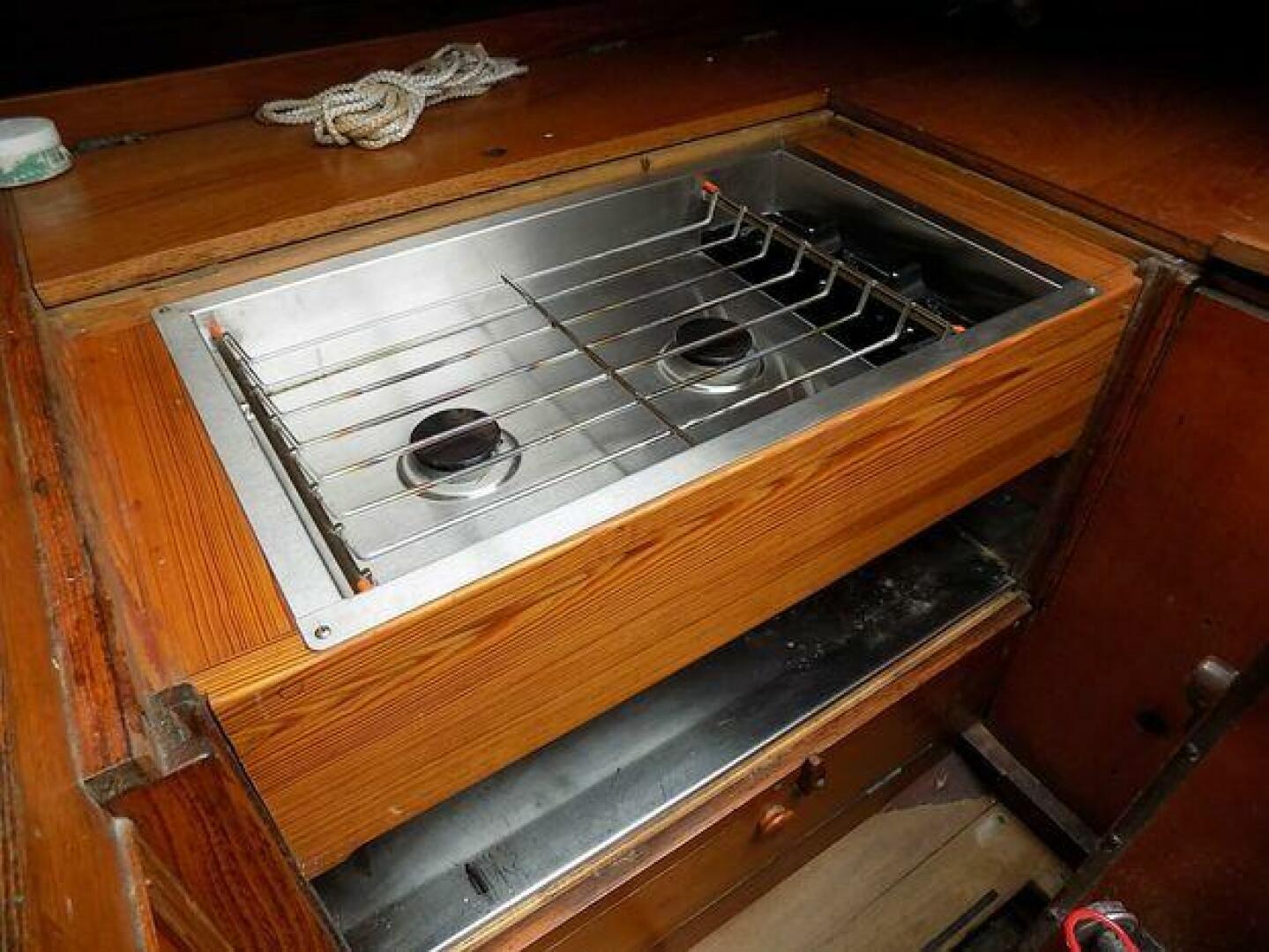

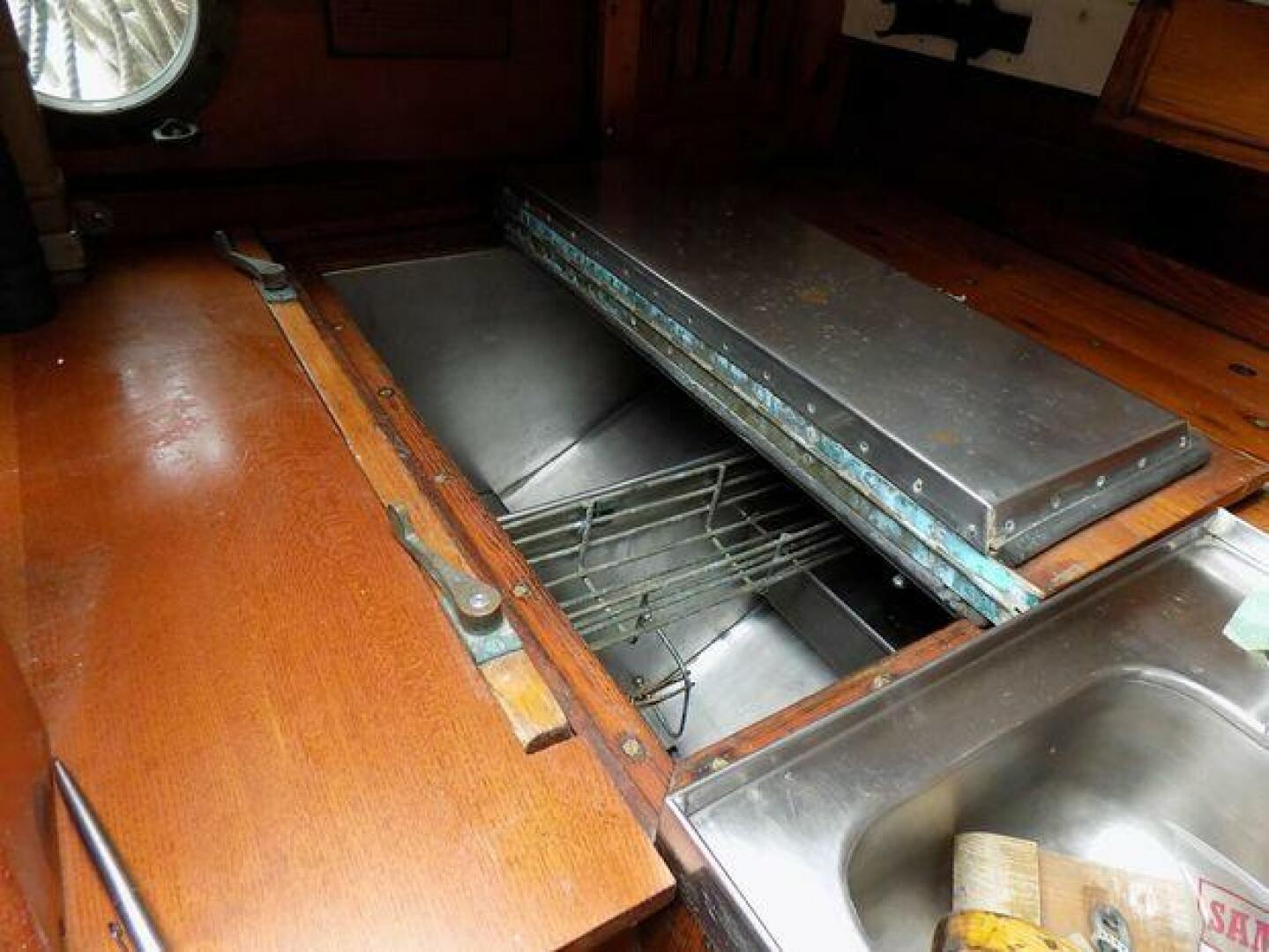

The teak sole can be easily removed for access to the bilge. The galley (rebuilt in 2013, and fully equipped) is aft to with gimballed two burner Force 10 CNG stove with lockers and shelving outboard, starboard. The Yanmar diesel engine (1993) is located partly under bridge deck and partly under cockpit deck and is readily reached by removing the panels, companionway steps and covers. The engine box can serve as a galley station. To port there is the icebox, storage and the stainless steel galley sink with manually (via foot pump) pressured water via faucet. The galley benefits from the ambient light and ventilation provided from two opening portlights facing aft.

The interior surfaces were all stripped and re-painted or varnished in 2011.

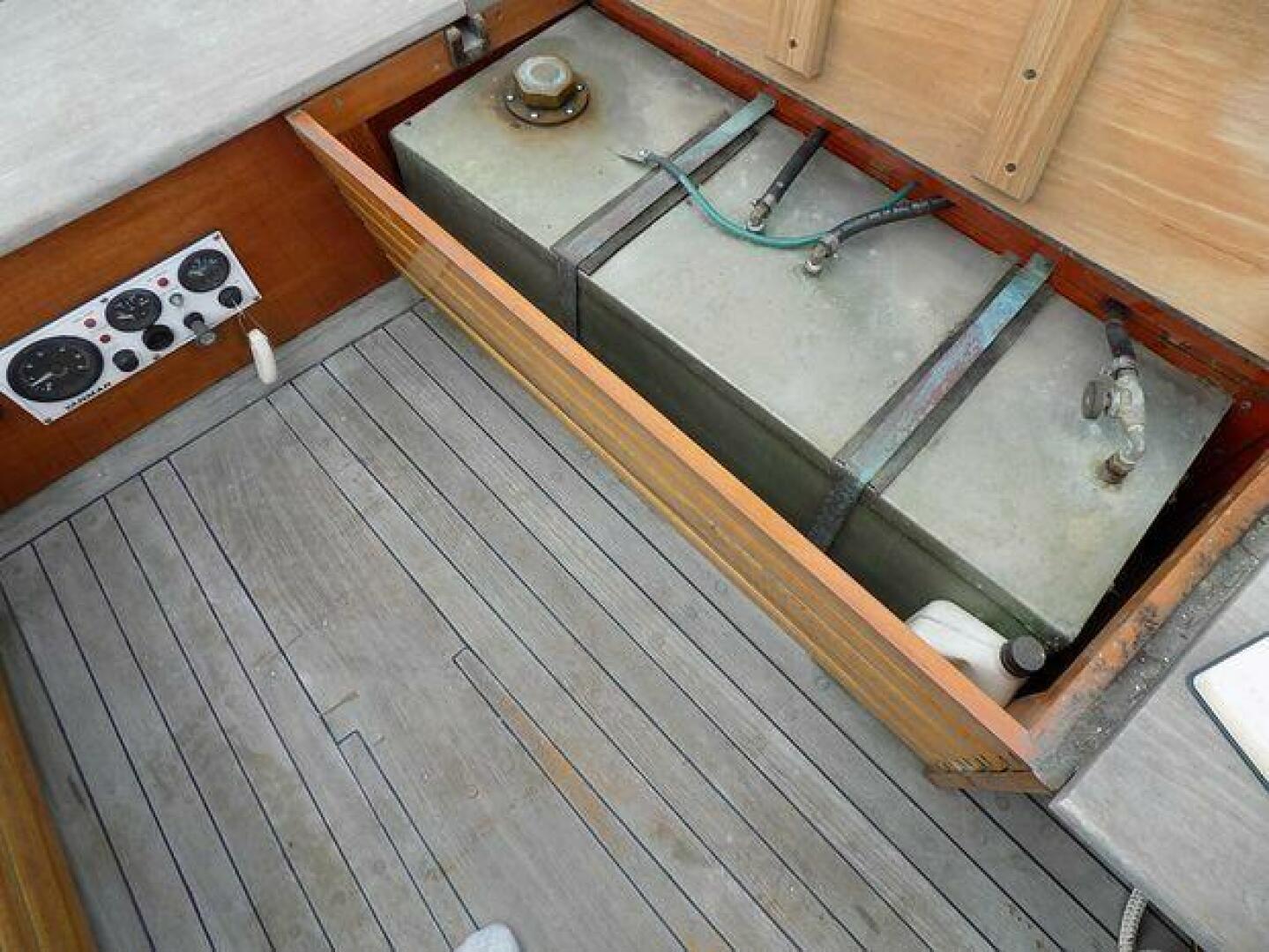

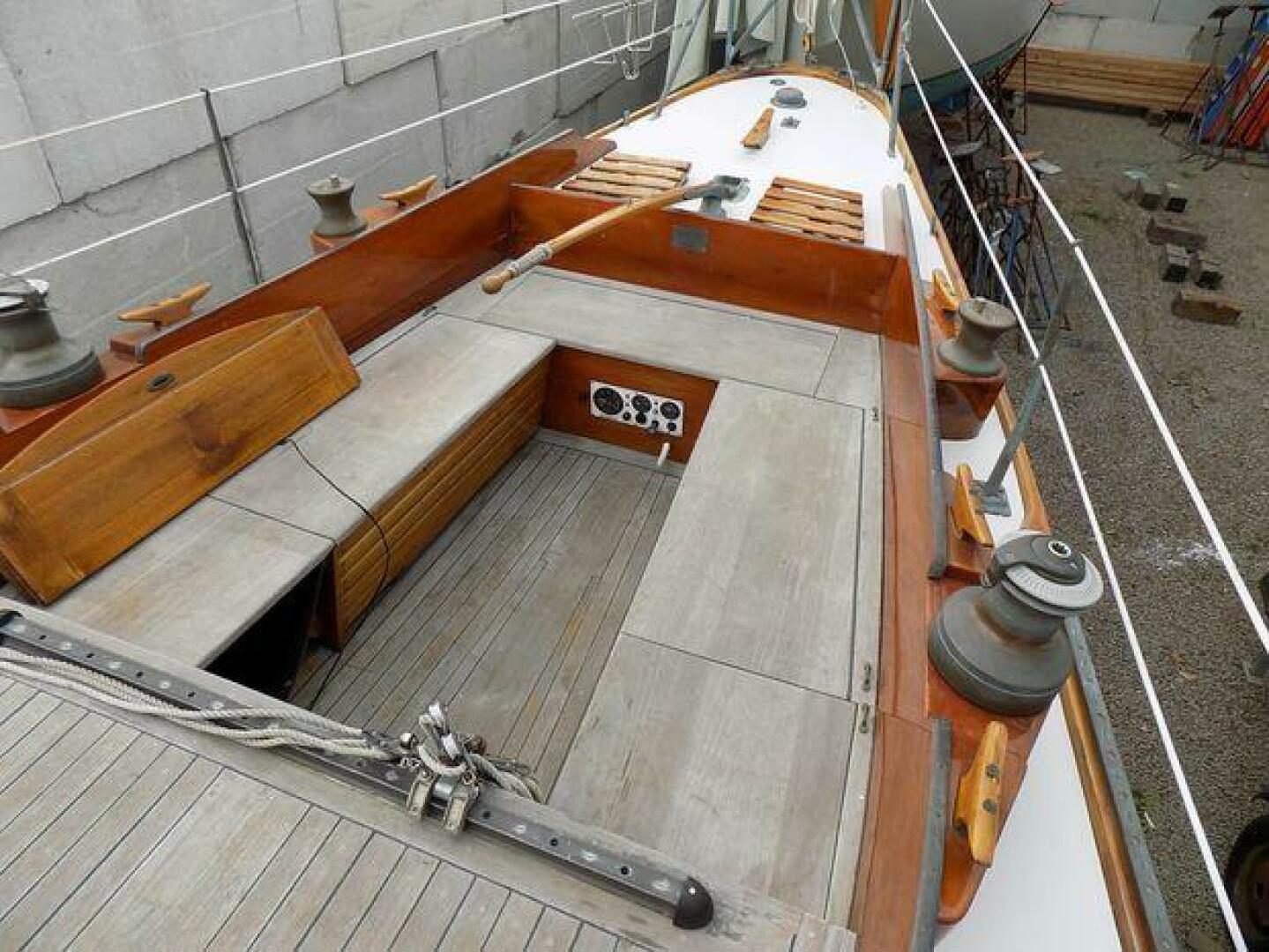

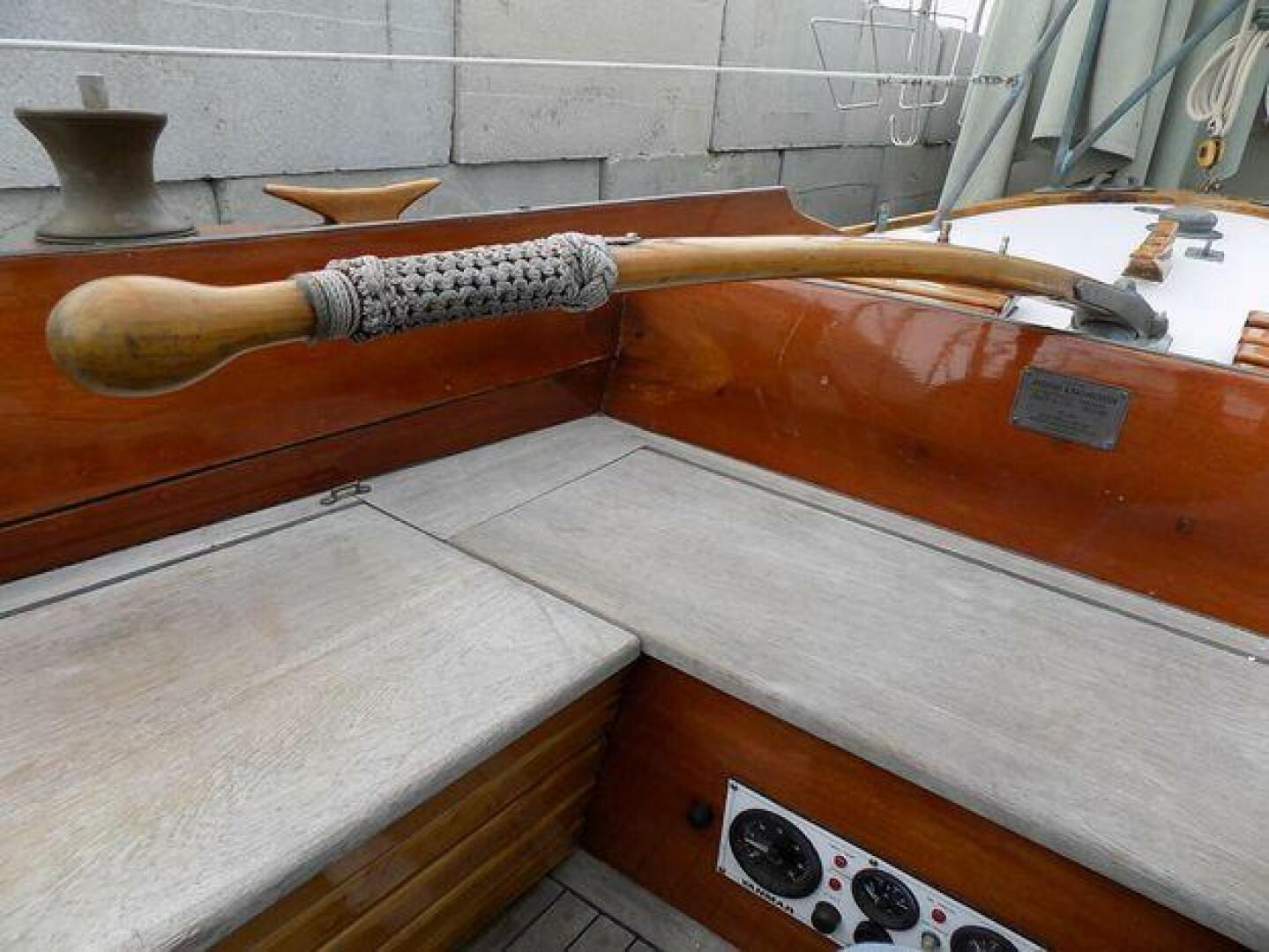

The companionway leads out to the self-bailing cockpit, finished in teak (rebuilt in 2009) with tiller steering. The 20 gallon Monel fuel tank in portside locker and starboard locker with engine controls. Aft lazarette for storage. Custom fitted cockpit cushions (2013)

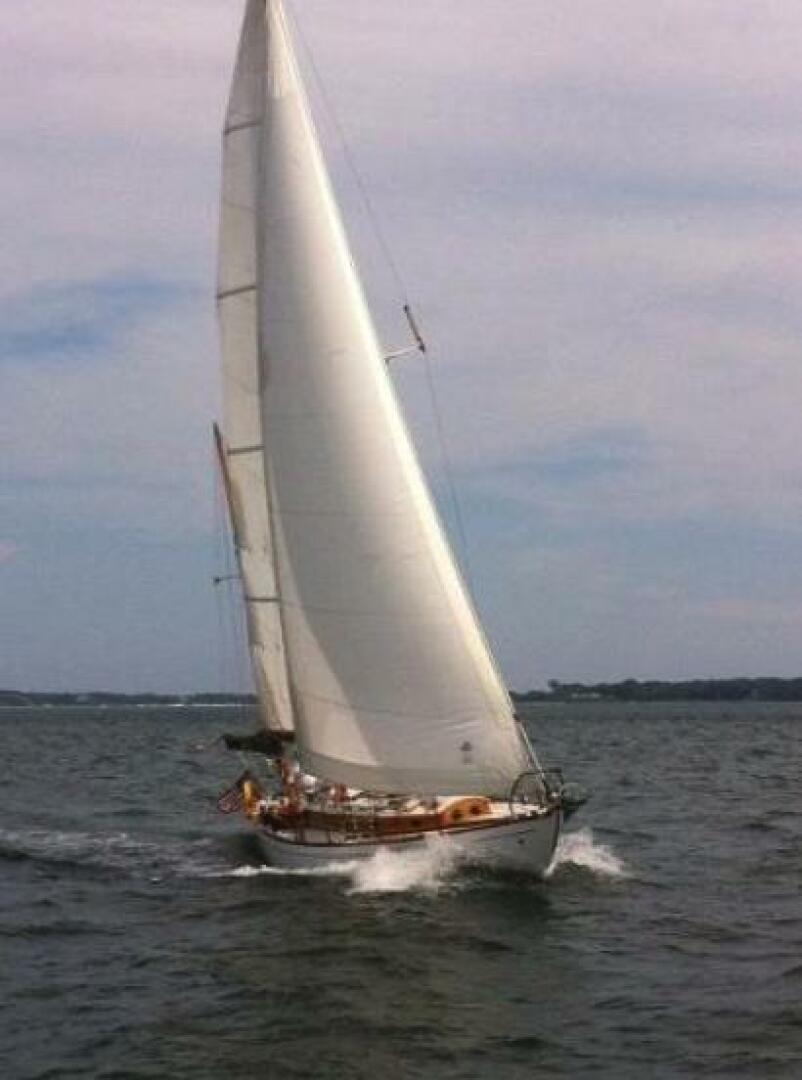

Woodwind is a mast head rigged yawl, with varnished box sectioned Sitka spruce masts and booms. The mainmast is keel stepped upon a longitudinal oak beam (lengthened and reinforced in 2003). The mizzen mast is stepped on the after deck where the weight is transmitted to the horn timber. Booms and spinnaker poles are also Sitka. Club jib boom. All spars are bright finished.

Doyle mainsail, mizzen and 130% genoa (all new in 2004, in fine condition)

Harken roller furler

Doyle 100% jib (new in 2006)

2 mizzen staysails

2 Spinnakers

Drifter

Storm Jib

Other sails include: Main, mizzen, 120% and 150% genoas.

Braided Dacron running rigging.

Stainless steel 10 x 19 wire standing rigging.

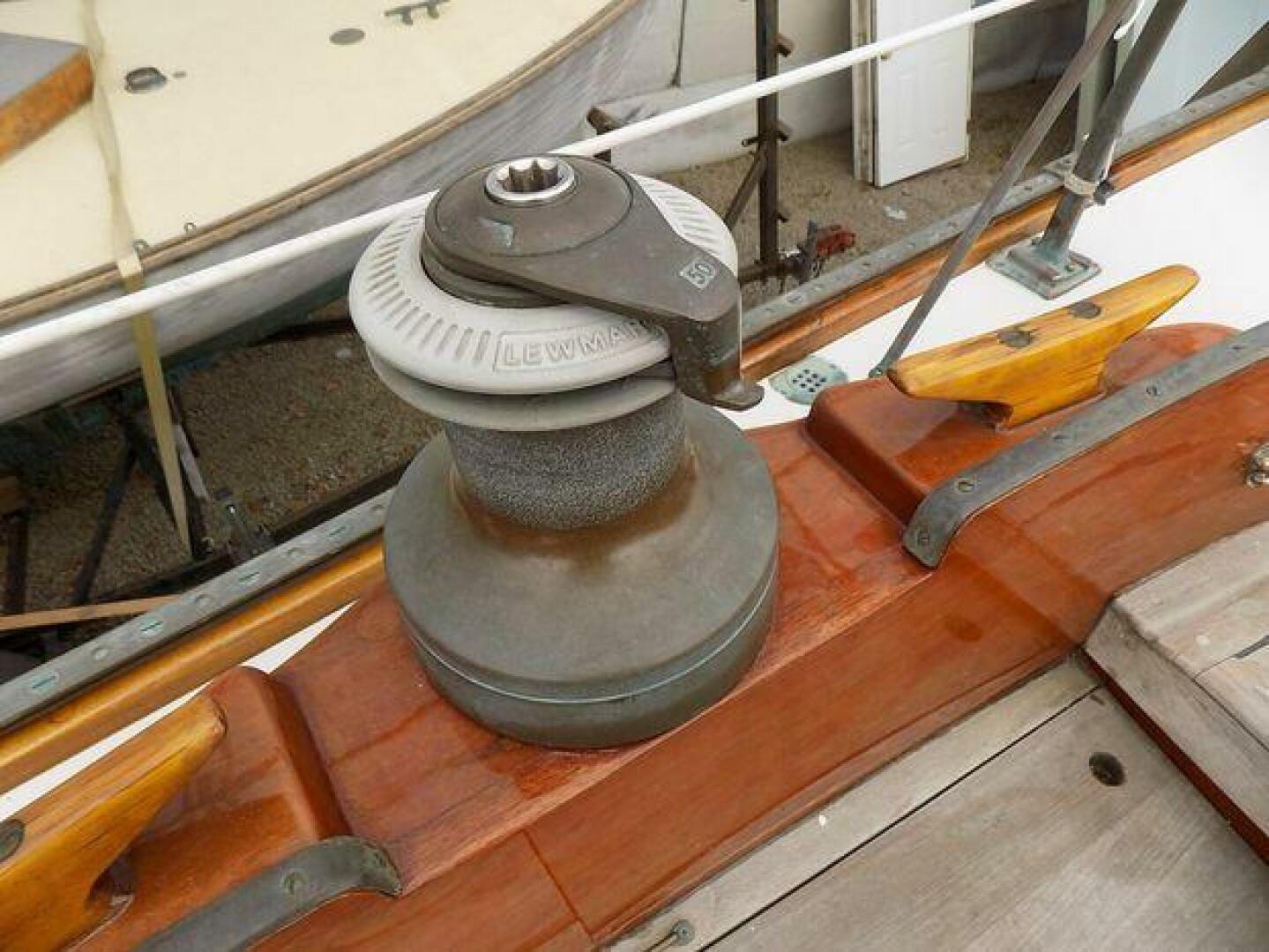

Primary winches are a pair of self tailing Lewmar 50ST winches

Secondaries are South Coast winches

Winch handles.

Bronze halyard self tailing winches on mainmast.

The mainsheet block and tackle traveler is located on the raised bridge deck.

Bronze genoa track mounted on toe rail with sheet cars.

Wooden blocks, varnished locust cleats, bronze shackles.

Dodger (new in 2009)

Main and mizzen sail covers.

Canvas hatch covers.

Bronze bow pulpit and taff rail

Bronze stanchions with double lifelines (2004)

Bosun’s chair

Two pig sticks

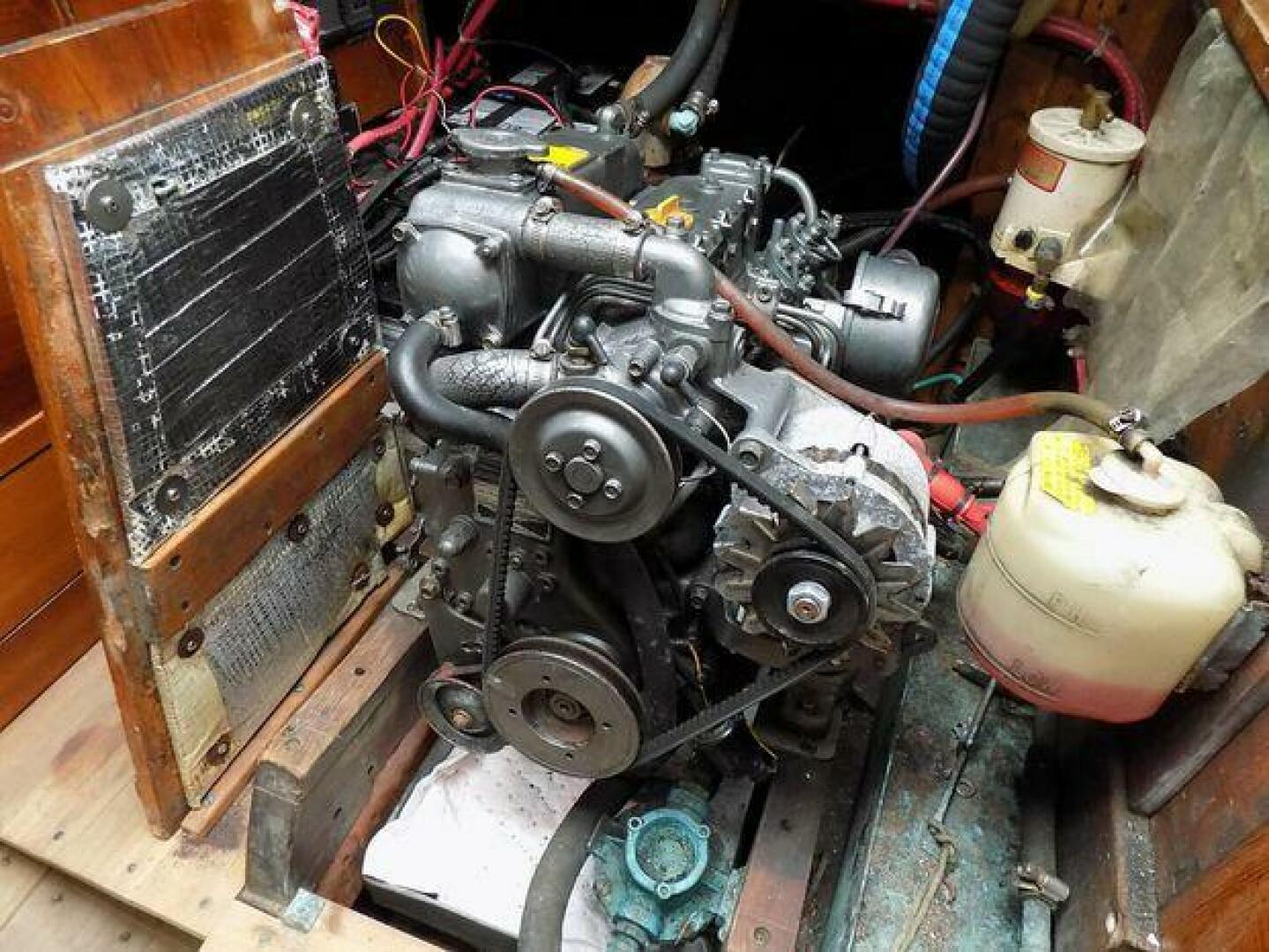

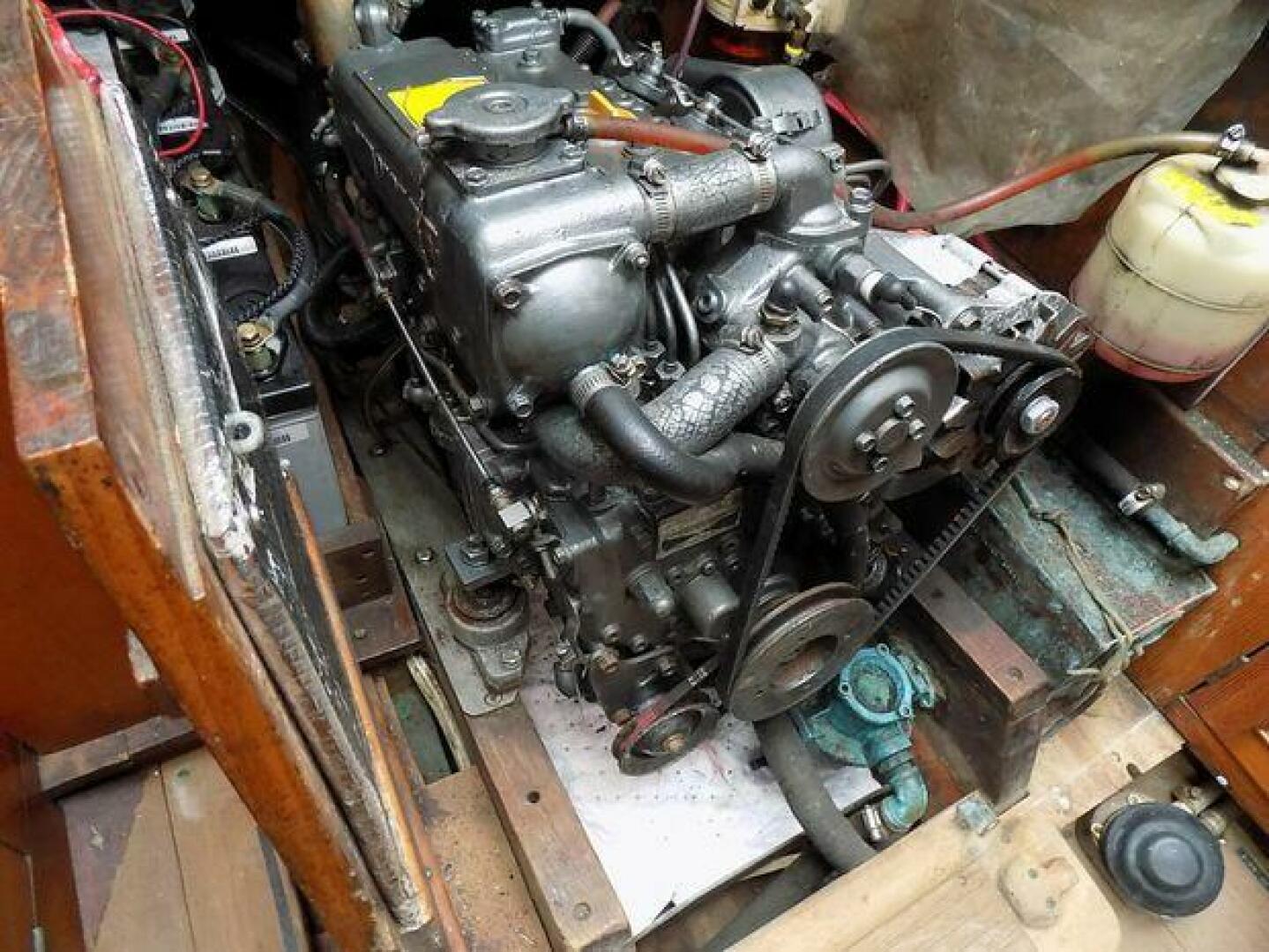

1993 Yanmar 3GM30F 27HP diesel (1600 hours) fully maintained (records available). Tiller steering with extension arm

Three bladed bronze Max-Prop (feathering) propeller

Manual and automatic bilge pumps.

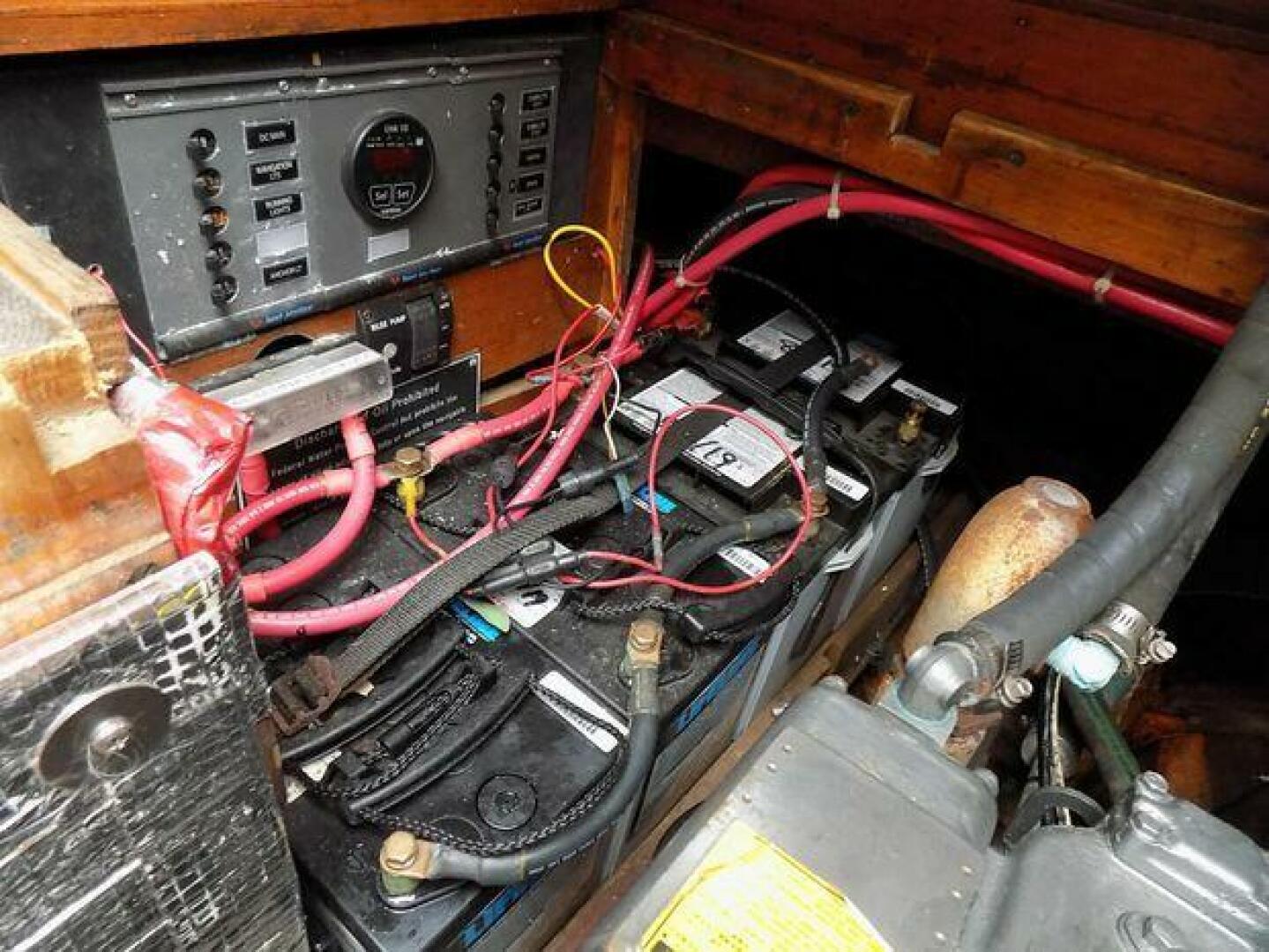

12 volt system with three house batteries (new in 2019)

Engine Battery

Link 10 battery bank monitor

Nautic-On Smart Sensor system (2019)

Four 12 volt outlets

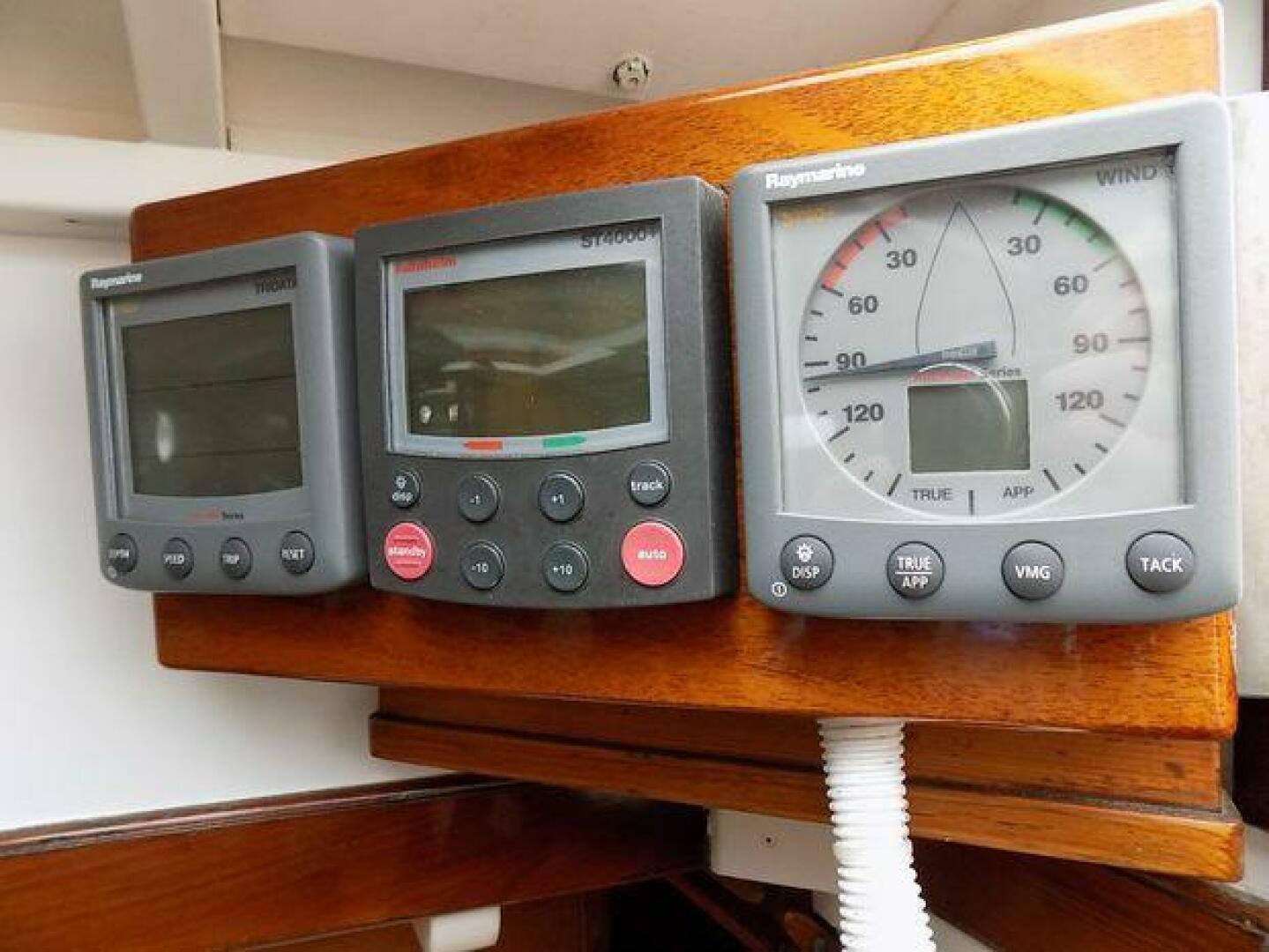

Raymarine Autohelm ST 4000 + Autopilot (with control arm)

Garmin GPSMap 546S chart plotter (2012)

Raymarine + ST60 tridata: speed, depth, log (2012)

Raymarine +ST60 wind Apparent/True. Direction/wind speed (2012)

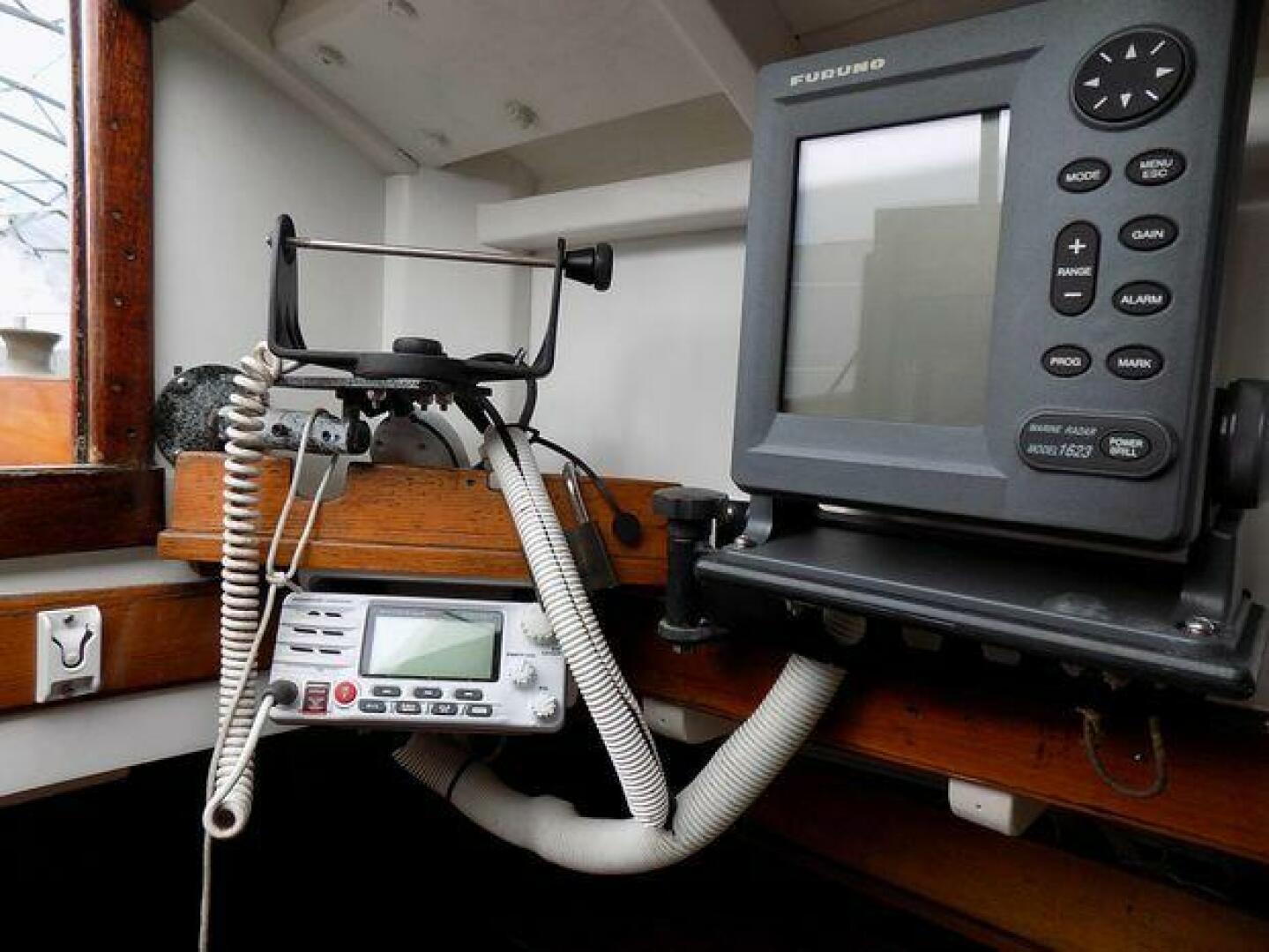

Furuno 1623 radar (2012)

Constellation compass at bridgedeck

Standard Horizon GX2100 VHF (with DGPS and Matrix AIS, 2012)

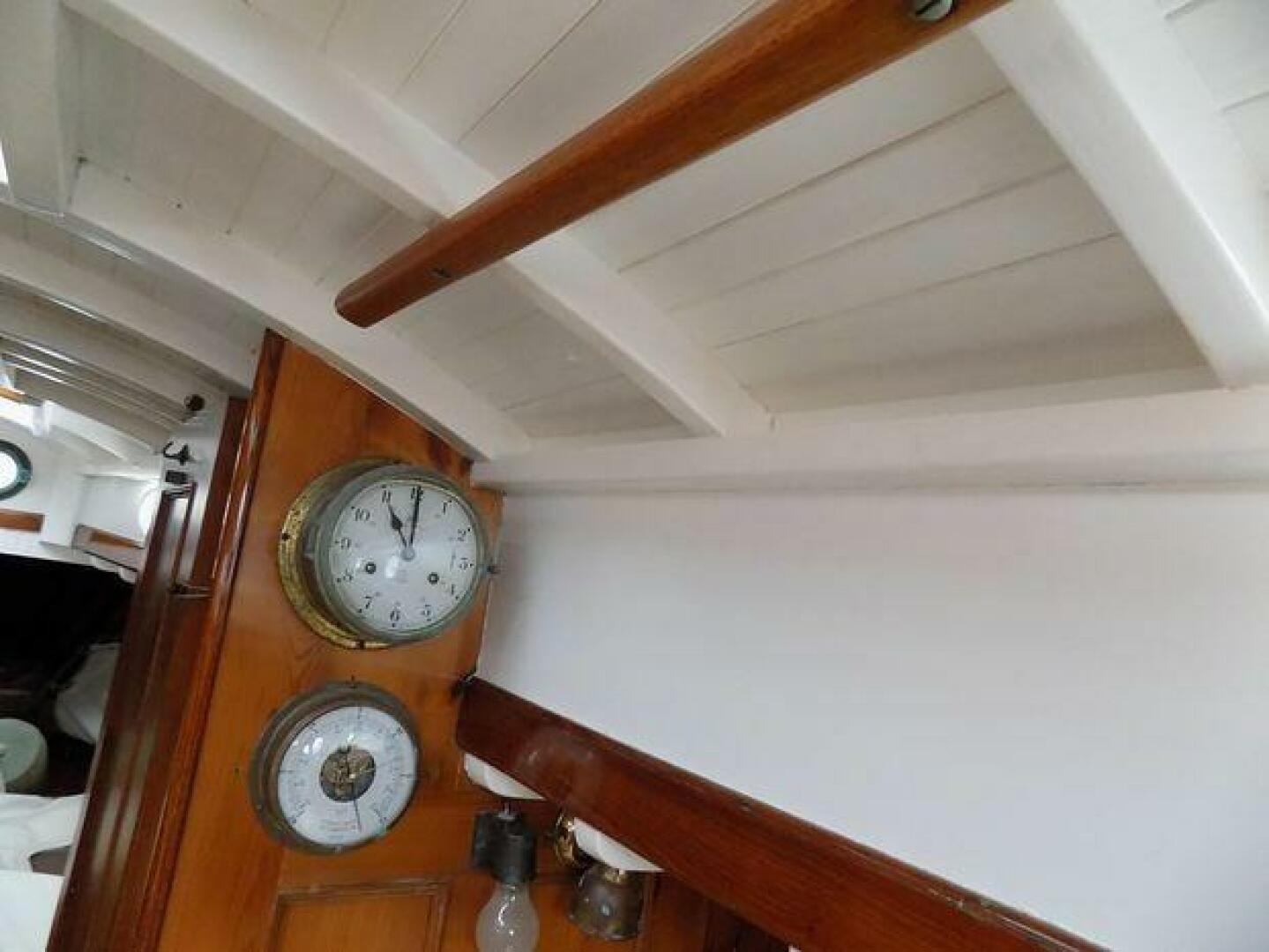

Robert E White chronometer and Schatz Royal Marine barometer

Ship’s bell.

Rochna bower anchor (2013) with chain and 3/4″ nylon rode on anchor bow roller

Kedge Fortress anchor (2013) with chain and 5/8″ nylon rode (chocks on deck midships)

Boat hooks

Four fire extinguishers.

Horseshoe buoy (2018)

Lifesling

Four throwable cushions

Four Type 2 PFDs

Four inflatable PFDs

Four throwable blue cushions

Dorade vent

Four docklines

Folding canvas bucket

Fender board

Teak boarding/swim ladder

Wind sock

Tank lid spanners

Flag Staff and ensign

Concordia class burgee

Also included is a Dyer dinghy with 3 HP Mariner outboard

Engine hours are as of the date of last update of listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.
