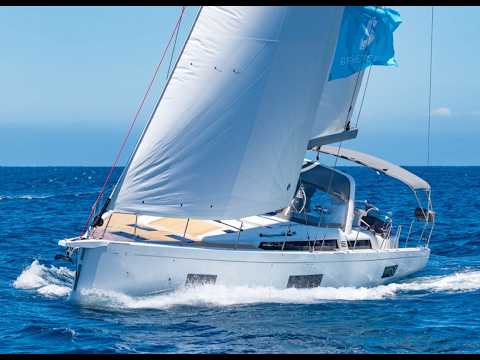

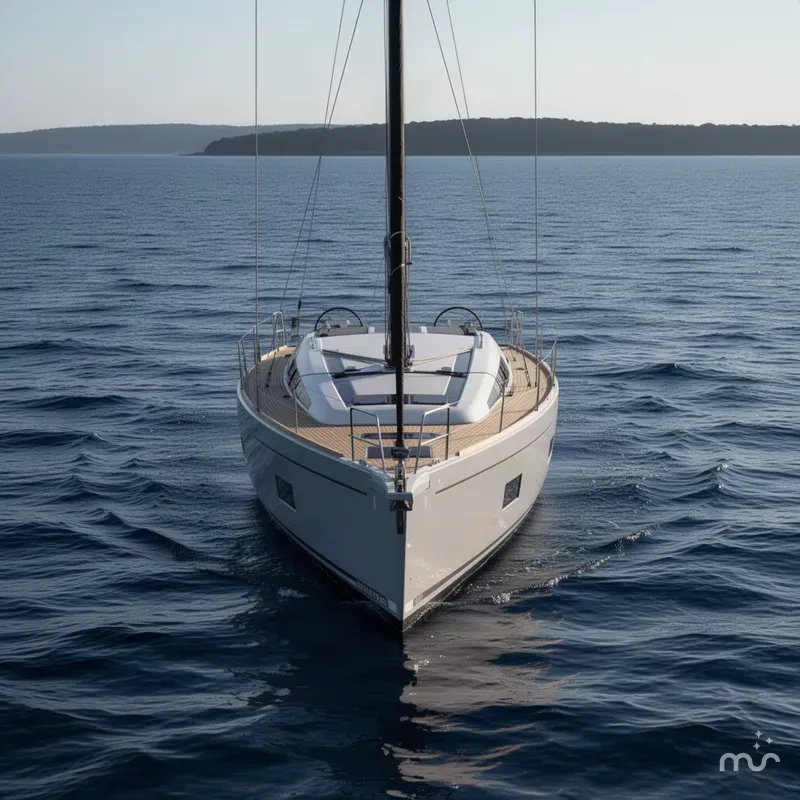

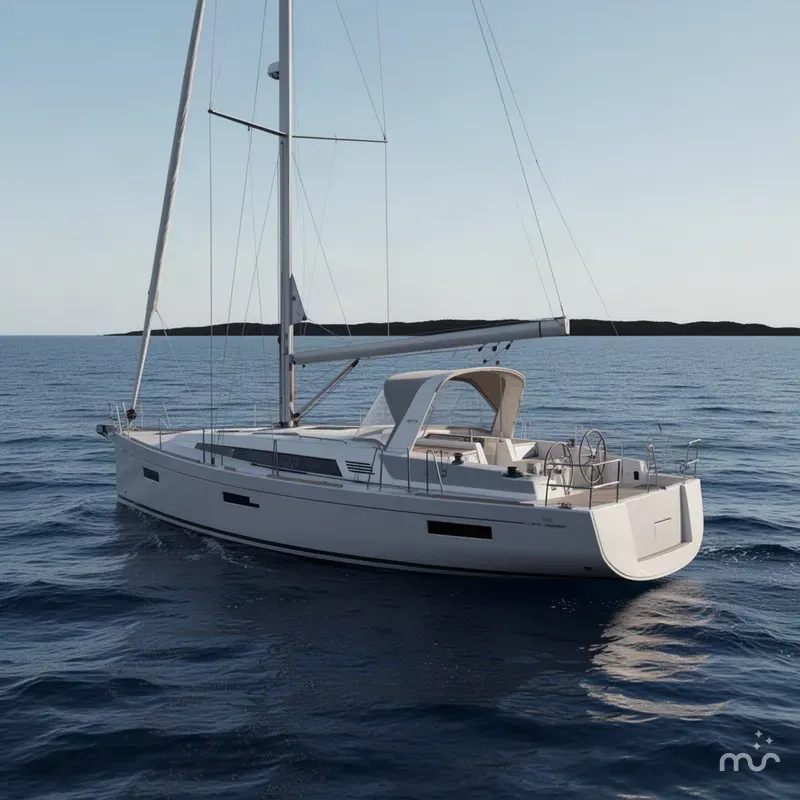

2020 Beneteau Oceanis 51.1 Boat in Norwalk, CT 06855 US

STANDARD EQUIPMENT

CONSTRUCTION _________________________________

• Design made following European Directive requirements and

according to CE certification

• Vacuum infused hull (GRP / Sandwich balsa wood)

• Vacuum infused structural inner liner (Fabric - resin) bonded to the

hull

• Injected deck construction in fiberglass and Saerform foam

sandwich, covered with non-slip diamond pattern

• Cast iron keel fixed with bolts and stainless steel backing plates

• Twin rudders affixed with stainless steel stock

• Grey hull - White metal hull decoration

• 8 Hull portlights

DECK EQUIPMENT________________________________

RIGGING

• Anodized aluminum mast, deck stepped with in-mast furling

system, 2 Aft swept spreaders

• Anodized aluminum boom

• Discontinuous stainless steel standing rigging

• Split backstay

• Rigid boom vang

• All lines lead back to the helm stations (except boom topping lift and

genoa halyard)

• Complete running rigging: Main halyard, Genoa halyard with

tensionning track on the mast, Boom topping lift with cleat on mast,

German Mainsheet,

• 6 Clutches

• Halyard covers

• 2 Flag halyards

WINCHES

• 1 Powered Self tailing winch at each helm station

• 1 Aluminum Speed Grip winch handle

• 2 Winch handle holders

SAILS

• Furling mainsail Dacron, with UV protection Natural, horizontal cut

• Self-tacking jib Dacron with UV protection Natural, horizontal cut

MOORING - ANCHORING GEAR

• Self-draining chain locker - Clench bolt - Hatch cover

• Single roller stainless steel bow fitting with offset roller

• 12 V - 1 500 W vertical electric windlass - Remote control

• 6 Aluminum mooring cleats, Length: 400 mm / 15’’3/4 - Stainless

steel chafing plate

 Cockpit bench extensions + 2 halyard bags below

• Hifi: Fusion RA210 + Interior speakers & Waterproof exterior speakers

• Galley: Refrigeration system, 12 V, in top-opening icebox (for storage below 0°C)

• Galley: Compact sink cover, clay, with cutting board

• Upholstery padding (Cabins): Beige

• Mosquito screens on portholes

• 3 AGM additional service batteries (140 Amp)

• 1 40 Amp battery charger

• 1 60 Amp battery charger

• Salon & Galley: LED indirect lighting

• Aft transom protection

• "Luxe" polyester cockpit table, 2 polyester extension leaves, Stainless steel handrails, waterproof

USB socket, Central storage (15L / 4 US Gal), without refrigeration unit, life raft stowage - supplied

without cover

• Outboard engine bracket

• Double berth in the salon

• Galley: Sea water/fresh water foot pump

• Fans in salon and cabins

• Additional water tanks (2 x 165 L / 2 x 44 US Gal) in the salon

• Engine Yanmar Diesel:

- 110 CV/HP, Propeller shaft, Common Rail (Option)

• Engine throttle and control panel on starboard

• Engine compartment: Soundproofing foam - Ventilation: 3 air intakes and 1 forced-air outlet

• 1 Alternator 12 V / 125 Amp

• 1 Rotomolded diesel tank 200 L / 53 US Gal (under starboard aft berth) - Electronic gauge - Low level alarm - 1 Tank filling access

• Filters: Seawater - Diesel - Water separator

• Fixed three-blade propeller

• 1 Engine access through companionway (opening with 2 gas pistons) - 2 Engine access through aft cabins

_

DOWNWIND PACK UPWIND PACK DOWNWIND +

UPWIND PACK

• 2 Powered Genoa winches  + 1 Winch handle

• Polyester bowsprit with integrated anchoring gear and bobstay (for Code 0

and asymmetric spinnaker)

• Asymmetrical spinnaker rigging / Code 0 Neil Pryde Code Zero on a firler.

• German system (Two-way mainsheet at the helm station) + 3 Additional

starboard blockers

• Genoa sheet track in catwalks (pulls back the traveler on the self-trimming jib

rail) + Complete genoa rigging (Genoa sheets, Genoa cars)

• Furling Dacron genoa

 1 Steering console to starboard

• 1 B&G multi-function touchscreen (GPS, Chart plotter, Chart reader -

Cartography Navionics®+ Blank included), on the starboard console

• Port side helm station: B&G display

• Windex Windvane

• Wind Sensor (Windvane, Anemometer)

• Sensor (Log, Speedometer, Temperature)

• B&G Autopilot + Starboard helm console control

• Chart table: B&G VHF, AIS receiver function

• Protective cover (Cadet Grey): Steering wheel & console

• 1 Steering console to port

• 1 B&G multi-function touchscreen (GPS, Chart plotter, Chart reader -

• 1 iB&G display, on the starboard console

• Wireless autopilot remote control

• XXL consoles to port and starboard

• 1 B&G multi-function touchscreen, on each console

• Electric engine controls, on the starboard console

• Windlass control with chain counter, on the starboard console

• Bow thruster control, on the starboard console

HULL - DECK - COCKPIT ___________________________

• Teak slatted cockpit floor

• Teak slatted on companionway sunbeds

• "Luxe" wood cockpit table, 2 natural solid wood extension

leaves, with built-in 15L / 4 US Gal cool box, waterproof USB

socket, Stainless steel handrails, life raft stowage + gray PVC

protective cover

• 2 Companionway sunbeds

• Tunnel bow thruster

 Black composite steering wheels

• Access openings to port and starboard

• Outboard engine bracket (Incompatible with Tender Pack)

• Opening transom remote control

• 1 Additional opening porthole, in the aft cabins (in coaming)

• Large swimming ladder attached to the aft platform (instead of

standard)

SAIL LOCKER

• Access through deck hatch T70, Passage width: 62 cm / 2’

• Stainless steel ladder

• Shelving unit

• Lighting

• 1 115 V Power outlet

SAFETY ON DECK

• 1 Open stainless steel pulpit

• 2 Stainless steel aft pushpits

• 2 stainless steel handrails on coachroof

• 1 Ring lifebuoy bracket

• Welded ring on pushpit for flag

• Double life lines and stainless steel stanchions, 650 mm / 2’2’’

• Emergency ladder on pushpit

COCKPIT

• Self-bailing cockpit

• 2 Watertight lockers under the cockpit benches

• 1 Locker in cockpit bottom

• 1 Gas compartment under port helmsman seat

• Iro-Deck slatted cockpit benches

• Iro-Deck slatted helm seats, with starboard storage locker

• Foldaway helmsman foot chock

• 2 Steering wheel consoles: Carbon Fiber steering wheels (900

mm diameter / 2’11’’)  - Steering gear at

the helm station - Stainless steel

handrail

• 2 Deck accesses for emergency tiller

• 1 Emergency tiller

• 1 Steering compass on the cockpit table

• Engine throttle and control panel on starboard

• Cockpit table, stainless steel frame, 2 natural solid wood extension

leaves, 4 cup holders, stainless steel handrail, waterproof USB

socket, life raft stowage

• 1 Cockpit shower with mixer tap

• 2 Hinged PMMA companionway doors - Sliding hatch made of

PMMA

SWIM PLATFORM / AFT TRANSOM

• Fully opening transom, convertible into swim platform

(2,65 m x 0,80 m / 8’8’’ x 2’7’’)

• Intermediate cockpit access step

• Electrically operated

• Iro-Deck slatted swim deck

• 1 Stainless steel, removable bathing ladder with dedicated stowage

in the cockpit

 _________________________________________________________________________________________

• 12 V Circuit

• 2 AGM service batteries (140 Amp) - 1 AGM engine battery (100 Amp)

• 1 Load balancer

• 12 V Electrical panel (Fuses - Voltmeter - Water gauge - Fuel gauge - Battery warning - Fuel warning - Water warning)

• 6 115V Sockets

• 6 USB sockets

• 1 Shore power socket (115 V)

• LED lighting: Overhead lights - Reading lights - Reading light, flexible and multi-directional

• LED navigation lights: 1 Masthead light - 1 Steaming light - 1 Mooring light on masthead

PLUMBING ___________________________________________________________________________________________

• 1 Rotomolded freshwater tank 400 L / 106 US Gal, under berth in forward cabin - 1 Tank filling access

• Waterpressure system - Expansion tank - Inline filter

• 40 L / 11 US Gal Electric water heater (engine use)

• 1 Rigid 80 L / 21 US Gal black water holding tank for each WC

• Electrical shower drain pumps

• 1 Electric bilge pump

• 1 Manual bilge pump

MOORING - ANCHORING GEAR

• Mooring kit:

- Delta 25 kg/55 lbs anchor (galvanized steel)

- Chain (diameter: 12 mm / 1/2

’’ - Length: 40 m / 131’)

- Line (diameter: 22 mm / 7/8

’’ - Length: 50 m / 164’)

2 L (diameter: 250 mm / 10’’ - Length: 700 mm / 2’4’’)

4 XL (diameter: 300 mm / 12’’ - Length: 880 mm / 2’11’’)

- 4 Moorings lines (diameter: 18 mm / 11/16

’’ - Length: 15 m / 49’)

• Aft fairleads (Aluminium mooring cleats on transom)

• Windlass control with chain counter in cockpit

TENDER PACK ________________________________________________________________________________________

• Retractable davits (Max. tender length: 3,10 m / 10’2’’, Maximum load: 180 kg / 397 Ibs)

• Electric inflator / deflator

• Outboard engine bracket

OWNER'S CABIN

Headroom: 1,95 m / 6’5’’

• Central double bed (2,05 m x 1,60 m x 1,23 m / 6’9’’ x 5’3’’ x 4’)

Island bed type, mounted on gas struts

• 2 Hanging lockers, Open storage compartment along the hull,

6 Upper lockers, 1 Storage space under bed (Drawer under the bed

+ Central stowage under bed)

• 1 Seat on both sides of the bed

• 2 Bedside tables with seat

• 2 Reading lights

• 2 USB sockets

• 1 Low shoe storage unit, 1 Mirror on bulkhead

• 2 Flush deck hatches with mosquito screen/blind

• 2 Hull portholes with sliding blind

2 PRIVATE HEADS:

Headroom: 1,85 m / 6’1’’

to port:

• Manual marine toilet

• 1 80 L / 21 US Gal Rigid holding tank

• White polyester basin built into the Corian Clay counter-top, Mixer

tap

• 1 Cabinet - Mirror

• 1 Deck hatch with mosquito screen/blind

to starboard:

• Shower with wooden seat, white polyester shower base

• 2 Storage closets

• 1 Deck hatch with mosquito screen/blind

GAS _________________________________________________________________________________________________

• 1 Box for 2 gas bottles in the cockpit (diameter: 0,28 m/ 11’’ x Height: 0,44 m/ 1’5’’)

• Regulator and solenoid

• Gas leak detector
