2001 Caliber 47LRC

Deck and Hull

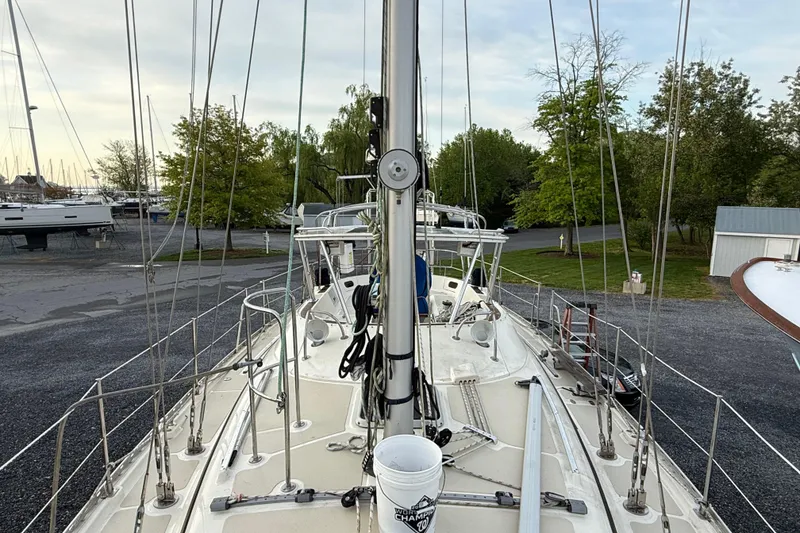

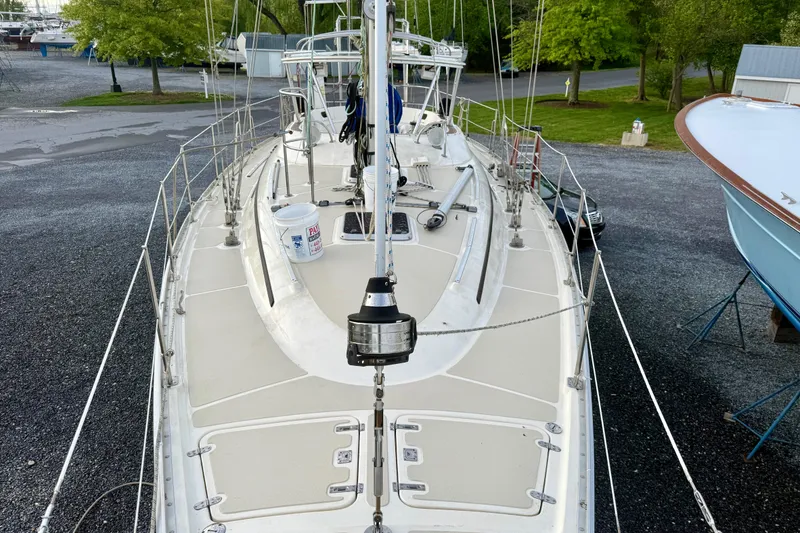

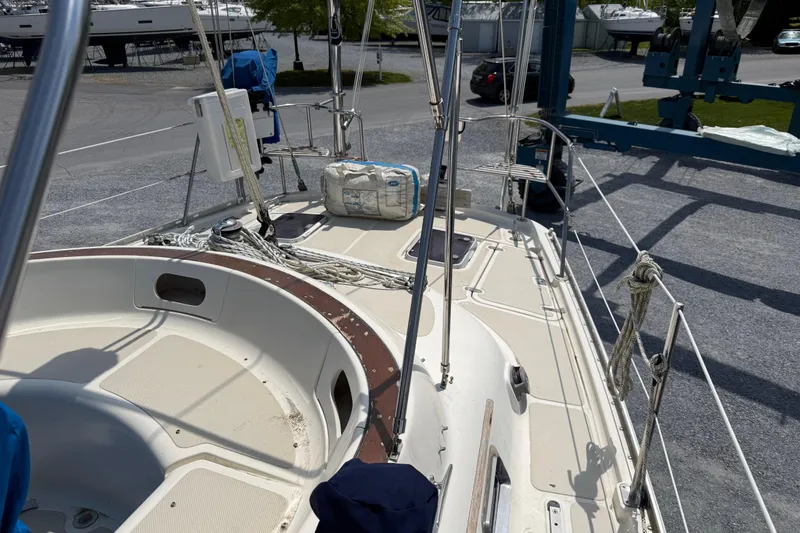

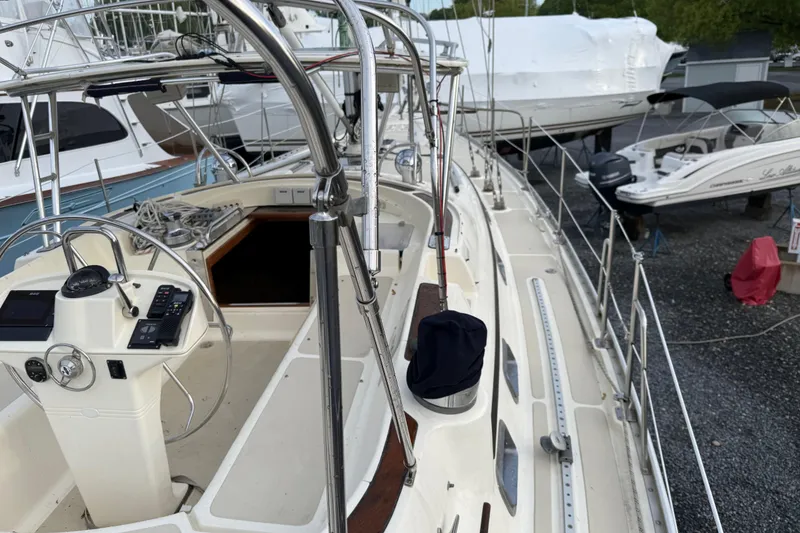

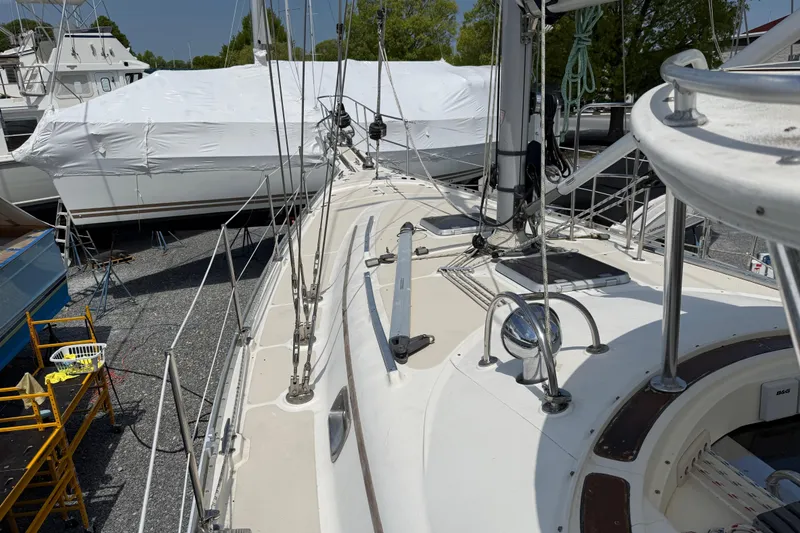

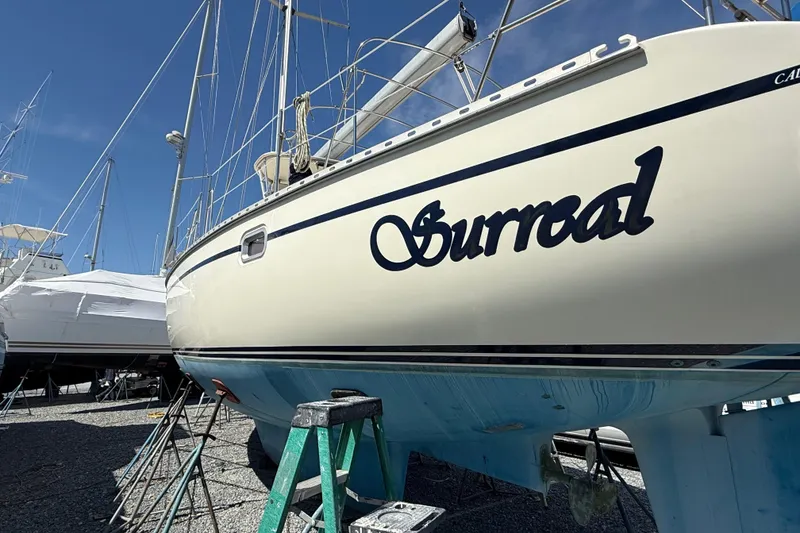

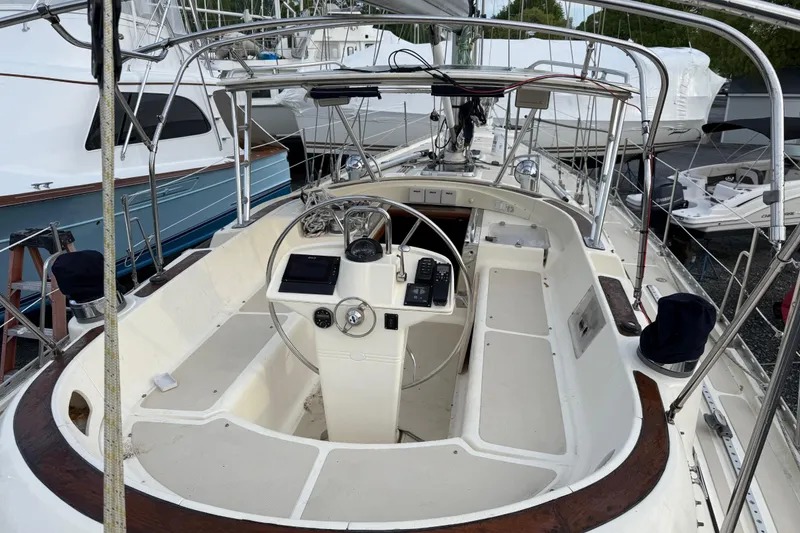

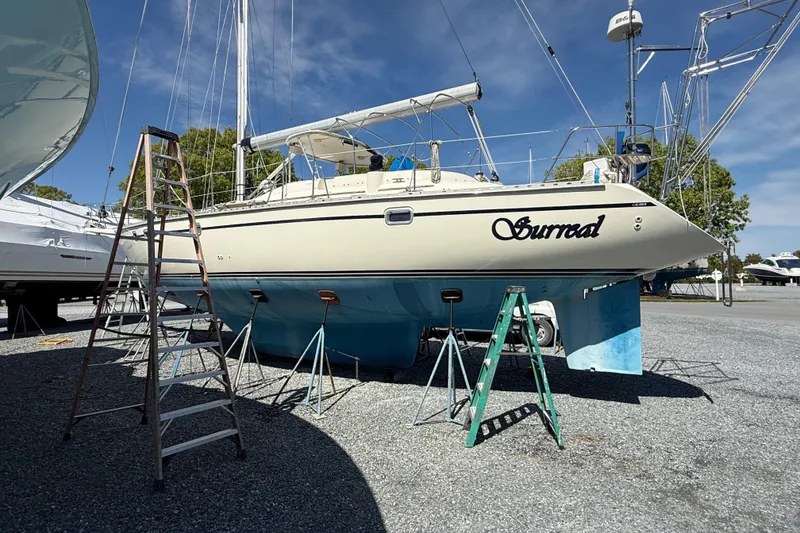

Hulls are built for outstanding resistance to collisions, with extra layers of solid fiberglass at potential impact points. In case of damage to the bow or rudder, a Watertight Collision Bulkhead and Rudder Dam are designed to minimize flooding. When rough water makes most sailors miserable, a Caliber owner can cruise in comfort. And with confidence. The Caliber moves more steadily in heavy seas. And due to her high ballast-to-displacement ratio, the Caliber is very stable. The cockpit is arranged to provide the captain complete control with ease and efficiency for short-handed sailing. The innovative steering pedestal, designed with for housings for all your cockpit mounted instruments. In addition other instrument displays are mounted over the companionway for easy viewing from anywhere in the cockpit. The hardtop dodger allows for great visibility and protection from the elements and serves to support two 100W solar panels. Deck stowage space is a rare commodity on many center-cockpit boats. It is abundant on the Caliber 47. Two deck lockers forward and two aft can accommodate large items. In addition a sizable anchor well at the bow features separate tackle compartments for two anchors. The extra strong anchor platform simplifies anchor handling. A swim ladder and boarding platform built into the transom make it easy to board a dinghy or take a swim.

Accommodations

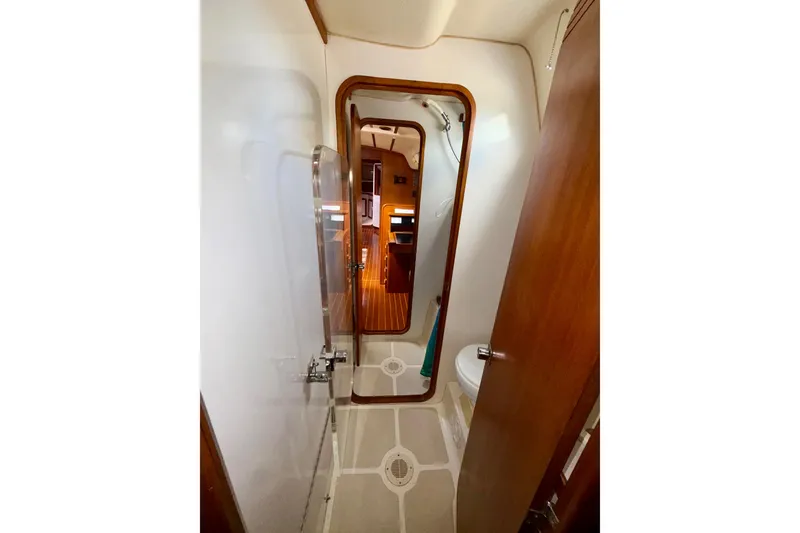

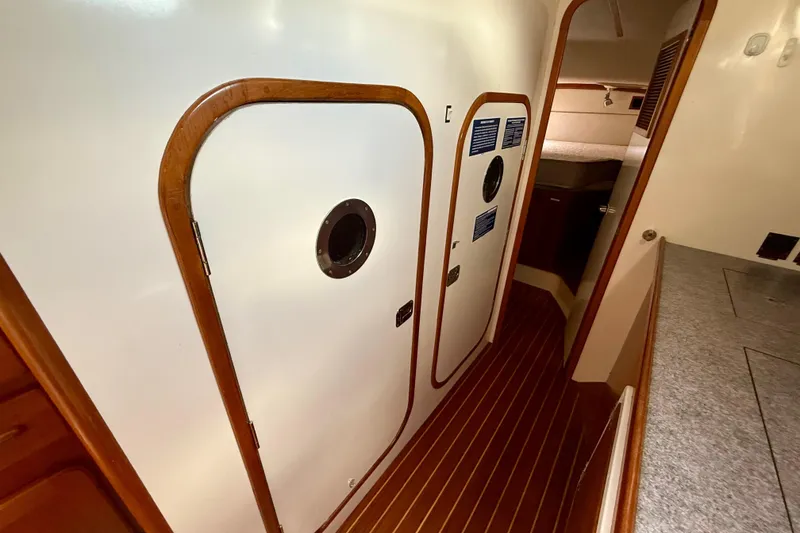

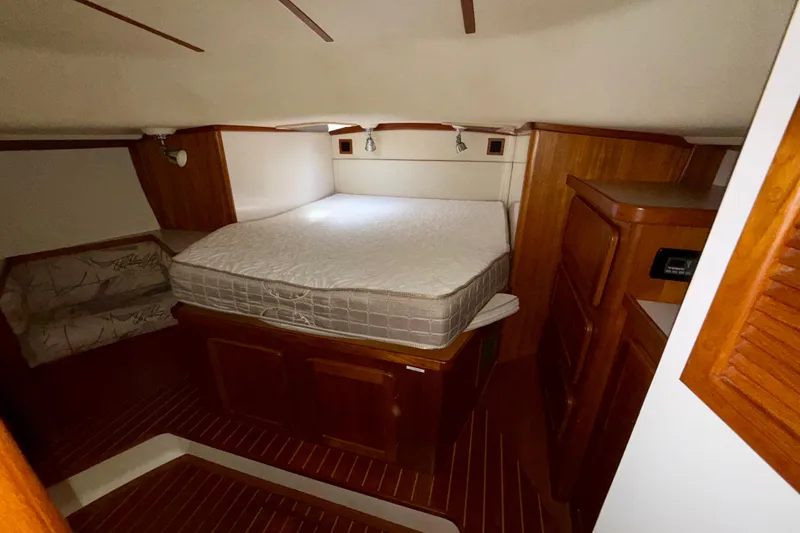

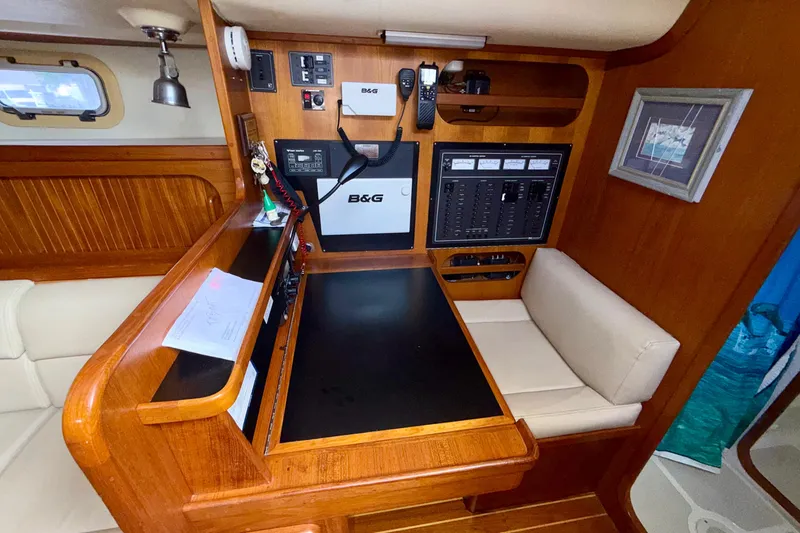

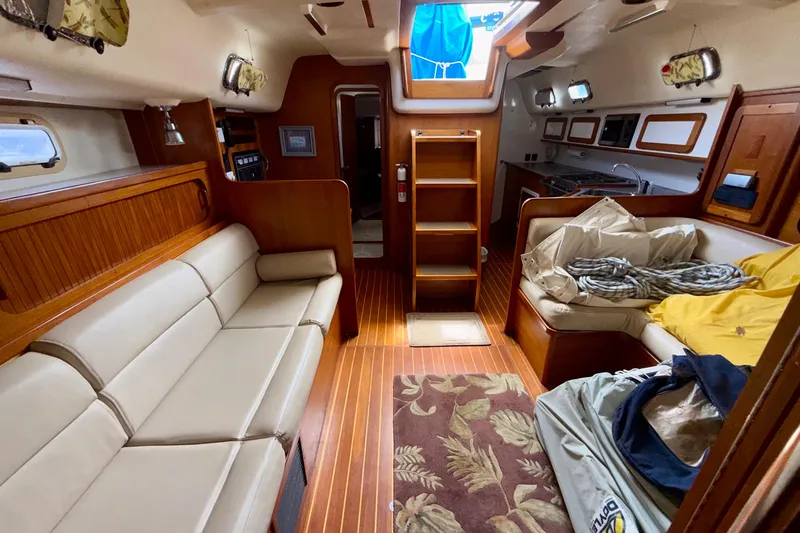

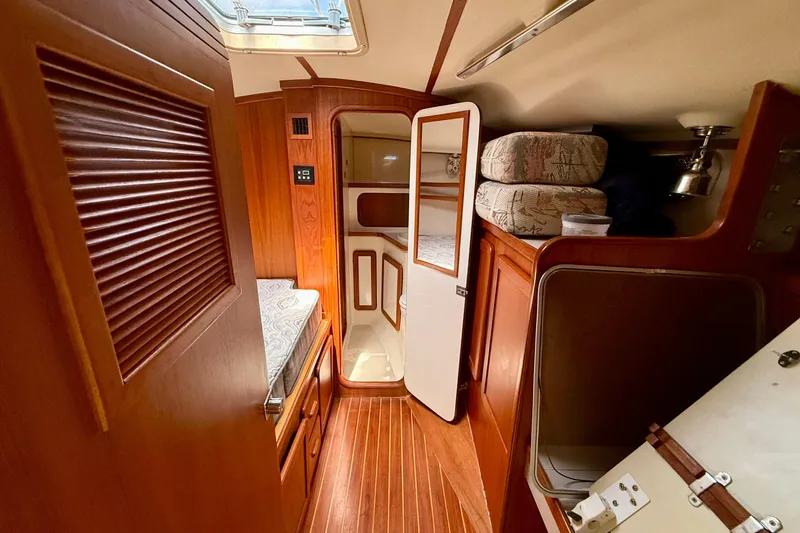

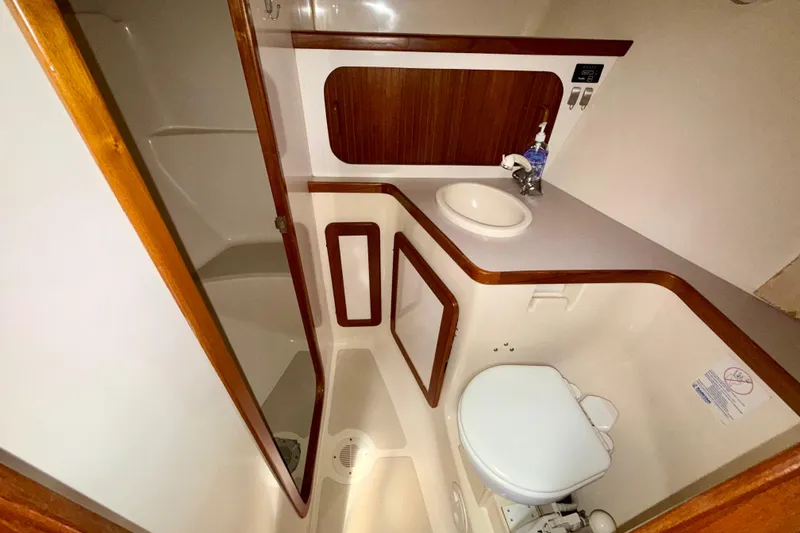

Below decks on the Caliber 47 LRC are spacious accomodations graciously appointed. Her sleeping quarters are true staterooms, expansive and private. The owner's aft stateroom, well separated from the main salon, offers an easily accessible island berth, cedar-lined hanging lockers, lots of storage, and private access to the dual-entry aft head. The forward stateroom features a generous offset double berth instead of a confining V-berth. Other features include a large hanging locker, vanity with mirror, storage shelves. The forward cabin's roomy head features a separate shower stall enclosed by plexiglass doors. The aft cabin has walk-thru head with a combination washer/dryer installed in traditional stall shower.The main salon takes full advantage of 6'6" headroom and a wide beam to provide an expansive living area. The L-shaped settee to port converts to a double berth and has storage cabinets and shelves outboard. The large bulkhead-mounted dining table folds up opening up more floor space. The forward facing nav. station gives a better feel for the boat's actual position while charting courses. It offers plenty of cabinet space to accommodate a full range of electronics, excellent workspace, and storage for books and manuals.

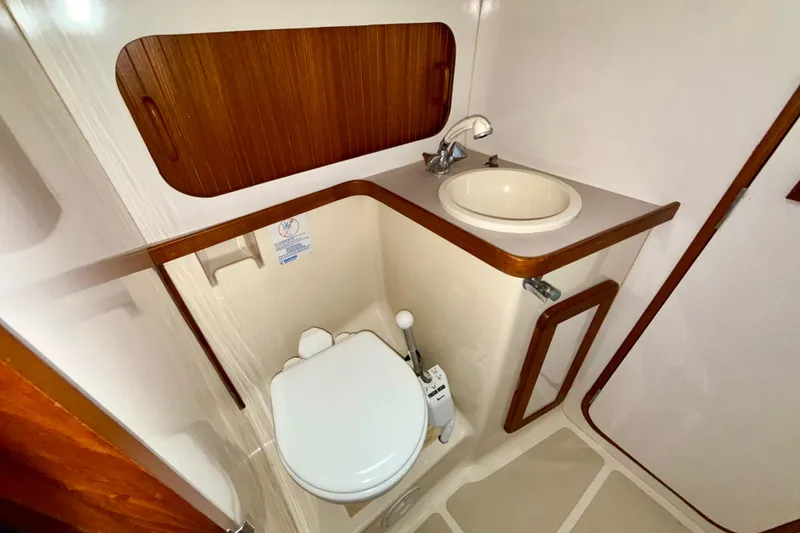

The galley is opposite, to port, next to the companionway (more details below.) Outstanding ventilation is provided by 18 opening ports and four overhead hatches, each strategically placed for optimal air circulation! Two deck cowls provide waterproof ventilation even when she is battened down. Also there are Hella cabin fans.

• Sleeps 4-6
• (2) Staterooms
• L-shaped settee convts to a berth
• Combi washer/dryer in aft head
• Cedar lined hanging lockers and bureaus in each cabin
• Teak & holly sole, varnished
• Teak bulkheads and joinery, satin varnish
• Storage shelves in main salon
• Centerline berth in aft cabin
• (2) Cedar hanging lockers in aft cabin
• Galley & head have low-maintenance off-white laminate
• Storage shelves behind vanity mirror
• Storage space under forward berth
• Storage under vanity table lid
• Cedar-lined hanging locker forward
• Shelf & book rack over fwd. berth
• (2) Manual heads
• (2) Shower stalls
• Stereo/CD
• (8) Bose speakers
• Cabin fans

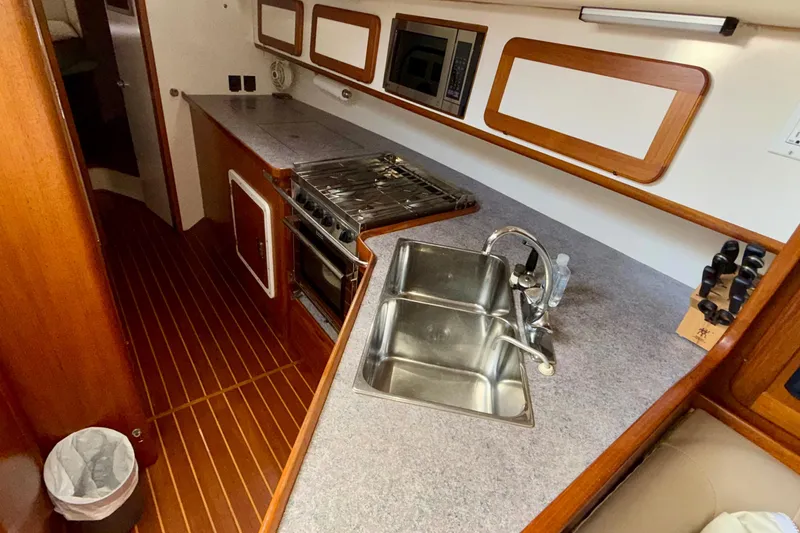

Galley - Any cook will appreciate the large, efficient galley with its generous storage and a counter that's 10 feet long!

• Force 10 4-burner propane stove with oven
• Separate refrigerator and freezer, both operate on 110V/AC & 12V/DC
• Sea Frost 9.5 cu. ft. refrigerator
• Sea Frost 4.3 cu. ft. freezer with top and front loading ability
• Double sinks with spray unit
• Daewood microwave AOR630R
• Hot & cold pressure water
• Manual freshwater foot pump
• Bin storage cabinets above counter top
• (2) Teak face drawers
• Storage under sink
• Storage under stove
• PUR water filter system

Sails and Rigging -

• Sail area is 1,014 sq. ft. P=47.83', E=18', I=54.5', J=21.42'

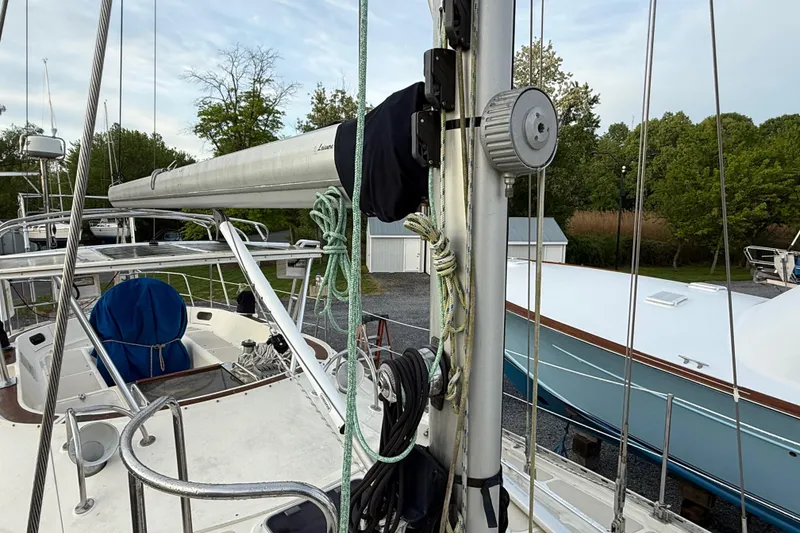

• Selden keel-stepped, double spreader, aluminum spar
• North full-batten mainsail
• Leisure Furl in boom furling (mainsail) with lines led to cockpit
• Doyle 135% Radial Cut jib on Selden Furlex 400S furling system
• Doyle staysail
• (2) Lewmar 54 ST electric winches
• (1) Lewmar 44 ST electric winch
• (2) Lewmar 44 ST winches
• Selden Furlex 300 roller furling system with Staysail with quick release
• Spare Genoa Halyard
• Mainsheet traveler with control lines
• Internal halyards led aft to cockpit
• Internal adjustable outhaul
• Twin backstays
• Inboard genoa tracks
• Mainsheet traveler with control lines
• Rigid boom vang
• Insulated backstay for SSB usage
• Color coded running rigging
• Windex

Electrical

• House Battery Bank - Two (2) Lifeline 8D 255AH AGM Batteries
• 8KW Fischer Panda GenSet
• Engine & GenSet Start - Group 31 AGM
• Two (2) Sun Power 100W Flexible Solar Panels Mounted on Hard Dodger
• Victron MPPT 150/85 Solar Controlled
• Smartplug Shorepower Inlets

Electronics

NavSta & Salon

• B&G 12" Zeus Chartplotter
• B&G V50 VHF w/ Wireless Remote Mic
• Icom IC-M710 SSB
• Simrad NAIS-500 AIS Transceiver
• Simard NSPL-500 Antenna Splitter (VHF/AIS)
• Fusion Bluetooth Stereo System
• Vetus Bow Thruster Control

Cockpit/Helm

• Zeus 7" Chartplotter
• Two B&G MFD Above Companionway
• B&G Autopilot Control
• Wireless Remote Mic Mount
• Windlass Remote
• Fusion Stereo Remote
• Bow Thruster Control
• Pole Mounted B&G Broadband Radar

Mechanical/Plumbing

• Fresh Water Pressure Pump
• Bilge Pumps
• Three Zone Reverse Cycle AC/Heat w/ dedicated units for Salon & Galley, Forward Berth and Aft Berth
• SeaFrost Refrigeration 12V & 120V - Massive Cold Plate in Freezer
• Raritan Fresh Head Marine Toilets in Forward and Aft Heads

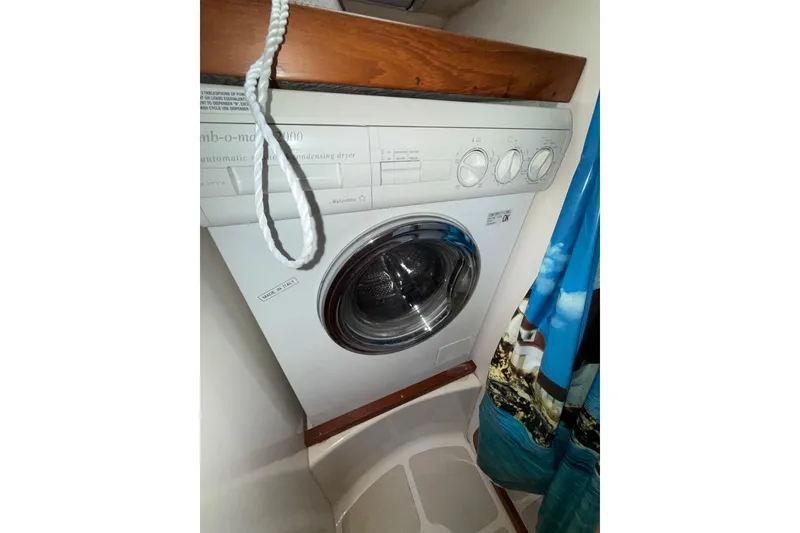

• Splendide Combo Washer/Dryer
• Dual Racor & Fuel Polishing System
• Aux Electric Fuel Pump

Ground Tackle

• Dual Anchor Roller
• Lofrans Vertical Windlass w/ Foot Controls and Cockpit Remote
• 55 lb Rocna w/ 150' Chain
• 45 lb CQR
