MasterCraft NXT Boats For Sale

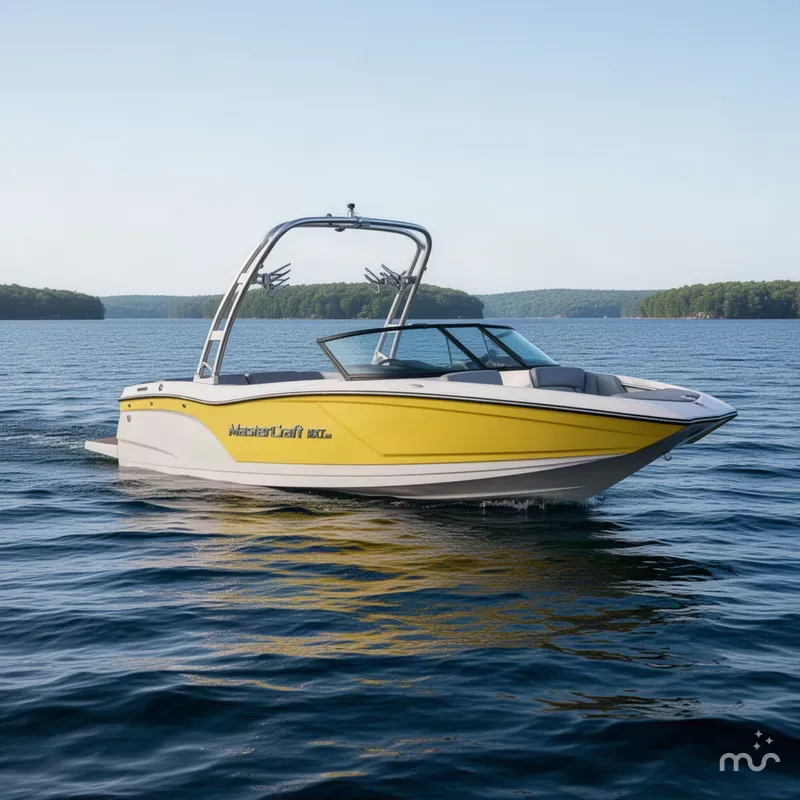

The MasterCraft NXT is a family of compact inboard tow boats built for wake surfing, wakeboarding and foiling, offered in 20-, 21- and 22-foot lengths. The NXT 20 is the smallest model in the family and suits families boating on size-restricted lakes, seating up to 12 with a pickle-fork bow, while the NXT 21 carries a hybrid bow design introduced in 2023 and seats up to 14, and the NXT 22 seats up to 14 with a popular 22-foot footprint. All three share Surf Star wave shaping, which generates thousands of wave variations and lets you pick a rapid surf preset or open the custom surf interface to control speed, ballast and wake-shaping device position. For 2024, three rapid surf wave settings per side and built-in foiling profiles for left- and right-side riders replaced the older surf-right/surf-left layout. Shoppers searching MasterCraft NXT boats for sale will find the 20 handles tight harbors without a bow thruster and holds its line through sharp turns and full-speed power turns.

For 2025, every NXT comes with Ilmor Marine's new 5.3-liter GDI high-output engine producing 380 horsepower and 407 lb-ft of torque, with a four-star emissions rating and roughly 15% less fuel consumption than the legacy 6-liter engine. A new fresh-air intake adds power and efficiency on hot days, and underwater exhaust is now standard to cut engine noise and fumes. The engine is backed by a 7-year or 1,000-hour warranty. On the water, an auto-launch function gets the boat onto plane near 29 km/h, and a full-ballast wakeboard setting runs around 34 km/h with the center tab managing the wake.

NXT faster fill is standard for 2025, adding an extra ballast pump that brings fill times to under nine minutes. The helm was completely redesigned in 2024 around a 7-inch touchscreen that replaced the previous 4.3-inch display, with Surf Star wave graphics, integrated music controls and all ballast controls consolidated in one interface. A new 2025 volume knob sits in the armrest for adjusting volume, muting and skipping songs without looking away from the water, and a wireless phone charger sits below the dash. Standard onboard telematics feed the MasterCraft Connect app, showing battery and fuel levels, engine health and GPS geofencing alerts, with remote battery switching.

The Z6 billet aluminum tower is standard in silver, upgradeable to all black, with clamping board racks that spin into the cockpit and bimini storage that together hold up to 10 boards. The NXT 20 and 21 come standard with the Clips Advanced Audio package featuring four interior speakers and a 10-inch subwoofer, while the NXT 22 ships with six interior speakers and a subwoofer; up to four tower speakers can be added, including M80 cans with 8.5-inch drivers. Four cockpit phone holders are standard and all can be upgraded to wireless chargers.

Inside, an optional convertible flip seat lets passengers face forward or watch riders behind the boat, and cool-feel upholstery stays up to 30% cooler than standard marine vinyl, allowing darker colors like sunset orange or magnetic blue. The open-walkway pickle-fork bow offers under-seat storage, dedicated centerline anchor storage and an optional filler cushion for playpen seating. Other options include a flip-down swim step, a pop-up ski pylon on the NXT 20, and the Icon trim package with black C-deck flooring, black tower and badging, and RGB underwater, speaker and tower lights. A color-matched custom trailer is available with electronic brakes or a tire pressure monitoring system. Every NXT includes Master Care, a 5-year/500-hour comprehensive warranty.



Currently, there are 642 boats available for sale for MasterCraft boats. Prices range from $6,995 to $594,020, with an average listing price of $139,167. The inventory includes 230 new boats and 412 used boats. The fleet is comprised of 642 powerboats. 8 boats have been added to the marketplace in the past month. Popular boat types include Ski and Wakeboard, Bowrider, Other, and Runabout. boats are most popular in Mesa, Mooresville, Pewaukee, Osage Beach, and South Jordan. There have been 2,826 boats listed on MarineSource that have sold in the past year. June is the most common month for new and used boats to be added to MarineSource, so be sure to check back regularly. June is the most common month for boats to sell, so be sure to beat the rush! The most common activities for boats are watersports, family fun, day cruising, and long distance cruising. Most boats contain heated interior, depth sounder, radio, gps, and joystick. boats tend to have an average of 1 engine. It is common for boats to have Ilmor engines or ILMOR engines or Ilmore engines.
