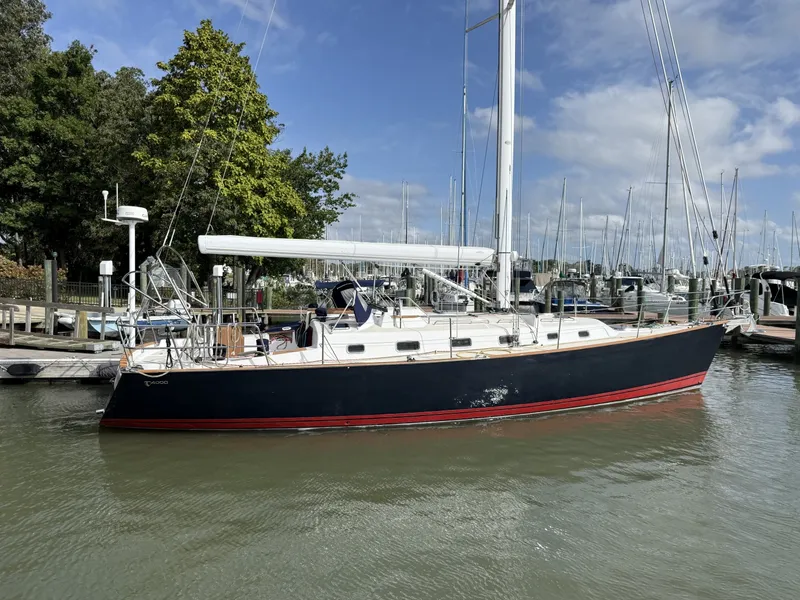

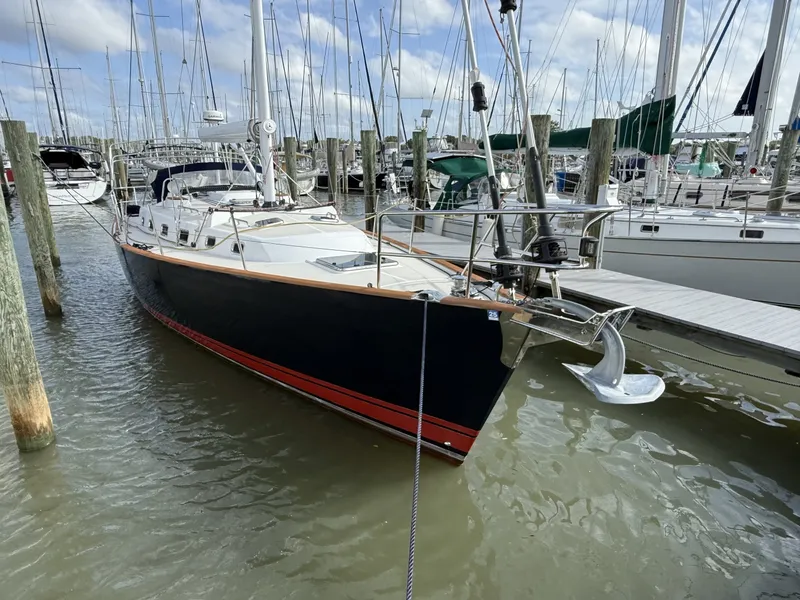

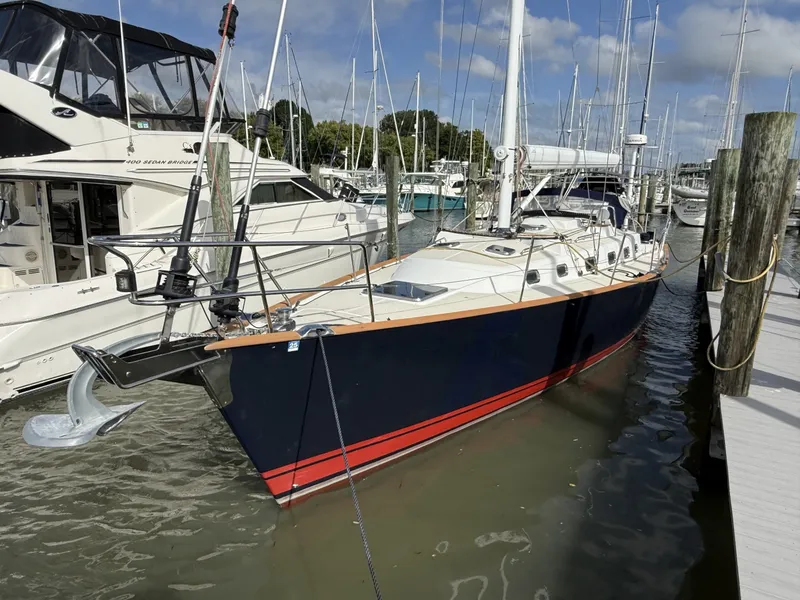

2015 Tartan 4000 Boat in West River, MD 20778 US

$289,950

Used
builtBuilt in 2015
Year the boat was built
model

4000

Boat model
engine

1 Engine (Volvo)

Engine type and count
length

40 feet

Overall boat length
fuel

Diesel

Fuel type
material

Fiberglass/Reinforced

Hull material

Key Specifications



  • LOA: 40 ft 8 in (12.4 m)
  • Beam: 13 ft (3.96 m)
  • Draft: 5 ft 10 in (1.78 m) - beavertail bulb lead keel
  • Displacement: 20,104 lbs
  • Engine: Volvo Penta D2-55F, 55 HP diesel
  • Fuel Capacity: 60 gal (aluminum tank)
  • Fresh Water Capacity: 120 gal (two aluminum tanks)
  • Holding Tank Capacity: 20 gal (plastic tank)


Accommodations


The interior features high-quality, handcrafted solid cherry cabinetry with raised panel doors and a V-grooved solid teak cabin sole. The layout offers two cabins and one head with a separate stall shower.

  • Layout: Two-cabin layout
  • Saloon: Features 6'4" headroom, C-shaped port settee (convertible to a berth), two starboard club seats, a drop-leaf dinette table with center storage, and cream Ultraleather cushions.
  • Galley: A J-shaped galley on the port side with Granicote solid surface countertops, double sinks, a two-burner LPG cooktop, Breville convection oven, and top/front-loading Isotherm 12v refrigeration/freezer.
  • Master Stateroom (Forward): A centerline queen-sized berth (80" x 64") with a custom mattress, extensive storage, cedar-lined hanging lockers, and direct access to the head.
  • Aft Stateroom: Features a fore and aft-oriented berth, hanging locker, and hullside lockers.
  • Head: A separate stall shower with a VacuFlush marine head is located on the port side.
  • Nav Station: Forward-facing navigation station to starboard, equipped with electrical panels and electronics.


Engine and Mechanical


  • Engine make: Volvo Penta S/N: 5103908151Y
  • Engine model: D2-55F
  • Horsepower: 55 hp
  • Hours: Approximately 200
  • Drive type: Saildrive
  • Propeller: 14-inch, three-blade, epoxy-coated aluminum prop
  • Lead lined engine room insulation
  • Fire port
  • Engine room light
  • Bilge blower for engine compartment with switch at helm
  • Engine service access front, top, sides, and aft
  • Groco bronze raw water strainers (2)
  • Engine services annually, with fluids and filters replaced as per manufacturer's requirements
  • Injectors and high pressure pump removed and tested ('23)
  • #3 injector rebuilt ('23)
  • Heat exchanger back-flushed ('23)
  • Sail drive gear oil replaced every three years
  • 60-gallon aluminum fuel tank with remote gauge
  • Electrical fuel tank gauge
  • Volvo fuel filter/water separator
  • 14" three blade epoxy coated aluminum prop ('24)


Electronics and Navigation


The boat is equipped with a comprehensive Garmin electronics package:


  • Garmin GPSMAP 741 displays (2)
  • Garmin GMR 18HD radar
  • Edson 3.5" radar mast with antenna bracket
  • Garmin GMI 20 instrument displays (3)
  • Airmar DST800 depth, speed, temperature transducer ('24)
  • Garmin gWind wind transducer
  • Garmin GHC 20 Autopilot Control Head
  • Garmin GHC 10 Autopilot Remote
  • Garmin GHP 12 Autopilot corepack w/Class A drive unit
  • Garmin GWH 20 wireless hub
  • Garmin GHS 20 wireless VHF handset
  • Masthead VHF antenna
  • Garmin GXM 52 SiriusXM marine receiver
  • Garmin VHF 300 AIS
  • Meteor 300 stereo system with remote
  • Infinity 612M speakers in salon and cockpit
  • RogueWave WiFi booster with radar mast mounted antenna
  • Meade Instruments electric weather station


Electrical


  • 30A 110V shore power connections (2)
  • 30A 110V 50' shore power cords (2)
  • ProMariner galvanic isolator
  • Blue Sea Systems 110V electrical panel
  • Blue Sea Systems 8247 AC multimeter
  • 110V receptacles throughout with GFI protection
  • Blue Sea Systems 12v DC electrical panel
  • Blue Sea Systems 8248 DC multimeter
  • Electric panel prepped for generator installation
  • 12v receptacles at nav and one helm
  • Battery selector switch
  • Two 8D AGM house batteries ('24)
  • Group 27 AGM starting battery ('24)
  • Mastervolt 12/2500 -2.5 KW True Sine Wave 2500W inverter/100A charger with remote control panel
  • Balmar digital Duo Charge controller
  • Polished chrome and stainless-steel LED interior lighting
  • Automatic LED lights in hanging lockers, main cabin, lockers and refrigerator compartment
  • LED service lighting in engine compartment and deck lockers
  • Custom LED entry lighting at companionway
  • Directional LED reading lights at berths and main cabin settees
  • Directional LED spotlights over main cabin table
  • Recessed, dimmable LED overhead spotlights in main, forward and aft cabins
  • LED Interior, cockpit and swim platform courtesy lighting
  • USCG approved LED navigation lights
  • Mast wiring conduit
  • Masthead LED anchor light
  • LED steaming light with foredeck illuminator
  • Wiring bundled in PVC conduit with room for future installation
  • All wiring chafe protected where it passes through internal structure
  • Electrical bonding system


Rigging


  • Tartan "Cruise Control Rig" with twin headstays (Solent Rig)
  • Carbon-fiber mast with white acrylic urethane topcoat
  • Tapered mast section for reduced weight aloft
  • Carbon fiber backstay crane integrally molded at lamination
  • Custom carbon fiber masthead with sheaves for jib, main, reacher and spinnaker halyards
  • Tapered airfoil swept spreaders
  • Hayn 1 x 19 316 stainless steel wire rigging with forged turnbuckles
  • Custom stainless steel chainplate system ties structural FRP grid and hull
  • Spartite mast sealing system
  • Internal halyards
  • Leisure-Furl boom
  • Forespar rigid boom vang
  • Harken mainsheet traveler with double ended sheet led to primary winches
  • Harken aft lead control and turning blocks
  • Harken deck hardware and blocks
  • Harken Mark IV furler for reacher sail
  • Harken main and jib sheet turning blocks with lock-offs
  • Harken Mark IV furler for self-tacking jib
  • Harken self-tacking jib traveler with double ended sheet led to primary winches
  • Harken 44.2 STC house top winch
  • Harken 44.2 STEC electric main halyard winch
  • Spinlock rope clutches (8)
  • Harken Rewind 46 chrome electric primary winches (2)
  • Harken Rewind 46 chrome electric secondary winches (2)
  • Switches for remote operation of all Rewind winches at both helm stations
  • Running rigging (except halyards) replaced ('22)
  • Harken aluminum winch handles (3)
  • All winches serviced every other year



Deck & Hull

  • Resin infused modified epoxy hull and deck with closed cell foam hull coring
  • Hull locally reinforced at high load areas
  • Internal structural grid glass taped into hull
  • Beavertail bulb lead keel
  • Stripped and barrier coated with three coats ('15)
  • Bottom painted with Petit SR ('24)
  • Keel bolt quantity and size exceed ABS standard for offshore use
  • Carbon fiber rudder post
  • High density, closed cell urethane foam rudder blade with modified epoxy reinforced skins
  • Self-aligning roller rudder bearings
  • All hull and deck penetrations made into solid fiberglass "core windows"
  • Interior hull surfaces painted out with enamel gelcoat for aesthetics
  • Aluminum backing plates added at lamination for all loaded hardware
  • Bulwark mounted teak cap rails through bolted to hull flange
  • Custom cast rail mount chocks for mooring cleats (6)
  • Stainless steel 10" mooring cleats (6)
  • Stainless steel breast plates for mooring line chafe protection
  • Contrasting deck non-skid in white and sand
  • Deck drains to waterline discharge, eliminates hull streaking
  • Transferrable 15-year hull structural and blister warranty
  • Custom fabricated stainless-steel stem fitting with integral double bow roller
  • Vulcan anchor w/ 50' 5/16" G40 chain and 200ft of 5/8" rode
  • Lewmar 5/16 chain stopper
  • Lewmar electric windlass
  • 27" x 1 1/8" diameter stainless steel stanchions, bow and stern rails
  • 1 x 19 double wire lifelines with port, starboard, and transom boarding gates
  • Bomar stainless steel unlimited offshore CE approved deck hatches (6)
  • Cabin side mounted stainless steel opening port lights with screens (12)
  • Cockpit mounted stainless steel opening port lights with screens (2)
  • Custom stainless steel mast collar with multiple attachments for blocks
  • Polished chrome 4" dorades on teak dorade caps with stainless steel guards (2)
  • Polished stainless steel outboard genoa track for reacher
  • Stainless steel handrails
  • Teak cockpit table with fixed fiberglass pedestal
  • Cockpit coaming cubbies with teak treads
  • Custom curved Lexan sliding companionway hatch with solid teak hatch boards and trim
  • Offshore ready, match molded, and gasketed cockpit seat hatches
  • Custom life raft compartment in cockpit locker
  • Hinge-down swim platform with a retracting stainless swim steel ladder
  • Bimini and spray shield style dodger ('22)


Sails:


  • Mainsail: Sobstad Leisure Furl with battens
  • Jib: Sobstad Dacron self-tacking
  • Genoa: Tri-Radial 150% cruising laminate (never used)


Other Equipment:


  • Winslow 6-person Super-Light Offshore Plus life raft ('14)
  • Life raft maintained per manufacturer's requirements
  • PFD's
  • Emergency tiller
  • Fenders
  • Dock lines
  • Cockpit cushions
  • Custom teak companionway screens
  • Bottom Sider cockpit cushions
  • Magma stainless steel LPG grill with cover
  • Volvo Penta Workshop Manual & Parts Catalog
  • Lots of spare parts for the engine, as well as belts, filters, gaskets and impellers
  • Six winch covers ('24)
  • Two mesh sheet tail bags ('24)
  • Dehumidifier included and run during all warm weather months since purchase of boat
  • Small heater included and set to 55 during cold months


Nominal Length
40ft
Length Overall
40.67ft
Length at Waterline
36.42ft
Length on Deck
40ft
Beam
13ft
Max Bridge Clearance
63ft
Max Draft
5.83ft
Displacement
20104lb
Ballast
6750lb
Cabins
3
Heads
1
Fresh Water Tanks
120gal
Fuel Tanks
60gal
Holding Tanks
20gal
Hull Material
fiberglass
Engine 1
Engine Make
Volvo
Engine Model
D2-55F
Total Power
55hp
Engine Hours
200
Engine Type
inboard
Fuel Type
diesel
Engine Year
2015
Drive Type
sail
Summary
SEE TANGAROA AT THE 2026 SAILBOAT SHOW - CALL TO SCHEDULE PRIVATE SHOWING She embodies all of the recent Tartan leading technologies and advanced performance cruising conveniences. She is equipped with the Tartan CCR (Cruise Control Rig), carbon fiber mast, boom and rudder, infused BPA epoxy.

Price History

DateEventPrice
5/4/26Price decreased$289,950(-3.2%)
3/15/26Price decreased$299,500(-7.7%)
1/8/26Price decreased$324,500(-7.3%)
11/10/25Initial price$349,950

Videos from Integrity Yacht Sales on this 2015 Tartan 4000

Contact Integrity Yacht Sales

PO Box 479, Deale, MD, 20751

Overview from around the web 2015 Tartan 4000

Customers praise the 2015 Tartan 4000 for its exceptional craftsmanship and timeless design

Many highlight its solid build quality, responsive handling, and spacious interior, which combines comfort with practical functionality. Owners appreciate the boat’s performance in various sailing conditions, noting its balance of speed and stability. The elegant finish and attention to detail throughout the vessel consistently receive positive remarks, making the Tartan 4000 a favorite among sailors seeking both style and reliability.

The Biggest Pros and Cons

The 2015 Tartan 4000 is a well-regarded sailing yacht that offers a blend of performance, comfort, and craftsmanship. Here are some of the key pros and cons of this model:

Pros

Exceptional Build Quality: Crafted with high-quality materials and attention to detail, the Tartan 4000 boasts durability and a solid feel on the water.

Performance-Oriented Design: With a sleek hull and efficient sail plan, it delivers responsive handling and good speed, making it suitable for both cruising and club racing.

Comfortable Interior: The spacious and thoughtfully designed cabin provides ample headroom, comfortable berths, and a well-equipped galley, ideal for extended voyages.

Modern Amenities: Equipped with up-to-date navigation and onboard systems to enhance safety and convenience.

Good Stability: The keel and ballast design contribute to excellent stability and seaworthiness in various conditions.

Cons

Price Point: As a high-quality, well-equipped yacht, the Tartan 4000 carries a premium price compared to some competitors.

Maintenance: The advanced features and quality finishes require regular upkeep to maintain their condition and performance.

Limited Availability: Being a relatively recent model with limited production numbers, finding used versions might be more challenging.

Space Constraints: While comfortable, the 40-foot size means interior space is somewhat limited compared to larger cruising yachts, which might affect liveaboard comfort for larger groups.

Made For

The 2015 Tartan 4000 is designed for sailors who seek a perfect blend of performance, comfort, and classic style. Ideal for cruising enthusiasts and competitive racers alike, this boat appeals to those who appreciate high-quality craftsmanship and innovative design. Whether you're planning coastal adventures or extended voyages, the Tartan 4000 offers spacious accommodations and responsive handling, making it an excellent choice for sailors looking to enjoy both relaxation and exhilarating time on the water.

Finance your dream boat!

Use our boat payment calculator to estimate monthly payments for 2015 Tartan 4000. Enter your down payment, choose a loan term, and adjust the interest rate to see an instant payment estimate — ideal if you're calculating boat payments before you enquire. Wondering how much does a Sail Cruiser cost in today's market, or how much does a Tartan cost for similar models? This boat financing calculator helps you compare scenarios in seconds, whether you're considering used boat financing or a new purchase.
$
$
510152025
%
Principal Loan Amount$246,457
Total Payment$440,655.96
Monthly payment
$1,836.07/mo

Finance your dream boat!

Use our boat payment calculator to estimate monthly payments for 2015 Tartan 4000. Enter your down payment, choose a loan term, and adjust the interest rate to see an instant payment estimate — ideal if you're calculating boat payments before you enquire. Wondering how much does a Sail Cruiser cost in today's market, or how much does a Tartan cost for similar models? This boat financing calculator helps you compare scenarios in seconds, whether you're considering used boat financing or a new purchase.
$
$
510152025
%
Principal Loan Amount$246,457
Total Payment$440,655.96
Monthly payment
$1,836.07/mo

Be the first to know when similar boats hit the market

Get notified when new boats become available

Boats For Sale in Maryland, United States Similar to the 2015 Tartan 4000

Compare with similar boats and find the perfect one for you.

This Boat
Similar Boats

The Image of Tartan 4000 2015 - 57939672015 Tartan 4000
Price$289,950$320,000$209,900$199,000$185,000$399,000
LocationWest RiverAnnapolisTracys LandingAnnapolisOxon HillAnnapolis
Nominal Length40'40'46'47'37'43'
Beam13'-----
Draft6'-----
Engine MakeVolvoYanmarVolvoYanmarYanmar-
Total Engine Power55 hp52 hp79 hp75 hp40 hp-
Days on Market373943777911064
Get in touch

Meet the Broker

Address

PO Box 479
Deale, MD 20751
Other Information about Integrity Yacht Sales

Integrity Yacht Sales is a premier yacht brokerage on the US East Coast, headquartered in Deale, MD. Customer centric, attentive, and experienced, we specialize in helping clients achieve their dreams: sailboats, trawlers, powerboats, and more.

Want to update the details or images for this boat? Claim this listing by getting in touch.

Boat Location

Be the First to Know

Get notified when new boats become available.

Contact Integrity Yacht Sales about 2015 Tartan 4000

PO Box 479, Deale, MD, 20751

Sign in

or
Login with Google

Check your inbox

We sent a magic link to your email address. Follow the magic link to finish signing in.
