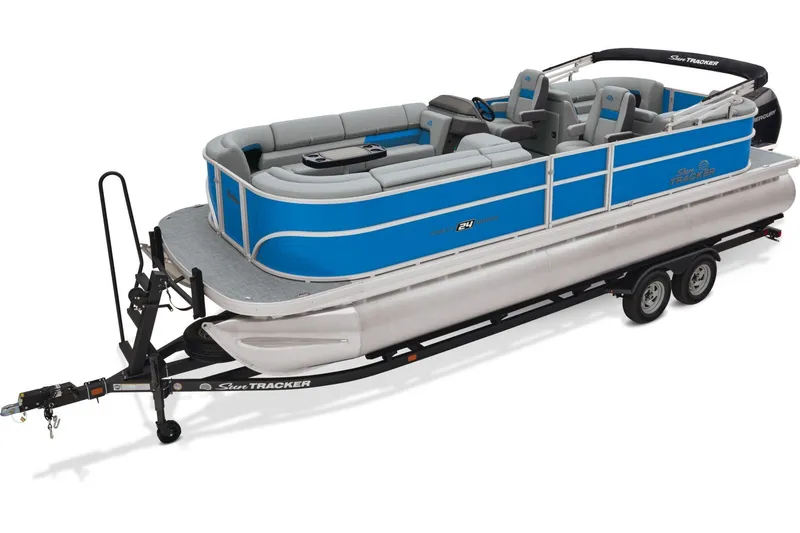

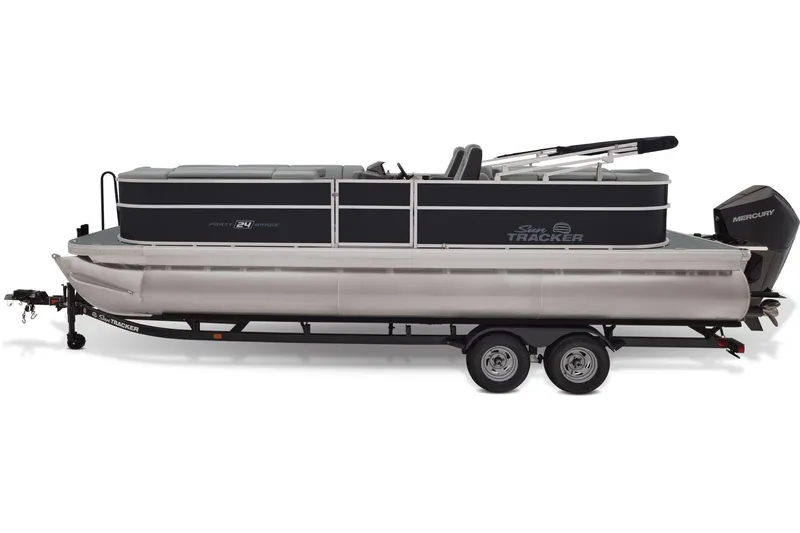

2027 Sun Tracker Party Barge 24 XP3 Boat in Saint Charles, MO 63301 US
Party Barge 24 XP3
1 Engine (MERCURY MARINE)
26.2 feet
--
Aluminum

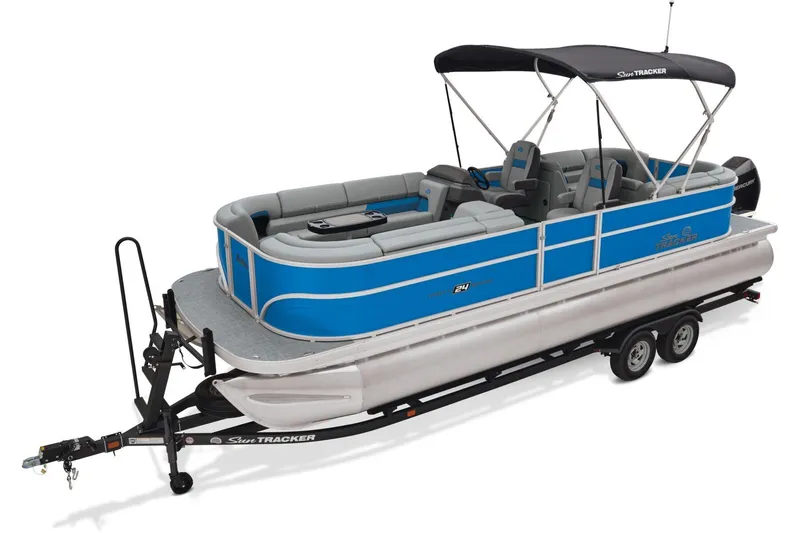

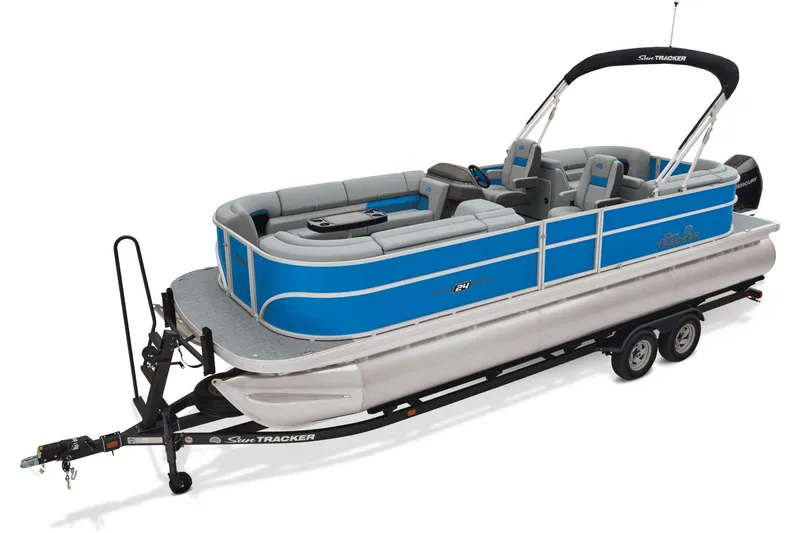

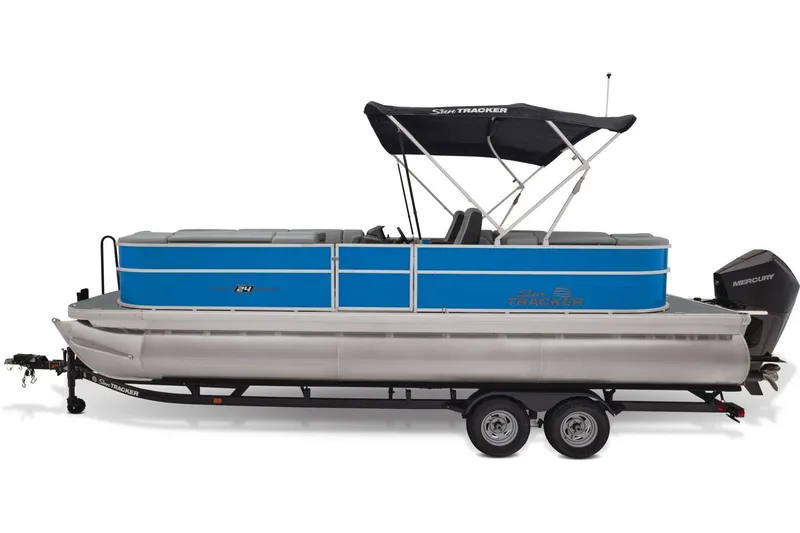

The PARTY BARGE® 24 XP3 is the biggest pontoon in the SUN TRACKER® family. The 24' deck lets up to 12 passengers embark on aquatic adventures they'll never forget.

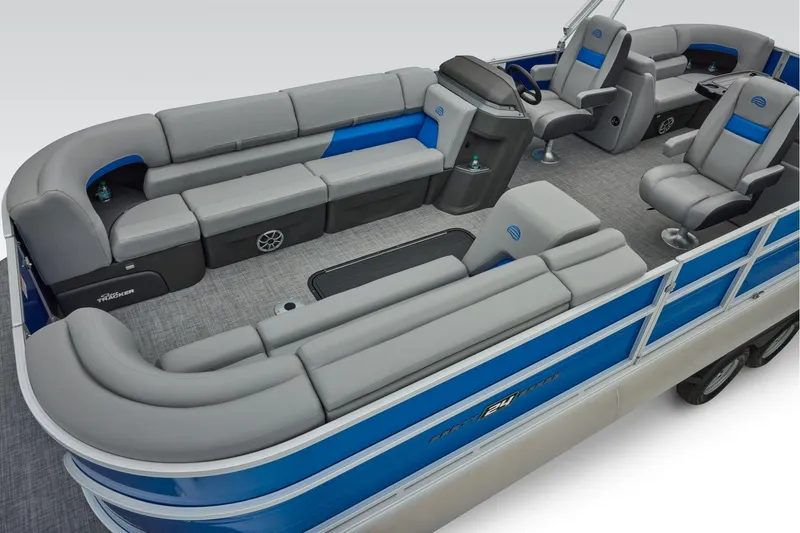

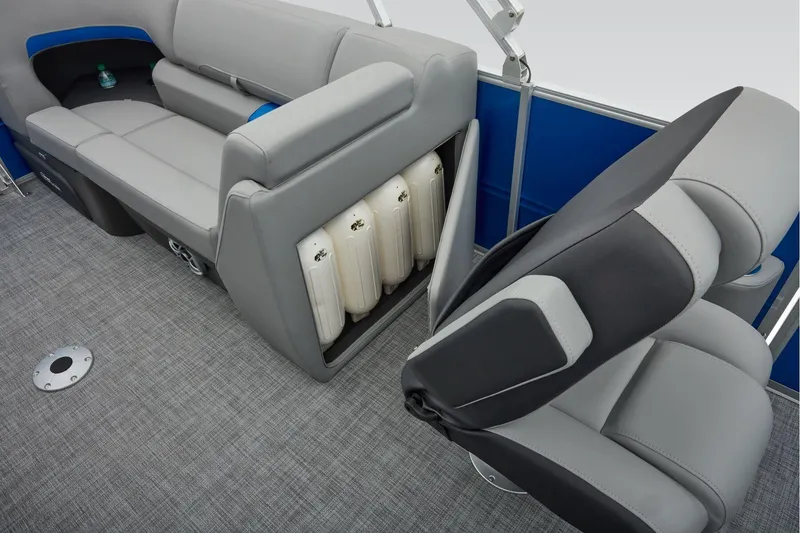

Each corner features a long pillow-top lounge with secret storage spaces under the seats and in the STOW MORE™ seat backs to give you all the space you need to pack snacks, equipment, supplies, and more. Backrest cubbies provide extra easy-access storage space and additional cupholders. Premium weave flooring and upholstery accents that match the color of your fencing add style throughout the boat.
The captain can control everything through the completely redesigned console's SUN TRACKER FLARE™ touch-screen gauge display with an improved GPS system and upgraded four-speaker Bluetooth®-capable stereo.
With the most space and the longest list of exciting features, the 24 XP3 really brings the party wherever it goes!
Length:26' 2"
Deck Length: 24' 1"

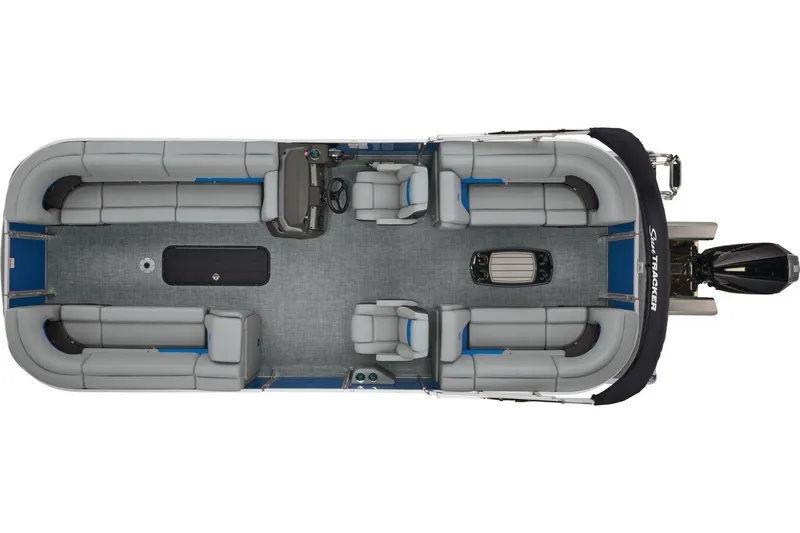

Deck Width: 8' 6"
Max. Recommended HP: 250 HP
Fuel Capacity: 52 gal.
Pontoon Log Length: 24' 11"
Pontoon Log Diameter: 26"
Pontoon Log Material: 0.1 5052 marine alloy
Max. Person Capacity: 12 persons
Max. Person Weight: 1900 lbs.
Max. Person, Motor & Gear Weight: 2800 lbs.
Interior Depth: 27.25"
Average Dry Weight: 3360 lbs.
Average Package Weight: 5685 lbs.
Package Height: 8' 10"
Package Width: 8' 6"

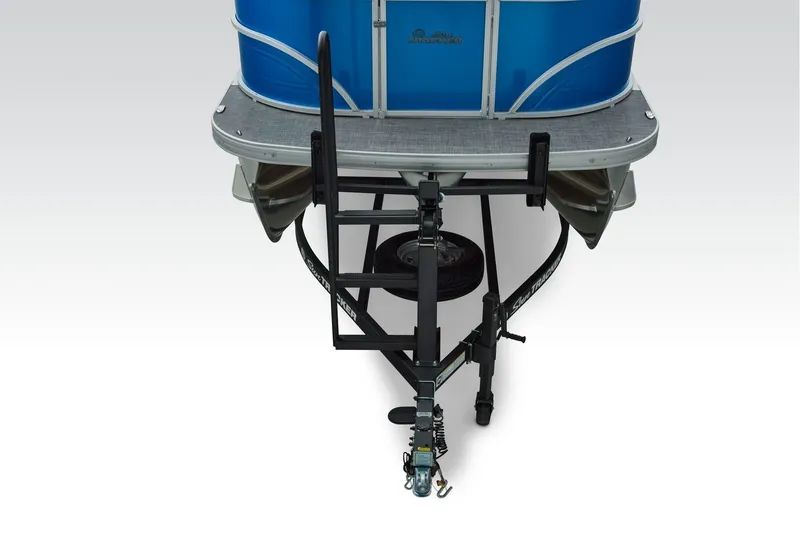

Towing Length: 37' 9"
Storage Length: 37' 9"
Comfort, Convenience & Peace of Mind
- 10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty
- NMMA® certified
- 10' (3.05 m) Black SUN TRACKER® QuickLift™ Bimini top w/LED courtesy lights, storage pockets & protective boot

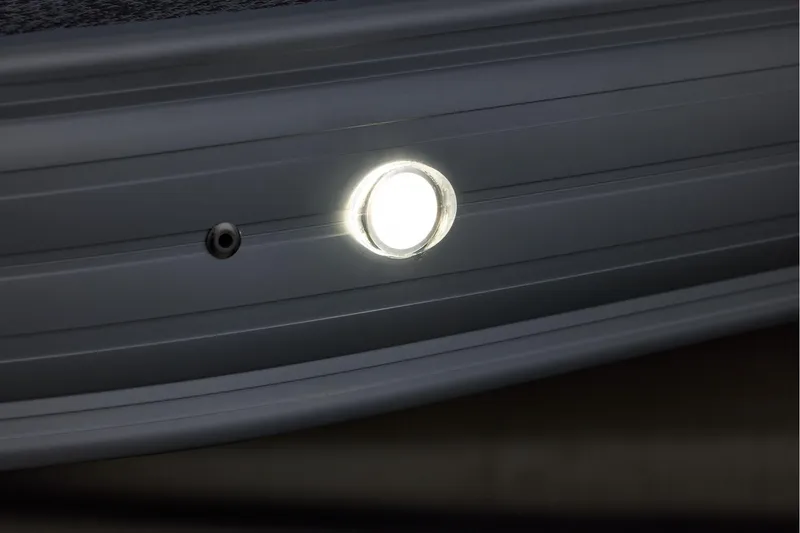

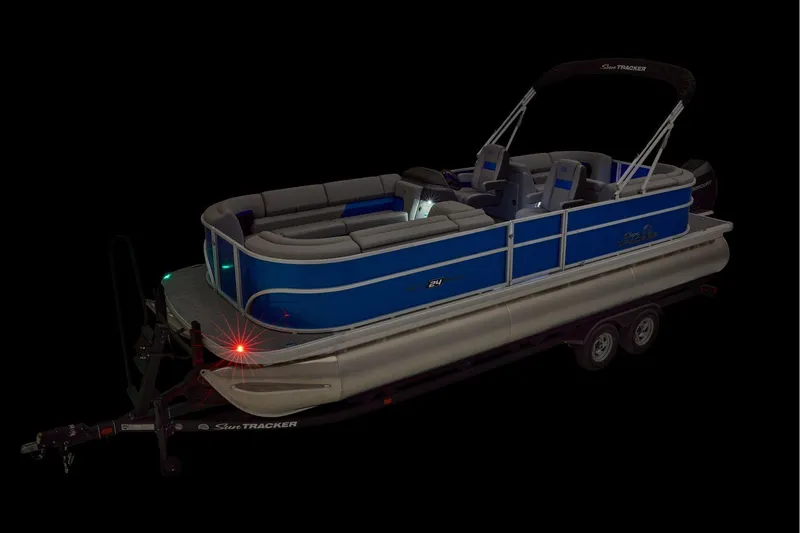

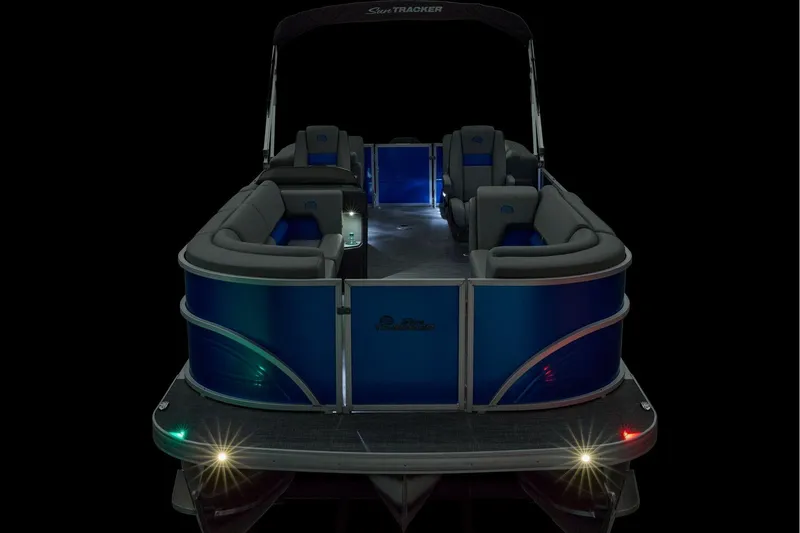

- Integrated LED docking lights

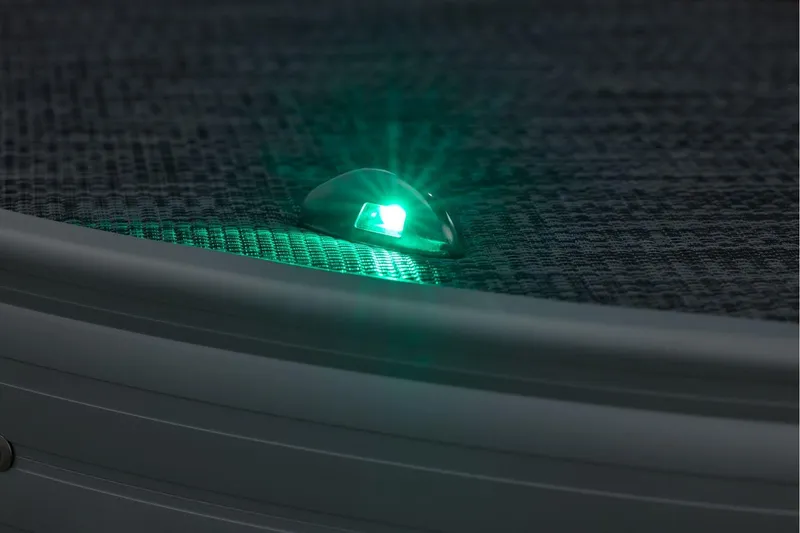

- Integrated LED navigation & anchor lights
- 4 folding mooring cleats & starboard side tie-off mooring eye

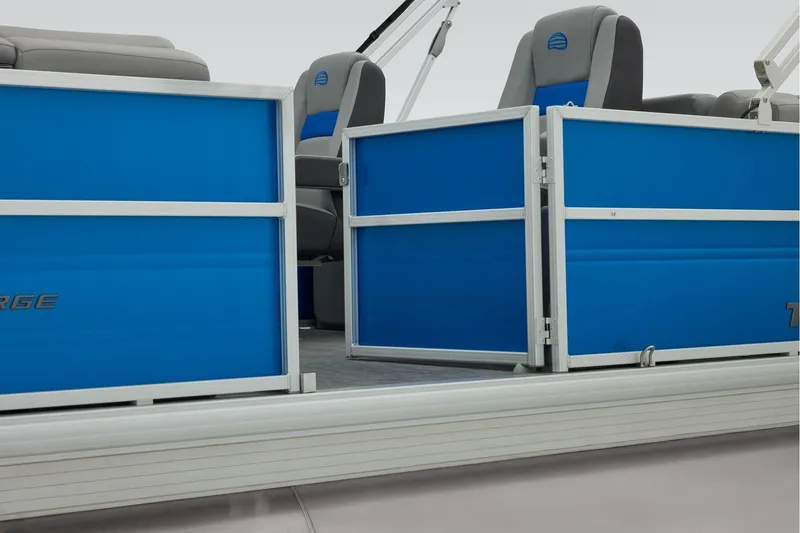

- Port wheelchair-accessible gate

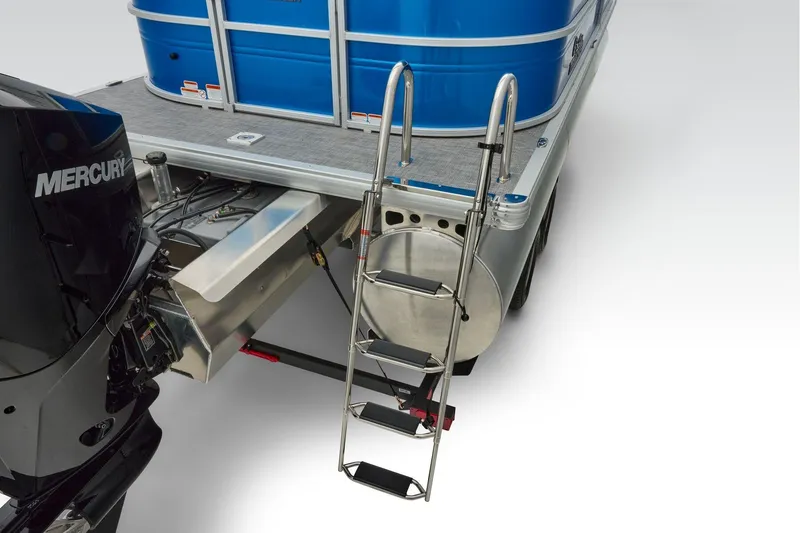

- Rear boarding platform w/wide 4-step telescoping boarding ladder & grab rails

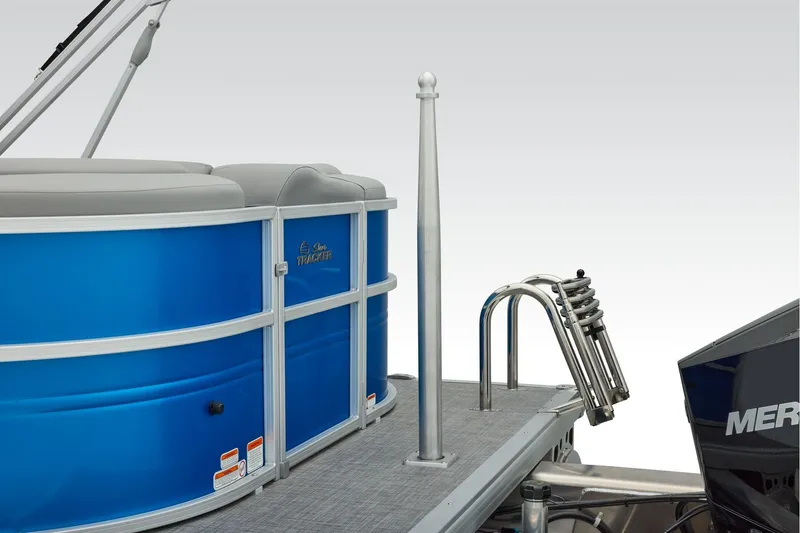

- Aft receptacle base for optional ski tow pylon
- Motor-stop safety lanyard
- Fire extinguisher
- Horn
Console

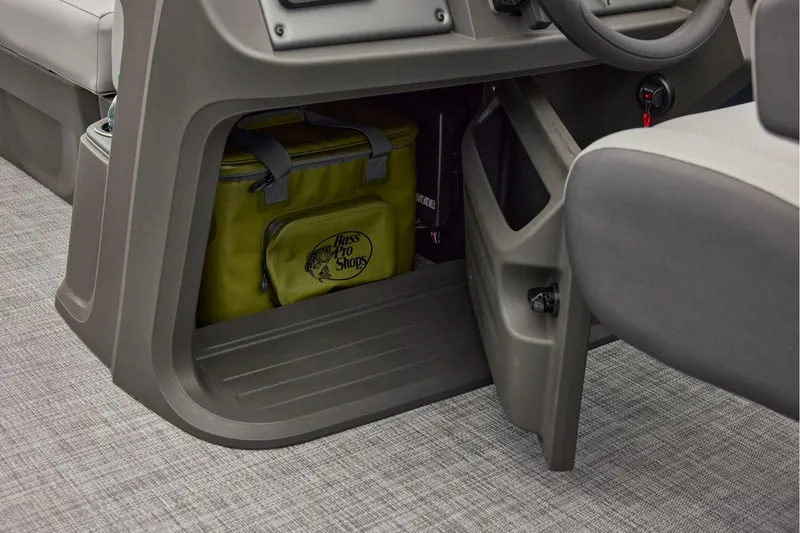

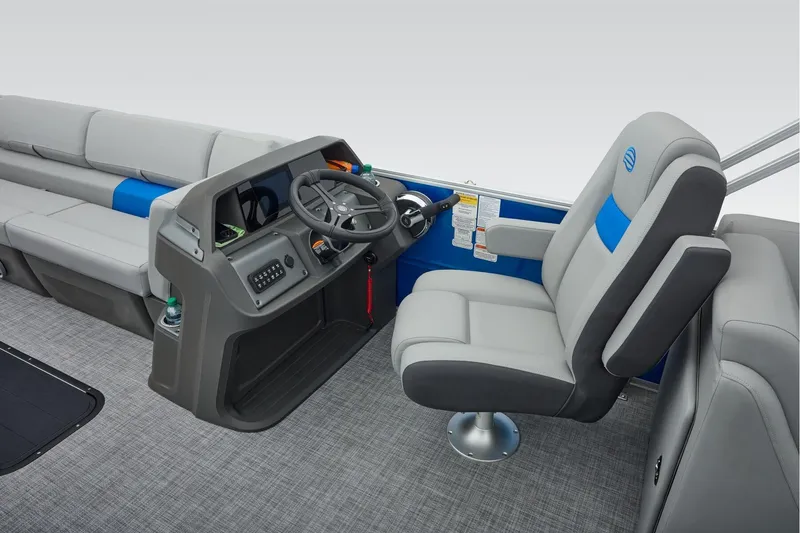

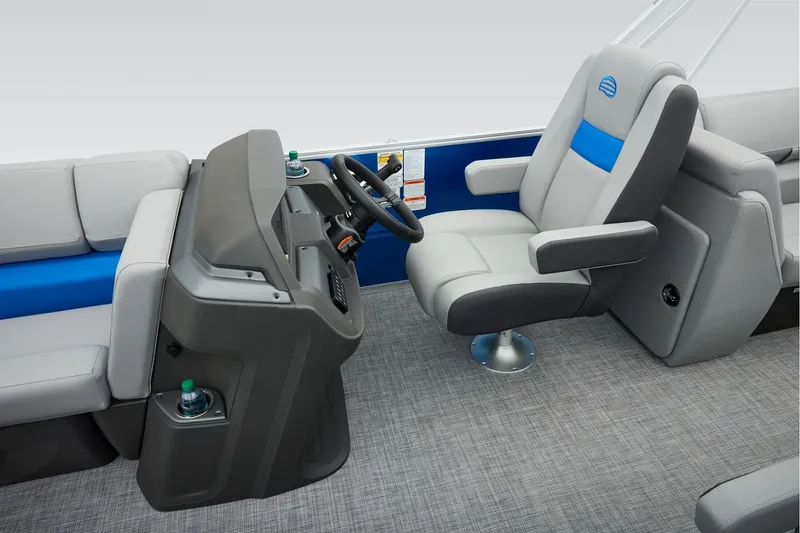

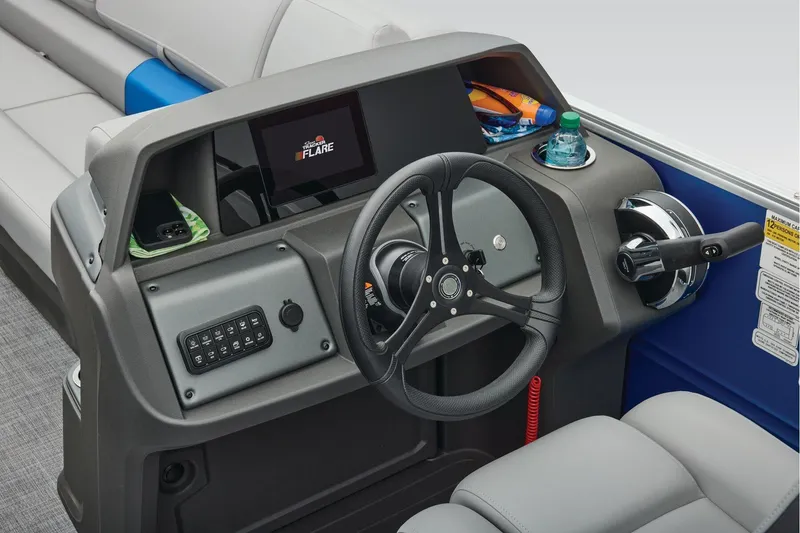

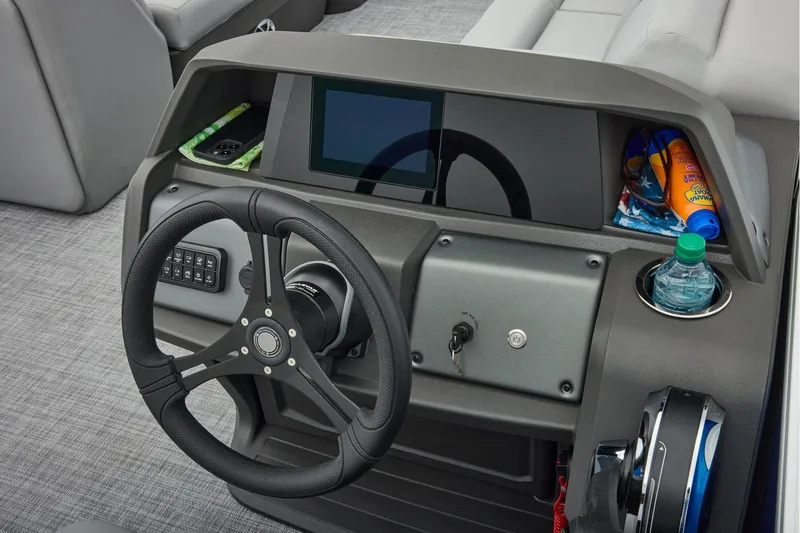

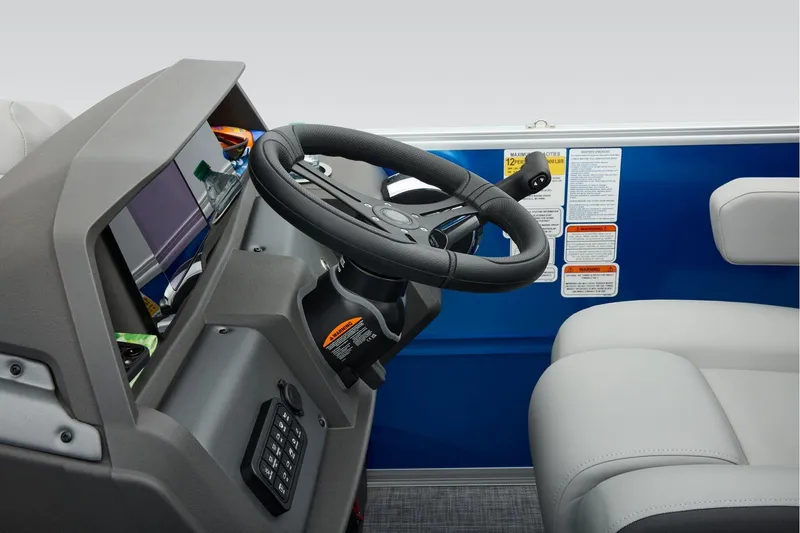

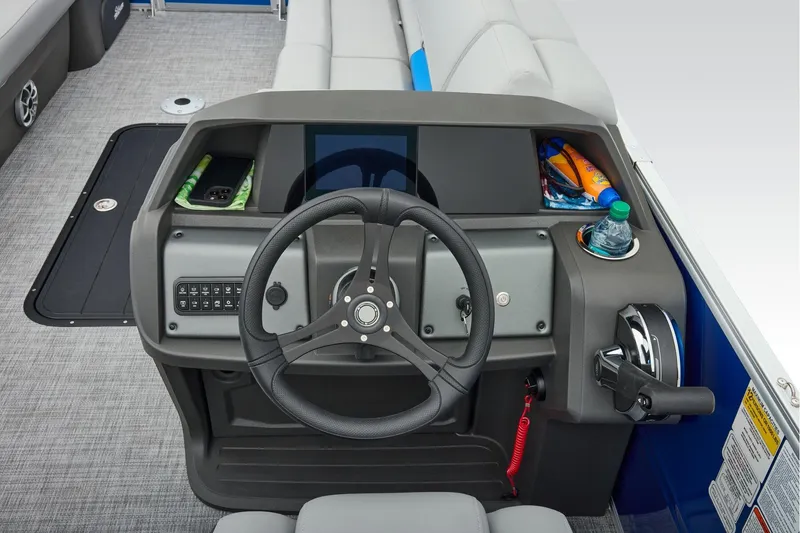

- Driver console w/integrated storage, drink holders, built-in footrest & ergonomically-positioned controls

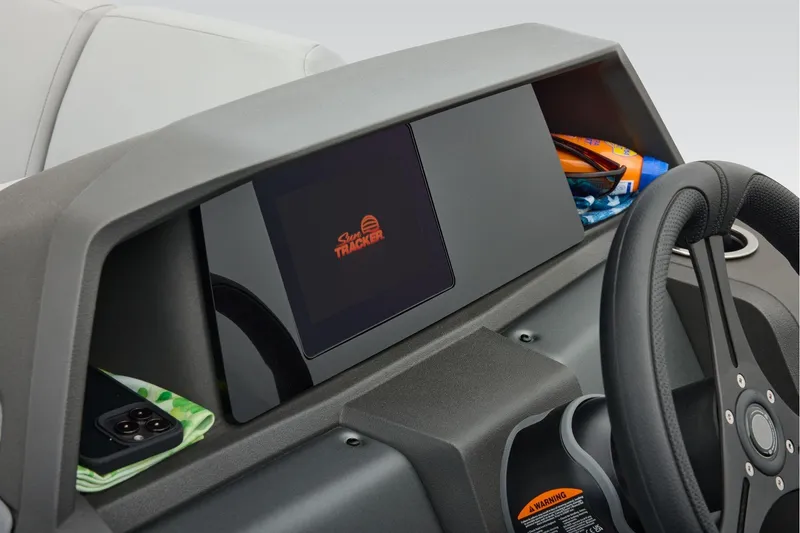

- SUN TRACKER FLARE™ touchscreen gauge display w/integrated GPS, stereo control, screen protector & upgraded Bluetooth®
- NEW PARTYMORE™ broadcast audio mode integrated into FLARE™ touchscreen for easy music sharing

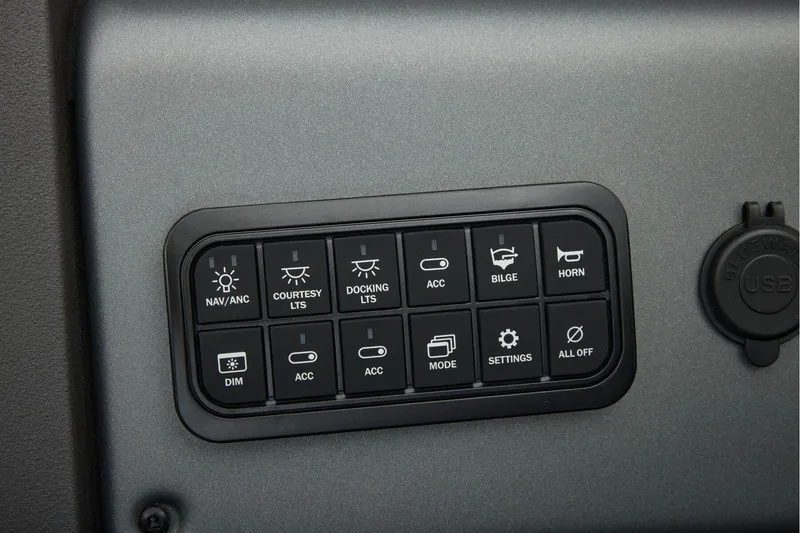

- 12-button switch panel
- Tilt hydraulic steering w/NEW upgraded deluxe soft-touch steering wheel

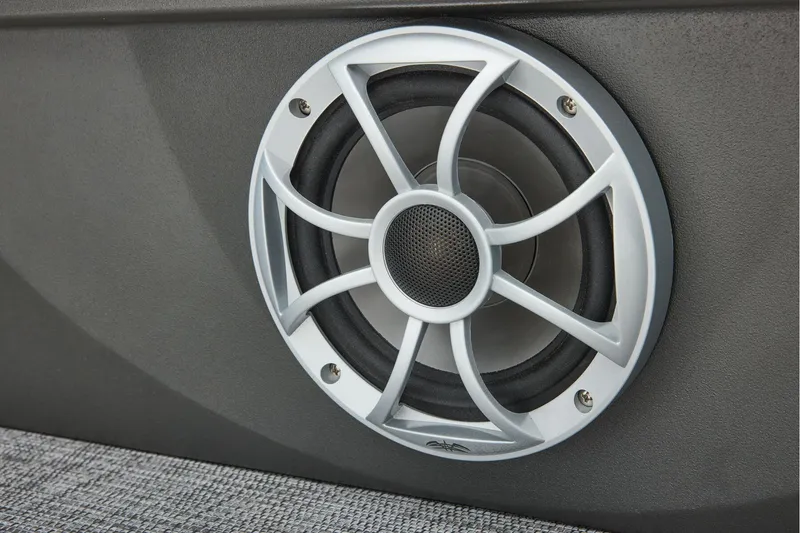

- 4 Wet Sounds® 6.5" (16.51 cm) upholstery speakers, strategically located & shielded within the seat bases

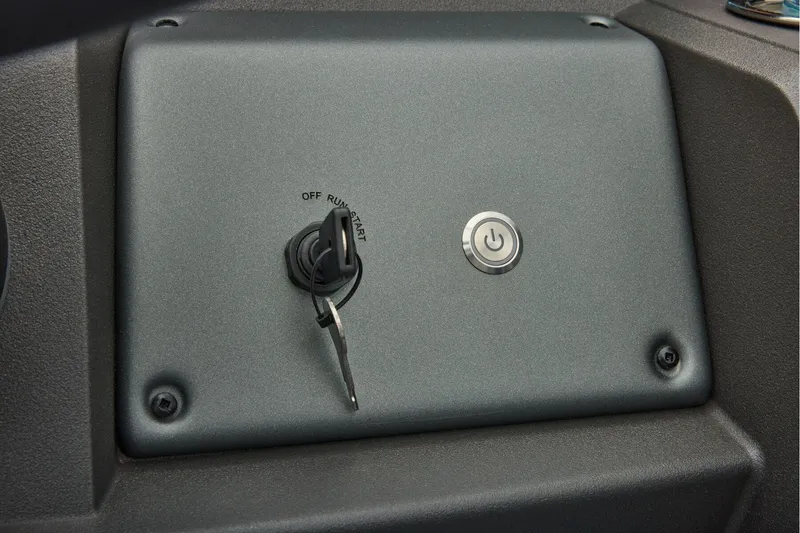

- Master power on/off switch
- Recessed mobile phone cubbies
- USB type A & C receptacle at helm for convenient charging of multiple mobile device models
Interior

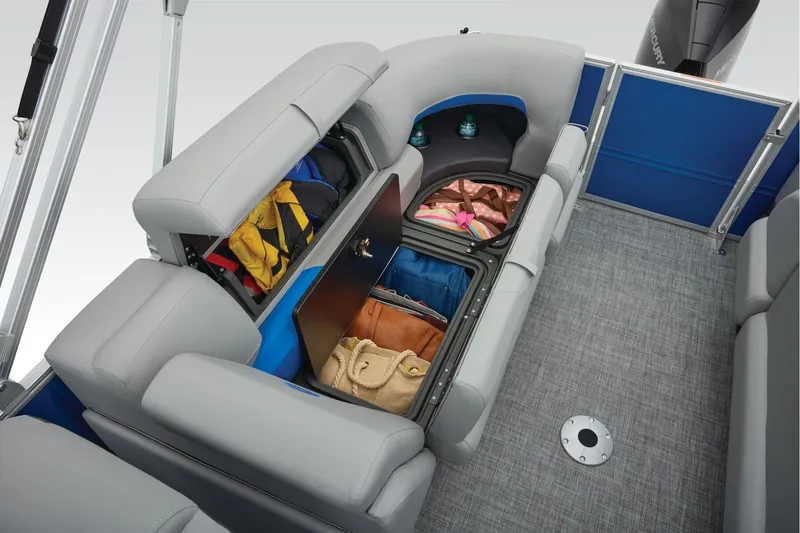

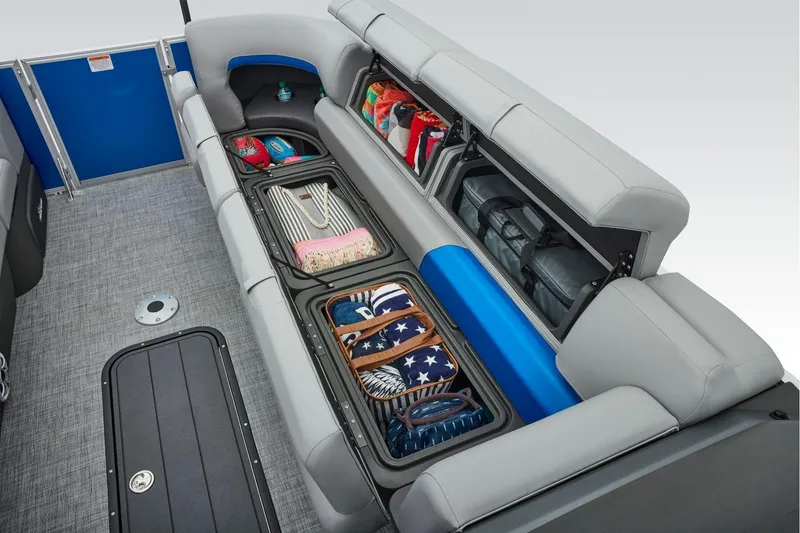

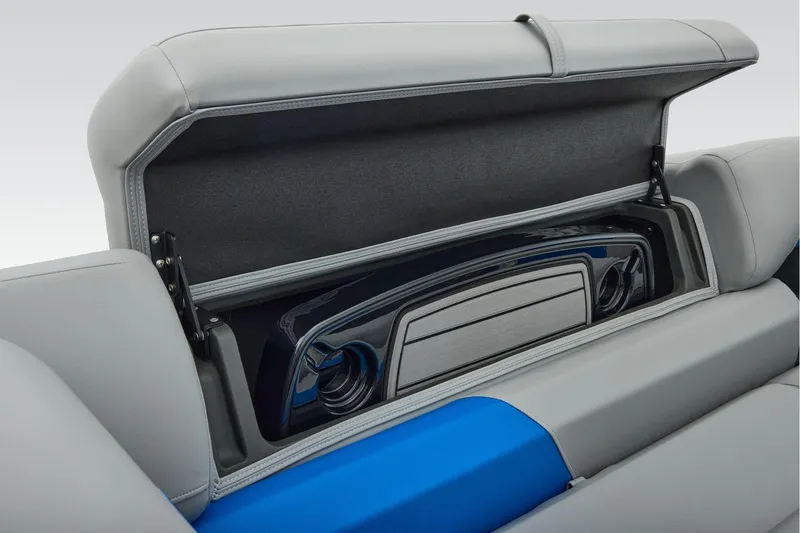

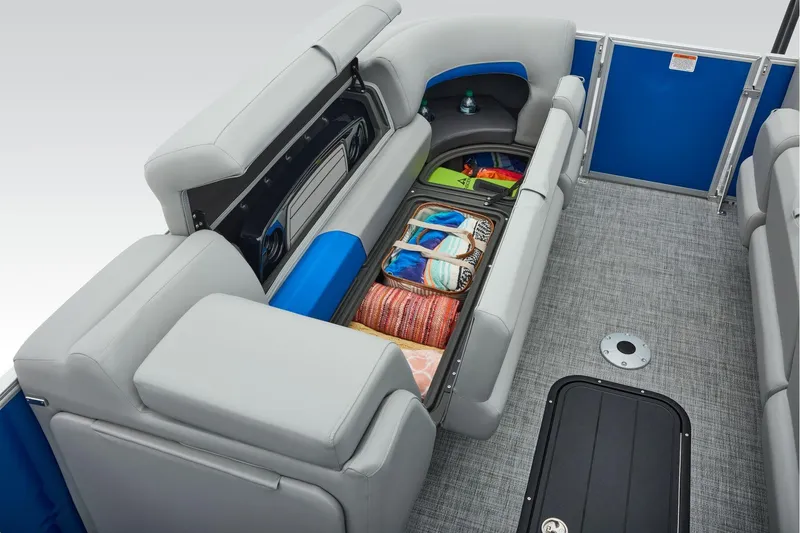

- Patented built-in STOW MORE™ seat-back storage system for all couches & lounges
- Bow port couch w/underseat storage & armrest w/drink holder
- Bow starboard console couch w/underseat storage
- 2 fixed deluxe high-back swiveling bucket seats, reclining & w/self-leveling arms on bow port side

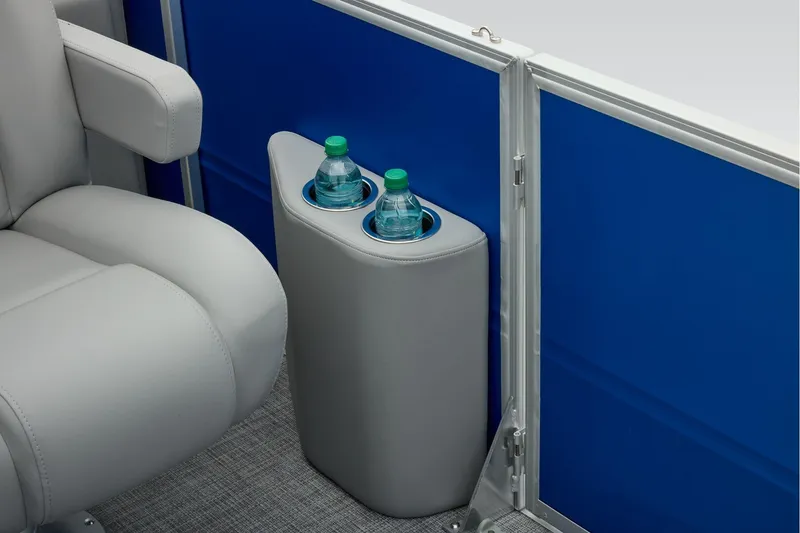

- Bow port side drink holder

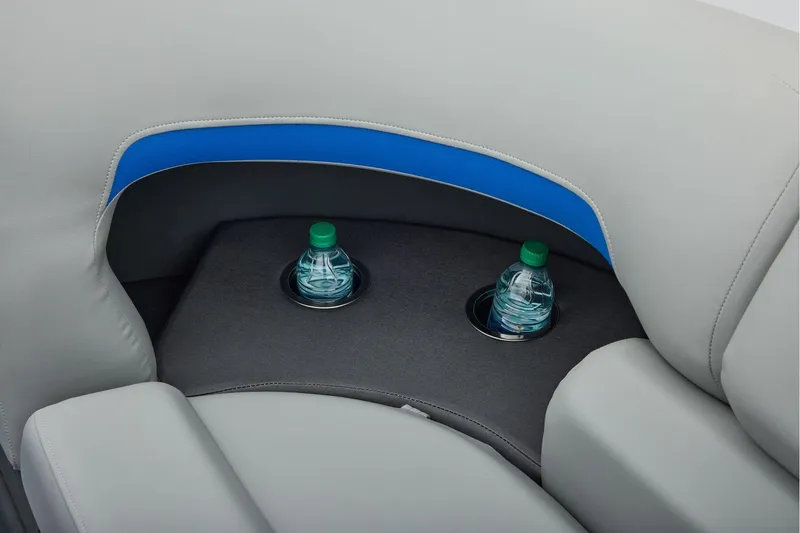

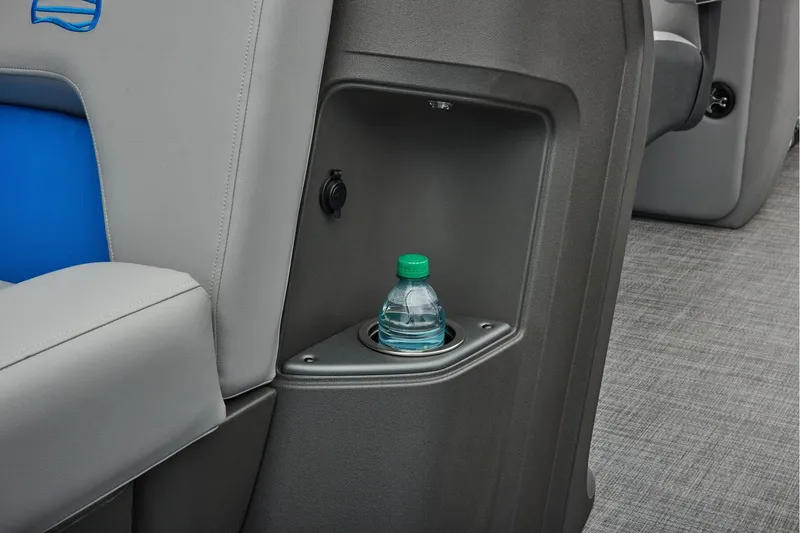

- Integrated drink holders w/storage area

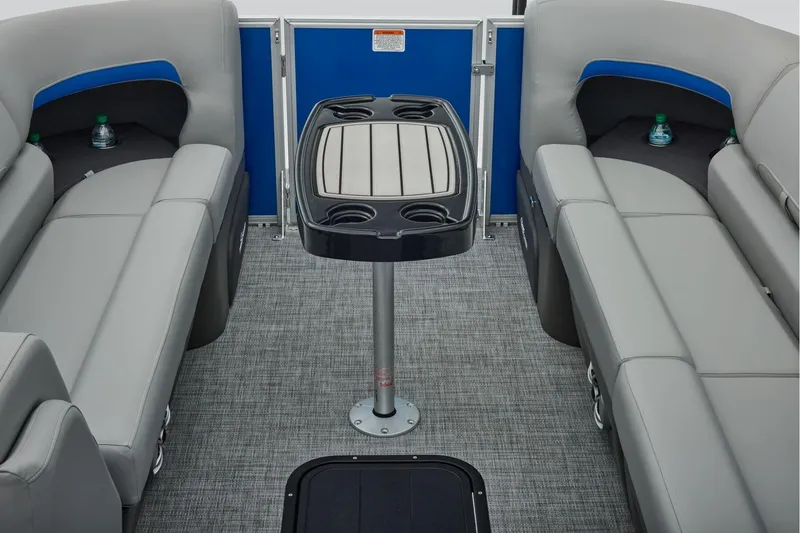

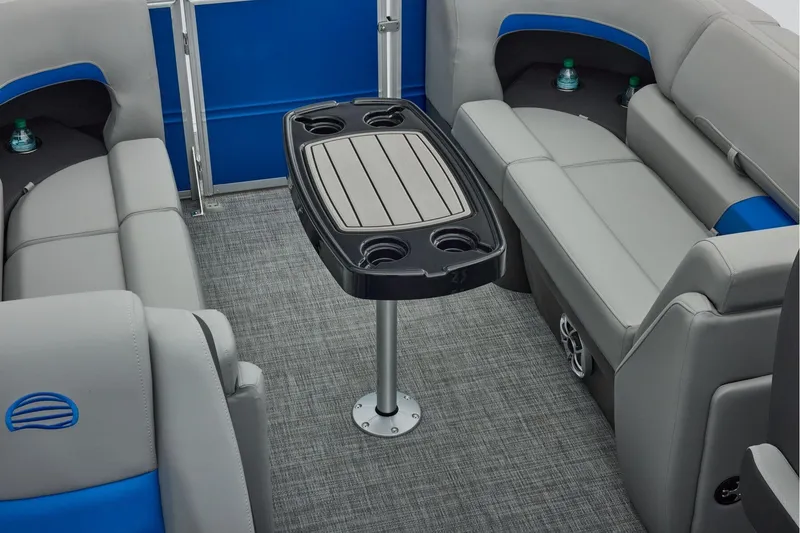

- Removable table w/4 molded-in drink holders; color-coordinated, soft-touch mat; & tailored table location per dealer (dealer installed)

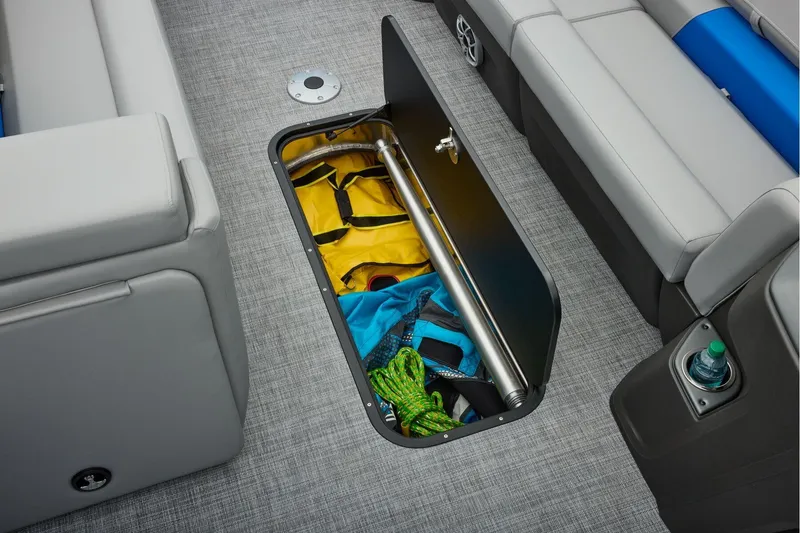

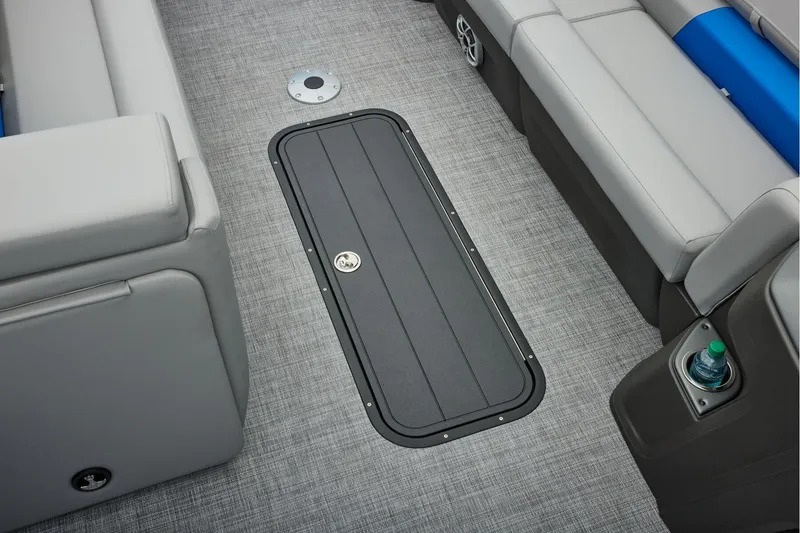

- In-floor lighted storage compartment - 88" (2.24 m) long, 23" (58.42 cm) deep - w/bilge pump in center log

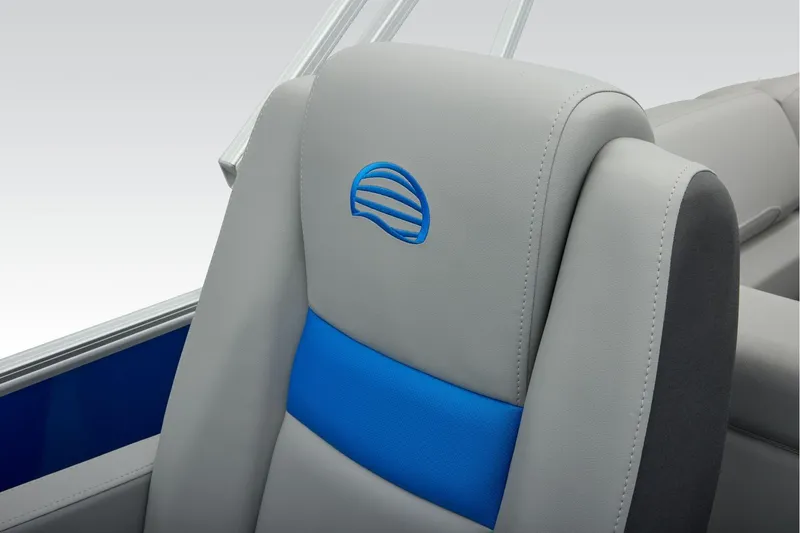

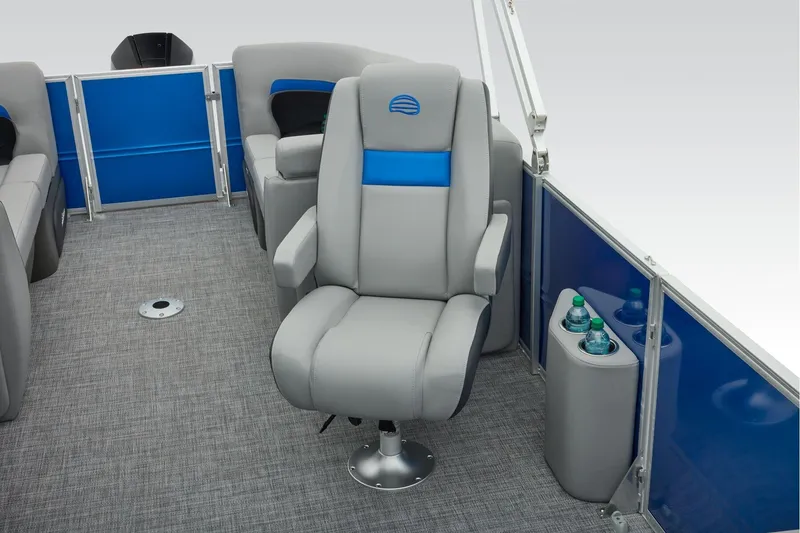

- Reclining, high-back swiveling port & helm bucket seats w/self-leveling armrests

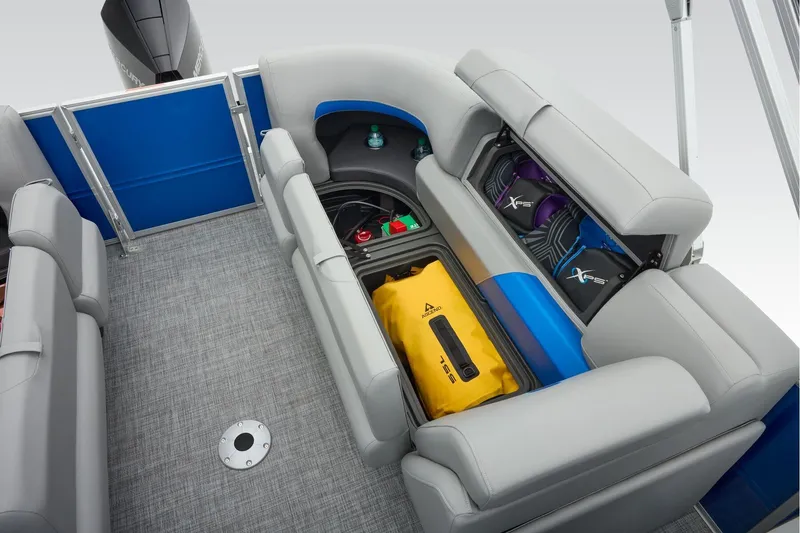

Aft port couch w/underseat storage- Aft starboard couch w/underseat, lockable storage

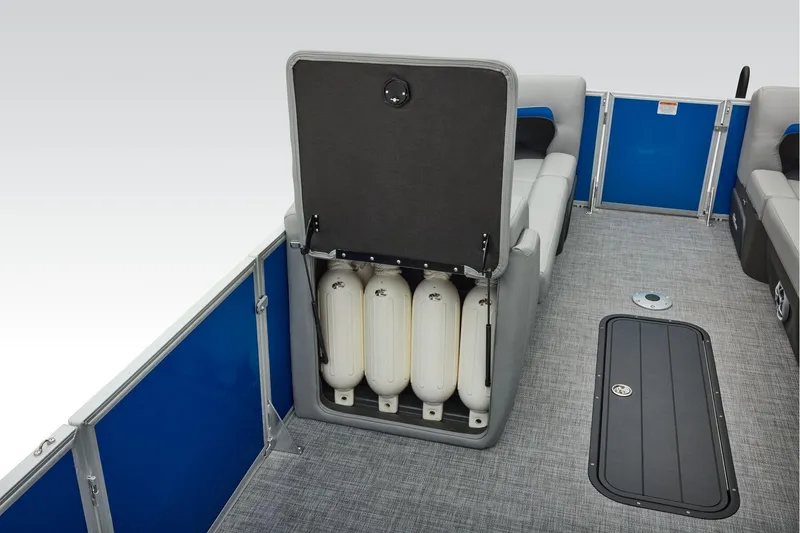

- Bumper storage compartment

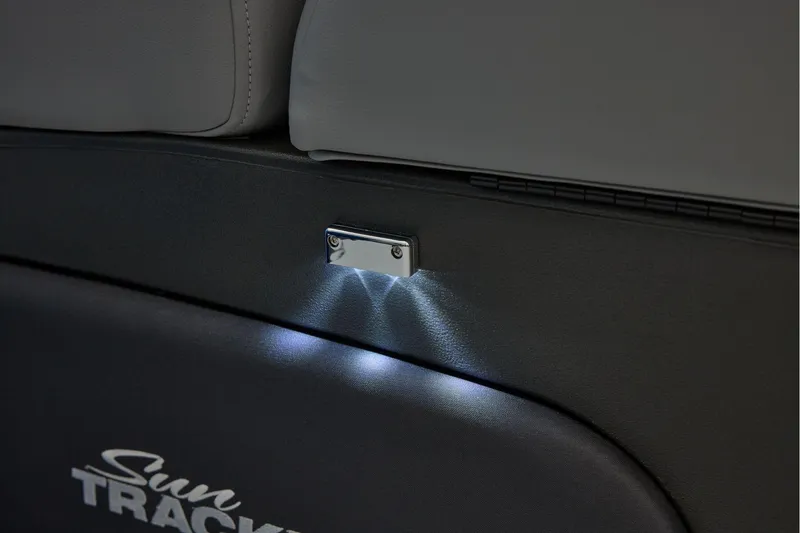

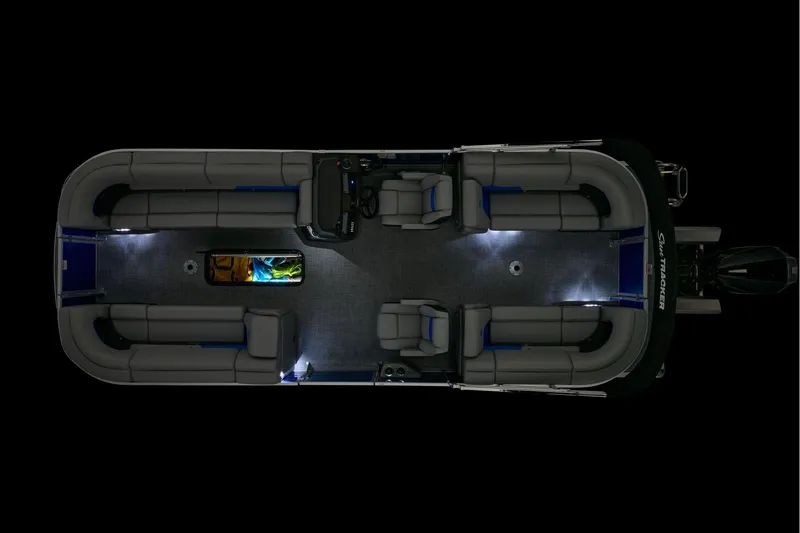

- Interior courtesy lighting
- Full-width aft swim deck

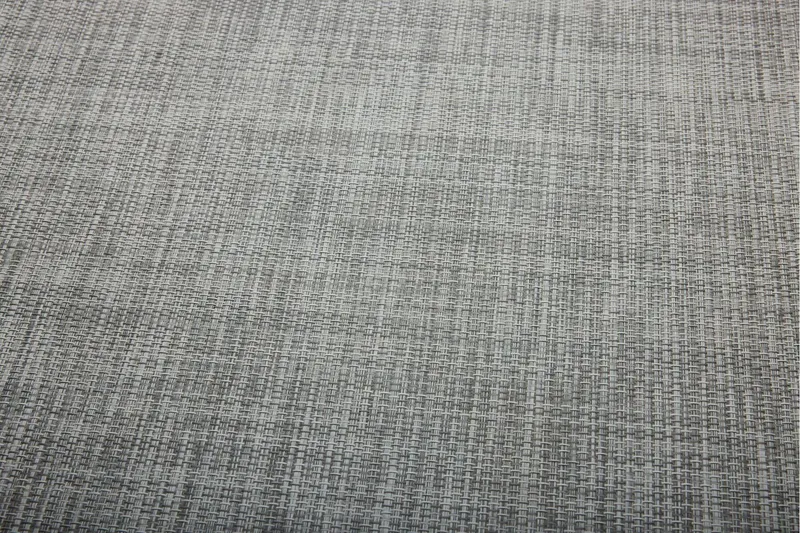

- Woven 16-oz. (.45 kg) marine-grade flooring throughout

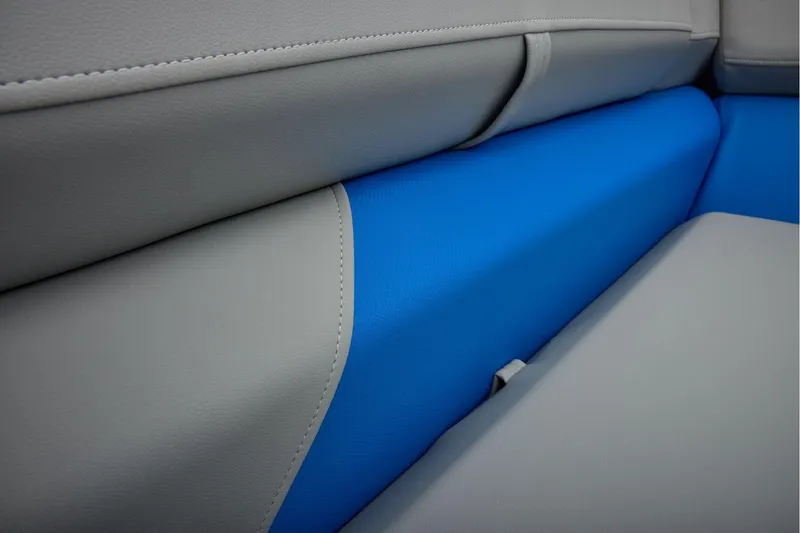

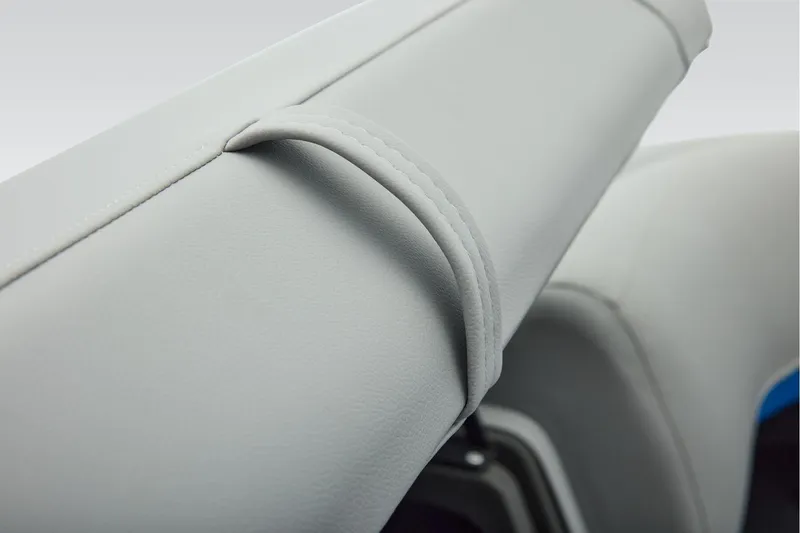

- Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
Performance
- Three 26" (66.04 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs
- XP3 performance strakes & wave-deflecting nose cone for maximum performance
- Full-length, 1-piece longitudinal M-bracket deck supports
- Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets
- Heavy-duty aluminum U-channel reinforcement behind bow deck trim
- Reinforced bow & stern structures

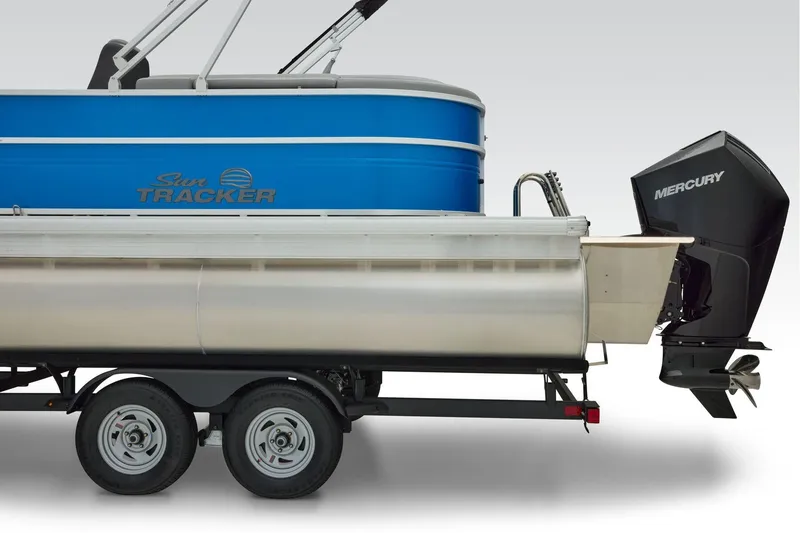

- All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
- All-aluminum box-beam transom for strength & longevity
- Factory-installed underpinning (under-deck shielding) for improved performance
- Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
- 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails
- Sound- & vibration-deadening fence insulation for a quiet ride
- Extruded & anodized aluminum deck edging w/polished aft corner covers
- Precision fit & finish via plasma & laser-cut parts & robotically-welded construction
- Rotomolded storage, furniture & console for superior strength & longevity

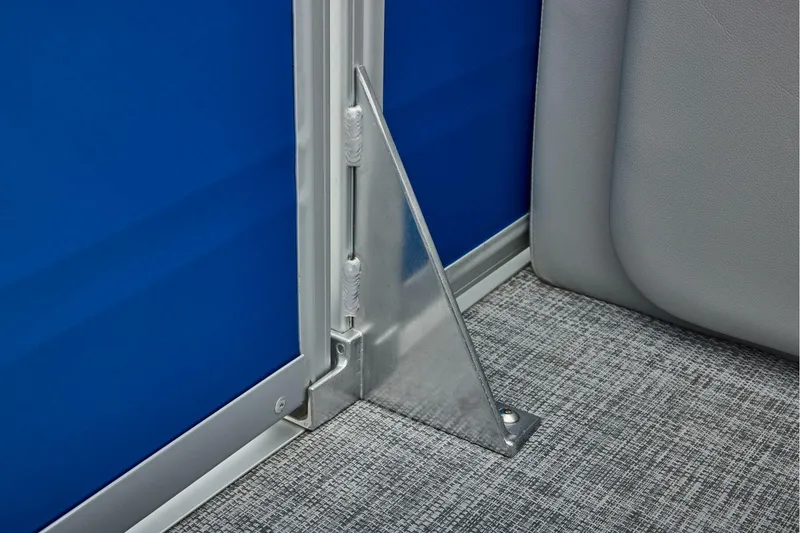

- Nylon gate latches & heavy-duty hinges that open inward
- Stainless or coated corrosion-resistant fasteners
- Factory-matched aluminum propeller
Exterior
- Colors available:

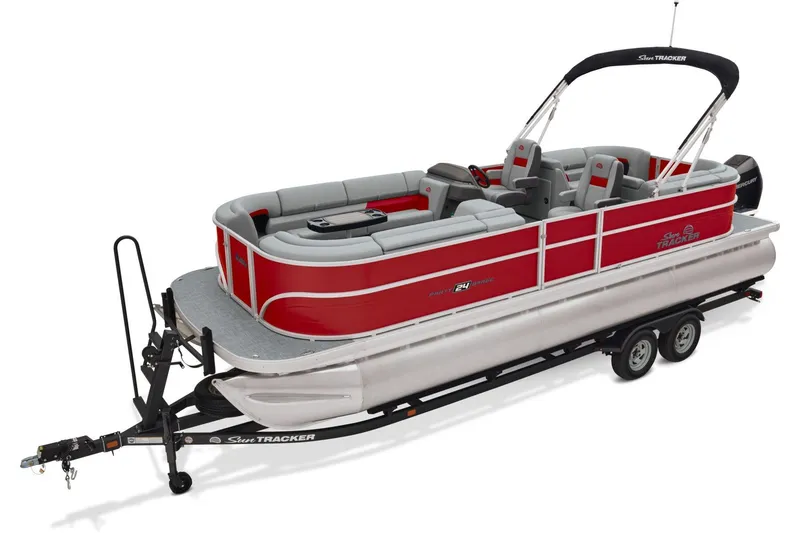

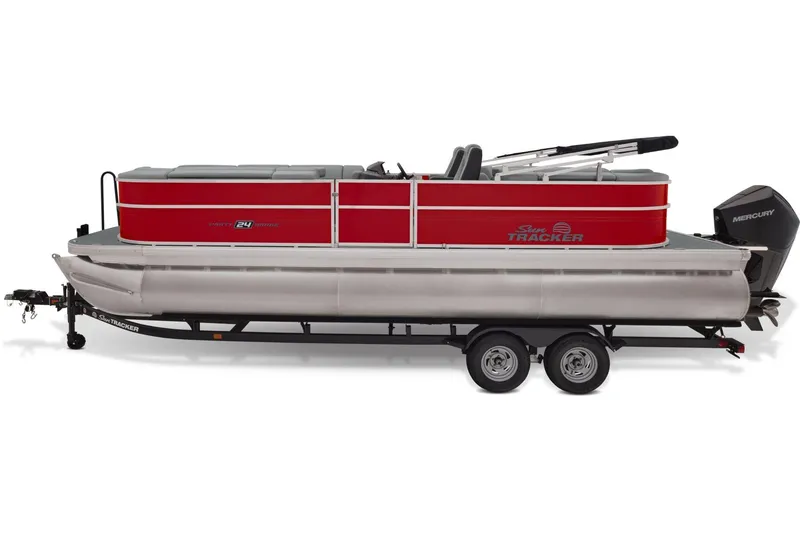

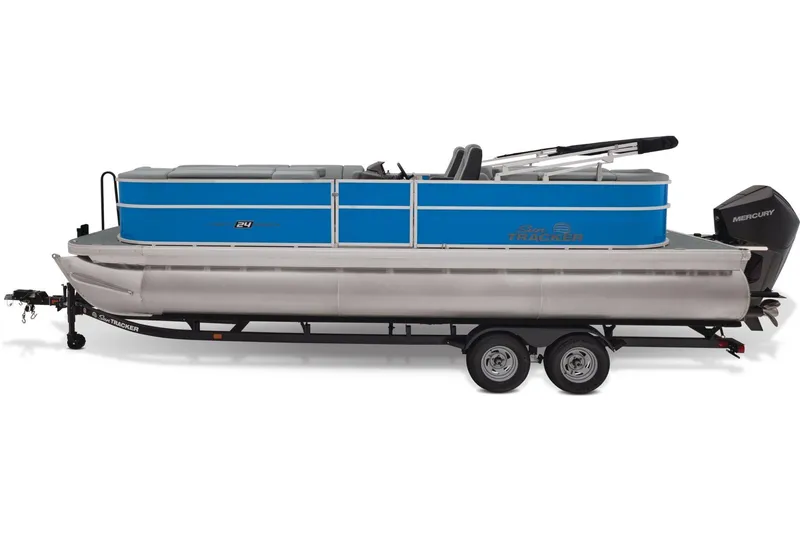

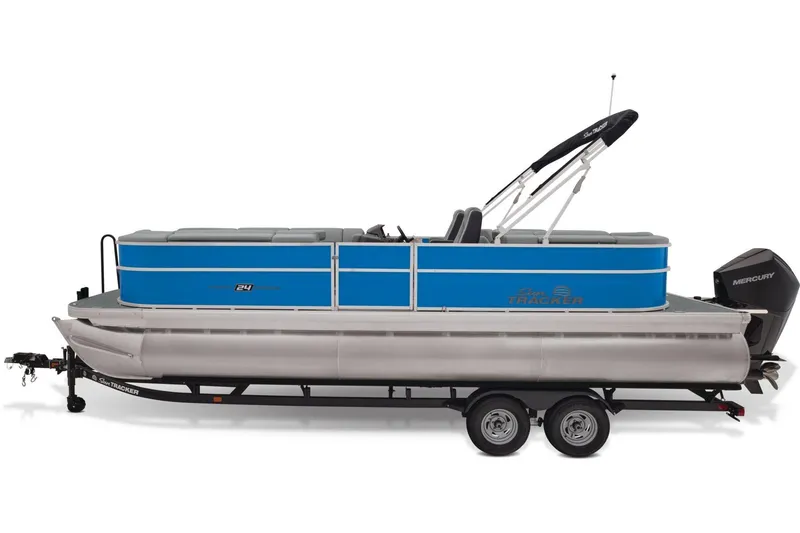

- • Heritage Red fencing• Pearl White fencing• Sky Blue fencing• Starlite Black fencing

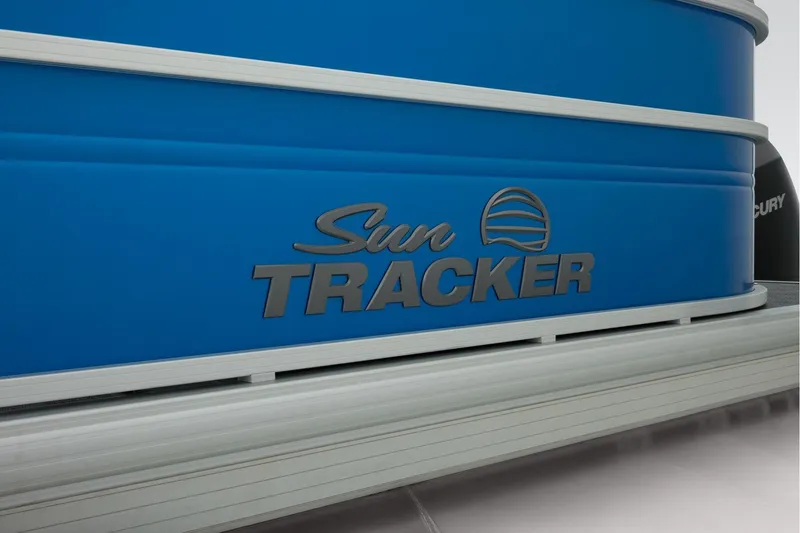

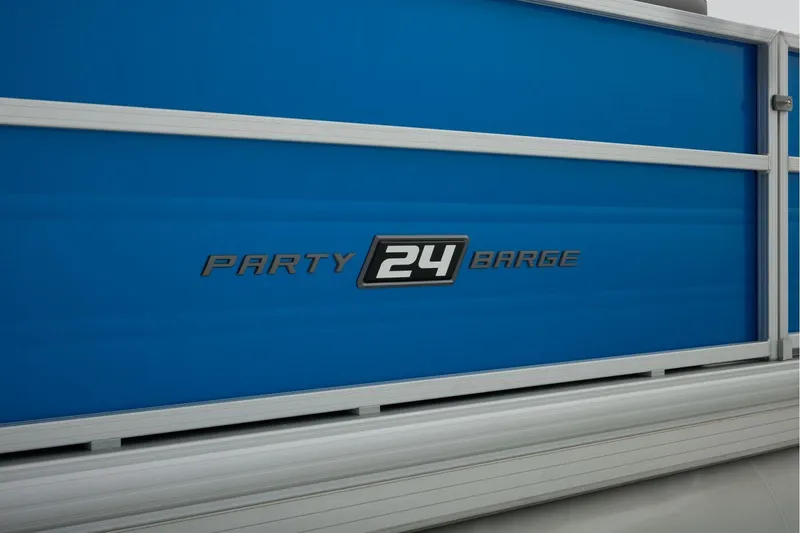

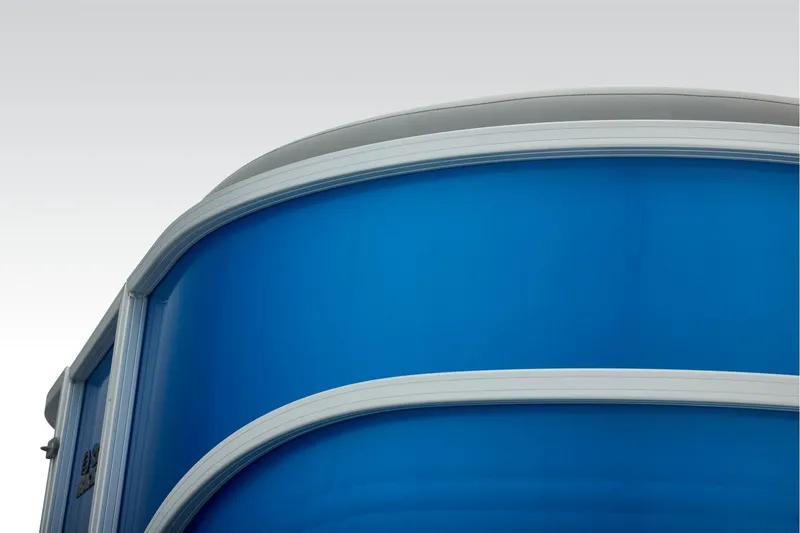

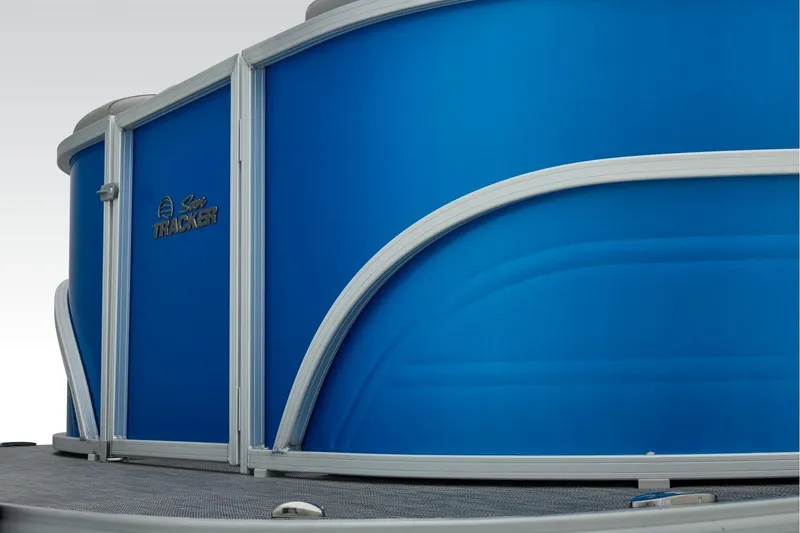

- Patent-pending TRACK FORMED® fence design w/high-sheen finish for long-lasting cosmetics
- Full-height, elevated fence panels for deck drainage & ventilation
Electrical
- 500 GPH (1,893 LPH) Ultima automatic bilge pump

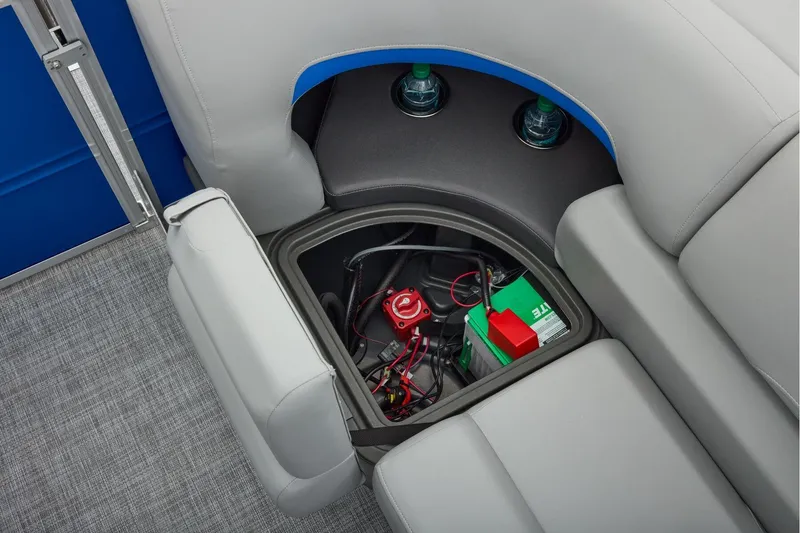

- Battery disconnect switch
- Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
- Protective abrasion-resistant wire wrap
- Water-resistant connectors
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice. All sales are final. No returns accepted.
Price History
| Date | Event | Price |
|---|---|---|
| 11/17/26 | Price increased | $61,270(+0.2%) |
| 10/31/26 | Initial price | $61,170 |
2027 Sun Tracker Party Barge 24 XP3 Video Tours
Sun Tracker Party Barge 24 XP3: BoatTEST Review
Overview
The SunTracker Party Barge 24XP3 is a pontoon boat clearly designed with family entertainment in mind. It comfortably accommodates up to 12 guests and offers a variety of seating and lounging options, making it an ideal platform for social gatherings on the water. This review provides a comprehensive walkthrough of its features, performance evaluation, and overall suitability as a recreational vessel.
Exterior Design and Deck Layout
The boat’s exterior is thoughtfully arranged to maximize guest comfort and social interaction. At the stern, a couch to starboard seats three to four people, with storage conveniently located underneath. Opposite this is a double-wide, aft-facing chase lounge that also serves as a sunning area. The cockpit transitions from a vinyl wet area to a carpeted dry area, though some padding beneath the carpet would enhance comfort. Forward of the cockpit, an L-shaped sofa upholstered in UV-resistant marine-grade vinyl features multi-density foam padding and includes an aluminum lock box for securing valuables. Two table mounts are provided—one centrally located in the cockpit and another in the bow—to facilitate dining and socializing. The bow seating includes port and starboard couches with rotocast molded seats that resist rot and wood degradation. Additional features include portable drink holders attached by Velcro, under-seat cargo nets, and ample storage space. A 9-foot color-matched BEMEDE top provides shade to keep the cockpit cool during sunny days.
Helm and Controls
The helm station is designed with a minimalist yet elegant approach. A modest smoked windscreen sits above two gauges and a faux-wood panel, flanked by switches on both sides. The steering wheel is mounted on a tilt base, and engine controls are positioned vertically for ease of use. The helm features a Jensen stereo system with MP3 jack and Bluetooth streaming capabilities, complemented by four directional speakers placed fore and aft. The bucket helm seat slides, swivels, and includes flip-up armrests, with multi-density foam and soft upholstery ensuring operator comfort. Under the helm console, space is allocated for a cooler and a fire extinguisher, enhancing convenience and safety. Navigation lights are mounted on the deck, although relocating them higher on the fences could reduce tripping hazards.
Power and Performance
This test boat was equipped with an optional 200-horsepower Mercury Verado outboard engine, though the standard offering is 150 horsepower. The fuel fill is conveniently located just ahead of the engine, with small platforms on either side to facilitate daily maintenance checks. The boat measures 26 feet 2 inches in length overall with a beam of 8 feet 6 inches and an empty weight of 3,095 pounds. With test conditions including one quart of fuel, two people, and the 200-horsepower engine, the estimated test weight was 4,067 pounds. Performance testing revealed a top speed of 40.5 miles per hour at 6,200 RPM, consuming 19.75 gallons per hour and providing a range of approximately 65 miles. The most efficient cruise speed was 15.4 miles per hour at 3,000 RPM, burning 3.2 gallons per hour and extending the range to 152 miles with nearly 10 hours of endurance. Acceleration was brisk, with a time to plane of 3.4 seconds, 20 miles per hour reached in 4.4 seconds, and 30 miles per hour in 7.6 seconds. The triple-tube XP3 performance package allows the boat to plane from a fairly level attitude; applying trim raises the bow for optimal cruising, reduces spray, and improves handling. The boat remains relatively flat in gentle turns, leaning slightly outward in harder turns, and responds well to helm inputs, making it suitable for towing activities.
Additional Features and Amenities
The SunTracker Party Barge 24XP3 includes practical features to enhance the onboard experience. The aft section of the lounge lifts to reveal a properly secured battery compartment, and corner braces and cleats are robustly fastened for durability. A full-width swim platform with a four-step reboarding ladder on the starboard side facilitates easy water access. For privacy and convenience, a changing room is integrated into the design, deployable by pulling a handle and locking it securely in place. Inside, the space is sufficient to turn around comfortably, and a pop bench seat is included for safety.
Conclusion
The SunTracker Party Barge 24XP3 lives up to its name as an outstanding entertainment platform for families and groups. Its well-thought-out seating arrangements, durable construction, and solid performance make it a versatile and enjoyable pontoon boat. The optional 200-horsepower engine provides strong acceleration and cruising capabilities, while the onboard amenities support comfort and convenience. Overall, this model offers a balanced combination of social space, performance, and practical features suitable for a variety of recreational boating activities.
Overview from around the web 2027 Sun Tracker Party Barge 24 XP3
The 2027 Sun Tracker Party Barge 24 XP3 has garnered enthusiastic feedback from boaters who appreciate its blend of comfort, versatility, and performance
Customers highlight the spacious layout, which accommodates large groups, making it perfect for family outings or social gatherings on the water. The plush seating and ample storage contribute to a relaxing experience, allowing passengers to enjoy hours of sunbathing, dining, or socializing in style. Many users admire the robust construction and stability of the XP3 hull design, which enhances maneuverability and provides a smooth ride even in choppy waters. The powerful outboard motor delivers impressive performance, allowing for thrilling water sports or leisurely cruising. Additionally, the convenience of features like built-in Bluetooth speakers and a robust sound system enhances onboard entertainment. Furthermore, the ease of towing and launching the Party Barge 24 XP3 is frequently mentioned as a noteworthy advantage, making it accessible for both seasoned boaters and newcomers alike. Overall, customers rave about the endless fun and memorable experiences the 2027 Sun Tracker Party Barge 24 XP3 offers, making it a top choice among pontoon boats.
The Biggest Pros and Cons
Sun Tracker Party Barge 24 XP3 2027 Overview The Sun Tracker Party Barge 24 XP3 is designed for those who seek the ultimate combination of relaxation, entertainment, and adventure on the water. This 2027 model emphasizes comfort, functionality, and stylish design, making it a popular choice for families and groups.
Pros
Spacious Layout: The Party Barge 24 XP3 features a roomy layout that accommodates family and friends, ensuring ample space for socializing and enjoying water activities.
Comfortable Seating: With plush seating options and lounge areas, this boat provides a comfortable environment for sunbathing, picnicking, or simply enjoying the scenic views.
Powerful Performance: Equipped with an efficient engine, the XP3 model delivers powerful performance, ensuring smooth cruising and quick acceleration for water sports enthusiasts.
Stylish Design: Its modern aesthetics and thoughtful design elements offer a visually appealing experience, making it a stylish addition to your water fleet.
Ample Storage: With plenty of storage compartments, you can easily stow away gear, coolers, and other essentials, keeping the deck clear and clutter-free.
Versatile Layout: The customizable features and configurations allow for personalized arrangements depending on your activities, be it fishing, sunbathing, or hosting parties.
Quality Build: The durable construction and quality materials ensure the longevity of the boat, providing peace of mind for years of enjoyment.
Cons
Weight: The larger size and build may make the Party Barge 24 XP3 heavier, which could affect towing and maneuverability for some users.
Fuel Efficiency: Higher-powered engines can lead to increased fuel consumption, which may be a consideration for those monitoring operational costs.
Limited Speed: While designed for comfortable cruising, the emphasis on luxury might come at the expense of top-speed capabilities compared to sportier models.
Potential Maintenance: As with any vessel, upkeep and maintenance are necessary to ensure optimal performance and longevity, which can be time-consuming and potentially costly.
Choosing the Right Trailer: Due to its size, you may need a specific type of trailer, which can increase the overall investment.
Made For
The 2027 Sun Tracker Party Barge 24 XP3 is perfect for those who love to entertain and enjoy leisure time on the water. Ideal for families, friends, and social butterflies, this spacious pontoon boat accommodates larger groups comfortably. It’s designed for anyone who values fun-filled outings, whether you're hosting a party, enjoying a day of fishing, or simply cruising on the lake. With plenty of seating, options for water sports, and ample storage, it's well-suited for those who appreciate both relaxation and adventure. The Party Barge 24 XP3 also appeals to newcomers as well as experienced boaters looking for reliable and stylish transportation on the water. Experience sunny days, laughter, and unforgettable memories aboard this versatile and functional craft.
