2026 Sun Tracker Party Barge 24 XP3 Boat in Springfield, MO 65807 US
Built in 2026
Party Barge 24 XP3
1 Engine (--)
26.2 feet
--
Aluminum

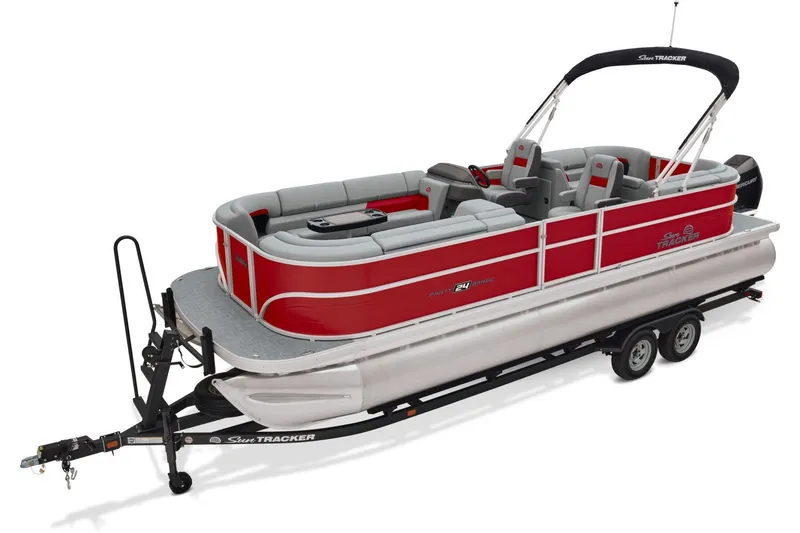

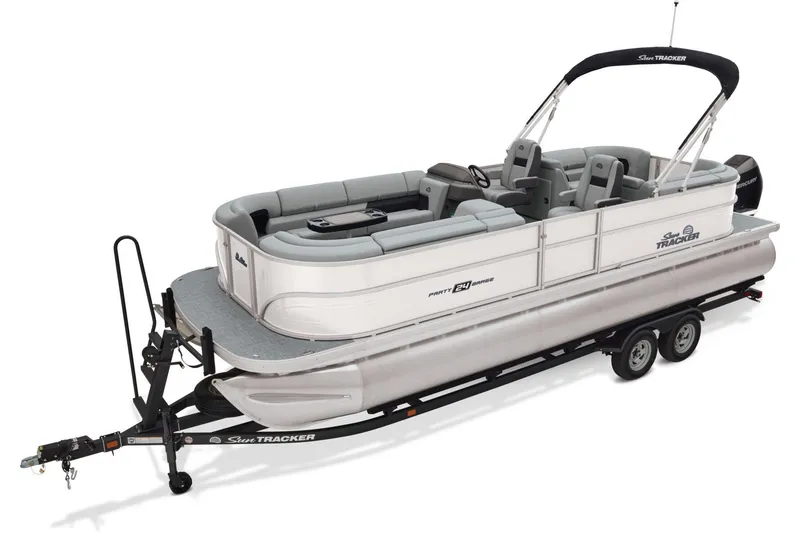

The PARTY BARGE® 24 XP3 is the biggest pontoon in the SUN TRACKER® family. The 24' deck lets up to 12 passengers embark on aquatic adventures they'll never forget.

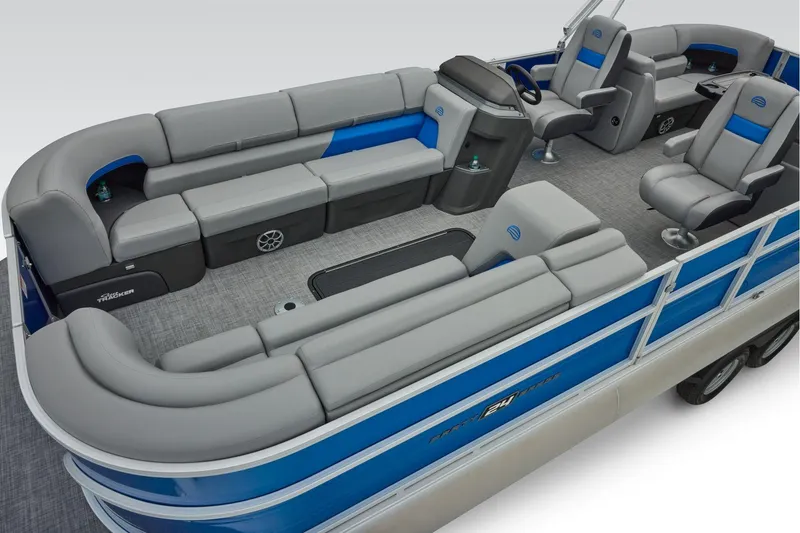

Each corner features a long pillow-top lounge with secret storage spaces under the seats and in the STOW MORE™ seat backs to give you all the space you need to pack snacks, equipment, supplies, and more. New to the 2026 model year are the backrest cubbies that give you extra easy-access storage space and cupholders. This new year also brings premium weave flooring and upholstery accents that match the color of your fencing.
The captain can control everything through the completely redesigned console's new SUN TRACKER FLARE™ touch-screen gauge display with an improved GPS system and upgraded four-speaker Bluetooth®-capable stereo.
With the most space and the longest list of exciting features, the 24 XP3 really brings the party wherever it goes!

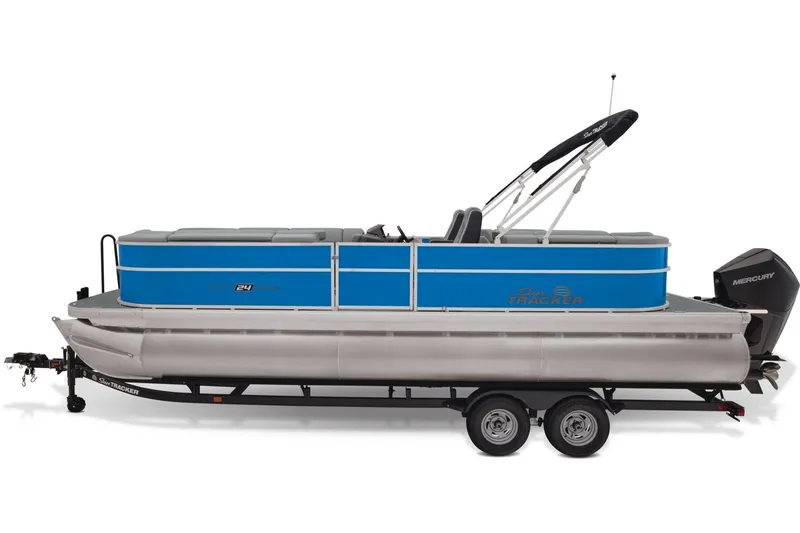

Length:26' 2"
Deck Length: 24' 1"
Deck Width: 8' 6"
Max. Recommended HP: 250 HP
Fuel Capacity: 52 gal.
Pontoon Log Length: 24' 11"
Pontoon Log Diameter: 26"
Pontoon Log Material: 0.1 5052 marine alloy
Max. Person Capacity: 12 persons
Max. Person Weight: 1900 lbs.
Max. Person, Motor & Gear Weight: 2800 lbs.
Interior Depth: 27.25"
Average Dry Weight: 3360 lbs.
Average Package Weight: 5685 lbs.
Package Height: 8' 10"
Package Width: 8' 6"
Towing Length: 37' 9"
Storage Length: 37' 9"
Comfort, Convenience & Peace of Mind
10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty
NMMA® certified

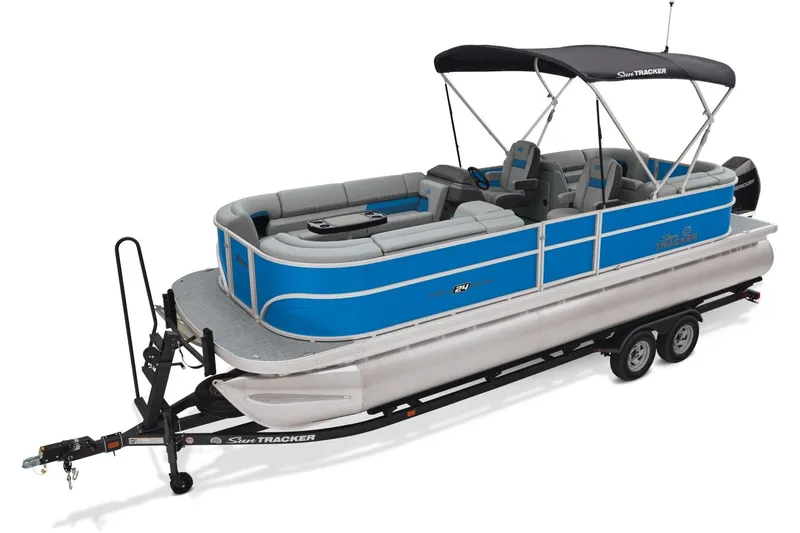

10' (3.05 m) Black SUN TRACKER® QuickLift™ Bimini top w/LED courtesy lights, storage pockets & protective boot

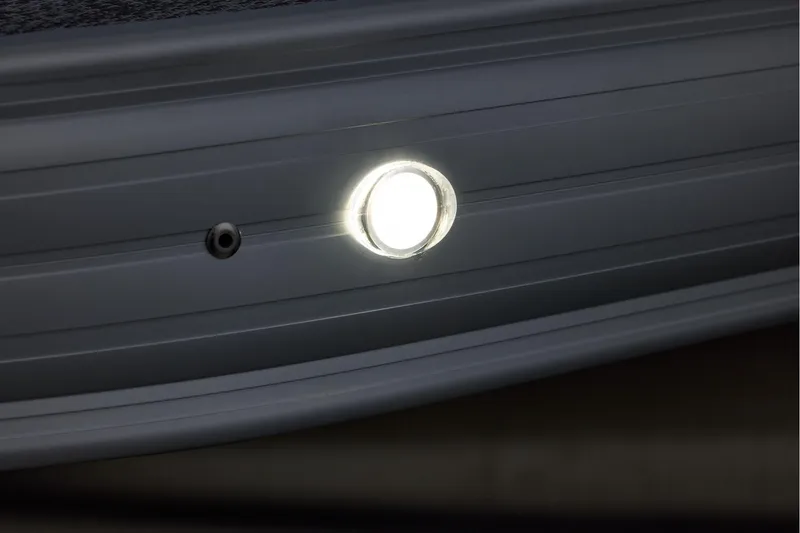

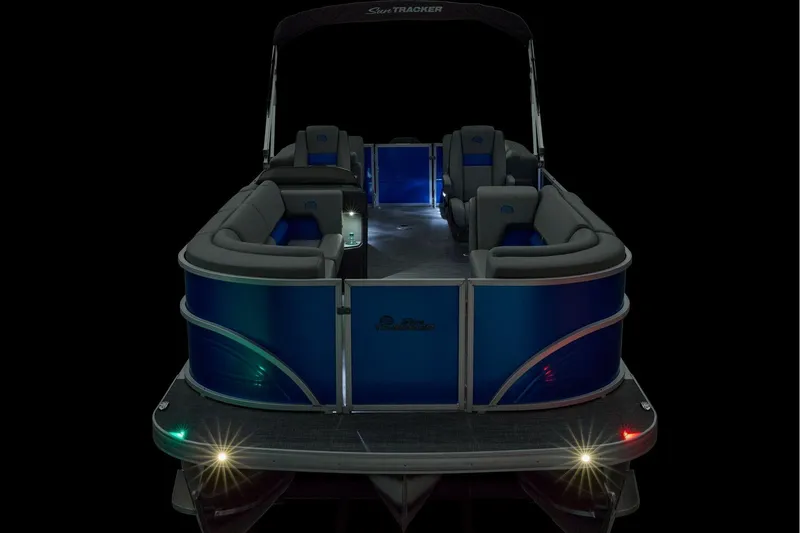

Integrated LED docking lights

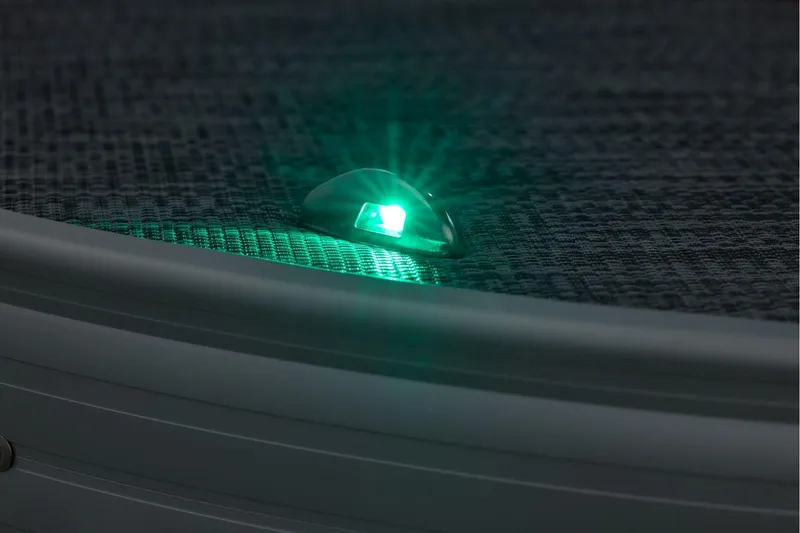

Integrated LED navigation & anchor lights
4 folding mooring cleats & starboard side tie-off mooring eye

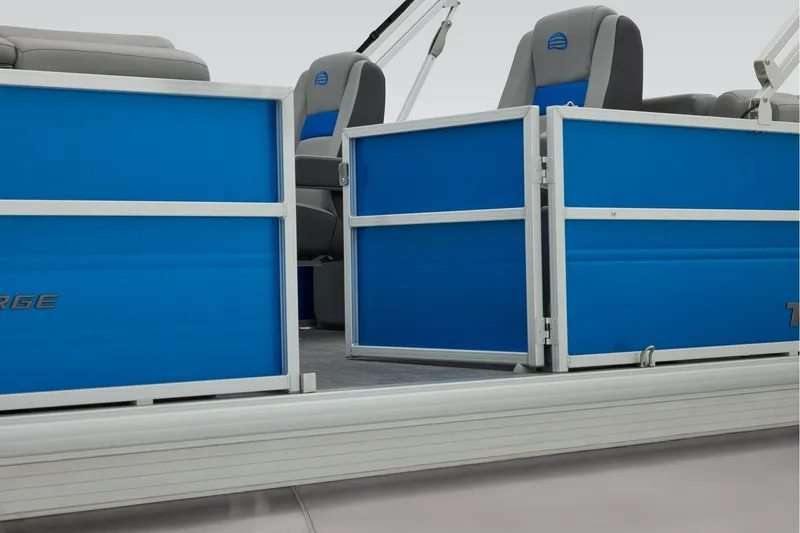

Port wheelchair-accessible gate

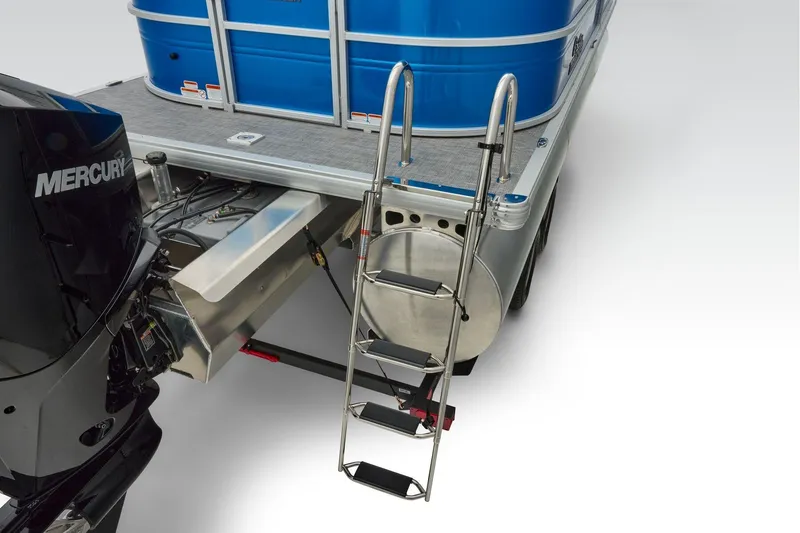

Rear boarding platform w/wide 4-step telescoping boarding ladder & grab rails

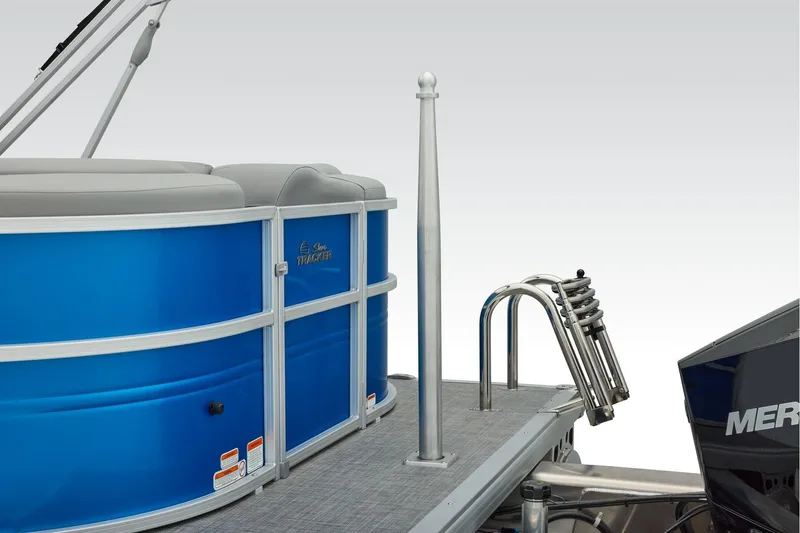

Aft receptacle base for optional ski tow pylon
Motor-stop safety lanyard
Fire extinguisher
Horn
Console

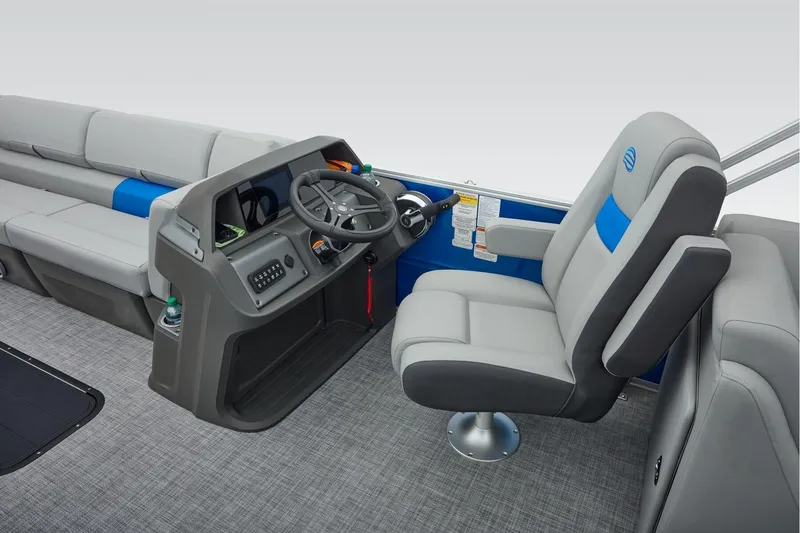

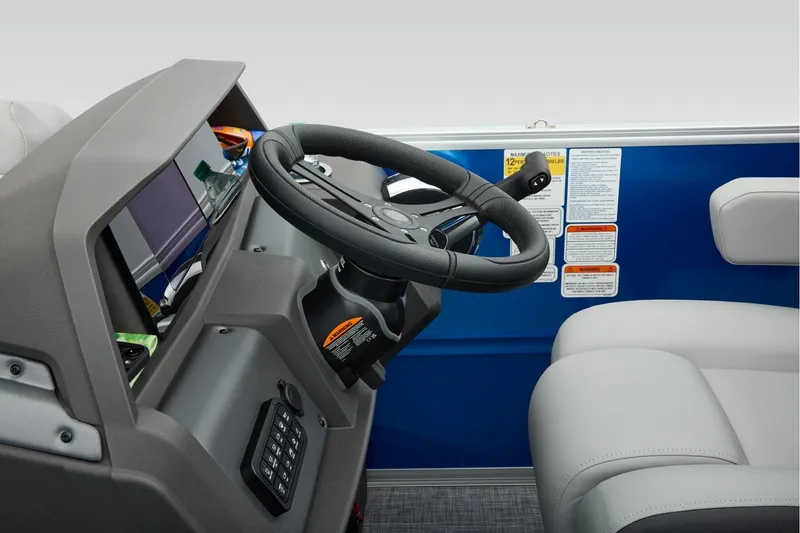

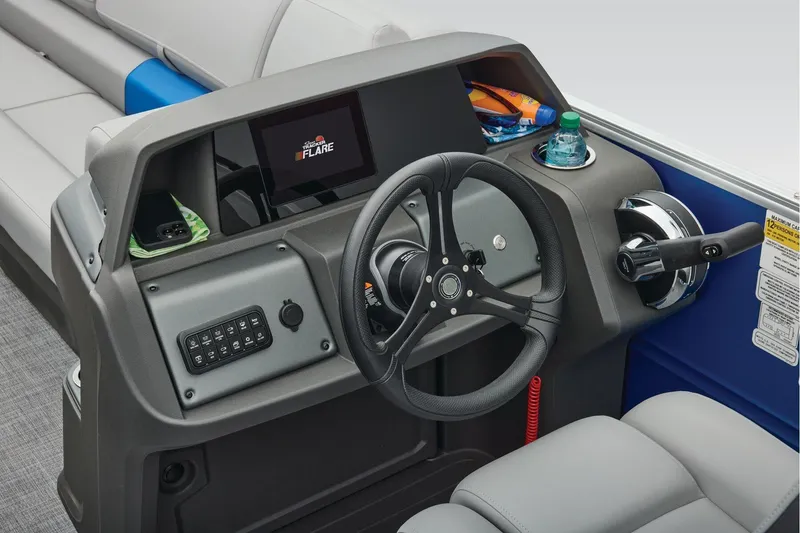

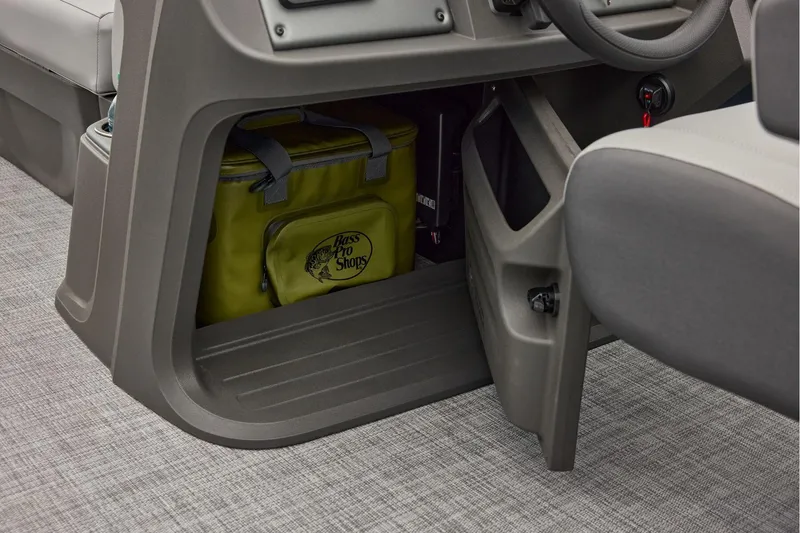

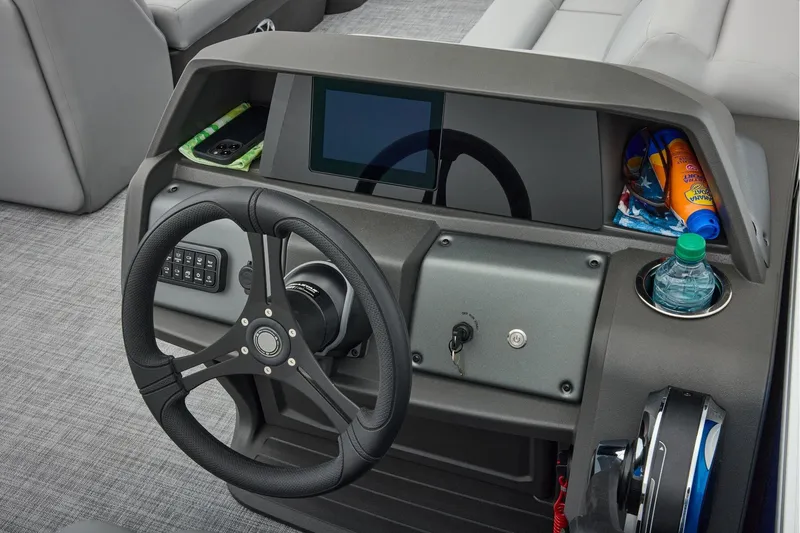

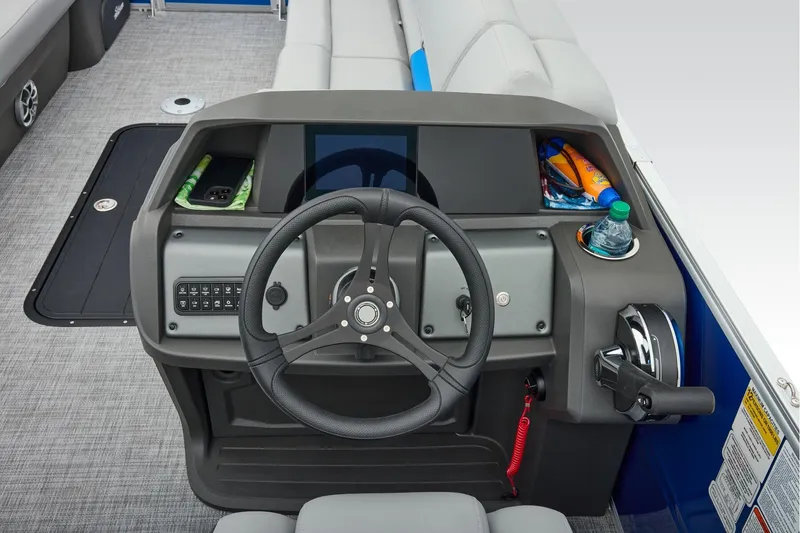

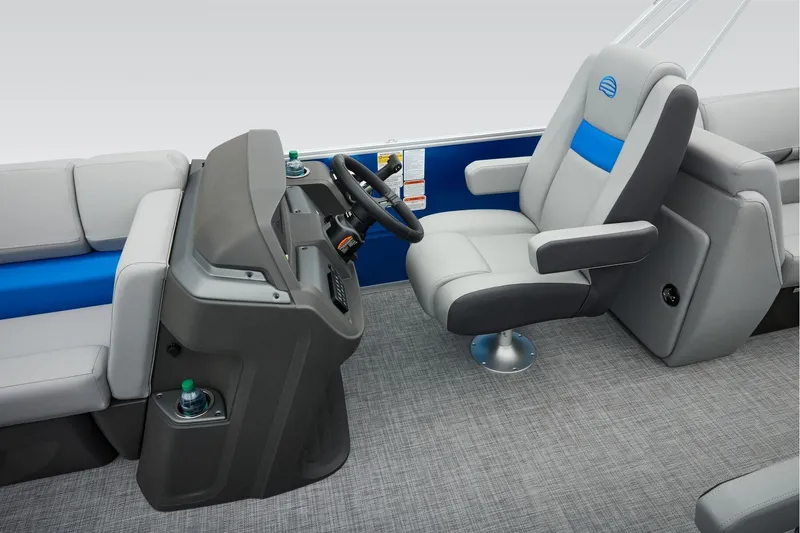

Driver console w/integrated storage, drink holders, built-in footrest & ergonomically-positioned controls

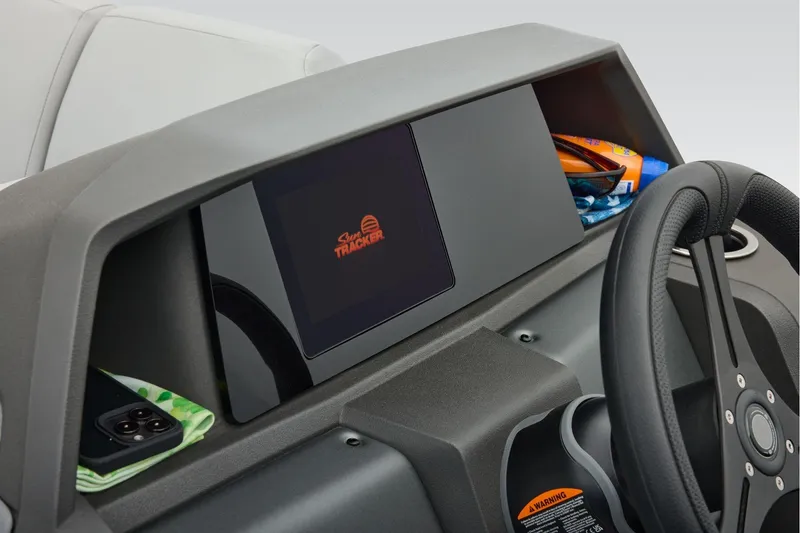

SUN TRACKER FLARE™ touchscreen gauge display w/integrated GPS & stereo control

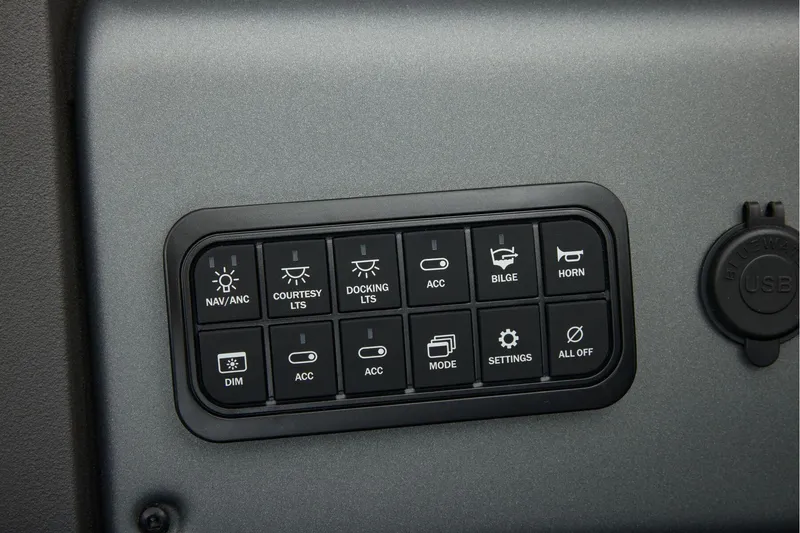

12-button switch panel
Tilt hydraulic steering w/deluxe soft-touch steering wheel

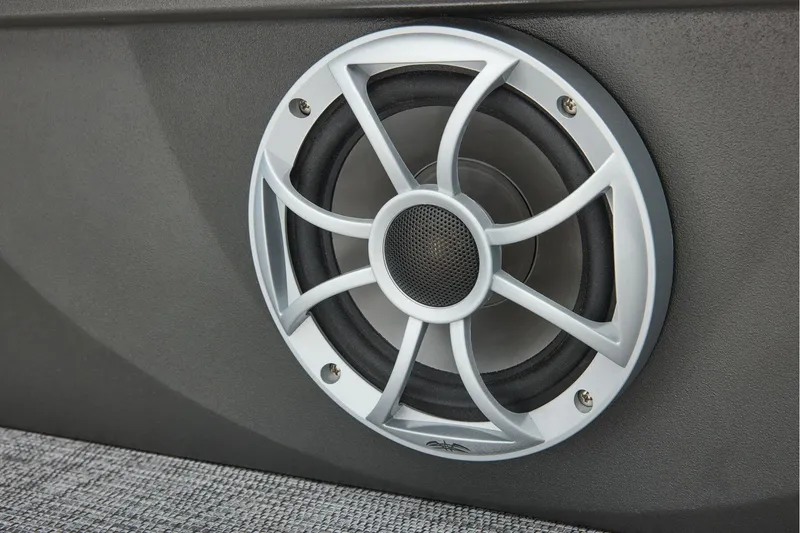

4 Wet Sounds® 6.5" (16.51 cm) upholstery speakers, strategically located & shielded within the seat bases

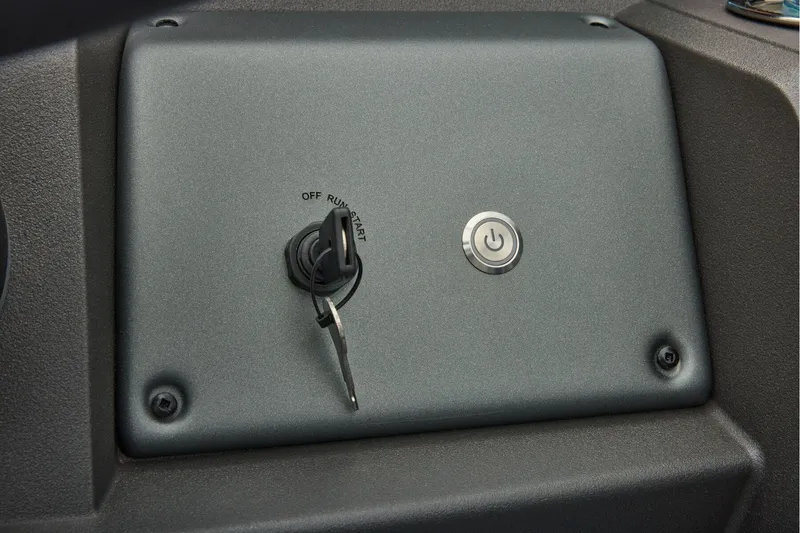

Master power on/off switch
Recessed mobile phone cubbies
USB charging receptacle
Interior

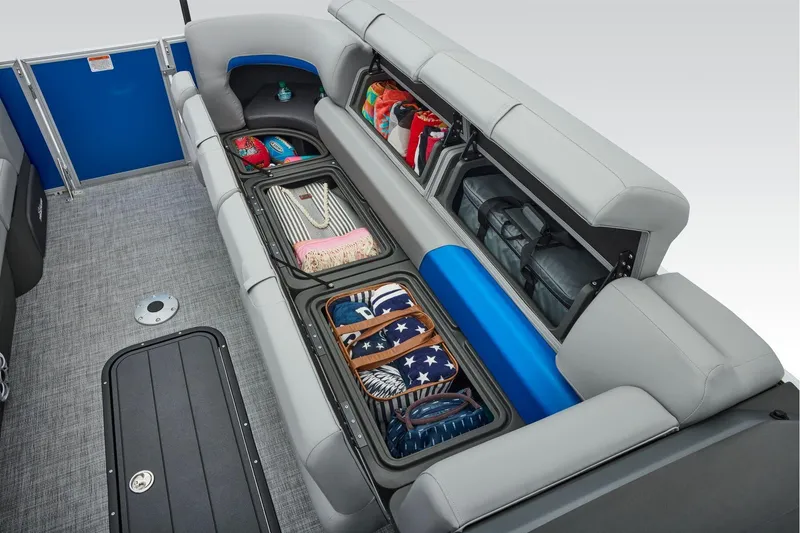

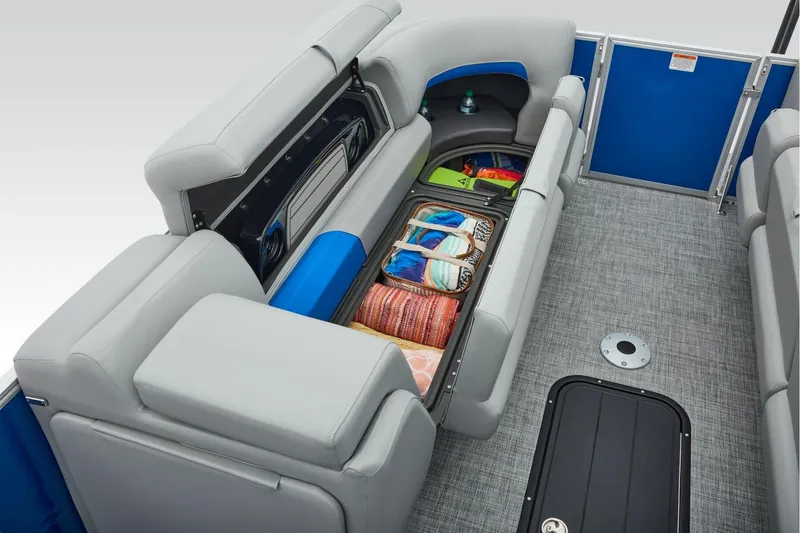

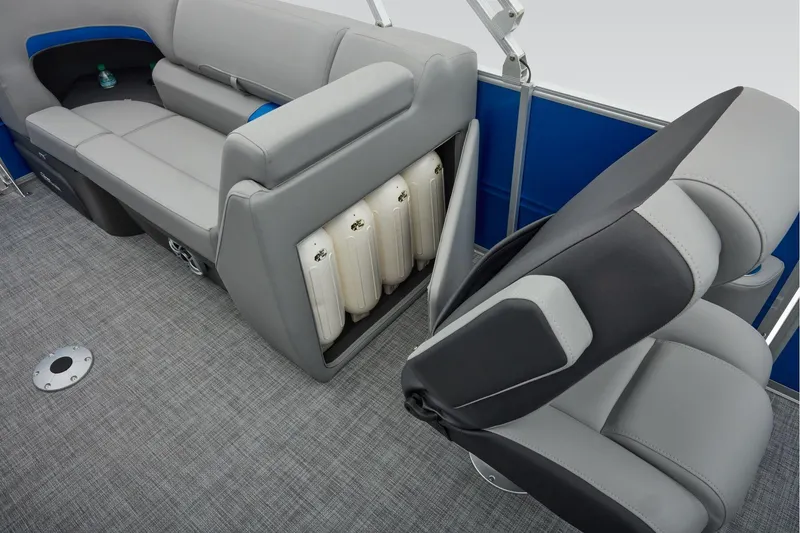

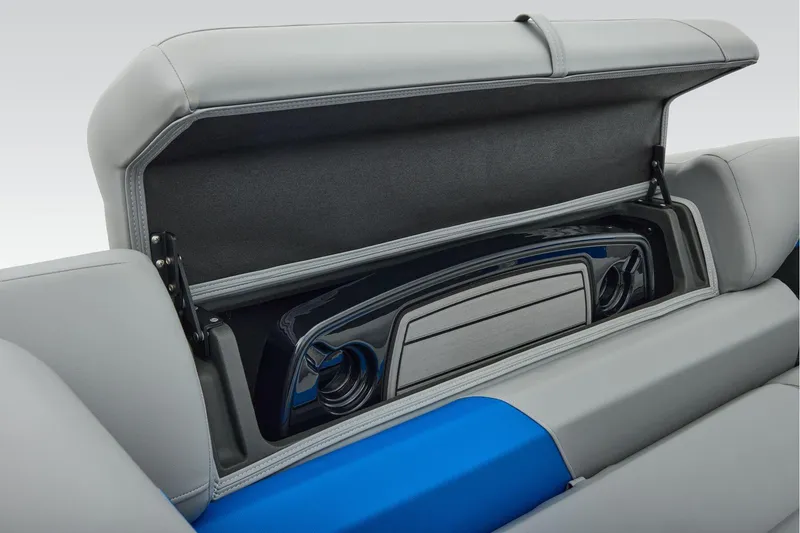

Patented built-in STOW MORE™ seat-back storage system for all couches
Bow port couch w/STOW MORE™, underseat storage & armrest w/drink holder
Bow starboard console couch w/STOW MORE™ & underseat storage
2 fixed deluxe high-back swiveling bucket seats, reclining & w/self-leveling arms on bow port side

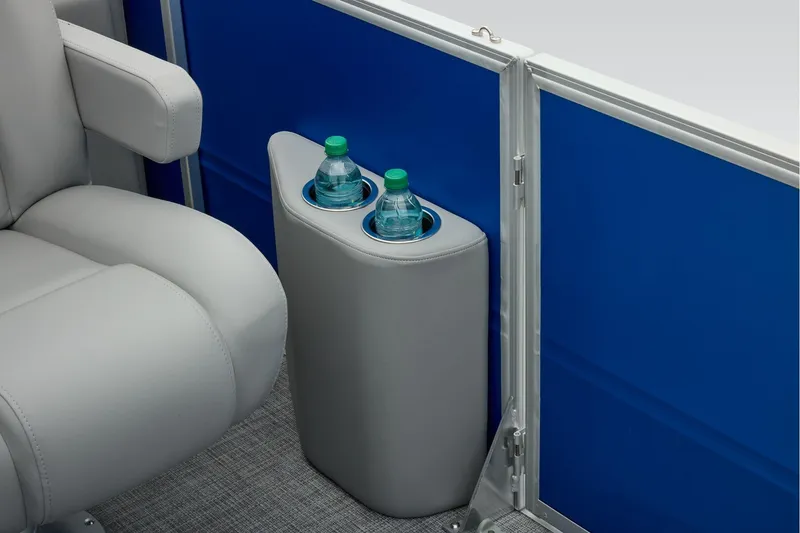

Bow port side drink holder

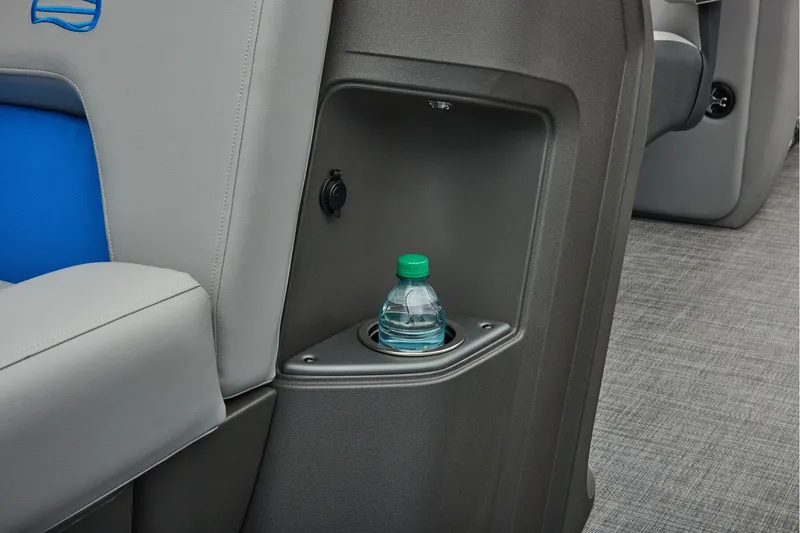

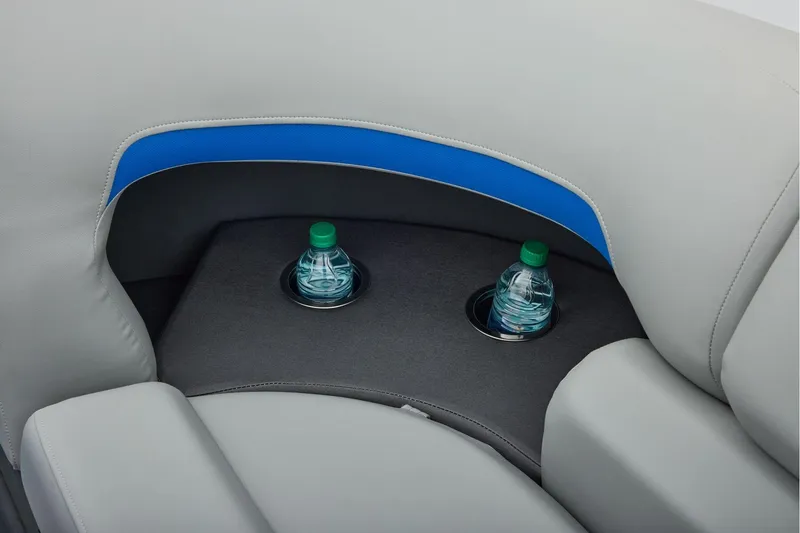

Integrated drink holders w/storage area

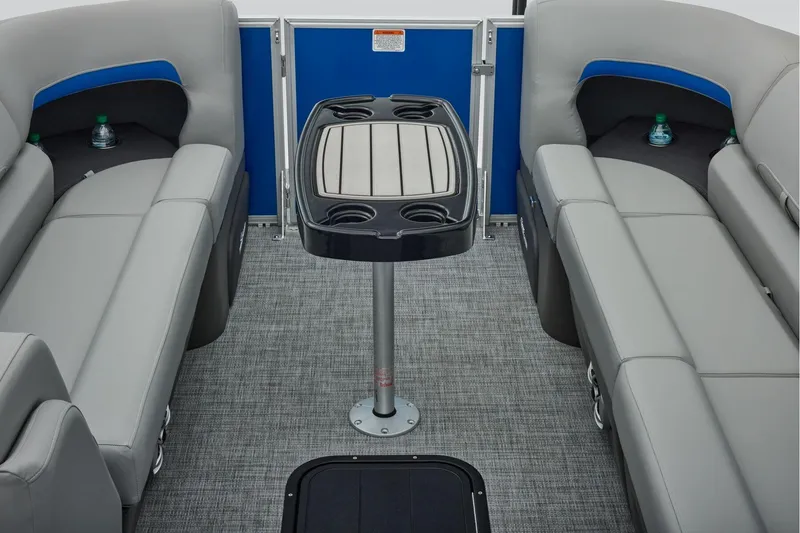

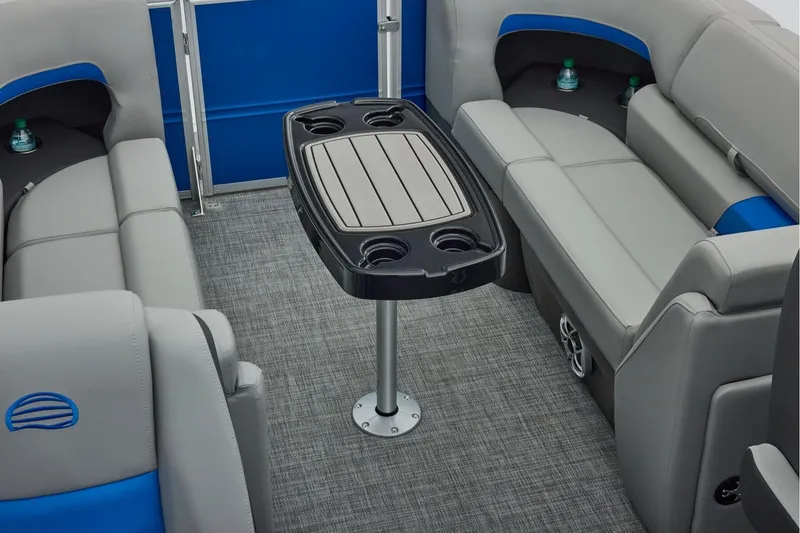

Removable table w/4 molded-in drink holders; color-coordinated, soft-touch mat; & tailored table location per dealer (dealer installed)

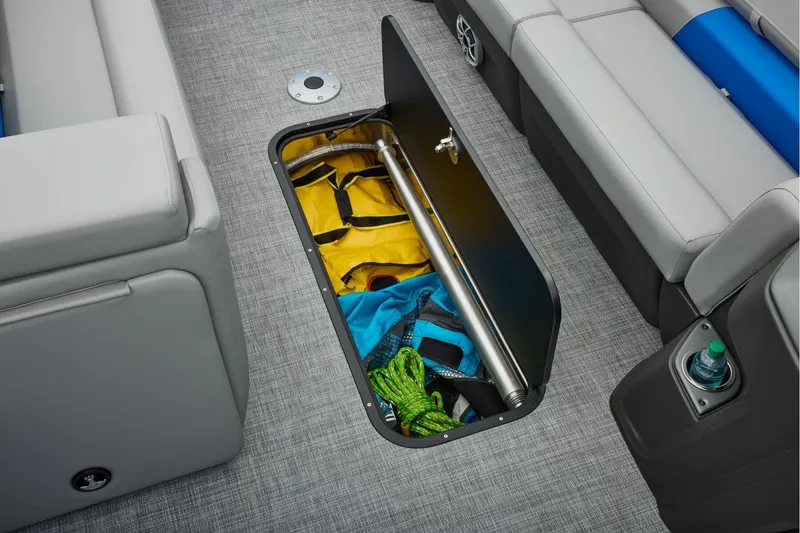

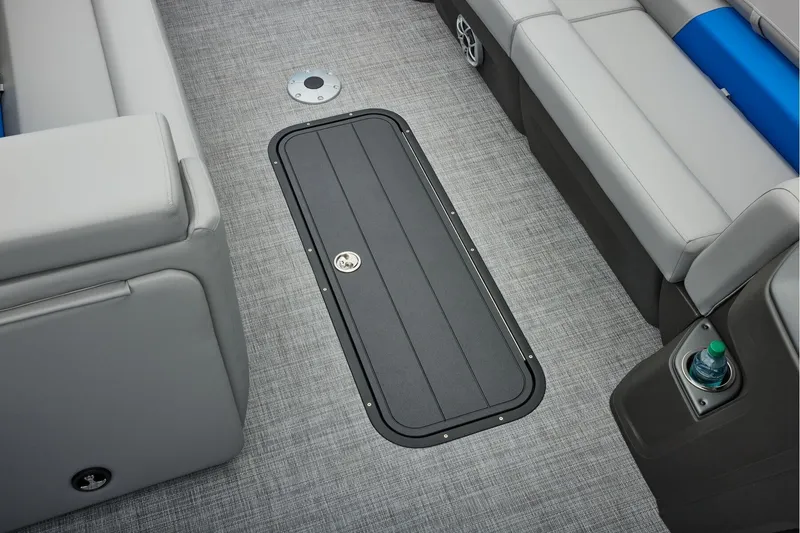

In-floor lighted storage compartment — 88" (2.24 m) long, 23" (58.42 cm) deep — w/bilge pump in center log

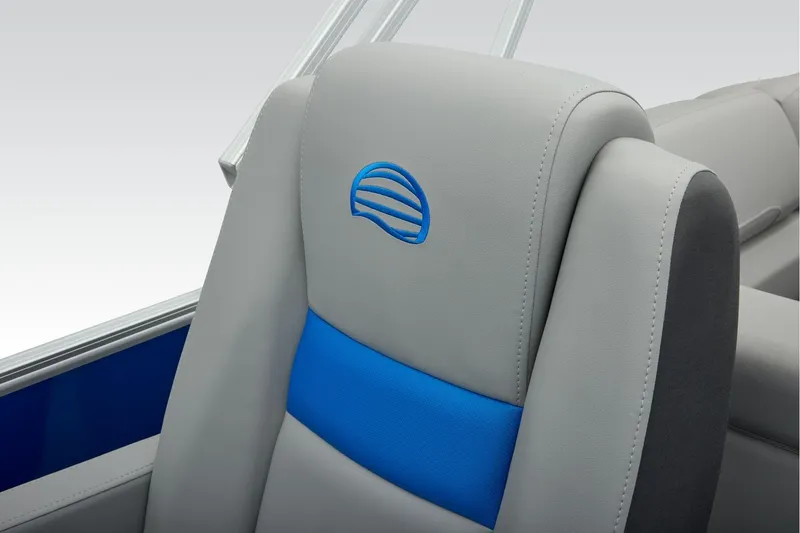

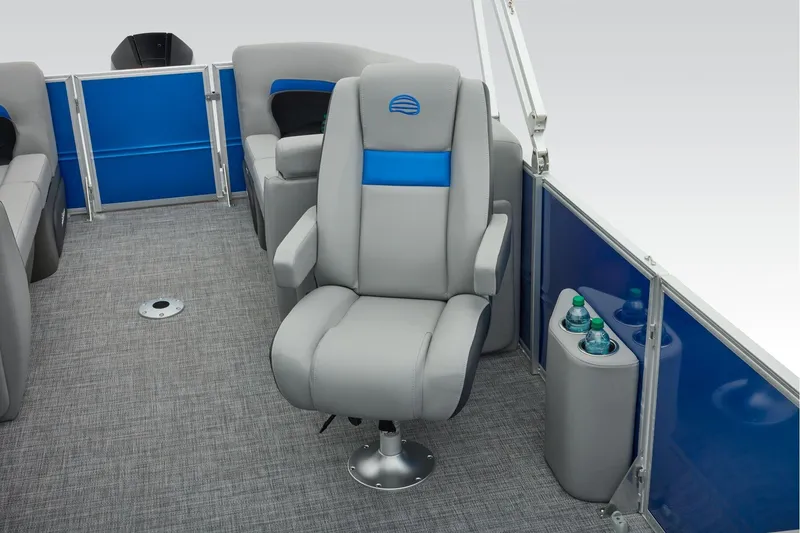

Reclining, high-back swiveling port & helm bucket seats w/self-leveling armrests

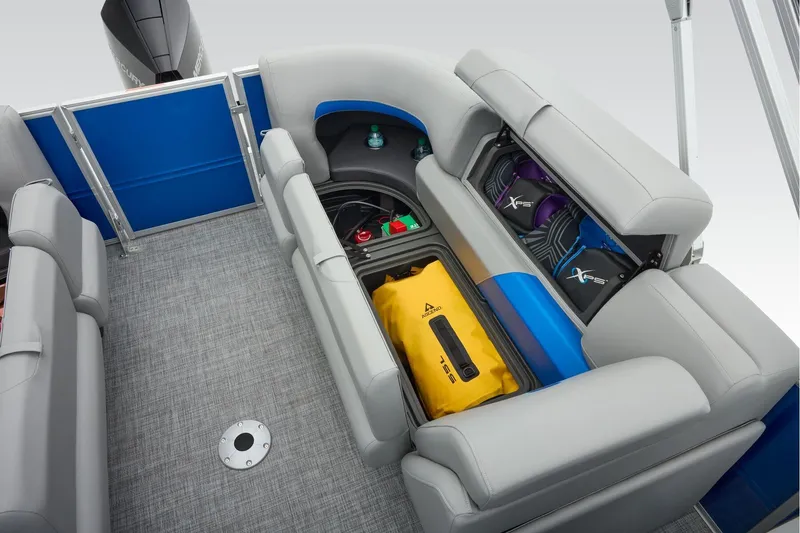

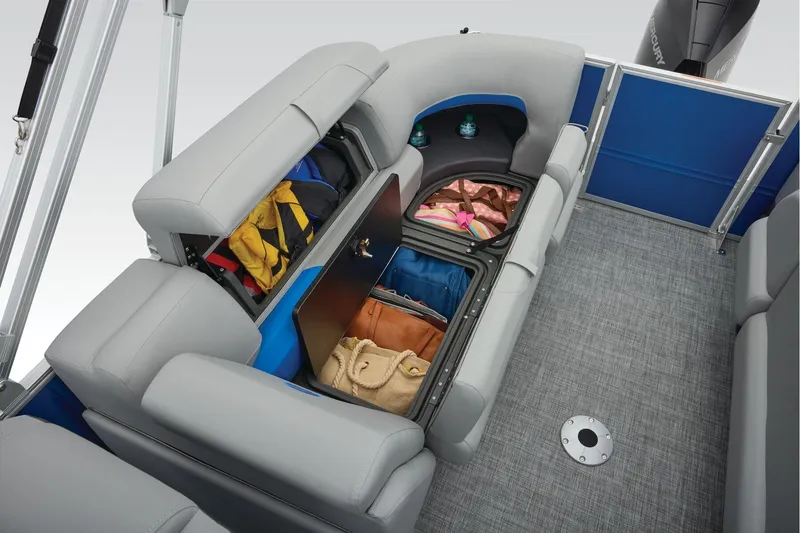

Aft port rear-facing double lounge w/STOW MORE™, underseat storage & pop-up changing room
Aft starboard couch w/STOW MORE™ & underseat, lockable storage

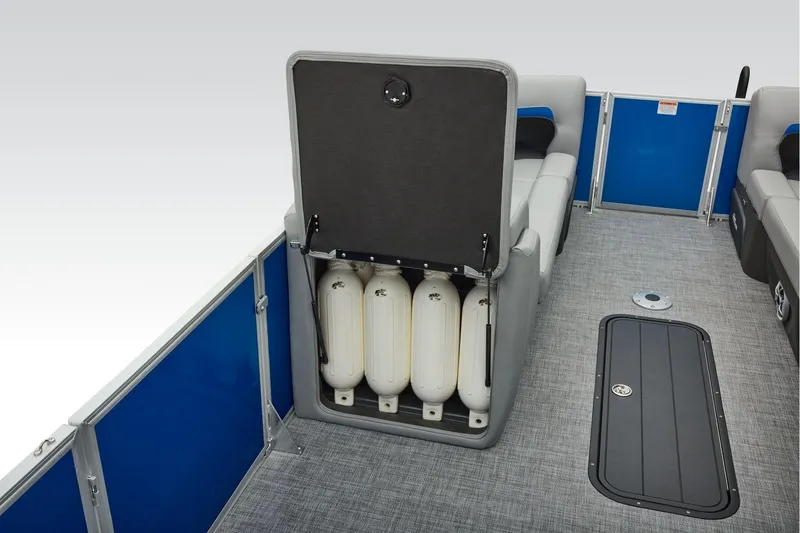

Bumper storage compartment

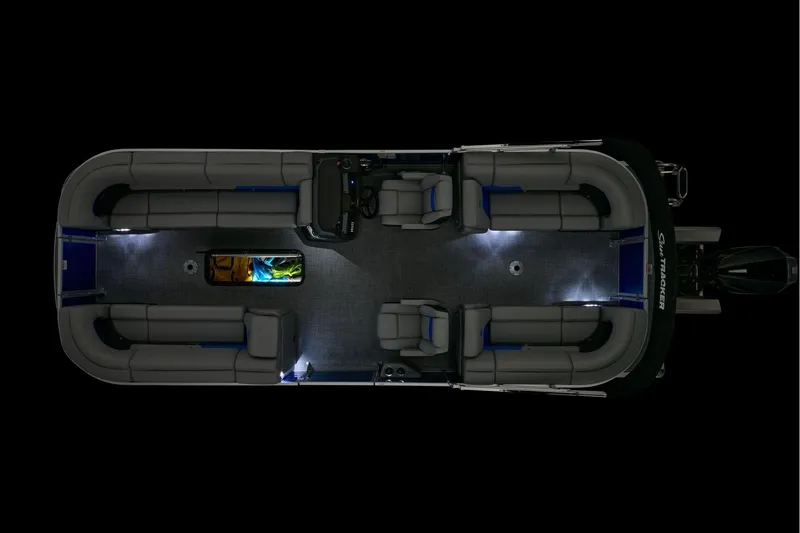

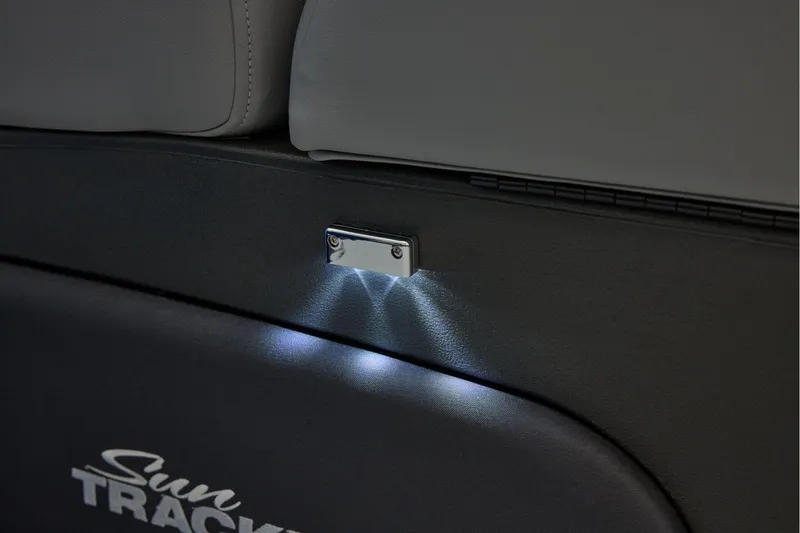

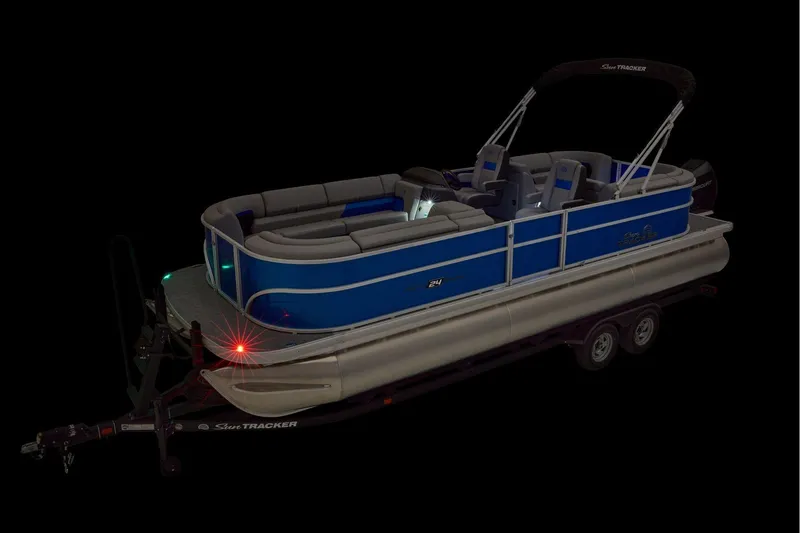

Interior courtesy lighting
Full-width aft swim deck

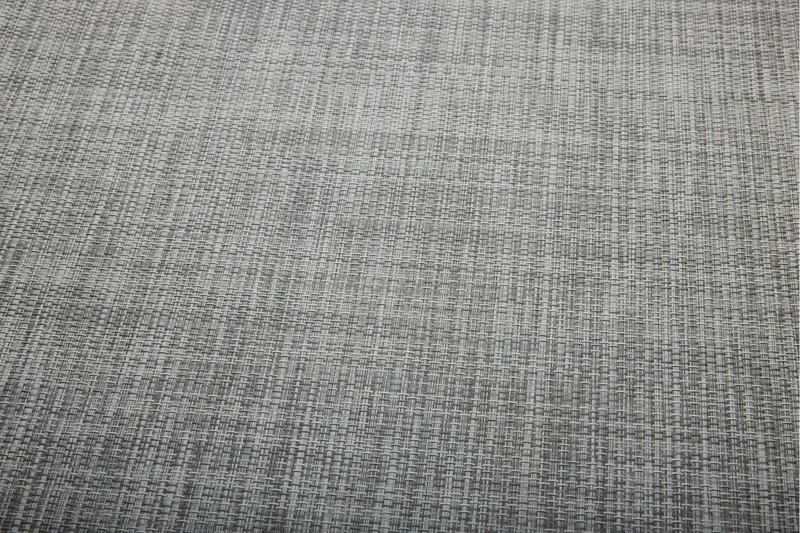

Woven 16-oz. (.45 kg) marine-grade flooring throughout

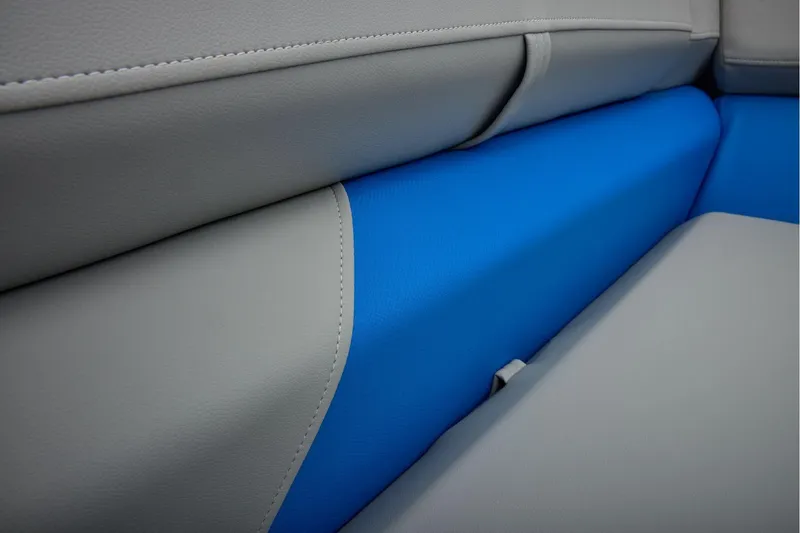

Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
Performance

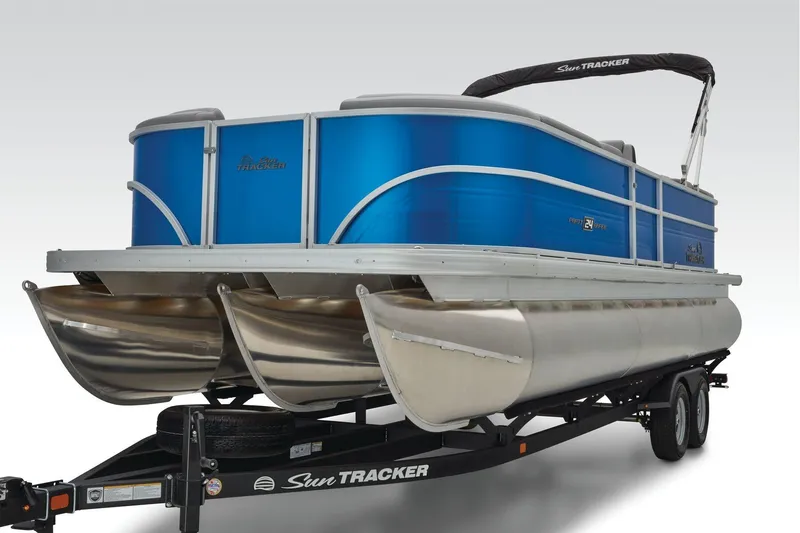

Three 26" (66.04 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs
XP3 performance strakes & wave-deflecting nose cone for maximum performance
Full-length, 1-piece longitudinal M-bracket deck supports
Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets
Heavy-duty aluminum U-channel reinforcement behind bow deck trim
Reinforced bow & stern structures

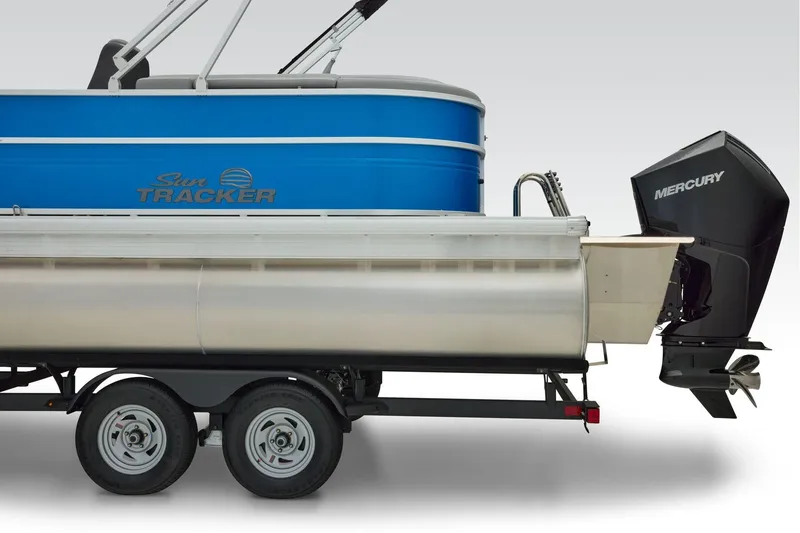

All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
All-aluminum box-beam transom for strength & longevity
Factory-installed underpinning (under-deck shielding) for improved performance
Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails
Sound- & vibration-deadening fence insulation for a quiet ride
Extruded & anodized aluminum deck edging w/polished aft corner covers
Precision fit & finish via plasma & laser-cut parts & robotically-welded construction
Rotomolded storage, furniture & console for superior strength & longevity
Nylon gate latches & heavy-duty hinges that open inward
Stainless or coated corrosion-resistant fasteners
Factory-matched aluminum propeller
Exterior
Color: Heritage Red, Pearl White, Sky Blue or Starlite Black fencing

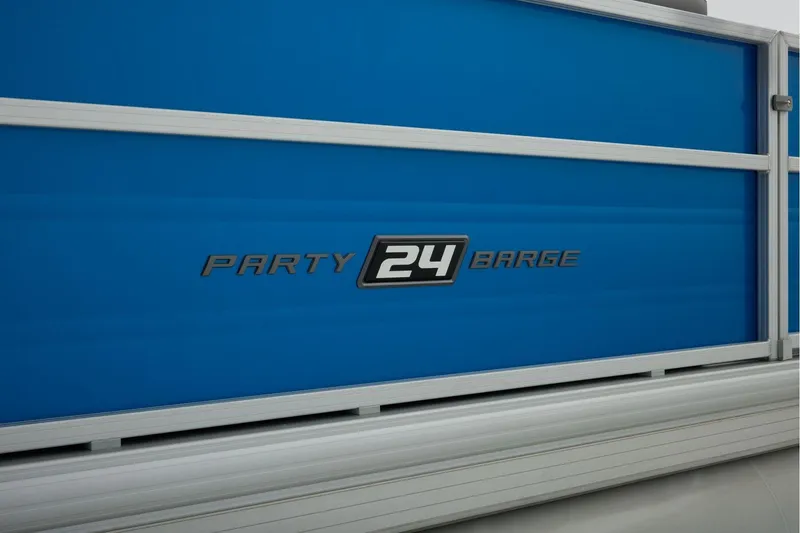

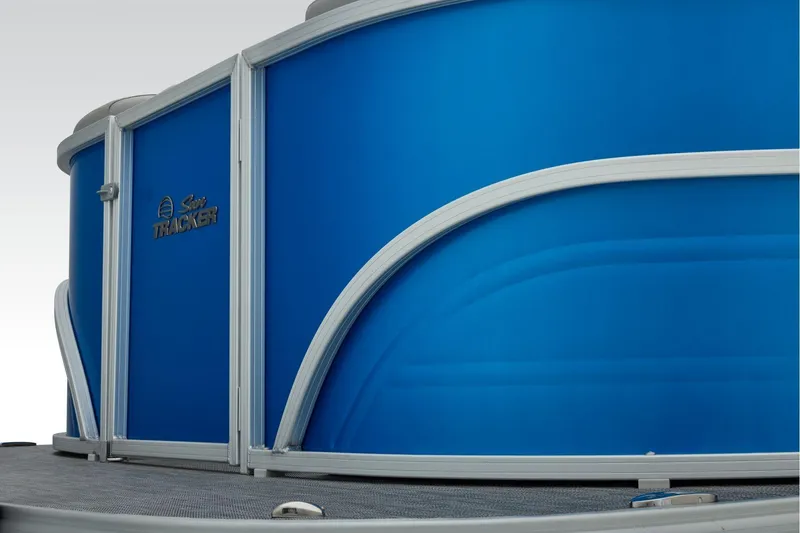

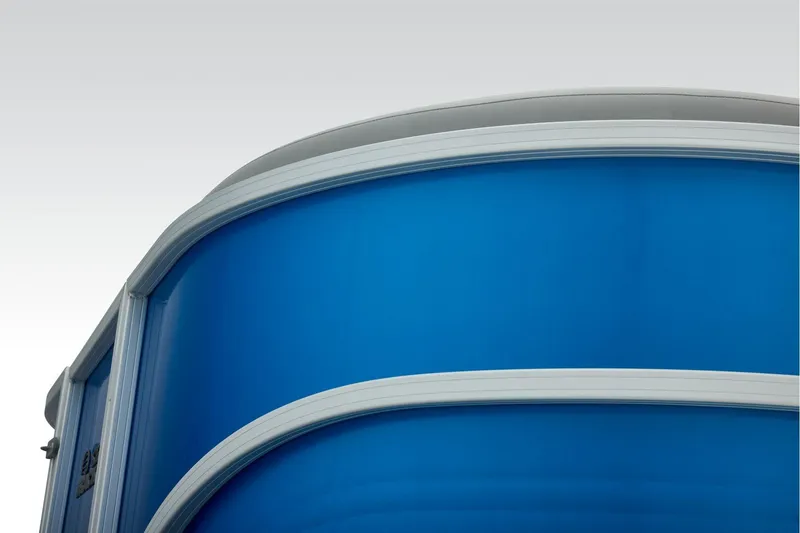

Patent-pending TRACK FORMED® fence design w/high-sheen finish for long-lasting cosmetics
Full-height, elevated fence panels for deck drainage & ventilation
Electrical
500 GPH (1,893 LPH) Ultima automatic bilge pump
Battery disconnect switch
Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
Protective abrasion-resistant wire wrap
Water-resistant connectors
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice. All sales are final. No returns accepted.
Price History
| Date | Event | Price |
|---|---|---|
| 10/1/26 | Initial price | $56,995 |
2026 Sun Tracker Party Barge 24 XP3 Video Tours
Sun Tracker Party Barge 24 XP3: BoatTEST Review
Overview
The SunTracker Party Barge 24XP3 is a pontoon boat clearly designed with family entertainment in mind. It comfortably accommodates up to 12 guests and offers a variety of seating and lounging options, making it an ideal platform for social gatherings on the water. This review provides a comprehensive walkthrough of its features, performance evaluation, and overall suitability as a recreational vessel.
Exterior Design and Deck Layout
The boat’s exterior is thoughtfully arranged to maximize guest comfort and social interaction. At the stern, a couch to starboard seats three to four people, with storage conveniently located underneath. Opposite this is a double-wide, aft-facing chase lounge that also serves as a sunning area. The cockpit transitions from a vinyl wet area to a carpeted dry area, though some padding beneath the carpet would enhance comfort. Forward of the cockpit, an L-shaped sofa upholstered in UV-resistant marine-grade vinyl features multi-density foam padding and includes an aluminum lock box for securing valuables. Two table mounts are provided—one centrally located in the cockpit and another in the bow—to facilitate dining and socializing. The bow seating includes port and starboard couches with rotocast molded seats that resist rot and wood degradation. Additional features include portable drink holders attached by Velcro, under-seat cargo nets, and ample storage space. A 9-foot color-matched BEMEDE top provides shade to keep the cockpit cool during sunny days.
Helm and Controls
The helm station is designed with a minimalist yet elegant approach. A modest smoked windscreen sits above two gauges and a faux-wood panel, flanked by switches on both sides. The steering wheel is mounted on a tilt base, and engine controls are positioned vertically for ease of use. The helm features a Jensen stereo system with MP3 jack and Bluetooth streaming capabilities, complemented by four directional speakers placed fore and aft. The bucket helm seat slides, swivels, and includes flip-up armrests, with multi-density foam and soft upholstery ensuring operator comfort. Under the helm console, space is allocated for a cooler and a fire extinguisher, enhancing convenience and safety. Navigation lights are mounted on the deck, although relocating them higher on the fences could reduce tripping hazards.
Power and Performance
This test boat was equipped with an optional 200-horsepower Mercury Verado outboard engine, though the standard offering is 150 horsepower. The fuel fill is conveniently located just ahead of the engine, with small platforms on either side to facilitate daily maintenance checks. The boat measures 26 feet 2 inches in length overall with a beam of 8 feet 6 inches and an empty weight of 3,095 pounds. With test conditions including one quart of fuel, two people, and the 200-horsepower engine, the estimated test weight was 4,067 pounds. Performance testing revealed a top speed of 40.5 miles per hour at 6,200 RPM, consuming 19.75 gallons per hour and providing a range of approximately 65 miles. The most efficient cruise speed was 15.4 miles per hour at 3,000 RPM, burning 3.2 gallons per hour and extending the range to 152 miles with nearly 10 hours of endurance. Acceleration was brisk, with a time to plane of 3.4 seconds, 20 miles per hour reached in 4.4 seconds, and 30 miles per hour in 7.6 seconds. The triple-tube XP3 performance package allows the boat to plane from a fairly level attitude; applying trim raises the bow for optimal cruising, reduces spray, and improves handling. The boat remains relatively flat in gentle turns, leaning slightly outward in harder turns, and responds well to helm inputs, making it suitable for towing activities.
Additional Features and Amenities

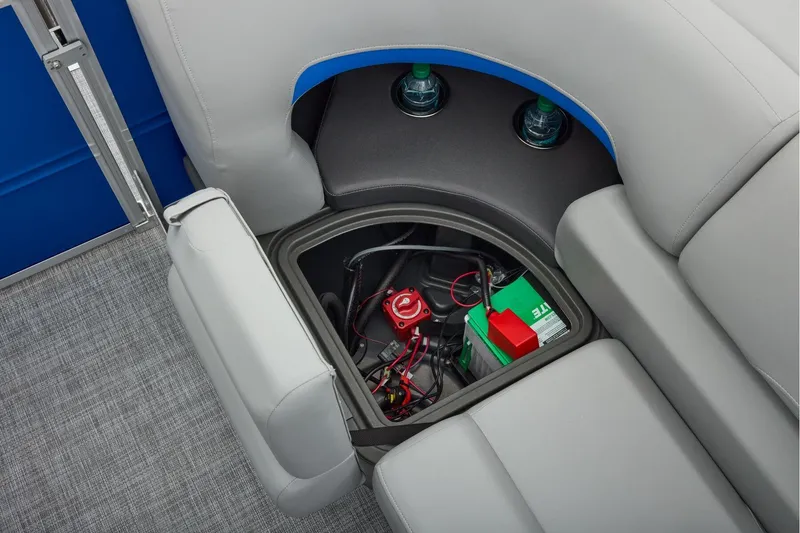

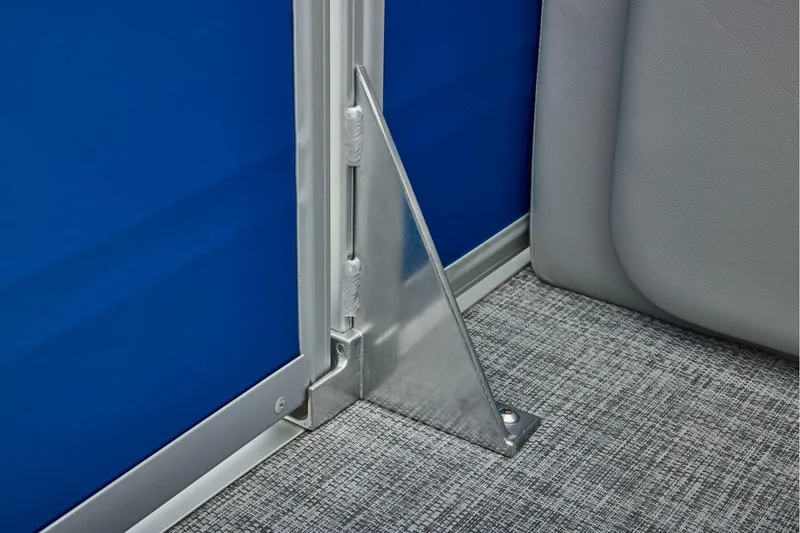

The SunTracker Party Barge 24XP3 includes practical features to enhance the onboard experience. The aft section of the lounge lifts to reveal a properly secured battery compartment, and corner braces and cleats are robustly fastened for durability. A full-width swim platform with a four-step reboarding ladder on the starboard side facilitates easy water access. For privacy and convenience, a changing room is integrated into the design, deployable by pulling a handle and locking it securely in place. Inside, the space is sufficient to turn around comfortably, and a pop bench seat is included for safety.
Conclusion
The SunTracker Party Barge 24XP3 lives up to its name as an outstanding entertainment platform for families and groups. Its well-thought-out seating arrangements, durable construction, and solid performance make it a versatile and enjoyable pontoon boat. The optional 200-horsepower engine provides strong acceleration and cruising capabilities, while the onboard amenities support comfort and convenience. Overall, this model offers a balanced combination of social space, performance, and practical features suitable for a variety of recreational boating activities.
Overview from around the web 2026 Sun Tracker Party Barge 24 XP3
The 2026 Sun Tracker Party Barge 24 XP3 has been receiving rave reviews from customers who appreciate its spacious design and versatile features
Boaters are particularly impressed with the luxurious seating that comfortably accommodates family and friends, making it an ideal choice for gatherings on the water. Many users highlight the array of amenities, including a well-equipped entertainment area, ample storage for gear and refreshments, and the easy-to-use dual rear swim platforms, which enhance summer fun and water activities. The boat's performance is also frequently praised, with its powerful engine providing a smooth and exhilarating ride, whether cruising at leisure or enjoying water sports. Customers also appreciate the durable construction and modern aesthetics, which make the 24 XP3 a stylish addition to any marina. Safety features and stability on the water have been mentioned as comforting, ensuring peace of mind while enjoying outings. Overall, the 2026 Sun Tracker Party Barge 24 XP3 is being celebrated for creating unforgettable moments on the water, providing not just a boat, but a lifestyle that brings people together.
The Biggest Pros and Cons
Pros
Spacious Design: The Party Barge 24 XP3 offers ample space for socializing, with comfortable seating arrangements that can accommodate family and friends, ideal for social gatherings on the water.
Performance: Equipped with a powerful performance engine, this boat delivers impressive speed and handling, making it suitable for both leisurely cruises and water sports.
Durability: Built with high-quality materials, the XP3 is designed to withstand the rigors of outdoor use, ensuring longevity and minimal maintenance.
Versatile Features: The boat includes various features such as an easy-to-use bimini top, ample storage space, and a built-in cooler, enhancing the overall boating experience.
Entertainment Options: With options for upgraded sound systems and Bluetooth connectivity, you can elevate your party experience with your favorite tunes while out on the water.
Safety Features: The boat is equipped with essential safety features, including sturdy handrails and accessible boarding options, ensuring a secure outing for all passengers.
Cons
Weight: The larger size and robust features of the Party Barge can make it heavier and potentially more challenging to tow or maneuver compared to smaller models.
Price Point: While offering numerous amenities and luxury, the 2026 model may come with a higher price tag, which could be a consideration for budget-conscious buyers.
Fuel Efficiency: Due to its size and engine power, fuel consumption may be higher, particularly during full-speed runs or water sports activities.
Customization Options: While the model comes with various features, customization options may be limited compared to some competitors, potentially limiting personalization for specific user preferences.
Storage: Although there is decent storage, it may not be sufficient for prolonged outings or for those who require extensive gear and equipment.
Made For
The 2026 Sun Tracker Party Barge 24 XP3 is designed for those who value fun, relaxation, and togetherness on the water. Perfect for families, friends, and anyone who loves entertaining, this spacious pontoon boat accommodates up to 12 passengers, making it ideal for gatherings, celebrations, or leisurely outings. Whether you're a seasoned boater or new to the boating lifestyle, this model offers a blend of comfort and performance that appeals to casual cruisers and avid anglers alike. Equipped with modern amenities, stylish design, and ample storage, it's tailored for those who seek adventure and unforgettable memories on lakes, rivers, or marinas. Dive into a floating paradise, where every journey becomes a cherished experience on the 2026 Sun Tracker Party Barge 24 XP3!
