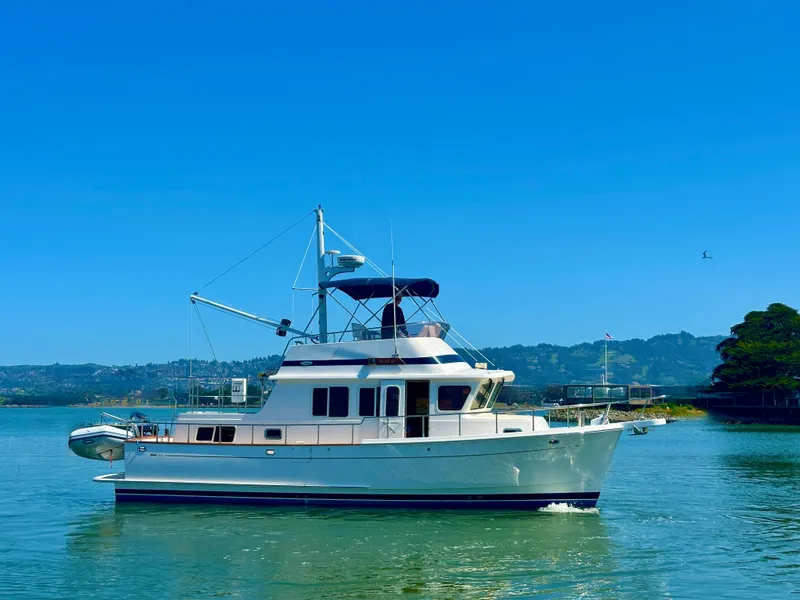

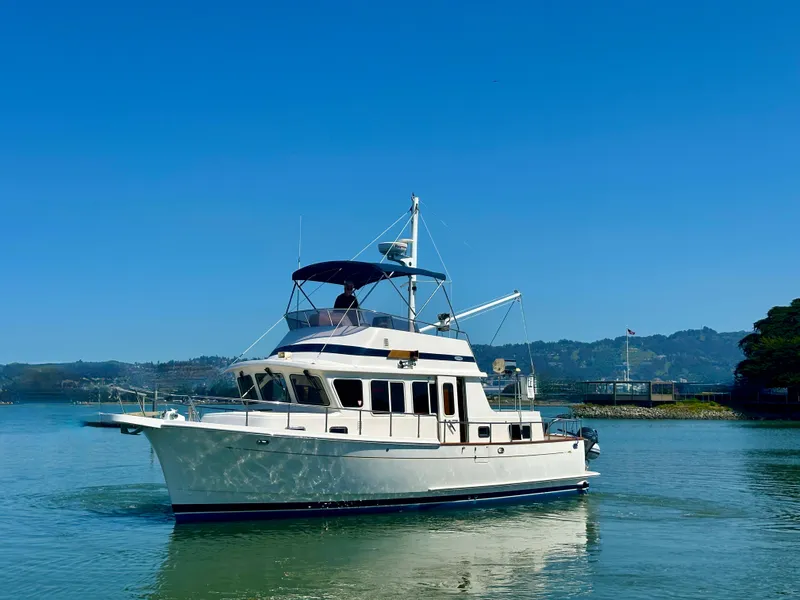

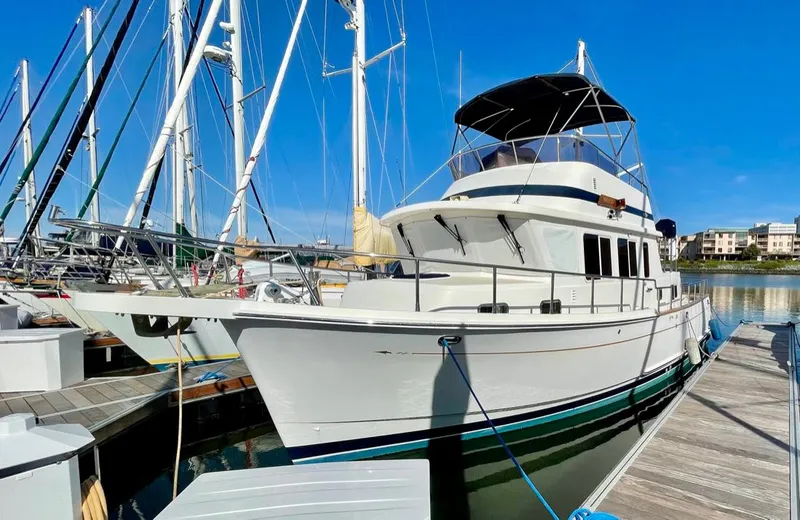

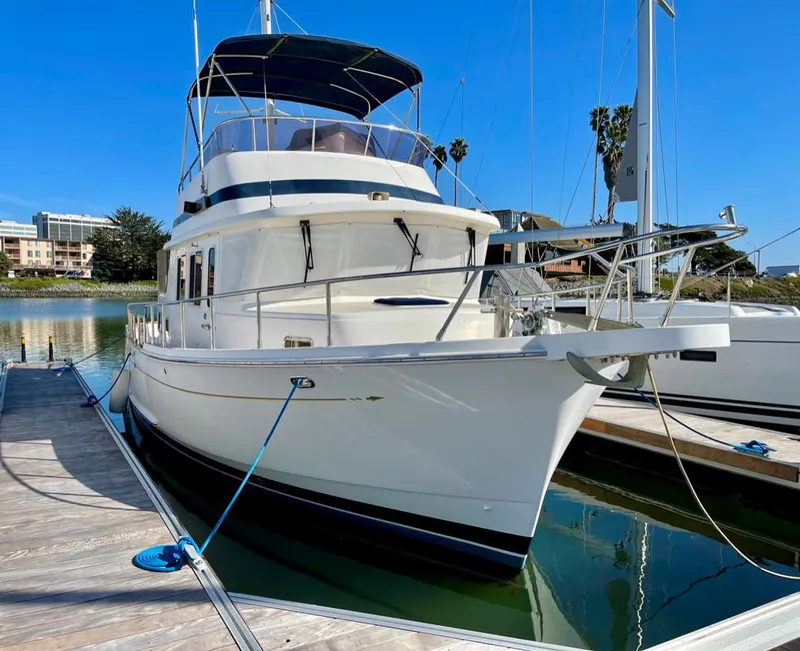

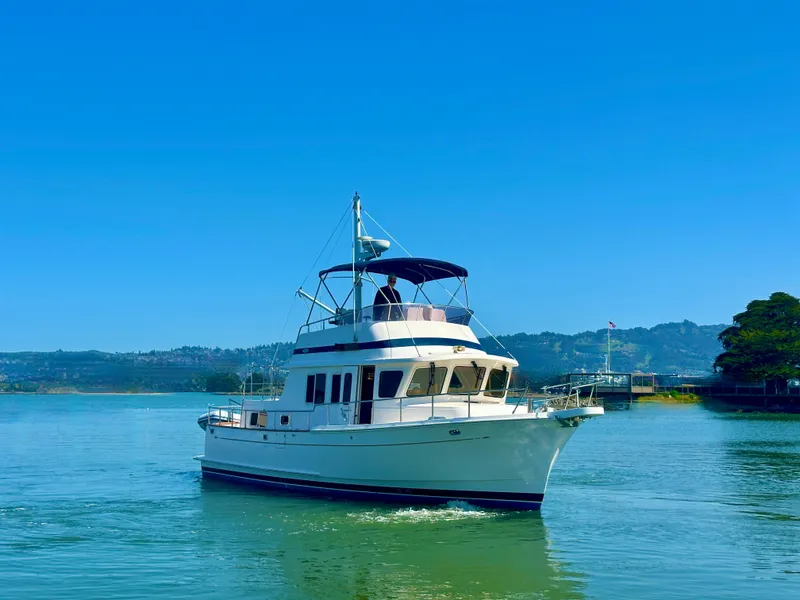

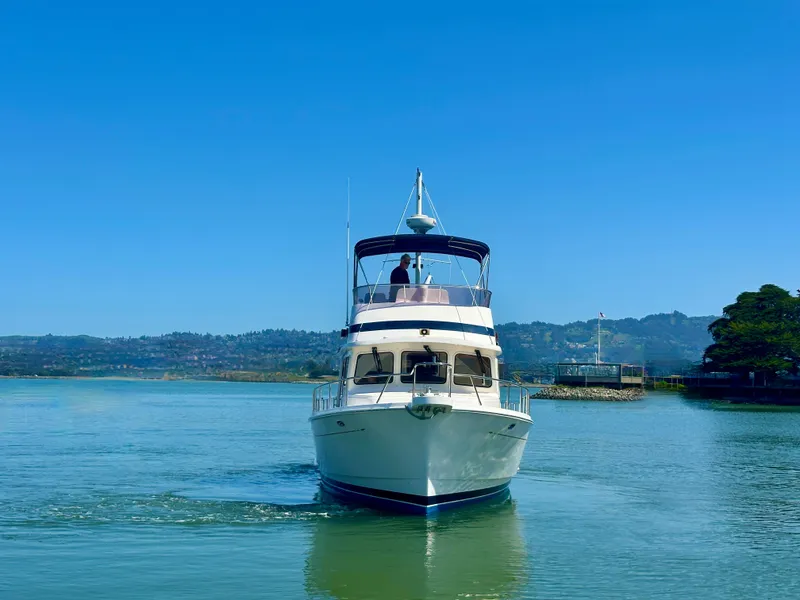

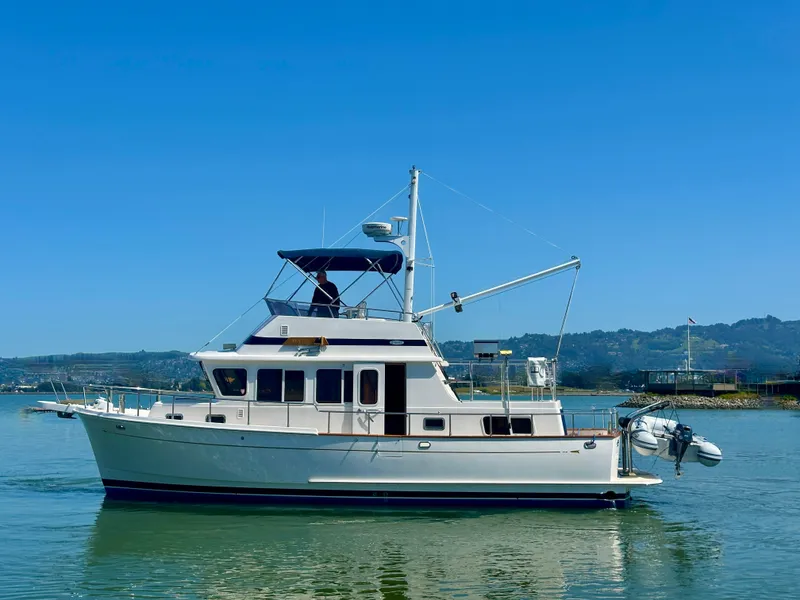

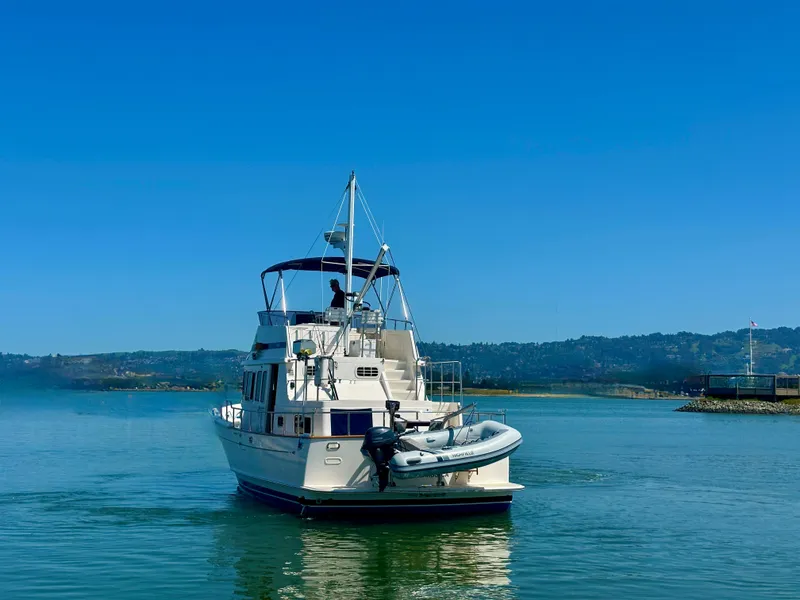

2006 Selene Archer 36 Sold Boat in Emeryville, CA 94608 US

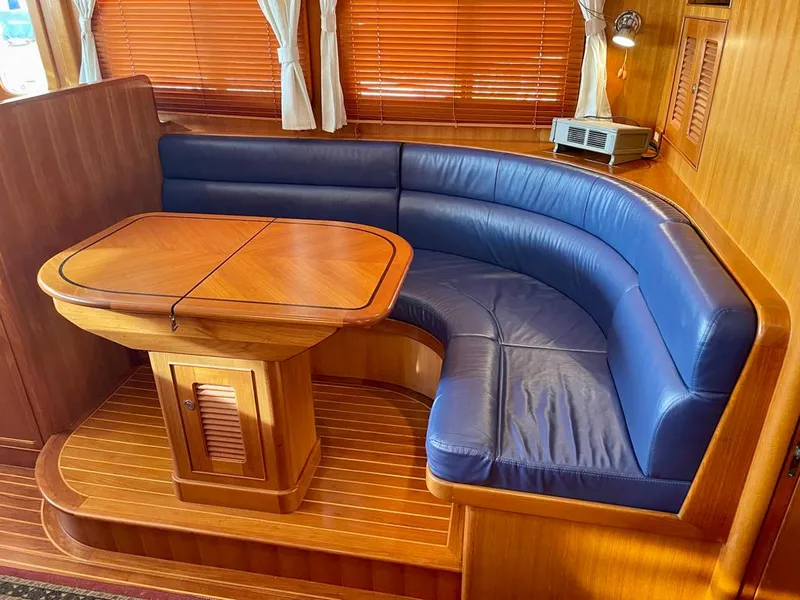

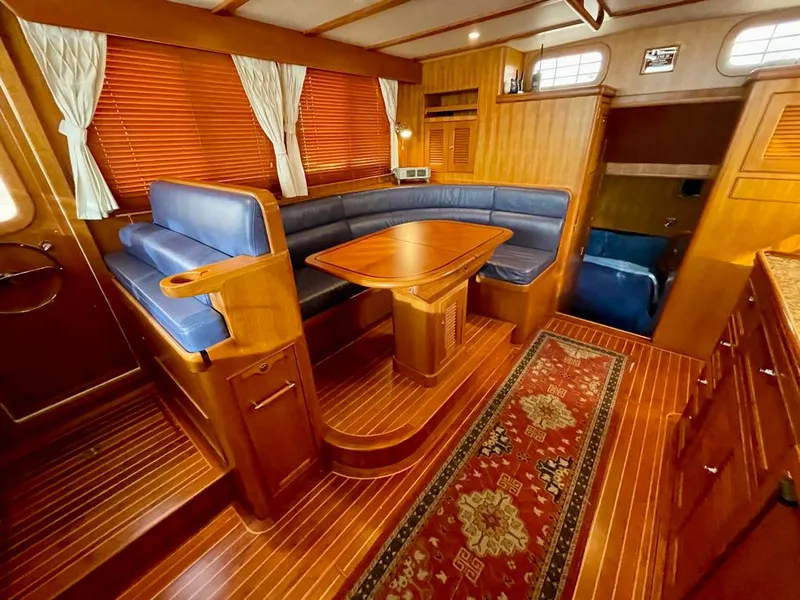

Salon

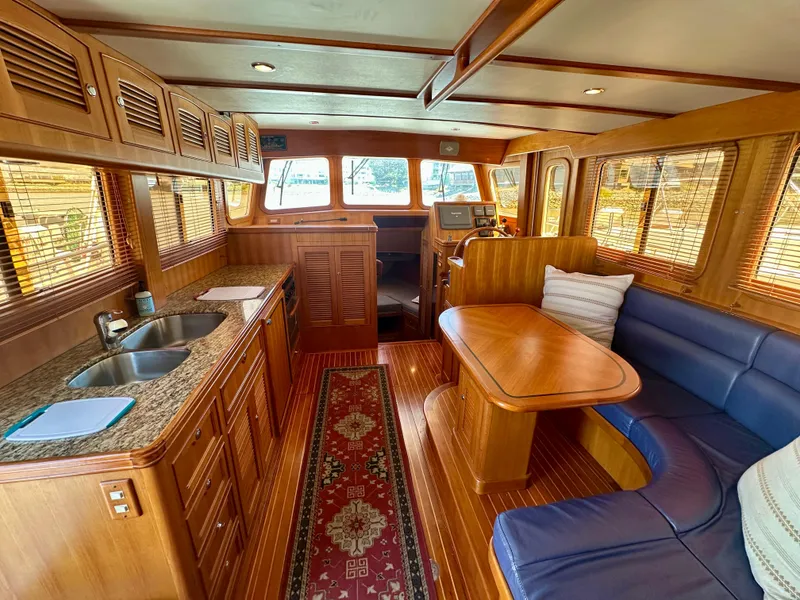

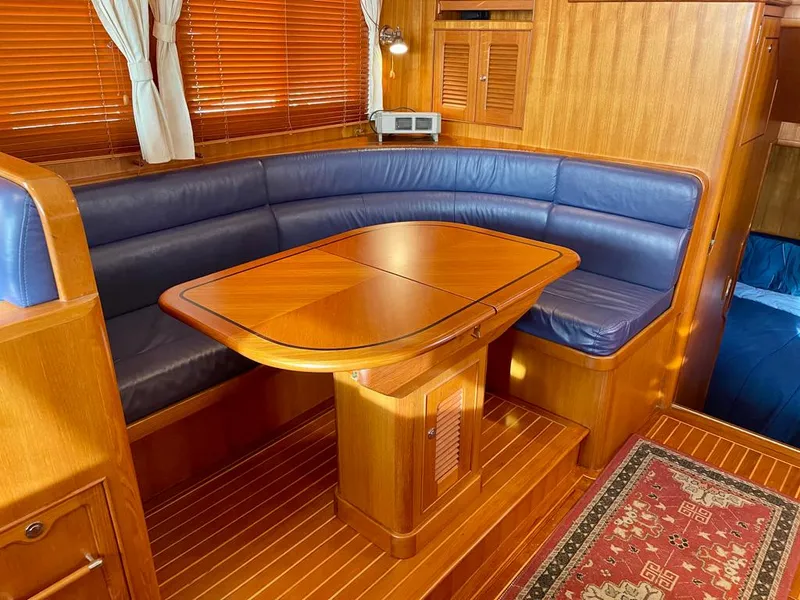

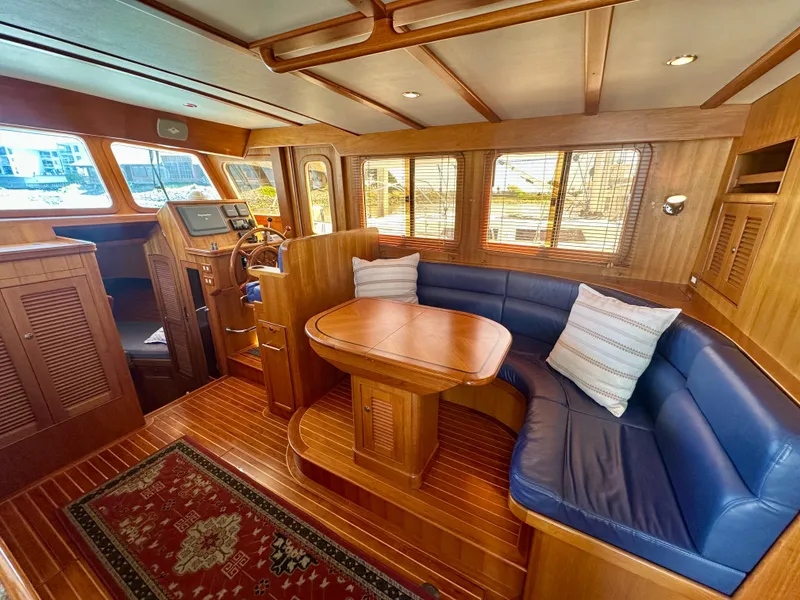

The main salon is bright and open with a lower helm station forward to starboard, an L-shaped settee just aft to starboard and a large dining table on a pedestal with storage under the settee.

    •    teak overhead handrail

    •    teak and holly sole

    •    large opening  windows with screens and blinds

    •    reading lights and overhead lights

    •    more light through two aft portlights

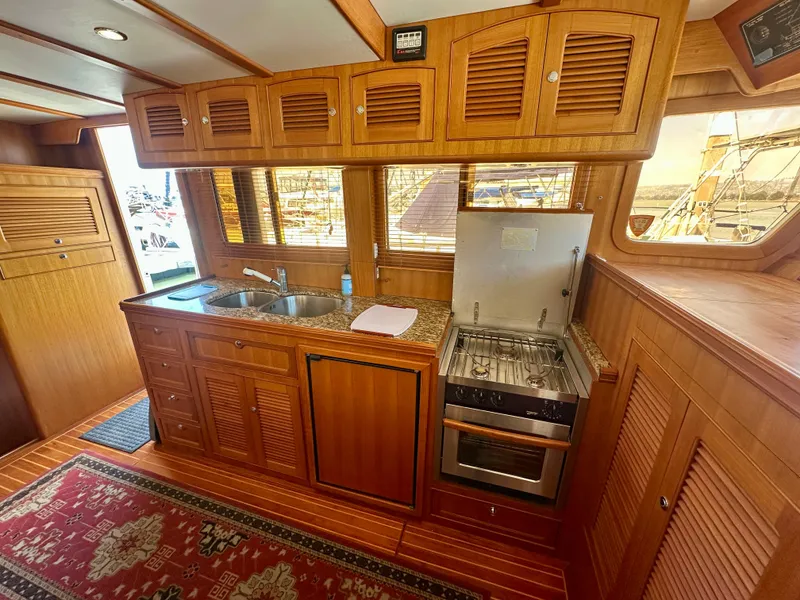

Galley

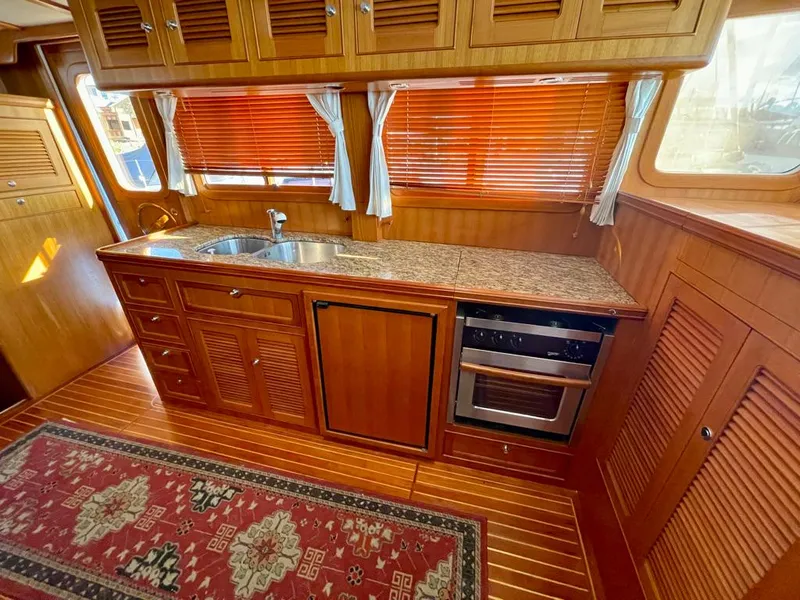

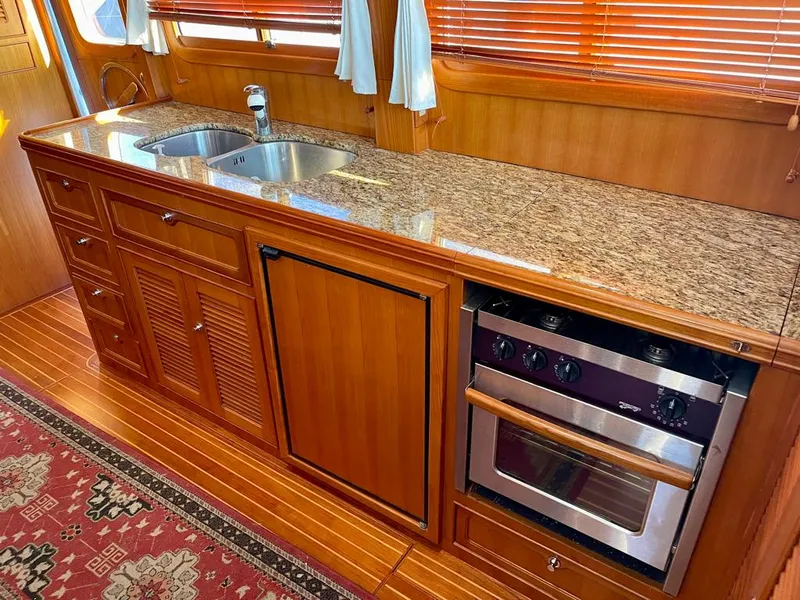

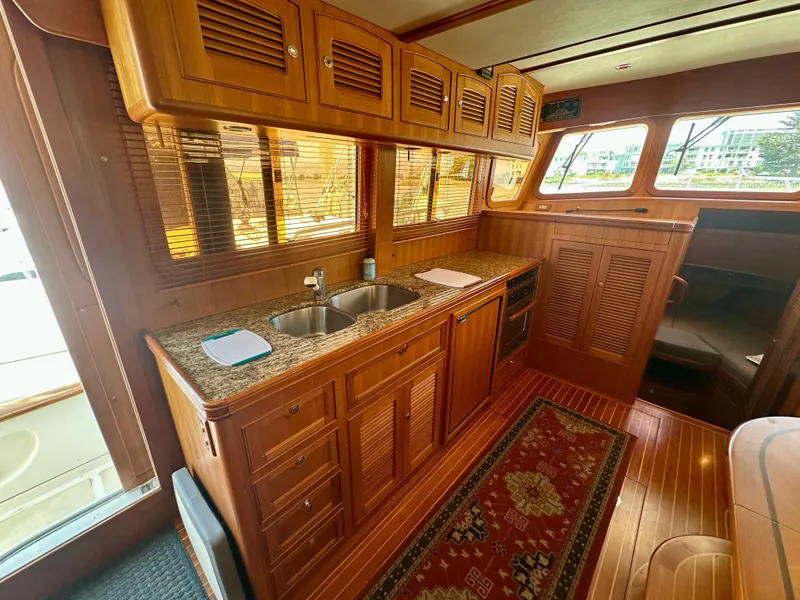

The galley is part of the salon and runs the length of the port side with a long Granite counter top with ample space for prepping gourmet meals.

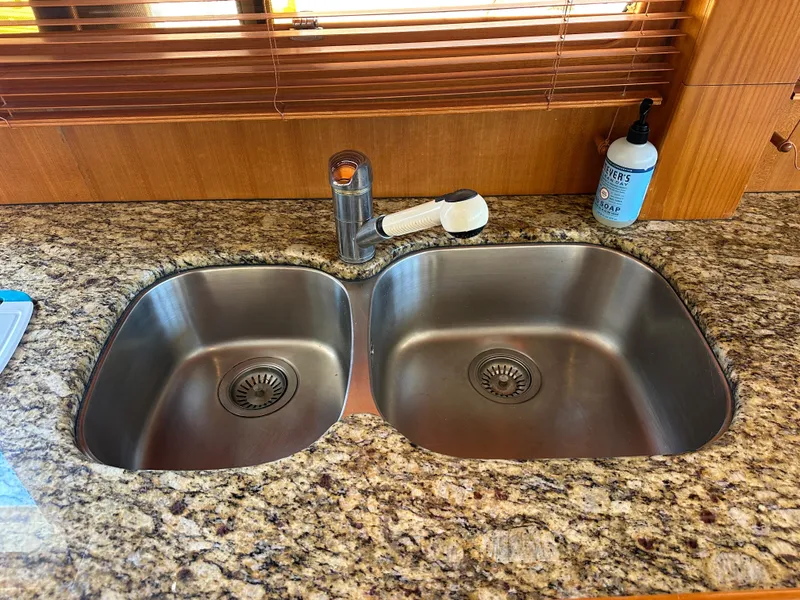

    •    Double stainless steel sink with cutting board cover

    •    Two opening windows with screens and blinds

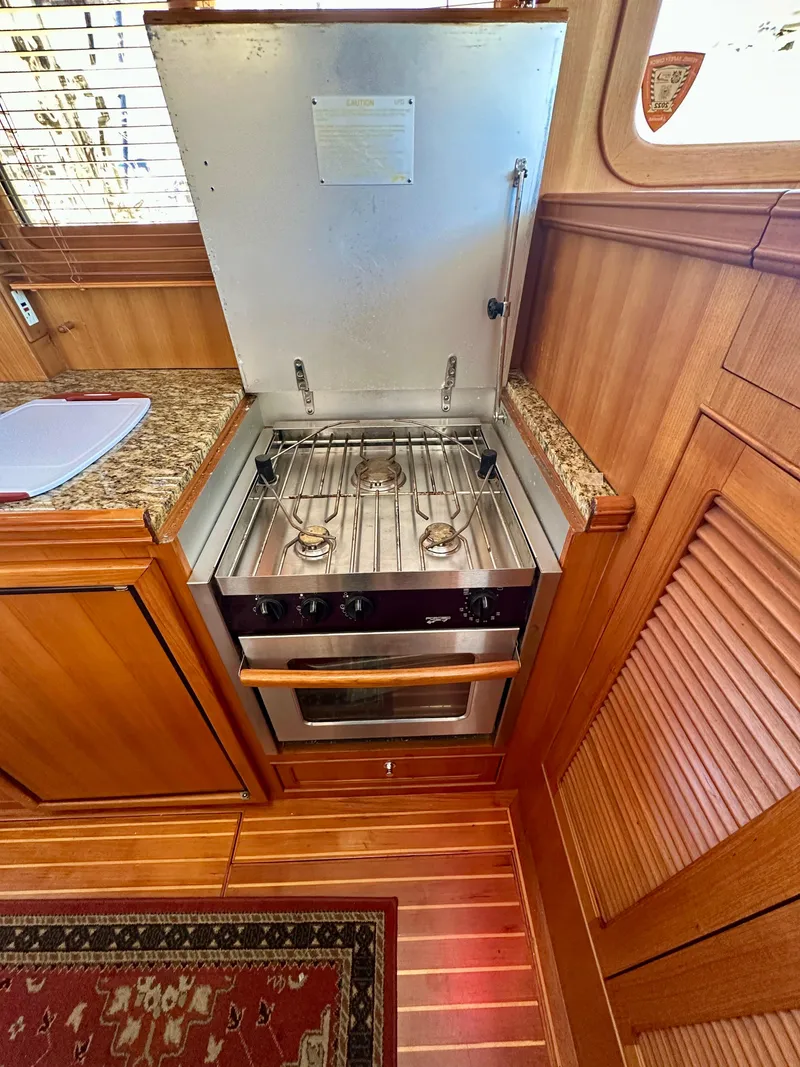

    •    Three-burner propane stove with oven and broiler

    •    Eight lockers and four drawers

    •    More storage in a forward pantry, and a slide-out locker for larger goods and appliances

    •    Fan control

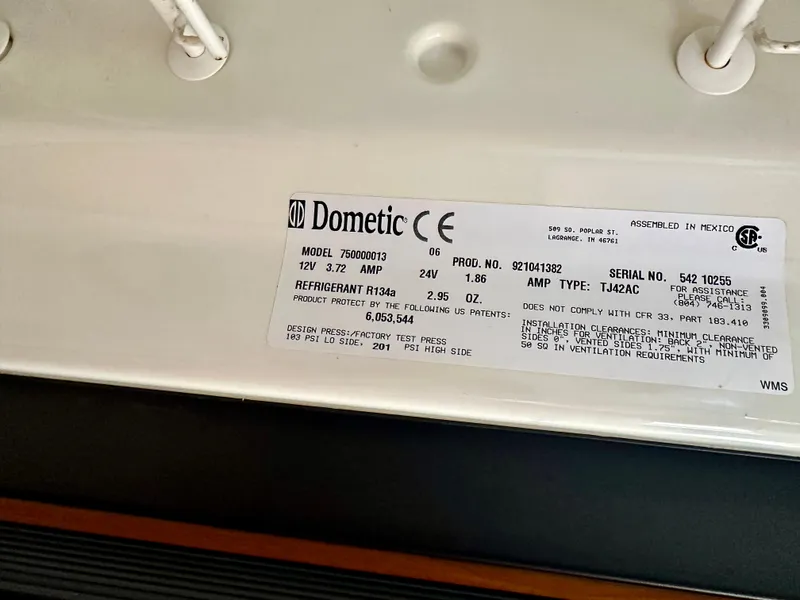

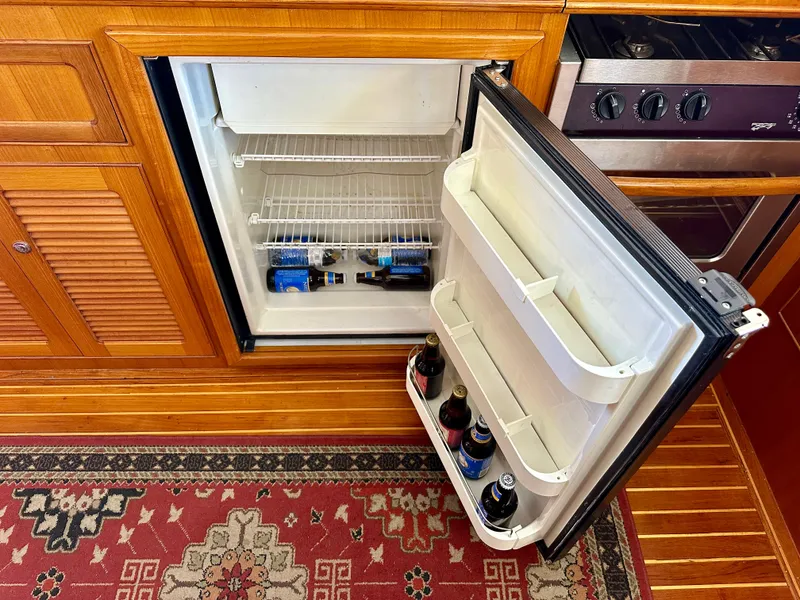

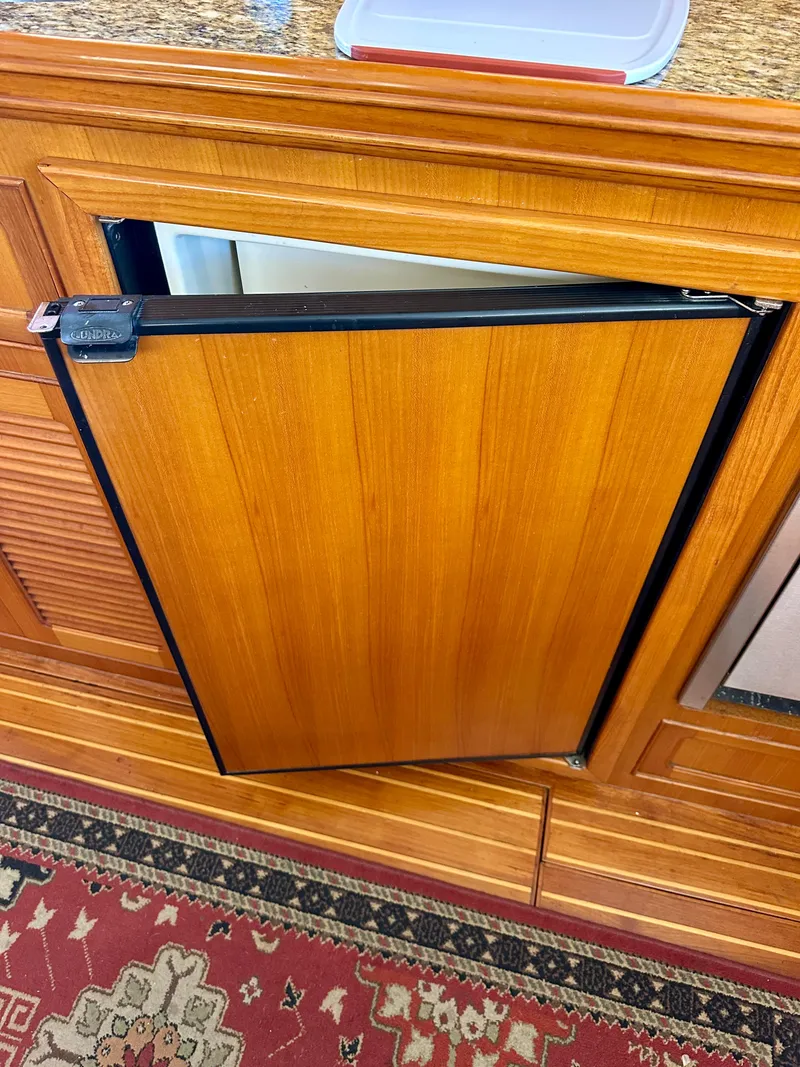

    •    Nova Cool refrigerator / freezer

    •    Xintex S-2A propane fume detector and control

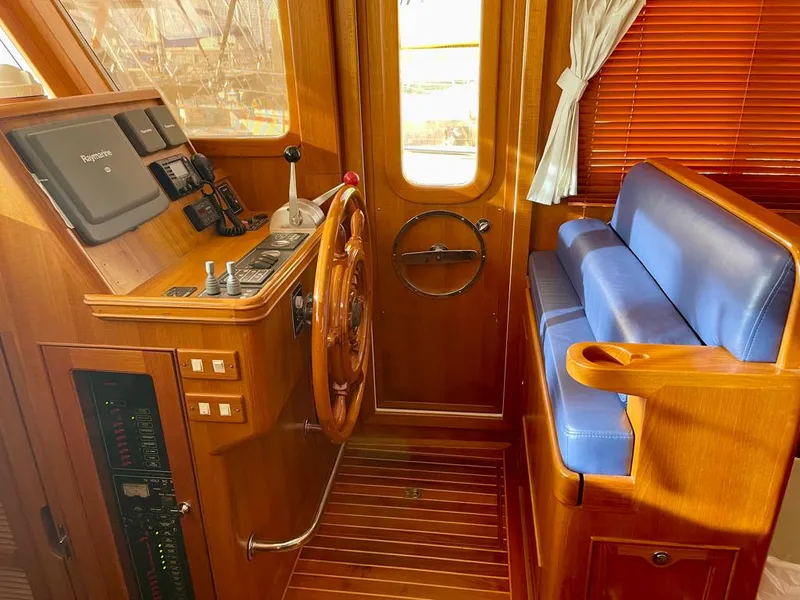

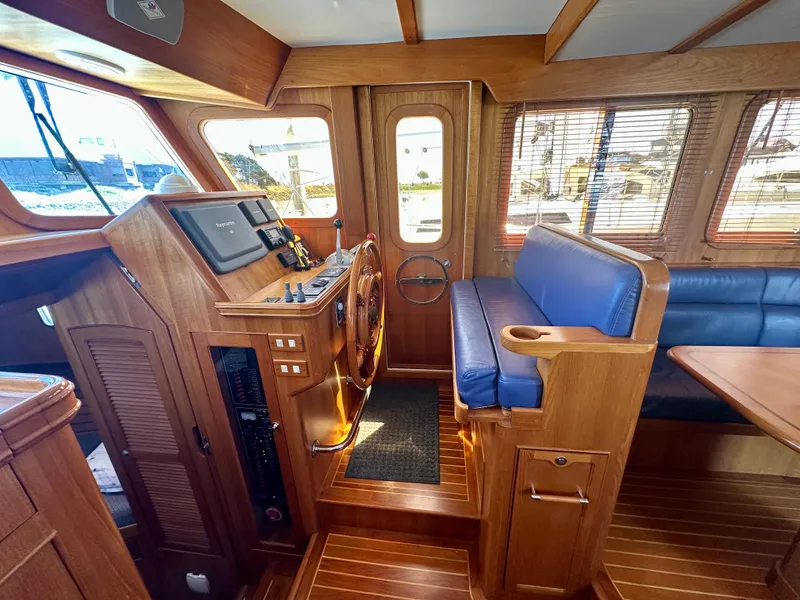

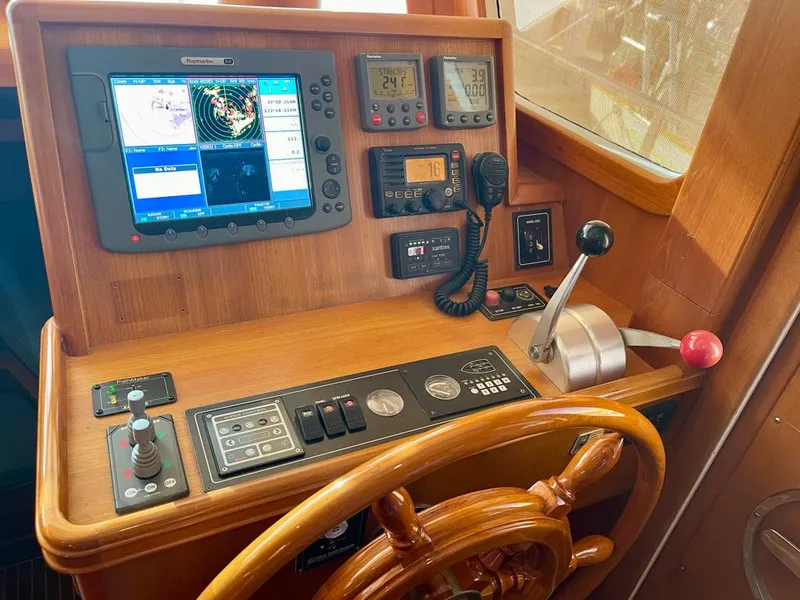

Lower Helm

Visibility from the helm is excellent. The lower helm has a double bench with a lifting bolster for comfortable standing or sitting at the helm. The side door to starboard is perfectly situated for safe access to the side and foredecks, and for visibility while docking. All engine and instrument controls are readily at hand.

    •    Lifting foot rest

    •    Teak rimmed wheel with teak spokes

    •    Three wipers and washer

    •    12V fan

    •    Horn

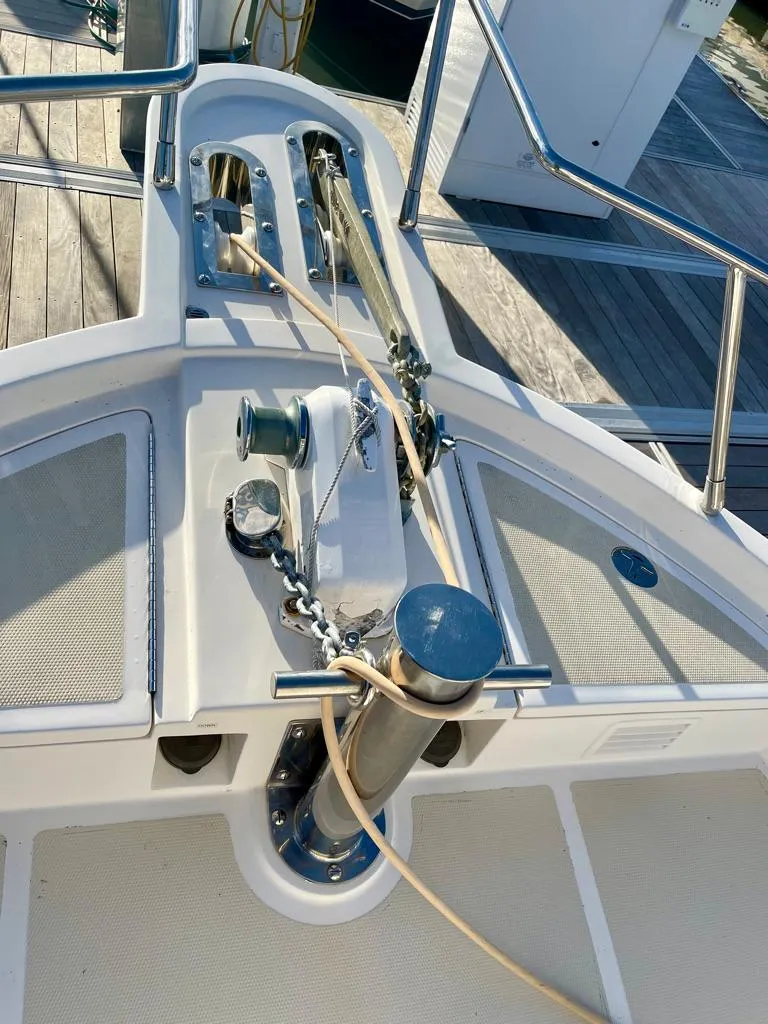

    •    Windlass control

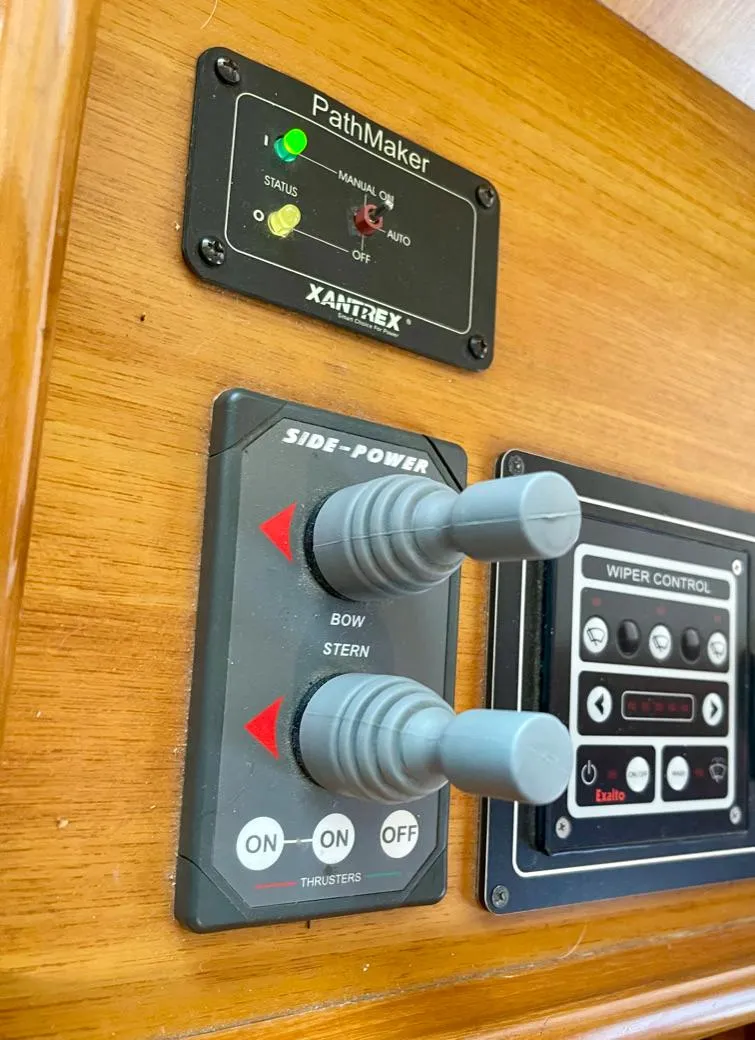

    •    Bow & Stern Thruster controls

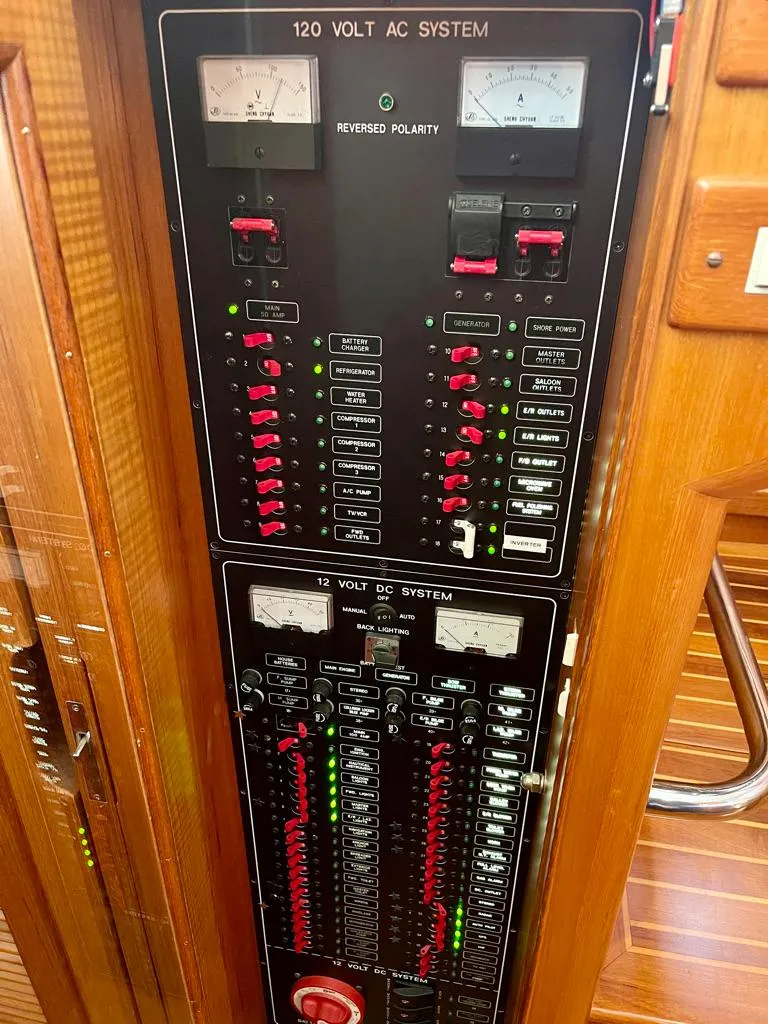

    •    Ship’s lighting and pump monitoring panel

    •    High water level alarm

    •    Spotlight control

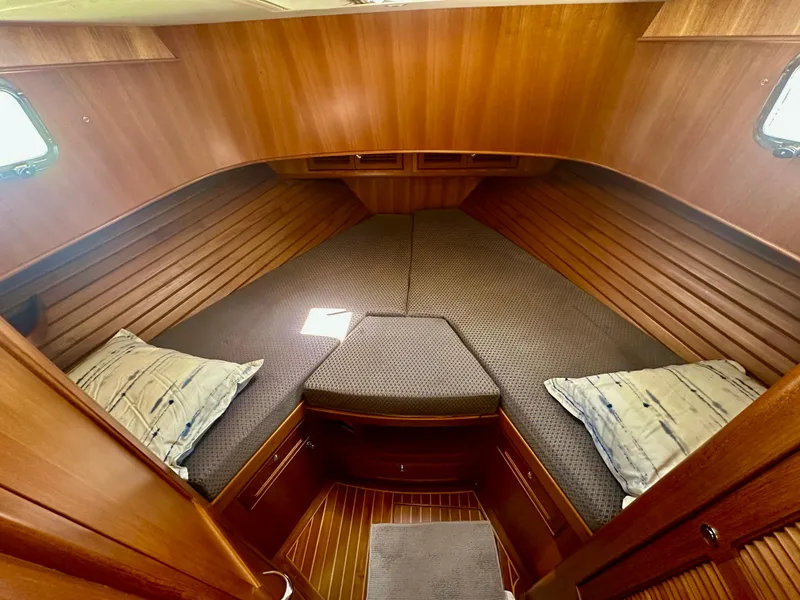

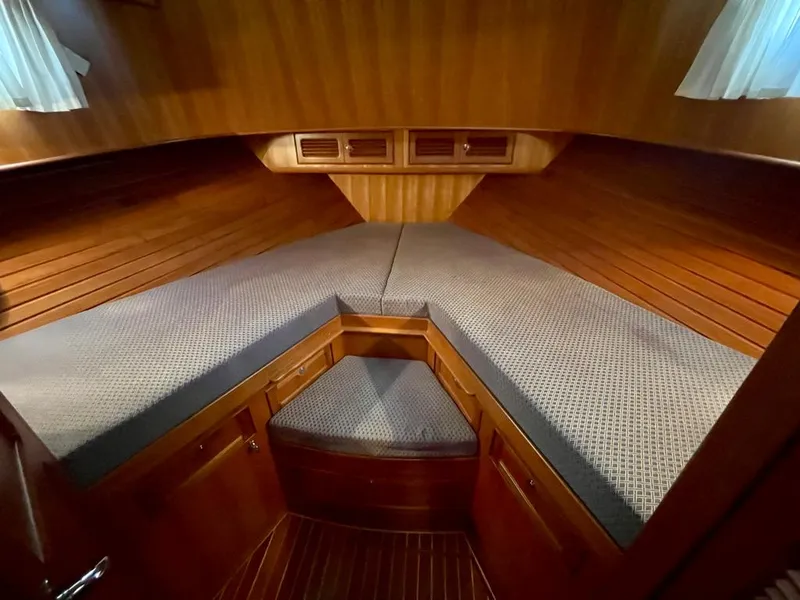

Guest Cabin Forward

The forward private guest cabin has a generous V-berth configured as two single berths, or with the insert, a very large double berth.

    •    Gear and clothing storage in numerous lockers, shelves and a hanging locker

    •    Two reading lights, and overhead lights

    •    Two opening port lights with curtains and screens

    •    Opening overheard hatch with blind and screen

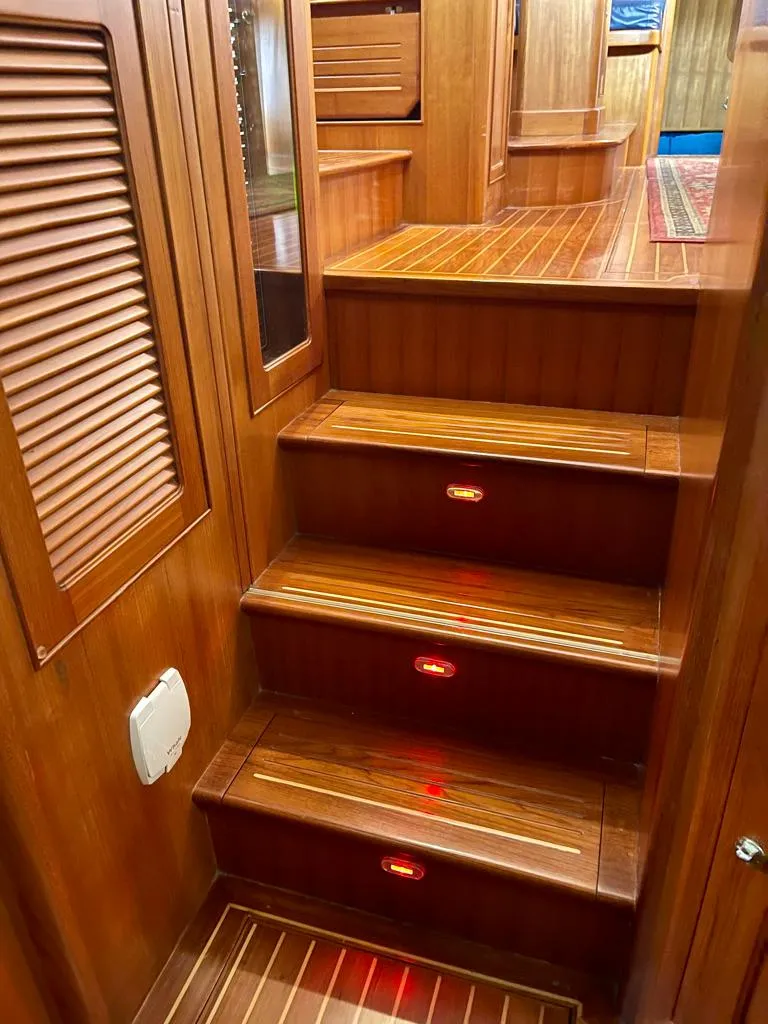

    •    Courtesy lights down the steps from the salon

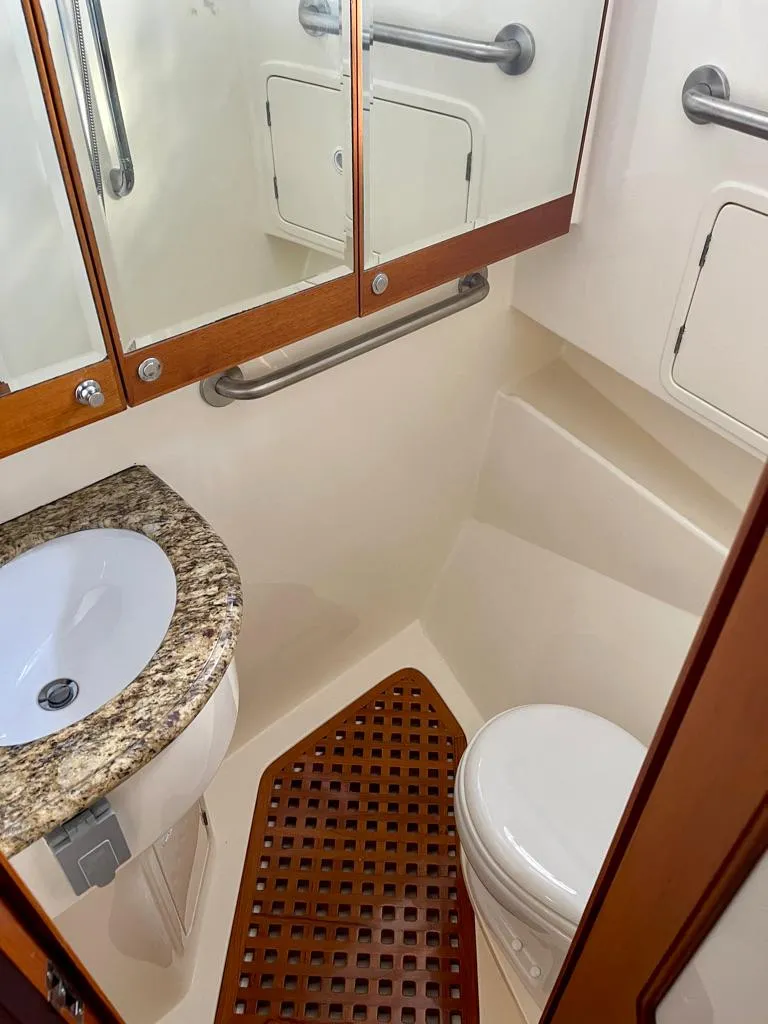

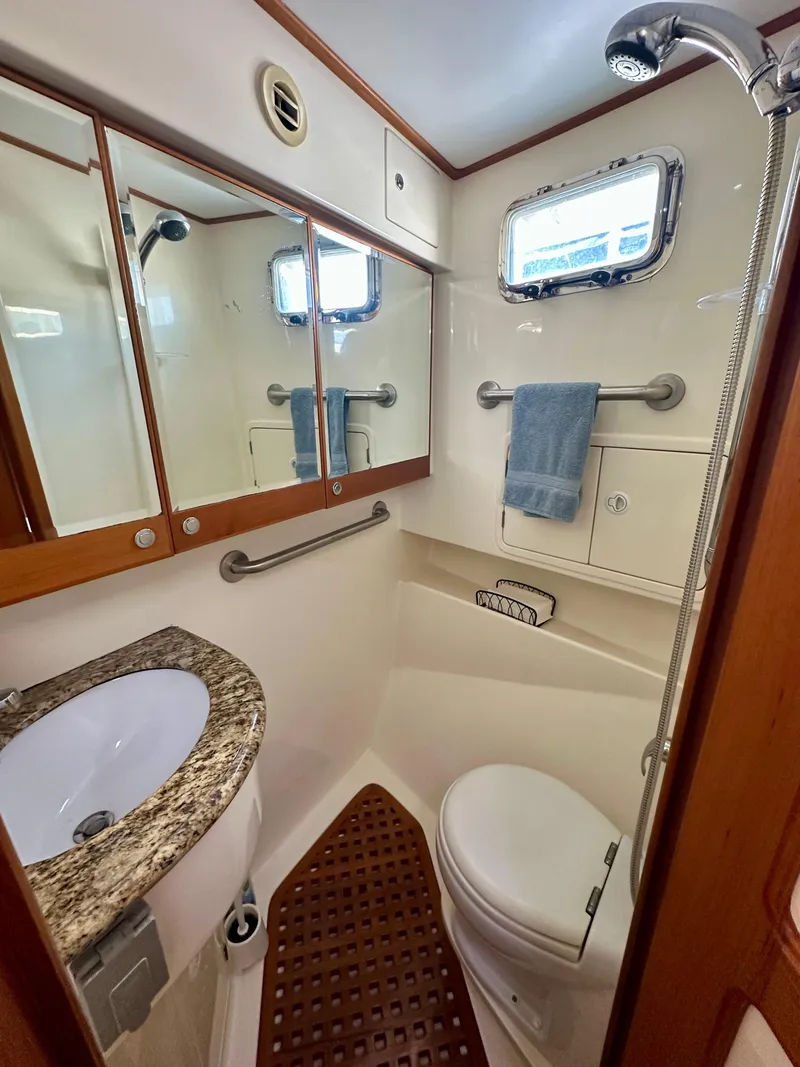

Guest Head Forward

The guest head is private to the cabin and is folded fibreglass for easy cleaning. The shower is integrated and there is a dedicated sump and pump beneath the teak grated floor.

    •    Tecma quiet flush Vacuflush marine toilet

    •    Corian counter with undermount sink

    •    Storage locker under basin

    •    Molded fibreglass shelf

    •    More storage behind mirrored cabinets

    •    Opening portlight

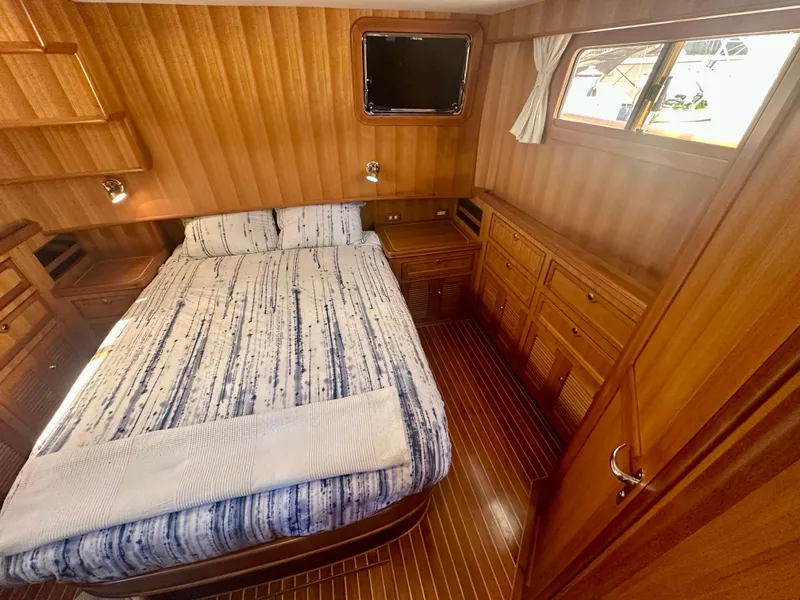

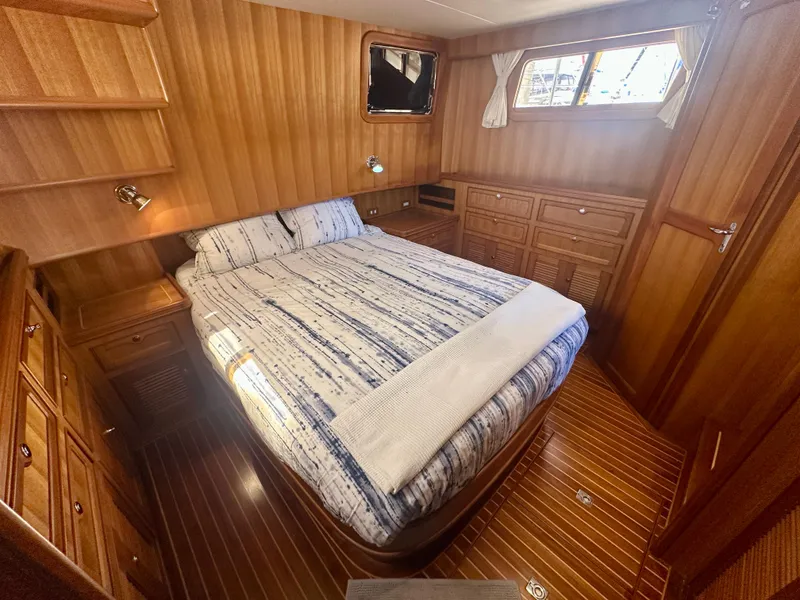

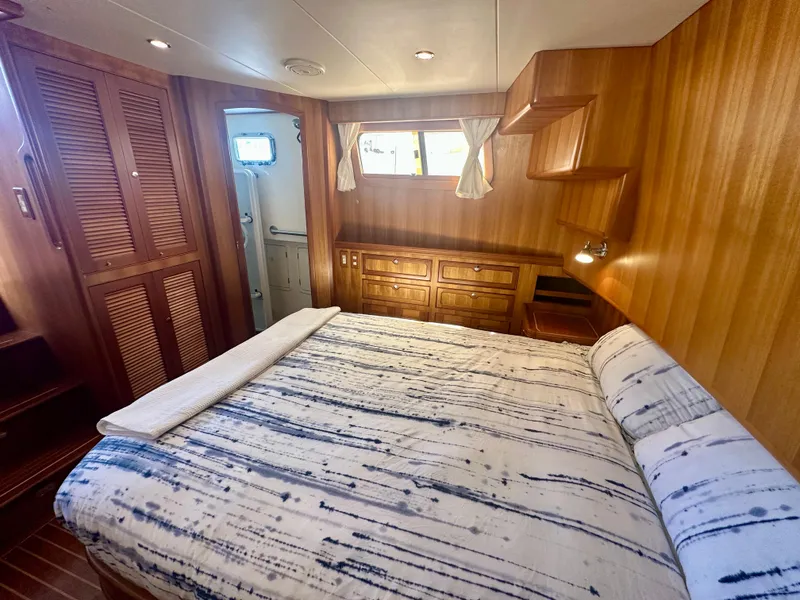

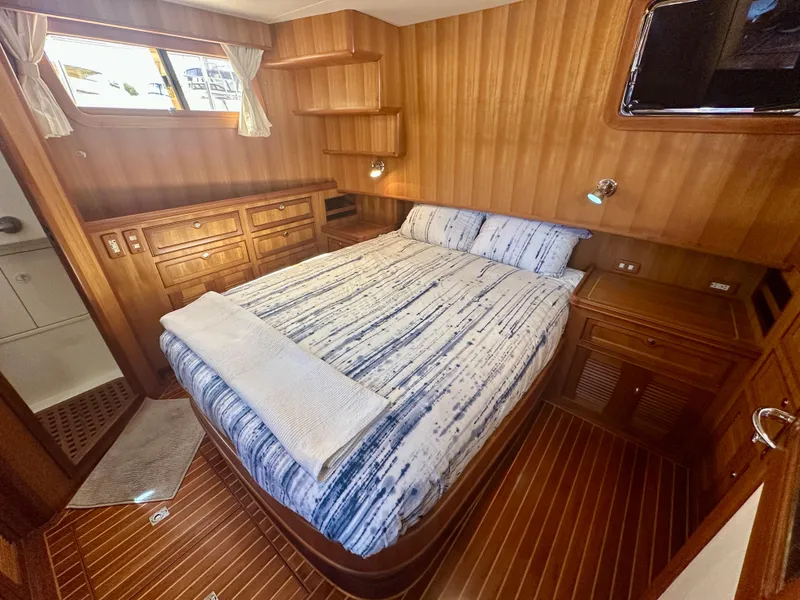

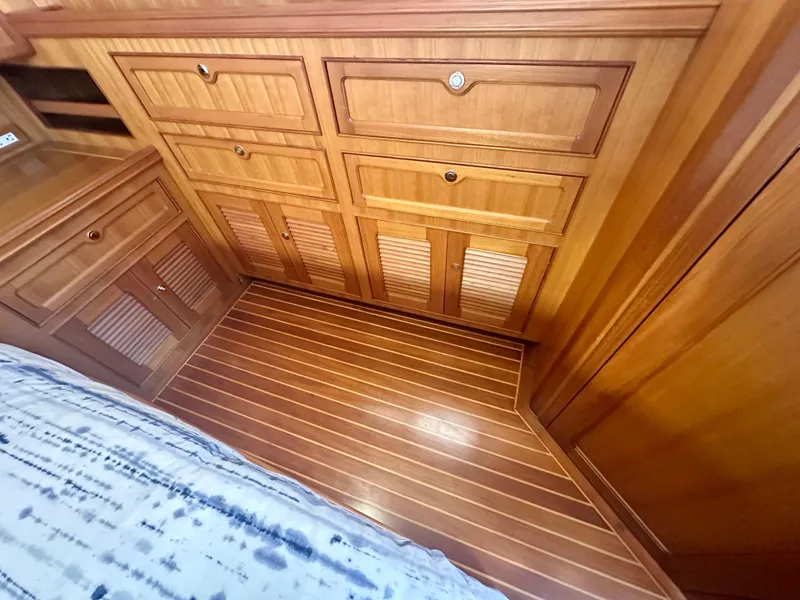

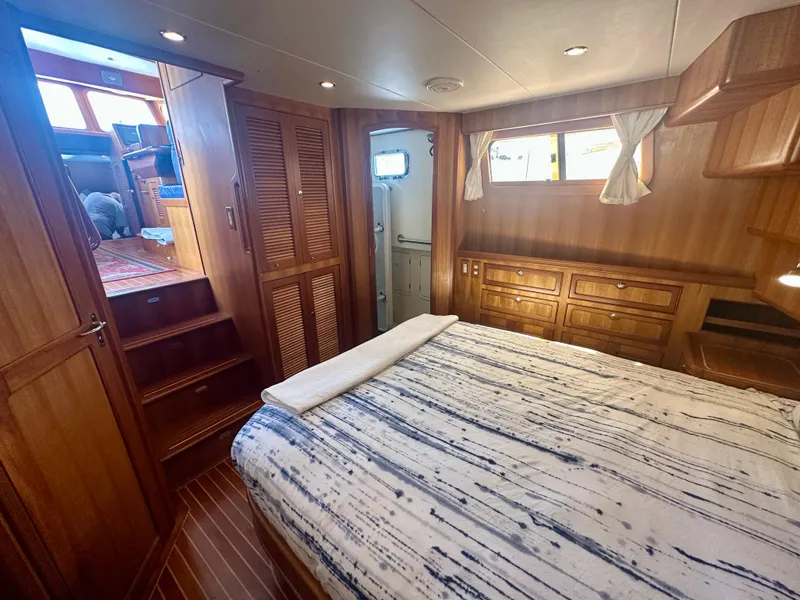

Owners Cabin Aft

The owners cabin is aft and is full beam providing a huge space for a 36-foot yacht.  The centre piece is the walk-around queen size berth with side tables, a bank of storage drawers on both port and starboard, and hanging lockers. Lots of natural light through an opening hatch and two opening side windows.

    •    Reading lights and overhead lights

    •    Teak side tables with storage under

    •    Teak and holly floor

    •    Book cubbies

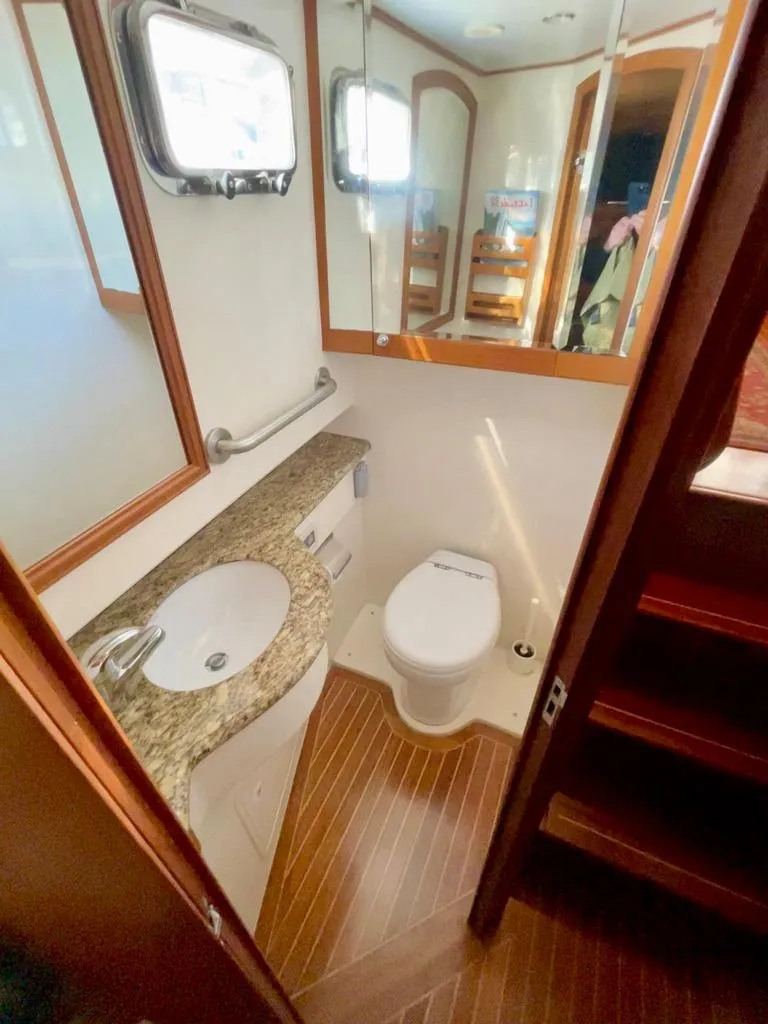

Owner’s Head Aft

The private head to the owners cabin is in two parts with the head and basin to port, and the large shower stall in a separate compartment to starboard.

    •    Tecma quiet flush marine toilet

    •    Opening port light

    •    Shelves

    •    Corian counter top with under counter sink

    •    Storage locker under basin

    •    Very large shower stall opposite with storage locker

    •    Towel rack

    •    Teak grate floor

    •    Opening port light

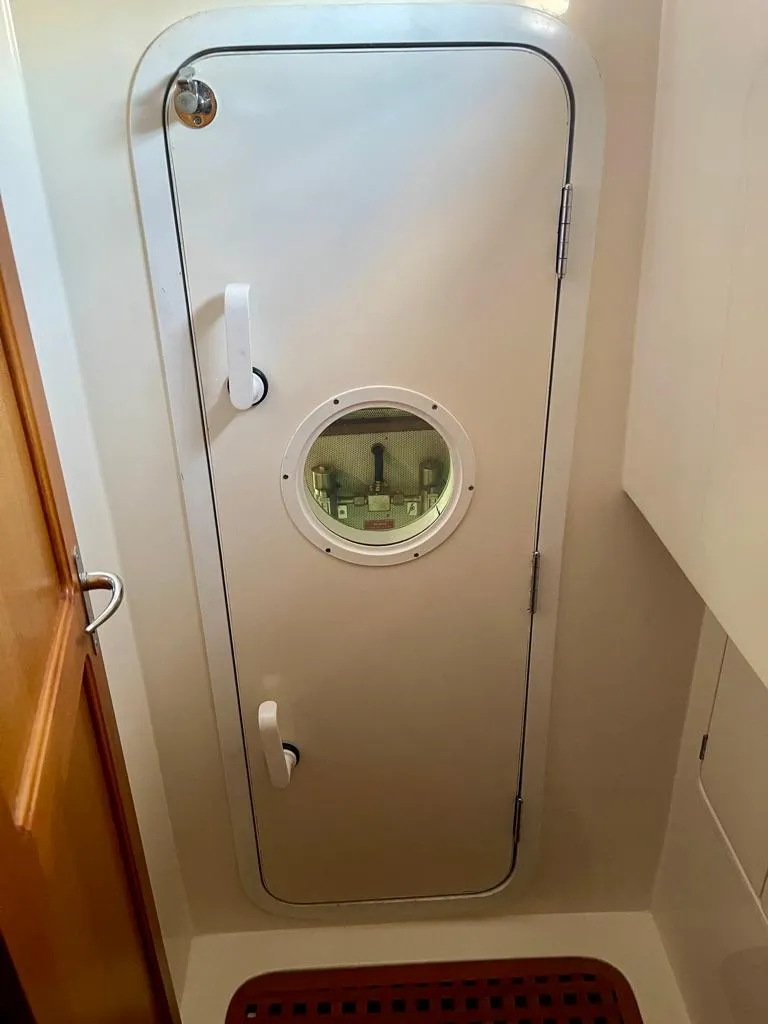

    •    Access to engine room

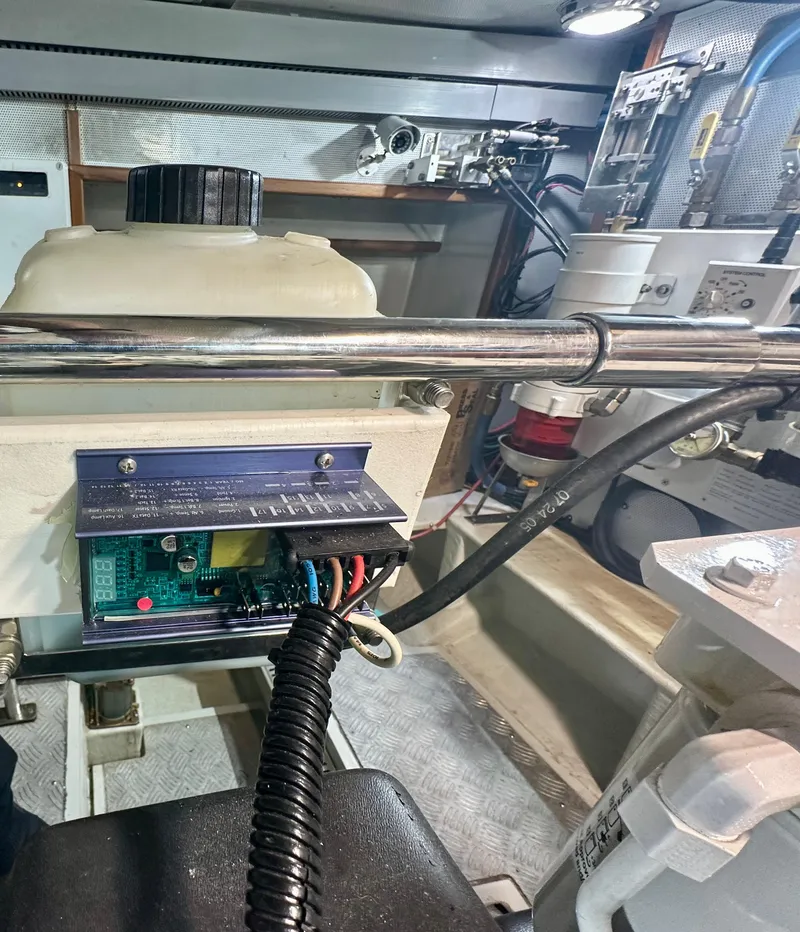

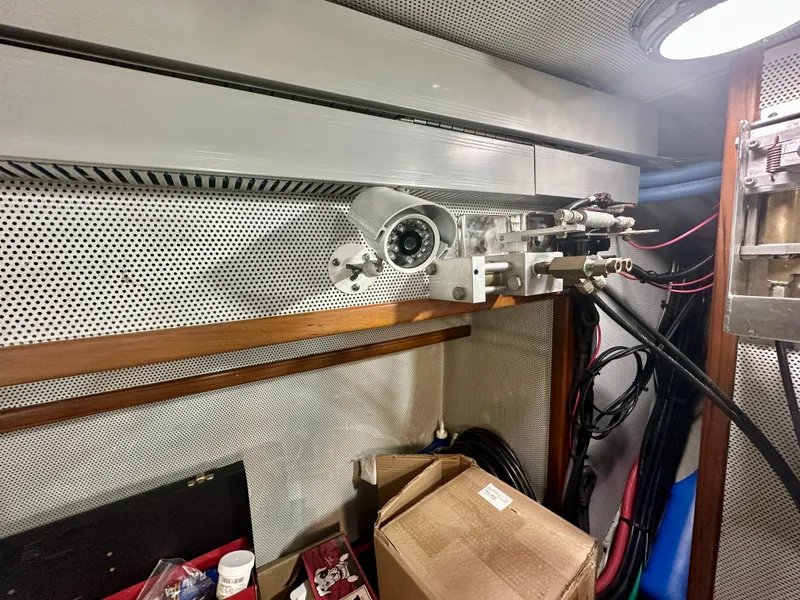

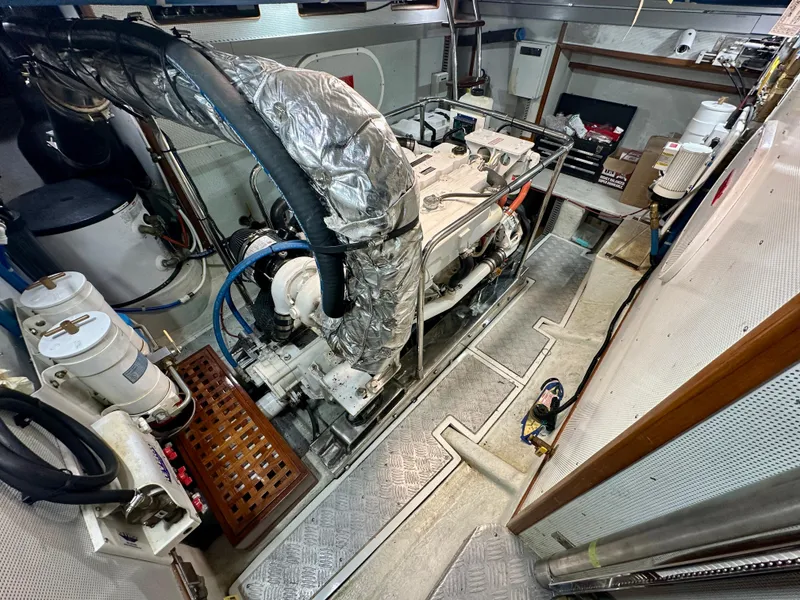

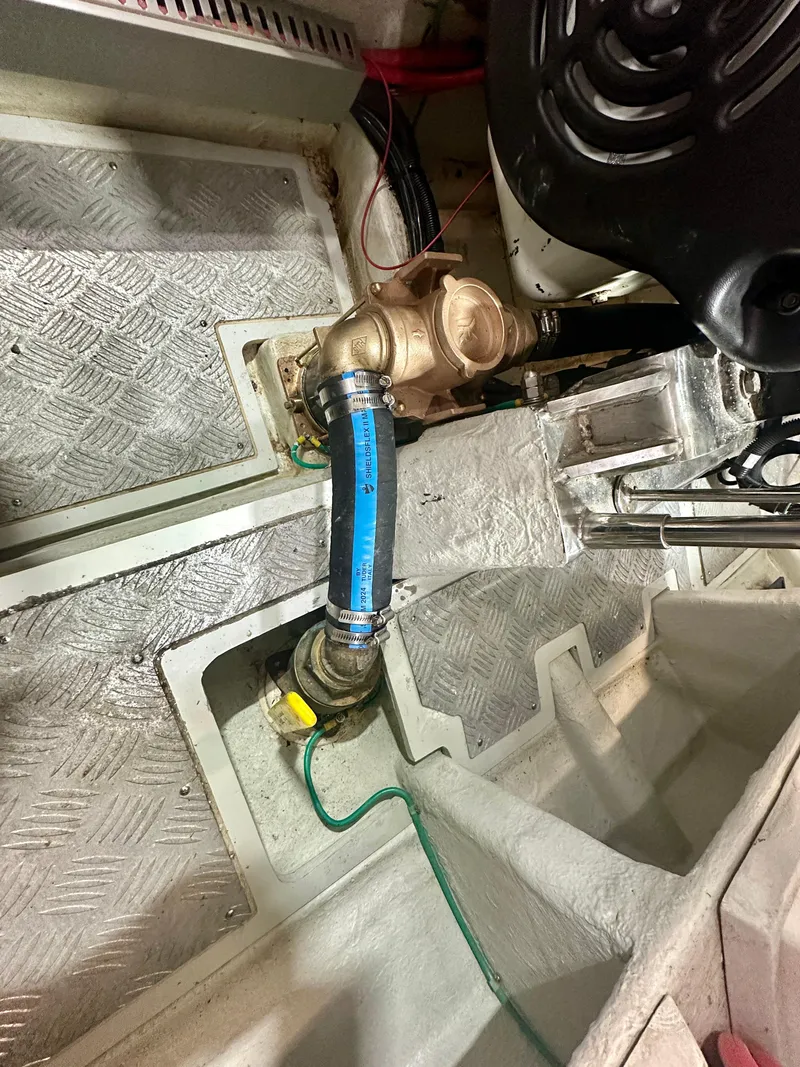

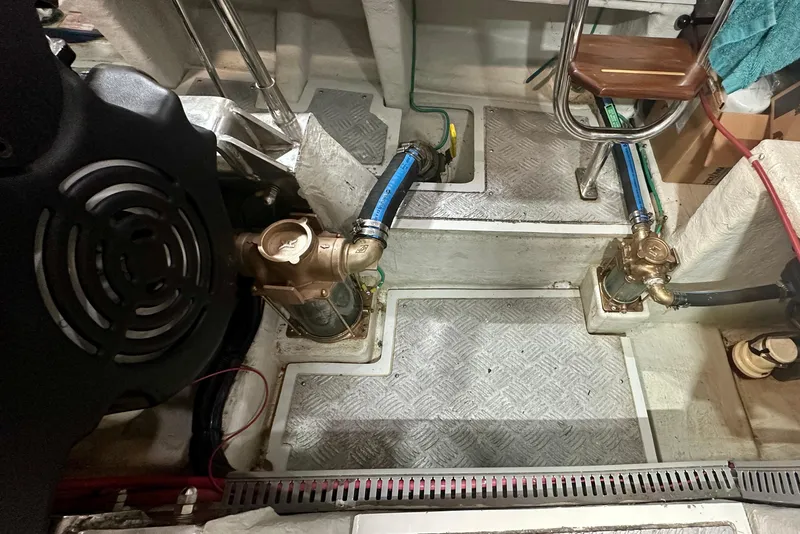

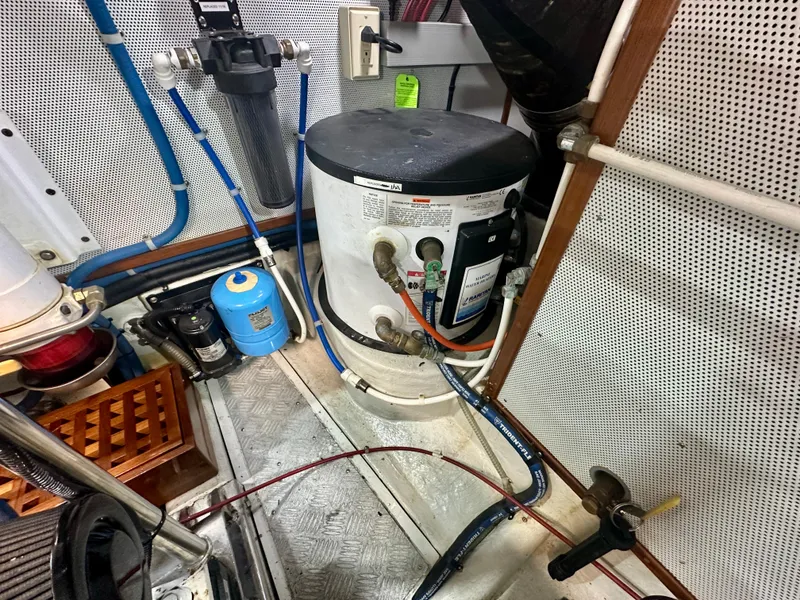

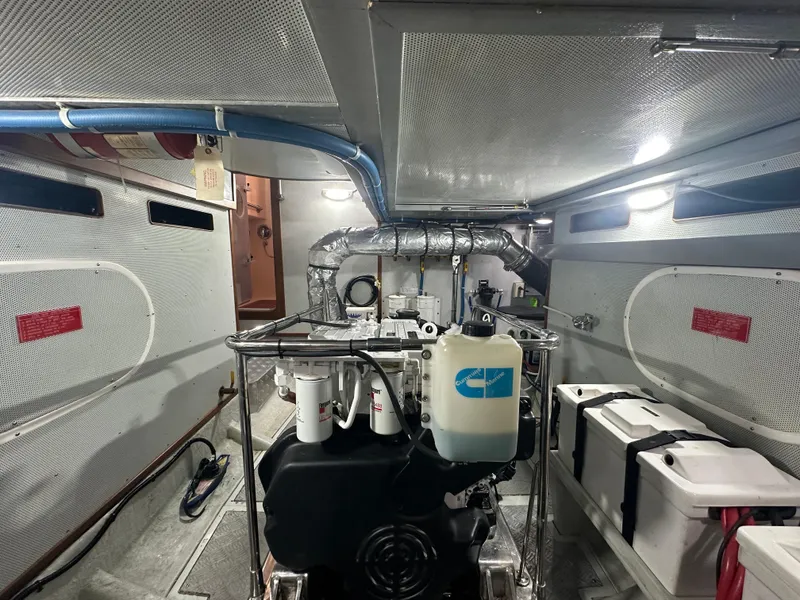

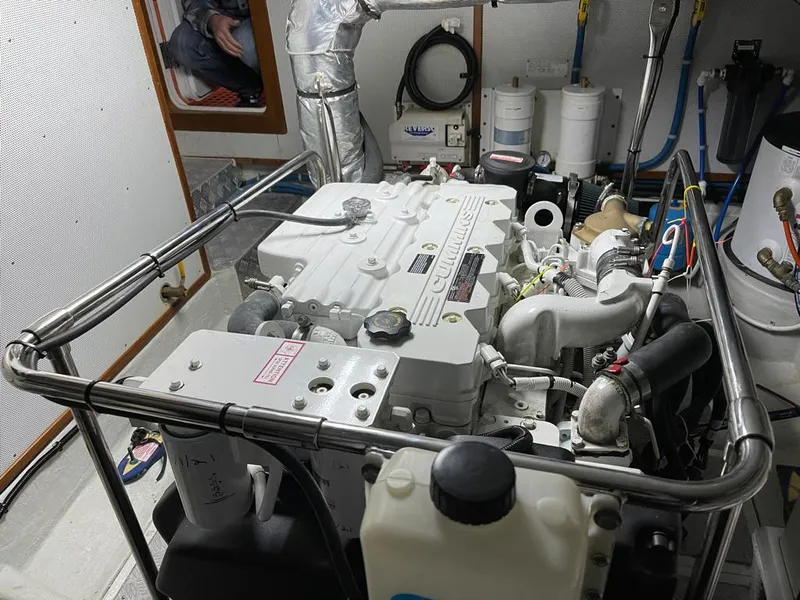

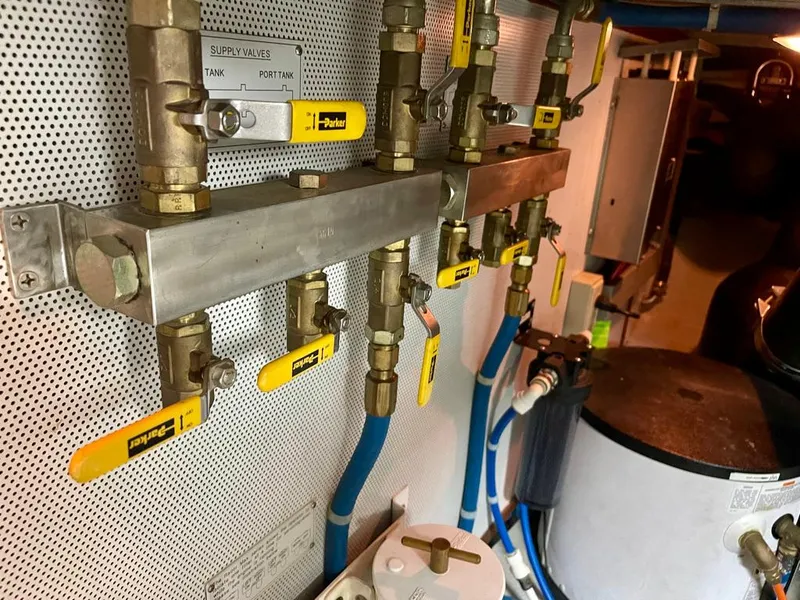

One of the most brilliant design elements of the 36 is the engine room. Passage Maker magazine quotes "AN ENGINE ROOM THAT EARNS HIGH MARKS" in a recent article covering this 36 Archer Ocean Trawler series. After passing through a full sized door located on the starboard side of the owners shower stall, you walk into the engine room where you can stand up and service the engine. The headroom is as much as 5'9" and is smartly gained from the space underneath the raised settee in the saloon. This is the most spacious engine room in any yacht of this size range.

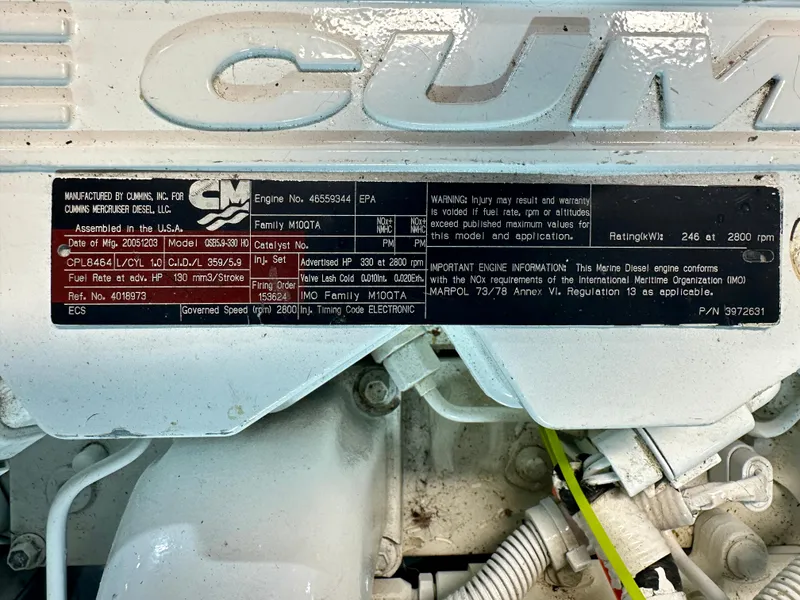

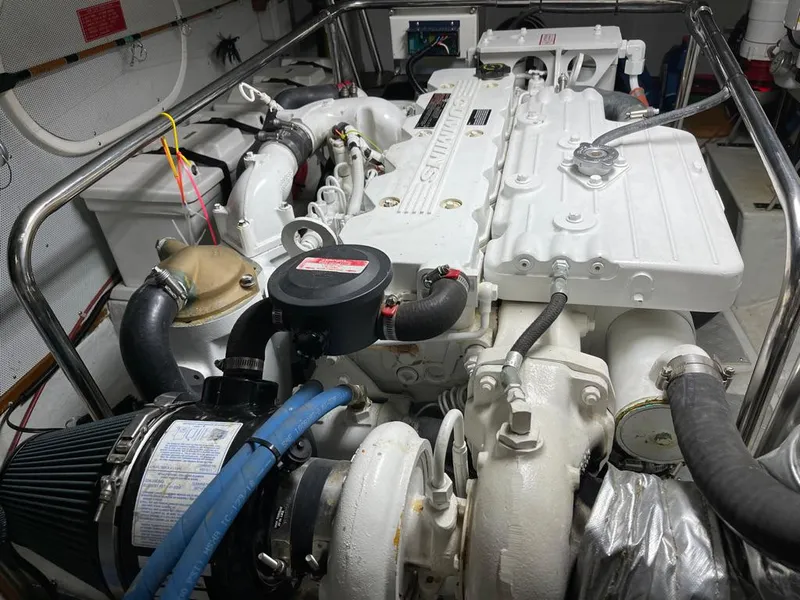

• 330 Hp Cummins QSM5.9-330-HO Diesel Engine w/ 701 Hours

• SidePower 8 Hp Bow & Stern Thrusters w/ Dual Joystick Controls at both helm stations

• Twin station Morse Teleflex hydraulic engine controls

• Steering: Dual station Morse-Teleflex Hynautic hydraulic, & Raymarine hydraulic autopilot

• Twin Disc M/N MG-5061SC transmission

• Custom Fuel Sight Gauges for both tanks

• Bronze four-bladed ZF 26.5” x 27 Propellor


• 2 1/4" Stainless Steel Shaft

• PYI-PSS dripless water injected shaft seal

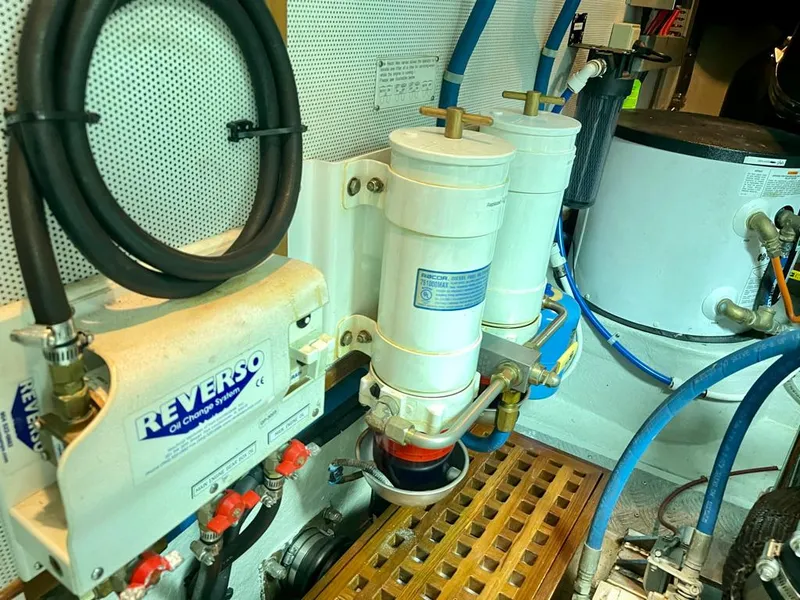

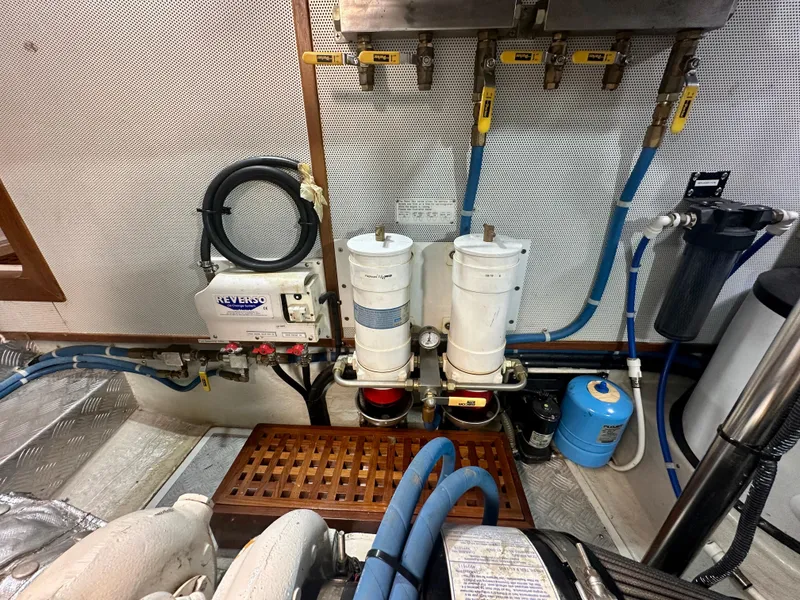

• Twin Racor 1000-MA Primary Fuel Filters w/ Water Separators

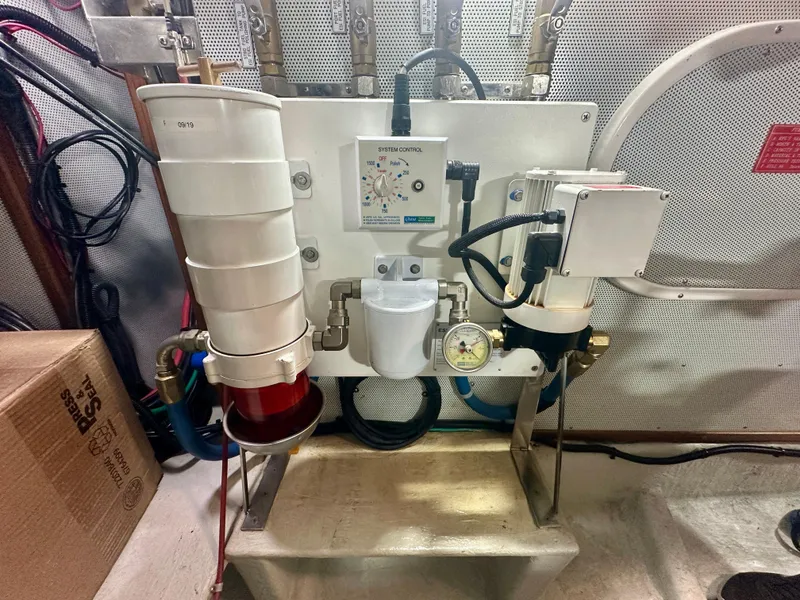

• ESI CleanFuel Fuel Polishing System

• Integral FRP (Fiberglass) Fuel Tanks 2 @ 250 Gallons each


• Reverse Oil Change System mounted on aft bulkhead in engine room
•

• Underwater Lights


• MATSU does not have a Generator installed. There is a shelf in the aft area of the engine room where one could install a generator. The shelf is pre-wired and plumbed for a generator including an exhaust. She has been priced aggressively taking this  into account

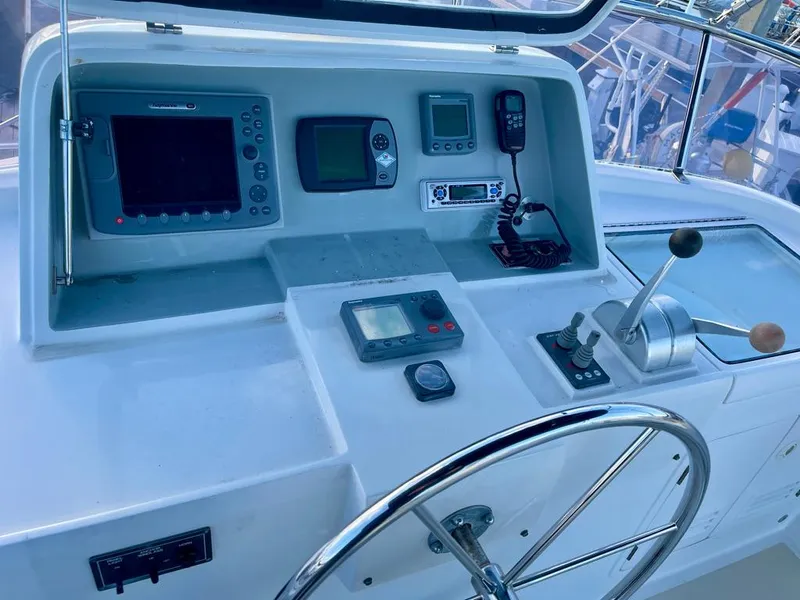

2 Danforth Global Balance compasses

1 Raymarine E-80 multi-function navigation display

1 Raymarine E-120 multi-function navigation display

1 Raymarine 4KW radar scanner

2 Raymarine ST 60 Tridata digital depth/speed/log

1 Raymarine SNG-AST Smartpilot autopilot processor

1 Raymarine ST6002 autopilot controller

1 Raymarine ST8002 autopilot controller

1 Raymarine fluxgate autopilot compass

2 VDO rudder indicators

1 ICOM IC-M504 DSC VHF radio with Command remote fly bridge mic
