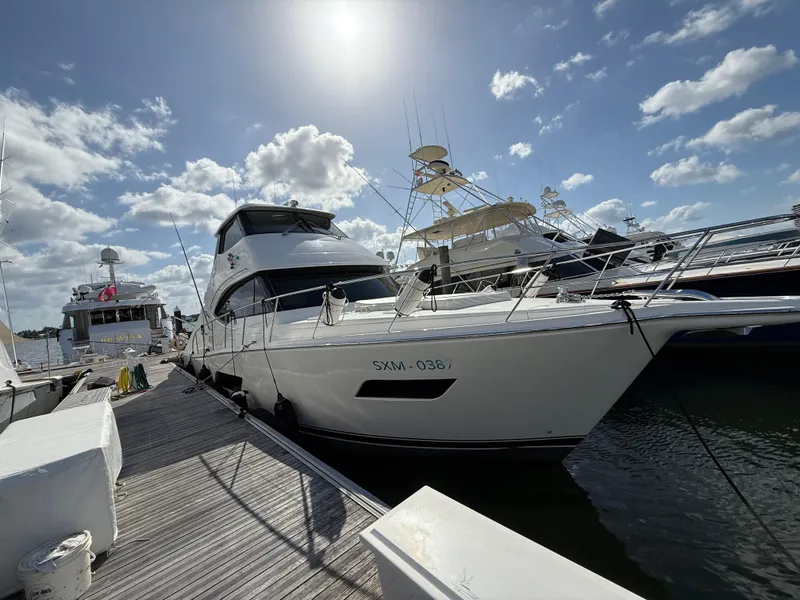

2022 Riviera 54 Enclosed Flybridge Sold Boat in Virginia Beach, VA 23451 US

CONSTRUCTION

Forward underfloor area foam-filled

Hand-laid, molded fiberglass hull, cored deck, hull topsides

and flybridge

Independent compartments throughout the hull

lsophthalic gel coat exterior (white)

Solid GRP keel, chines, and engine penetration area

Vinylester resin in the first outer layer of the hull

Watertight collision bulkhead forward

GENERAL SPECIFICATIONS

All exterior stainless steel mirror finish with ground and

polished welds 316 marine grade

Antifouling: 2 coats epoxy undercoat, two coats antifoul with

Propspeed coating to propellers & Pod Drive gear

Fenders x 4, dock lines x 3, and boat hook

Fire extinguishers, portable x 4, and integral system to engine

room

Gelcoat - 1 litre, shipped on board

Owner's manual - High quality, water resistant and

comprehensive

Safety labels - English language

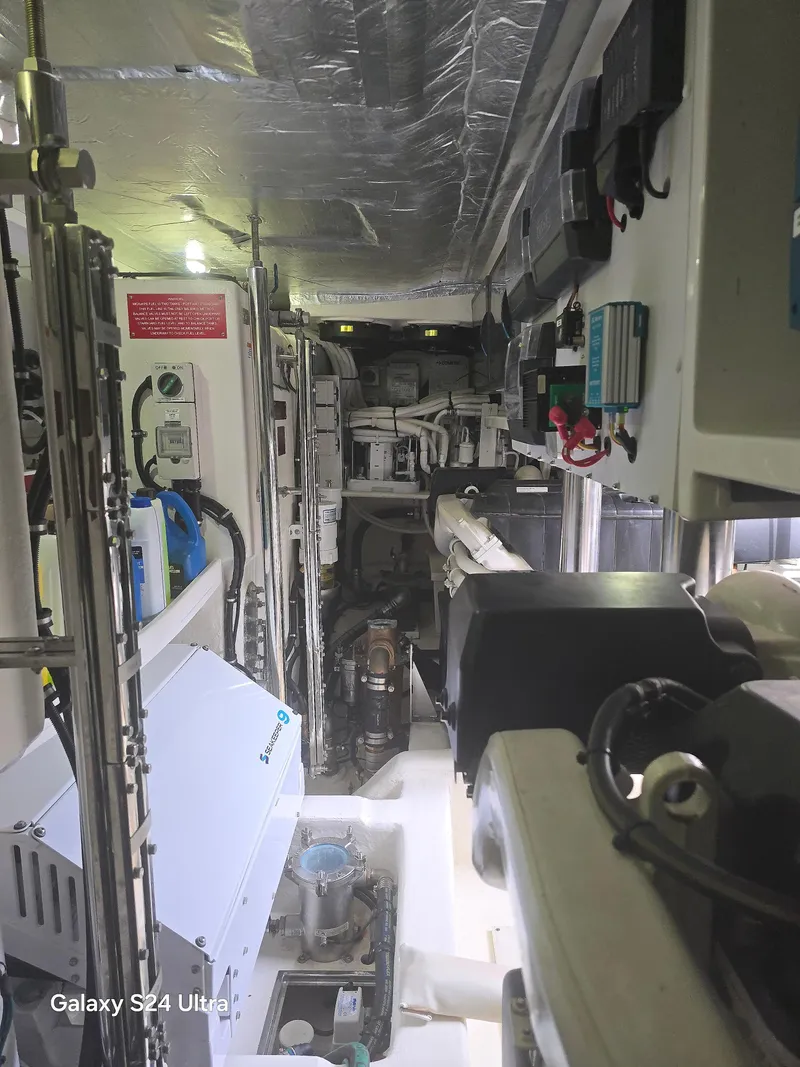

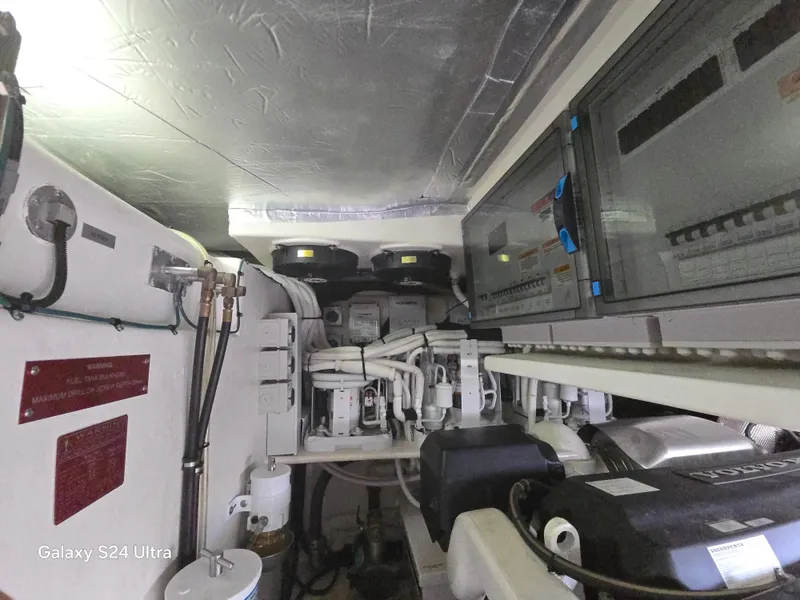

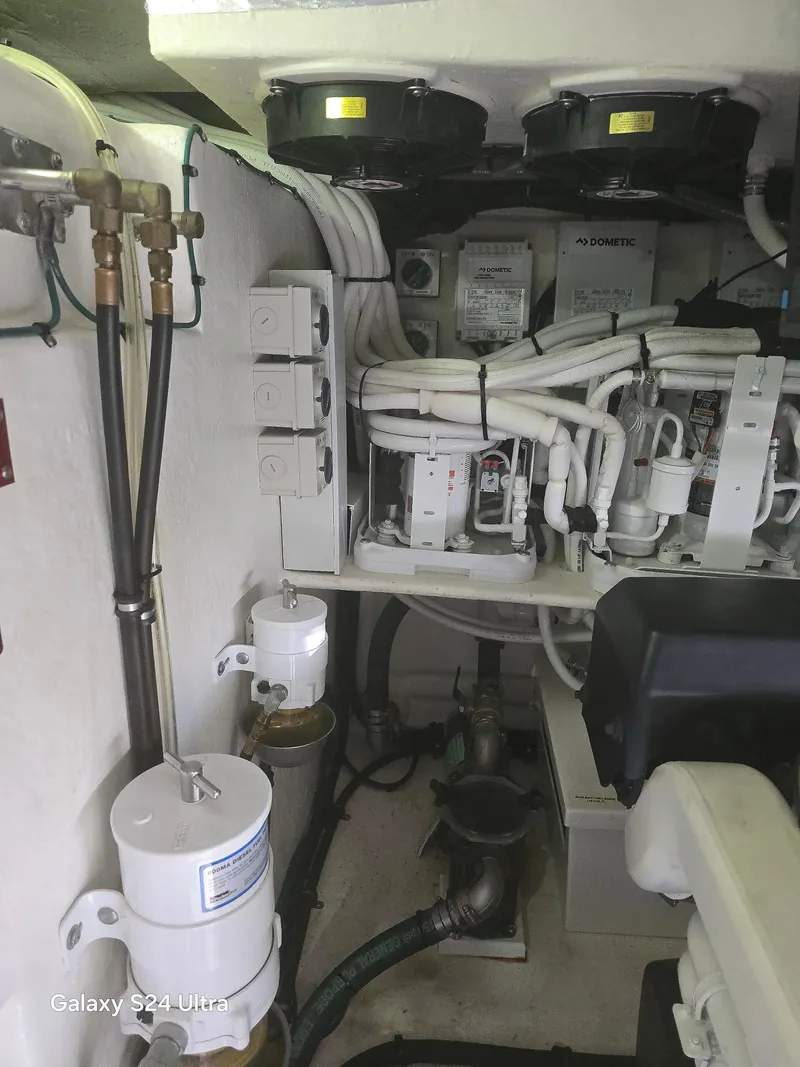

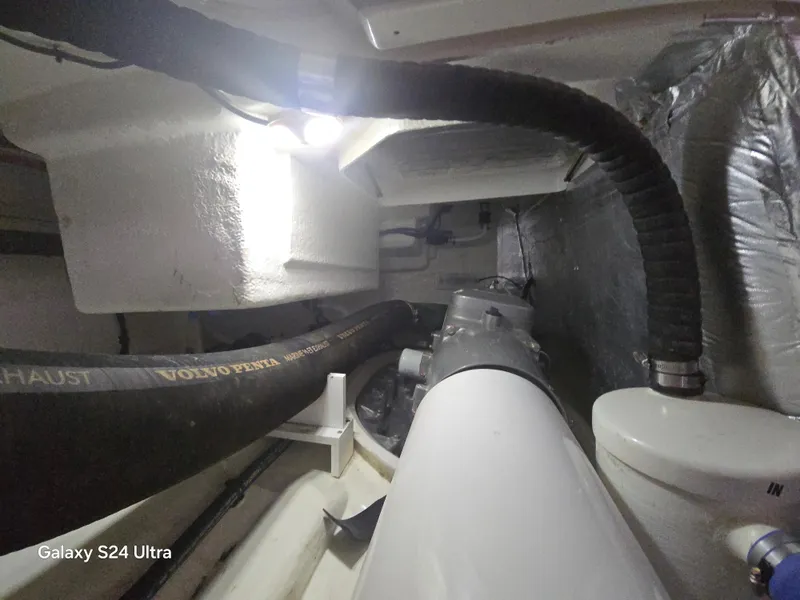

MECHANICAL

Acoustic and thermal insulation linings to engine room and machinery spaces

Fuel fillers to port & stbd

All through hull fittings on or below the water line are fitted with ball valves, and all hoses are double-clamped.

Bilge pumps - auto and manual override x 4

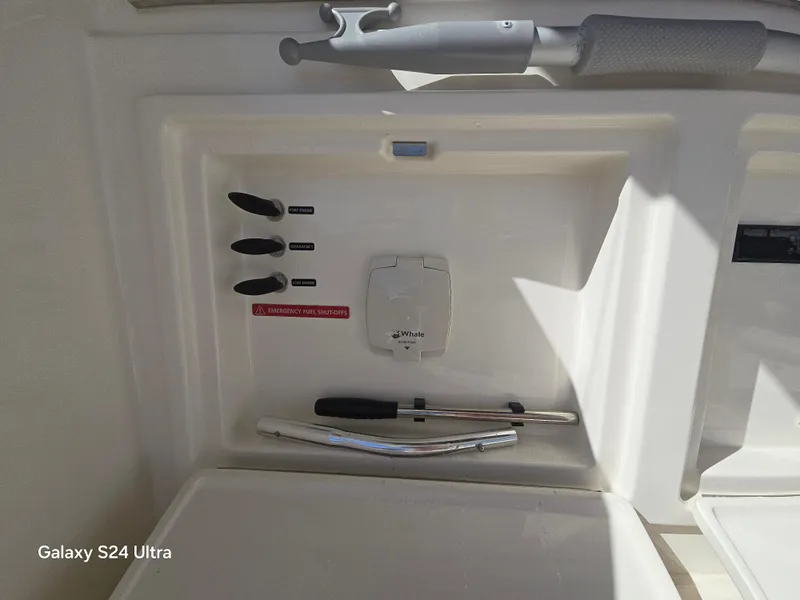

Emergency fuel shut-off valves accessed from outside the engine room

Engine monitoring display (Volvo) - 7" Glass Bridge MFD

Engine mounts - anti-vibration

Engine room access with stainless steel ladder

Engine room flow-coated white

The engine room has stand-up space forward

Engine room lighting LED (DC)

Engine room ventilation system air intakes with mist

eliminators and forced air-out system

External & internal seawater strainers for main water intakes

- engines, generator & air conditioning

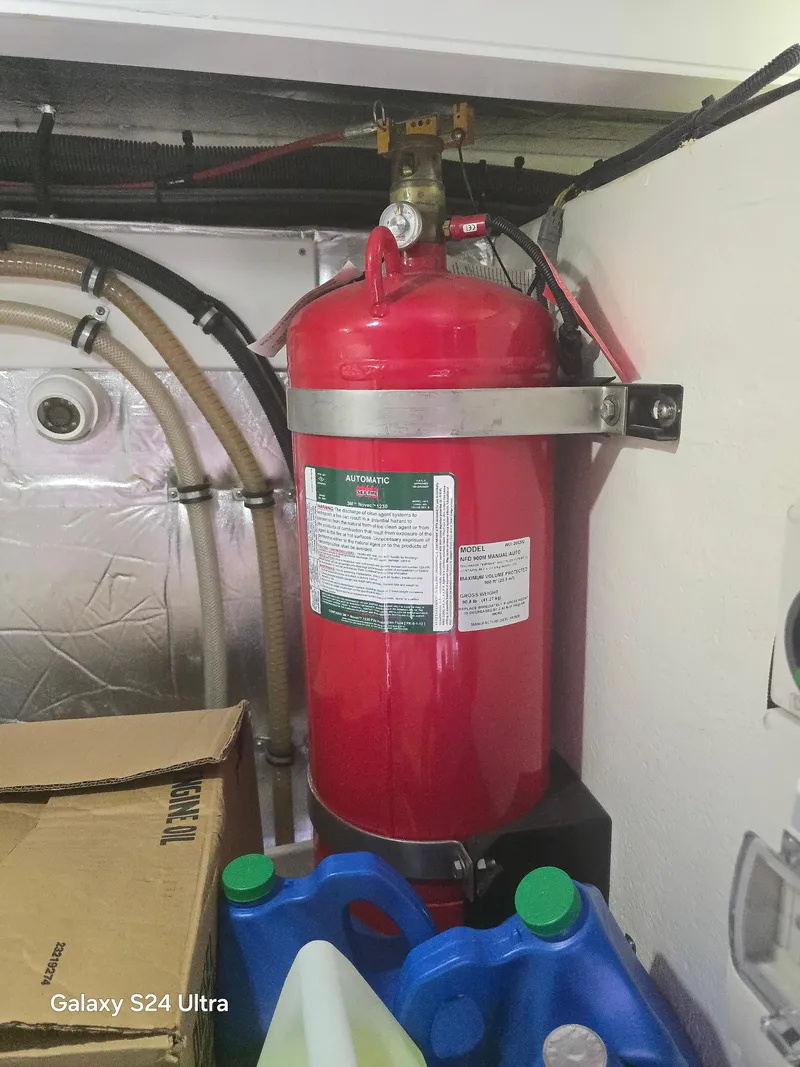

Fire suppression system for engine room with

automatic/manual controls

Fresh water heater AC

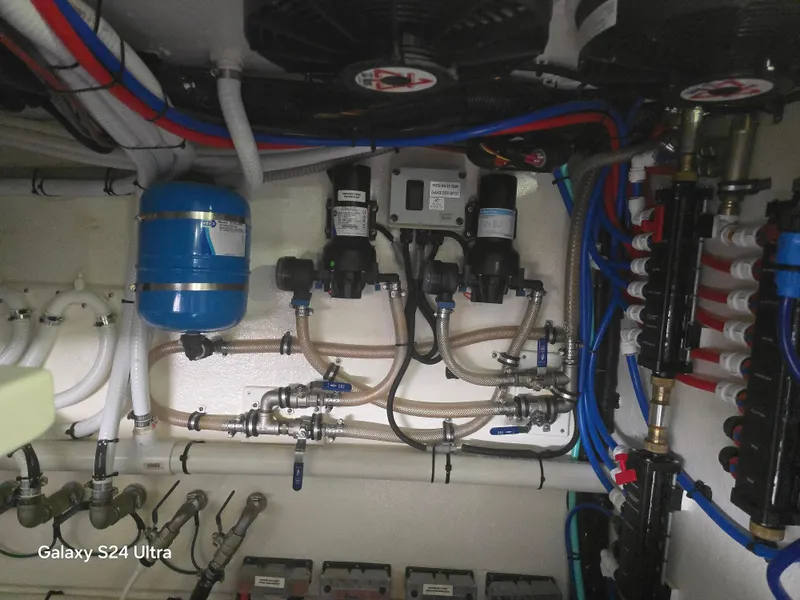

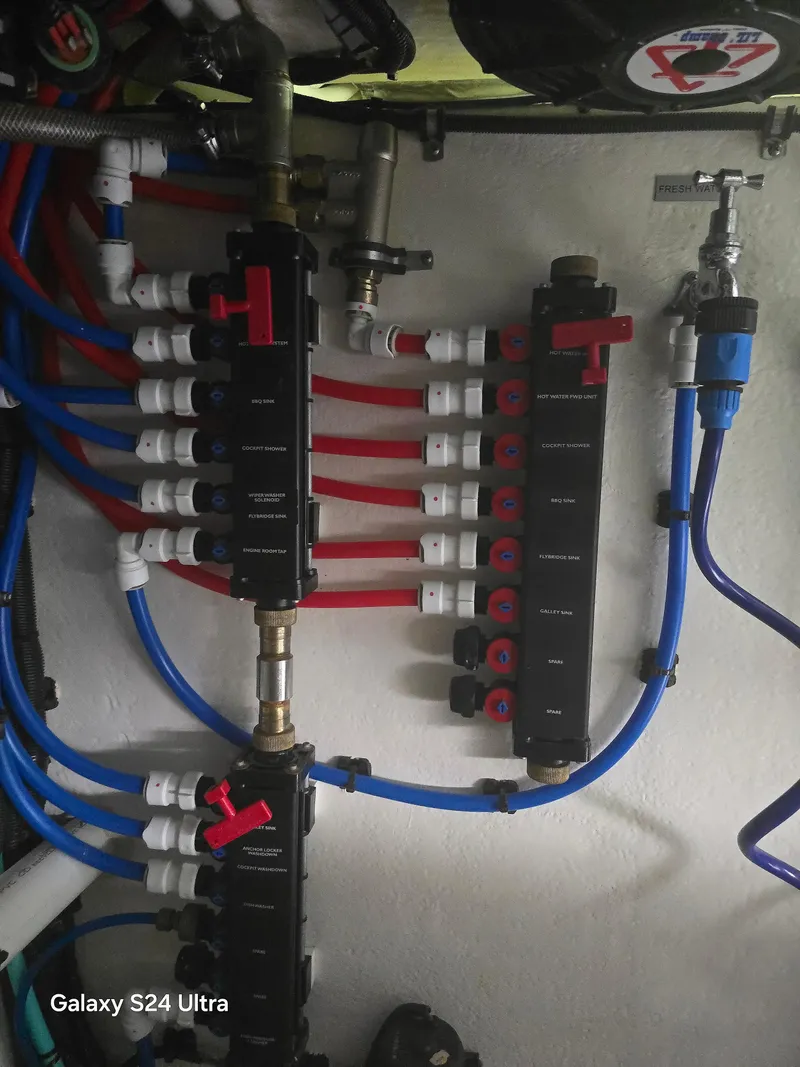

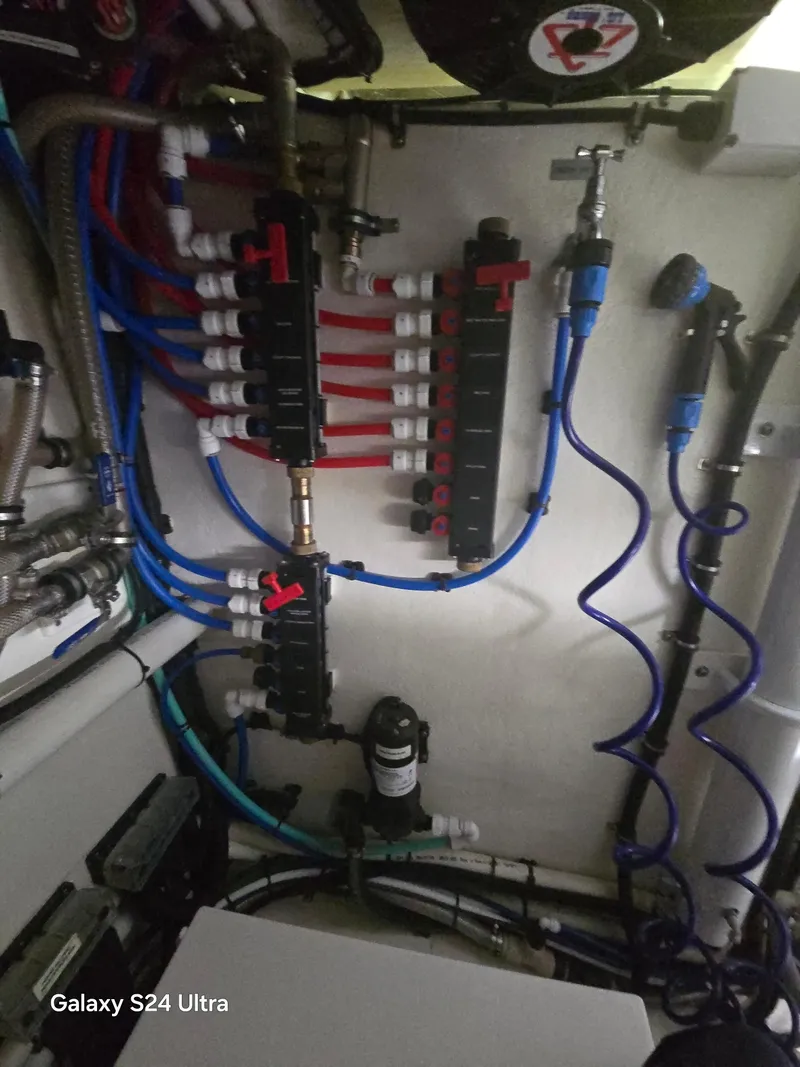

Fresh water system (pressurized) total capacity 800 Litres

(211 US gallons)* (approx)

Fresh water tap & hose set in the engine room

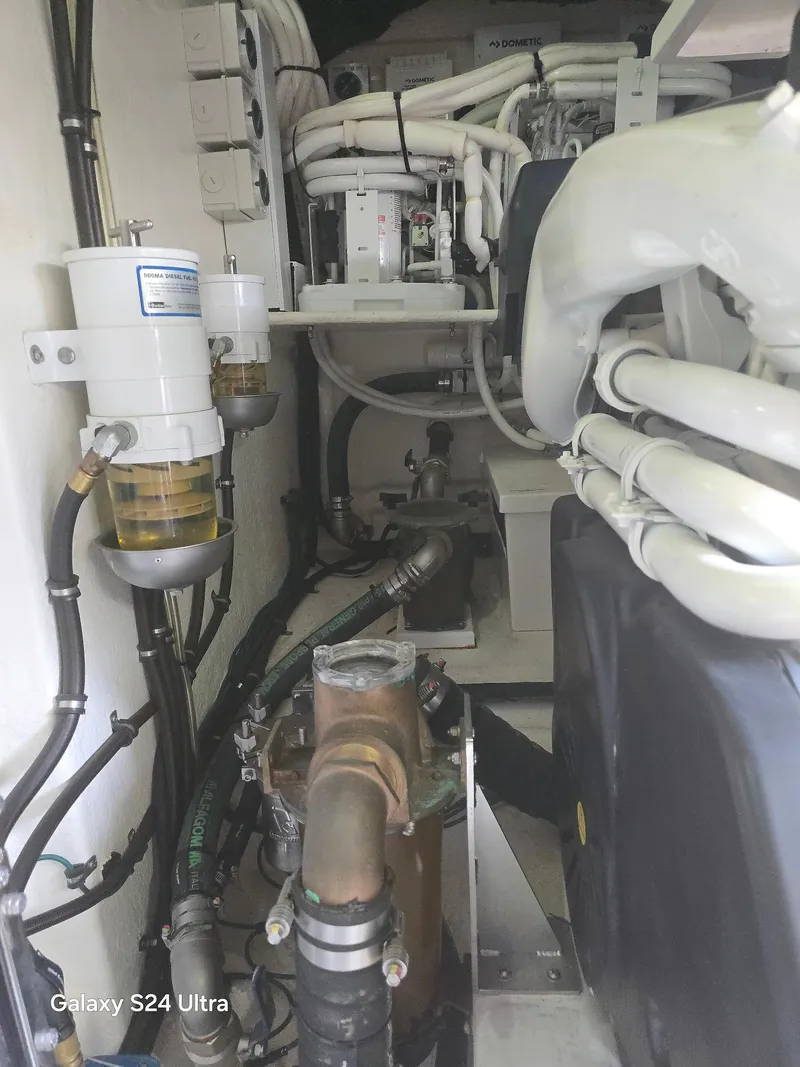

Fuel filters/ water separator for engines & generator

Fuel lines all swaged

Fuel tank gauge linked into Czone & sight gauge fitted to the tank

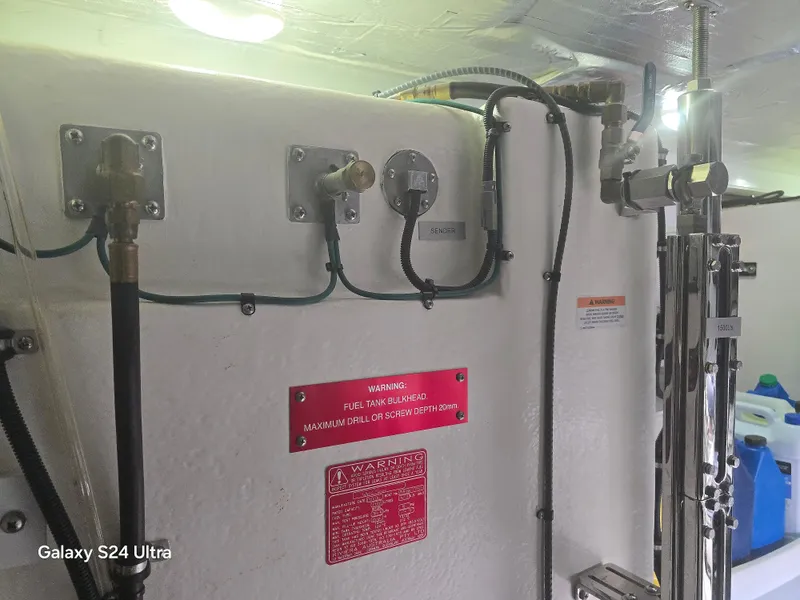

Fuel tanks (x2) with balance line, GRP (ethanol-resistant

resin), coated in fire retardant material. Total 3,500 litres (925

US gallons) *(approx.)

Sanitation system, monitoring on Czone with overboard

pump out and deck fitting for dockside pump-out

Trim Tabs - Volvo trim assist system

Volvo - Line cutters fitted to drives (Volvo Engines only)

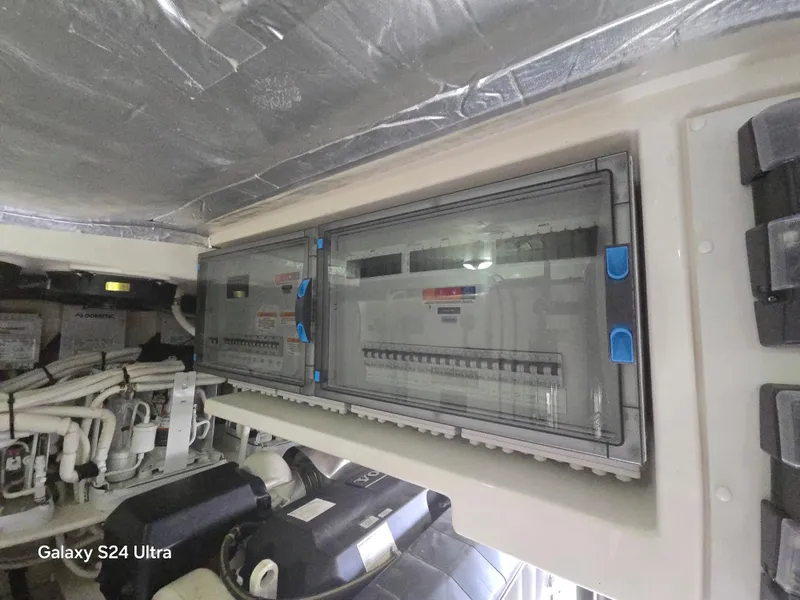

ELECTRICAL

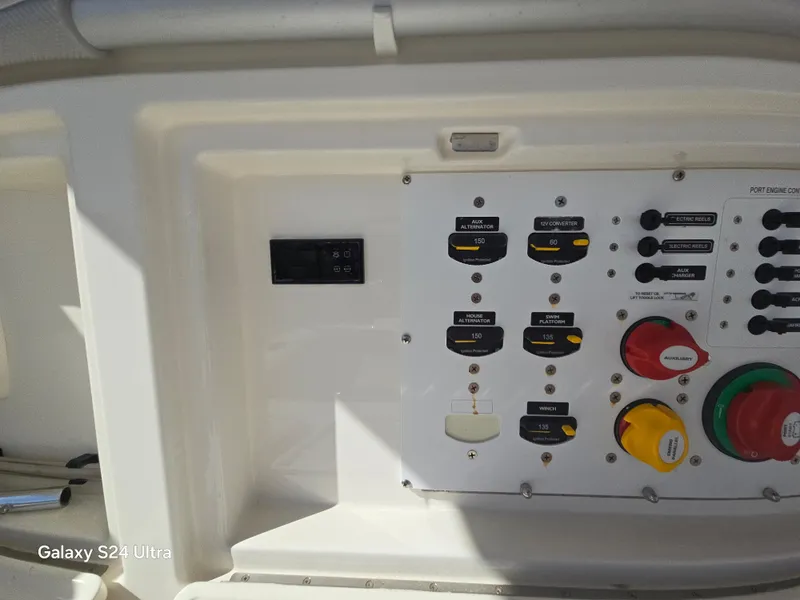

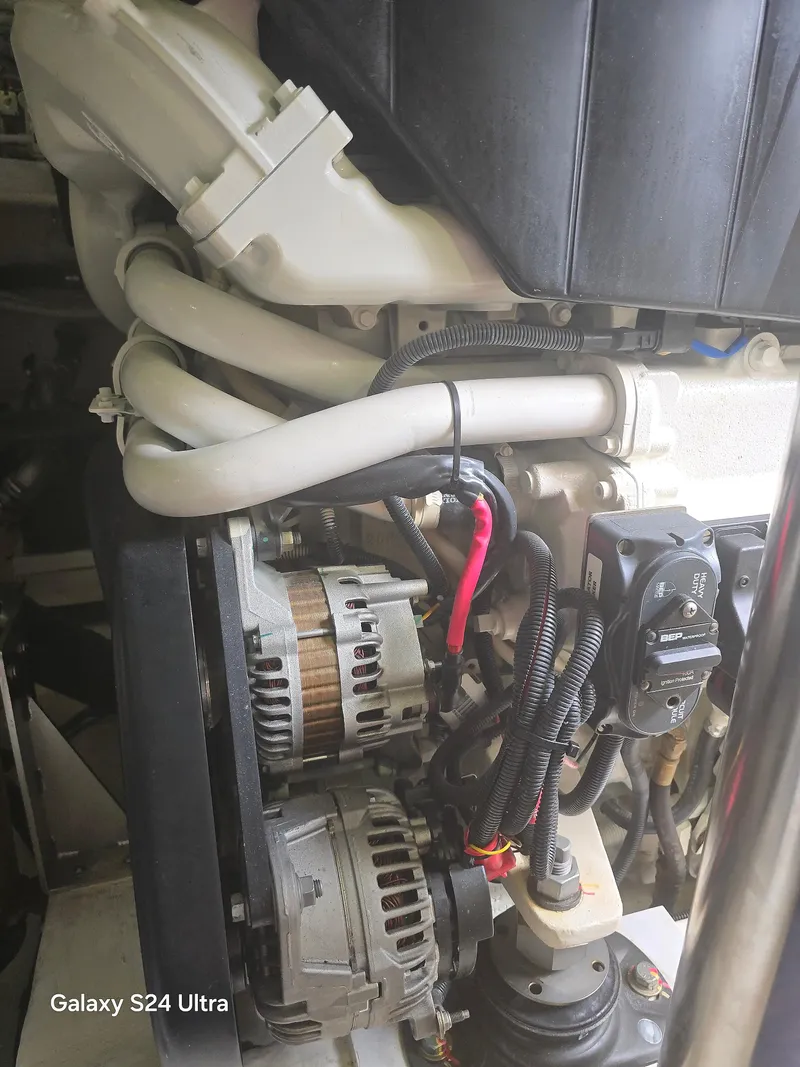

Alternators - Independent start bank and independent house

bank (total x 4)

Battery banks are individually isolated

Battery paralleling system for emergency engine starting

Bonding system to all metallic hull fittings under the water

line with zinc anode, including galvanic isolator

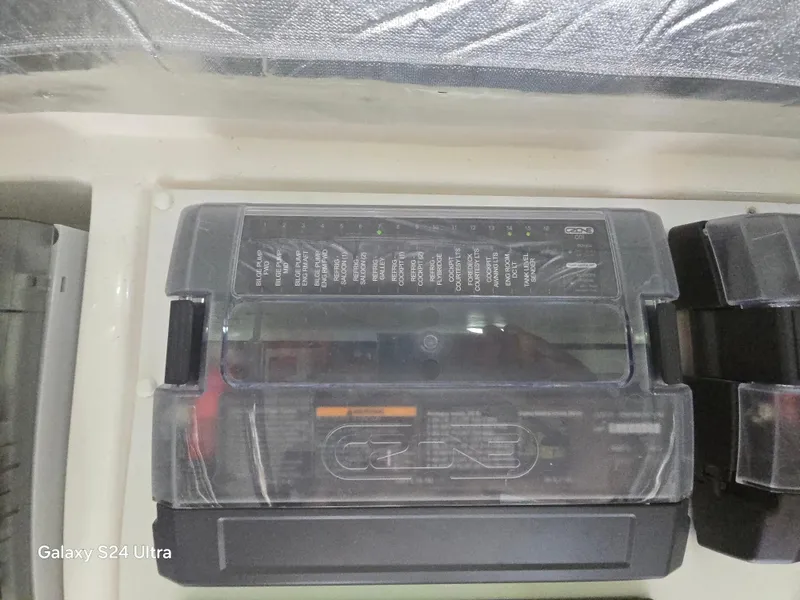

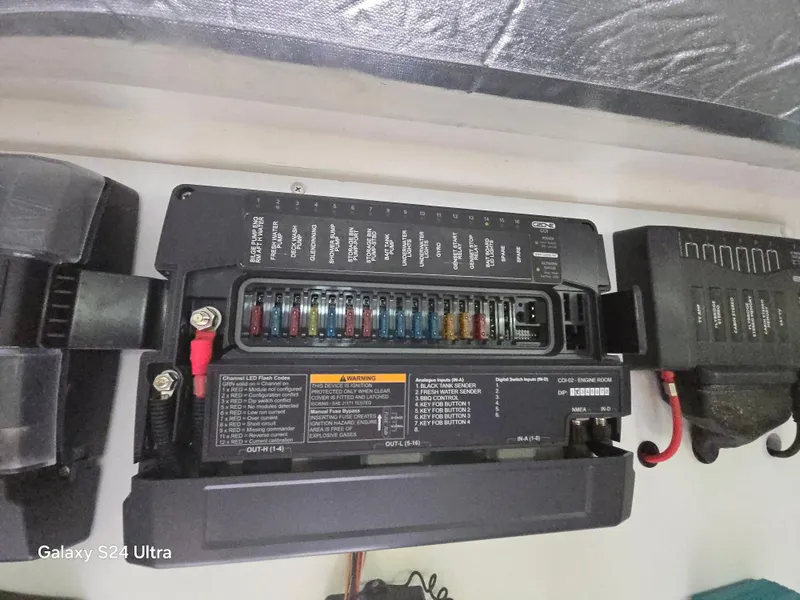

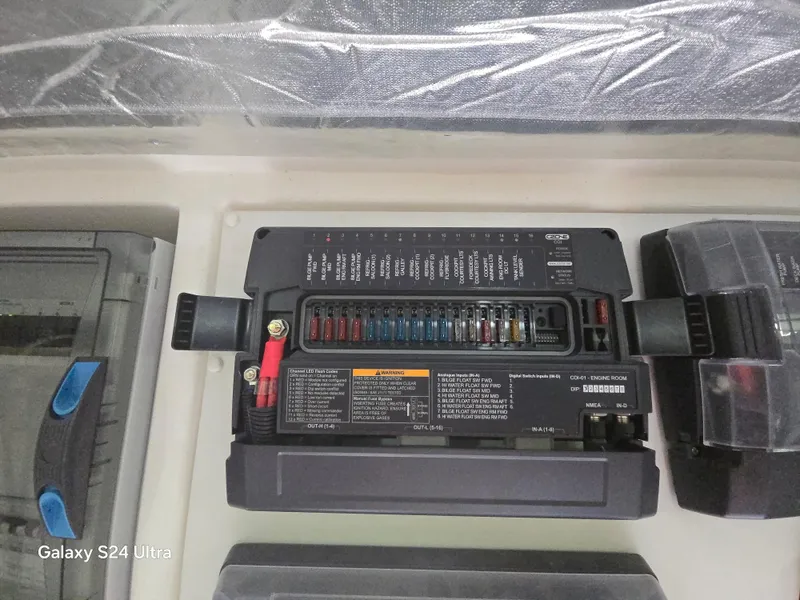

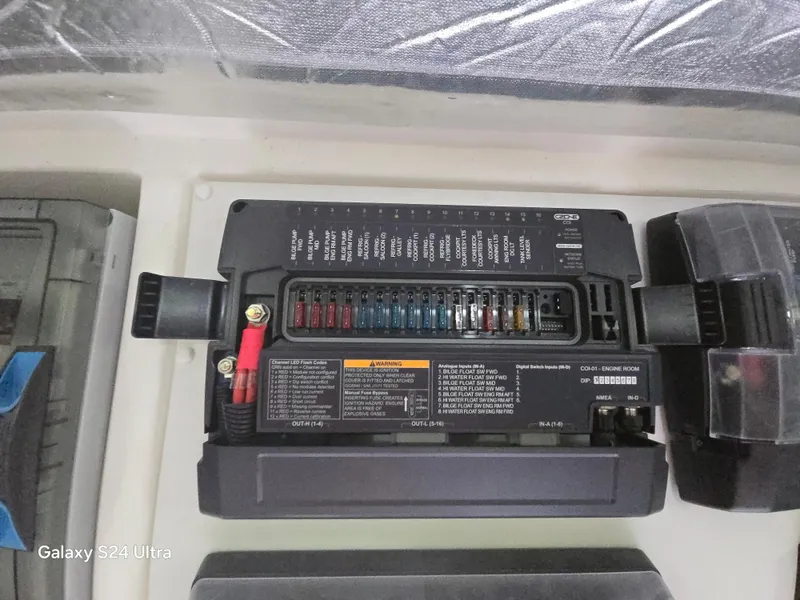

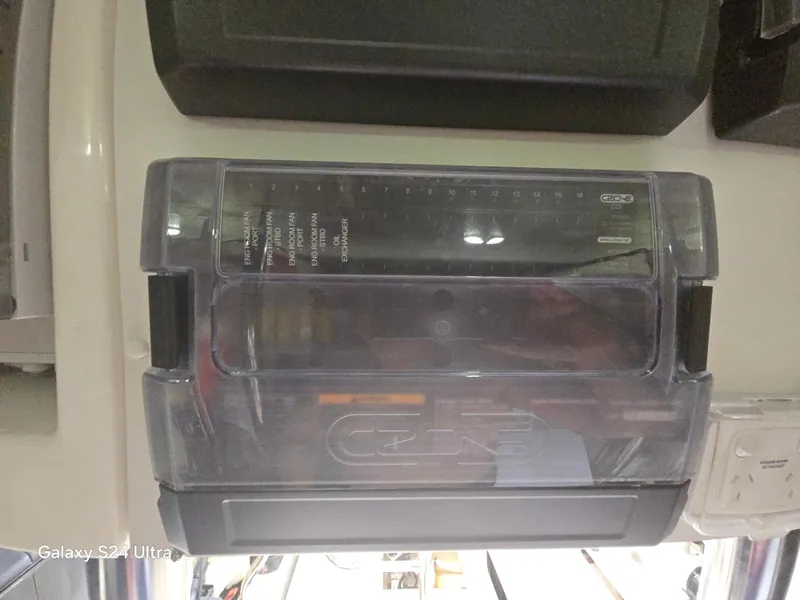

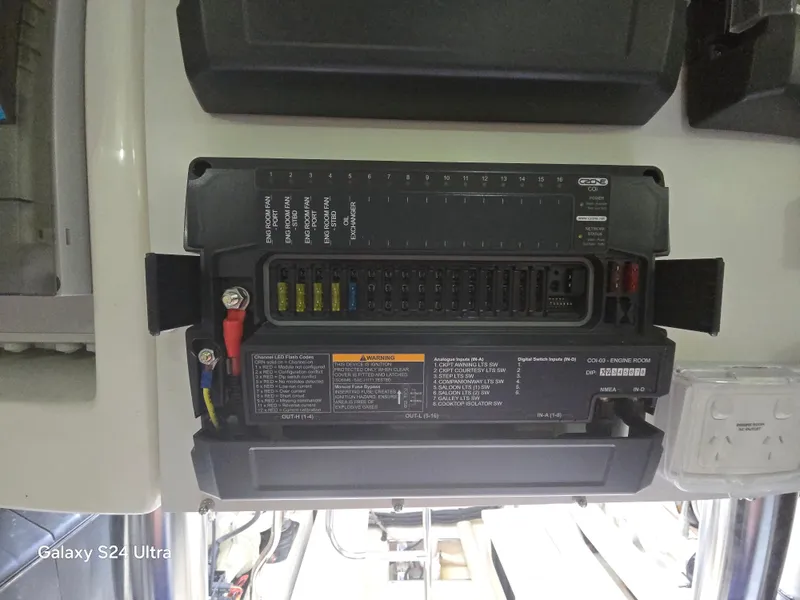

Digital monitoring system including AC& DC power metering,

fluid tank level monitoring & DC circuit status via 1 0" color

LCD touch screen mounted at aft saloon and 5" Touch

control screen at the helm

Generator - Onan EQD 13.5 kw/S0Hz with muffler, fresh water-cooled including sound shield, remote stop/start

electronic & hour meter

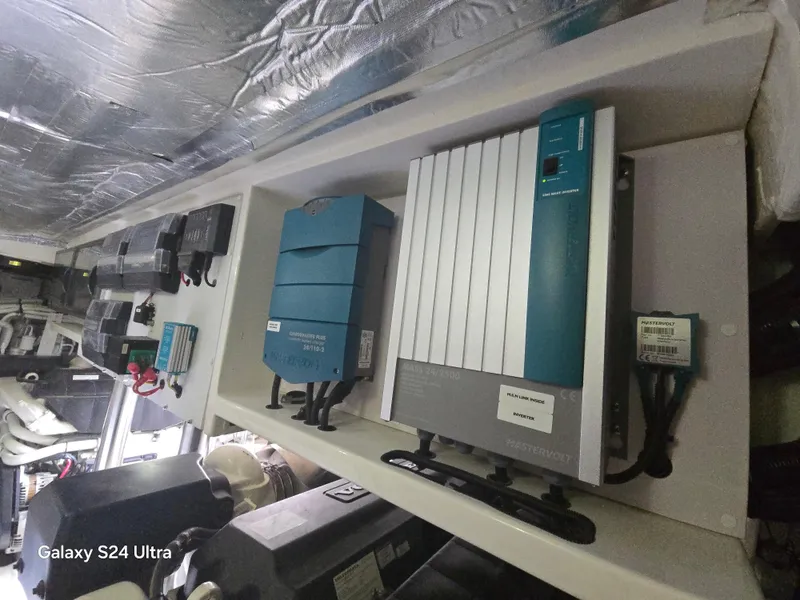

Inverter 2.SkW to operate entertainment, 1 x Galley GPO, and

ice machine in the absence of a generator or shore power

Navigation lights LED (international standard)

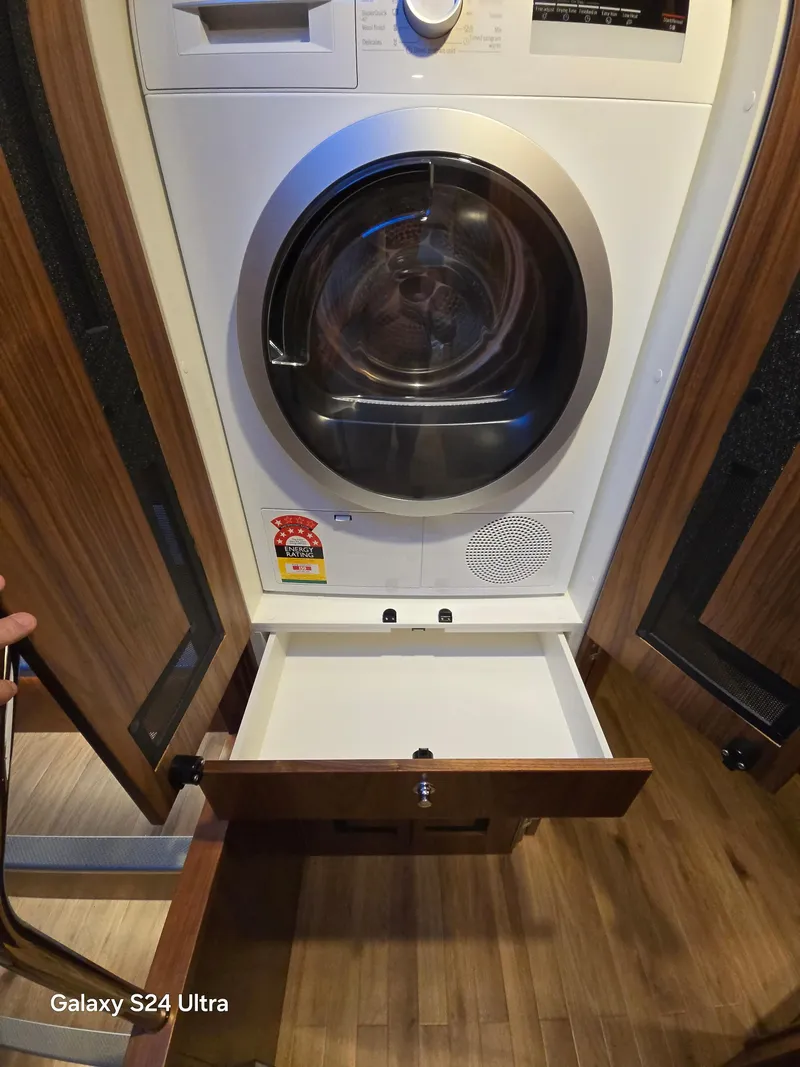

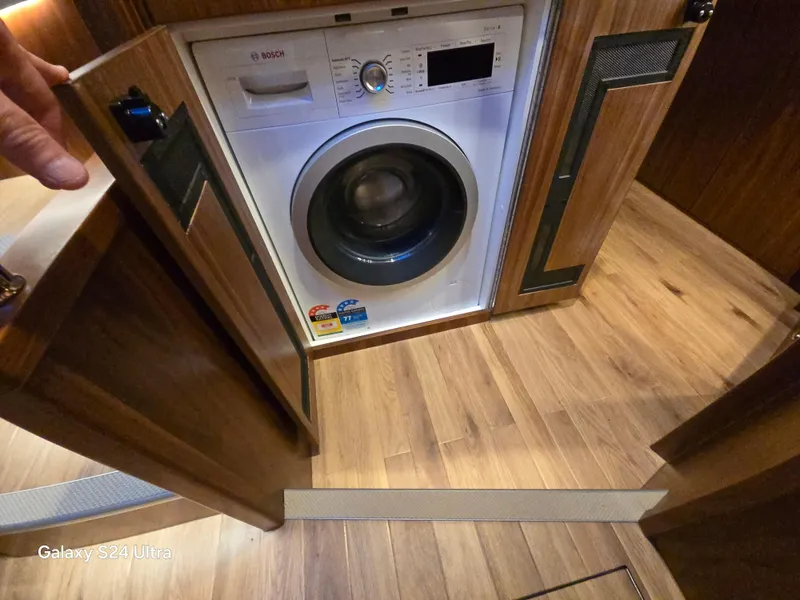

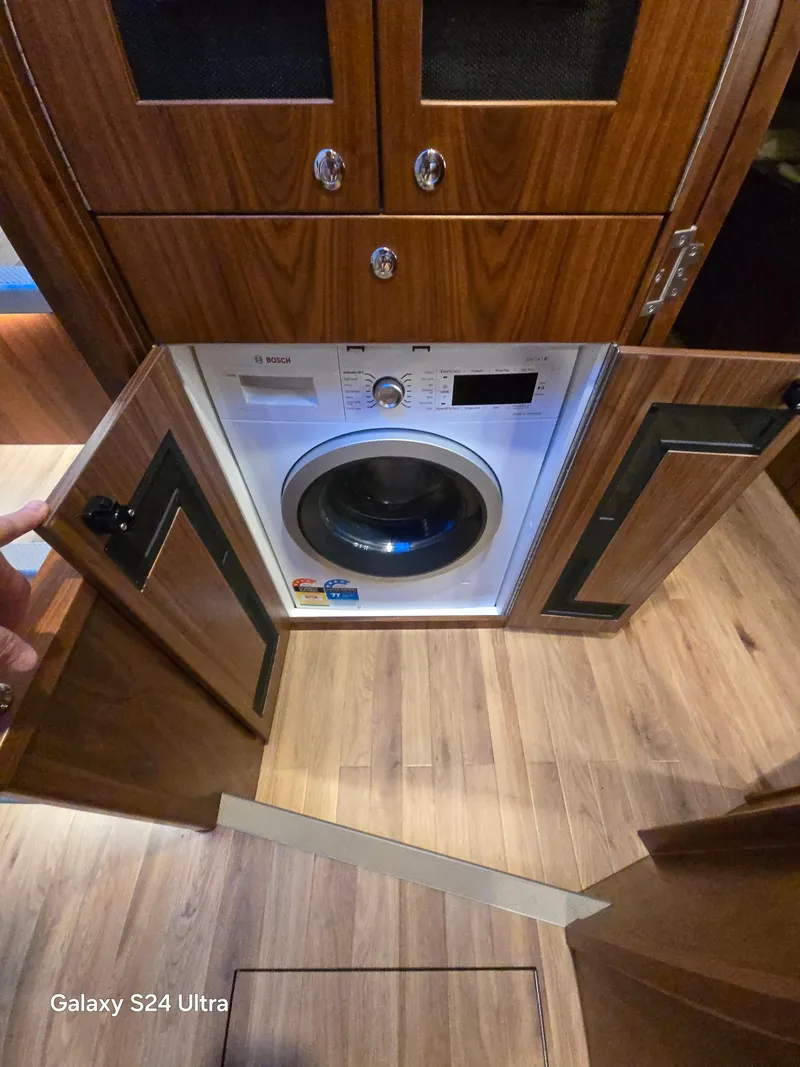

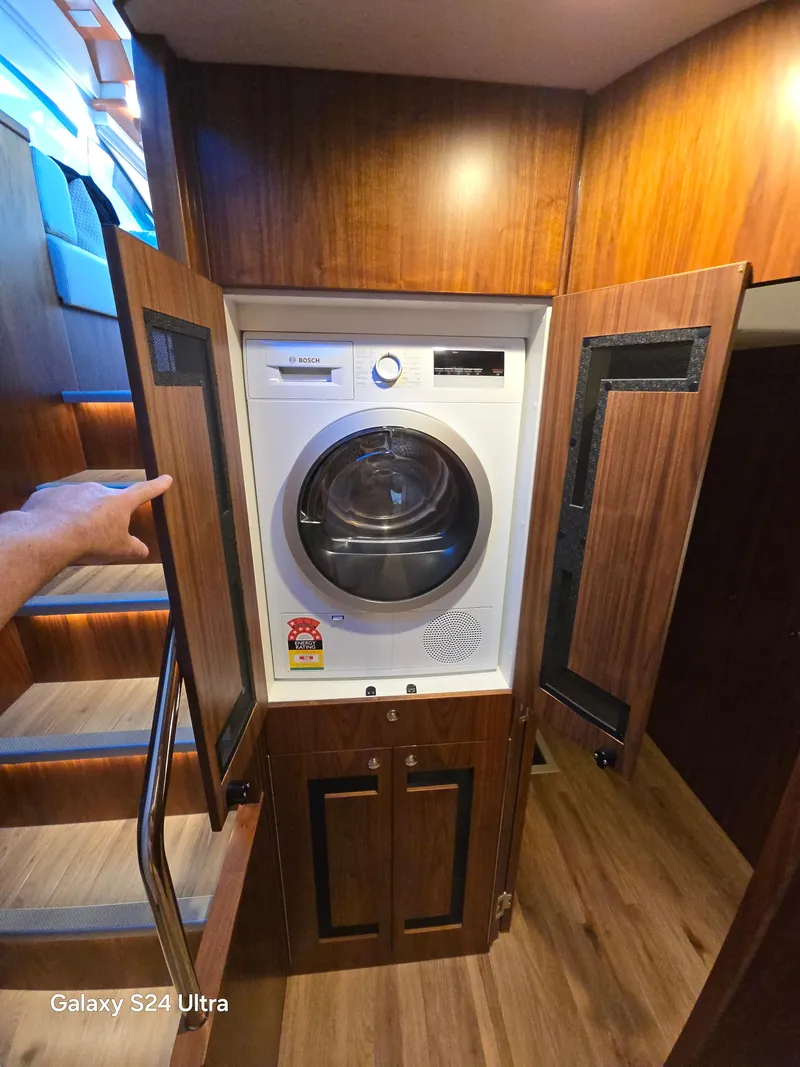

Separate Washer and Dryer (premium brand) stacked located in the companionway

Wiring coded, numbered & assembled in looms where possible

Batteries (Maintenance free) - Independent port & stbd start (total x 4), Auxiliary (x2) & house 24V x 3 (300Ahr Total/21 0AHr Usable Li-Ion bank)

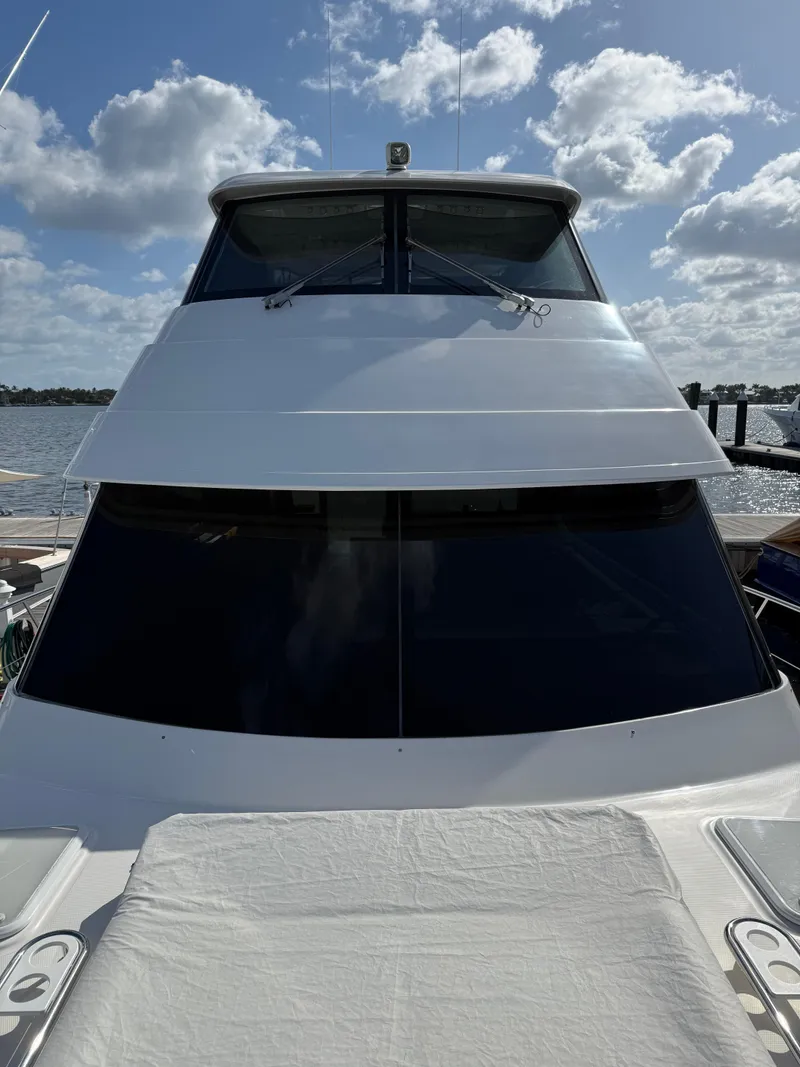

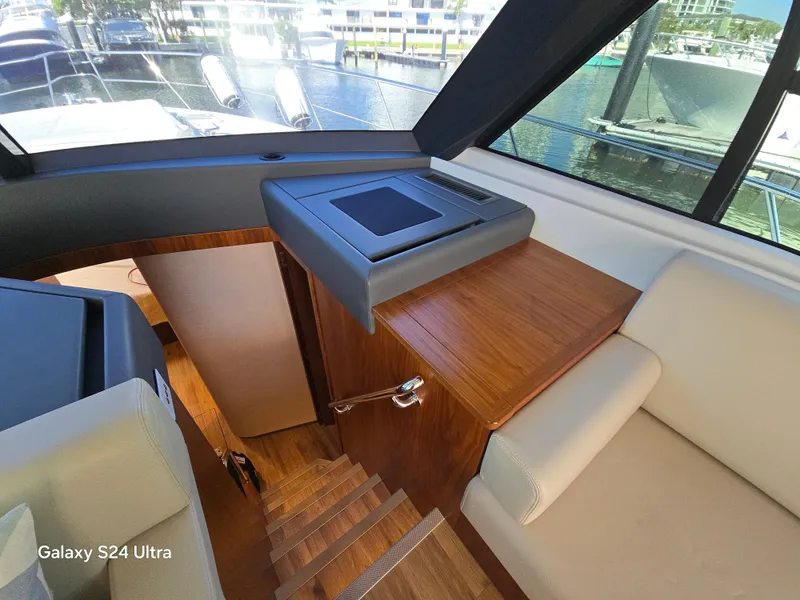

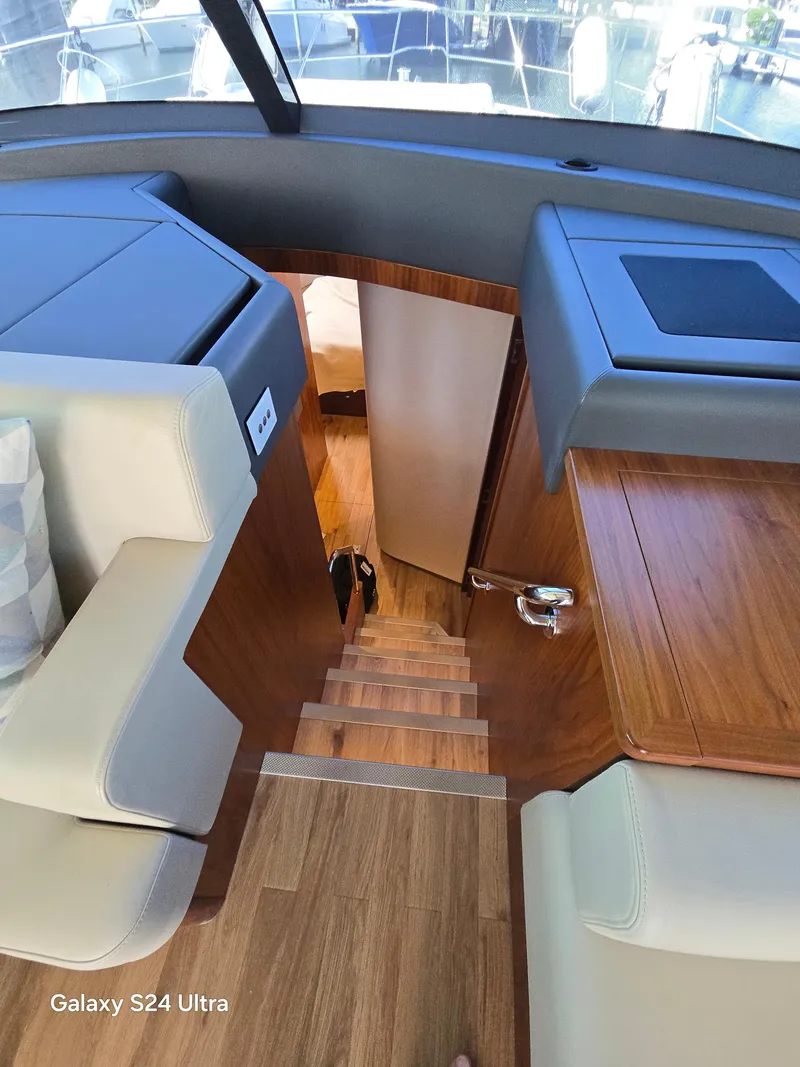

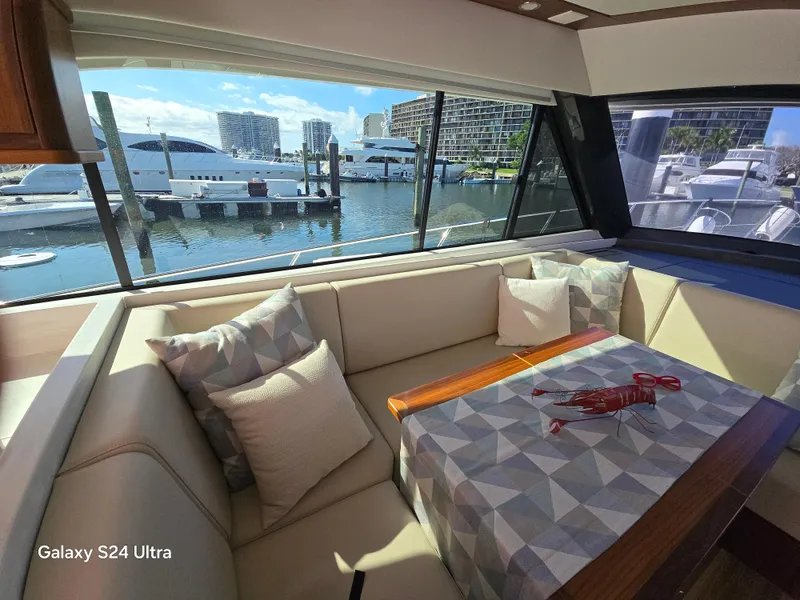

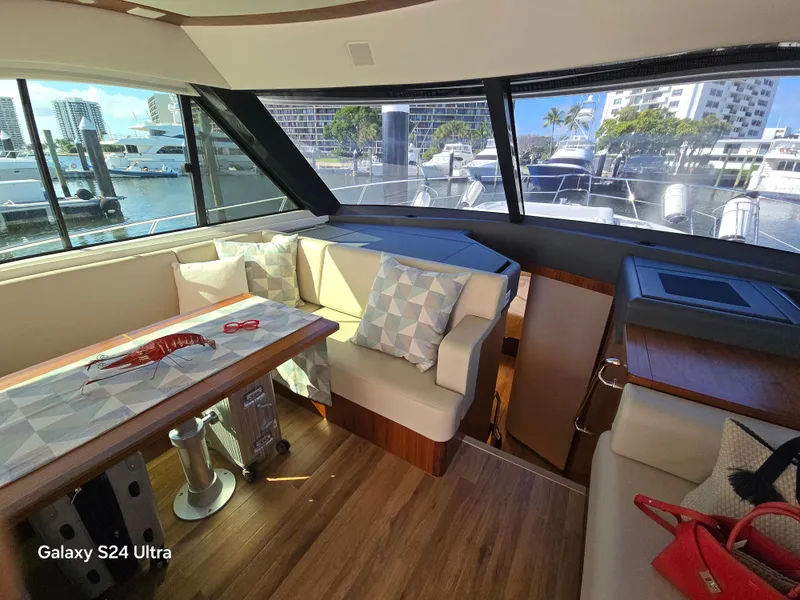

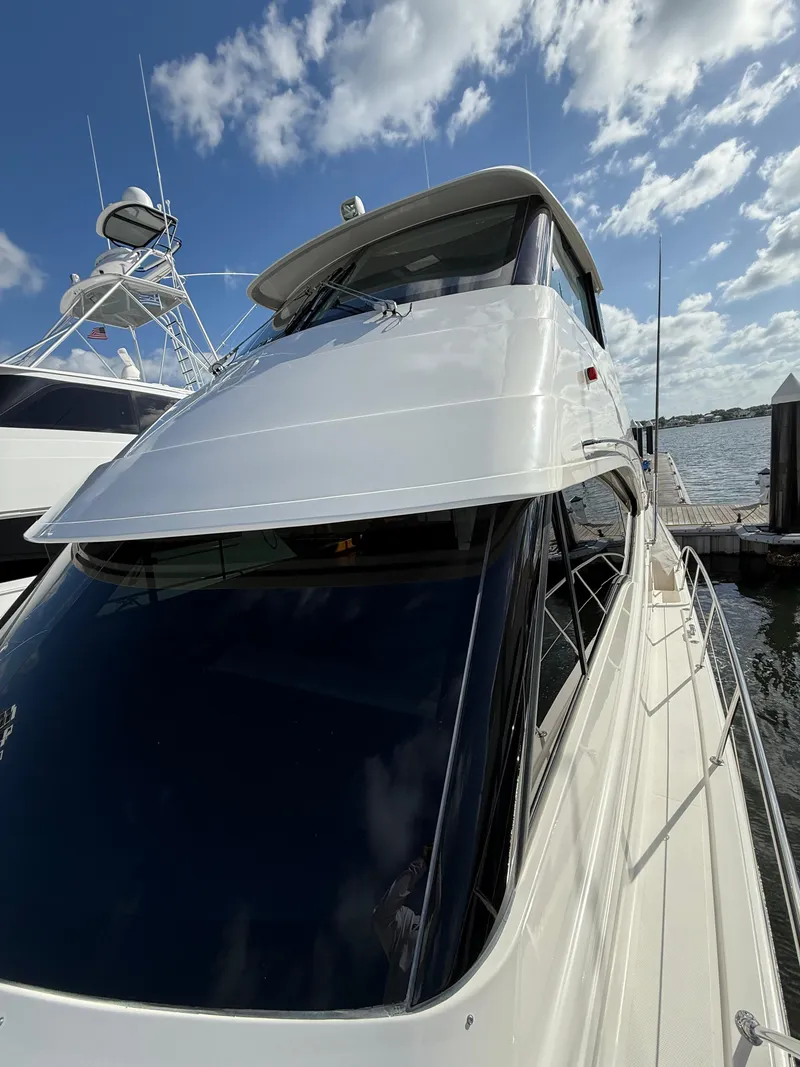

FLYBRIDGE

3 Sided Enclosed hardtop, GRP with vinyl headliner

Carpet (exterior) to flybridge floor

Flybridge forward windows, clear tempered windscreen

Hatch - square white (x1 ), with insect screen & blackout blind

Headlining - vinyl with padding

Lighting - LED overhead, courtesy, and red night light

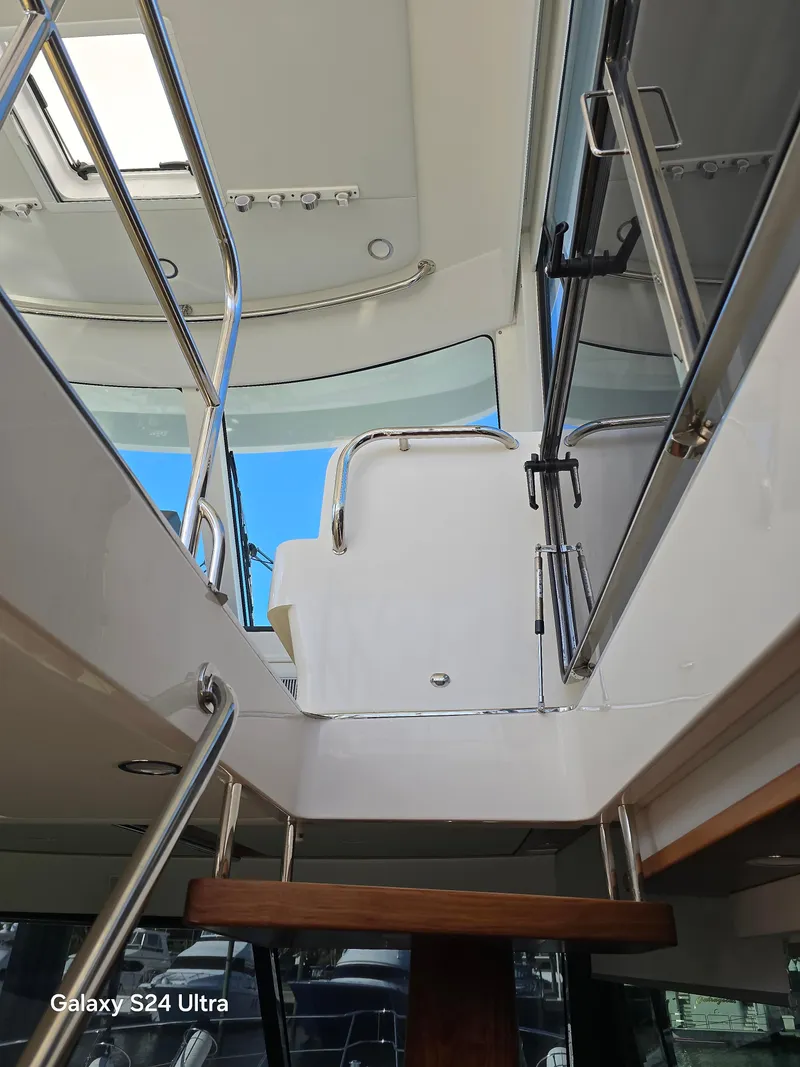

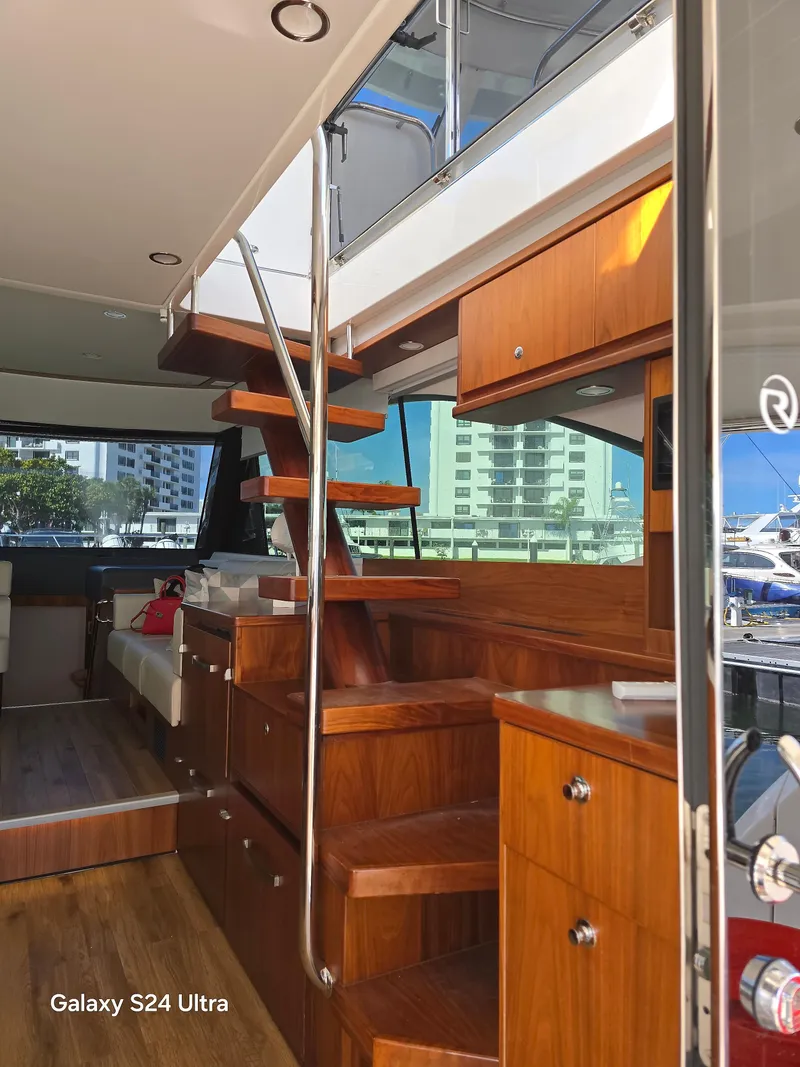

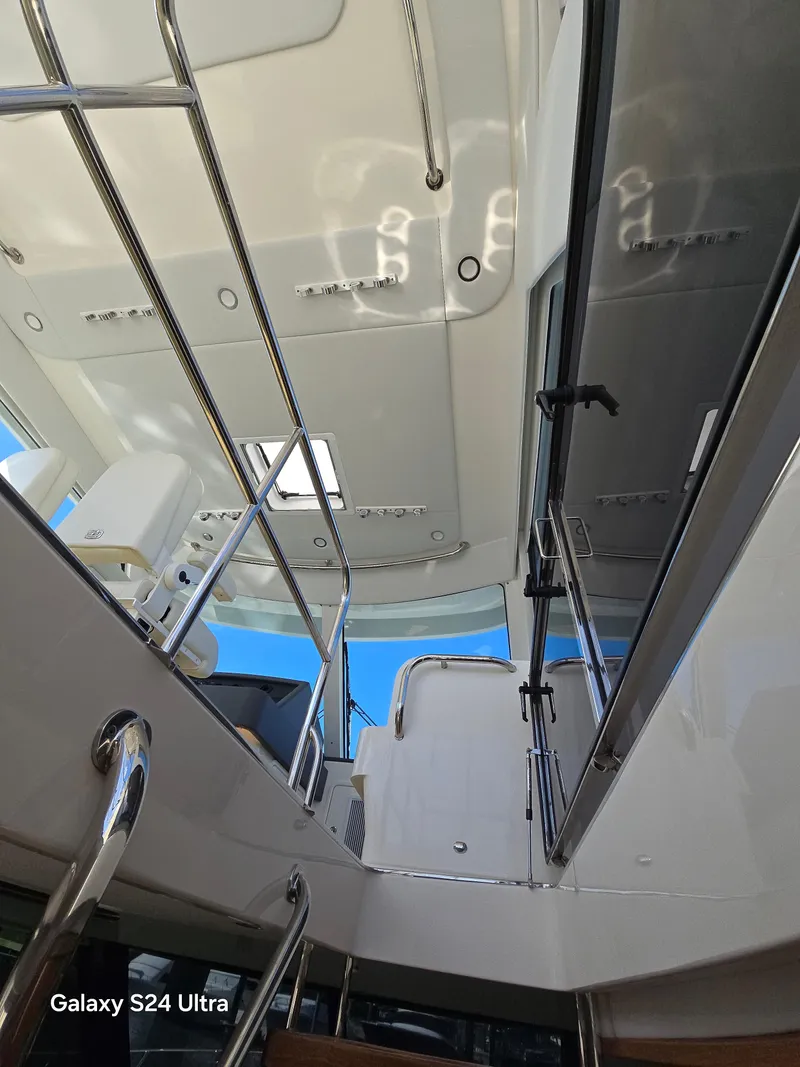

Weatherproof hatch over flybridge access stairs

Lounge forward starboard side with a lift-up base to access

storage area. (White vinyl)

Lounge L shaped to port aft with a lift-up base to access large

storage area. (White vinyl)

Overhead grab rail

Rear enclosed by clear strata glass from hardtop to floor with

3 sided zipper openings

The rear railing, including the mid-rail in stainless steel, is highly polished

Side windows tinted, opening

Table, GRP, mounted onto fixed pedestal

Wet bar including solid surface benchtop, refrigerator, sink,

hot & cold faucet and rubbish bin.

Window covers - Interior front & side window covers, snap

down (black Breezeway)

Windscreen wipers pantograph, with fresh water washers,

controls to the helm with intermittent controls to wipers

ELECTRICAL – AUDIOVISUAL

Flybridge - AM/FM Stereo CD/DVD player with four speakers to the flybridge

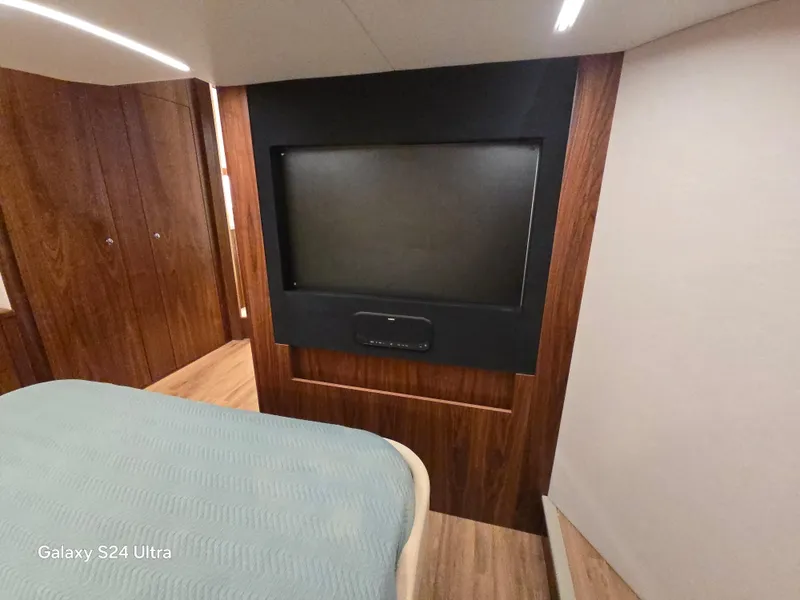

Master Stateroom Aft - 43" LED TV and Fusion panel stereo with integrated speakers (TV powered off inverter)

Saloon - 43" LED TV mounted to the ceiling in stbd aft saloon connected into Fusion AM/FM, Bluetooth, Airplay Stereo with four speakers and subwoofer to saloon, two speakers and remote

to Mezzanine

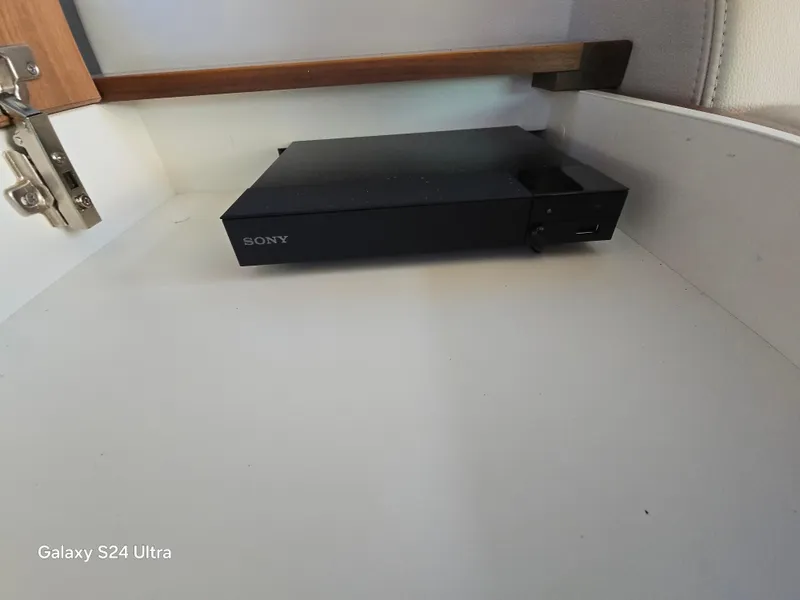

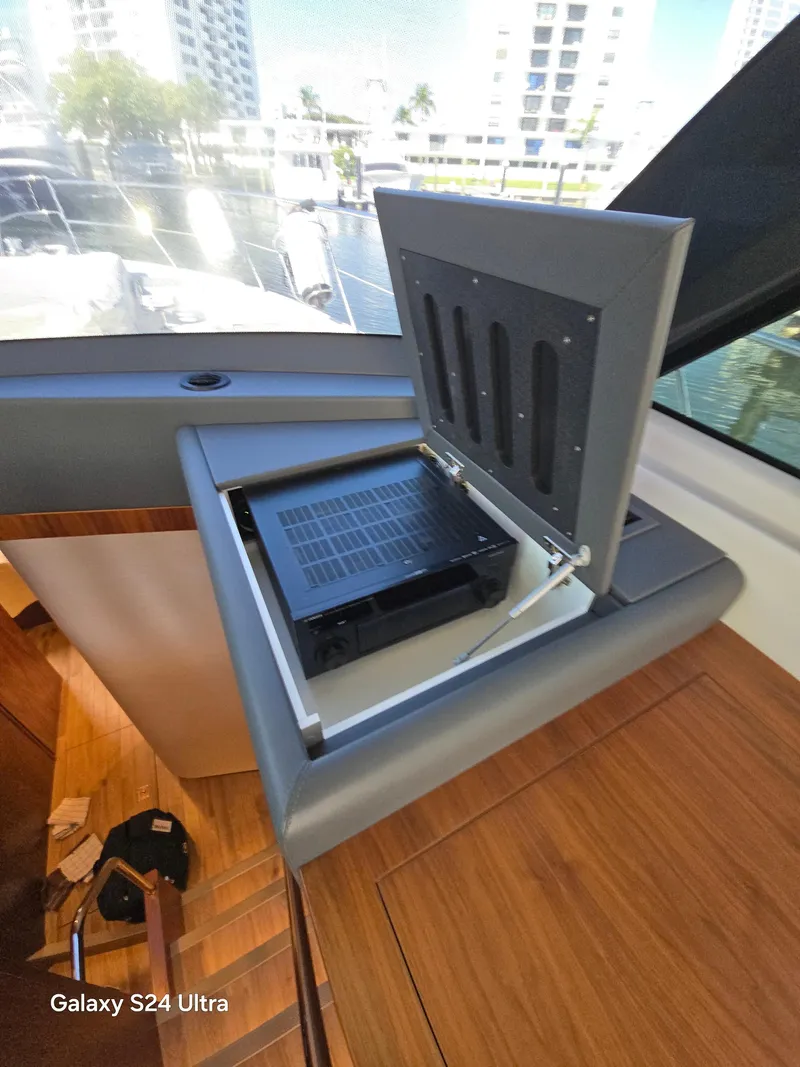

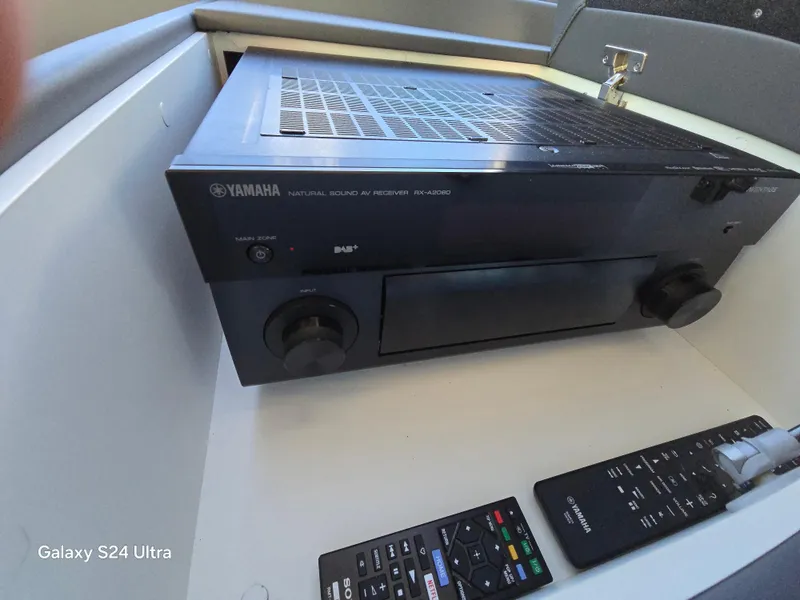

Saloon - Audio system - Yamaha AV receiver and separate

Blu-ray player, subwoofer with 5 x flush mount speakers

AC power outlets (doubles) to all staterooms, heads, galley (x2), saloon, engine room, and flybridge, with Residual Current Device (RCD) protection (GFCI)

Shore power electrical inlet (AC) 1 x 15 Amp

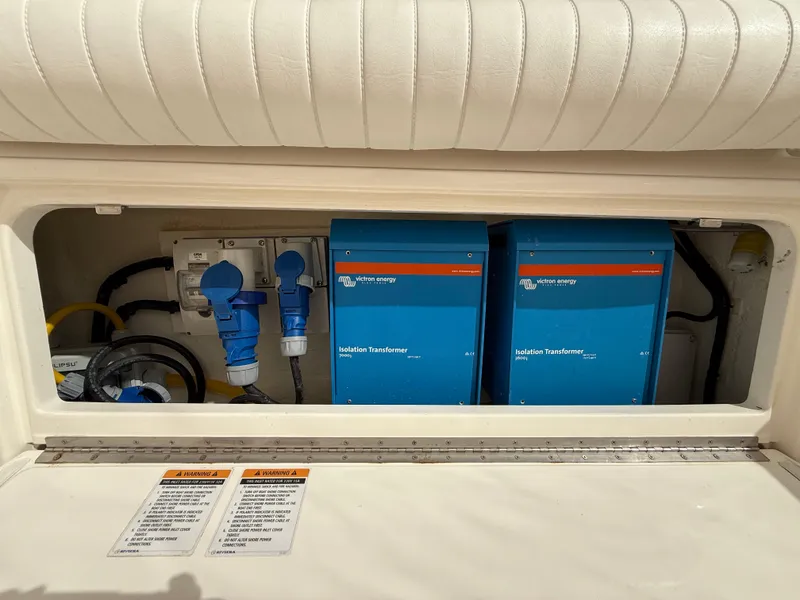

AC SYSTEMS POWER SYSTEM MANAGMENT

170-520 Volts, 40-70HZ with 50 AMP US Shore Power Connection

( CAN BE USED AT ANY PORT IN THE WORLD WITH ADAPTER CABLE)

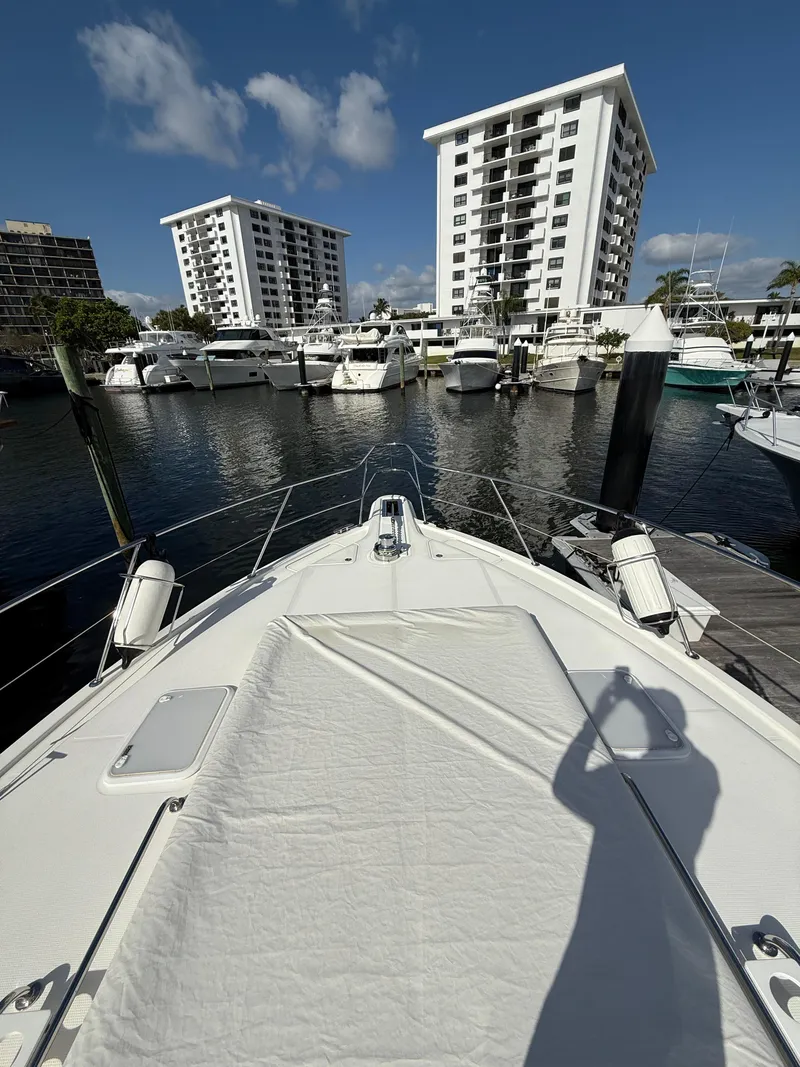

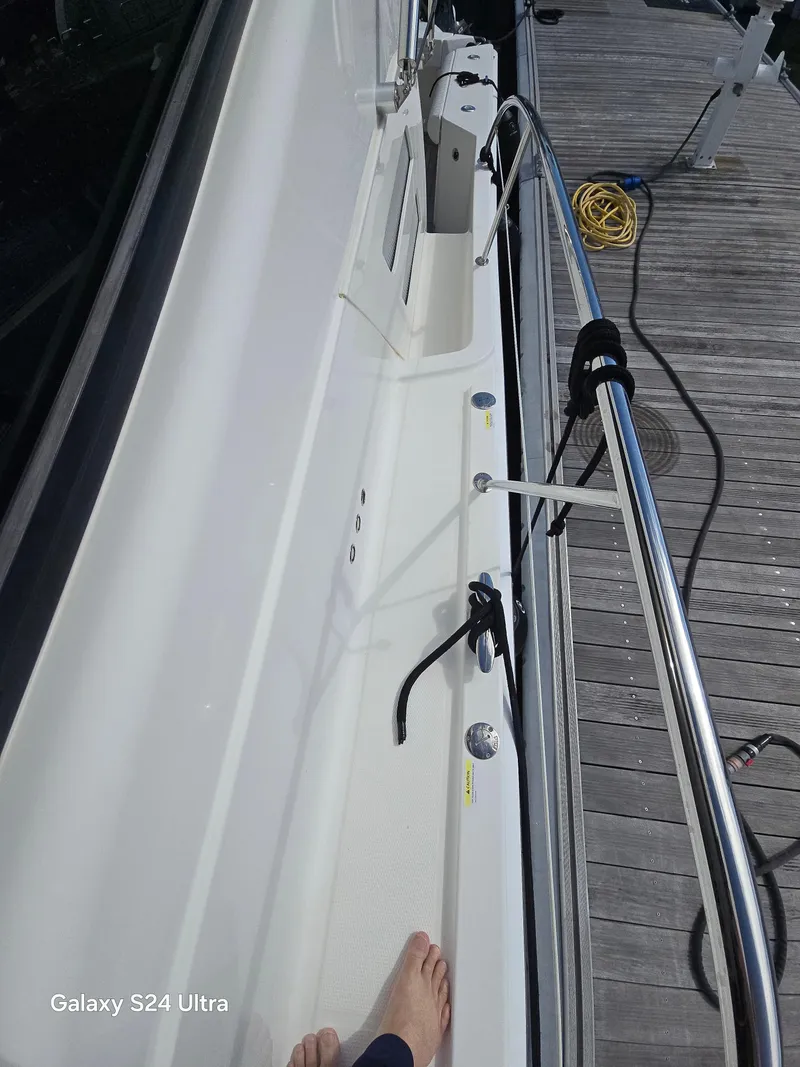

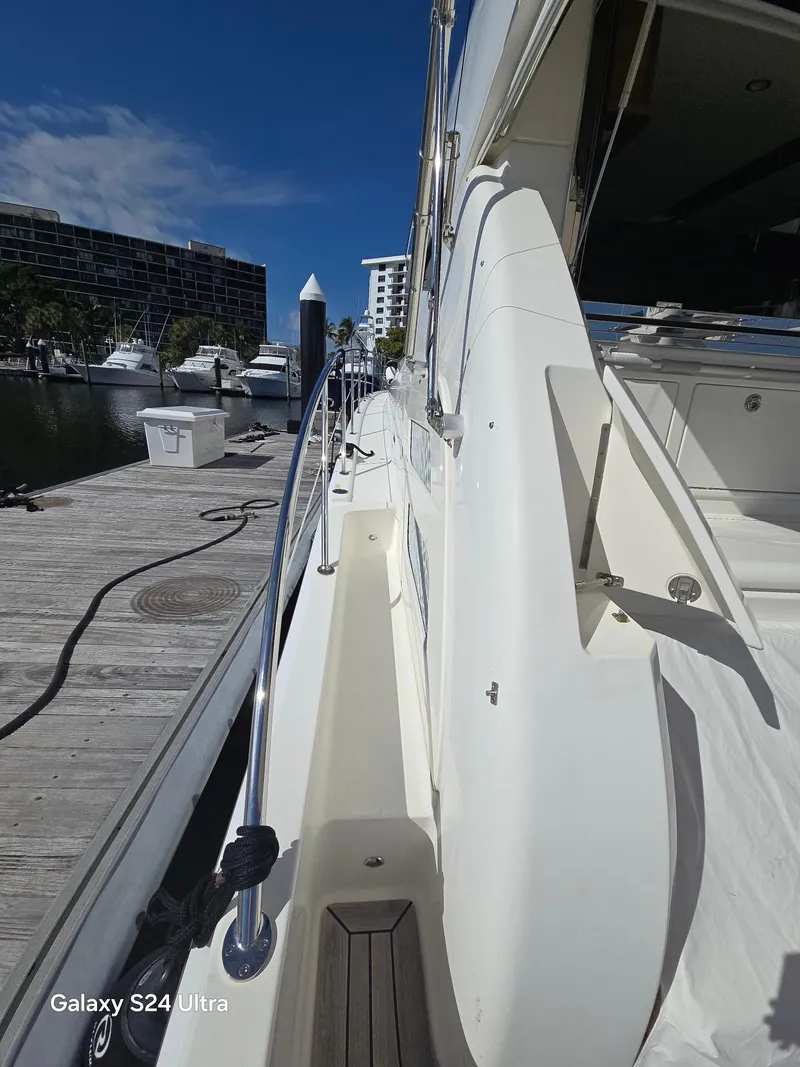

DECK

Anchor - stainless steel 35kg (77Ibs) ultra anchor, 70m (230ft) of 10mm (3/8") galvanized chain Anchor chain chafe plate fitted to the bowsprit

Anchor chain stopper fitted to deck

Anchor locker with rope/chain divider (offset to stbd).

Access from hatch on deck Anchor safety strap

Anchor winch vertical with overload protection circuit breaker, suit rope & chain, up & down switches & remote to helm Bow rail welded stainless steel (316 marine grade, highly

polished) with mid-safety wire, including flagstaff and burgee (bow flag)

Bow roller stainless steel self-loading - through bowsprit,

heavy duty

Cleats - Pop up fender style (x 2) to cockpit coaming

Cleats - stainless steel, 11" (x8) & fairleads aft (x2)

Fender holders (x 4) to Bow Rail (Not available with lower

helm due to lack of visibility)

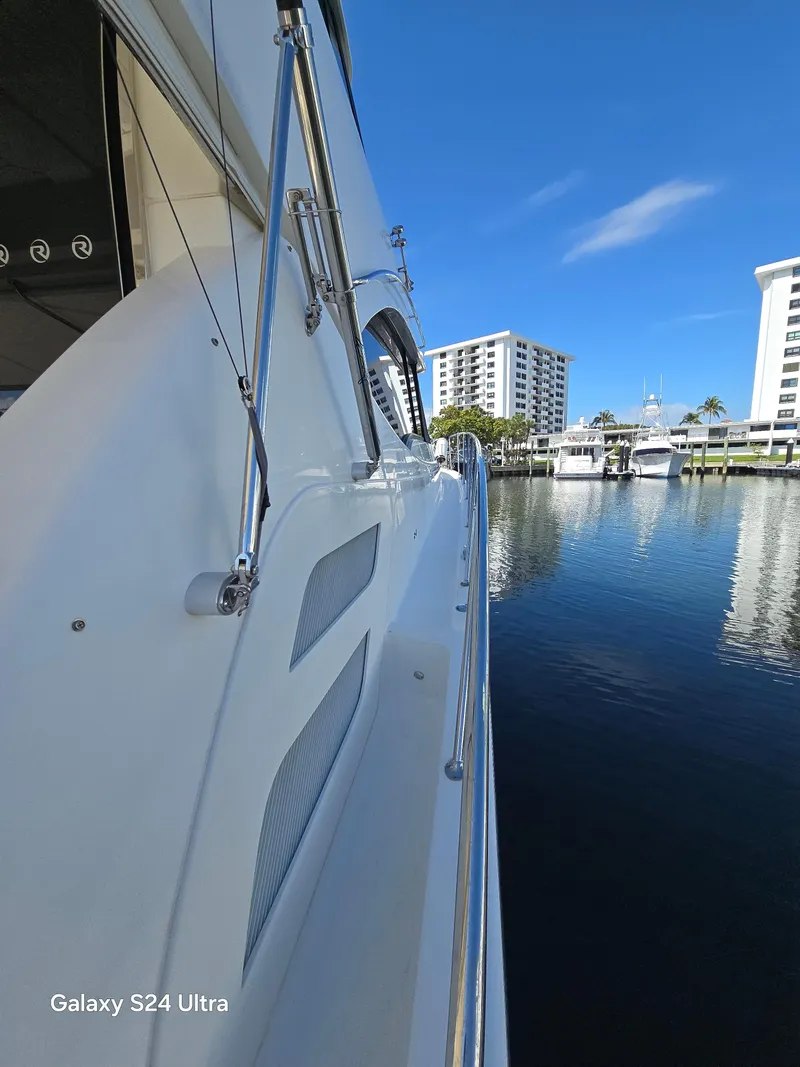

Rails port & starboard of flybridge above the window for safe

passage to the forward deck

Rub rail - impact and UV-resistant PVC (white) with stainless

steel insert strip

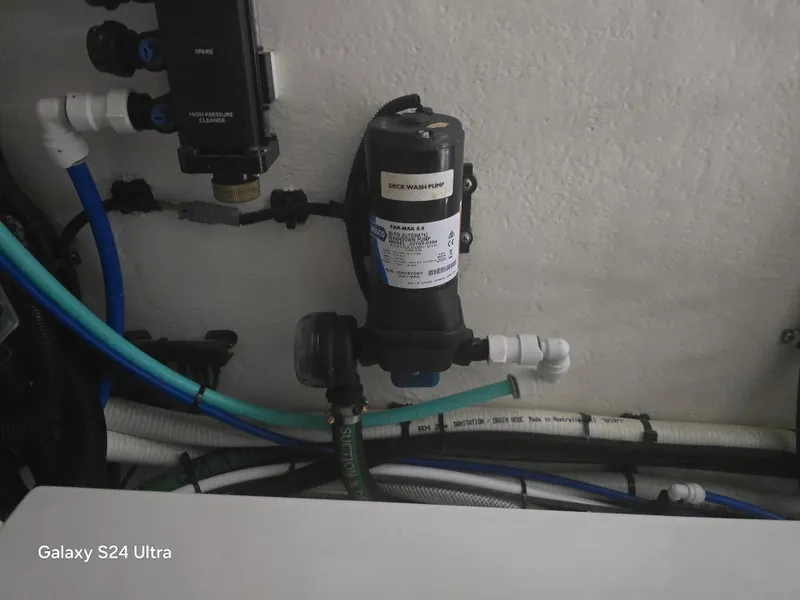

Wash down outlets at anchor locker - salt & fresh water

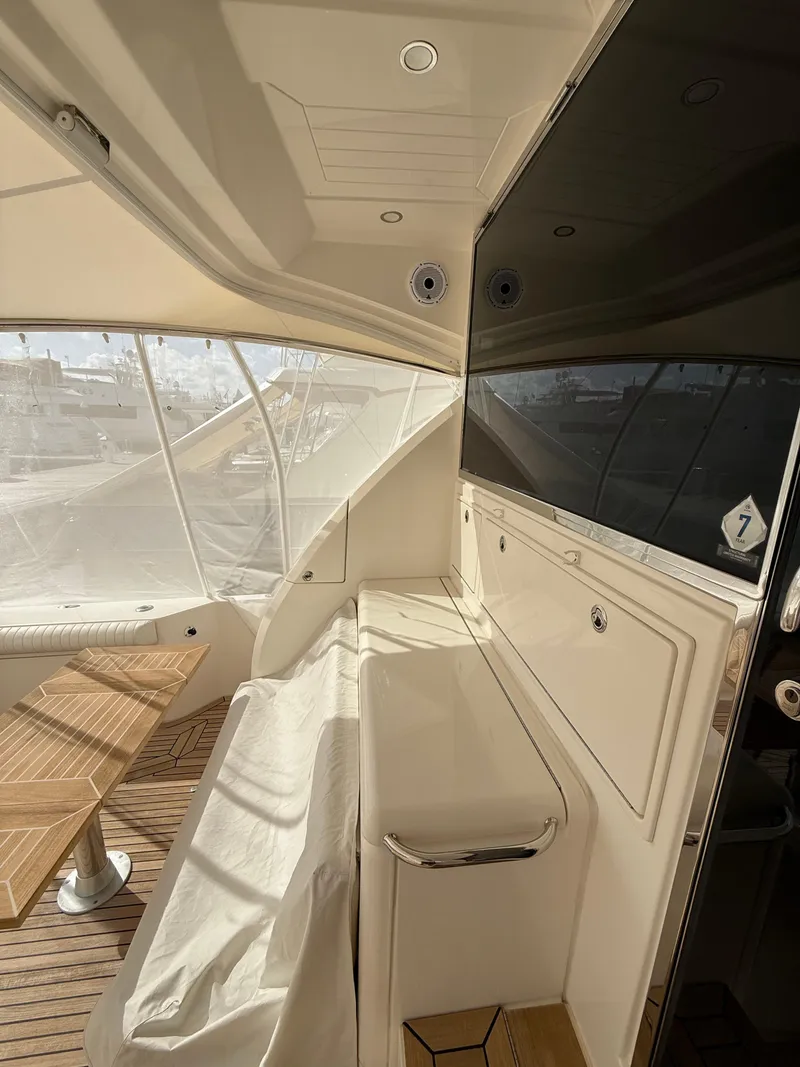

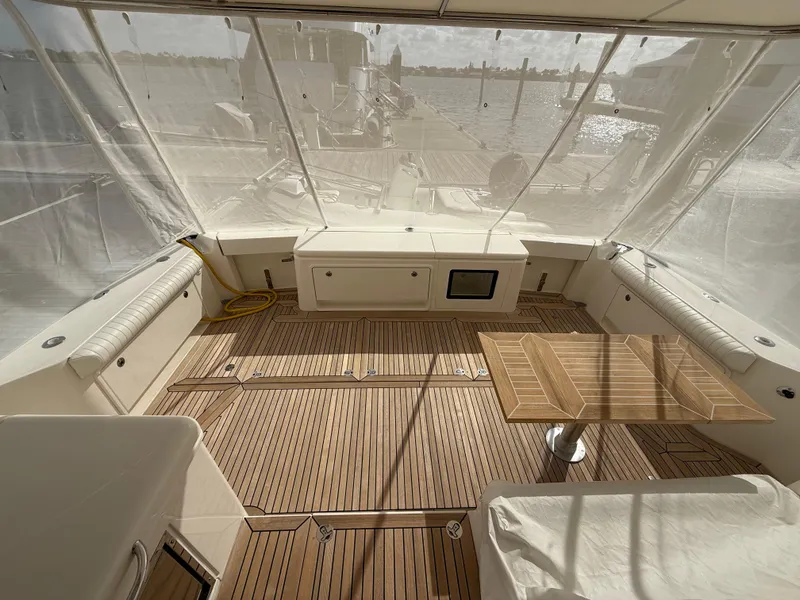

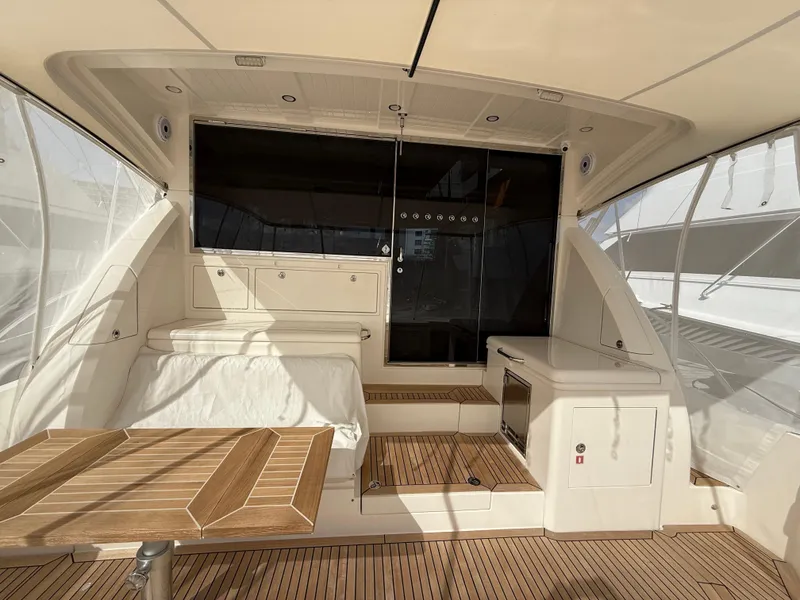

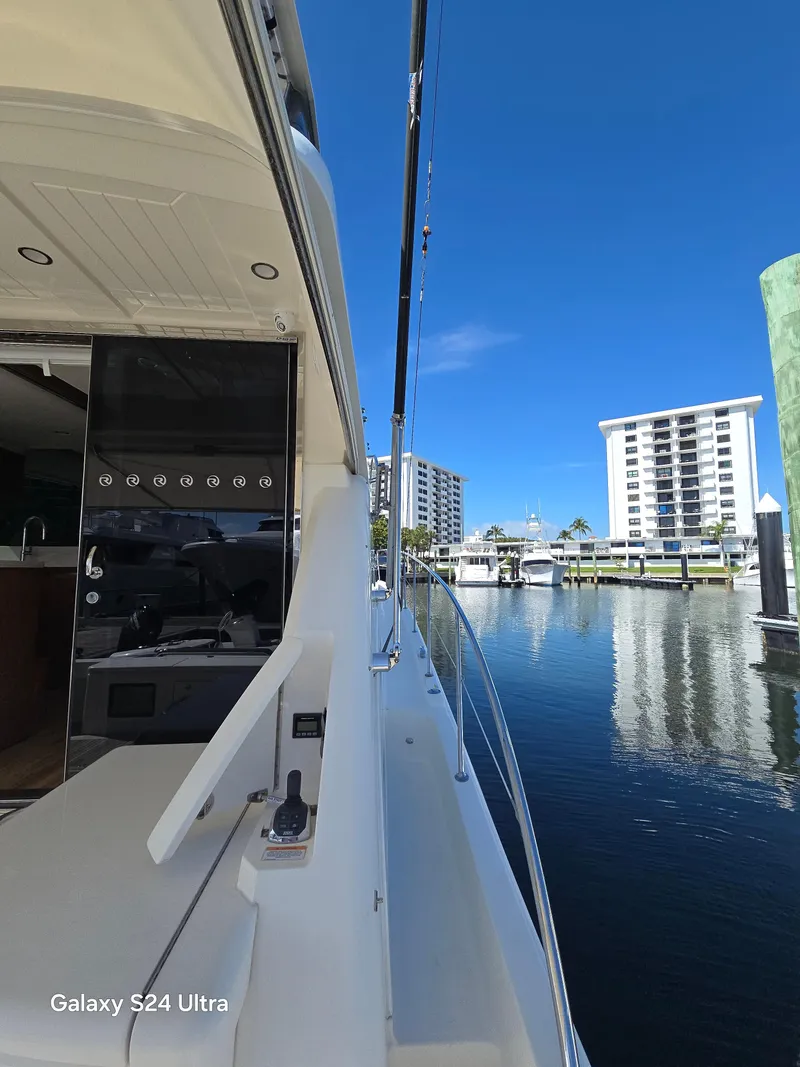

COCKPIT

The cockpit floor is reinforced with an alloy plate for future game chairs or tables.

Cockpit hatches with heavy-duty stainless steel lockdowns for lazaretto storage and bilge access.

Double action manual bilge pump for engine room

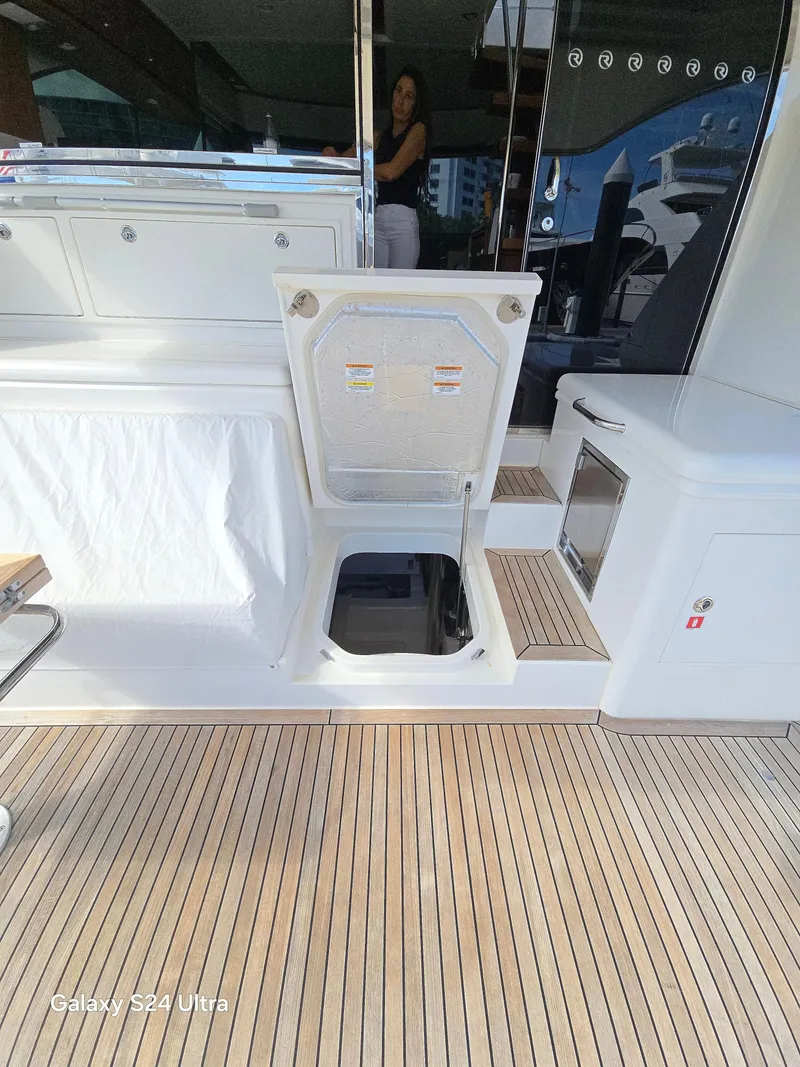

Engine room access via lift-up hatch with gas strut

Grab rails to assist access to side decks

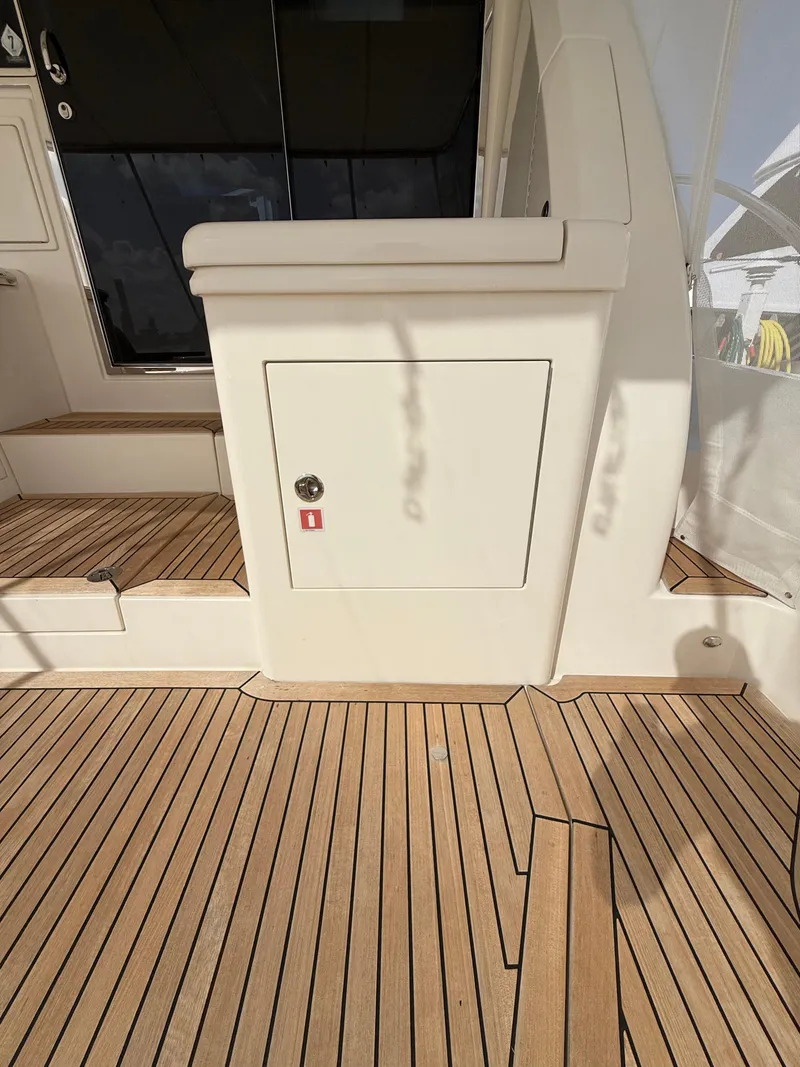

GRP locker doors to storage, Inc. stainless steel catches

Hand-held shower hot & cold (Freshwater)

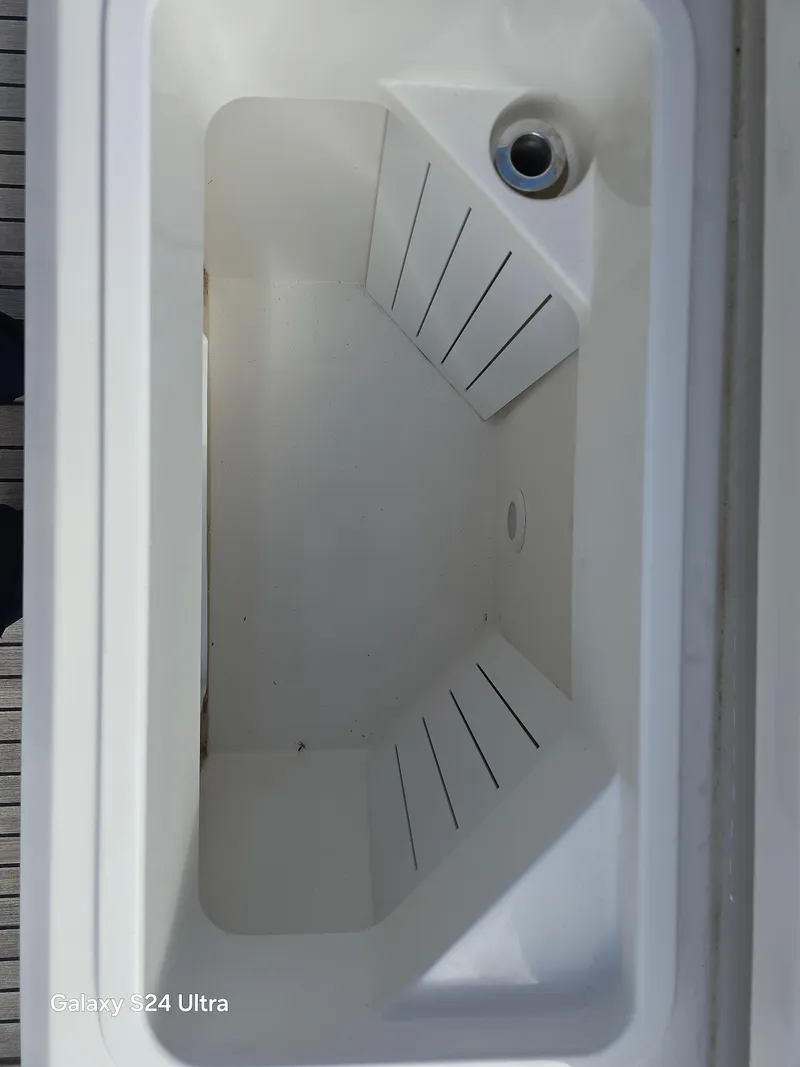

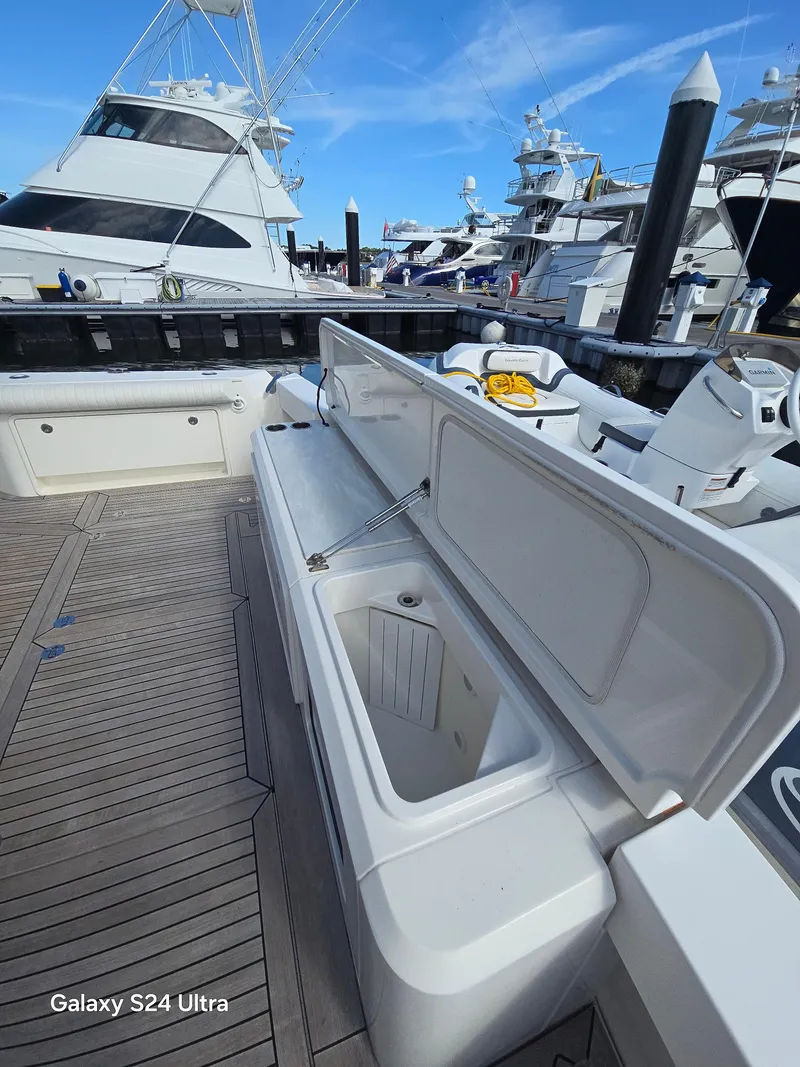

Large fish box fitted into cockpit floor, with pump out facility and hatch

Lighting - flood lights, overhead, and courtesy (DC) LED

Mezzanine full-length top-loading freezer box

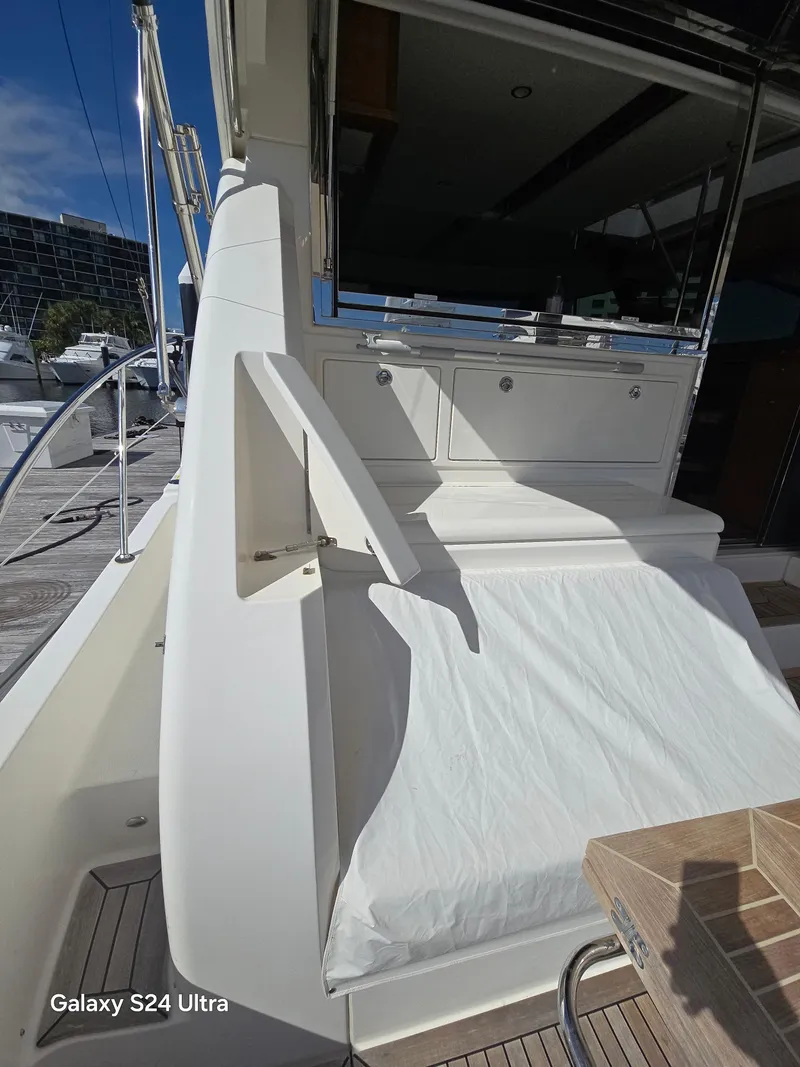

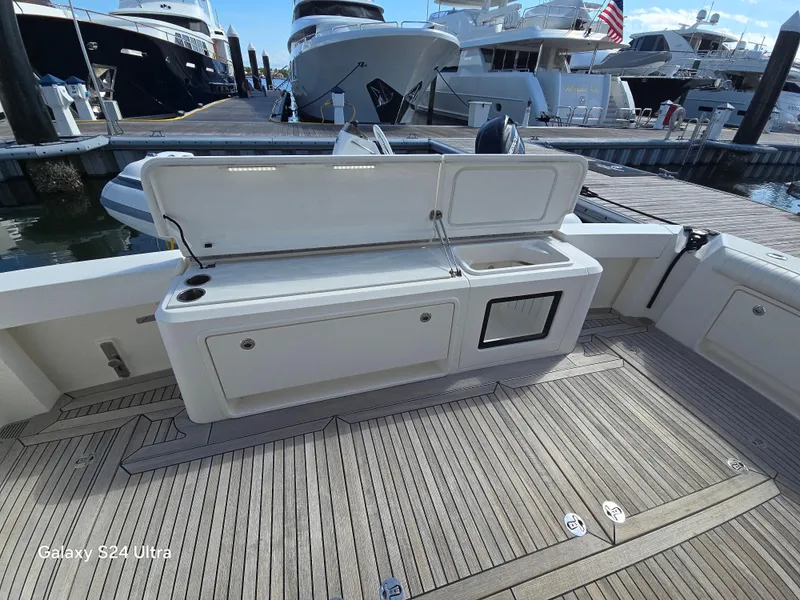

Mezzanine including aft facing seat (white vinyl) (inc white stamped cover)

The rear saloon window opens up with a sliding stainless door (in tinted tempered glass)

Rubbish bin within the locker

Self-draining cockpit to stern outlet

Steps to side decks port & starboard

Swim platform rails - 2 x removable U U-shaped rails to Swim platform, including Mid rail.

Transom door (x2), GRP opens outwards, locking pins into the platform.

Wash down tap fresh water

Wash down outlet seawater

Waterproof GPO to the cockpit locker

Wet Bar, Stb forward side, includes 2 x Electric BBQ (grill/plate) units, icemaker, Sink, hot & cold faucet, rubbish bin, and storage.

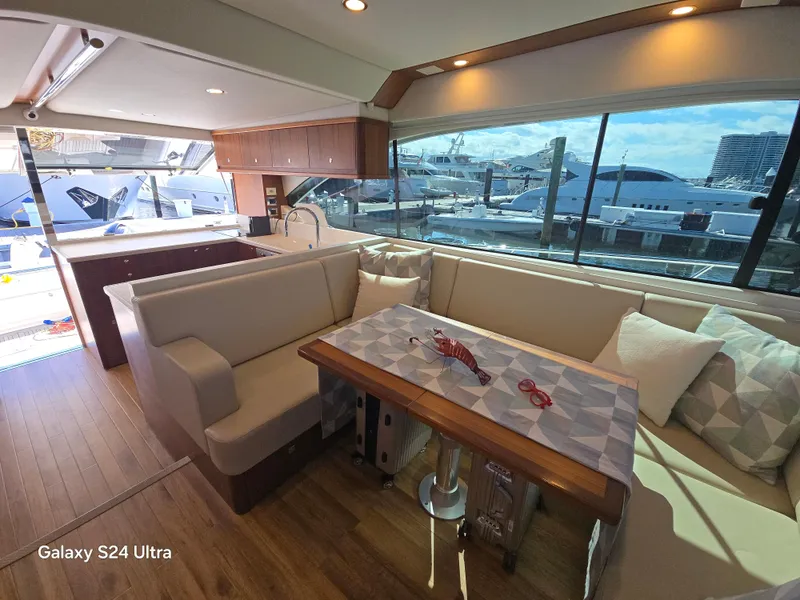

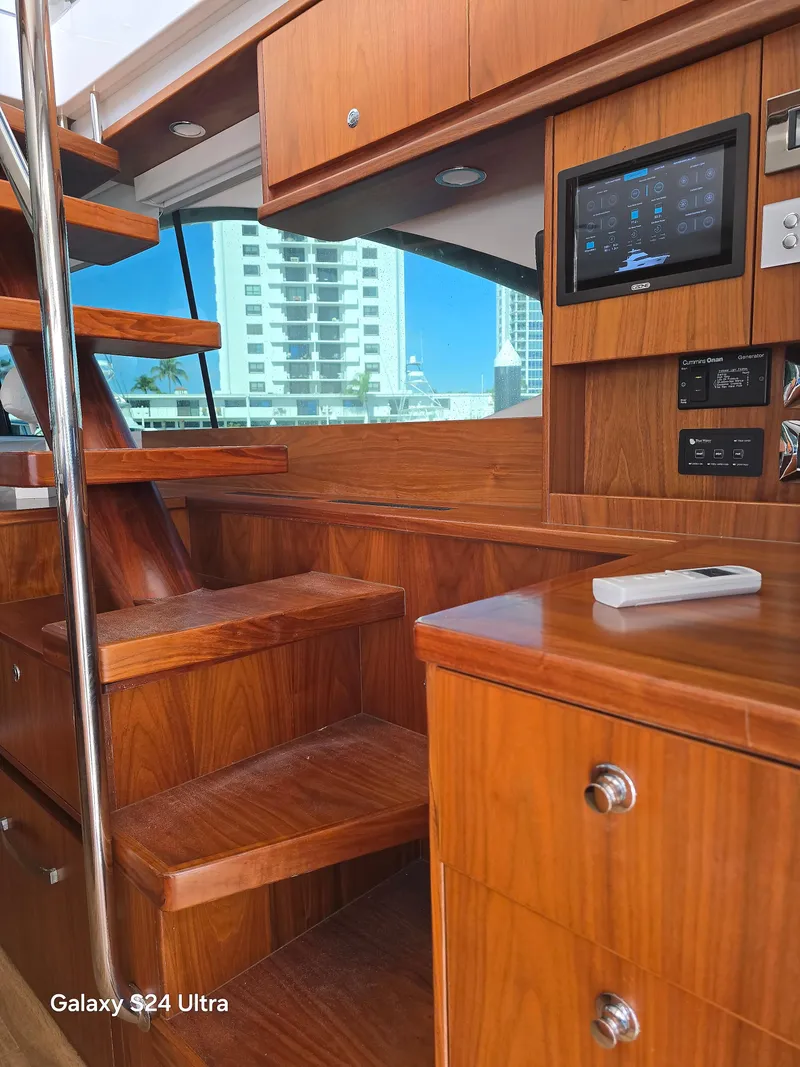

SALOON

Air conditioning with electric heat 2 x 12000 BTU (split to galley)

Convertible dinette table, manual hi/lo table drops down and swivels to become a coffee table

Grabrails recessed into headliner

Headlining, vinyl with padding

Lighting, overhead, LED (DC)

Liquor cabinet - 2x refrigerator drawer unit forward with 1 x freezer drawer unit aft

Liquor cabinet - built-in lockers for glass and bottle storage

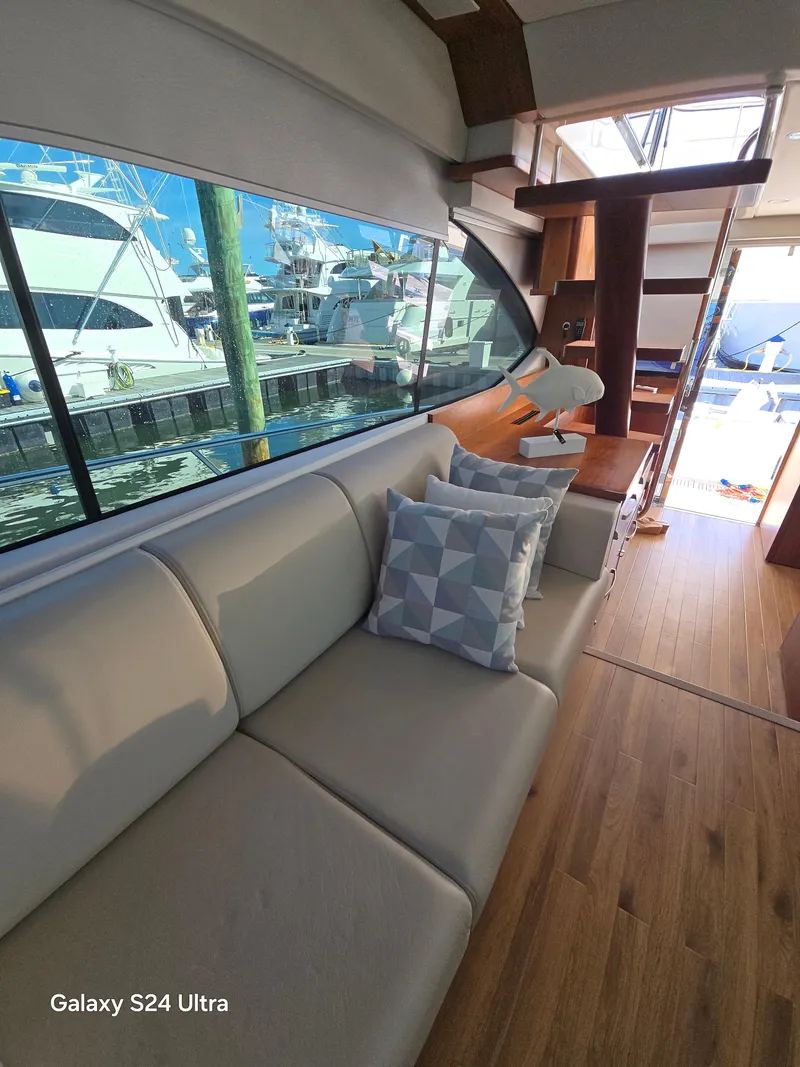

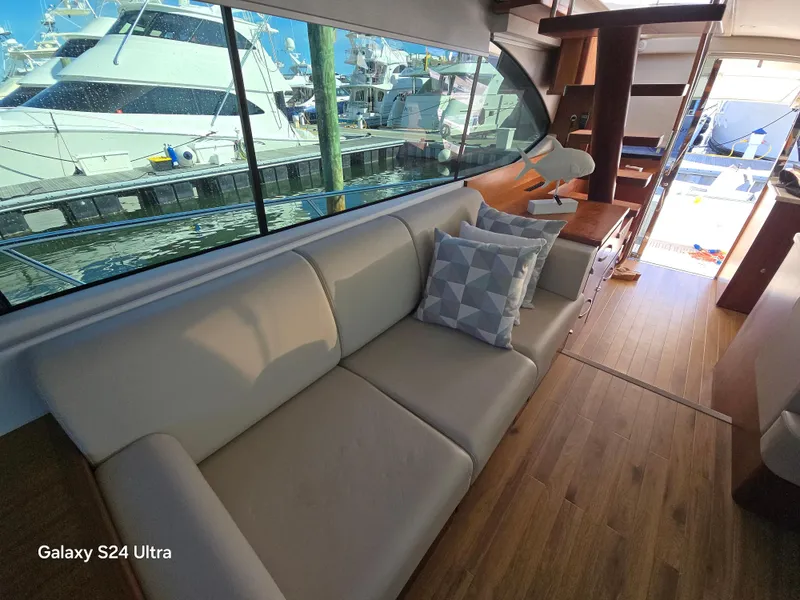

Saloon stb side lounge - center seat coverts with a slide-out ottoman, also includes a fold-out table (when ottoman is slid out)

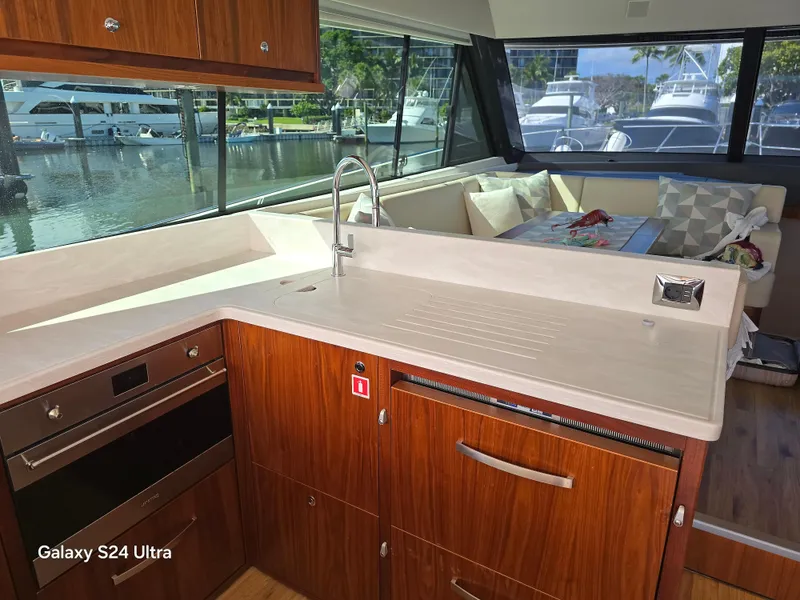

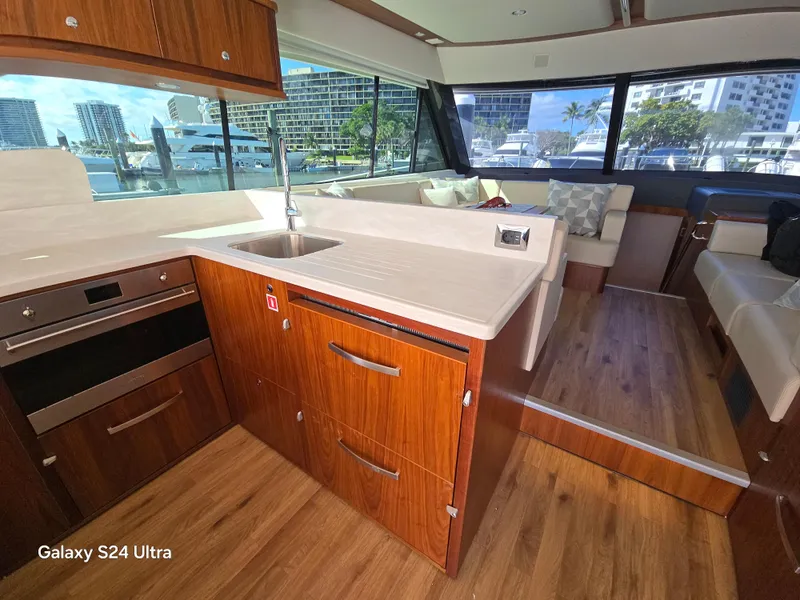

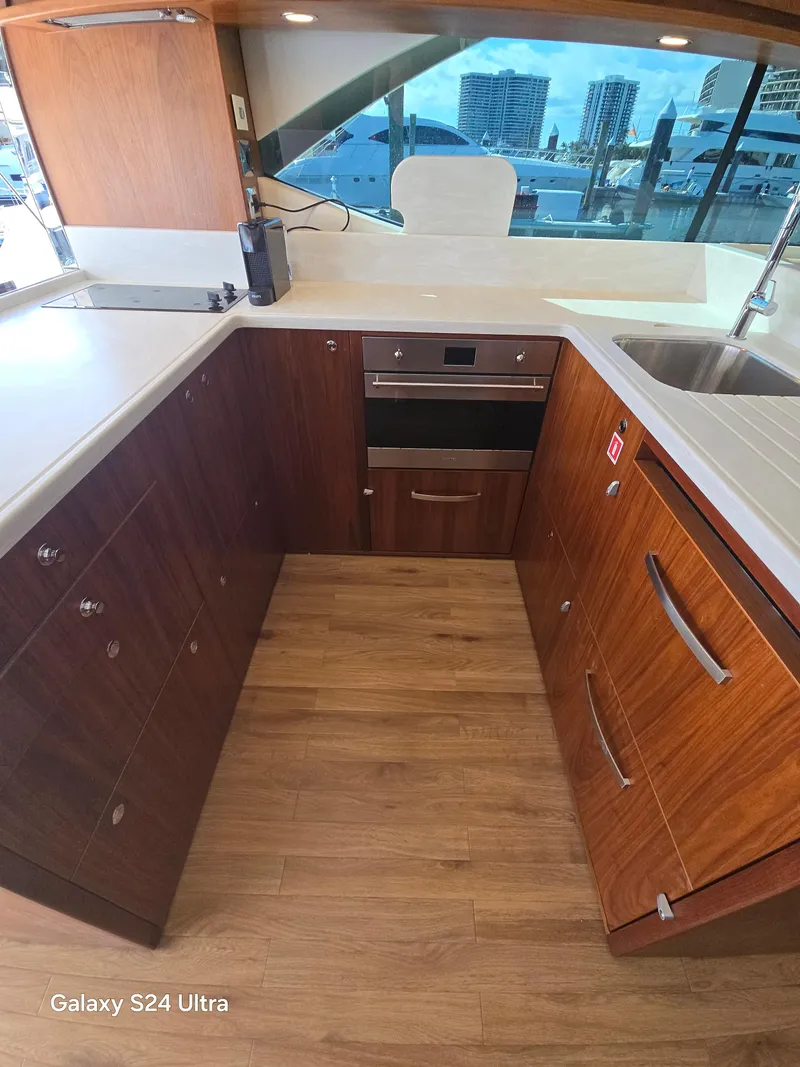

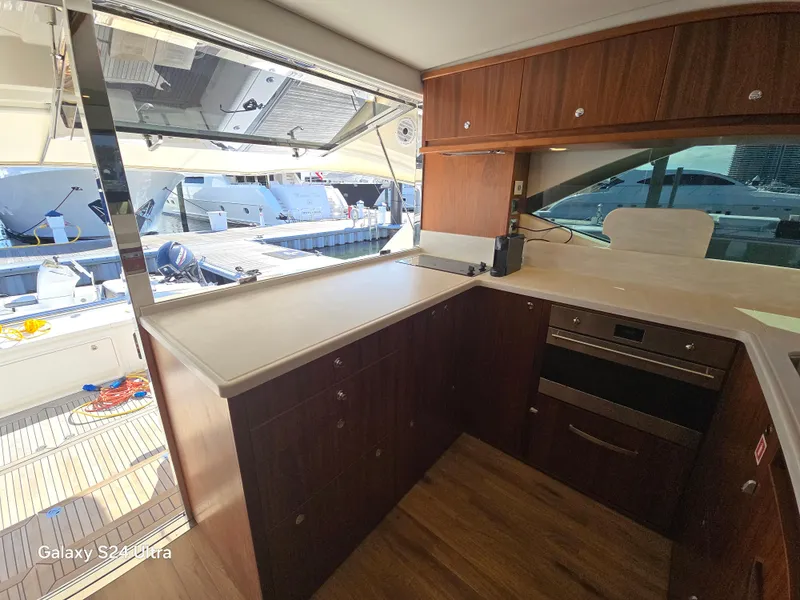

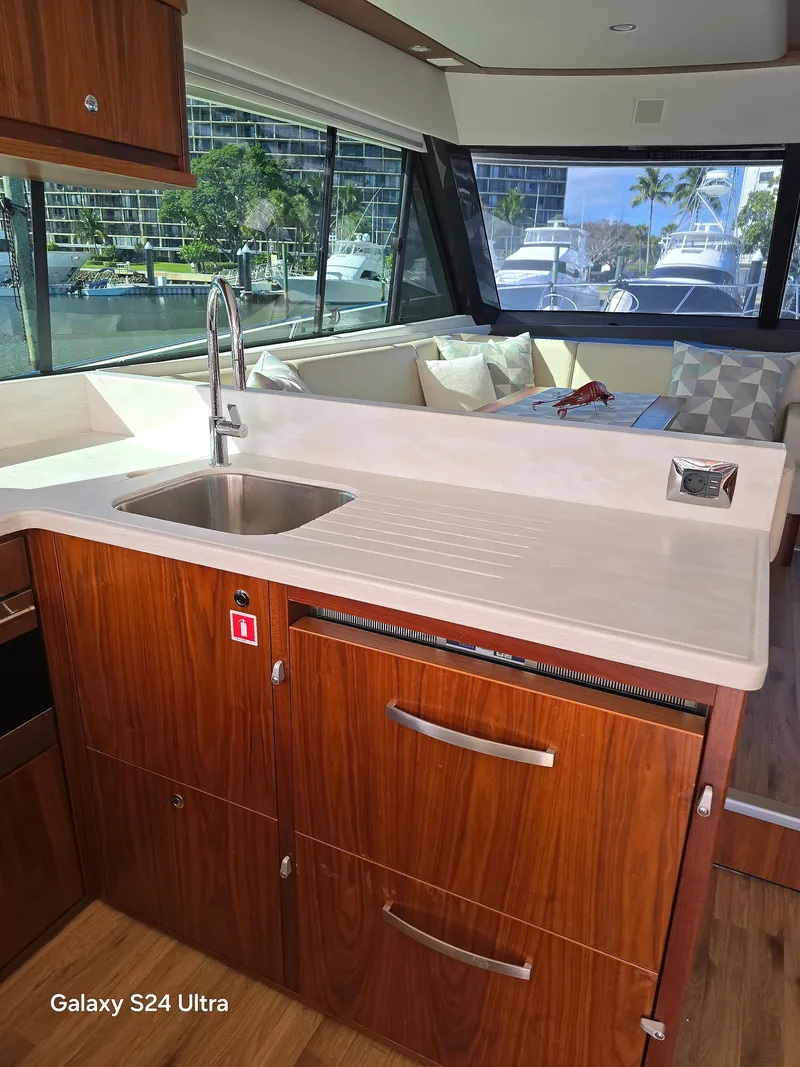

GALLEY

Electric cooktop, a dual element with pot keepers

Flooring, vinyl (premium grade) Lighting, overhead, LED (DC)

Microwave convection oven

Rangehood

Refrigerator drawer unit 2 x drawers

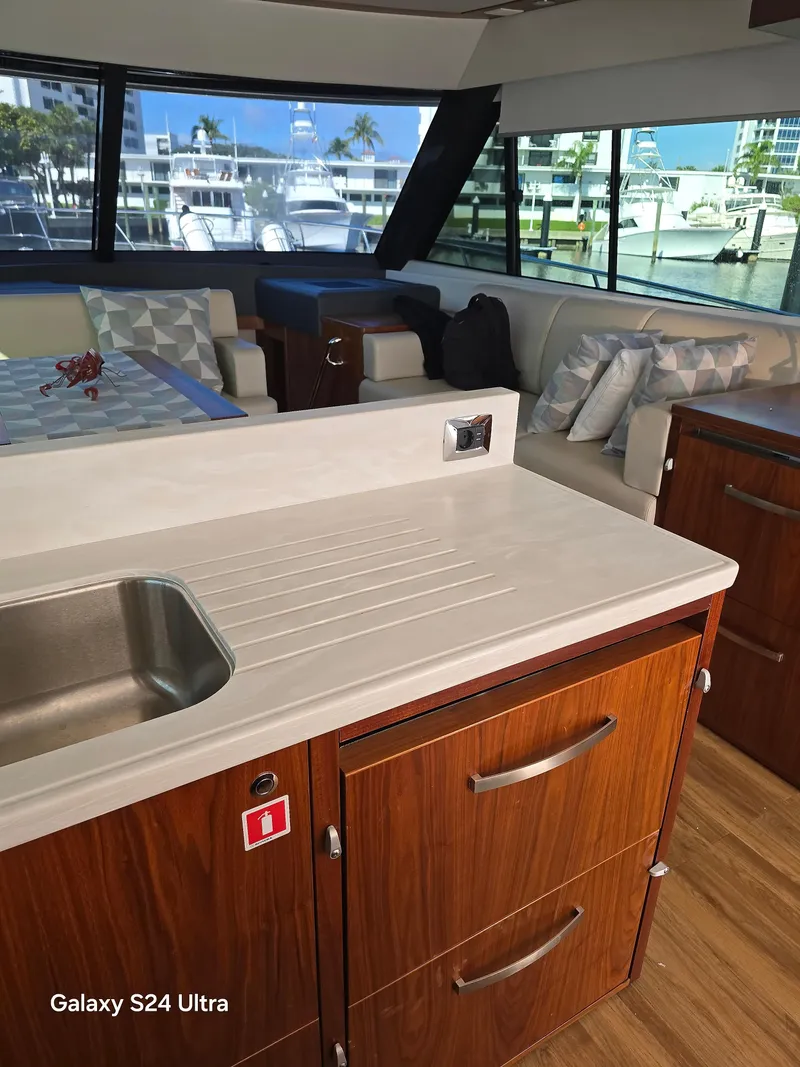

Solid surface benchtop with stainless steel sink, mixer tap, and lift-up bin storage with drain

Storage cabinets & drawers below and above the bench

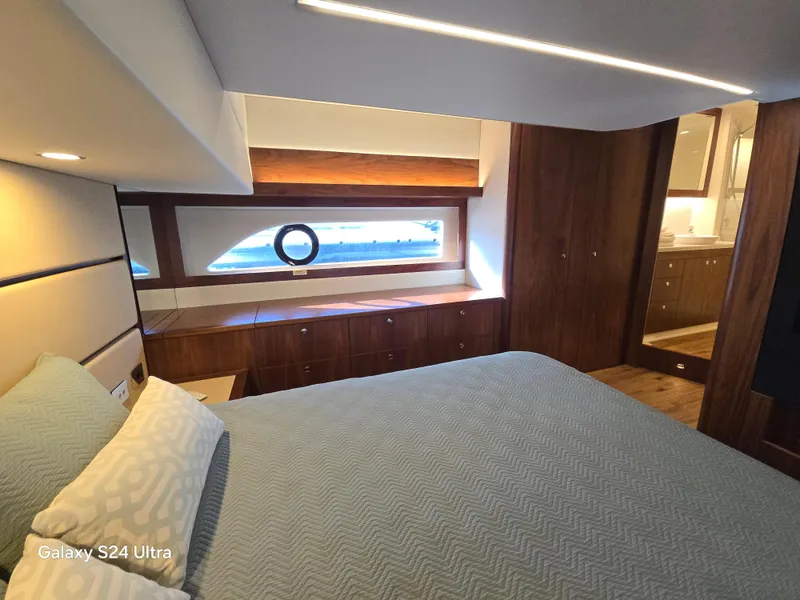

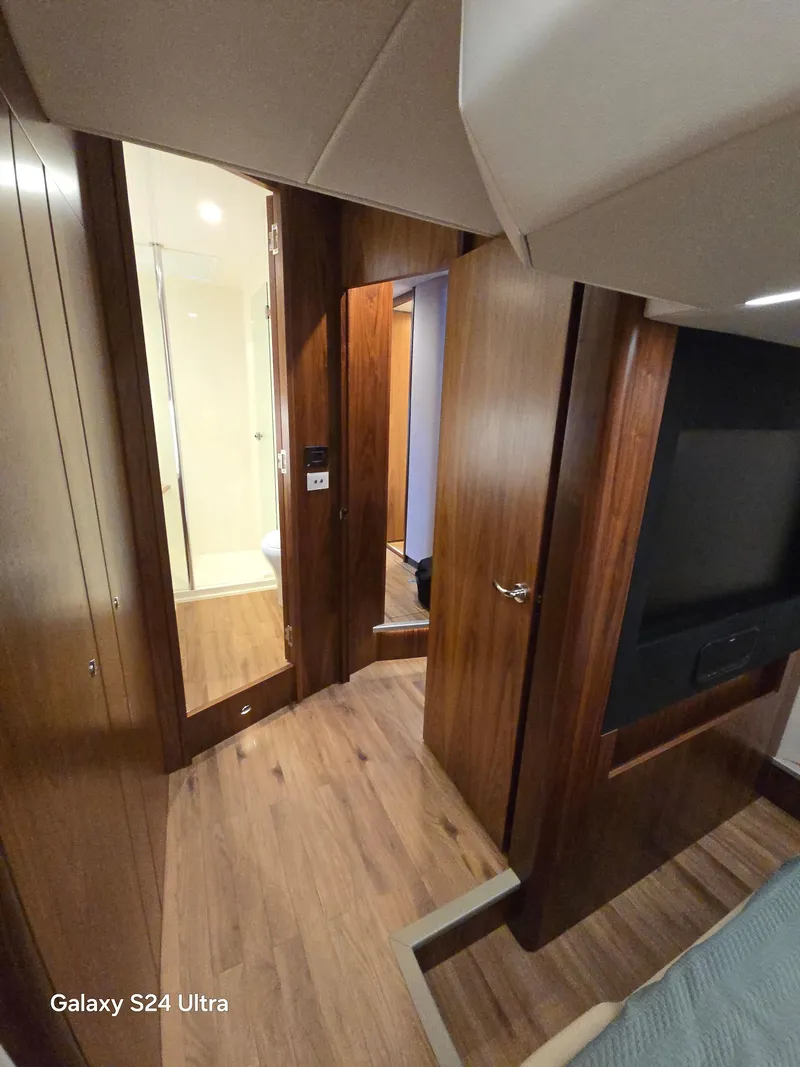

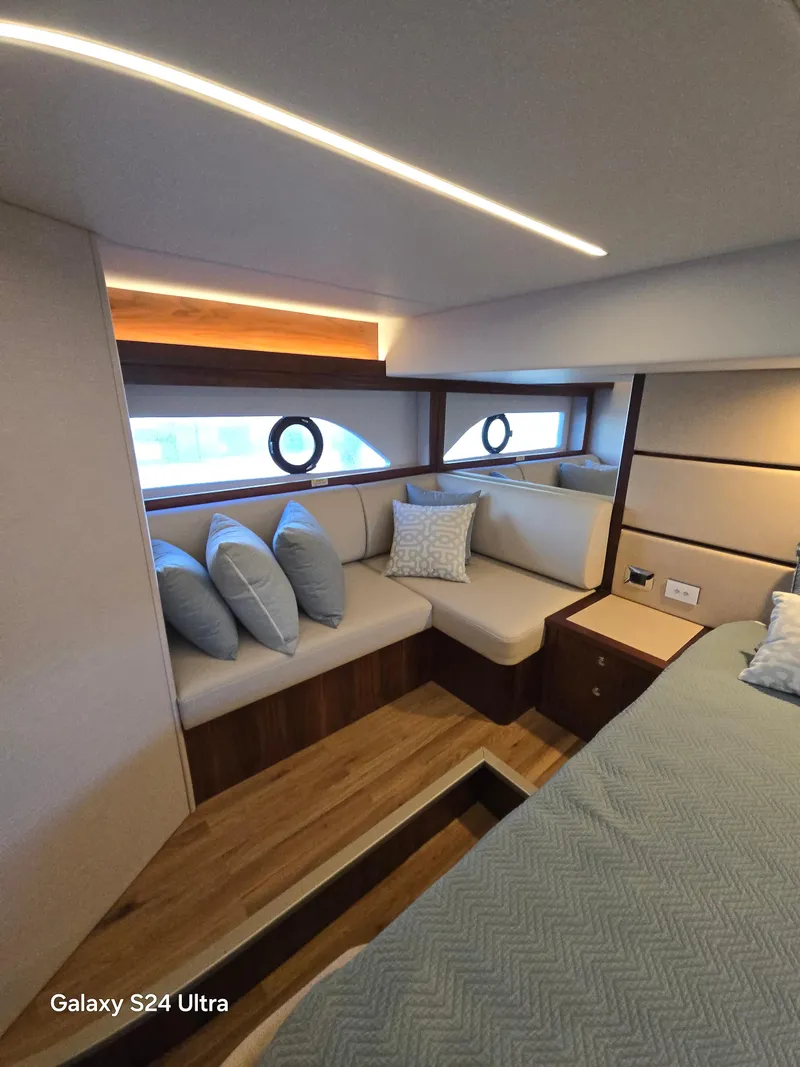

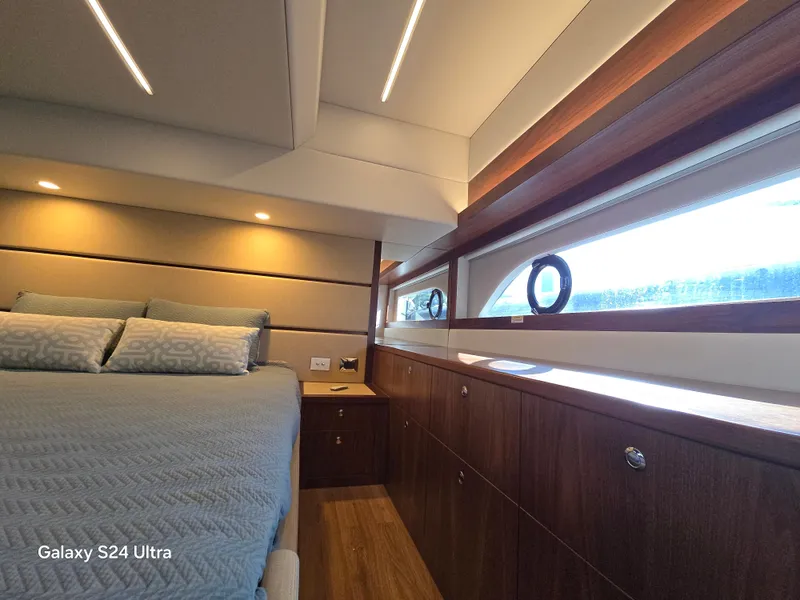

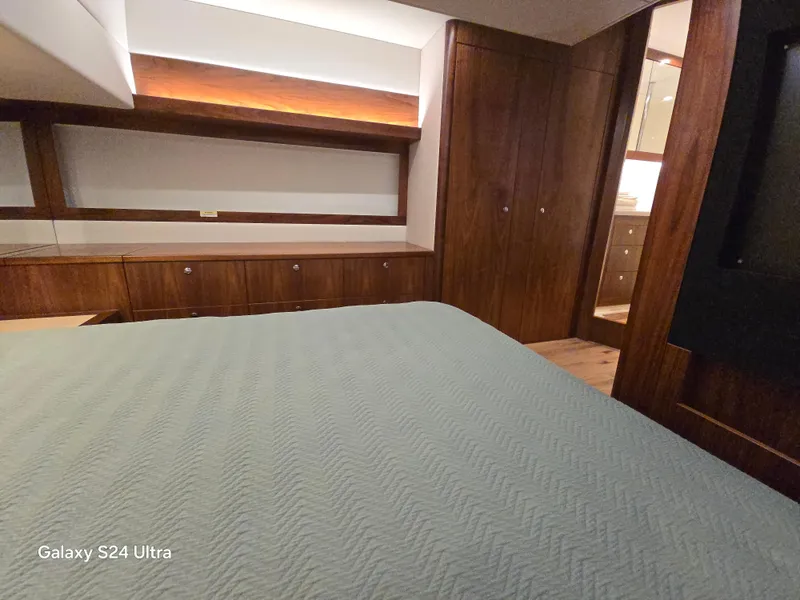

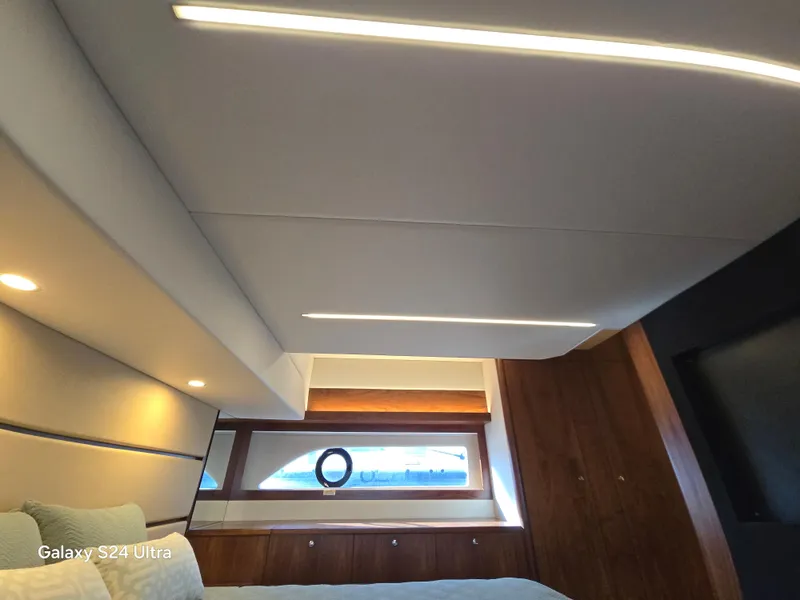

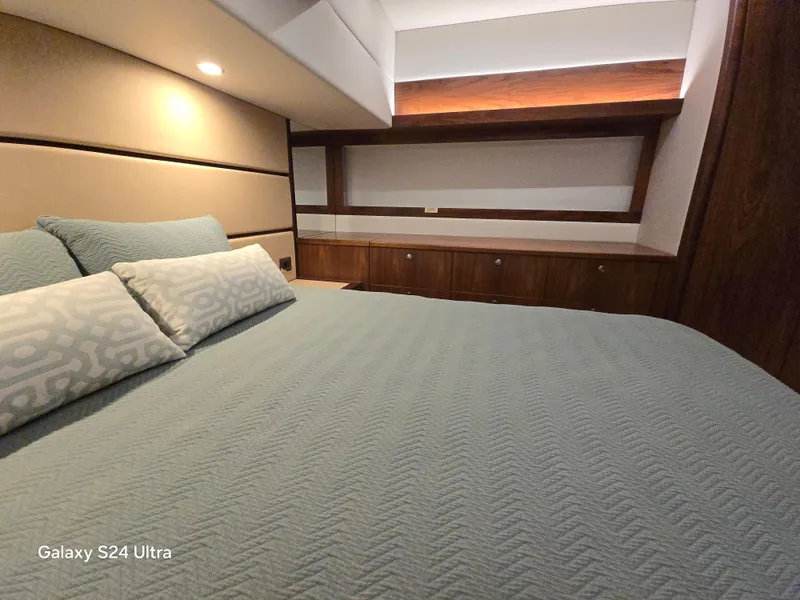

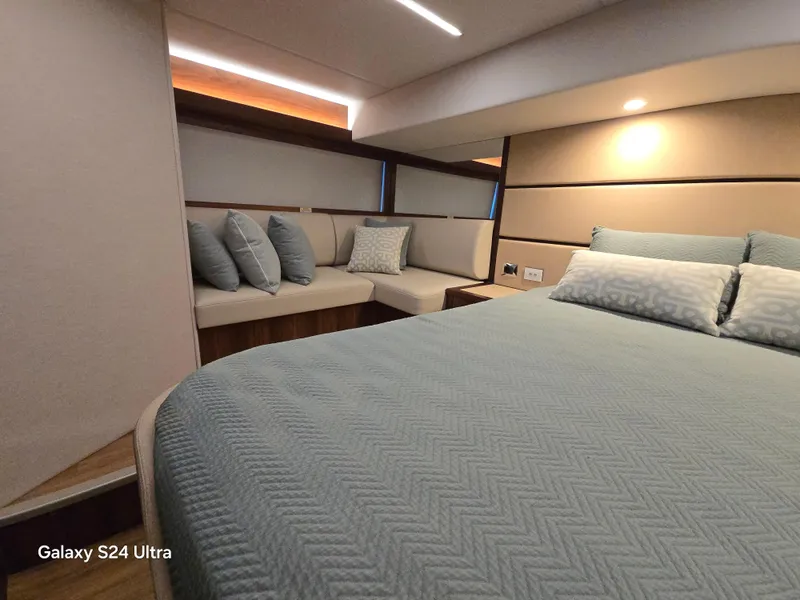

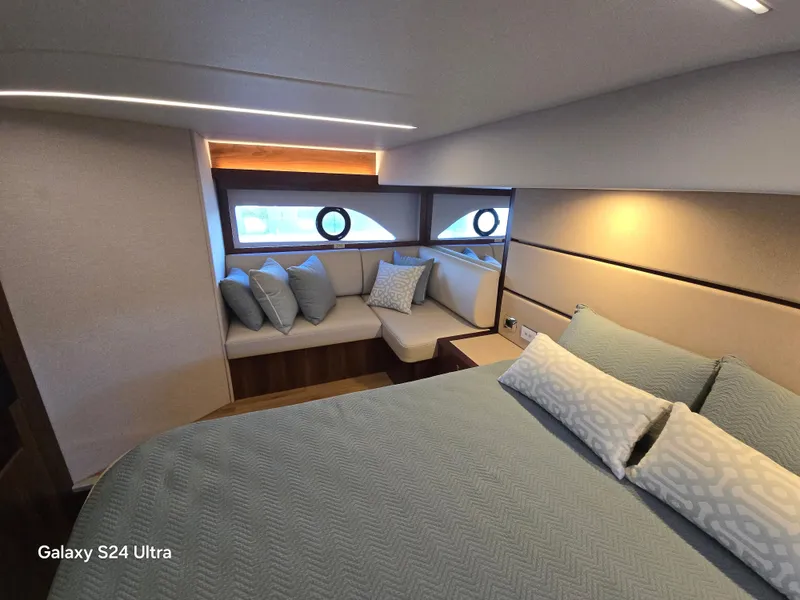

MASTER STATEROOM (AFT STANDARD)

Access to private ensuite Bath

Air conditioning: 12,000 BTU with electric heat (split into ensuite)

Bedside tables with drawer storage

Carpet with underlay

Entertainment cabinet with storage below

Full-length mirror

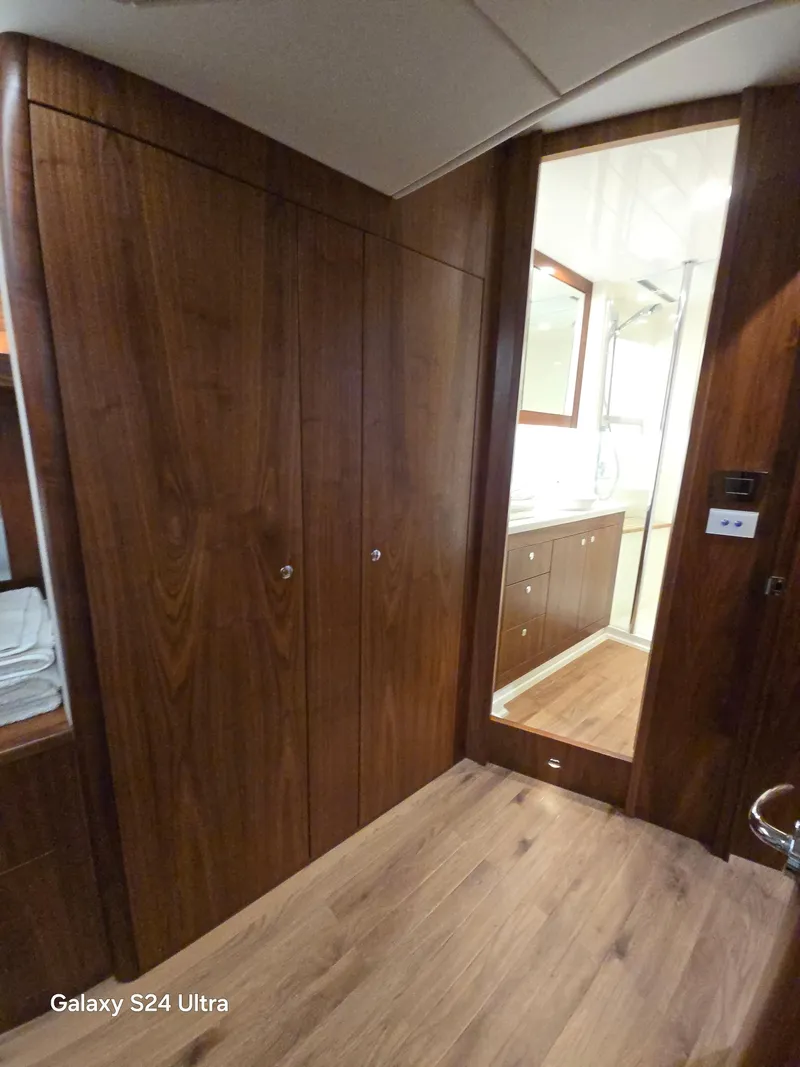

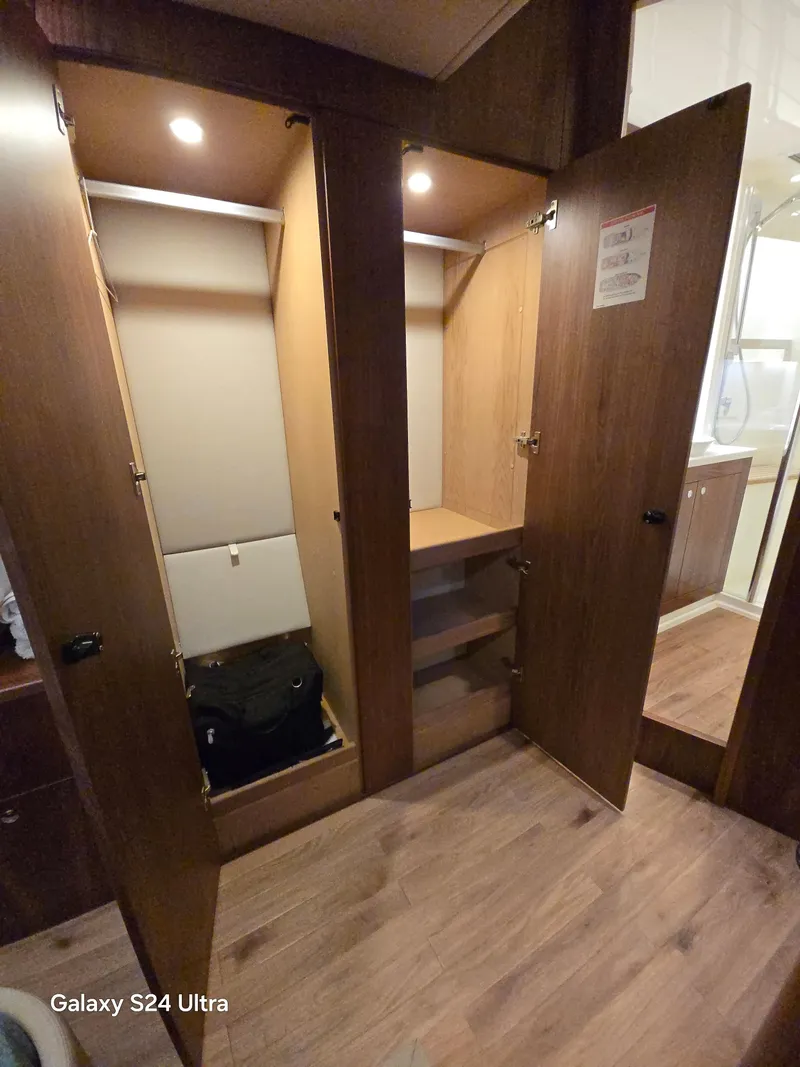

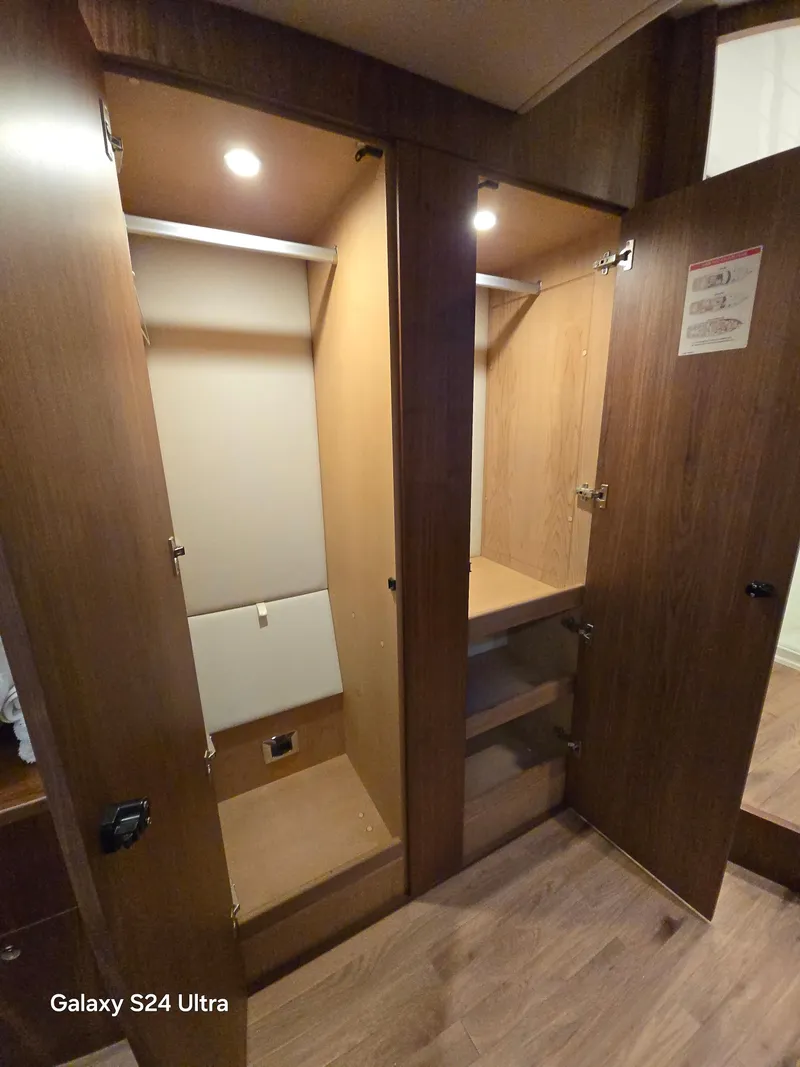

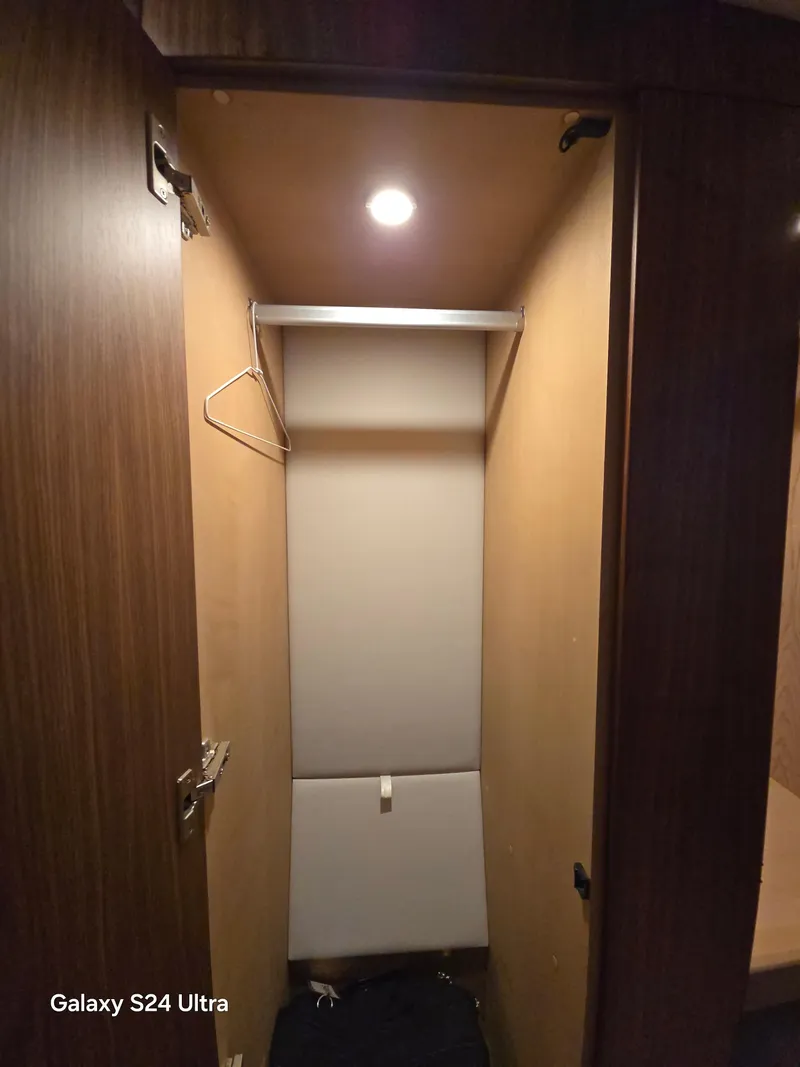

Double Hanging locker x 4 with auto lighting

Headboard upholstered with feature timber inlay

Port & Starboard large fixed hull window with port hole, opening x 2 with alarm to helm including roller blind (to match saloon section)

Overhead lighting

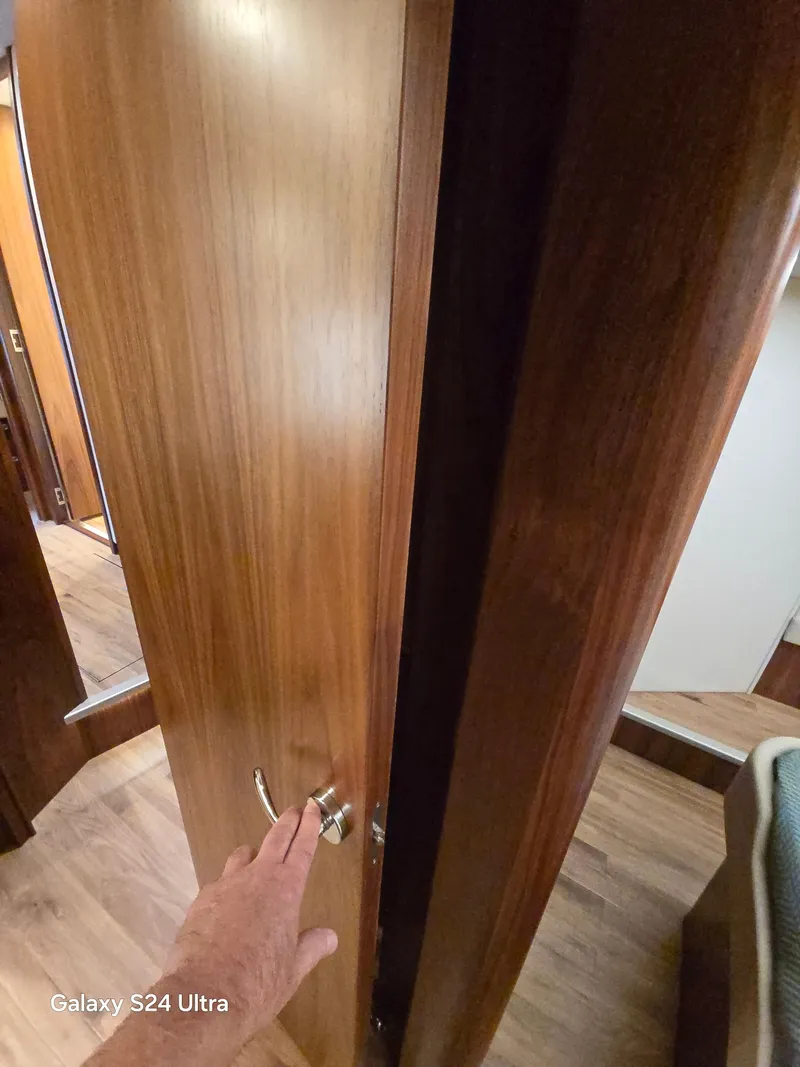

Private entrance door

Queen size walk around berth with latex mattress

Storage drawers with positive locking hardware under berth

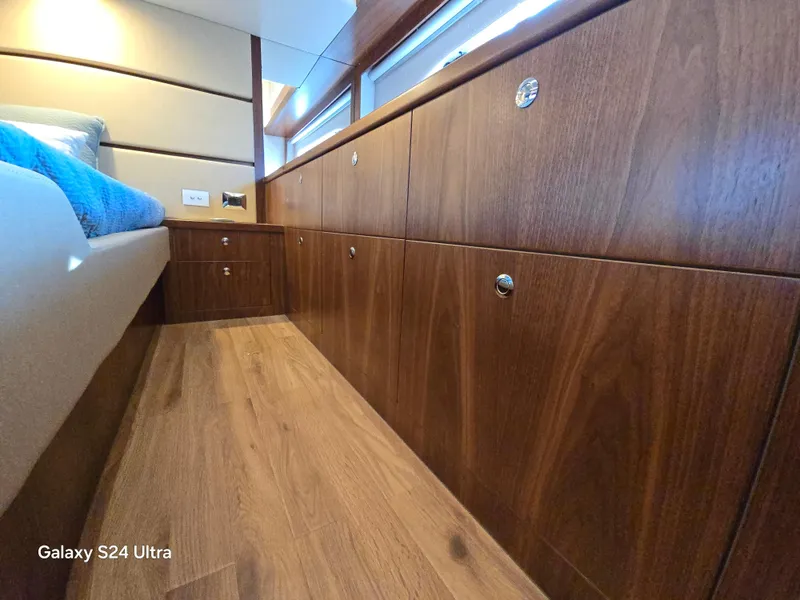

Portside drawers below the hull window

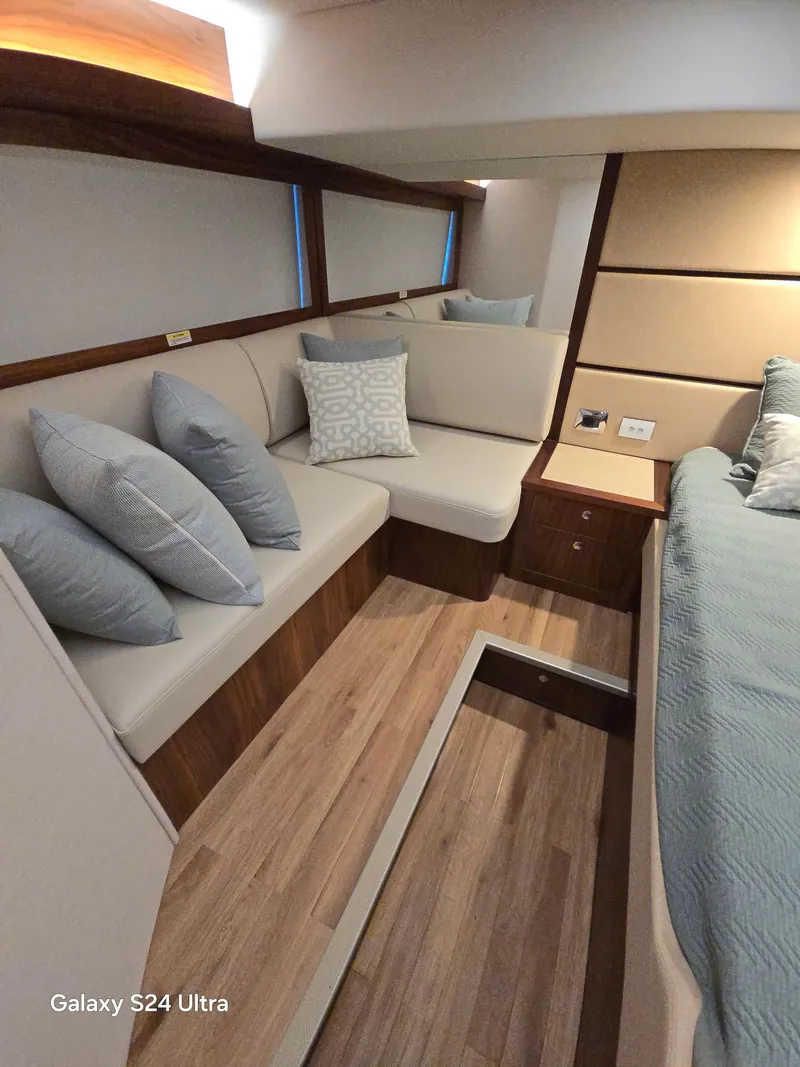

Starboard side lounge below hull window

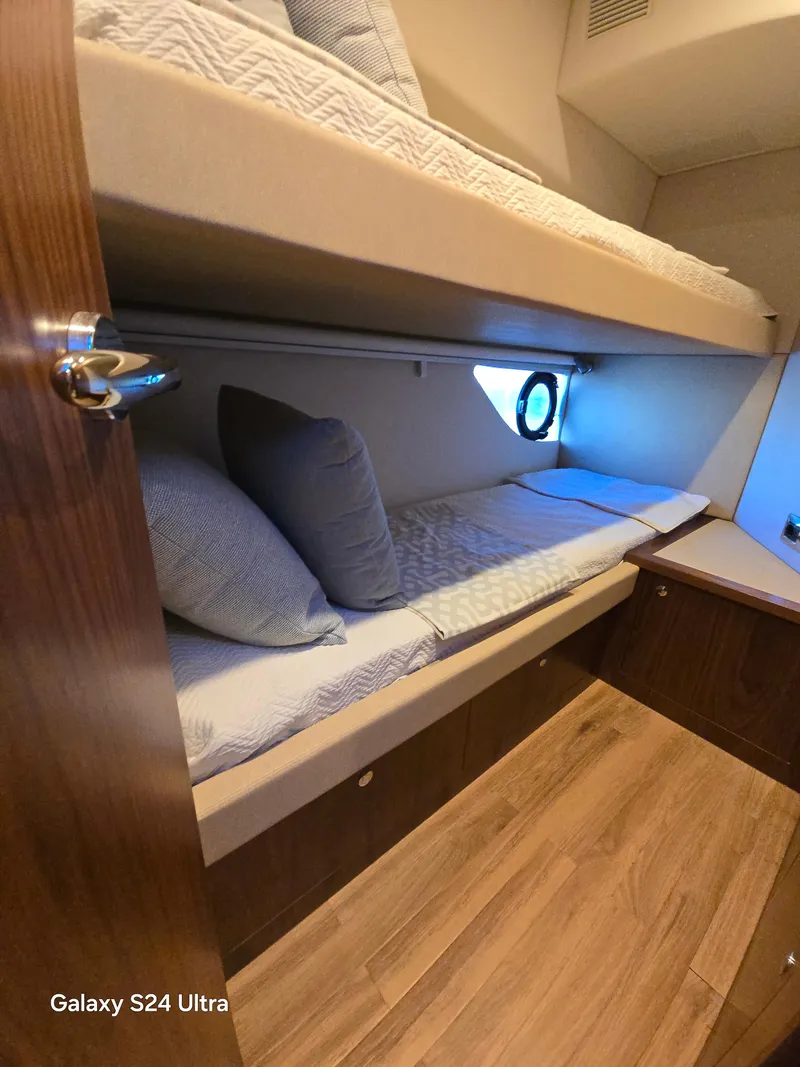

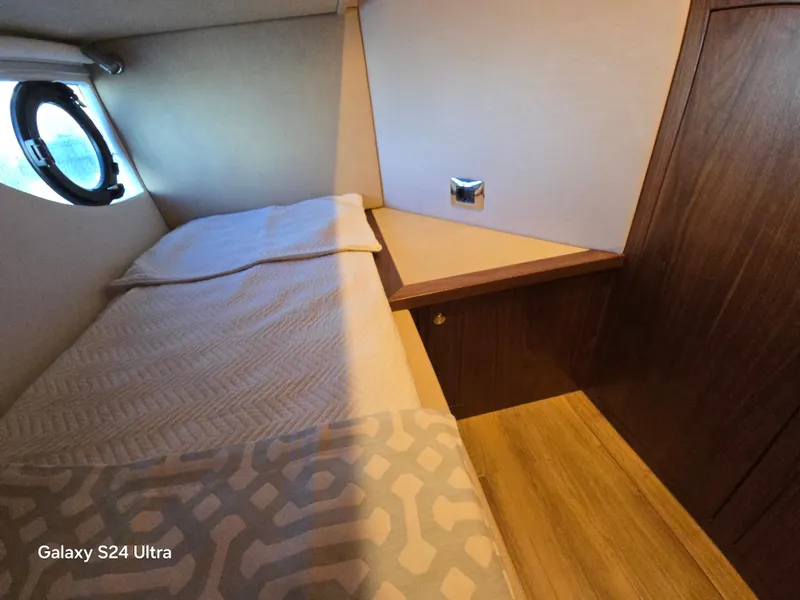

STATEROOM - STARBOARD

Air conditioning 6,000BTU

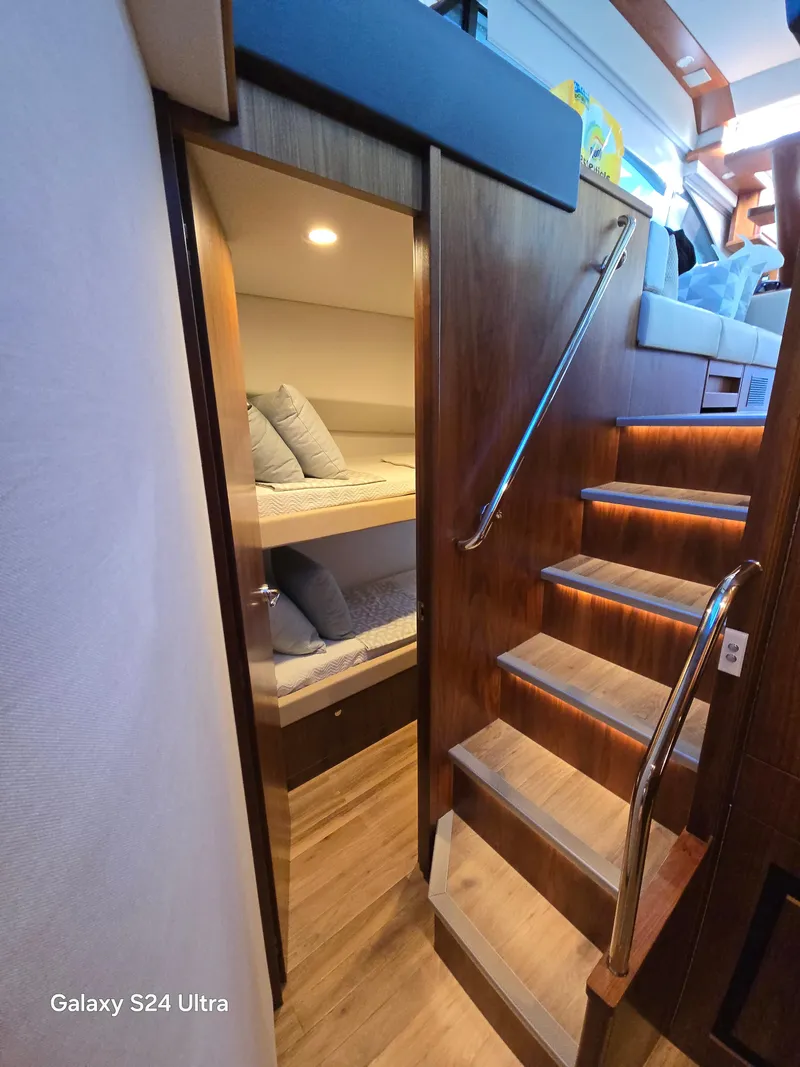

Berths, twin bunk beds stacked

Carpet with underlay

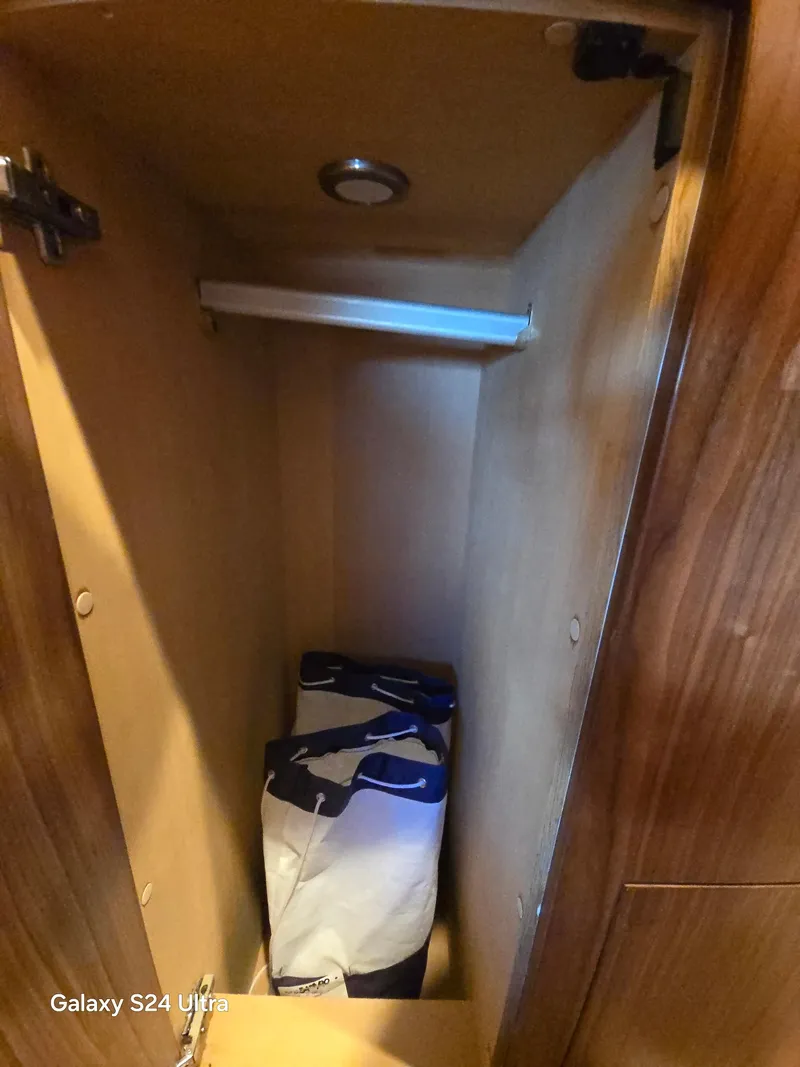

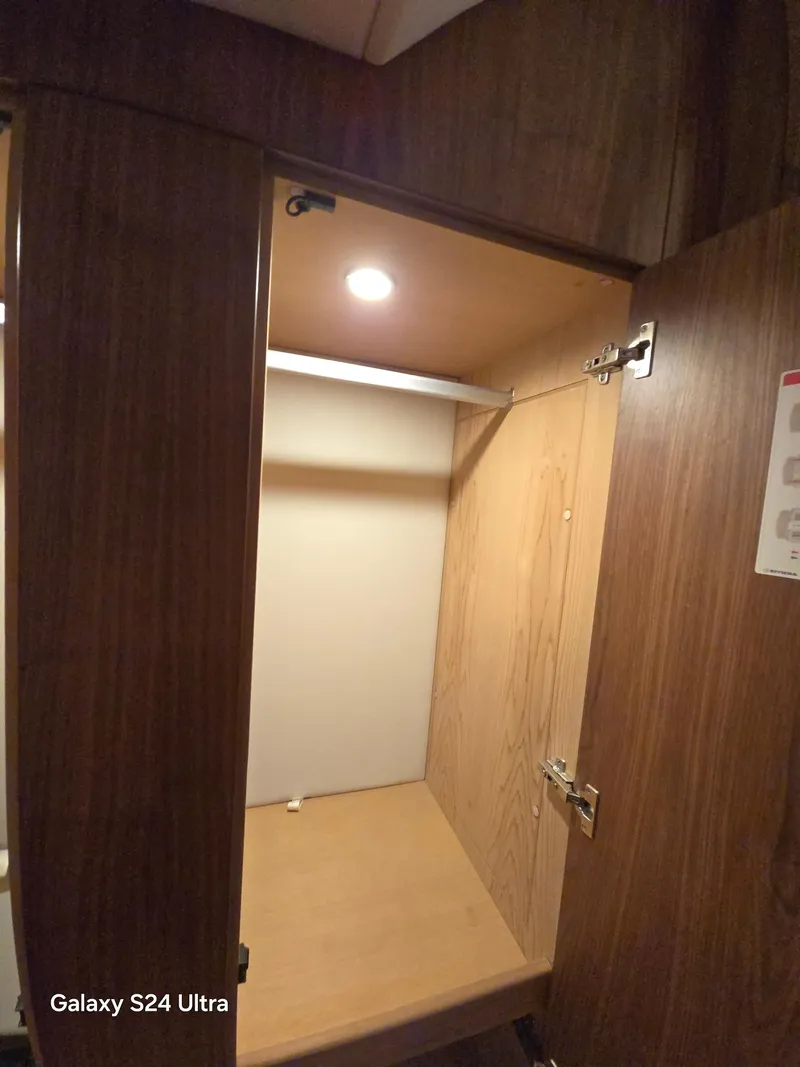

Hanging locker with lighting

Headboard - upholstered

Fixed hull window with port hole, opening x 1 with alarm to helm including roller blind (to match saloon selection)

Private entrance door

Reading and overhead lighting (DC)

Drawers outboard under the bed with positive locking hardware

Storage cupboard inboard under stairs

GUEST STATEROOM - FORWARD

Access to private ensuite/day head

Air conditioning: 12,000 BTU with electric heat split to the head

Bedside tables

Carpet with underlay

Hanging lockers (x2), cedar lined with auto lighting

Hatches x 2 - square white with screen and blind

Headboard upholstered with large overhead mirror

Hull Windows fixed in tinted tempered glass, including roller blinds

Large open storage area under berth

Private entrance door

Queen walk-around berth with latex mattress

Storage cabinets outboard with positive locking hardware and gas support struts

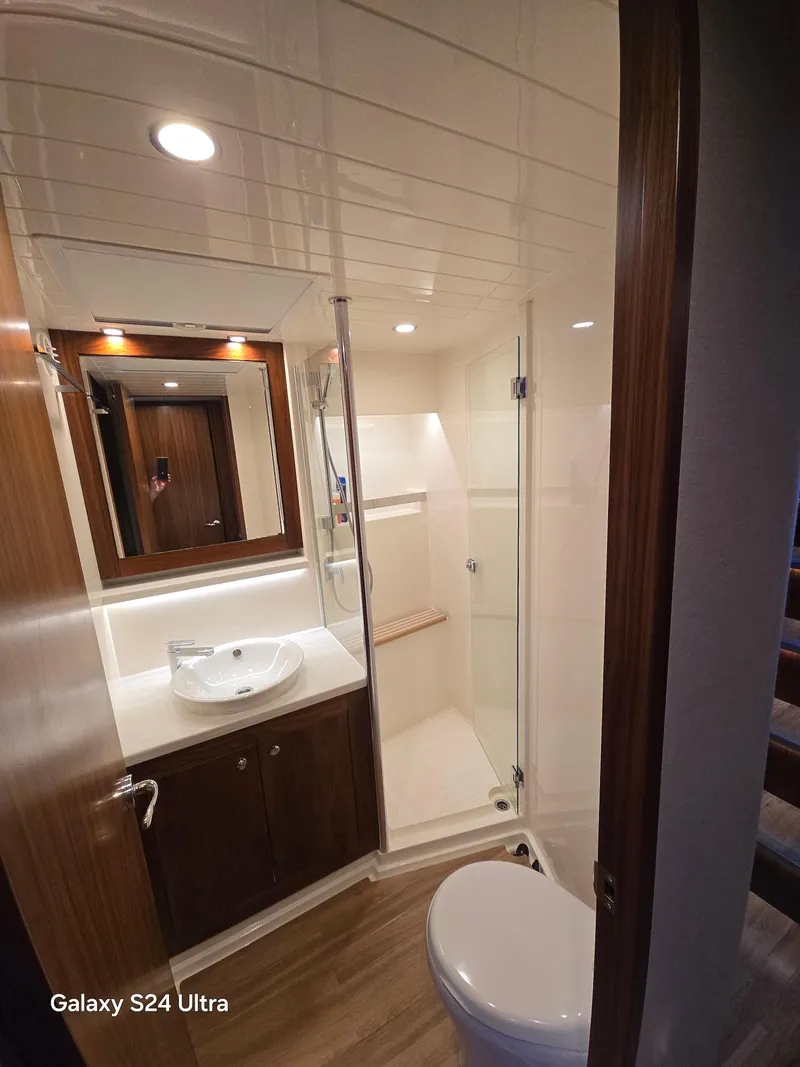

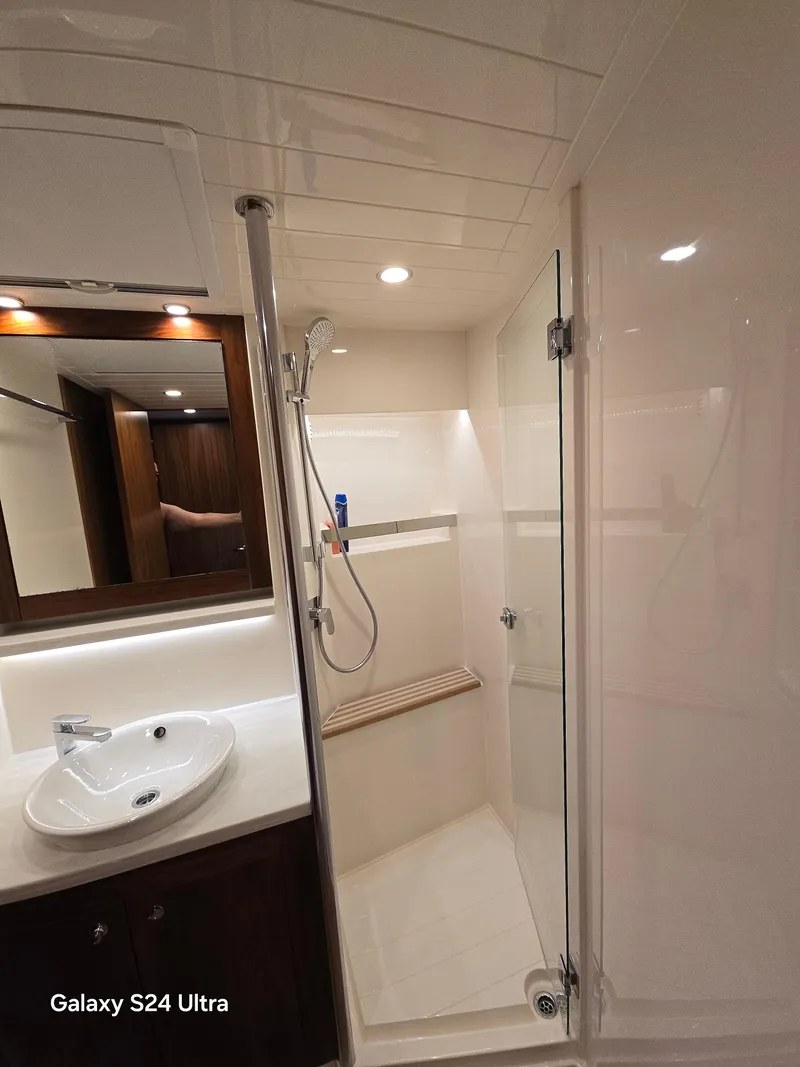

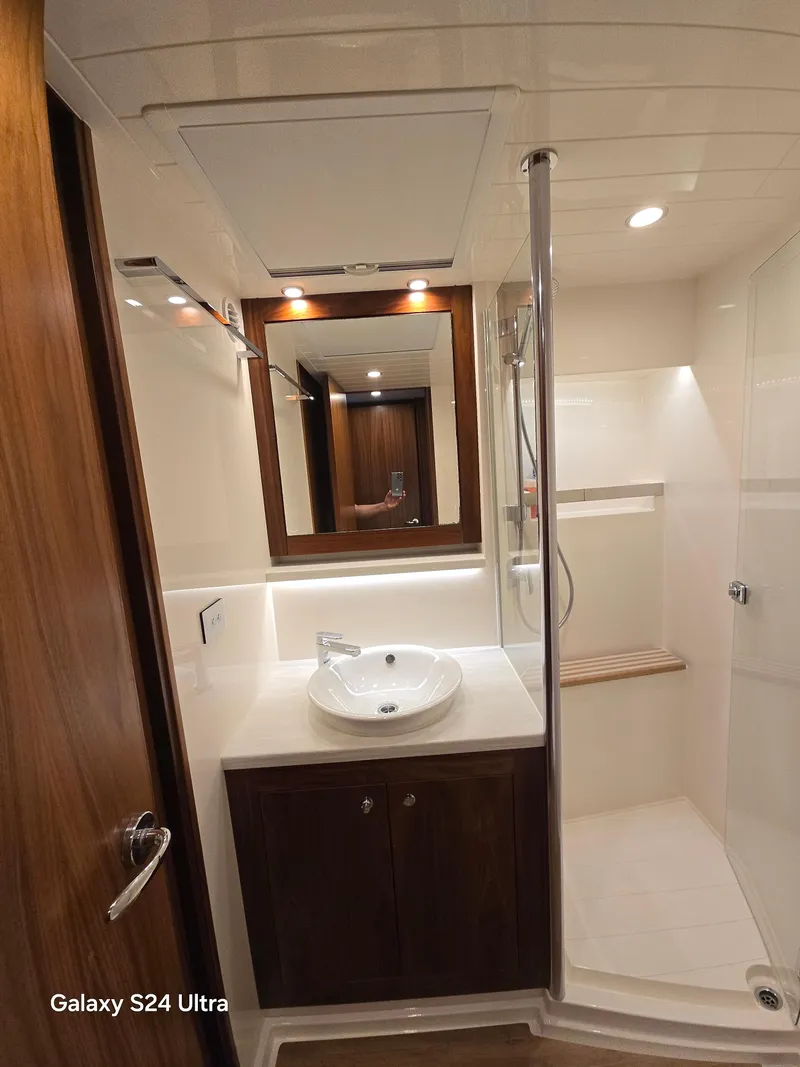

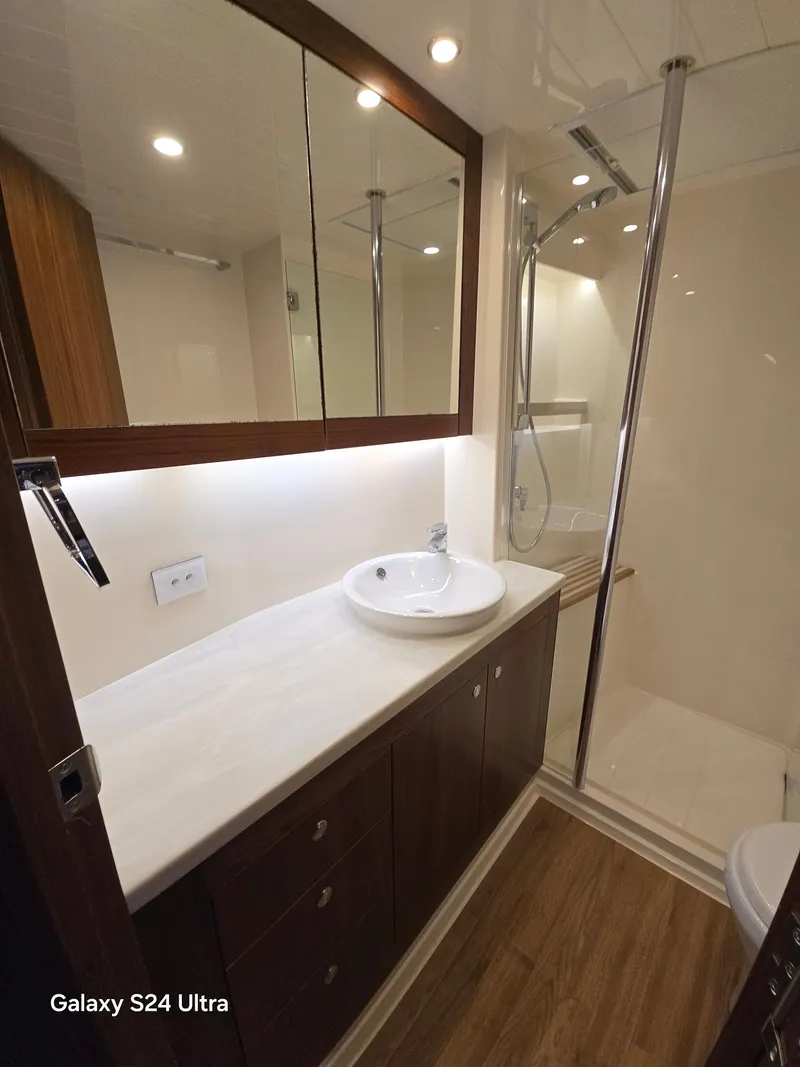

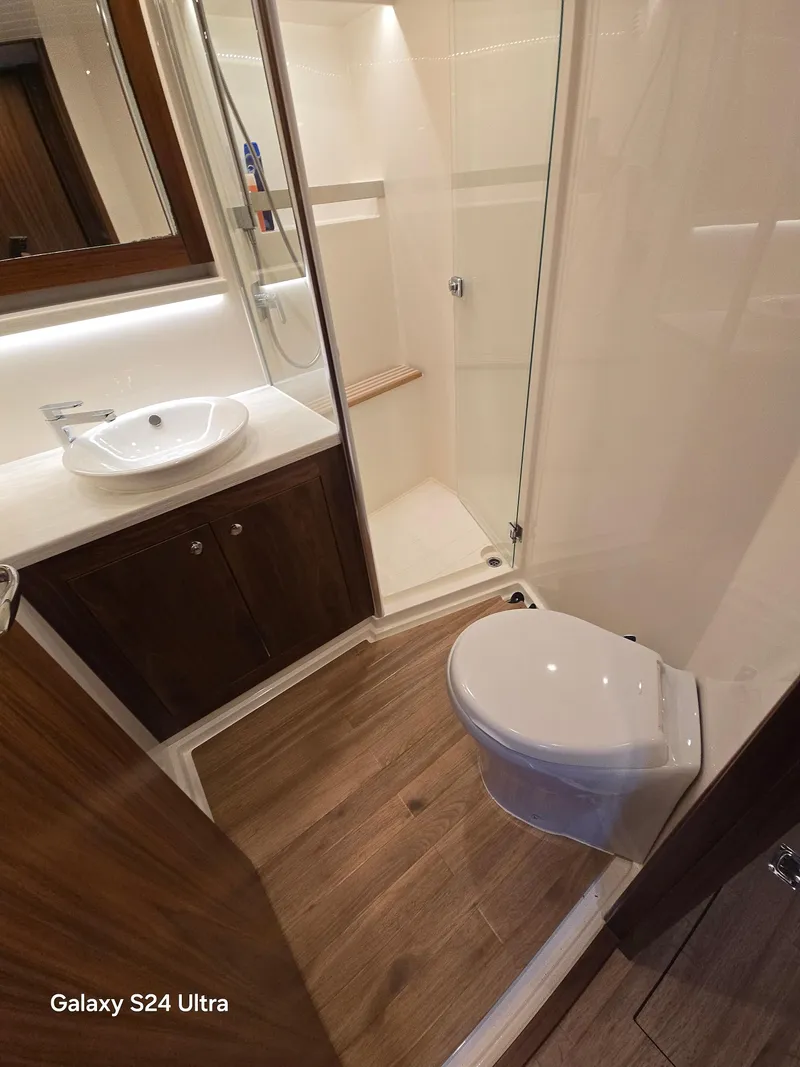

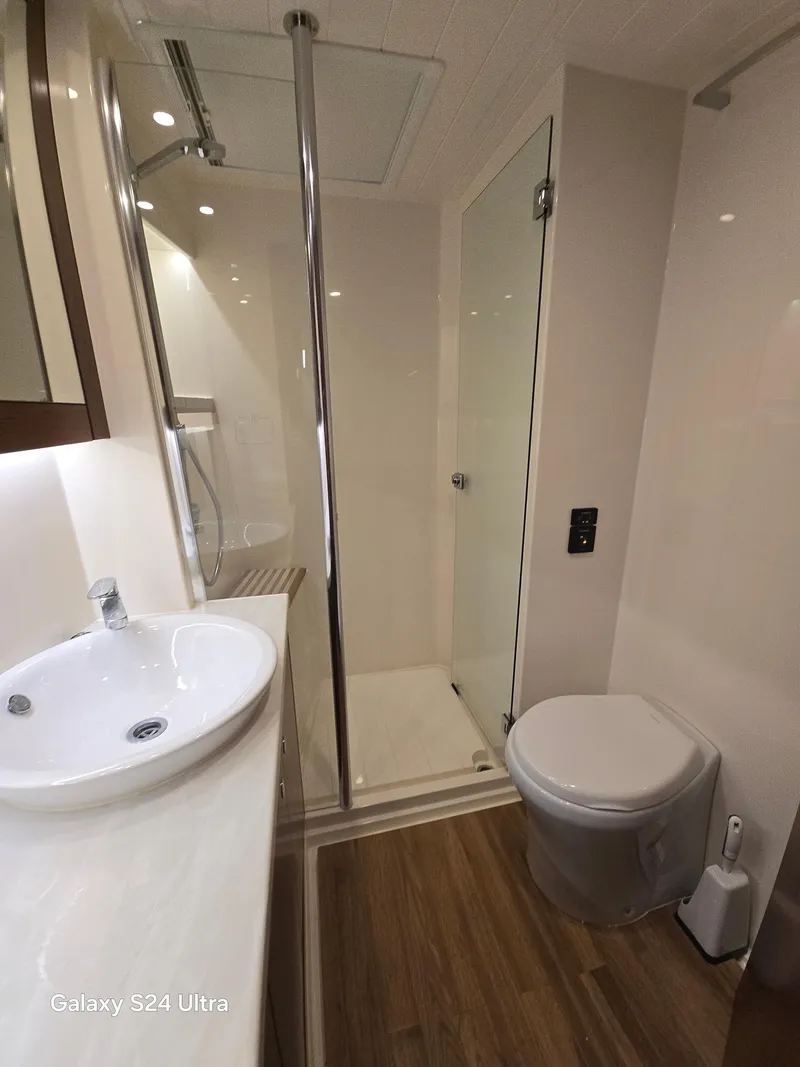

HEAD - MASTER & GUEST

Air conditioning split from staterooms

Extraction fan

Flooring in vinyl (premium grade)

Hatch - white with insect screen & blackout blind

Master head - blackwater tank level indicator

Overhead and vanity lighting {DC)

Private entrance door to the master

Shower stall with frameless glass door and shower head (on

slide bar)

Solid surface vanity benchtop with porcelain sink and mixer tap

Timber locker door to under-bench storage

Toilet (fresh water flush)

Toilet roll holder & accessories

Towel rails to heads

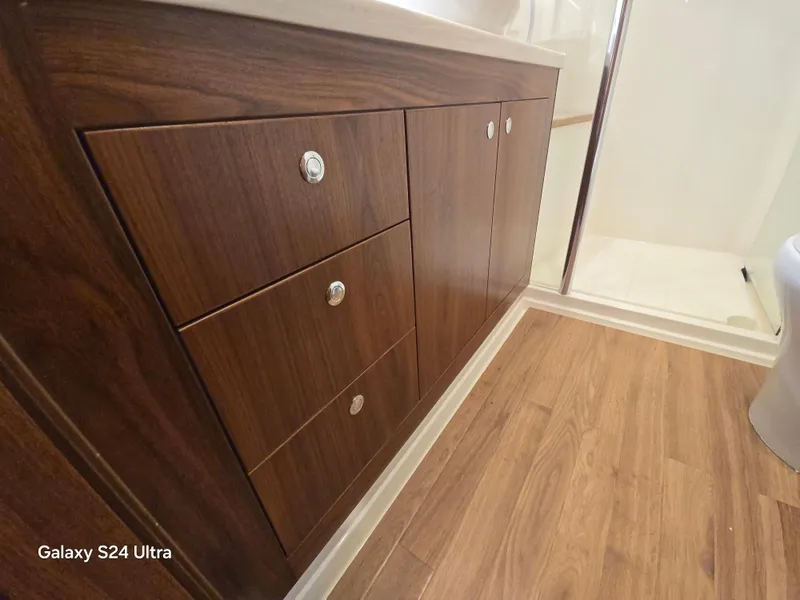

Vanity cabinet

Vanity mirror

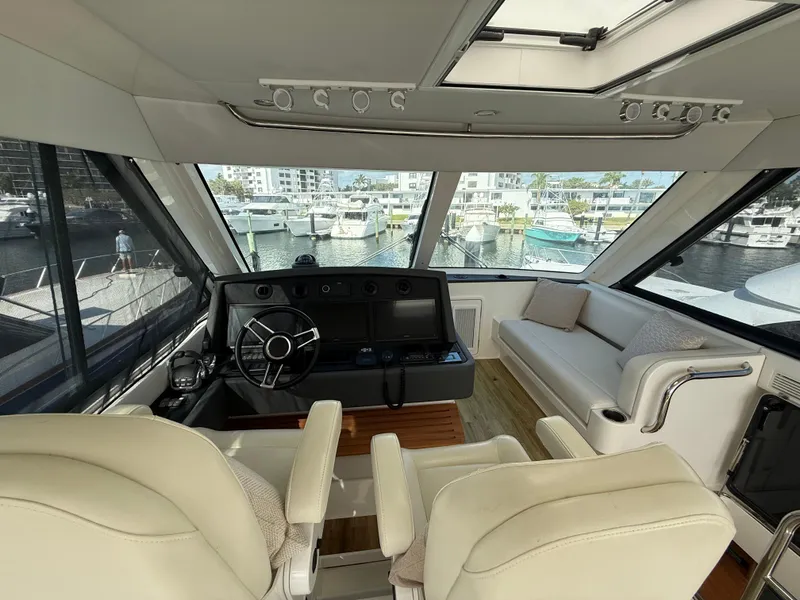

HELM

12V Outlet & 2 x USB outlets

Czone LED 5" display for monitoring and controlling systems

Chain counter (anchor)

Compass, 4.75" with light

Dash cover {white)

Dedicated switches for horn, wipers {with intermittent setting) overhead and navigation lights and engine start/stop

Drink holder

Electronic engine control unit, twin lever gear & throttle

Helm & Companion chairs (x2) Slimline Pompanette Platinum - fully adjustable with arm and footrests

Helm electronics area with 24vdc feed, main circuit breaker protected

Joystick docking control

Navigation - 3 x 16" Volvo Glass Bridge 8616 inc GPS & GRID

controller, integrated Volvo Auto Pilot

Recess - molded for mobile phones

Spotlight control panel

Storage lockers and drawers

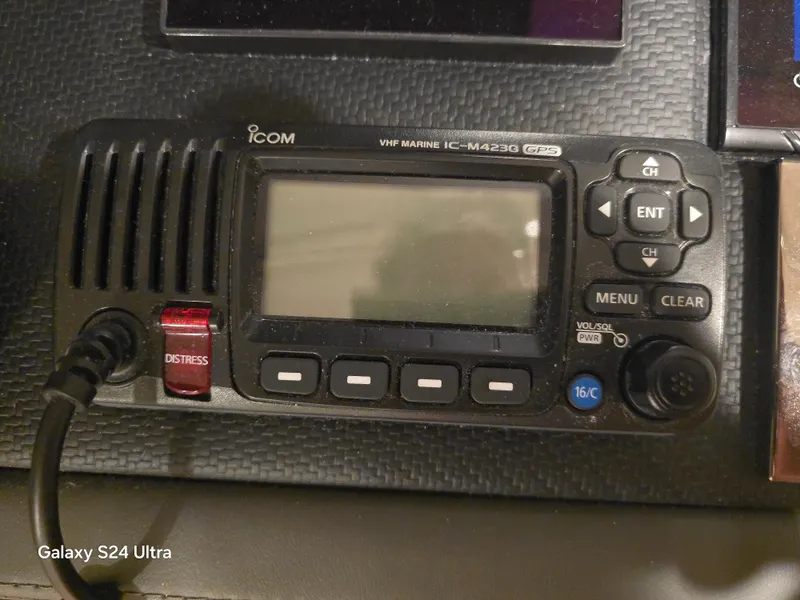

VHF radio, including aerial

Visual & audible signal for bilge high water

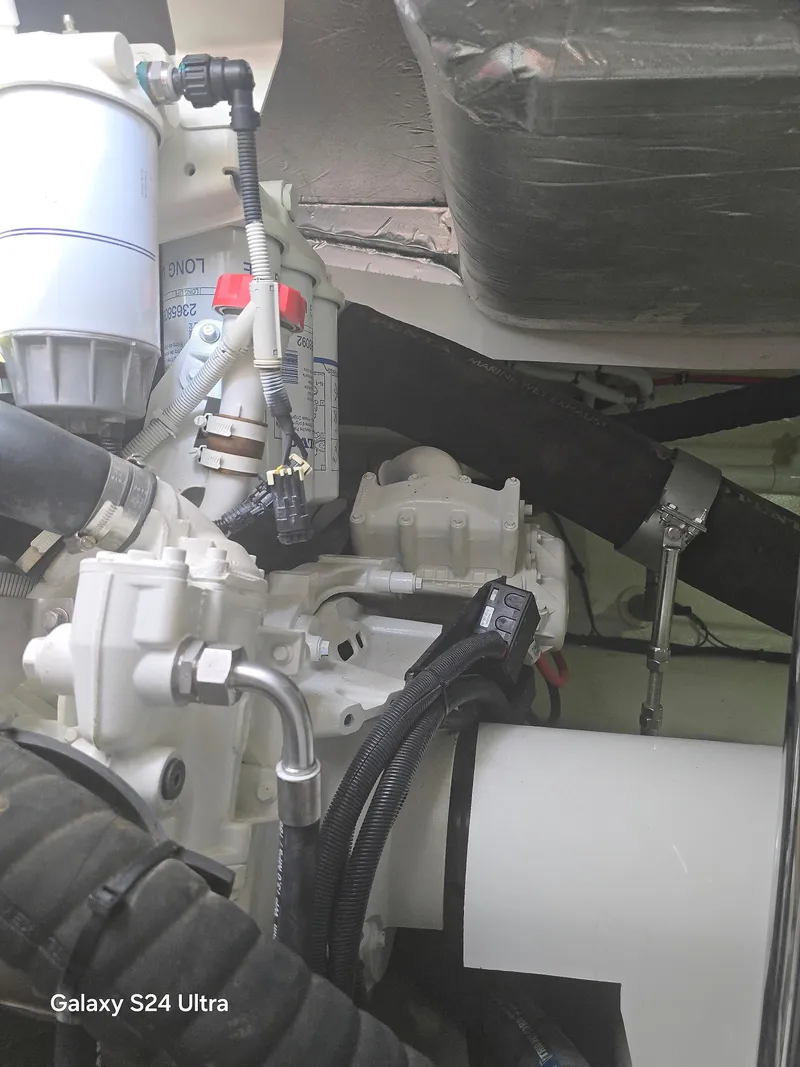

ENGINE

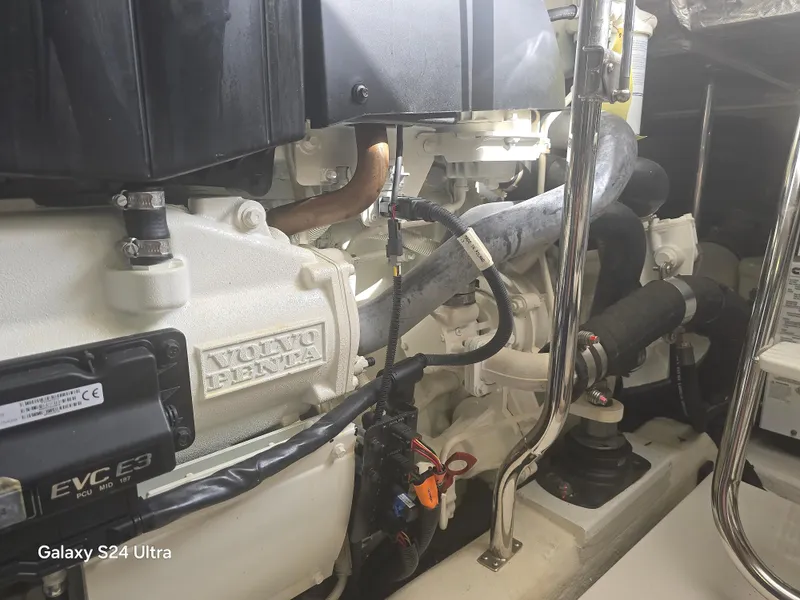

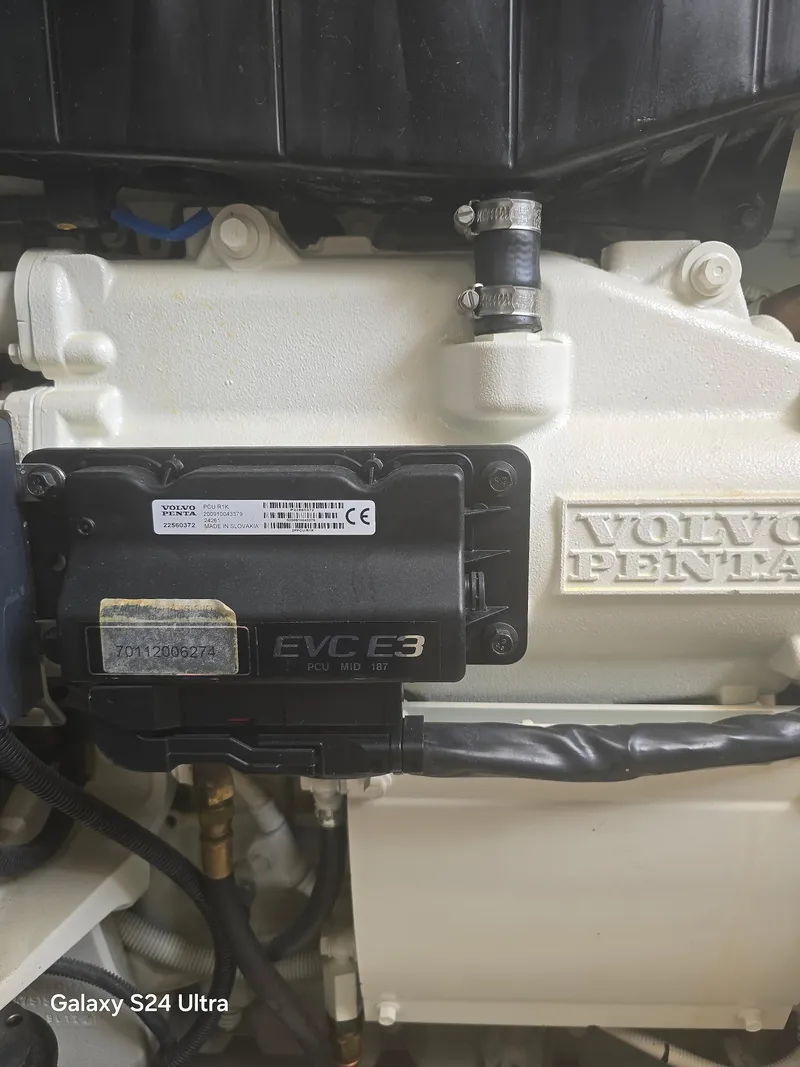

Twin Volvo IPS 950 D11 Diesel (533kw/725hp)

inc. low-speed mode, Volvo Autopilot, 7"

Engine Display, ACP, DPS, line cutters, twin

lever electronic controls (helm) & joystick

controls x2 (Helm & Cockpit), 3 x 16" 8616

Glass Bridge Screens

MECHANICAL - FUEL FILTERS

Fuel filters/ water separator for engines &

generator (Milestone 1)SWIM PLATFORM

Teak laid a standard-size swim platform.

(includes swim ladder)

MECHANICAL

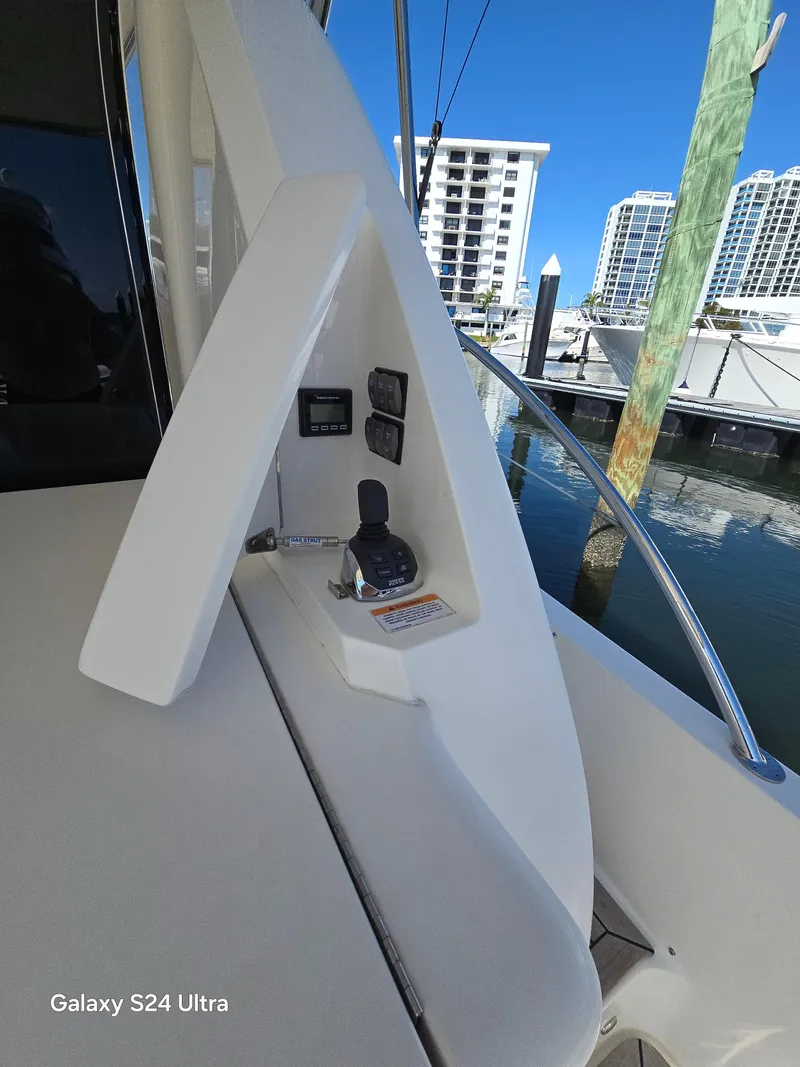

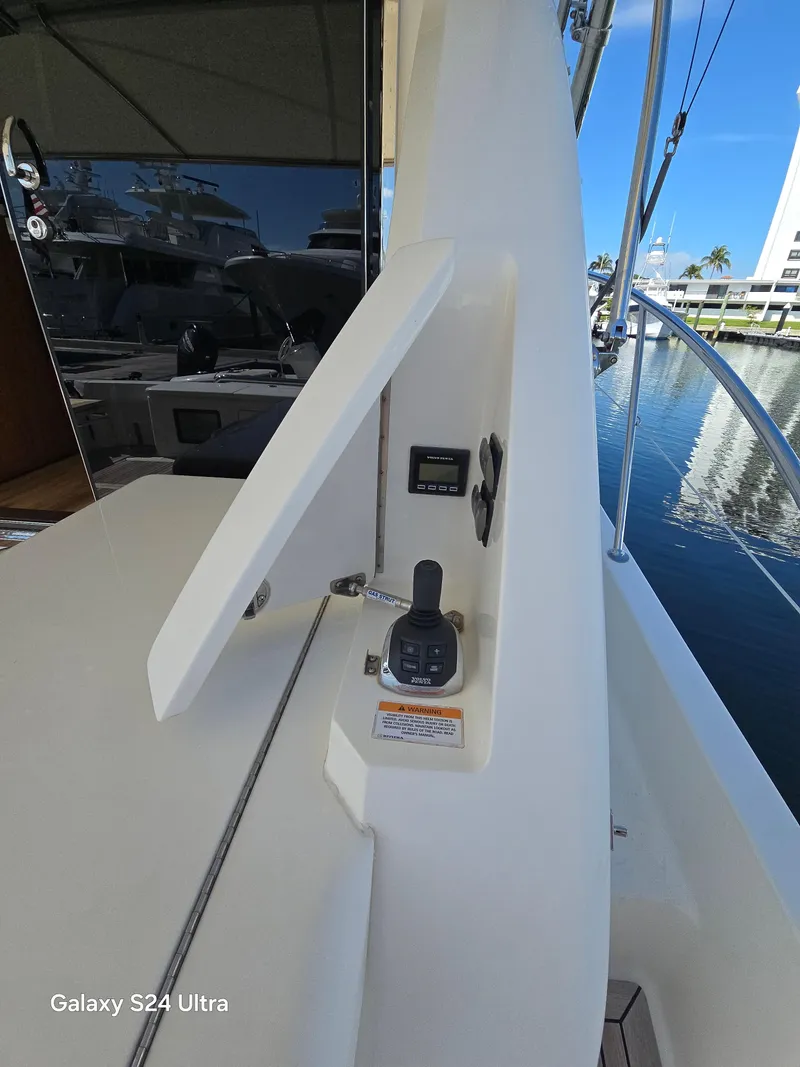

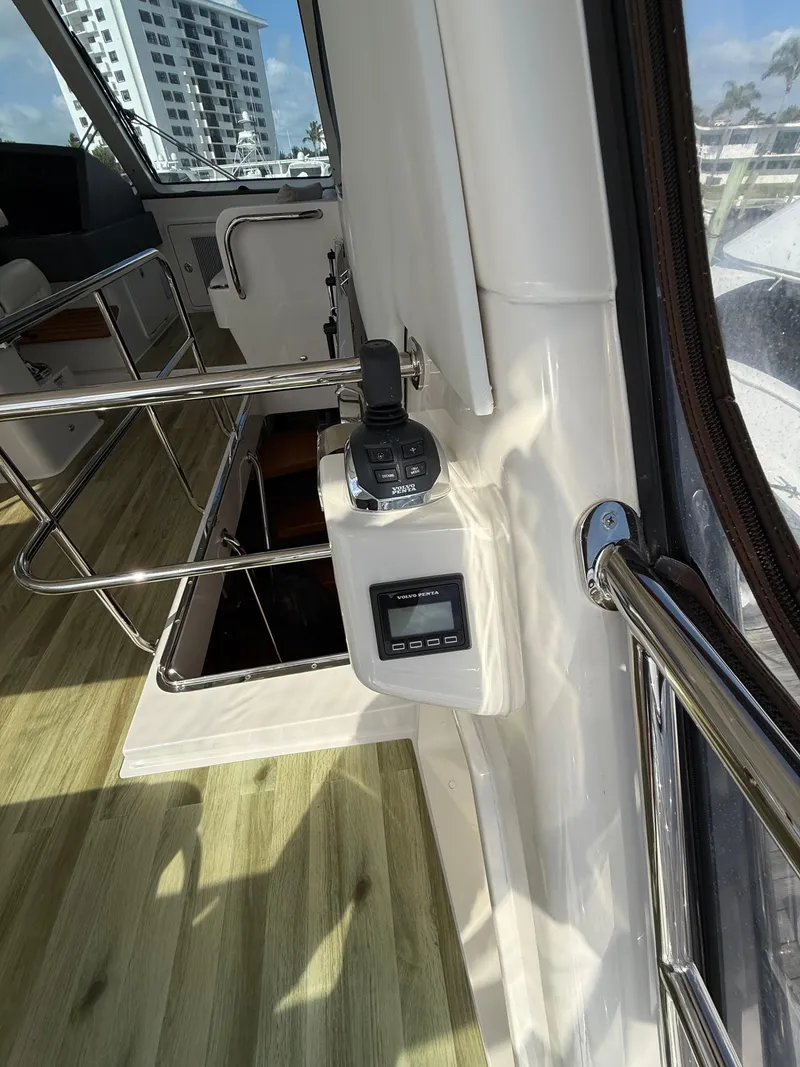

Cockpit - docking station, including joystick

engine control with a start-stop control panel,

installed into the quarter panel with a folding lid

Mounted Starboard

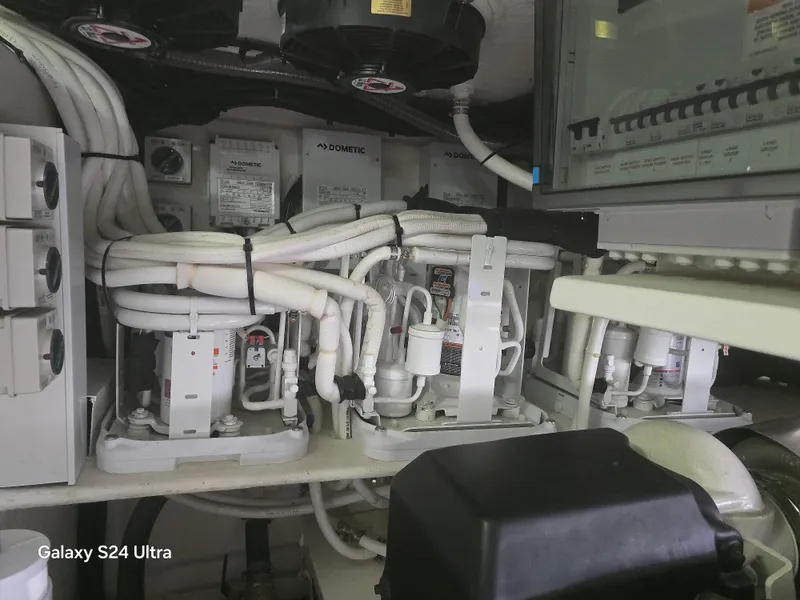

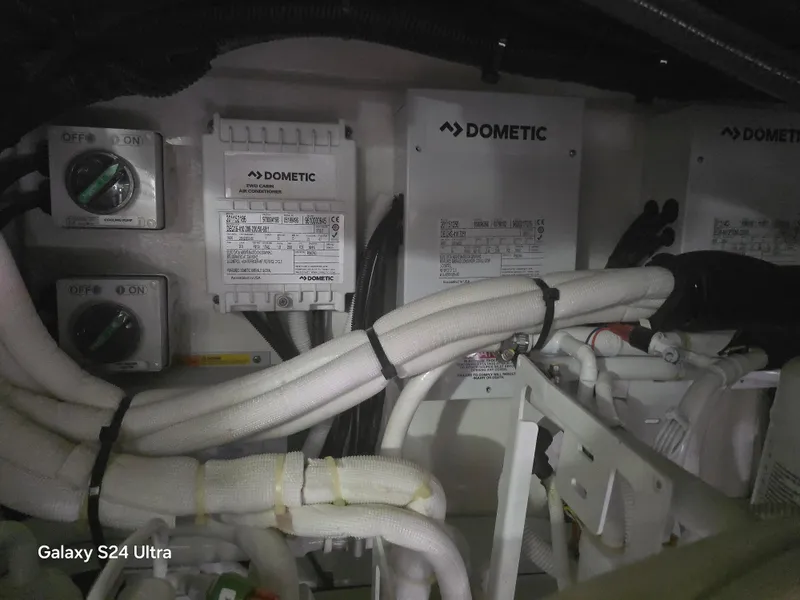

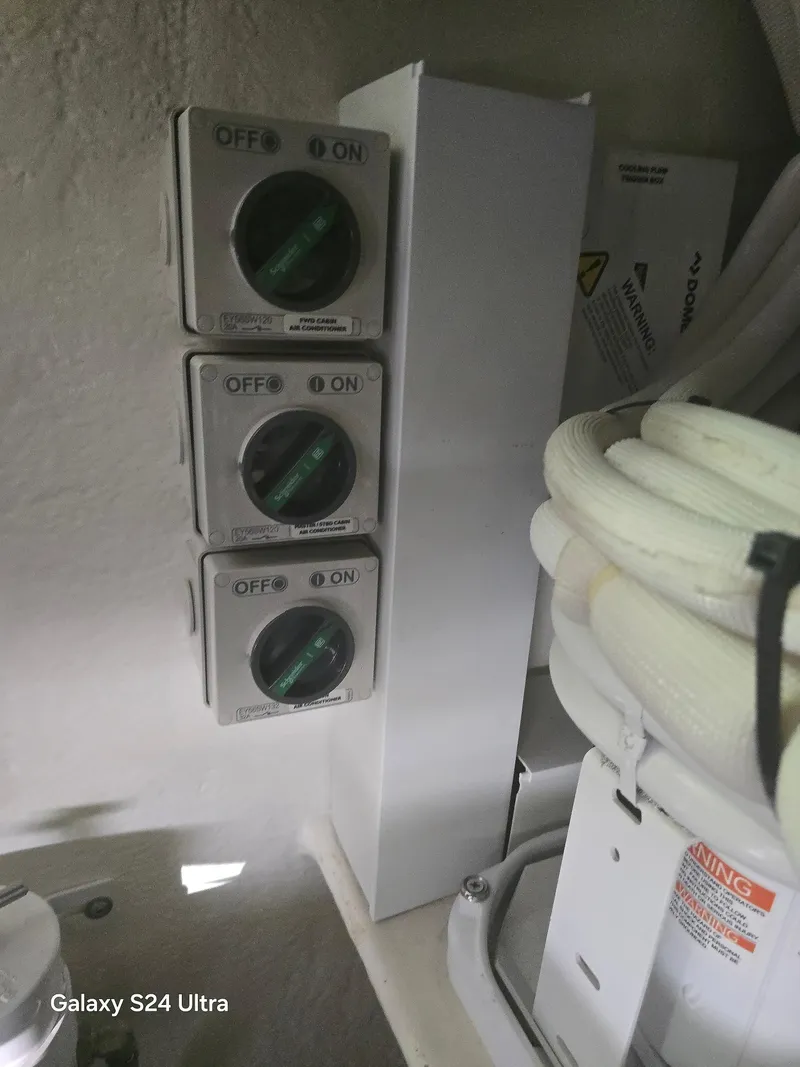

Tropical package - Airconditioning Saloon

(48kBTU), Fwd Stateroom (16kBTUJ, Aft master stateroom 16kBTU, Stb stateroom (6kBTU), Flybridge (48kBTU), includes heat reflective film to saloon & flybridge windows front & sides

Generator upgrade to 17.5kW/50Hz

Flybridge aft docking pod mounted to quarter

the panel, including joystick & engine, start/stop

switch

High-pressure water cleaner system fitted to

engine room plumbed to bow and cockpit with

1 x (10 meter) non-marking hose and spray wand

SALOON WINDOWS

Side windows - Glass, opening (sliding) (in lieu Standard of fixed glass)

FLYBRIDGE FLOORING OPTIONS

Marine grade carpet to flybridge floor (snap Inclusion Standard down, removable)

Teak/Charcoal

ELECTRICAL - AUDIONISUAL

Guest Stateroom Forward - LED TV and Fusion Retail stereo panel (TV powered off inverter)

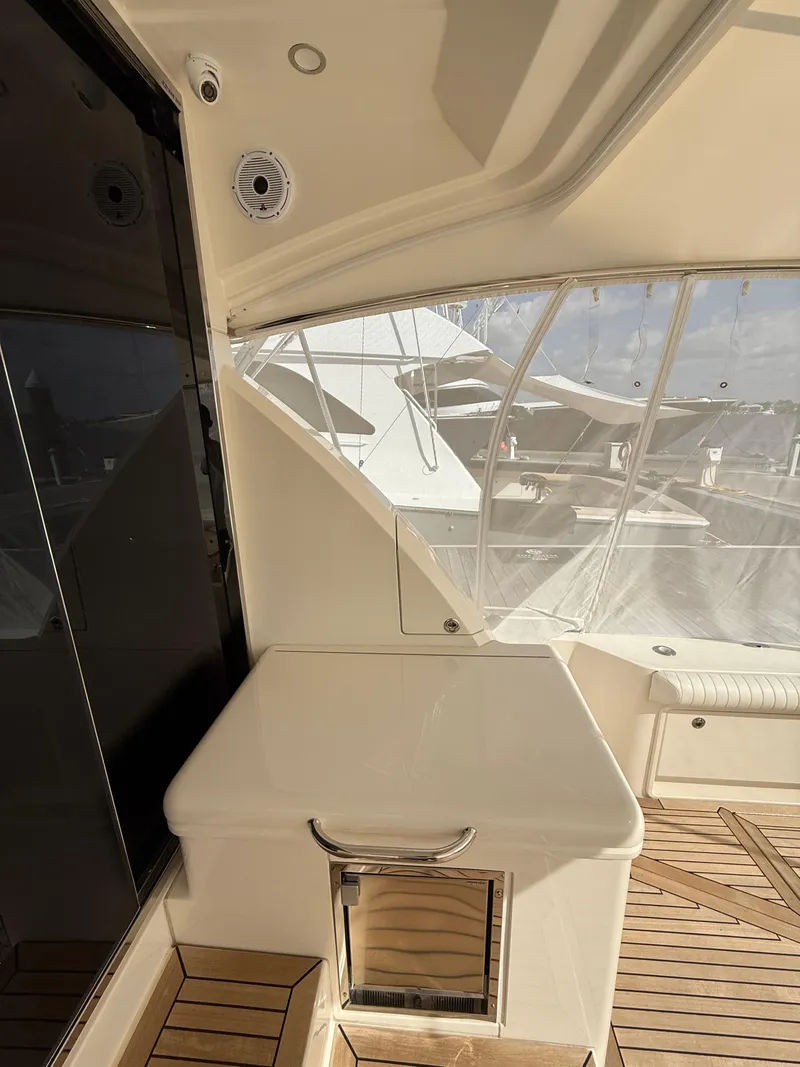

COCKPIT

Padded bolster fitted to cockpit coaming

Inclusion Rod holders in cockpit coaming (x 5) - bolted in

heavy-duty stainless steel

Rod holders to flybridge rail (x 6) - stainless steel

COCKPIT FLOOR

Cockpit floor area, Teak laid & side steps,

including Mezzanine step and saloon entry step

COCKPIT TRANSOM

Live Bait tank - Convert storage bin to a live bait tank unit (beside lounge), including pick up circulating pump, window and light

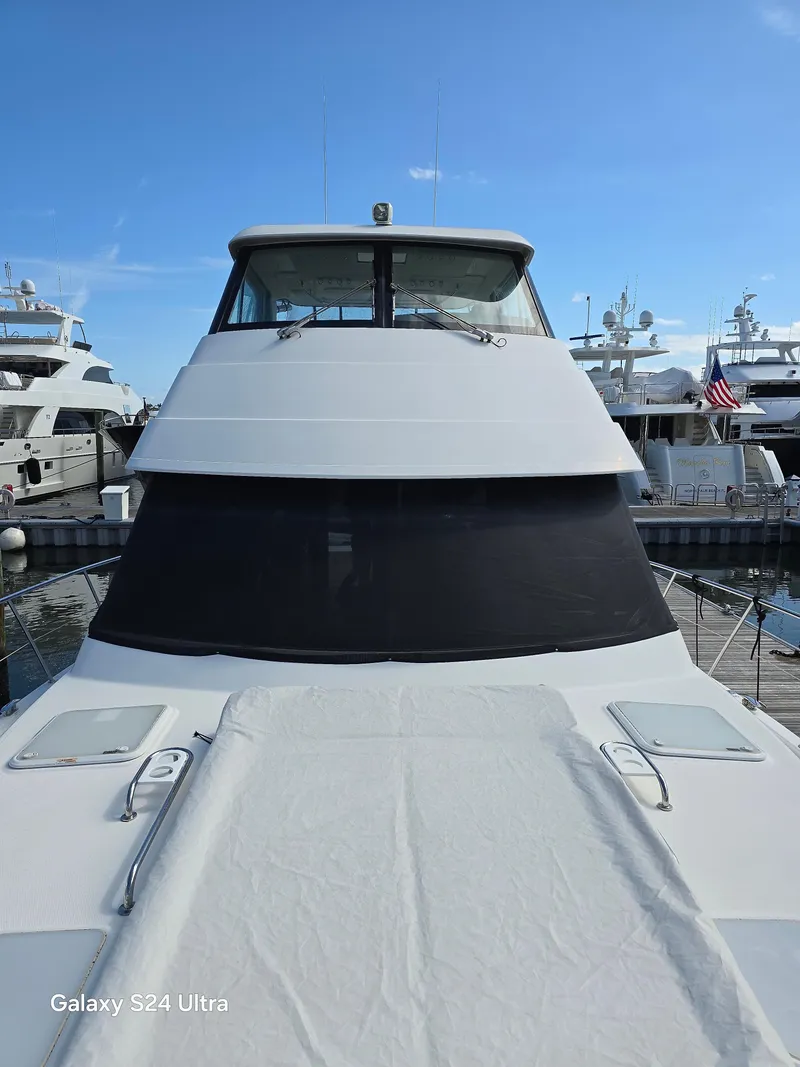

FORWARD DECK

The Sun Pad on the forward deck is closed-cell foam with Sunbrella upholstery to match the cockpit selection. It includes stainless steel rails and a white cover.

Drop Covers - 3-sided, off an optional fixed rear

the awning includes role up entry at the transom door

& 3 x zip-up side windows in white breezeway.

(Canvas to match awning selection

SWIM PLATFORM

Teak laid standard-size swim platform

(includes swim ladder)

HULL STRIPE

Boot and Pin stripe the same color, Black

HULL COLOUR

White Hull Color Standard

DROP COVERS

Drop Covers - 3-sided, off optional fixed rear

awning, includes role up entry at the transom door & 3 x zip up side windows in white breezeway.

(Canvas to match awning selection)

REAR AWNING

Cockpit awning - Yacht acrylic - Fixed forward

section with removable rear extension;

includes two stainless steel poles and 2 rod

holders. (Rear awning extension can only be

used while the boat is stationary)

FLYBRIDGE UPHOLSTERY

Upholstery to flybridge lounges Sunbrella

INTERIOR COLOUR SELECTIONS

Upholstery - Bedheads and Bed surrounds

Cora Honey Wheat

INTERIOR FLOORING

Saloon/Galley, stairs to and including lower

landing area flooring UPGRADE in premium

grade vinyl Natural Oak

EXTERIOR COLOUR SELECTIONS

Fender Covers with R Logo x 4 (Black)

FLYBRIDGE CANVAS

Aft clears & rail covers (1 piece Strataglass)

with double tabling & zipper U-shaped

openings.

SOLID SURFACE BENCHTOP

Solid Surface benchtop color - As fitted to

galley, heads, and enclosed flybridge Color Pearl

SALOON UPHOLSTERY

Saloon - Upholstery to Lounges - Linen

Leather

SOFT FURNISHING

Soft Furnishing Package (includes fitted bed

linen, pillowcases, bedspreads and scatter

cushions)

INTERIOR PACKAGES

GALLEYWARE PACKAGE

32pce Cutlery set, 32pce Dinner set, 2 x Kitchen towels, Tumblers - 8 x Medium & 8 x Large, 8 x Wine Goblets, 8 x Champagne flutes, Salad Bowl & Salad Servers

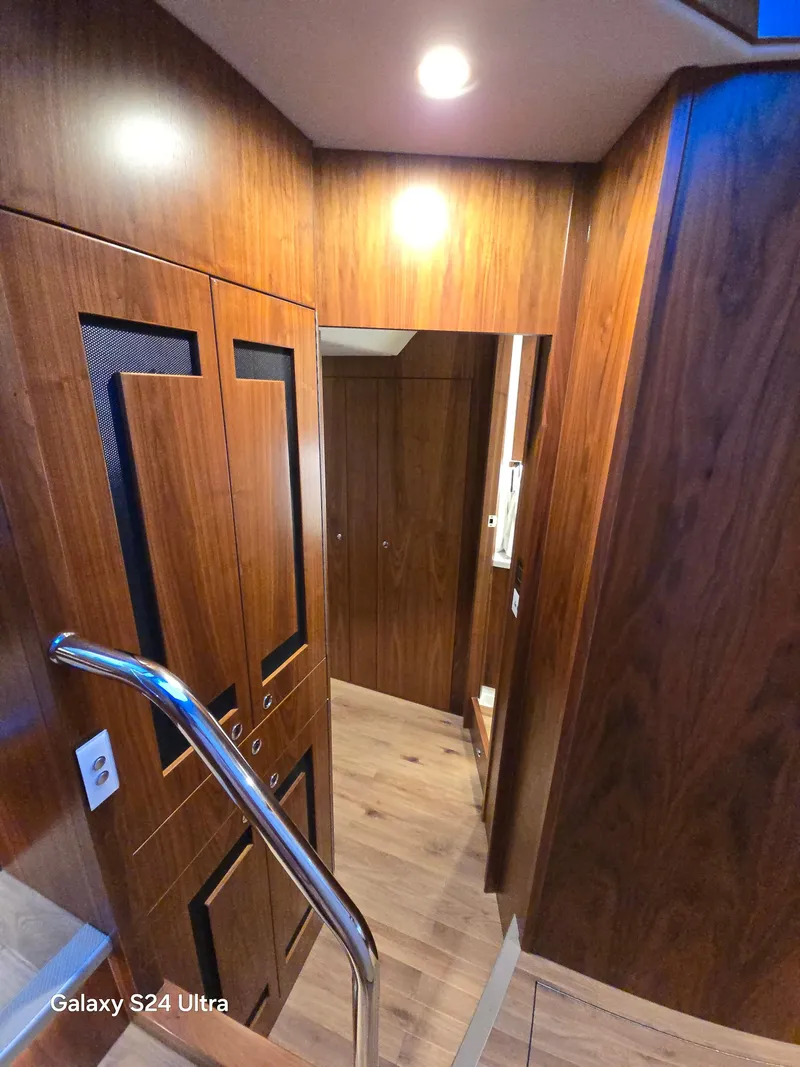

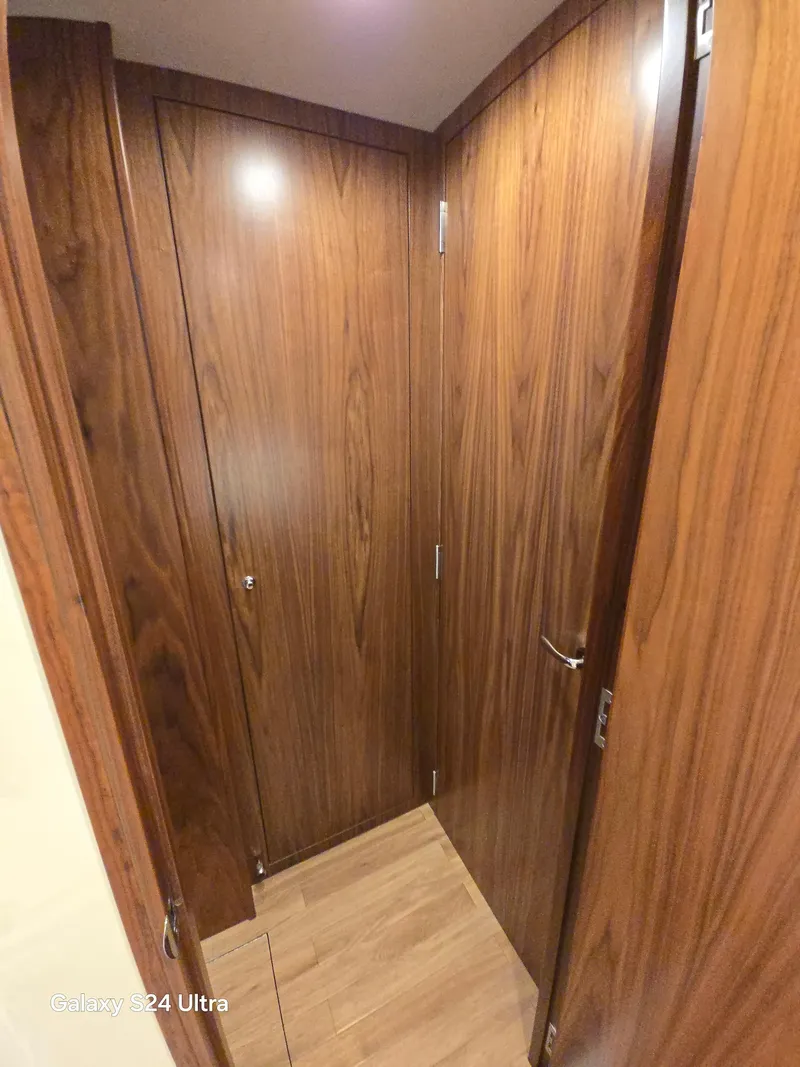

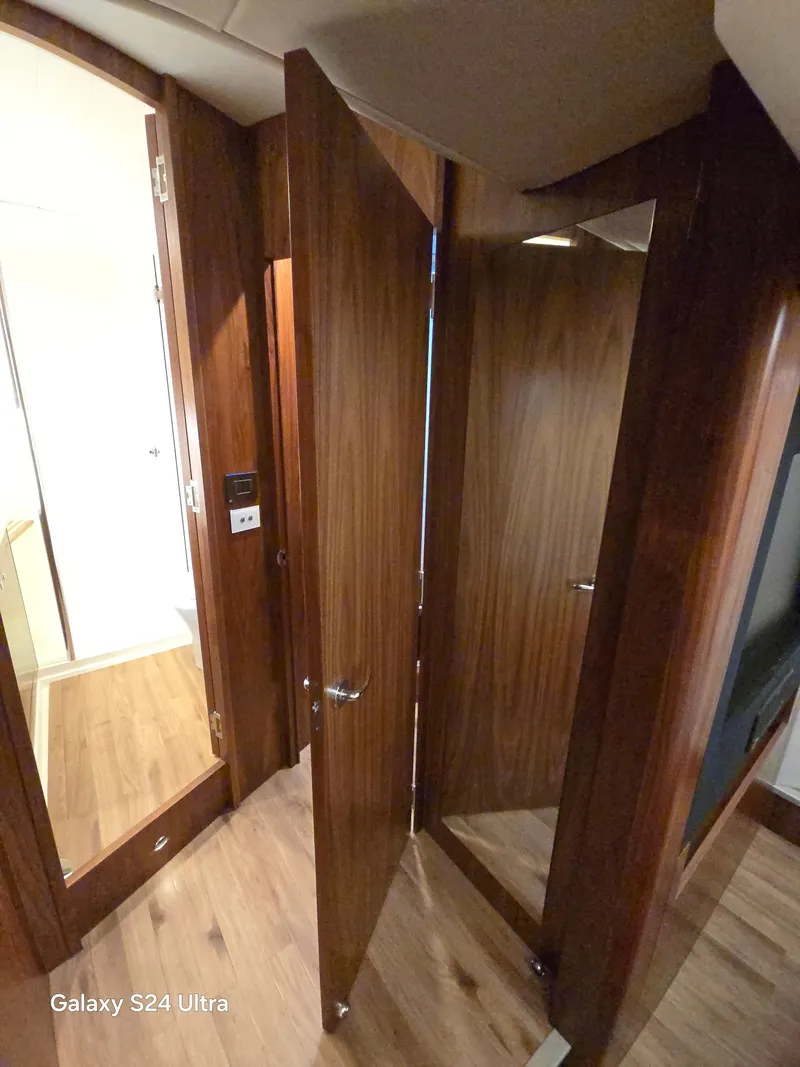

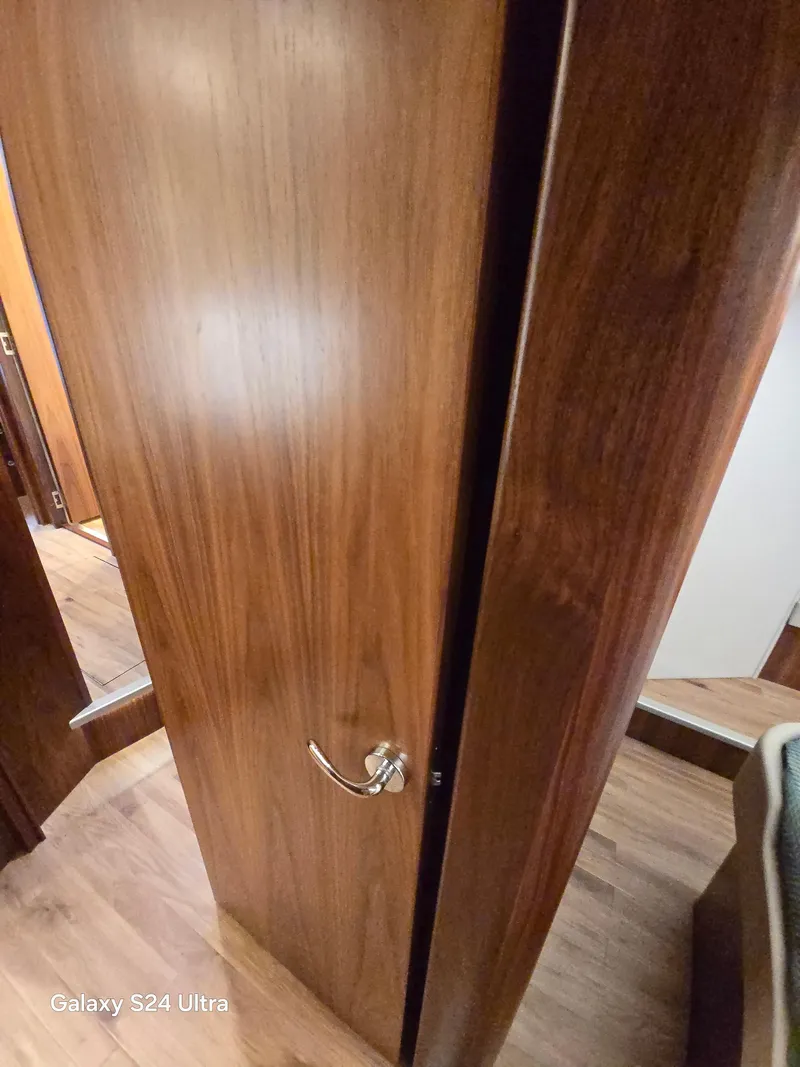

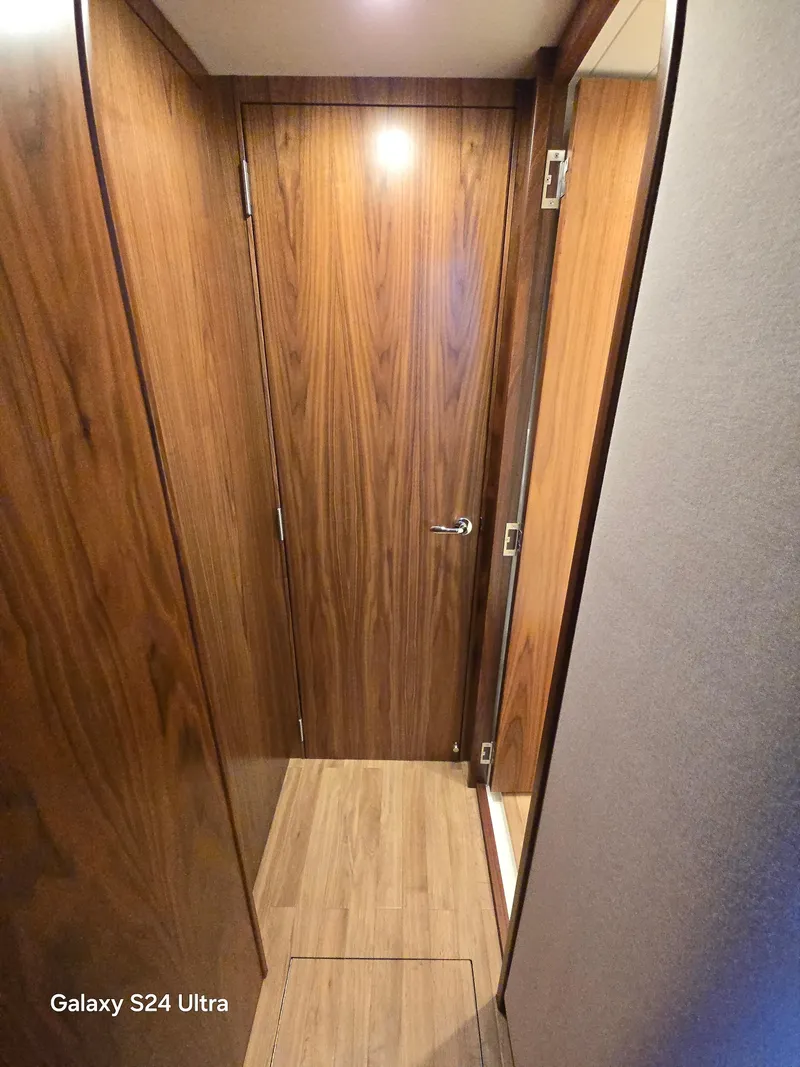

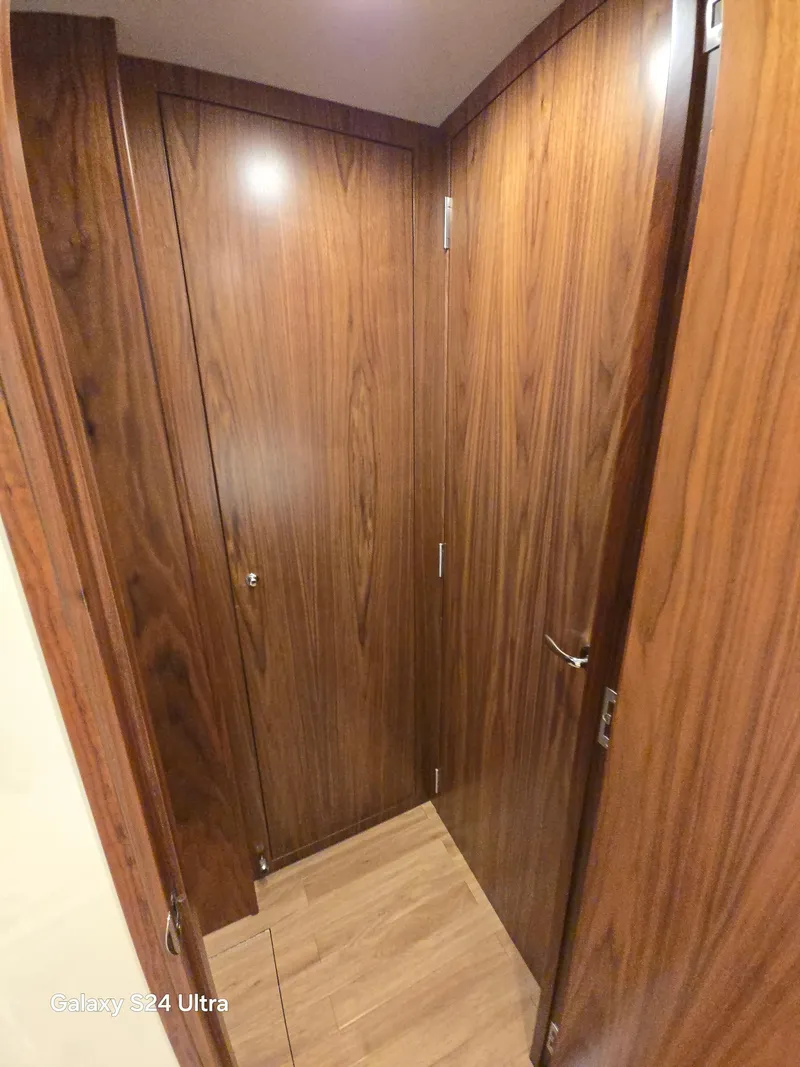

TIMBER FITOUT

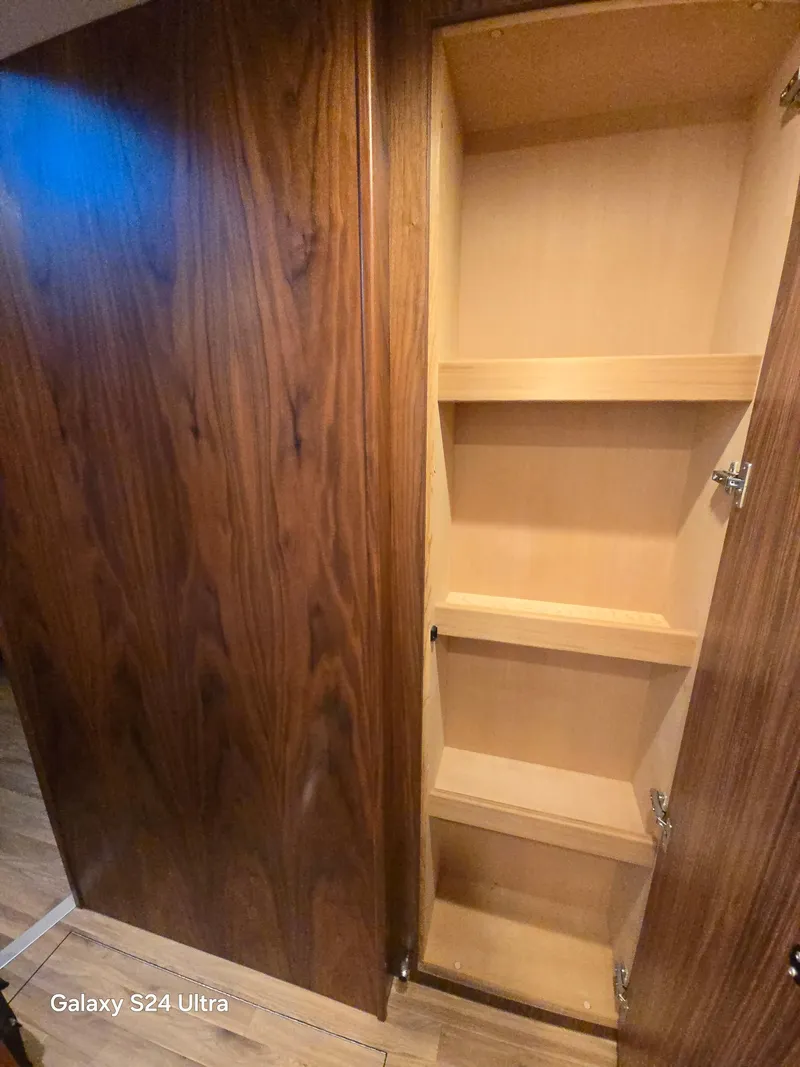

Timber - WALNUT interior including SATIN

finish varnish throughout

WINDOW FURNISHINGS STATEROOM

Upgrade to master stateroom roller blinds.

(electric), other stateroom roller blinds

(manual) White Blackout

VOLVO/GARMIN

Screens 3 x 16" Volvo Glass Bridge 8616 inc GPS & GRID controller

Sounder/Transducer ClearVu/SideVu

Garmin GSD 25 CHIRP sounder with GT51 MTHP ClearVu SideVu 500W and traditional

600W transducer

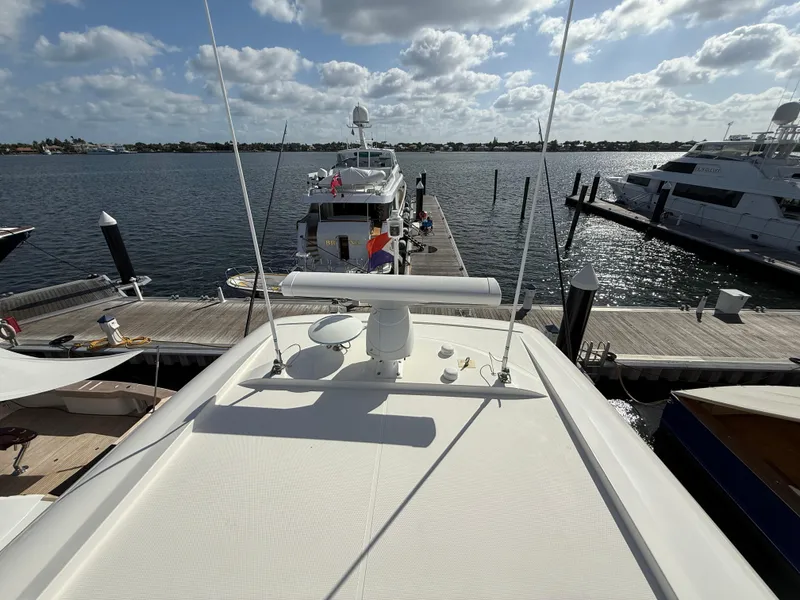

Radar Garmin 4KW GMR424XHD2 Open Array Radar 5" Seaview mount 72nm

Auto Pilot Volvo Auto Pilot integrated into Glass Bridge

AIS Garmin AIS 800 Transceiver including GA 38 GPS/GLONASS Antenna - Receive and transmit AIS with internal VHF aerial splitter

LIGHTING

Aft Flybridge Flood Lighting (2 lights)

Lumitec Maxilume 2

CAMERAS

Engine Room Camera

Garmin GC 200 IP Dome Camera (Infra Red)

Cockpit Camera Garmin GC 200 IP Dome Camera (Infra Red)

Saloon Camera Garmin GC 200 IP Dome Camera (Infra Red)

ACCESSORIES

Dual 12V 40A heavy-duty plug and socket

(1 x port and 1 x stbd aft cockpit)

(suitable for electric reels and downriggers) (

Outlets)

Saloon 1V (STD), Master Cabin 1V

(STD) & Guest Stateroom Forward 1V (optional)

- Please still prewire and prep for future 1V

install of all 3 lV's by dealer

lcom Command Microphone

lcom Command Microphone to the saloon,

connected to the main helm VHF

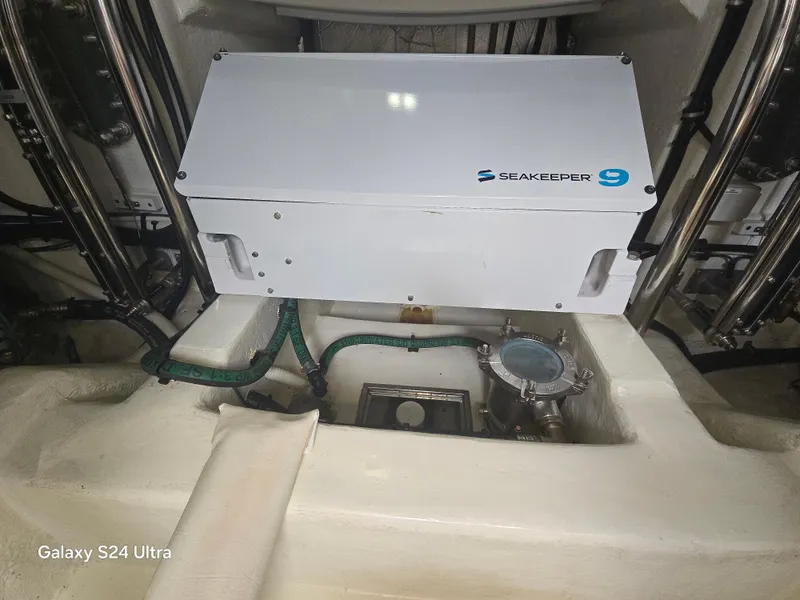

Seakeeper 9 Gyro

Prep for future Sat 1V installation

Including running HDMI & CAT 6cables from the saloon to a 1V location & SAT 1V circuit power supply - Saloon, Master & Fwd Cabin

INTERIOR DETAILS

Vinyl Flooring was installed throughout, including cabins & flybridge (No carpet) - NATURAL OAK

Saloon Roller Blinds - WHITE BLOCKOUT

Cockpit & Flybridge Upholstery - PELLAN

ULTIMATE DOVE VINYL

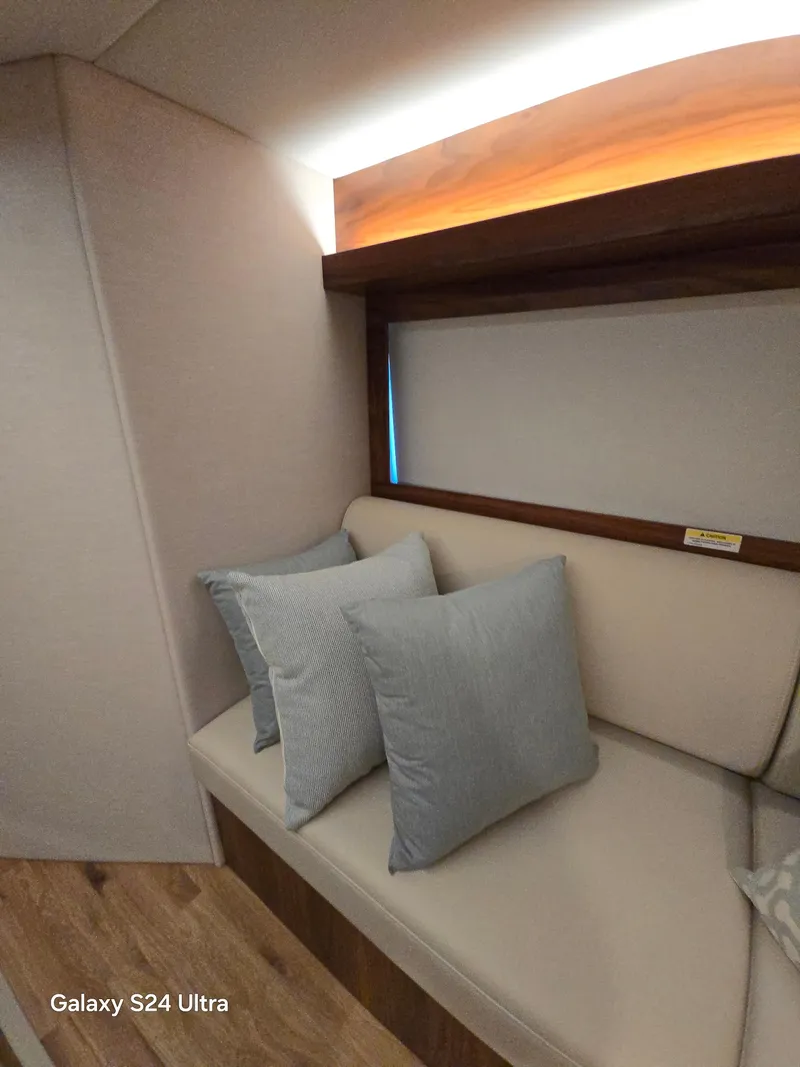

Master Cabin Lounge - LINEN LEATHER

Exterior Scatter Cushion Package - 2 x

Adaptation Linen/ 2 x Loft Flax/ 2 x Loft White

- Dead Plain 45cm

Riviera will, at its discretion and subject to the terms and conditions set out in the Riviera Warranty, replace or repair defects caused by faulty workmanship or materials during the first 2 years or 800 hours (the earlier of) for Nonstructural warranty and 5 years or 2,000 hours (the earlier of) for Structural warranty after the date of delivery to the first retail purchaser Volvo powered boats include the Volvo 5 year limited warranty. (please see Volvo terms and conditions for more information)

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
