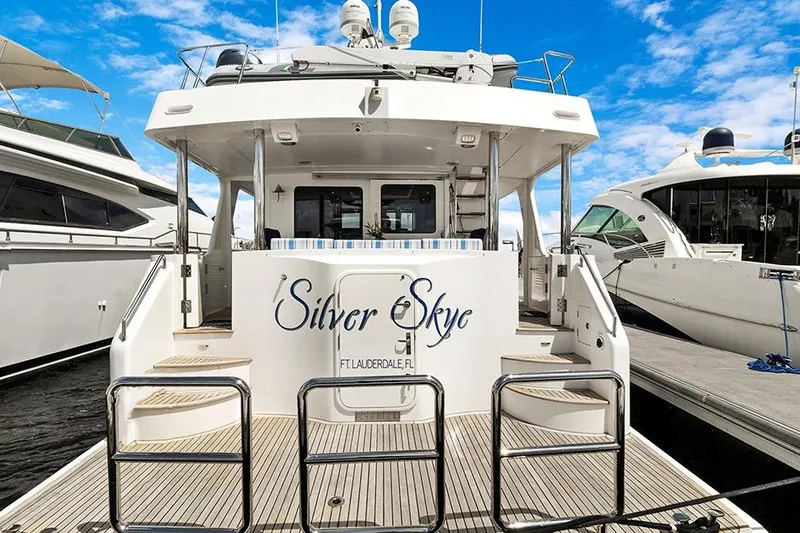

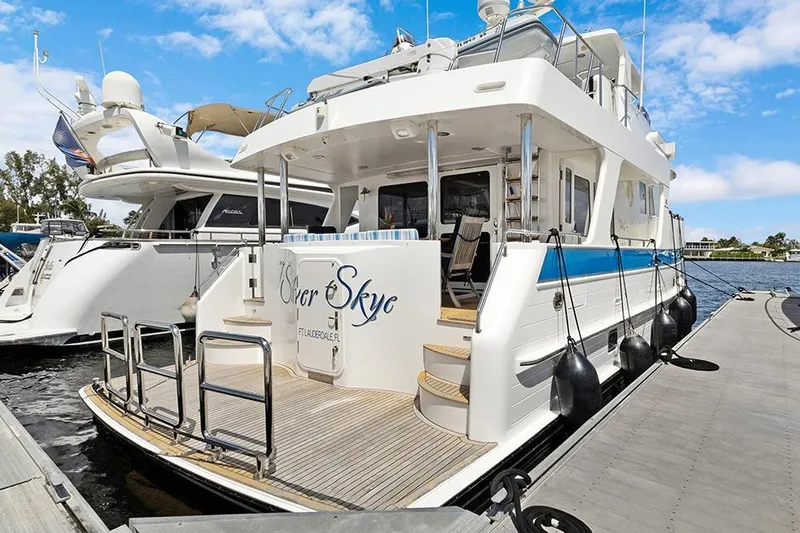

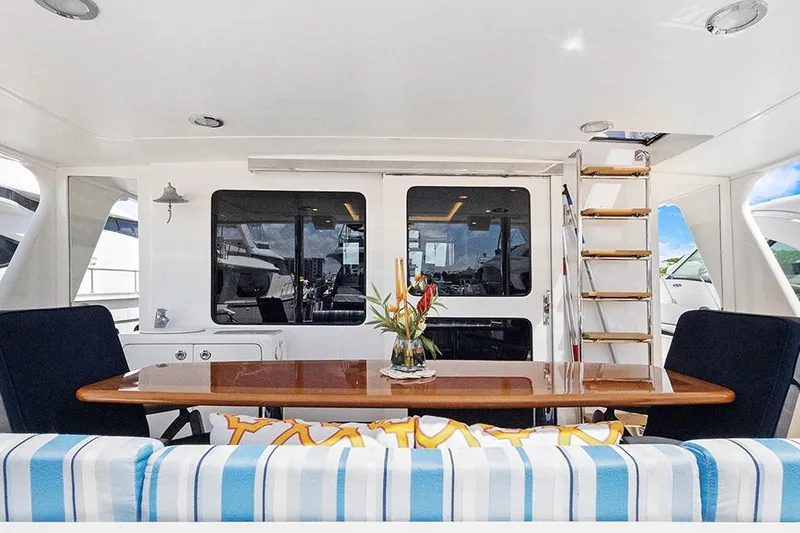

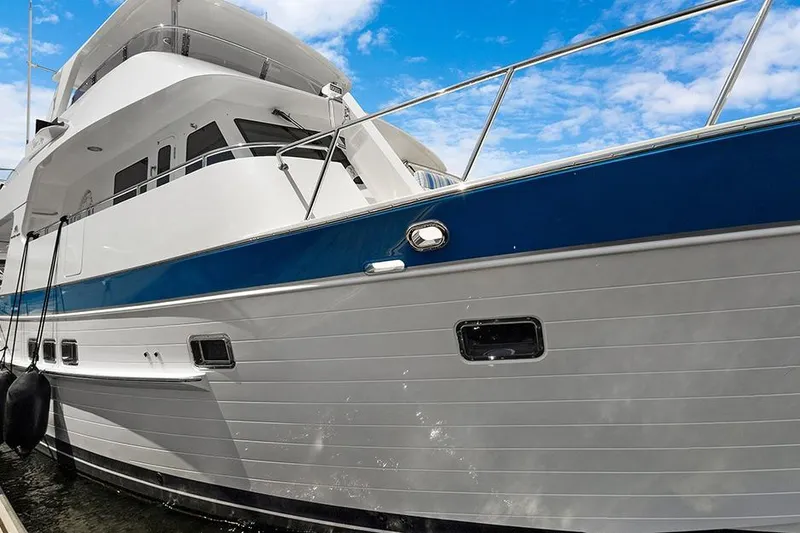

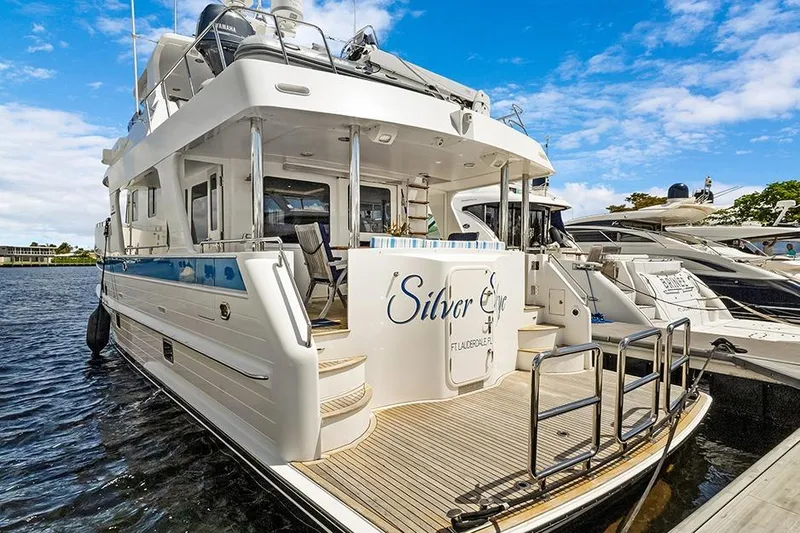

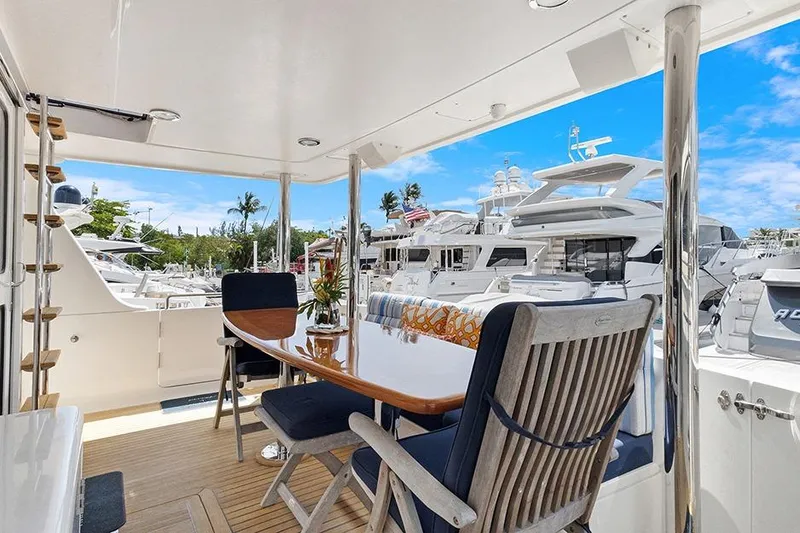

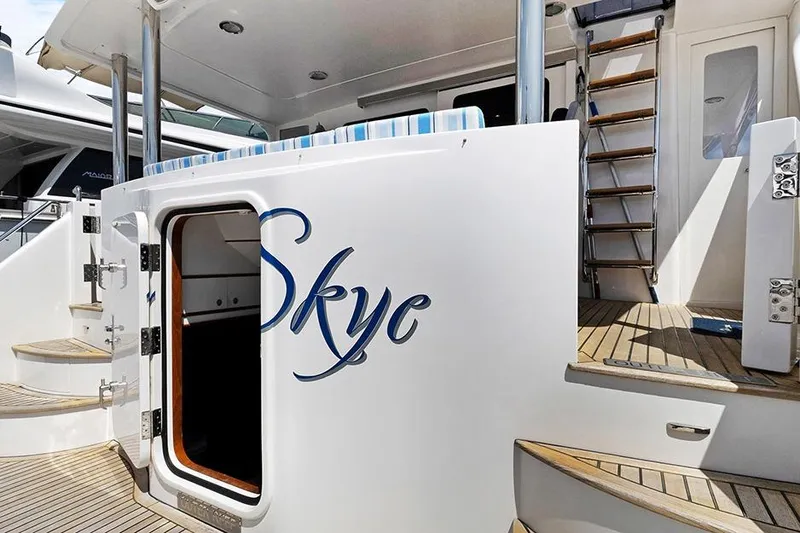

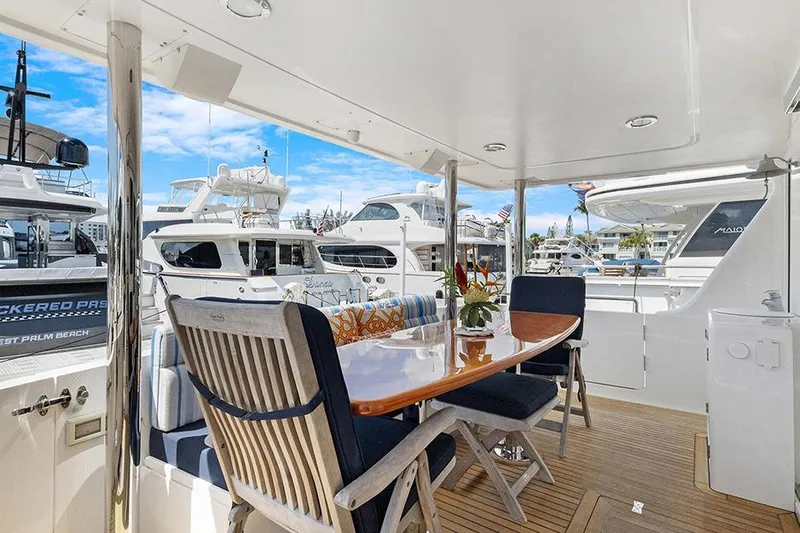

HULL CONSTRUCTIONHand-laid-up FRP hull with PVC core sandwich construction above water lineSolid laminate, commensurate for hull size, made in female moldVinylester barrier lamination for osmosis protectionSimulated planked hullFull-length longitudinal engine stringers and athwartship stringersGel-coated finish above waterlineTwo (2) coats of black antifouling paint over five (5) coats of epoxy primer below waterlineIntegrally molded rub rails with stainless steel cappingFull-length keel extends below running gearStainless steel rudders and struts with two (2) Seatorque enclosed drive shaft systemsCE-approved stainless steel portlightsBoat construction from only 3 major moldsDivinycell PVC cored construction with gelcoatAll deck and hull area hardware attachments are finished with solid lamination – no coringBilge area finished smooth and coated with bright white epoxy paintWindows with 3/8” tempered safety glass in salon and ½’ tempered safety glass in pilothouseVessel Vanguard, Inc. marine maintenance system AFT DECK AREA AND SWIM PLATFORMAft deck with molded teak surfaceFRP built-in extended swim platform4-step dive ladder2” 316 stainless steel removable safety rails on swim platformThree (3) additional sockets added on swim platform for rail storageStairway built-in to port and starboard side from swim platform to aft deck with FRP gate doorsAft deck FRP bench seating with storage beneathTeak tableWet bar cabinetWing doors port and starboardFRP sliding door to salon with glass window top and bottomStainless steel ladder from aft deck to boat deckFRP weather-tight door on transom leads to lazaretteTransom shower in recessed box with hot and cold water supplyFresh water wash down outletShore power inlets for 110v/220v 60hzGlendinning 50 amp cable master with 75’ of cable on transom with additional 50 amp shore power inletLED courtesy lights and LED overhead lightsTwo (2) LED working lights on aft deck overhang to light swim platform316 stainless steel heavy duty cleats secured to stainless steel backing plates inside bulwarksDeck scuppers piped out through transom at boot stripe316 Stainless steel handrail to and from aft deckGlendinning handheld remote control plug-in receptacle SIDE DECKS AND PORTUGUESE BRIDGEMolded with gray non-skid surfaceWeathertight doors opening into pilothouse port and starboardHouse side fixed windows with tinted tempered glassTwo (2) sets of 316 stainless steel spring-line chocks per sideFour (4) 316 stainless steel hawser holes with stainless steel cleats per side recessed in bulwarksFuel fill fittings for tanks recessed into house side316 stainless steel side and overhead safety railsLife ring recessed into the starboard house wallLED courtesy and overhead lightsPortuguese bridge molded with gray non-skid surfaceLocker doors in aft face of Portuguese bridgeHinged door through Portuguese bridge to foredeck½” Clear tempered glass in forward-facing windshieldsThree (3) self-parking windshield wipers with wash down systemWebblon covers for wheelhouse windowsGate doors at port and starboard side upper deck adjacent to the pilothouseGlendinning handheld remote control plug-in receptacle FOREDECKForedeck with gray non-skid surfaceForward-facing bench seat with storage under.316 Stainless steel CE-approved skylight/emergency hatch from the VIP stateroom below316 Stainless steel rail on bulwarks increasing in width going forward316 Stainless steel stanchions to support handrailDeck lockers forward either side of anchor windlass platform finished in white epoxy paint316 Stainless steel dual anchor chute/roller at bow99 lb/45 kg Ultra anchor with swivel and 300’ long 3/8” high test chain110 lb claw-type anchor with 300' of 3/8" high-test chainUpgraded Maxwell HWC-2500c hydraulic horizontal windlass with foot switches and remote controls for dual stations for two anchorsChain stoppersRaw water pump and anchor/chain washing systemFresh water wash down with outletSalt water and fresh water 316 faucets inside foredeck lockersDeck drains plumbed to boot-stripe to prevent black streaksLED courtesy lightsOptional 50 amp shore power receptacle in enclosure on port side of Portuguese bridge FLYBRIDGE AND BOAT DECKExclusive full-beam width deck with gray non-skid surfaceHard top over flybridge with a removable stainless steel ladderCustom aluminum radar mast on hard top with bow and anchor lightsThree (3) solar panels mounted on hard top316 stainless steel safety railsVenturi windscreen with 316 stainless steel railsACR 100D searchlight with dual station controlsMolded FRP steering console with engine controlsElectronics consoleGlendinning engine controls4” magnetic compassTeleflex hydraulic steering system316 Stainless steel destroyer steering wheelTwo (2) Stidd helm seats, Slimline series with powder-coated base and white naugahyde fabricFire system repeater alarmTwo (2) L-shaped settees and one (1) white FRP table to portFive (5) Aquasignal navigation lights in accordance with appropriate collision regulationsKahlenberg D-OA dual trumpet air horn with compressorTwo (2) 24v to 12v DC-DC converters with 12v battery back-up system316 stainless steel hatch and stairs starboard side down to pilothouseLED overhead lights30" BBQ grill and cabinet on port side behind flybridge seating with sink and refrigeratorOne (1) Ocean ISO 8-man life raft mounted into the starboard railing with auto release450KGS/1000lb aluminum painted davit with 4-way hydraulic control, rotating base, luff, lift, pendant switch, and retract/extension arm Glendinning handheld remote control plug-in receptacleStamoid covers for BBQ, windlass, Portuguese, flybridge and aft deck seating, flybridge Stidds and helmABT 13DLX tender with a 60hp Yamaha SALONSliding door entrance from aft deck with Phantom screenFixed windows in house sides with medium 3/8” tinted tempered safety glassTeak valance over windows with LED rope lightingCustom ceiling recess with rope lighting and teak grabrailLED overhead lightsVinyl headlinerBuilt-in settee to port with storage underTwo reclining chairs to starboardFree-standing fixed teak coffee tableAir conditioning control panelTeak wall paneling with satin finishEngineered teak wood flooringHunter Douglas shades on main and lower deck GALLEYGranite countertops with a large single stainless steel under-mount sinkGlass tile backsplashFaucet with pull-out sprayPullout spice cabinetOpening window at sinkLED overhead lightsTeak wall paneling with satin finishGE Monogram counter-depth french door refrigeratorMiele Futura Dimension dishwasherLG built-in microwaveWolf LPG cooktop with stainless fiddlesGE Monogram electric ovenGarbage disposal with switchEchelon wine refrigeratorTeak wood flooring PILOTHOUSEL-shaped settee on raised platformTeak tableLED overhead lightsOne (1) Stidd helm with a painted base and Ultraleather upholsteryCustom Outer Reef wood steering wheel at pilothouse helmTeleflex hydraulic steering systemEngine display screensOverhead electronics consoleWiring routes to facilitate equipment installationMain electrical distribution panels with gauges and circuit breakers for AC and DCAlarm and advisory panelTransom doors on AC, DC and advisory panelsGlendinning engine controls4” magnetic compass½” clear tempered glass in forward-facing windshieldsVinyl headlinerThruster controlsAir conditioning control panelGenerator control panels24v DC to 12v DC converterWindlass up/down switch and control circuit breakerBilge pump control on advisory panelEquipment running advisory panelTeak wall paneling with satin finishTeak stairway with Bolon inlay to flybridge to starboardWeathertight doors opening out to port and starboardPhantom screens for pilothouse and aft doorsCurved teak stairway with Bolon inlay leading to accommodationsTeak wood flooring ENGINE ROOM AND MECHANICALTwin John Deere 6090 (500hp) diesel engines with ZF transmissions and electronic instruments for dual stations, 3300 hours.Stainless steel removable work bench installed over port engineFiberglass drip pans under enginesNorthern Lights generators, one 16kw (60hz) and one 12kw (60hz) ABT 12" 16 hp hydraulic bow and stern thrusters with proportional controls, hydraulic system service and oil change completed in 2024ABT Trac 220 stabilizers with 6.0 sq. ft. fins, 5-year service completed in 2024Northern Lights uplift water separator exhaust system with bypass and FRP mufflersCopper bonding system to all underwater fittings with zinc anodesTwo (2) Seatorque enclosed drive shaft systems and two (2) Nibral propellers, major service completed in 2024Rigid fresh water pipes and color-coded copper fuel linesStainless steel struts with bearingsHeadhunter 24v DC fresh water pump with accumulator tankHeadhunter Mach5 (115VAC) backup pump for fresh water systemTwo (2) 24v DC automatic shower sump systems with external pumpAccessible wiring raceway throughoutMarineAir direct expansion air conditioning systemBackup raw water cooling pump for A/C systemBall-valve bronze seacocks on all through-hulls below waterlineOil change system for engines, transmissions, and generatorsOne (1) Victron 3kw inverter/charger (115VAC 60Hz)Two (2) Racor 1000 MA dual fuel filters for main enginesOne (1) Racor 1000 MA single fuel filters for generatorsFuel polishing and transfer systemFuel management systemFireboy fire suppression system including both intake and outlet air shutdown system with aluminum louversFour (4) automatic bilge pumps 24v DC and emergency bilge suction on engineFire system and bilge high-water alarm system with warning panelFresh water hose bibb1,800 GPD water makerAGM (Absorbed Glass Matt) batteries in FRP boxes:Two (2) engine banks with two (2) 8D batteries for each bankOne (1) house bank with Four (4) 8D batteries with a total 510 amp-hours (24VDC)Four (4) additional AGM house batteries plus slide-out racks for (2) inner and (2) outer sets of additional house batteries for access to rudder box areaOne Victron 3kw inverter/chargerOutback solar charge controlTWO (2) generator banks with one (1) battery each-new in 2024One (1) 24v and one (1) 12v battery chargerTwo (2) battery isolatorsOne (1) 20-gallon water heater with heat exchangerFour (4) 24v DC blowersLED overhead lights 316 Stainless steel safety rails around enginesTwo watertight bulkheadsWatertight aluminum engine room door with sight windowAccess hatch from aft deck to engine room with removable stainless-steel ladderSpare parts for engines, generators and outboard engine- fuel filters, oil filters, coolant, belts, impellers, etc LAZARETTEEdura beige coin dot flooringHull interior finished with white gloss polyurethane paintTwo (2) LED overhead lights with two (2) two-way switchesOne (1) 110v AC GFI outlet Formica finish on wallsWork bench to starboard with storage underVitrifigo freezer mounted under the workbenchFCI 1800 gpd water maker LOWER HALLWAYLED overhead lightsLED stair lightsTeak wall paneling with satin finish in stairwell and hallwayCabinet with stackable GE washer and dryerStorage under first two steps of the stairwell belowAccess doors to stateroomsTeak wood flooring FULL BEAM MIDSHIP MASTER STATEROOMKing-size berth with custom mattress Walk-in closet, cedar-linedDrawer storage under the berthLED rope lighting under the bed and at valanceAccess to stabilizer gear through hanging locker and headAutomatic interior lights in lockersTeak wall paneling with satin finishReading lightsSix (6) CE-approved portlights with removable insect screensLED overhead lightsAir conditioning control panelNightstand tablesGarmin 7" display at bedsideFlat screen TV on forward bulkheadBank of dresser drawers on the port and starboard sidesDyson V8 Absolute vacuum cleanerEngineered wood flooringHunter Douglas shades MASTER HEAD (ENSUITE)Ensuite head with large showerCE-approved portlight with removable insect screenClear tempered glass shower door with towel barMolded white FRP shower with tiled floorGrohe Relaxa Plus chrome fixed shower head and pulsator hand shower with hose and soap dishVentilator fan in showerMarble countertop with white Kohler under-mount sinkChrome Grohe center-set single lever faucet at sinkTeak framed mirror with medicine chestStorage cabinet under sinkWallcoveringDrawers with full extension guides and push button latchesTeak cabin doors and cabinet doorsTecma Marine 24v electric white toilet with sanitary hose for all discharge plumbing24v DC ventilator blowerLED overhead lights Teak sole VIP STATEROOM FORWARDTapered queen-size berth316 Stainless steel CE-approved opening hatch7” layered foam mattressTeak storage drawers under the berthTwo steps on each side of the berth for easy accessLED rope lighting at valance Two (2) cedar-lined hanging lockers with teak-faced doorsAutomatic interior lights in lockersDrawers with full extension guides and push button latchesTeak framed doorBulkheads with teakTwo (2) 110v AC outlets Four (4) LED overhead lights with two (2) two-way switchesTwo (2) reading lightsAir conditioning control panelTeak wall paneling with satin finishTeak cabin doors and cabinet doorsChrome door handles on all interior lockersTeak wood soleCabin pre-wired for future TV install GUEST STATEROOM PORTSide-by-side sliding twin berths with storage underneath and center nightstandCE-approved portlight with removable insect screenLED rope lighting at valanceOne (1) cedar-lined hanging lockerAutomatic interior light in lockerDresser drawers on forward wallTeak wall paneling with satin finishLED overhead lightsAir conditioning control panelReading lightsTeak wood flooringCabin pre-wired for TV install GUEST HEADHead with shower with access doors from the VIP stateroom and lower hallwayCE-approved portlight with removable insect screenClear glass shower door with towel barMolded white FRP shower with tiled floorGrohe Relaxa Plus chrome pulsator hand shower with hose and soap dish24v DC ventilator blowerMarble countertop with white Kohler under-mount sinkChrome Grohe center-set single lever faucet at sinkTeak-framed mirror with medicine chestStorage cabinet under sinkDrawers with full extension guides and push-button latchesTecma Marine 24v electric white toilet with sanitary hose for all discharge plumbingLED overhead lights Teak and holly soleWallcoveringTeak cabin doors and cabinet doors TANKAGEOne (1) holding tank with a max capacity of 100 US gallons (378 lts) with two (2) macerator/discharge pumps. One (1) is wired and plumbed for backup redundancyOne (1) stainless steel water tank with a max capacity of 300 US gallons (1135 lts)Three (3) aluminum fuel tanks with a total capacity of 1,000 US gallons (3785 lts)Lexan sight gauges on fuel tanksInspection and cleaning ports on all tanks GARMIN NAVIGATION ELECTRONICSTwo (2) Garmin GPSMAP8616 MFD, U.S and Canada G2 + LakeVu HDTwo (2) Garmin GMI 20 digital marine instrument displaysGarmin GHC 50 marine autopilot control unitTwo (2) HM195B VHF Command Mic IV, BlackPair of active speakers for VHFGarmin AIS 800 Class B transceiverGlendinning handheld remote controlFLIR JCU control panelTwo (2) Garmin GPSMAP 8617 MFD, U.S and Canada G2 + LakeVu HDOne (1) Garmin GPSMAP 8622 MFD, U.S and Canada G2 + LakeVu HDTwo (2) Garmin GMI 20 digital marine instrument displaysGarmin GHC 20 marine autopilot control unitGarmin USB card readerTwo (2) iCom M605 VHF Radio with rear-mount micGRID 20 – Garmin Remote Input DeviceFLIR JCU control panelGarmin GPSMAP® 723 plotterGHP Reactor, w/Smartpump Corepack GRF 10 rudder feedback sensorGMR 2526 xHD2 Open Array Radar and PedestalTwo (2) 16' 10dB VHF antennas4' AIS antenna4’ Shakespeare AM/FM antennaTwo (2) hailer hornsgWind Two (2) GPS 19x NMEA 2000GA 38 GPS/GLONASS antennaGXM 53 SiriusXM® marine receiverFLIR M324CSGSD 25 premium sonar moduleAIRMAR 1kW B260, bronze, thru-hull, fairing, depth/tempGarmin GT51M-THP stainless steel thru-hull pair downVü/sideVü AUDIO VISUALKVH TracVision UHD7KVH TracPhone V3HTSFLIR M324CS marine thermal cameras with active gyro-stabilizationTwo (2) JCU2 joystick controls for M300 seriesTVs in salon and master stateroomBose Lifestyle 650 Home Theatre sound system in salonSamsung sound bar in masterApple TV 4K Wi-Fi with 64GB storage for salon and master TVsDIRECTV HD receiver boxes for all TVsGuest staterooms are pre-wired for future TV installsFUSION MS RA770 four-zone marine stereo in pilothouse with two Fusion speakersFUSION NRX 300 stereo remote on flybridge with four Fusion speakersShakespeare Super Halo cell booster (Verizon 2G,3G & 4G)AXIS M2026-LE Mk II camera in engine roomAXIS M2026-LE Mk II at aft deckCyberPower 650VA standby UPS system (salon and master)Omni-directional marine 4G/LTE antennaDuel Band WiFi marine antennaPepwave BR2 routerCell booster antenna EXCLUSIONSArtworkOwner's personal belongingsToolsTwo (2) SUPs
