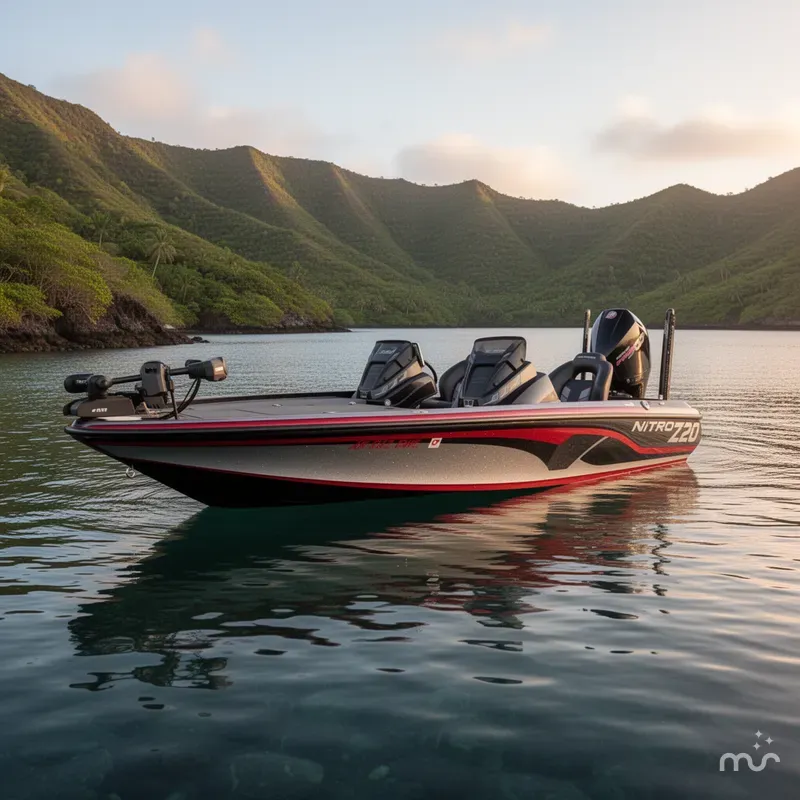

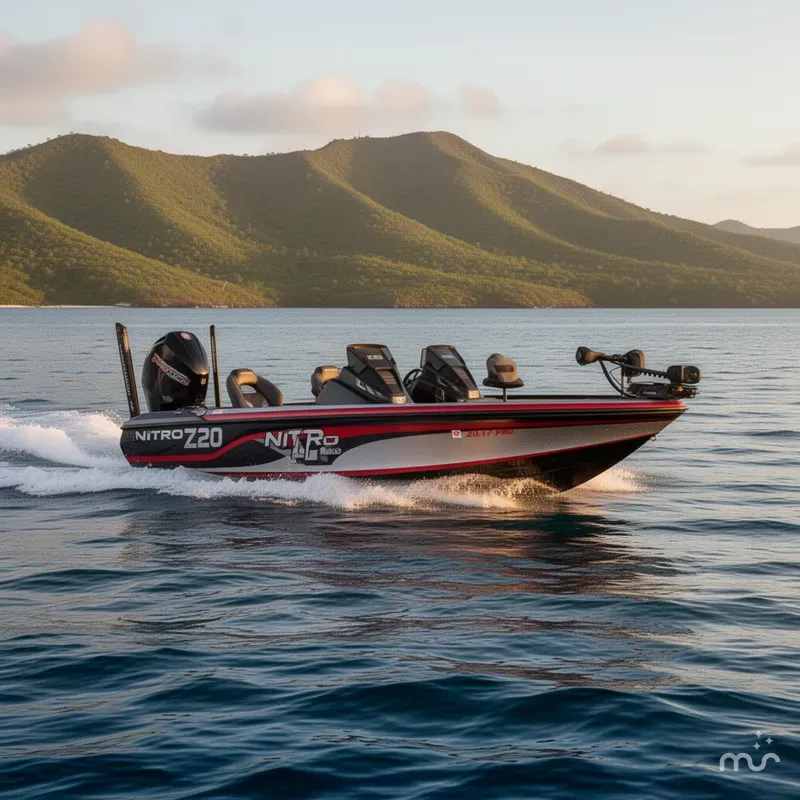

2022 Nitro Z20 Pro

2022 Nitro Z20 Pro Package

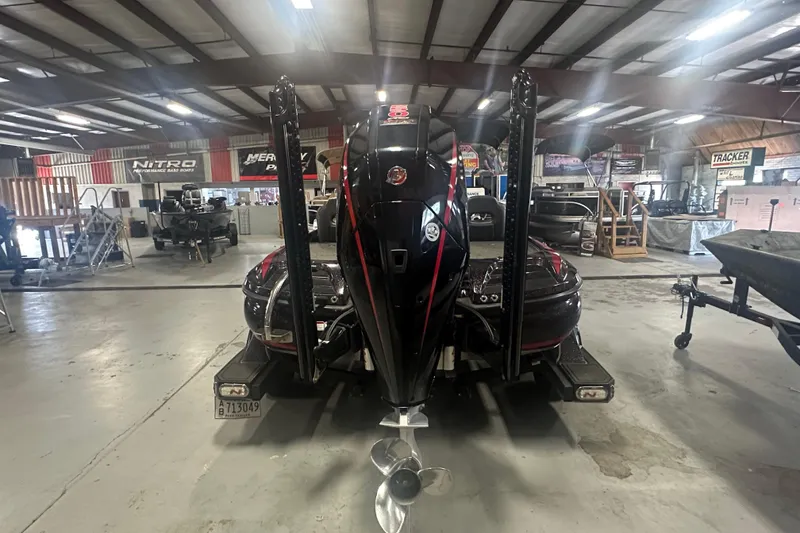

2022 Mercury 250 Pro XS 4.6 v8 FourStroke

2022 TrailStar Trailer - Tandem Axle - Nitro Wheels with Matching Spare - Ratchet Tie Downs - Disc Brakes on Both Axles - Bow Trailer Steps - Fiber Glass Finders

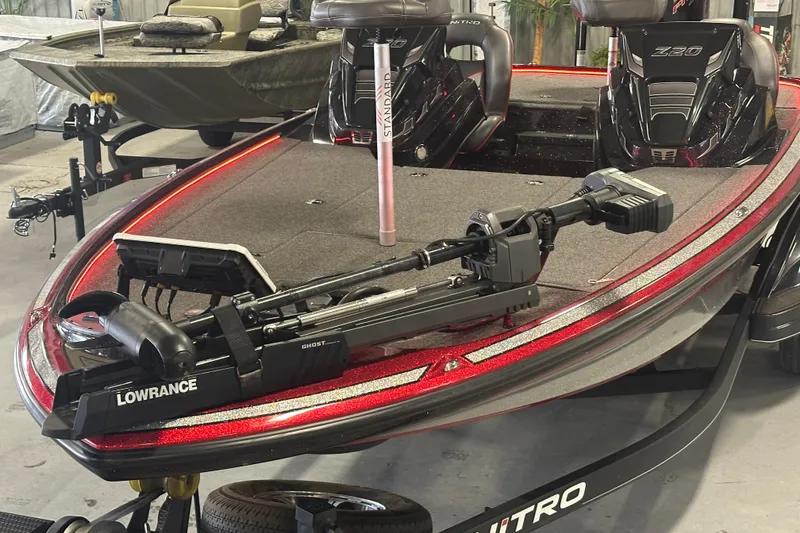

Lowrance Ghost Trolling Motor 36v

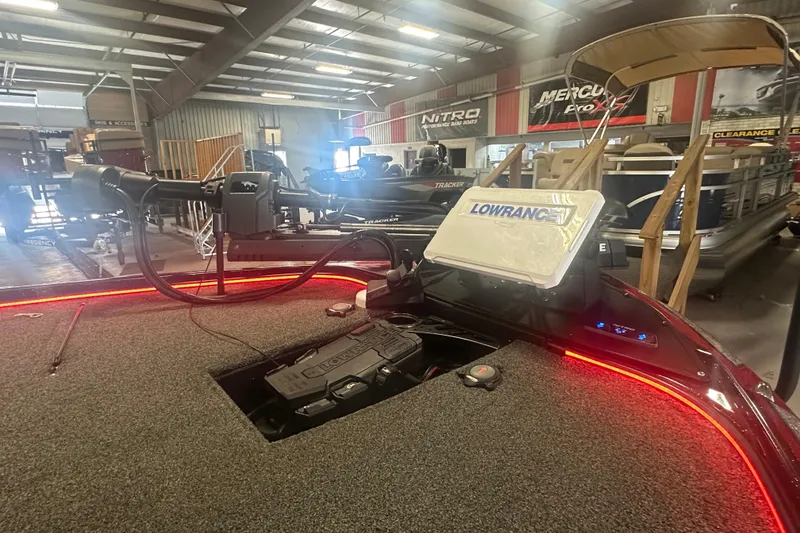

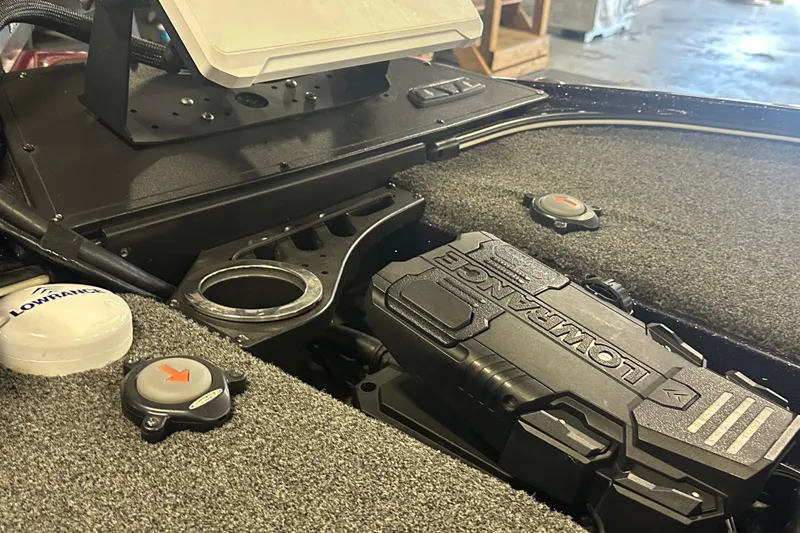

Lowrance HDS 12 Live with Active Target on Bow

Lowrance HDS 12 Live at Console

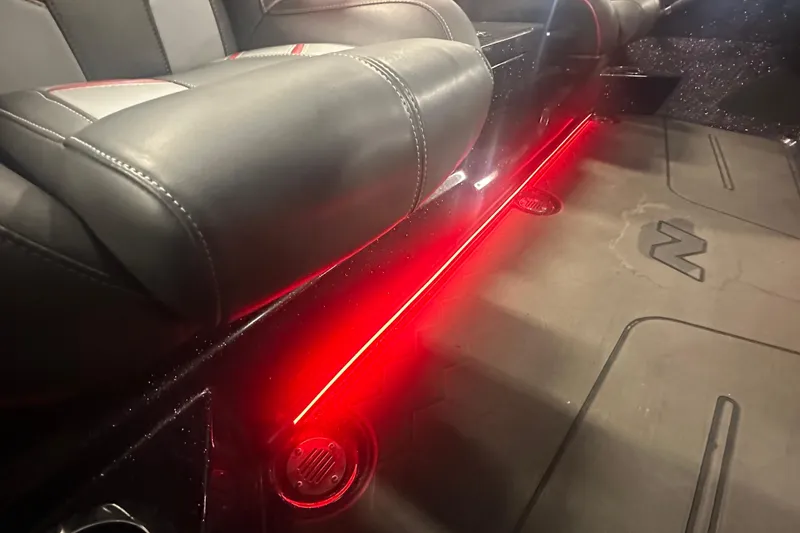

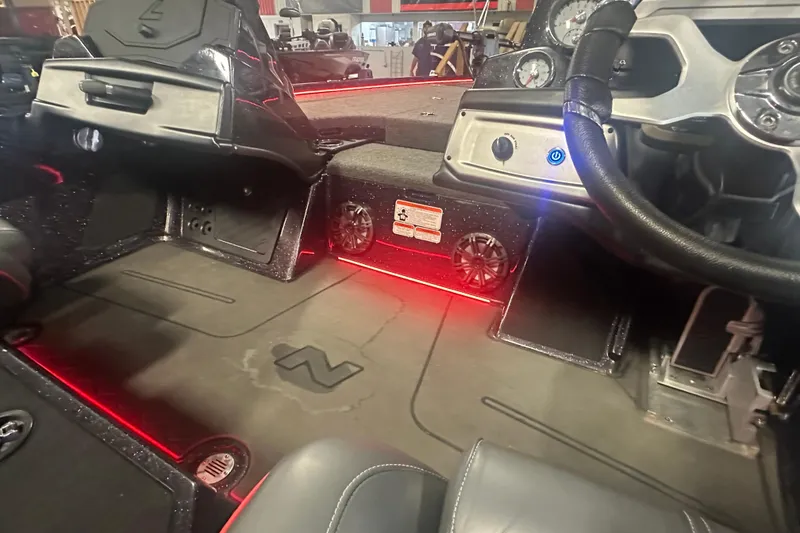

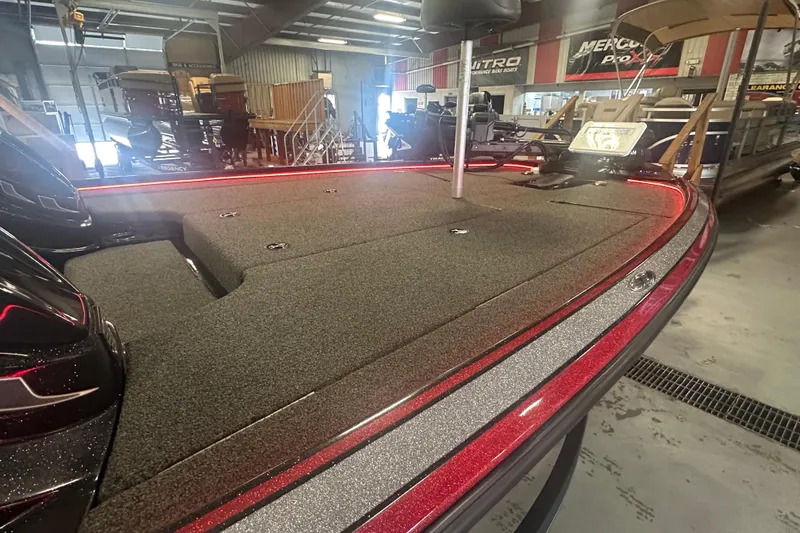

Carpet Trim Lighting

Removable Dual Console

Auto Bilge

Hot Foot and Pro Trim

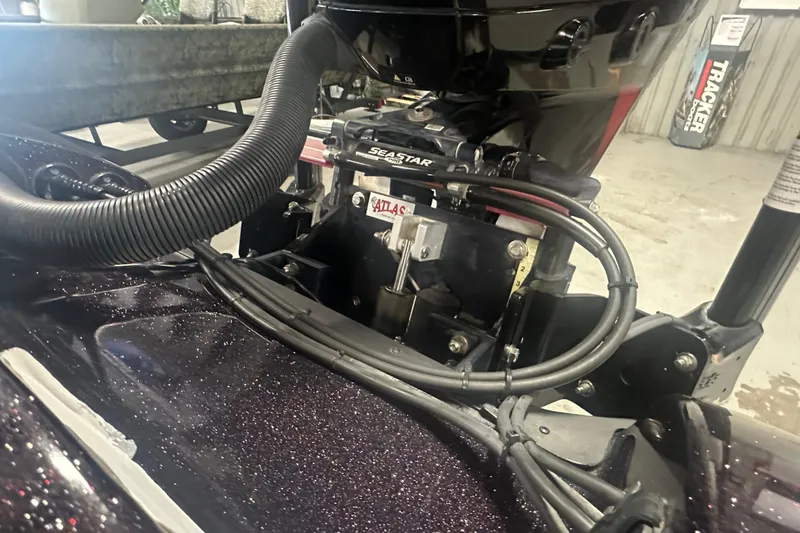

Atlas Hydraulic Jack Plate

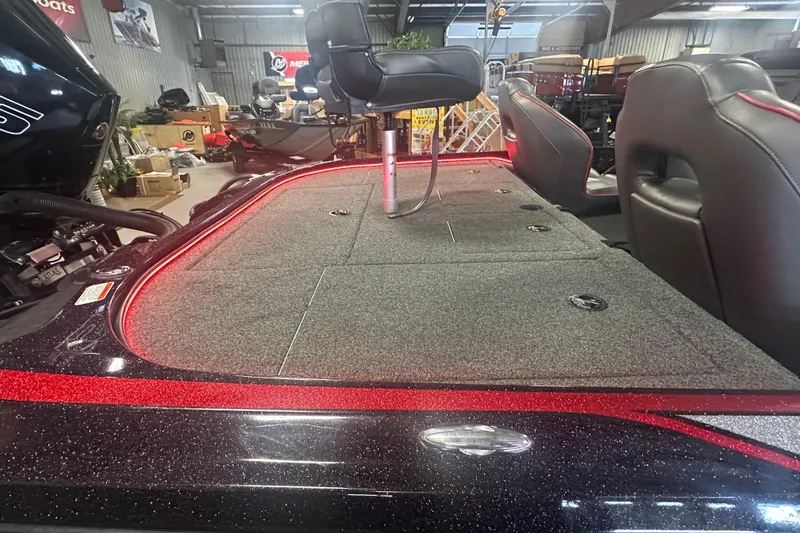

Marine Mat Cockpit Flooring

Kicker Stereo System

Nitro Custom Cover

4 Bank Charger

4 Batteries

Two 8' Blade Power Poles with Stomp Switches

Pro

• NEW bow Lowrance® HDS LIVE 9 gimbal-mounted fishfinder w/ActiveTarget™ & StructureScan®

• NEW console Lowrance® HDS LIVE 9 flush-mounted fishfinder w/StructureScan®

• NEW Lowrance® Ghost™ 36V, 47” (1.19 m) shaft trolling motor

• NMEA network for fishfinders & trolling motor to sync equipment

• Ethernet communication between fishfinders & trolling motor

• Power-adjust pneumatic lumbar support for driver’s seat

• Livewell culling system

• Factory-applied keel protector

• 1 standard & 1 automatic bilge pump

• Hot Foot™ throttle

• Pro-Trim lever

• 4-bank, 40-amp battery charger

• 1 extra trolling battery

Comfort, Convenience & Peace of Mind

• NMMA® certified

• Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements

• EPA-compliant fuel system

• Anti-fatigue, padded comfort bow deck

• Non-skid bow & stern mats

• 5 drink holders

• 5 stainless steel pull-up cleats, including NEW cleat at driver seat

• 4 grab handles (1 at each seat)

• Fire extinguisher

• Horn

• Paddle

Livewell Systems

• 2 aft 19-gal. (71.92 L) insulated GUARDIAN™ livewells w/digital timers

• 750 GPH (2,839.06 LPH) livewell recirculation/pump-out system

• 500 GPH (1,892.71 LPH) aerator/fill pump

• Dual remote drain controls

• Rotomolded w/rounded corners

Trolling Motor

• Trolling motor pedal recess

Console

• Modular, aerodynamic console design w/expanded leg clearance & large fishfinder surface

• Removable acrylic, tinted windscreen

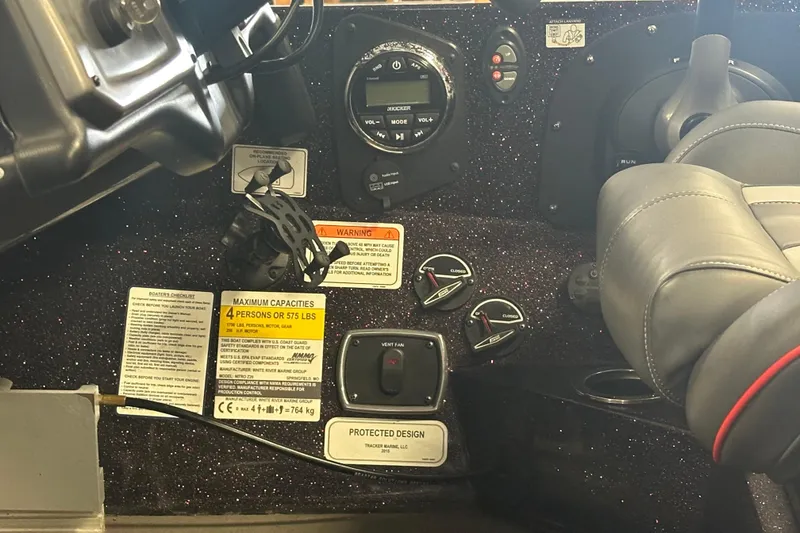

• Veethree® multifunction instrumentation w/speedometer/fuel gauge, tach/trim gauge, voltmeter gauge & water pressure gauge

• Dash light dimmer

• Waterproof, capacitive touch digital keypad

• Tilt hydraulic steering w/NEW steering wheel

• NEW below-console RAM® X-Grip® phone holder & 12V outlet

• LED courtesy light

• Ready to accept optional removable port console

Interior

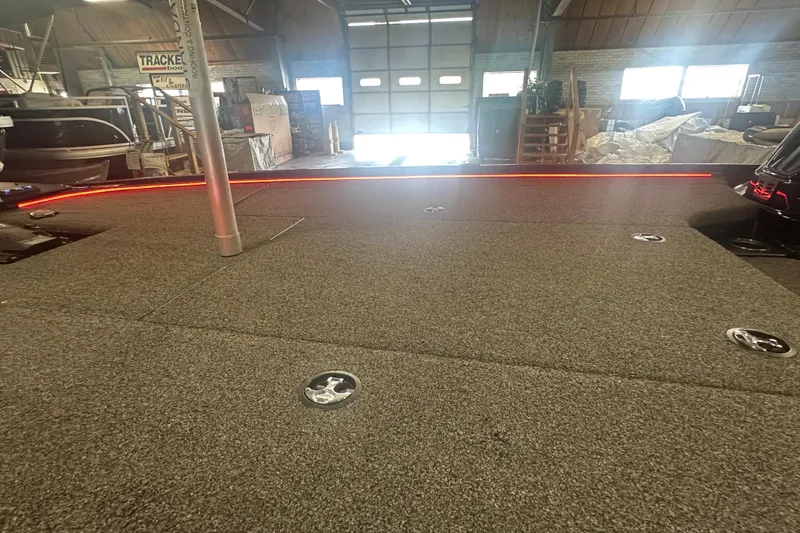

• 42.5-sq.-ft. (4.0-sq.-m) anti-fatigue, padded bow deck for comfort & casting mobility

• Bike seat w/pedestal

• Folding fishing seat w/composite frame

• Z-CORE™ seating system w/Force Flex suspension & contoured, rotomolded frame for driver & passenger seats

• Low driver & passenger flat seat mounting

• NEW bow tool/drink holder

• Bow port & starboard rod hold-down straps

• Molded-in drainage channels around bow storage compartments

• Oversized, lockable bow port & starboard rod lockers w/lift assists for rods up to 8' (2.44 m)

• Rod organizer in bow port rod locker

• Oversized lockable bow center storage locker w/TACKLE MANAGEMENT SYSTEM™

• Step to bow deck w/62-qt. (58.67 L) insulated cooler, removable trash receptacle & NEW snap-in sandwich tray

• Partner rod ramp w/rod handle organizer & hold-down strap

• Step to aft deck w/lockable storage & removable tub

• Designated net storage behind seating

• Built-in tournament ruler & holder

• 2 lift-out, molded aft storage boxes that will each accept seven 3700 tackle trays

• Molded utility rigging compartment for easy access to batteries & pumps & easy cleanup

• Lift-out tool/rope storage tray in rigging compartment

• Insulated aluminum lids w/welded corners

• 16-oz. (.45 kg) plush, marine-grade cut pile carpet on decks & floor

• Lockable latches

Performance

• NITRO VORTEX TECHNOLOGY™ (NVT™) hull for a smoother, drier ride

• RAPID PLANING SYSTEM™ (RPS™) for quicker holeshots & maximized speed

• 12" (30.48 cm) adjustable jack plate

• Rigging tube for organized wiring & abrasion resistance

• Stainless steel propeller

Construction & Exterior

• 100% composite deck core w/superior thermal stability & strength-to-weight ratio

• Deck & hull chemically bonded & mechanically fastened w/stainless steel fasteners every 2" (5.08 cm)

• Gelcoated stringer/liner system

• Foam-filled hull for optimal buoyancy & safety

• Full-width fiberglass-encapsulated composite transom

• Low-profile gunnels to maximize deck size & for easier casting

• Integrated fold-down stainless steel reboarding ladder, angled for allowing optional shallow-water anchor

Electrical

• Angled bow panel w/trolling motor receptacle, anchor/light switch, trim switch & capability to flush mount most 12" (30.5 cm) fishfinders

• LED console courtesy light

• Manual LED-lighted bow gear storage

• Automotive-style labeled fuse panel w/cover

• Interstate® cranking battery

• 2 heavy-duty Interstate® trolling batteries

• 6-gauge trolling motor wiring w/50-amp circuit breaker

• Master power switch

• Waterproof Deutsch plugin gauge connectors

• Water/abrasion-resistant connectors

Trailer

• NEW custom-fit, tandem-axle steel NITRO® trailer

• 7-pin connector

• 14" (35.56 cm) custom aluminum wheels w/radial tires

• Surge disc brakes on both axles

• Hub system w/1-year limited warranty

• Touch Vortex hub lubrication system w/6-year, 100,000-mile (1,609.34 km) limited warranty

• Spare tire carrier w/matching spare

• All-welded rectangular GALVASHIELD® frame

• Space-saving swing-away tongue to reduce storage length

• Fold-away tongue jack

• Heavy-duty winch w/nylon strap & bow safety strap

• Integrated winch stand step w/safety handle for easier boarding/reboarding at bow while boat is on trailer

• Outboard motor support to reduce hull & transom stress while towing

• Carpeted bunks & fender boards to protect hull

• Submersible LED lights

• Retractable transom tie downs

• Safety cables

• Length:20' 2"

• Length: 20' 2"

• Beam: 7' 10"

• Bottom Width: 6' 3"

• Max. Recommended HP: 250 HP

• Fuel Capacity: 50 gal.

• Max. Person Capacity: 4 persons

• Max. Person Weight: 575 lbs.

• Max. Person, Motor & Gear Weight: 1750 lbs.

• Interior Depth: 18"

• Transom Height: 22"

• Deadrise: 16 degrees

• Draft: 16"

• Average Dry Weight: 2000 lbs.

• Average Package Weight: 4050 lbs.

• Package Width: 8' 6"

• Towing Length: 27' 0"

• Storage Length: 23' 8"
