2005 Morris M36 Boat in Chicago, IL 60602 US

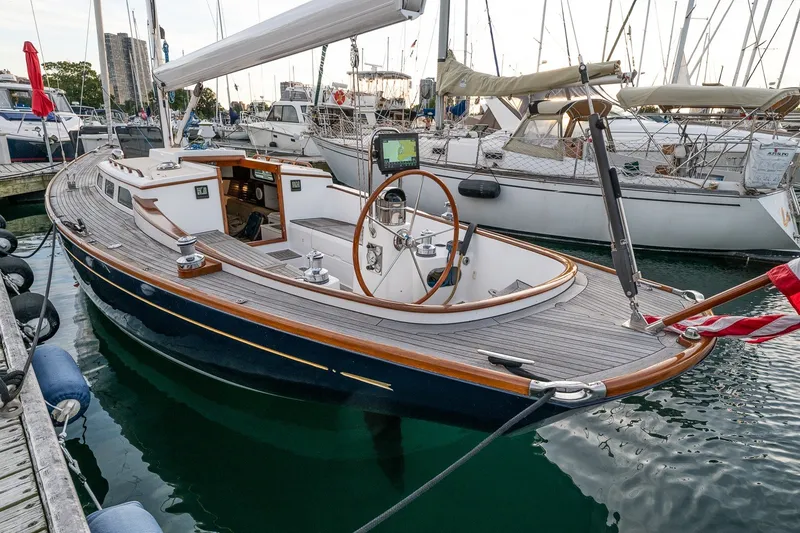

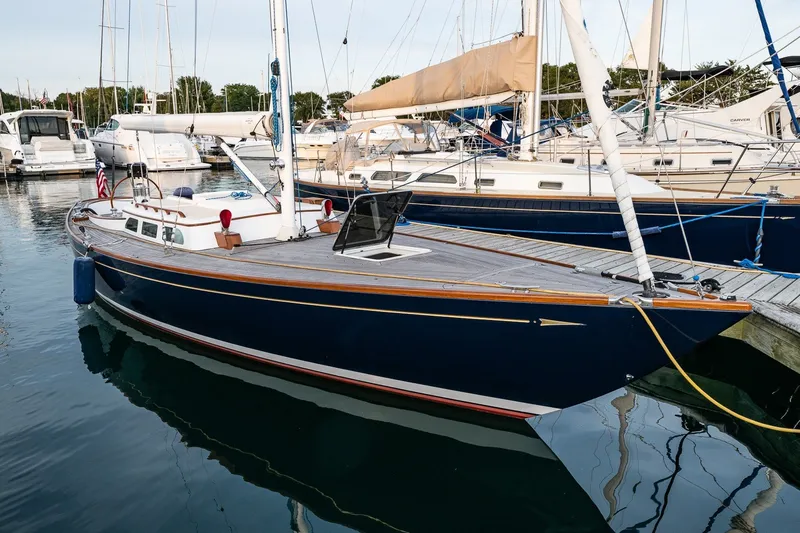

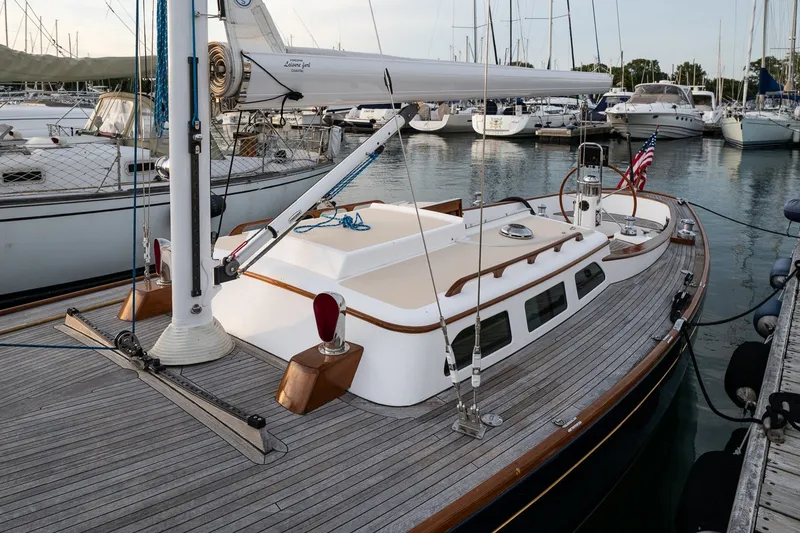

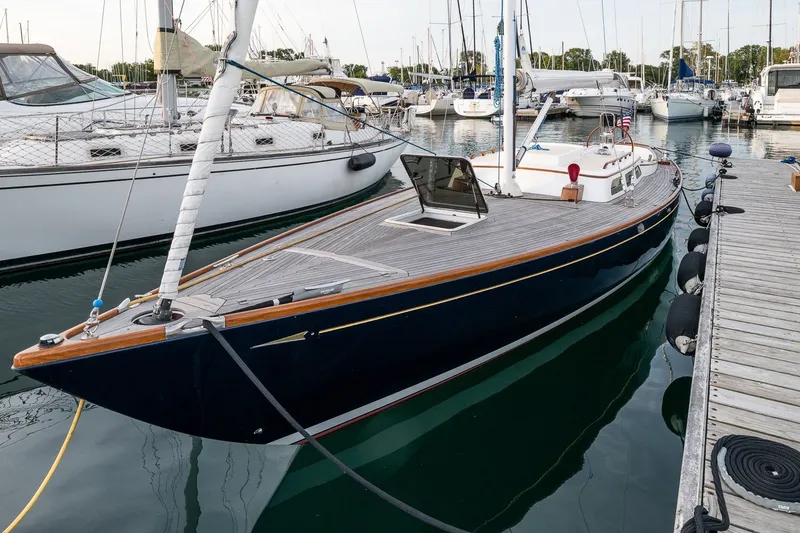

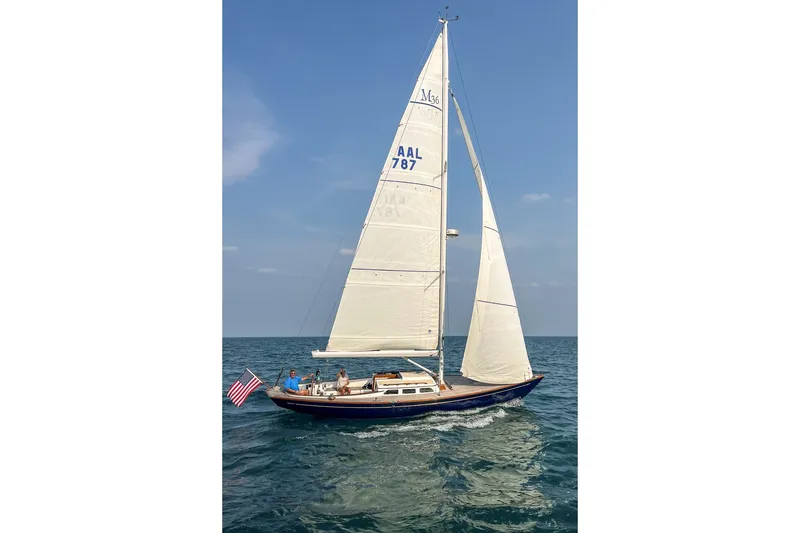

GONE WITH THE WIND is a beautiful example of the Sparkman & Stevens designed Morris M36 Daysailer. One of the last designs that Olin Stephens worked on, the M36 is the epitome of elegant simplicity with a graceful combination of classic lines and modern design and boat building. All control lines are led under deck to two electric winches at the helm, allowing the boat to be easily sailed by one person without ever leaving the wheel while the large open cockpit with over six foot seats provide plenty of room for family and friends. GONE WITH THE WIND was customized by her owner during the build process to include upgraded electronics, teak decks, the desirable V-berth layout below, electric winches and much more.

GONE WITH THE WIND has been extensively updated by her current owner and is currently in the water in Chicago. A partial list of her recent upgrades includes:

• Mast stripped and Awlgripped
• New standing rod rigging
• New furling Leisurefurl boom
• New North 3Di Oceans main and jib
• Exterior varnish stripped and redone by the premier varnisher in Chicago
• New Awlgrip on hull
• New batteries with Victron battery monitor
• Recent electronics
• 110v panel and outlets

HULL and DECK CONSTRUCTION:

Hull

• Composite hull with Vinylester resin throughout and Corecell core.
• Longitudinal stringers and transverse keel floors
• Fiberglass engine bed

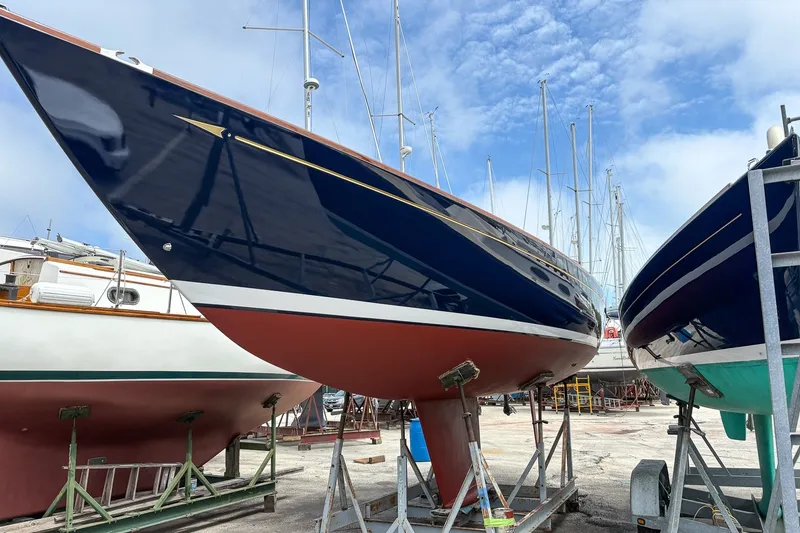

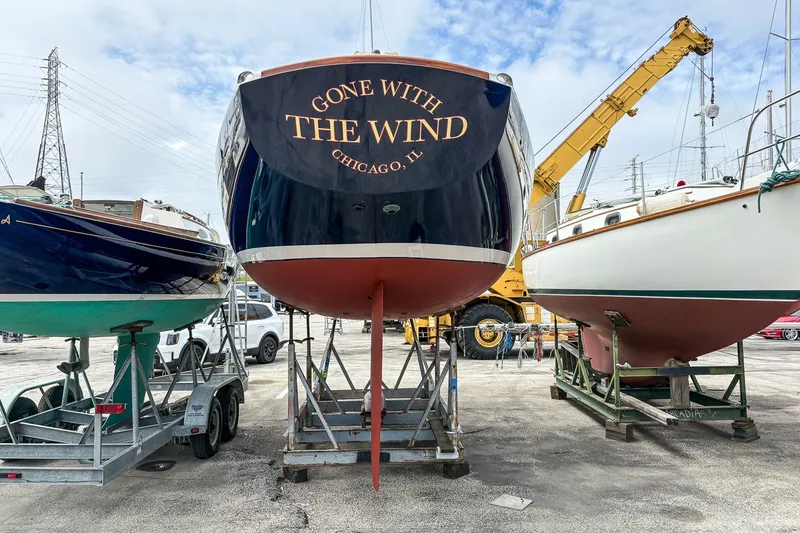

• Awlgrip Flag Blue hull with single Cream boot stripe and gold cove stripe (2025)
• Red bottom paint
• Marine plywood structural bulkheads glassed to hull and deck
• Externally fastened lead keel

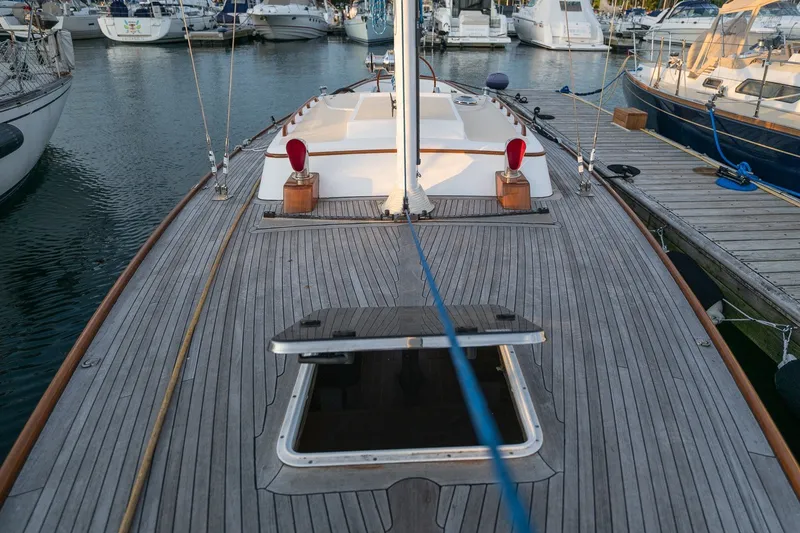

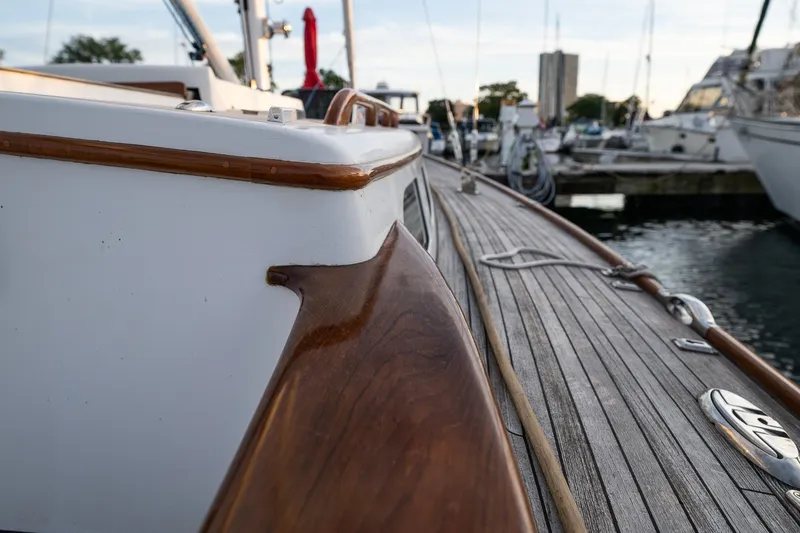

Deck

• Manually consolidated Polyester deck with vacuum-bagged Core-Cell foam core.
• Core removed in areas of deck hardware and through hull fittings.
• Quarter sawn teak decking on cockpit sole.
• Quarter sawn teak decking on cockpit seats and side decks
• "Oyster White" gelcoat with "Light tan" nonskid
• Varnished teak toe rail and coaming cap, eyebrow, handrails and dorade boxes
• Custom cast SS bow and stern chocks that integrate beautifully with the teak toe rail
• Midship toe rails chocks and folding cleats
• SS deck plates and latches
• Forepeak storage area for anchor, lines and fenders with flush deck fiberglass hatch
• Stainless steel folding boarding ladder with storage in forepeak locker
• Large stainless deck hatch in foredeck
• Three large fixed portlight on each side of cabin

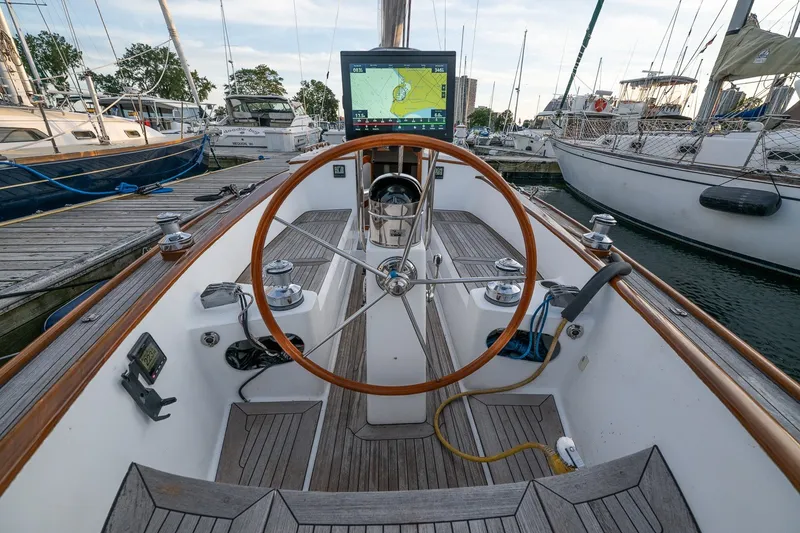

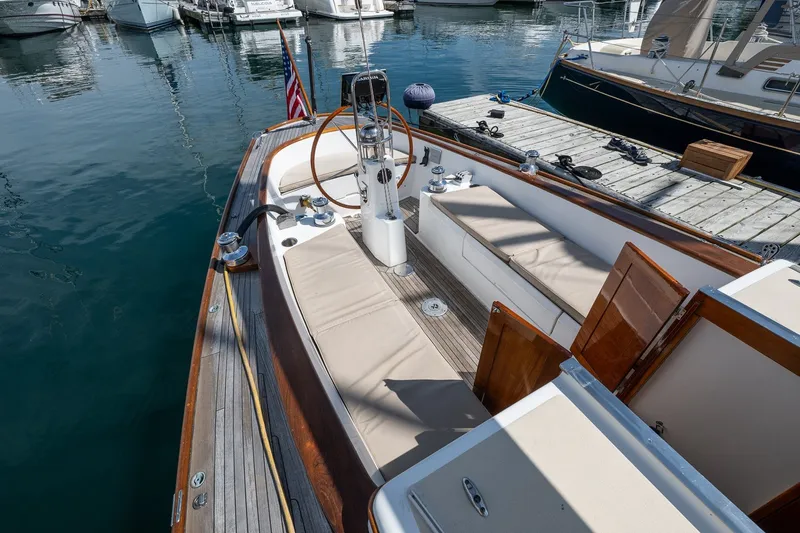

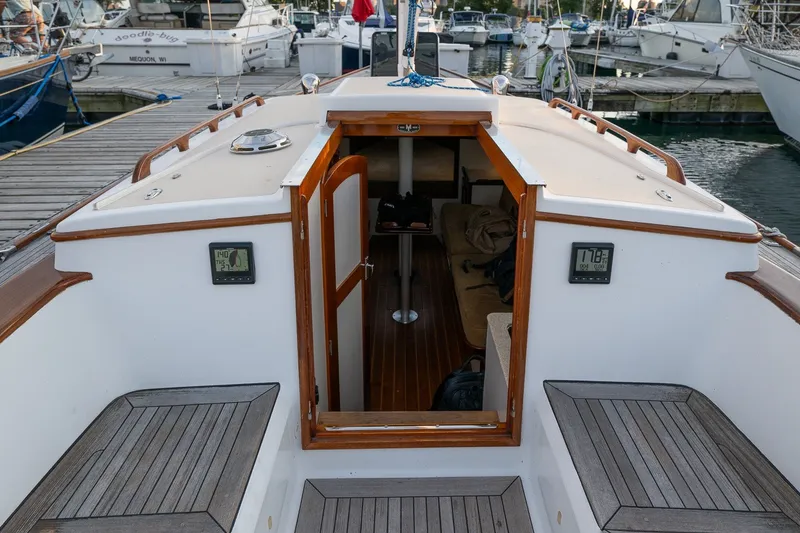

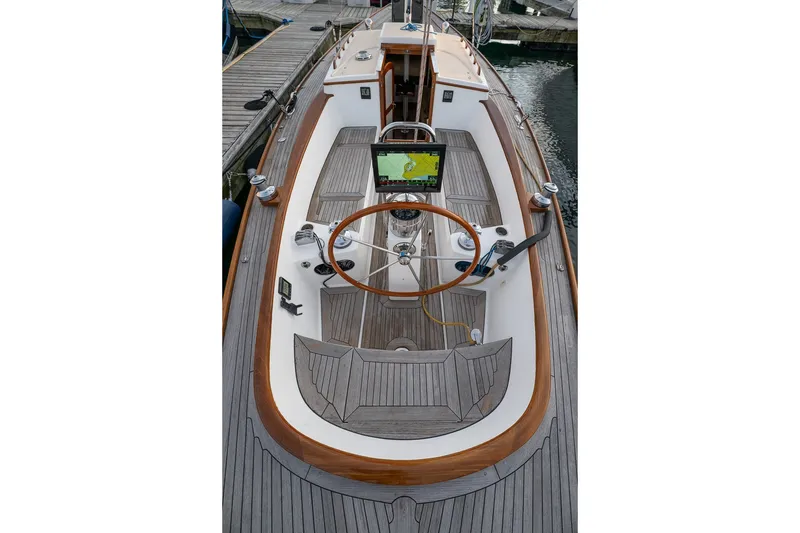

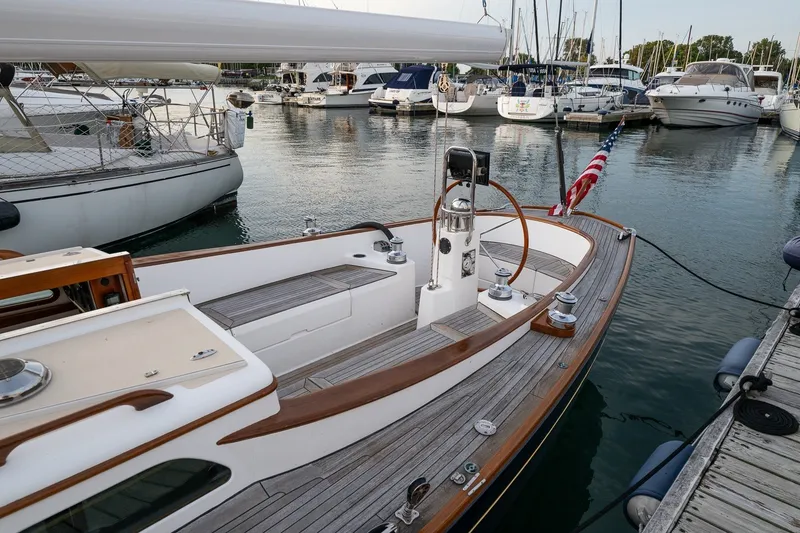

COCKPIT:

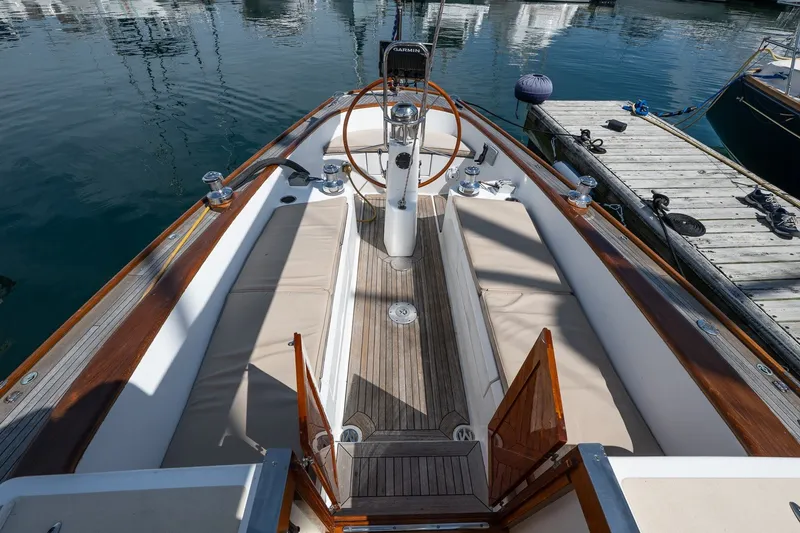

The cockpit on the M36 is the focal point of the boat and is set up to comfortably sail with family and friends with over six foot settees port and starboard. All control lines have been led aft under decks to two electric, self-tailing winches on either side of the helm in easy reach from the wheel, allowing the boat to be simple singlehanded sailing while still allowing guests to participate if desired. Two long settees forward of the wheel provide seating for six adults and are long enough for a nap. Hatches in the settees provide access to large sail lockers and systems below.

• Teak decking on cockpit sole and cockpit seats
• Removable varnished teak pedestal table with folding leaves and padded storage bag
• Varnished 34" teak rimmed steering wheel.
• Saloon style companionway doors and storage bag in cockpit locker
• (2) SS cup holders in cockpit winch pods
• Cockpit seat cushions
• All sail control lines led under deck through rope clutches at helm to electric Lewmar self-tailing winches
• Removable dodger with stainless steel handrail mounted to aft bow and roll up center window for ventilation
• Cockpit drainage meets the minimum requirements of ORC Category 2 and CE Category B.

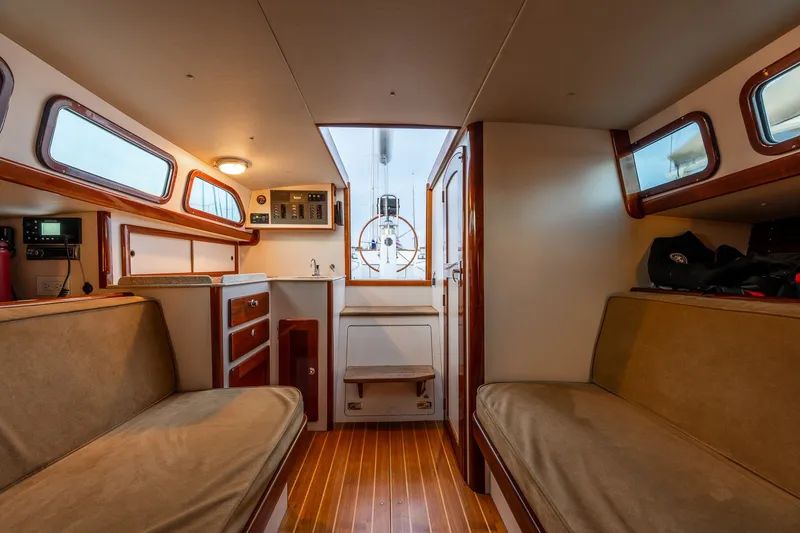

ACCOMMODATIONS BELOW:

Although most passengers will spend more time on deck than below, the warm interior is beautifully finished off and provides two full length settees, a double berth forward, an enclosed head and a simple galley - a comfortable place to get out of the sun or unexpected weather or to spend a night aboard.

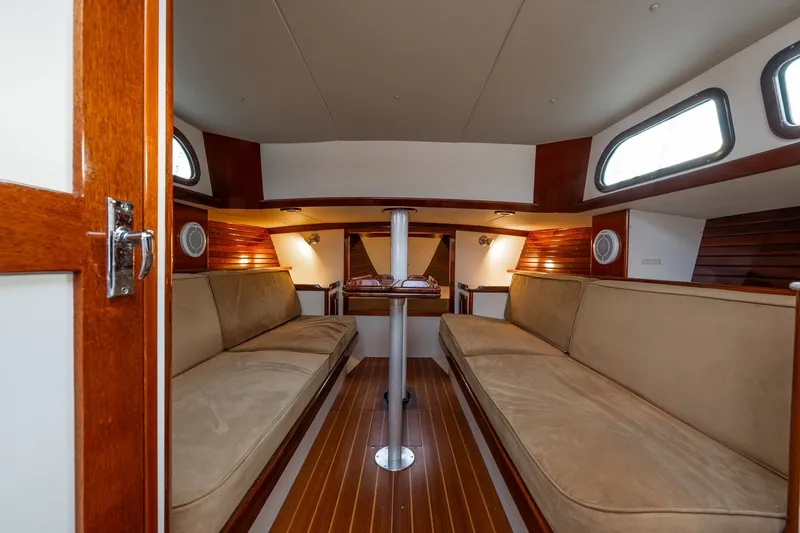

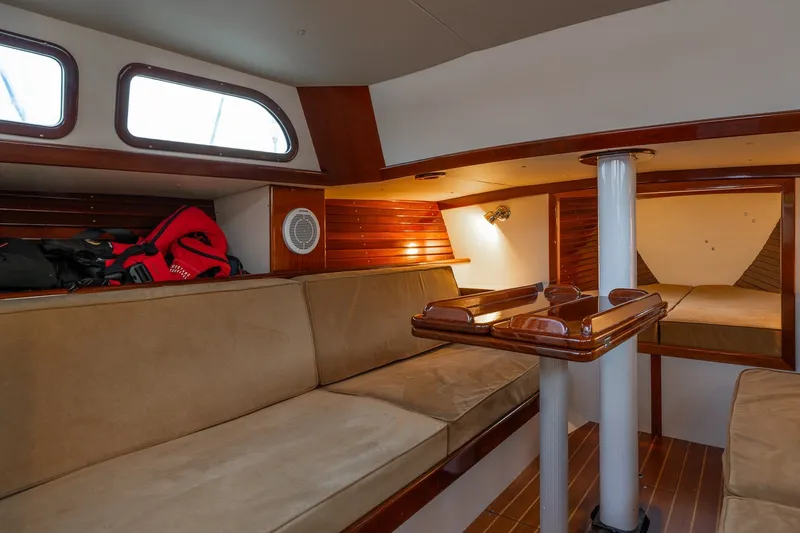

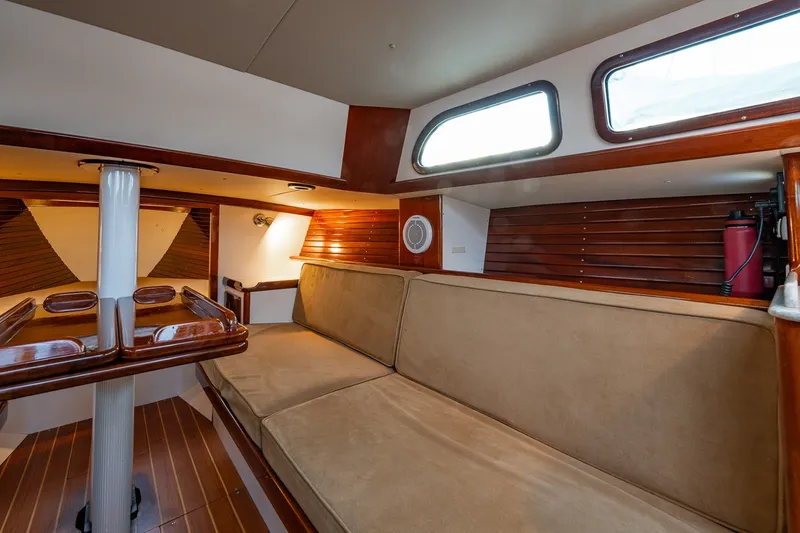

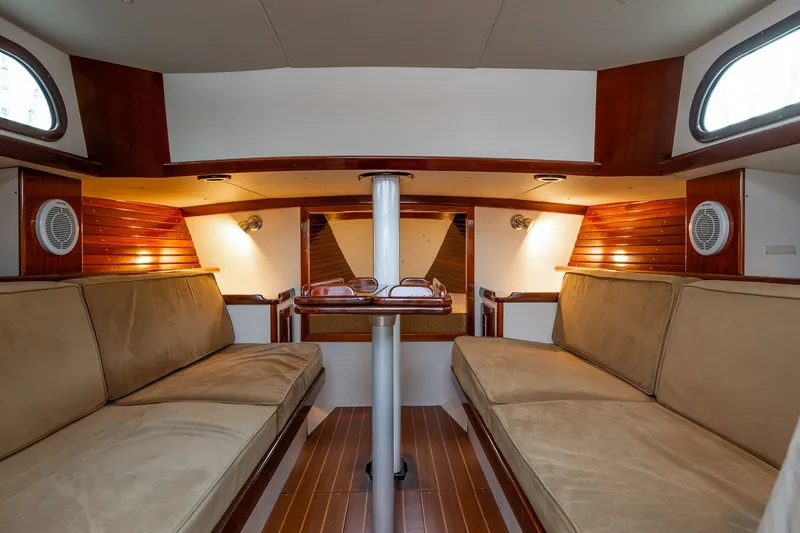

Main Salon

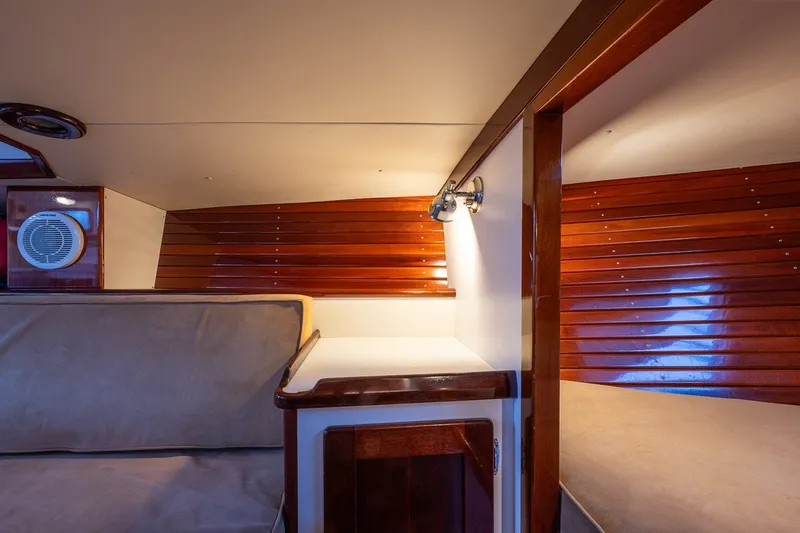

• All interior joinery is Herreshoff style with white bulkheads and gloss varnished mahogany trim, except the head, which is trimmed in oiled teak.
• Interior cushions upholstered in Ultrasuede "Ginger"

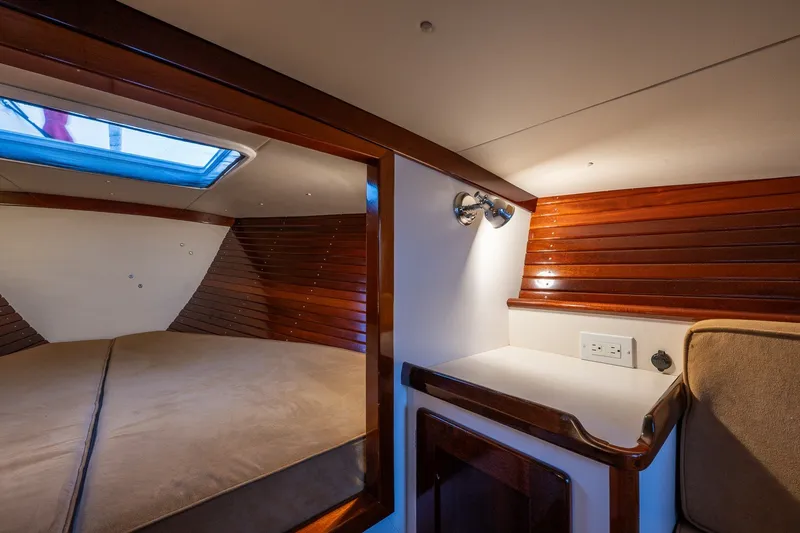

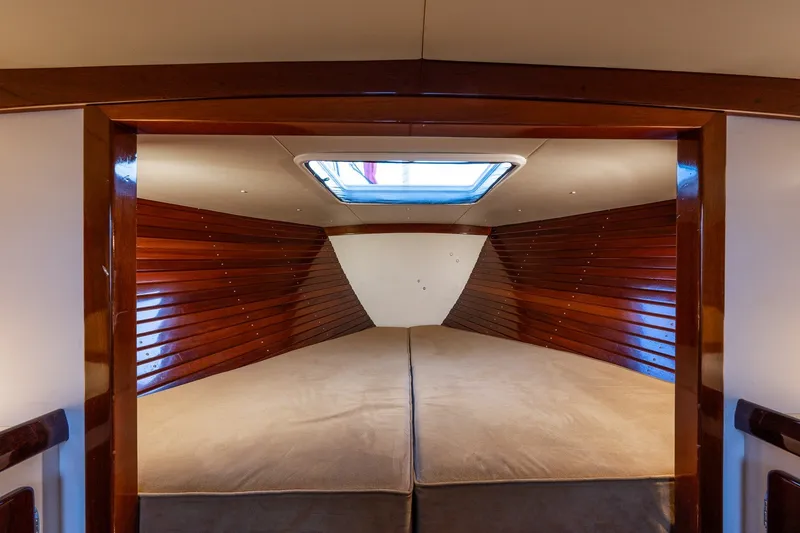

• Custom v-berth layout with varnished trim, mahogany hull sheathing, soft Majilite overhead liner and skyscreen. (overhead liners replaced 2025)

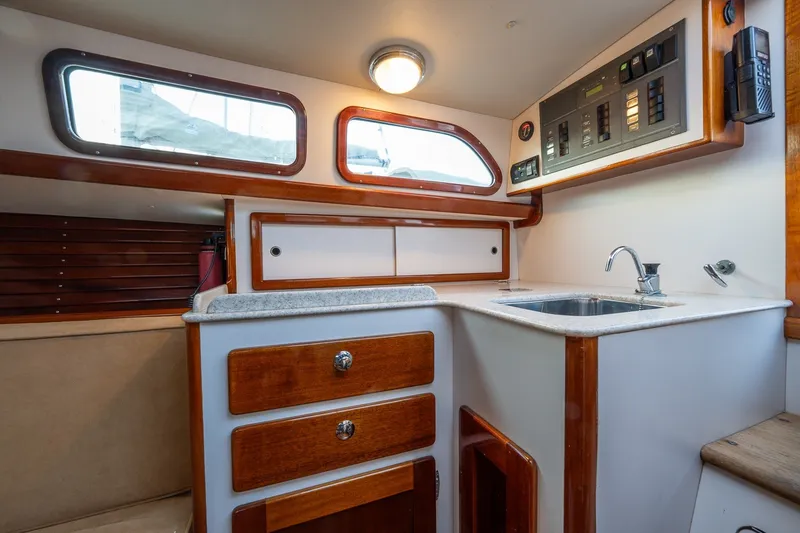

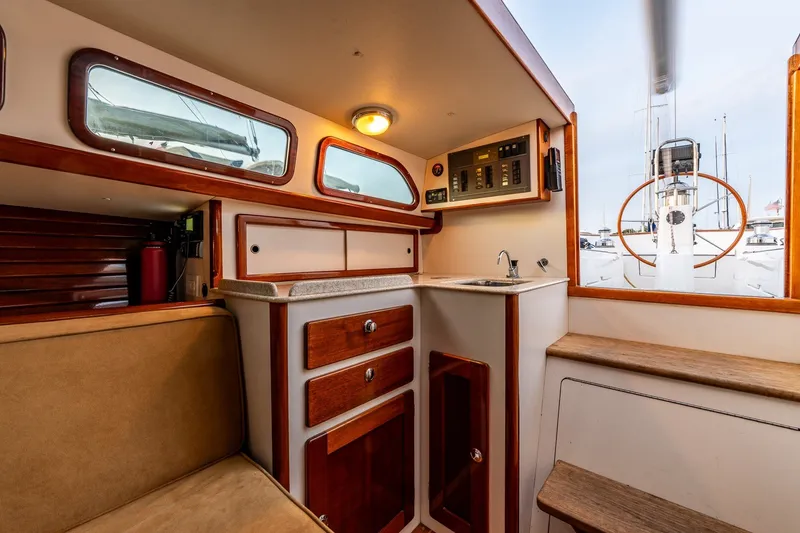

Galley

• Isotherm 1.45 CUFT top loading 12VDC refrigerator with SS liner
• Corian counter top
• Mirror-polished SS sink
• Manual pump galley faucet, Fynspray model WS-60.
• Garbage bin
• Drawers under counter with additional storage in lockers outboard and under the counter

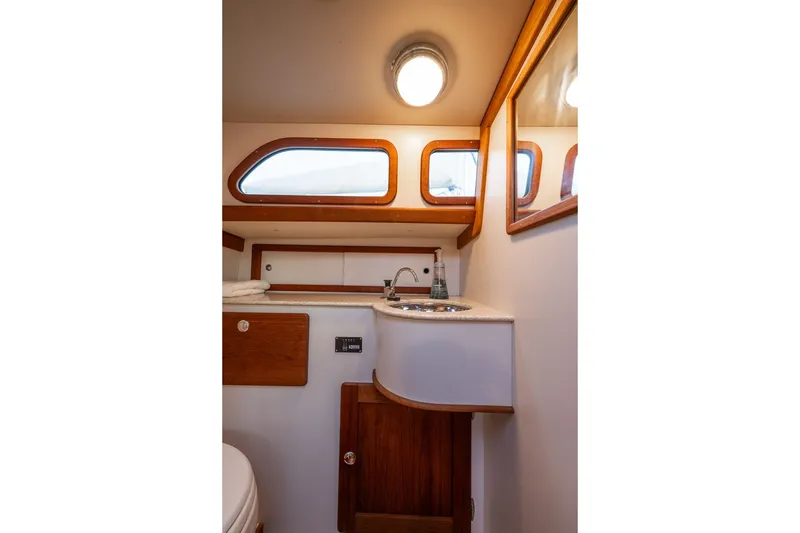

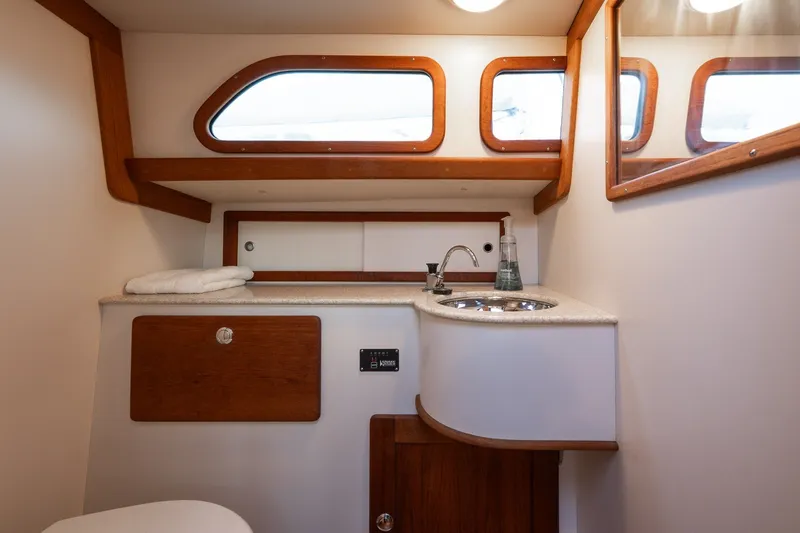

Head:

• Vacuflush electric marine head (uses fresh water, minimizing head odor)
• Corian counter top with mirror-polished SS sink
• Fynspray model WS-60 chrome plated manual pump faucet
• High grade glass mirror with frame on forward bulkhead

Interior Ventilation:

• (2) SS 3" cowl vents on varnished teak dorade boxes
• Solar vent on the cabin top above the head compartment

Interior Lighting:

• (5) Frigast "Cabin" wall-mounted chrome cabin lights with integral switches
• (1) Imtra SS dome cabin lights with integral switch in head
• (1) Imtra SS red/white dome light with integral switch in galley

Windows, Ports & Hatches:

• Deckhouse portlights are toughened safety glass, frameless installation
• Forward stainless steel cabin hatch is Bomar.
• Foredeck and cockpit hatches are flush fiberglass.
• Saloon style removable companionway doors with storage bag in cockpit locker.
• Additional set of companionway doors with screens

ELECTRONICS, COMMUNICATION, and NAVIGATION

• Garmin speed, depth & wind instruments (2022)
• Simrad waterproof wireless VHF Radio with docking station in companionway (2025)

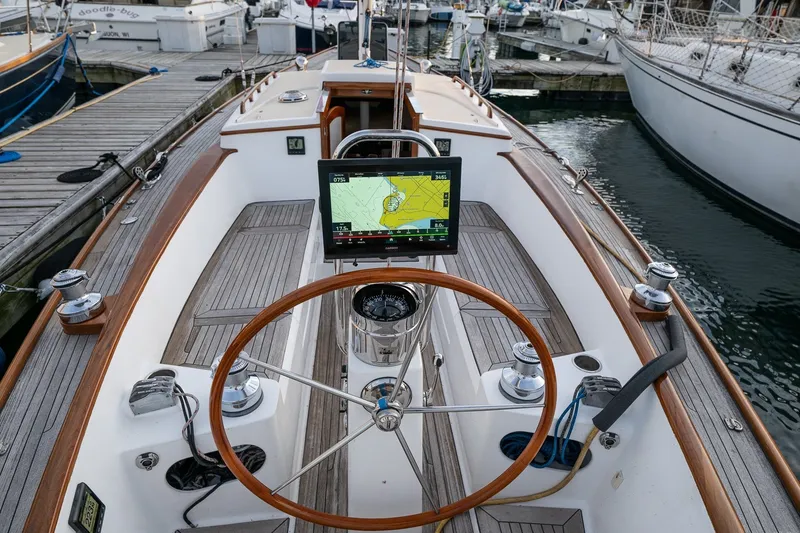

• Garmin color GPS/Chart Plotter/Radar at pedestal (2022)
• Garmin digital HD radar antenna (2022) mounted on Kato stainless steel fixed mast bracket
• Raymarine AIS700 Transceiver (2022)
• Garmin Autopilot (2022)
• Ritchie 5" compass
• Perko bicolor bow light with chrome plated brass housing
• Perko transom stern light with chrome plated brass housing

ENTERTAINMENT

• Alpine AM/FM stereo CD player & speakers mounted in main cabin. IPOD compatible

ELECTRICAL

• (2) 12VDC AGM house batteries (2025)
• Dedicated 12v engine start battery (2025)
• Mastervolt 90 Amp/12VDC alternator with multi-stage regulator for battery charging
• Mastervolt 12 VDC distribution panel
• 12v outlet at electrical panel
• Victron battery monitor (2025)
• 30 amp short power inlet with shore cord
• 30 amp three stage smart battery charger with breaker

MECHANICAL

• 20-gallon Polyethylene waste holding tank with gravity drain to seacock
• Snake River external tank level monitor
• 20-gallon PVC fresh water tank w/deck filler cap
• Whale diaphragm 12VDC bilge pump with removable strainer
• Whale Gusher 10 manual bilge pump located near helm in cockpit
• Edson wire rope/chain steering system with 34" varnished teak rim wheel

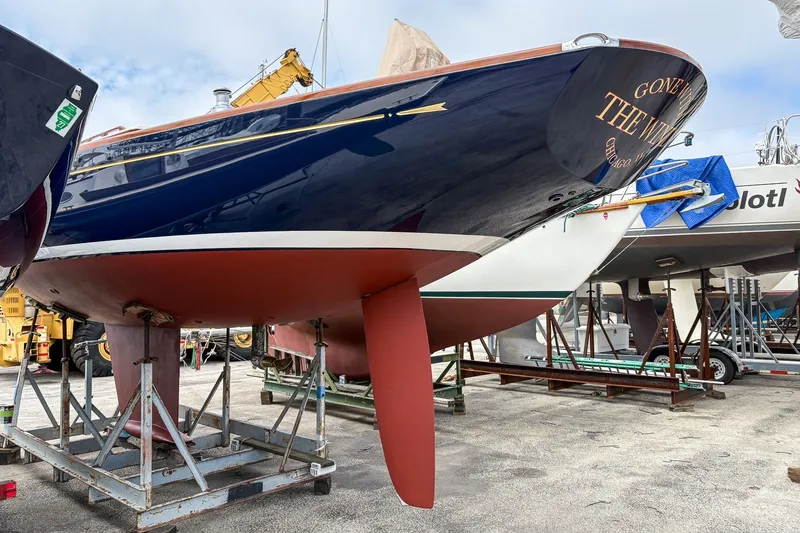

• Carbon fiber/epoxy rudder with carbon fiber rudderpost
• (2) Self-aligning rudder bearings and adjustable lip seal

ENGINE:

• 2005 Yanmar 3YM20 x SD Saildrive unit, 3-cylinder, direct-injected, fresh water-cooled marine diesel engine, maximum 21 hp @3600 RPM.
• Flex-O-Fold 16" two blade propeller
• Fiberglass engine mount
• Yanmar instrument panel at the helm, includes ignition power, start button, stop button, audible alarms for cooling water high temperature and low lube oil pressure, and tachometer with illumination switch.
• Edson single lever throttle with neutral safety switch located on the pedestal.
• Engine box is fitted with Soundown Vinyl/Foam composite noise reduction insulation.
• Racor model #220 spin-on fuel/water separator
• 12-gallon aluminum fuel tank w/deck filler cap

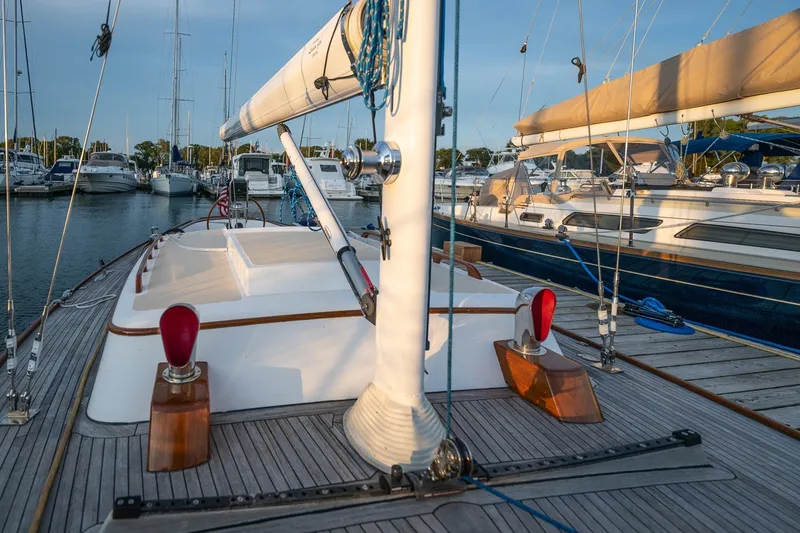

SPARS and RIGGING

• Carbon fiber mast by Hall Spars - mast painted 2025
• Fractional rig with swept back spreaders and stainless steel rod rigging - new standing and running rigging 2025
• Leisurefurl main sail furling boom (new 2025)
• Self-tacking jib on athwartships curved track
• Harken MKIV 2 manual headsail furling unit
• Navtec integral hydraulic backstay adjuster
• Forespar vang
• Topping lift
• Spinnaker halyard
• Removable stand up blocks for spinnaker sheets

WINCHES

• (2) Lewmar 40 electric two speed chrome self-tailing winches for main halyard, main furling line, main sheet, jib sheet, jib furling line and vang
• Lewmar rope clutches at helm for lines to electric winches
• (2) Lewmar 40 two speed chrome self-tailing winches for spinnaker sheets
• (1) Lewmar 16 two speed chrome self-tailing winch on mast

SAILS

• North Full Batten 3Di Oceans Furling Mainsail (2025)
• North 3Di Oceans Furling Jib (2025)
• North G-AP3 asymmetrical Gennaker

ANCHORING and MOORING

• Bruce 22 lb. anchor w/ 100' Yale Brite Nylon rope, 6' of chain (2025)
• Dock lines and Fenders (w/fleece covers)
• Aluminum boat hook

SAFETY

• Emergency tiller
• (2) Kidde Mariner 110 portable dry chemical fire extinguishers
• Engine compartment "Fire Port"
• Tool kit, Flare kit and Air Horn
• (4) Adult Type II life jackets with storage bag
• USCG Rules of the Road
• High water alarm (2025)

ADDITIONAL EQUIPMENT

• Canvas pedestal and wheel cover (new 2025)
• Covers for all four winches in cockpit (2025)
• Varnished teak flagstaff and flag with SS socket welded to the backstay chainplate
• 2-pc SS midship folding ladder w/PVC treads
• Full boat sun cover
• Boat manuals
