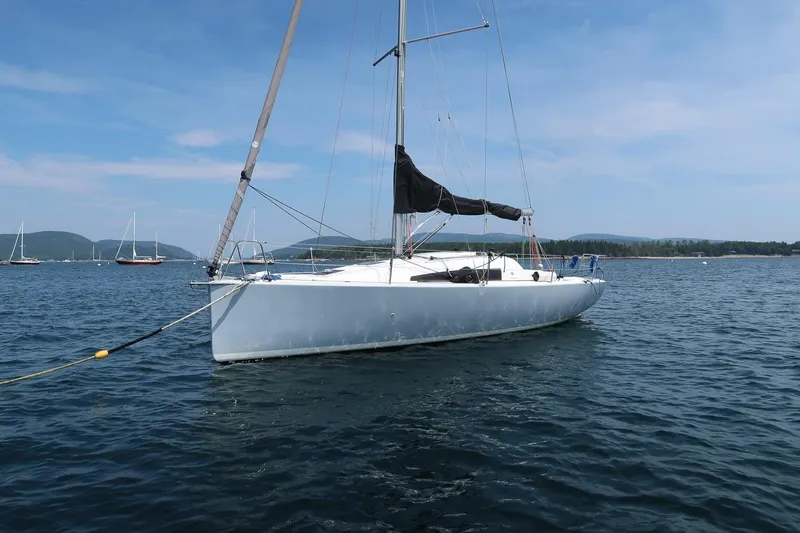

2017 Jeanneau Sun Fast 3200 Sold Boat in Southwest Harbor, ME 4679 US

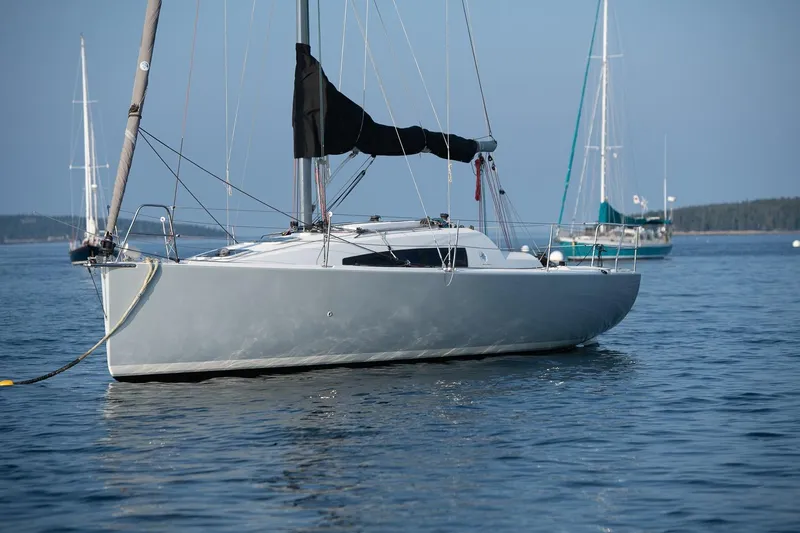

The Jeanneau Sun Fast 3200:

This Daniel Andrieu design provides effortless speed and is most definitely fun. Built using the latest technology to ensure the best strength-to-weight ratios, this boat is uniquely adapted to performance cruising and racing. The Sun Fast 3200 is particularly impressive while sailing off the wind. The boat was originally conceived as a limited production design for the Transquadra, a single or double-handed transatlantic race for sailors over 40 years of age. Production was initially intended for 15 to 20 boats, but the design found commercial success and over 150 had been built by 2015.

The Sun Fast 3200 has all the necessary elements to enjoy your time onboard. A galley, chart table, two double cabins and a head compartment offer comfort not often found in boats of this class. Technical equipment has been designed with functionality and reliability as the primary focus. Matthew Sheahan described it in Yachting World, "although loosely termed a racer, the category didn't fully describe what the Jeanneau Sun Fast 3200 was about. It has become the sailing equivalent of the motor industry's crossover category, a term to describe the growing range of suburban 4x4s - a multi-purpose cruiser / racer.

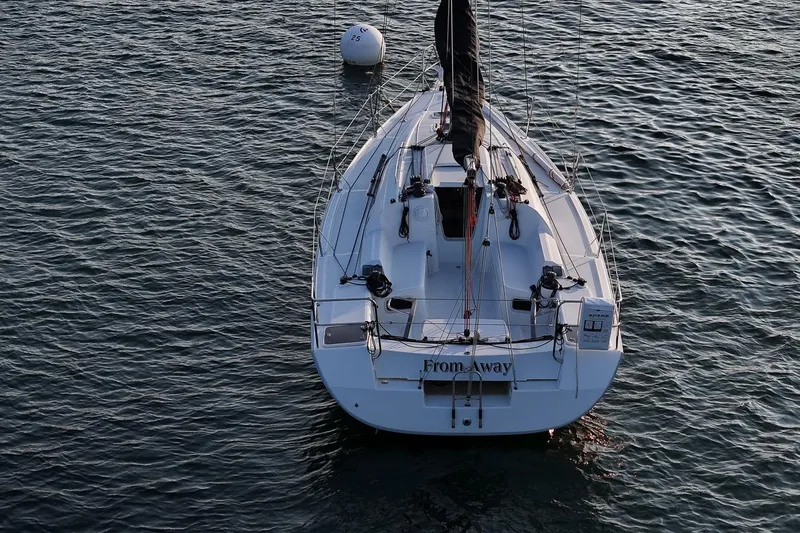

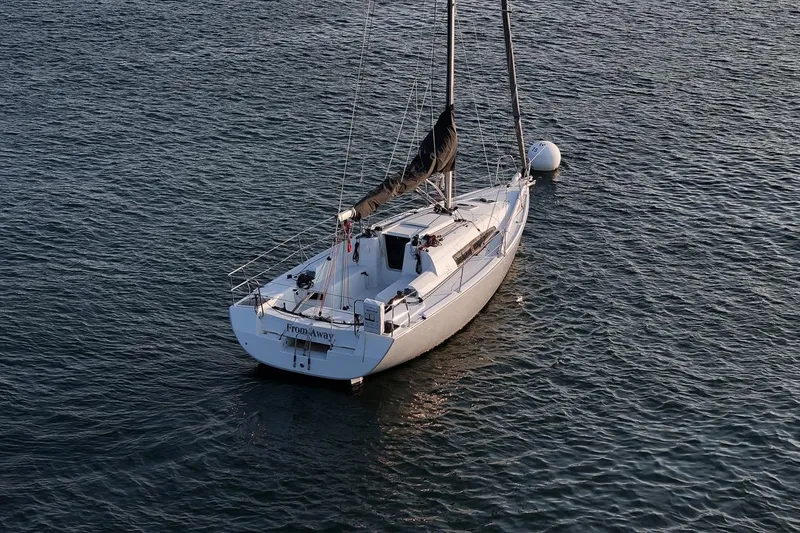

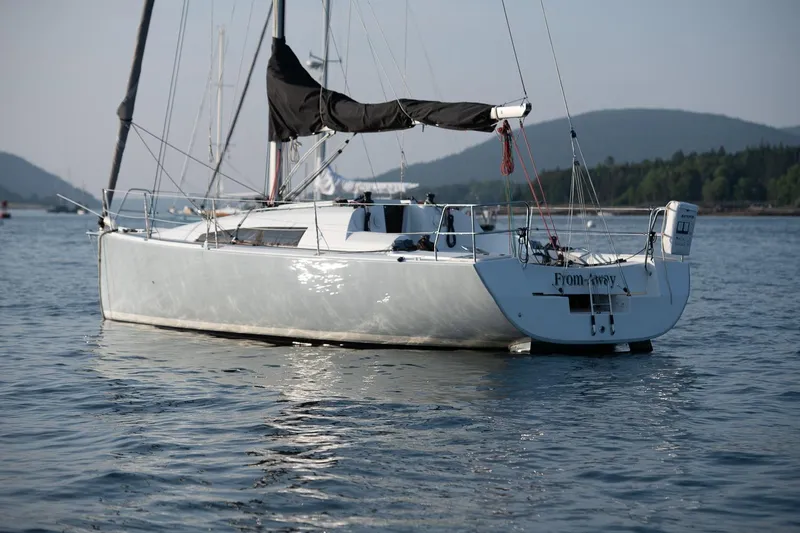

From Away was built for an experienced sailor in Dubai who enjoyed day sailing her there before moving her to Maine where she has been lightly used. She is fully serviced and commissioned for the season and in the water ready to go sailing.

Recent upgrades and service include:

• New North 3Di Endurance main and jib and Asymmetrical spinnaker in 2022 with very light use
• Lifeline stanchions rebedded (2025)
• Mast partner rebedded (2025)
• Quarterberth hatches rebedded (2025)
• Sail drive seals replaced (2025)
• Propane system replaced (2025)
• Electric bilge pump switch upgraded and high water alarm added (2025)
• New VHF radio (2025)

Hull Construction and Features

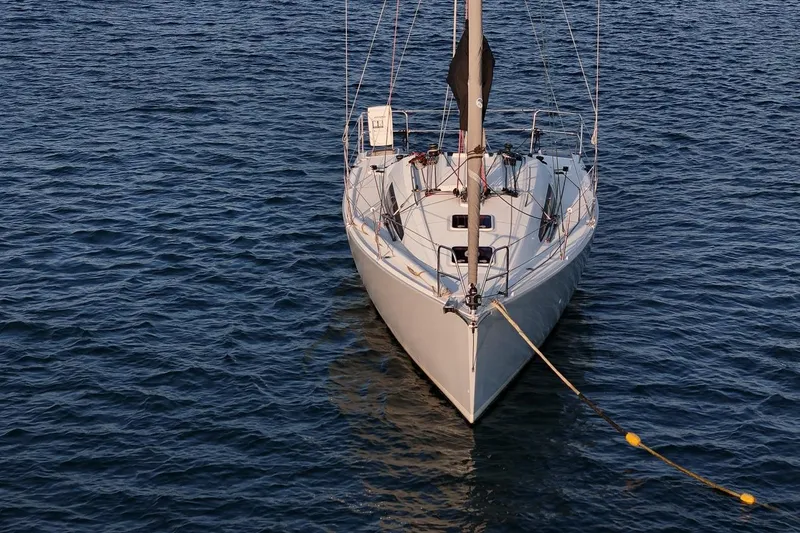

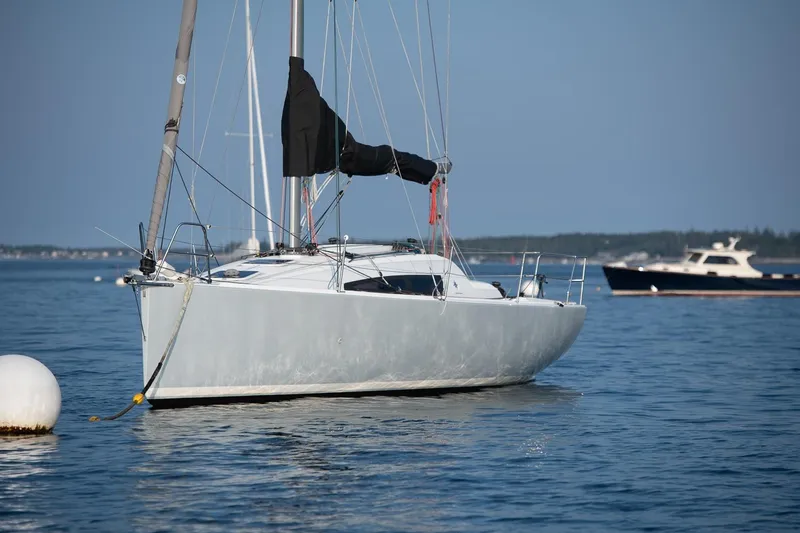

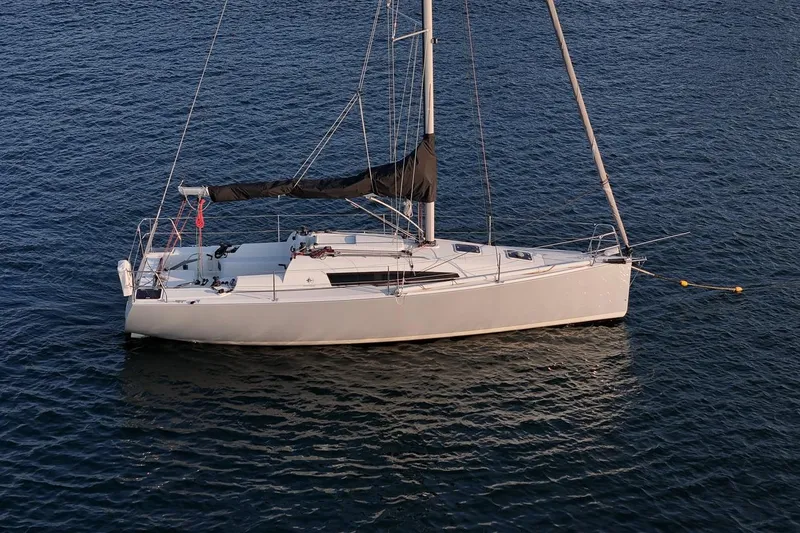

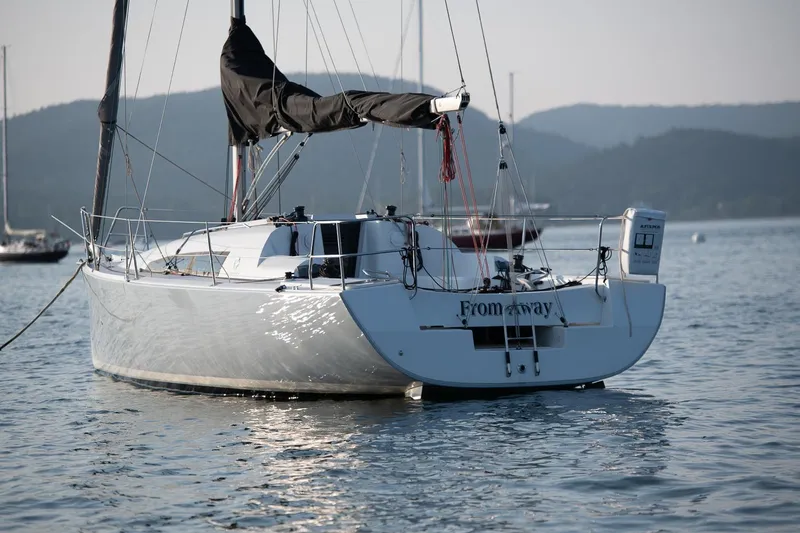

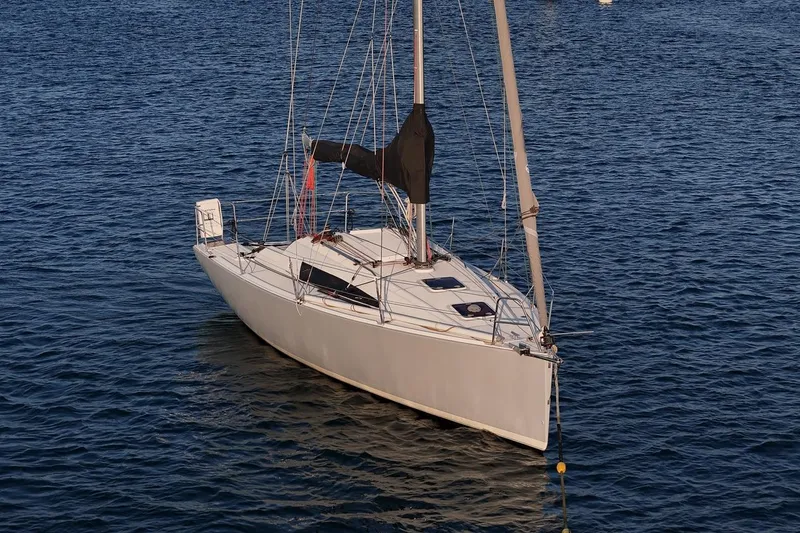

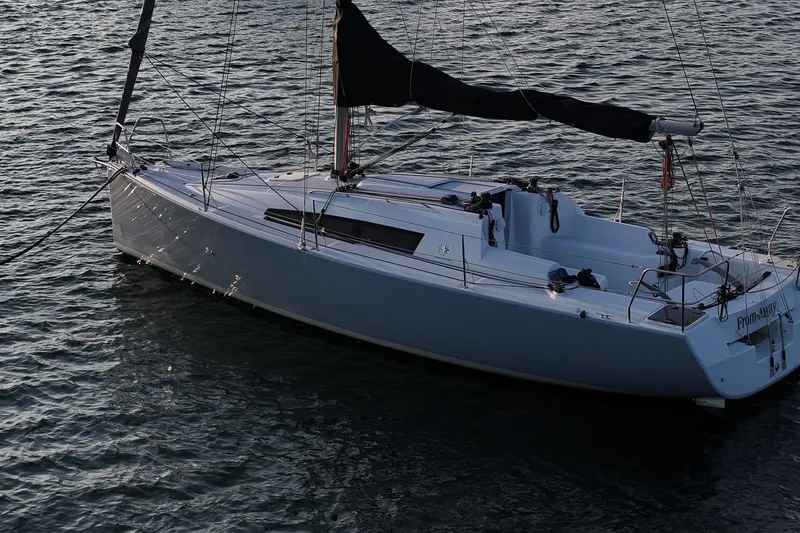

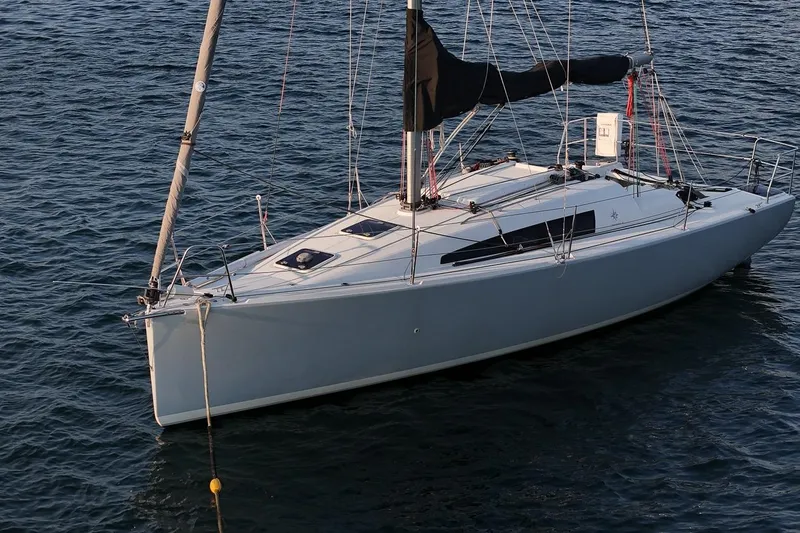

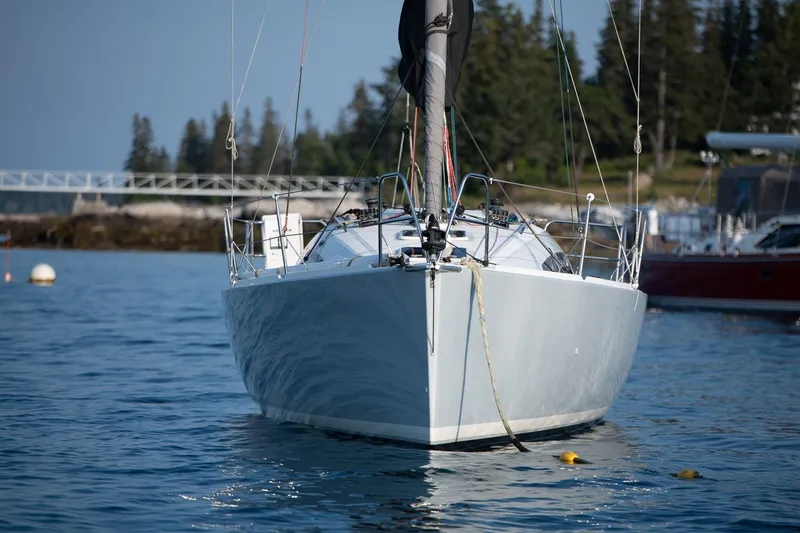

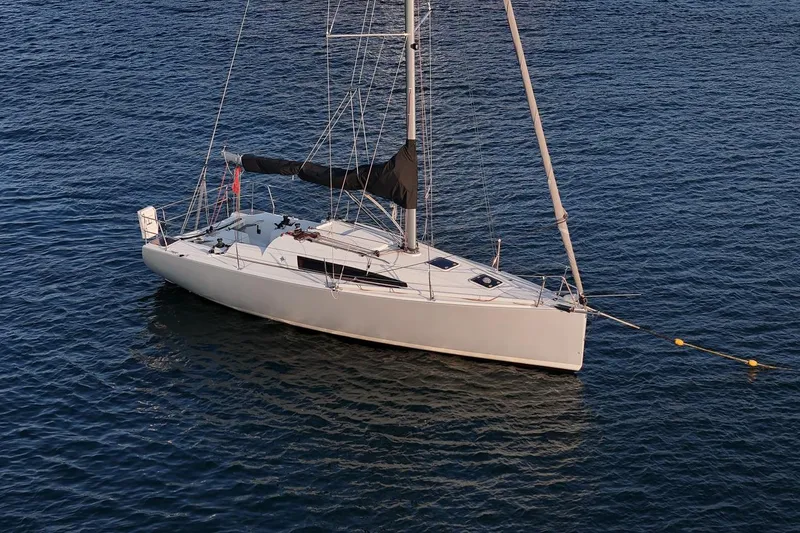

The hull has a plumb stem, reverse transom, and relatively flat sheer with dual internally mounted spade-type rudders and a fixed L-shaped fixed keel with a lead ballast bulb.

• Hull is a composite construction of FRP Cloth and Balsa core with infused polyester resin. Infused FRP cloth interior structural molding bonded in place.
• FRP with infused polyester resin main bulkhead and forward (water-proof) crash bulkhead. Decks, cabin and cockpit are a composite construction of FRP cloth and foam core with infused polyester resin.
• FRP toe rails are molded with deck construction solid blocking in decks, cabin and cockpit for hardware placement.
• Hull exterior is finished with Gray Awlgrip paint with White boot stripe.
• Bottom, keel and rudders are coated with Black anti-fouling paint
• Decks, cabin, and cockpit are finished in White gelcoat with molded non-skid areas.

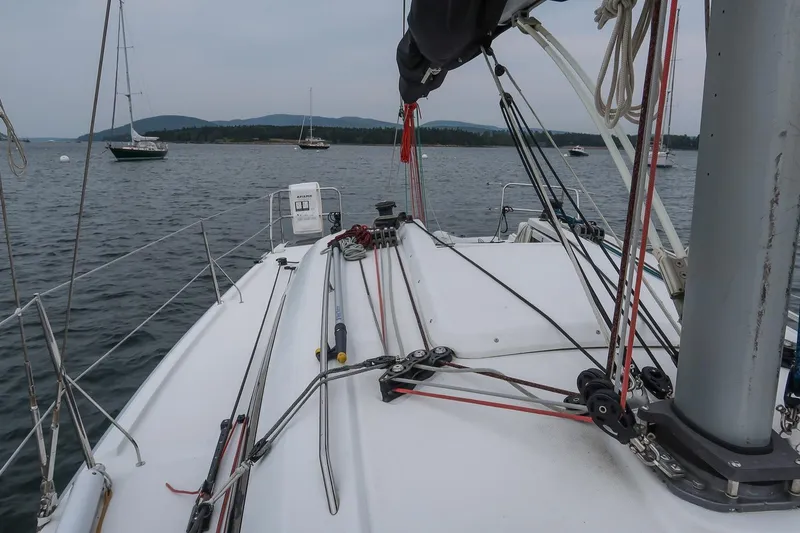

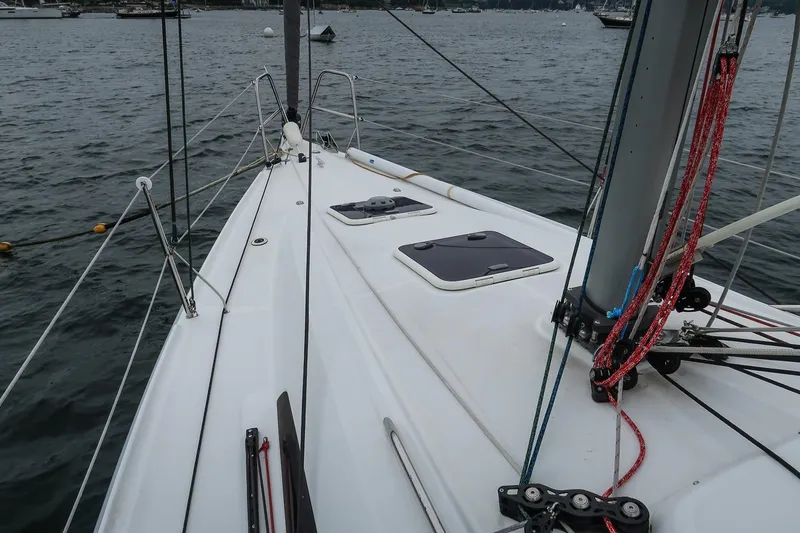

Deck Hardware

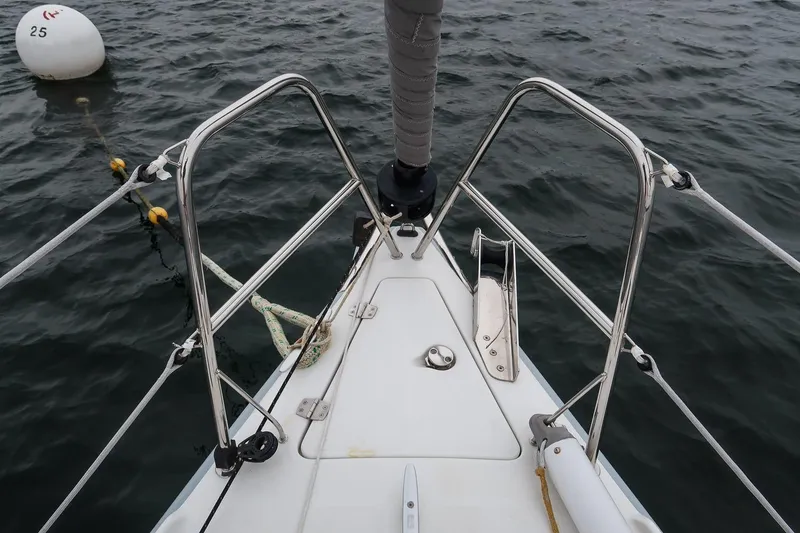

• Forward stainless steel pulpit

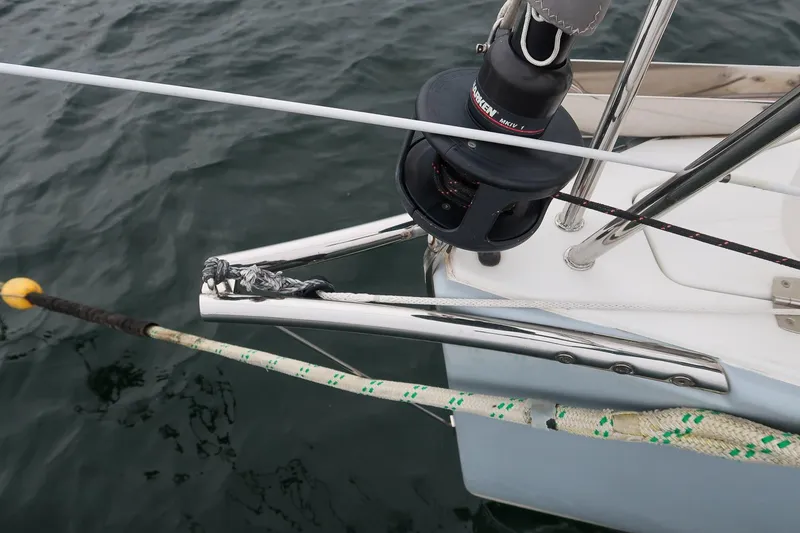

• Stainless steel bow sprit with fitting for mounting a gennaker furler
• Aft stainless steel pushpits
• Double Vectran lifelines with stainless steel stanchions (stanchions rebedded 2025)
• 2 mooring cleats aft and 1 forward
• Toe rails molded with the foredeck
• Stainless steel anchor roller
• Harken mainsail traveler track in rear of cockpit with coarse and fine tune main sheet controls
• Wichard pad eyes at bow, cockpit and md-decks
• Spinlok line jammers on cabin top port and starboard for halyards and control lines
• 2 Harken Performa #50, 2-speed, self-tailing winches in cockpit for genoa and spinnaker sheets
• 2 Harken Performa #30, 2-speed, self-tailing winches on cabin top for halyards and control lines
• Harken genoa tracks with adjustable lead blocks for sheets
• Stainless steel Chain plates for shrouds on side of hull
• Chainplates for backstay
• Through fitting for mast with halyard and sail control line lead blocks (rebedded 2025)
• 2 Stainless steel handrails on cabin top.
• (4) Lewmar opening deck hatches for ventilation and light in interior and access to lazarette

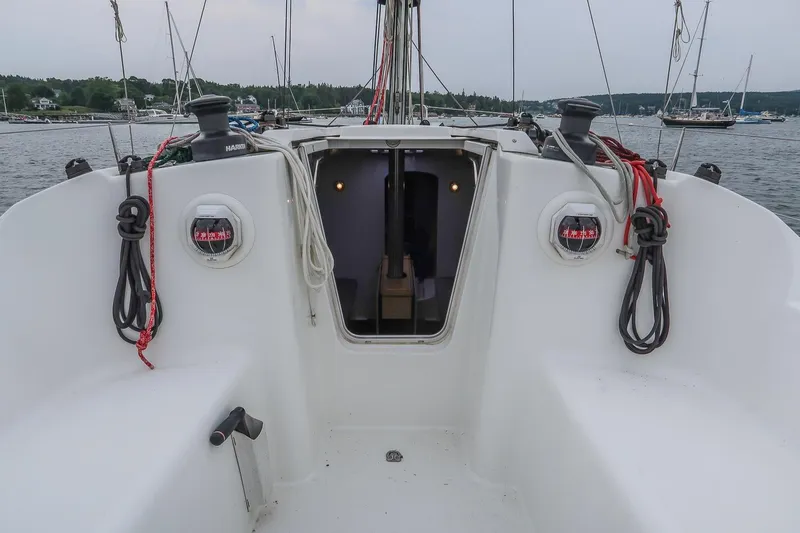

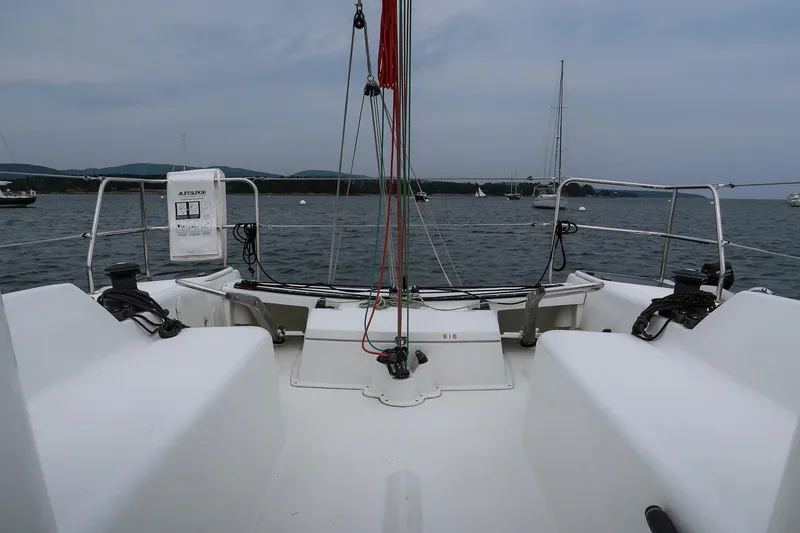

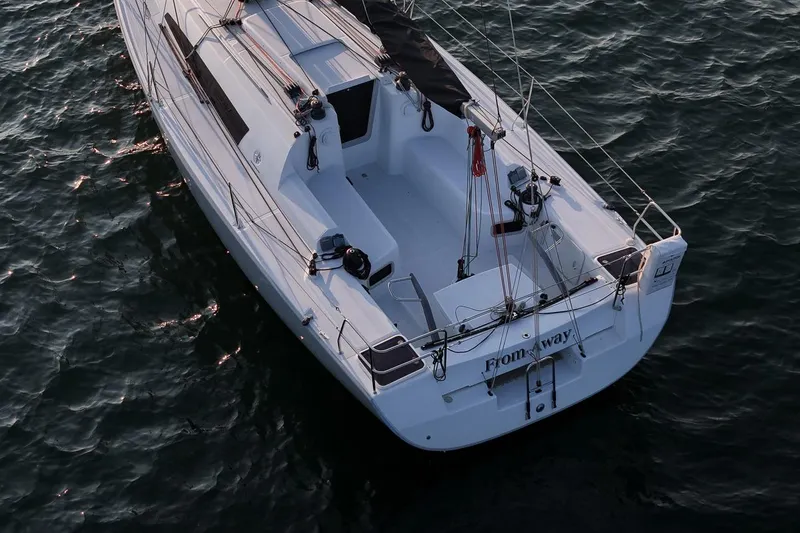

Cockpit Features

The large cockpit is laid out for efficient racing or simple single handed sailing with control lines let back to self tailing winches and well thought out ergonomics.

• Storage lockers to port and starboard with access by deck hatches
• Cockpit bench seating
• Propane tank storage in ventilated cockpit locker
• Storage for life raft in central locker
• 4 Winch handle holders
• Stainless steel fold down swim ladder on stern
• 2 Teak tillers
• Manual bilge pump near helm
• Plastimo Contest 130 helm compasses on forward bulkhead port and starboard

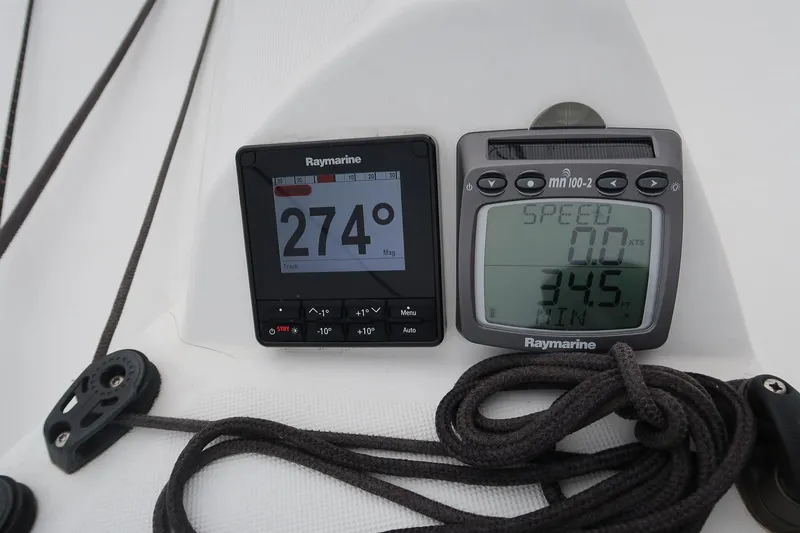

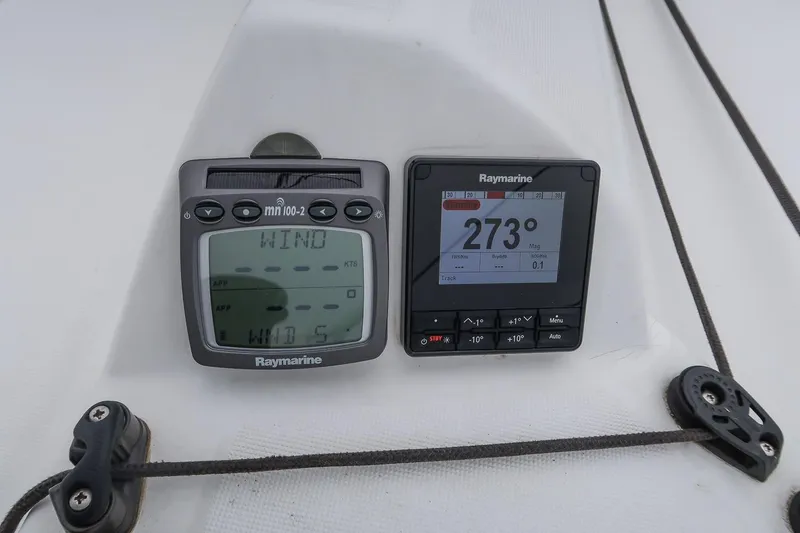

• Raymarine Tack Tick sailing instrument displays forward of tiller port and starboard
• Raymarine Autopilot control heads port and starboard next to sailing instruments
• Foot braces in cockpit sole at center of cockpit and near helm positions.

Interior Arrangements and Accommodations

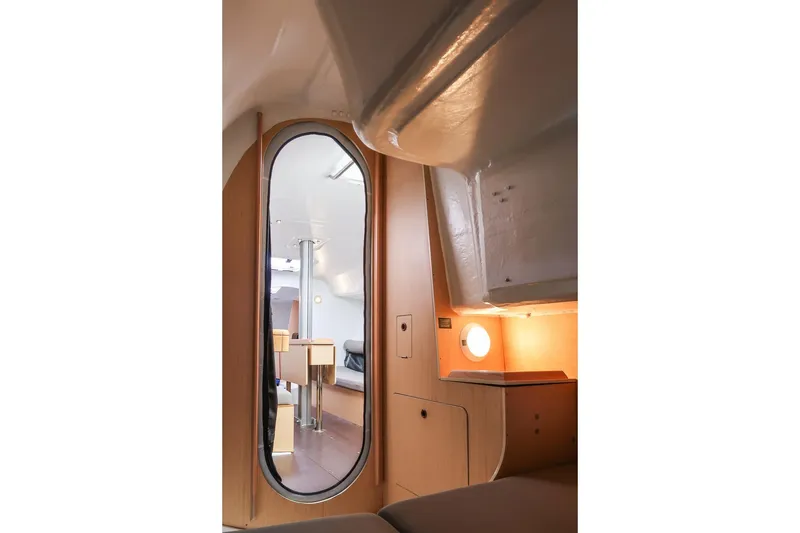

Unlike her spartan, purely racing sisters, the Sun Fast 3200 actually has a comfortable cabin that maximizes the available space. There are two double cabins aft, a full galley to starboard and nav station to port, with port and starboard settees and centerline table in the main saloon and an enclosed head forward. No doubt this boat will be just as comfortable racing around the buoys as cruising for a weekend with friends. Interior features are described below from fore to aft.

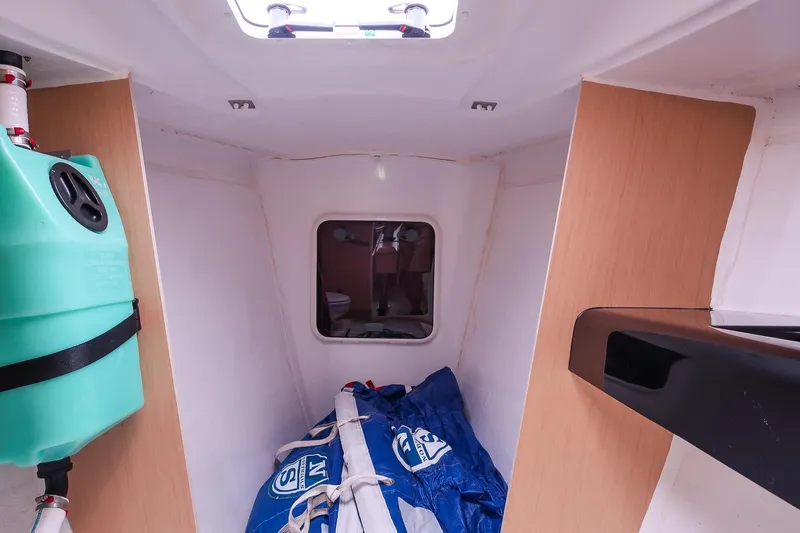

FORWARD SECTION

• Composite crash bulkhead with through access via water-tight hatch to chain locker forward.
• Storage for sails, etc. forward of head

HEAD COMPARTMENT

• Finished in White GRP Head access via sliding door in composite forward bulkhead

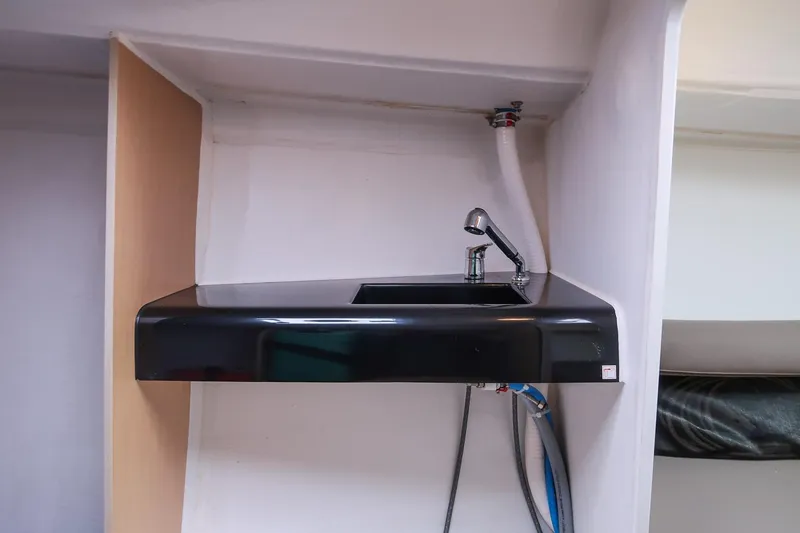

• Sink with pressurized shower fixture to starboard
• Drainage of compartment via bilge
• Overhead opening deck hatch with solar vent
• Jabsco manually operated marine head with manual pump
• 20 Gallon holding tank Head plumbed for discharge over board or to holding tank.

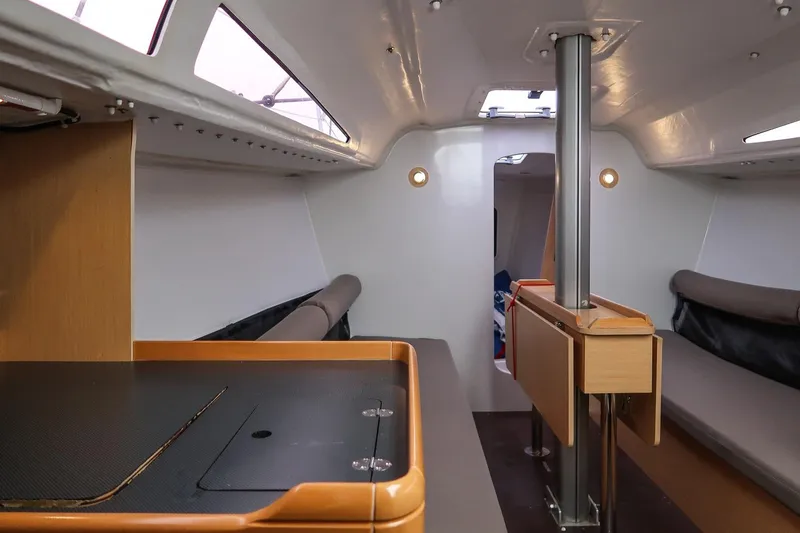

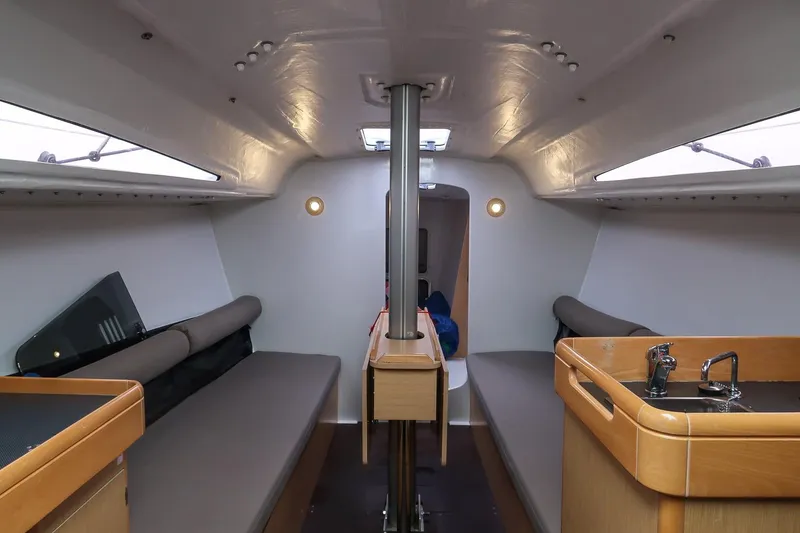

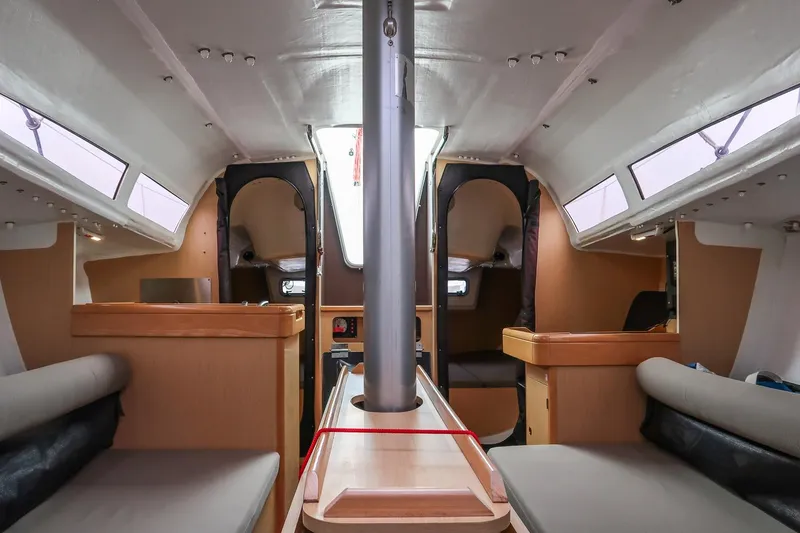

MAIN SALOON

• Table with folding leaves on center line.
• Port and starboard settees with back rests 6'7'' long.
• Cushions and back rests have removable covers -
• Sunbrella® Sling Taupe Storage under bench seats and behind back rests
• Storage compartments under side deck to port and starboard
• Fixed ports along interior cabin sides
• Removable floorboards
• 80 L / 21 US gal water tank under saloon seating.

COMPANIONWAY (center line aft)

• 3 steps with non-slip strips
• Plexiglass drop board lockable from interior and exterior with air vents
• Sliding FRP overhead companionway hatch with FRP sea hood.
• Stainless steel handrails to each side of companionway.
• Removable composite companionway stairs for access to front of engine

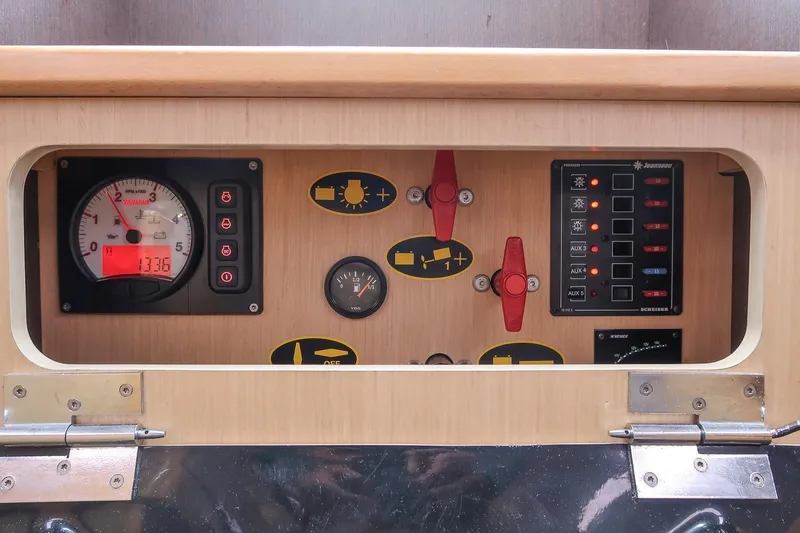

• Engine panel inset in companionway with fuel gauge and voltmeter for engine battery
• Electrical panel inset in companionway with 12 V plug, voltmeter for house battery bank, distribution circuit panel and battery selector switches for engine start, lighting and emergency parallel.

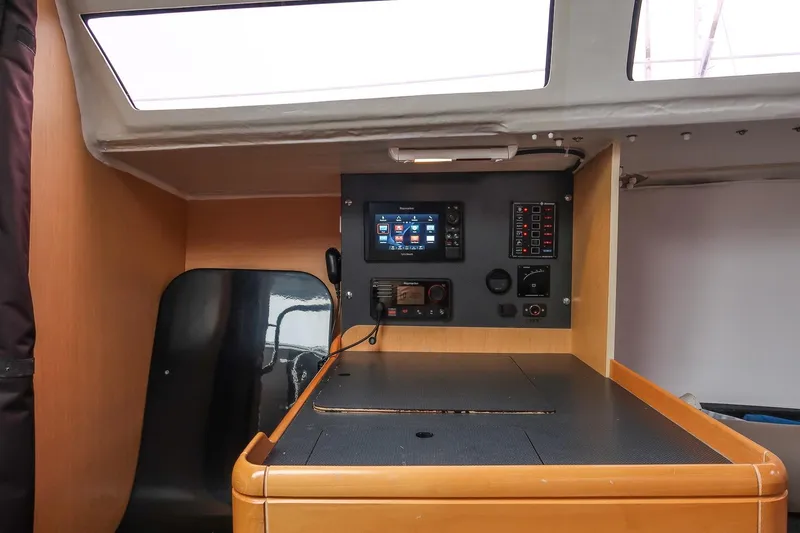

CHART TABLE (to port)

• Chart table with storage within desk Panel for mounting electronics

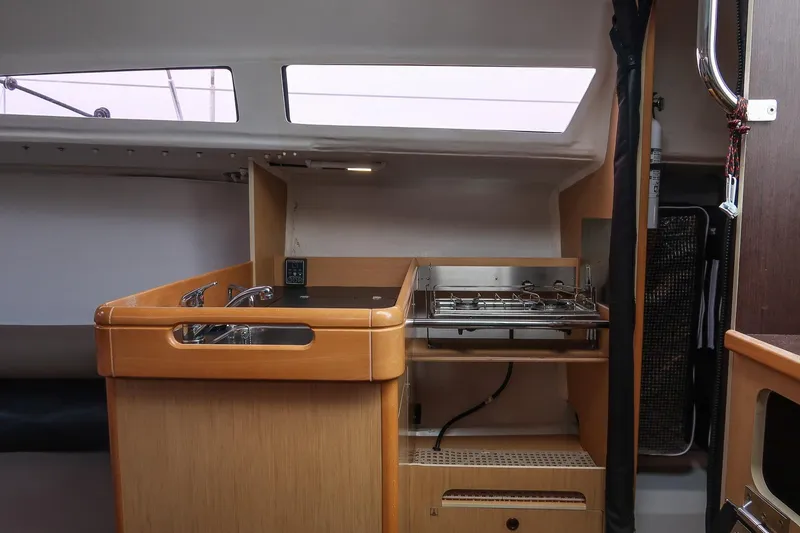

GALLEY (to starboard)

• L-galley to starboard Laminate counter top
• Storage and access to through-hulls under counter

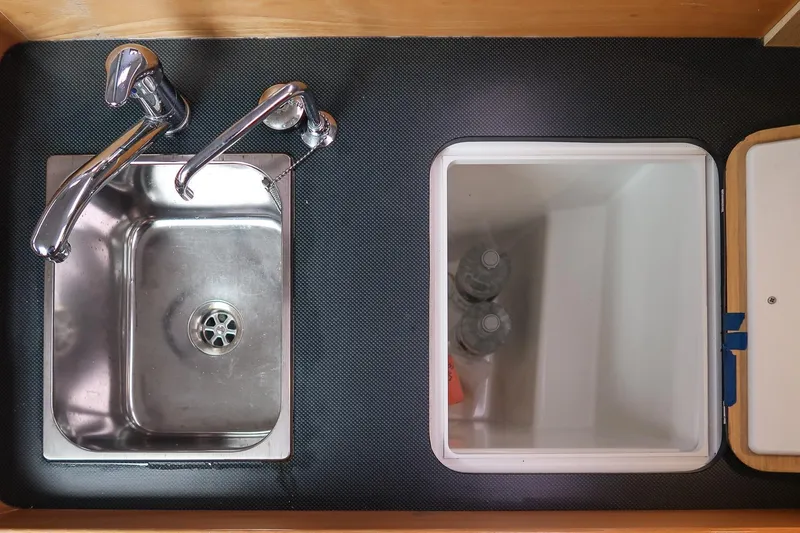

• Stainless steel sink
• Pressurized cold water tap
• Storage for flatware and rubbish bag mount

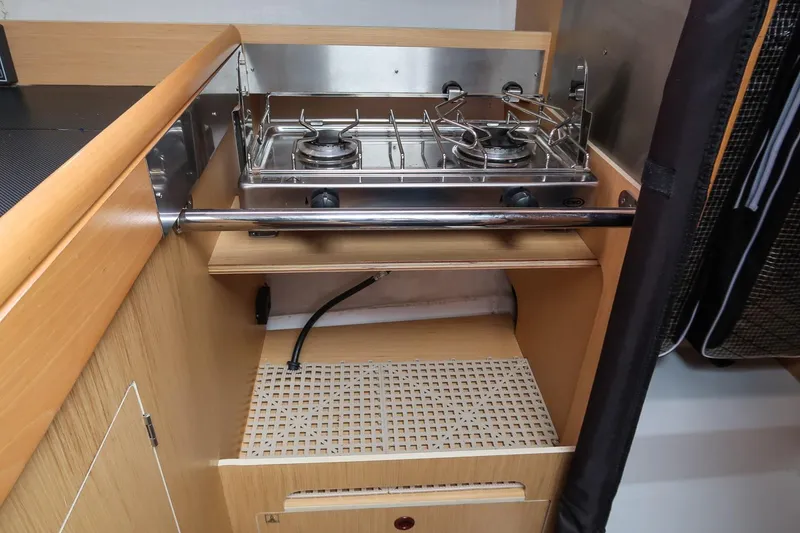

• 2 Burner stove (Never Used)
• 60 L / 16 US gallon insulated icebox
• Fixed port above galley
• Handrail in façade

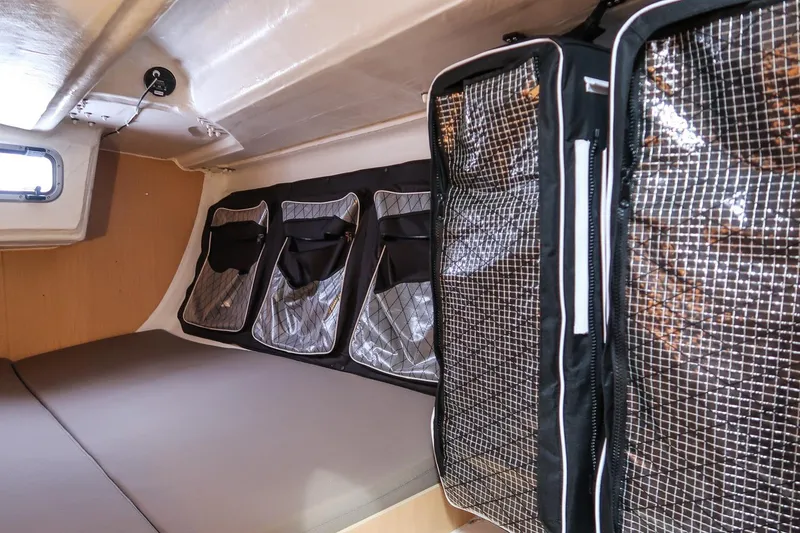

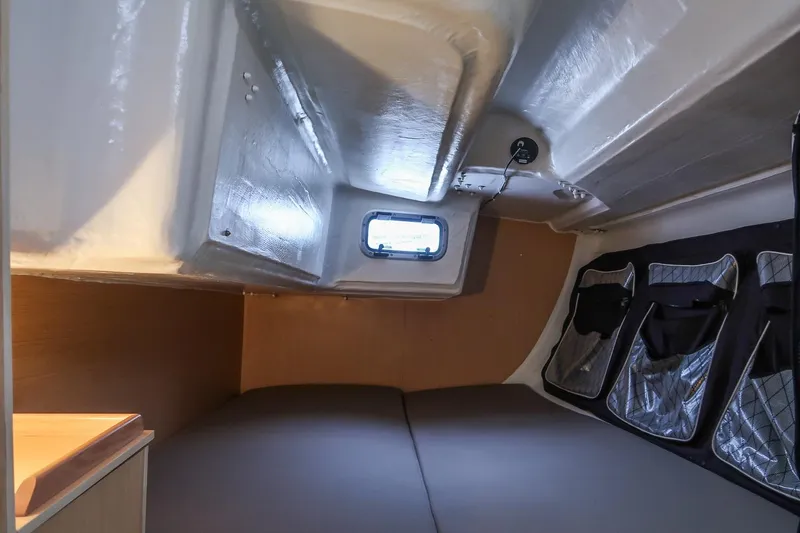

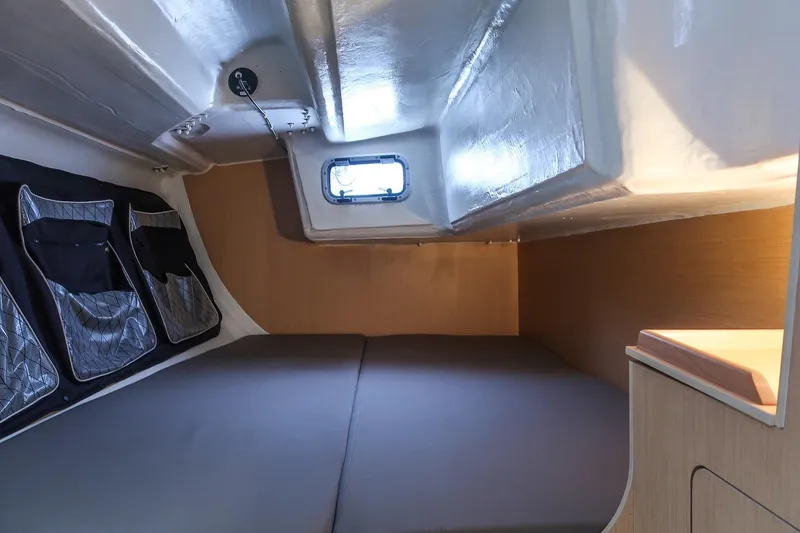

AFT CABINS (port and starboard aft of companionway)

• Double berths 1,96 m / 6'5'', long
• Mattresses with removable fabric covers
• 1 Large port opening into the cockpit per cabin

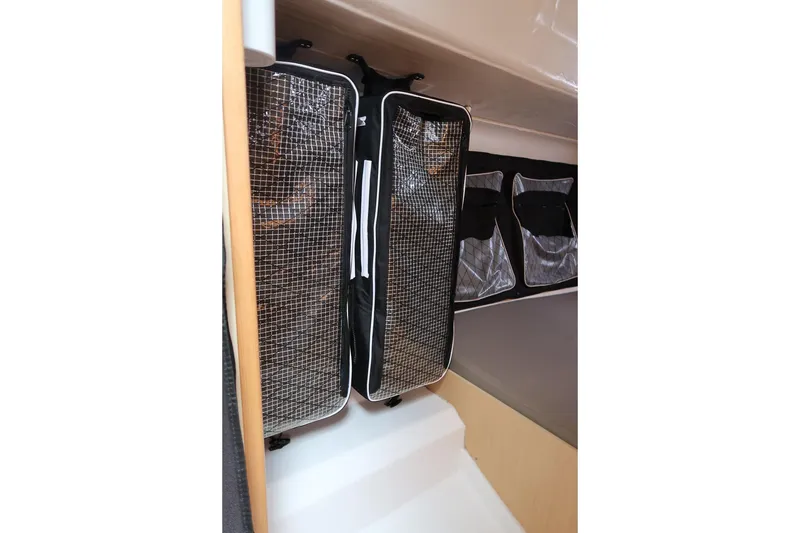

• 2 Fabric hanging lockers per cabin
• 3 Fabric storage pouches per cabin
• Zippered cabin doors of the same fabric as the hanging lockers and storage pouches.

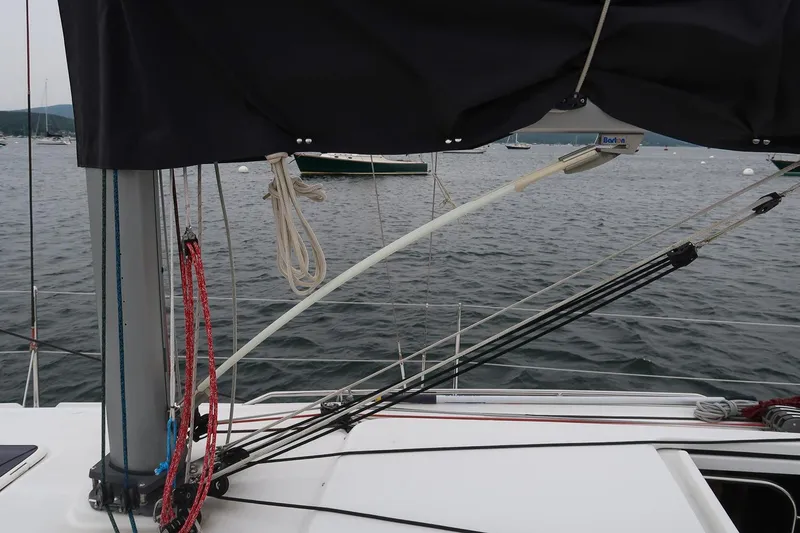

Spars and Rigging

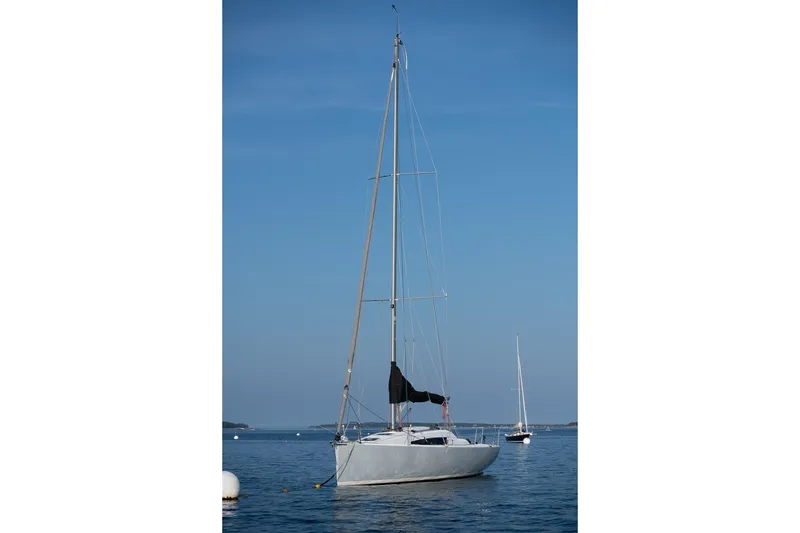

• Sparcraft aluminum keel stepped double spreader mast with 19/20 fractional rig configuration
• Conventional aluminum boom
• Stainless steel Dyform® shrouds
• Adjustable backstay with returns to each helm
• Harken roller-furling headstay
• Tricolor LED navigation lights on masthead.
• 2 Multipurpose genoa halyards
• 1 Doubled mainsail halyard with shackle
• 2 Masthead spinnaker halyards
• 2 Genoa sheets
• 1 Mainsheet with course and fine tune
• Mainsail outhaul
• Adjustment lines for mainsheet car and genoa cars
• 2 reef lines
• Barton Boomstrut
• Cunningham
• Sparcraft Carbon fiber spinnaker pole mounted on deck
• Harken main sail Lazy-Jack system
• Tides Marine main sail luff track and slide system

Sails and Canvas

• 2022 North Sails 3dI Endurance main sail
• 2022 North Sails 3dI Endurance roller-furling jib with vertical leach battens
• North Sails Asymmetrical Airx Spinnaker
• 2022 Sturdy Designs Weather Max main sail cover (black)

Electrical Systems and Equipment

• 12-Volt DC ship's electrical system
• Separate battery banks for engine start and lighting
• 1 Engine battery 50 A OPTIMA
• 2 House batteries 50 A OPTIMA
• Separate battery selector switches for lighting, engine start and emergency parallel.
• Distribution circuit panels at main electrical panel and navigation station
• 12-Volt DC plug
• Voltmeter for house battery bank

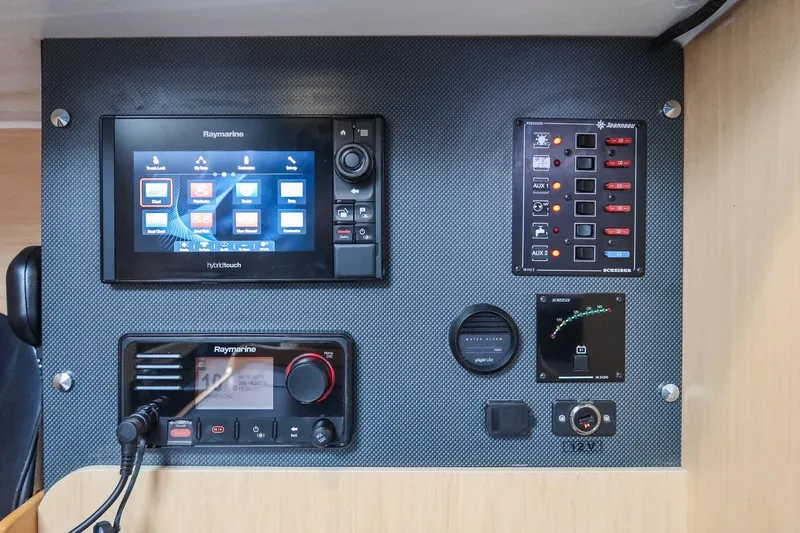

Electronics and Navigational Equipment

• Plastimo Contest 130 helm compasses port and starboard of companionway
• Raymarine eS75 Hybrid-Touch, Wi-Fi enabled GPS chart plotter at Nav station
• Raymarine Tack Tick T111 sailing instrument displays (2ea) port and starboard in cockpit
• Raymarine Tack Tick Wireless masthead wind sensor / wand
• Raymarine Tack Tick speed and depth sensor
• Raymarine P70s Autopilot with T1 electric ram Raymarine P70s Auto pilot control heads (2ea) port and starboard in cockpit
• Raymarine Ray63 VHF at nav station (2025)

Auxiliary Propulsion and Fuel

• Engine throttle and transmission control lever in the cockpit with removable handle
• Sound insulated engine compartment Engine access via removable companionway and compartment openings in port and starboard aft cabins

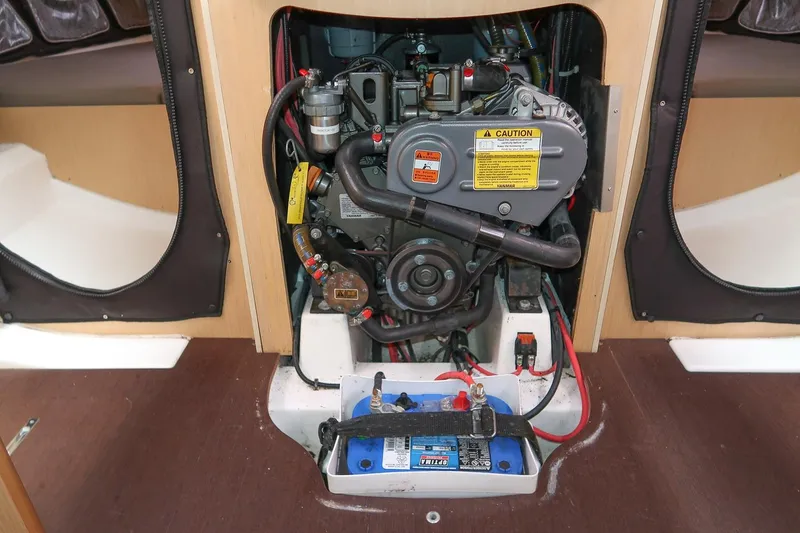

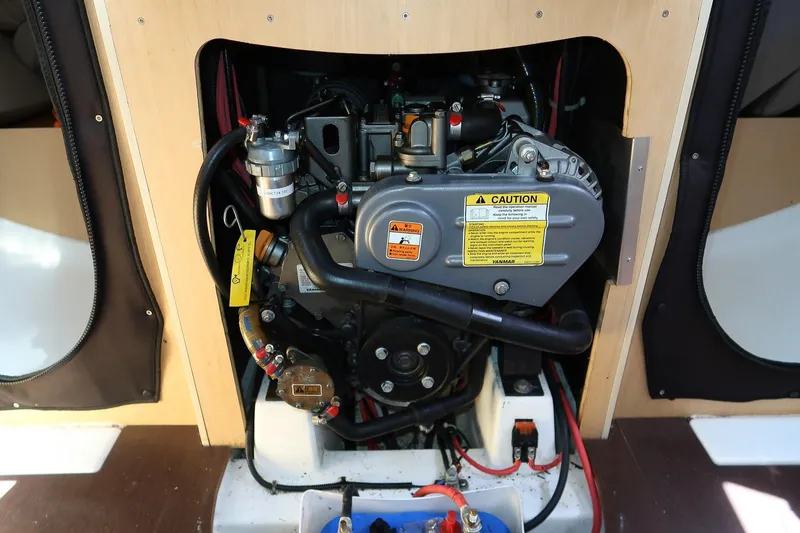

• Yanmar 2YM15 - 15 HP, fresh-water cooled diesel engine
• Engine Hours: Very low engine hours
• Sail Drive SD20 transmission
• 2-blade folding propeller
• Fuel filter
• 75 L / 20 US gallon poly fuel tank

Freshwater Plumbing and Sanitation

• 21 Gallon capacity fresh water tank
• Pressure water system
• Sink basins at galley and head areas
• Cold fresh water only
• Jabsco manually operated marine toilet Head plumbed for overboard discharge or holding tank

Safety:

• Rule electric bilge pump
• High water alarm
• PFD's
• Galvanized Bruce anchor with rope/chain rode
