2011 J Boats J/95

• Hull and Deck
• Hull and deck built with resin infusion molding system using biaxial and unidirectional glass fabrics and Baltek end-grained balsa and foam cores.
• Structure is engineered to ABS and ISO standards by John Fox of FCS Design.
• 10 year transferable warranty against hull blistering, 5 year structural warranty.
• GRP molded structural grid with longitudinal and transverse keel support beams and composite mast bearing beam with aluminum tapping plate and limber holes to the bilge.

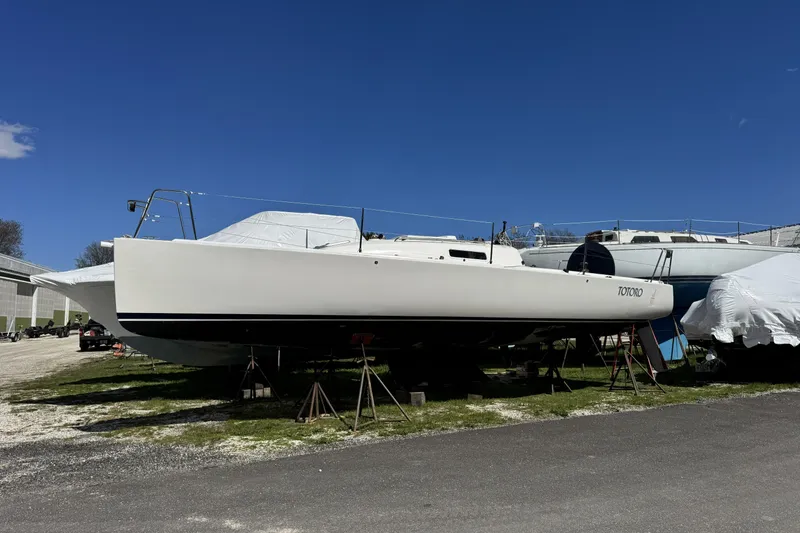

• White gel coat hull with single tapered boot stripe.

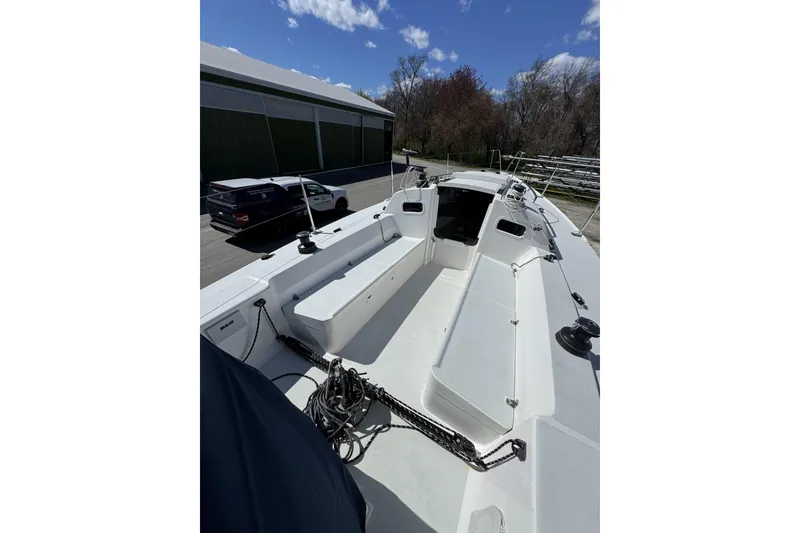

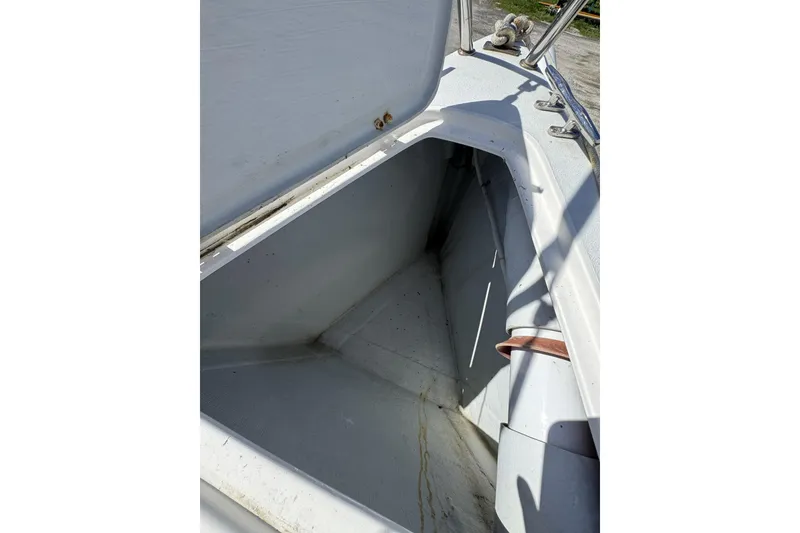

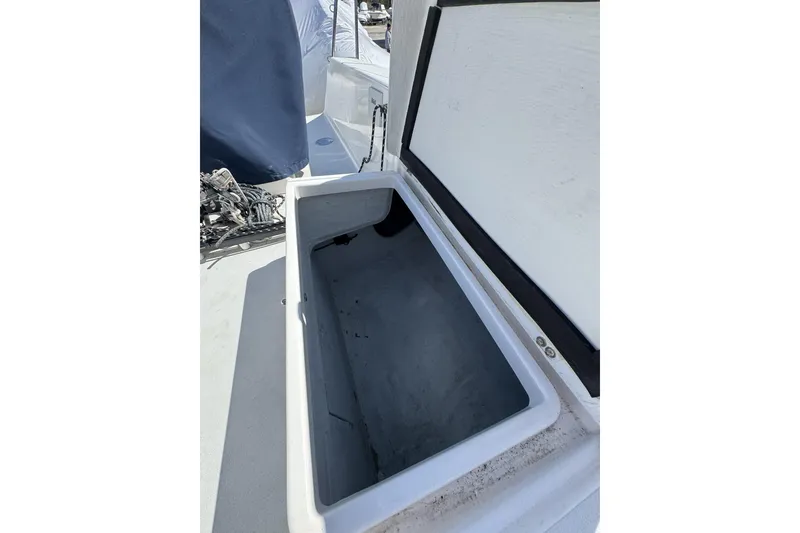

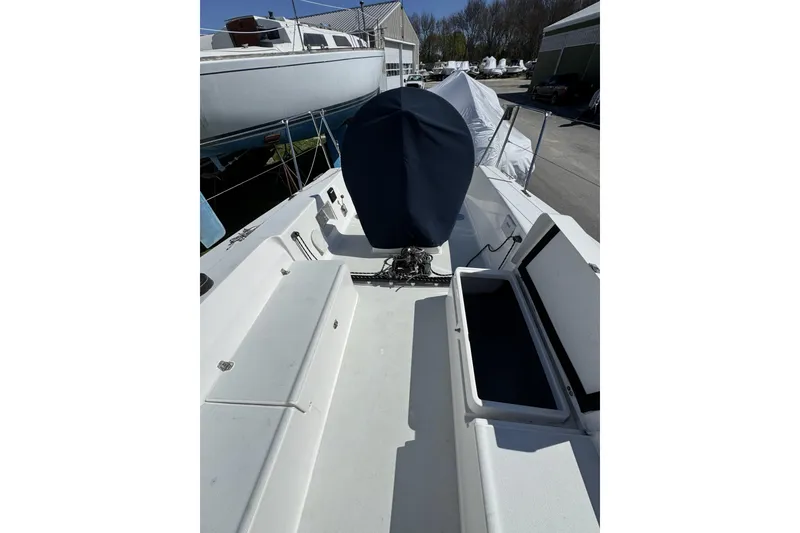

• Two large cockpit seat storage lockers.
• Swimming and boarding platform with integral safety telescoping ladder.
• GRP molded main structural bulkhead, bonded to hull and deck as support for shroud chainplates with single opening to head and forepeak.
• Fixed 2,250 lb lead keel bolted and bonded to shallow molded sump in hull.
• Pivoting 200 lb. cast bronze centerboard.
• Fully removable centerboard shim system assembly with custom SS plates, pivot pin, and mechanically fastened UHMW shim plates.
• Centerboard lifting system with Spectron Pennant from Hall Rigging, 6:1 Harken purchase leading through the deck to the cockpit for an adjustable sailing draft between 3' and 5.5'.

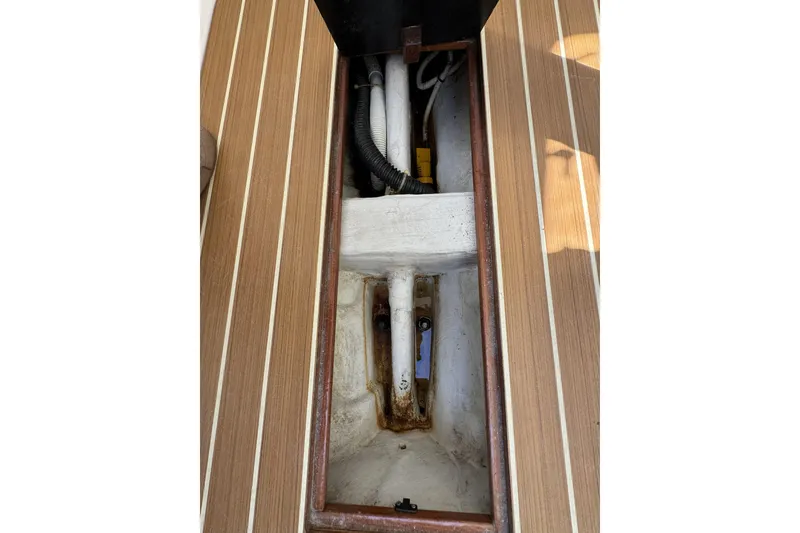

• Interior access port to centerboard lifting components within head area.

  Engine and Steering

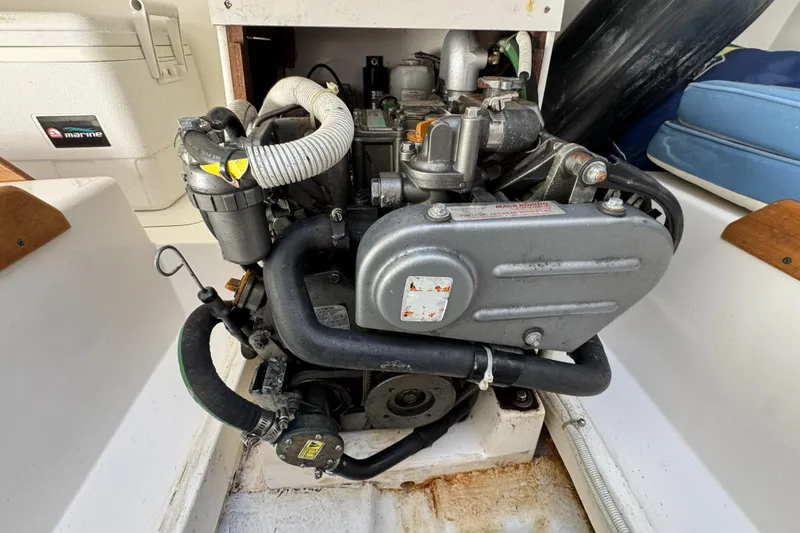

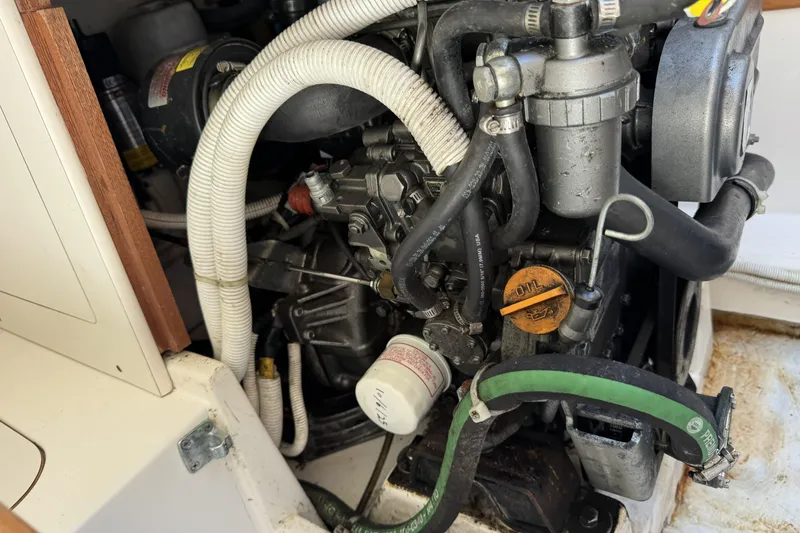

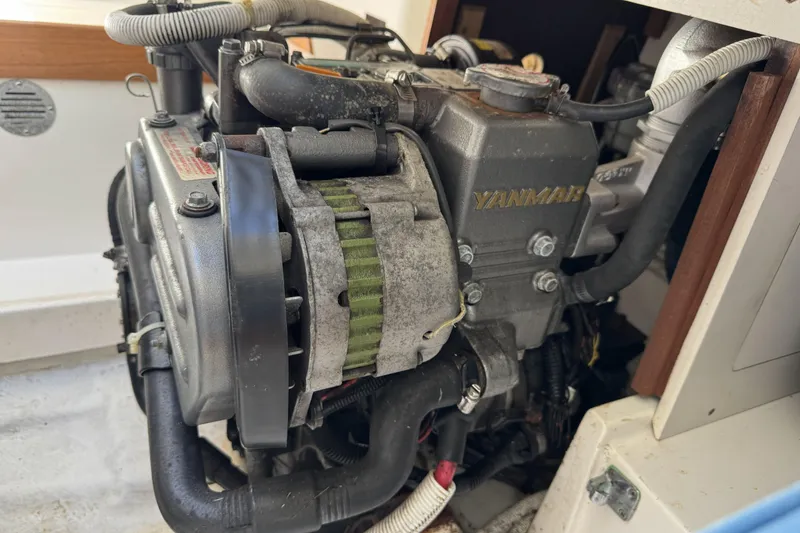

• 2 cylinder 14 HP Yanmar engine with saildrive and 15" Flex-O-Fold geared folding propeller.

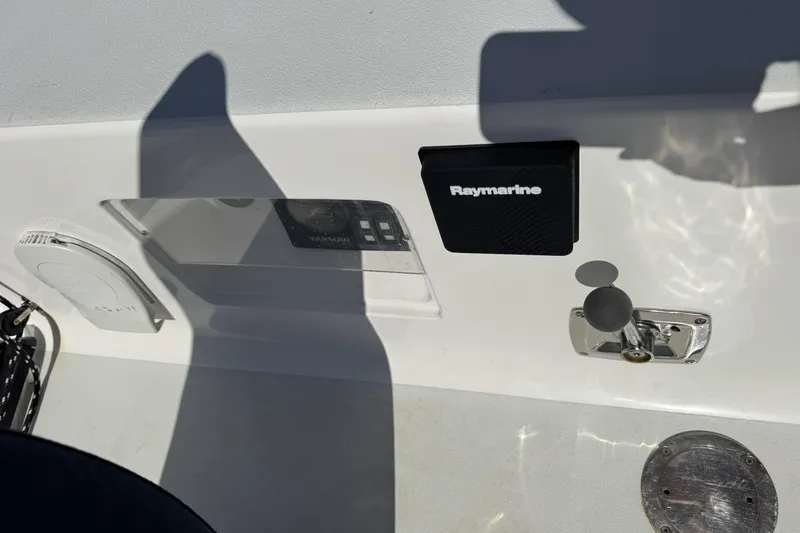

• Yanmar engine instrument panel with tachometer, engine hour gauge and water, oil pressure alarms and separate fuel gauge in cockpit with acrylic splash cover.
• Engine throttle control with neutral safety switch.
• Waterlock muffler with exhaust run aft to SS transom exhaust fitting.
• 15 gal fuel tank with baffles and inspection port.
• Balanced twin rudder system with self-aligning JP-3 rudder bearings and rudder shafts.
• Edson steering components including bulkhead steerer, radial drive, tiller arm, link bar, articulock idler sheaves and wire chain assembly.

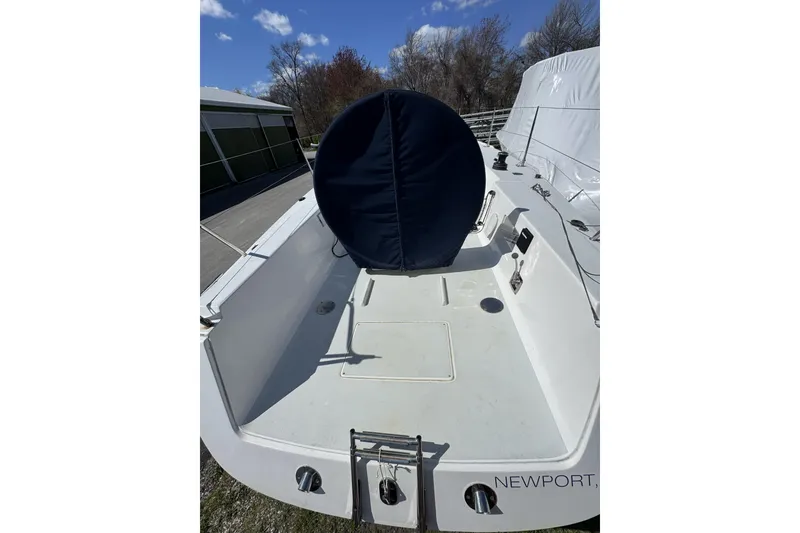

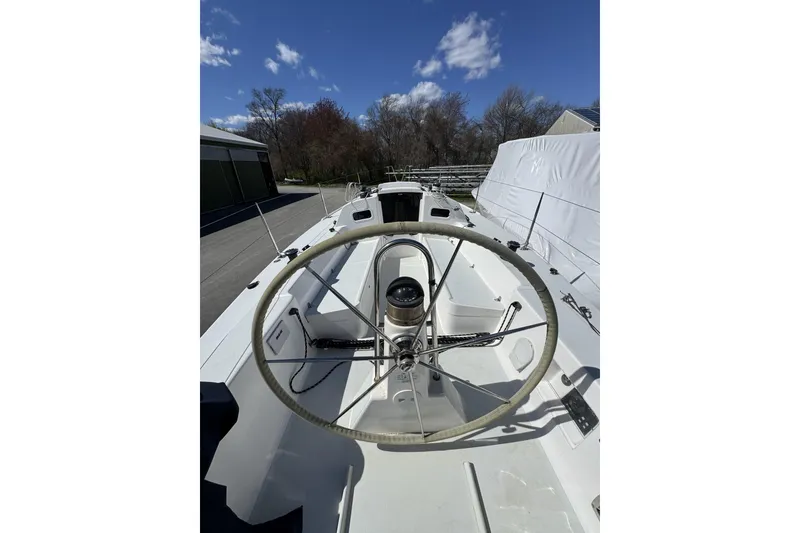

• 44" leather covered Edson destroyer wheel mounted on custom molded steering pedestal.
• Ritchie binnacle mounted compass and custom fabricated SS wheel guard/handhold.
• Custom fabricated emergency tiller

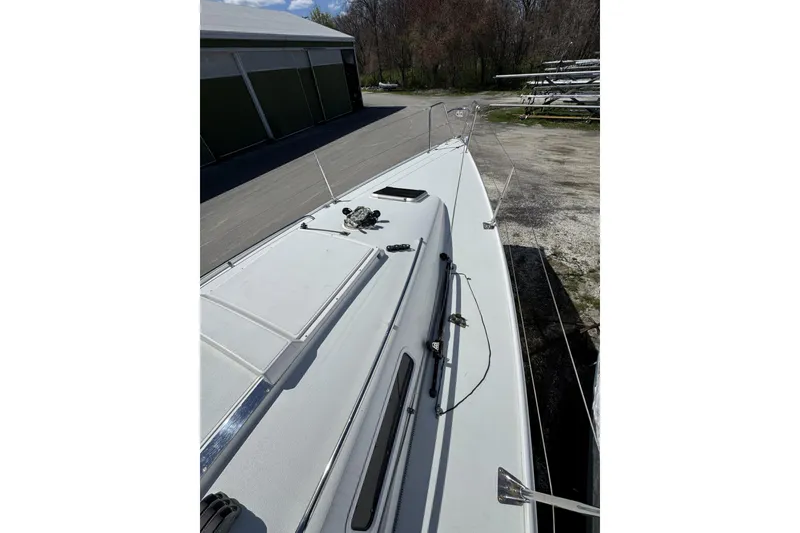

  Deck Hardware

• Off-white ORC foredeck toe rails (Option for varnished full length teak rails).

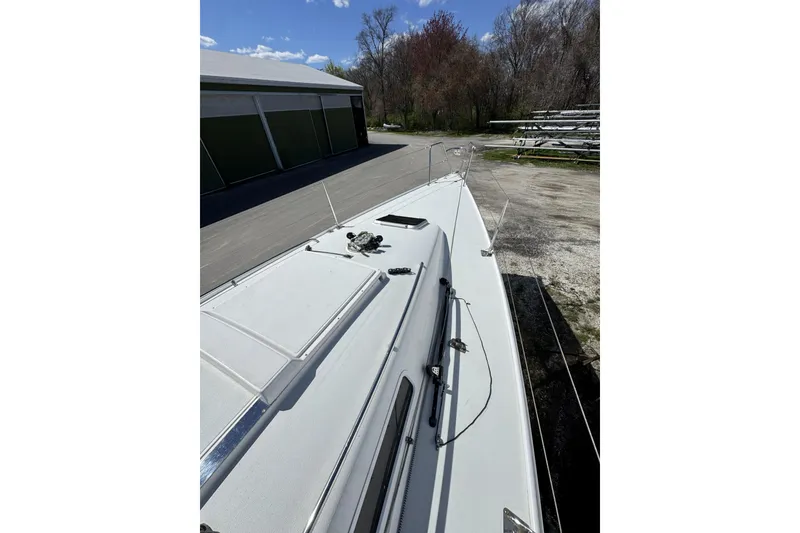

• Low maintenance custom stainless handrails on cabin house (PandS).

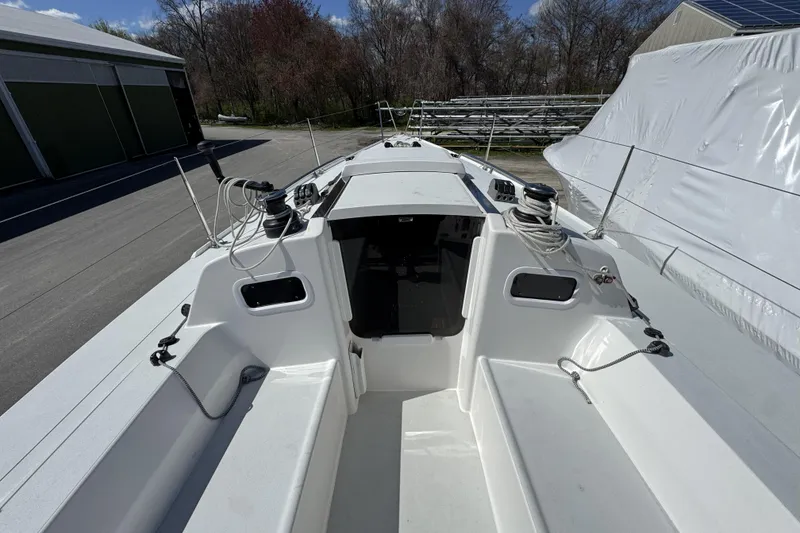

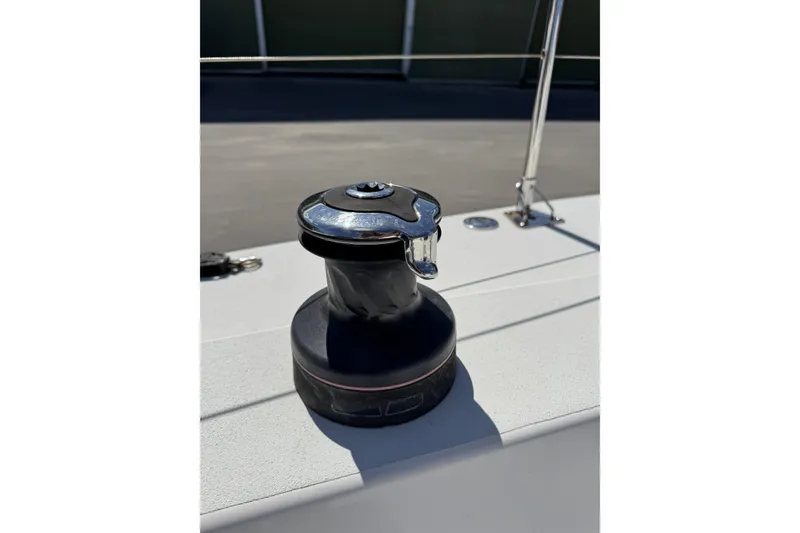

• (2) Harken 40.2STA 2 speed self-tailing winches mounted on cockpit coamings (PandS).
• (2) Harken 32.2A, 2 speed self-tailing winches mounted beside companionway (PandS).
• Triple Harken deck organizers (PandS).
• Two 10" Harken Speed-Grip winch handles.
• Two PVC winch handle holders shipped loose
• Custom stainless fabricated mast collar with halyard attachment bar.
• 6 Harken mast collar turning blocks
• Spinlock XTS triple rope clutches (PandS).
• Two Harken pin stop cars mounted on Harken 2751 jib tracks with cheek blocks mounted on cockpit coaming forward of winches.
• Floor mounted Harken mainsheet traveler track with 4:1 Harken traveler control system leading to cockpit vertical wall to Harken 150 cam cleats (PandS).
• 5:1 Harken mainsheet system leading to Harken 144 swivel cam base on a custom SS riser mounted on centerline aft of the traveler.
• 10:1 fine tune adjustment system.
• Four 8" Herreshoff style SS mooring cleats.

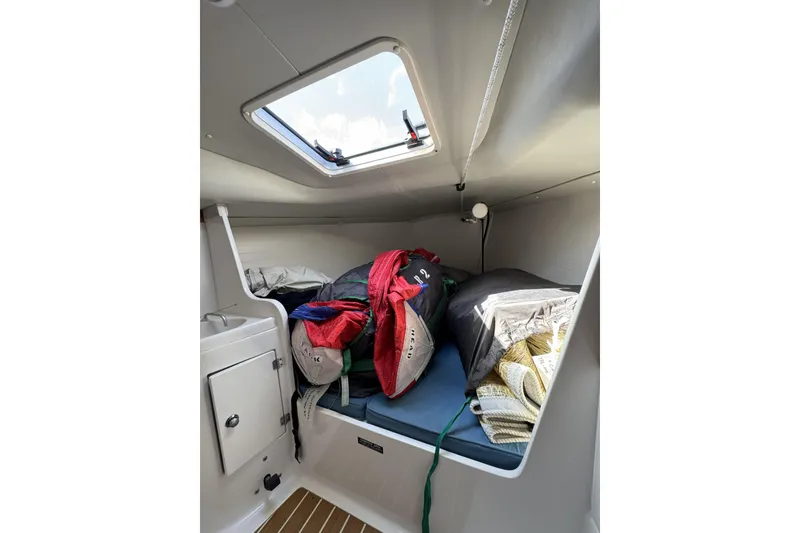

• Interior ventilation from two framed BSI Moonlight opening ports in sides of cabin trunk and offshore style forward skylight deck hatch above V-berth. (option for 2 add'l cockpit opening ports).

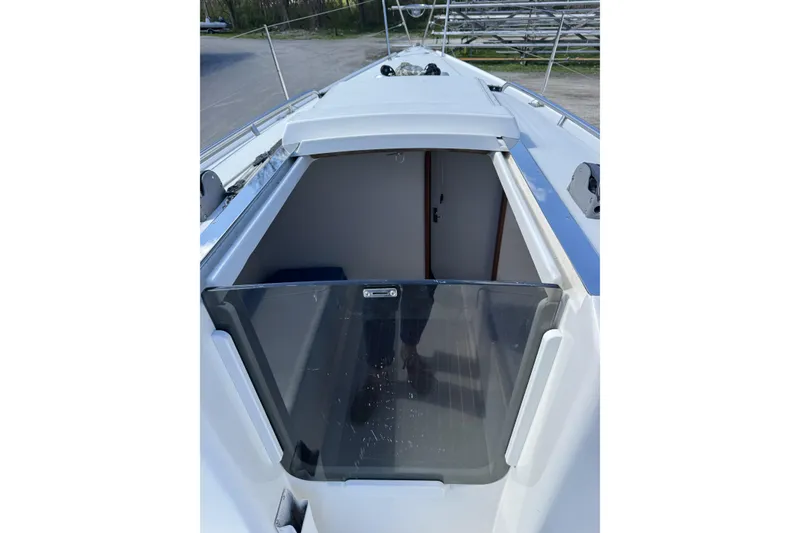

• Companionway opening with SS covered PVC slider tracks, large gutter drains, molded seahood with sliding cover.
• Acrylic offshore removable dropboard in aluminum frame with inside/outside lockable hasp.
• Cockpit operated manual bilge pump operable from the helm position with SS transom exhaust fitting.
• Two polypropylene mesh line bags for halyard and sheet line tail storage.
• Custom designed and fabricated SS chainplates, stemhead and backstay fittings.
• Four (4) folding padeyes for attachment points of spinnaker blocks.

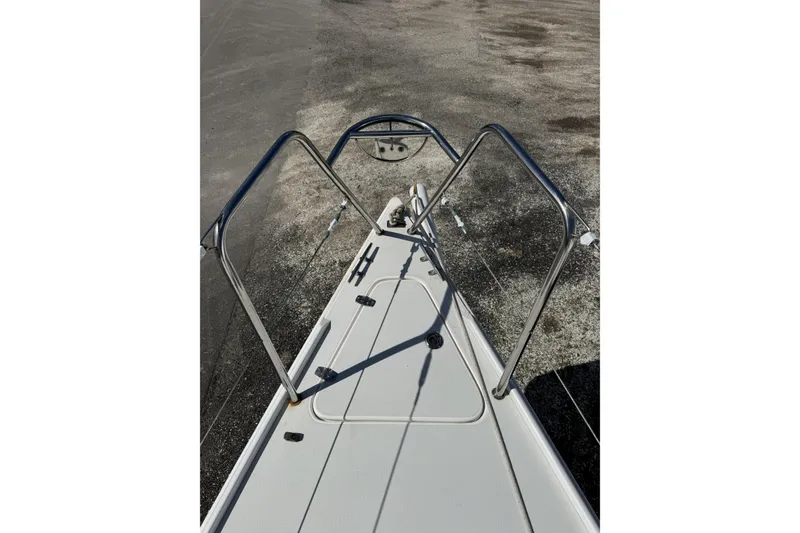

• Custom SS bow and stern rails with Perko integral navigation lights.
• SS removable stanchions with double lifelines PandS and at transom.

  Electrical

• One AGM Group 27 battery (option for 2nd battery)
• 12V DC On/Off battery switch.
• 12V DC electrical distribution panel w/ 8 circuit breakers.
• Navigation and steaming lights.
• UL approved stranded, tinned copper ABYC color-coded wiring.
• Bonding system to meet ABYC regulations.
• Two swiveling reading lights in main cabin.
• Two red/white dome lights
• Automatic electric bilge pump and panel switch for manual operation.

  Spars and Rigging

• Hall Spars tapered aluminum mast, with double airfoil aluminum spreaders, main, jib and spinnaker halyard sheaves, luff track integral to section with mast finished in off-white Awlgrip.
• G10 fiberglass mast step with fore/aft adjustment slots and SS padeye for through bolt securing of mast to step.
• Mast Wedge
• Aluminum boom with provision for 2 reefs, 8:1 internal mainsail outhaul in Awlgrip off-white.
• Continuous rod rigging with adjustable shroud turnbuckles.
• Running rigging package with main halyard, jib halyard, two jib sheets, main sheet, single line reef, traveler control lines, and centerboard pennant and control line.
• Sailtec integral -8 hydraulic backstay adjuster.
• Rigid boomvang with purchase
• Harken MK IV Unit 0 headsail furler with control leading aft through 2 fairleads to Harken 150 cam cleat mounted on port cabin side.
• Bowsprit prep package - internal fiberglass sprit tube installed with flush cover. Optional asymmetric spinnaker gear package includes carbon sprit, bearings, retrieval purchase, blocks and running rigging.

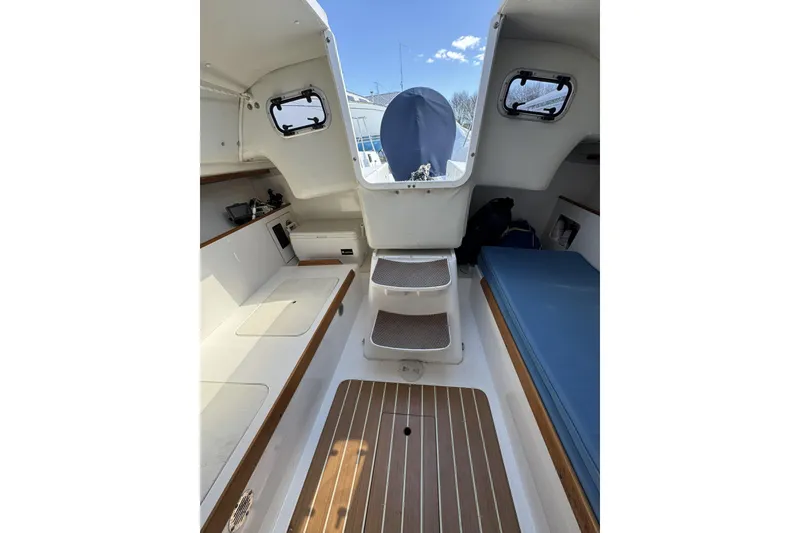

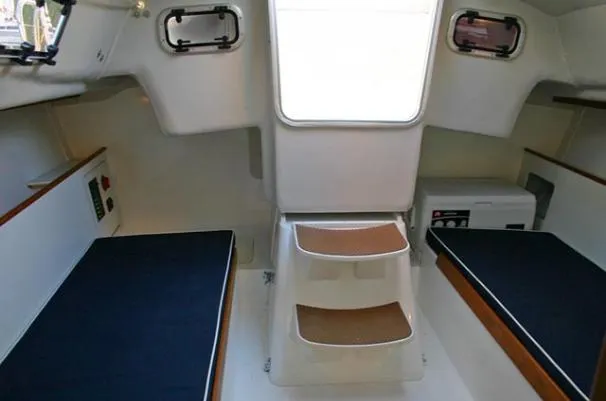

  Interior

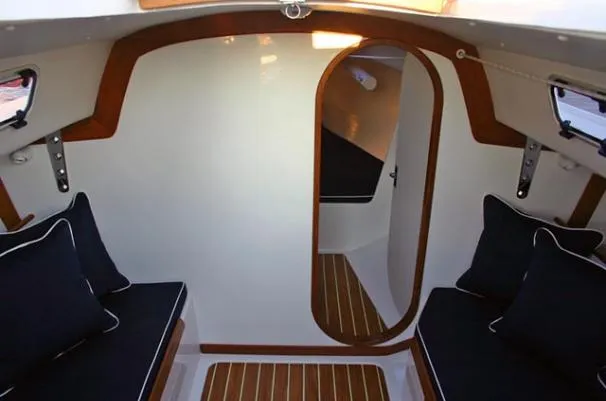

• Off White main bulkhead with varnished teak trim, teak oval door opening with white door.

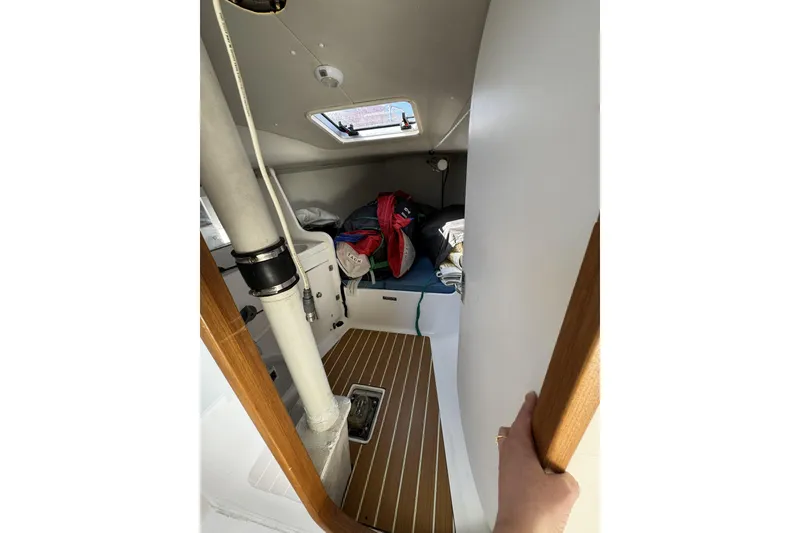

• Teak and holly synthetic high-wear cabin sole in main cabin and head.
• Teak trimmed storage bins outboard of each settee berth seat back.
• Igloo Cooler

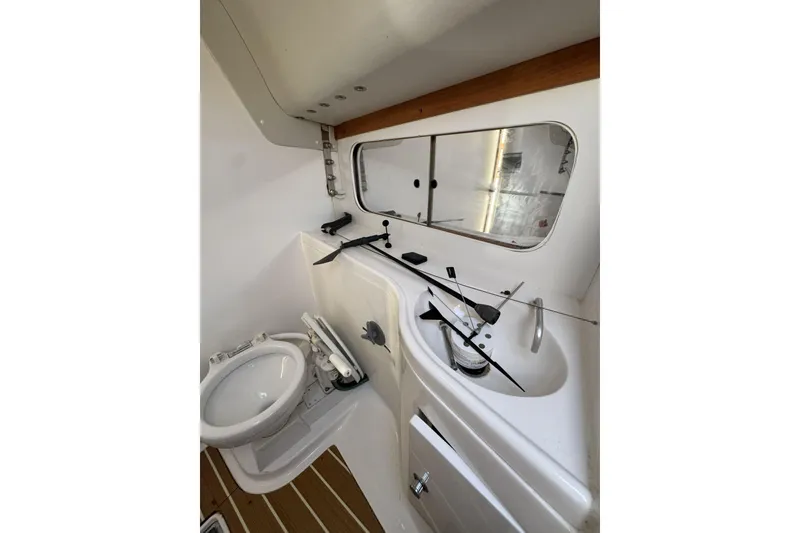

• Raritan PH-II marine head with 14 gal holding tank and "Y" valve.
• Molded sink with overboard drain in head.
• Choice of fabrics for settee cushions.

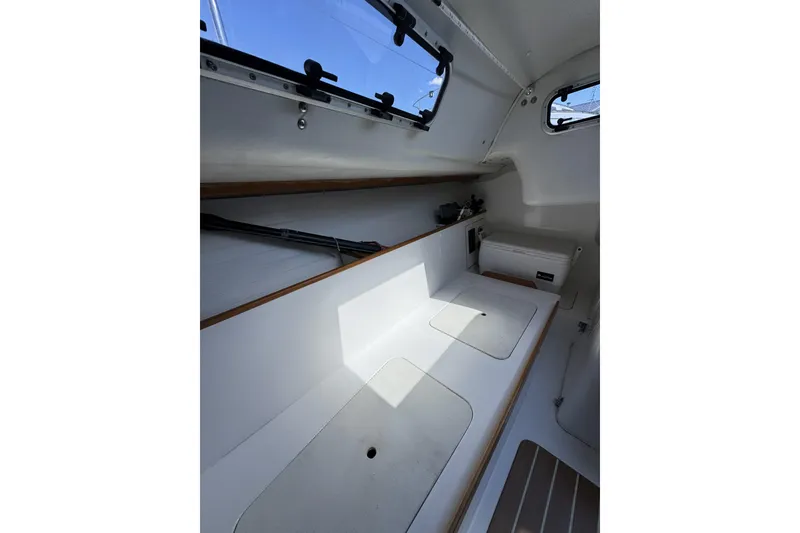

• Vinyl liner finish on main cabin and head overhead and main cabin hull sides. Air dry gelcoat finish on hull sides in head and V-berth area and aft storage lockers.
