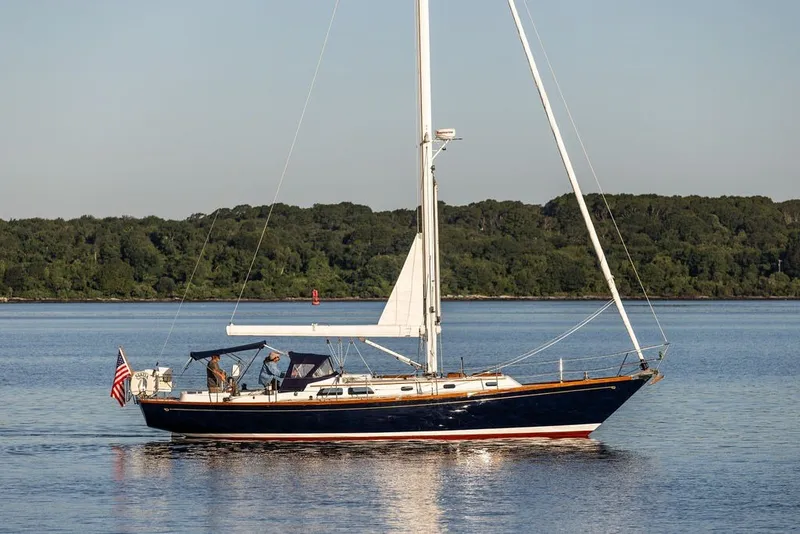

1994 Hinckley Yachts Sou'wester 42

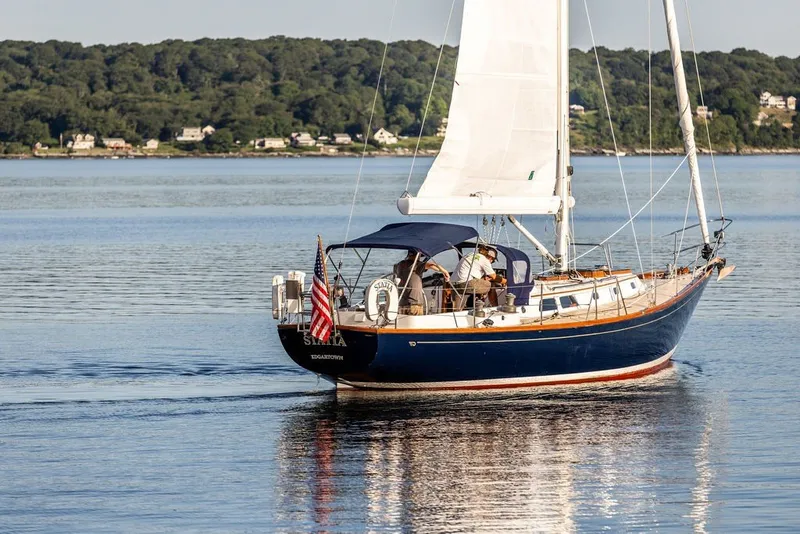

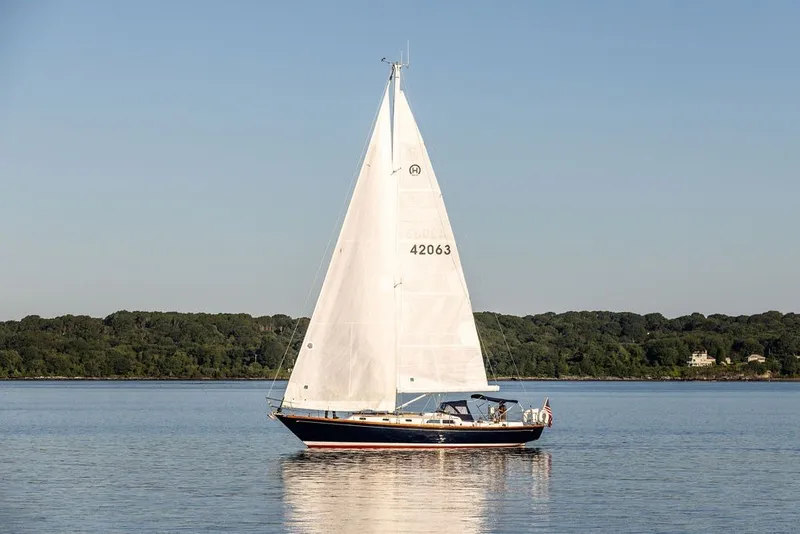

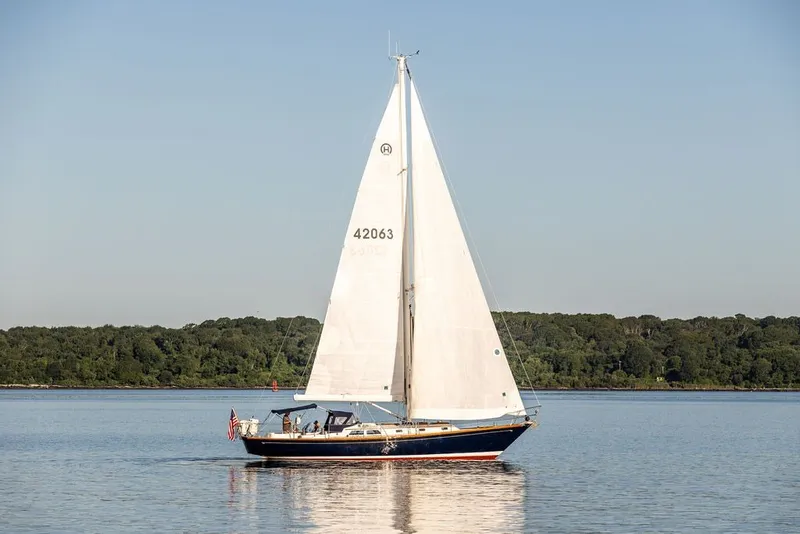

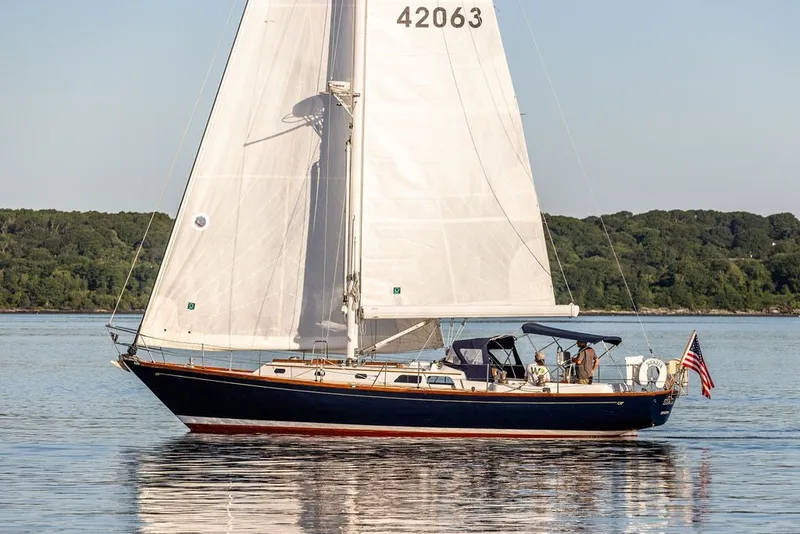

STATIA is a late model Sou'wester 42 and has been well maintained and updated. A special offering, STATIA is set up for shorthanded performance sailing with a Hall carbon fibre rig, Leisurefurl boom and four power winches.

DECK AND HULL:

• Flag Blue Awlgrip - Topsides

• Off-White Oyster House and Deck with molded in Camel Brown gelcoat deck pattern

• White Red White - Boottop

• Gold Cove Stripe

• Red Bottom

Construction:

• Hull: Hand laid laminate of blister resistant vinylester resin reinforced with a knit hybrid fabric of Kevlar/E-glass. A foam core is vacuum bagged into the laminate to provide the greatest degree of stiffness and thermal/acoustic insulation possible. This core is removed and additional layers of fiberglass are added in stress areas such as hull/deck connecting flange, centerline and keel, chainplates, rudder post, and all thru-hull fittings. A fiberglass hull stringer system is bonded to the hull and integrated with the mast step and engine mounts to form a single unit that is strong and light.

• Deck: One piece fiberglass molding which incorporates a hybrid knit fabric of Kevlar/E-glass to reduce weight and a core of cross-linked close celled PVC foam. The core is deleted and replaced with solid layers of reinforcing fiberglass in the way of major penetrations and stress areas. The hull 5 1/2" deck flange is laid up to receive the deck and are bonded together to assure a strong, permanent, water tight hull/deck joint.

• Marelon ball-valve type seacocks are installed flush with hull.

• Molded external lead keel (provides protection in the event of grounding) is secured to the hull with 1" stainless steel bolts.

• Keel/centerboard underbody.

• Custom spade rudder.

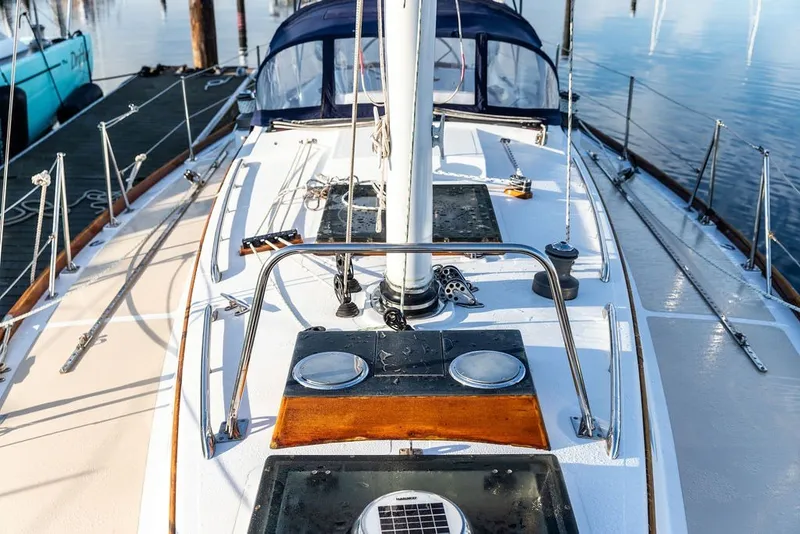

Deck Features:

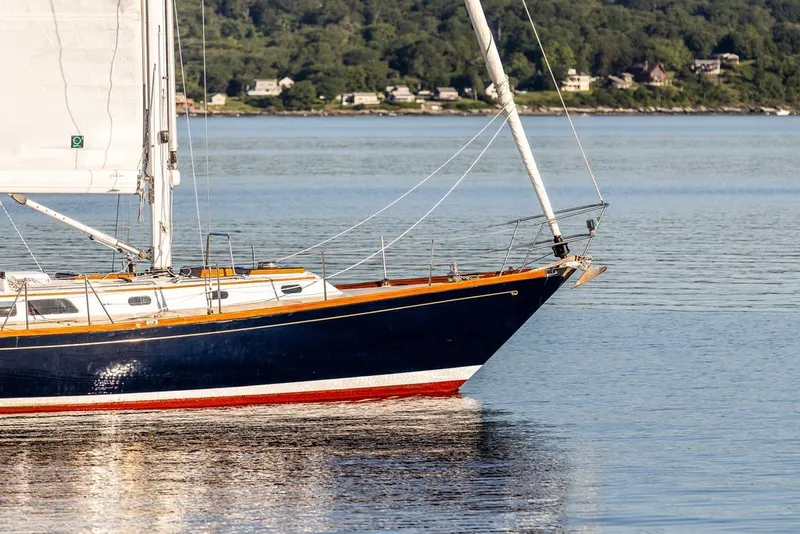

• Hinckley custom cast 316 stainless steel stem iron with forward integral chocks,

• Hinckley stainless steel bow roller chock

• Hinckley stainless steel custom bow pulpit (2003) and stern pulpit & stanchions.

• (2017) NEW Double lifelines with port and starboard boarding gates

• Springline mooring cleats

• Stainless steel deck hand rails

• Custom storage of companionway boards on top of hatch

COCKPIT:

The Hinckley SW-42 has a large "T" shaped cockpit.

• Locking sail and equipment locker to port

• Two stainless steel trimmed winch handle pockets located in each coaming.

• There is a line rack in the sail locker.

• Lazarette hatch is flush.

• Complete range of engine instruments in the fiberglass instrument pod, handy to the helmsman.

Features include:

• Pedestal mounted "destroyer wheel" steering

• Elkhide covered 40" stainless steel "destroyer type" wheel.

• Hinckley folding helm step

• Bimini

• Cockpit cushions - Sunbrella covered and custom cushion seatbacks

• Cockpit table - Hinckley pedestal-mounted folding table

• Ritchie 6" compass - in stainless steel binnacle.

INTERIOR ACCOMMODATIONS:

STATIS features a Dinette Layout that sleeps seven and has a separate Nav Station.

• (2018) NEW cushions in Sunbrella for interior

• She is finished with a varnished cherry interior and a teak and holly cabin sole

• The overheads are built with a soft fabric and are easily removable.

• A custom lighting plan has been used throughout with halogen spots in the overhead and strip lighting running fore and aft outboard.

From the Cockpit companionway, the interior layout has:

• Galley - Aft to port

• Quarterberth - Aft Starboard

• Nav Station - Starboard

• Main Salon - Full width, Mid-forward

• Head - Forward port

• Owner Cabin - Forward

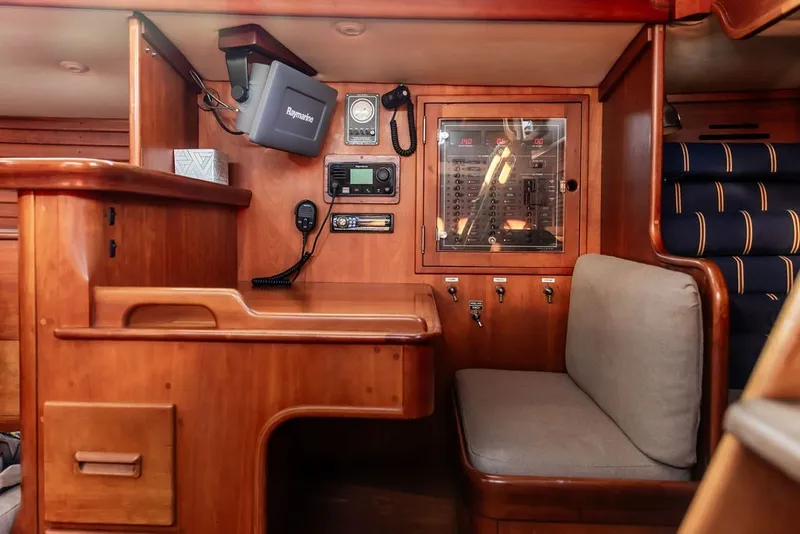

NAVIGATION STATION, Aft Starboard:
Immediately to starboard of the companionway is the Nav Station separated by a partial bulkhead from the salon next forward.

Features include:

• Nav desk - with storage for charts within

• Nav seat has large bin storage

• Three drawers are under the desk.

• Halogen fixture lights the nav desk.

• Soderberg chart light

• Nav instruments

• Master electrical panel

• 12-volt cigarette-type outlet.

Navigation Electronics:

• (2011) Raymarine Radar

• (2011) RaymarineE90w Chartplotter, Radar, GPS

• (2019) Raymarine VHF

• (2011) Raymarine smart autopilot

QUARTERBERTH AREA:

Starboard, aft of the Nav area, another partial bulkhead separates a walk-in quarterberth.

• Closed shelving above

• Hooks for foul weather gear.

GALLEY, Aft Port:

The U-shaped Galley is opposite the Nav Area to port:

Galley Features:

• Corian Cameo White countertop with back splash

• There are storage lockers aft, outboard and trap storage.

• Scandvik stainless steel sink with hot & cold pressure water

• Gimbaled Force 10 stainless steel 3-burner stove with oven & broiler and a safety bar.

• Grunert cold-box refrigeration

• Hinckley custom glass rack, paper towel rack

• Hinckley custom cutting board fits sink.

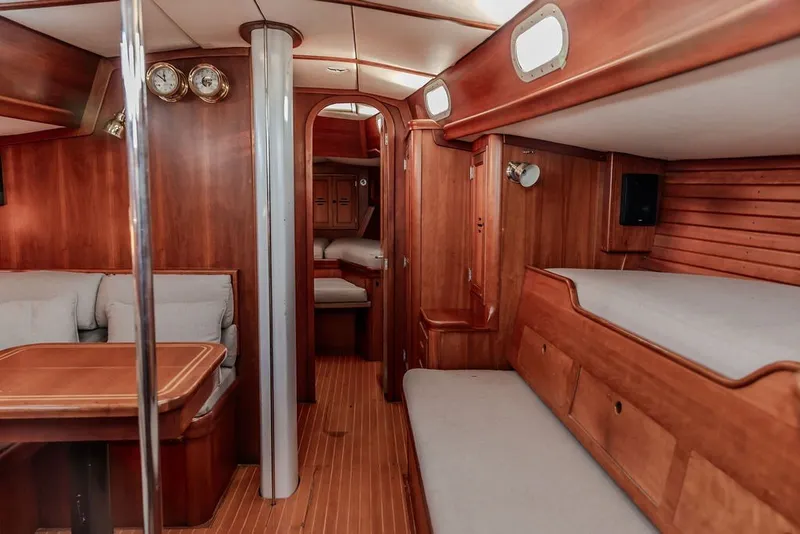

MAIN SALON, Amidship:

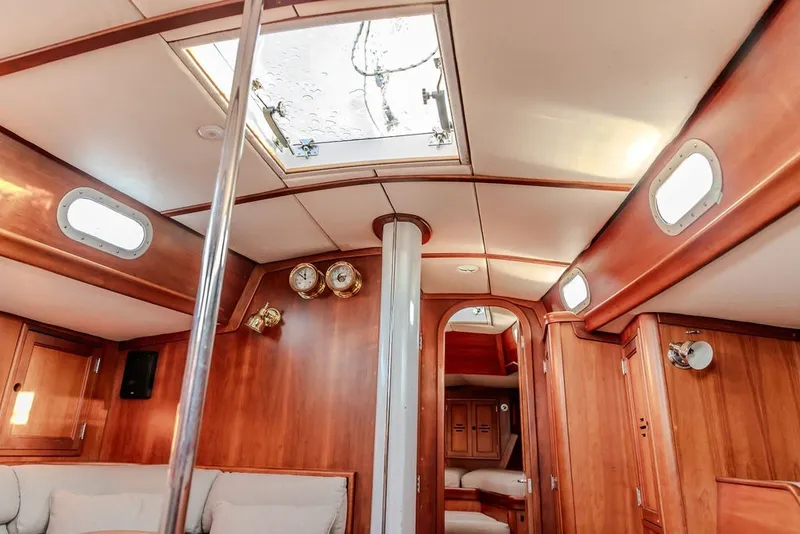

• Large double-opening hatch with smoked plexiglass and screen located over the center of the cabin

• Swivel halogen lights installed in soft overhead.

• Overhead hand rail

• Two teak handrails at the companionway port and starboard.

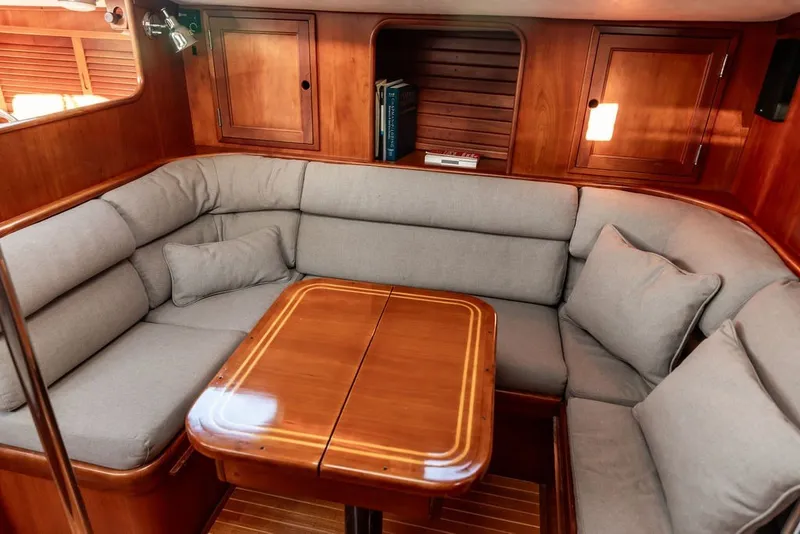

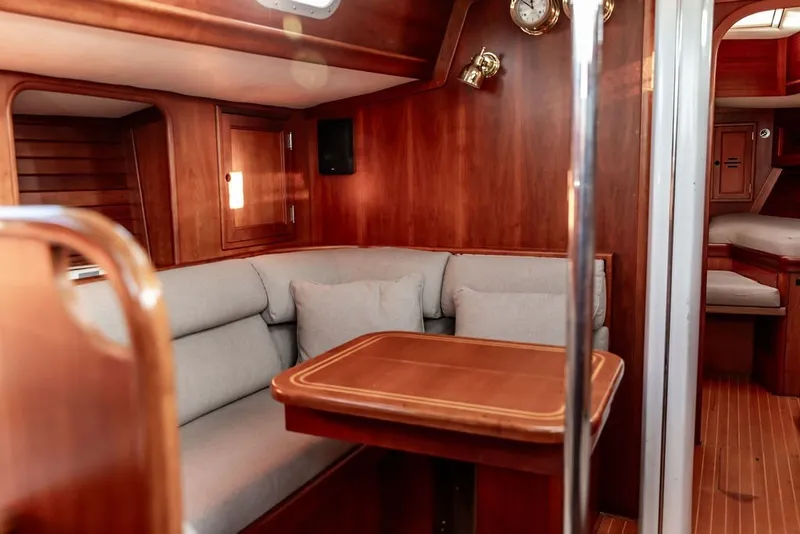

U-shaped Dinette arrangement is to port with comfortable seating for 6.

• Custom hi/lo cherry and holly dining table - can be used as a small coffee table or, with addition of a leaf, a full dining table.

• Dinette converts into a full double berth

• Dinette has storage areas in the dinette seats.

• Outboard are lockers and bookshelf.

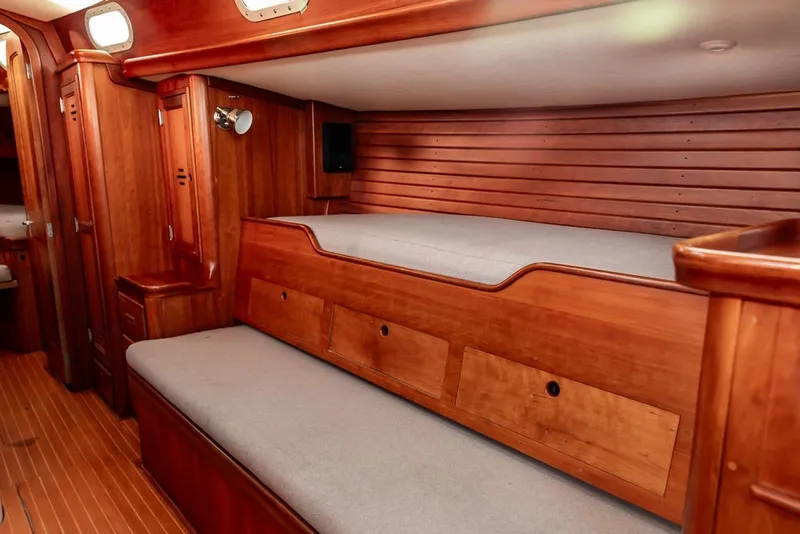

Starboard Salon:

• Transom and pilot berths

• Three drawer bureau just forward of the transom berth

• Additional storage below the pilot berth.

• TV/12-volt outlet

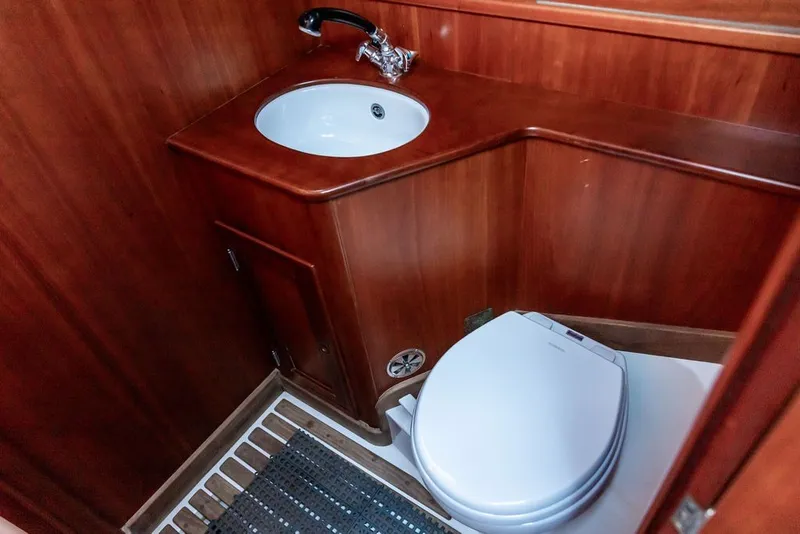

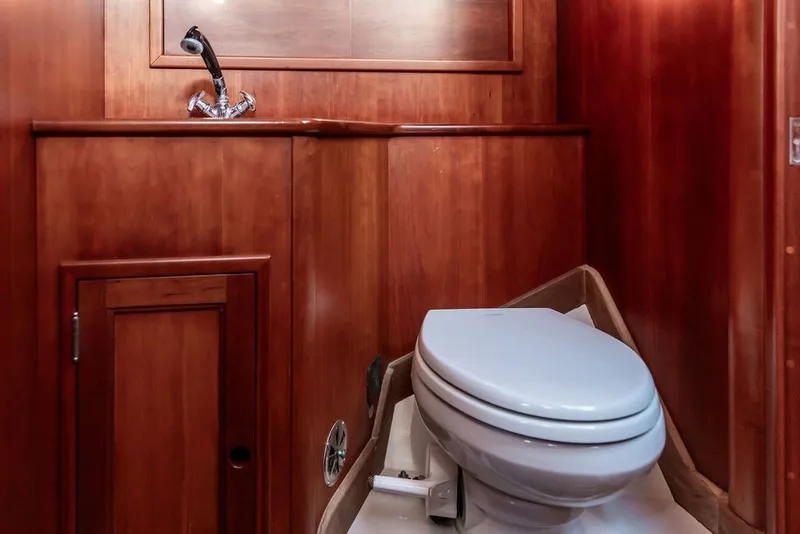

HEAD, Forward Port:

• Cherry counter top with White Triton-Belco sink.

• Mirror over the sink.

• Grohe faucet, hot and cold pressure water, and hand held shower.

• Vacuflush toilet

• Hinckley stainless steel hand rail/towel rack

• Outboard lockers with shelves built-in

• Opening portlight with screen.

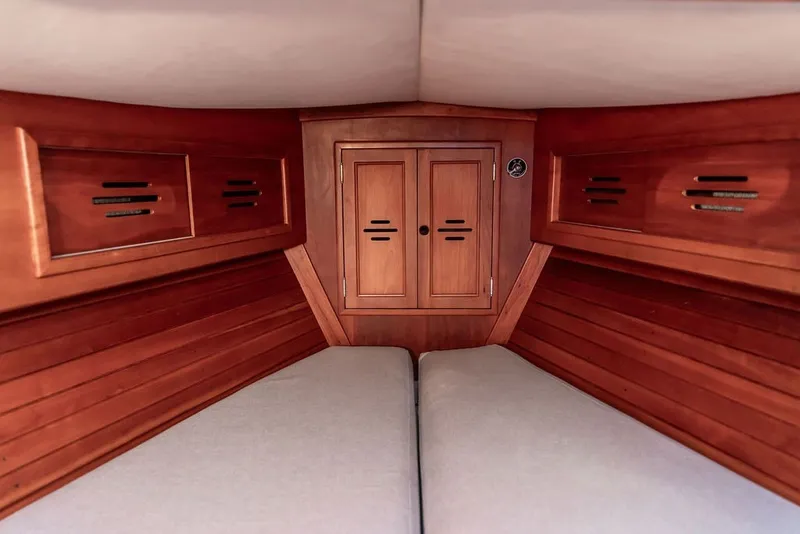

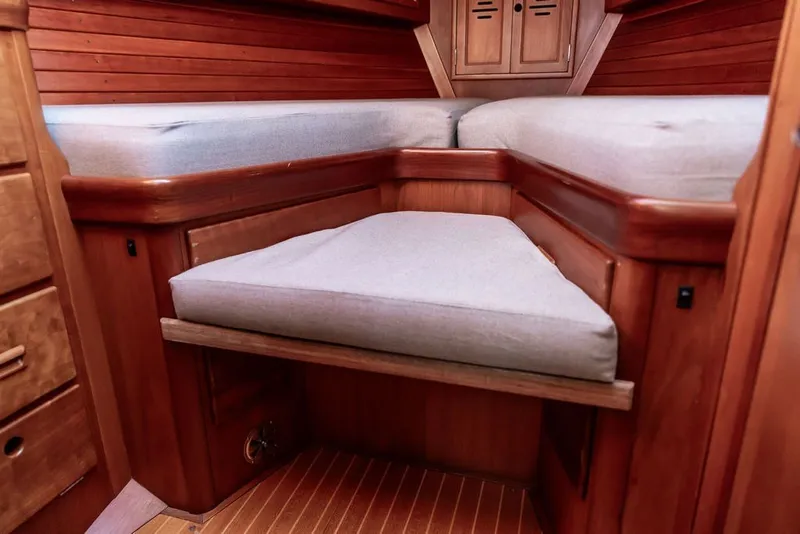

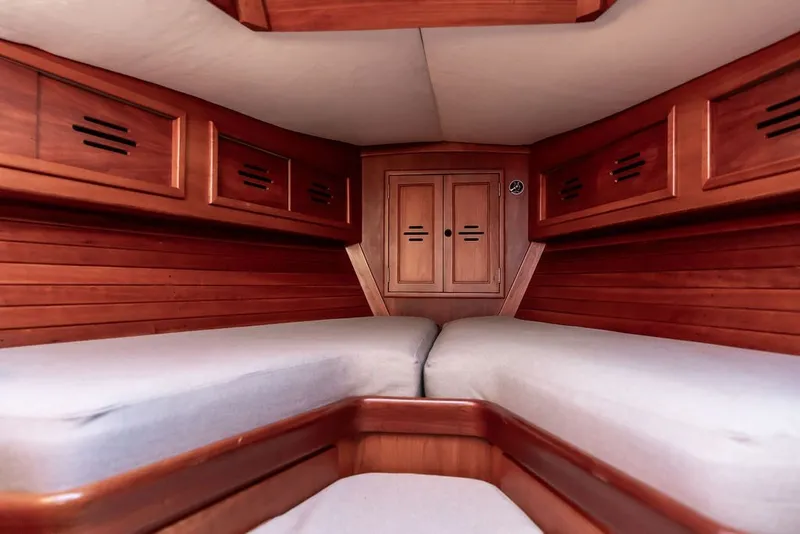

OWNER STATEROOM, Forward:

• V-berth with seat between.

• V-berths have storage drawers below

• Full-length lockers above port and starboard.

• Starboard hanging locker - cedar-lined full-length hanging locker.

• To port is a 3-drawer bureau - includes a custom installed white Triton-Belco sink with chrome Scandvik faucet and flush cover provides extra privacy.

• Forepeak access.

• Large fore-aft opening smoked plexiglass hatch with screen

• Custom swivel overhead halogen lights

• Private access to the head.

ELECTRICAL SYSTEM:

• All circuits, major mechanical components and rigging are grounded with heavy copper strapping to the keel.

Heavy-duty, large capacity 12-Volt/110-Volt Electrical System:

• Gel cell Prevailer (450 amp hour equivalent) batteries provides lighting (225 amp hour) and (110 amp hour) starting power.

• Alternator - dual output 120-amp alternator on engine - includes provisions for emergency starting.

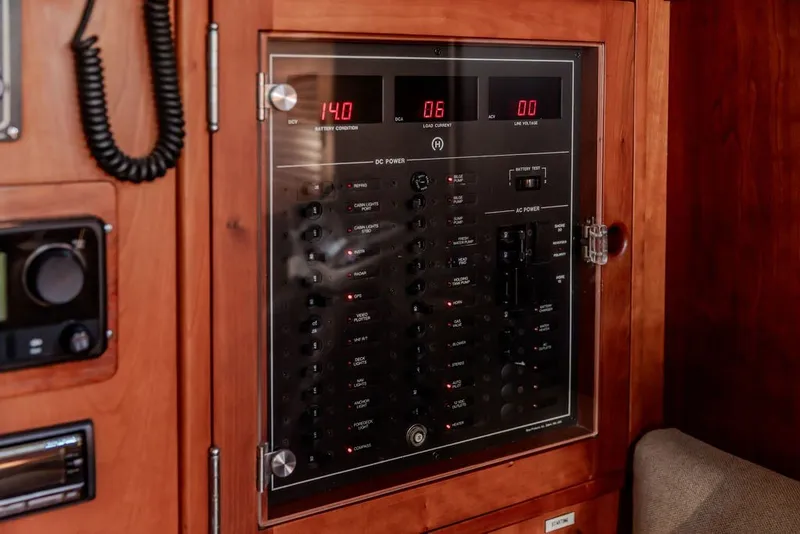

• Master control panel - circuit breakers, separate lighting and starting circuits, voltmeter and ammeter.

ENGINE ROOM/MECHANICAL EQUIPMENT:

Engine compartment is lead foam sound insulated and equipped with a blower.

Yanmar 4JH2E fresh water-cooled diesel engine

• 2:1 reduction gear.

• Aquamet stainless steel shaft

• 3 blade max propeller

• Raycor fuel filter

• Oil transfer pump

• Engine alarm for oil and overheat

• Engine instrument panel shows RPM tachometer

• Oil pressure, engine temperature and amp meter

• Electric sump pump.

• Wheel steering with emergency tiller steering system.

• Two 20# aluminum propane tanks - with manual and electric solenoid shut-offs.

• 12-gallon hot water tank - water is engine-heated.

• Espar D3L diesel heater.

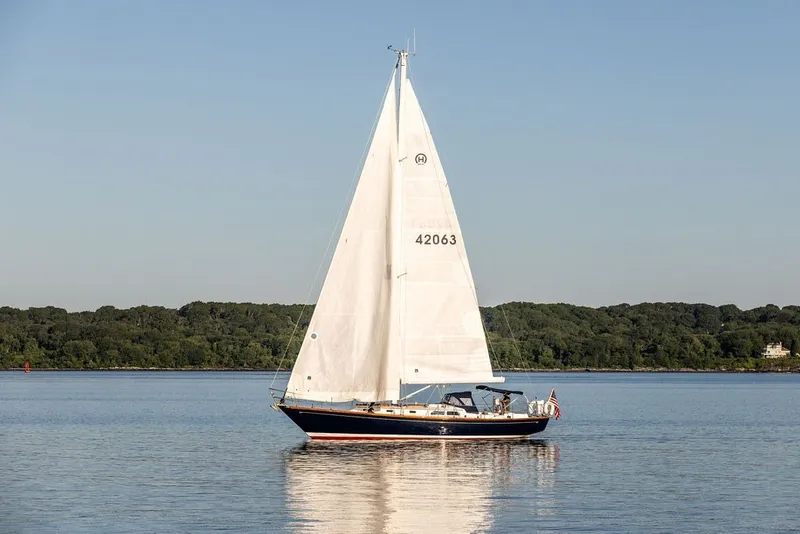

SAILS & RIGGING:

• Hall carbon fiber spar

• (2010) Leisurefurl boom system with (2017) boom cover

• (2021) NEW Rod standing rigging

• (2022) NEW running rigging

• (2022) NEW headstay furler

• Hall quick vang

• Harken backstay adjuster

• International nav lights

• Foredeck light

• Locking winch handles.

• Whisker pole

WINCHES:

STATIS is easily sailed shorthanded with 4 power winches installed in 2011

• (2) Electric #58 CC ST Primary winches

• (2) Electric #44 CC ST halyard and main trim winches

• #44 CC ST Jib Halyard winch - Lewmar

• #30 CC ST Reefing winch - Lewmar

• #50 CC ST Secondary winches - Lewmar

• Spinnaker winch

SAILS:

• (2017) NEW 150%Genoa

• (2024) NEW Main sail

ADDITIONAL EQUIPMENT:

Ground Tackle Equipment:

• (2010) Electric windlass

• 45# Plow anchor in bow roller chock

• 25# Yachtsman anchor

Equipment:

• Mounted teak outboard motor bracket
