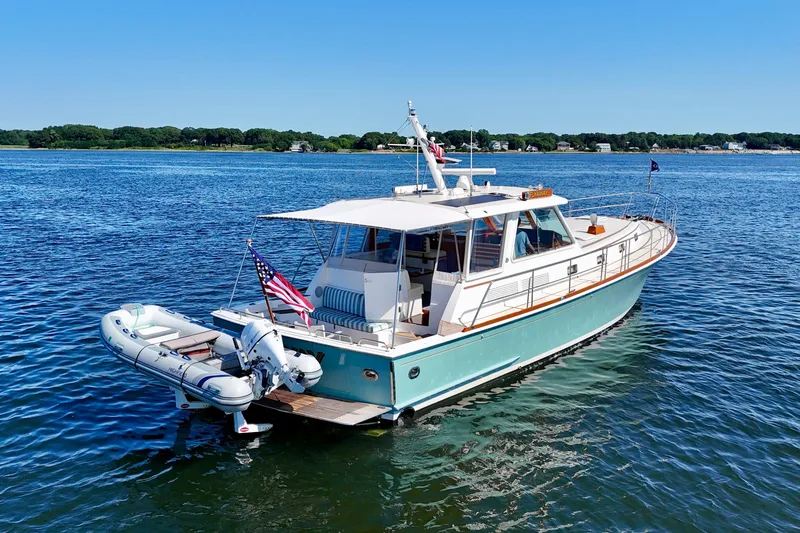

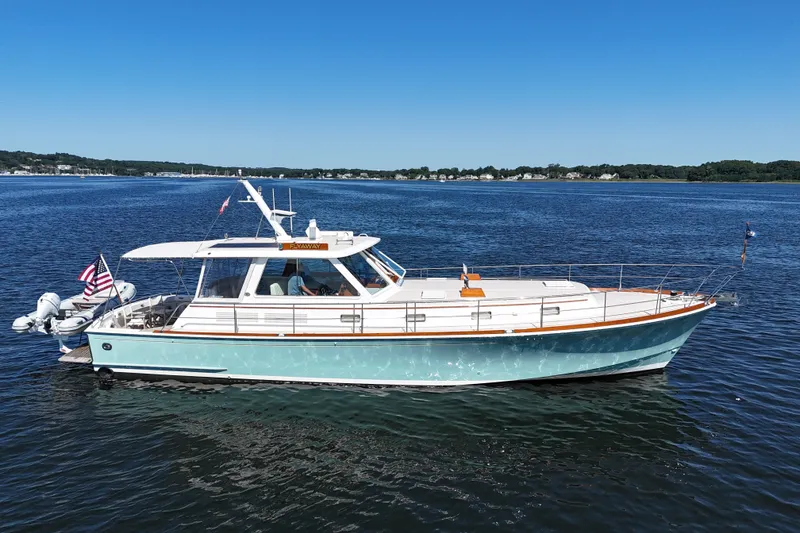

2003 Grand Banks 49 Eastbay HX Boat in Westbrook, CT 06498 US

$649,000

Used
builtBuilt in 2003
Year the boat was built
model

49 Eastbay HX

Boat model
engine

2 Engines (2x Caterpillar)

Engine type and count
length

49 feet

Overall boat length
fuel

Diesel

Fuel type
material

Fiberglass/Reinforced

Hull material
Nominal Length
49ft
Length Overall
49ft
Beam
16ft
Drive Up Draft
4.5ft
Displacement
45000lb
Cruising Speed
26kn
Max Speed
32kn
Cabins
2
Heads
2
Fresh Water Tanks
176gal
Fuel Tanks
775gal
Holding Tanks
80gal
Hull Material
fiberglass
Hull Shape
deep-vee
Engine 1
Engine Make
Caterpillar
Engine Model
C-12
Total Power
705hp
Engine Hours
2420
Engine Type
inboard
Fuel Type
diesel
Drive Type
direct
Engine 2
Engine Make
Caterpillar
Engine Model
C-12
Total Power
705hp
Engine Hours
2420
Engine Type
inboard
Fuel Type
diesel
Drive Type
direct

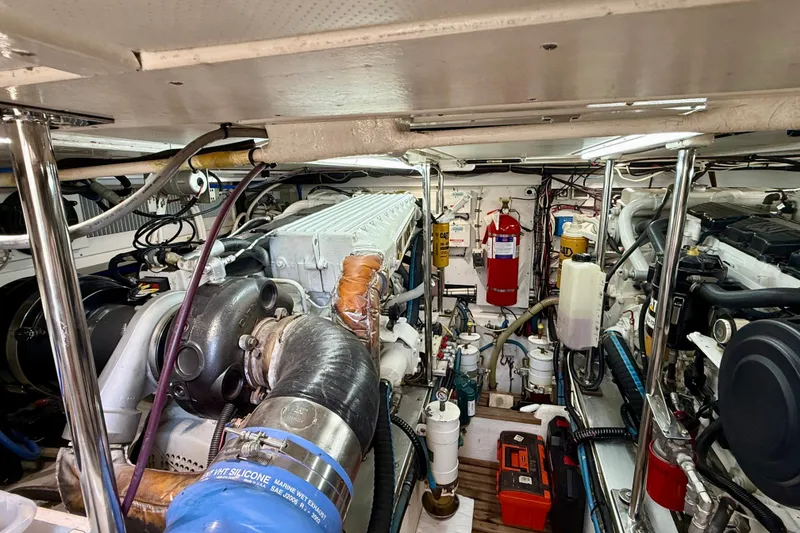

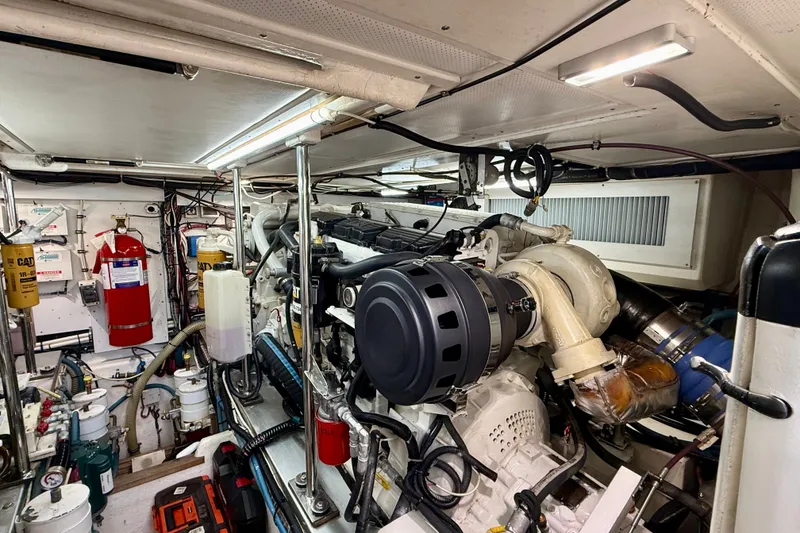

Mechanical

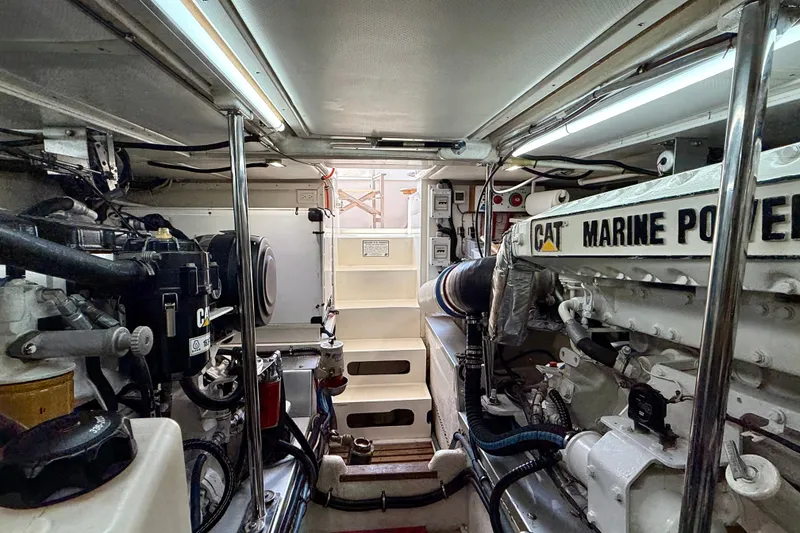

  • Twin Caterpillar C12, 732 cubic inch, 705 HP turbocharged six-cylinder marine diesel engines
  • Twin Disc 5114A gearboxes, 1.92:1 ratio
  • 2½" stainless steel shafts with Shaft Shark line cutters
  • 29" five-blade Nibral propellers; spare set available
  • Westerbeke 12.5 BTDB 12.5 kW generator; approx. 2,481 hours
  • Single-station SeaStar hydraulic steering system w helm rudder angle indicator
  • Mastervolt 12/130 high-output alternator on starboard engine with shunt and Type T fuse
  • (2) Delta T engine room exhaust vents
  • Flexible Quiet-Ride main engine mounts
  • Cast bronze rudders with stainless steel stocks, conventional bronze packing glands, and bronze bearings
  • Bonding system with copper strapping and insulated stranded copper wire connecting thru-hulls and running gear
  • Jabsco 50 L.P.M. fuel transfer pump with Racor FBO-10-MA filter between forward and aft primary fuel tanks
  • (2) Sealand 42-gallon polyethylene holding tanks with Tankwatch 4 level indicators
  • Sleipner Side Power 24VDC bow thruster
  • Bennett hydraulic trim tabs with stainless steel tabs and (2) actuators per tab
  • Primary fuel hoses with high-pressure ends
  • Twin selectable Racor 75/900 MAX filter/separators with vacuum gauges
  • Racor 500 generator filter
  • Reverso oil change system
  • Fuel polishing system with (?) pump and Racor 1000 MA filter; new 2021
  • (2) Glendinning electronic gear/throttle controls with synchronizer and low-idle function
  • Insulated stainless steel exhaust elbows with turbocharger water injection, FRP tubes, mufflers, and aft discharge fittings
  • (2) 88-gallon painted stainless steel freshwater tanks located on centerline below salon
  • Computank freshwater gauge
  • Jabsco double-stack dual water pressure pump
  • Jabsco 4.0 GPM deck wash pump; new 2021
  • Seaward 20-gallon water heater
  • (2) Rule 1,500 GPH shower sump pumps with float switches
  • Sea Recovery Aqua Matic A15M 1400-2 watermaker
  • (2) Dometic/Vacuflush 12VDC toilets
  • Bronze thru-hull fittings with Groco bronze seacocks
  • Bronze seawater strainers for main engines, generator, and A/C seawater pumpsa
Electrical
  • House bank — (6) Mastervolt SL 150 Slim Line AGM batteries
  • Main engine starting — (2) 8D AGM batteries
  • Generator starting — Group 24 AGM battery
  • Bow thruster — (2) 4D AGM batteries
  • 50-amp, 240V shore power service
  • Glendinning Cablemaster shore cord
  • Acme General Purpose polarizing transformer, Cat. T-2-53517-35
  • Shore power booster system
  • Zinc Saver II 50-amp galvanic isolator connected to shore grounding conductor
  • Mastervolt Chargemaster 24/20-3 battery charger for thruster batteries
  • Mastervolt Chargemaster 12/40-3 battery charger
  • Mastervolt Mass Combi 12/4000-200 inverter/charger
  • Mastervolt Charge Monitor

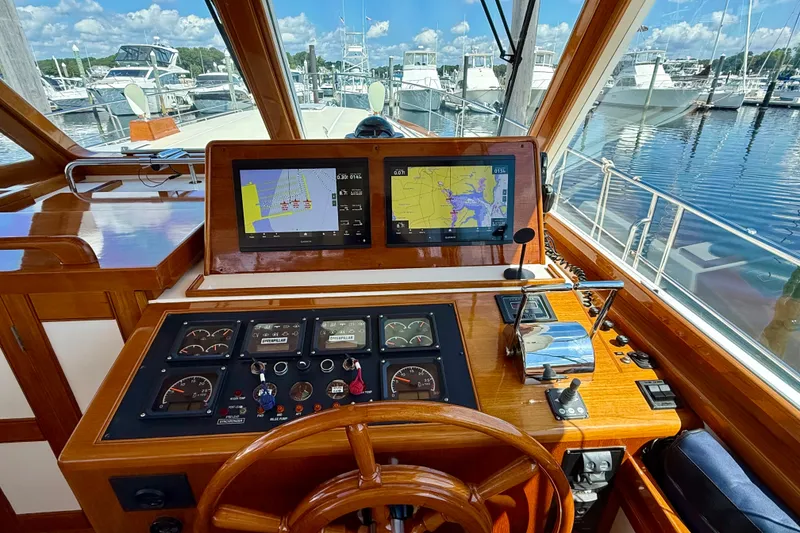

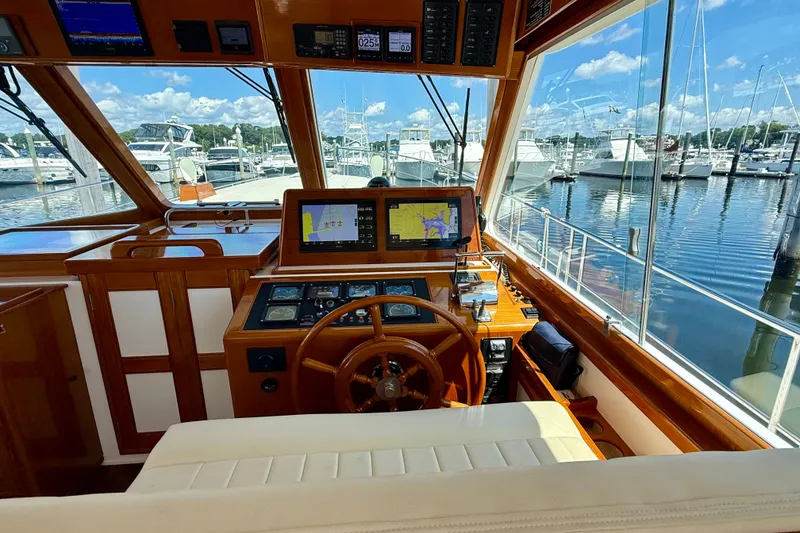

Electronics
  • (1) Garmin GPSMAP 8616 chart plotter; new 2022
  • (1) Garmin GPSMAP 8616 XSV chart plotter; new 2022
  • (1) Garmin GPSMAP 8612 chart plotter; new 2022
  • Garmin GHC 20 autopilot; new 2022

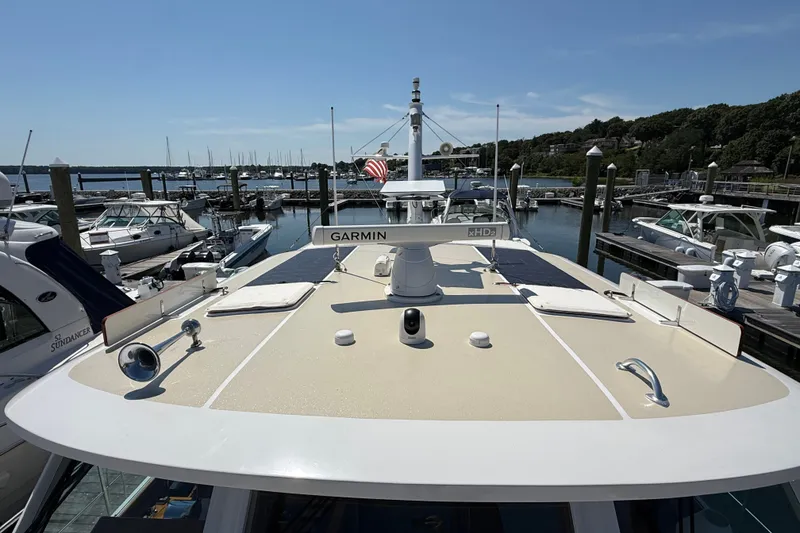

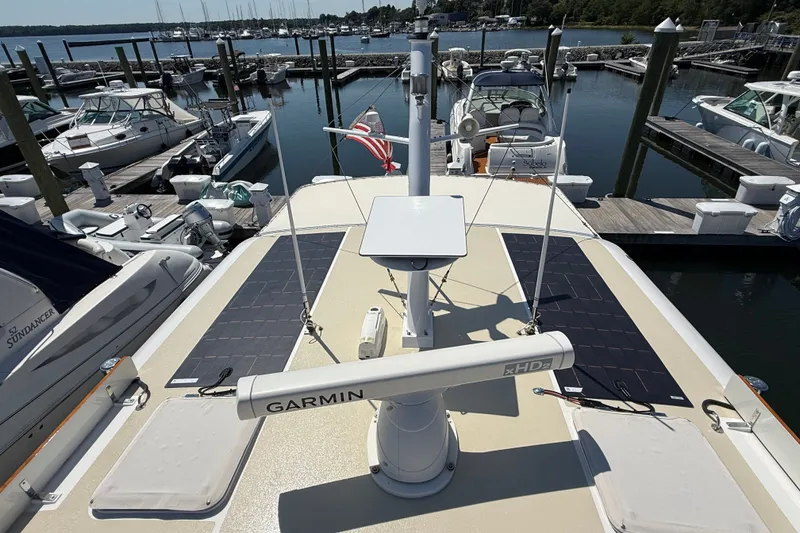

  • Garmin GMR 4 kW radar with 4' open array
  • Standard Horizon RAM+ VHF
  • Icom IC-M604 RAM+ VHF
  • 5" Ritchie Powerdamp Plus compass

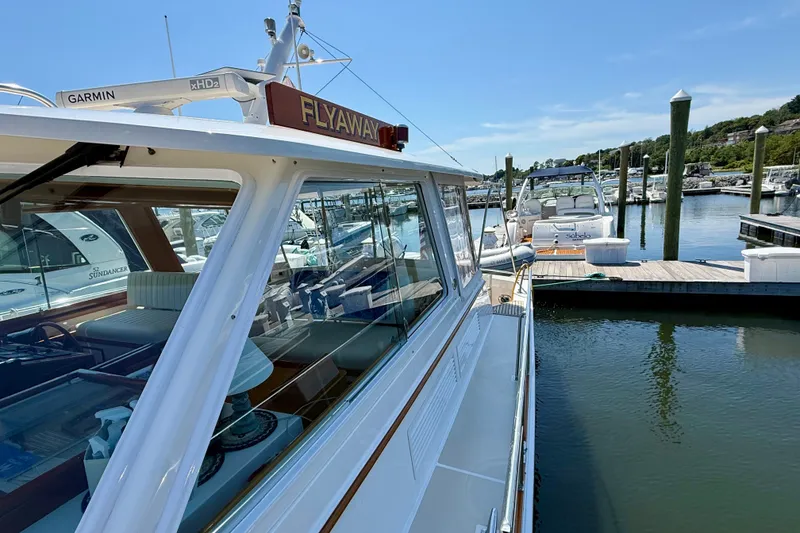

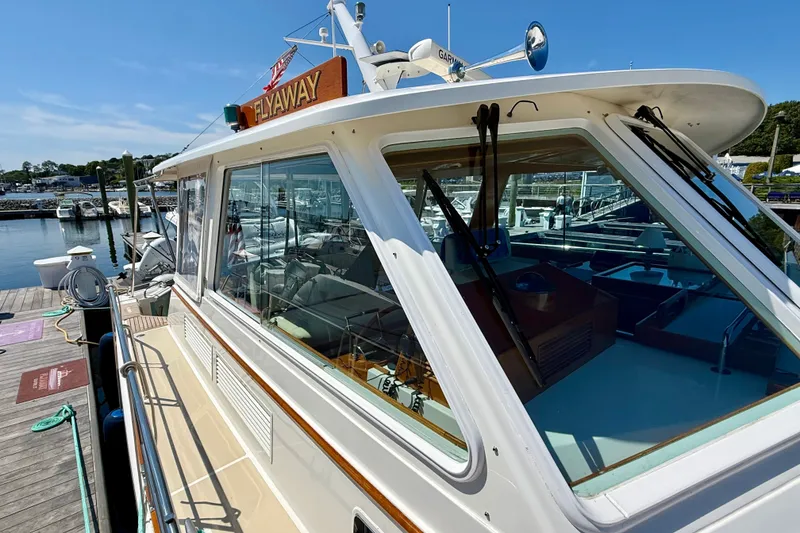

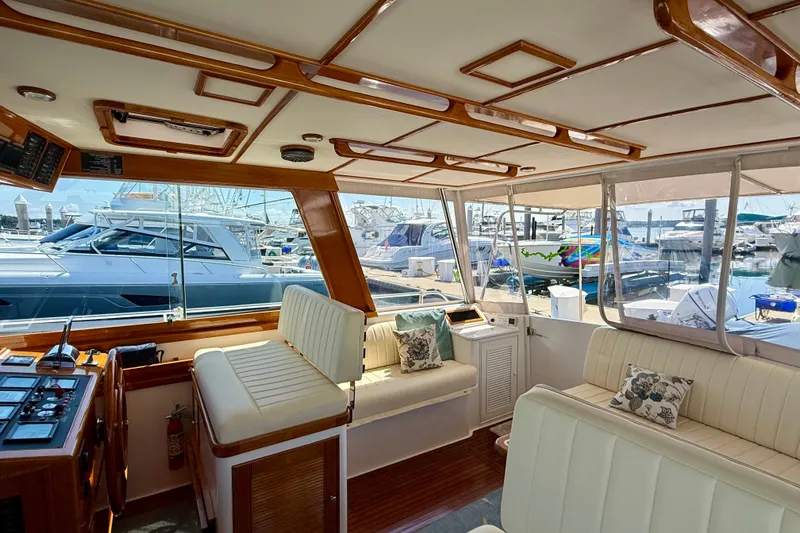

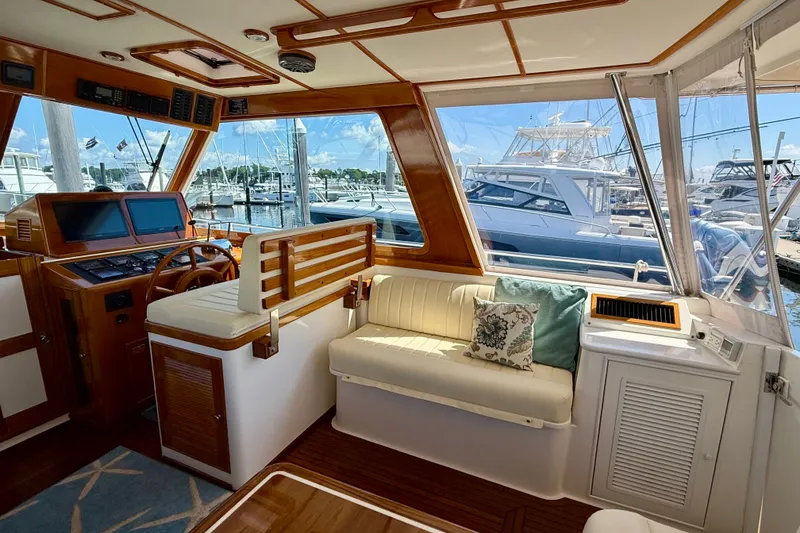

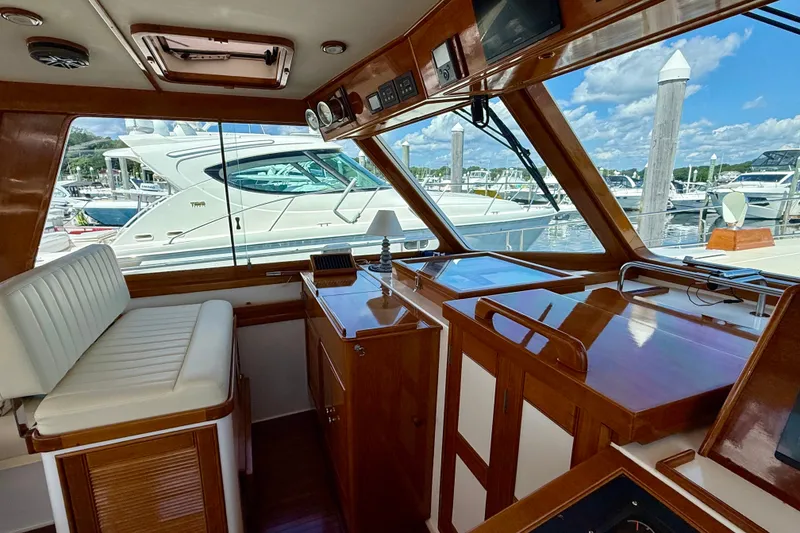

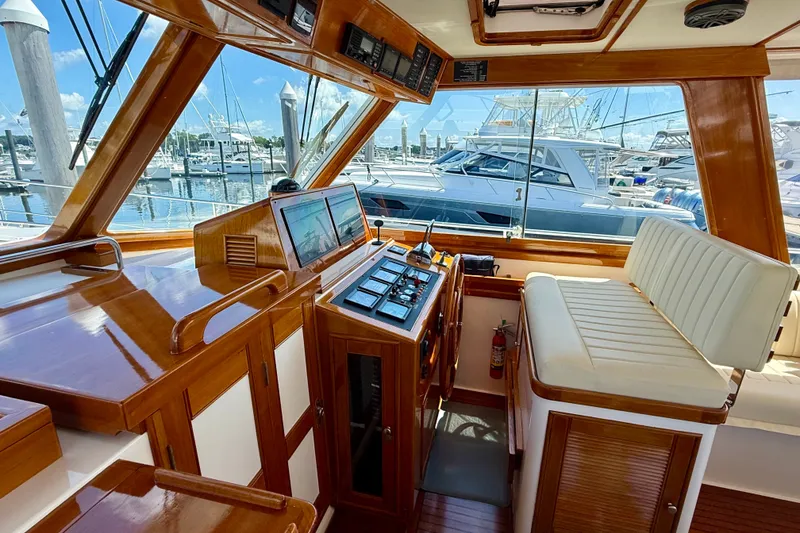

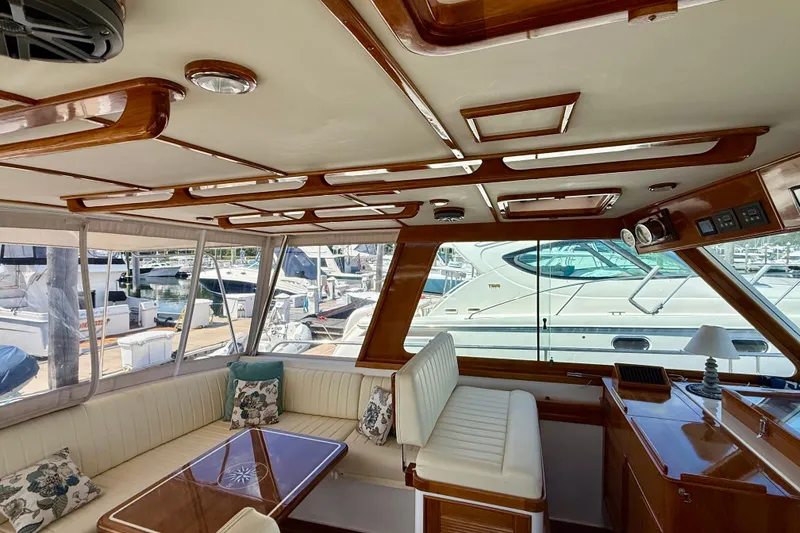

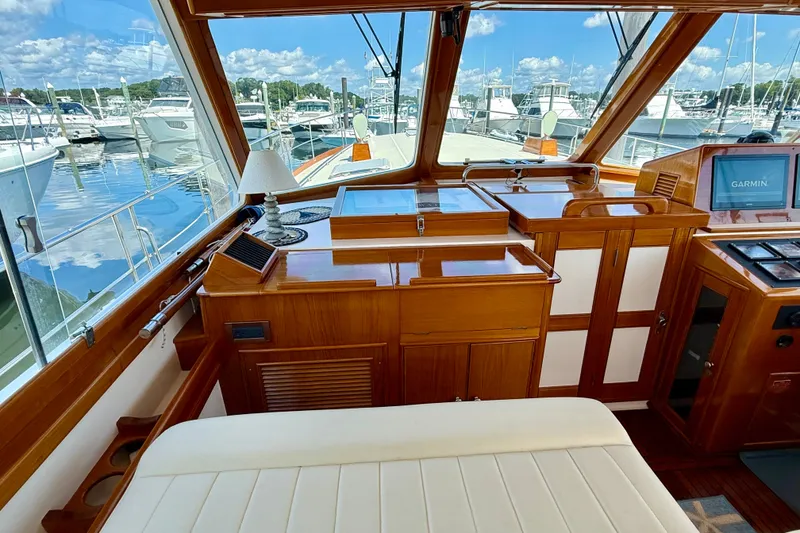

Pilothouse

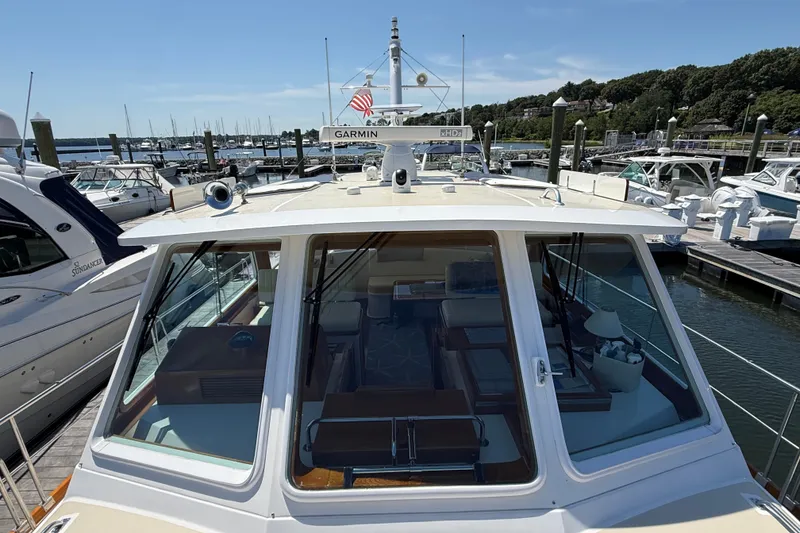

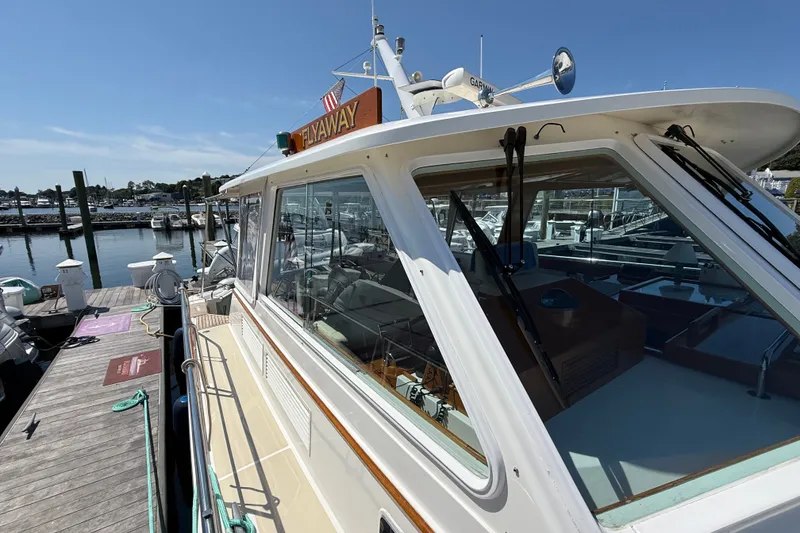

  • Forward windshields with wipers
  • Power-assisted opening center window
  • White Textilene covers for all glass windows

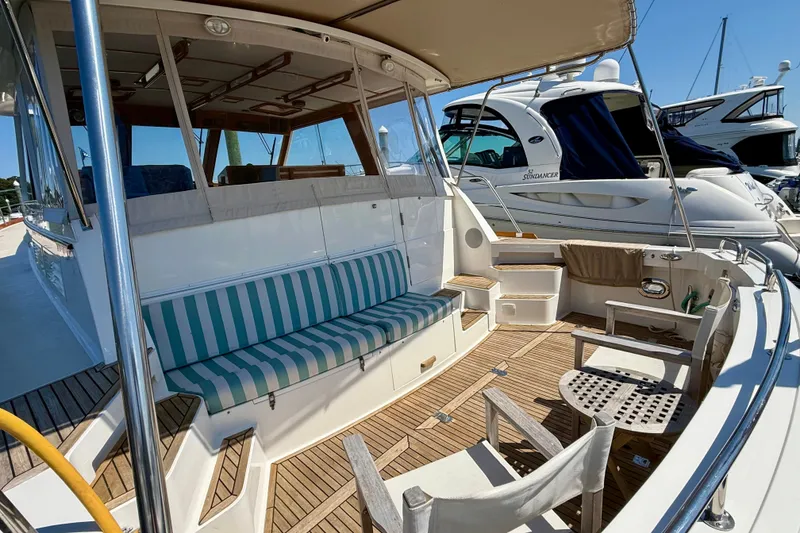

  • Aft enclosure
  • Two overhead hatches with screens and covers
  • Sliding side windows
  • Overhead lighting
  • Double bench seats at the helm with storage
  • Double companion bench seat to port with storage
  • Fusion stereo
  • Chart locker
  • Port-side cabinet for glass and bottle storage
  • Drink holders

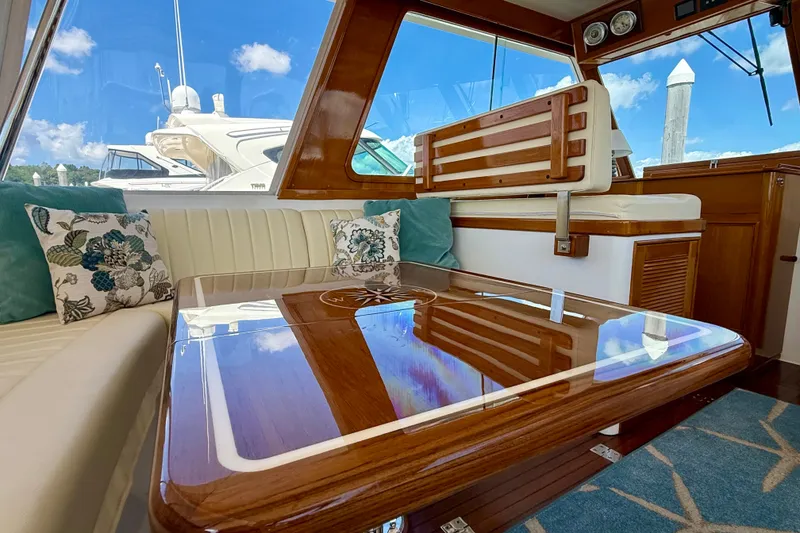

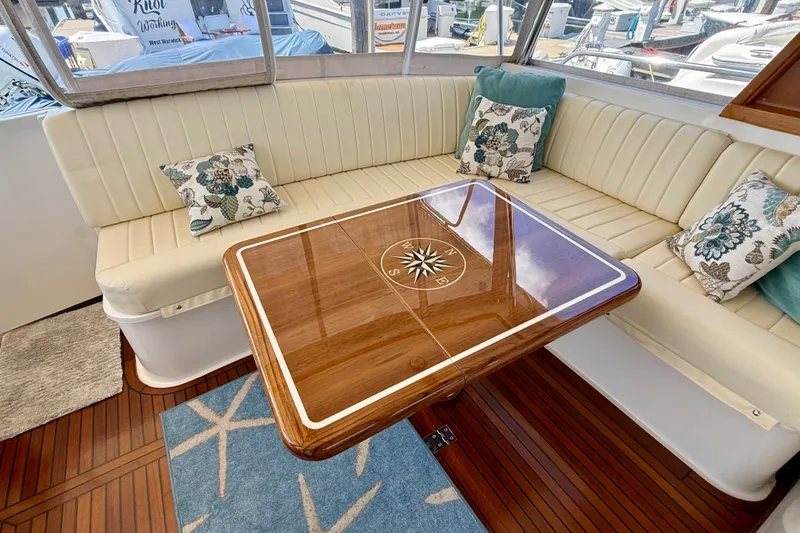

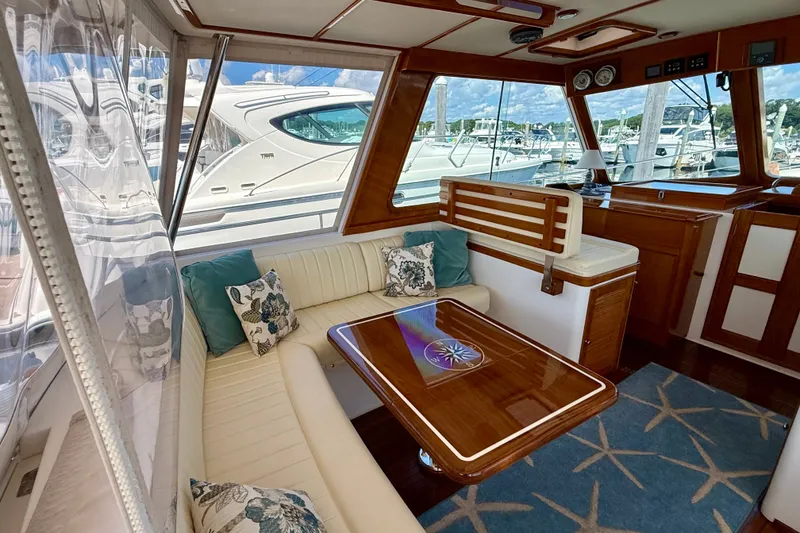

  • L-shaped settee with high-gloss custom teak table in the aft port corner
  • Double settee to starboard with storage below
  • Varnished teak sole
  • Engine room access hatch
  • Two Marine Air air conditioning units with individual controls (32,000 BTU total)
  • Breaker panel

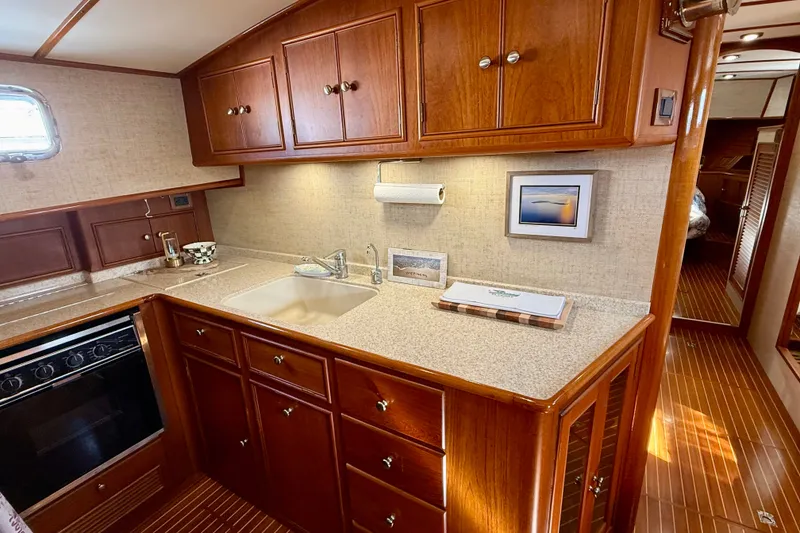

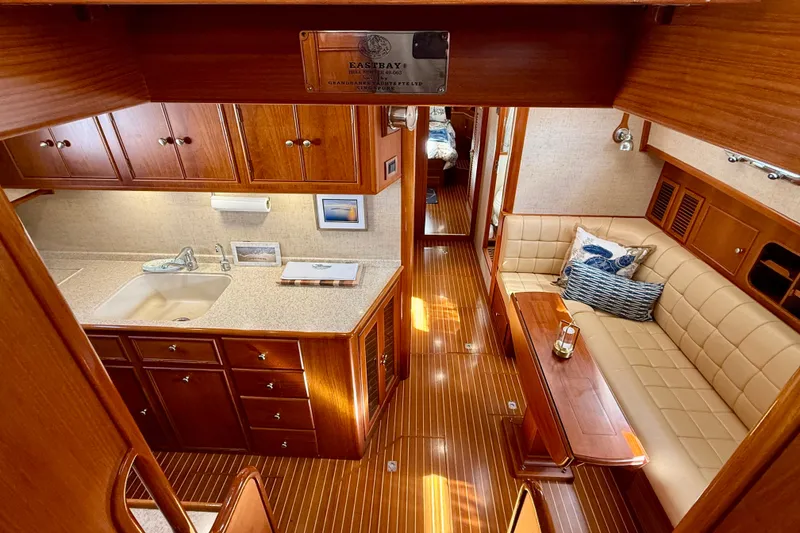

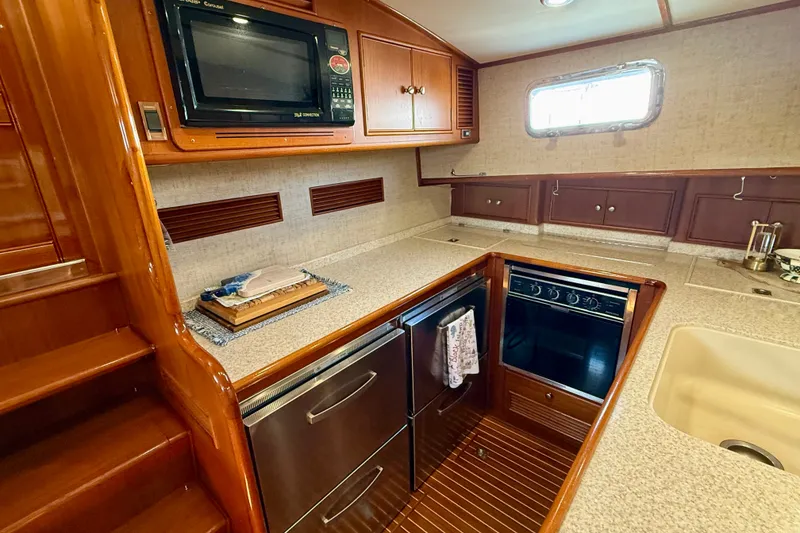

Galley
  • U-shaped galley to port
  • (2) Sub-Zero refrigerator drawers
  • (2) Sub-Zero freezer drawers with ice maker
  • Additional top-load holding plate freezer

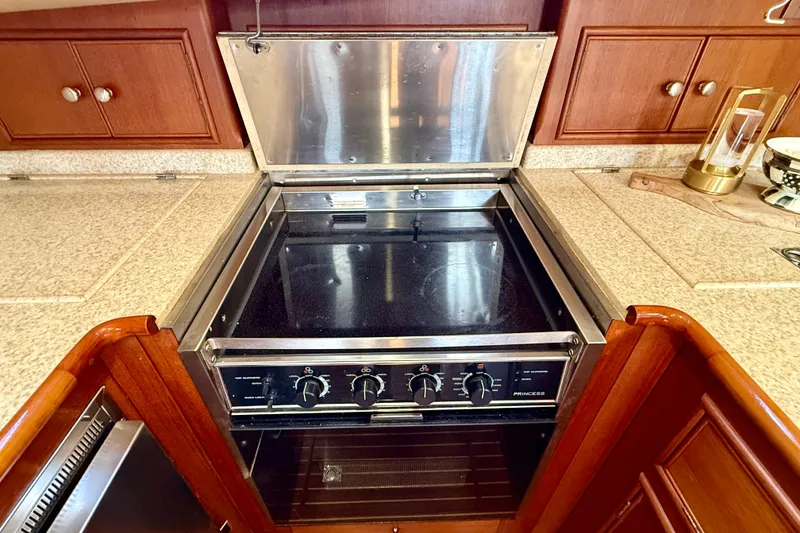

  • Princess 3-burner Ceran-top stove with oven
  • Sharp microwave/convection oven
  • Corian countertops
  • Generous drawer and locker storage
  • Teak and holly sole

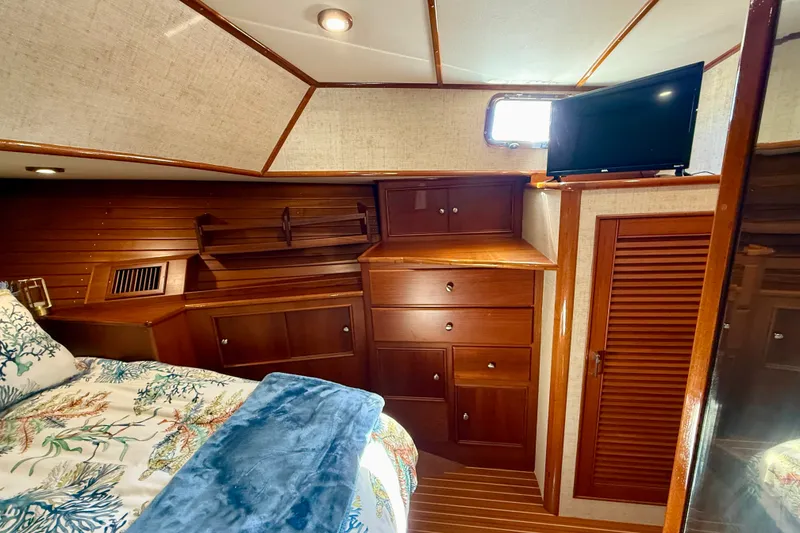

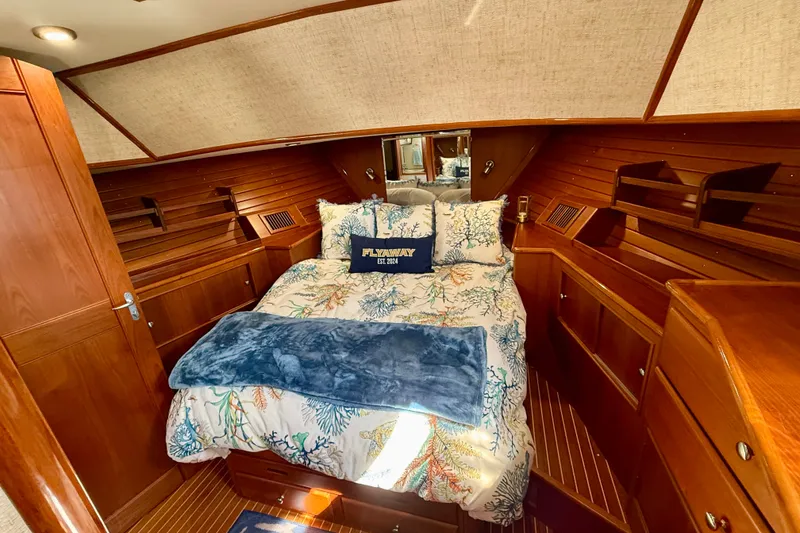

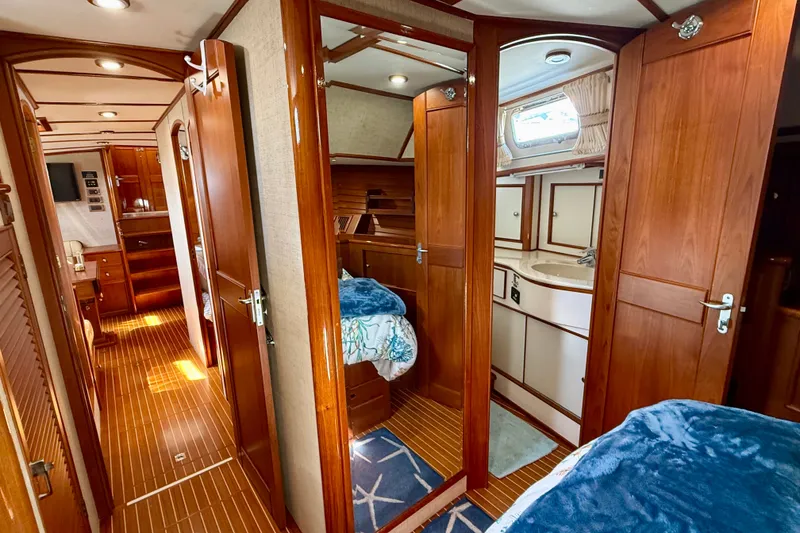

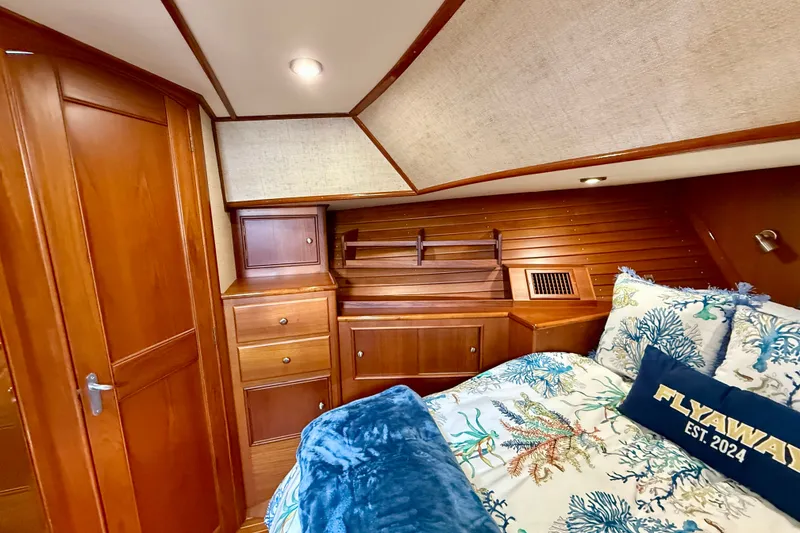

Master Stateroom
  • Centerline queen berth
  • Teak lattice hull-side accents
  • Teak and holly sole
  • Directional reading lights
  • Marine Air air conditioning
  • Large double-door cedar-lined hanging locker
  • Numerous storage drawers, shelves, and lockers
  • Overhead opening hatch with screen
  • Opening portlight with screen
  • Private entry to master head
  • Custom teak bookshelves
  • Chart drawer for full-size Admiralty charts
  • Full length mirror
Ensuite Master Head
  • Odor-free Sealand VacuFlush freshwater electric head
  • Sealand TankWatch holding tank monitoring system
  • Stainless steel hardware
  • Corian countertops
  • Separate stall shower with folding glass door
  • Ventilation provided by opening portlights and overhead hatch

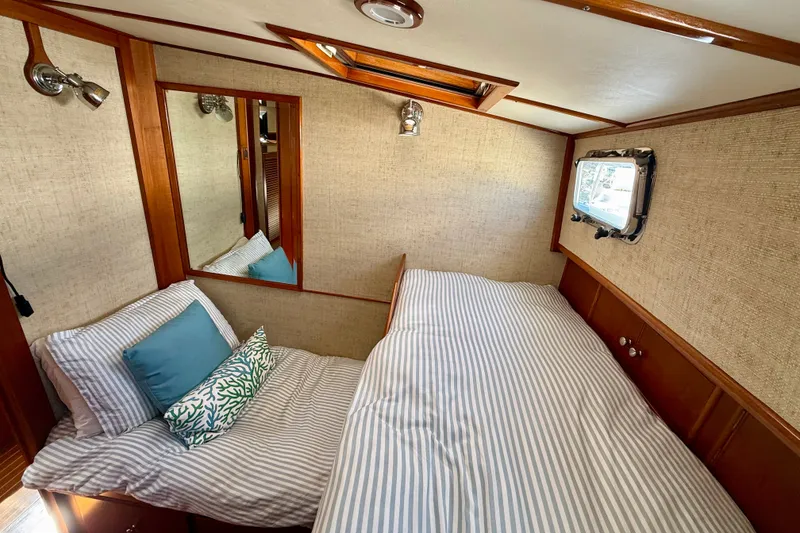

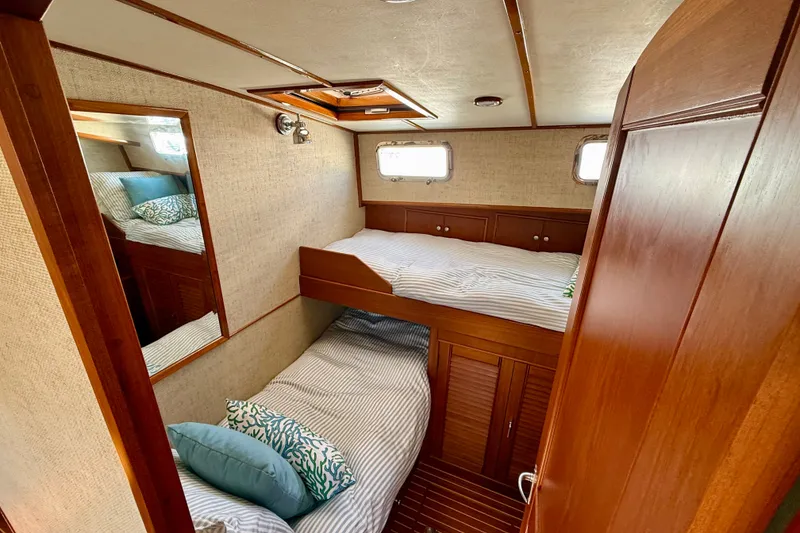

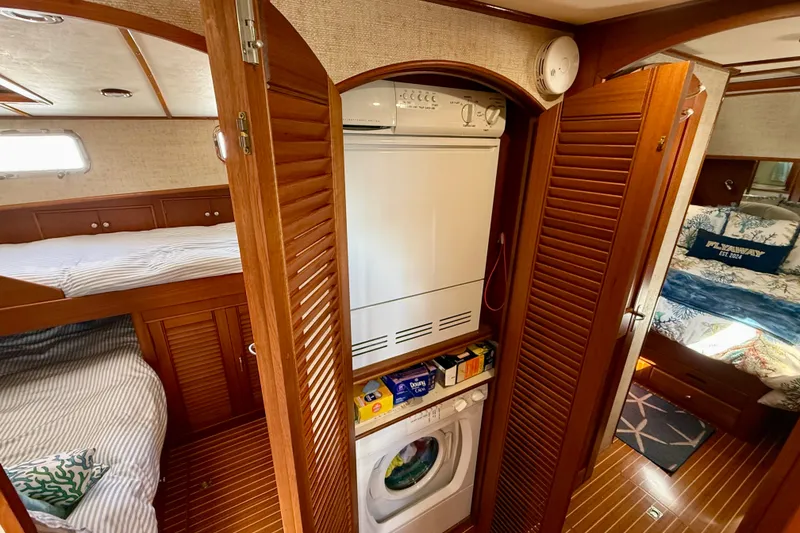

Guest Stateroom
  • Over-under twin berths
  • Built in teak bureaus
  • Teak and holly sole
  • Air conditioning controls
  • Adjustable reading lights
  • Half height single-door cedar-lined hanging locker
  • Overhead opening hatch with screen
  • (2) opening portlights with screens
  • Guest head located opposite the companionway

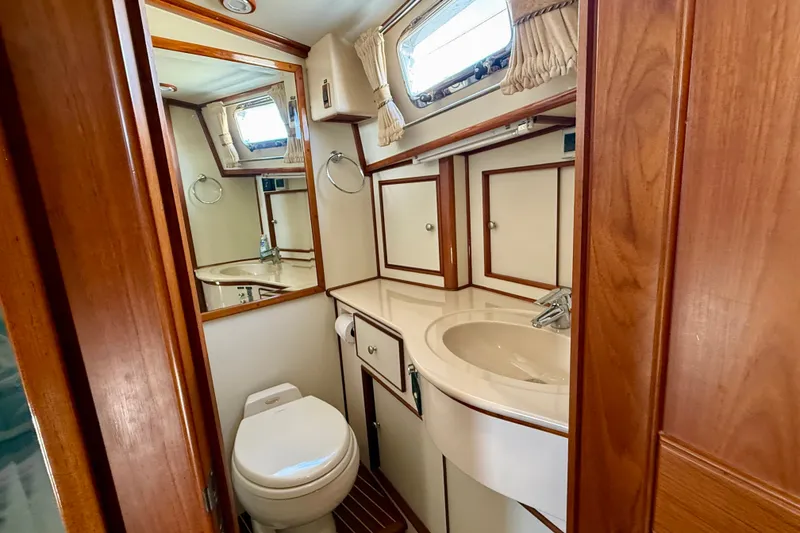

Day Head
  • Molded vanity with integrated sink
  • Odor-free Sealand VacuFlush freshwater electric head
  • Sealand TankWatch holding tank monitoring system
  • Storage above and below vanity
  • Overhead lighting
  • Air-conditioned and well ventilated
Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
