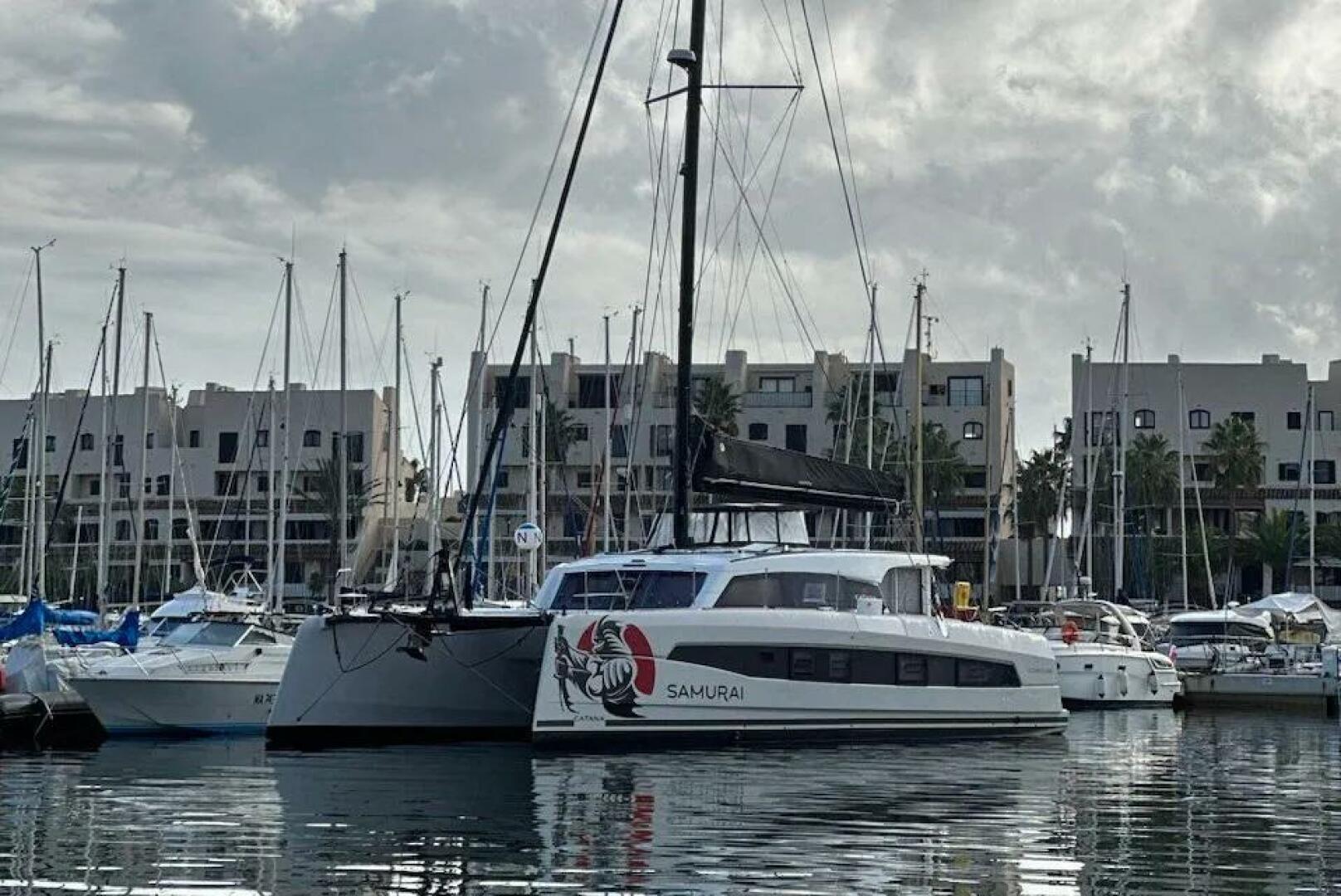

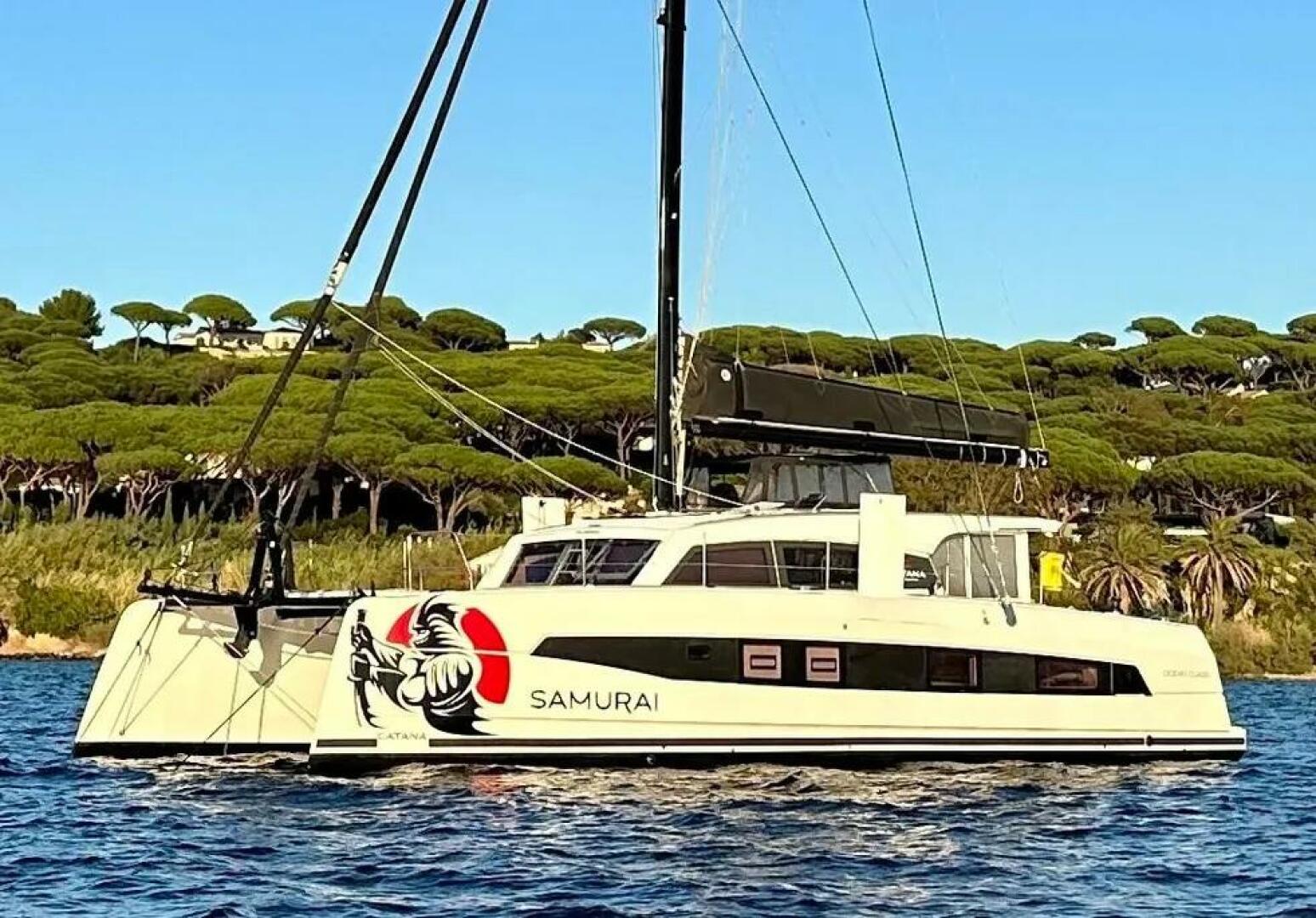

2023 Catana OC50 Sold Boat in Miami, FL 33101 US

General

Fronts of the furniture: PVC foam sandwich, laminated decor

Laminated PVC foam sandwich floors in the hulls and PVC cladding on the nacelle PVC ceiling and liner linings

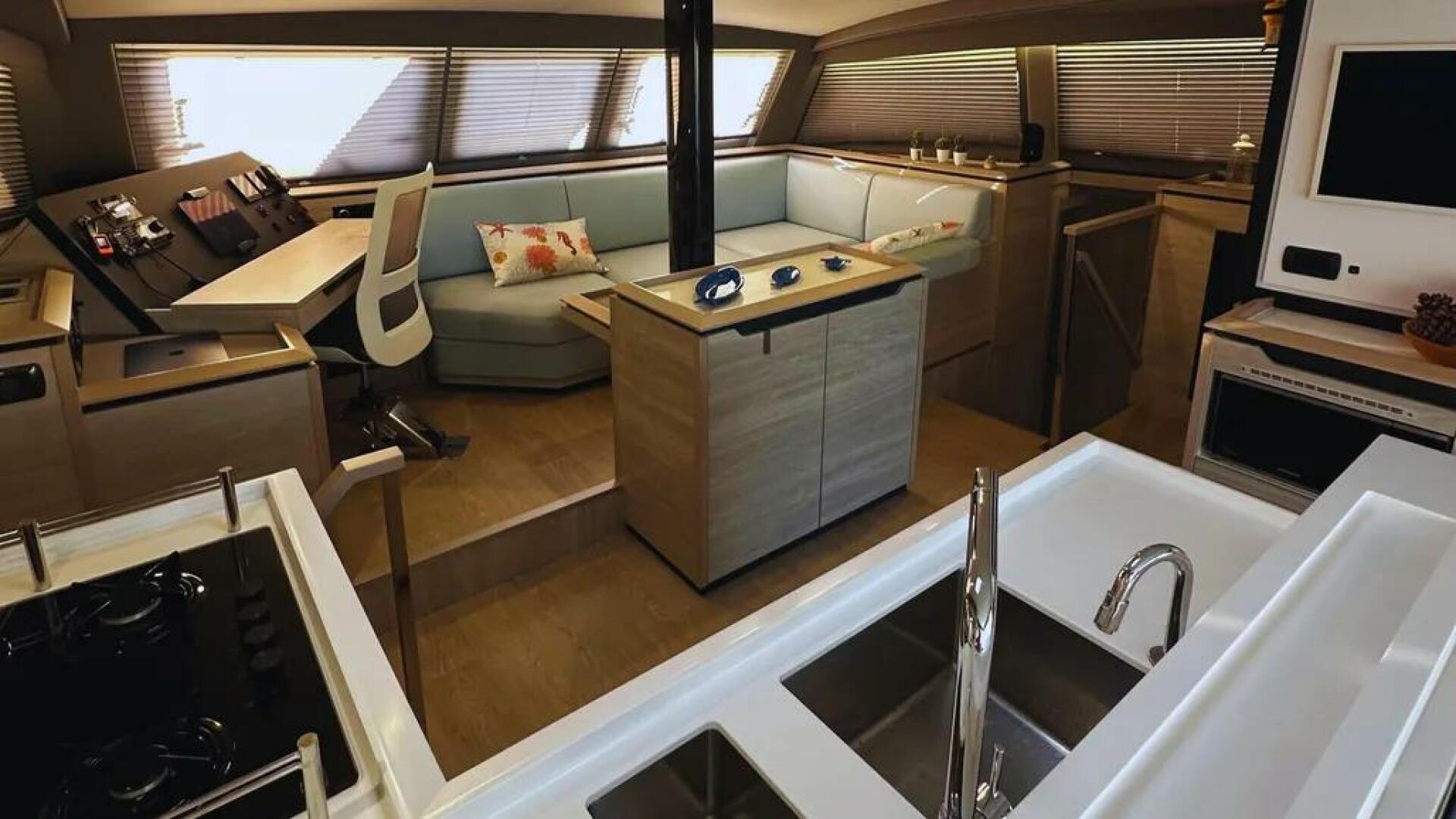

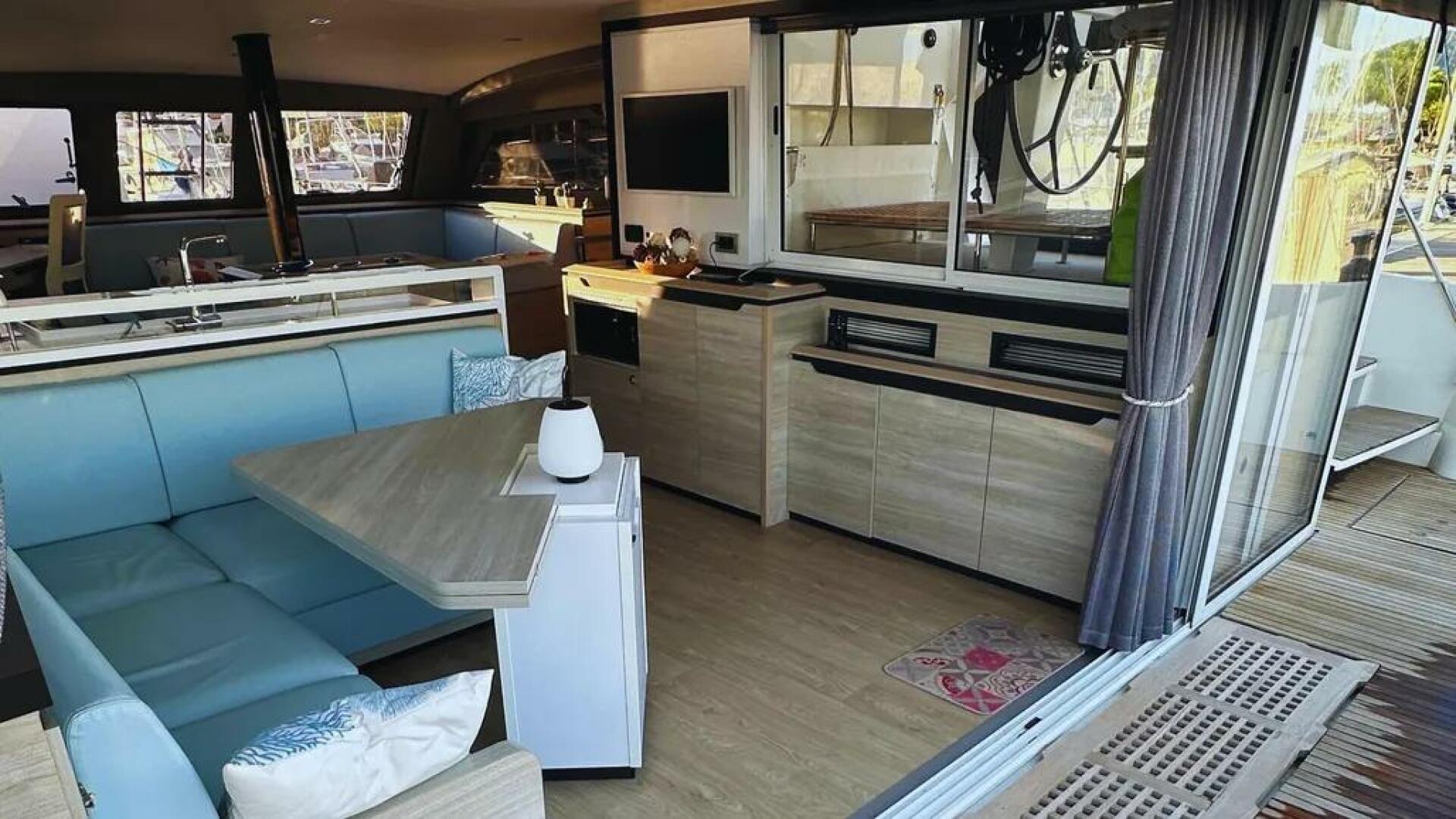

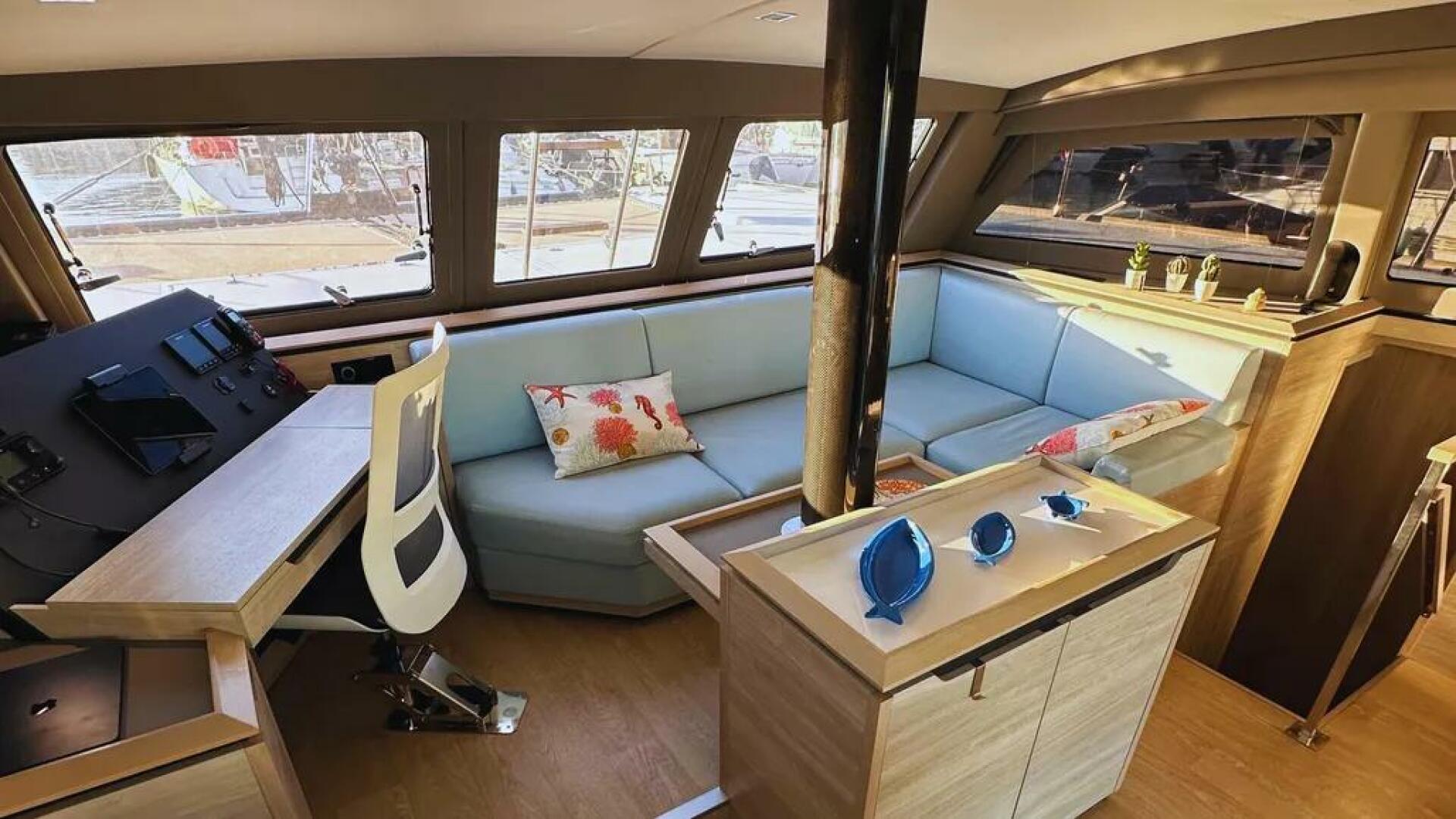

Comfortable saloon completely open to the outside

Saloon accessible by 4-leaf sliding door sliding to starboard with clear glazing. Panoramic view through 3 large forward windows and wide lateral plexiglas windows Aircon FRIGOMAR in the salon (32.000 BTU)

Ventilation through 2 large opening front bay windows and 2 side bay windows for total opening

Blinds in the Salon: front windows, fixed side windows and sliding side windows L-shaped seat with storage

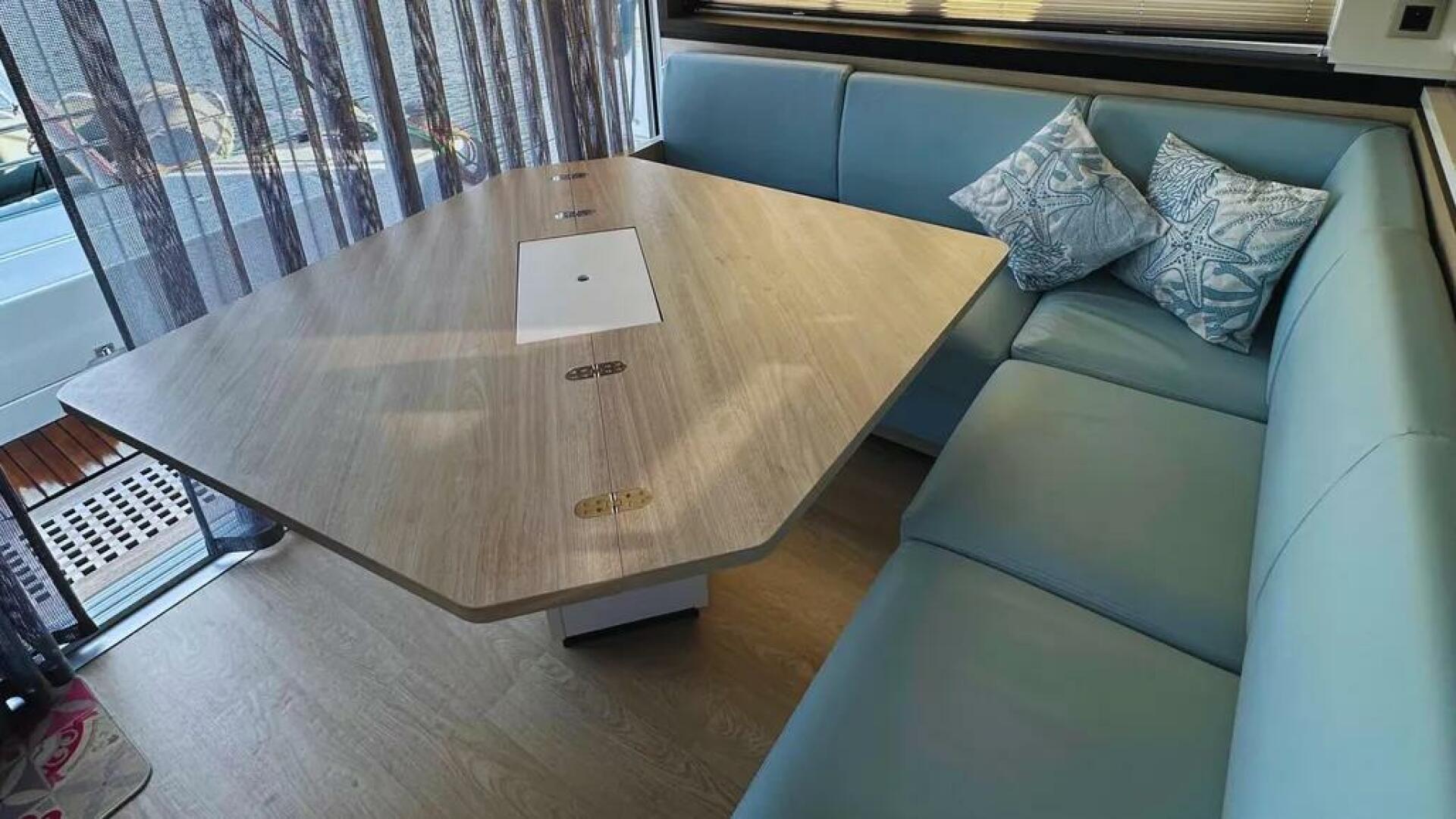

Folding saloon table with integrated bar for 8 people TV

Dimmable recessed LED spotlights Courtesy lighting in the ceiling

2 AC outlets (220/50hz or 115/60hz)

Raised saloon for panoramic view

Deep L-shaped seat that can act as a watchkeeper’s berth Coffee table

Under-seat storage

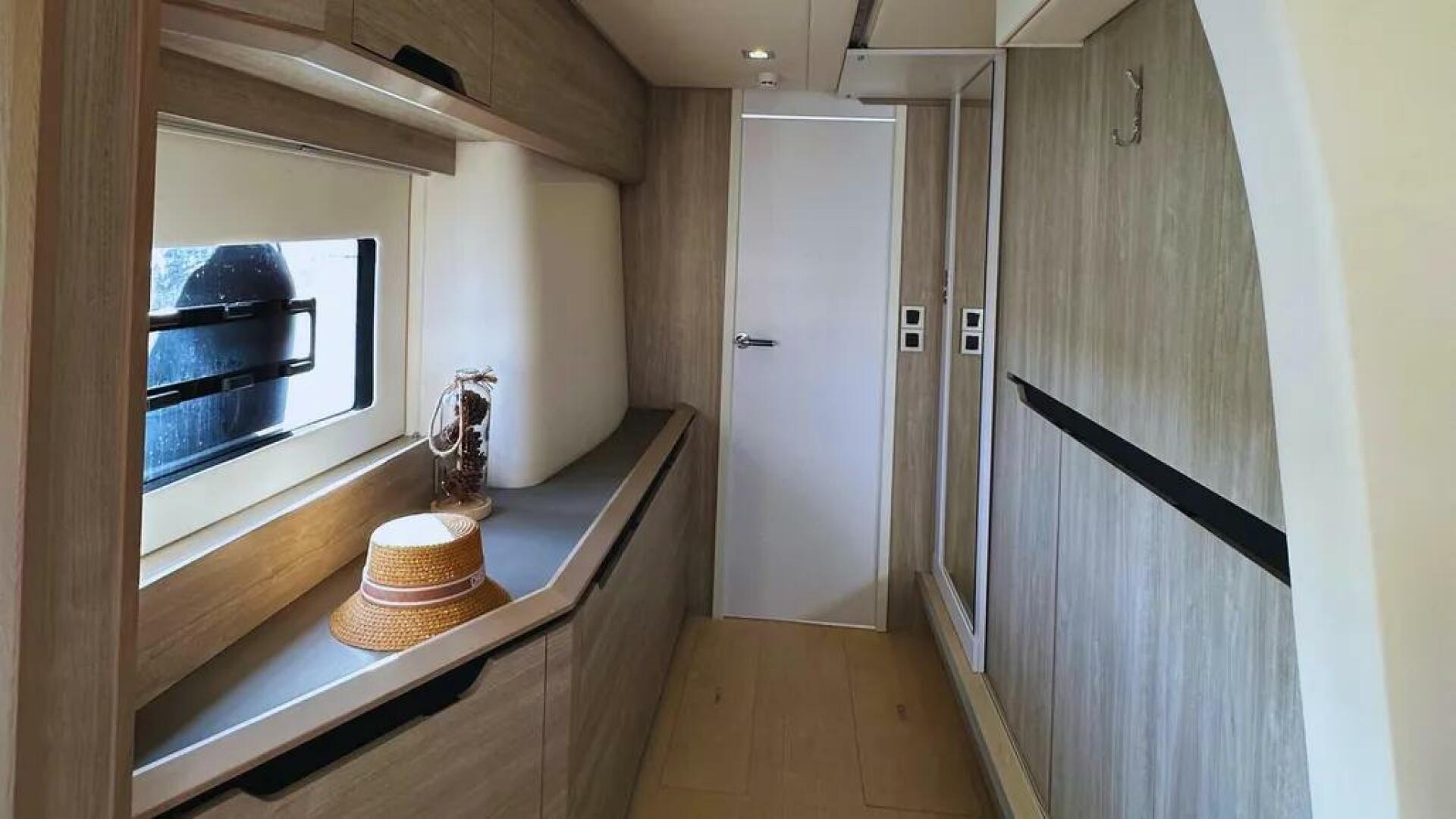

OWNER’S HULL (PORT SIDE)

Access via wide companionway steps with the same floor covering as the hull. Hull closure by lockable sliding door

Blinds in hull

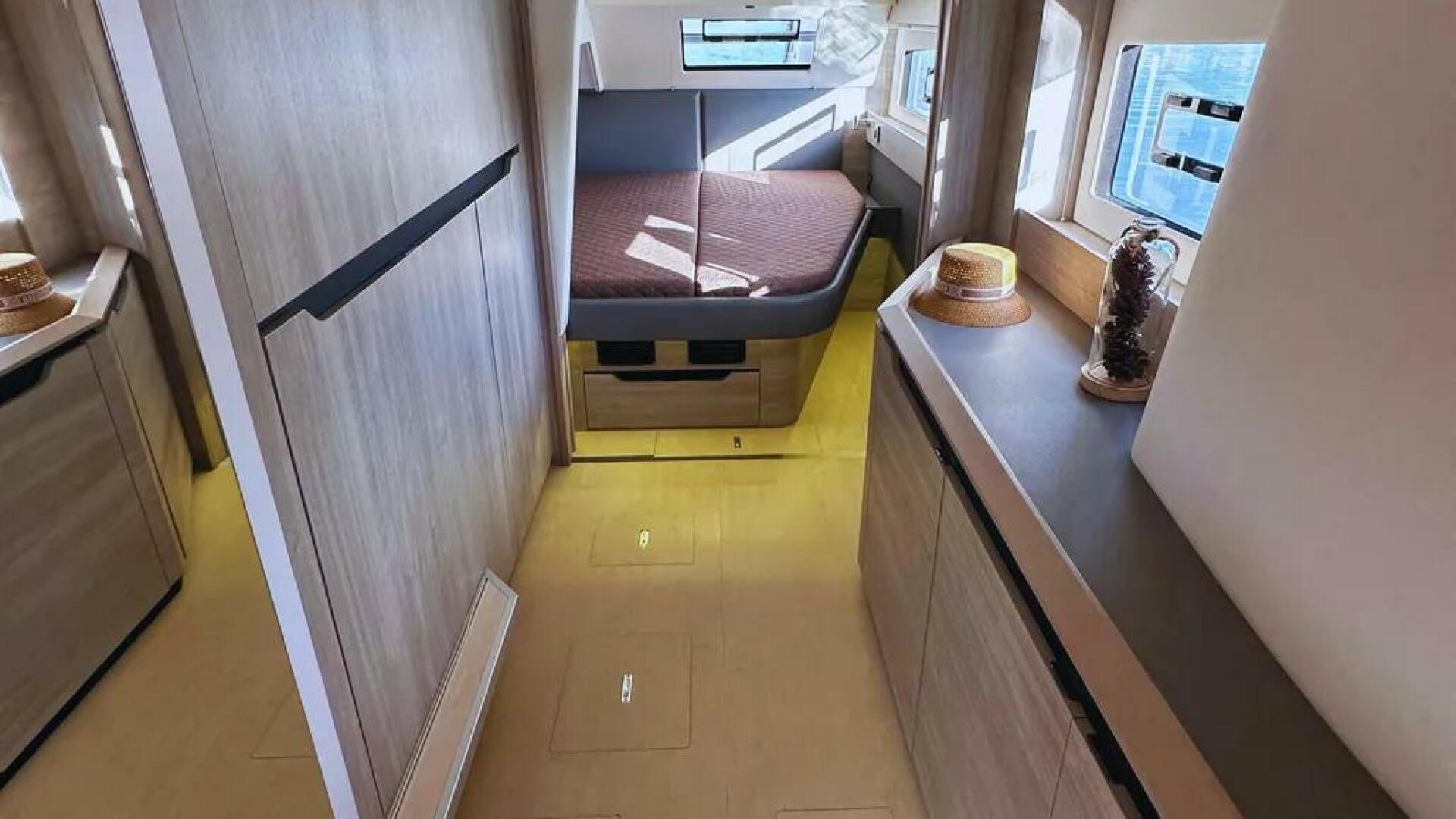

Webasto diesel heater in hull Aft cabin / owner's version

Semi-Island bed with padded headboard

One-piece slatted base + hydraulic cylinders with direct access to the heater 2 bedside tables

1 Large shelf with storage space on the inboard side 1 Drawer and under-bunk storage

1 wardrobe + 1 cupboard with shelves Chest of drawers

Bench seat with dressing table Mirror on sliding doors

Ventilation by hull portholes + 1 porthole in aft bay window, giving onto the deck

Large fixed window in outboard topsides

General lighting by LED spotlights in the ceiling with dimmer and 2 bedside reading lights. 1 AC outlet (220/50hz or 115/60hz)

1 USB outlet

Low level courtesy lighting 1 fan

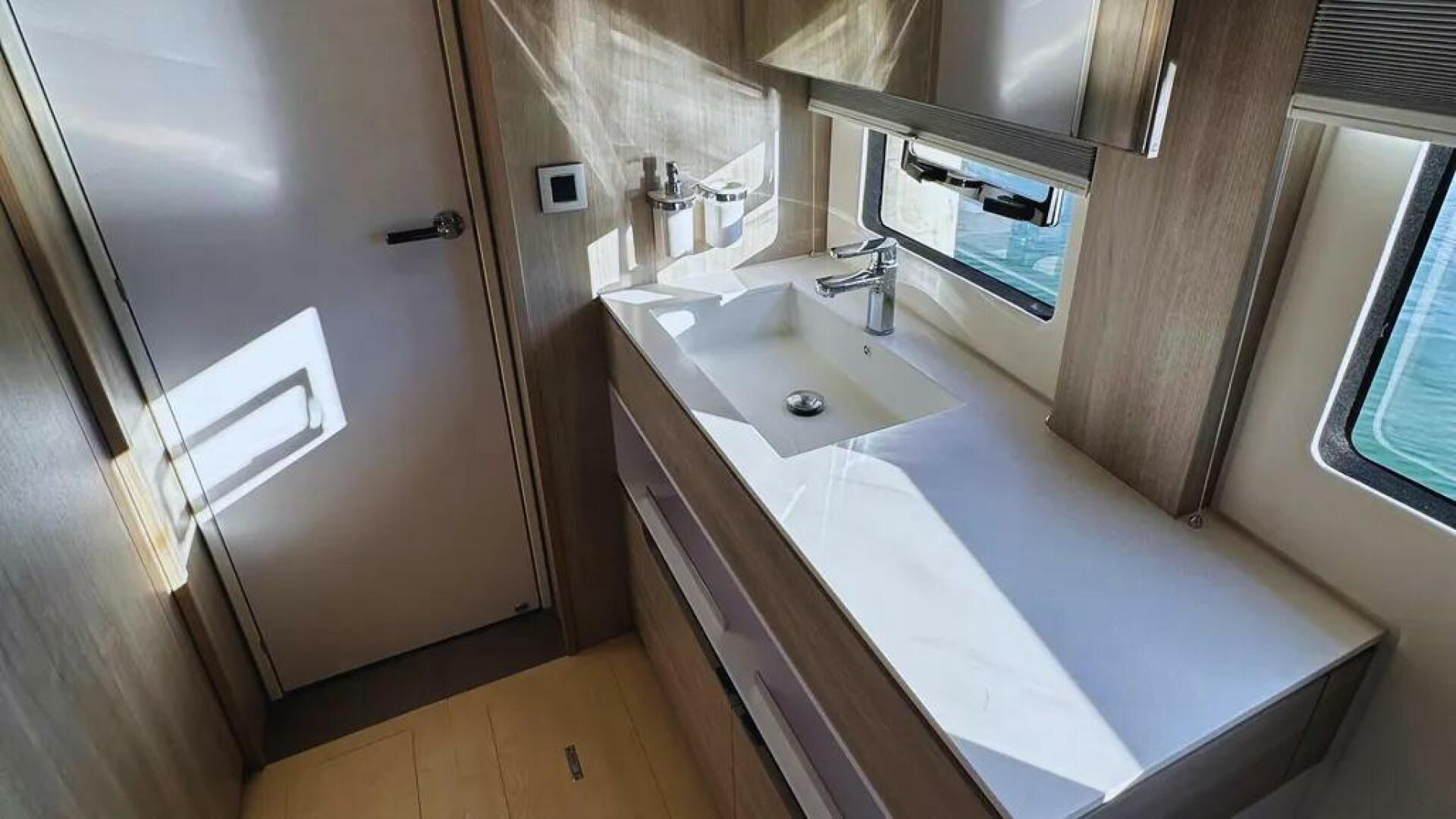

Owner's bathroom

Private access from the cabin Built-in resin washbasin

Tall cabinet with mirror and lighting

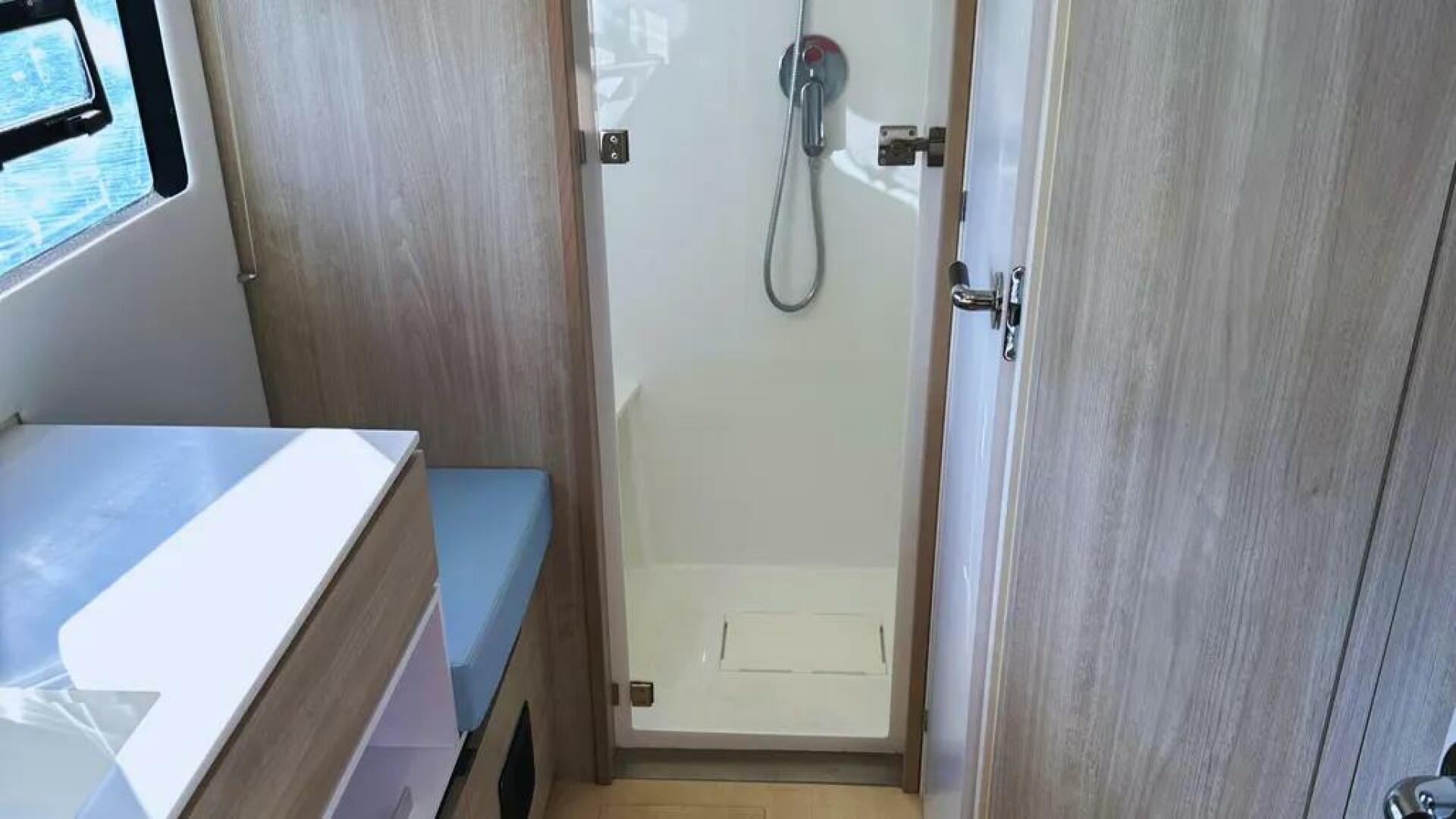

Separate shower with glass screen, shower column, storage for toiletries and blackout curtain

Bathroom accessories (1 coat hook) Lighting by large fixed window Ventilation through hull portholes

LED ceiling spotlight on dimmer switch Storage under basin

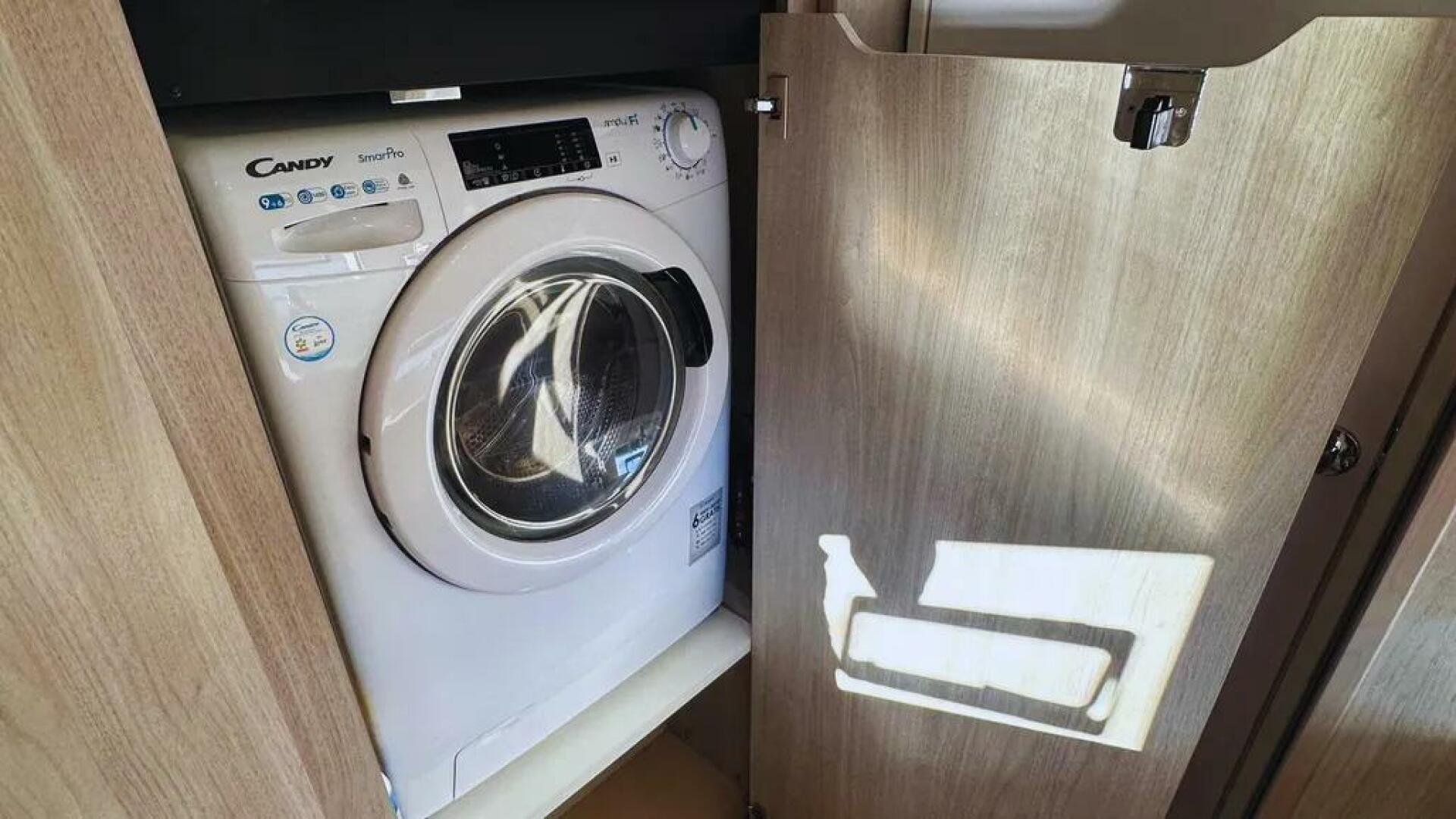

Washer and dryer 6 kg 220 V

1 AC outlet (220/50hz) in tall cabinet

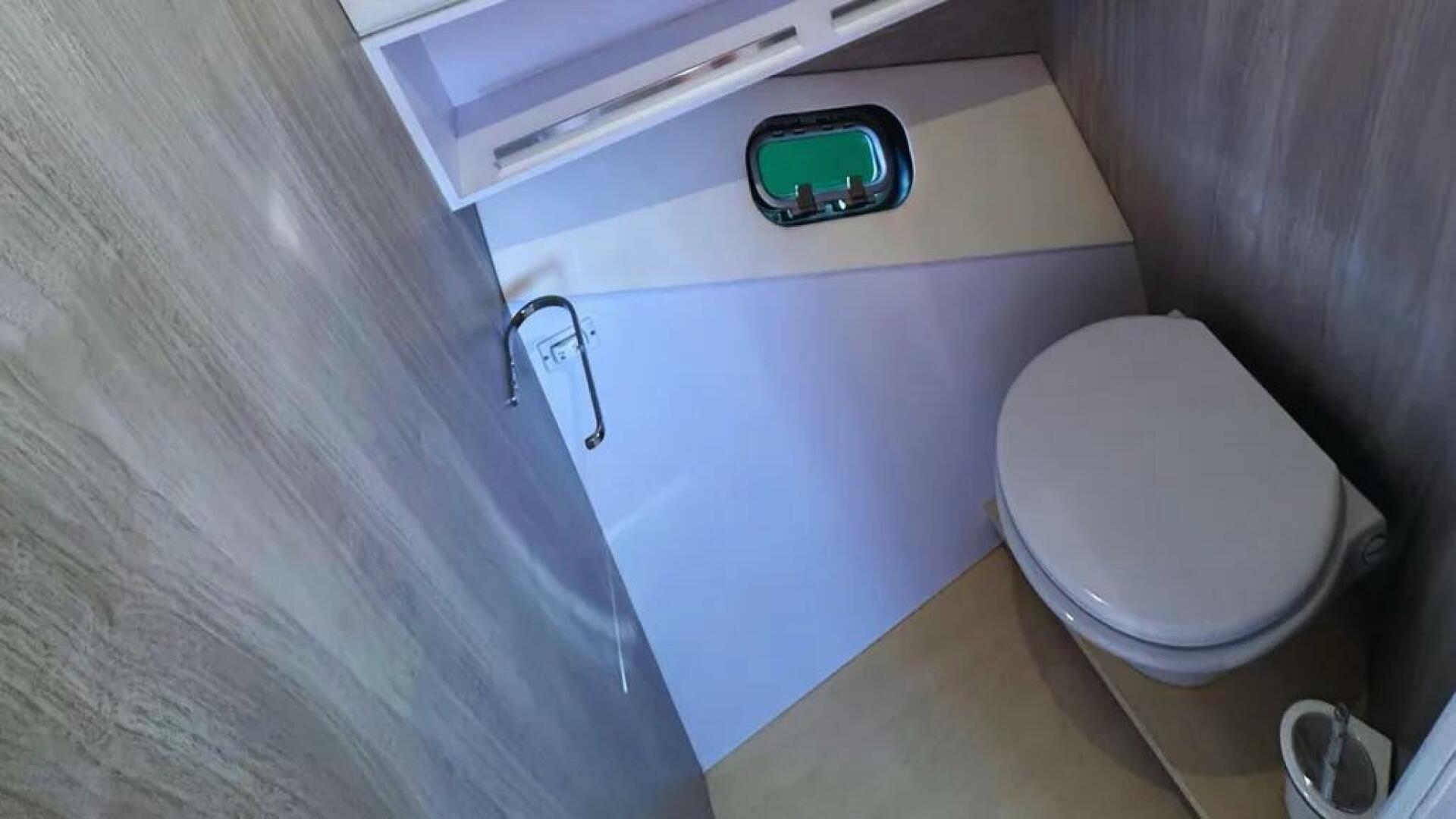

Separate owner's heads compartment Fresh-water electric WC

Ceiling LED spotlight Porthole with blackout blind

1 toilet brush and toilet paper holder

GUEST HULL (STARBOARD)

Blinds in hull

Webasto diesel heater in hulls

Aft guest cabin

Access by door from the passageway Semi-Island bed with padded headboard

One-piece slatted base + hydraulic cylinders with direct access to the heater 1 Large shelf with storage space on the inboard side

Storage cupboards and 1 hanging locker

Ventilation by 2 hull portholes (in plexiglas window) + 1 porthole in fixed aft window giving onto deck

General lighting by LED spotlights on dimmer and 2 bedside reading lights 1 AC outlet (220/50hz or 115/60hz)

1 x USB outlet

Low-level courtesy lighting 1 fan

Heads compartment 1-shower/1-WC version

1 Fresh water electric WC

Toilet accessories (brush and toilet paper holder)

1 Large separate shower with satin plexiglas screen and ventilation via 1 hull porthole Bathroom accessories (1 coat hook, toiletries storage)

LED Spotlights

Unit with built-in basin and storage Wall cabinet with mirror and lighting 1 AC outlet in wall cabinet

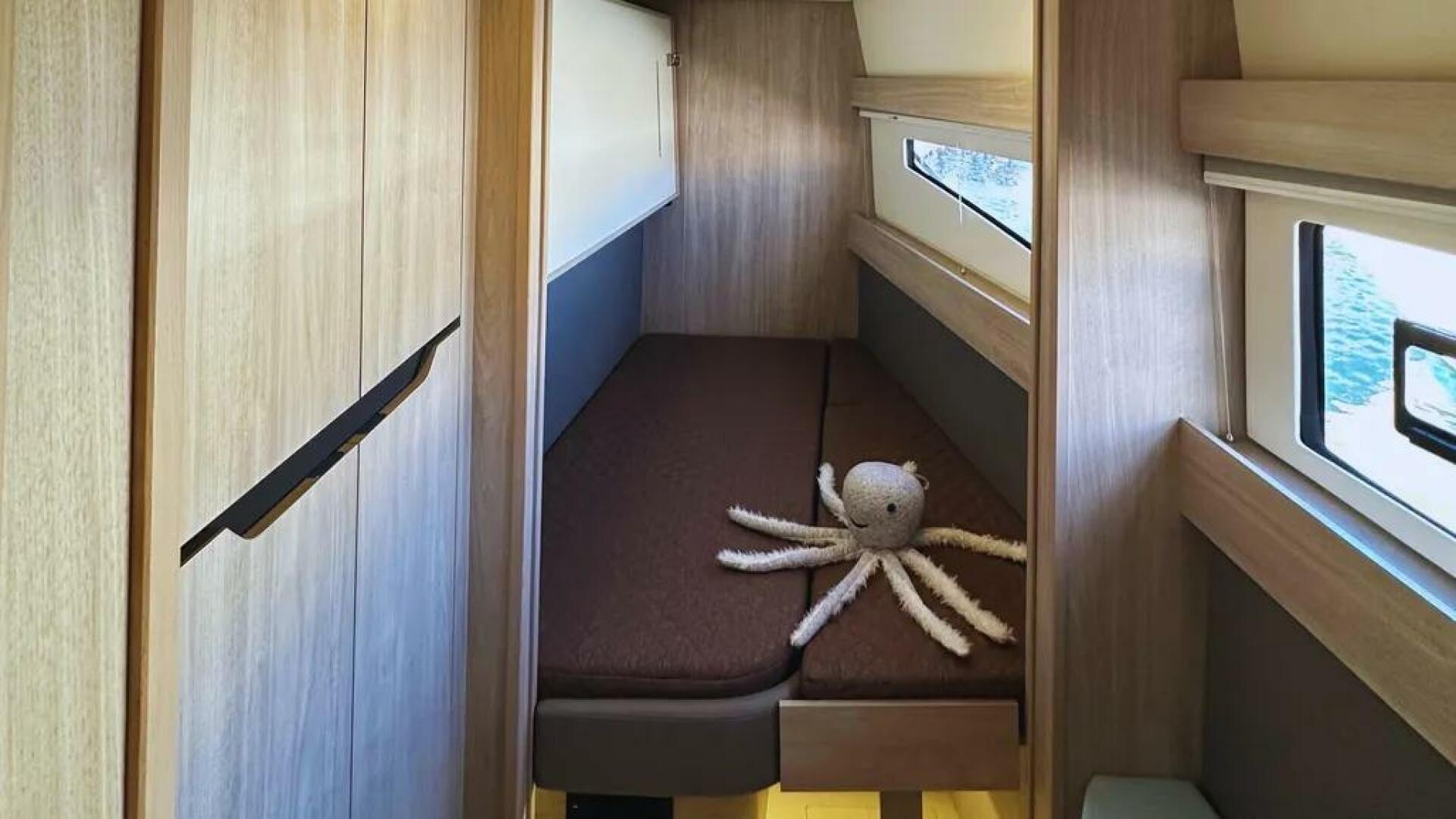

Forward guest cabin

Access by door from the passageway

Bunk bed (1,95m / 0,75m) with padded headboard Foldable upper bunk, Stairs for upper bed

Lower bed convertible into a double bed Storage space under the low berth Large shelf on inboard topsides

Storage cupboards and hanging locker Ventilation by hull window (on plexiglass)

General lighting by LED spotlights on dimmer and 2 bedside reading lights 1 AC outlet (220/50hz or 115/60hz)

1 x USB outlet

Low-level courtesy lighting 1 fan

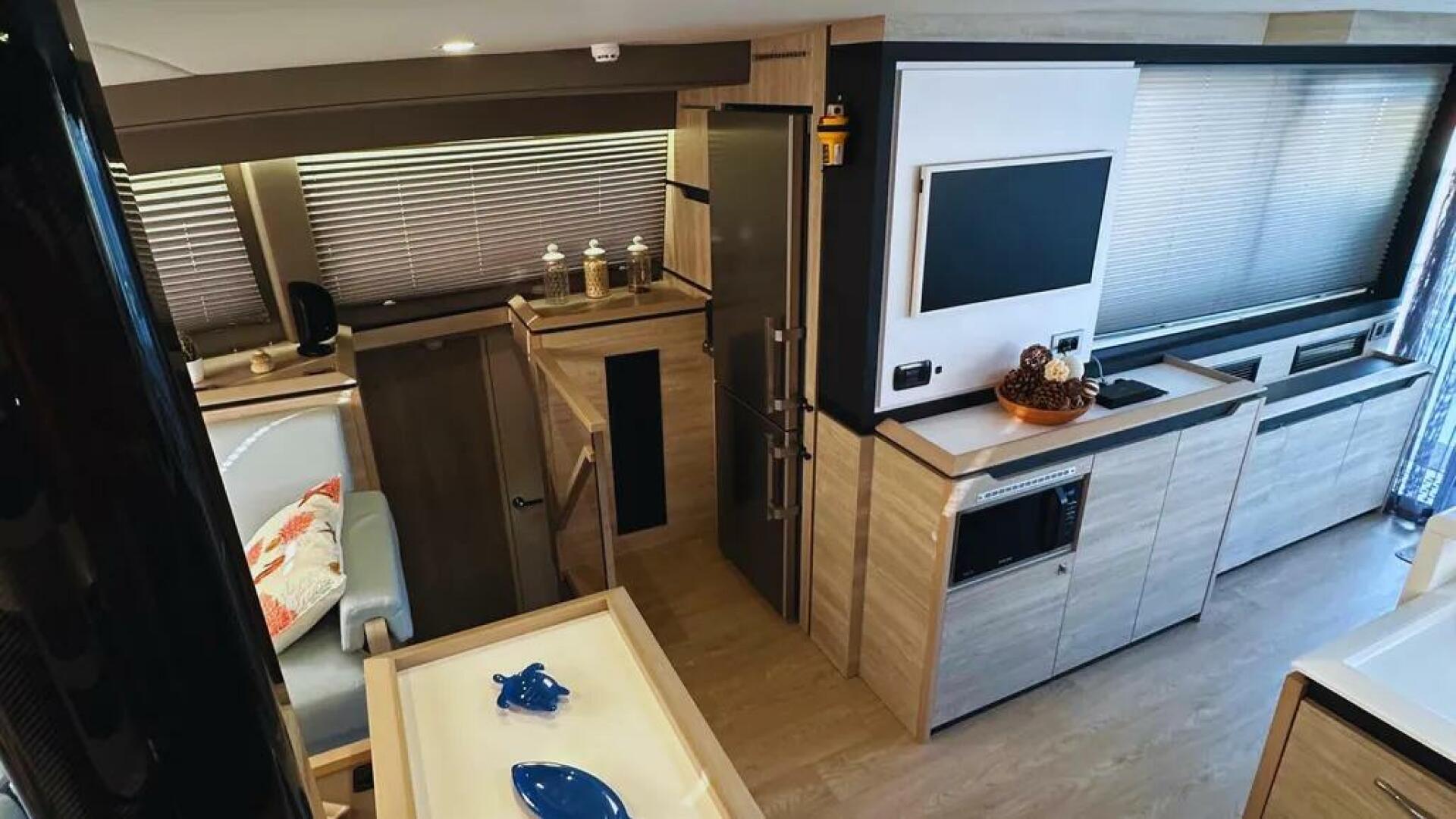

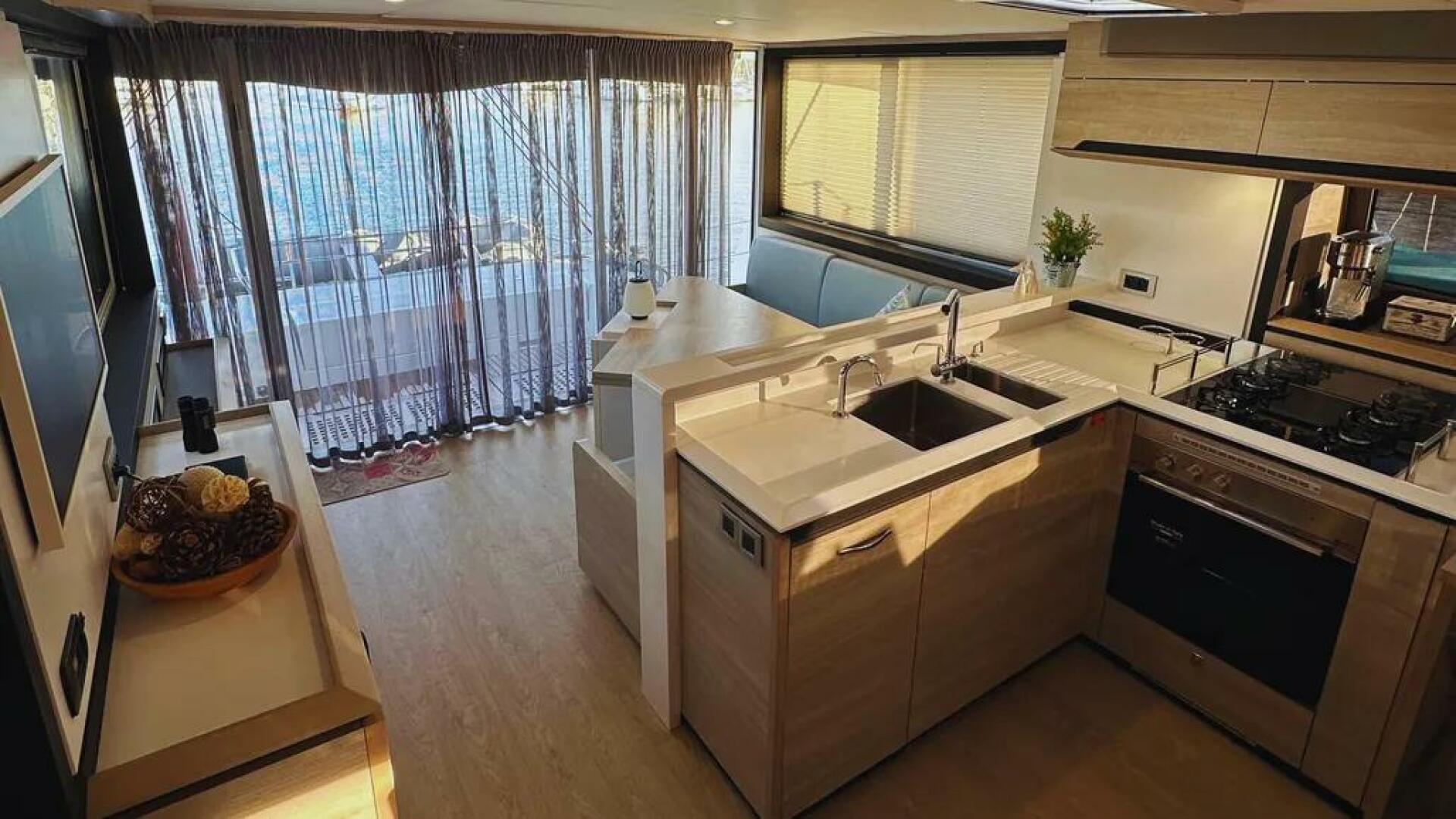

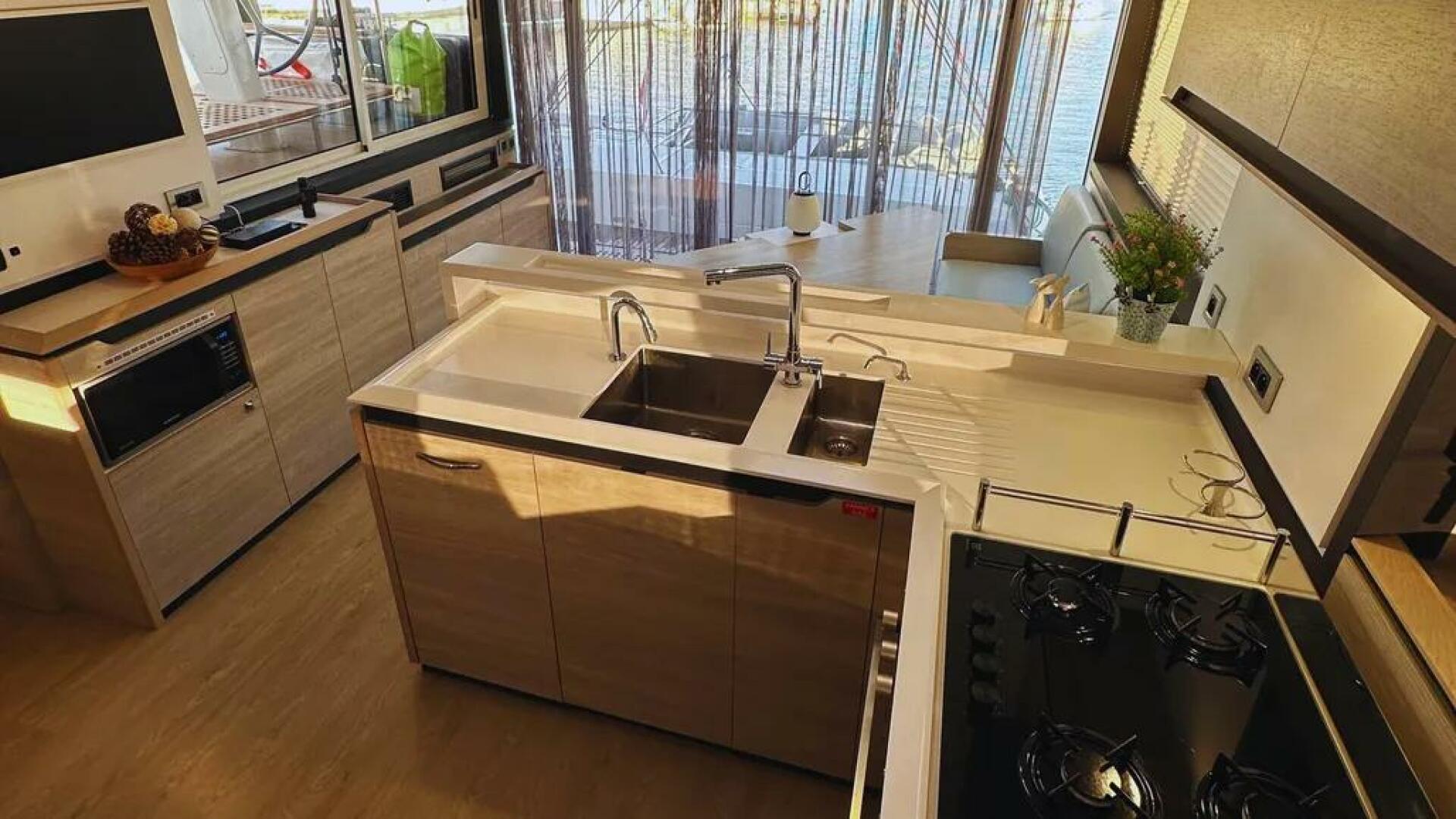

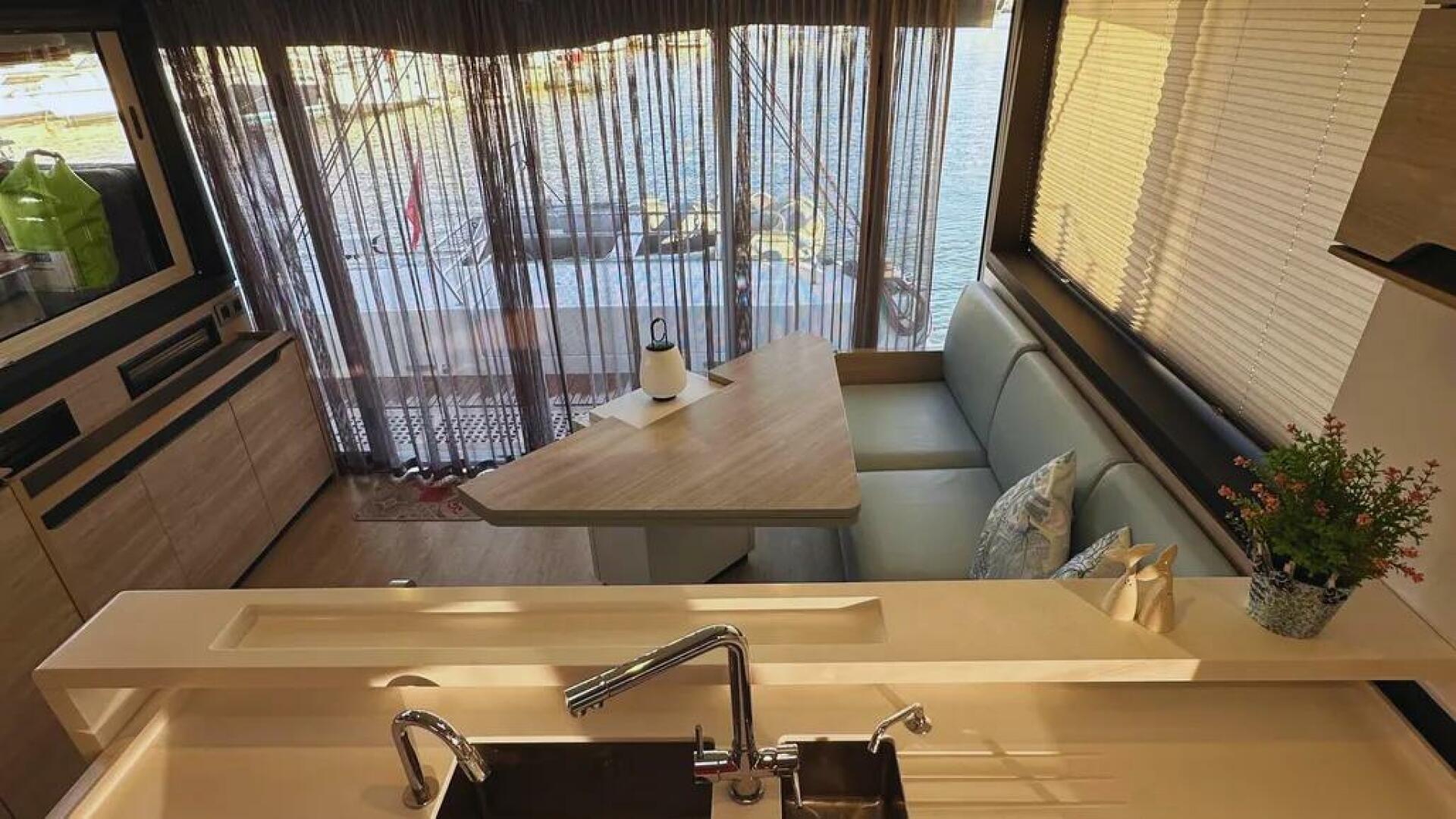

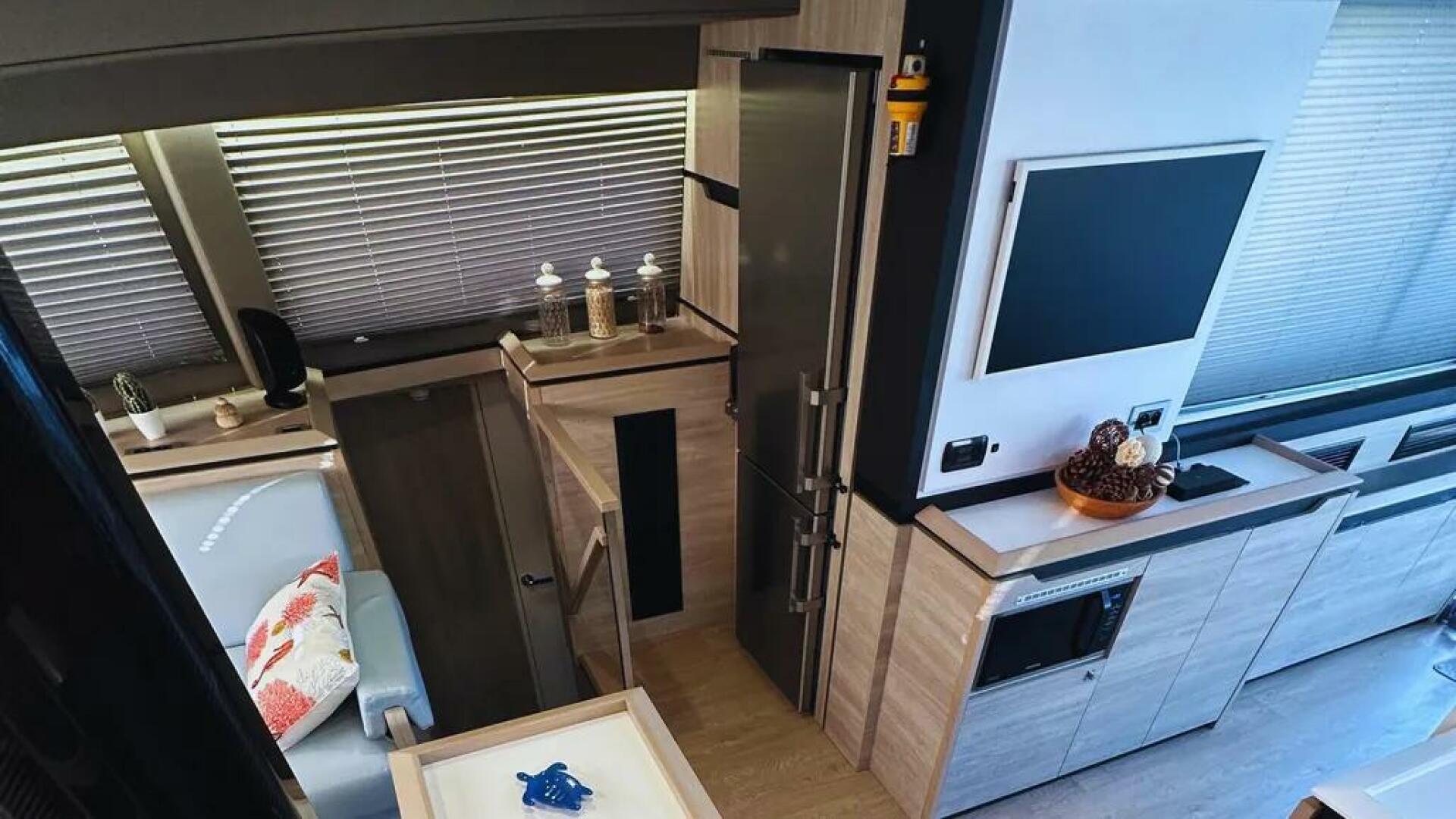

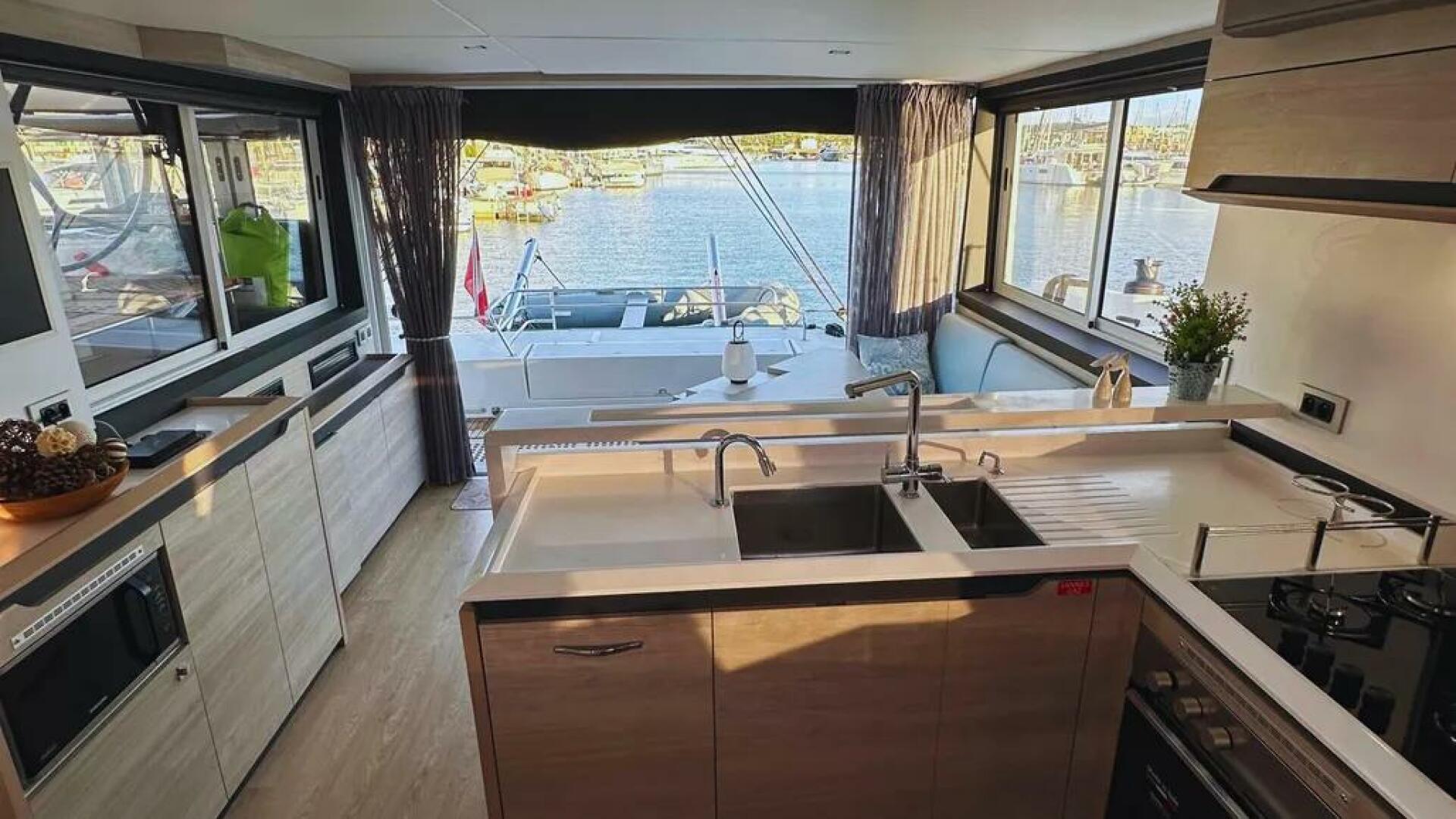

Galley

Galley with large resin countertop 1 stainless steel sink 1½ bowl

1 selective waste bin Pressurized hot and cold water

4 AC outlets (220/50hz or 115/60hz)

1 x 4-burner gas hob with pot holder and gas shutoff tap 1 stainless steel gas oven with grill and gas shutoff tap Refrigerator 267 l

Freezer 98 l

Dishwasher 9 sets 220 V integrated in galley Microwave oven 220 V

Dimmable LED spotlights

2 Smoked plexiglass panels for access to the bow lockers

2 Polyester panels for engine hold access with diamond point anti-slip

2 Polyester panels for access to leading edge lockers with non-slip diamond edge 1 Roof hatch over galley in smoked plexiglass with blind and mosquito net

Gas struts for all deck hatches

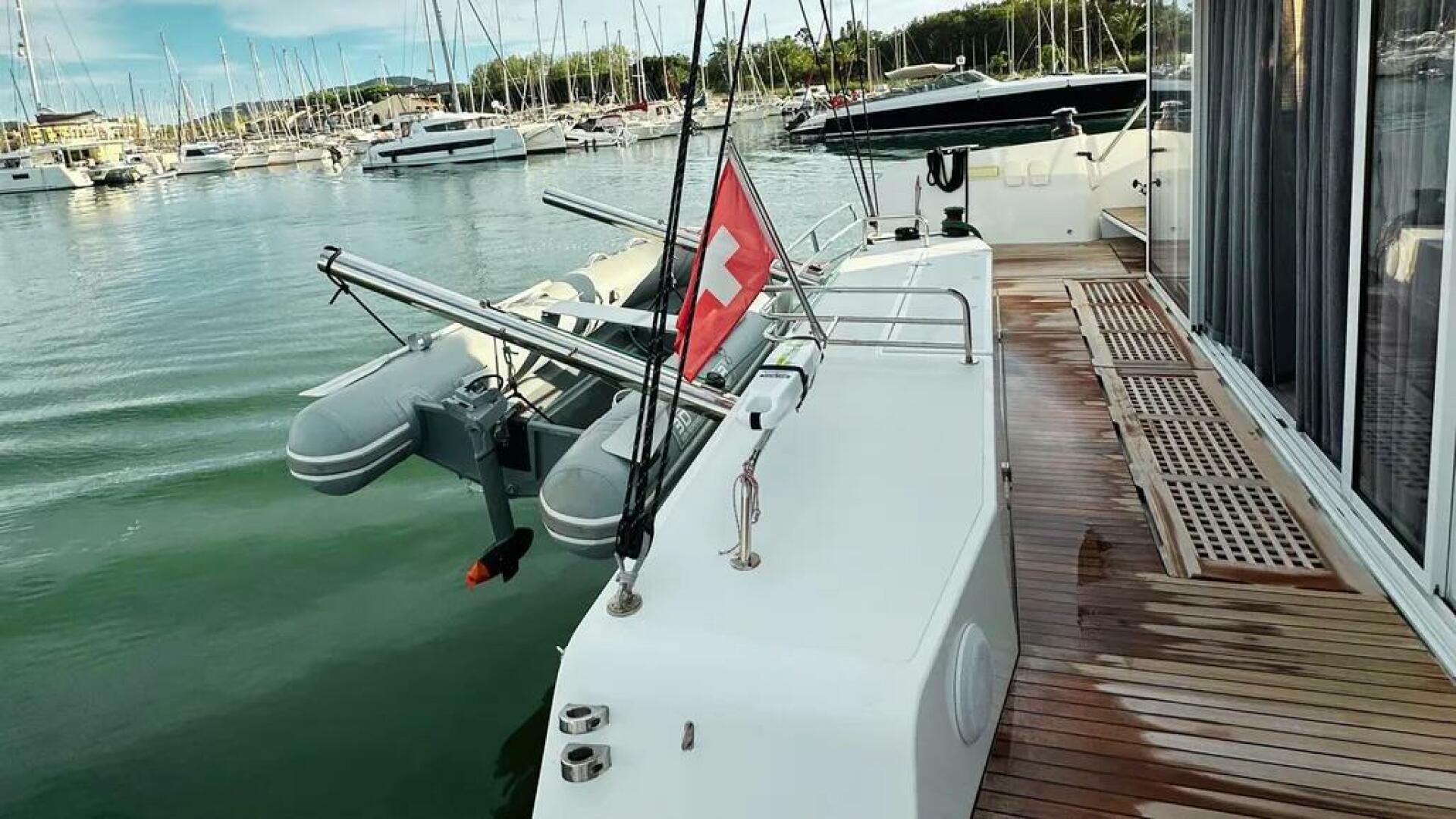

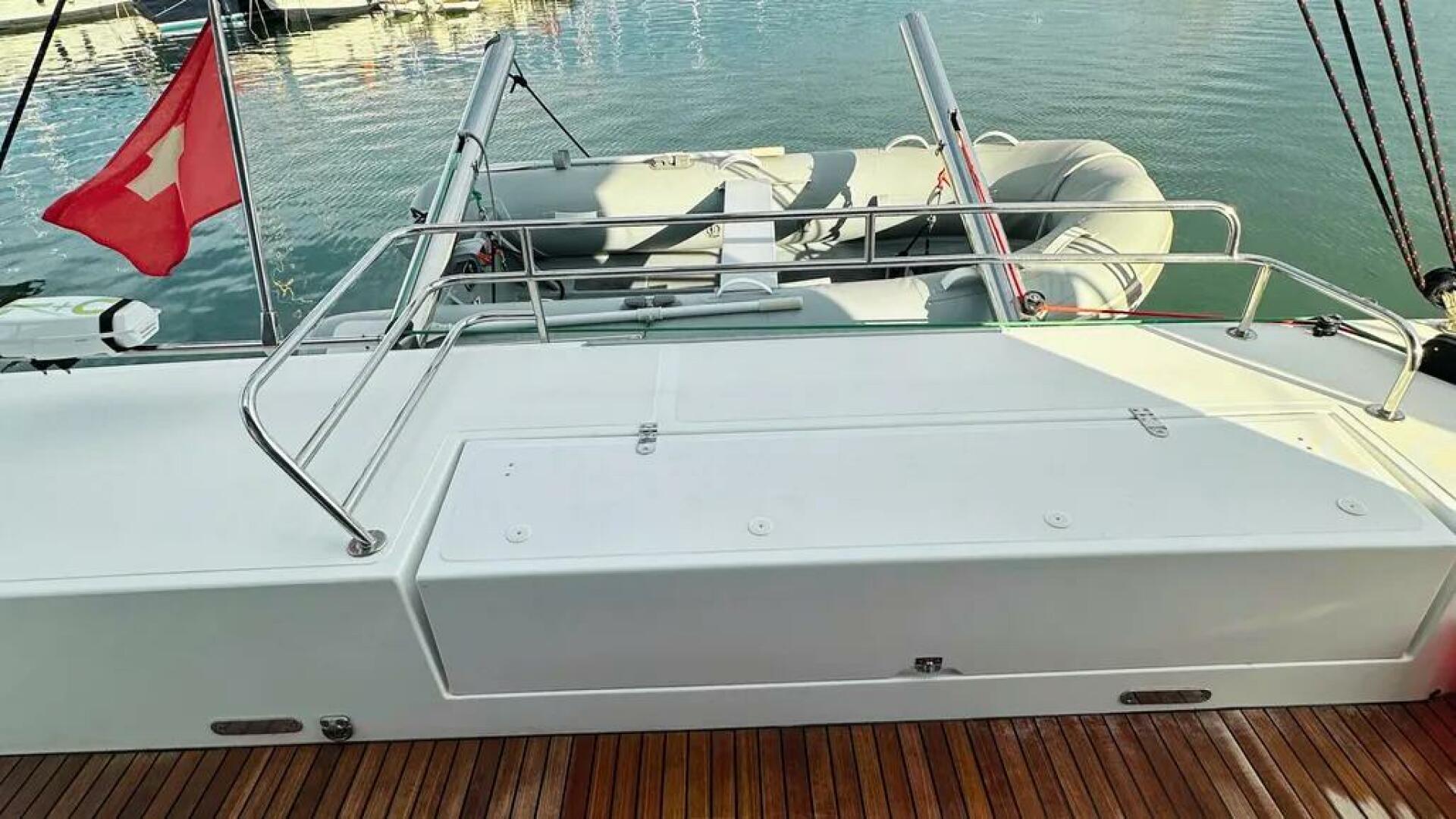

2 Electric davits with Spinlock clutches on each davit

2 Tender hoisting tackles with stainless steel snap shackles on dedicated Electric Winch

2 Daggerboards sliding on PTFE bearings and electrically operated from the helm station

Natural teak for transoms and cockpit + engine compartment hatches + steps to the deck.

Electric sun awning for aft lounge + vertical sun protection (BLACK BATYLINE).

Sun protections for windows of the roof (BLACK BATYLINE).

Set of interior cushions COMFORT TISSUS / MARLIN ANGEL.

HI-FI FUSION 4 speakers (salon/cockpit).

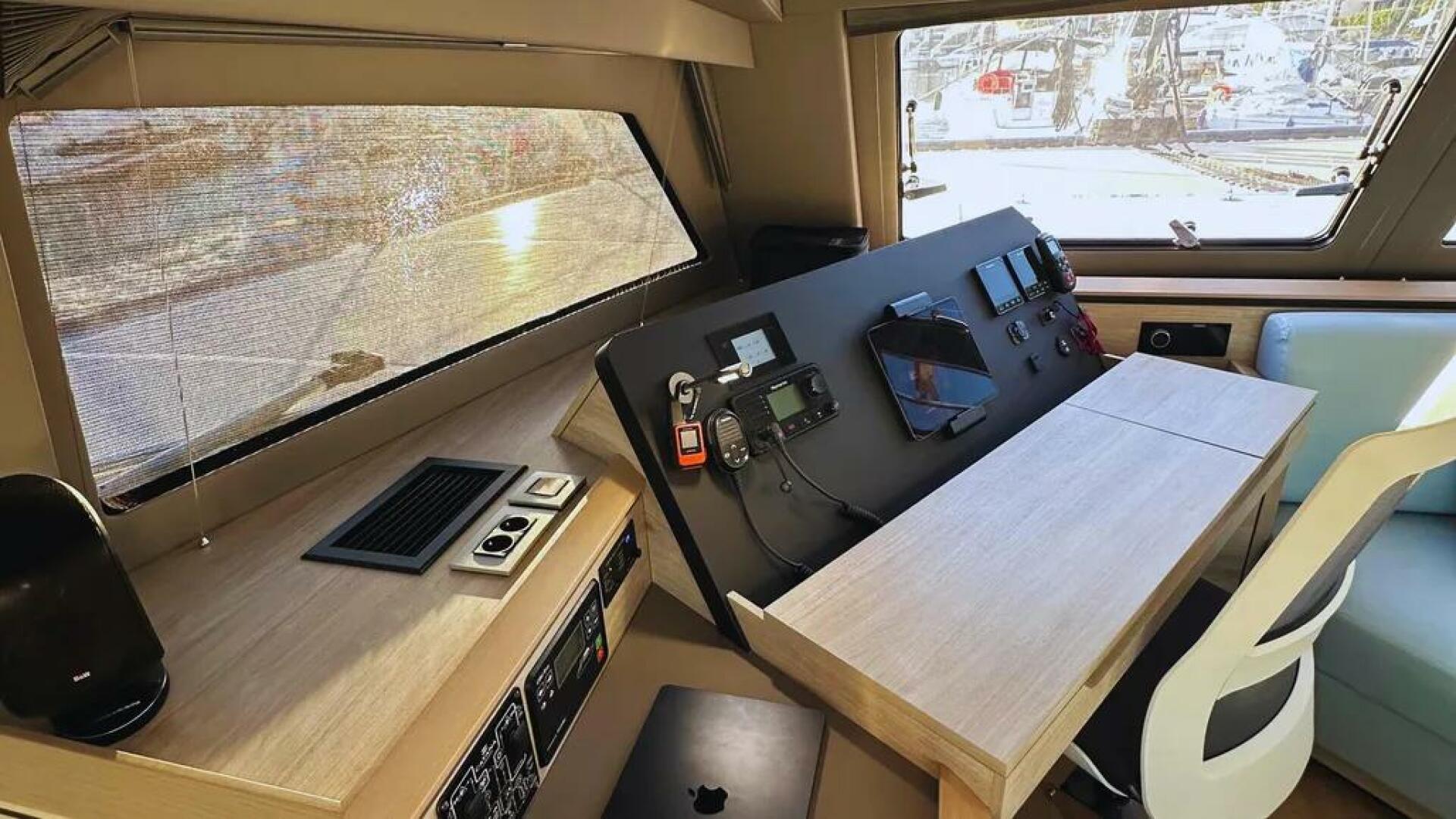

Chart table

P70s autopilot control head unit VHF Ray63

AIS 700 class B with splitter

Multiplexer SHIPMODUL, WiFi version Wireless autopilot Smart Controller

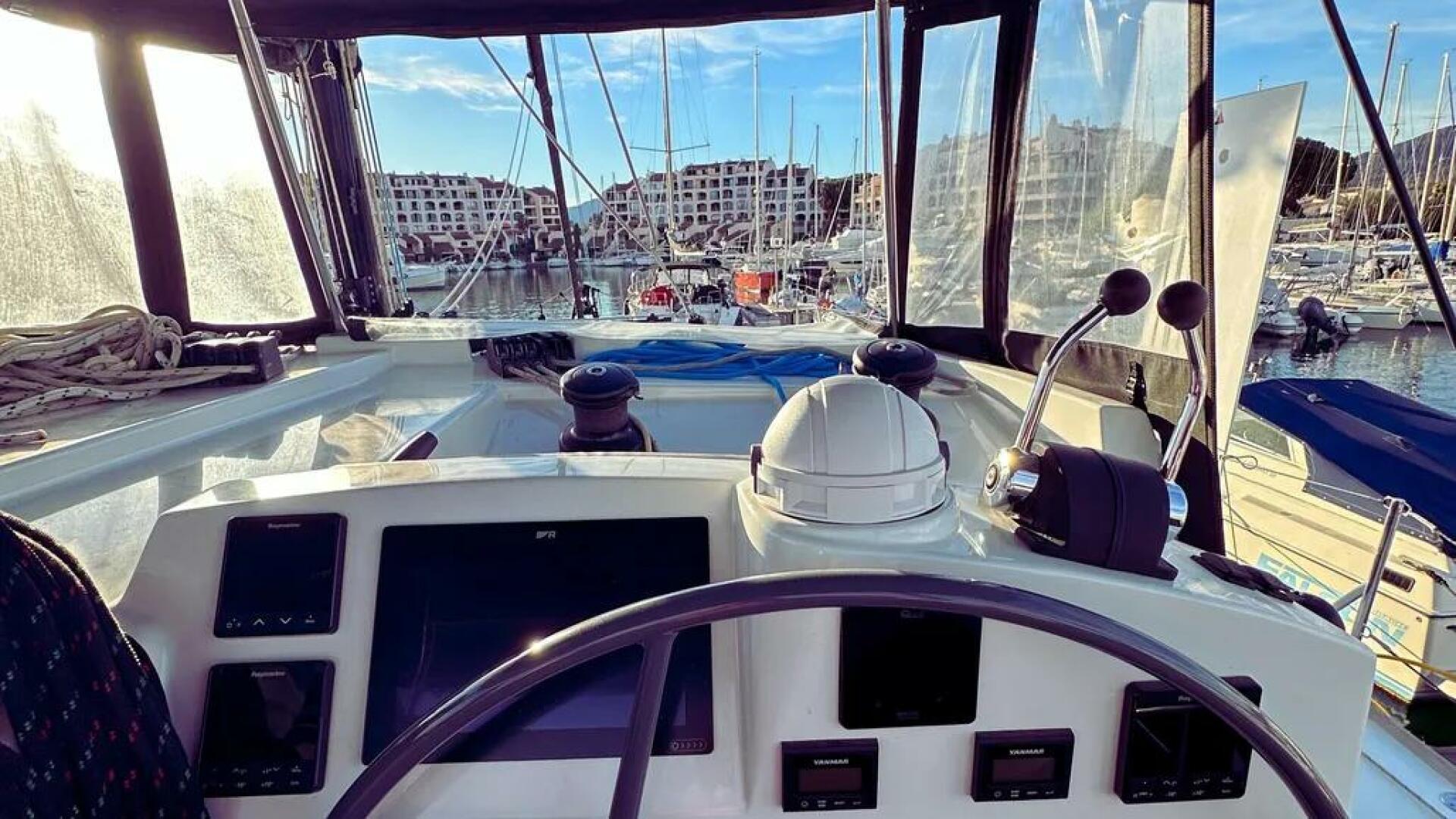

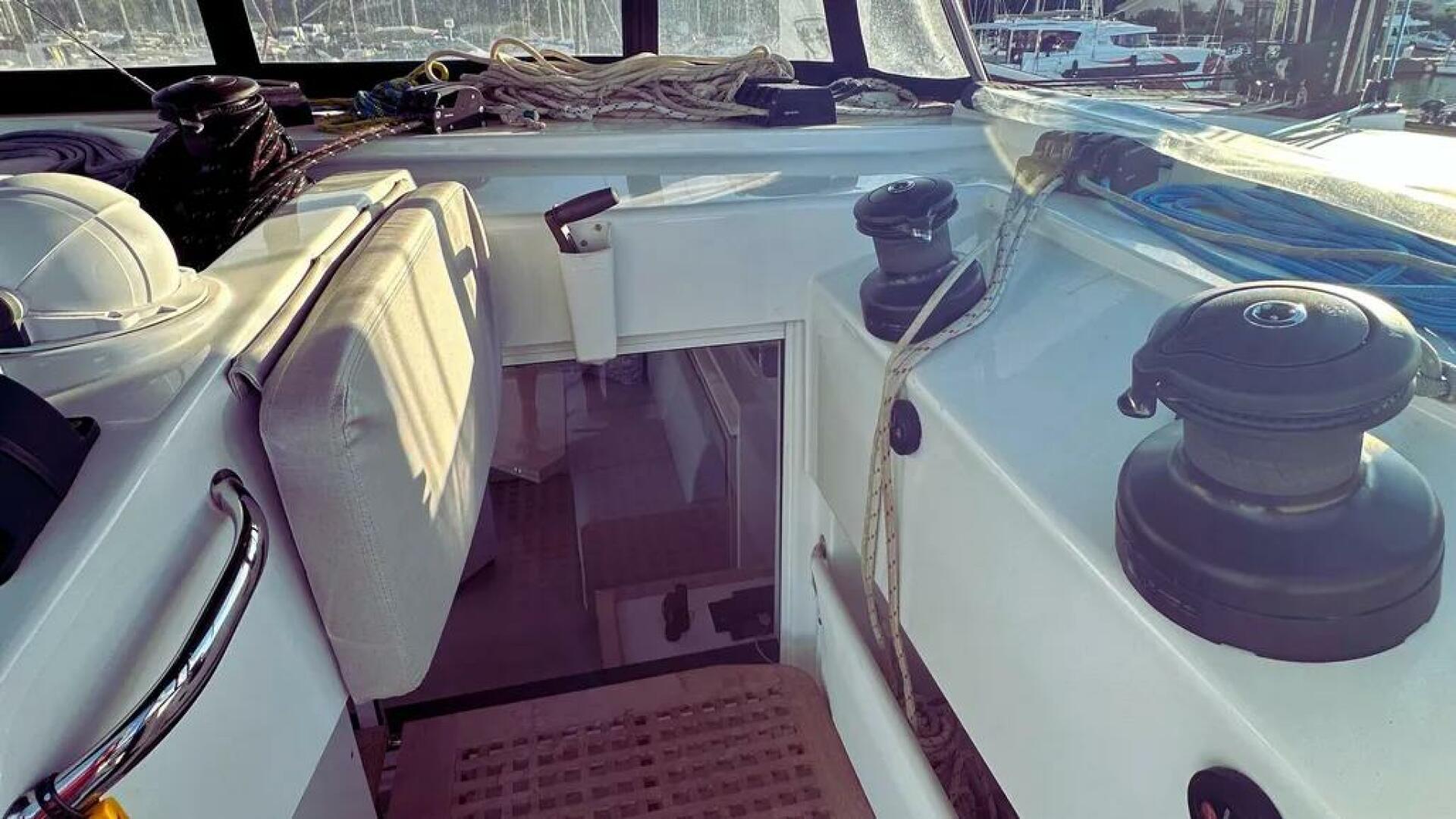

Helm station

Axiom+ 12” touchscreen display Navionics card

P70s autopilot control head unit

P70s autopilot control head unit (for 2nd pilot) RAYMARINE Raymic second station headset RAYMARINE passive speaker

Antennas and sensors

Radar Quantum radome Q24D Scanstrut Quantum radome mast mount

RAYMARINE wired masthead wind transducer RAYMARINE ITC-5 transducer converter VHF antenna

DTS-810 smart multi sensor HS-5 RayNet network switch

Autopilot 1: EV-1 sensor core, ACU-400 control unit, RS-150 GPS, L&S linear drive 50ST20 12V

Backup autopilot 2: EV-1 sensor core, ACU-400 control unit, RS-150 GPS, L&S linear drive 50ST20 12V

Genset ONAN 11 KW 50hz with sound insulation and remote control 220 V 2 x 12V engine starter battery

2 x Engine alternator, 12V 125A

2 x BOOSTER for Alternators 12V 100A dedicated for LITHIUM batteries 1 x 12V service battery bank, 400AH Lithium (LiFePo4)

Charger/Inverter VICTRON 12V/3000W/120A

Control of functions at the chart table via color touch screen Monitoring: tanks, batteries, alarm management

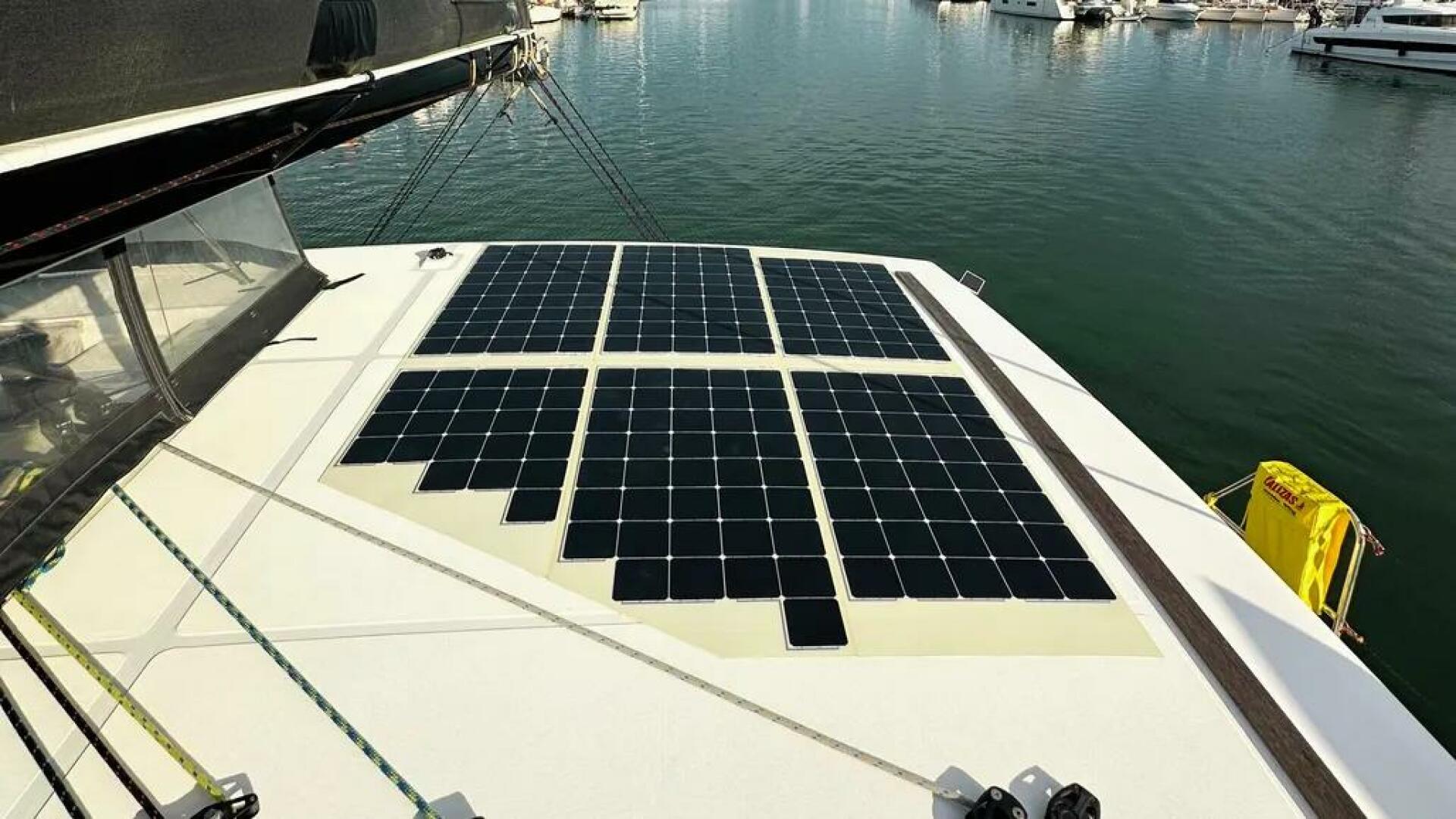

1 shore power connection 220V/115V with 15 m power lead Solar panels on the roof = 1150W

2 independent 400 l diesel tanks with filler necks and overfill protection system (CE) Electric fuel gauges on screen at the chart table

Diesel shut-off valves

2 Freshwater tanks of 400 l each

Electric water gauges on screen at chart table

Watermaker 220 V 240 l/h with remote control and taster in galley

2 Water pumps with pressure tank and safety interconnection system 2 water heaters – electric immersion and engine heat exchanger

2 electric bilge pumps for engine compartment bilges 2 electric bilge pumps interior passageways

Automatic activation of the 4 bilge pumps with visual alarm at the chart table 4 external manual bilge pumps

Shower drains by automatic shower sump pumps Fully automatic black and gray water treatment plant

Seewater pump with galley (sink) and anchor locker outlets Fresh water under pressure in the anchor locker

Independent faucet at the galley sink providing microfiltered drinking water

2 x 57 hp YANMAR diesel engines, soundproofed and totally separated from the interior. Engine panels and controls via mechanical cables at the helm station

2 x Saildrive transmission

2 x MAXPROP 3-blades folding propeller 1 Diesel filter / water separator per engine Location for Watermaker

Engine compartment illuminated by two LED striplights Gray gelcoat finish below waterline areas

Mast, boom, front beam, compression beam, articulated bowsprit painted in Black lacquered

LED masthead anchor light

Exits for mainsail halyard, Staysail halyard, Code 0 or Gennaker halyard and topping lift Combined LED steaming light/decklight

Luff track on ball bearing slides Padeye for attaching lazyjacks Masthead wind instrument Boom with spacers and lazy bag Front beam with LED stern light Compression beam

Hinged bowsprit with 1 x 19 stainless-steel bobstays 2 manual winches PERFORMA for headsails Genoa rigging (2 rails)

Rod rigging stainless steel forestay Furler on forestay

2 stainless steel 1x19 capshrouds 2 lower shrouds

Reinforced sails

90 m² fully battened, triradial cut, Square top Mainsail EPEX (Performance), with 3 reefs, 6-row stitching

Self-Tacking Staysail EPEX, triradial cut, 6-row stitching, SUNBRELLA graphite UV band (Performance)

Code 0 (105 m²) with non-rotation cable + drum furler (SOLARTEX UV band - black) Asymmetric Spinnaker

Running rigging

All running rigging returned to the helm station Mainsail halyard with DYNEEMA core

Double mainsheet

Staysail halyard at the foot of the mast

Code 0 / Gennaker halyard led back to the steering station Staysail sheet led back to the steering station

Staysail furling line

3 Reefing lines (N°1, N°2, N°3) 3 Reefing points (N°1, N°2, N°3) Boom topping lift

2 Flag halyards Adjustable foot tension

Mainsail

Double purchase, 4-line sheeting 2 Padeyes for mainsheet

2 Boom preventer padeyes on deck edge

Mainsail cover: battened lazy bag in fabric ELVSTRØM (SUNBRELLA GRAPHITE), and adjustable Ø 8 mm lazy jacks in DYNEEMA

Staysail

1 Sheet track forward of the mast

1 Track single slider for halyard tensioning

1 Furling line led back to the helm station with clutch 1 Sheet clutch

Sail maneuvers led back to the helm station 3 Reefing tack clutches

3 Reefing line clutches

1 Clutch for mainsail foot tension 1 Main halyard clutch

1 Topping lift clutch 1 Staysail clutch
