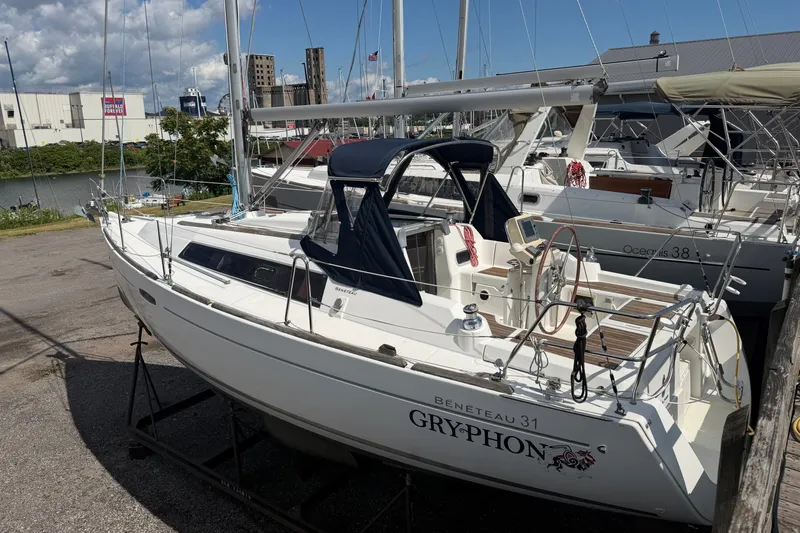

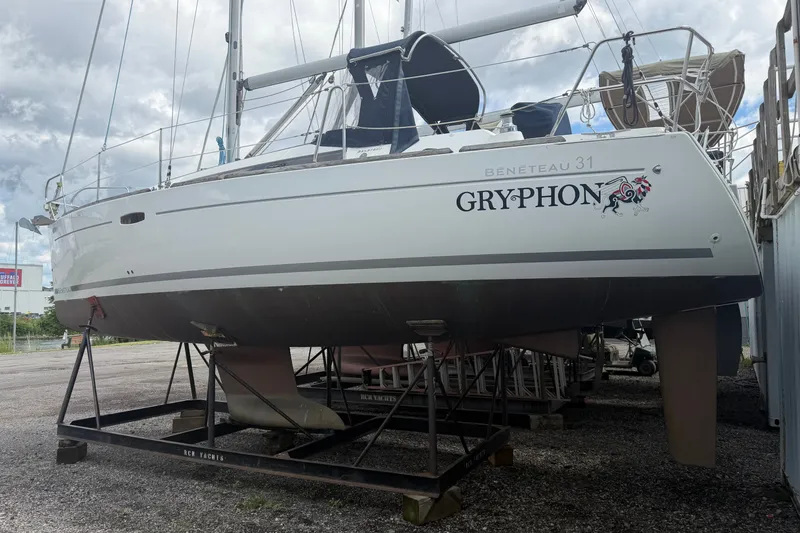

2009 Beneteau Oceanis 31 Boat in Buffalo, NY 14203 US

CONSTRUCTION

Hull of hand-laid solid GRP bonded to a structural grid/hull liner of

directional fiberglass/GRP for a strong, stiff, light composite. Vinylester

hull barrier coat to resist osmotic blistering and zone-specific stitchmat

laminates for specific increased strength optimization.

Cored GRP sandwich construction for stiffness, thermal and acoustic

insulation and lighter weight. Solid fiberglass reinforcements in high

load areas. Integral unidirectional GRP deck beams for added strength.

Main bulkheads bonded 360° to the hull and deck for rigid torsional and

compressive strength.

Standard Equipment:

STANDING RIGGING

Deck stepped 9/10 fractionally rigged, classic, anodized aluminum mast

Aft-swept spreaders

Halyard blocks attached to mast step

Anodized aluminum boom with single line reefing – (2) reefs and an outhaul

Classic mainsail with lazy bag

Stainless steel (1) 19 cable (Forestay, capshrouds, intermediates,

lower shrouds, twin backstays)

(4) Chainplates for the shrouds

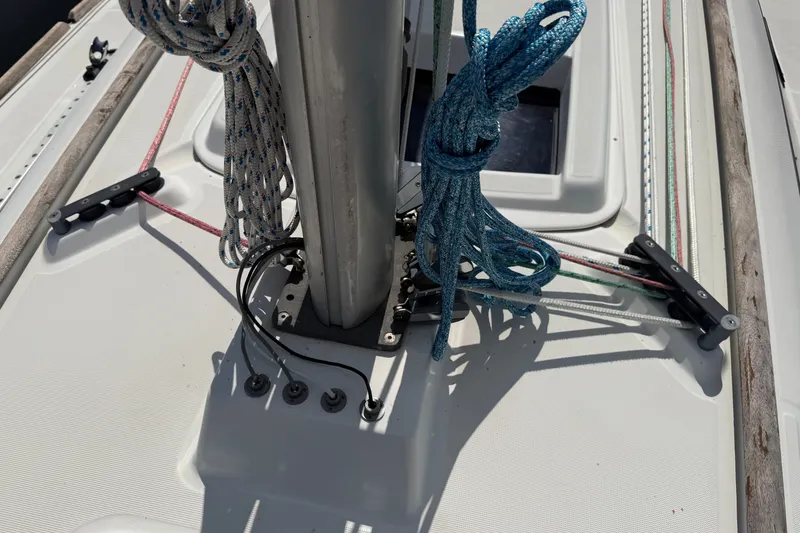

RUNNING RIGGING

Running rigging is led to the cockpit

Running rigging includes:

(1) Mainsail halyard (1) genoa halyard w/ jammer and cleat on mast

(1) boom topping lift with cleat on mast (2) mainsail reefing lines

(1) outhaul line (1) mainsheet (1) rigid boom vang with tackle (2) genoa

sheets (1) genoa roller furling line led along the toerail to a jammer

SAILS

Furling genoa with 105% overlap, with anti-UV protective strip

(1) Classic mainsail with battens

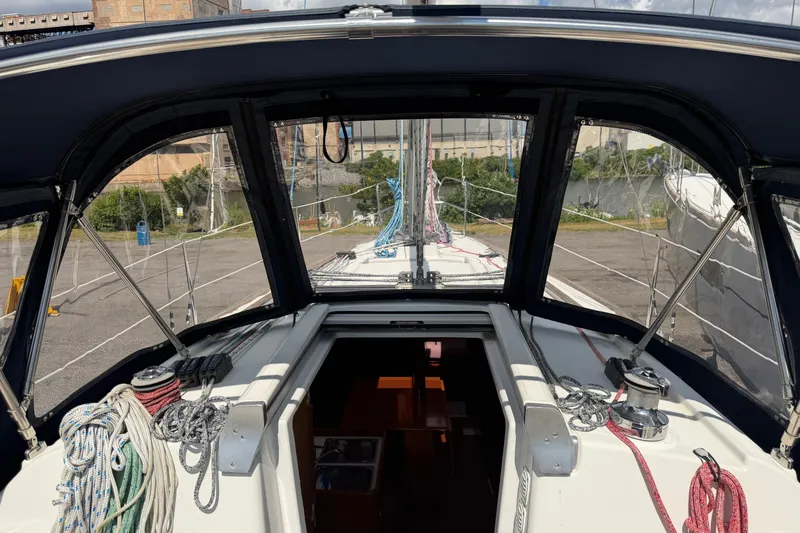

DECK GEAR

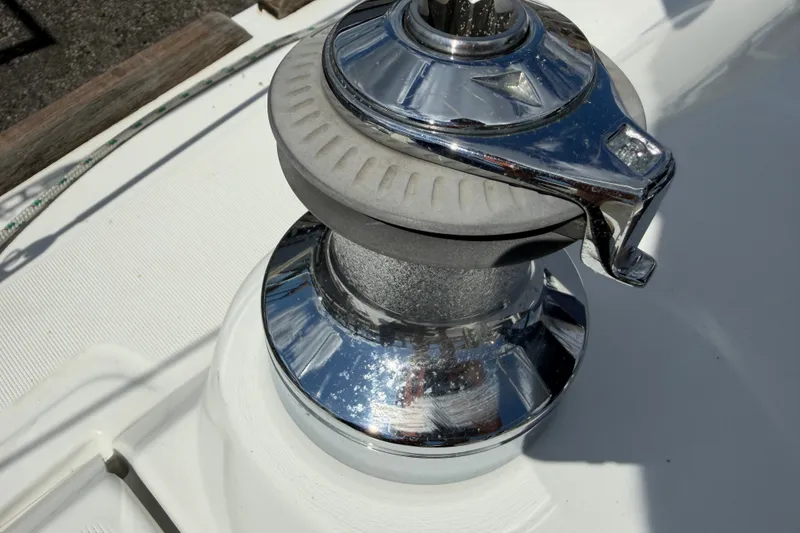

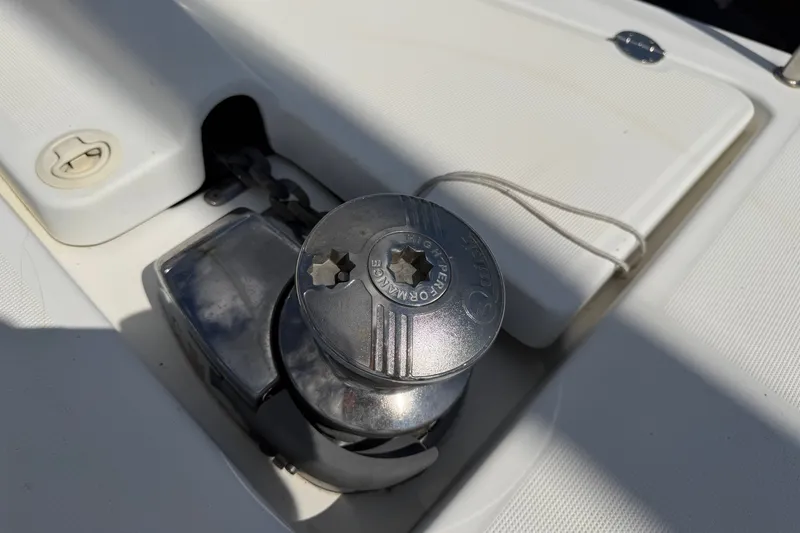

Winches are chrome-finish Lewmar self tailing winches

(2) Genoa sheet winches on coaming (30 cst)

(1) Winch on portside coachroof (30 cst)

(1) Aluminum winch handle

(1) Winch handle pocket in cockpit

MOORING AND ANCHORING

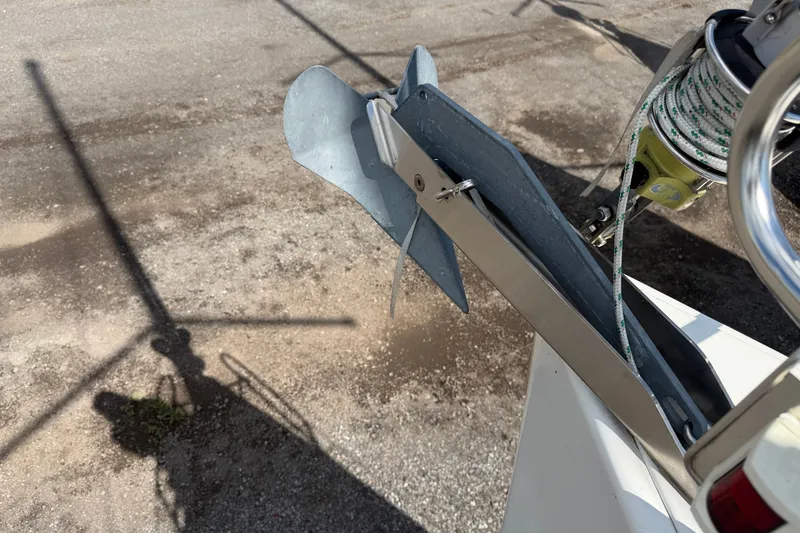

Welded stainless steel bow fitting

(4) Aluminum 300mm mooring cleats with stainless steel protection plates

on the top of the hull deck line

Self-draining anchor locker with cover and catch

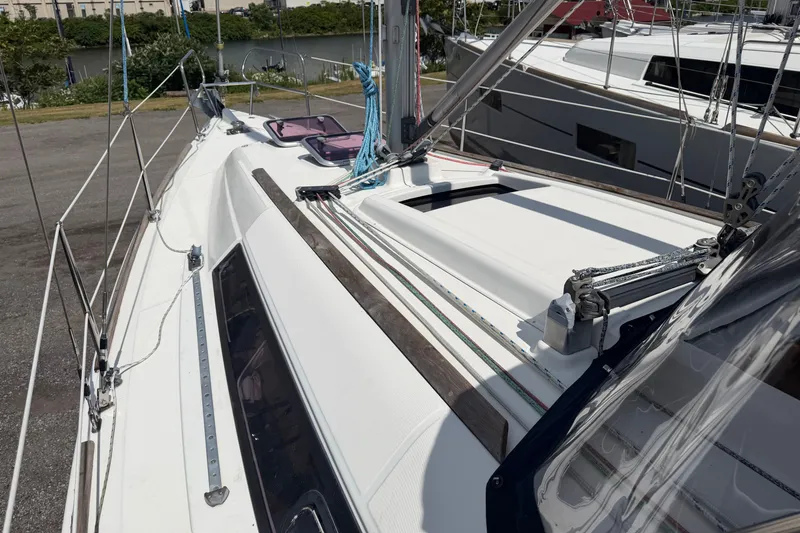

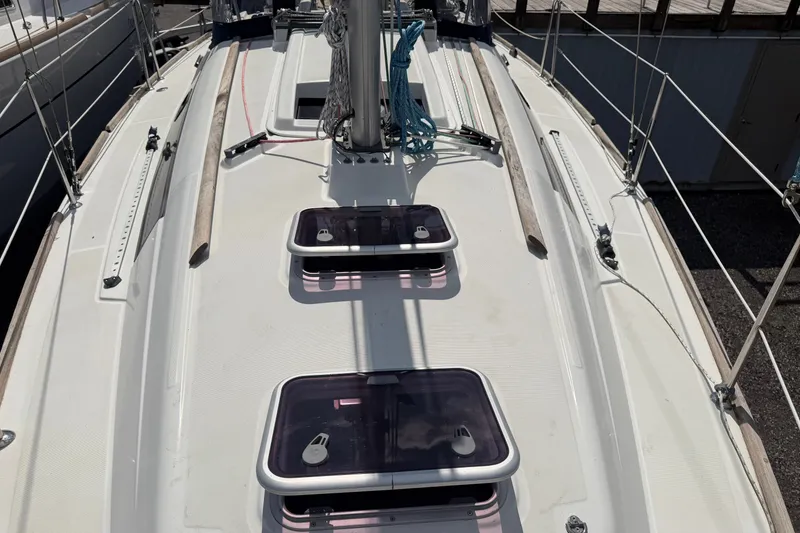

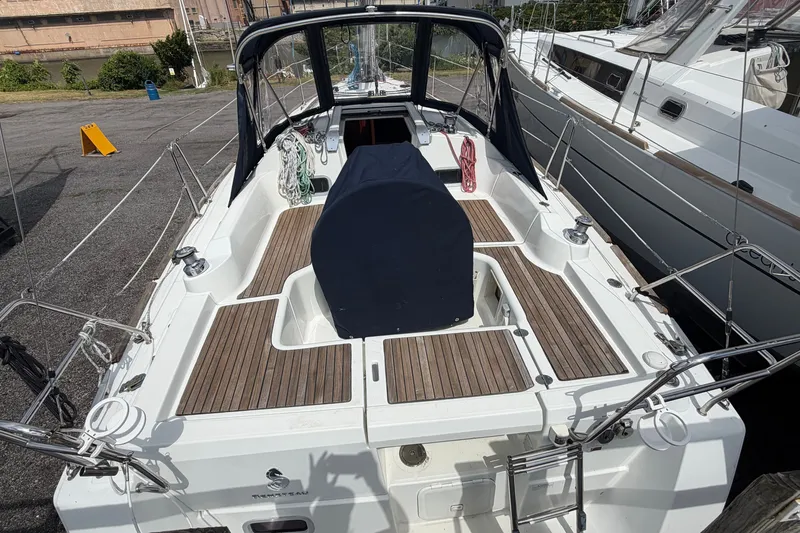

ON DECK

Stainless steel open bow rail w/nav light

(2) Stainless steel stern rails

Lifebuoy holder and flag staff

Double vinyl coated lifelines with gates

Teak toe rail surrounding deck

(2) Cockpit stowage lockers

Teak inlaid cockpit seats

Pedestal mounted compass

GRP self-draining cockpit sole

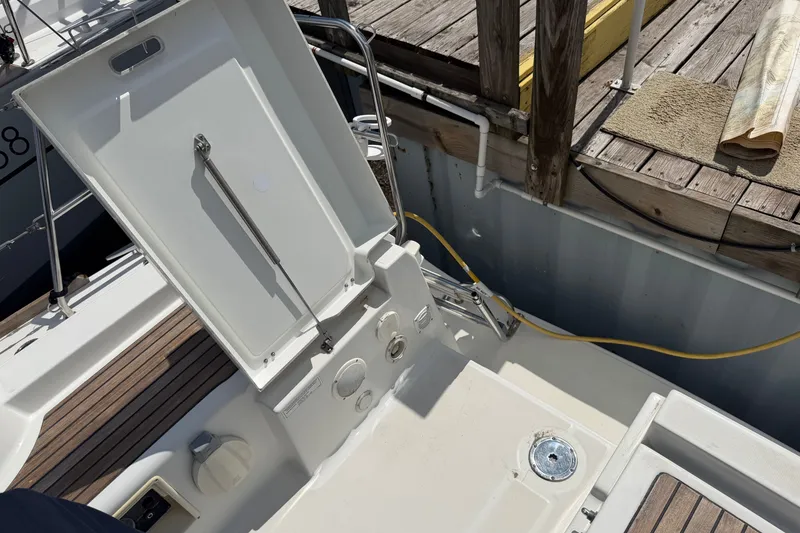

Access to bathing platform via pivoting seat

Stainless steel swim ladder to starboard

(1) Cockpit shower to starboard

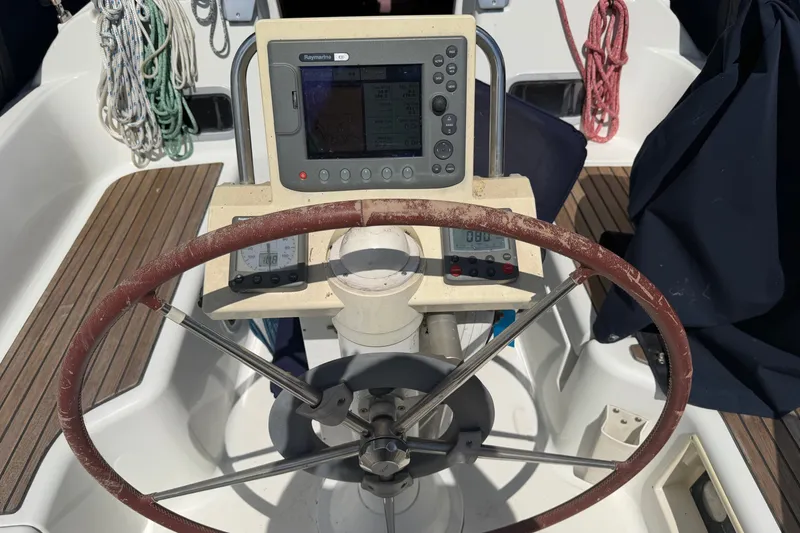

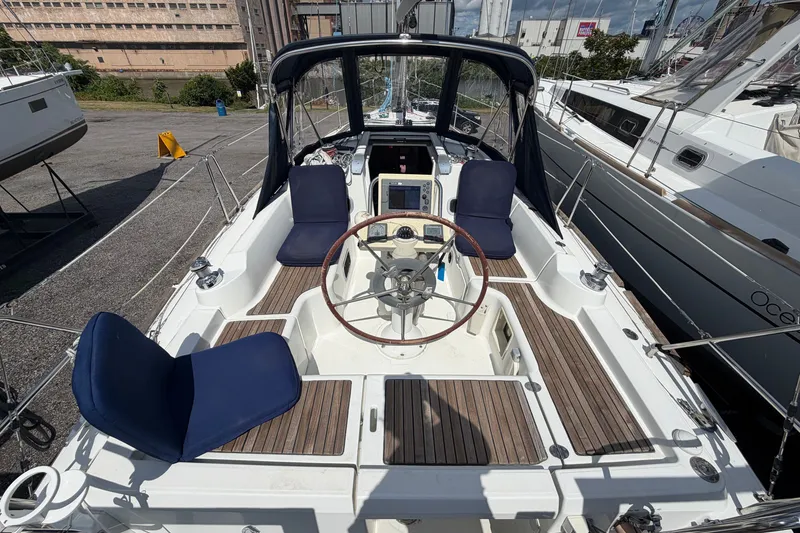

STEERING

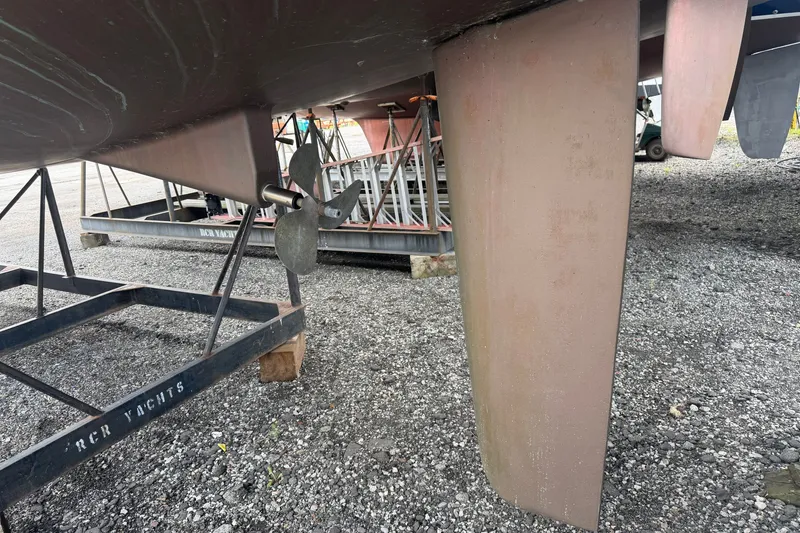

Spade rudder with stainless steel stock

Single steering station in aft cockpit:

A 36" diameter pedestal mounted steering wheel

Emergency tiller access point & emergency tiller

ACCOMMODATION

Woodwork is fruit-tree stained ALPI

Parquet look laminated soles

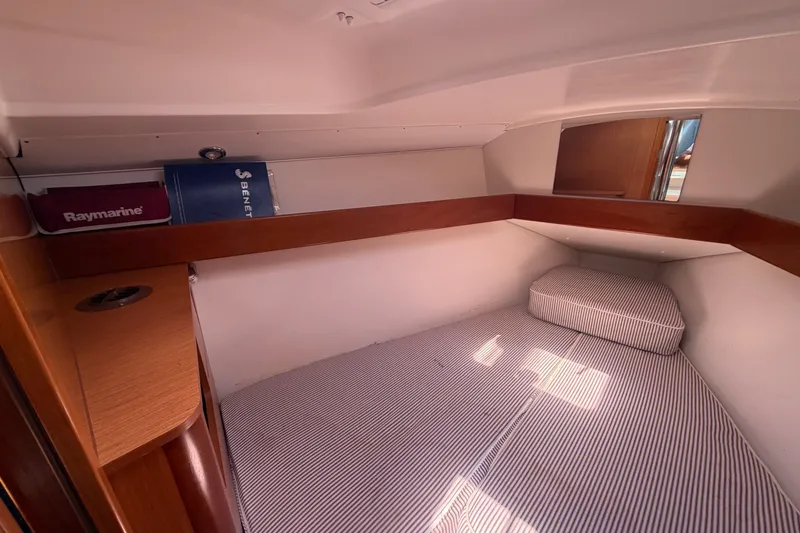

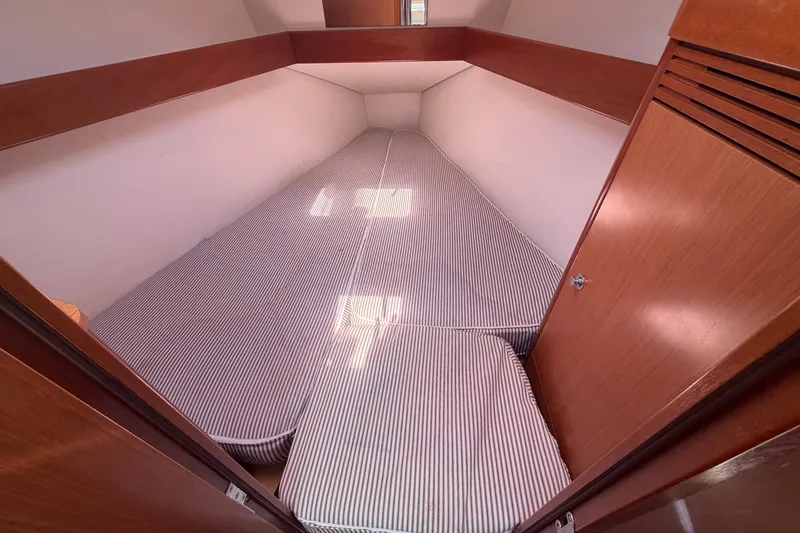

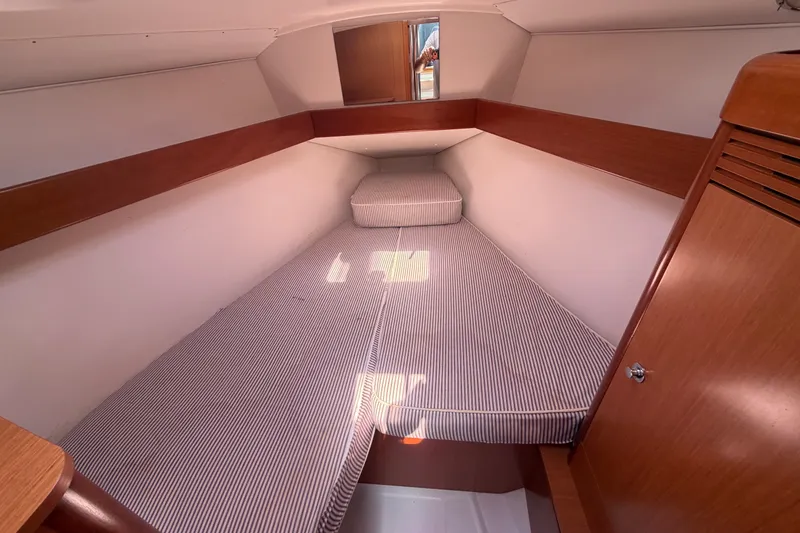

OWNERS CABIN FORWARD

Headroom: 6' at foot of berth

Double berth: 6'8" x 4'1" with high

quality bi-density marine mattress

Ample Stowage space:

(1) Hanging locker to starboard

(1) Shelf either side of berth

(1) Stowage unit under berth (accessed through front of berth)

Stowage units under berth (accessed from above)

(1) Berth backrest unit with stowage

Openings and lighting:

(1) Opening hatch with curtain

(2) Strip lights and (2) overhead lights

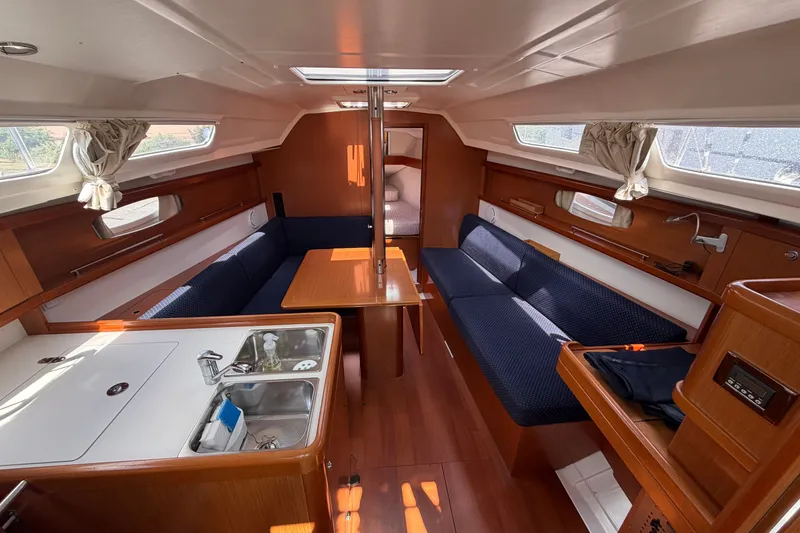

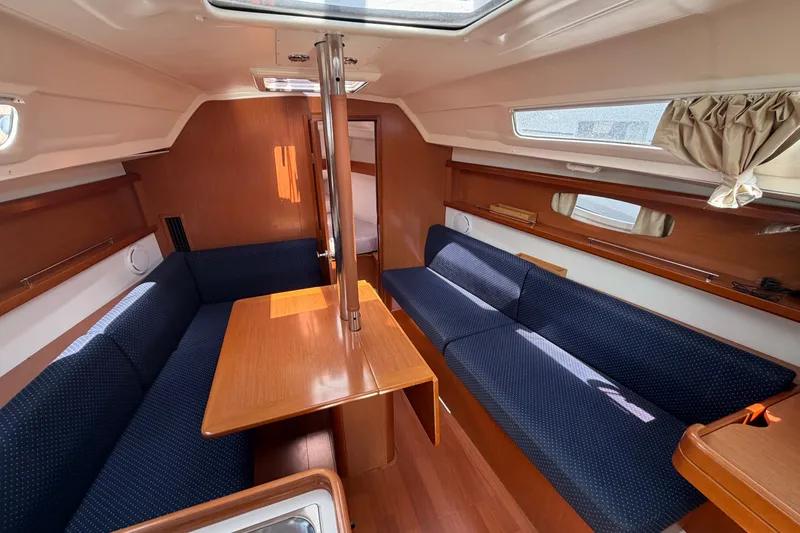

SALON & COMPANIONWAY

PMMA companionway hatch and door

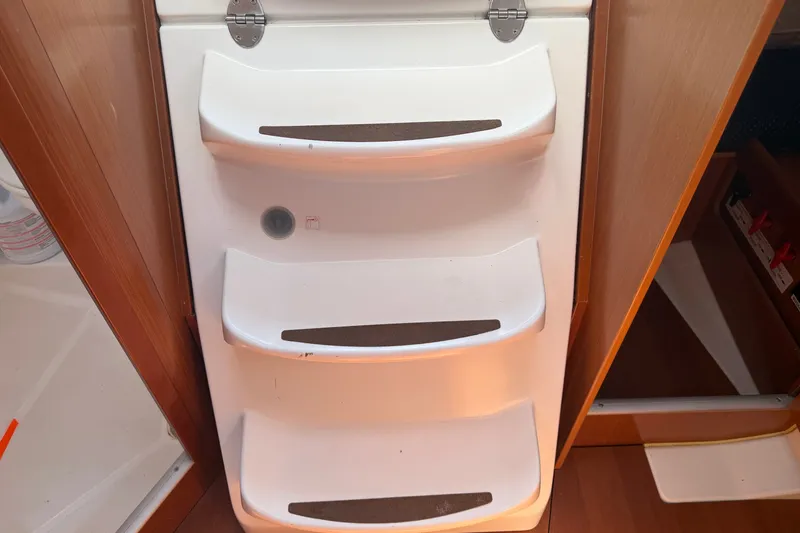

GRP companionway and companionway steps

(1) Stainless steel handrail

(1) Fixed overhead window with curtain

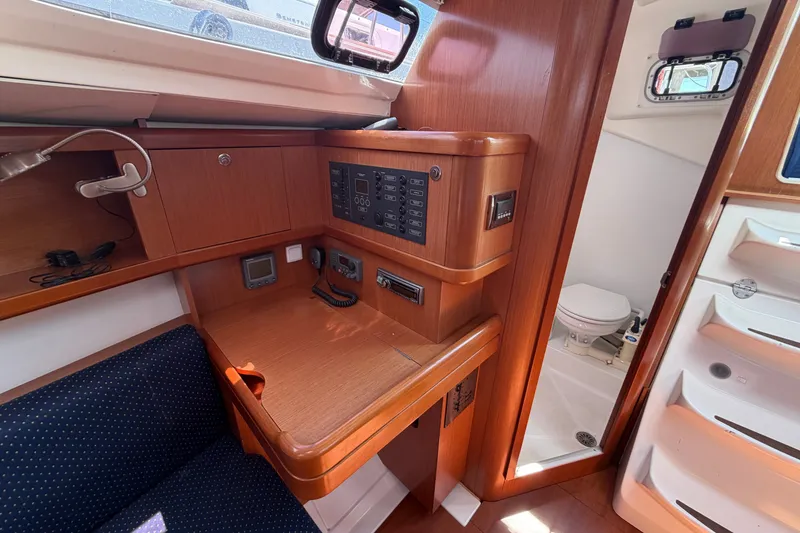

Chart table to starboard faces towards companionway

Chart table with lid and storage space

Molded wood fiddle

(1) Shelf unit under table top

(1) Stowage locker under chart table

(1) High shelf

12 Volt electrical panel with 12 Volt socket

Lighting:

(1) Red/white strip light at the chart table

To Port:

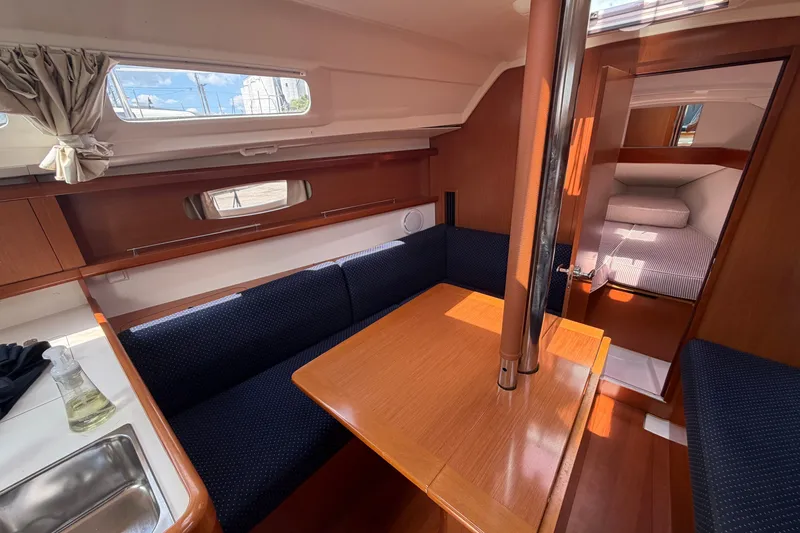

L-shaped saloon with 4/6-seater settee and (4) cushions

Stowage under the seats

Wooden salon table

(1) Bar storage unit behind settee backrest

(1) Closed shelf along the hull

Openings and lighting:

(2) Overhead lights and (2) strip lights

(1) Large side window to port with curtain

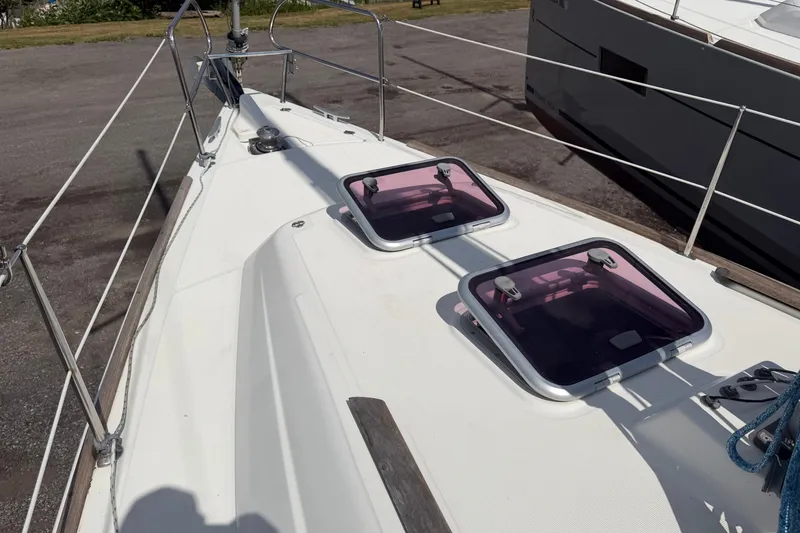

(1) Opening hatch with curtain

(1) Hull port with curtain

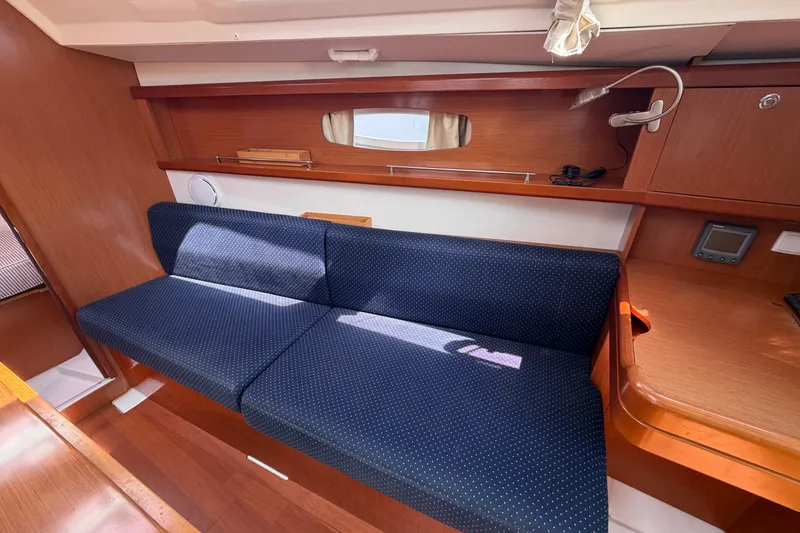

To Starboard:

(1) Settee

Stowage under settee

Openings:

(1) Large side window to starboard with curtain

(1) Hull port with curtain

L-SHAPED GALLEY TO PORT

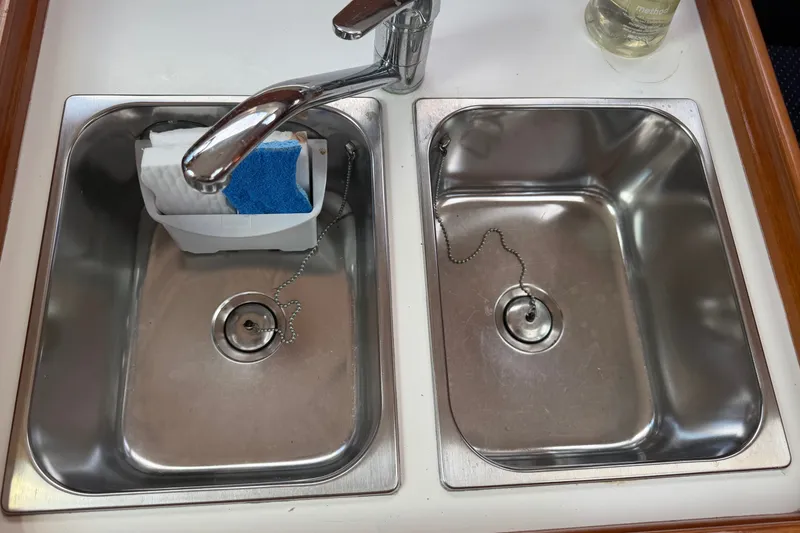

(2) Rectangular stainless steel sinks

(1) Mixer tap with hot and cold pressurized water

(1) Stainless steel gimballed 2-burner stove and oven with

stainless steel safety rail

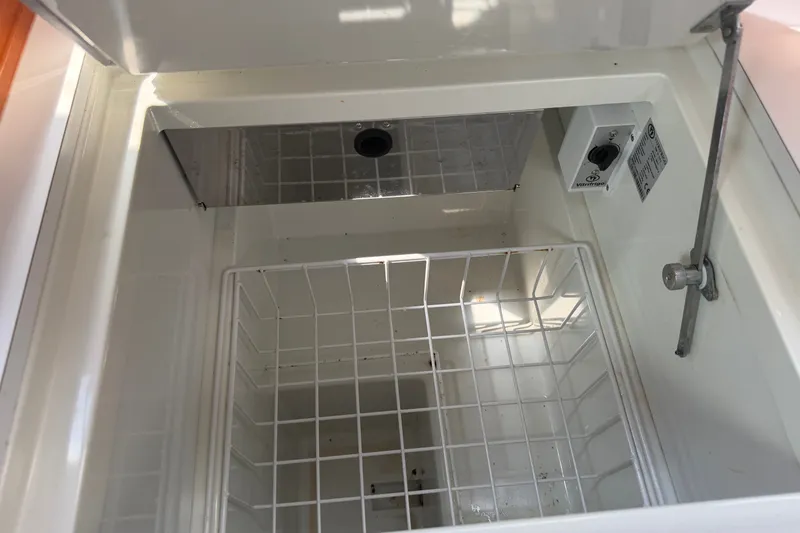

(1) Top opening 26 gal icebox

White laminated worktop

Stowage:

(1) Single door locker containing waste bin undersinks

(4) High closed stowage shelves

(1) Top-opening stowage locker

(1) Stowage locker under the stove

Openings and lighting:

(1) Opening deck port on coaming in side window

(1) Strip light and (2) overhead lights at galley level

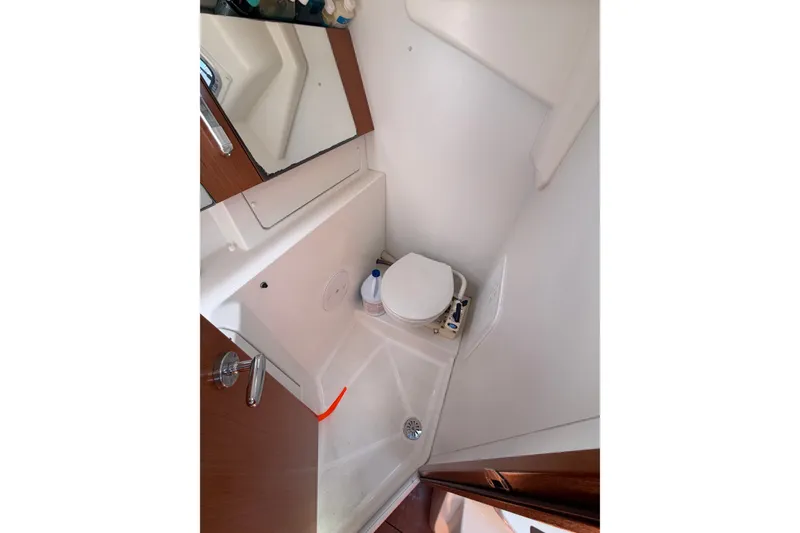

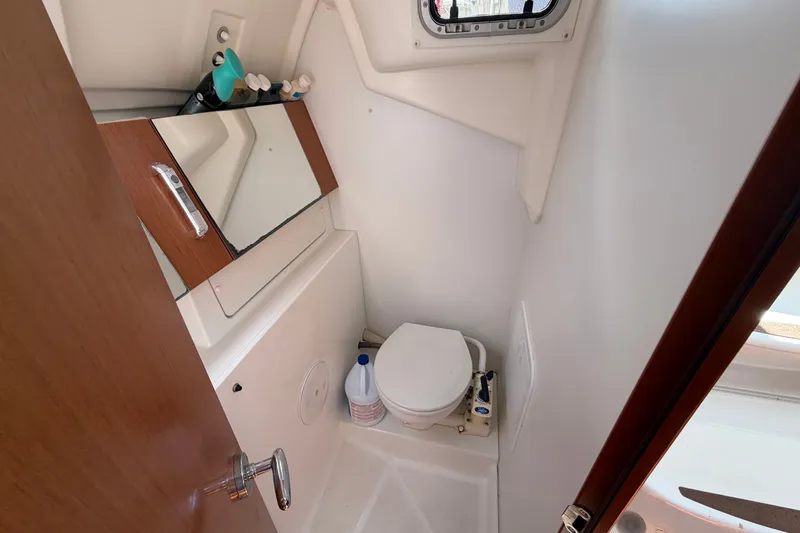

STARBOARD AFT HEAD

Access through the salon

(1) Shower pan

(1) Large bowl manual marine toilet

21 gal rigid holding tank as standard

Worktop with washbasin

Hot/cold mixer tap

(2) Closed shelves

Mirror

(1) Locker under washbasin with waste bin and paper-holder

(2) Cloth hooks on entrance door

Openings and lighting:

(1) Deck port opening on coaming in side window

(2) Strip lights

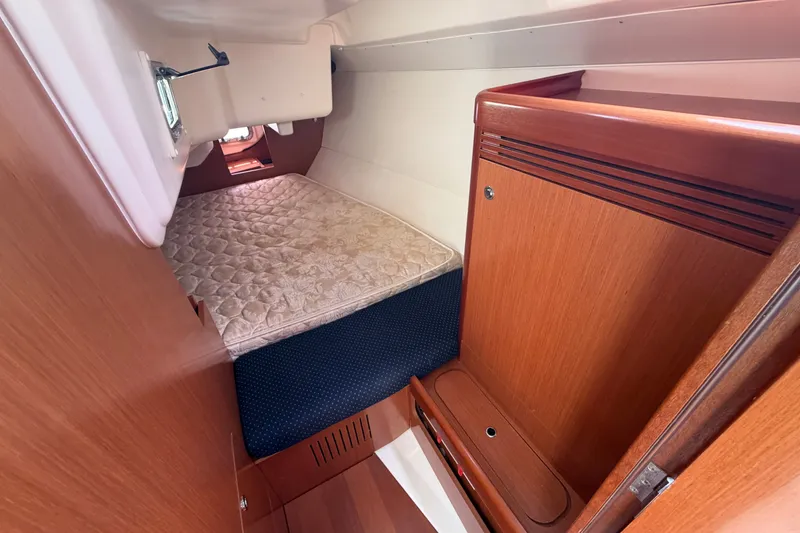

PORT AFT CABIN

Headroom: 6' approx

Double berth 5'7" x 6'1" with high quality bi-density marine mattress

(1) Hanging locker

Openings and lighting:

(1) Opening port on cockpit backrest with curtain

(1) Overhead light and (2) strip lights

PLUMBING

Fresh water:

Electric water pump with accumulator tank and filter

protecting the system

(1) Rotomolded water tank fixed to the hull liner (34 gal beneath

the port aft cabin berth)

(1) Stainless steel water fillers

(1) Cold water cockpit shower

Drainage:

Electric wastewater pump for the shower

(2) Bilge pumps (one manual and one electric)

Self-draining cockpit and side deck drainage

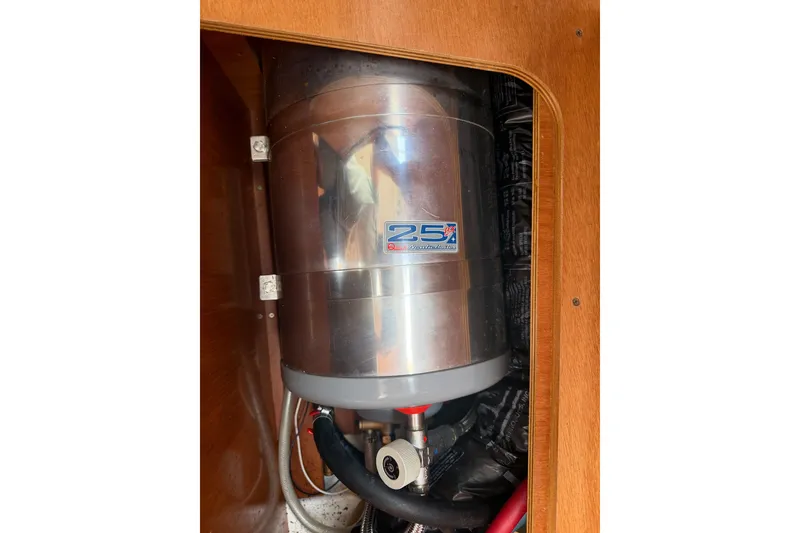

Hot water:

6.6 gal electric water heater

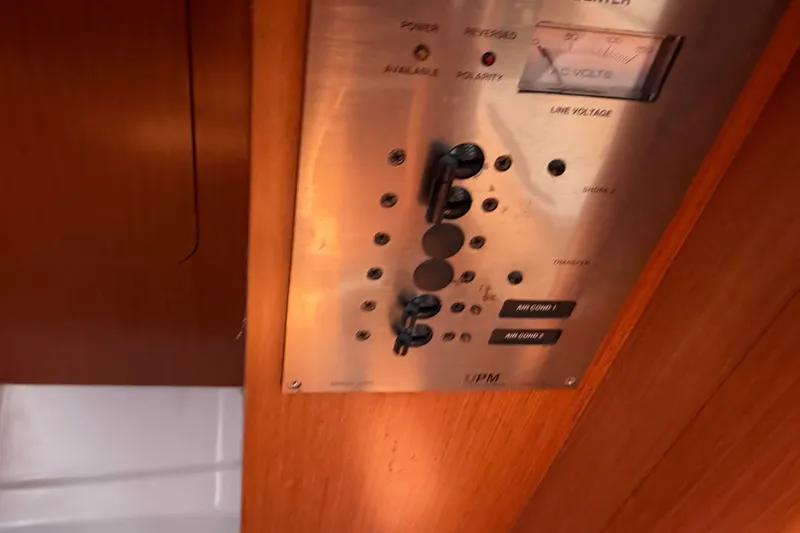

ELECTRICAL

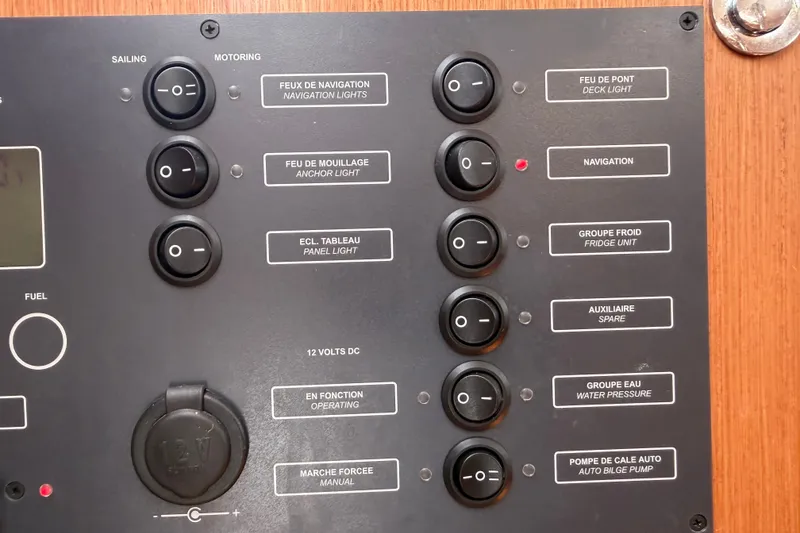

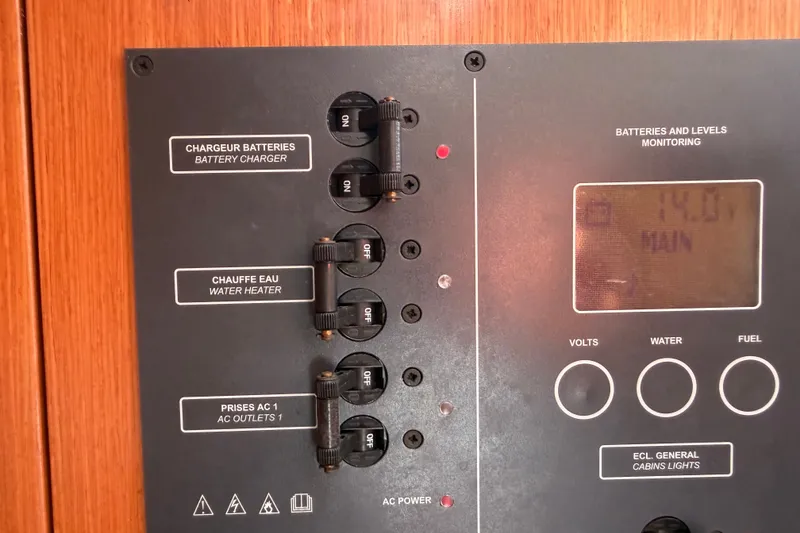

Electrical panel:

(10) 12 Volt switches & (9) fused switches

12 Volt cigarette lighter socket

12 Volt voltmeter

Water gauge and fuel gauge via central LCD display screen

Low battery alarm and low diesel and water tank alarm

Supply:

(1) 70 Amp service battery (under companionway)

(1) 70 Amp engine battery (aft port cabin).

Battery charging:

Alternator coupled to the engine (60 Amp)

12 Volt battery isolator

Lightning grounding for the rigging

Lighting and sockets:

(8) Reading lights

(7) Halogen overhead lights

Bow and stern navigation lights

Engine light (steaming light) forward of mast

Masthead anchor light

Conduits for wiring of options

ENGINE

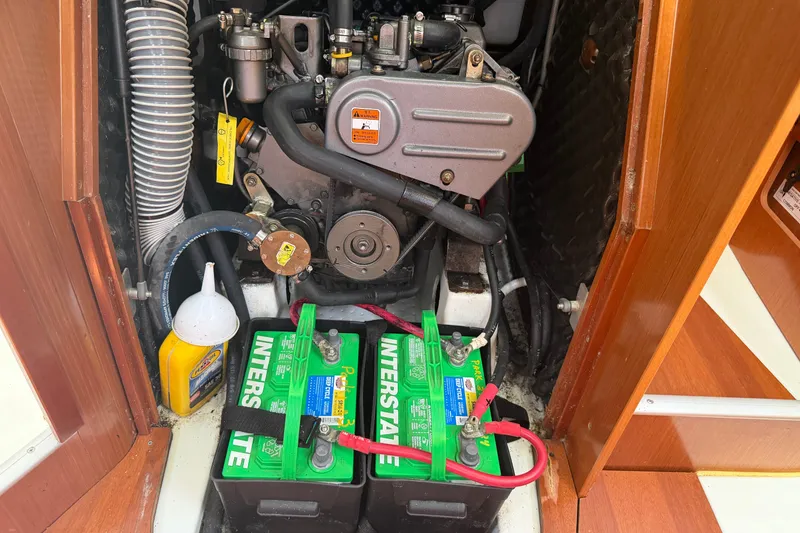

Yanmar 20 hp engine – drive shaft transmission

Stainless steel drive shaft with GRP protection molded into the hull

Engine bed integrated in hull liner, soundproofed compartment

with insulating foam

Access under companionway steps through an opening supported

by gas struts

(2) Side access hatches in the head compartment and aft cabin

Fixed three-blade propeller

Rotomolded fuel tank (34 gal) with electric gauge, located under

the aft starboard berth

Seawater strainer and diesel fuel filter

Engine control panel with built-in key start and electric stop in the

cockpit to starboard

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

Optional Factory-Supplied Equipment:

Shoal Draft Keel

Bubble Cobalt Salon Fabric

Mattresses in Sleeping Cabins

In-Mast Roller-Furling Mainsail

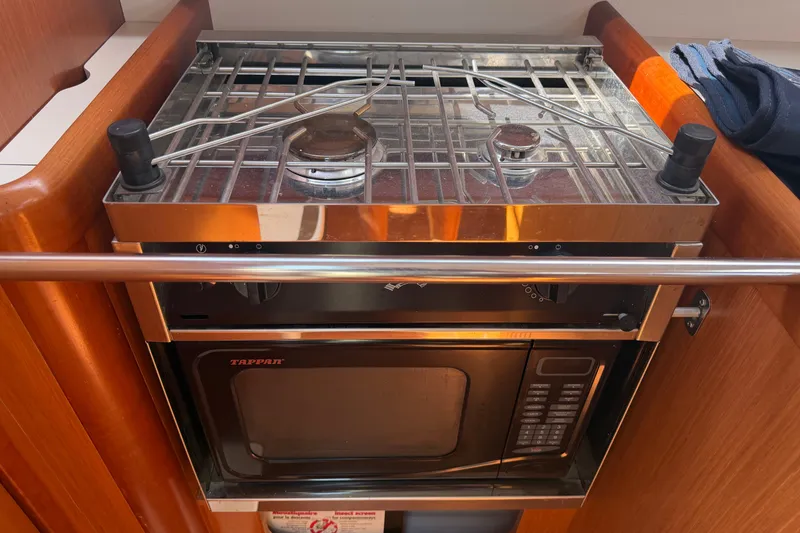

Combination Propane Stove Top with Microwave Oven Below

Electric Anchor Windlass

Genneker Gear

Additional #30CST Cabintop Winch

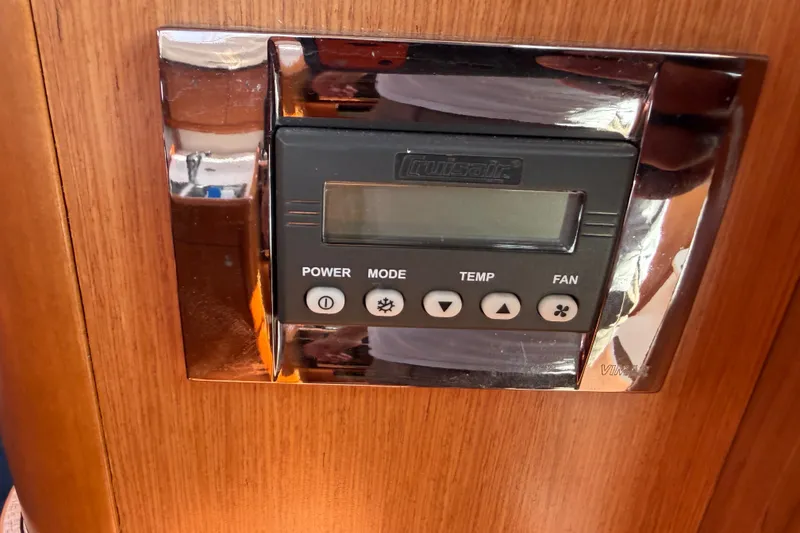

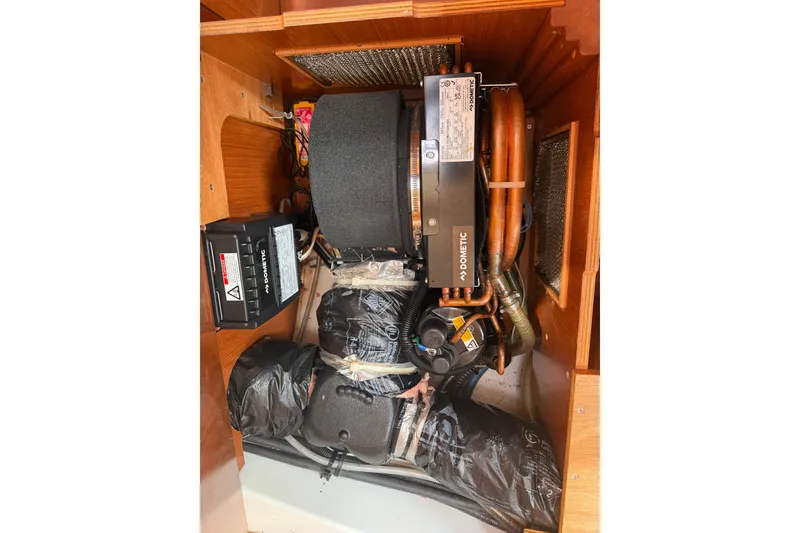

Air Conditioning 12,000 BTU with Reverse Cycle Heat

Macerator Pump for Head

Exclusive Pack:

            Remote Control Courtesy Lighting

            Dish Drainer, SS Fiddles on Salon Shelves

            Extra Mirrors in Forward Cabin and Head

            Leather Covered Interior Handrail

            Time Delay Shower Drain System

            Extra 12V Battery

            Cockpit Portlight to Port

Transom Portlight

            Skyscreen Hatch Screens with Shades

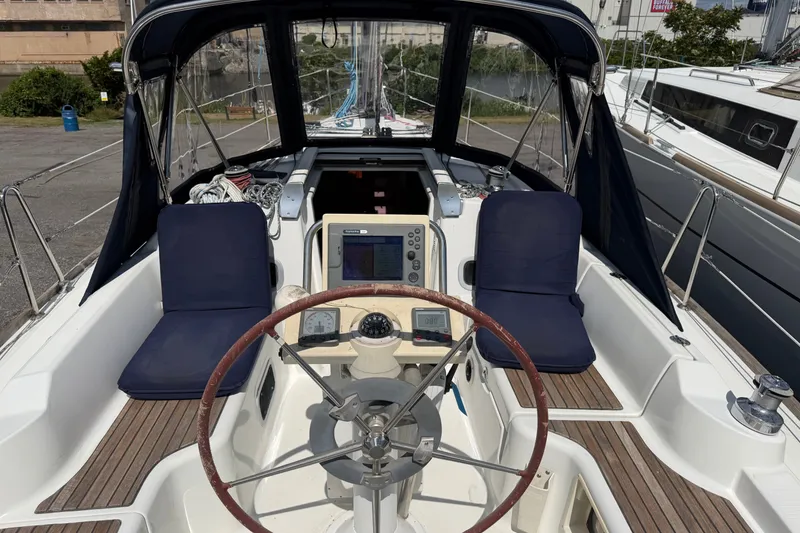

Nav Pack A Installed:

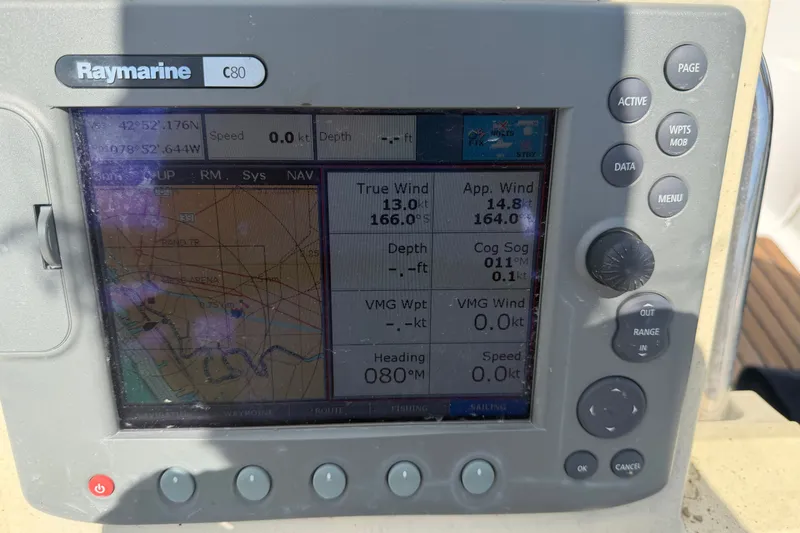

            Raymarine C80 Color Chartplotter at Helm

            Raymarine GPS Antenna

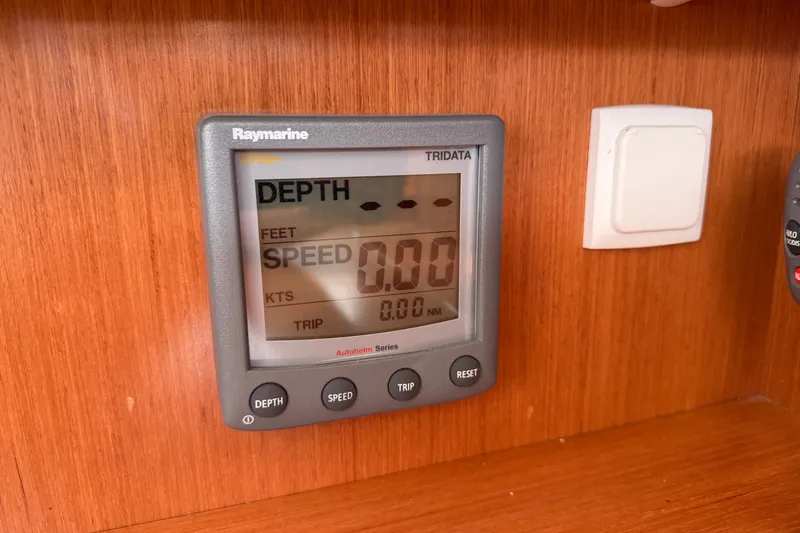

            Raymarine ST 60 Tridata at Nav Station

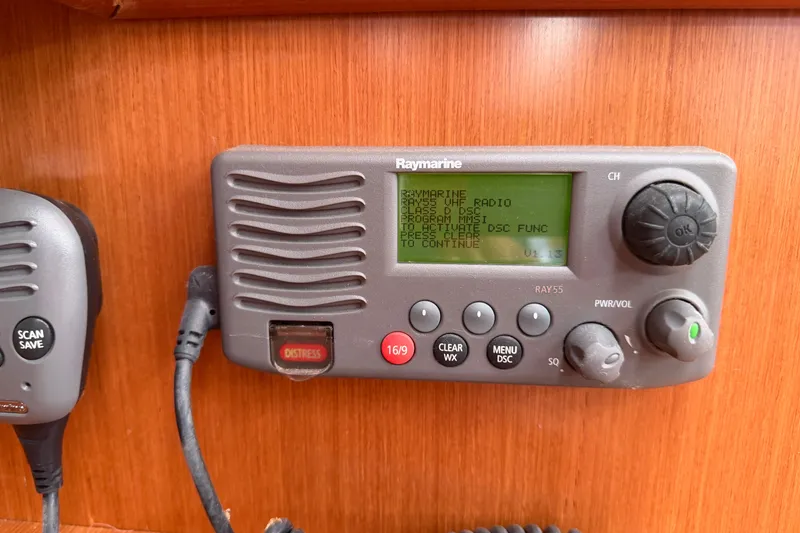

            VHF Radio at Nav Station w/SS Masthead Antenna

Nav Pack B Installed:

            VHF Remote Command at Helm

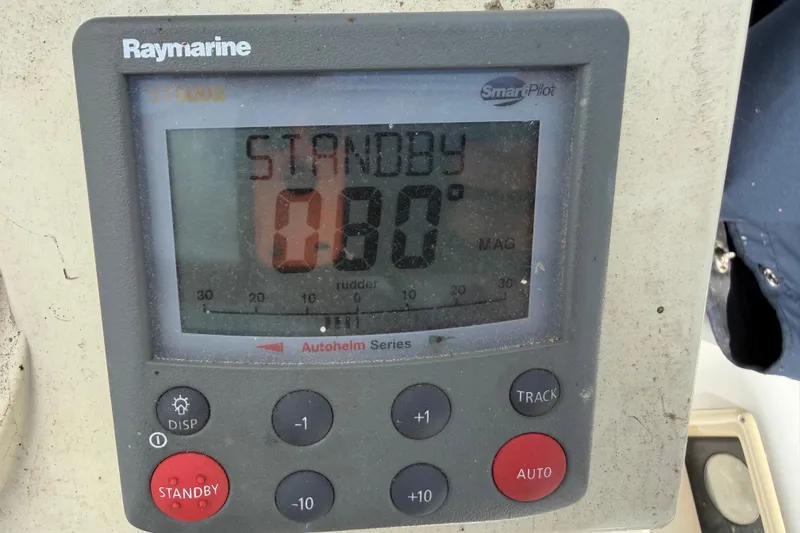

            Raymarine S1 Wheel Autopilot

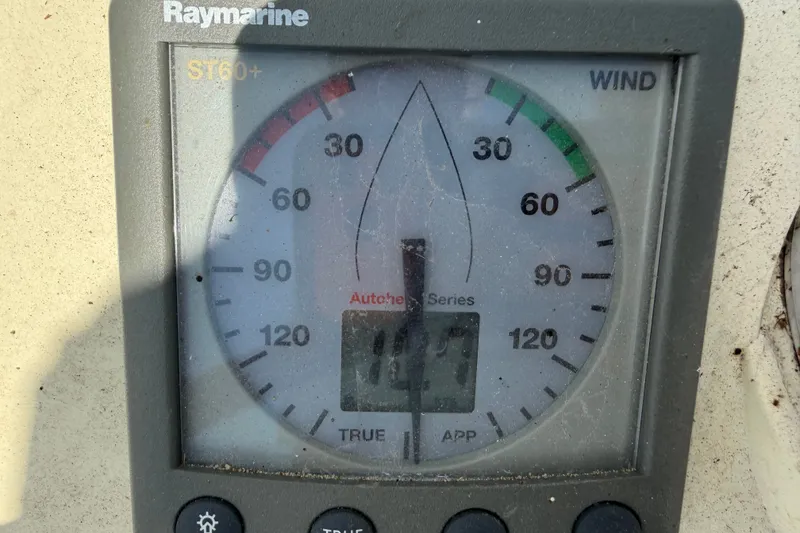

            Raymarine ST 60 Windmachine at Helm
