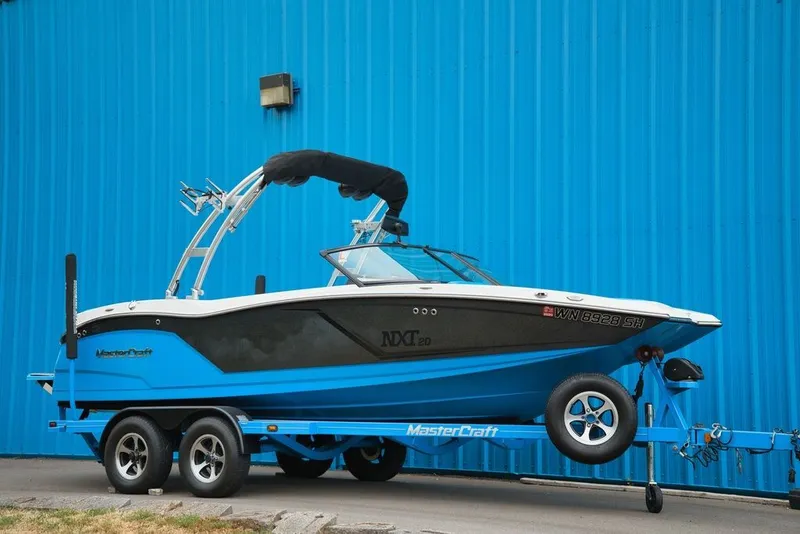

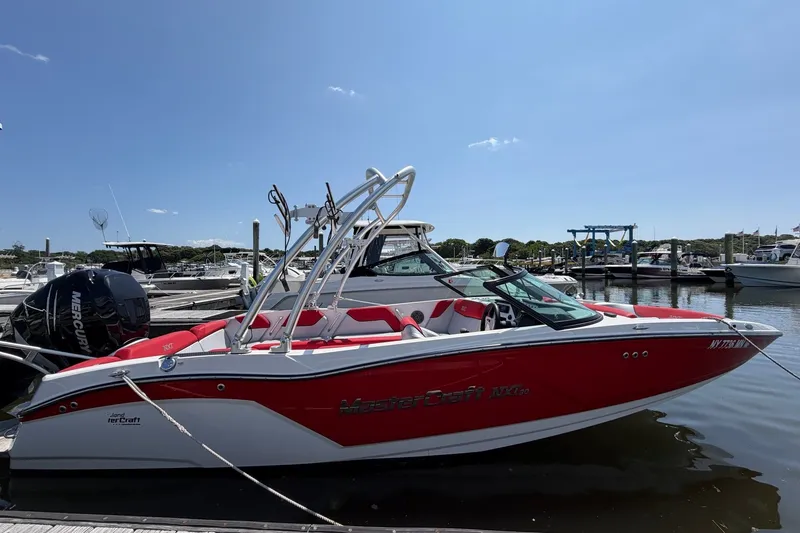

MasterCraft NXT20 Boats For Sale

The MasterCraft NXT20 is the smallest model in the NXT family, a 20-foot tow boat built for smaller crews, size-restricted lakes and tighter storage spaces without giving up pro-level wakes and waves. It carries a 96-inch beam, weighs 3,970 pounds, holds 47 gallons of fuel, and seats up to 11 to 12 people. Ballast capacity runs to 1,770 pounds standard, and over 2,400 pounds when equipped with the SurfStar Pro kit. Anyone shopping MasterCraft NXT boats for sale will find this the most accessible way into the brand while still getting full surf and wakeboard capability.

For 2025, power comes from the Ilmor 5.3L GDI high-output engine producing 380 horsepower and 407 lb-ft of torque, with a four-star emissions rating and roughly 15% less fuel consumption than the legacy 6.0L engine. A new fresh-air intake helps maintain performance on hot days. Earlier model years paired the boat with a 6.0L MPI engine at 380 horsepower or an optional closed-cooled 5.3L GDI at 365 horsepower. The hull tracks tightly through sharp turns without drifting and holds RPM through full-speed power turns, and it maneuvers out of cramped harbors without a bow thruster.

SurfStar drives the wake performance, with three rapid surf wave options per side ranging from mellow, kid-friendly waves up to steep, surf-style waves for heavier riders. Custom surf mode gives full control of speed, ballast and wake-shaping device position, and built-in foiling profiles were added for both left and right riders. NXT Faster, standard on all 2025 NXT models, adds an extra ballast pump for fill times under 9 minutes. Underwater exhaust, also new for 2025, cuts engine noise and fumes. Wakeboard profiles cover both beginner and advanced riders, with auto-launch getting the boat on plane around 29 km/h.

The redesigned helm centers on a 7-inch touchscreen with the SurfStar interface, replacing the previous 4.3-inch display, and integrates surf graphics, music and ballast controls in one place. A volume knob in the armrest handles volume, mute and song skipping, and a standard wireless phone charger sits below the dash. Keyless ignition and standard telematics let owners monitor battery, fuel and engine health and switch off the battery through the MasterCraft Connect app. The Z6 Tower comes standard in silver billet aluminum, with black and other colorway options, clamping board racks and bimini storage that together provide 10 board-storage spots.

Inside, the pickle-fork bow opens up the 20-footer with an open walkway or an optional filler cushion for playpen seating, plus under-seat storage and dedicated anchor storage on centerline. The U-shaped cockpit adds a convertible flip seat for facing forward or watching the action, a cooler location, and 17 cup holders. Cool Feel vinyl stays up to 30% cooler than standard marine vinyl, and color options include sunset orange and magnetic blue. The Advanced Audio package brings four interior speakers and a 10-inch subwoofer, with up to four tower speakers available. Every NXT20 is covered by a five-year, 500-hour MasterCare warranty and a seven-year, 1,000-hour engine warranty, with an optional matching custom trailer available when buying.



Currently, there are 690 boats available for sale for MasterCraft boats. Prices range from $6,995 to $594,020, with an average listing price of $136,723. The inventory includes 231 new boats and 459 used boats. The fleet is comprised of 690 powerboats. 2 boats have been added to the marketplace in the past month. Popular boat types include Ski and Wakeboard, Bowrider, Other, and Runabout. boats are most popular in Mooresville, Mesa, Walton, Pewaukee, and Osage Beach. There have been 2,888 boats listed on MarineSource that have sold in the past year. May is the most common month for new and used boats to be added to MarineSource, so be sure to check back regularly. June is the most common month for boats to sell, so be sure to beat the rush! The most common activities for boats are watersports, family fun, day cruising, and long distance cruising. Most boats contain depth sounder, heated interior, radio, gps, and joystick. boats tend to have an average of 1 engine. It is common for boats to have Ilmor engines or ILMOR engines or Ilmore engines.
