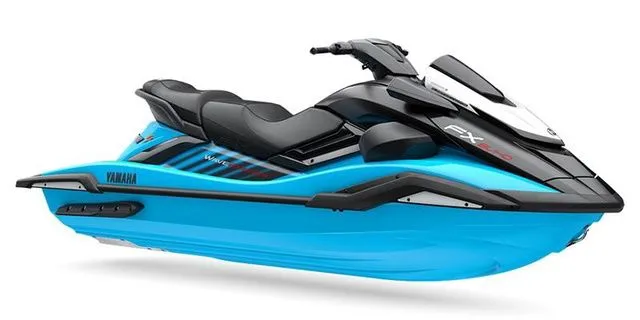

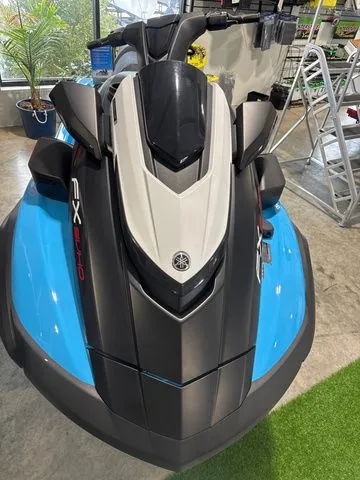

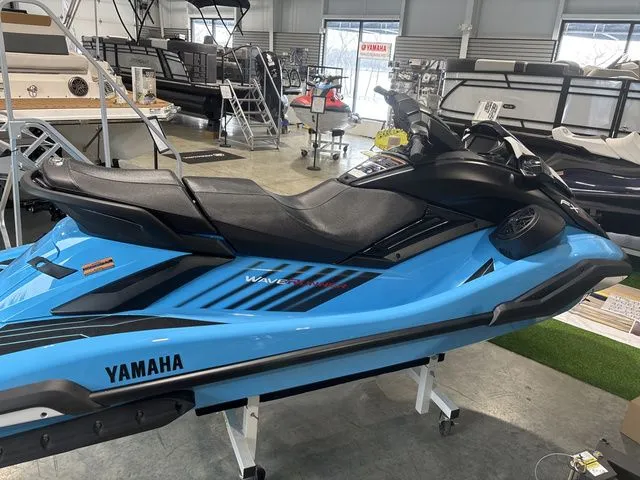

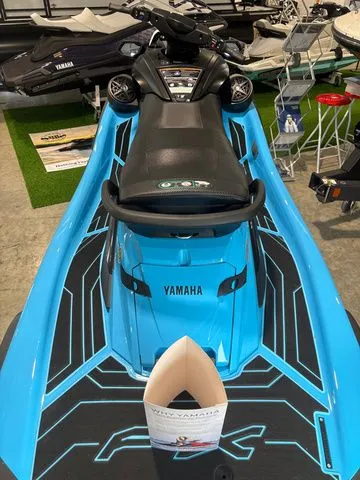

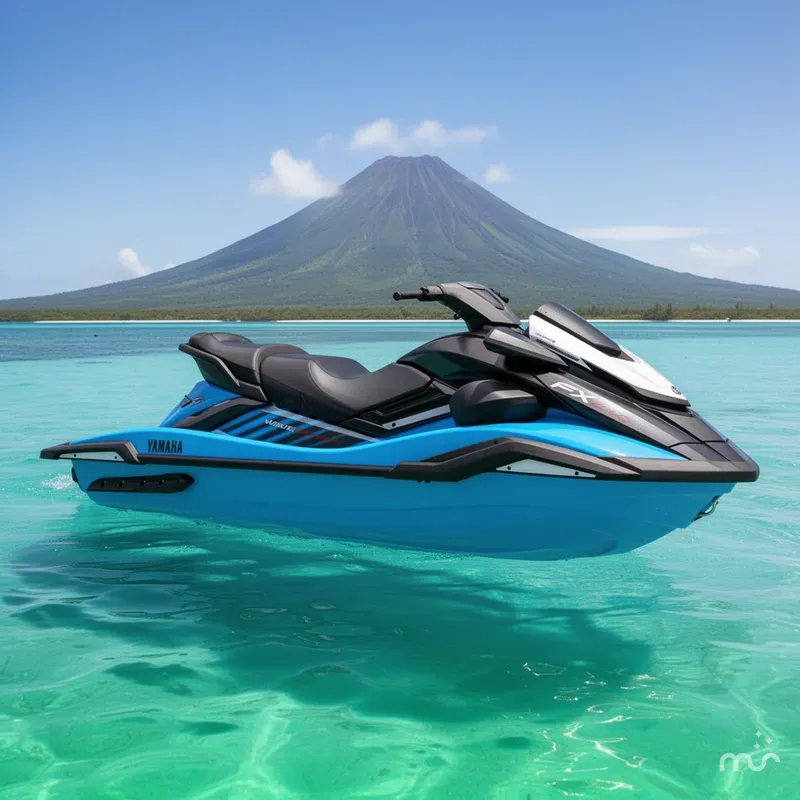

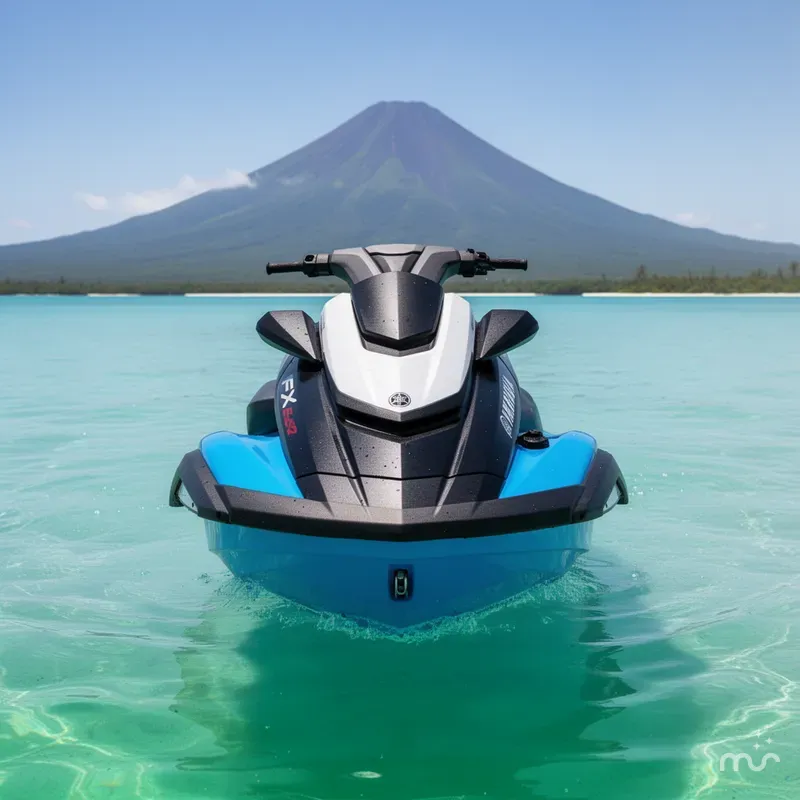

2025 Yamaha FX Boat in SPRINGFIELD, IL US
Built in 2025
FX
1 Engine (--)
11.8 feet
Gas
Other
Key Specs & Features:
Engine: 1.8L Super Vortex High Output (SVHO)
Horsepower: ~250 HP
Fuel Capacity: 18.5 gal
Storage: 44.5 gal total (includes watertight glovebox with USB/12V)
Hull: Lightweight Sheet Molding Compound (SMC)
Technology: 7-inch color touchscreen, GPS-ready, smartphone connectivity, and audio controls
Features: RiDE (reverse with intuitive deceleration), Cruise Assist/No Wake Mode, and electric trim Engine Type: Longitudinal In-Line
Displacement: 110.6 cu. in. (1812 cc)
Bore and Stroke: Bore: 3.39 in. (86 mm); Stroke: 3.07 in. (78 mm)
Cooling: Water (Open Loop)
Compression Ratio: 8.5:1
Fuel System: Gas
Starting: Electric
Dry Weight: 873 lb. (396 kg.)
Fuel Capacity: 18.5 gal. (70 L)
Height: 48 in. (1219.2 mm)
Length: 141 in. (3581.4 mm)
Width: 50 in. (1270 mm)
Rider Capacity: 3
Storage Capacity: 44.5 gal.
Pump: Axial Flow
Transmission: Direct Drive
Speedometer: Standard
Tachometer: Standard
Mirrors: Standard
Hull Type: Progressive Stepped V
Price History
| Date | Event | Price |
|---|---|---|
| 5/19/26 | Initial price | $18,699 |
2025 Yamaha FX Video Tours
Yamaha FX: BoatTEST Review
Overview
The Yamaha FX-SHO series is a high-performance personal watercraft platform featuring two closely related models: the FX Cruiser-SHO and the FX-SHO. Both models share the same hull and engine platform but differ in key features and design elements. The watercraft measures 140.2 inches in length overall, with a beam and height of 48.4 inches. Dry weight is approximately 851 to 853 pounds depending on the model. Powered by an 1812 cc supercharged, intercooled four-stroke four-cylinder marine engine, these vehicles are tuned to run efficiently on regular 87 octane unleaded gasoline.
Exterior Design and Features
The FX-SHO series has undergone a complete redesign of the forward section, presenting a flatter, more aggressive profile. The front is equipped with a familiar bumper system, low-profile rub rails, and large wing mirrors positioned outward for enhanced rear visibility. The forward storage compartment is gasketed and water-resistant, providing secure space for valuables. Fueling is facilitated via a starboard-side inlet connected to an 18.5-gallon fuel tank. Total storage capacity across the watercraft is 33.2 gallons, with the majority located in the forward compartment and additional storage beneath the seat and in the stern area. The hull is constructed from Nano XL, a lightweight material molded with a closed mold process to ensure precision and consistency. Redesigned sponsons measuring 24 by 5 inches contribute to the craft's stability and sharp turning capabilities.
Console and Controls
The console layout differentiates the FX Cruiser-SHO from the FX-SHO primarily through instrumentation. The Cruiser-SHO features a large central analog gauge displaying either RPM or speed, flanked by two multifunction digital displays configurable for various metrics including fuel consumption, speed, and compass headings. The FX-SHO has a simpler setup with one multifunction display. Both models incorporate electronic key systems allowing for locking and operational mode restrictions, including a low-speed mode for novice riders. Handlebar controls are ergonomically designed, with throttle, no-wake mode, cruise assist, trim adjustment, and reverse gate controls all within easy reach. The handlebars are adjustable to accommodate different riding postures. Additional conveniences include multiple dry storage compartments and cup holders integrated into the console and under the handlebars.
Seating and Passenger Accommodation
The FX Cruiser-SHO is equipped with Yamaha's three-tier 'stadium seating,' which provides a scalloped, comfortable ride for multiple passengers. In contrast, the FX-SHO features a sportier, more aggressive seat design aimed at riders seeking a performance-oriented experience. Both models provide comfortable seating for an observer, positioned aft with grab handles and a dedicated tow rope connection point, supporting towing activities such as watersports.
Engine Access and Maintenance
Beneath the primary seat lies the robust 1812 cc supercharged and intercooled four-cylinder engine. The design allows ample space around the engine for easy maintenance access. Key service points such as the oil dipstick, air filter, and oil filter are conveniently located for straightforward inspection and replacement. An engine flush system is integrated into the stern storage area, facilitating easy cleaning after saltwater or freshwater use. Additionally, the tow line can be stored securely while connected, enhancing operational convenience.
Performance and Handling
Testing revealed a top speed of 66.7 miles per hour at 7,500 rpm, with a fuel consumption rate of 19.2 gallons per hour, yielding approximately 3.47 miles per gallon and a maximum range of 58 statute miles. Typical cruising was found to be most efficient at 4,500 rpm, delivering an average speed of 30.1 miles per hour while consuming 5.1 gallons per hour, which translates to nearly 6 miles per gallon and an extended range of 99 statute miles. Acceleration from 0 to 30 miles per hour averaged 1.7 seconds. The redesigned reverse gate system demonstrated excellent maneuverability, allowing precise control in forward, neutral, and reverse modes with a simple lever and latch mechanism.
Conclusion
The Yamaha FX-SHO series offers a well-engineered, high-performance personal watercraft platform with thoughtful design enhancements focused on rider comfort, convenience, and control. The combination of advanced materials, ergonomic controls, and a powerful yet efficient engine makes these models suitable for both aggressive riders and those seeking a more comfortable cruising experience. The detailed testing confirms the watercraft's capabilities in speed, handling, and fuel efficiency, supported by practical features that enhance usability and maintenance.
Overview from around the web 2025 Yamaha FX
Customers have been expressing enthusiasm about the 2025 Yamaha FX, highlighting its impressive performance, innovative features, and overall comfort
Many appreciate the cutting-edge technology, such as the intuitive control system and the advanced instrumentation that keeps them connected while on the water. Users particularly enjoy the powerful engine performance, noting how smooth and responsive the ride is, whether they're cruising at high speeds or gliding through tight turns. Additionally, the spacious seating and ergonomic design receive praise, with families and groups relishing the ample room for passengers and gear. Many reviews also mention the fuel efficiency of the 2025 Yamaha FX, making it a favorite for those looking to maximize their time on the water without constant refueling. The boat's stylish design and customizable options have also garnered positive feedback, allowing owners to personalize their experience. Overall, customers highly recommend the 2025 Yamaha FX for its blend of performance, comfort, and modern features, making it a standout choice for both experienced riders and newcomers alike.
The Biggest Pros and Cons
Pros
Powerful Engine Performance: The 2025 Yamaha FX is equipped with a robust engine that provides impressive acceleration and high-speed capabilities, making it an exhilarating ride on the water.
Innovative Technology: This model features cutting-edge technology, including advanced touchscreen displays, customizable ride modes, and enhanced navigation options that ensure a streamlined and user-friendly experience.
Comfortable Seating: With ergonomically designed seating for up to three passengers, the FX offers ample space and comfort, making it ideal for both short trips and extended outings.
Excellent Stability and Handling: The hull design contributes to outstanding stability and predictable handling, allowing for confident maneuvering in various water conditions, whether you’re cruising or riding waves.
Storage Solutions: Ample storage compartments provide space for gear, refreshments, and personal items, making it convenient for day trips or recreational outings.
Fuel Efficiency: The FX is designed for good fuel economy, allowing for longer rides without frequent stops at the fuel dock, making it budget-friendly for avid riders.
Eco-Friendly Features: With Yamaha's commitment to reducing emissions, the 2025 FX incorporates eco-conscious engineering that aligns with environmental standards.
Cons
Price Point: The 2025 Yamaha FX may come with a higher price tag compared to some competitors, which could be a consideration for budget-conscious buyers.
Weight: The added features and construction materials contribute to a heavier design, which may affect portability and ease of transport for some users.
Learning Curve for New Riders: The array of advanced features and technology may require some time for novice riders to fully understand and utilize all its capabilities.
Maintenance Costs: While Yamaha is known for reliability, regular maintenance and potential repairs could involve costs that new owners should factor into their purchasing decisions.
Limited Color Options: Depending on market availability, some riders may find the color choices for the 2025 FX to be somewhat limited compared to other brands.
Made For
The 2025 Yamaha FX is designed for water enthusiasts seeking a perfect blend of performance, luxury, and versatility. Ideal for families, adventure seekers, and casual riders alike, this model caters to a diverse range of water activities. Whether you're looking to cruise across open waters, engage in exhilarating watersports, or simply enjoy a day of leisure on the lake, the Yamaha FX is engineered to meet your needs. With its advanced technology and robust engine, the FX provides a responsive and smooth ride, making it suitable for both beginners and experienced riders. Families will appreciate the spacious seating and storage options, while performance enthusiasts will love the powerful output and agility it offers. Overall, the 2025 Yamaha FX is for anyone who values high-quality craftsmanship and unforgettable experiences on the water.
