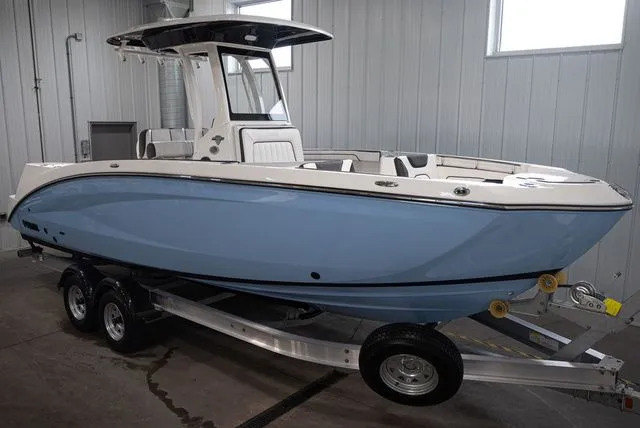

2026 Yamaha 255 FSH Sport H
$122,609
Boat in Oshkosh, WI 54904 US
Built in 2026
255 FSH Sport H
1 Engine (--)
25 feet
Gas
Other
The 255 FSH Sport H comes equipped with Yamaha's Helm Master® EX joystick control. This advanced feature offers seamless and precise low-speed maneuvering, elevating your time on the water to a high level of comfort and control.
Features may include:
Cockpit and Bow- Dedicated Anchor and Rope Locker
- Insulated Fish Box
- Bow Seating with Storage
- Snap-in Bow Seat Cushion(s)
- Upgraded Upholstery
- Bow Filler Platform/Table
- Storage Pod w/ Plano tackle boxes
- Portside Transparent Livewell (gal) 18
- In-Floor Storage w/ Dedicated Space for 5-Gallon Bucket
- Front Console Seat
- Lockable Console Compartment/Changing Area with Light w/ curtain
- Courtesy Lights 4
- Spreader lights (Hardtop) 2
- Map lights red (Hardtop) 1
- Windshield Glass
- Lockable Helm Glove Box
- Tilt Steering
- Side Console Rod Storage 6
- Gunwale Rod Storage 6
- Horizontal Rod Storage 8
- T-Top Rod Holders 5
- Leaning Post Upgraded w/ Flip-up Bolster
- Cooler w/ Storage Under Leaning Post upgraded
- Jump Seats Folding w/ removable backrests
- Gunwale Padding Upholstered
- Slip-Resistant/Easy-Clean Floor
- Snap-in Teak-Style Marine Mat Flooring
- Cockpit Drainage System (CDS)
- Stainless Steel Corrosion Resistant Hardware
- Integrated Swim Platform
- Upholstered Cushioned Backrests Upgraded Upholstery
- Stern (Wet) Storage
- Table and Grill Mount
- Aerated Stern Livewell (gal) 30
- Pod drop in "tackle tray"
- Integrated Drink Holders 2
- Stern Stereo Remote
- Underwater Lights 2
- Stainless Steel Telescopic Reboarding Ladder
- Helm Master EX
- Connext Screen (in) 7
- Simrad Electronics 12" Touchscreen Display
- Marine Speakers (6) Standard Hertz
- E-Series Features
- Drive-by-Wire Technology
- Yamaha Drive Control
- 3 position "No Wake Mode™" Control
- Cruise Assist
- Analog Compass
- Water Temperature
- Depth Finder
- Battery Setup Dual
- Electric Raw Water Washdown System with 4.5gph
- 8-gallon Fresh Water Wash Down System
- Custom Trolling Motor Mount
- Through-hull Transducer(For Fish Finder)
- Quiet Cruise Technology
- Displacement (per engine) 1812cc
- Fuel Capacity (gal) 111
- Recommended Fuel Premium Unleaded
- 160 MM High-Pressure Pumps
- Pump Clean-out Ports
- Oil Capacity per Engine (L) 3.7
- Stainless Steel Rub Rail
- Flush Mount Pop-up Cleats 6
- Horn on Center Console
- Nav Lights on Deck
- Tow Hook
- Hard T-top Rod Holders (qty) 5

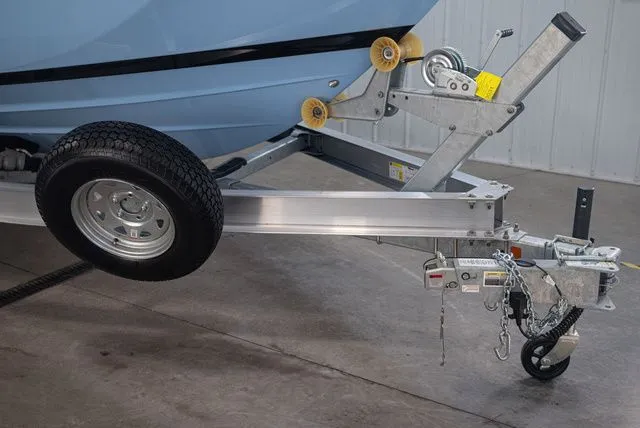

- Painted Boat Trailer with Swing-away Tongue Tandem Axle
- Spare Tire and Mount
Price History
| Date | Event | Price |
|---|---|---|
| 3/7/26 | Initial price | $122,609 |
2026 Yamaha 255 FSH Sport H Video Tours
Boattest.com Review
Overview

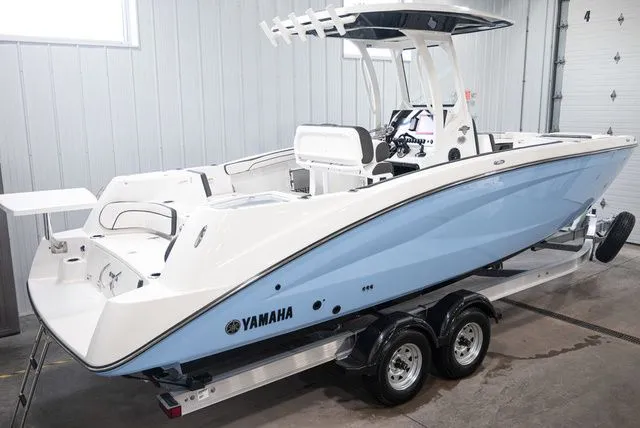

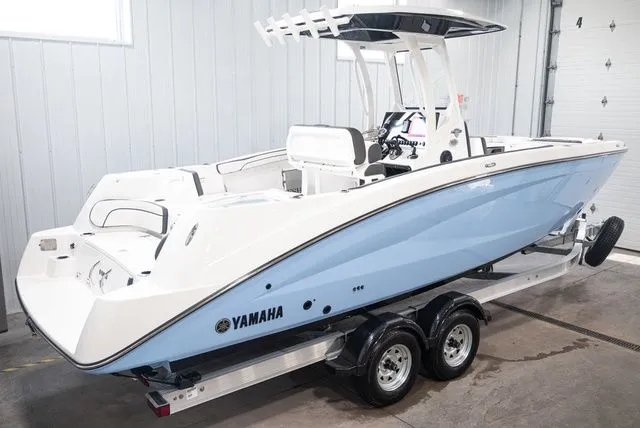

The Yamaha 255 FSH Sport H is a 24-foot, 6-inch center console boat designed for fishing and recreational use. It features twin Yamaha SVHO 1.8-liter four-cylinder engines delivering a combined 500 horsepower through water jet propulsion. This model introduces the Helm Master EX joystick controller for jet boats, enhancing maneuverability and docking precision. With a beam of 8 feet 6 inches and a weight of 4,835 pounds, the 255 FSH Sport H balances performance, comfort, and fishing functionality.
Exterior Design and Helm Features

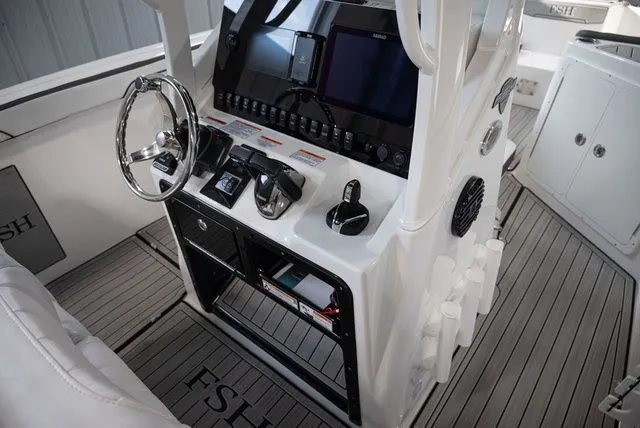

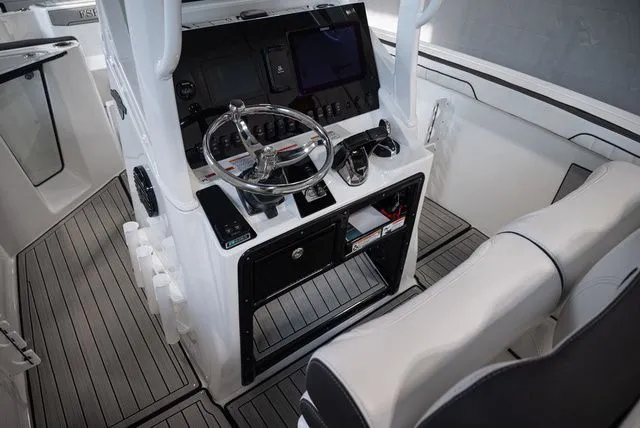

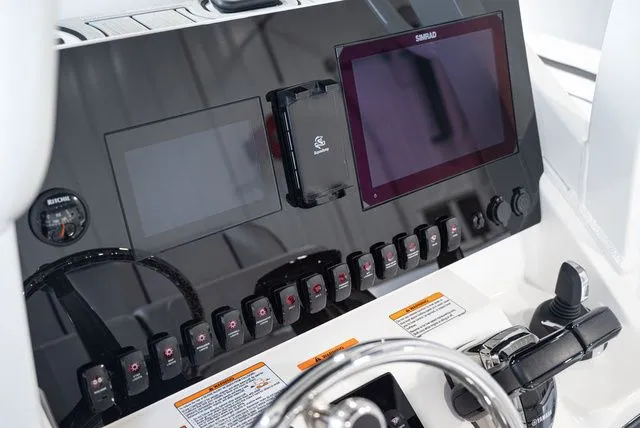

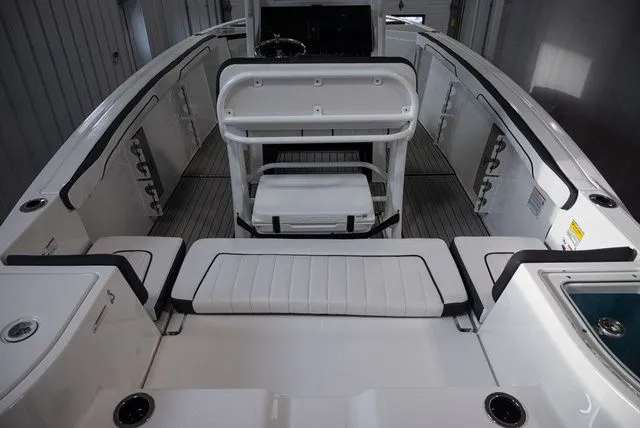

The helm is thoughtfully designed for two occupants, featuring flip-down bolsters, a flip-down footrest, and dedicated cooler storage beneath the console. The integrated T-top includes a tempered glass windshield for protection against the elements. The standout innovation is the Helm Master EX joystick controller, which commands engine steering and control buckets, allowing intuitive boat handling. This system enables precise docking maneuvers such as lateral moves, forward and backward nudges, and spinning on the spot. The helm is equipped with a 12-inch RAD touchscreen multifunction display incorporating depth sounder and GPS features, a 7-inch Yamaha Connect screen for engine diagnostics and speed control, a Richie compass, wireless induction charger, and a six-speaker Wet Sounds audio system. Additional conveniences include tactile switches, a 12-volt auxiliary plug, dual USB ports, a stainless steel adjustable steering wheel, glove box storage, and a padded footrest.
Fishing and Deck Amenities

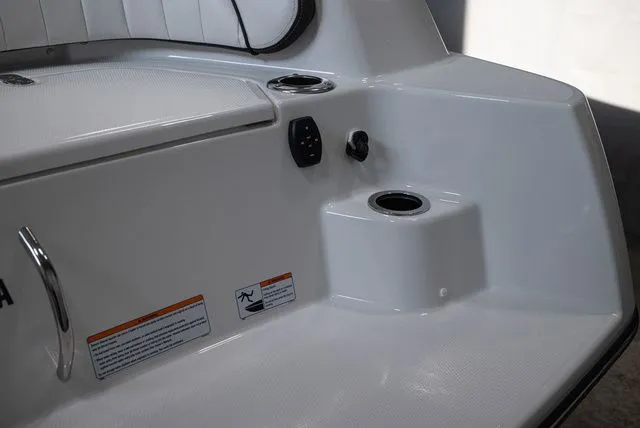

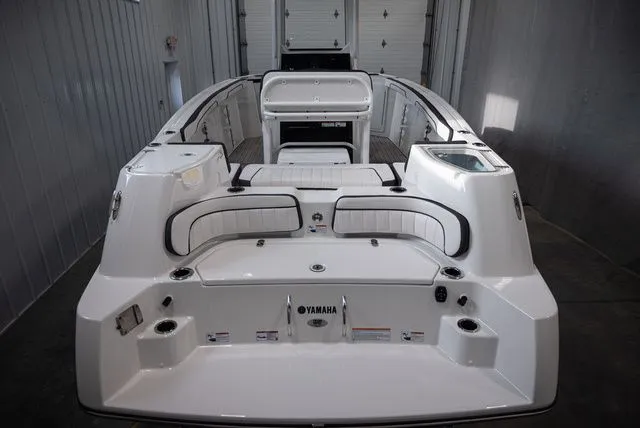

The 255 FSH Sport H is outfitted with over 25 rod holders strategically placed along the console, T-top, and combing, accommodating longer rods and providing comfortable bolsters for fighting fish. The boat offers 360-degree fishing access thanks to the absence of an outboard engine, enhancing both fishing and family activities. The stern features abundant cup holders, controls for the premium Wet Sounds audio system, a mounting bracket for a removable table, freshwater engine flush outlets, and a three-step swim ladder with no propeller hazards below. Additional storage includes a fender compartment on the port quarter and fresh and raw water washdown outlets with a sizable cockpit drain. Snap-in floor padding can be removed to convert the cockpit into a large casting platform. The stern houses a 30-gallon live well, while an 18-gallon acrylic aquarium-style live well is located forward for bait visibility and family enjoyment. Tackle storage with organized drawers and a dedicated trash can spot are also incorporated.
Bow and Storage Features

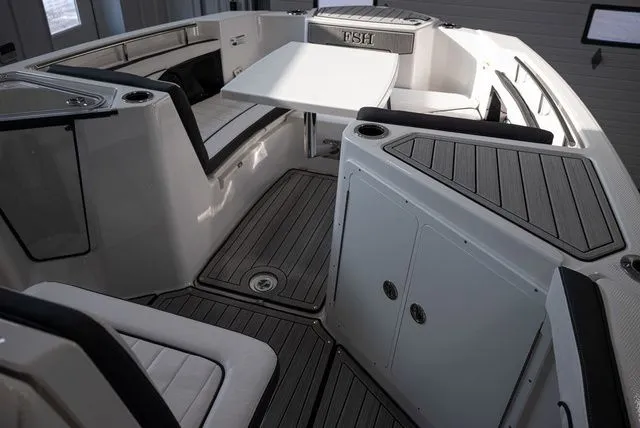

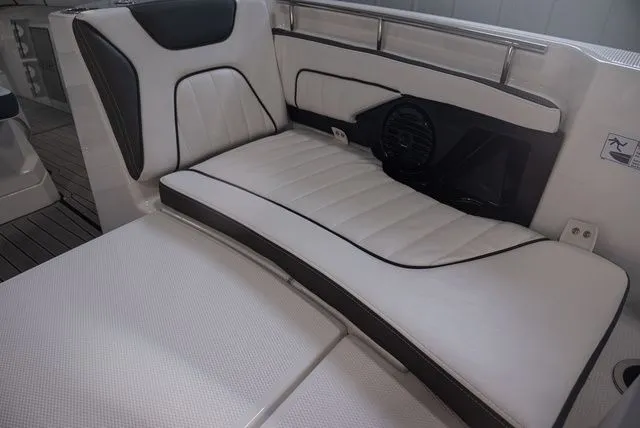

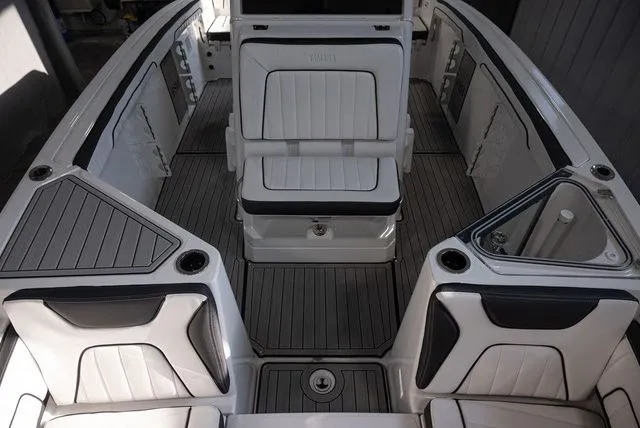

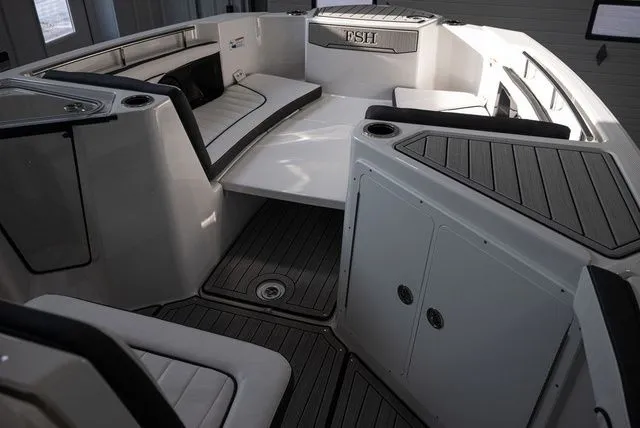

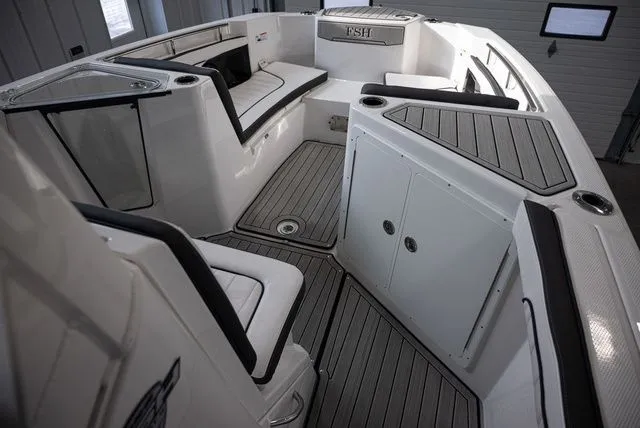

The bow area serves multiple purposes, functioning as a lounging space or converting into a casting platform with an optional insert. It includes cup holders, speakers, and robust grab rails for safety. A dedicated anchor storage locker is positioned at the bow. Under the starboard seat lies a self-draining, insulated fish box that doubles as a cooler. Yamaha thoughtfully provides a designated space for a five-gallon bucket beneath a forward hatch. The console houses a versatile compartment that can serve as a head, changing room, or additional storage, with easy access to the dashboard's rear for electronics installation or maintenance.
Power and Performance

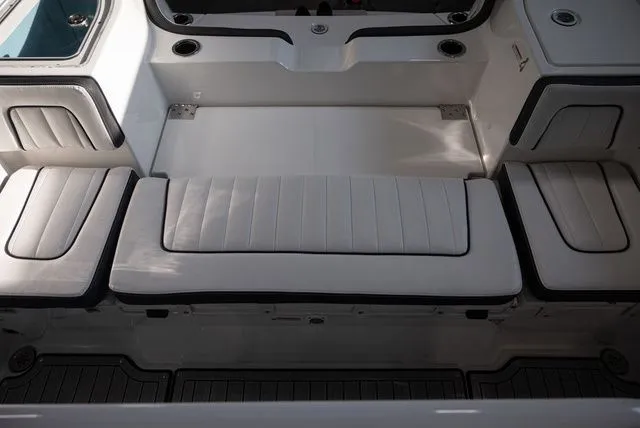

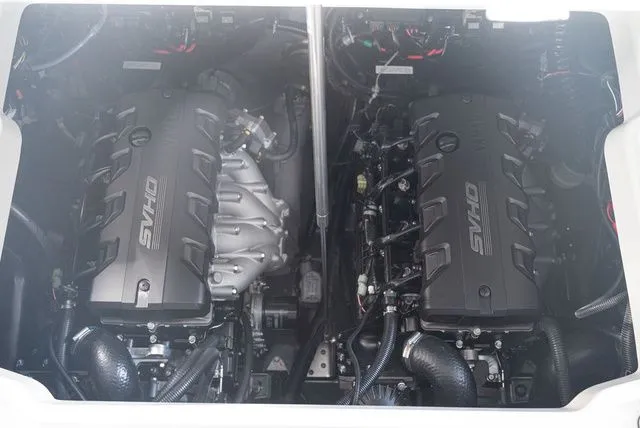

Powered by twin Yamaha SVHO 1.8-liter four-cylinder engines producing 250 horsepower each, the 255 FSH Sport H utilizes direct-drive water jets with 160-millimeter nozzles. Testing conducted in 58-degree conditions showed the boat planing at 30 miles per hour at 5,500 RPM, which is its most economical operating speed, particularly effective in choppy waters due to the 20-degree dead rise at the transom. Speed increases by approximately 10 miles per hour for every additional 1,000 RPM, reaching a top speed of 55 miles per hour at 7,700 RPM. The water jet propulsion system provides exceptional handling and control, allowing the boat to execute tight turns and maintain stability at high speeds. The engines are mounted lower in the hull, facilitating a lower step-over height and easier access to the swim platform.
Conclusion
The Yamaha 255 FSH Sport H stands out as a versatile center console boat that competes effectively with conventional outboard-powered models in its size and class. It offers a compelling combination of performance, comfort, fishing amenities, and ease of handling, particularly with the inclusion of the Helm Master EX joystick system. Its jet propulsion and thoughtful design features provide both anglers and families with a safe, efficient, and enjoyable boating experience at a competitive price point.
Overview from around the web 2026 Yamaha 255 FSH Sport H
Customers are praising the 2026 Yamaha 255 FSH Sport H for its exceptional blend of performance and comfort
Many highlight the boat’s smooth handling and powerful engine, making it ideal for both fishing and recreational cruising. Users appreciate the spacious deck layout, which offers ample room for family and friends, as well as the thoughtful storage solutions that keep gear organized. The advanced fish-finding technology and quality build are frequently noted as standout features, enhancing both convenience and durability. Overall, owners commend the 255 FSH Sport H for delivering a versatile and enjoyable boating experience on the water.
The Biggest Pros and Cons
The 2026 Yamaha 255 FSH Sport H offers a compelling blend of performance, comfort, and versatility, making it a standout choice for boating enthusiasts. Here’s a breakdown of its pros and cons:
Pros
Powerful Performance: Equipped with Yamaha’s advanced engine technology, the 255 FSH Sport H delivers impressive speed and smooth handling, ideal for both cruising and sport fishing.
Spacious Layout: The boat’s thoughtfully designed deck and cockpit provide ample space for passengers and gear, enhancing comfort during long outings.
Durable Construction: Built with high-quality materials and Yamaha’s renowned craftsmanship, the vessel promises longevity and resilience against harsh marine environments.
Advanced Features: Includes modern navigation and fish-finding electronics, as well as convenient amenities like ample storage, seating versatility, and easy boarding access.
Fuel Efficiency: Yamaha’s efficient engine systems help reduce fuel consumption, extending your time on the water without frequent refueling.
Cons
Price Point: As a feature-rich model, the 255 FSH Sport H may come at a premium price compared to simpler boats in its class.
Size Considerations: While spacious, the boat’s size might require a larger trailer and towing vehicle, which could be less convenient for some users.
Learning Curve: The advanced electronics and controls may require some time for new owners to become fully comfortable and proficient.
Made For
The 2026 Yamaha 255 FSH Sport H is designed for boating enthusiasts who crave a perfect blend of performance, versatility, and comfort. Ideal for families and friends who enjoy spending quality time on the water, this model suits those who love fishing, cruising, and water sports. Whether you're an experienced boater or just starting out, the 255 FSH Sport H offers user-friendly features, ample seating, and advanced technology to ensure an enjoyable and memorable boating experience. It's perfect for anyone looking to explore lakes, rivers, or coastal waters with confidence and style.
