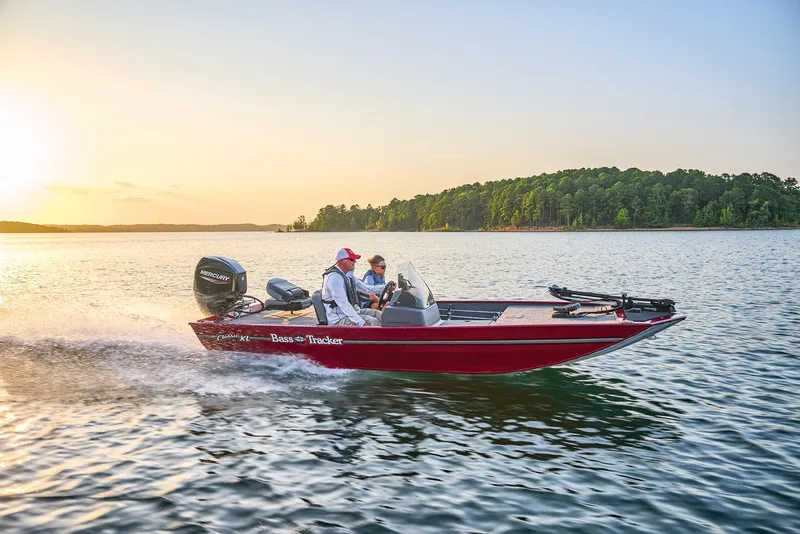

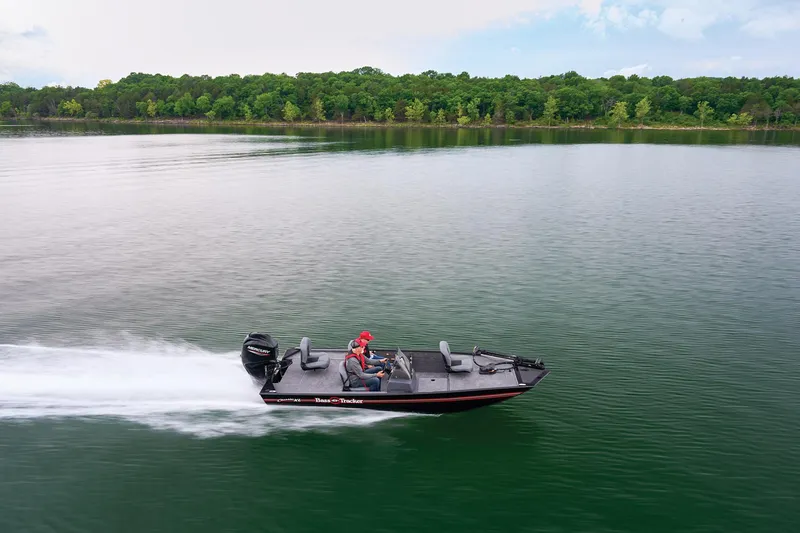

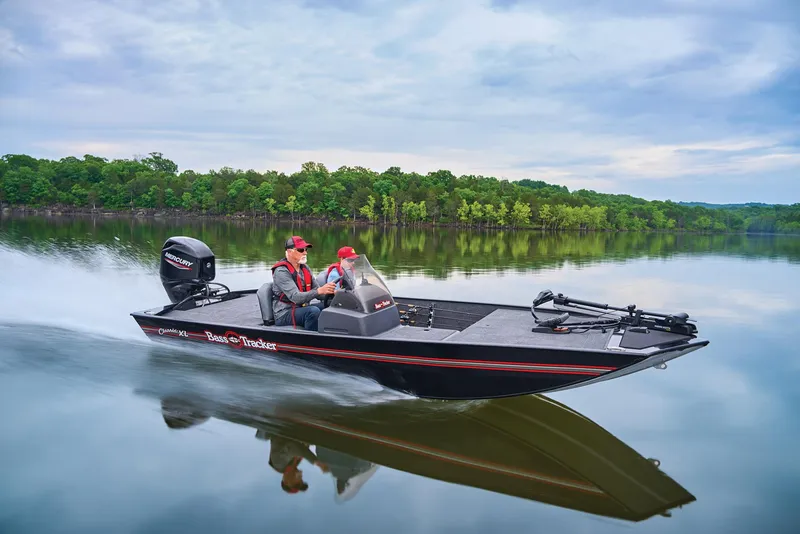

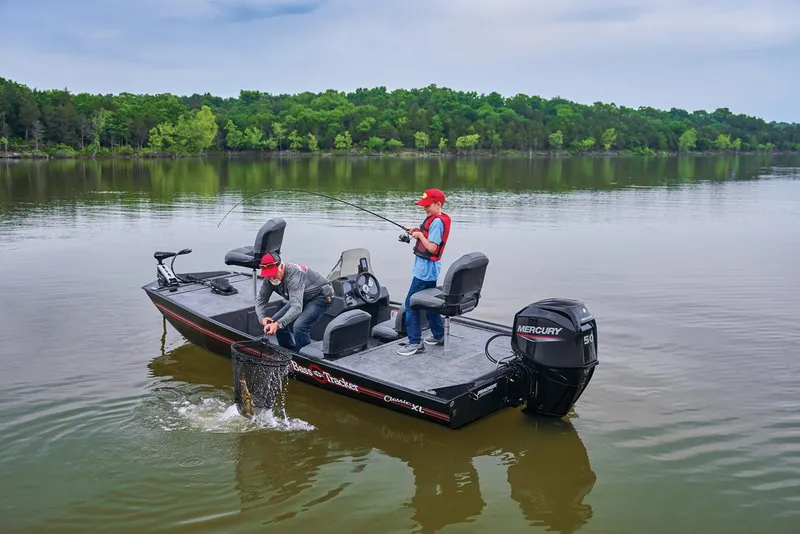

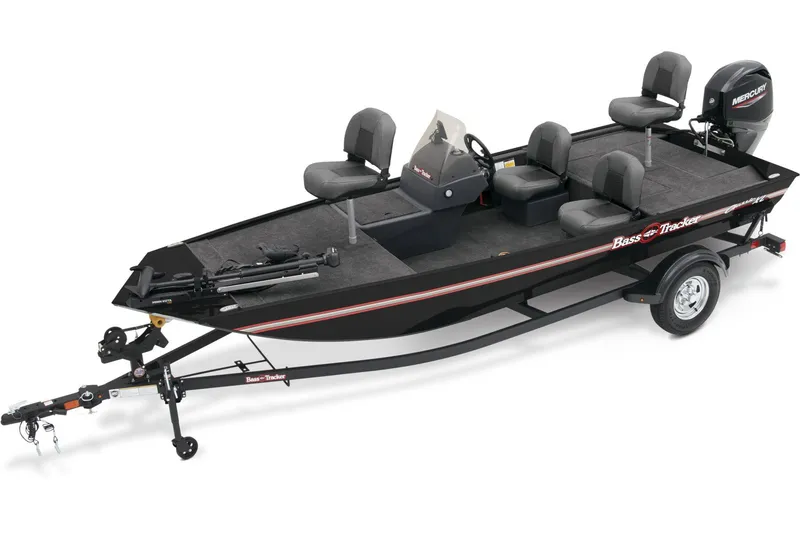

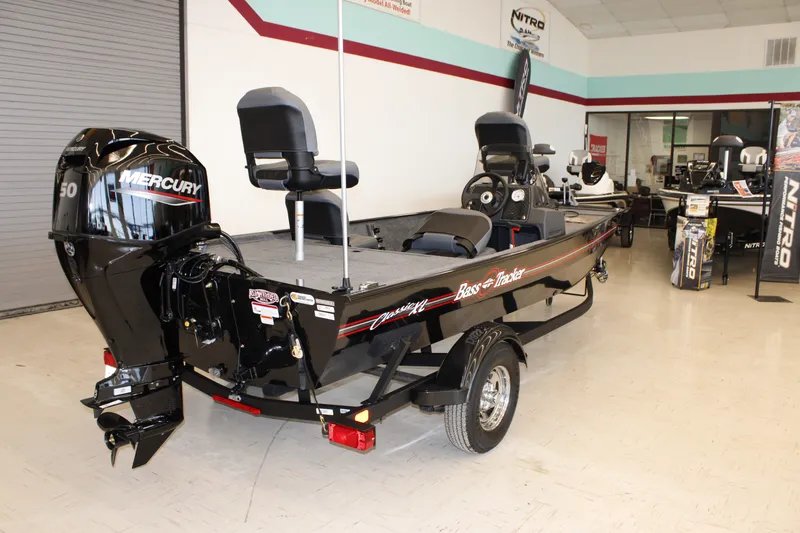

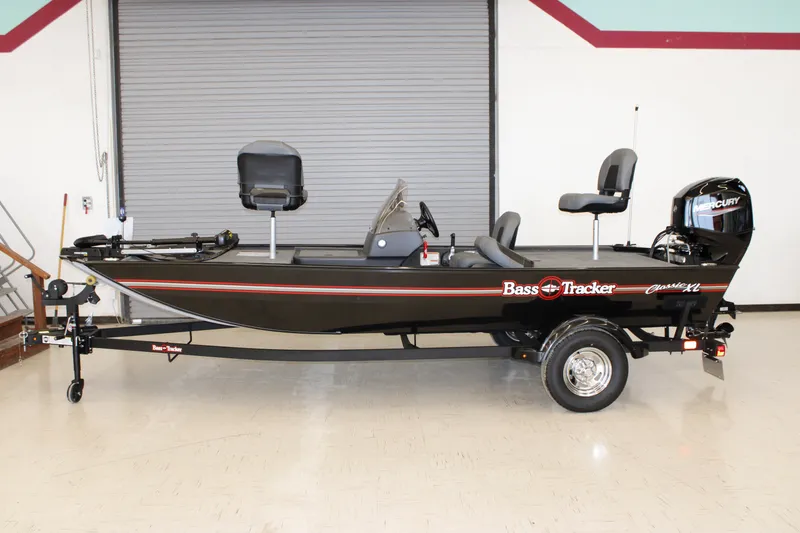

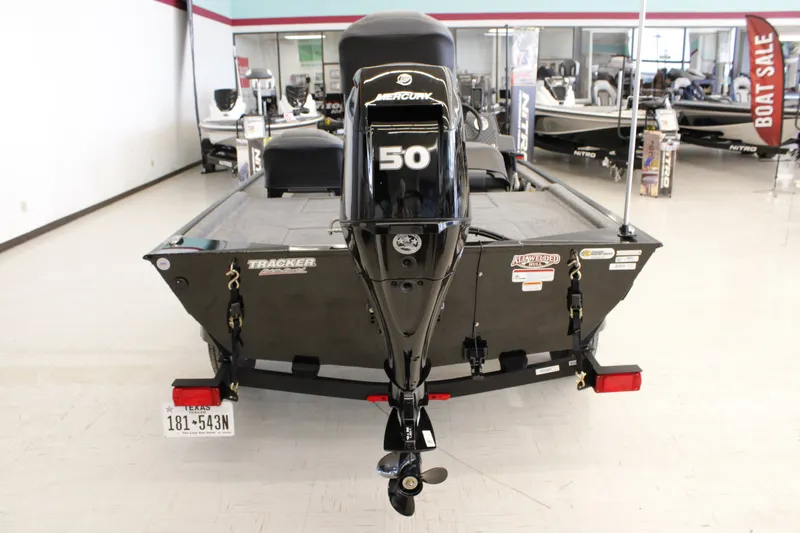

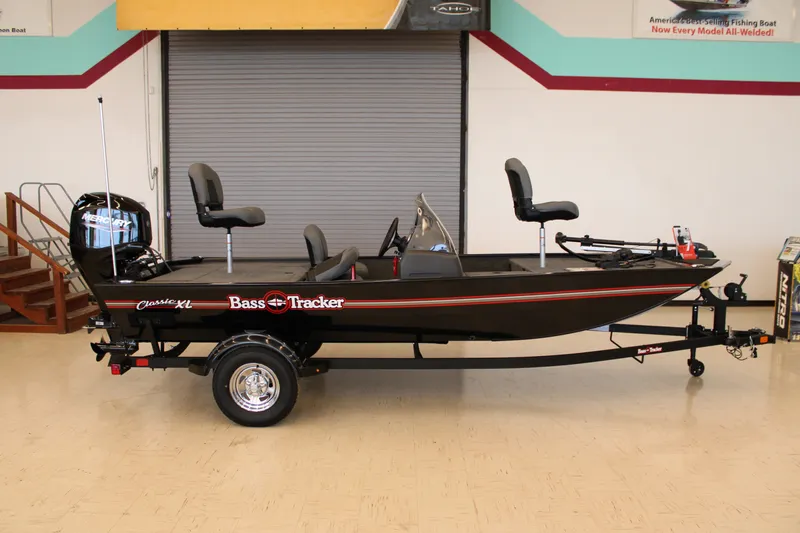

2026 Tracker Bass Tracker Classic XL Boat in Fort Worth, TX 76140 US

• Length:16' 8"

• Beam: 6' 5"

• Bottom Width: 4' 6"

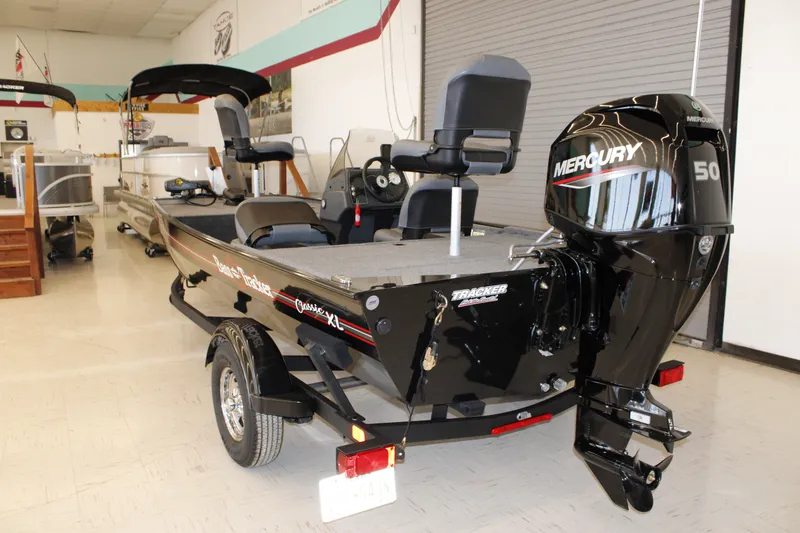

• Max. Recommended HP: 50 HP

• Fuel Capacity (Portable): 6 gal.

• Max. Person Capacity: 3 persons

• Max. Person Weight: 555 lbs.

• Max. Person, Motor & Gear Weight: 1025 lbs.

• Interior Depth: 15"

• Transom Height: 22.5"

• Deadrise At Bow: 13 degrees

• Deadrise At Transom: 6 degrees

• Hull Material: 0.1 5052 marine alloy

• Average Dry Weight: 780 lbs.

• Average Package Weight: 1705 lbs.

• Package Height: 6' 0"

• Package Width: 6' 8"

• Towing Length: 23' 2"

• Storage Length (w/Outboard Trimmed Down): 20' 1"

Comfort, Convenience & Peace of Mind

• Backed by the TRACKER® PROMISE—the best factory warranty in aluminum boats
• Limited lifetime hull warranty
• NMMA® certified
• Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements
• Bow & stern eyes

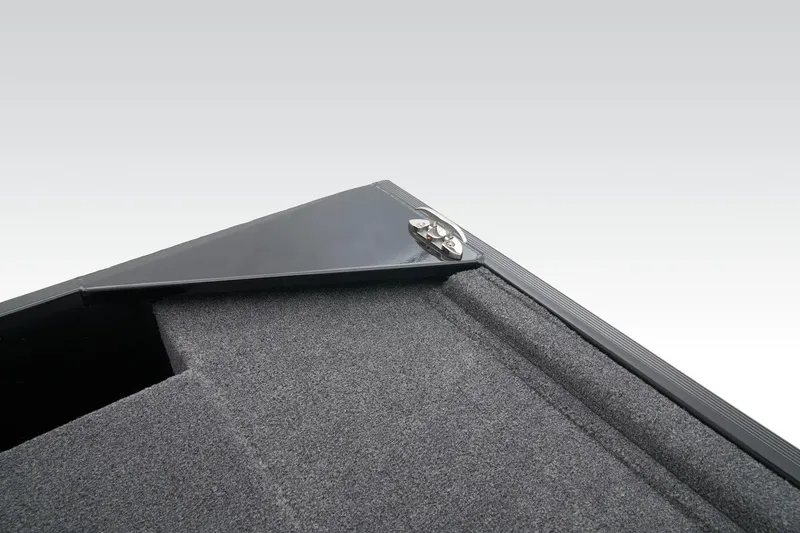

• 4 cleats
• Motor-stop safety lanyard
• Fire extinguisher
• Horn
• Paddle

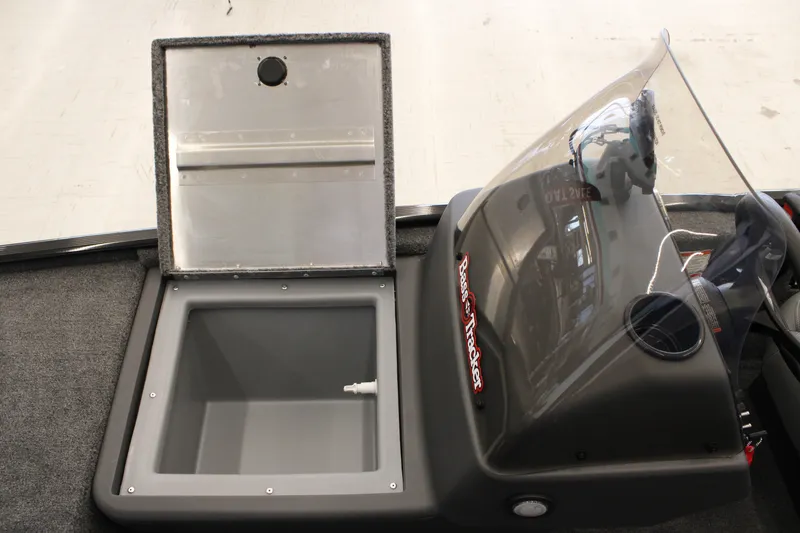

Livewell System

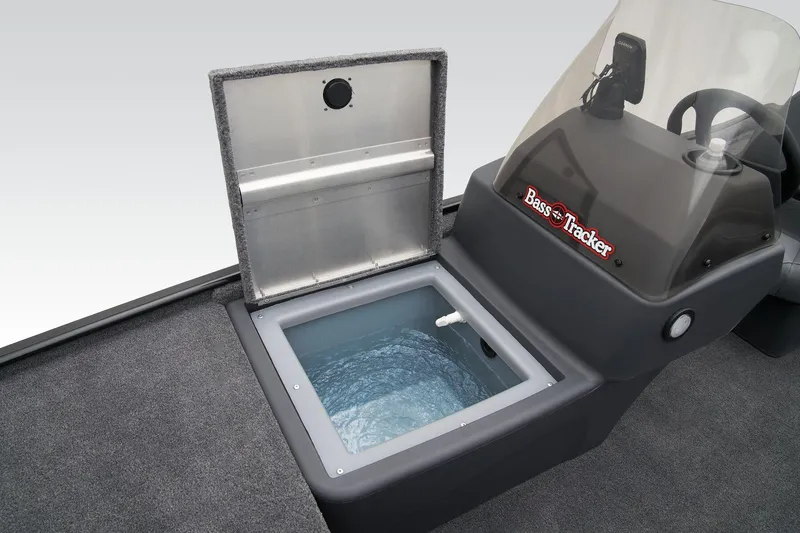

• 9-gal. (34.07 L) aerated livewell molded into front of console
• 500 GPH (1,893 LPH) aerator/fill pump
• Molded 1-piece construction w/rounded corners for easy cleanup & to protect your catch

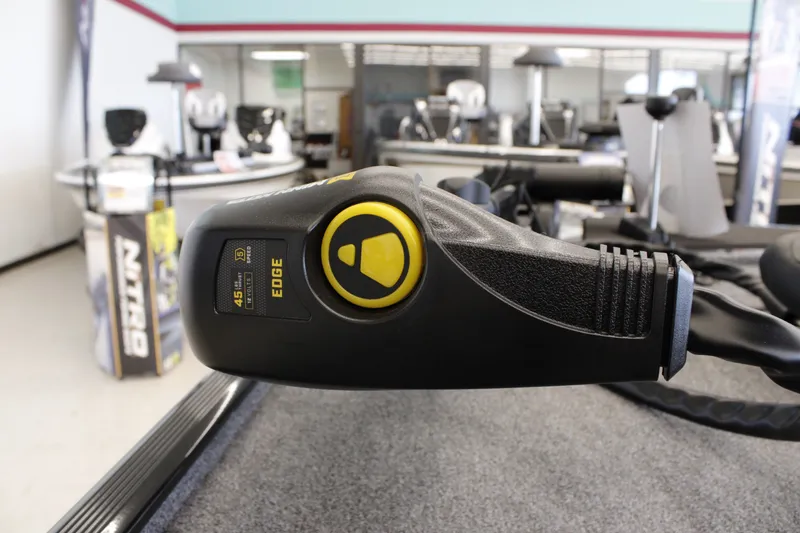

Trolling Motor

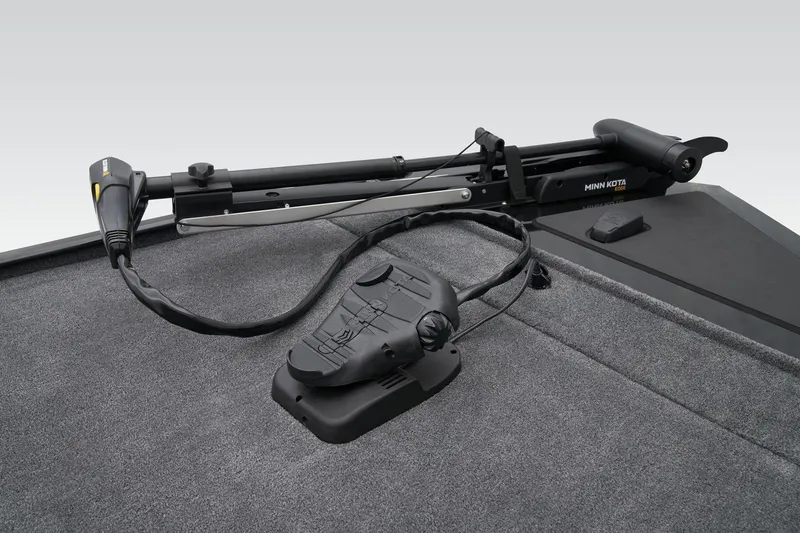

• Minn Kota® Edge® 12V, 45-lb. (20.41 kg) thrust, 45" (1.14 m) shaft, foot-control trolling motor
• Thru-bolted trolling motor mount for durability

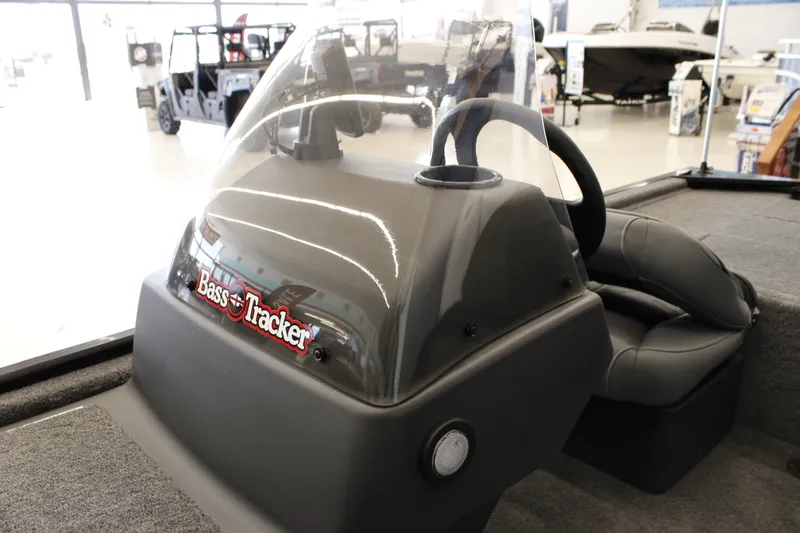

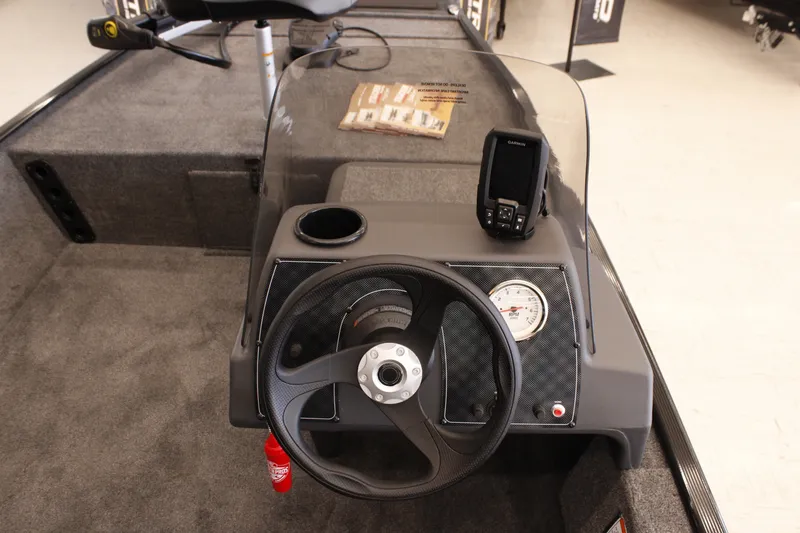

Console

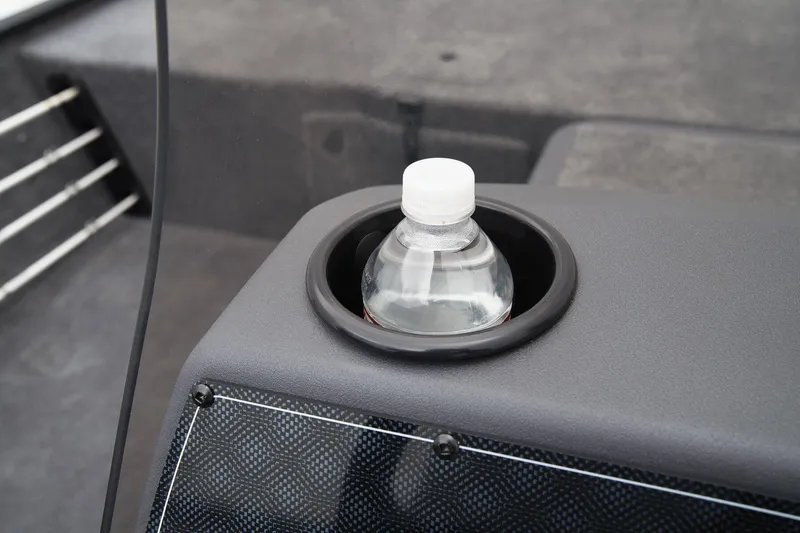

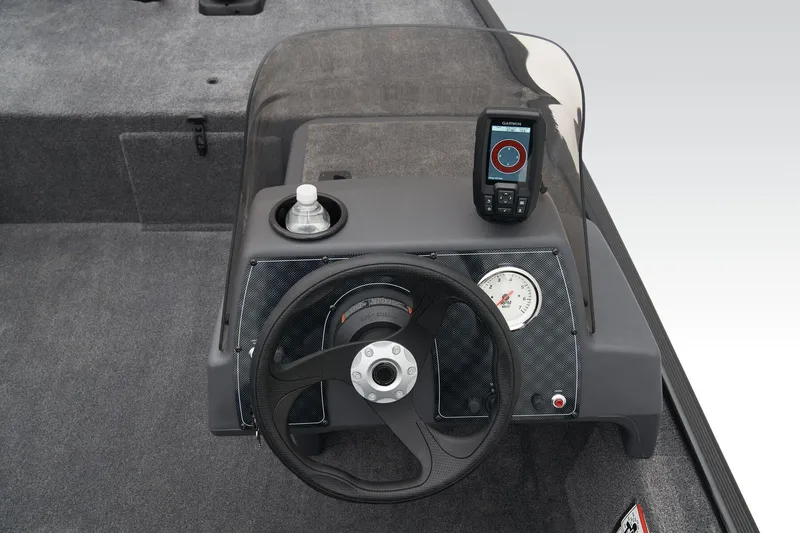

• 1-piece rotomolded console w/tinted windscreen, integrated livewell, drink holder & 12V outlet

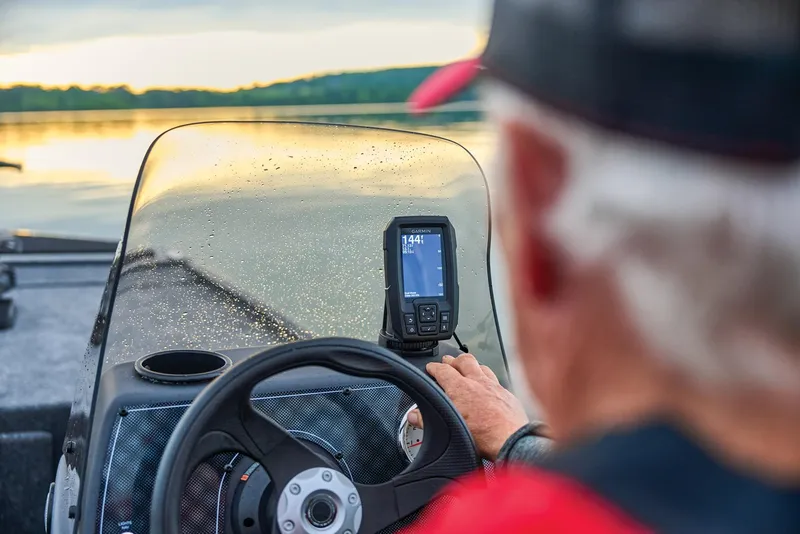

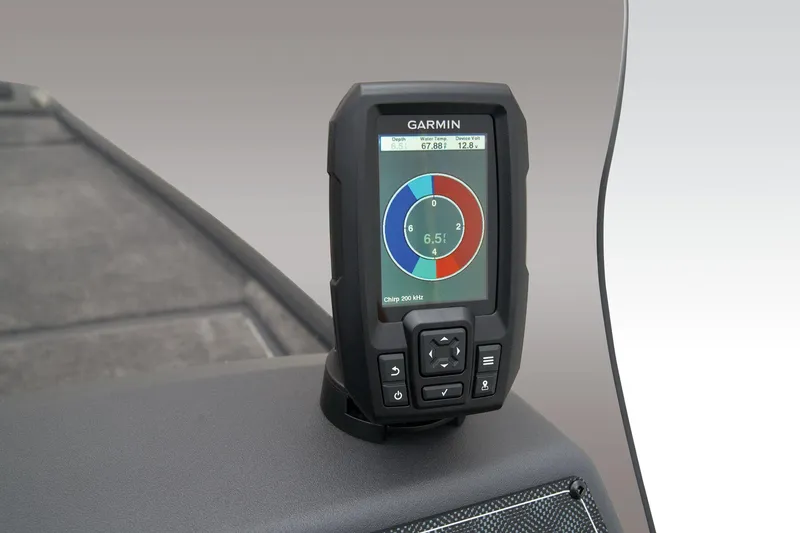

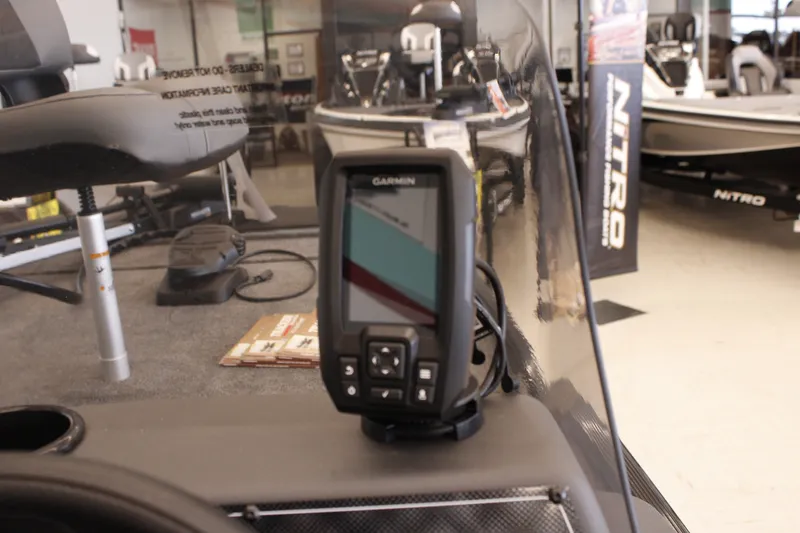

• Garmin® STRIKER™ 4 color fishfinder + GPS w/CHIRP transducer
• Sport steering wheel
• Single-cable, no-feedback rotary steering

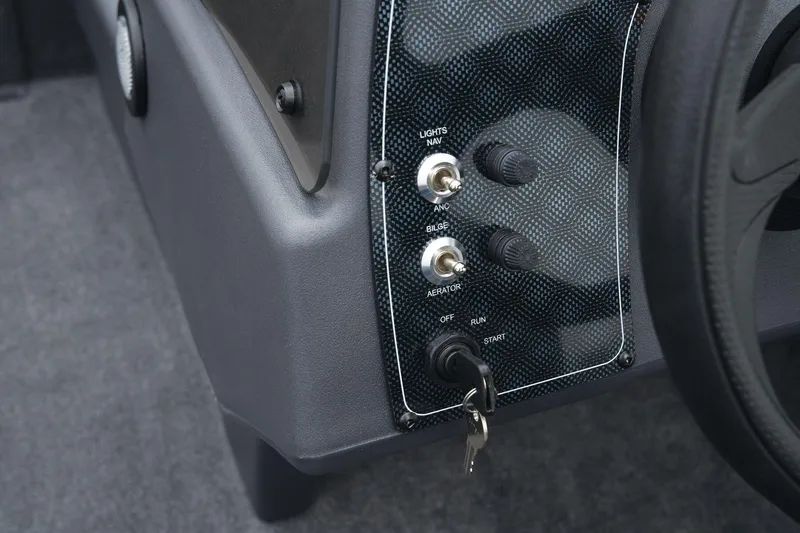

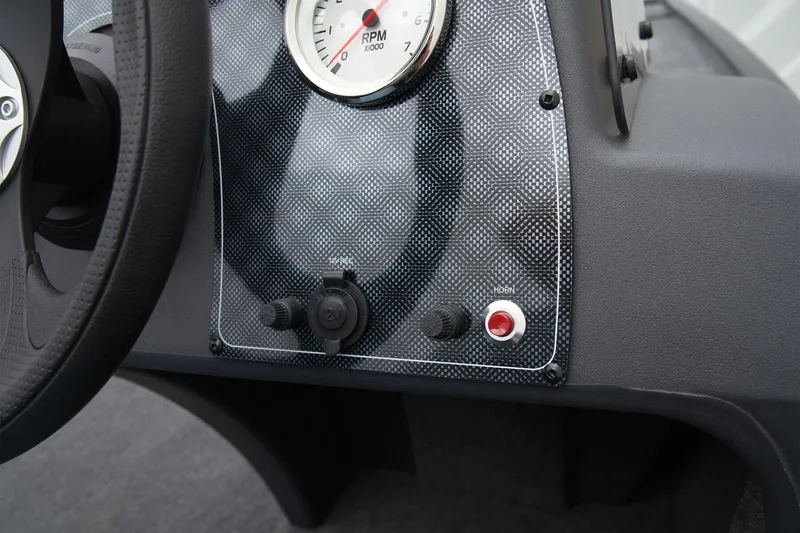

• Midnight Lazer switch panel
• Navigation lights, aerator & bilge switches

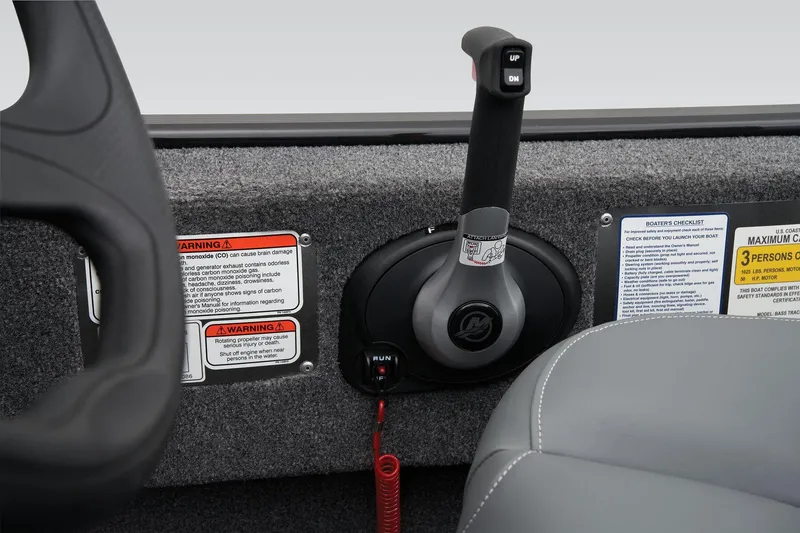

• Mercury® throttle control mount

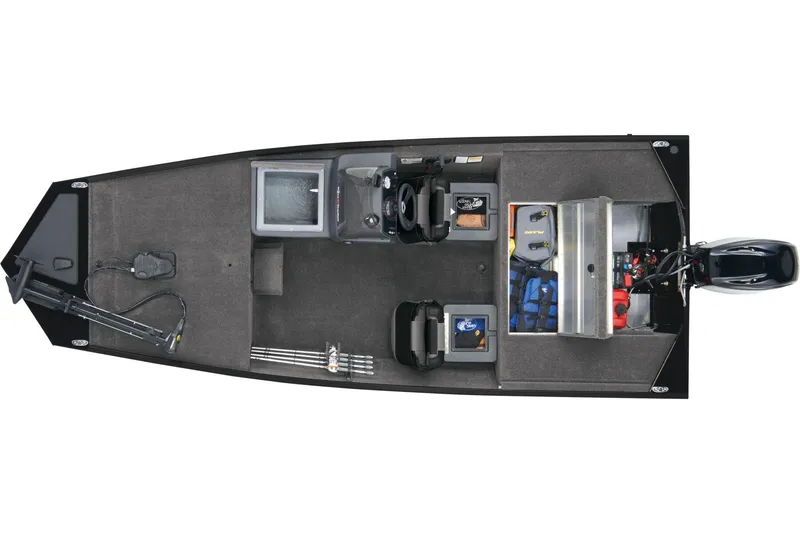

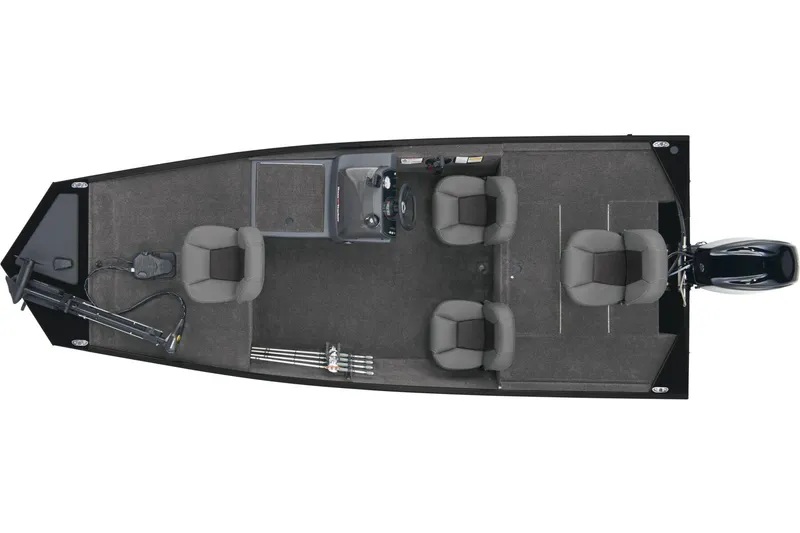

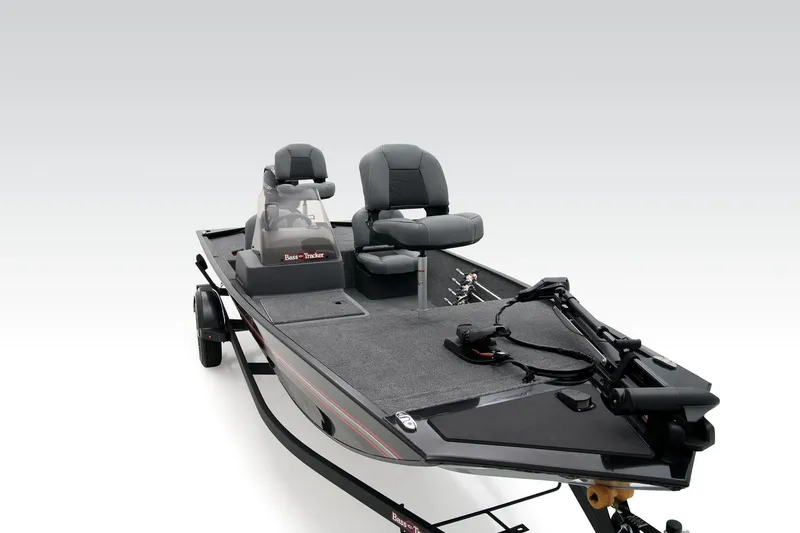

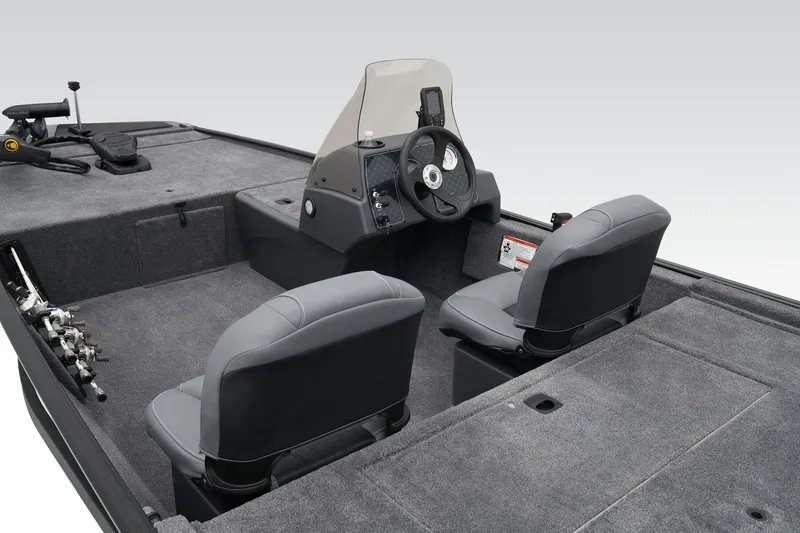

Interior

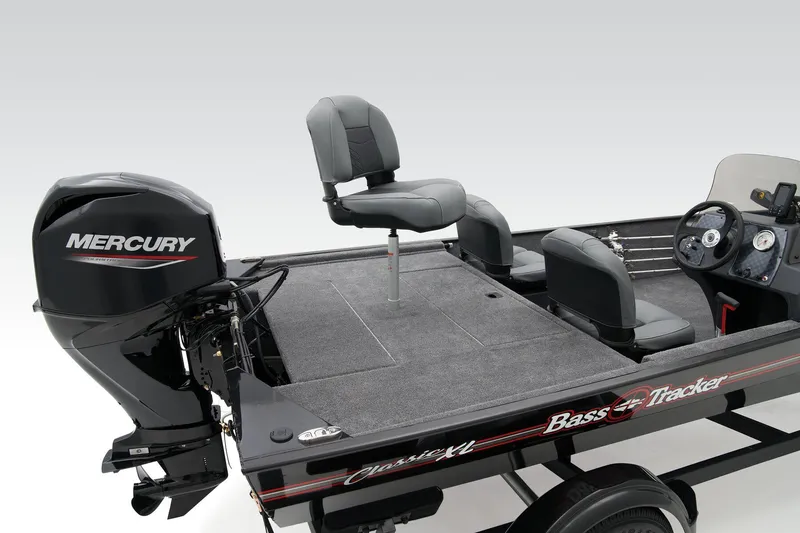

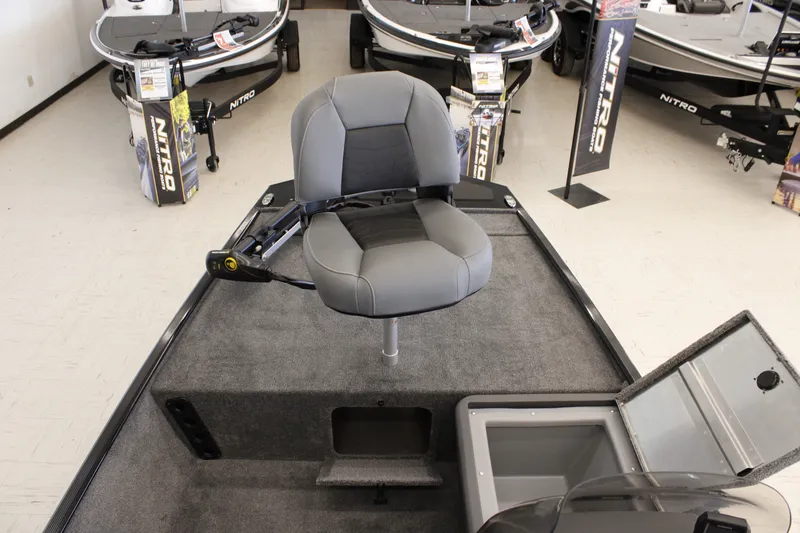

• 2 pedestal seat base locations
• 2 folding fishing seats w/contoured hinges & snap-off cushions

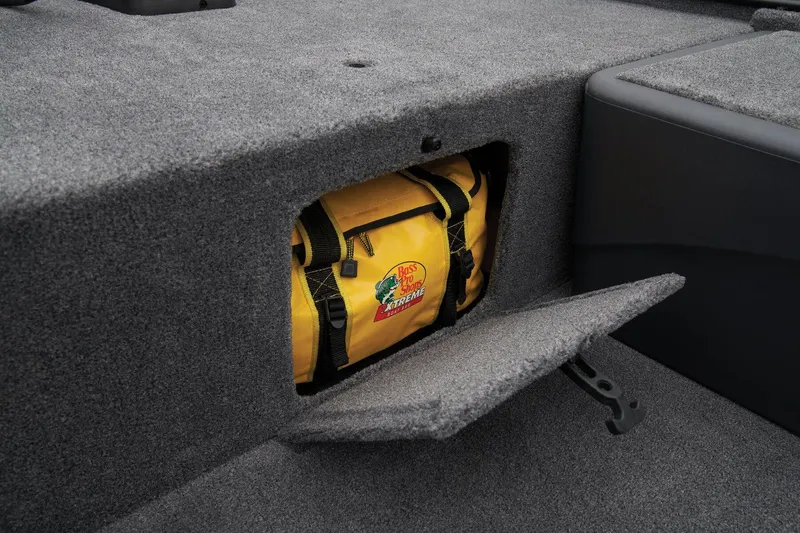

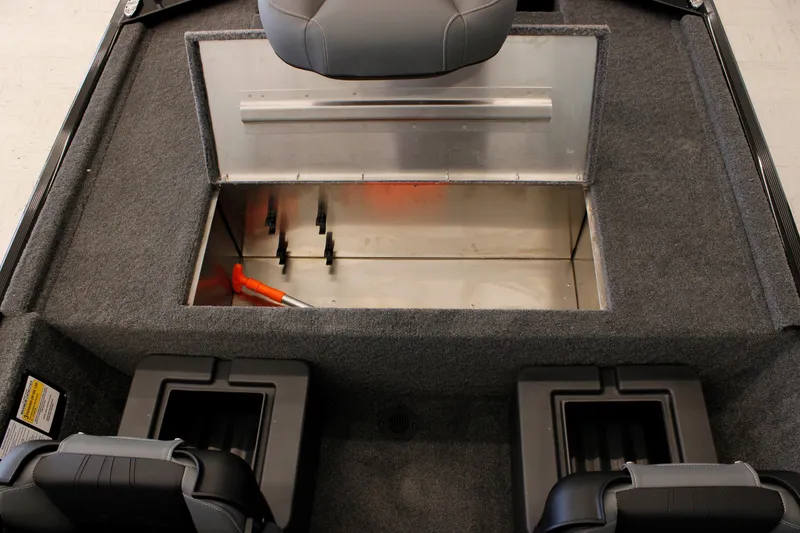

• Elevated bow & aft casting decks w/storage below bow deck

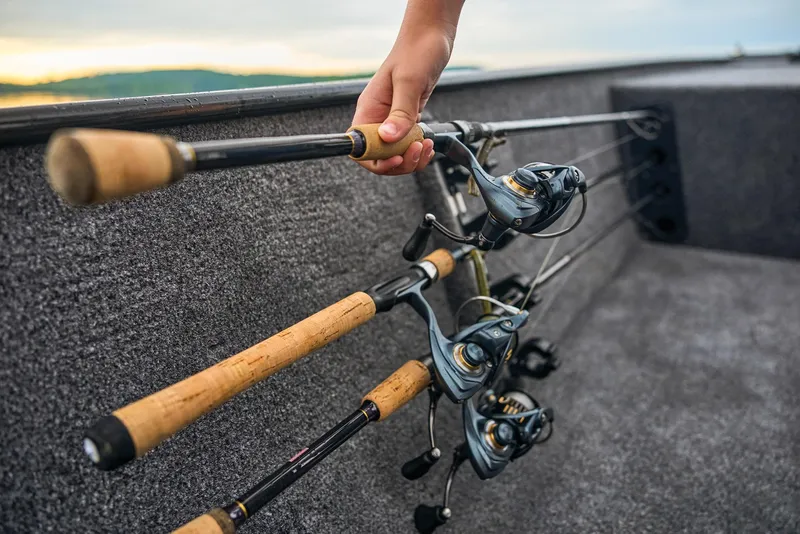

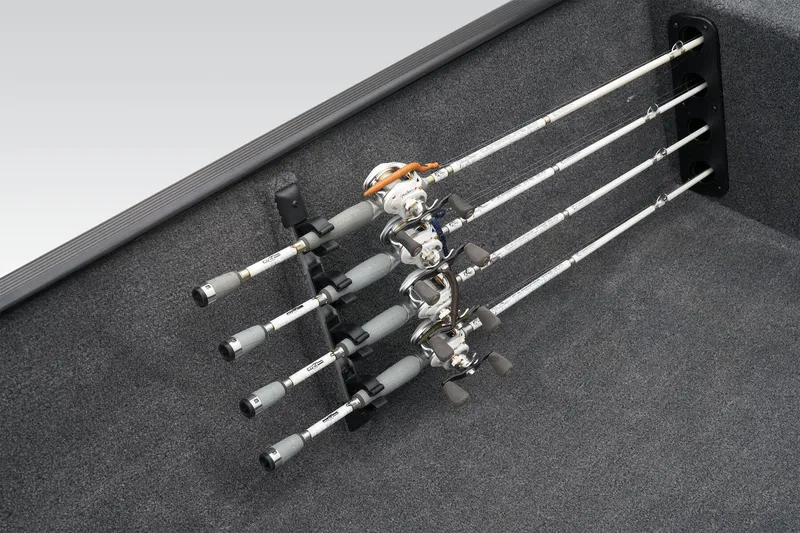

• Port side rod holders w/organizer for 4 rods to 7' (2.13 m)

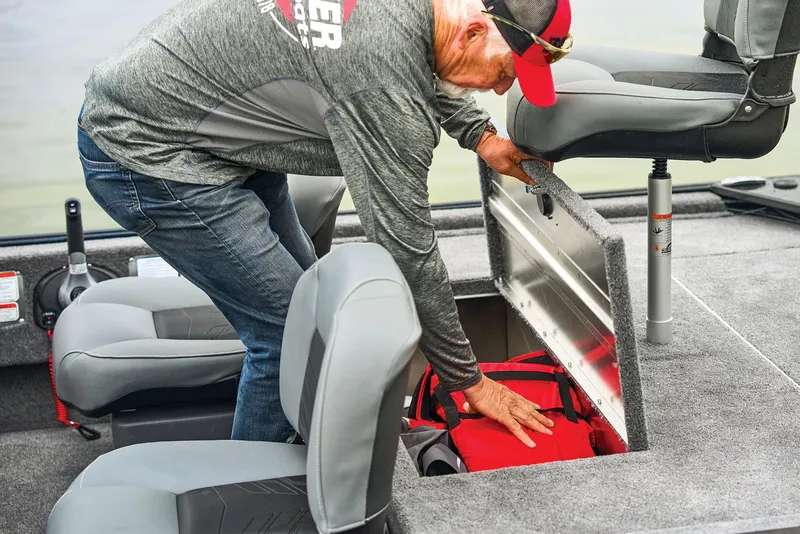

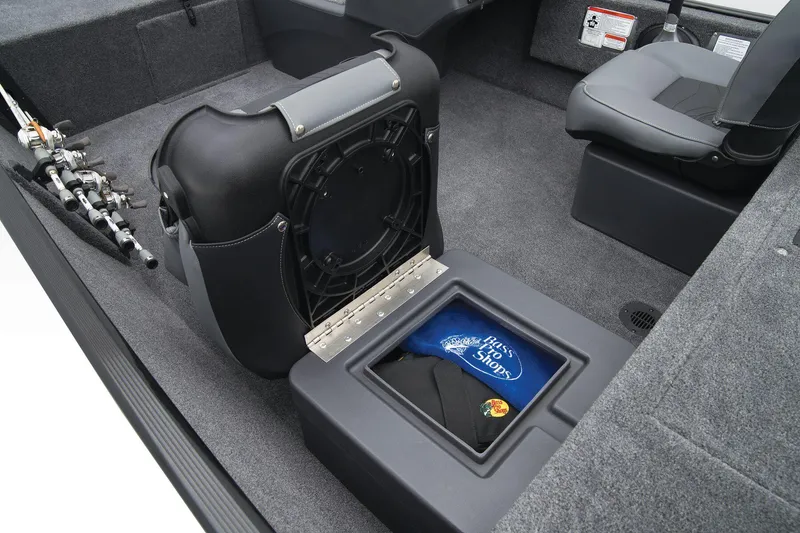

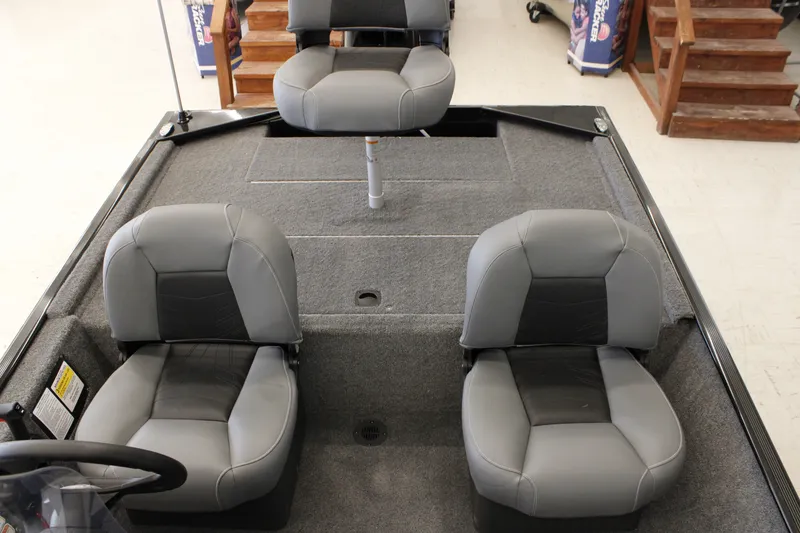

• Driver & passenger seats w/storage below

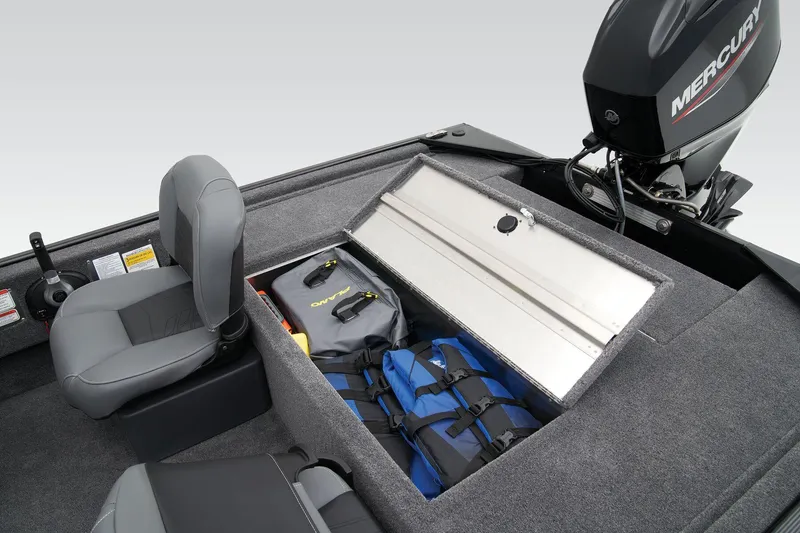

• Aft deck storage
• 16-oz. (.45 kg) marine-grade, fishing-friendly carpet throughout

Performance

• Pressed-in keel & strakes for optimal performance
• Factory-matched, performance-tested aluminum propeller

Construction & Exterior

• DIAMOND COAT™ 3.0 finish — an industry-exclusive powdercoat for brilliant durability
• Rugged, all-welded, 2-piece .100-gauge aluminum hull w/pressed-in strakes & chines for structural strength & handling
• Robotically welded, all-aluminum box-beam transom w/corner braces welded-in to unitize & strengthen the hull
• Welded-in longitudinal stringer system for full-length support along the running surface
• Expanding foam injected into hull cavities for added hull stiffening, flotation & a quieter ride

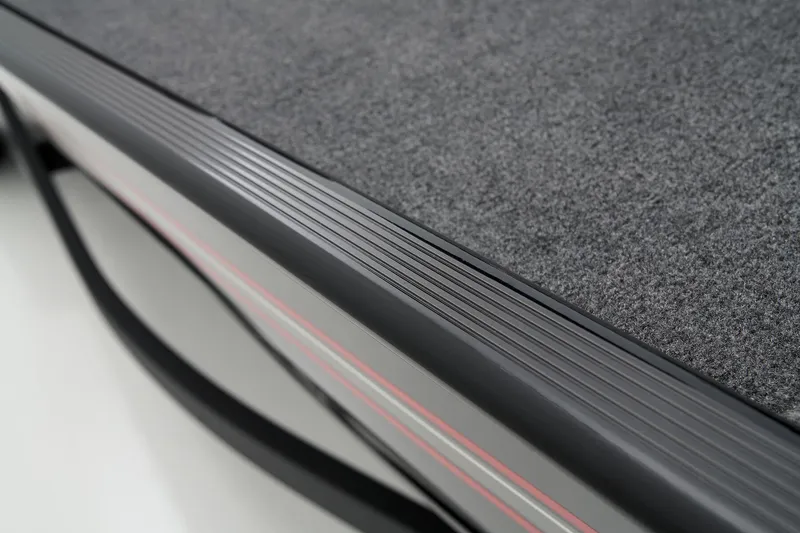

• 2" (5.08 cm), heavy-duty extruded 1-piece gunnel for structural strength & rigidity
• Pressure-treated floor & decks w/limited lifetime warranty
• All-aluminum, carpeted compartment lids for structural rigidity, tight fit & long-term durability

Electrical

• 800 GPH (3,028 LPH) bilge pump

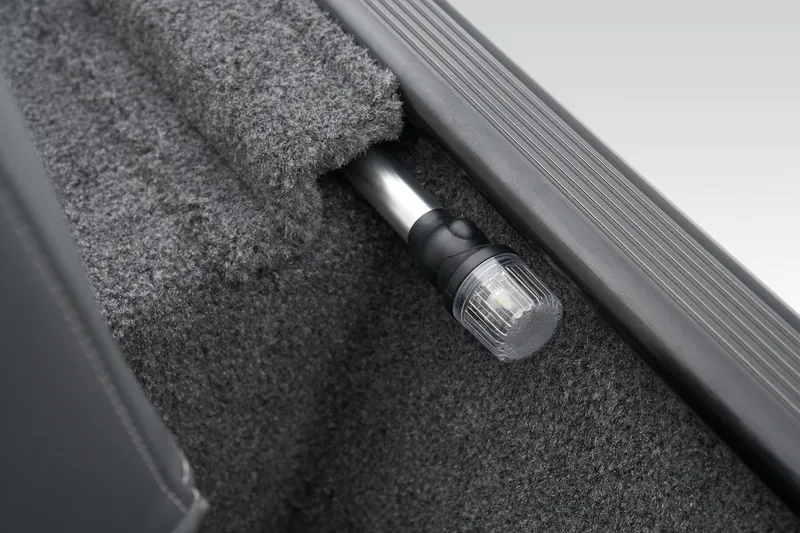

• Stowable navigation lights
• Bow & console courtesy lights

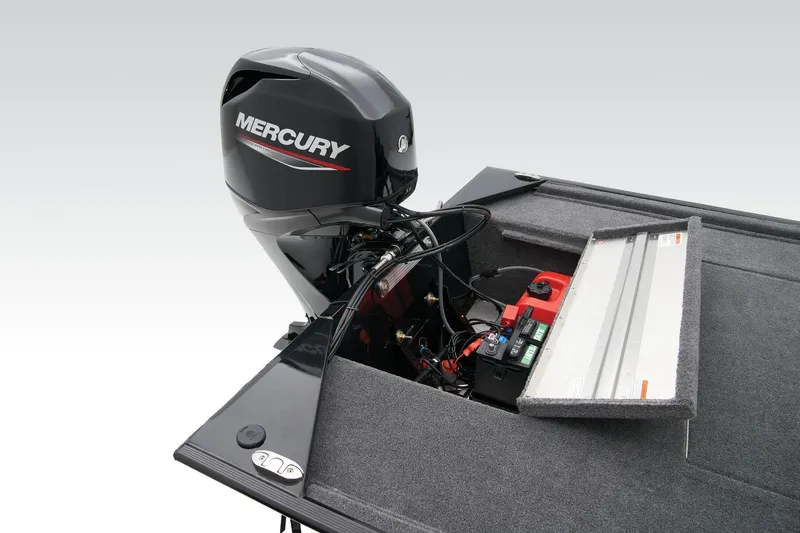

• 2 battery trays
• Interstate® batteries: 1 cranking & 1 trolling
• 12V trolling motor harness & receptacle
• Wiring system wrapped in abrasion-resistant protective conduit

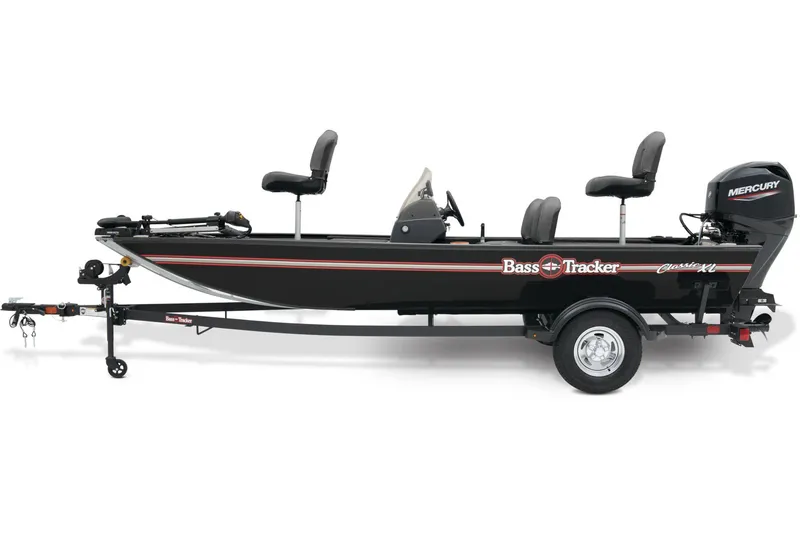

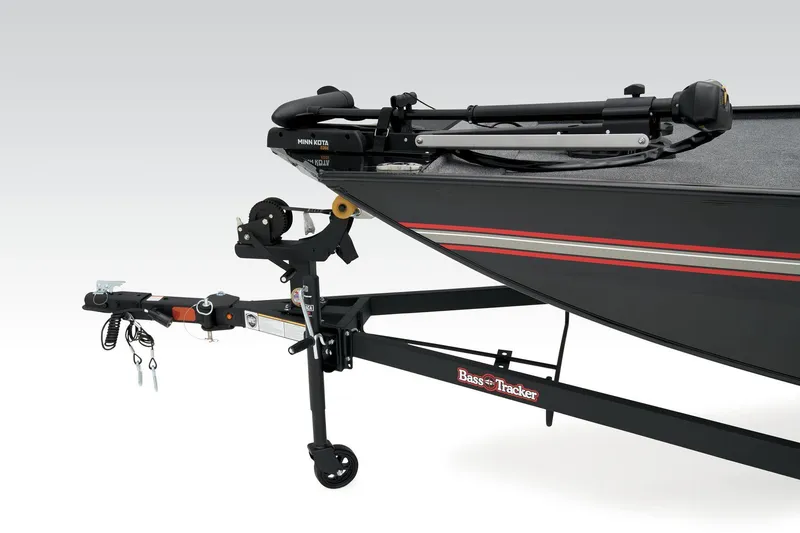

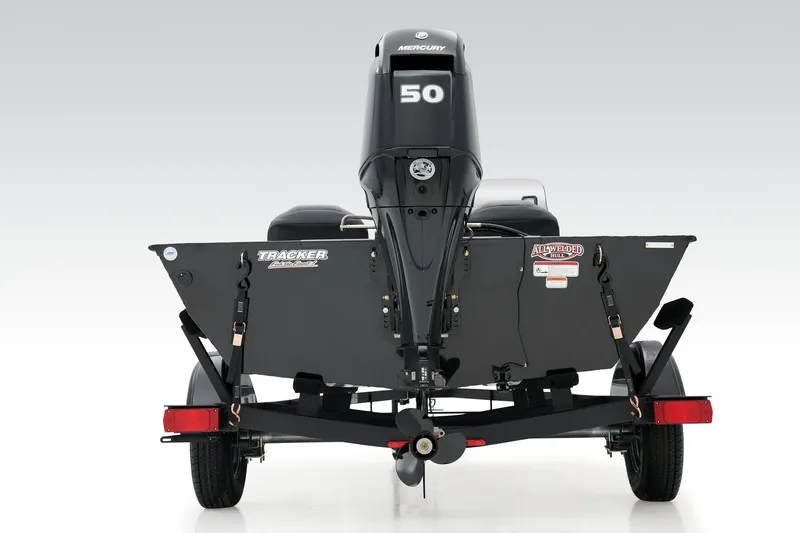

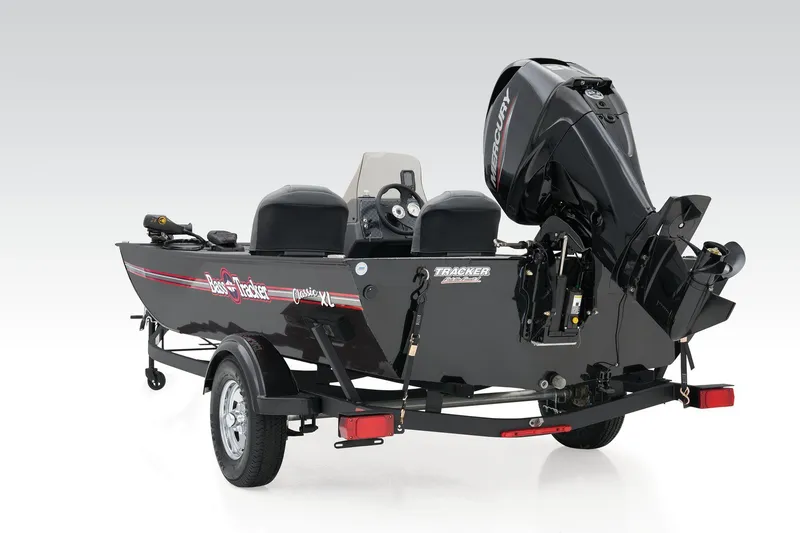

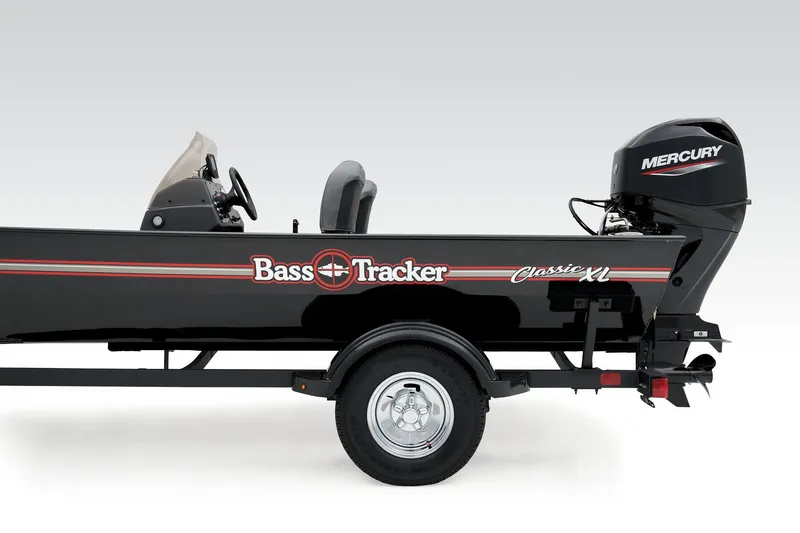

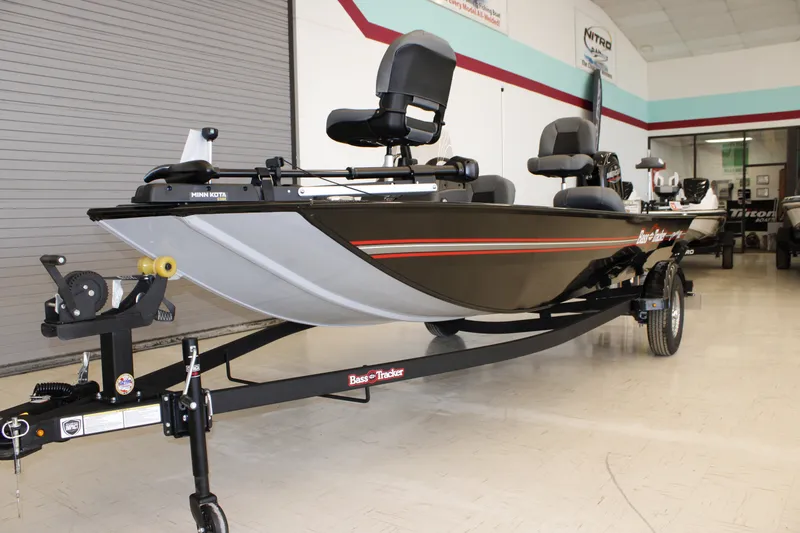

Trailer

• Custom-fit, single-axle trailer powdercoated w/GALVASHIELD® Impact corrosion & chip protection for improved durability
• 13" (33.02 cm) chrome wheels & matching hub covers w/radial tires
• Hubs designed for quick & easy hub lubrication
• Space-saving swing-away tongue to reduce storage length
• Pivot-up locking jack w/swivel wheel

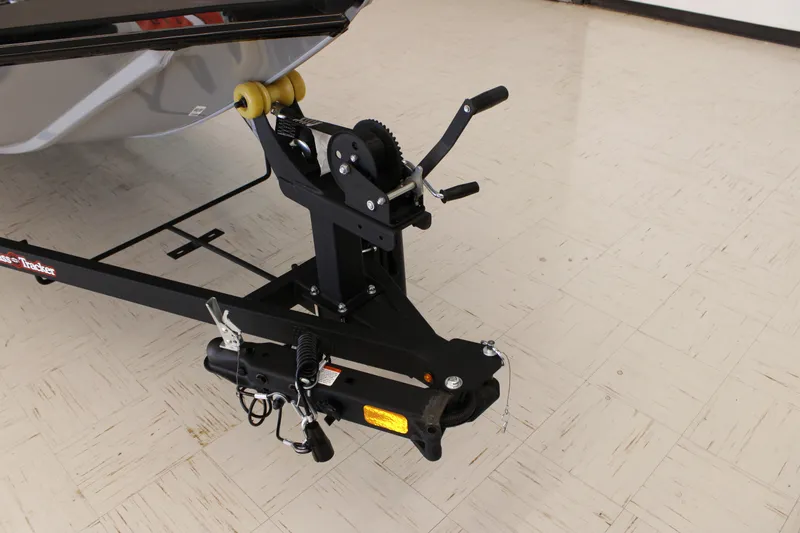

• Heavy-duty winch w/nylon strap & bow safety strap
• Outboard motor support to reduce hull & transom stress while towing
• Heavy-duty upright load guides for easy, centered loading
• Carpeted bunks to protect hull
• Submersible LED lighting
• Nylon tie-down straps (supplied w/boat package)
• Safety cables
