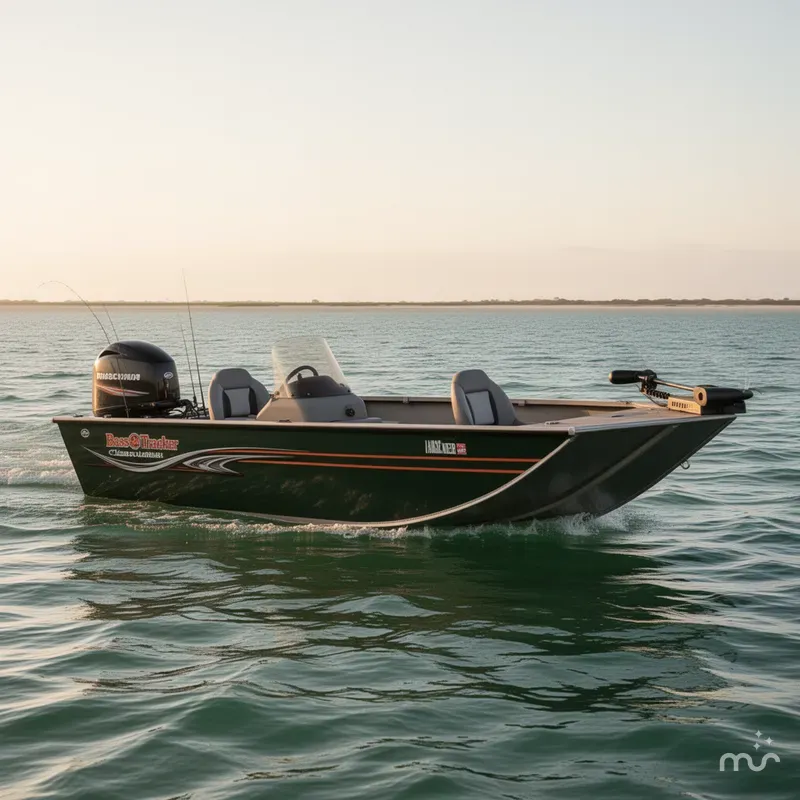

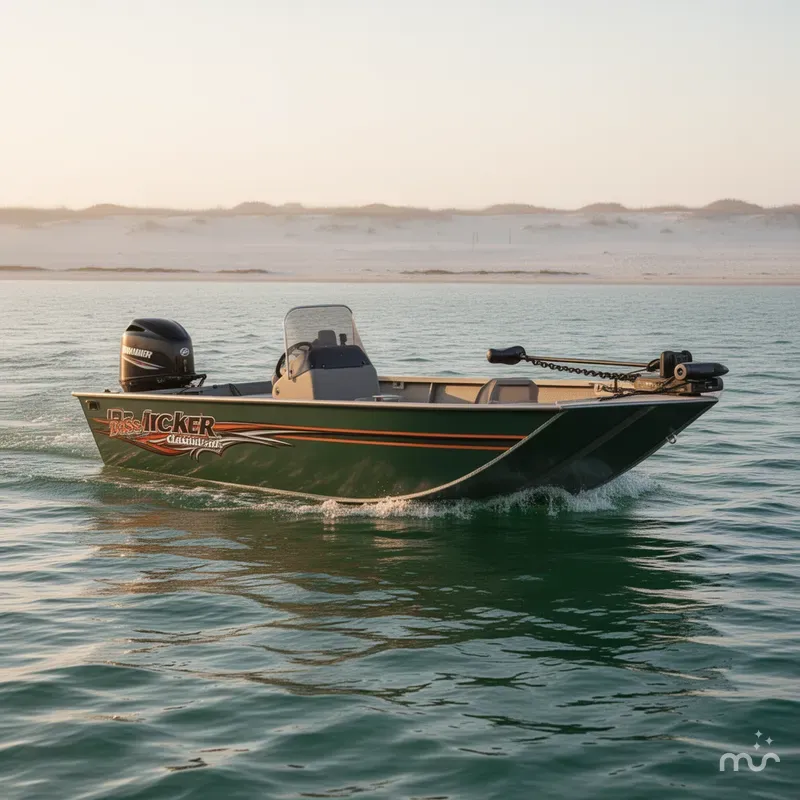

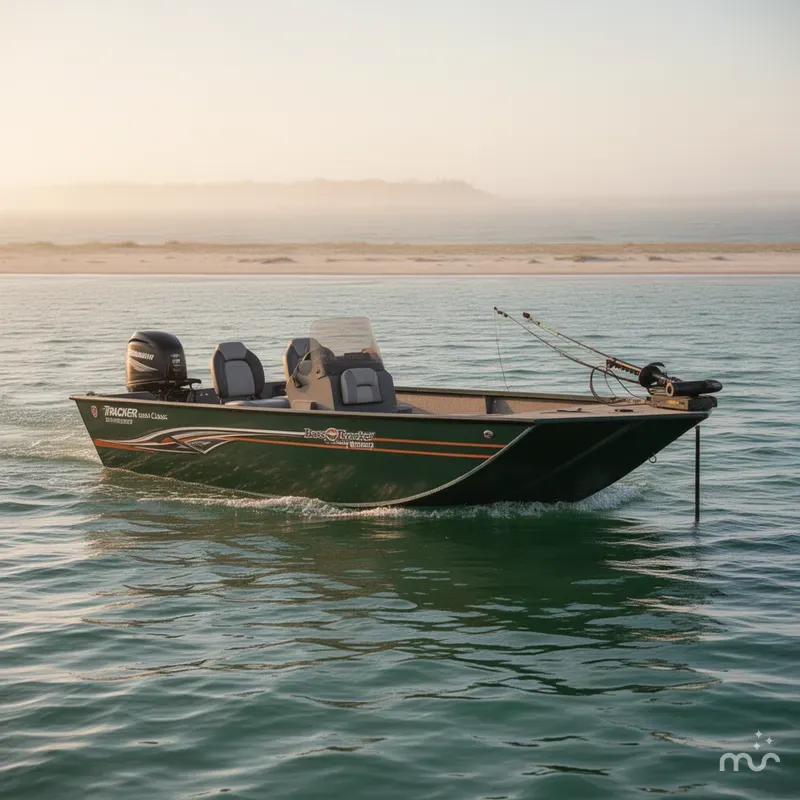

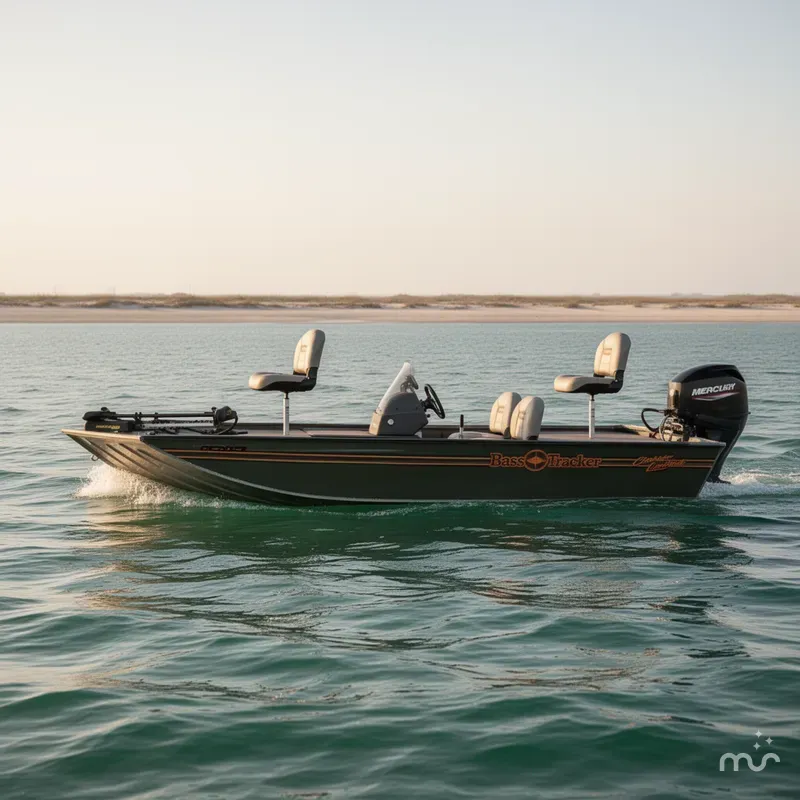

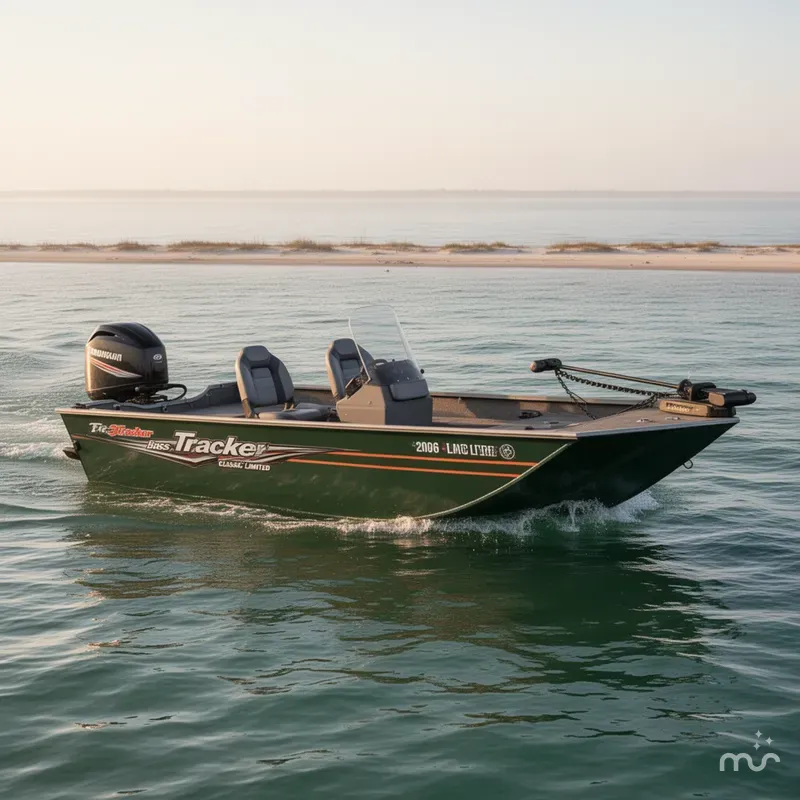

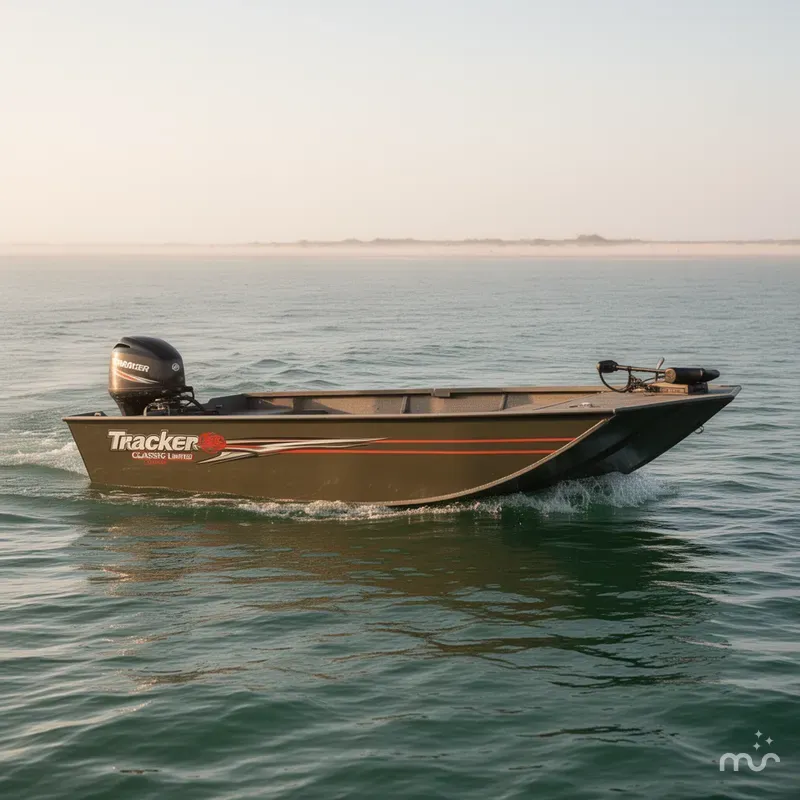

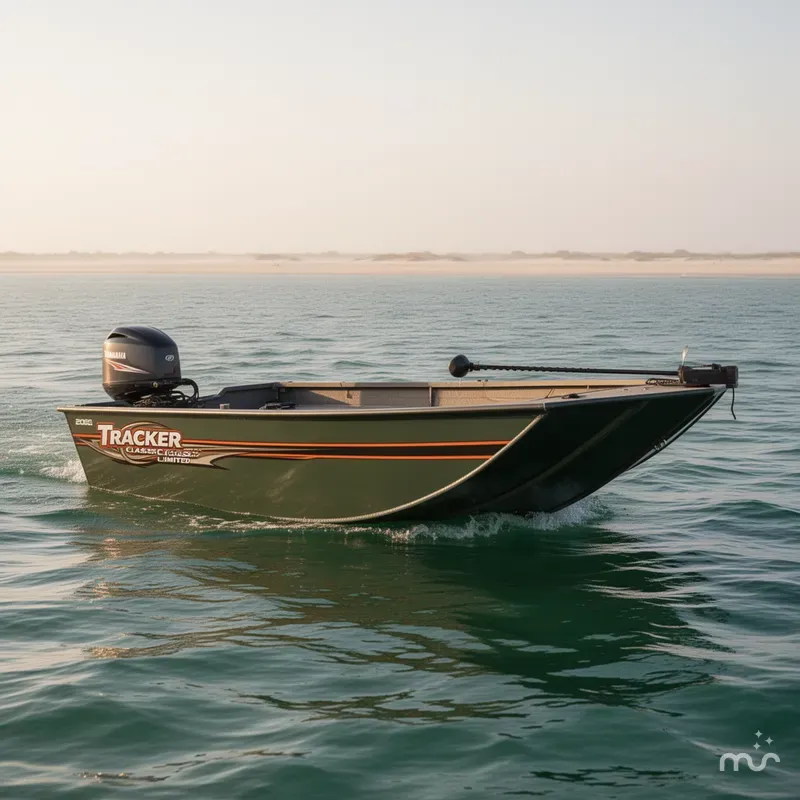

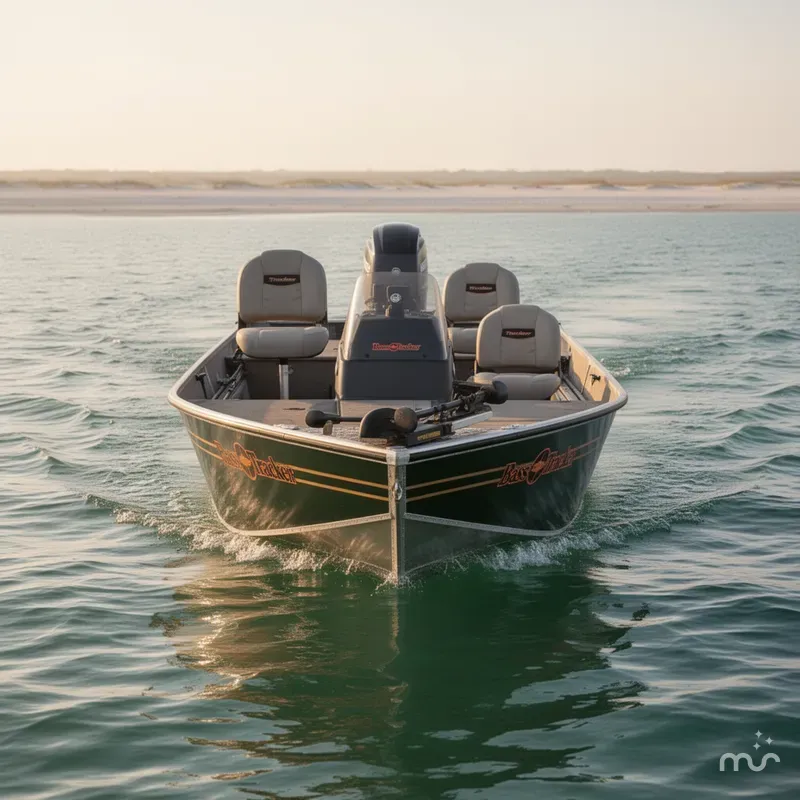

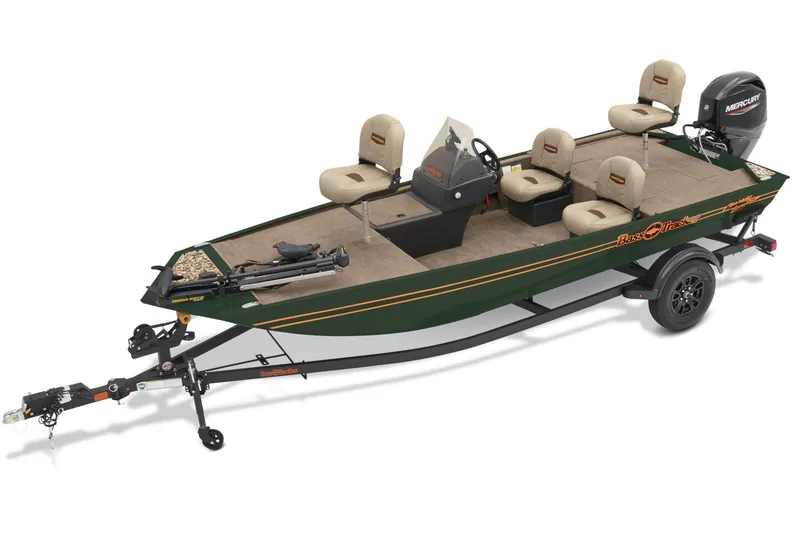

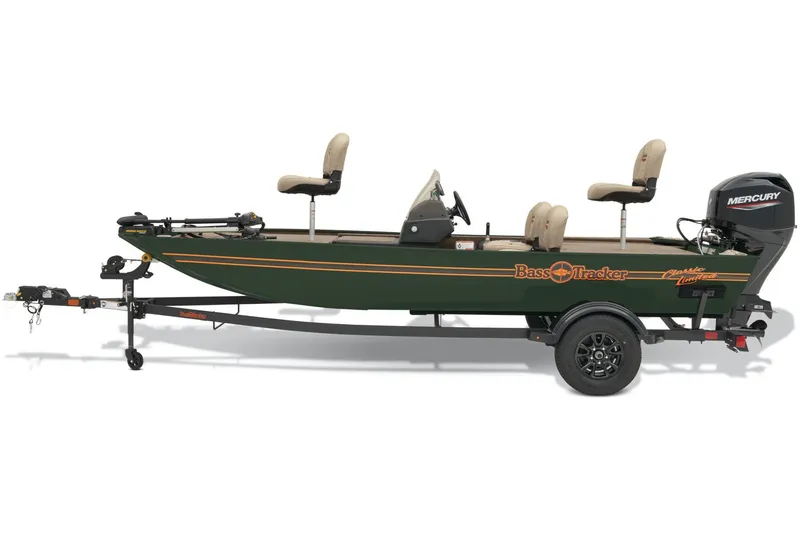

2026 Tracker Bass Tracker Classic Limited Boat in Grand Prairie, TX 75052 US
Bass Tracker Classic Limited
1 Engine (MERCURY MARINE)
16.7 feet
--
Aluminum
The BASS TRACKER CLASSIC Limited Edition enhances the best value in fishing boats with luxurious, eye-catching features. Its Army Green DIAMONDCOAT™ powder coat finish offers both striking appearance and proven durability, maintaining a long-lasting shine. The boat is equipped with 13-inch black trailer wheels fitted with premium radial tires, complemented by a matching spare. Inside, the Limited Edition boasts an upgraded fishing setup, including a Lowrance® Hook5 Reveal color GPS fishfinder. To complete this exclusive package, it features Limited Edition floor mats, decals, and a custom deck stripe. BASS TRACKER is dedicated to delivering industry-leading value to anglers and families, and with the introduction of the all-new BASS TRACKER CLASSIC Limited Edition, you receive exceptional value along with a distinctive feature set that's destined to become a classic.
Length:16' 8"
Beam: 6' 5"
Bottom Width: 4' 6"
Max. Recommended HP: 50 HP
Fuel Capacity (Portable): 6 gal.
Max. Person Capacity: 3 persons
Max. Person Weight: 555 lbs.
Max. Person, Motor & Gear Weight: 1025 lbs.
Interior Depth: 15"
Transom Height: 22.5"
Deadrise At Bow: 13 degrees
Deadrise At Transom: 6 degrees
Hull Material: 0.1 5052 marine alloy
Average Dry Weight: 780 lbs.
Average Package Weight: 1705 lbs.
Package Height: 6' 0"
Package Width: 6' 8"
Towing Length: 23' 2"
Storage Length (w/Outboard Trimmed Down): 20' 1"
LIMITED
- Color: DIAMOND COAT™ Army Green gunnels, hull sides & bottom
- NEW Lowrance® Eagle 5 swivel color fishfinder + GPS w/CHIRP & SplitShot™ transducer

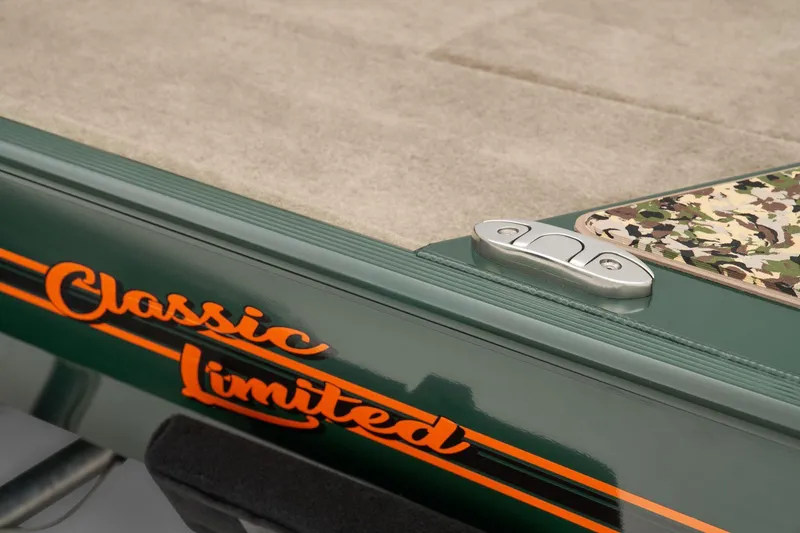

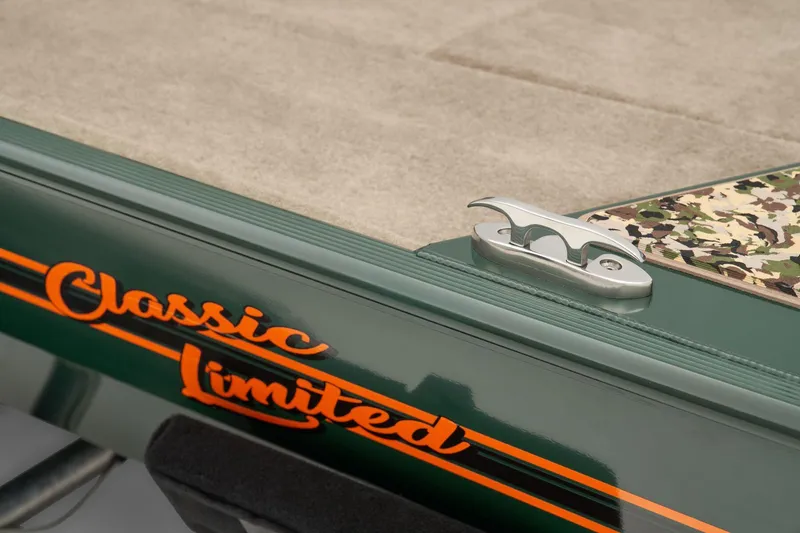

- Limited mats, decals & deck stripe
- Upgraded trailer: 13" (33.02 cm) aluminum wheels w/radial tires & spare tire carrier w/matching spare
Comfort, Convenience & Peace of Mind
- Backed by the TRACKER® PROMISE—the best factory warranty in aluminum boats
- Limited lifetime hull warranty
- NMMA® certified
- Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements
- Bow & stern eyes

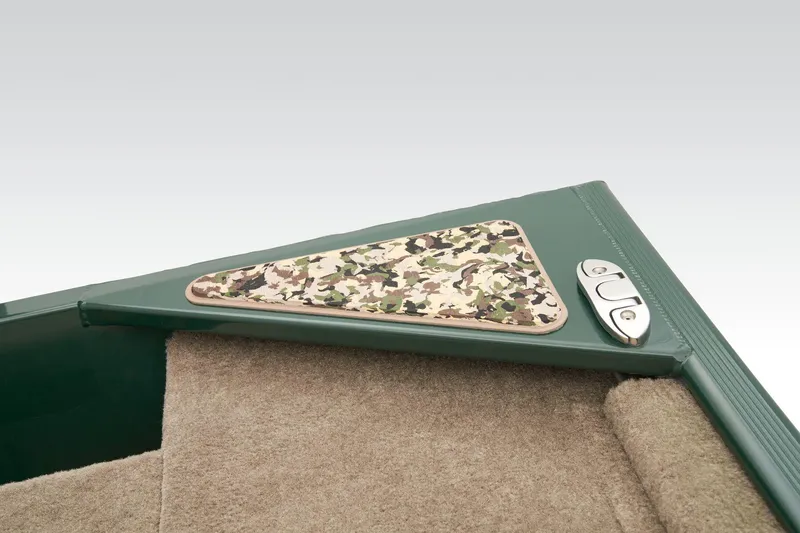

- 4 cleats
- Motor-stop safety lanyard
- Fire extinguisher
- Horn
- Paddle
Livewell System

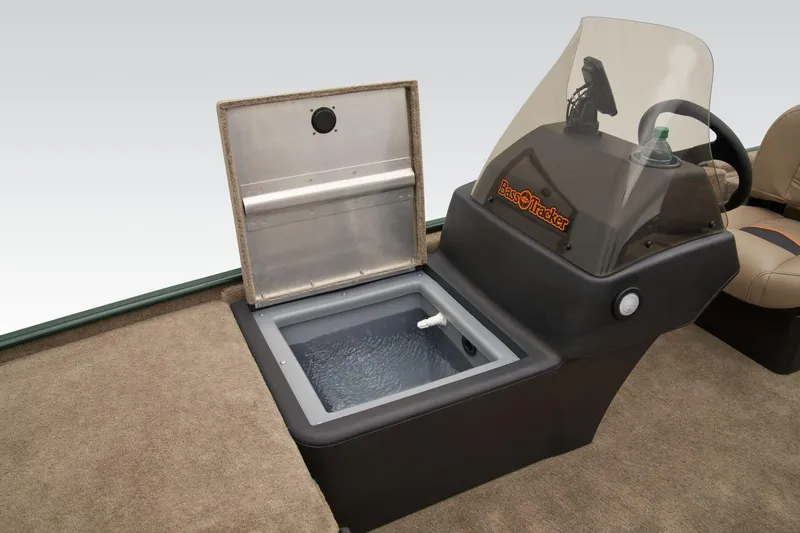

- 9-gal. (34.07 L) aerated livewell molded into front of console
- 500 GPH (1,893 LPH) aerator/fill pump
- Molded 1-piece construction w/rounded corners for easy cleanup & to protect your catch
Trolling Motor

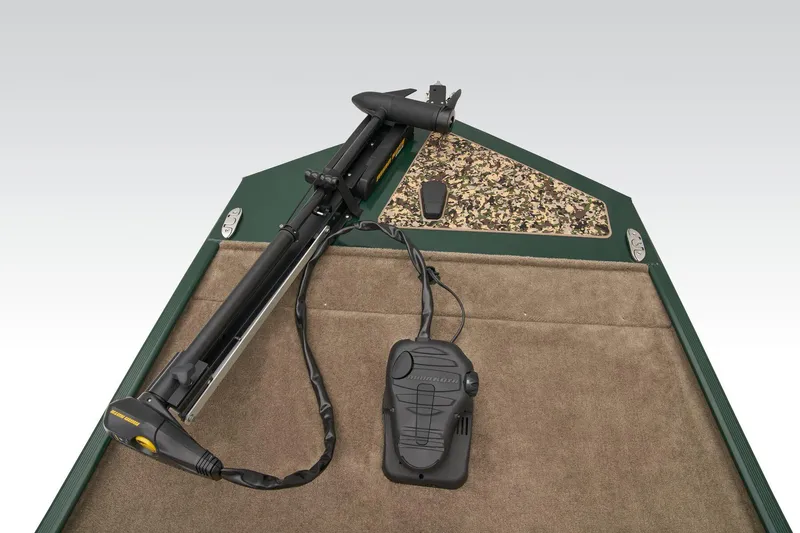

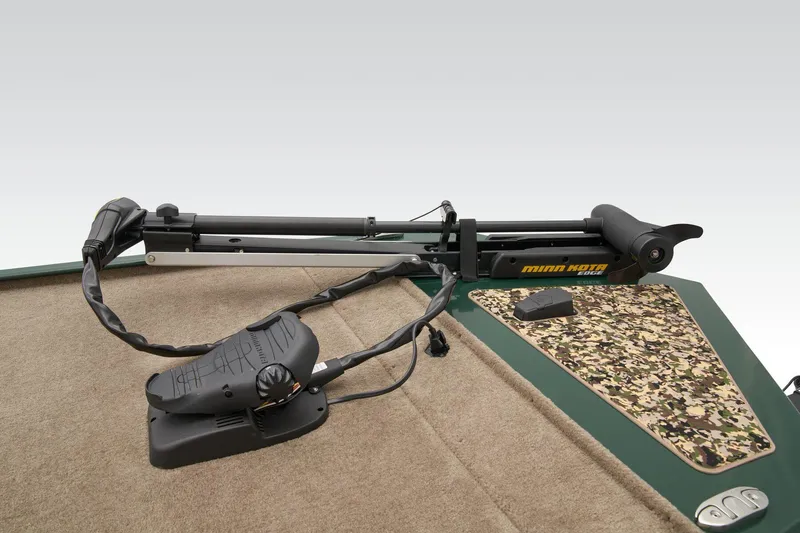

- Minn Kota® Edge® 12V, 45-lb. (20.41 kg) thrust, 45" (1.14 m) shaft, foot-control trolling motor
- Thru-bolted trolling motor mount for durability

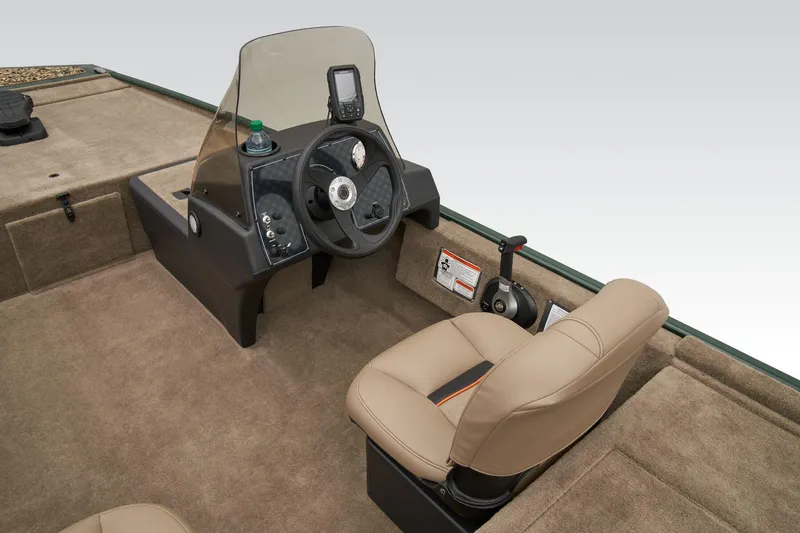

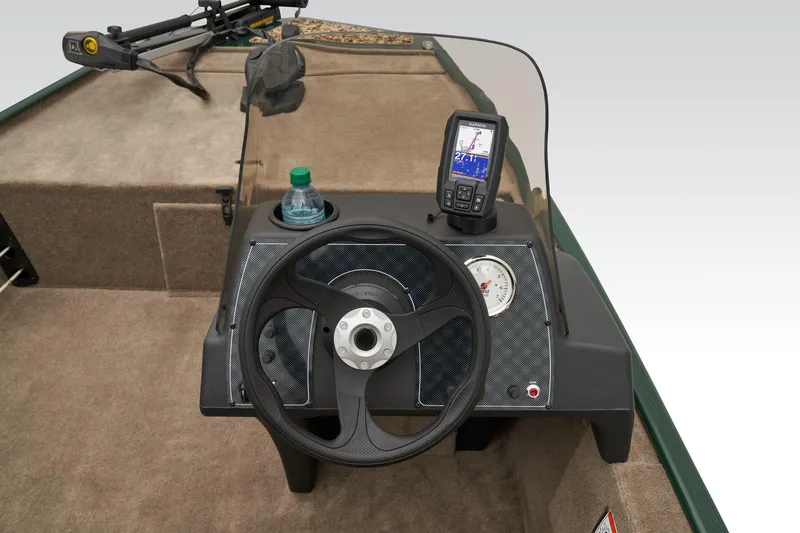

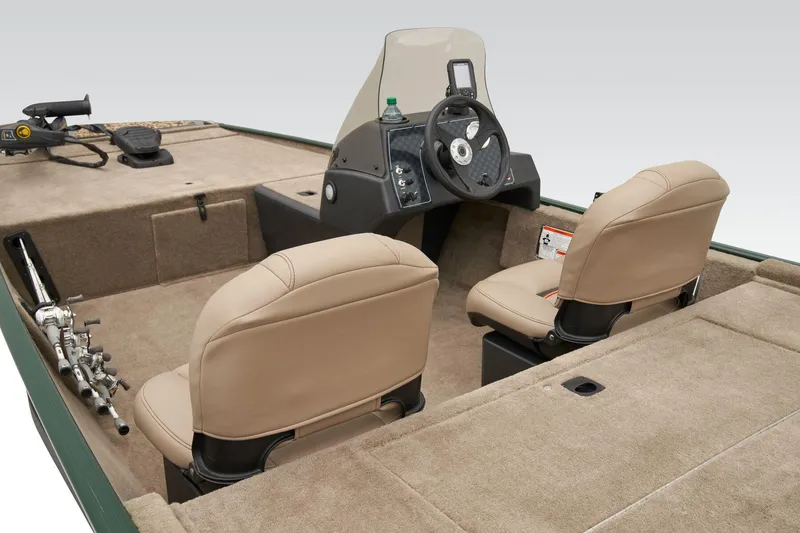

Console

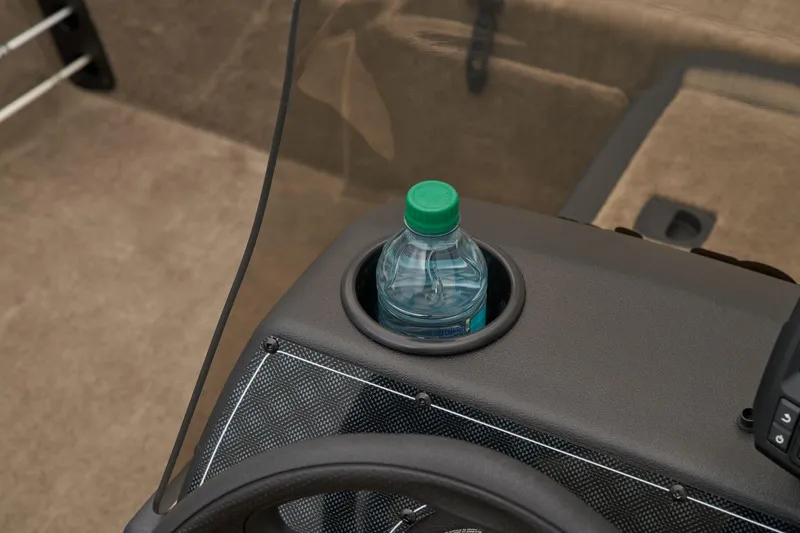

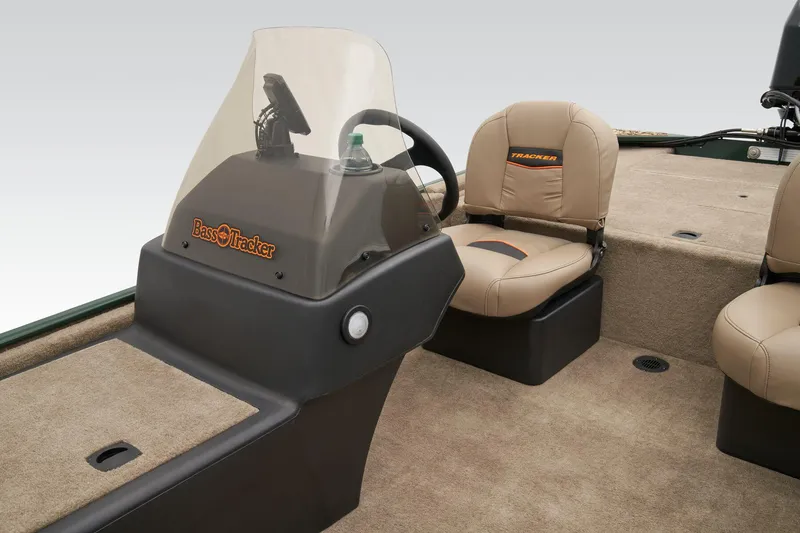

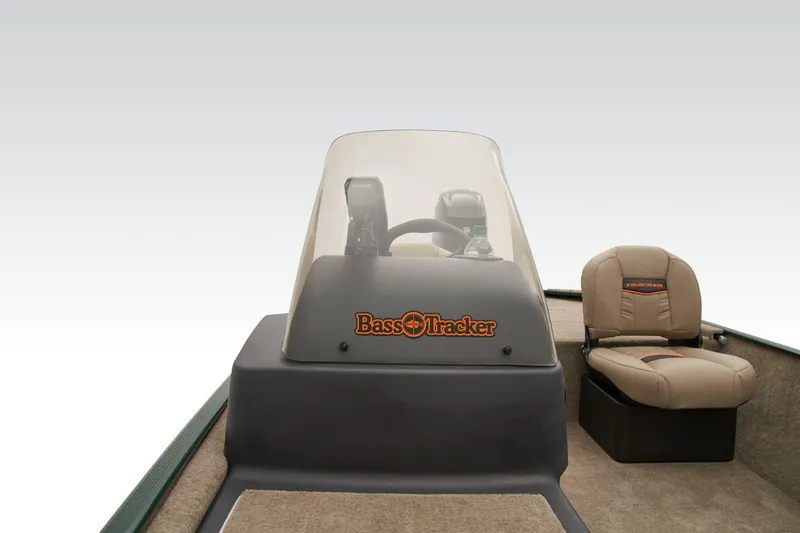

- 1-piece rotomolded console w/tinted windscreen, integrated livewell, drink holder & 12V outlet
- Sport steering wheel
- Single-cable, no-feedback rotary steering

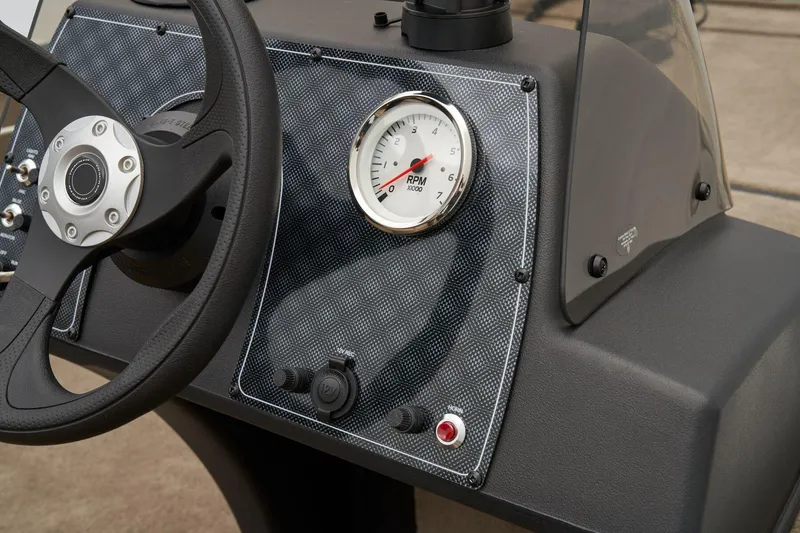

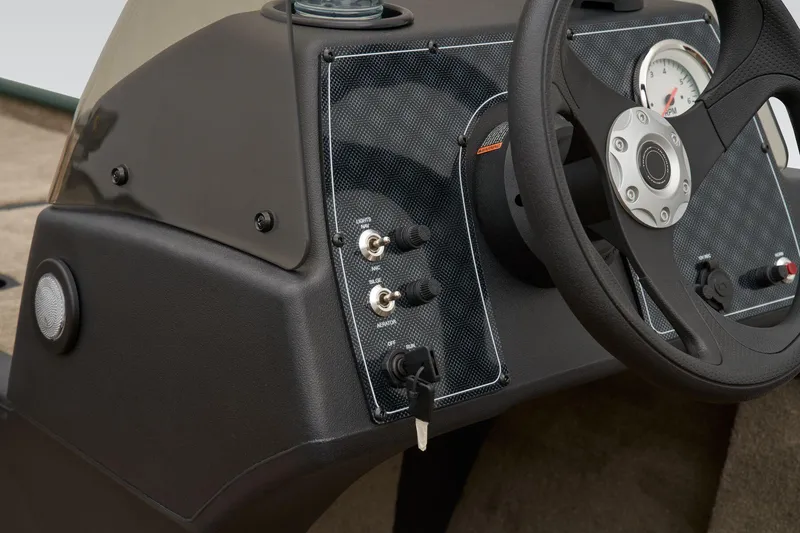

- Midnight Lazer switch panel
- Navigation lights, aerator & bilge switches

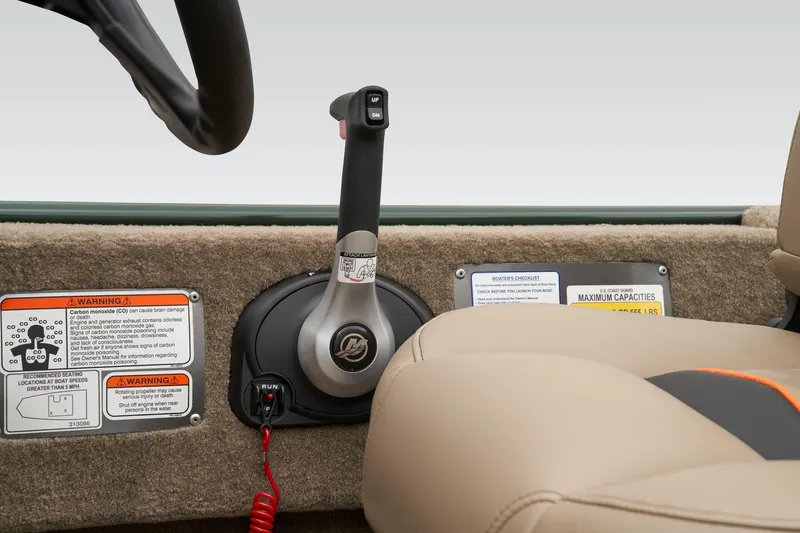

- Mercury® throttle control mount

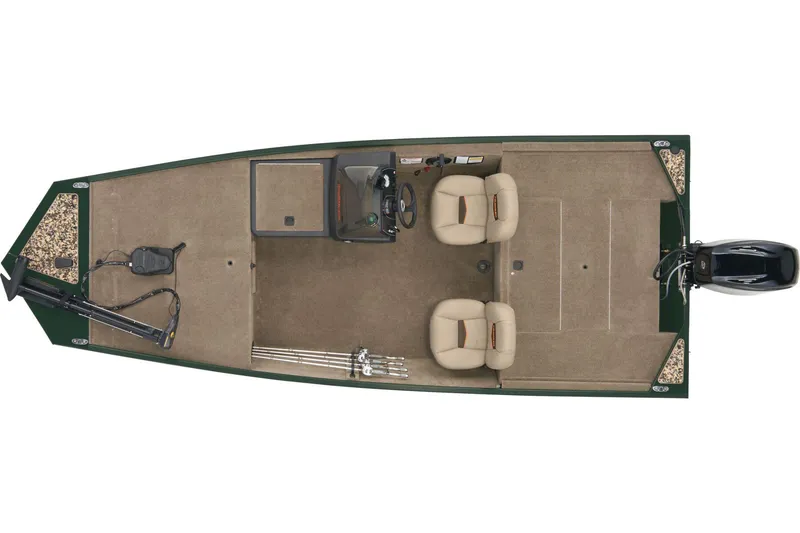

Interior

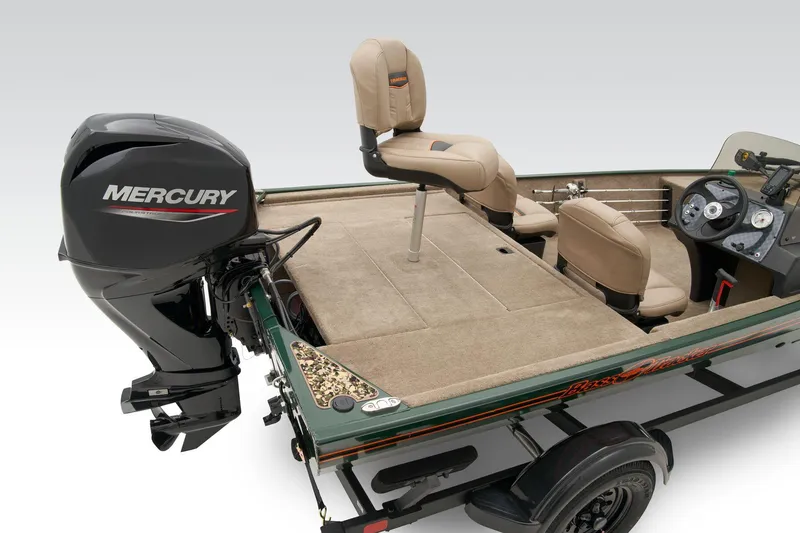

- 2 pedestal seat base locations

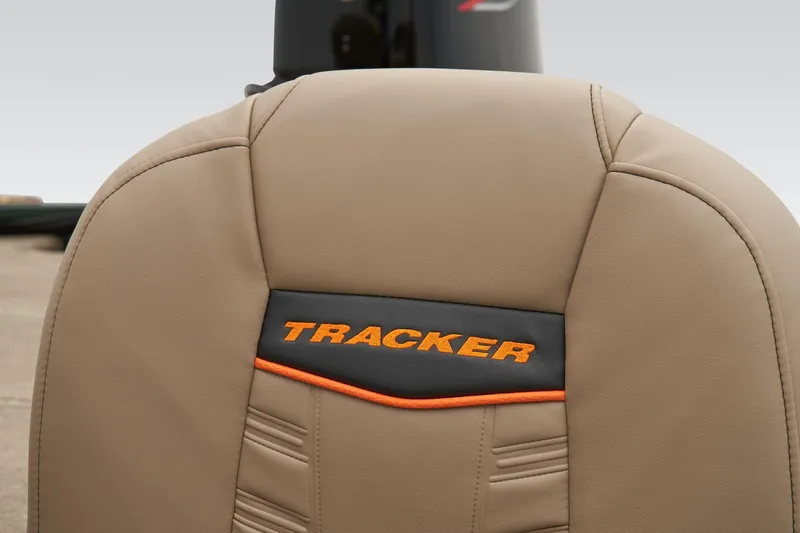

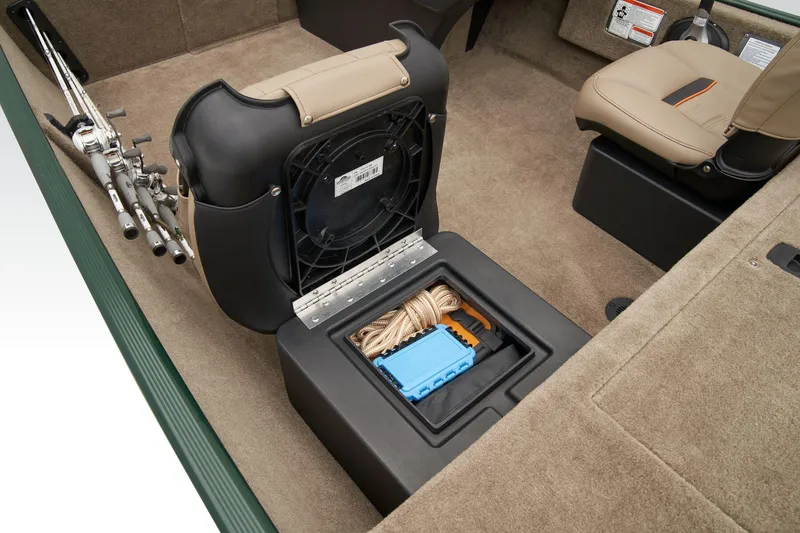

- 2 folding fishing seats w/contoured hinges & snap-off cushions

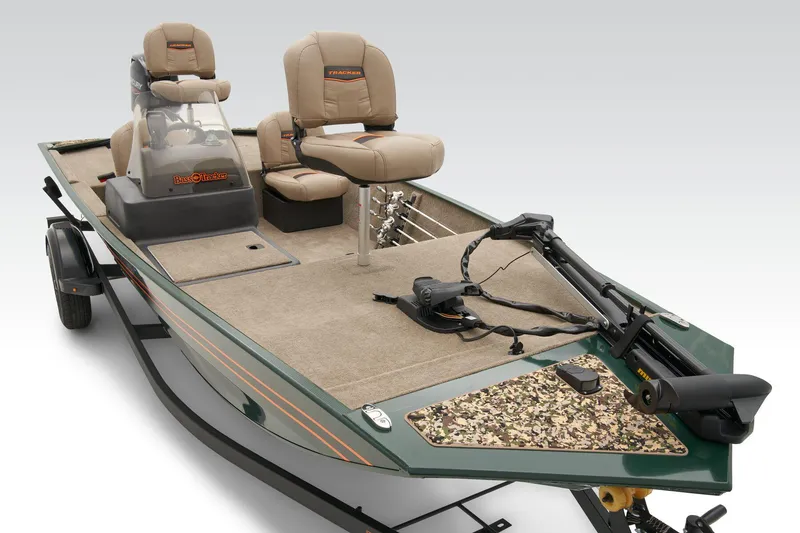

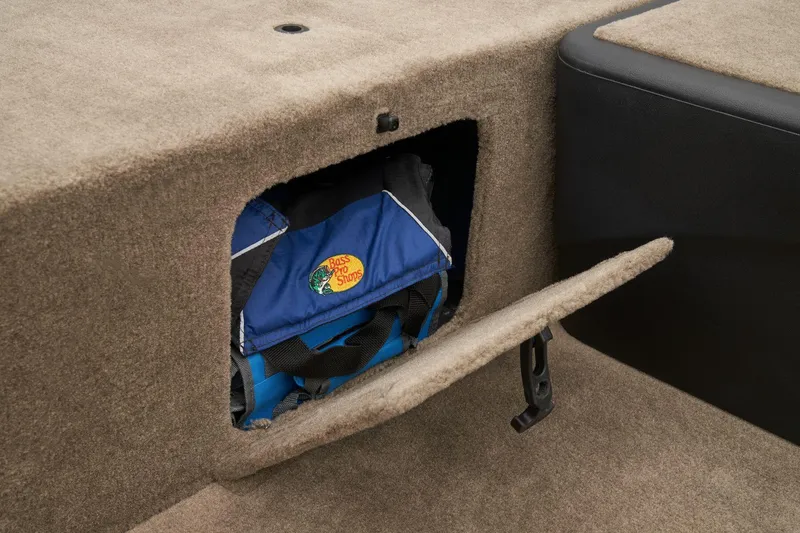

- Elevated bow & aft casting decks w/storage below bow deck

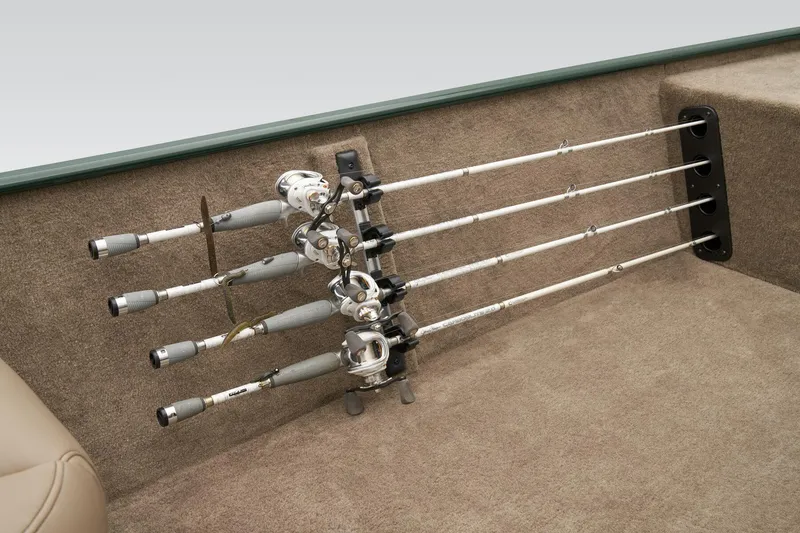

- Port side rod holders w/organizer for 4 rods to 7' (2.13 m)

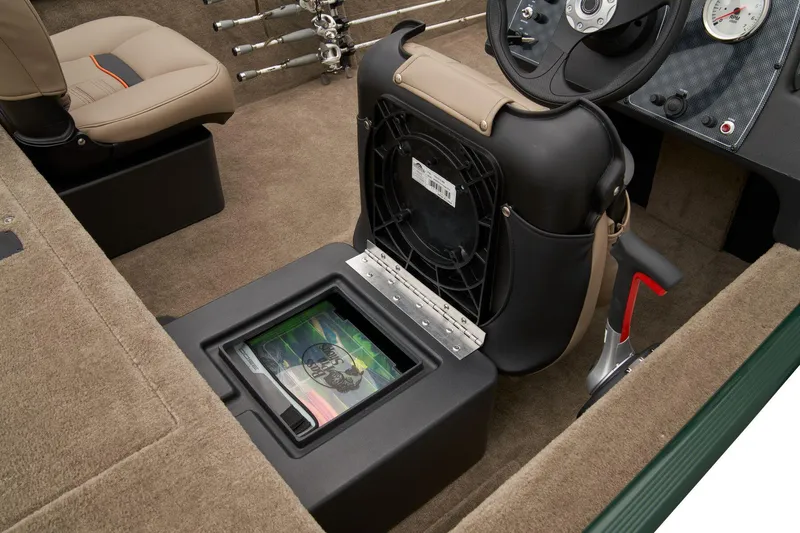

- Driver & passenger seats w/storage below

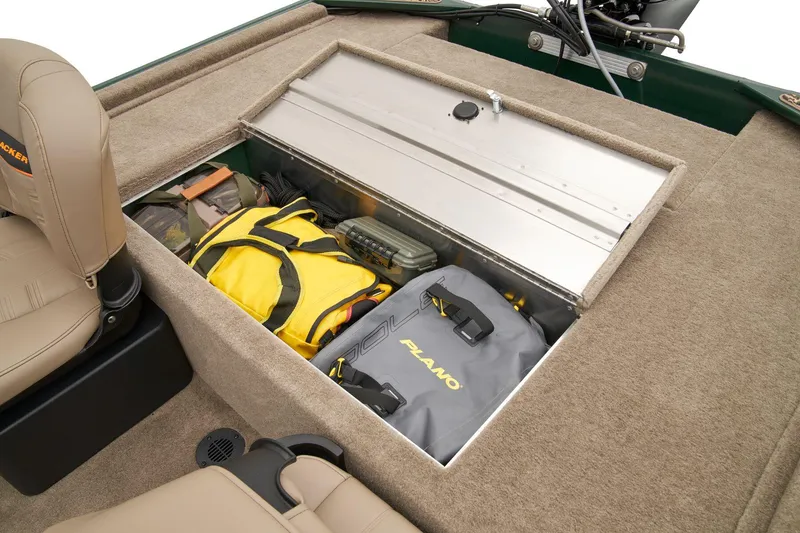

- Aft deck storage
- 16-oz. (.45 kg) marine-grade, fishing-friendly carpet throughout
Performance
- Pressed-in keel & strakes for optimal performance
- Factory-matched, performance-tested aluminum propeller
Construction & Exterior
- DIAMOND COAT™ 3.0 finish — an industry-exclusive powdercoat for brilliant durability
- Rugged, all-welded, 2-piece .100-gauge aluminum hull w/pressed-in strakes & chines for structural strength & handling
- Robotically welded, all-aluminum box-beam transom w/corner braces welded-in to unitize & strengthen the hull
- Welded-in longitudinal stringer system for full-length support along the running surface
- Expanding foam injected into hull cavities for added hull stiffening, flotation & a quieter ride

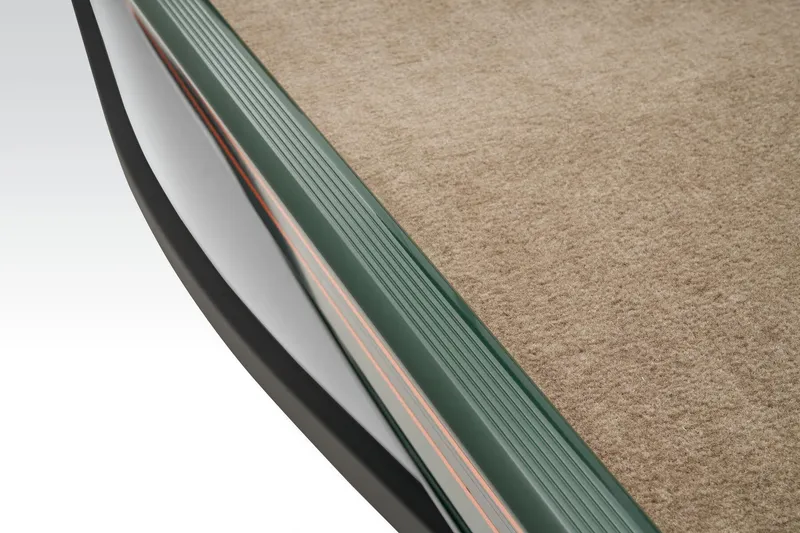

- 2" (5.08 cm), heavy-duty extruded 1-piece gunnel for structural strength & rigidity
- Pressure-treated floor & decks w/limited lifetime warranty
- All-aluminum, carpeted compartment lids for structural rigidity, tight fit & long-term durability
Electrical
- 800 GPH (3,028 LPH) bilge pump

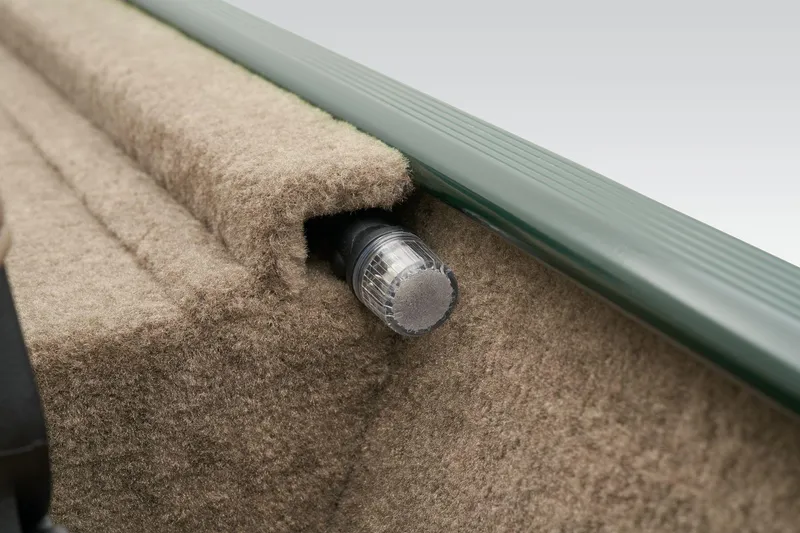

- Stowable navigation lights

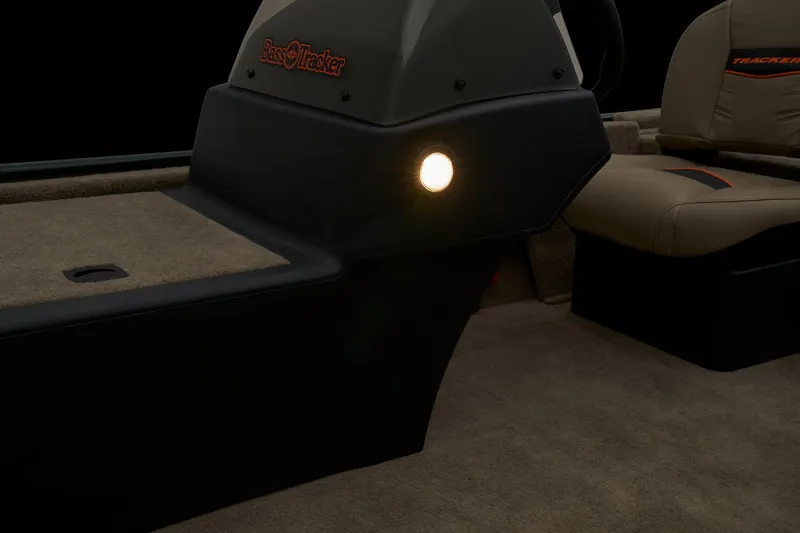

- Bow & console courtesy lights

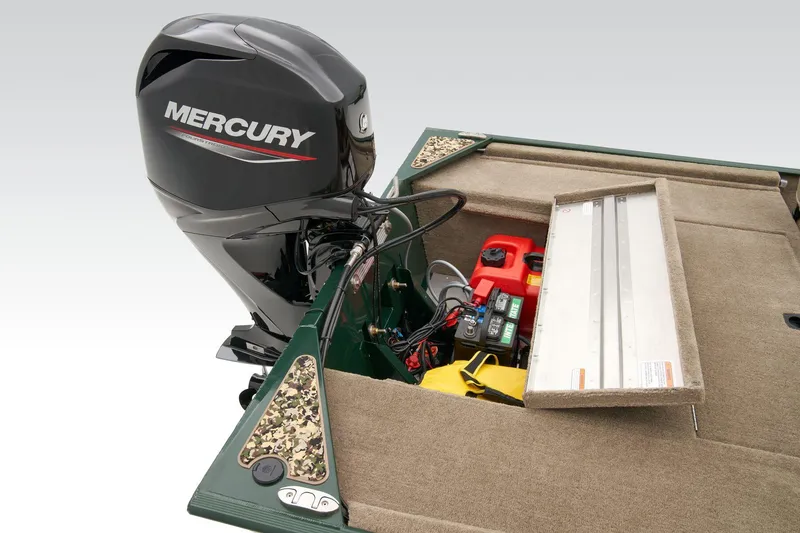

- 2 battery trays
- Interstate® batteries: 1 cranking & 1 trolling
- 12V trolling motor harness & receptacle
- Wiring system wrapped in abrasion-resistant protective conduit

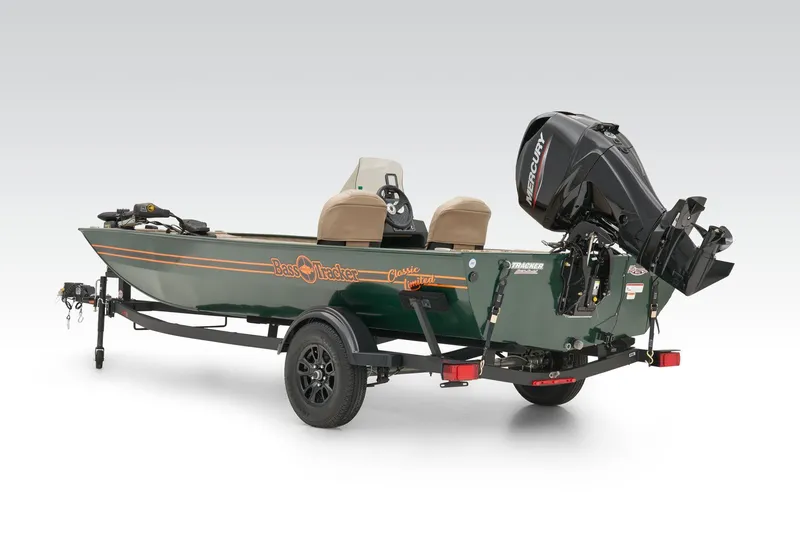

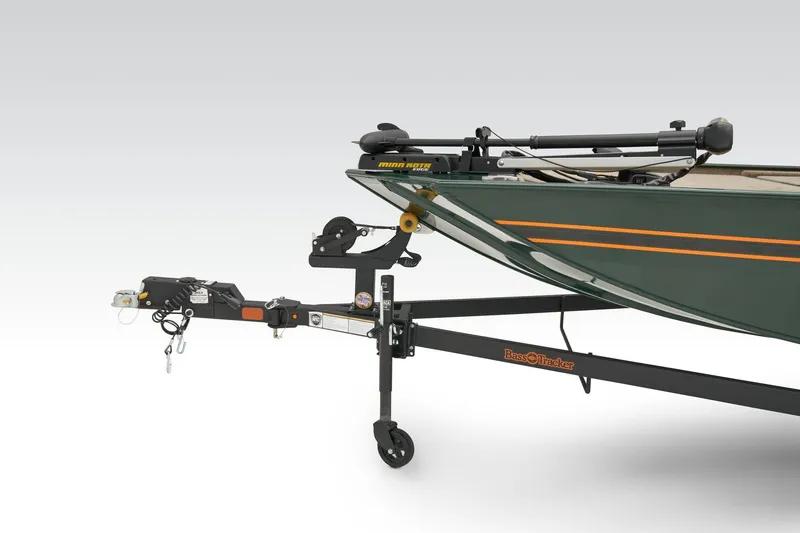

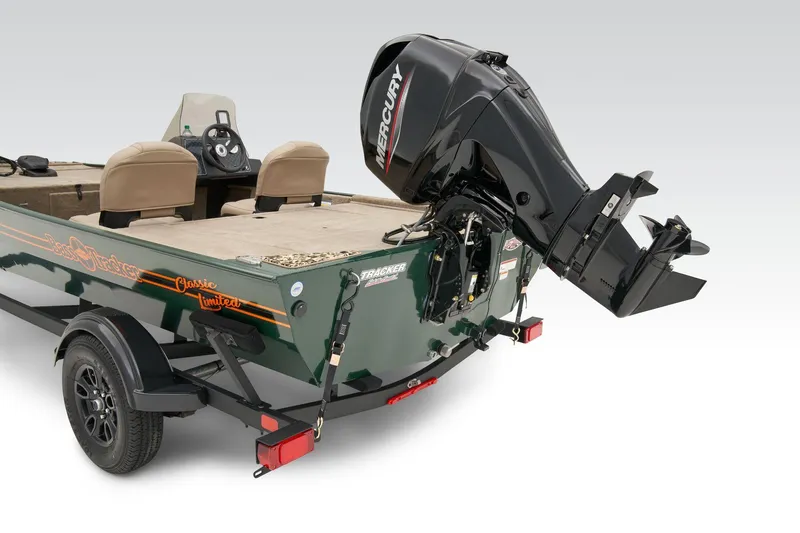

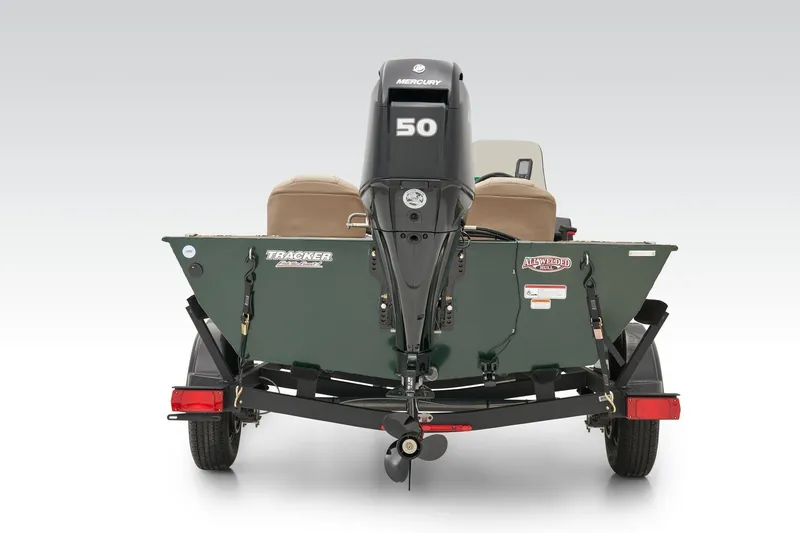

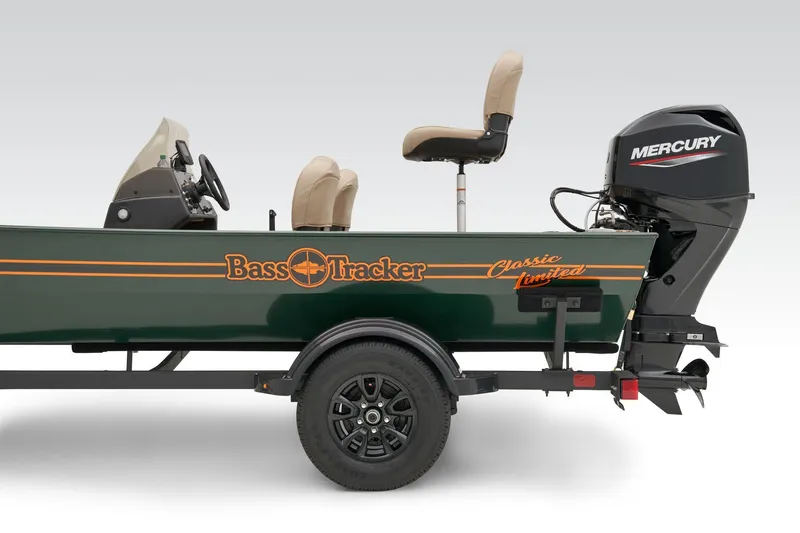

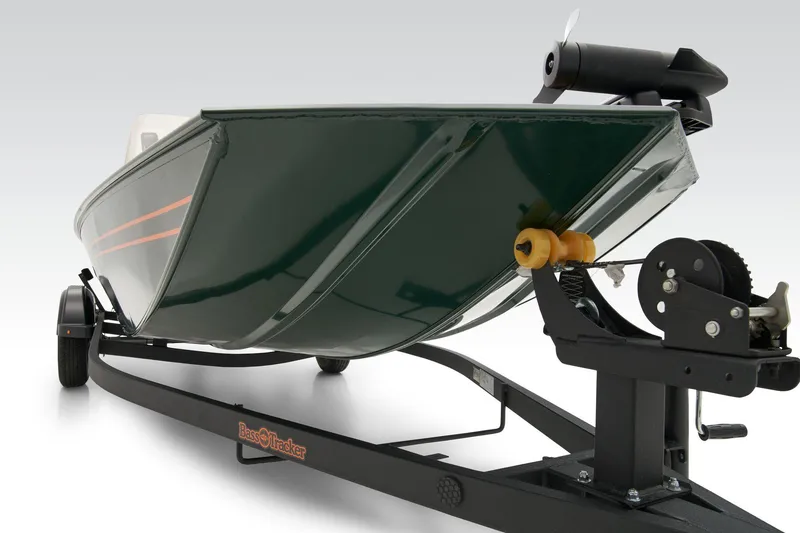

Trailer
- Custom-fit, single-axle trailer powdercoated w/GALVASHIELD® Impact corrosion & chip protection for improved durability
- Hubs designed for quick & easy hub lubrication
- Space-saving swing-away tongue to reduce storage length
- Pivot-up locking jack w/swivel wheel
- Heavy-duty winch w/nylon strap & bow safety strap
- Outboard motor support to reduce hull & transom stress while towing
- Heavy-duty upright load guides for easy, centered loading
- Carpeted bunks to protect hull
- Submersible LED lighting
- Nylon tie-down straps (supplied w/boat package)
- Safety cables
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice. All sales are final. No returns accepted.
Price History
| Date | Event | Price |
|---|---|---|
| 4/28/26 | Initial price | $19,395 |
2026 Tracker Bass Tracker Classic Limited Video Tours
Overview from around the web 2026 Tracker Bass Tracker Classic Limited
The Tracker Bass Tracker Classic Limited 2026 has garnered positive feedback from customers who appreciate its impressive features and functionality
Users commend its spacious deck layout, which allows for easy movement and maneuverability while fishing. The boat’s stability on the water is often highlighted, with many noting how it enhances their fishing experience, whether on calm lakes or more challenging waters. Customers admire the upgraded components, including the stylish seating and durable storage solutions that help keep gear organized. The powerful motor options and exceptional fuel efficiency also receive praise, making long days on the water enjoyable and cost-effective. Additionally, anglers appreciate the boat's classic design, which combines both modern aesthetics and traditional fishing boat functionality. Overall, the Tracker Bass Tracker Classic Limited 2026 is recognized for its reliability and versatility, making it a top choice for both seasoned anglers and newcomers alike.
The Biggest Pros and Cons
Tracker Bass Tracker Classic Limited 2026: Pros and Cons
Pros
Easy Maneuverability: The lightweight design of the Tracker Bass Tracker Classic Limited 2026 allows for easy handling and navigation, making it suitable for both novice and experienced anglers.
Spacious Casting Deck: With its generous casting deck space, this boat provides ample room for multiple anglers to fish comfortably without crowding.
Durable Construction: Built with high-quality materials, this boat features a rugged aluminum hull that resists corrosion and wear, ensuring longevity and reliability over time.
Storage Solutions: The design includes several storage compartments, allowing anglers to keep rods, tackle, and gear organized and easily accessible.
Stable Performance: The hull design offers excellent stability on the water, providing confidence during rough conditions or when navigating tight spaces.
Affordable Price Point: Compared to many other fishing boats on the market, the Tracker Bass Tracker Classic Limited 2026 is priced competitively, making it a great option for budget-conscious buyers.
Fishability: Equipped with features that enhance the fishing experience, including livewells and rod holders, ensuring anglers have what they need at their fingertips.
Cons
Limited Power Options: While sufficient for many fishing scenarios, the boat may not accommodate larger engines, which could limit performance in rougher waters.
Basic Amenities: The focus on fishing may mean fewer onboard comforts, such as seating or entertainment features, which may not appeal to all boaters.
Minimal Freeboard: The design might result in some water splashing into the boat under certain conditions, requiring careful operation in choppy waters.
Less Customization: Compared to higher-end models, there may be fewer options for customization or upgrades, which can limit personalization for some buyers.
Weight Capacity Considerations: While the boat can carry a decent weight, anglers should be mindful of the weight limit, especially with additional gear or passengers.
Made For
The 2026 Tracker Bass Tracker Classic Limited is designed for passionate anglers seeking a blend of performance, style, and versatility in their fishing experience. This boat is perfect for both seasoned professionals and weekend warriors who appreciate high-quality craftsmanship and innovative features. It caters to individuals and families who enjoy fishing trips on lakes, rivers, and reservoirs, providing ample storage and comfort for a day out on the water. With its rugged build and advanced fishing technology, the Tracker Bass Tracker Classic Limited is ideal for those who want to maximize their time fishing and navigating various aquatic environments. Whether you’re casting lines with friends or teaching the next generation about the joys of fishing, this boat offers a reliable platform that meets the needs of all anglers. Experience the thrill of the catch and the joy of outdoor adventure with a vessel designed for both functionality and leisure.
