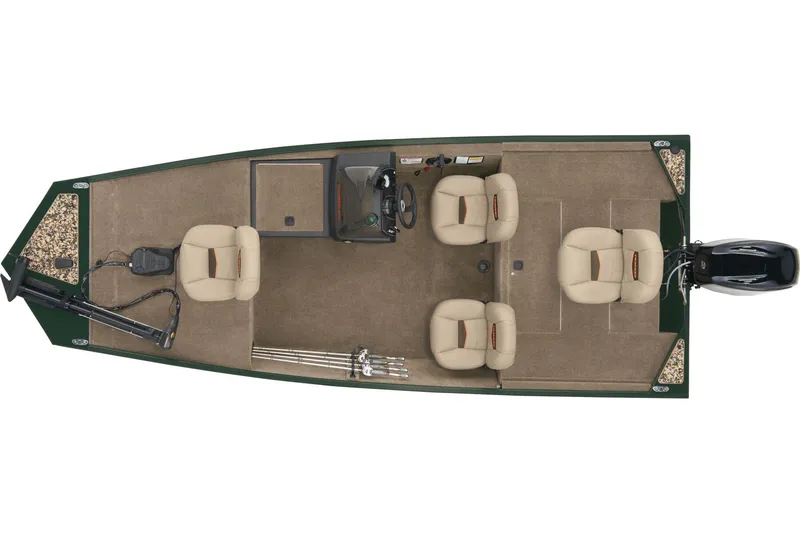

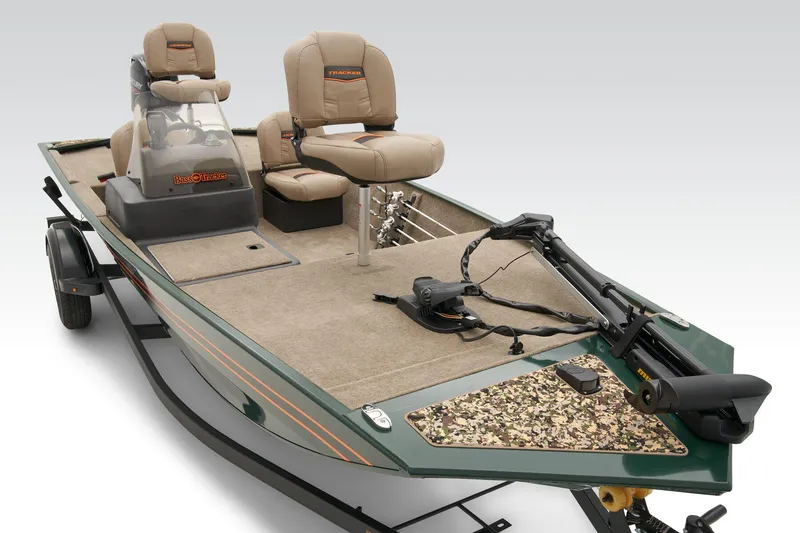

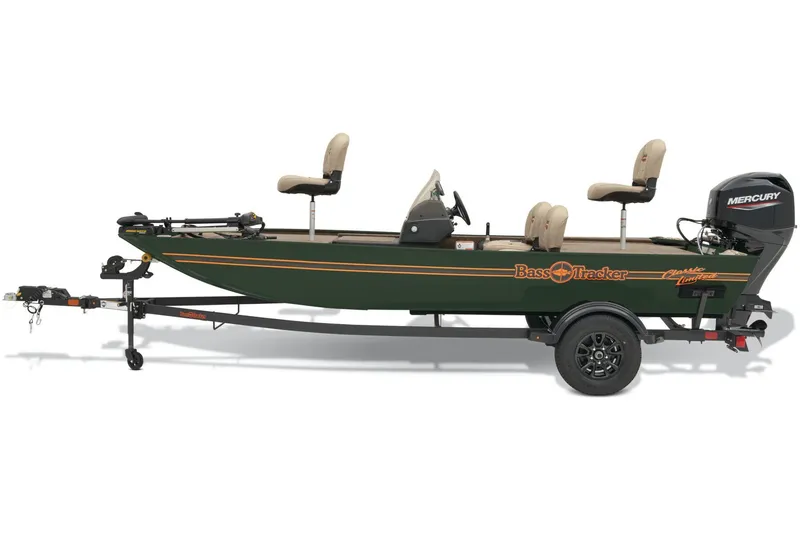

2025 Tracker Bass Tracker Classic Limited

• Length:16' 8"

• Beam: 6' 5"

• Bottom Width: 4' 6"

• Max. Recommended HP: 50 HP

• Fuel Capacity (Portable): 6 gal.

• Max. Person Capacity: 3 persons

• Max. Person Weight: 555 lbs.

• Max. Person, Motor & Gear Weight: 1025 lbs.

• Interior Depth: 15"

• Transom Height: 22.5"

• Deadrise At Bow: 13 degrees

• Deadrise At Transom: 6 degrees

• Hull Material: 0.1 5052 marine alloy

• Average Dry Weight: 780 lbs.

• Average Package Weight: 1705 lbs.

• Package Height: 6' 0"

• Package Width: 6' 8"

• Towing Length: 23' 2"

• Storage Length (w/Outboard Trimmed Down): 20' 1"

LIMITED

• Color: DIAMOND COAT™ Army Green gunnels, hull sides & bottom

• Limited mats, decals & deck stripe

• Lowrance® HOOK Reveal 5 swivel color fishfinder + GPS w/CHIRP & SplitShot™ transducer

• Upgraded trailer: 13" (33.02 cm) Black aluminum wheels w/radial tires & spare tire carrier w/matching spare

Comfort, Convenience & Peace of Mind

• Backed by the TRACKER® PROMISE—the best factory warranty in aluminum boats

• Limited lifetime hull warranty

• NMMA® certified

• Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements

• Bow & stern eyes

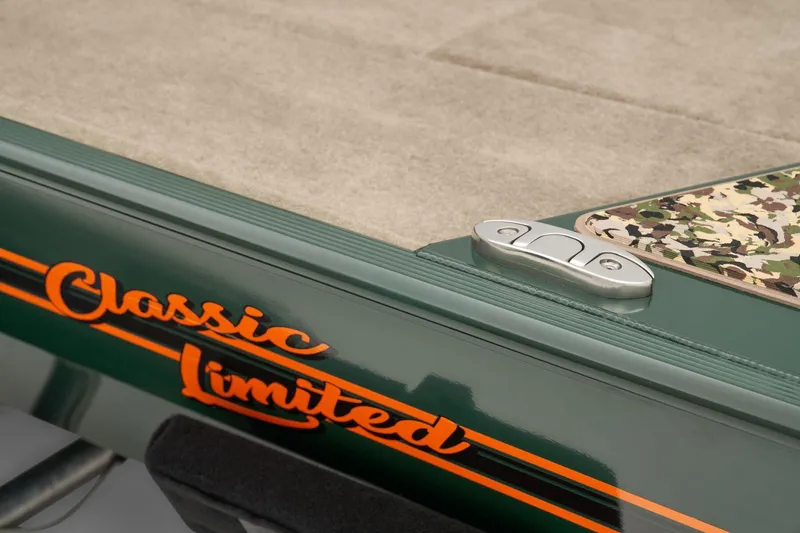

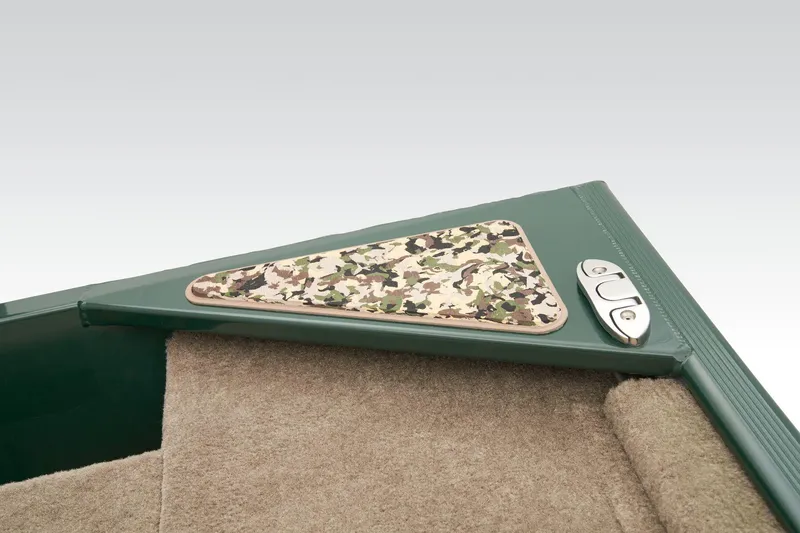

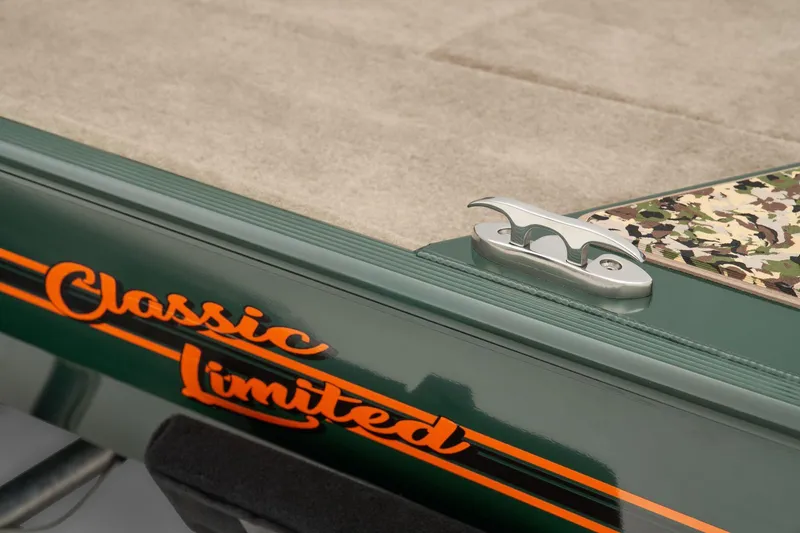

• 4 cleats

• Motor-stop safety lanyard

• Fire extinguisher

• Horn

• Paddle

Livewell System

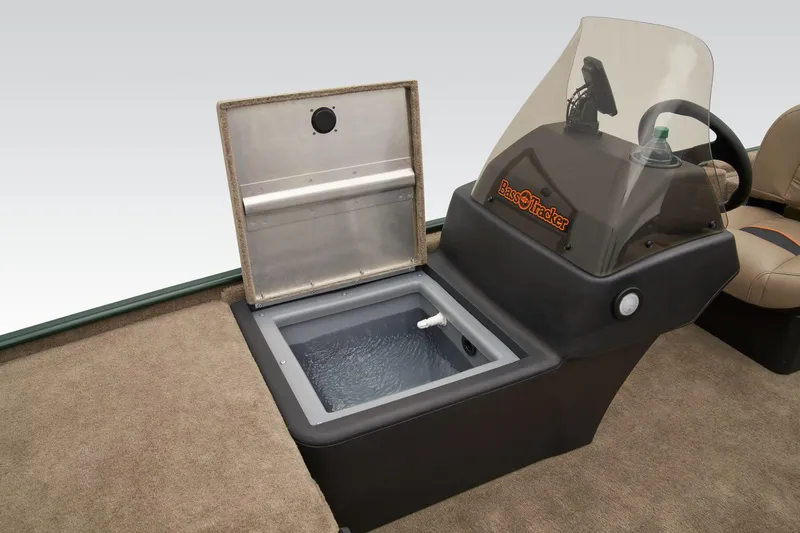

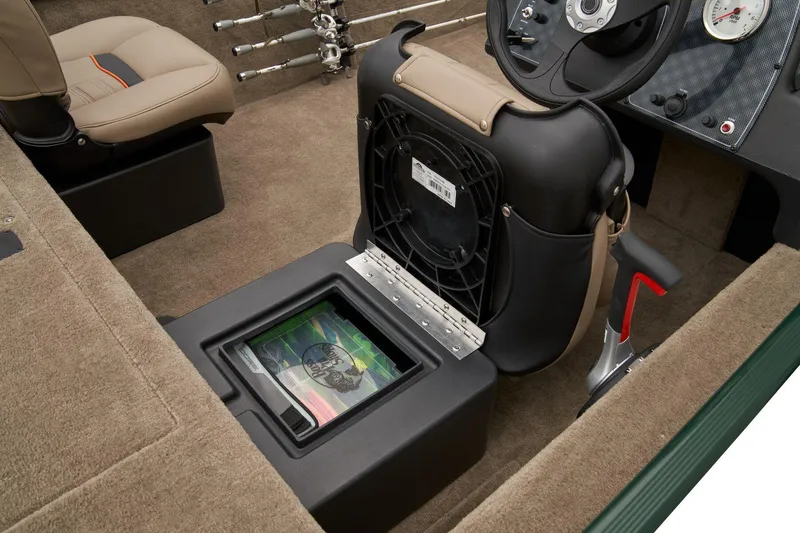

• 9-gal. (34.07 L) aerated livewell molded into front of console

• 500 GPH (1,892.71 LPH) aerator/fill pump

• Molded 1-piece construction w/rounded corners for easy cleanup & to protect your catch

Trolling Motor

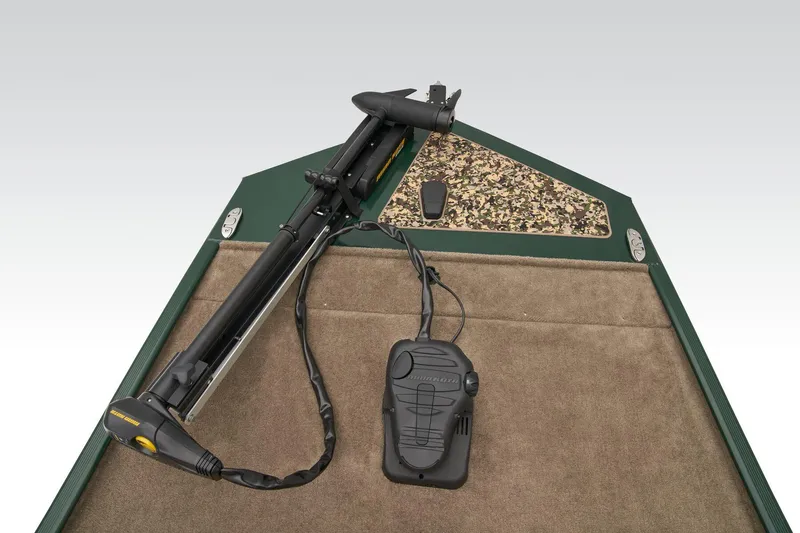

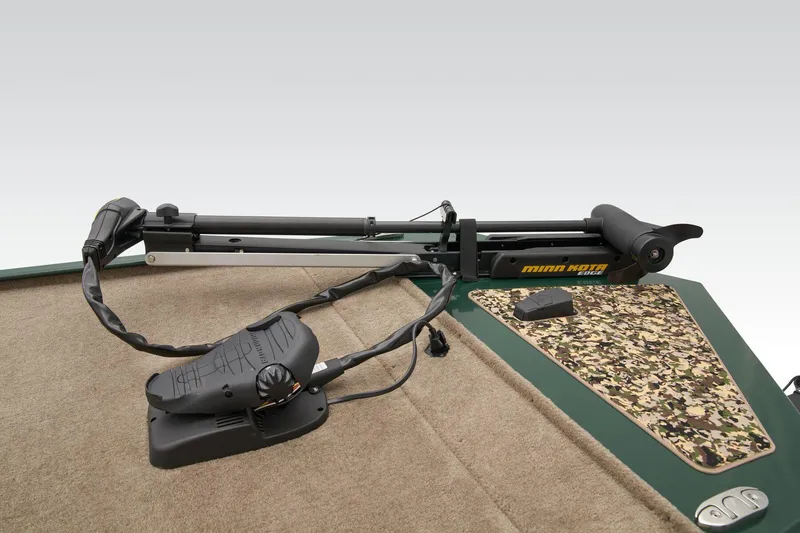

• Minn Kota® Edge® 12V, 45-lb. (20.41 kg) thrust, 45" (1.14 m) shaft, foot-control trolling motor

• Thru-bolted trolling motor mount for durability

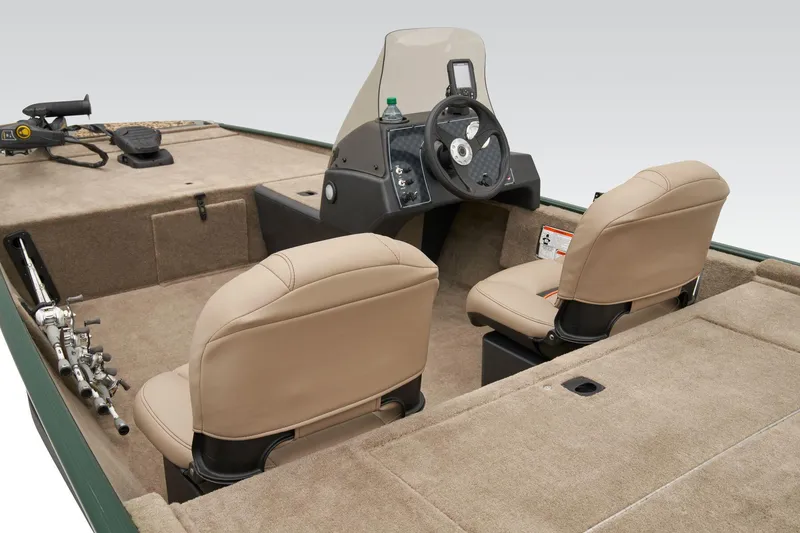

Console

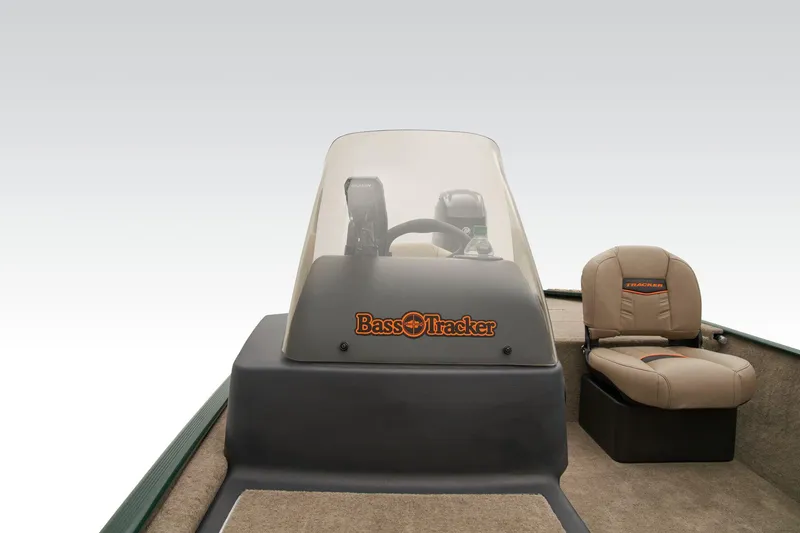

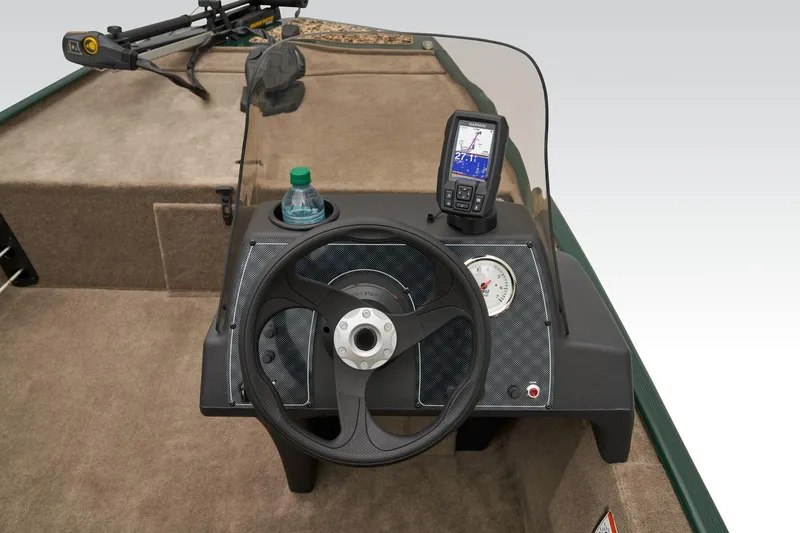

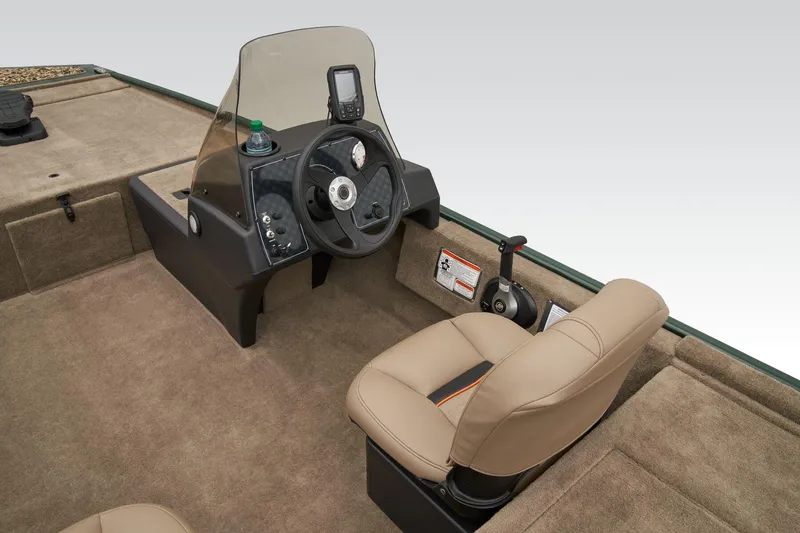

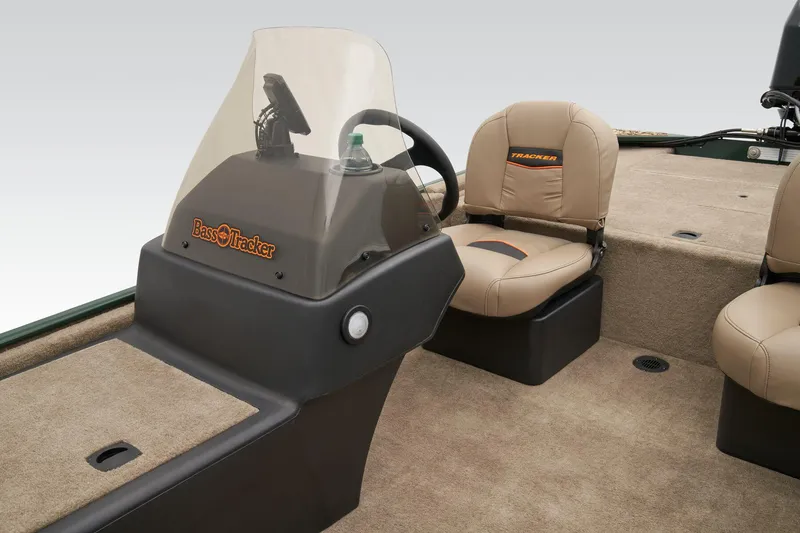

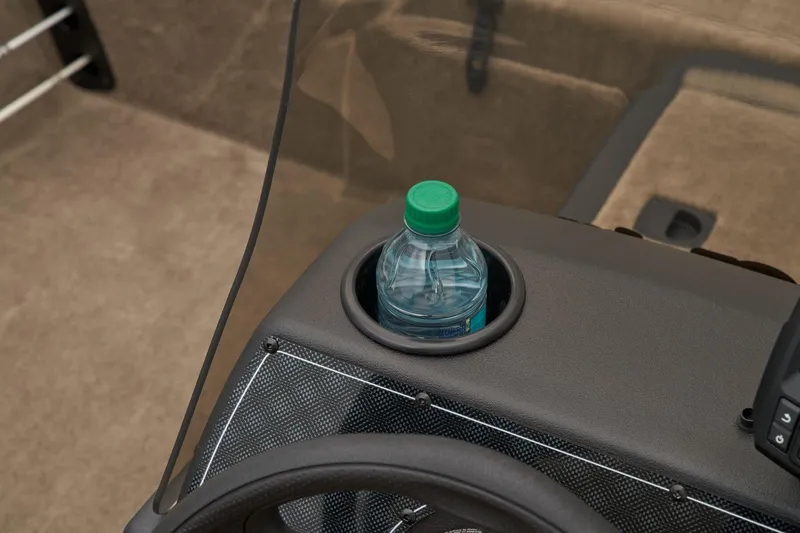

• 1-piece rotomolded console w/tinted windscreen, integrated livewell, drink holder & 12V outlet

• Sport steering wheel

• Single-cable, no-feedback rotary steering

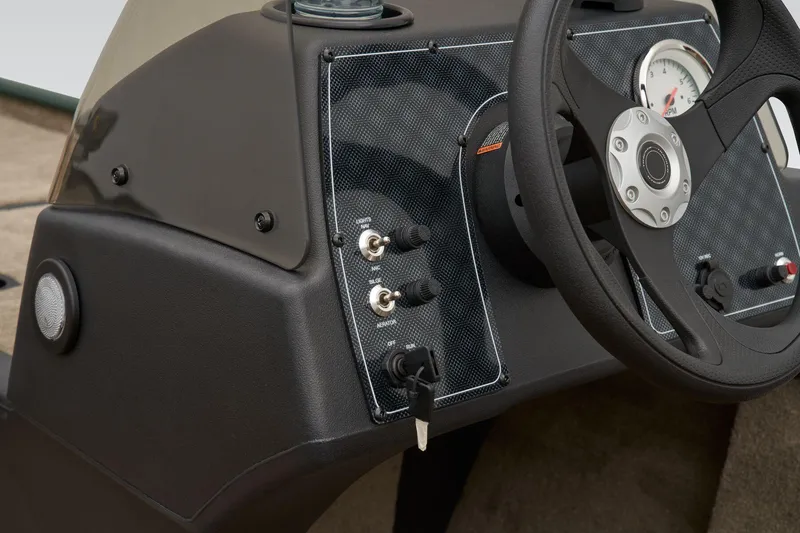

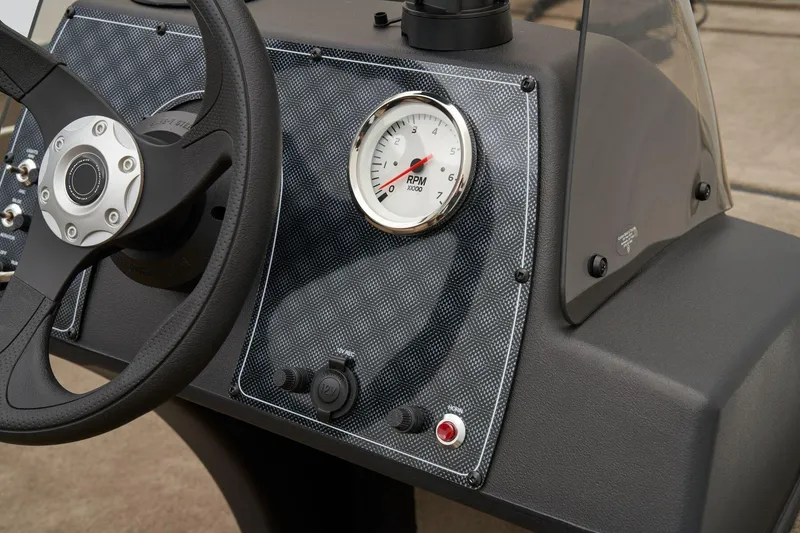

• Midnight Lazer switch panel

• Navigation lights, aerator & bilge switches

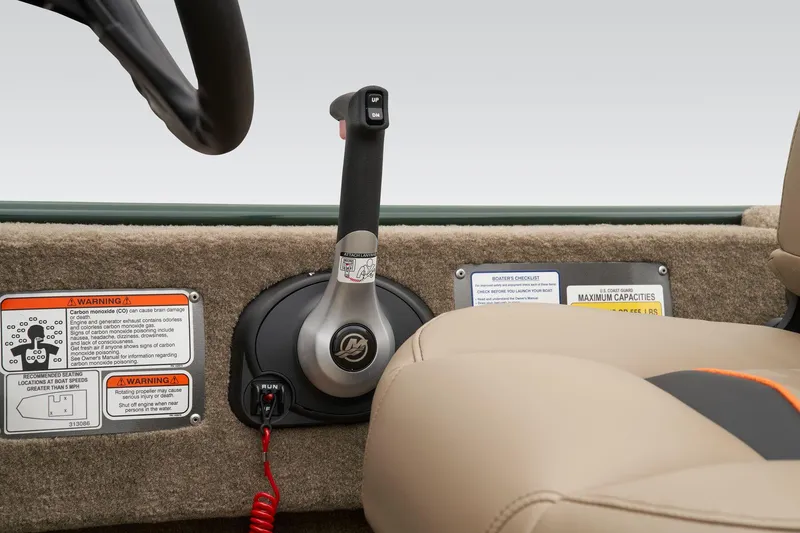

• Mercury® throttle control mount

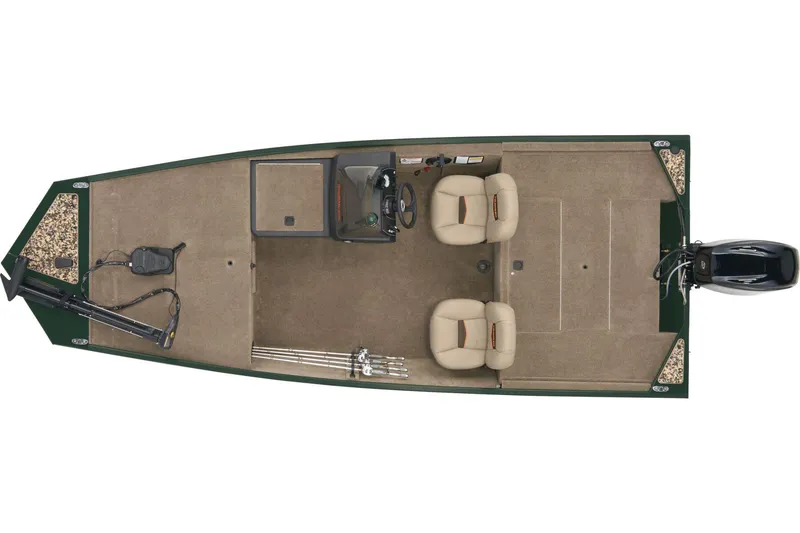

Interior

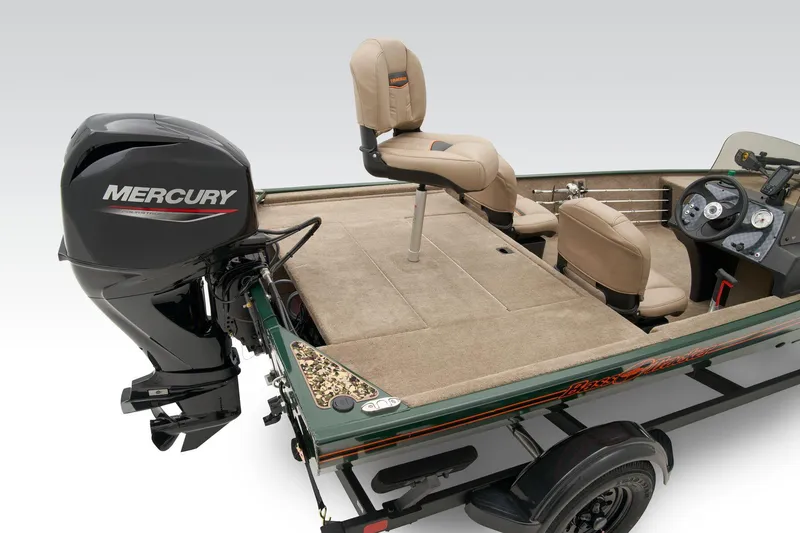

• 2 pedestal seat base locations

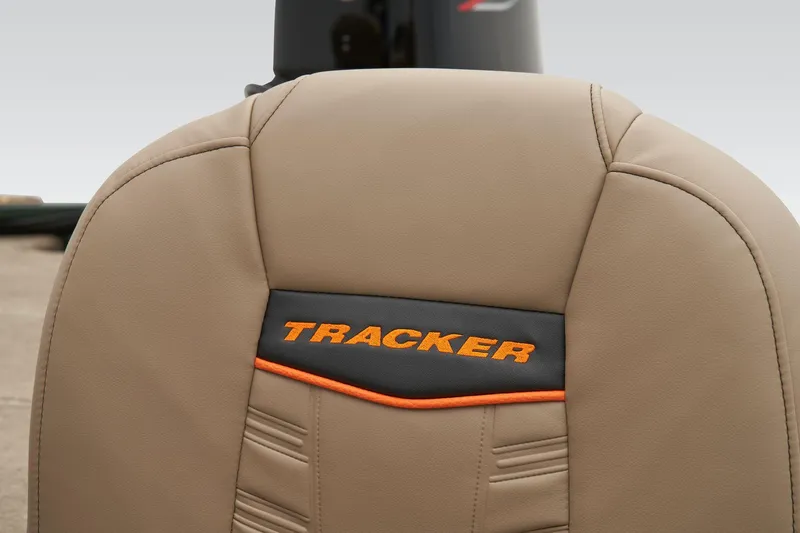

• 2 folding fishing seats w/contoured hinges & snap-off cushions

• Elevated bow & aft casting decks w/storage below bow deck

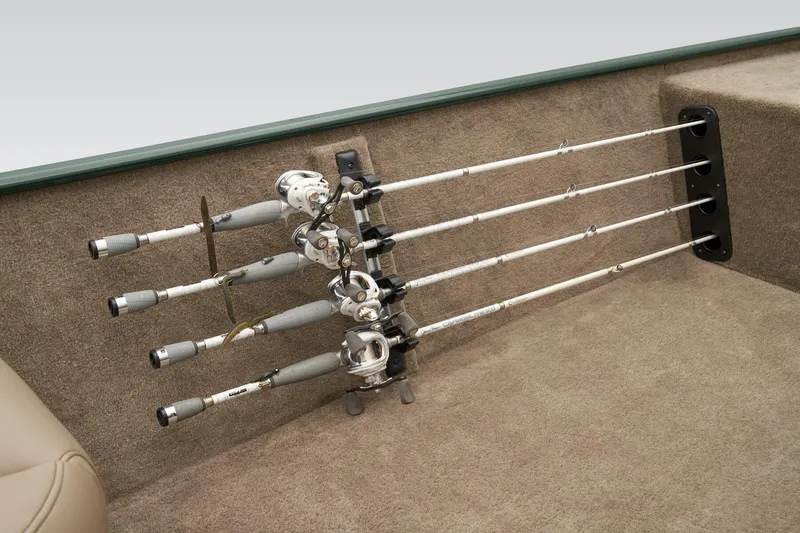

• Port side rod holders w/organizer for 4 rods to 7' (2.13 m)

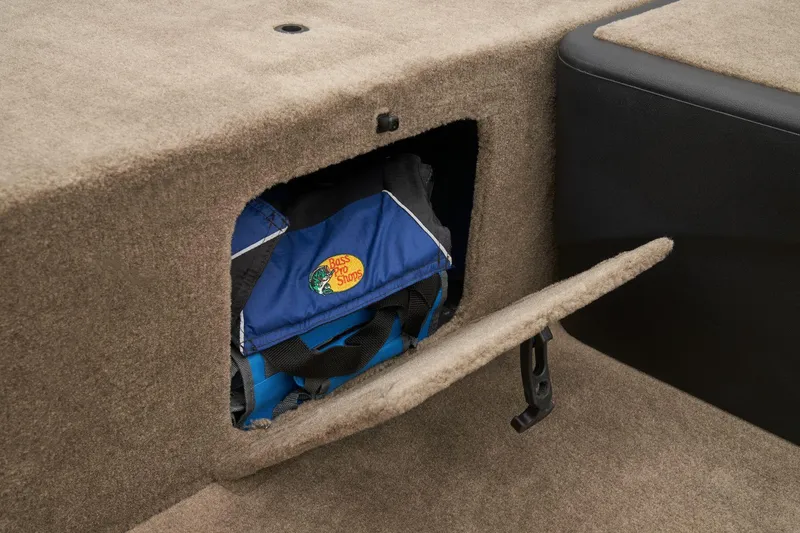

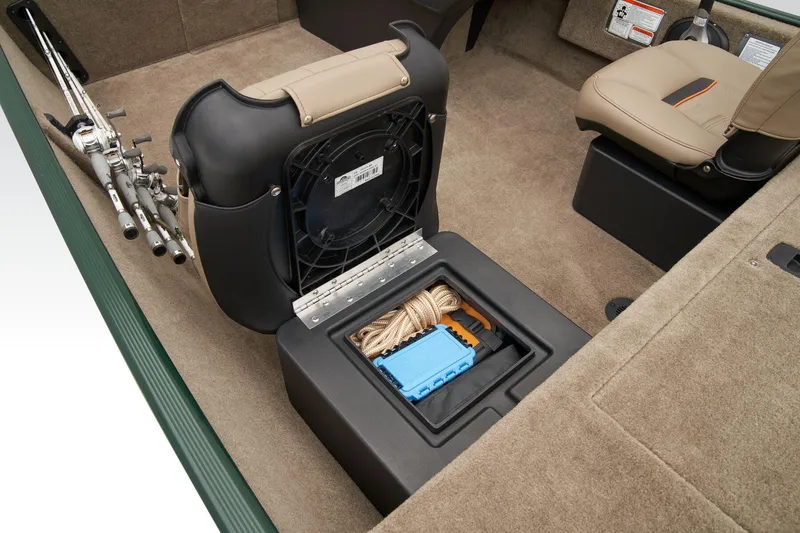

• Driver & passenger seats w/storage below

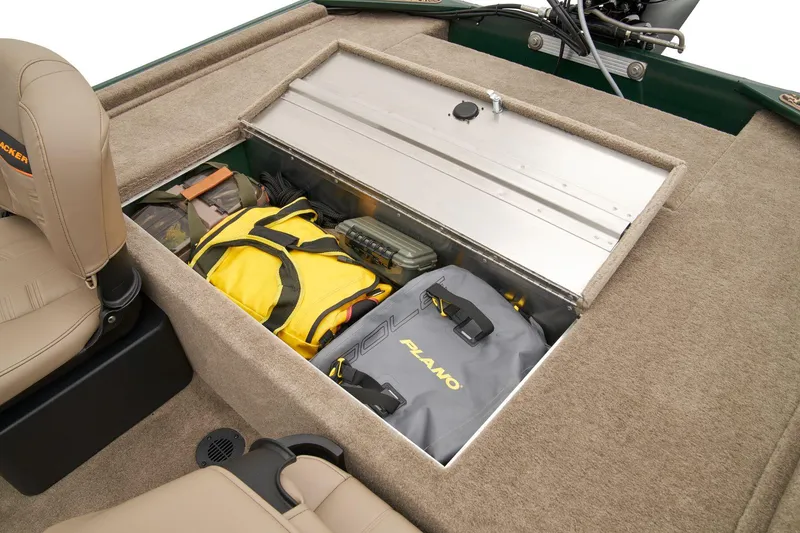

• Aft deck storage

• 16-oz. (.45 kg) marine-grade, fishing-friendly carpet throughout

Performance

• Pressed-in keel & strakes for optimal performance

• Factory-matched, performance-tested aluminum propeller

Construction & Exterior

• DIAMOND COAT™ 3.0 finish — an industry-exclusive powdercoat for brilliant durability

• Rugged, all-welded, 2-piece .100-gauge aluminum hull w/pressed-in strakes & chines for structural strength & handling

• Robotically welded, all-aluminum box-beam transom w/corner braces welded-in to unitize & strengthen the hull

• Welded-in longitudinal stringer system for full-length support along the running surface

• Expanding foam injected into hull cavities for added hull stiffening, flotation & a quieter ride

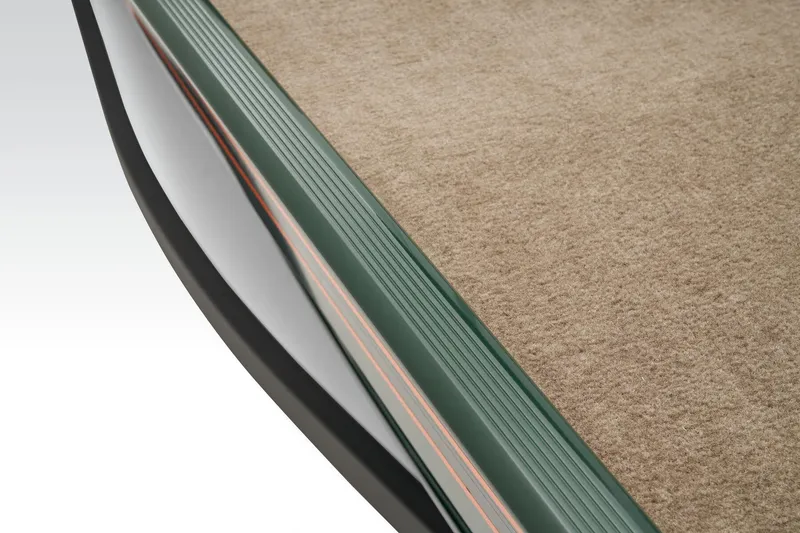

• 2" (5.08 cm), heavy-duty extruded 1-piece gunnel for structural strength & rigidity

• Pressure-treated floor & decks w/limited lifetime warranty

• All-aluminum, carpeted compartment lids for structural rigidity, tight fit & long-term durability

Electrical

• 800 GPH (3,028.33 LPH) bilge pump

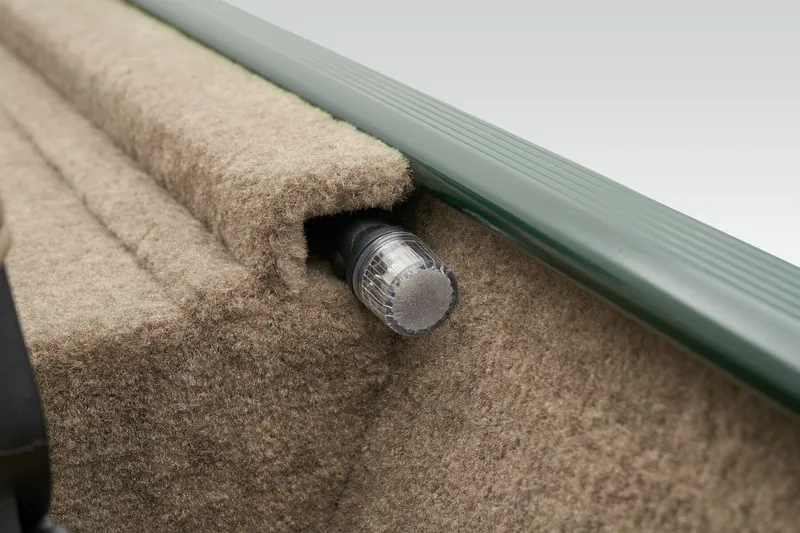

• Stowable navigation lights w/LED courtesy light at bow

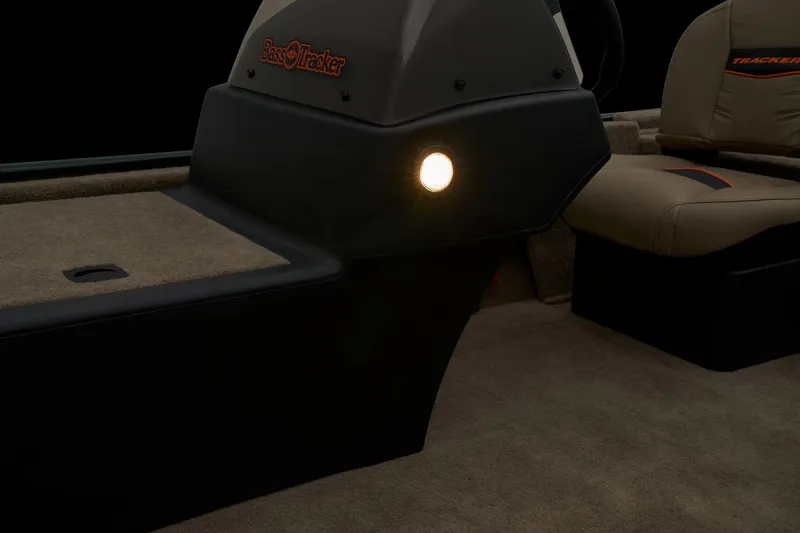

• Bow & console courtesy lights

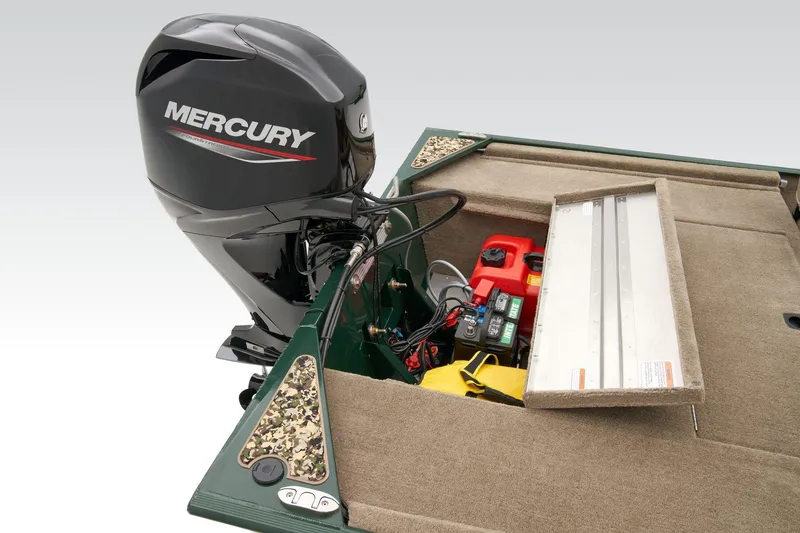

• 2 battery trays

• Interstate® batteries: 1 cranking & 1 trolling

• 12V trolling motor harness & receptacle

• Wiring system wrapped in abrasion-resistant protective conduit

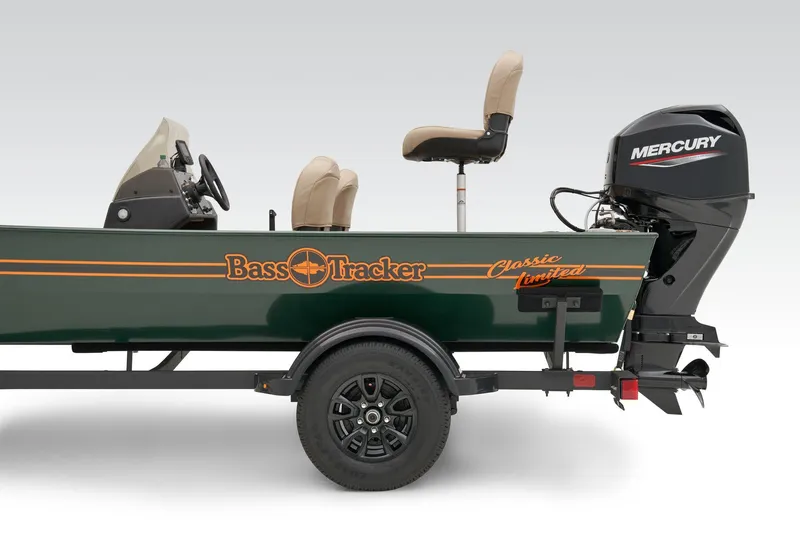

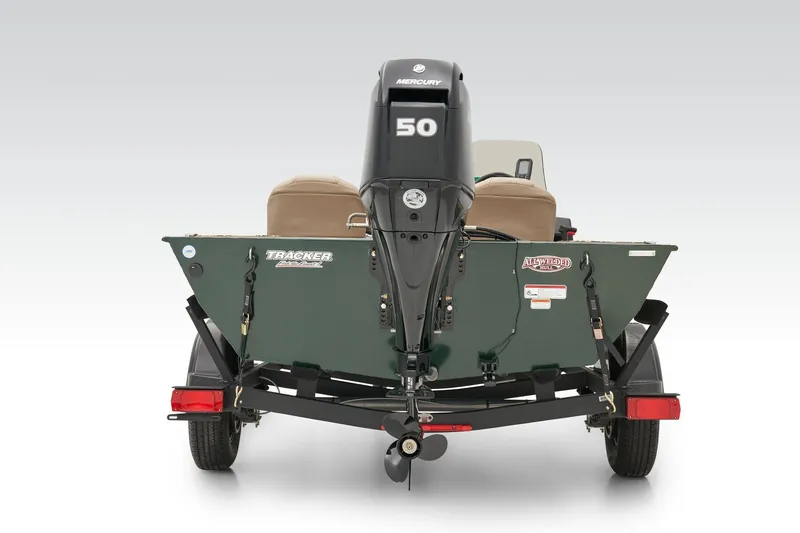

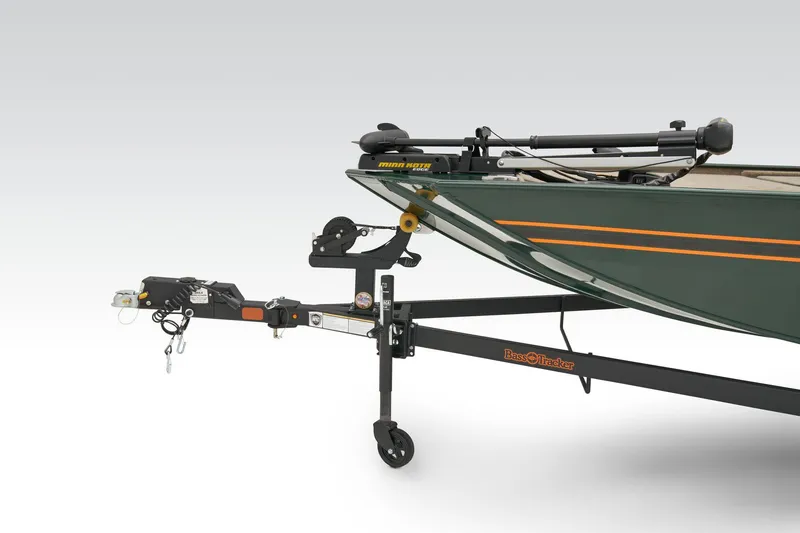

Trailer

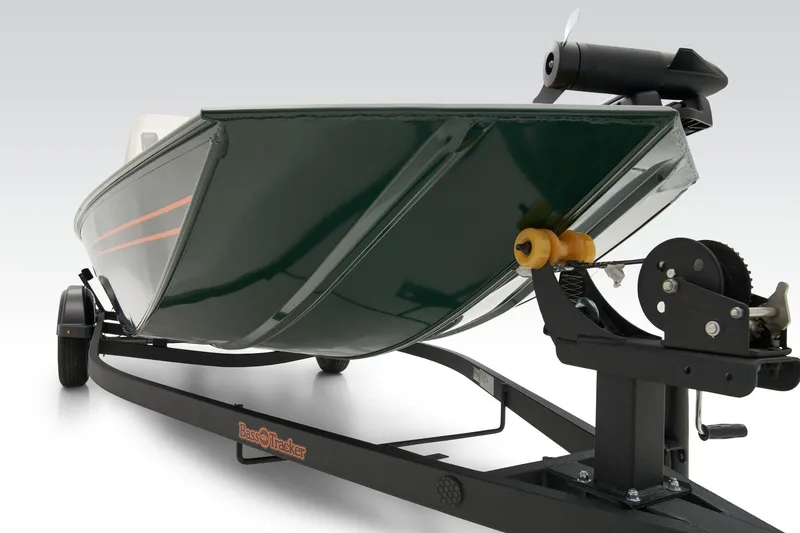

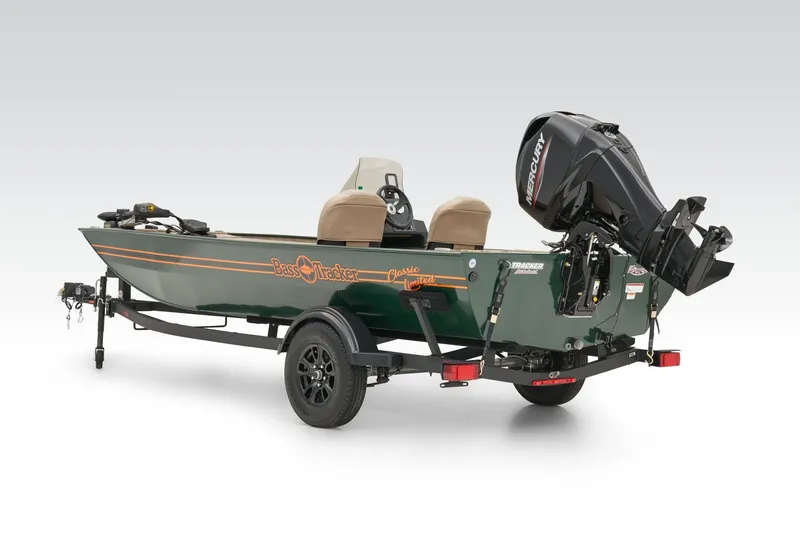

• Custom-fit, single-axle trailer powdercoated w/GALVASHIELD® Impact corrosion & chip protection for improved durability

• Hubs designed for quick & easy hub lubrication

• Space-saving swing-away tongue to reduce storage length

• Pivot-up locking jack w/swivel wheel

• Heavy-duty winch w/nylon strap & bow safety strap

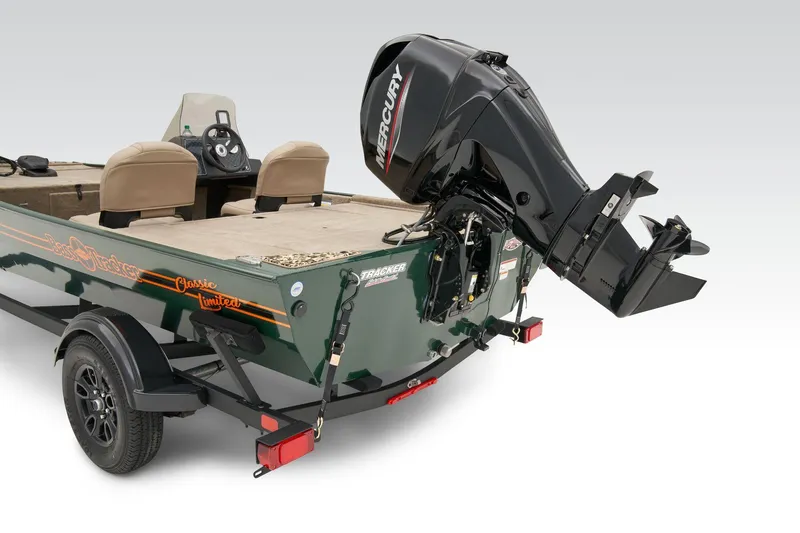

• Outboard motor support to reduce hull & transom stress while towing

• Heavy-duty upright load guides for easy, centered loading

• Carpeted bunks to protect hull

• Submersible LED lighting

• Nylon tie-down straps (supplied w/boat package)

• Safety cables
