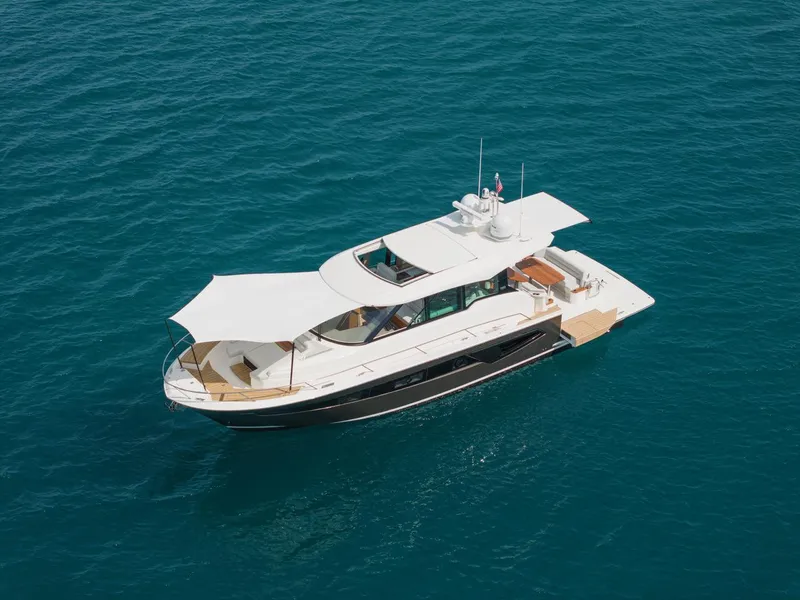

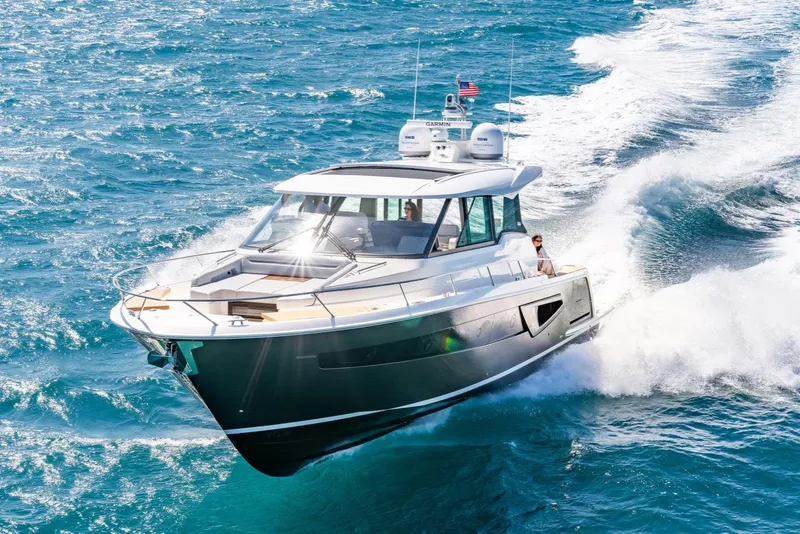

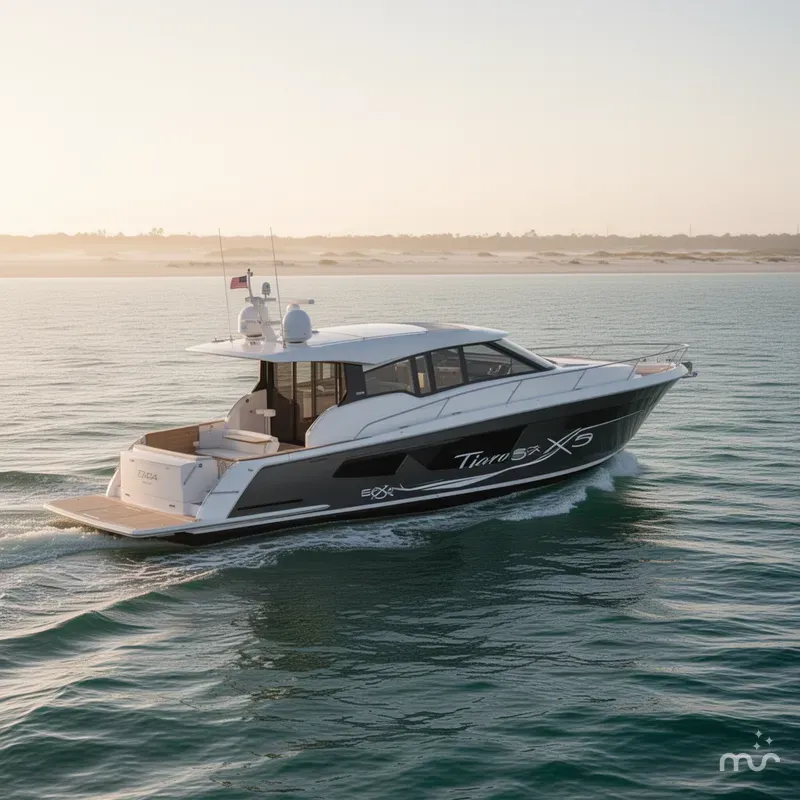

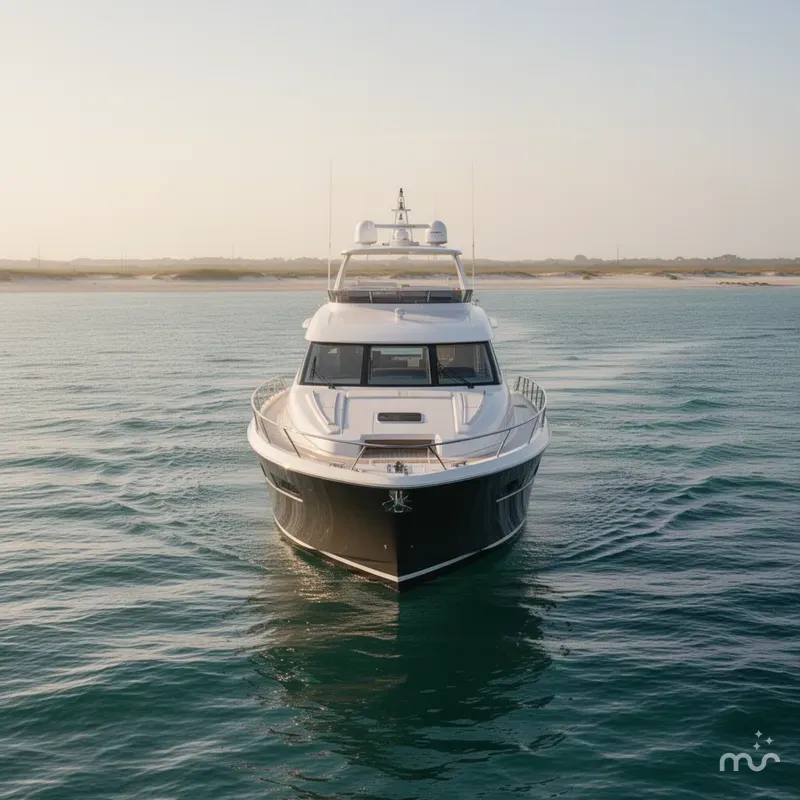

2025 Tiara EX54Sold

• Tiara Yachts' new vessel transferable limited warranties: five
years on hull and deck; two years on accessories
• Axalta® painted hull and bootline
• Fresh white gelcoat deck
• Two coats of black anti-fouling bottom paint
• Hull constructed with closed cell foam core hullsides and bottom, a gelcoat outer layer and
infused fiberglass using premium resin
• Deck constructed with closed cell foam core, a
gelcoat outer layer and infused fiberglass using
premium resin
• Hull side engine air intake system
• Bronze seacocks on all underwater thru-hull
fittings
• Stalon fittings on thru-hull fittings above waterline
• Tiara custom diamond pattern non-skid deck and cockpit surfaces
• Full fiberglass grid system hull bottom structure
• Poly rubrail with 316L SS cap
• Eight 13" stainless steel cleats for lines, including two pop-up cleats on transom
• USCG approved LED navigation lights
• LED courtesy lights
• Underwater lights, (6) multi-color LED

• Molded fiberglass hardtop with integrated visor
• Custom framed windshield system with tempered
curved windshield, tempered side glass and
portside sliding window
• Windshield cover
• Two windshield wipers with spray nozzle wash
system
• LED navigation/anchor lighting mast with rings for flag and burgee
• Webasto® electrically actuated sunroof
• Multicolor LED dramatic lighting with ShadowCaster® control on Garmin® OneHelm
• Red/White LED lights
• TACO Marine® electric folding antenna mounts

• 316L SS 1-1/4" low grab rail system
• Forward anchor locker with overboard drain and
courtesy lighting
• Concealed Lewmar® V4 automatic rope/chain anchor windlass system with Lewmar's handheld
tethered deluxe remote control and switch at
helm; includes one 12" stainless steel foredeck
cleat, 40' chain rode, 200' rope rode, 55 lb.
Lewmar® DTX stainless steel anchor and Ultra Flip swivel

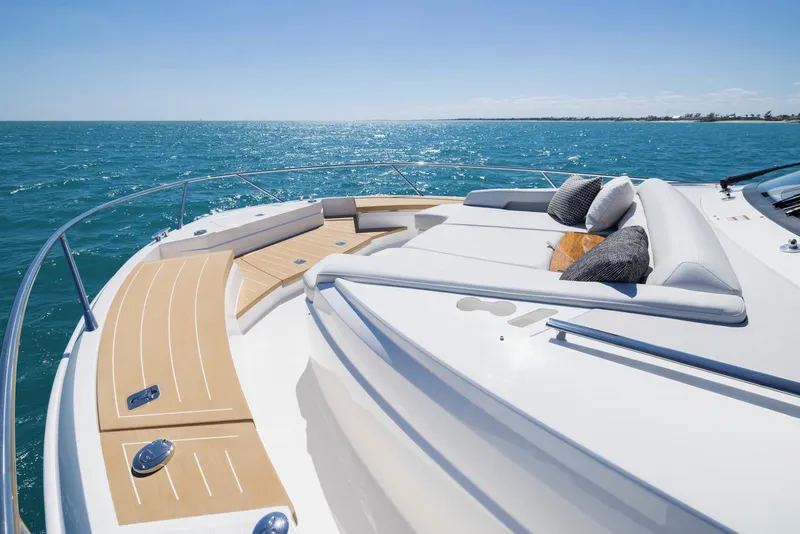

• Forward-facing chaise lounge with reversible
pad/table with integrated drink holders, USB
ports and weather cover
• Port and starboard bow gunnel smart storage for
10" fenders, lines, and boating equipment
• Four speakers and Fusion® remote
• Dramatic lighting plan
• Fresh and raw water washdowns in anchor locke

• Architectural teak interior and Chilewich® wall
covering with Ultraleather® panels
• 120V outlets throughout
• 12V LED lighting throughout

• Helm with Volvo® Glass Cockpit with two 22"
Garmin® 8622 displays, drink holders, dual USB charging outlet and steering wheel
• Stidd® 1200 captain's chair with electric fore and aft adjustment
• Sliding pilothouse door starboard of helm, electrically actuated; provides passive ventilation
and access to recessed walkway
• Port side console includes Power-Up Panel and
Apollo Head Unit; Apollo multi-zone stereo
system powered by JL Audio® digital amp with four JL Audio® speakers and one JL Audio® 8"
subwoofer in tuned enclosure

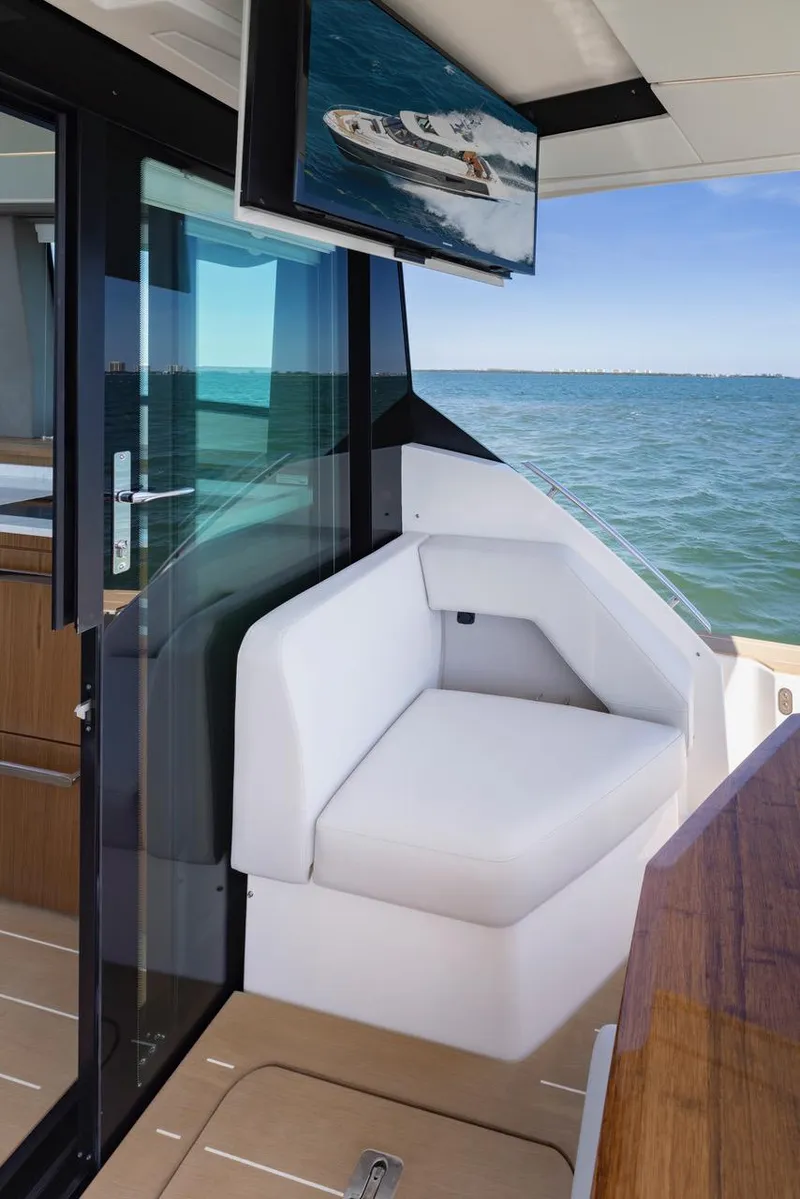

• Double wide companion seat that slides forward
to reveal additional portside lounge seating
• Port side lounge with one drawer freezer unit,
pantry storage below and glass end-table surface
with fixed lamp
• Hi-gloss solid teak dinette table, converts to berth
with interchangeable posts
• Webasto® BlueCool V-Series 30,000 BTU air conditioning system in galley/salon and 6,000
BTU at helm
• 43" TV mounted on hi-lo actuator in starboard
galley, concealed when not in use; includes
Bose® soundbar

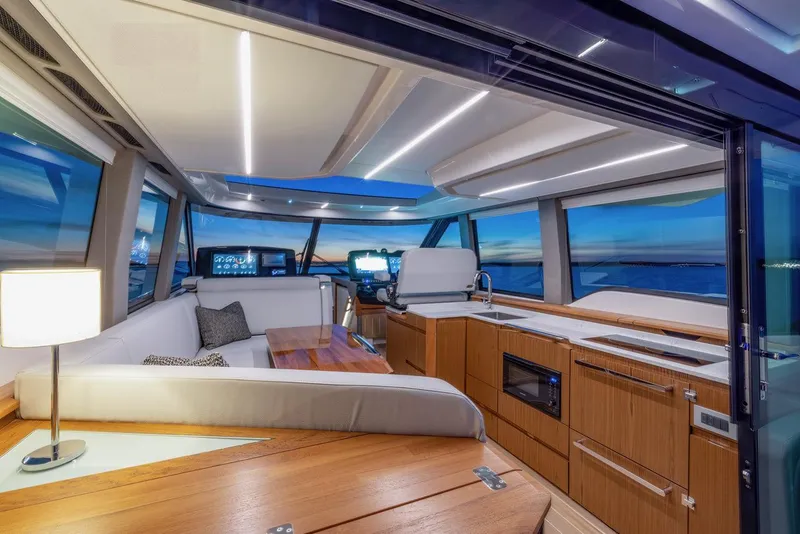

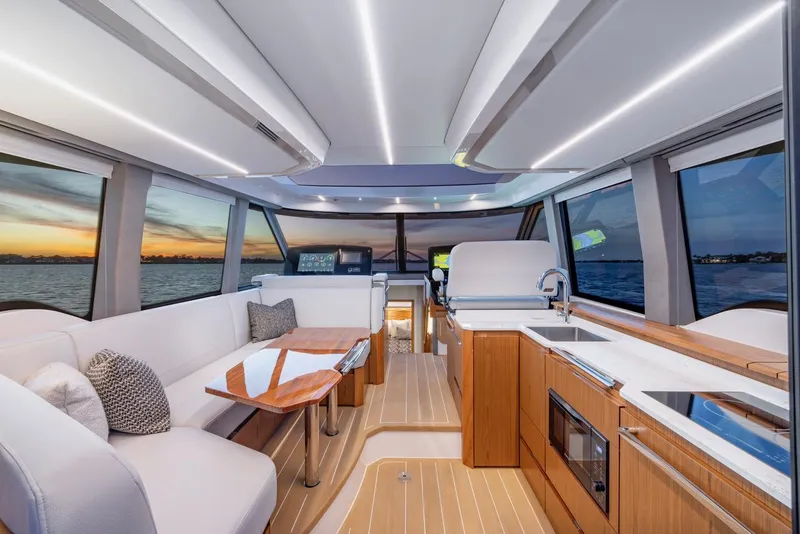

• Starboard galley includes: • Stainless steel under mount sink with hot/cold water faucet • Microwave/convection oven • Two-burner Kenyon® induction cooktop with cookware • Dual drawer refrigeration unit • Storage drawers below counter top • Waste receptacle • Quartz countertop • Stainless steel grab rail
• Overhead LED indirect lighting
• Disappearing bulkhead; electrically actuated dropping glass to port and two panel centerline
door that parks to starboard
• Manual duette blinds for aft bulkhead and
powered blinds for port and starboard salon
windows
• Herculan® synthetic teak flooring throughout salon, helm and galley

• Herculan® synthetic teak flooring and steps with solid teak risers
• Generous storage locker to port
• Recessed handrail
• Indirect lighting

• Full-beam, mid-ship master stateroom with private
entrance, hullside windows with powered blinds
and opening ports with screens for ventilation
• Queen pedestal berth on centerline with lighted storage below; pillowtop innerspring mattress,
upholstered headboard, mattress pad and sheets
• Nightstands with glass top and inductive
cellphone charger
• Two reading lights
• Starboard side settee and drawer storage unit
• Starboard side table with flip-up mirror, tray and storage drawer below; includes dedicated
compartment for electronic cord management
• Port side cedar-backed hanging locker
• Port side dresser drawer storage
• Full-length, backlit mirror
• Centerline cedar-backed hanging locker and drawer storage
• Linear LED lighting in headliner with discrete
indirect lighting
• Webasto® BlueCool V-Series 18,000 BTU air
conditioning system with controls for owner's
stateroom and both owner's and day heads
• 50" Smart HDTV with soundbar
• Fusion® stereo system with four 4" JL Audio®
speakers
• Carpeted flooring surfaces
• Portable Dyson® vacuum with dedicated storage location

• Full frame door with private owner's stateroom
entry
• VacuFlush® toilet with electric flush operation
• Fiberglass stall shower with teak floor grate and glass shower door
• Solid surface countertop and accents, vessel sink, hot/cold water faucet
• Hullside window with opening port, screen and
manual shade
• Backlit and defogging mirror with upper storage cabinet
• Lower vanity storage
• Indirect lighting
• Waste receptacle
• Exhaust fan
• Air conditioning vent with controls in owner's
stateroom
• GFI protected outlets
• Herculan® teak deck flooring

• Island queen berth with innerspring mattress, upholstered headboard, mattress pad and sheets
• Lighted storage compartment below berth
• Cedar-backed hanging locker with additional
storage
• Fiberglass headliner system with wrapped panel
inserts
• Skylight forward with shade
• Port and starboard hullside windows with manual
shades and opening ports and screens for
ventilation
• Overhead linear LED lighting with discrete indirect lighting
• Webasto® 12,000 BTU air conditioning system for guest cabin
• 32" Smart HDTV
• Built-in inductive cellphone chargers
• Fusion® stereo system with two 4" JL Audio®
speakers
• Drawer storage
• Carpeted flooring

• Full frame doors with entry from guest stateroom
and atrium
• VacuFlush® toilet with electric flush operation
• Fiberglass stall shower with teak floor grate, glass shower door
• Solid surface countertop with sink, hot/cold water faucet
• Backlit and defogging mirror with upper storage cabinet
• Lower vanity storage
• Port hullside window with opening port, screen
and manual shade
• Exhaust fan
• Air conditioning vent with controls in owner's
stateroom

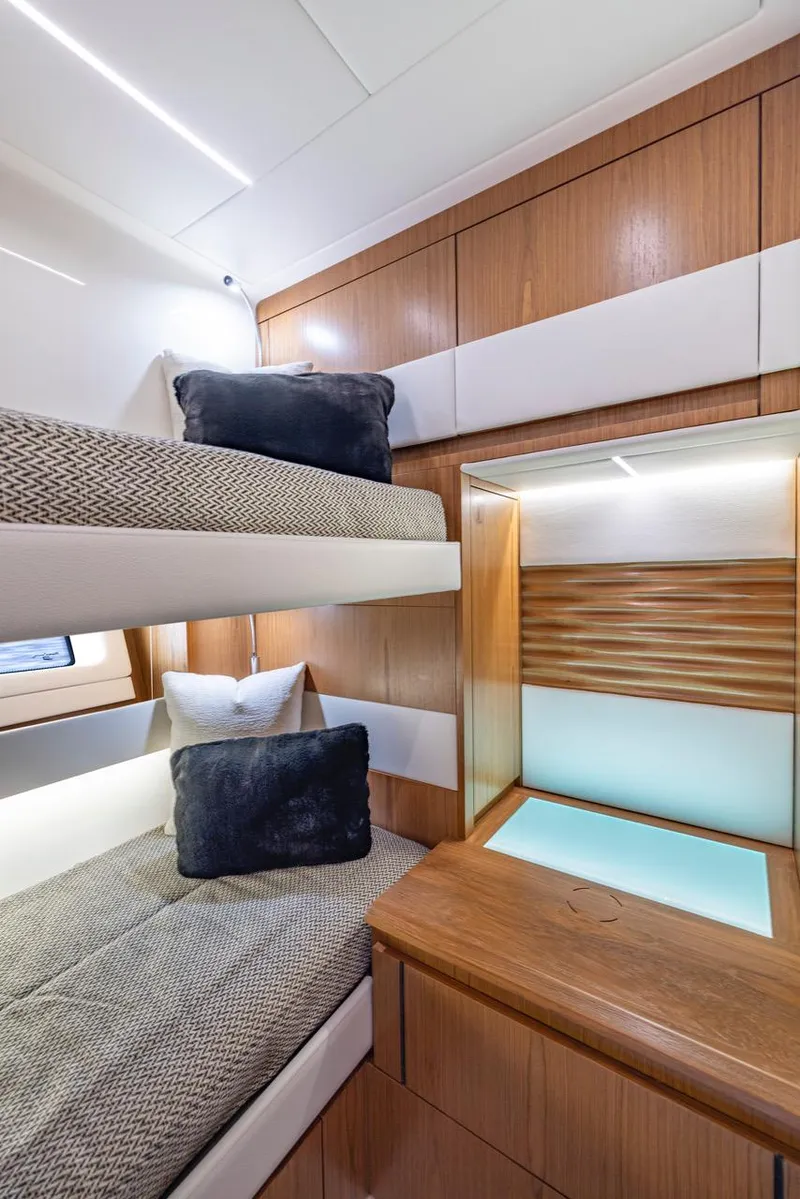

• Bunk berths
• Storage compartment below lower berth
• Cedar-backed hanging locker with additional
storage
• Fiberglass headliner system with wrapped panel
inserts
• Overhead LED lighting
• Opening port for ventilation
• AC/DC electrical panel in overhead cabinet
• Nightstand with with glass top and inductive cellphone charger

• Fixed breakfast bar with hi-gloss solid teak table
• Two ottomans with storage compartments
• Two removable stools portside, can also be used
in salon and have dedicated storage under guest
stateroom berth
• Four JL Audio® 6.5" coaxial speakers with two 8" JL Audio® subwoofers in tuned enclosures and
Fusion® remote
• Machinery access hatch
• Herculan® synthetic teak flooring

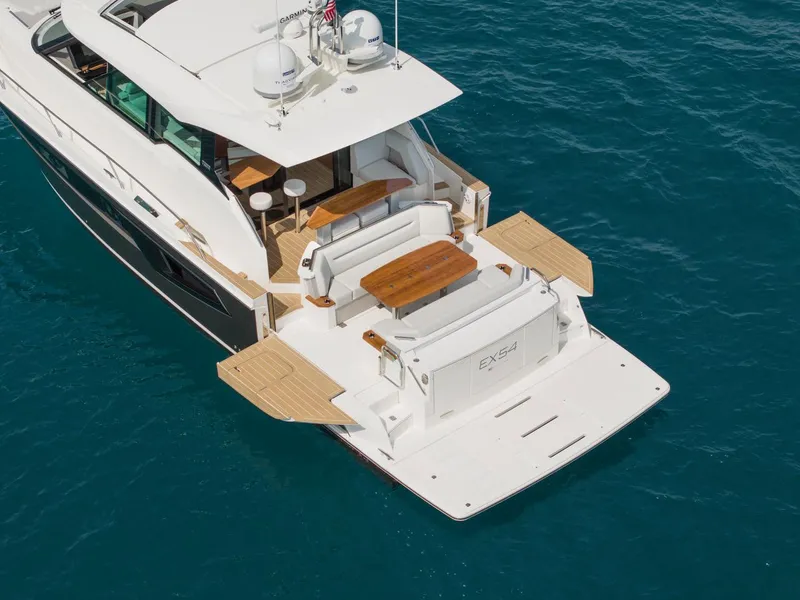

• Port and starboard hullside terraces with
Herculan® synthetic teak flooring and integrated boarding doors
• Makefast Marine® powered sunshade
• Two JL Audio® 6.5" coaxial speakers
• Molded in steps up to port and starboard side
recessed walkway, provides safe passage from
aft cockpit to bow seating
• Weather covers for cockpit furniture
• Cockpit RGB LED lighting

• Dual transom entry doors
• Stainless steel grab rails on transom
• Two 13" stainless steel pop-up cleats
• 60" swim platform with telescoping stainless steel reboarding ladder, recessed dinghy/PWC
chocks and four pad eyes
• Trunk storage with electric actuation, accessible
from platform or thru deck hatch in cockpit
• Recessed transom shower, hot and cold water
• Raw and fresh water washdown outlets with hoses

• Tiara custom 12V/24V DC and 240V AC electrical system with Tiara power-up/system
monitoring panel
• One 240V AC 50 amp 65' dockside power cord with Glendinning® Cablemaster recoiler system
• TV and AM/FM radio antennas
• Onan® 13.5 kW diesel generator with sound shield
• 12V/24V multiple bank battery system with
batteries and remote battery switches
• 120amp battery charger with built-in 3,000 watt
inverter
• Electrical bonding system
• Volvo® EEC electronic engine controls and
steering system
• Volvo® Glass Cockpit integrated electronics package includes:
- Volvo® Joystick Plus with Joystick Driving, Dynamic Positioning System and Assisted Docking
- GPS antennas
- Two Volvo®/Garmin® 22" GPSMAP displays
- Volvo®/Garmin® GRID 20 remote
- Volvo®/Garmin® autopilot
- GPS antennas
- Garmin® 54 Fantom Array Radar
- Garmin® VHF215 radio
- Garmin® GSD24 sounder module
- 1 kW Airman® transducer
- Aft facing cockpit camera
• SiriusXM® radio and weather ready
• Pre-wiring for SAT TV
• High output alternators
• Propellers
• Volvo® Interceptor trim tabs with active trim, list and coordinated turn
• Zinc sacrificial anodes
• Engine room with lighting and acoustical insulation
• Racor® fuel filters/water separators for engines and generator
• Raw water intake strainers, engines, air
conditioners, gyro and generator
• Vibration mounts for engines and generator
• Plate mounted, thru-bolted engine system
• Ritchie® Super Sport SS2000 compass
• Three automatic/manual electric bilge pumps
with LED monitors at helm, 2,000 GPH each
• Aluminum fuel tank, total capacity 650 gallons, with in-line fuel vent filters and fuel shut-off valves
on top of tank
• Dockside water inlet, aft deck
• Fresh water tank, total capacity 135 gallons
• Holding tank, 68 gallons with deck discharge and holding tank vent filter
• Fresh water tank/holding tank monitor
• Fresh water pressure system with 10 GPM pump
• One water heater, 20 gallons
• Kahlenberg® chrome dual trumpet air horn
• FE-227 agent automatic/manual fire extinguisher system for engine room
• Three handheld fire extinguishers
• Carbon monoxide and smoke alarms in
staterooms
• Five port oil changing system for main engines and generator
• Propspeed® applied to drives and props
• Dedicated storage for dock lines and fenders
• Eight Tiara life vests (domestic boats only)
• Eight 5/8" x 30' black dock lines
• Two TaylorMade® Big B Fenders
• USCG safety and medical kit
• USCG/International LED navigation lighting
• NMMA certified using ABYC standards
