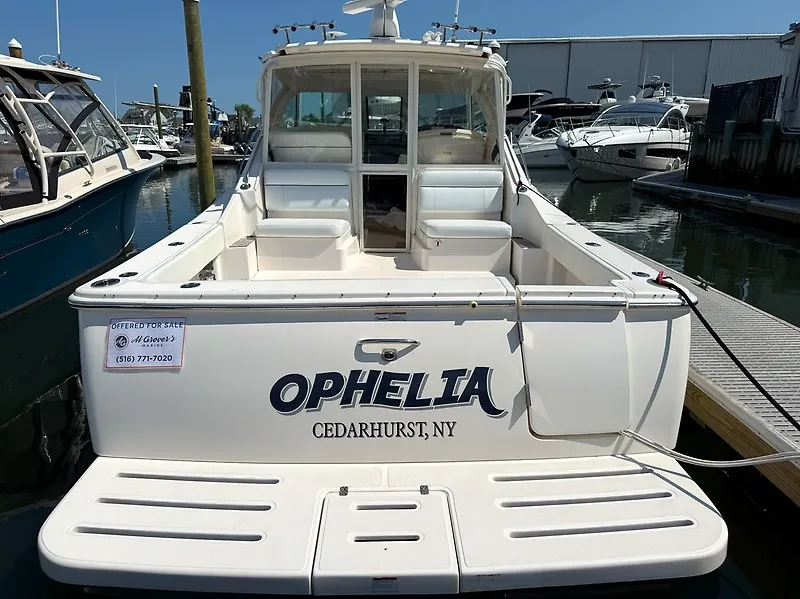

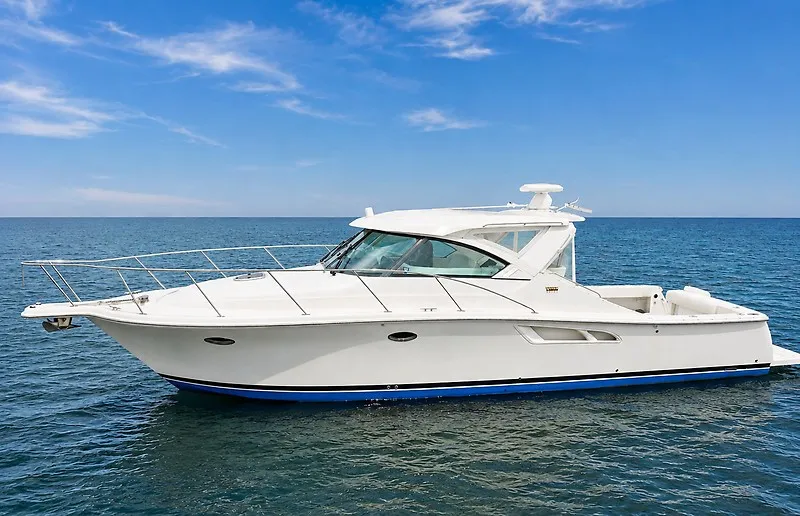

2013 Tiara 3600 Open Sold Boat in Freeport, NY 11520 US

STANDARD EQUIPMENT

SPECIFICATIONS

L.O.A. without Standard Pulpit ....

36'5" - 11.0 meters

L.O.A. with Standard Pulpit ..38'11" - 11.9 meters

L.O.A. with Standard Pulpit and Optional

30" Swim Platform ... 41'5" - 12.62 meters

Beam ... 13'3" - 4.04 meters

Draft ... 3'3" - .99 meters

Approximate Dry Weight ...

19,100 lbs. - 8,663.6 kg

Height from Waterline to Top of

Standard Hardtop...9'10" - 2.99 meters

Standard Fuel Capacity ...

350 U.S. gallons - 1,324.89 liters

Water Capacity ...

70 U.S. gallons - 264.98 liters

Holding Tank Capacity ...

27 U.S. gallons - 102.20 liters

Sleeping Accommodations ... 4

Cockpit Size ...

Upper: 56 sq. ft. - 5.2 sq. meters

Lower: 72 sq. ft. - 6.7 sq. meters

Deadrise at Transom ... 17º

HULL, DECK AND UPPER COCKPIT

• Tiara Yachts' transferable limited

warranties: five years on hull, deck and

fiberglass fuel tank; two years on

accessories. Exclusions apply - refer to 2013

warranty statement for specific details and

coverage areas.

• Fresh white gelcoat hull and deck

• Imron® bootline (Carbon Imron® is standard)

• Hull constructed with a gelcoat outer layer,

balsa cored hullsides, and hand-laid

fiberglass using premium resin

• Deck constructed with a gelcoat outer layer,

balsa coring, and hand-laid fiberglass using

premium resin

• Tiara custom diamond pattern non-skid deck

and cockpit surfaces

• Wood and foam core stringers, encapsulated

by hand-laid fiberglass, integrated to hull

• Gelcoated bilge

• Bronze seacocks on all underwater thru-hull

fittings

• Molded-in hullside engine room ventilation

• Lenco® electro-mechanical trim tabs with

indicator lights at helm

• One (1) Bomar® forward deck hatch w/

adjuster and built-in Ocean Air® screen and

privacy cover

• Molded-in fiberglass bow pulpit with S.S.

roller

• One-piece welded, 316L S.S. 1" bow rail

with pulpit, staff, and Tiara burgee

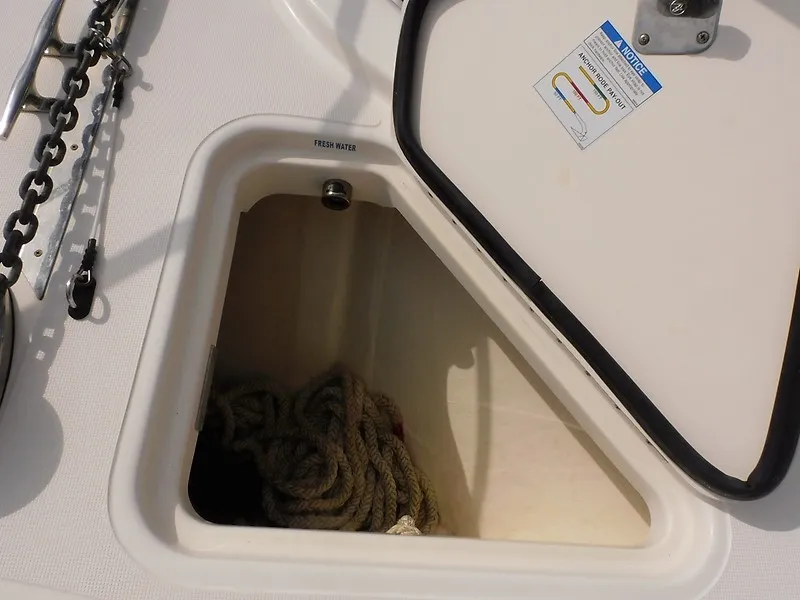

• Flush forward anchor rode locker with

overboard drain

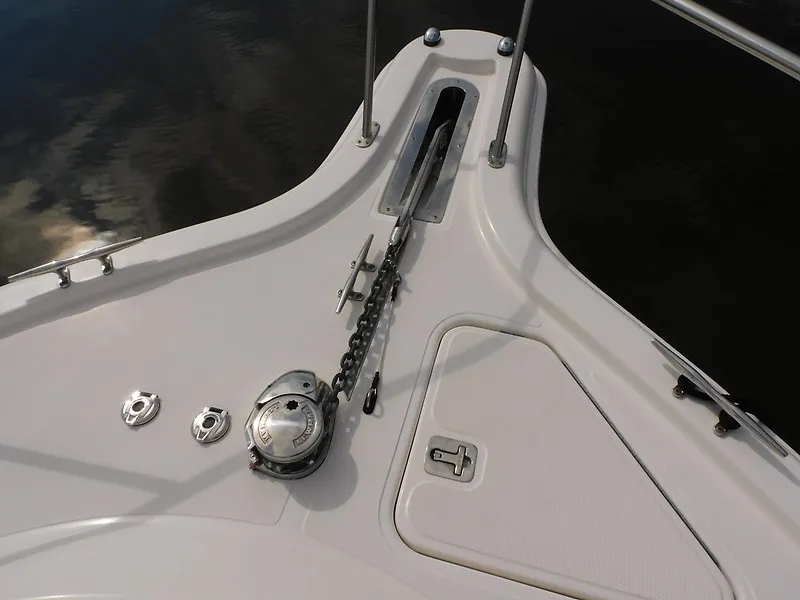

• Automatic rope/chain anchor windlass

system with operation from foredeck foot

pedal and remote switch at helm. Includes

one (1) 8" S.S. foredeck cleat, 40' chain

rode, 200' rope rode, and Delta® 22 lb.

galvanized anchor

• White rubrail with 316L S.S. cap

• Four (4) S.S. cleats forward/midship and

two (2) 12" aft cleats

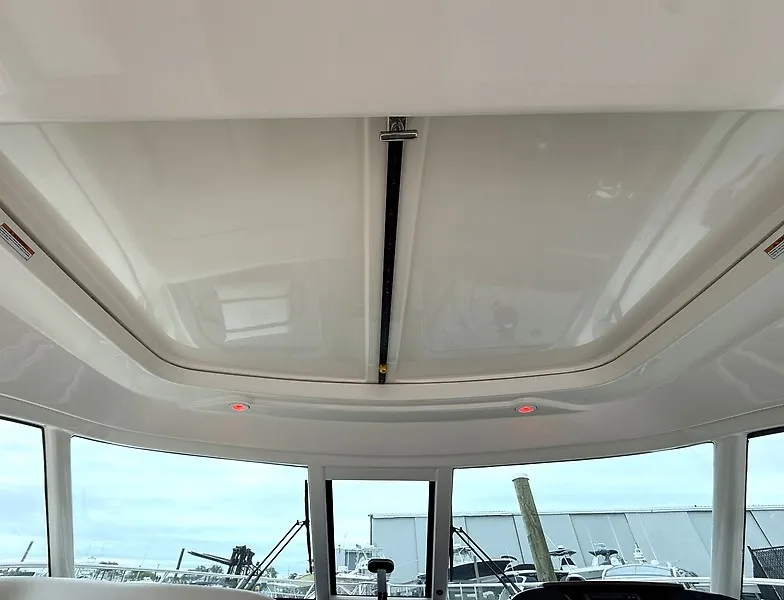

• Hardtop with sun roof and side enclosures

• White exterior vinyl

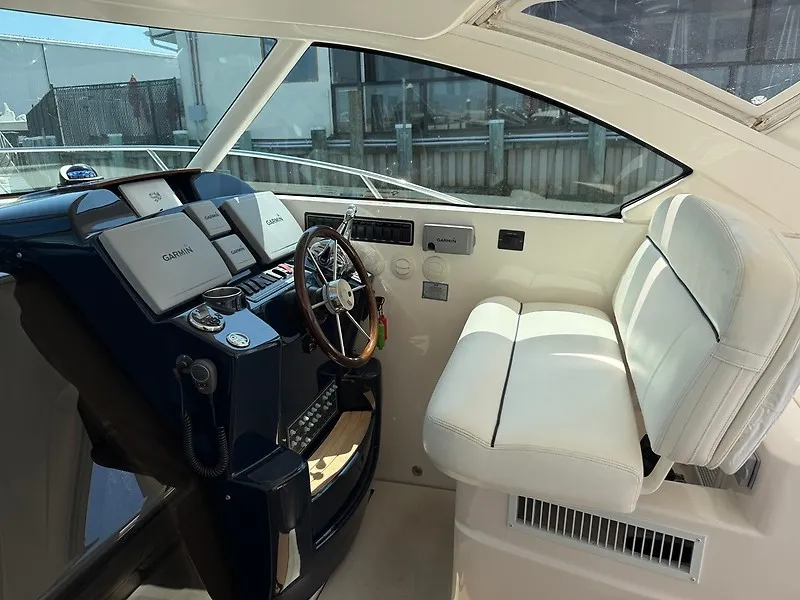

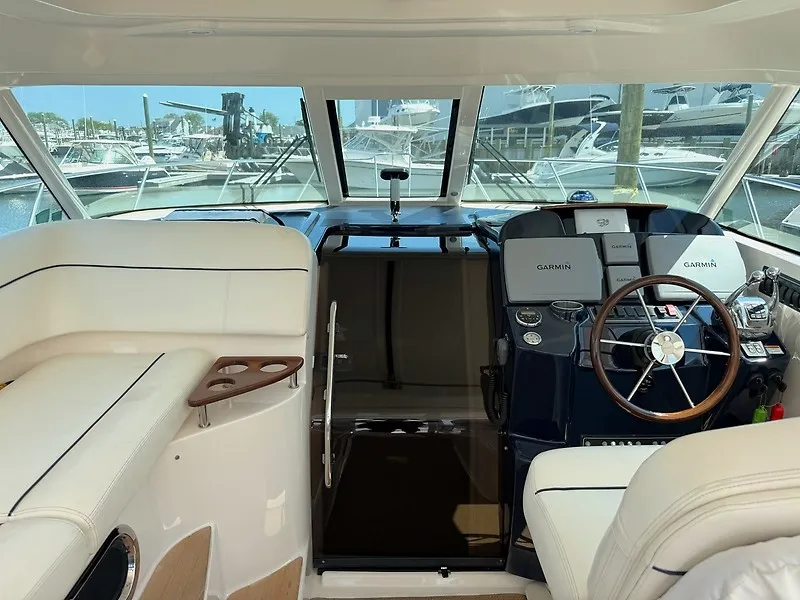

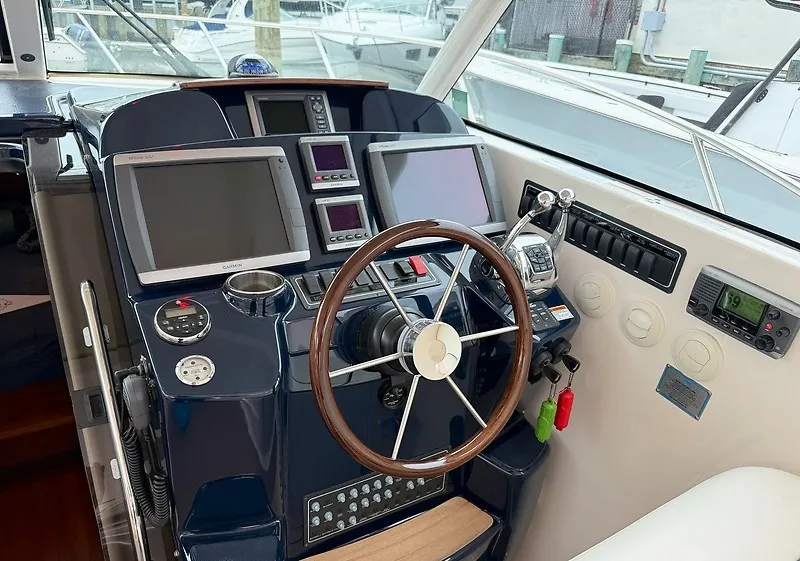

COMMAND BRIDGE

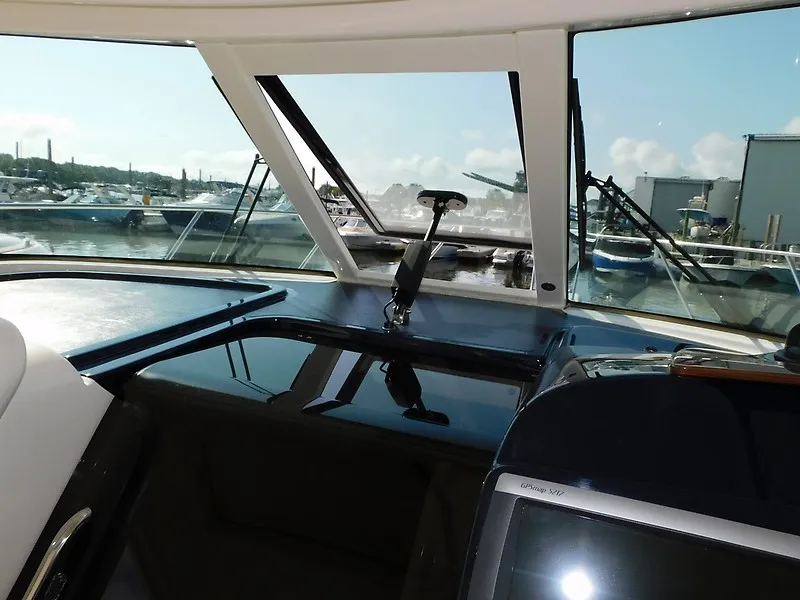

• Tiara custom composite windshield frame

with tempered safety glass, safety handrails,

opening center section and a windshield

wiper system with two (2) washers/

wipers

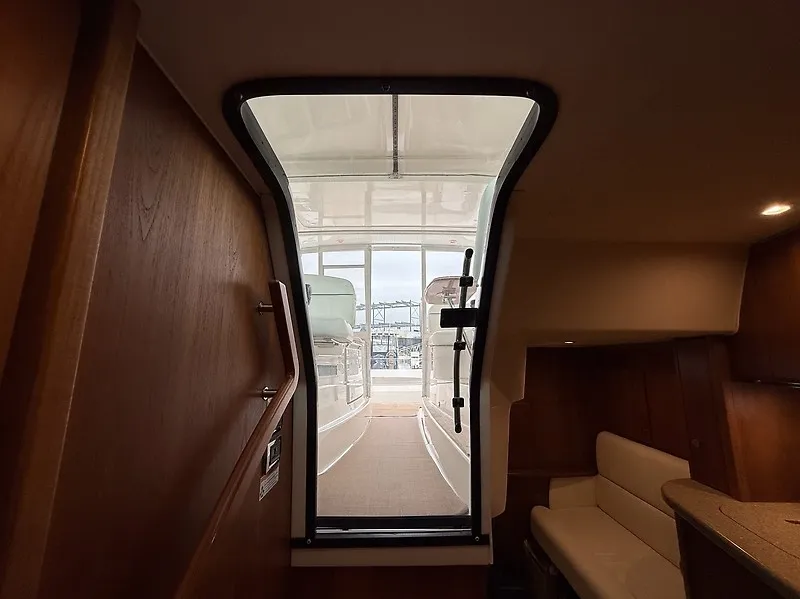

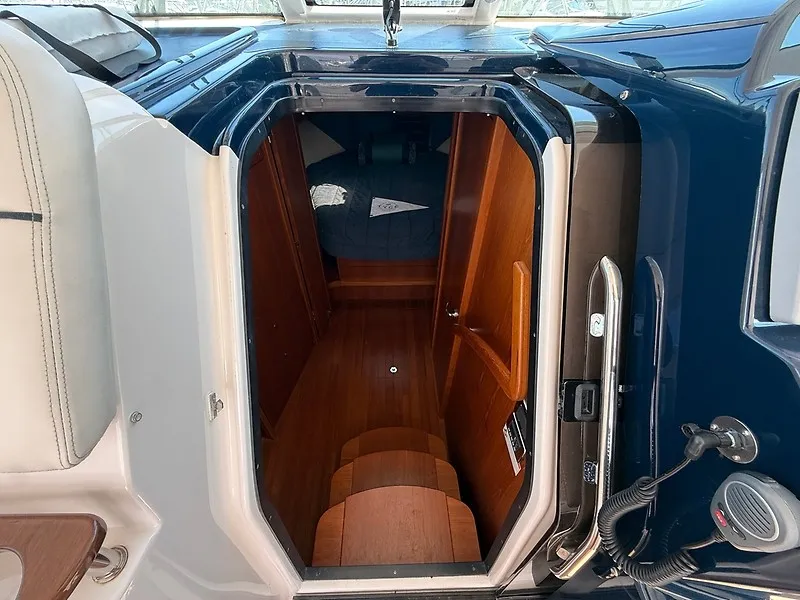

• Centerline entry to salon with acrylic sliding

companionway door, lock, and

privacy cover

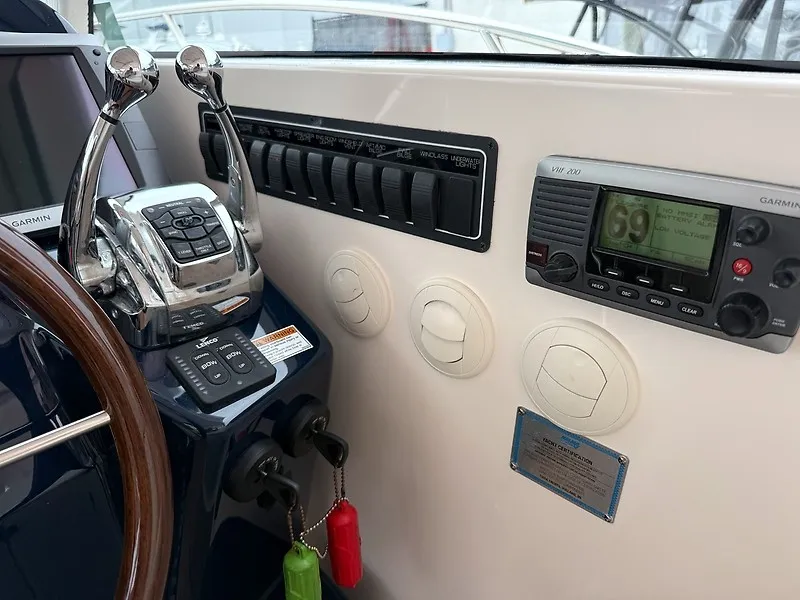

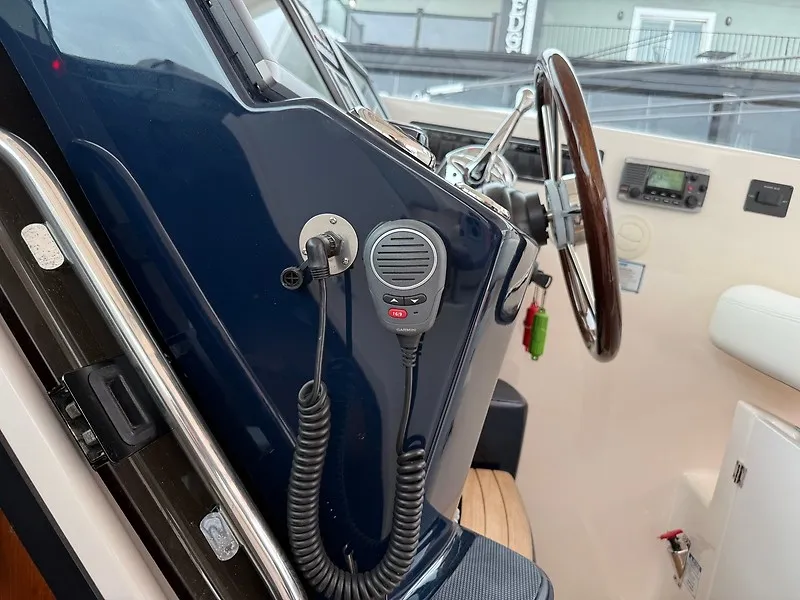

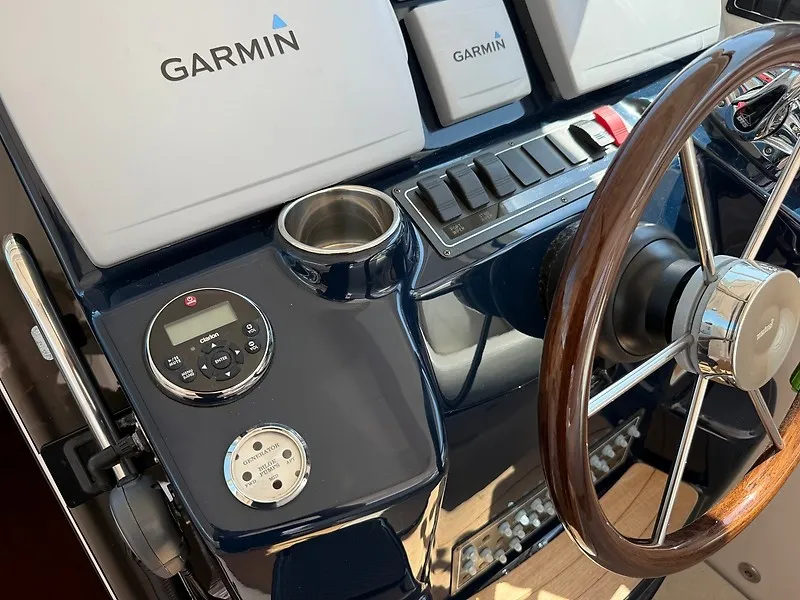

• Tiara hinged helm console with full flush

mount electronics capability, one (1) drink

holder, 12v outlet, and S.S. tilt steering wheel

• Single helm seat with storage below

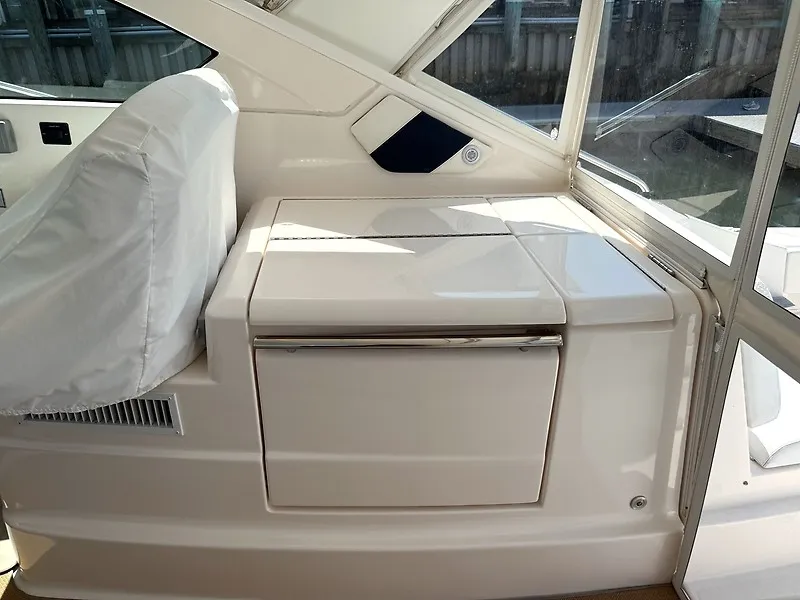

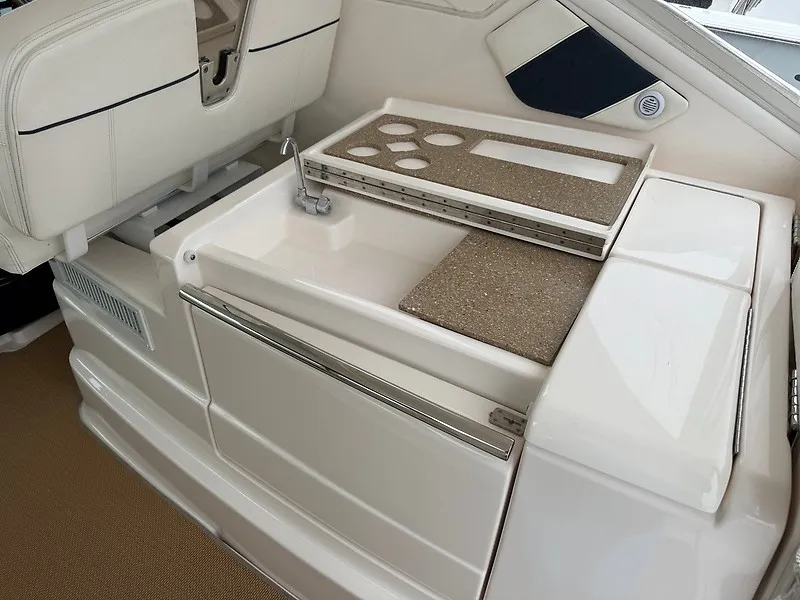

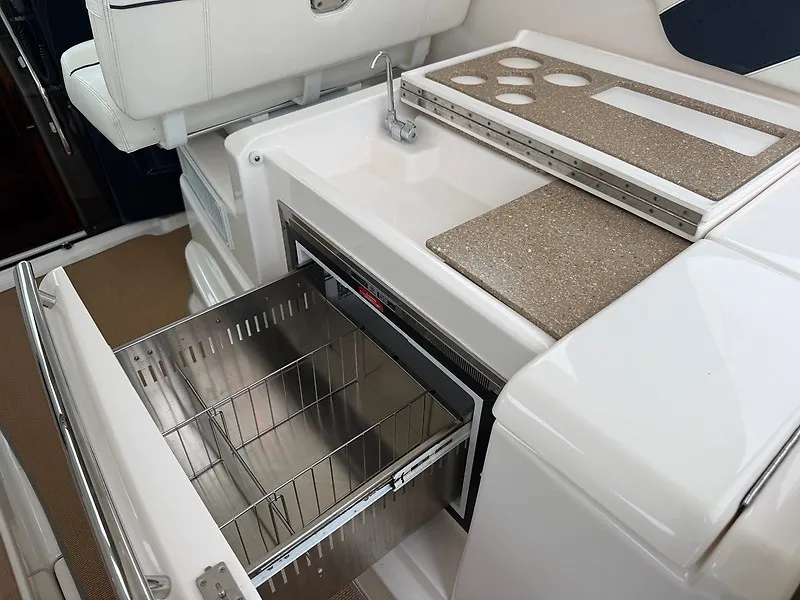

• Entertainment center with sink, storage tray,

and 2.6 cu ft. drawer refrigerator (wired AC

& DC)

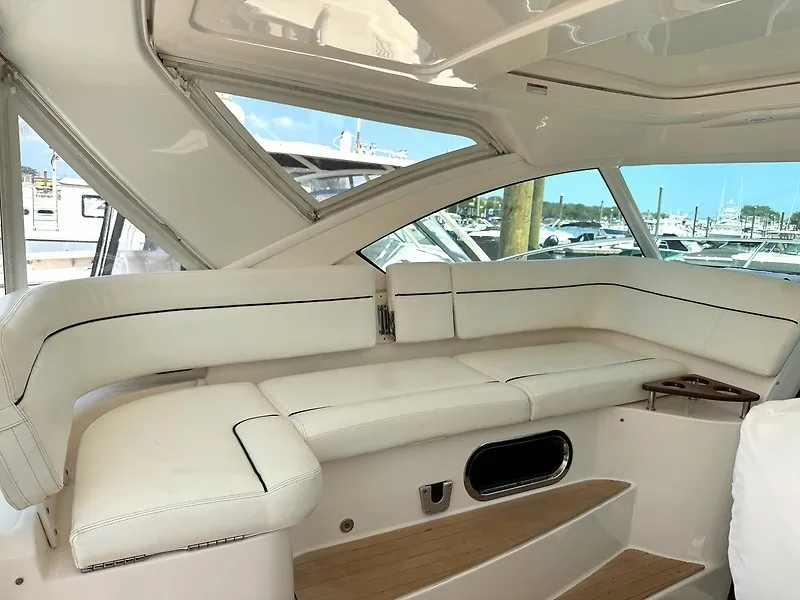

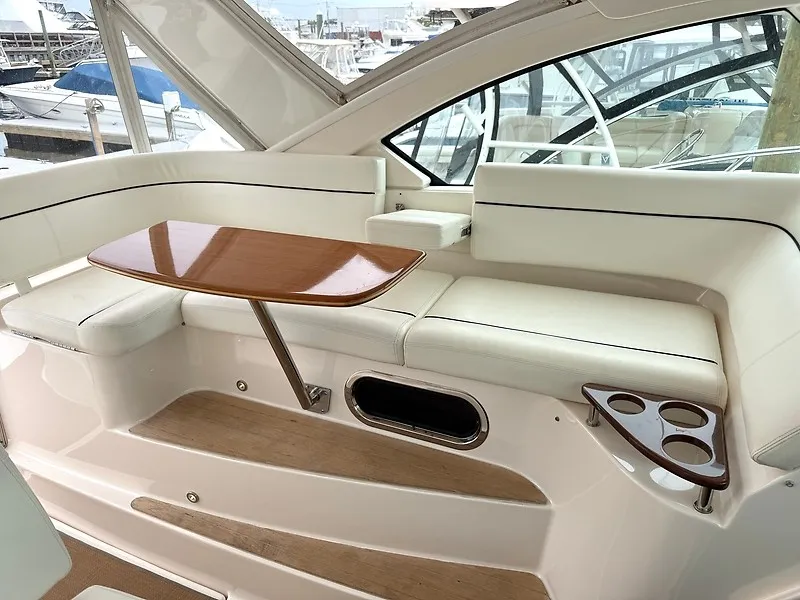

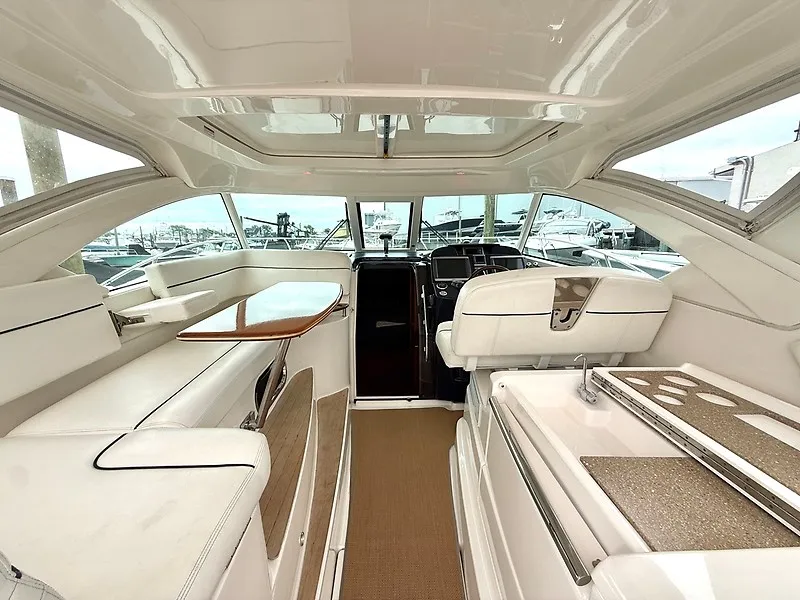

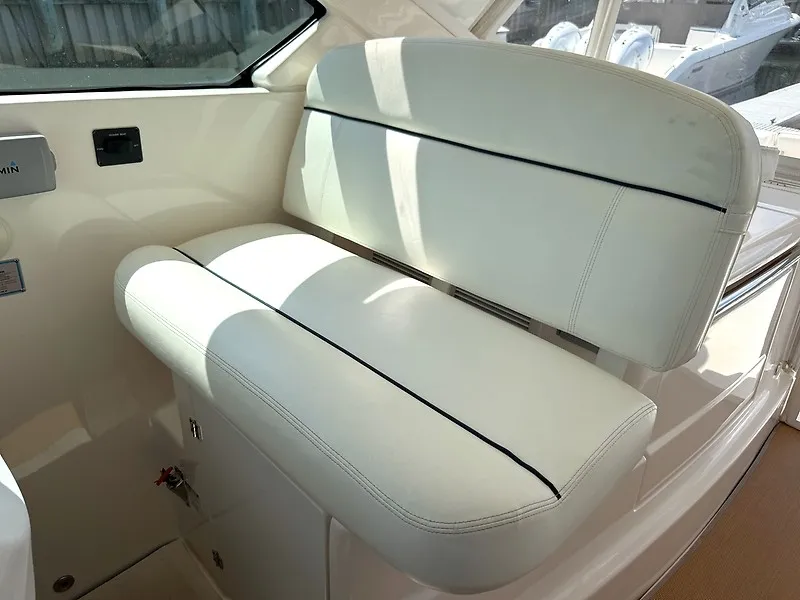

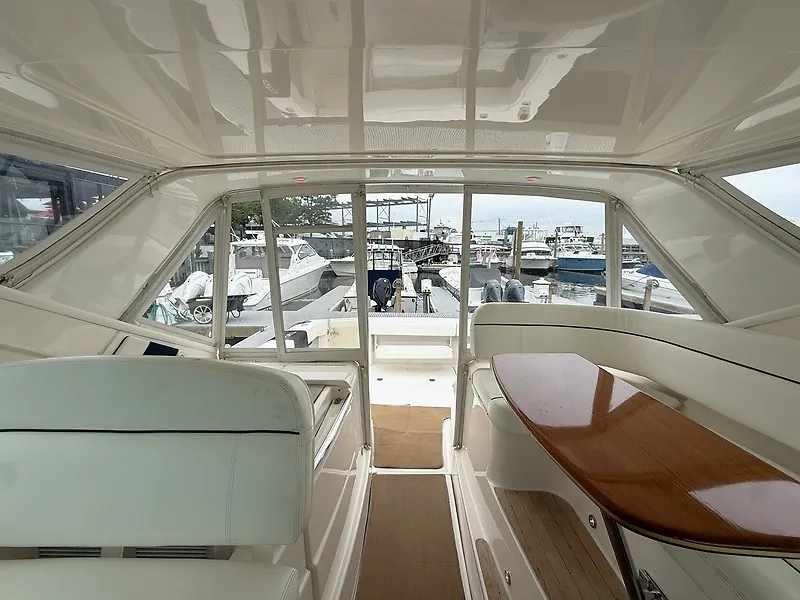

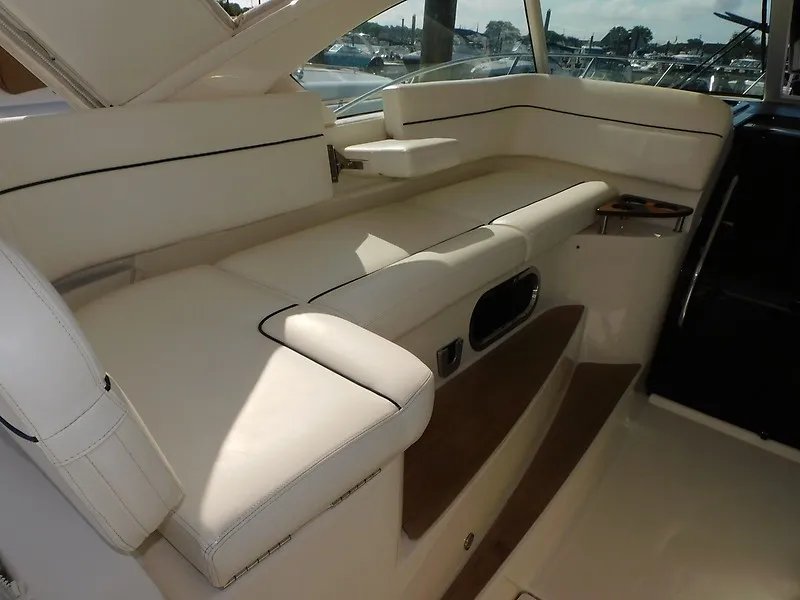

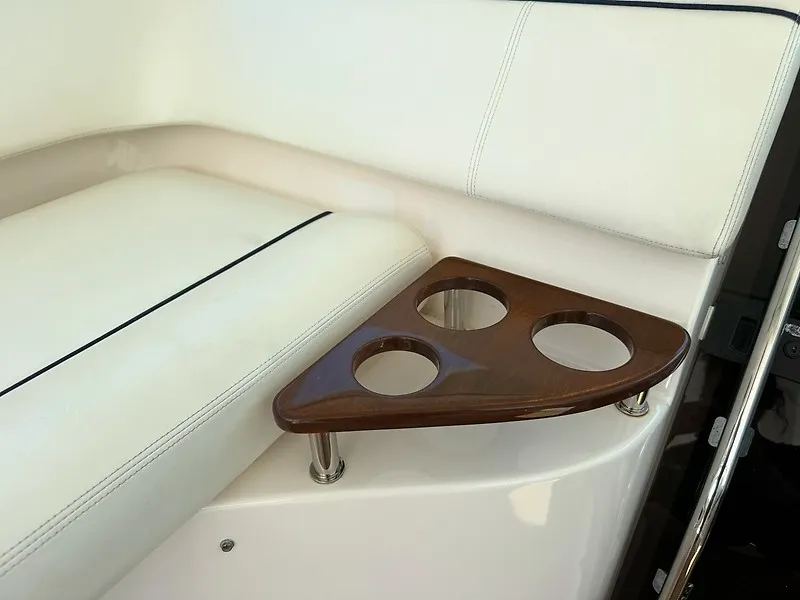

• Curved companion lounge with drink holder

and removable teak table

• 120V GFI outlet

• Drop-down engine room access hatch from

the command bridge

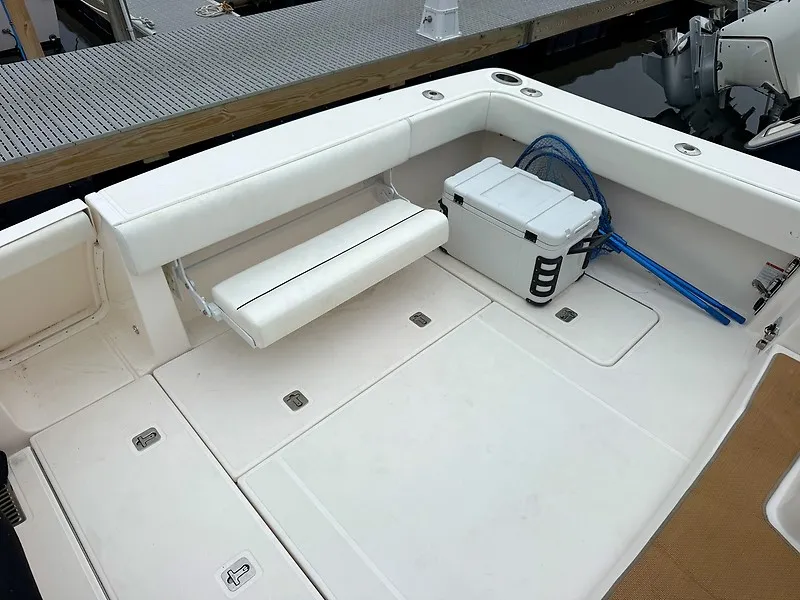

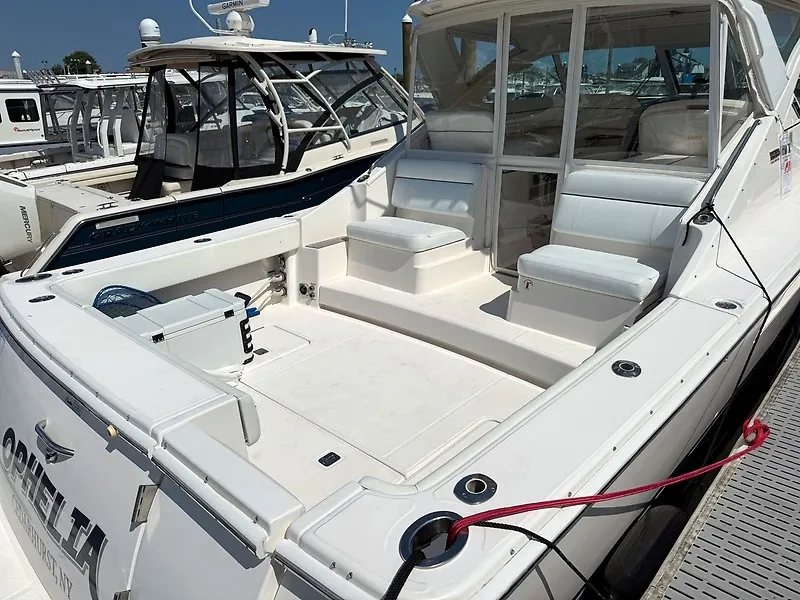

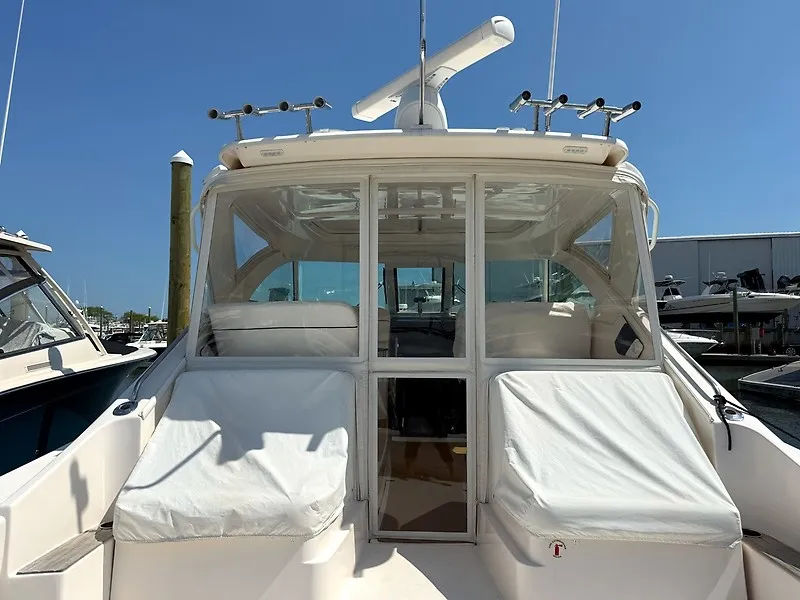

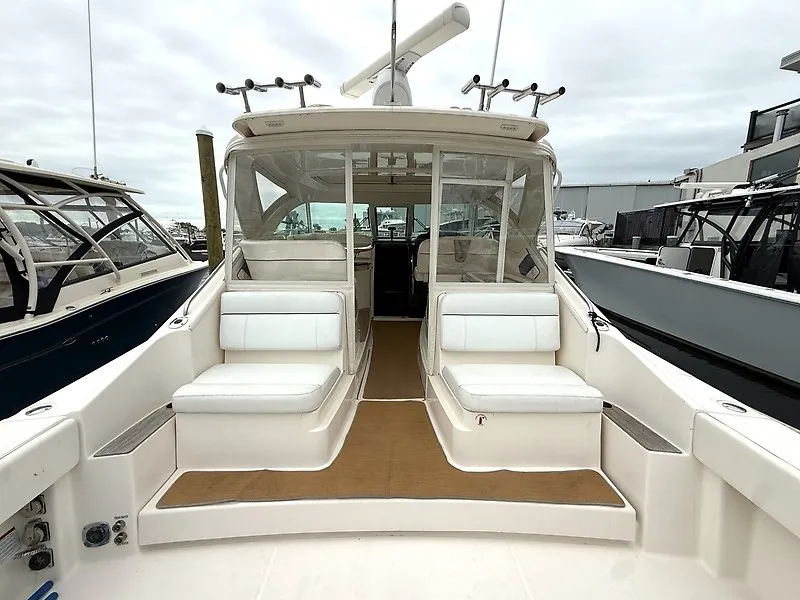

AFT COCKPIT & TRANSOM

• Molded-in steps to deck walkways, port and

starboard, with teak step treads

• Cockpit LED courtesy lighting

• Cockpit shower, hot and cold water

• Starboard aft facing mezzanine seat

• Port aft mezzanine bait prep center with

cutting board, sprayer, and tackle storage

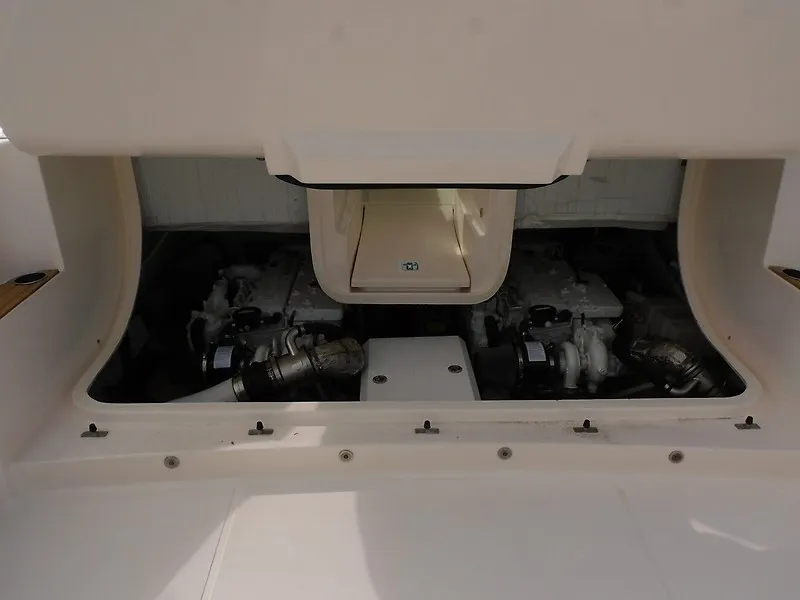

• Engine room hatch with actuators

• Fiberglass covering boards

• Four (4) Lee® rod holders

• Cockpit coaming bolsters

• Self-draining cockpit with scupper drains

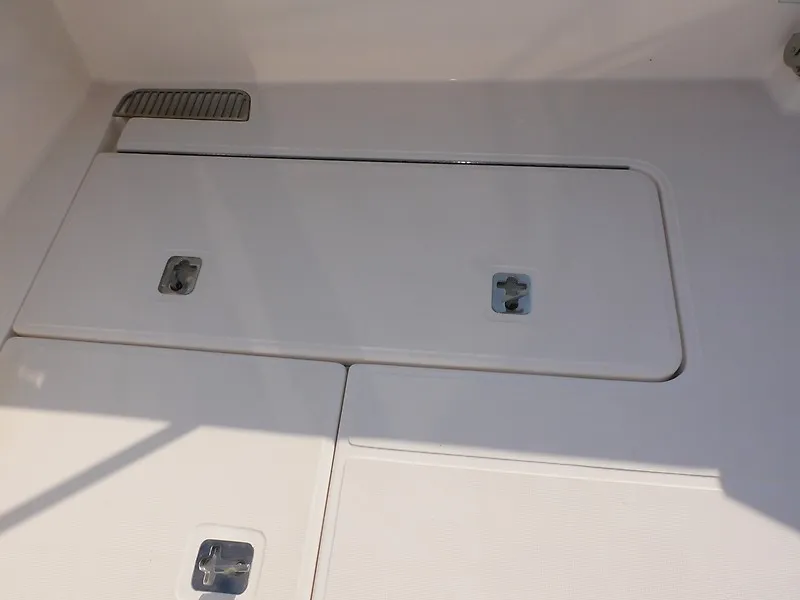

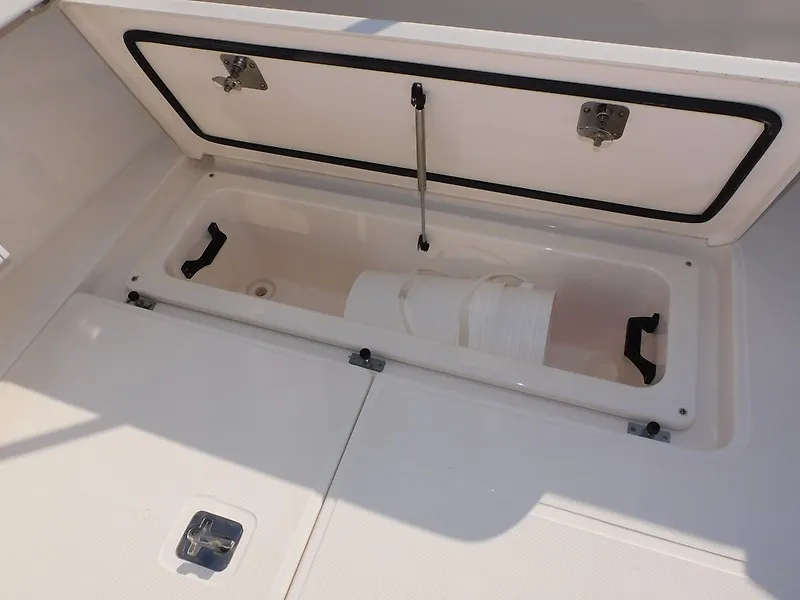

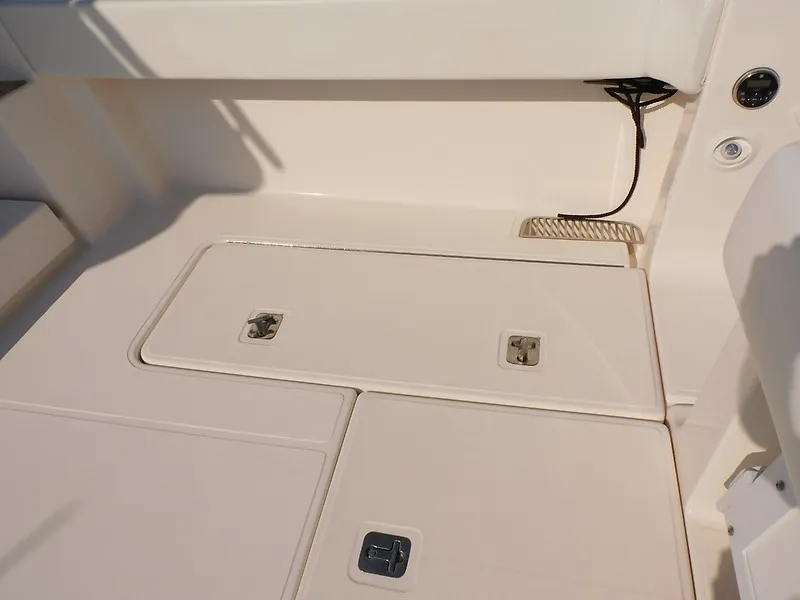

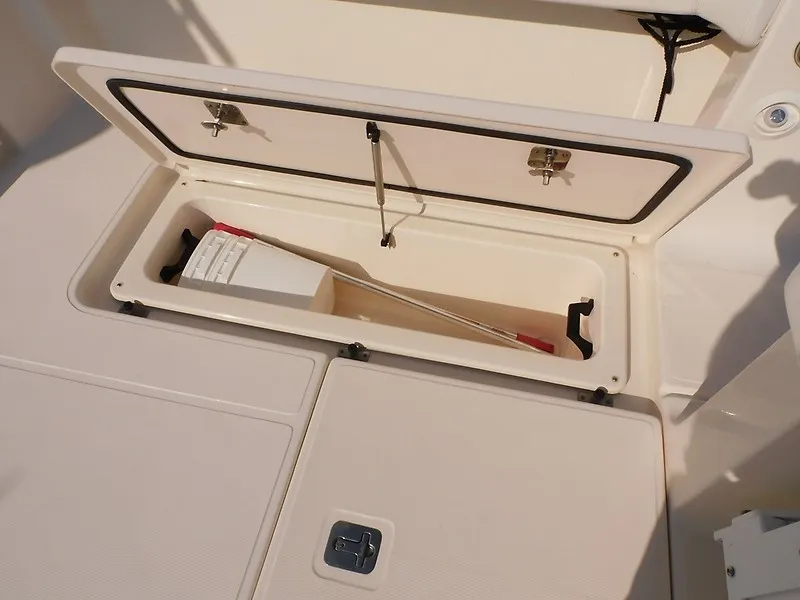

• Two (2) longitudinal flush floor storage

tanks with macerator and one (1) lazzerette

floor hatch

• Molded-in transom door

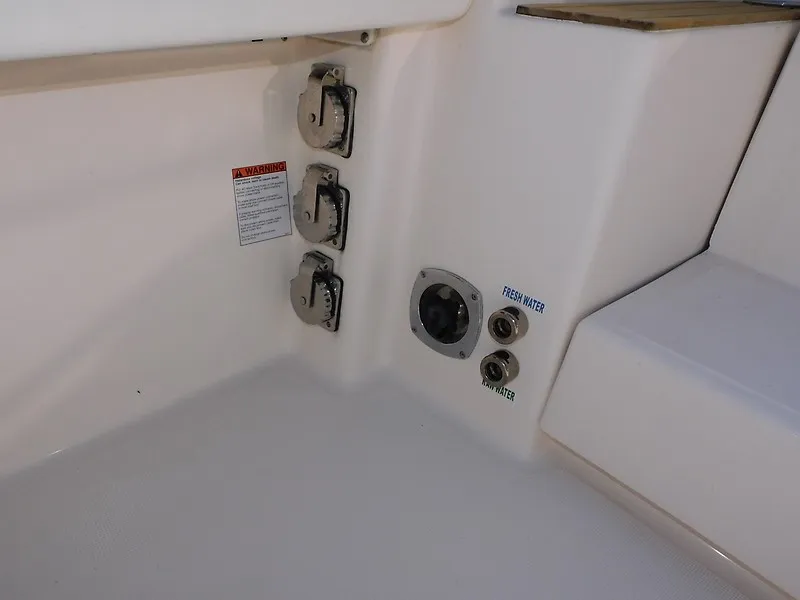

• Fresh water washdown outlet with 25 ft.

coiled blue hose

• Raw water washdown outlet with and 25 ft.

coiled yellow hose

INTERIOR GROUP

• Mold and mildew resistant vinyl hull

and headliner treatment

• Architectural teak interior wood

• Amtico® Dark Walnut floor

• Clarion® CMD7 CD/USB/MP3 aux/FM

stereo with cockpit remote, 2 channel amp,

two (2) interior Clarion® speakers, two (2)

Clarion® marine cockpit speakers, and USB

combo port

• 120V outlets throughout

• 12V LED lighting

SALON

• Teak companionway steps

• Companionway handrail

• Marine Air Systems® 12,000 BTU air

conditioner with reverse cycle heat

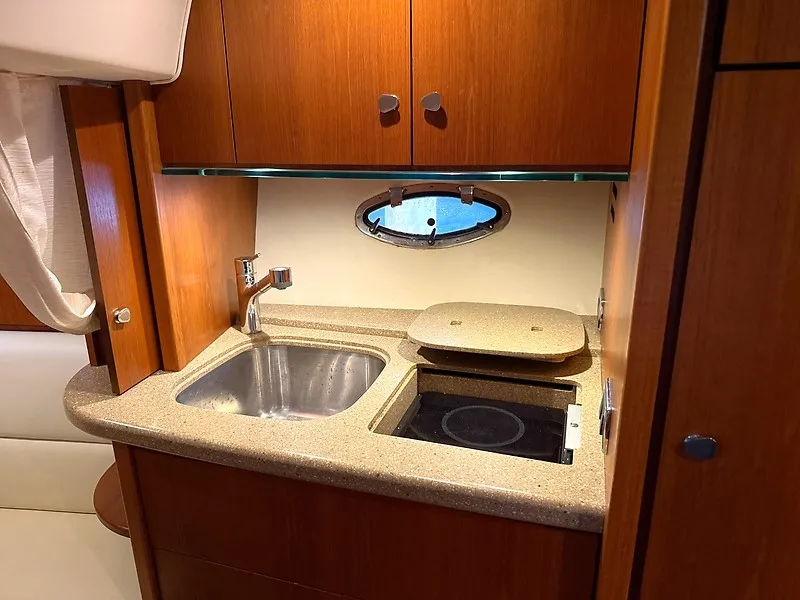

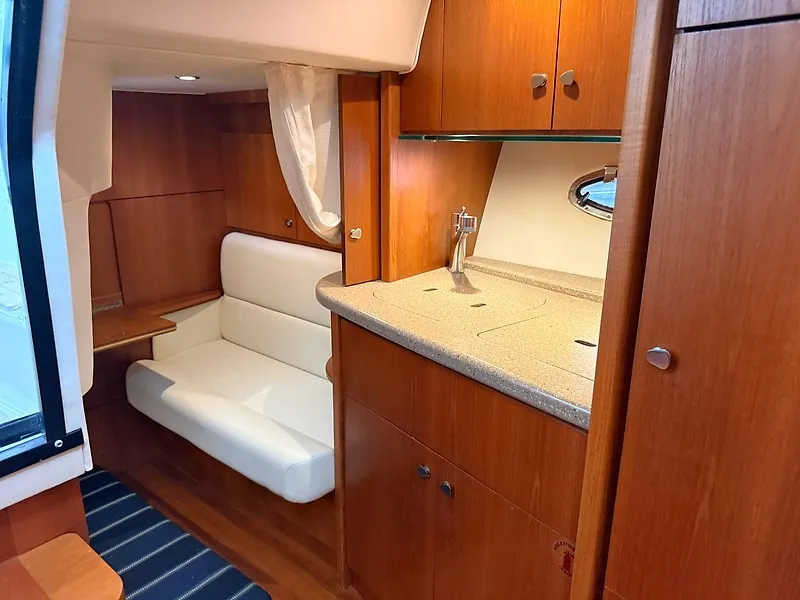

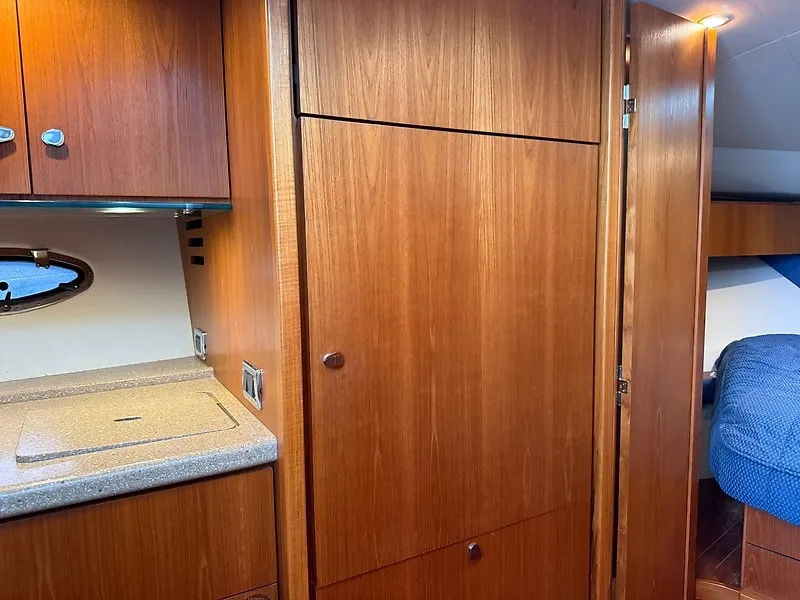

GALLEY

• Corian® countertop

• Stainless steel undermount sink with

Corian® cover and hot/cold faucet

• Upper storage cabinets

• Storage under galley countertop

• Two storage drawers below refrigerator

• Recessed one-burner electric cooktop with

Corian® cover and safety shut-off switch

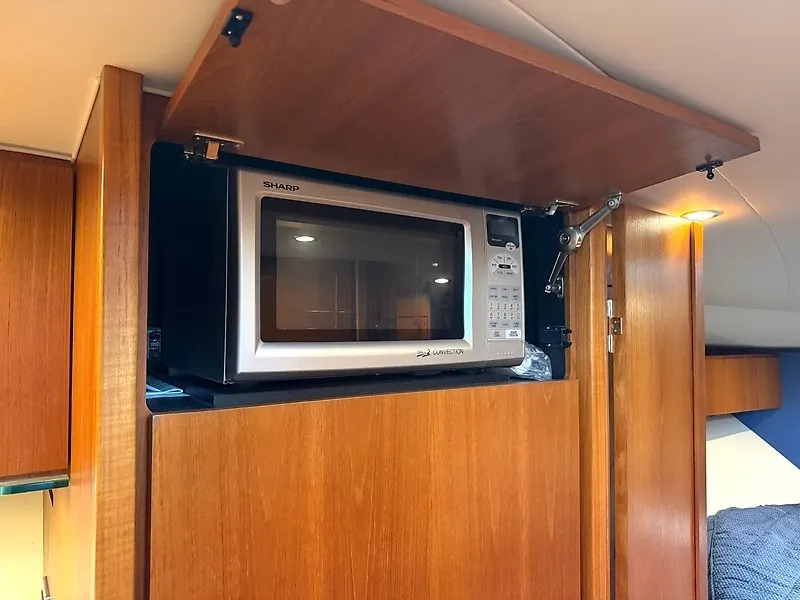

• Convection microwave oven

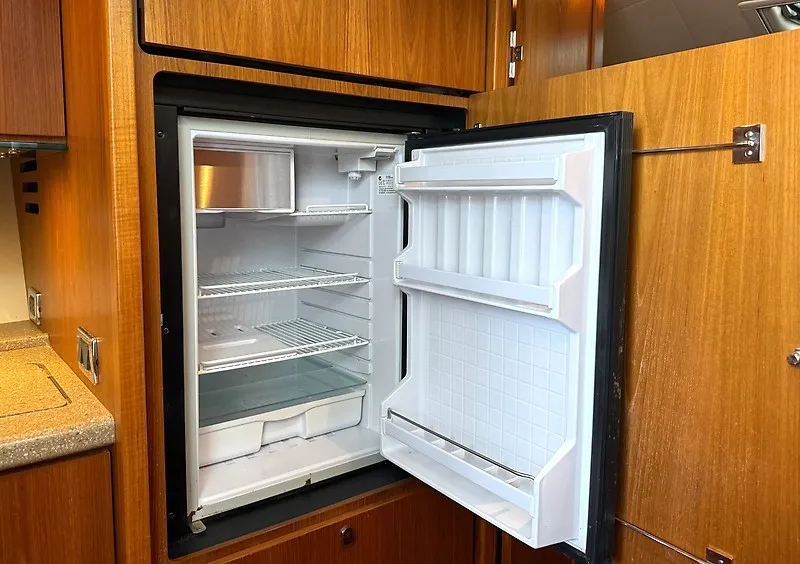

• Refrigerator

• Exhaust fan

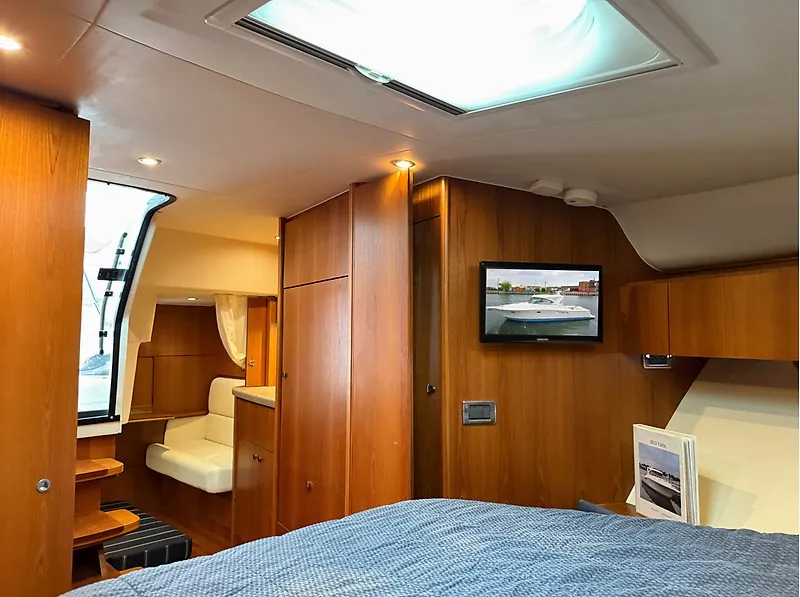

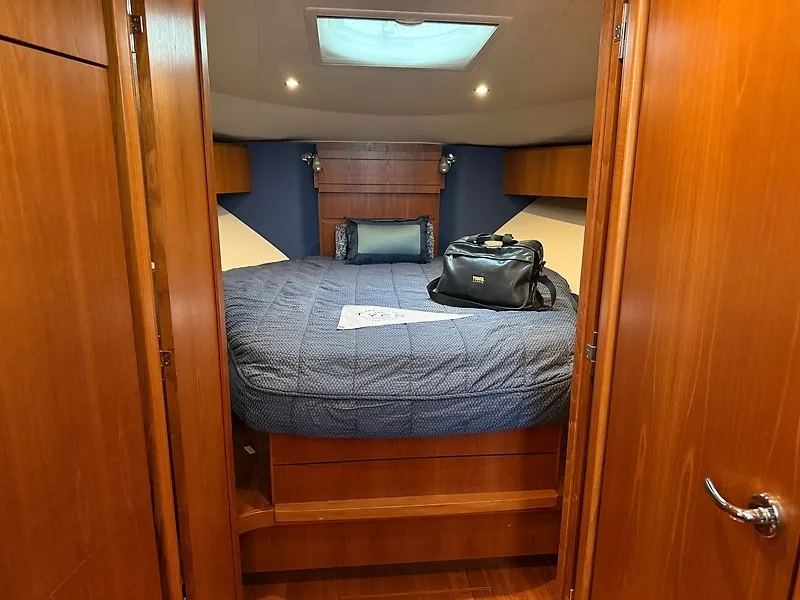

MASTER STATEROOM

• Teak tri-fold door

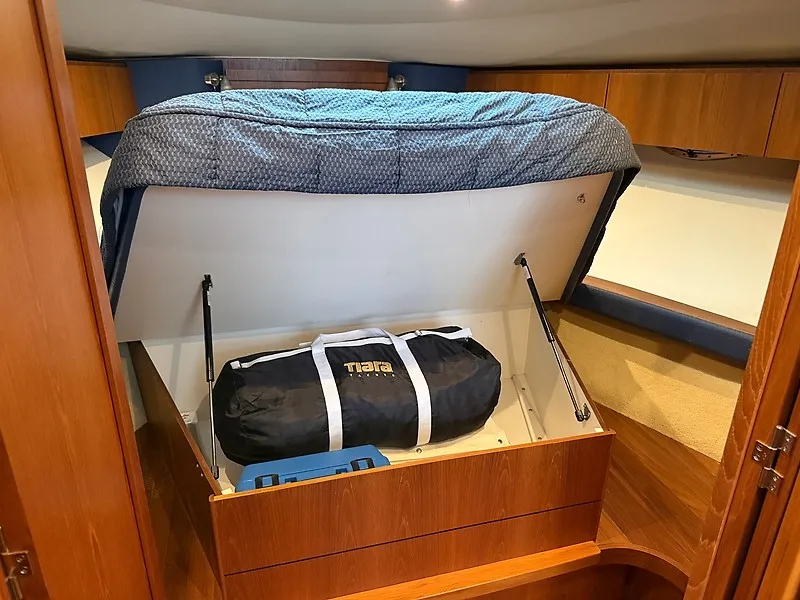

• Manually actuated double pedestal berth

with deep quilted innerspring mattress,

coverlet, two (2) box pillows, and four (4)

throw pillows

• Storage compartments under berth

• Port and starboard hanging lockers

• Upper hullside cabinets, port and starboard

• Two (2) reading lights, independently switched

• 19" LCD TV with connection port

MID-CABIN

• Foam mattress with fabric cover

• One (1) box pillow

• One (1) reading light, independently switched

• Settee

• Privacy curtain

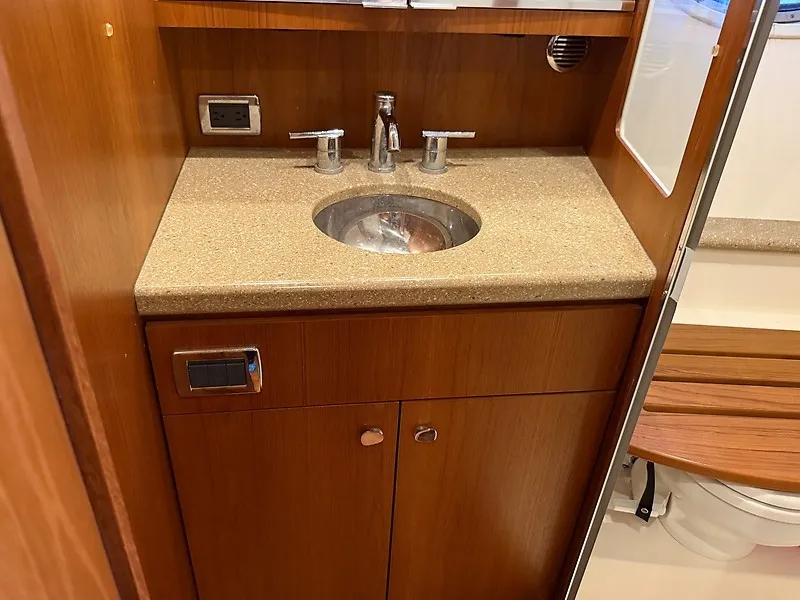

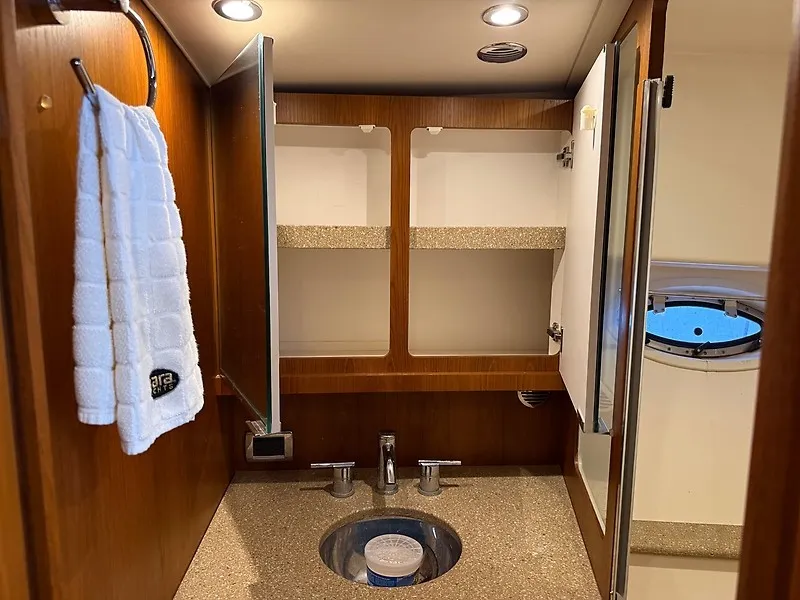

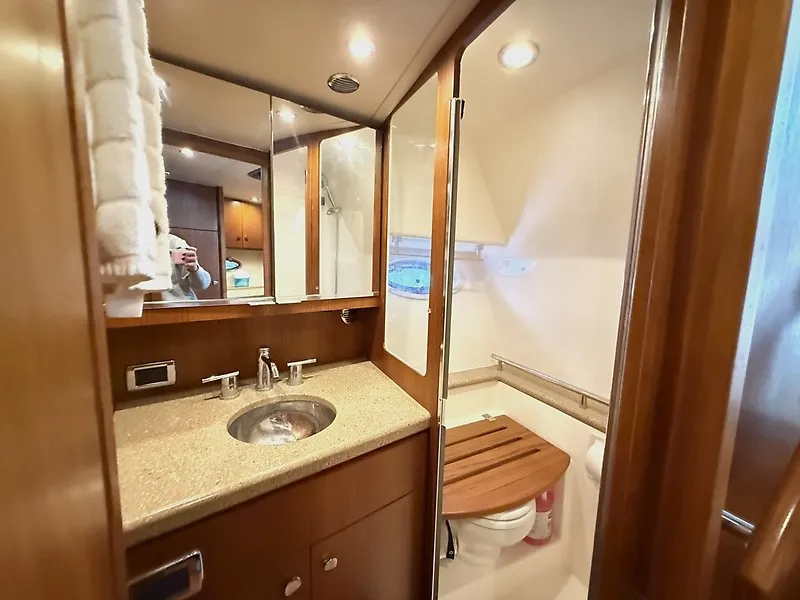

HEAD

• Full frame wood door

• Full fiberglass head with shower sump pump

and glass shower door

• Corian® countertop with integrated sink

• Mirrored vanity above sink

• Storage compartment below sink

• Vacuflush® toilet

• Exhaust fan

• Air conditioning vent

• GFI protected outlets

INSTRUMENTATION, EQUIPMENT AND

SAFETY

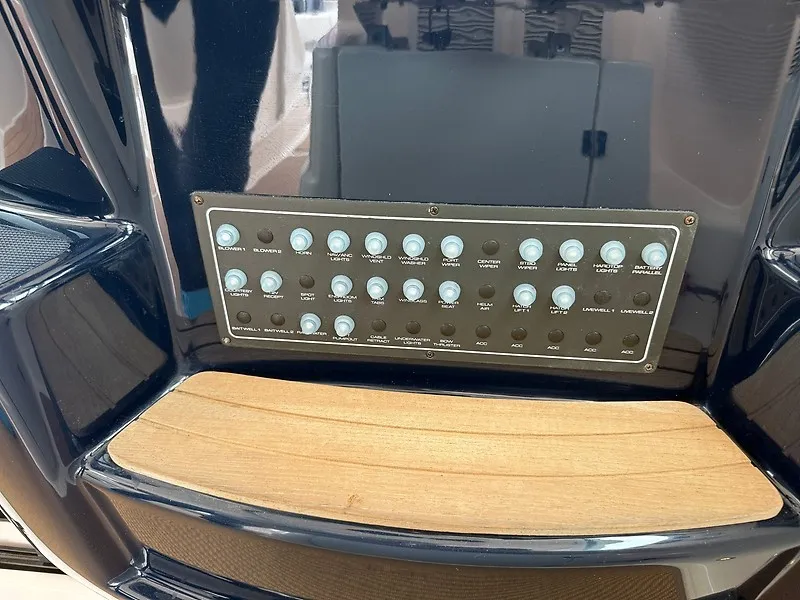

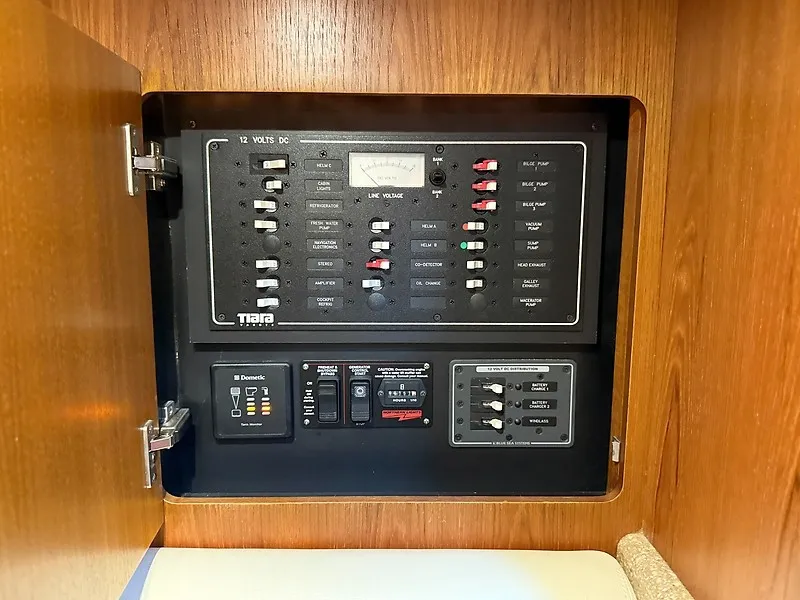

• Tiara custom 12V and 120V electrical

distribution panels

• One (1) 120V 30 amp 65' dockside power cord

with 30 amp to 15 amp adapter

• Cable TV inlet and cabin outlets with

65' dockside power cord

• TV and AM/FM radio antennas

• Battery charger (1), 30 amp

• 12V two bank battery system: Three (3)

house batteries and two (2) engine batteries.

Inverter option includes two (2) additional

house batteries.

• Battery parallel system

• Reverse polarity indicator

• Electrical bonding system

• Zincs, transom & propeller shafts

• Single lever electronic controls

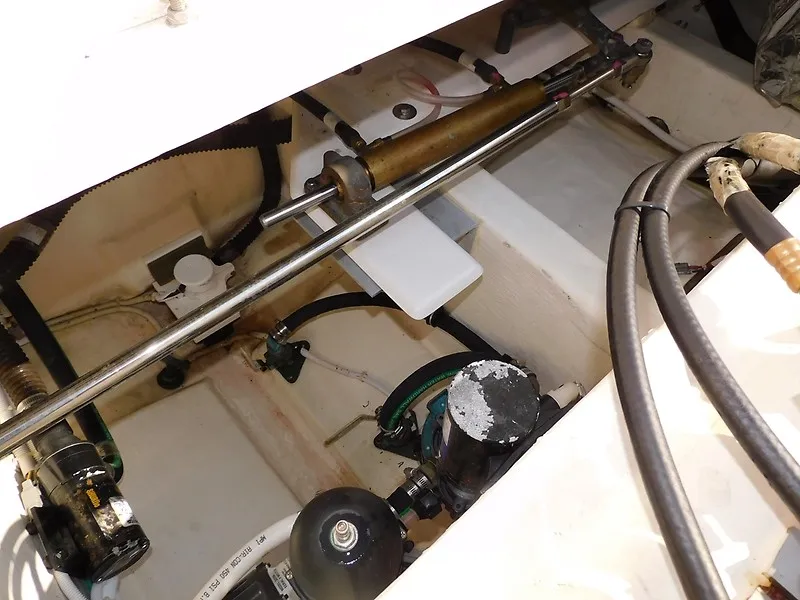

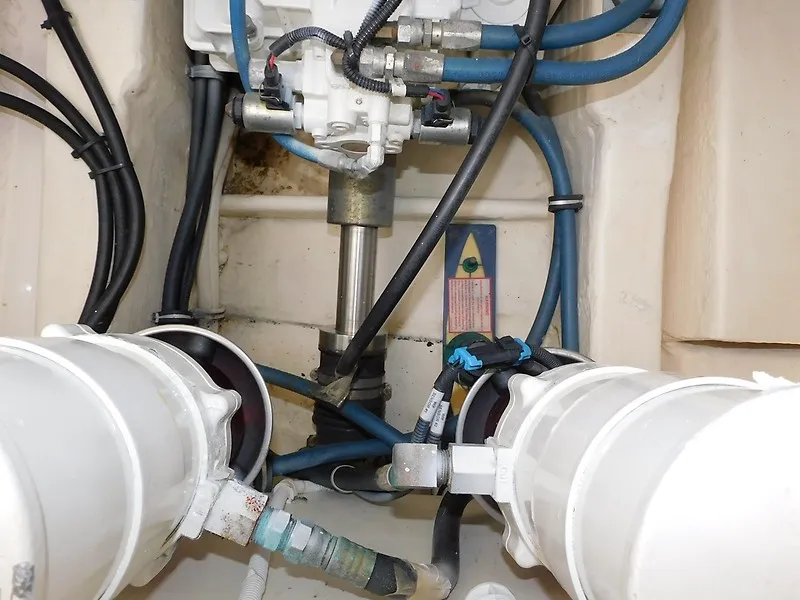

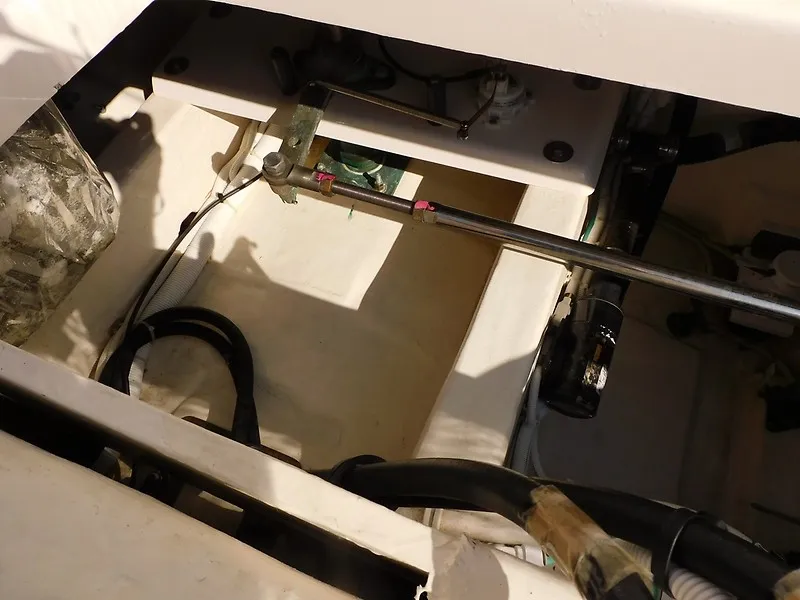

• Hydraulic steering system

• Bronze axe head rudders & struts

• Aquamet® S.S. prop shafts, 1 1/2" for gas

engine option and 2" for diesel engine option

• Water cooled PSS® shaft logs with dripless

shaft seal

• Two (2) Nibral® propellers

• High output alternators with internal

regulators

• SmartCraft Vessel View™ single display for

monitoring engine systems

• Ritchie® SuperSport SS-2000 compass

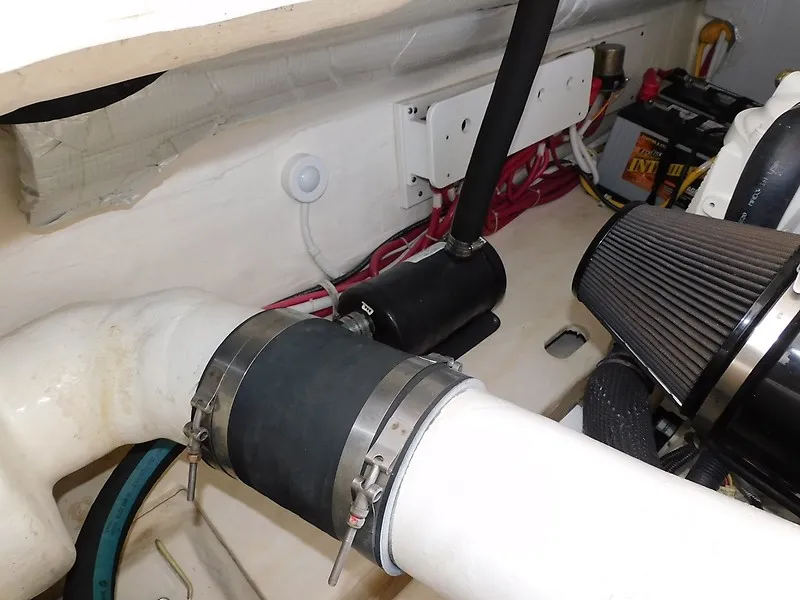

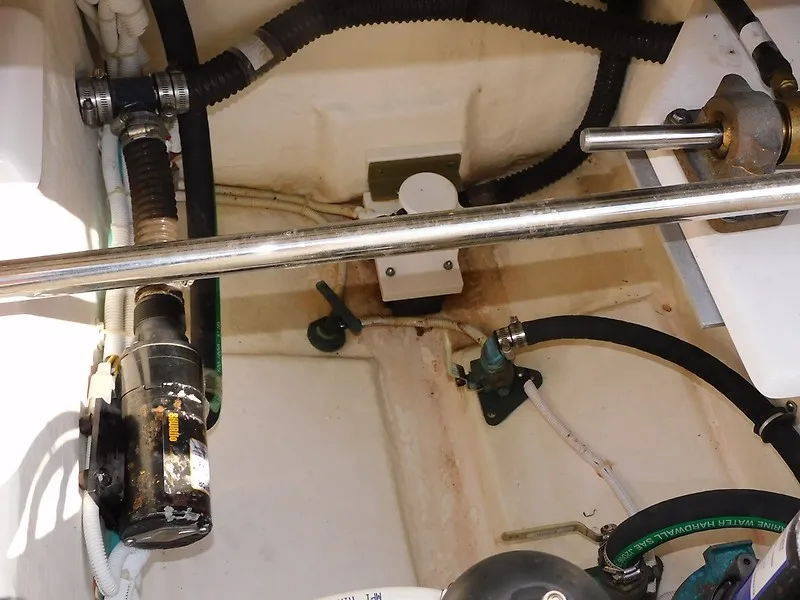

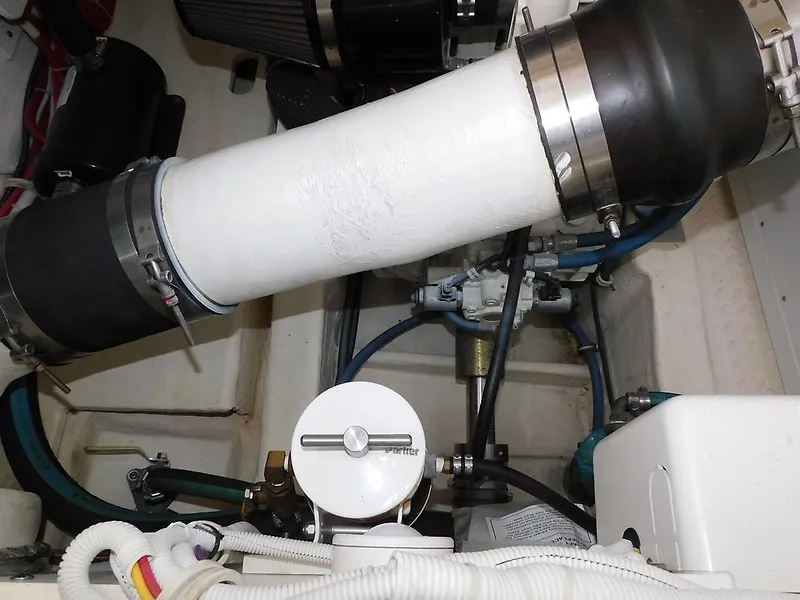

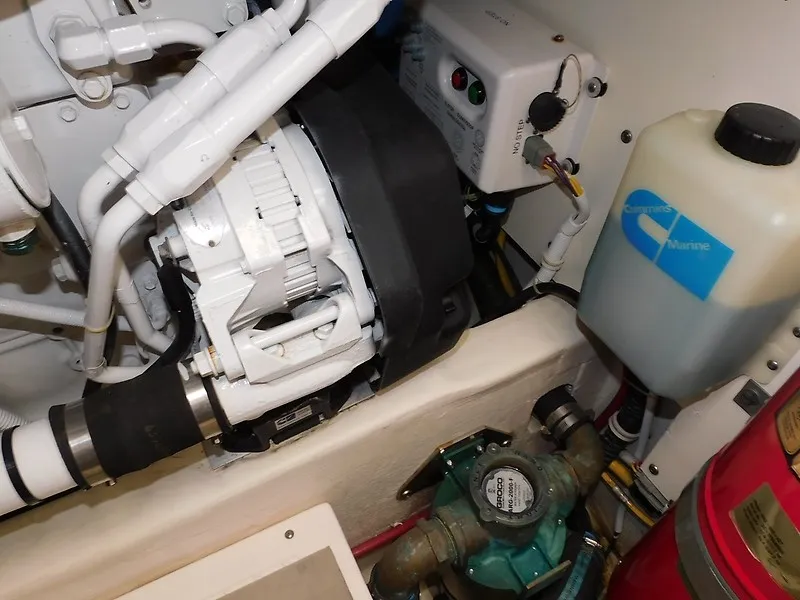

• Engine room acoustical insulation

• Seven (7) 12V LED engine room lights

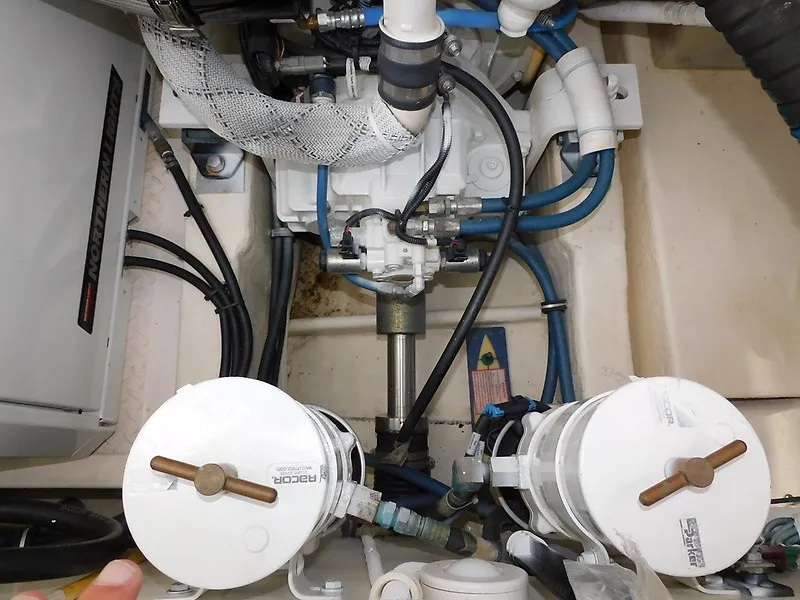

• Two (2) Racor® fuel filters/water separators

• Two (2) raw water intake strainers

• Vibration isolation mounts for engines

• Bilge blowers: two (2) with gas engine option;

one (1) with diesel engine option

• Three (3) automatic/manual bilge pumps

with monitors at the helm, 2000 GPH each:

One (1) forward, one (1) mid, one (1) aft

• One (1) composite fuel tank, 350 gallons,

with fuel shut-off valve on top of tank

• Dockside water inlet

• One (1) fresh water tank with monitor,

70 gallons

• Fresh water pressure system with Shurflo®

variable speed pump, five (5) GPM

• One (1) holding tank with monitor, 27 gallons

• One (1) water heater with exchanger, six (6)

gallons

• Air horn

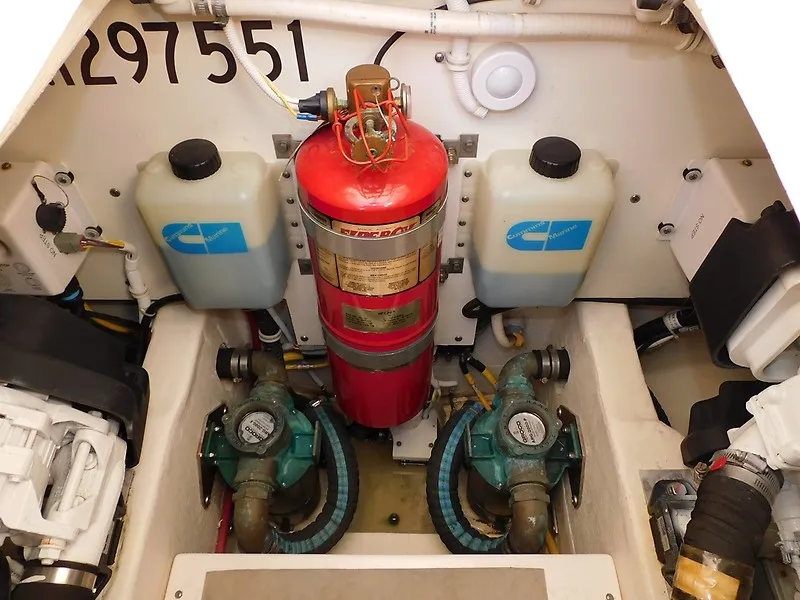

• FE-241 agent automatic/manual fire

extinguisher system in engine room

(HFC-227ea agent for Europe)

• Three (3) handheld fire extinguishers

• Two (2) carbon monoxide detectors

• Two (2) smoke detectors

• Six (6) 5/8" x 30' black dock lines

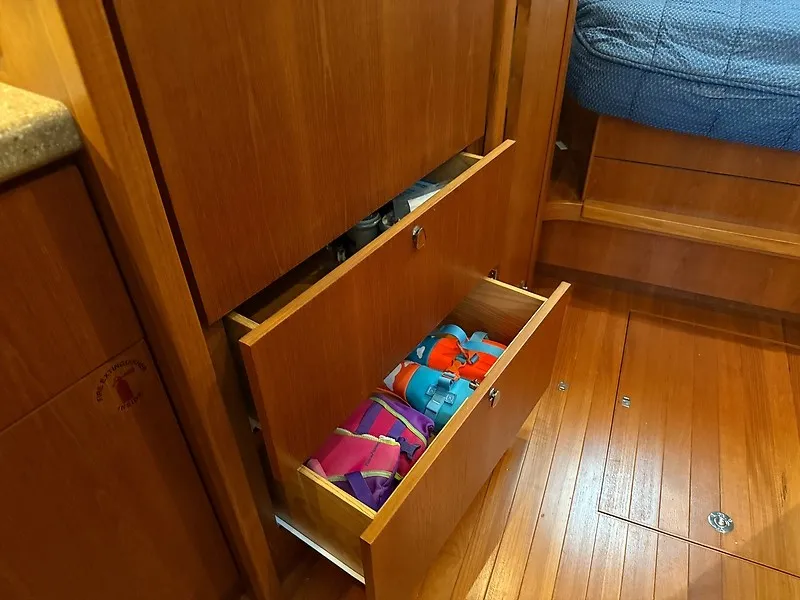

• Four (4) Tiara life vests (domestic boats

only)

• USCG safety and medical kit

• USCG/international navigation lighting

• NMMA certified using ABYC standards

• International certification options available

(European CE and others)

3600 Open Options

ENGINE GROUP

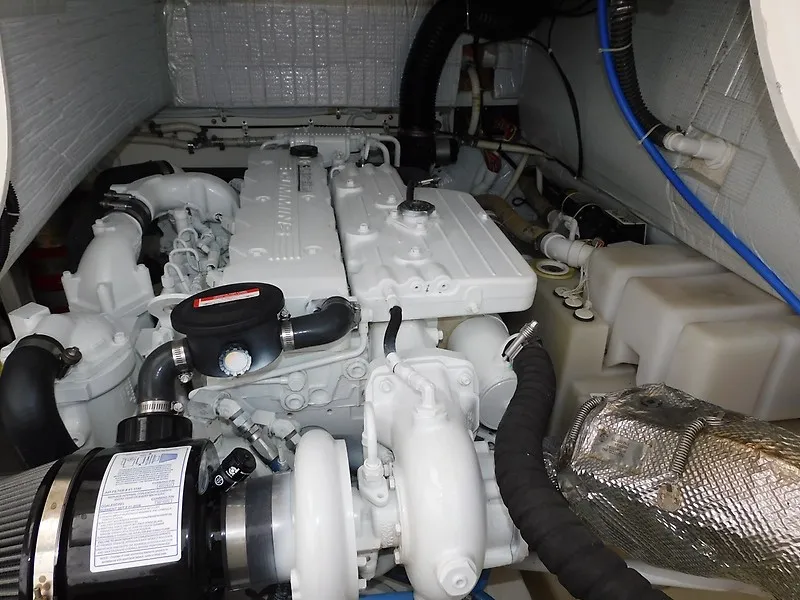

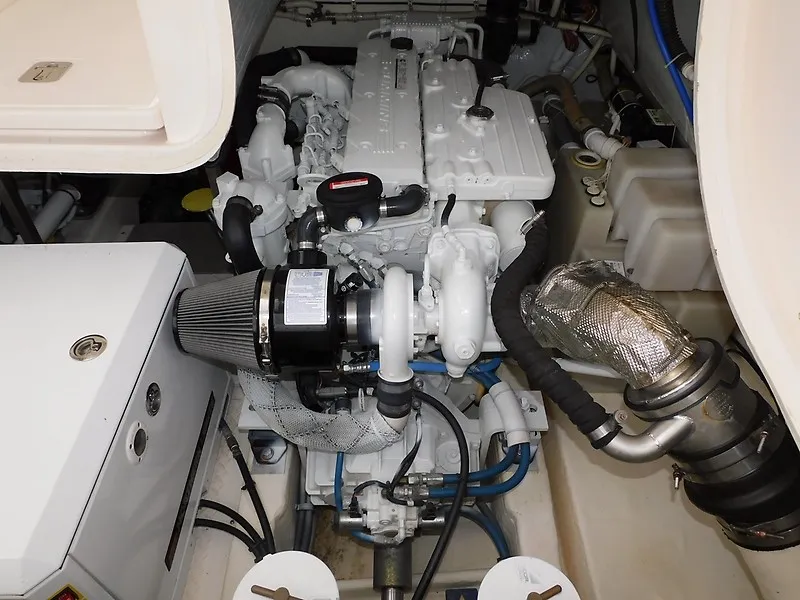

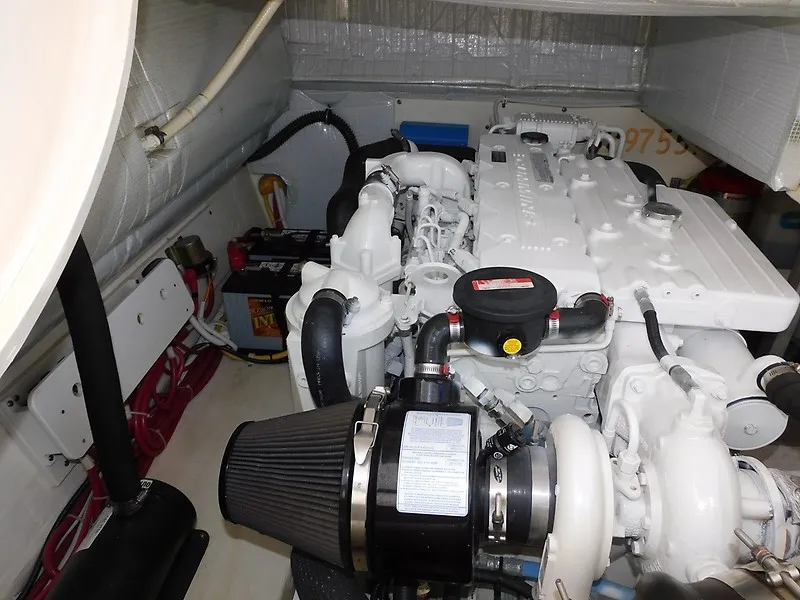

w Twin Mercury® 8.2 DTS gas engines,

375 H.P..............................................448,730

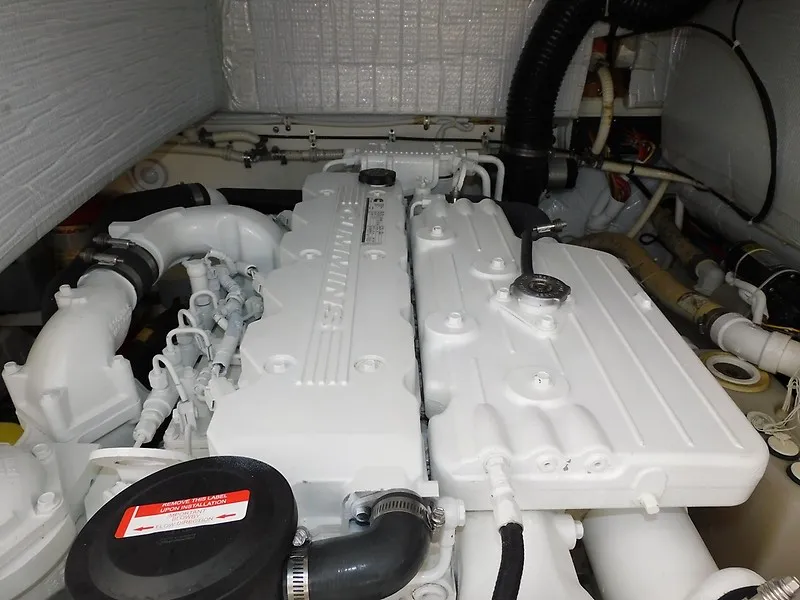

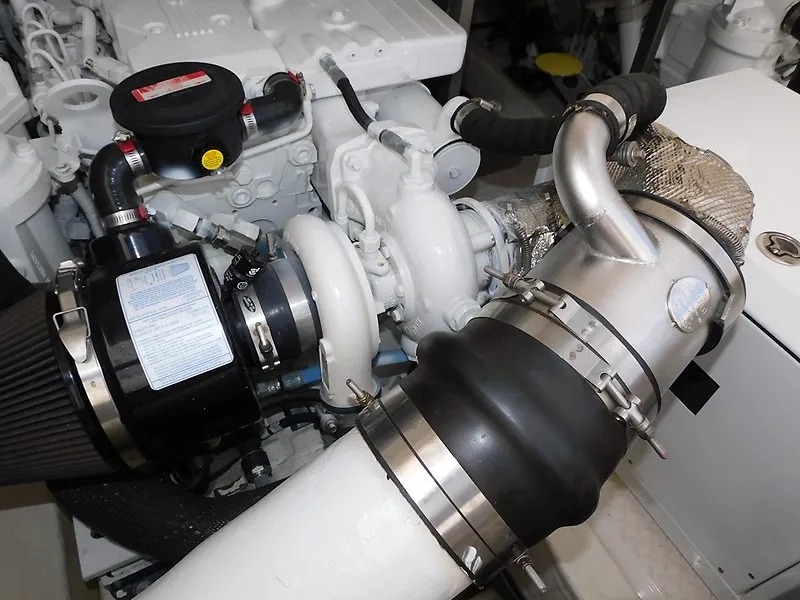

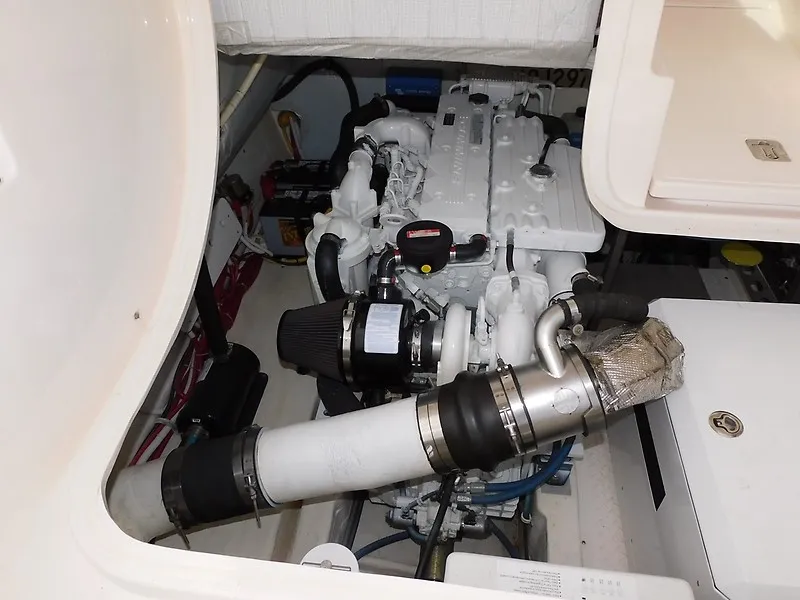

w Twin Cummins® QSB6.7 diesel engines,

380 H.P..............................................534,930

MECHANICAL GROUP

w Upper cockpit A/C, 16,000 BTU's

(includes 2nd 120V 30amp 65' shore

power cord)............................................5,380

w 12V inverter, Prosine® 1800..................4,900

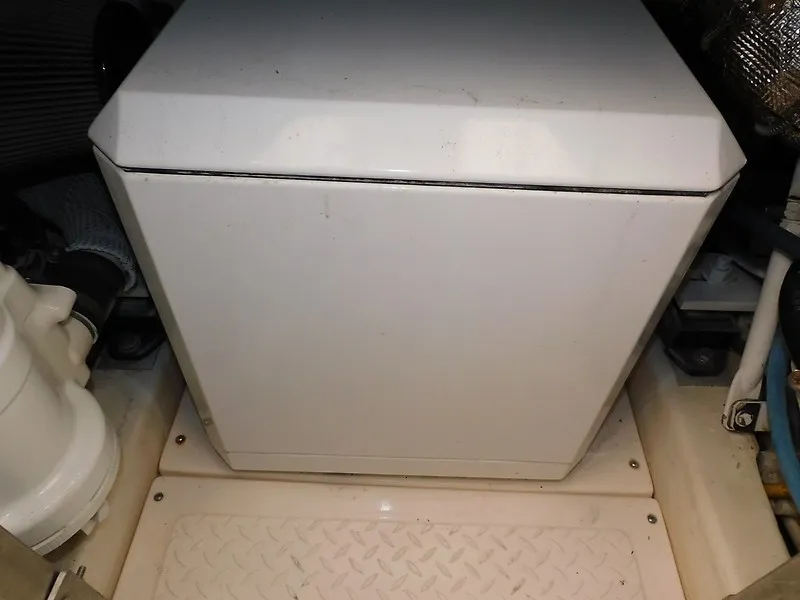

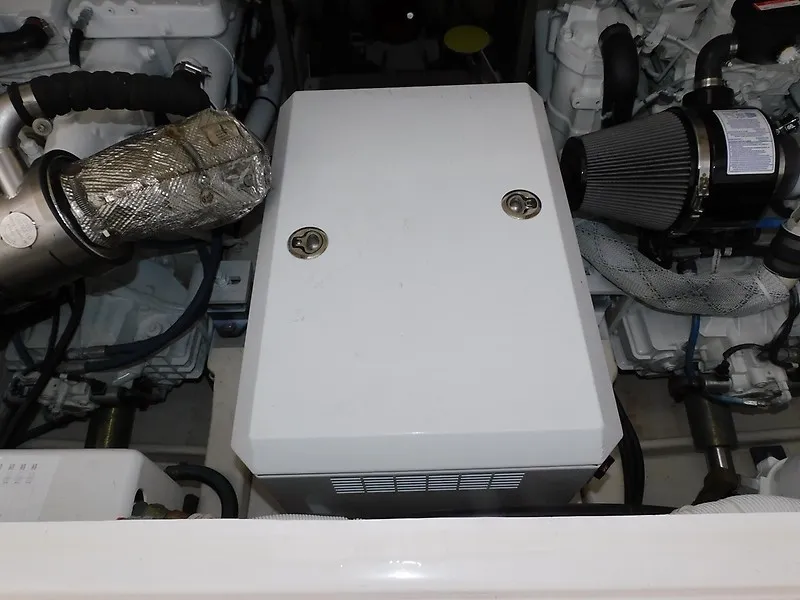

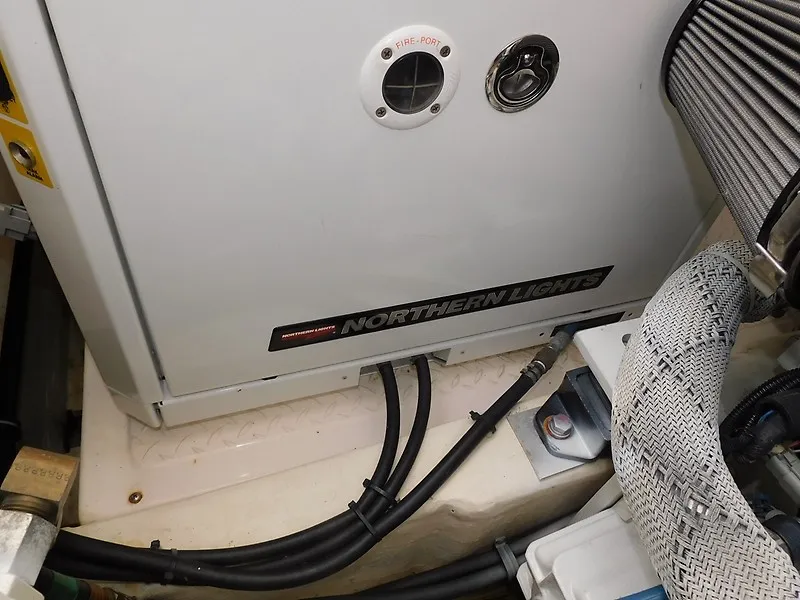

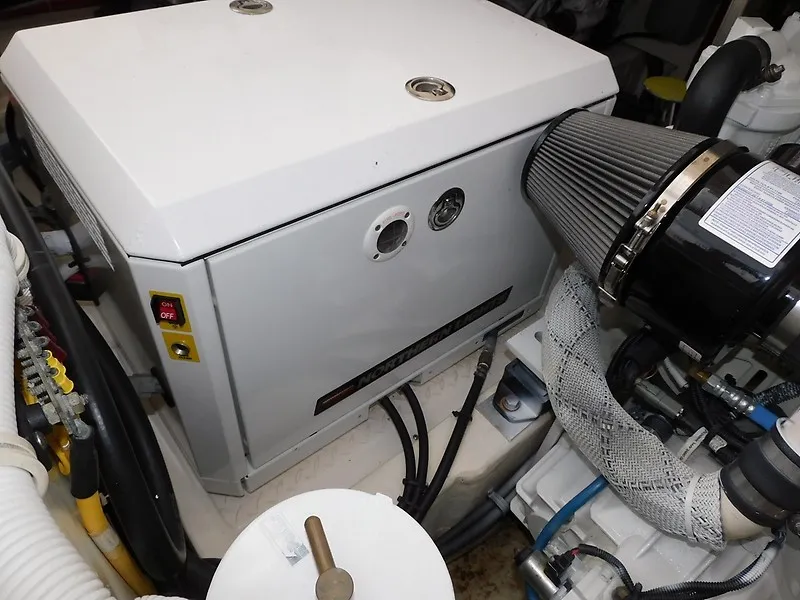

w Generator

w Pre-wiring only................................340

w Gas, Kohler®...............................17,220

• 5.0kw, 120V/60Hz

w Diesel, Onan®.............................19,800

• 5.0kw, 120V/60Hz

w Oil changing system..............................1,840

w Bow thruster, 12V ................................7,680

w Macerator for waste system...................1,420

w Anchor locker washdown (may order both)

w Fresh water......................................720

w Raw water........................................720

HULL, DECK, & COCKPIT GROUP

w 30" Swim platform with built-in

ladder ....................................................4,280

w Portlights (4)..........................................3,020

w Underwater lights (2),

Xenon 12V/50W ..................................4,760

w Cockpit carpet, upper & lower..............1,100

w Sand

w Charcoal

w Helm seat wet bar options

w Drawer refrigerator...........................Std

w Electric grill..................................2,280

w Cockpit TV, 19" LCD...................2,040

w Transom seating options

w Transom fold-down lounge without

transom livewell option

(50" wide).....................................3,790

w Transom fold-down lounge with

transom livewell option (must also

order transom livewell option)

(40" wide).....................................3,320

WEATHER GROUP

w Weather covers for helm console

& cockpit seating......................................700

w Aft curtain..............................................2,980

w Drop curtain, 3 pc..................................2,700

Sunbrella® Canvas Color

w Natural w Toast w Captain Navy

ELECTRONICS

w Garmin® Electronics Pkg ...................37,180

• (2) 7212 multi-function

touchscreen displays with GPS

• VHF 200 Radio

• GSD24 digital remote sonar

• 1kw transducer

• GHP 10 autopilot

• GMR 6kw xHD open array

w ACR® RCL100 remote spotlight

(mounted on bow)...................................2,780

FISHING GROUP

w Rod storage for 4 rods under master

berth..........................................................300

w Transom livewell, 32 gallons.................4,000

w Rod holders (4) in deck wings...............1,120

w Rupp® Top Gun outriggers with 18'

telescoping poles....................................3,700

INTERIOR GROUP

w Cabin sole (in lieu of std. Amtico®)

w Solid teak......................................2,220

w Maple interior wood in lieu of standard

teak.........................................................2,500

w Coverlet for midcabin (in lieu of fabric

berth cover)............................................1,225

w Table for midcabin sette............................480

w Premium stereo upgrade.........................1,720

• Two (2) additional 6.5"

exterior speakers

• One (1) 8" subwoofer speaker

• 5 channel amplifier

• Additional aft cockpit remote

COLOR SELECTIONS

w Hull color (Please specify color below -

Fresh White gelcoat is standard)

w_______________________________

w Imron® non-metallic paint...........13,200

w Imron® metallic paint..................15,900

w Imron® custom color bootline with

standard Fresh White gelcoat hull

(Please specify color below - Carbon

is standard)............................................1,960

w_______________________________

w Anti-fouling bottom paint......................3,240

w Black

w Navy blue

w Helm console & dash...............................N/C

w Carbon w Sand

w Flag blue

 Cockpit upholstery accent color..................580

 Carbon  Sand

 Navy

Interior Fabric

w Indigo w Dune

w Truffle

Interior UltraleatherTM

w Ermine

w Milkweed

w Arctic

w Marine

Interior Corian®

w Tumbleweed

w Witch Hazel

w Cocoa Brown

MISCELLANEOUS OPTIONS

w Cradle.....................................................4,900

Tiara 3600 Coronet
Power & Motoryacht's boat test of the Tiara 3600 Coronet.
By Chris Caswell
March 4, 2013

Way Too Cool
Thanks to a multifaceted, comfy-in-all-climes approach to onboard enjoyment, the Tiara 3600 Coronet is a great dayboat as well as a superior weekender.
I had already tested the new Tiara 3600 Coronet for the Power & Motoryacht New Boat Buyer’s Guide 2013 (on newsstands now), but I found myself admiring her at a boat show when two teenagers emerged from her interior.

“This is, like, way too cool,” said one.

“This is the one Mom and Dad have to get,” said the other, adding, “We’d have our own cabin!”

I moved on, reflecting that this is exactly why Tiara Yachts has flourished. The company is able to read the minds of boat owners (and their decision-making broods), creating boats that fit their needs rather than trying to force-feed folks on preconceived notions. And that ability has created the Tiara mystique of sensible, well-built, and thoroughly enjoyable boats from this family-owned company.

Fashioned to be a comfortable and good-looking dayboat with an interior suitable for long weekends aboard, the new 3600 Coronet has the classic Tiara styling genes, with just a hint of Down East thrown in to create a yacht that is pretty from any angle.

I made the comment in my earlier review that the 3600 Coronet was 75 percent cockpit and 50 percent cabin, thereby prompting one of Power & Motor-yacht’s editors to make a snippy comment about how I must have failed fifth-grade mathematics.

While I did come close to tanking that dreary subject, it only takes a quick tour of the 3600 to learn “the new math.” Tiara made two decisions early in the design process. First, they focused on making the cockpit the primary living area, since this is where people spend the majority of their boating time. Second, they created a comfortable interior that is an inviting retreat, unlike the Motel 6-type cabins found on many so-called dayboats.

The result is a yacht that doesn’t try to be everything to everyone. The cabin, for example, has nary a settee (well, except for a small one I’ll mention in a moment) because they suck up space like a Star Trek black hole and, besides, Tiara created a settee-laden outdoor living room on the bridgedeck that can be easily enclosed if the weather is too hot, cold, or wet. No, Tiara realized that boat owners mostly use the cabin to prep a salad or make sandwiches, for sleeping, and of course, for showering and that other stuff.

And here’s what Tiara gains by not trying to shove a useless settee into the cabin. They get two cabins with berths large enough for two real-sized couples who want double berths. They get a spacious head with a separate stall shower complete with Lucite door. Moreover, they get a galley with electric cooktop, fridge, microwave, and lockers. And it’s all done in three color schemes that are not just attractive, but downright posh.

What about the cockpit, you ask? Well, that’s the alfresco living room for the 3600, but Tiara Yachts is located in Holland, Michigan, where the weather is not always sunshine and fluffy clouds.

Better Boat: Composite Windshield Frames
For anyone who has ever owned a boat with an aluminum-framed windshield and who has watched the aluminum corrode (even under paint) into a nautical version of leprosy, composite frames are a godsend. Tiara Yachts (and sister company, Pursuit Boats) benefit from a sophisticated composite windshield frame construction that not only will never corrode or warp, but which allows for extremely slim pillars for better vision.

The starting point for each windshield frame is a foam core, made from two-part foam in a high-pressure mold much like that for surfboards. The foam “blank” is then wrapped in fiberglass laminate and placed in another mold from which, after more pressure is applied during a resin-infusion process, the finished frame emerges. This frame, carefully trimmed and insulated, is then fitted with tempered glass to create a durable and consistent windshield that is vastly superior to the aluminum type.

So the design boffins at Tiara came up with more cockpit flexibility than a Swiss Army knife has blades. Let’s take nice weather. With your guests aboard, you’ll slide open the extra-large sunroof in the optional hardtop over the bridgedeck, toggle a rocker switch to open the center panel of the windshield for a breeze, and you’re as close to a runabout as you can get.

Your guests are everywhere: in the L-shaped settee at the stern with its optional table, on the two aft-facing double seats on the mezzanine, or around the L-lounge opposite the skipper, who is on a double-wide seat with electric adjustments. Also tucked under the hardtop is the optional entertainment center, by the way, with electric grill, Vitrifrigo fridge drawer, and a fold-out flatscreen TV for watching the game.

If it’s rainy or cold (or too hot), just weatherproof the helm deck with the soft enclosure and turn on the heat or air-conditioning. Yes, you lose the settee at the stern, but you still have a comfy dinette/lounge and the entertainment center to keep you happy.

The master stateroom is forward and, get this, it has a quilted innerspring mattress just like real residential beds, so you’ll sleep well. The entire berth hinges up on gas lifts to reveal a cavernous bin and the cabin closes off with teak trifold doors for privacy.

Under the raised bridgedeck is the amidships berth, which has another deep and comfy double mattress. There is a smallish settee in the port corner, and the mattress folds out of the way to provide more foot space (there is good headroom) when pulling on your pants. A curtain closes off this area, which is perfect for a second couple … or kids, like the two teenagers I saw at the boat show.

The standard interior finish is teak, with a hardwood teak sole, and a maple interior is optional. Either way, you get ample fresh air from a forward hatch plus four opening portlights.

The helm console is flawless gelcoat in colors (your choice of carbon, blue, or sand) that don’t reflect in the curved windshield, so the skipper’s view forward is impressive, and the slim composite windshield pillars minimize blind spots (see “Better Boat: Composite Windshield Frames,” opposite). The entire helm tilts forward for easy access to the electronic systems.

The dash panel is sized for three flush-mounted monitors of your choice, and our test boat had the lovely to behold and even nicer to hold optional teak wheel. Rocker switches are neatly accessible on the dash and side panel, while breakers are right below the wheel. I liked the built-in steps and the teak footrest for the helm seat which, when slid aft, leaves ample space to stand behind the wheel. Even better, the Mercury SmartCraft shifter is perfectly positioned whether you’re seated for a day cruise or standing while docking.

On deck, Tiara hasn’t missed a beat either. There’s a sturdy walk-through transom door to the extra-wide (45-inch) teak-clad swim platform, welded stainless steel grabrails surround the foredeck, and the wide side decks have both grabrails and a good nonslip surface.

The 3600 Coronet is available with a mix-and-match variety of propulsion choices that should meet the needs and budget of every owner, with options including twin gas, twin conventional diesel, or twin diesels with pod drives. All come from either Cummins Marine or Mercury Marine, all have roughly the same horsepower ratings, and all most likely provide respectable performance numbers.

The base engine is the 380-horsepower Mercury 8.2L gas with shaft drive, and our test boat had the mid-range 380-horsepower Cummins QSB5.9 diesels, also with shafts. That same Cummins diesel can be optioned with ZF pod drives. The pods, because they are mounted in tunnels, add only two inches to the boat’s draft.

Access to the engines for daily service checks is through a hatch in the cockpit sole near the helm, but the entire aft section of the bridgedeck also raises on electric lifts to open the entire engine room for service. Our test boat had the optional 5-kilowatt Onan genset, which is mounted aft between the two main engines.

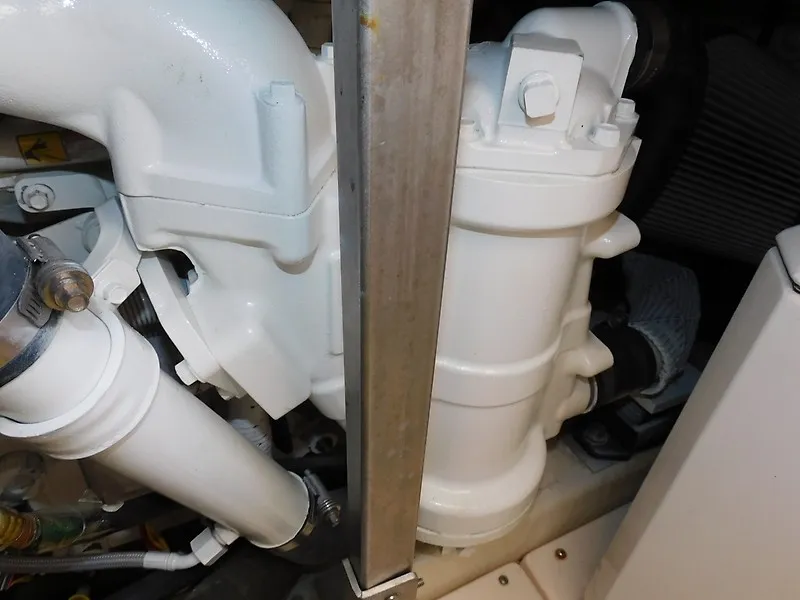

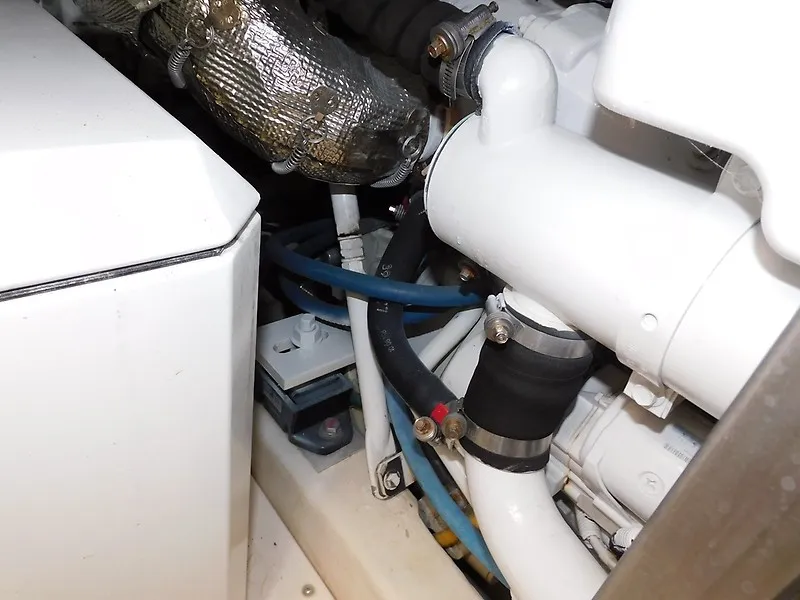

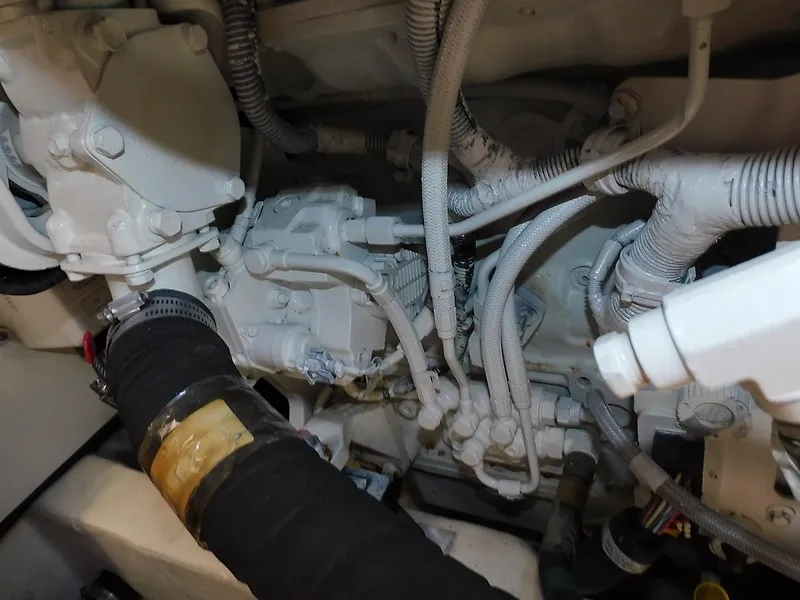

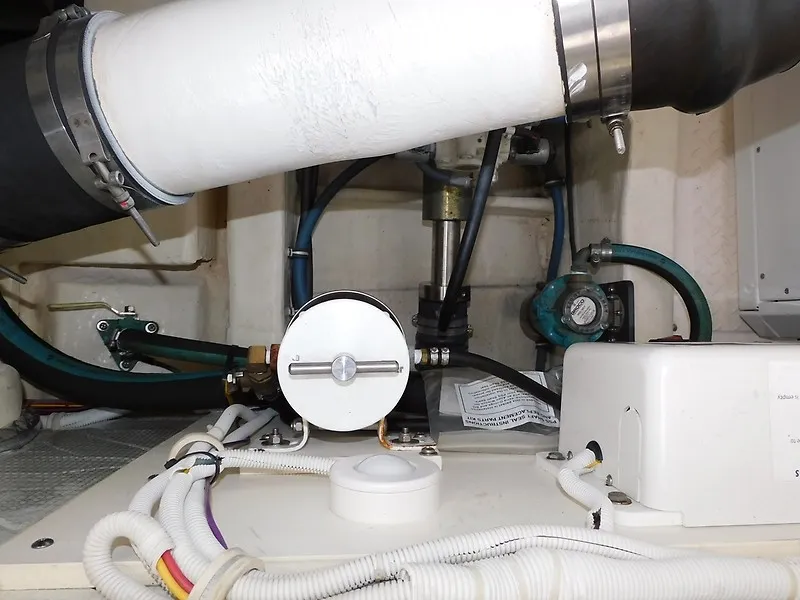

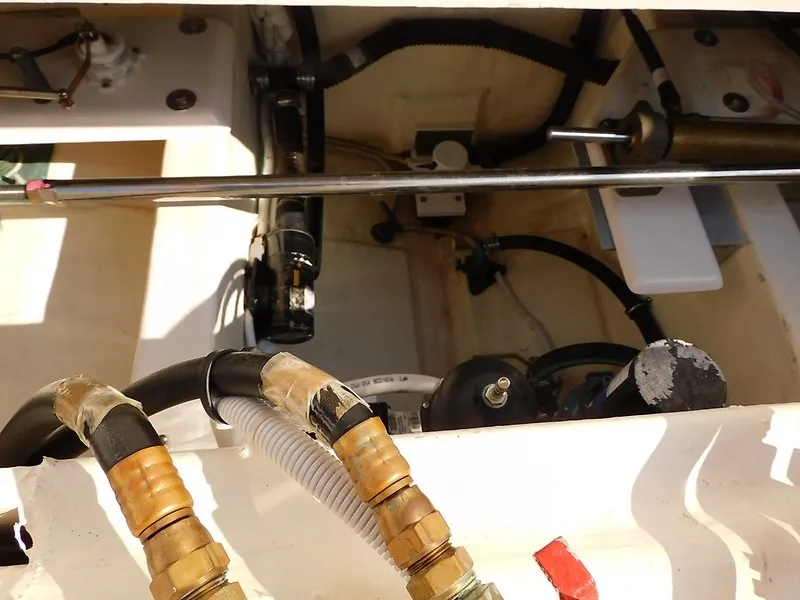

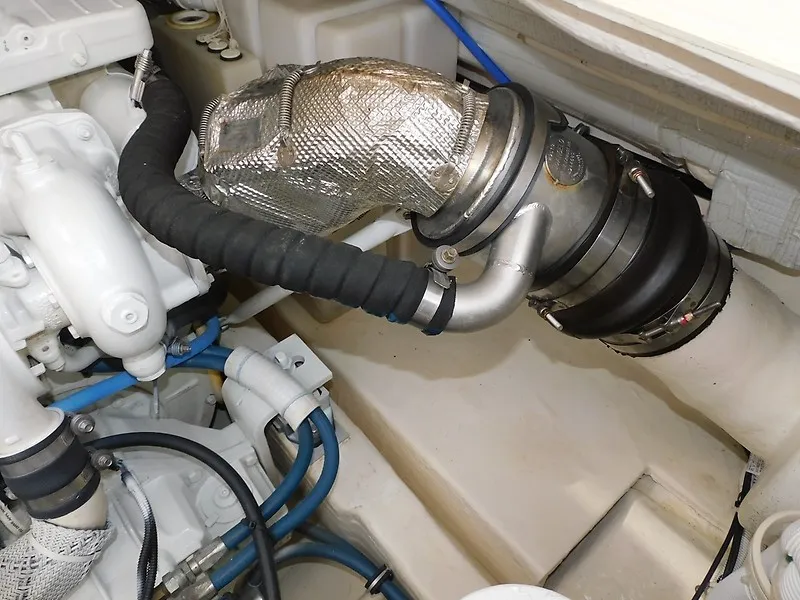

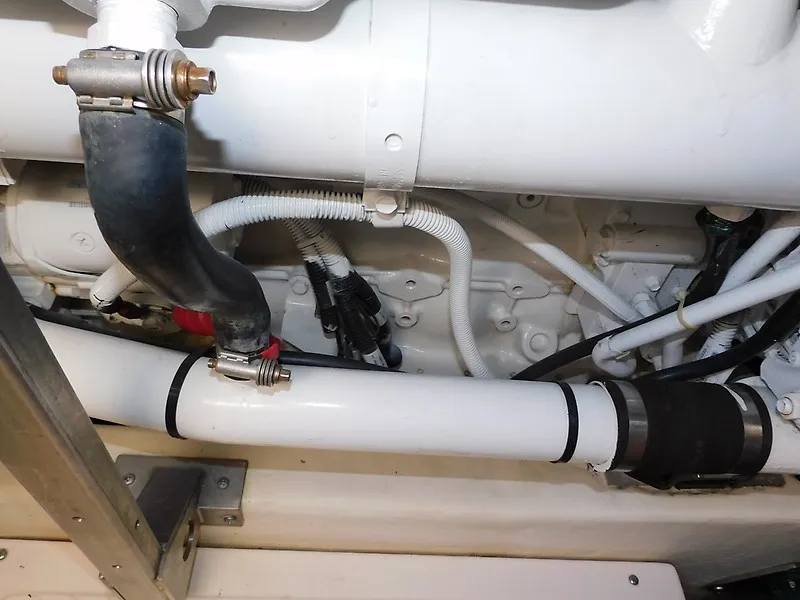

In the engine room, the high quality of the Coronet’s construction is visible, with the bilges entirely gelcoated for easy cleaning and the foam-cored stringers encapsulated in hand-laid fiberglass and integrated into the hull. There is a five-year warranty on the hull, deck, and fiberglass fuel tank.

With the optional Cummins diesels, we topped out at nearly 32 knots with all our tanks full and four people aboard, so the 3600 Coronet is no slouch on performance. Even better, when backed off to around 2500 rpm, she cruised comfortably at 26 knots at almost exactly one mile per gallon. This gives owners two good choices: go fast to get home quickly, or cruise comfortably and economically.

I liked the way the 3600 handled, too. In lumpy conditions inshore, she threw spray out to the side and, in the confused seas of the Gulf Stream, she was dry, soft-riding, and entirely predictable.

So yes, the two kids I saw at the boat show were right: The Tiara 3600 Coronet is, like, way too cool. And additionally, she’s well built, thoughtfully designed, and a thoroughly likable dayboat with occasional weekender ambitions. I just hope Mom and Dad took the kids’ advice.

Optional Equipment
NOTEWORTHY OPTIONS: 5-kW Onan generator ($19,800); hardtop ($17,500); Imron hull paint ($13,200); teak accent package ($11,180); cockpit a/c ($5,380); Garmin electronics package ($10,980)

Specifications
Water Capacity: 70
Overall Length: 42’8″
Displacement: 19,100 lb.
Beam: 13’3″
Fuel Capacity: 350
Draft: 3’3″
Year: 2013
The Test
Conditions During Boat Test
Air temperature: 82°F; humidity 61%; seas: calm

Load During Boat Test
fuel: full; water: full; 4 persons

Test Boat Specifications
Test Engine: 2/380-mhp Cummins QSB5.9 diesels
Transmission/Ratio: ZF gears w/ 1.75:1 ratio
Props: 21 x 28 4-blade Federal Nibral EQX
Price as Tested: $518,930

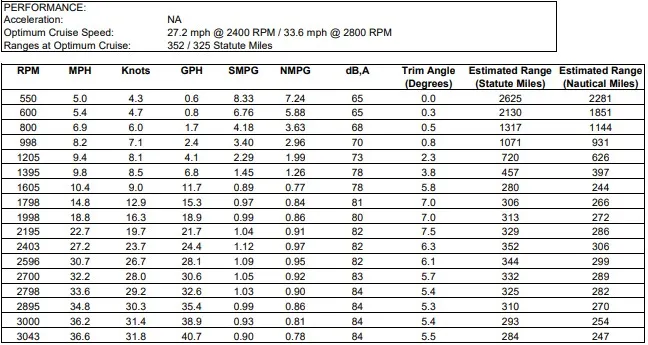

The Numbers
RPM KNOTS GPH RANGE dB(A)
1000 7.1 2.4 1,071 65
1400 8.5 6.8 457 78
2000 16.3 18.9 313 80
2600 26.7 28.1 344 82
3043 31.8 40.7 284 84
This article originally appeared in the March 2013 issue of Power & Motoryacht magazine.

Review: Tiara 3600 Coronet
By Quimbys Editor| September 25, 2013

At its heart, the new 3600 Coronet is a delightful day boat with overnighter ambitions. Tiara designed the cockpit to be the “living room,” with seating everywhere plus a bridge deck that can be easily enclosed if the weather is too hot, cold or wet.

But, unlike most express cruises, Tiara didn’t try to overload the cabin, so it’s more livable than many larger yachts. The usual interior settees are missing — you’re encouraged to sit in the cockpit, where the view is best. What you do have is a small, efficient galley (to augment one in the cockpit) and, ta-da, room for a nicely sized head with a surprisingly large stall shower. No more wet head!

Forward, there is an island double berth with a real mattress and, tucked under the bridge amidships, is another double berth with full headroom to pull on your pants.

Back up top, the very comfortable helm features three monitors and user-friendly controls, all surrounded by composite windshield frames. No more corroded windshields! To port is a massive, wraparound lounge with removable table. Behind the bridge deck are two aft-facing settees and a plush transom bench with another table. The space is served by an outdoor galley with sink, refrigerator and grill.

Power starts at twin 375-horsepower Mercury 8.2 gas engines with shaft drives, while options range up to 380-horsepower Cummins diesels with pod drives featuring joystick maneuvering around the dock. Top speed is 32 knots fully loaded, with a comfortable cruise at 26 knots, burning one mile per gallon. A delightful combination of dayboat and weekender, the Tiara 3600 Coronet should be on your short list of capable cruisers. www.tiarayachts.com
