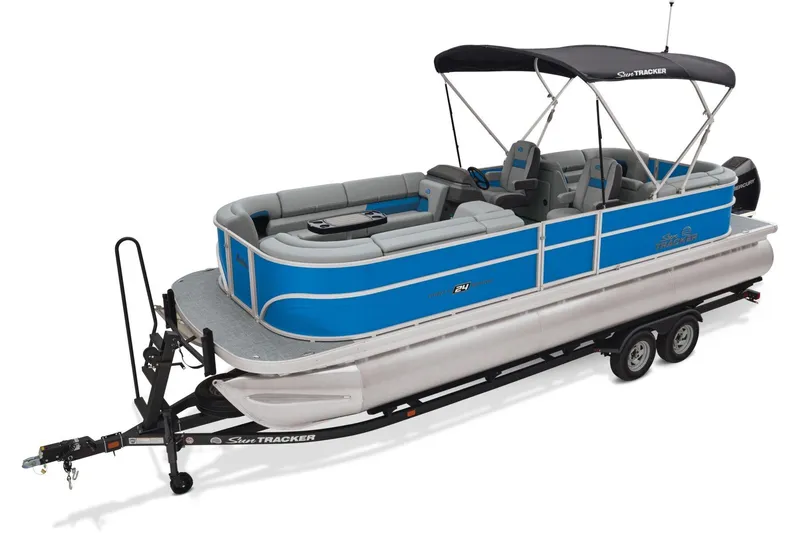

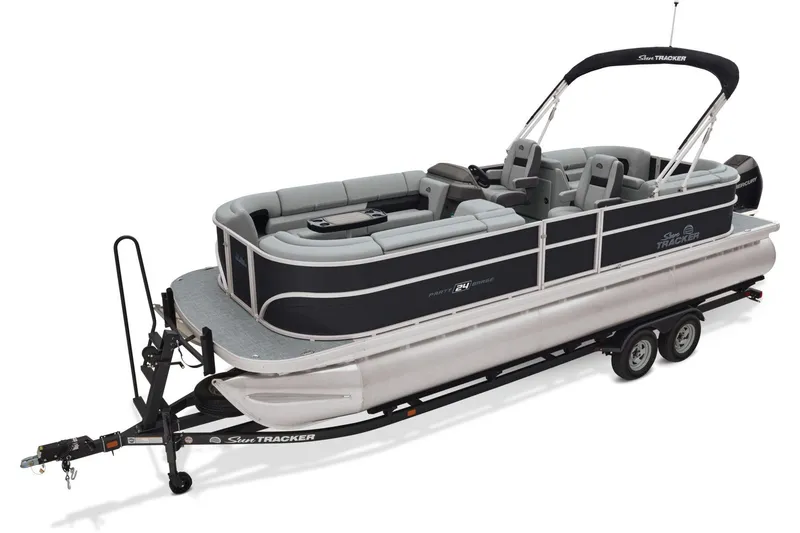

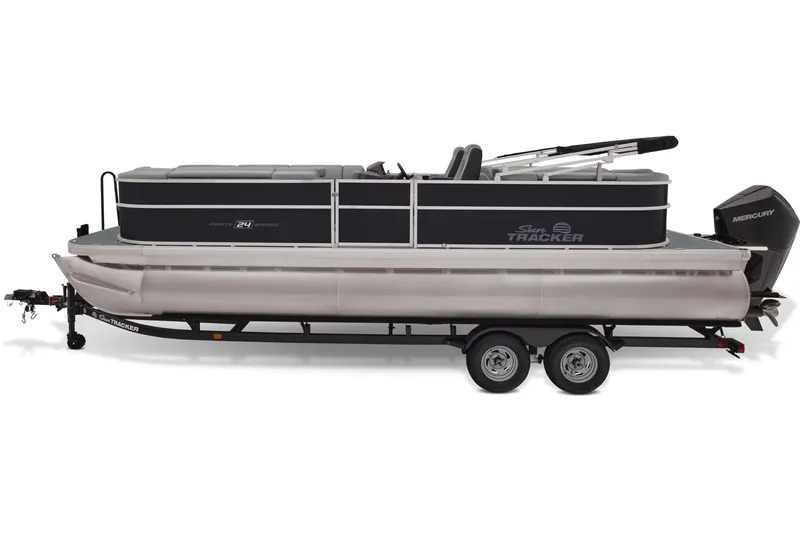

2026 Sun Tracker Party Barge 24 XP3 Boat in Palm Bay, FL 32905 US
Built in 2026
Party Barge 24 XP3
1 Engine (MERCURY MARINE)
26.2 feet
--
Aluminum
The PARTY BARGE® 24 XP3 is the biggest pontoon in the SUN TRACKER® family. The 24' deck lets up to 12 passengers embark on aquatic adventures they'll never forget.
Each corner features a long pillow-top lounge with secret storage spaces under the seats and in the STOW MORE™ seat backs to give you all the space you need to pack snacks, equipment, supplies, and more. New to the 2026 model year are the backrest cubbies that give you extra easy-access storage space and cupholders. This new year also brings premium weave flooring and upholstery accents that match the color of your fencing.
The captain can control everything through the completely redesigned console's new SUN TRACKER FLARE™ touch-screen gauge display with an improved GPS system and upgraded four-speaker Bluetooth®-capable stereo.
With the most space and the longest list of exciting features, the 24 XP3 really brings the party wherever it goes!
Length:26' 2"
Deck Length: 24' 1"
Deck Width: 8' 6"
Max. Recommended HP: 250 HP
Fuel Capacity: 52 gal.
Pontoon Log Length: 24' 11"
Pontoon Log Diameter: 26"
Pontoon Log Material: 0.1 5052 marine alloy
Max. Person Capacity: 12 persons
Max. Person Weight: 1900 lbs.
Max. Person, Motor & Gear Weight: 2800 lbs.
Interior Depth: 27.25"
Average Dry Weight: 3360 lbs.
Average Package Weight: 5685 lbs.
Package Height: 8' 10"
Package Width: 8' 6"
Towing Length: 37' 9"
Storage Length: 37' 9"
Comfort, Convenience & Peace of Mind
10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty
NMMA® certified

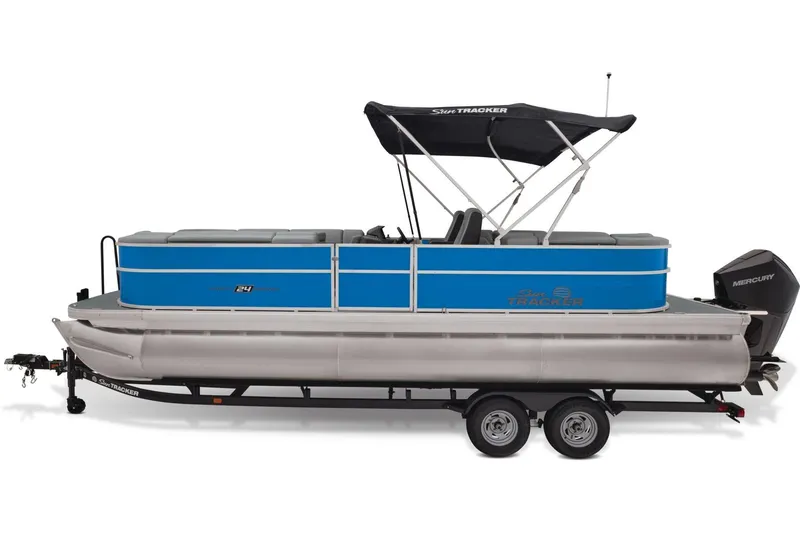

10' (3.05 m) Black SUN TRACKER® QuickLift™ Bimini top w/LED courtesy lights, storage pockets & protective boot

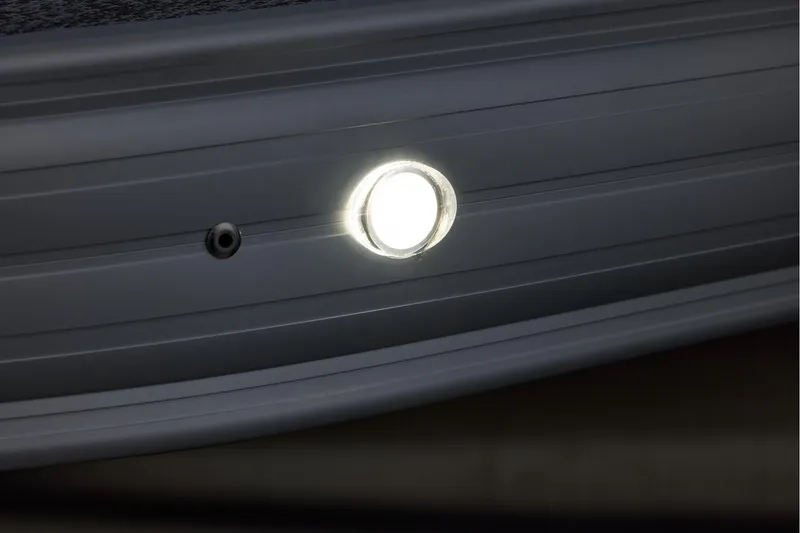

Integrated LED docking lights

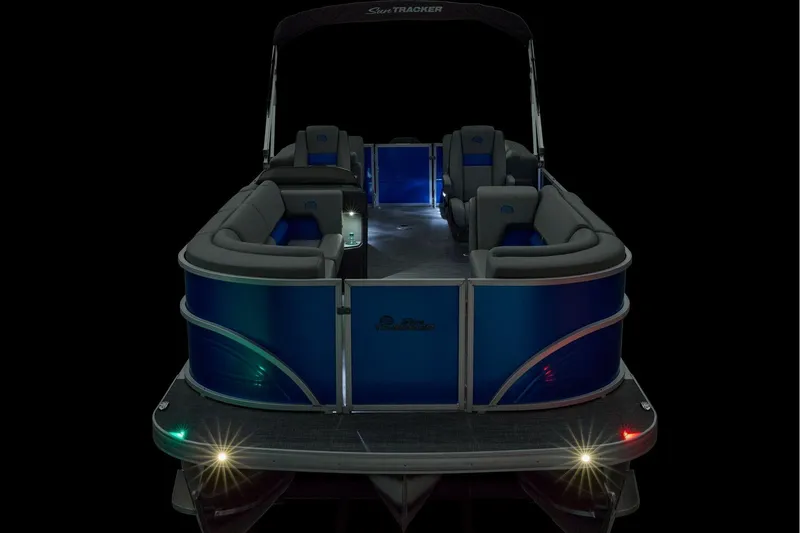

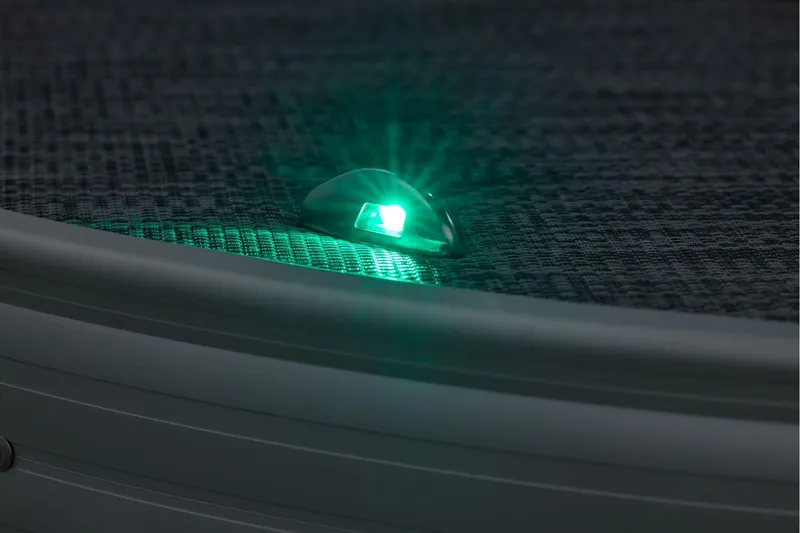

Integrated LED navigation & anchor lights
4 folding mooring cleats & starboard side tie-off mooring eye

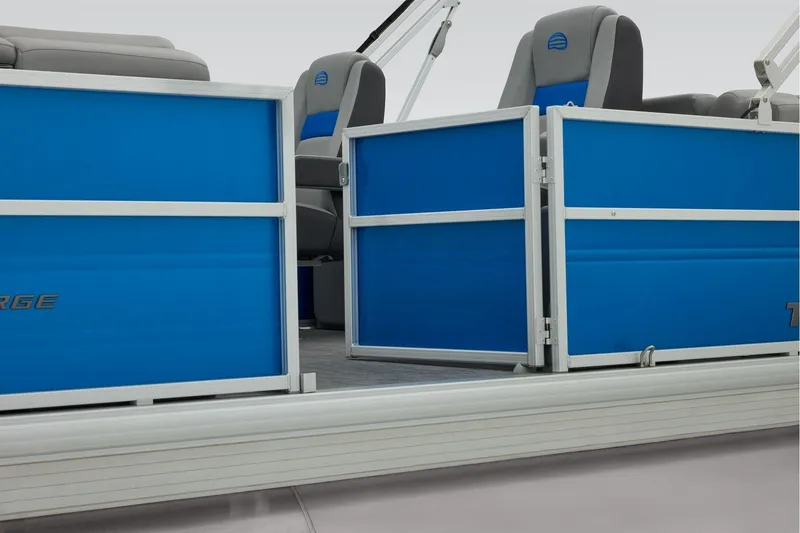

Port wheelchair-accessible gate

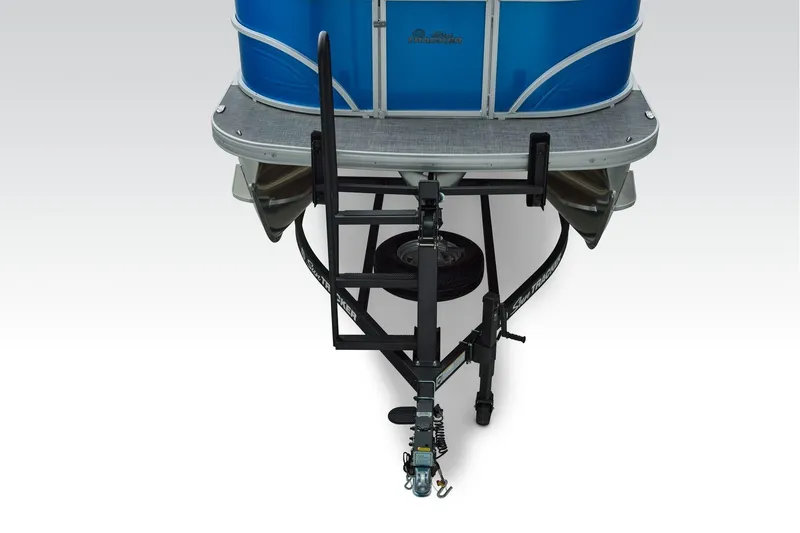

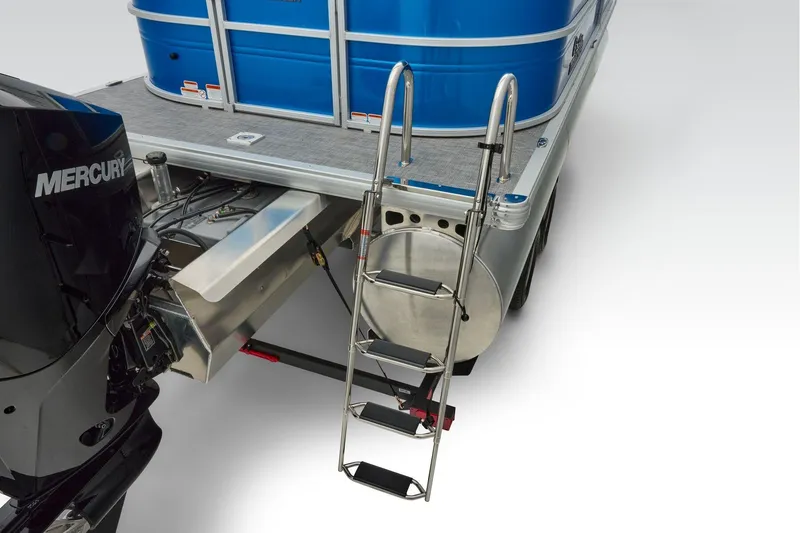

Rear boarding platform w/wide 4-step telescoping boarding ladder & grab rails

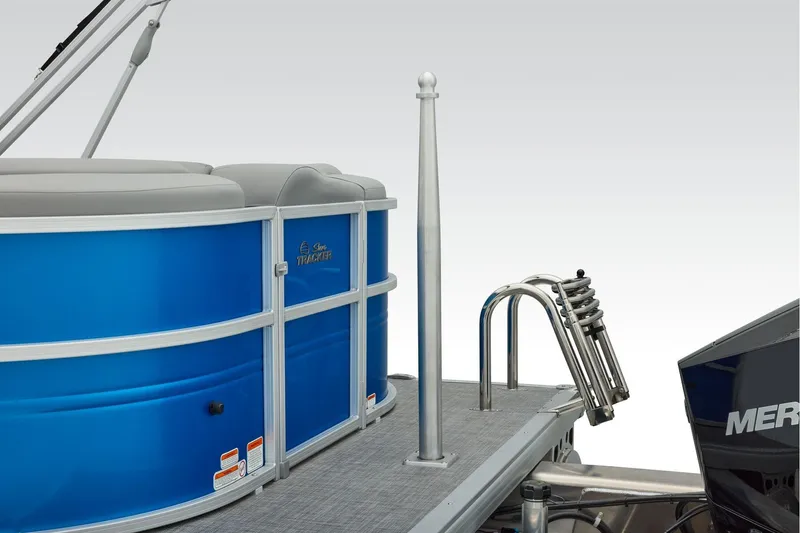

Aft receptacle base for optional ski tow pylon
Motor-stop safety lanyard
Fire extinguisher
Horn
Console

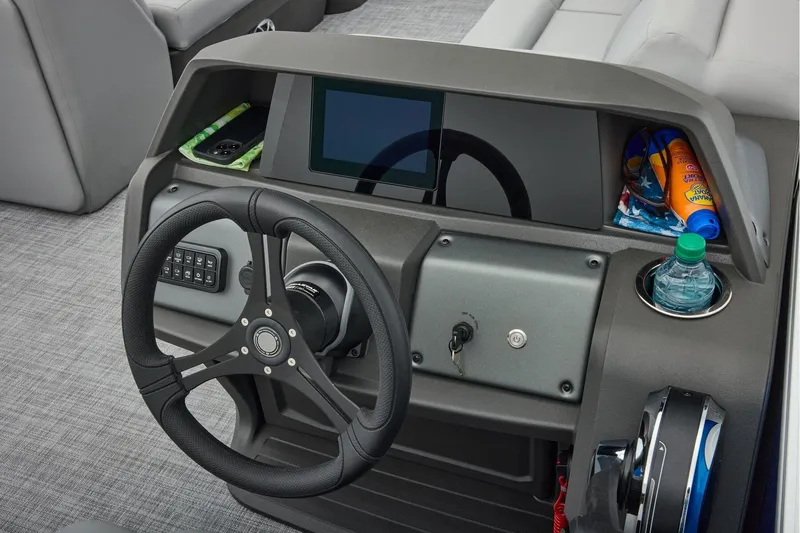

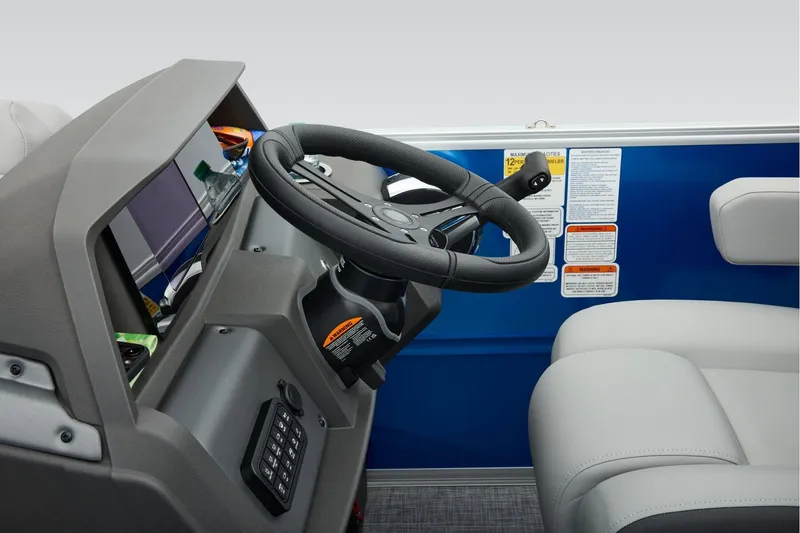

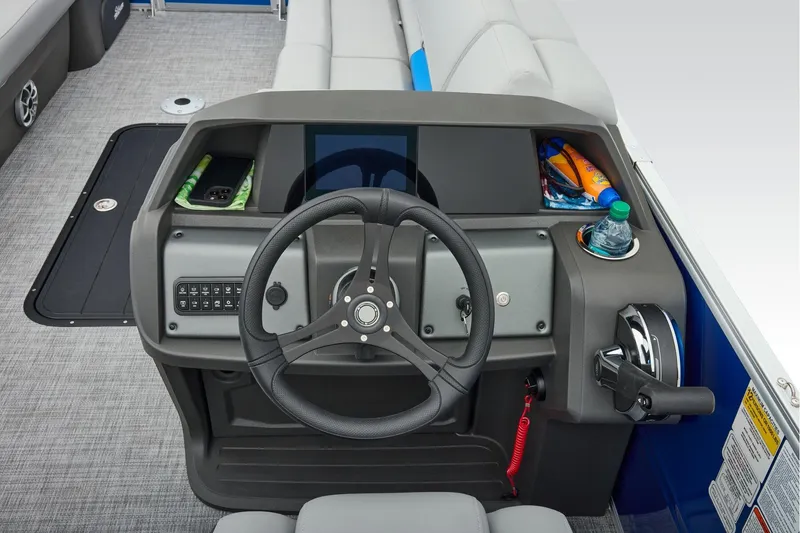

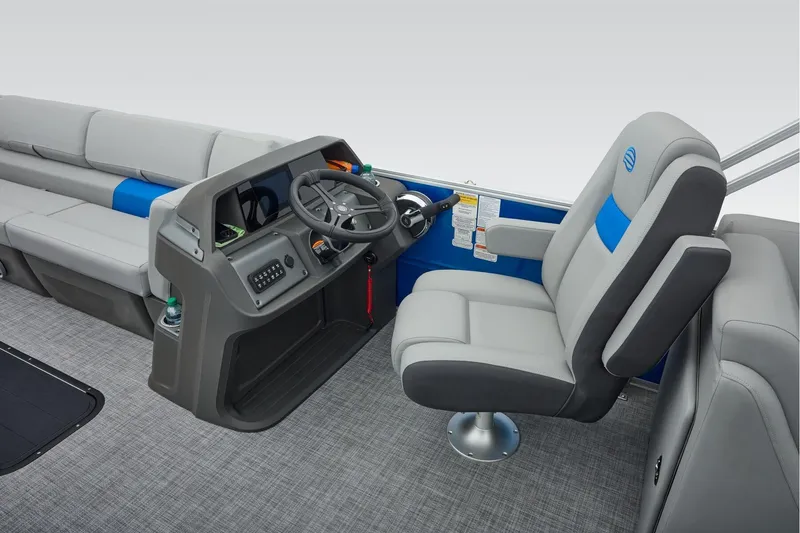

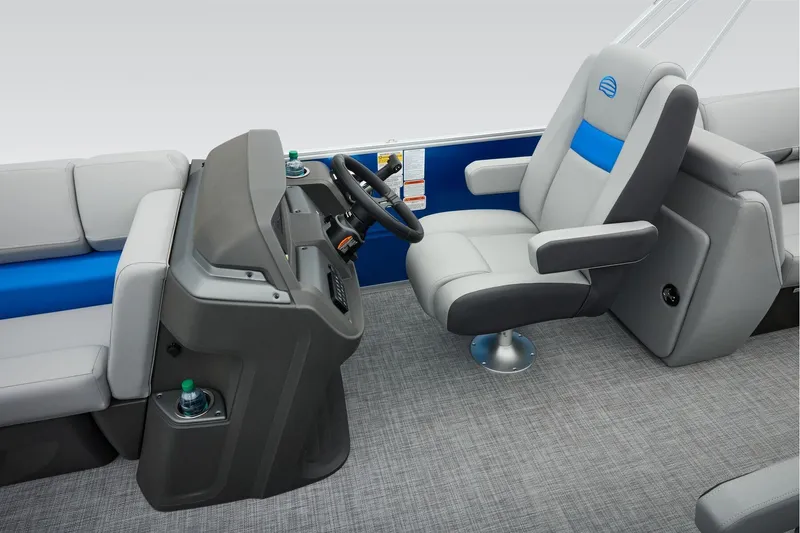

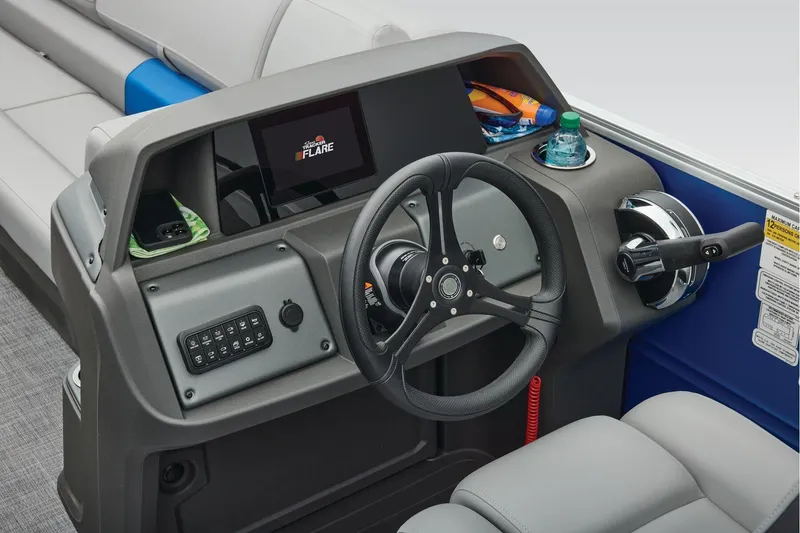

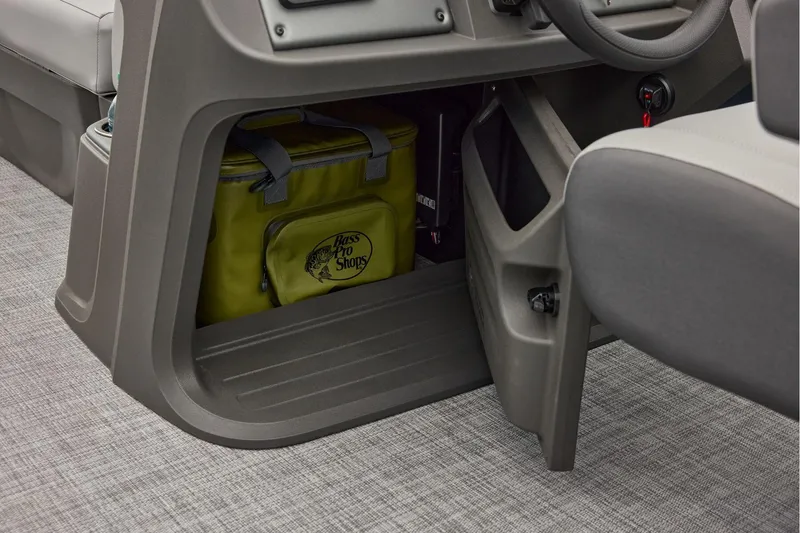

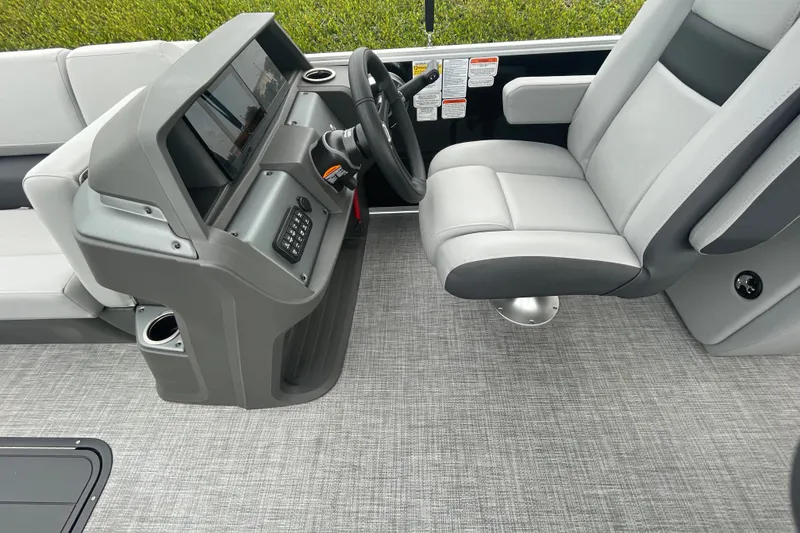

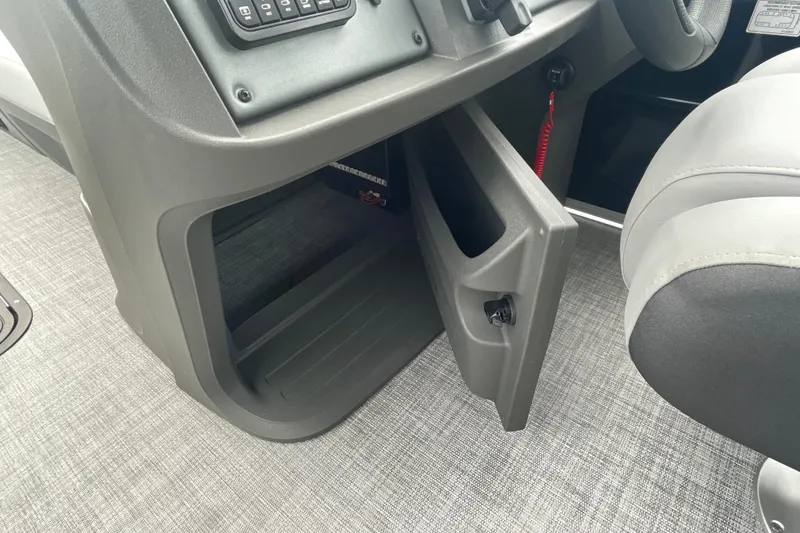

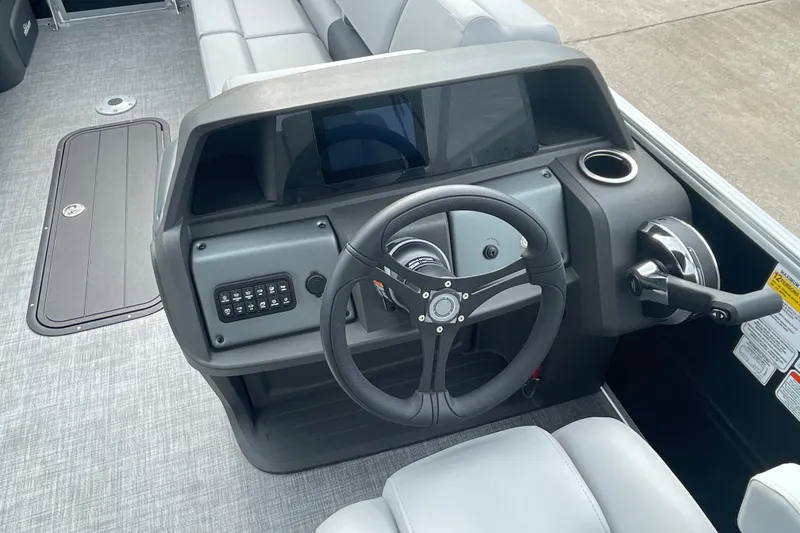

Driver console w/integrated storage, drink holders, built-in footrest & ergonomically-positioned controls

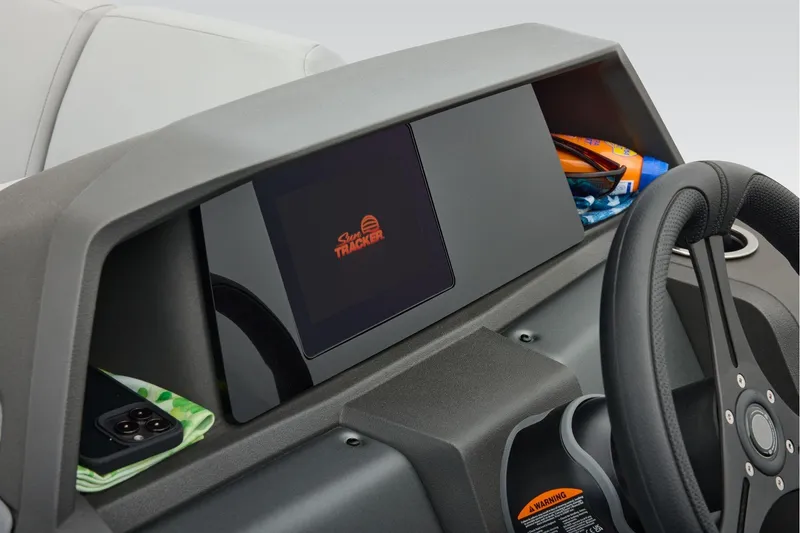

SUN TRACKER FLARE™ touchscreen gauge display w/integrated GPS & stereo control

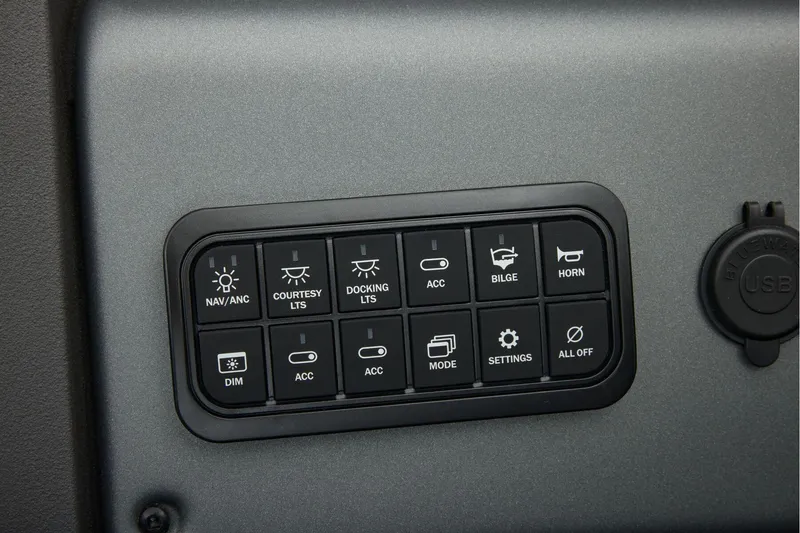

12-button switch panel
Tilt hydraulic steering w/deluxe soft-touch steering wheel

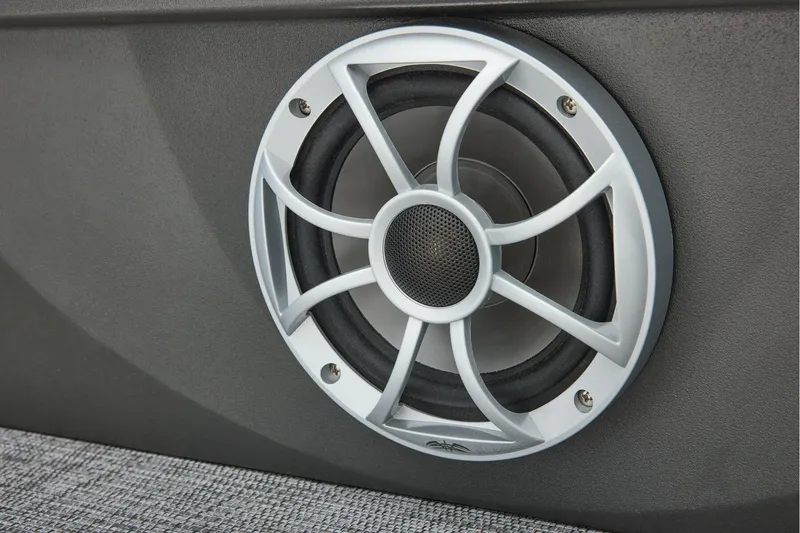

4 Wet Sounds® 6.5" (16.51 cm) upholstery speakers, strategically located & shielded within the seat bases

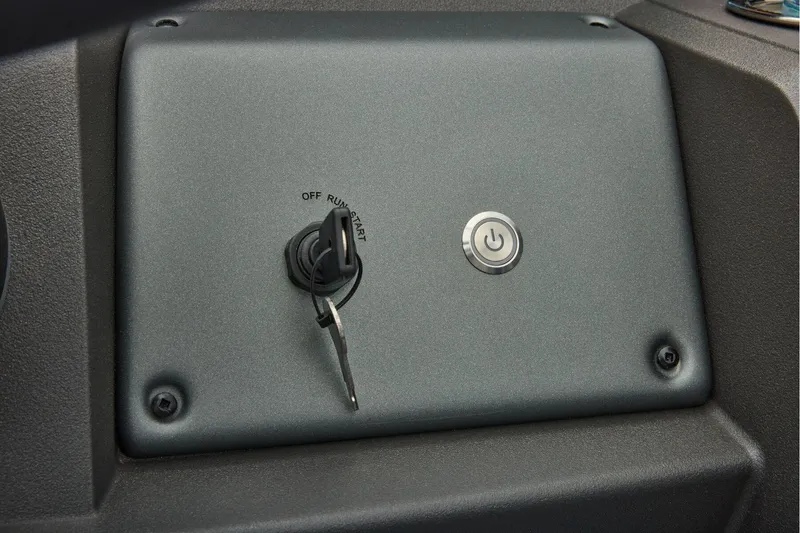

Master power on/off switch
Recessed mobile phone cubbies
USB charging receptacle

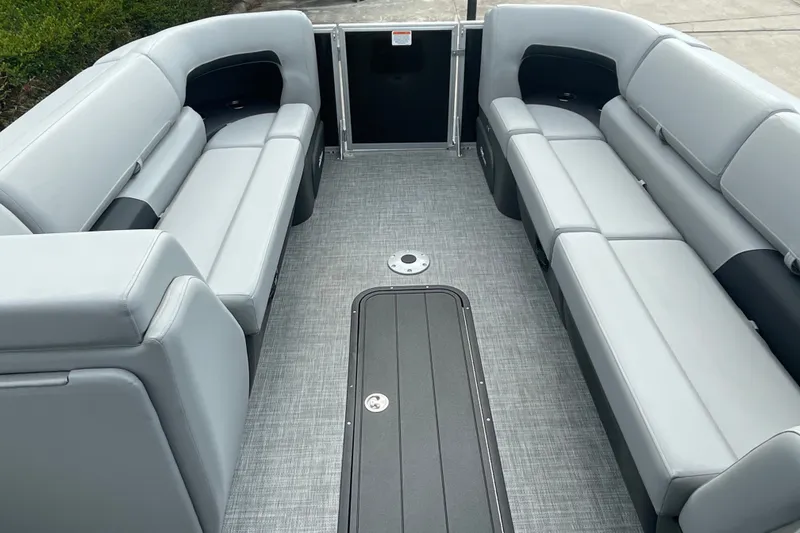

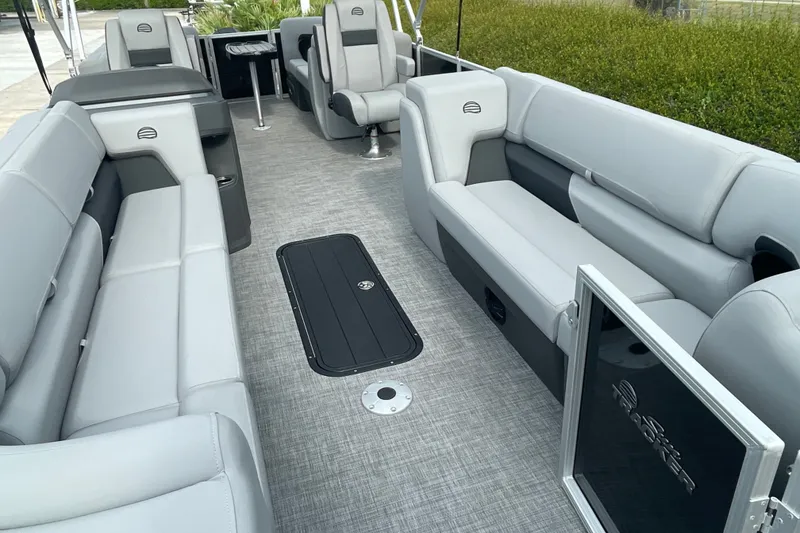

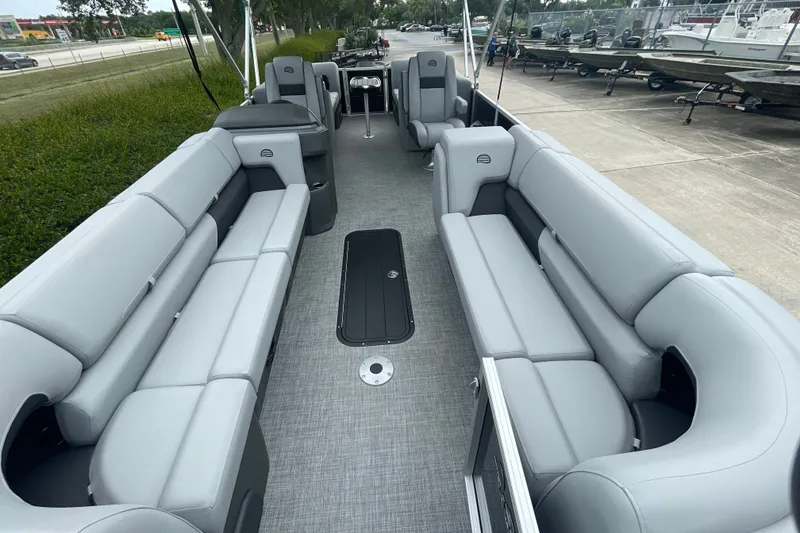

Interior

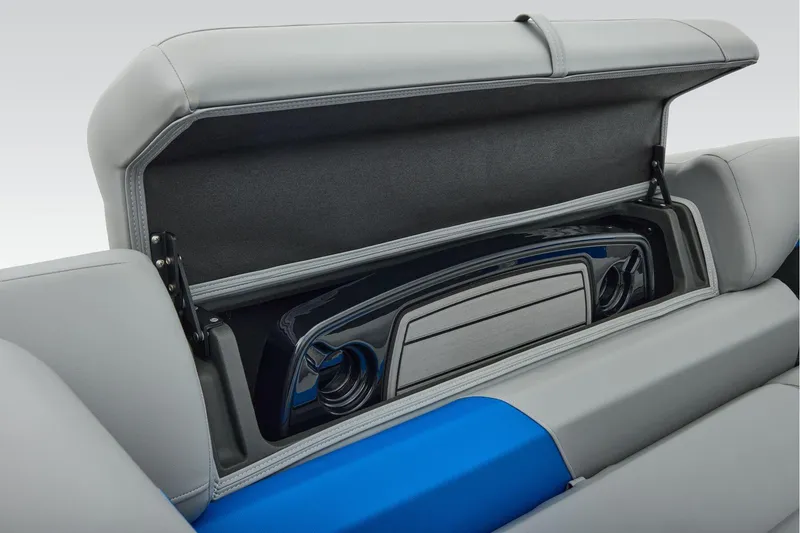

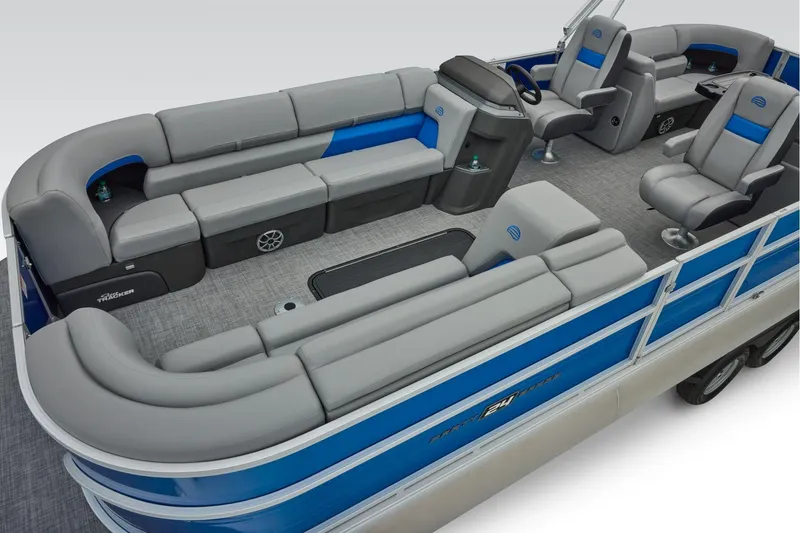

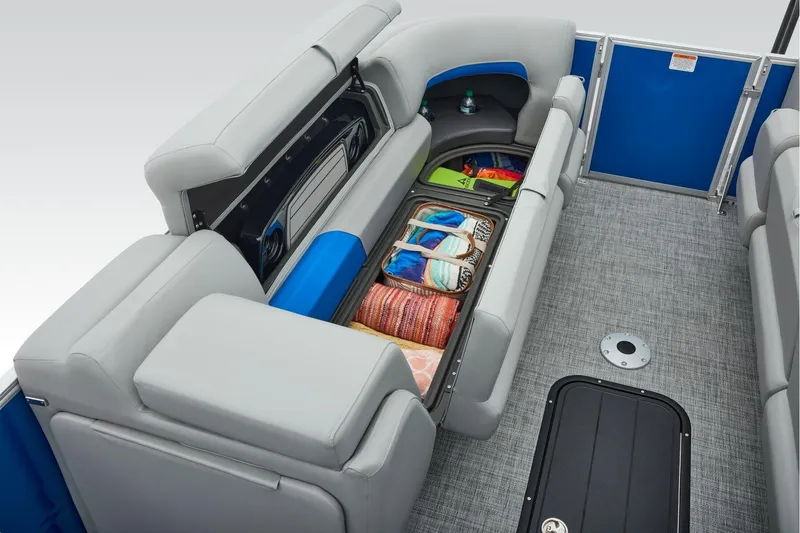

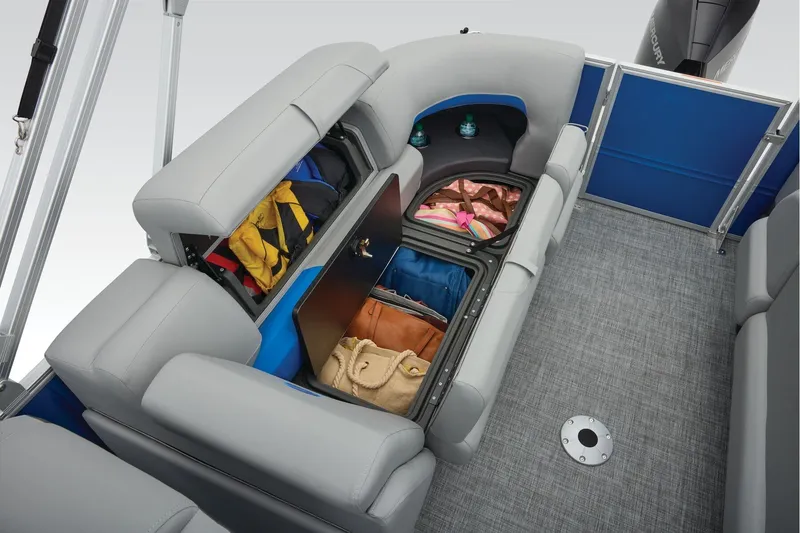

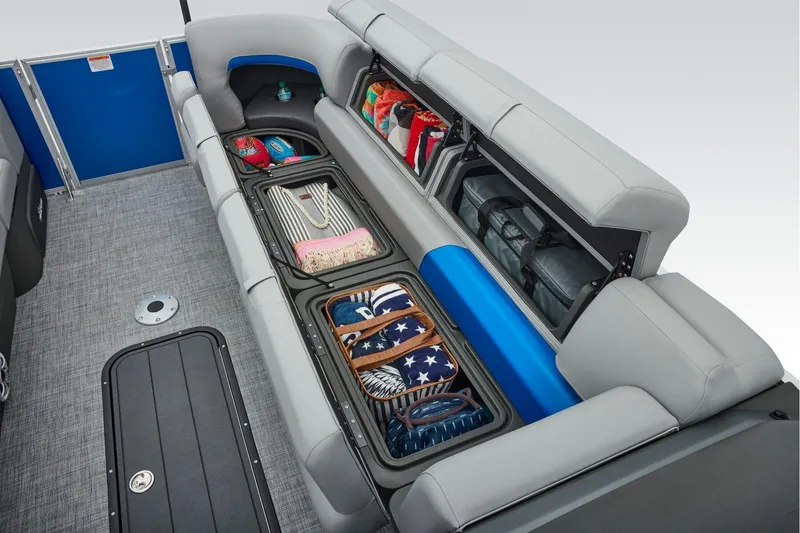

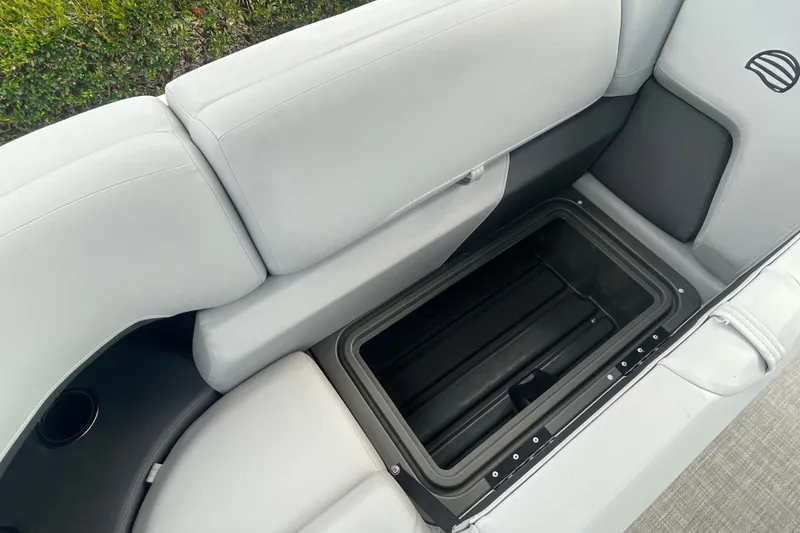

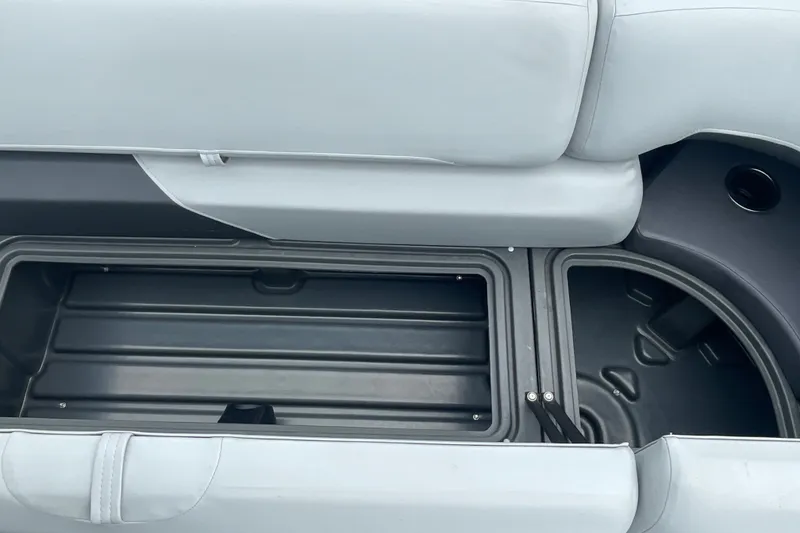

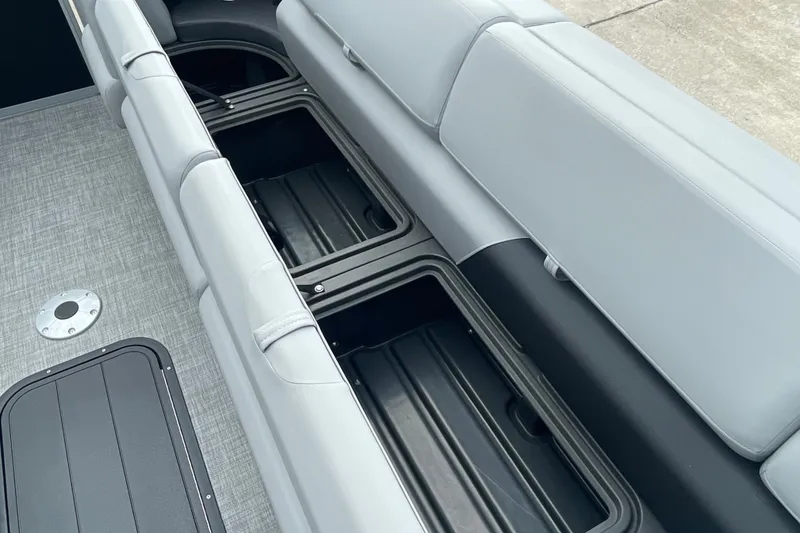

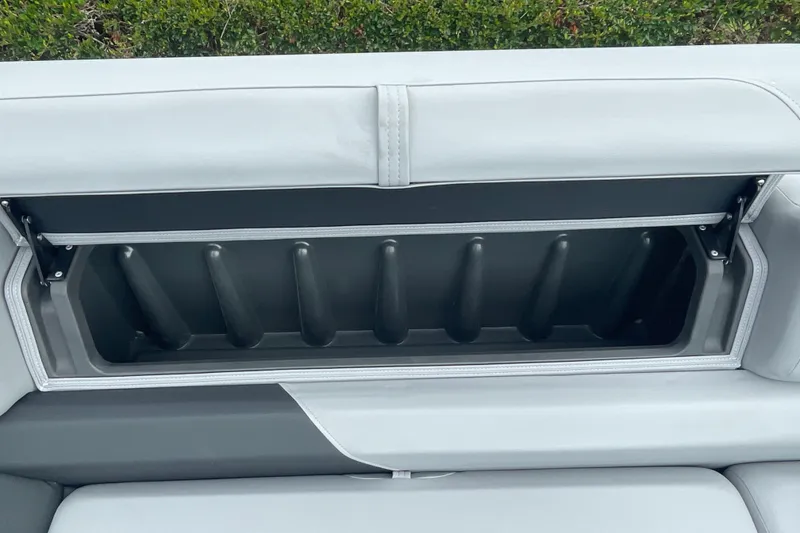

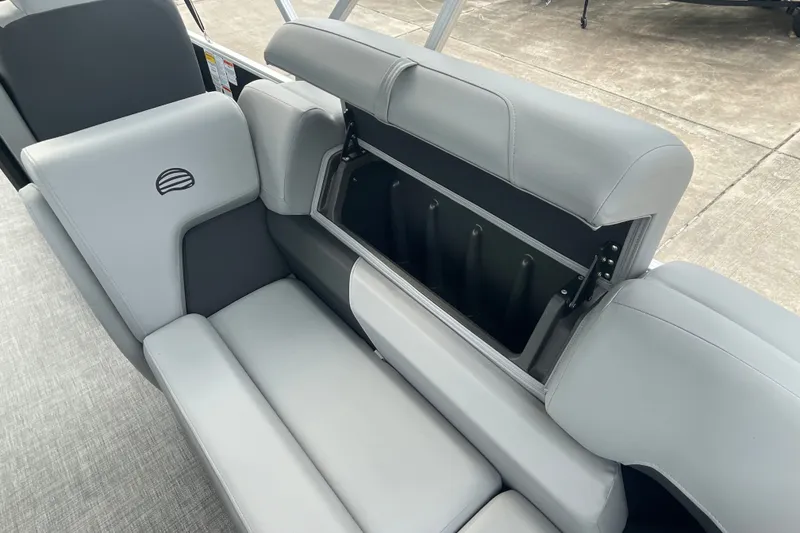

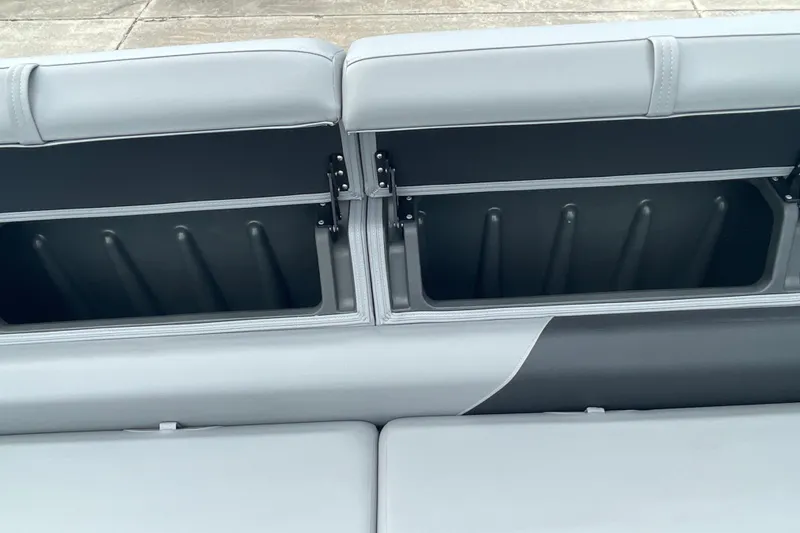

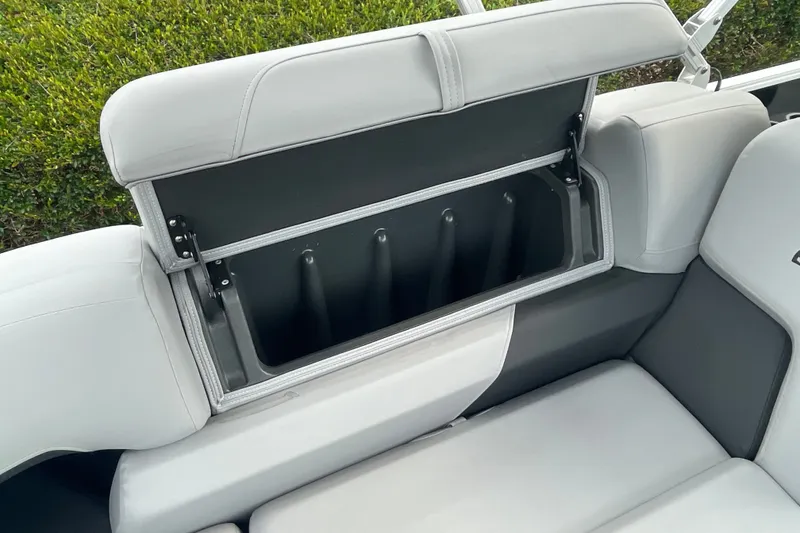

Patented built-in STOW MORE™ seat-back storage system for all couches

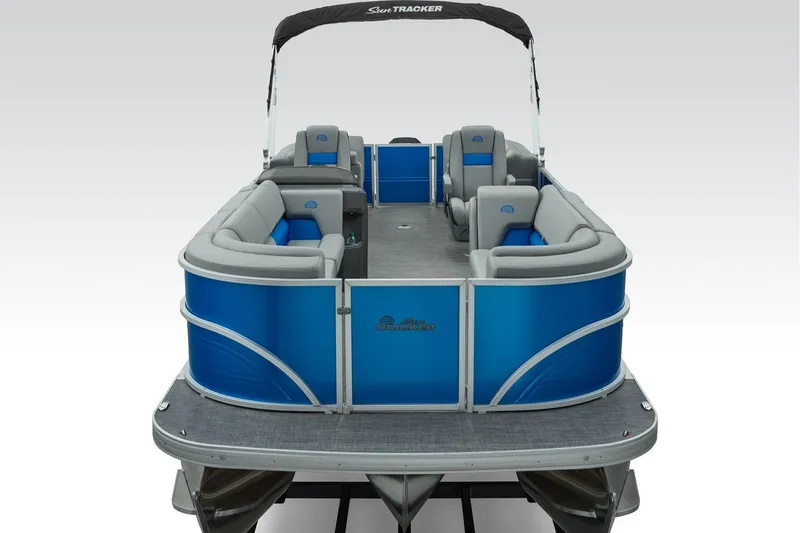

Bow port couch w/STOW MORE™, underseat storage & armrest w/drink holder
Bow starboard console couch w/STOW MORE™ & underseat storage
2 fixed deluxe high-back swiveling bucket seats, reclining & w/self-leveling arms on bow port side

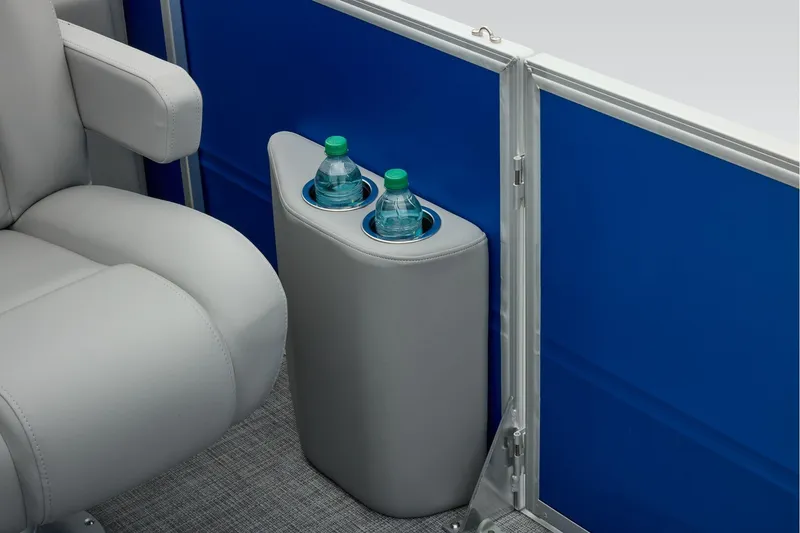

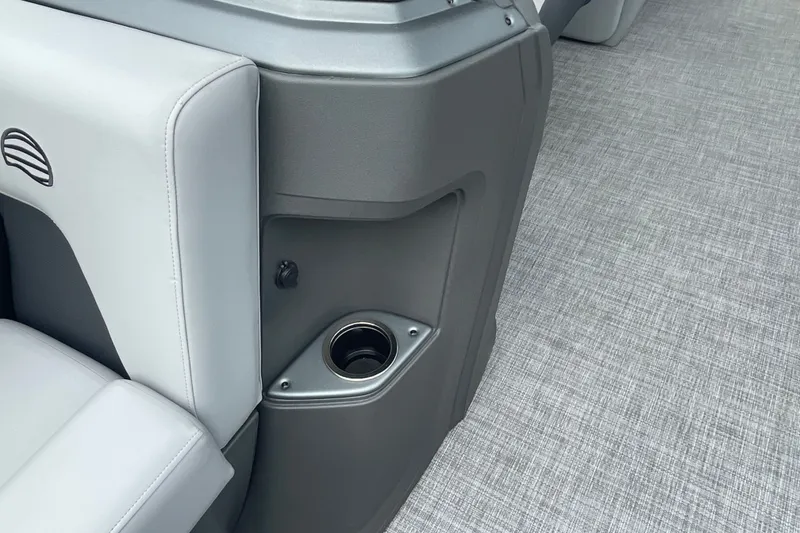

Bow port side drink holder

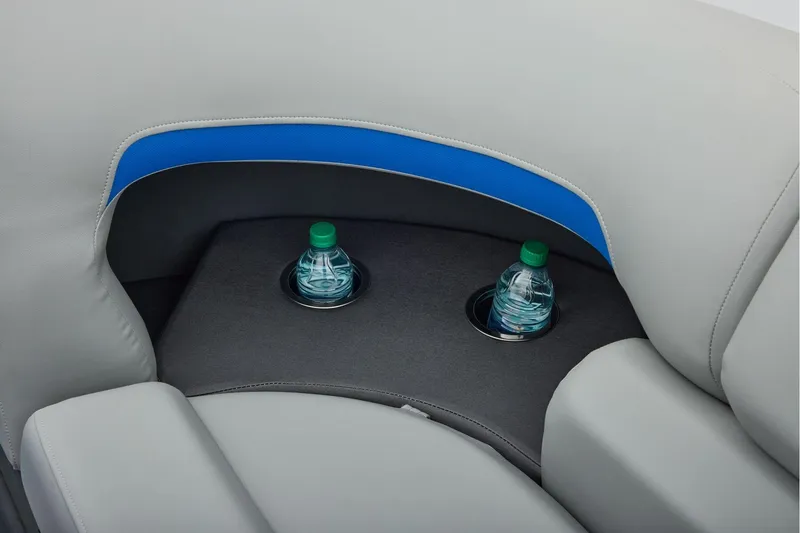

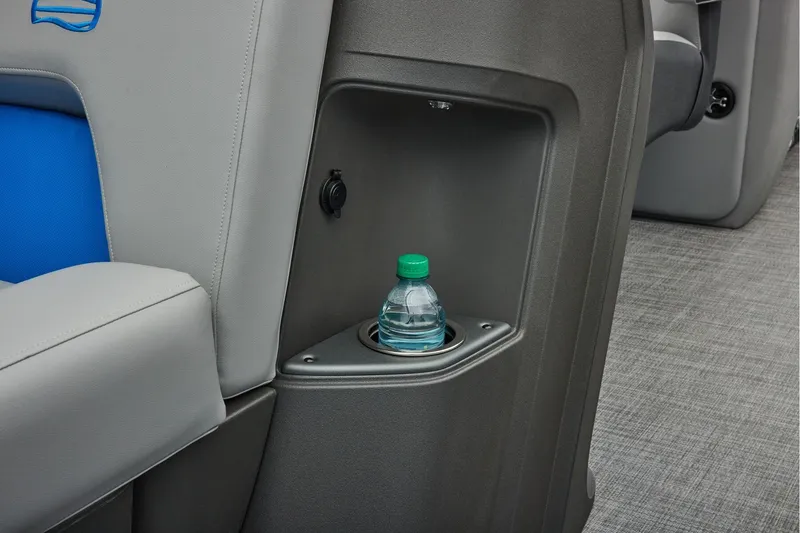

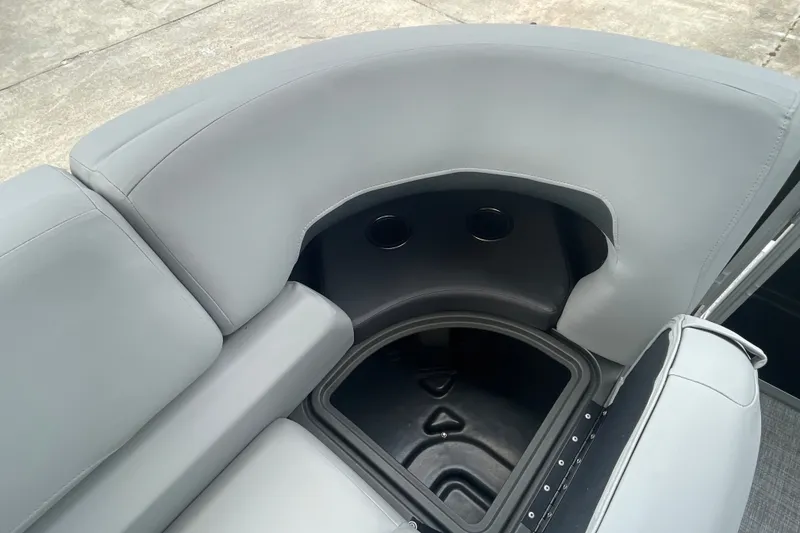

Integrated drink holders w/storage area

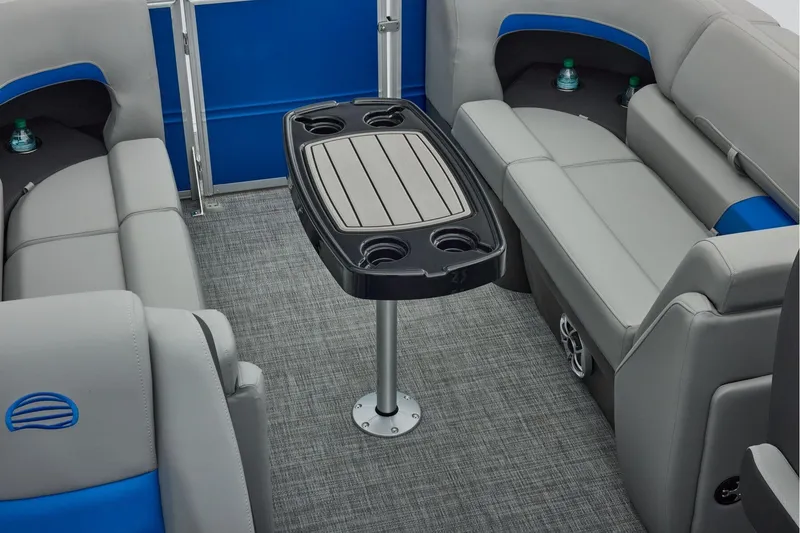

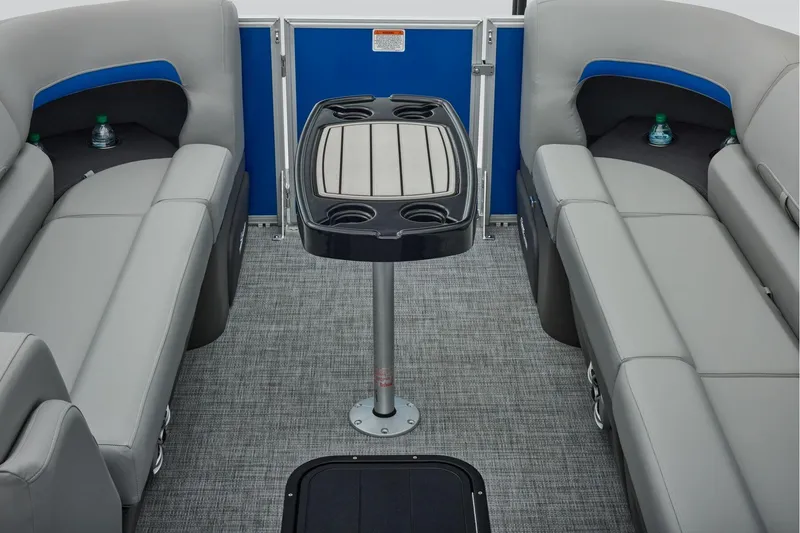

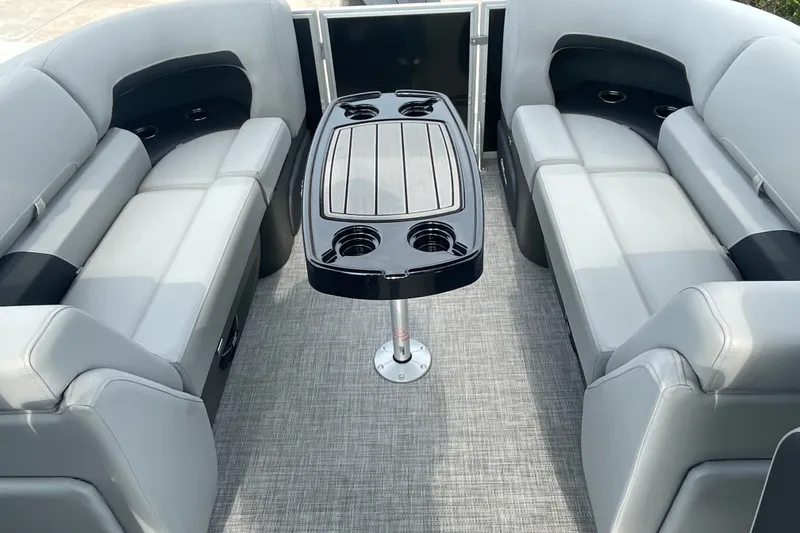

Removable table w/4 molded-in drink holders; color-coordinated, soft-touch mat; & tailored table location per dealer (dealer installed)

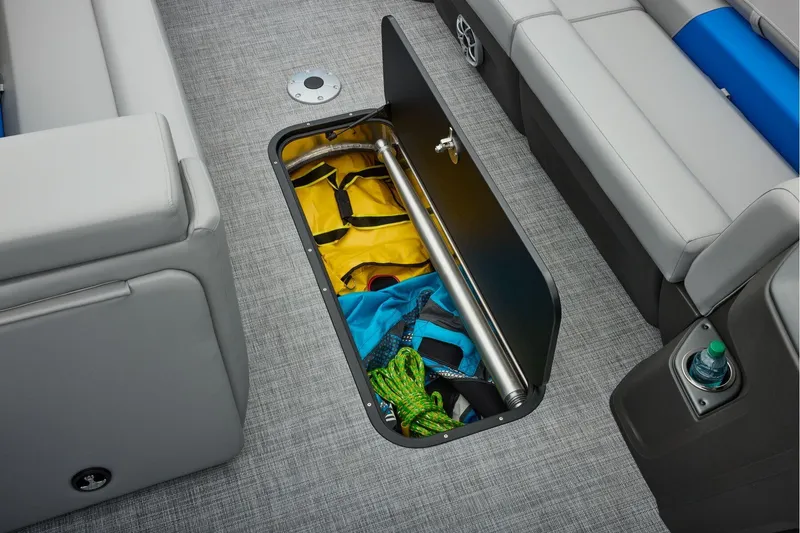

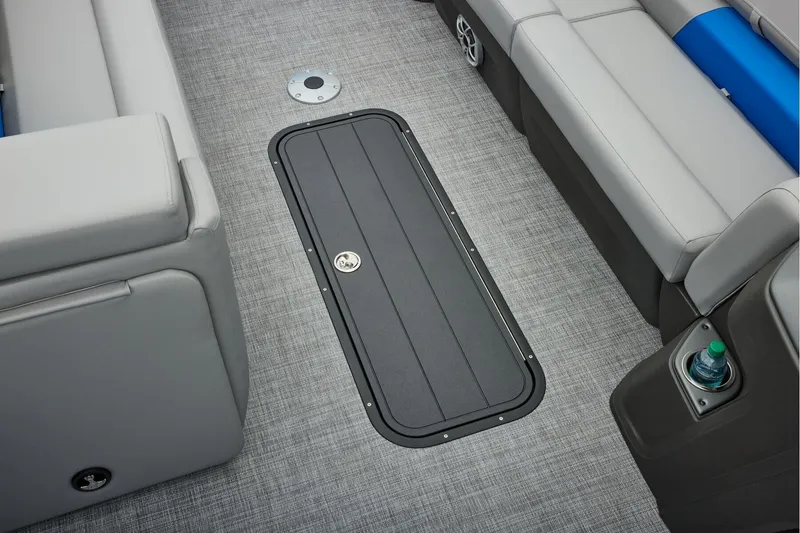

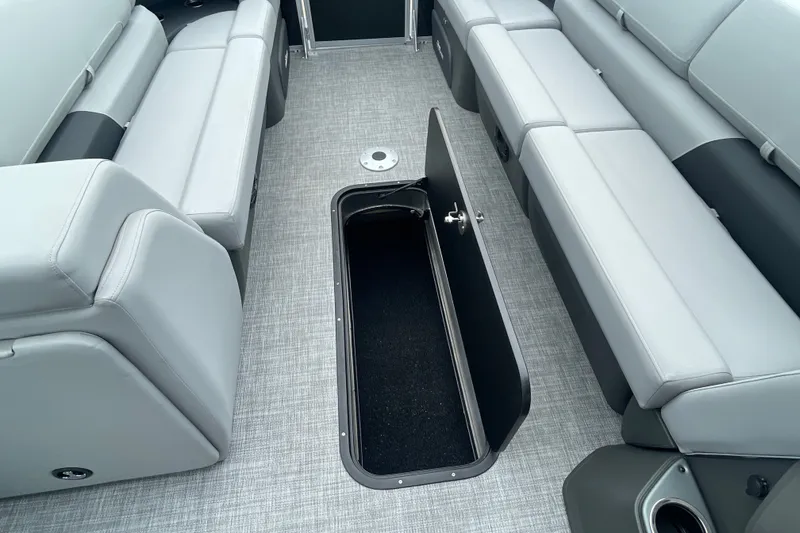

In-floor lighted storage compartment — 88" (2.24 m) long, 23" (58.42 cm) deep — w/bilge pump in center log

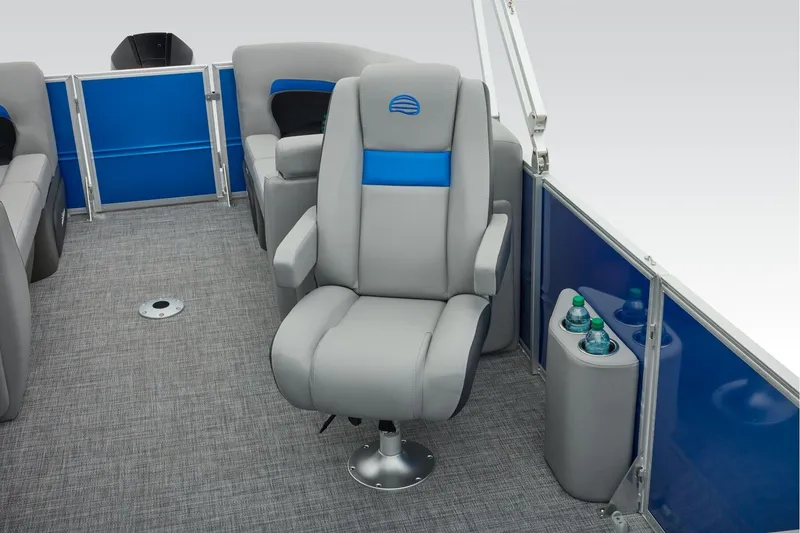

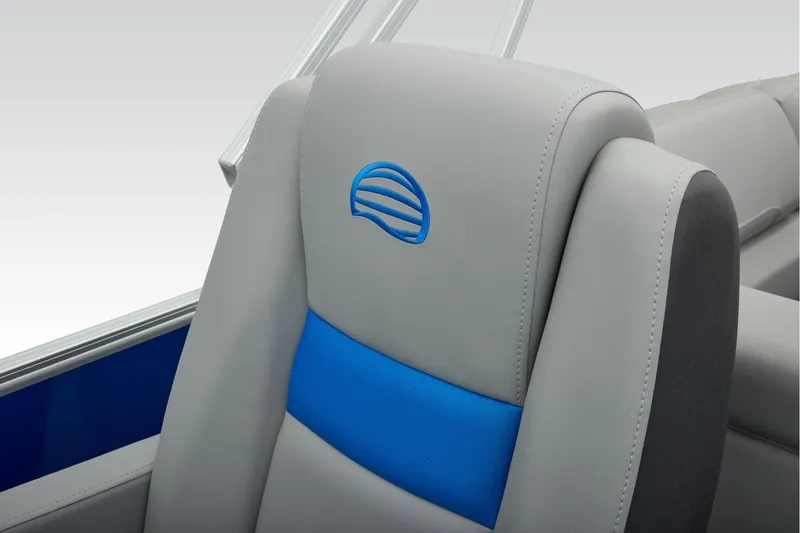

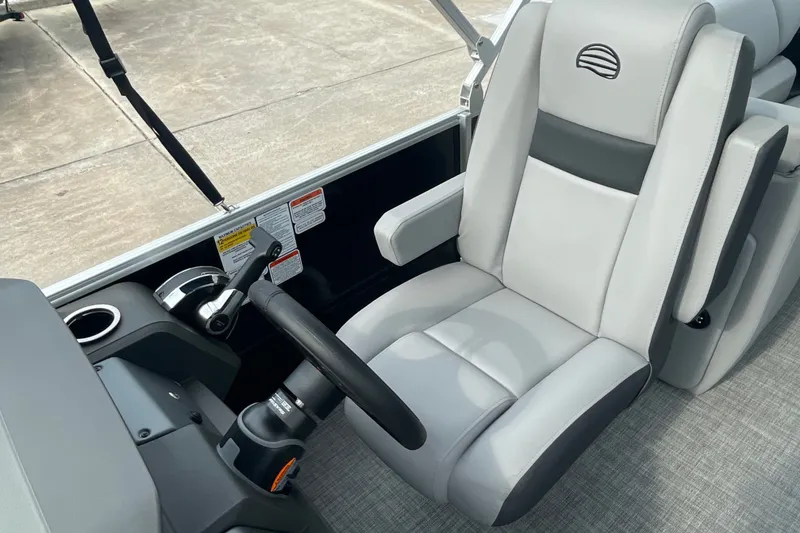

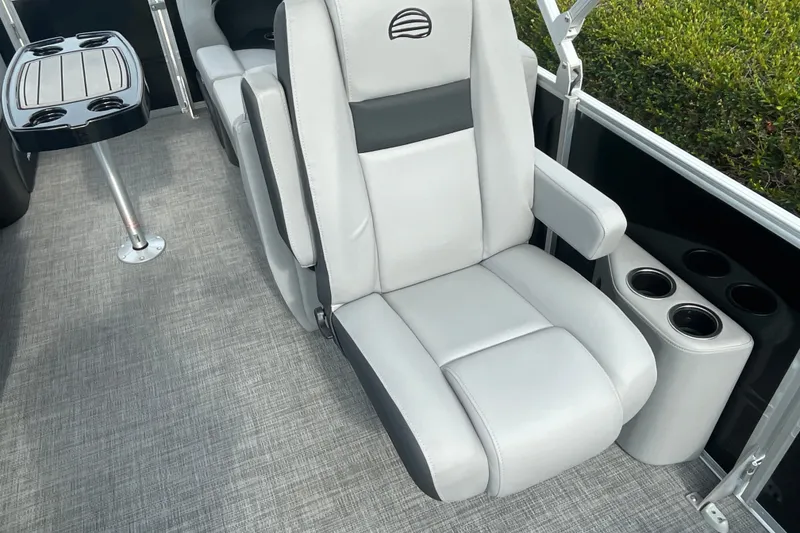

Reclining, high-back swiveling port & helm bucket seats w/self-leveling armrests

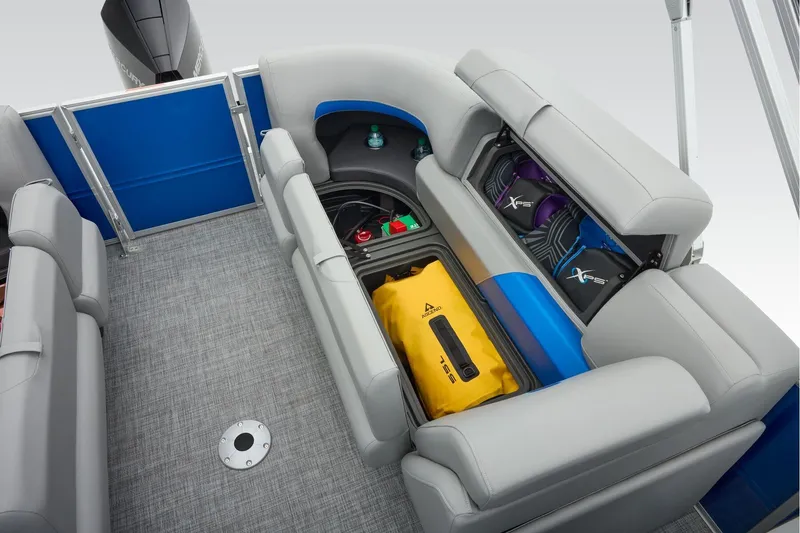

Aft port rear-facing double lounge w/STOW MORE™, underseat storage & pop-up changing room

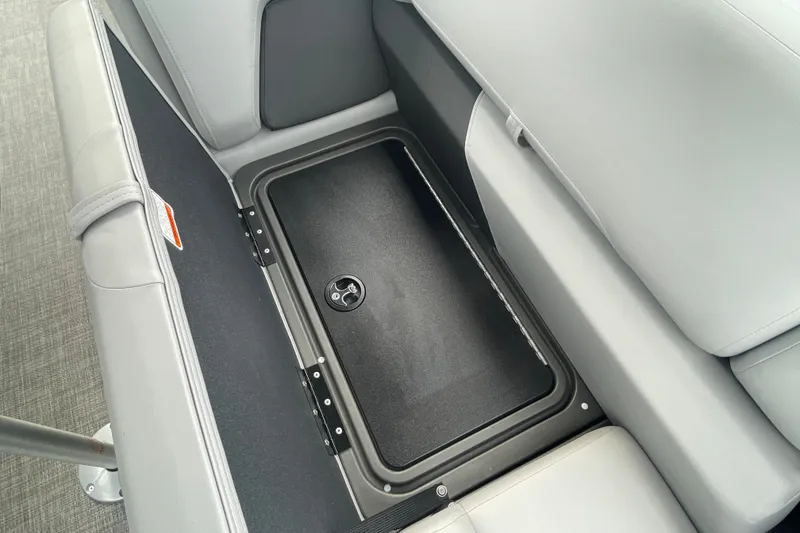

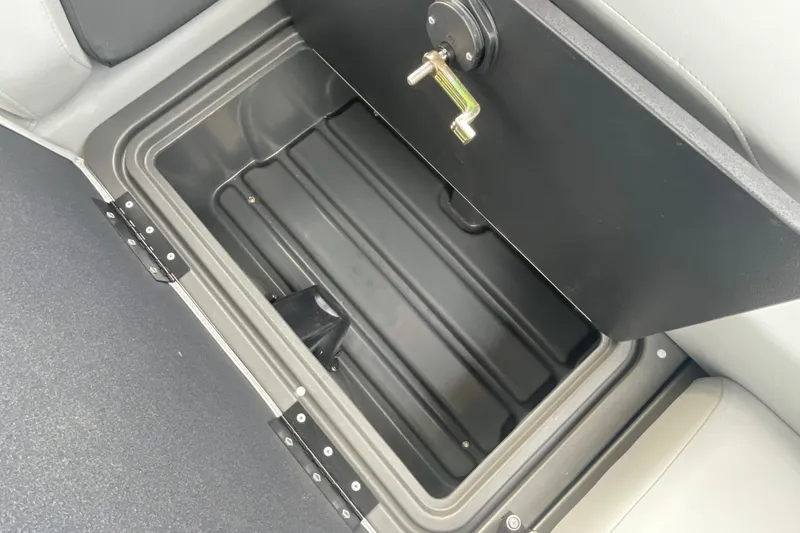

Aft starboard couch w/STOW MORE™ & underseat, lockable storage

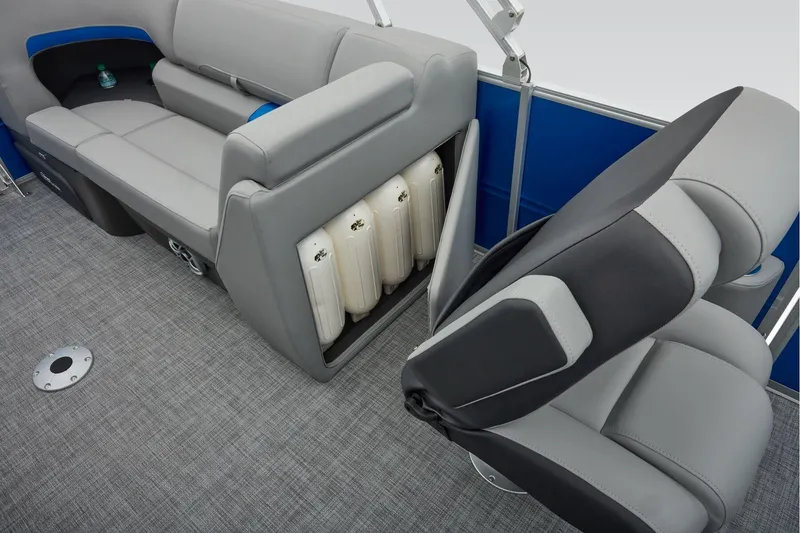

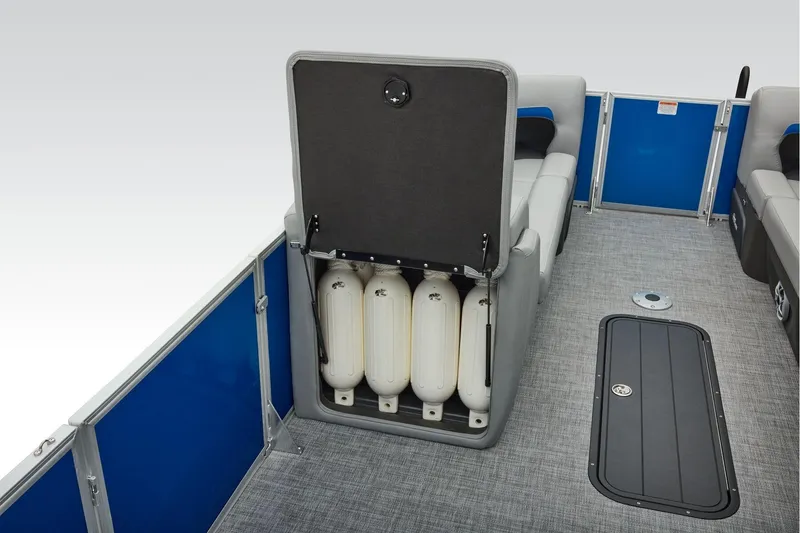

Bumper storage compartment

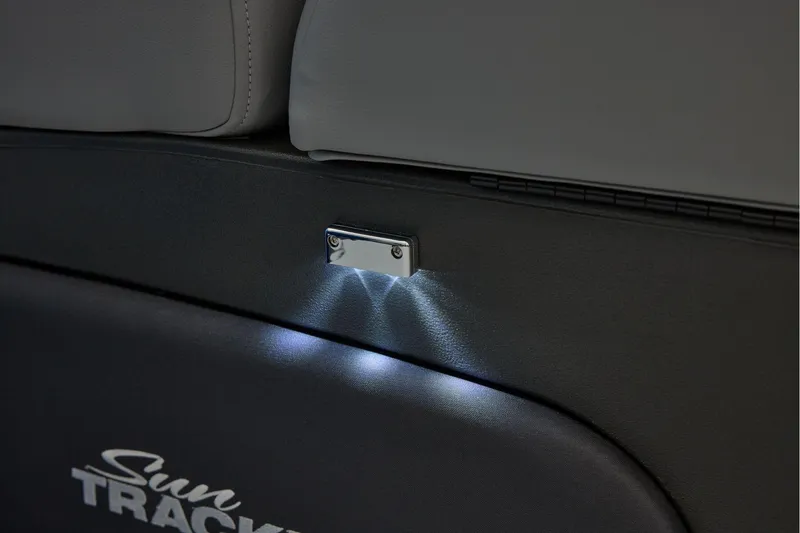

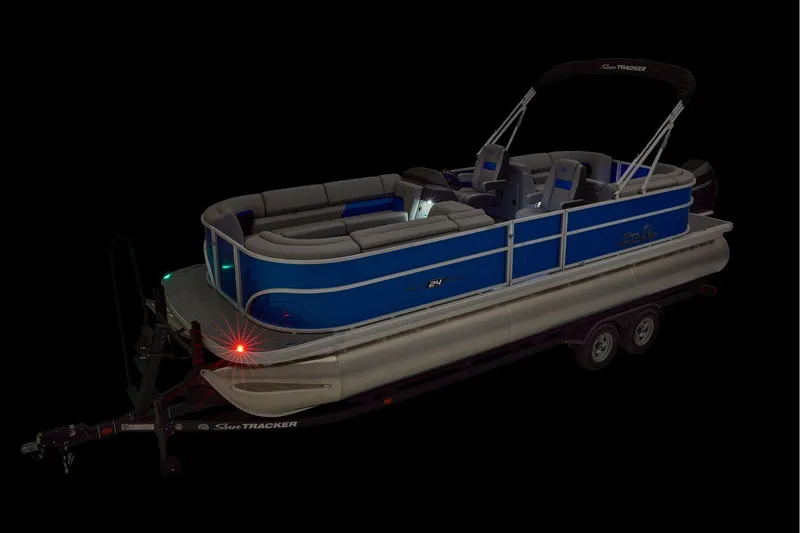

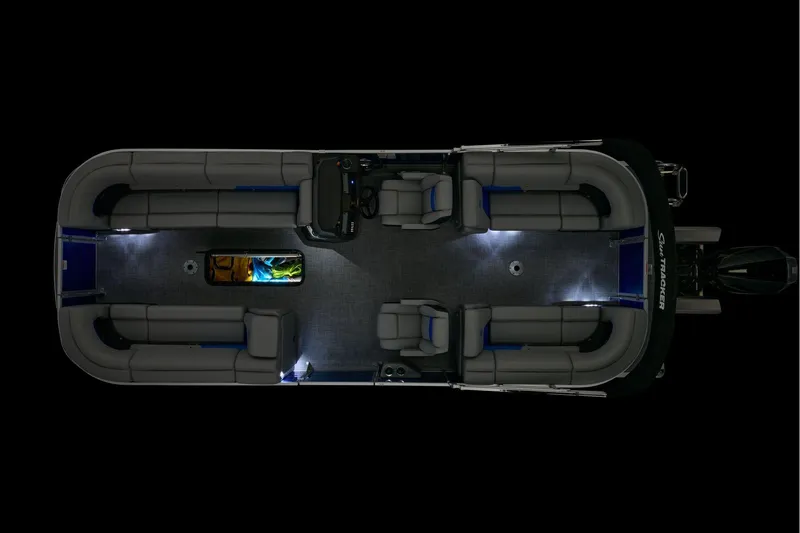

Interior courtesy lighting
Full-width aft swim deck

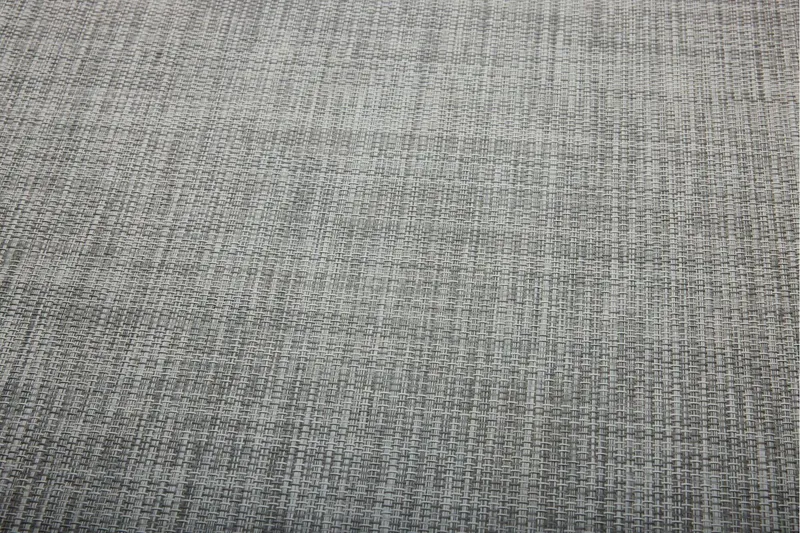

Woven 16-oz. (.45 kg) marine-grade flooring throughout

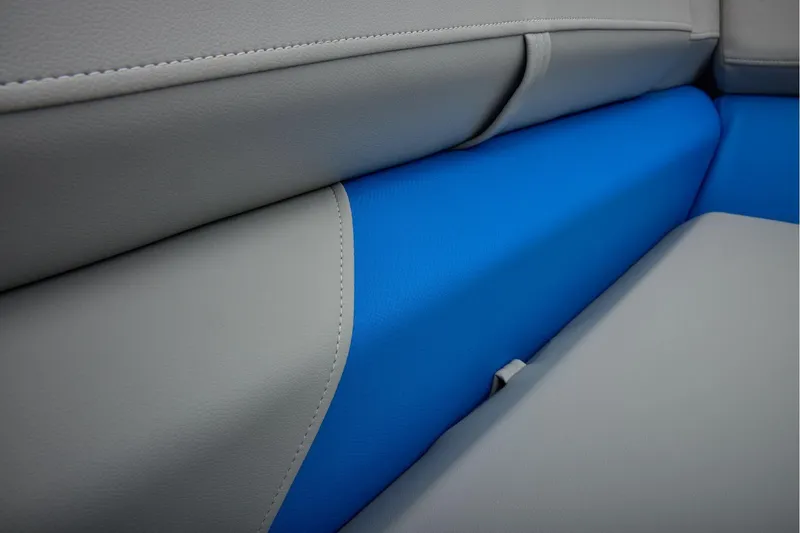

Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
Performance

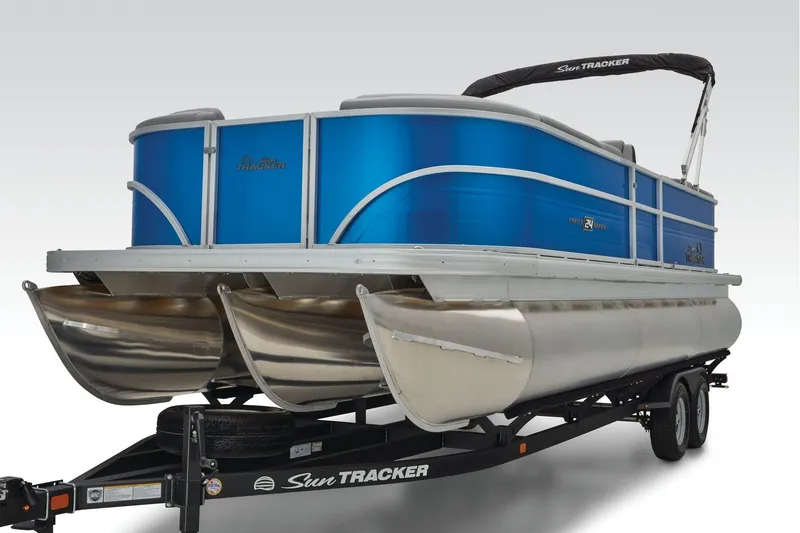

Three 26" (66.04 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs
XP3 performance strakes & wave-deflecting nose cone for maximum performance
Full-length, 1-piece longitudinal M-bracket deck supports
Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets
Heavy-duty aluminum U-channel reinforcement behind bow deck trim
Reinforced bow & stern structures

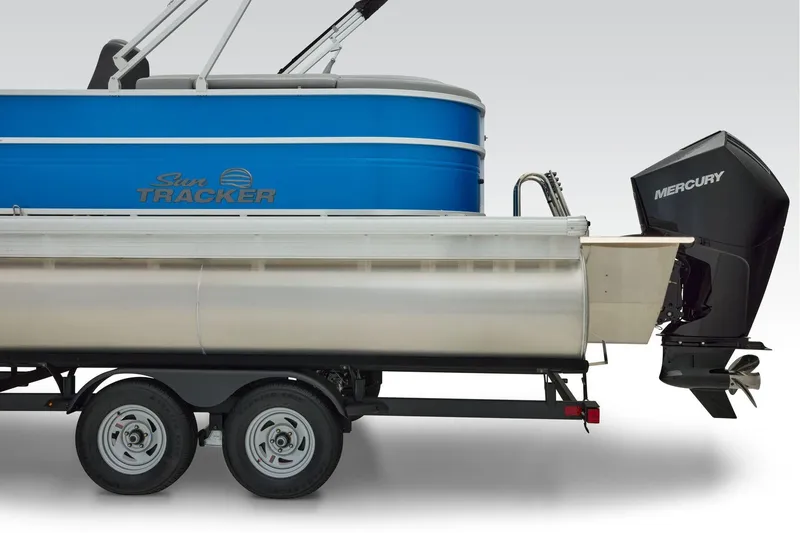

All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
All-aluminum box-beam transom for strength & longevity
Factory-installed underpinning (under-deck shielding) for improved performance
Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails
Sound- & vibration-deadening fence insulation for a quiet ride
Extruded & anodized aluminum deck edging w/polished aft corner covers
Precision fit & finish via plasma & laser-cut parts & robotically-welded construction
Rotomolded storage, furniture & console for superior strength & longevity
Nylon gate latches & heavy-duty hinges that open inward
Stainless or coated corrosion-resistant fasteners
Factory-matched aluminum propeller
Exterior
Color: Heritage Red, Pearl White, Sky Blue or Starlite Black fencing

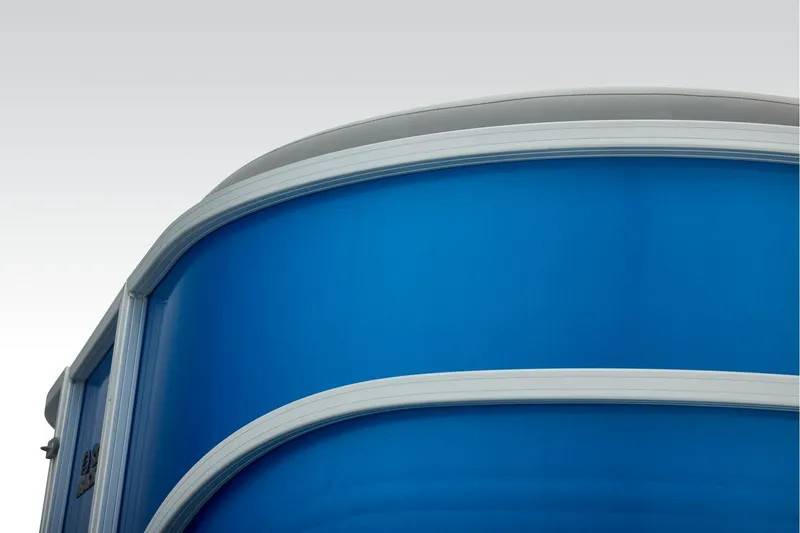

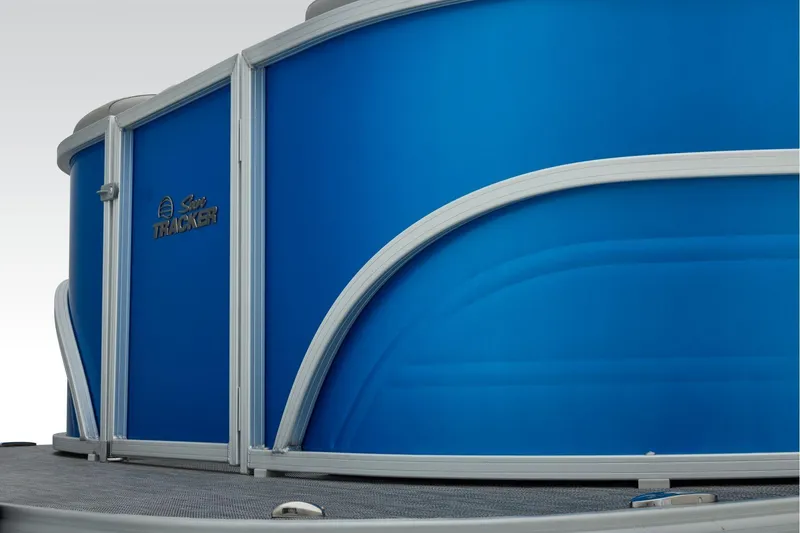

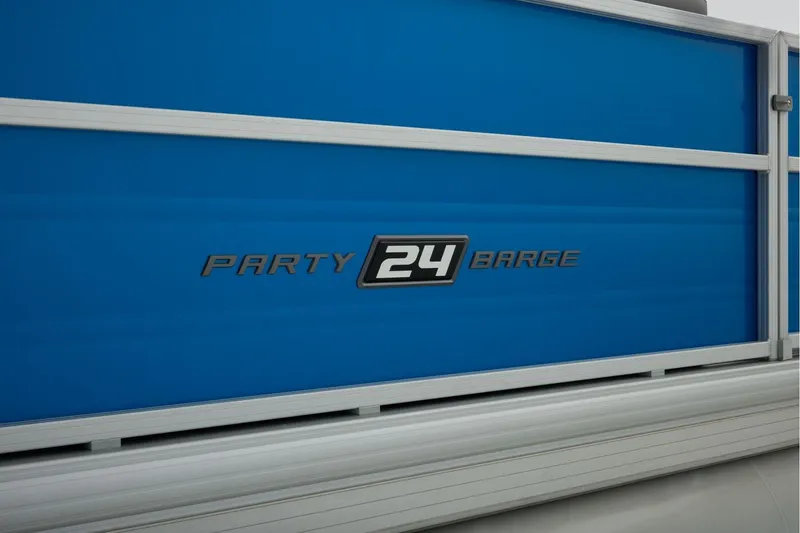

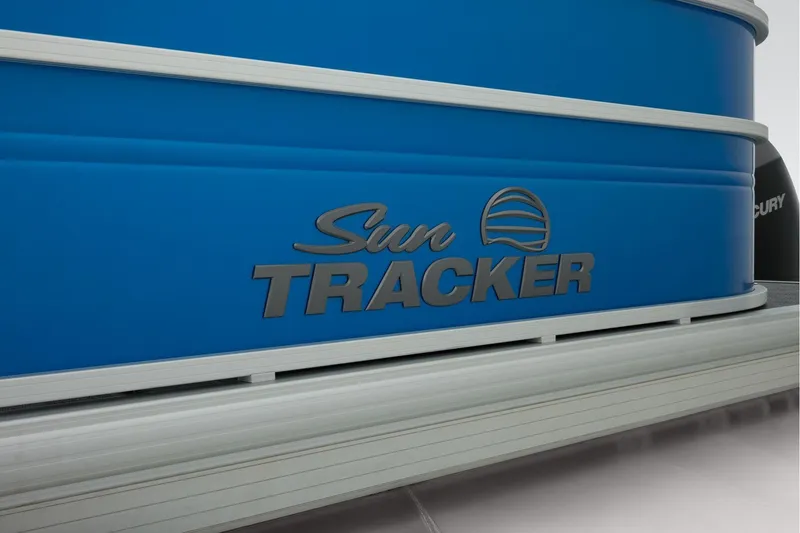

Patent-pending TRACK FORMED® fence design w/high-sheen finish for long-lasting cosmetics
Full-height, elevated fence panels for deck drainage & ventilation
Electrical
500 GPH (1,893 LPH) Ultima automatic bilge pump
Battery disconnect switch
Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
Protective abrasion-resistant wire wrap
Water-resistant connectors
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice. All sales are final. No returns accepted.
Price History
| Date | Event | Price |
|---|---|---|
| 6/4/26 | Price decreased | $67,225(-5.9%) |
| 5/25/26 | Initial price | $71,470 |
2026 Sun Tracker Party Barge 24 XP3 Video Tours
Boattest.com Review
Overview
The SunTracker Party Barge 24XP3 is a pontoon boat clearly designed with family entertainment in mind. It comfortably accommodates up to 12 guests and offers a variety of seating and lounging options, making it an ideal platform for social gatherings on the water. This review provides a comprehensive walkthrough of its features, performance evaluation, and overall suitability as a recreational vessel.
Exterior Design and Deck Layout
The boat’s exterior is thoughtfully arranged to maximize guest comfort and social interaction. At the stern, a couch to starboard seats three to four people, with storage conveniently located underneath. Opposite this is a double-wide, aft-facing chase lounge that also serves as a sunning area. The cockpit transitions from a vinyl wet area to a carpeted dry area, though some padding beneath the carpet would enhance comfort. Forward of the cockpit, an L-shaped sofa upholstered in UV-resistant marine-grade vinyl features multi-density foam padding and includes an aluminum lock box for securing valuables. Two table mounts are provided—one centrally located in the cockpit and another in the bow—to facilitate dining and socializing. The bow seating includes port and starboard couches with rotocast molded seats that resist rot and wood degradation. Additional features include portable drink holders attached by Velcro, under-seat cargo nets, and ample storage space. A 9-foot color-matched BEMEDE top provides shade to keep the cockpit cool during sunny days.

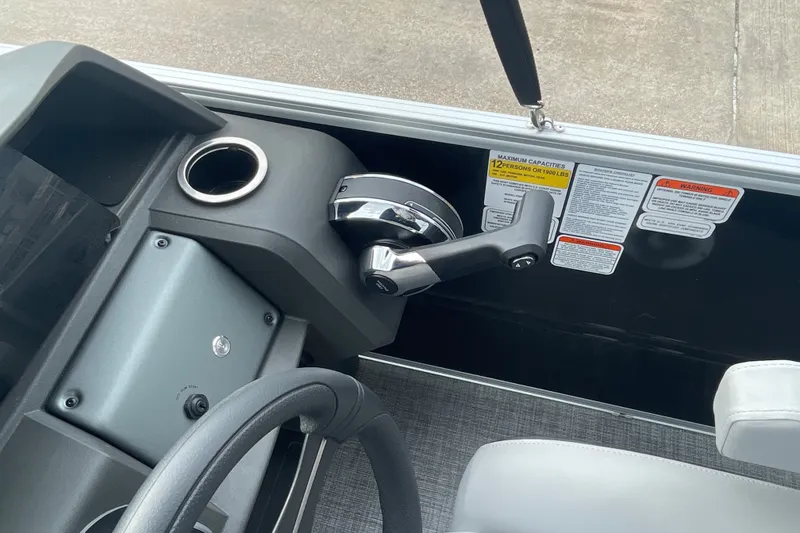

Helm and Controls
The helm station is designed with a minimalist yet elegant approach. A modest smoked windscreen sits above two gauges and a faux-wood panel, flanked by switches on both sides. The steering wheel is mounted on a tilt base, and engine controls are positioned vertically for ease of use. The helm features a Jensen stereo system with MP3 jack and Bluetooth streaming capabilities, complemented by four directional speakers placed fore and aft. The bucket helm seat slides, swivels, and includes flip-up armrests, with multi-density foam and soft upholstery ensuring operator comfort. Under the helm console, space is allocated for a cooler and a fire extinguisher, enhancing convenience and safety. Navigation lights are mounted on the deck, although relocating them higher on the fences could reduce tripping hazards.
Power and Performance

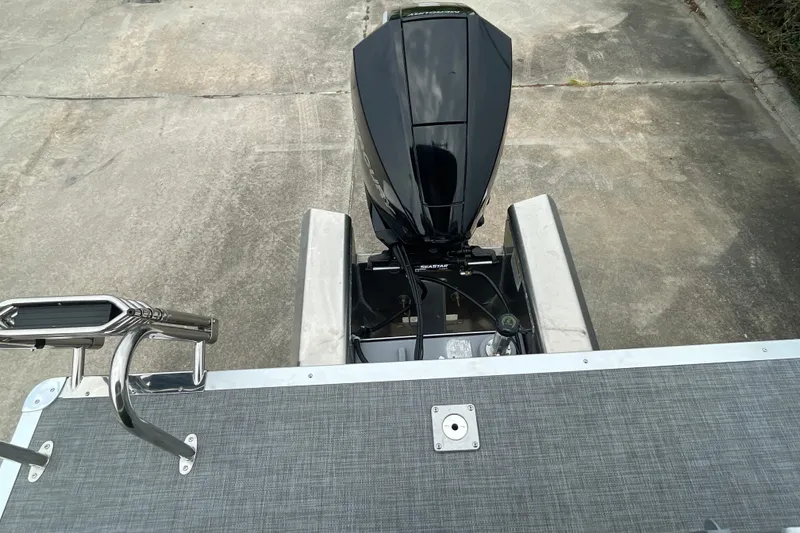

This test boat was equipped with an optional 200-horsepower Mercury Verado outboard engine, though the standard offering is 150 horsepower. The fuel fill is conveniently located just ahead of the engine, with small platforms on either side to facilitate daily maintenance checks. The boat measures 26 feet 2 inches in length overall with a beam of 8 feet 6 inches and an empty weight of 3,095 pounds. With test conditions including one quart of fuel, two people, and the 200-horsepower engine, the estimated test weight was 4,067 pounds. Performance testing revealed a top speed of 40.5 miles per hour at 6,200 RPM, consuming 19.75 gallons per hour and providing a range of approximately 65 miles. The most efficient cruise speed was 15.4 miles per hour at 3,000 RPM, burning 3.2 gallons per hour and extending the range to 152 miles with nearly 10 hours of endurance. Acceleration was brisk, with a time to plane of 3.4 seconds, 20 miles per hour reached in 4.4 seconds, and 30 miles per hour in 7.6 seconds. The triple-tube XP3 performance package allows the boat to plane from a fairly level attitude; applying trim raises the bow for optimal cruising, reduces spray, and improves handling. The boat remains relatively flat in gentle turns, leaning slightly outward in harder turns, and responds well to helm inputs, making it suitable for towing activities.
Additional Features and Amenities

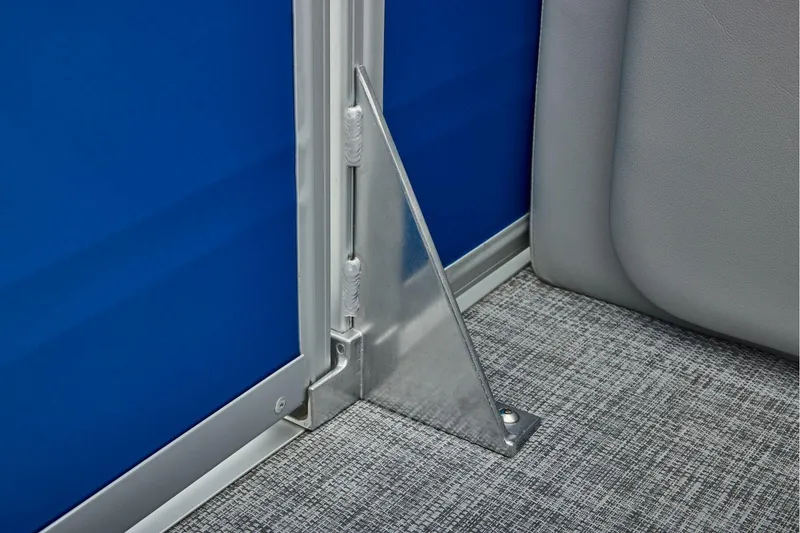

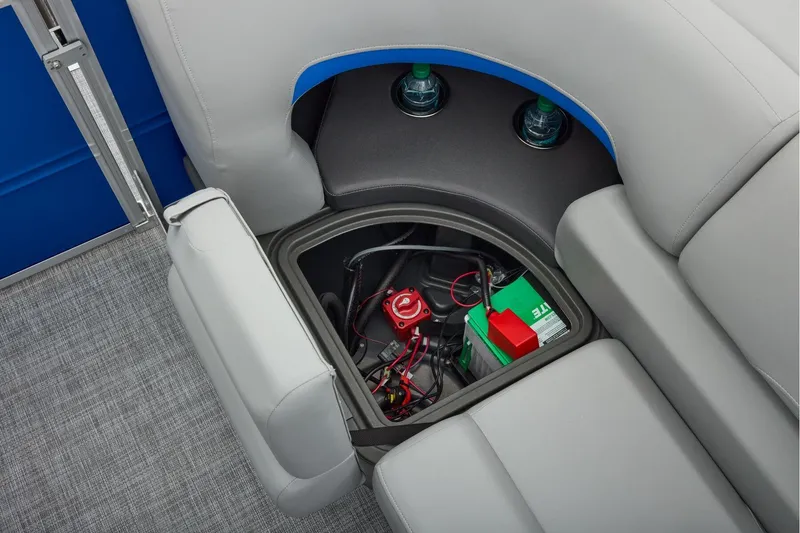

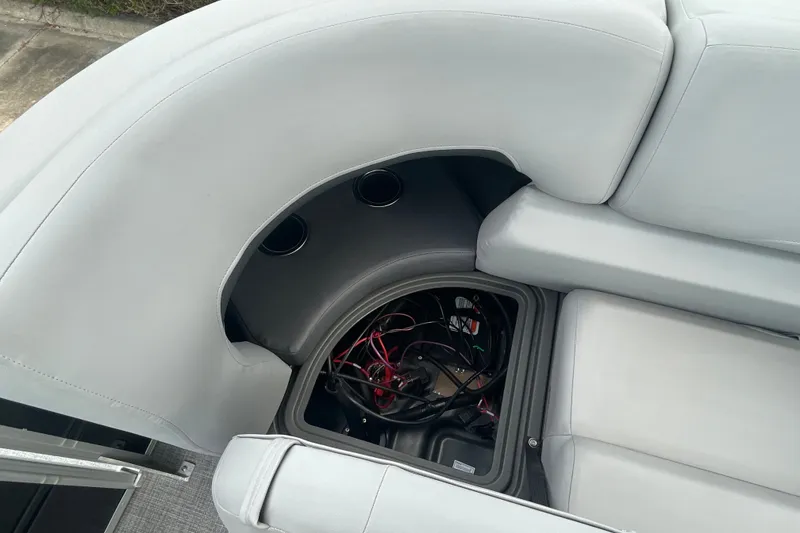

The SunTracker Party Barge 24XP3 includes practical features to enhance the onboard experience. The aft section of the lounge lifts to reveal a properly secured battery compartment, and corner braces and cleats are robustly fastened for durability. A full-width swim platform with a four-step reboarding ladder on the starboard side facilitates easy water access. For privacy and convenience, a changing room is integrated into the design, deployable by pulling a handle and locking it securely in place. Inside, the space is sufficient to turn around comfortably, and a pop bench seat is included for safety.
Conclusion
The SunTracker Party Barge 24XP3 lives up to its name as an outstanding entertainment platform for families and groups. Its well-thought-out seating arrangements, durable construction, and solid performance make it a versatile and enjoyable pontoon boat. The optional 200-horsepower engine provides strong acceleration and cruising capabilities, while the onboard amenities support comfort and convenience. Overall, this model offers a balanced combination of social space, performance, and practical features suitable for a variety of recreational boating activities.
Overview from around the web 2026 Sun Tracker Party Barge 24 XP3
Customers are raving about the 2026 Sun Tracker Party Barge 24 XP3, highlighting its combination of comfort, versatility, and performance
Many appreciate the spacious layout, perfect for entertaining family and friends, while the plush seating allows for long days on the water without sacrificing comfort. The innovative design includes ample storage options, ensuring that all your gear and refreshments can be easily stowed away. Performance-wise, users are impressed with the boat's smooth handling and stability, even in choppy waters. The powerful engine options provide solid acceleration and can handle a variety of water conditions, making it a favorite for both casual outings and more adventurous excursions. The Party Barge 24 XP3 also receives high praise for its stylish aesthetic, with modern finishes that appeal to contemporary tastes. Many customers remark on the thoughtful features, such as the built-in sound system and easy-to-access swim platform, which enhance the overall boating experience. Whether for leisurely cruising or active water sports, the 2026 Sun Tracker Party Barge 24 XP3 continues to impress customers looking for a reliable and enjoyable boating experience.
The Biggest Pros and Cons
Pros
Spacious Design: The Party Barge 24 XP3 offers ample space for family and friends, accommodating large groups comfortably with plenty of seating and lounging areas.
Versatile Performance: Equipped with a powerful engine, this model is ideal for a variety of water activities, from leisurely cruising to watersports.
High-Quality Build: Constructed with durable materials, the Party Barge 24 XP3 is designed to withstand the elements, ensuring longevity and reliability on the water.
Stylish Interior: The luxurious seating and sleek design elements make for an aesthetically pleasing experience, enhancing your time on the water.
Exceptional Stability: The triple-tube design offers excellent stability, allowing for a smooth ride even in choppier waters, which is perfect for various activities.
Convenient Features: With features like a built-in, spacious storage area, a picnic table, and a swim platform, it provides convenience and enhances the overall experience.
Easy Handling: The efficient steering and maneuverability make it suitable for both novice and experienced boaters.
Cons
Weight: The larger size and triple-tube configuration can make the Party Barge 24 XP3 heavier, which may affect towing capabilities depending on your vehicle.
Price Point: Being a premium offering, it comes with a higher price tag compared to other pontoons or smaller boats, which may not fit every budget.
Maintenance: The additional features and systems may require more maintenance compared to more streamlined models.
Fuel Consumption: Depending on the engine size and specific usage, fuel efficiency may not be as favorable as smaller boats.
Docking Space: Its larger dimensions may complicate docking in smaller marinas or tight spaces.
Targeted Use: While it's perfect for social outings and leisure, it might not be suitable for serious fishing or extended overnight trips without additional upgrades. ### Conclusion The 2026 Sun Tracker Party Barge 24 XP3 is a fantastic choice for those looking for a fun, spacious, and versatile watercraft ideal for gatherings and recreational activities. However, potential buyers should weigh the considerations of size, cost, and intended usage to ensure it aligns with their boating lifestyle.
Made For
The 2026 Sun Tracker Party Barge 24 XP3 is designed for families and groups who love to create unforgettable memories on the water. Whether you’re hosting a lively gathering with friends, enjoying a leisurely day with family, or seeking adventure with loved ones, this versatile pontoon boat is perfect for all your needs. Its spacious layout accommodates up to 13 passengers comfortably, making it ideal for socializing and entertaining. With ample seating, state-of-the-art amenities, and plenty of features geared towards recreation, the Party Barge 24 XP3 is for those who value fun and relaxation in equal measure. Ideal for lakes, rivers, or coastal outings, this boat appeals to anyone wanting to experience the joy of boating while enjoying aquatic activities like fishing, swimming, or simply lounging under the sun. It’s a fantastic choice for both novice boaters looking for a user-friendly ride and seasoned enthusiasts seeking a reliable platform for their adventures. If you embrace the thrill of the open water and love to bring friends and family along, the Sun Tracker Party Barge 24 XP3 is your ticket to aquatic enjoyment.
