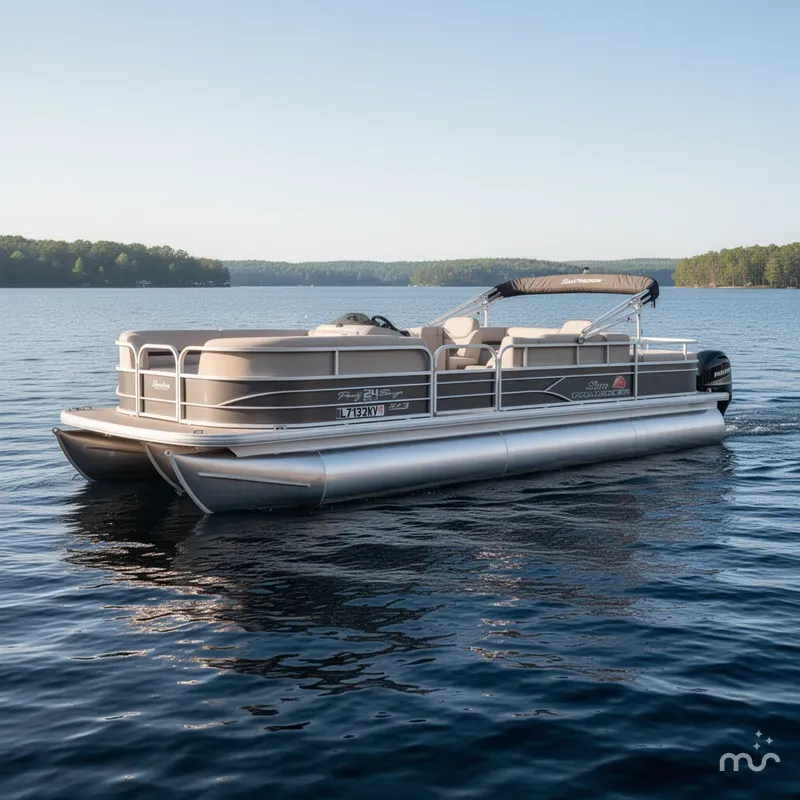

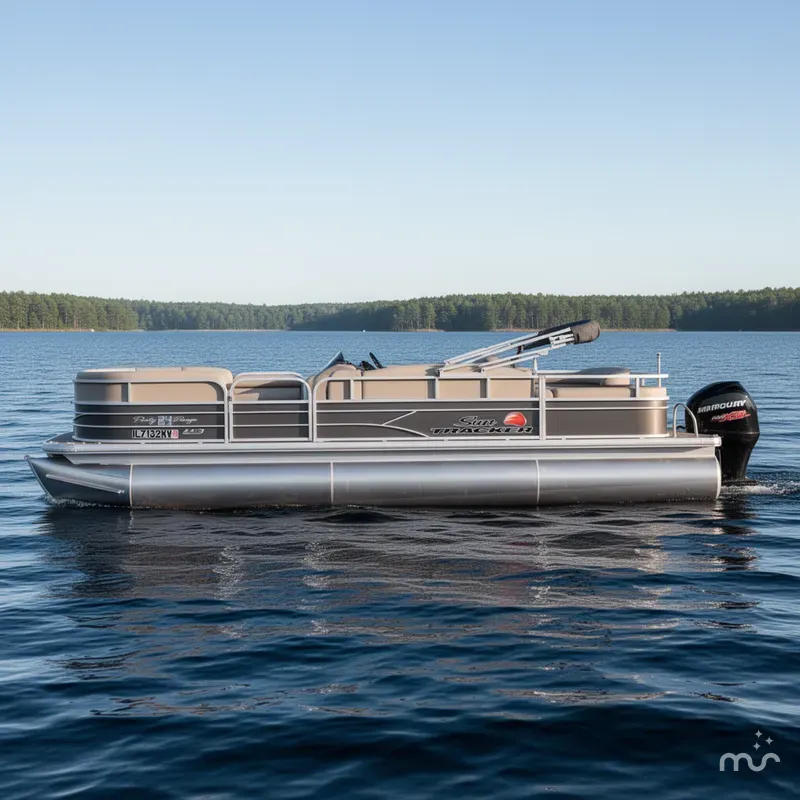

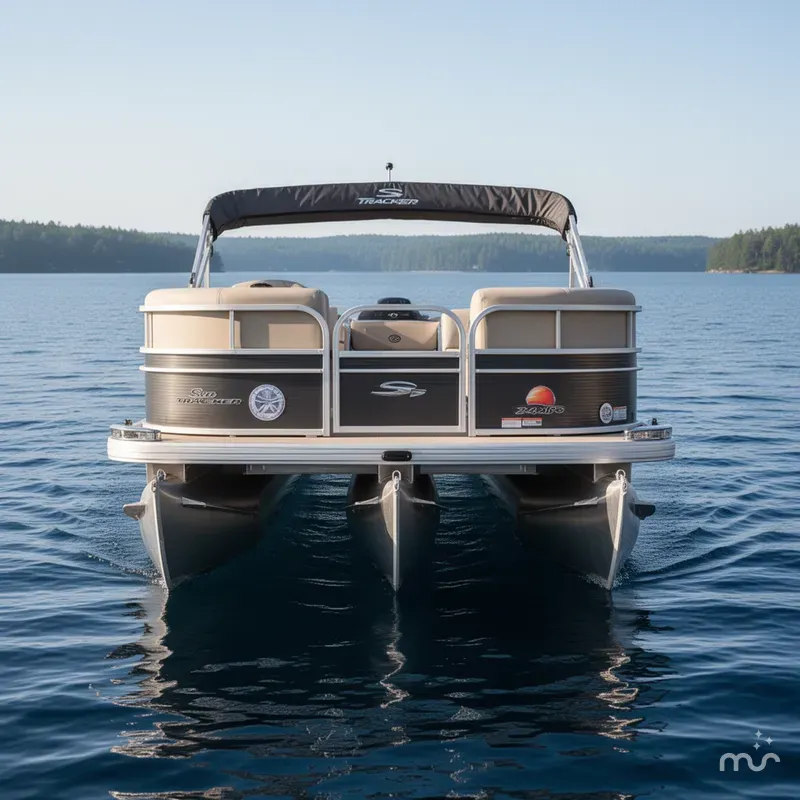

2016 Sun Tracker Party Barge 24 XP3 Sold Boat in Springfield, IL 62711 US
Built in 2016
Party Barge 24 XP3
1 Engine (Mercury)
26.2 feet
--
Aluminum
Boats For Sale in Illinois, United States Similar to the 2016 Sun Tracker Party Barge 24 XP3
Compare with similar boats and find the perfect one for you.
 2016 Sun Tracker Party Barge 24 XP3 | ||||||
|---|---|---|---|---|---|---|
| Price | $31,495 | $32,205 | $29,820 | $29,810 | $33,299 | $33,499 |
| Location | Springfield | Antioch | Springfield | East Peoria | East Peoria | Bolingbrook |
| Nominal Length | 26' | 19' | 20' | 18' | 20' | 20' |
| Engine Make | Mercury | MERCURY | Mercury | MERCURY MARINE | MERCURY MARINE | - |
| Total Engine Power | 150 hp | 40 hp | - | 50 hp | 60 hp | - |
| Days on Market | 210 | 371 | 384 | 15 | 94 | 54 |
| Get in touch |
Other Sun Tracker boats for sale in Illinois, United States
Through the PARTY BARGE® 24 XP3, SUN TRACKER® provides everything you need to experience the perfect outing with family and friends. From cruising to snoozing, swimming to picnicking, this 26' 2" boat is ready to take your crew of 12 on an unforgettable excursion.
For those who like their fun faster, the PARTY BARGE 24 XP3 comes with three performance logs and hydraulic steering. And when it's time to slow down, nothing beats using the QuickLift™ Bimini top deployment system and relaxing on the L-lounge or aft-facing lounge to your own personal music collection playing over the Bluetooth®-capable stereo system. That's the perfect family time.
- Industry-leading 10+ Life™ warranty
- 3 high-performance 26" (66.04 cm) pontoon logs w/lifting strakes
- NEW fencing design w/built-in Rail-Lock™ system for optional mooring cover
- 9' (2.74 m) Bimini top w/NEW QuickLift™ deployment system & storage pockets
- Aft rear-facing lounge w/pop-up changing room
- Port & starboard bow couches, port midship lounge & aft starboard lounge w/spacious, drained storage (including lockable dry compartment)
- Removable table w/molded-in drink holders & 2 pedestal base locations
- Deluxe helm station w/cooler storage, Bluetooth®-capable stereo, hydraulic steering & swiveling, adjustable chair w/folding arms
- Convenient courtesy lighting throughout
- Full-width aft swim platform w/non-skid surface & fold-down boarding ladder
- Length:26' 2"
- Deck length: 24' 1"
- Deck width: 102'
- Max. recommended HP: 200 HP
- Fuel capacity: 35 Gallons
- Pontoon log length: 24' 11"
- Pontoon log diameter: 26'
- Pontoon log material: 0.1 5052 Marine Alloy
- Max. person capacity: 12 Persons
- Max. person weight: 2000 Lbs.
- Max. weight capacity : 2800 Lbs.
- Depth inside: 26'
- Approx. weight: 3095 Lbs.
- Approx. package weight: 5314 Lbs.
- Package height: 8' 11"
- Package width: 8' 6"
- Towing length: 33' 6"
- Storage length: 33' 6"
Comfort, Convenience & Peace of Mind
- 10+Life™ Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty + transferable to a second owner
- NMMA Certified
- NEW exclusive QuickLift™ 9' (2.74 m) color-keyed Bimini top w/LED courtesy lights & protective boot
- Storage pockets in Bimini top
- NEW adjustable nylon pull-tight Bimini straps for best appearance & reduced vibration
- Dual-latching gates w/finger guards & brightly finished heavy-duty hinges that open inward
- Gate stops/holders to keep gates secure in open position
- Navigation lights w/LED bow lights
- 4 mooring cleats
- Motor-stop safety lanyard
- Fire extinguisher
- Horn
Console(s)
- Deluxe soft-touch sport steering wheel
- Hydraulic steering
- Wraparound sport shroud & tinted, removable windscreen
- Below-console cooler/storage space w/access door & integrated map pouch
- Convertible small items tray accepts optional flush-mount fishfinder
- Built-in foot rest w/non-skid pad
- AM/FM Bluetooth®-capable stereo w/MP3 & USB ports & 4 directional speakers
- Illuminated tachometer, trim & fuel gauges
- Lighted rocker switches
- Ergonomically positioned Mercury® binnacle control box w/trim
Construction & Exterior
- Three 26" (66.04 cm) diameter XP3 high-performance multichambered pontoon logs w/welded-in lifting strakes, wave deflectors & internal bracing for additional strength
- 1-piece full-length M-bracket deck supports
- NEW protective exoskeleton rail & panel system for durability & a quieter ride
- High-sheen fence finish for long-lasting good looks
- 1.25" (3.2 cm) anodized aluminum fence rails w/decorative styling
- Reinforced bow structure
- Factory-installed underpinning (under-deck shielding) for improved performance
- Extruded anodized aluminum deck edging w/polished aft corner covers
- All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
- Stainless or coated corrosion-resistant fasteners
- 7-ply pressure-treated 3/4" (1.9 cm) deck w/Limited Lifetime Warranty
- Rotomolded furniture backs & bases for resistance to the elements
- Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
- Elevated fence panels for deck drainage & ventilation
- Sound- & vibration-deadening fence insulation for a quiet ride
- Box-beam all-aluminum transom for strength & longevity
- Charcoal Metallic or Pearl White Metallic fence color
Electrical
- Easy-access marine-grade automotive-style fuse panel
- Protective abrasion-resistant wire wrap
- Water-resistant connectors
- Interior courtesy lighting
Interior
- Wide 8.5-ft. (2.59 m) beam for expanded floor space
- Port bow lounge w/underseat storage
- Starboard bow couch w/console-mounted lounge back & underseat storage
- Aft L-lounge w/lockable underseat dry storage box & locking lounge arm
- Aft starboard lounge w/underseat storage
- Oversized, swiveling, adjustable helm seat w/folding arms & ventilated storage pouch on back
- Aft port rear-facing lounge w/pop-up changing room & storage below
- NEW rotomolded underseat storage w/integral drainage channels to help keep contents dry
- Full-width aft swim platform w/heavy-duty non-skid surface for durability
- 28-oz. sculptured marine-grade carpet for a more luxurious feel underfoot
- Pillowtop-style upholstery (marine-grade, UV-resistant, top-coated 26-oz. base vinyl & multiple densities of foam) for exceptional comfort & luxury
- Bow underseat trash receptacle
- Movable drink holders/armrests
- Removable table w/molded-in drink holders w/2 pedestal base locations
- Port wheelchair-access gate
- 4-step folding boarding ladder w/grab rails
Performance
- Performance enhancing extended motor pod
- Factory-matched aluminum propeller
Price History
| Date | Event | Price |
|---|---|---|
| 2/13/26 | Initial price | $31,495 |
2016 Sun Tracker Party Barge 24 XP3 Video Tours
Sun Tracker Party Barge 24 XP3: BoatTEST Review
Overview
The SunTracker Party Barge 24XP3 is a pontoon boat clearly designed with family entertainment in mind. It comfortably accommodates up to 12 guests and offers a variety of seating and lounging options, making it an ideal platform for social gatherings on the water. This review provides a comprehensive walkthrough of its features, performance evaluation, and overall suitability as a recreational vessel.
Exterior Design and Deck Layout
The boat’s exterior is thoughtfully arranged to maximize guest comfort and social interaction. At the stern, a couch to starboard seats three to four people, with storage conveniently located underneath. Opposite this is a double-wide, aft-facing chase lounge that also serves as a sunning area. The cockpit transitions from a vinyl wet area to a carpeted dry area, though some padding beneath the carpet would enhance comfort. Forward of the cockpit, an L-shaped sofa upholstered in UV-resistant marine-grade vinyl features multi-density foam padding and includes an aluminum lock box for securing valuables. Two table mounts are provided—one centrally located in the cockpit and another in the bow—to facilitate dining and socializing. The bow seating includes port and starboard couches with rotocast molded seats that resist rot and wood degradation. Additional features include portable drink holders attached by Velcro, under-seat cargo nets, and ample storage space. A 9-foot color-matched BEMEDE top provides shade to keep the cockpit cool during sunny days.
Helm and Controls
The helm station is designed with a minimalist yet elegant approach. A modest smoked windscreen sits above two gauges and a faux-wood panel, flanked by switches on both sides. The steering wheel is mounted on a tilt base, and engine controls are positioned vertically for ease of use. The helm features a Jensen stereo system with MP3 jack and Bluetooth streaming capabilities, complemented by four directional speakers placed fore and aft. The bucket helm seat slides, swivels, and includes flip-up armrests, with multi-density foam and soft upholstery ensuring operator comfort. Under the helm console, space is allocated for a cooler and a fire extinguisher, enhancing convenience and safety. Navigation lights are mounted on the deck, although relocating them higher on the fences could reduce tripping hazards.
Power and Performance
This test boat was equipped with an optional 200-horsepower Mercury Verado outboard engine, though the standard offering is 150 horsepower. The fuel fill is conveniently located just ahead of the engine, with small platforms on either side to facilitate daily maintenance checks. The boat measures 26 feet 2 inches in length overall with a beam of 8 feet 6 inches and an empty weight of 3,095 pounds. With test conditions including one quart of fuel, two people, and the 200-horsepower engine, the estimated test weight was 4,067 pounds. Performance testing revealed a top speed of 40.5 miles per hour at 6,200 RPM, consuming 19.75 gallons per hour and providing a range of approximately 65 miles. The most efficient cruise speed was 15.4 miles per hour at 3,000 RPM, burning 3.2 gallons per hour and extending the range to 152 miles with nearly 10 hours of endurance. Acceleration was brisk, with a time to plane of 3.4 seconds, 20 miles per hour reached in 4.4 seconds, and 30 miles per hour in 7.6 seconds. The triple-tube XP3 performance package allows the boat to plane from a fairly level attitude; applying trim raises the bow for optimal cruising, reduces spray, and improves handling. The boat remains relatively flat in gentle turns, leaning slightly outward in harder turns, and responds well to helm inputs, making it suitable for towing activities.
Additional Features and Amenities
The SunTracker Party Barge 24XP3 includes practical features to enhance the onboard experience. The aft section of the lounge lifts to reveal a properly secured battery compartment, and corner braces and cleats are robustly fastened for durability. A full-width swim platform with a four-step reboarding ladder on the starboard side facilitates easy water access. For privacy and convenience, a changing room is integrated into the design, deployable by pulling a handle and locking it securely in place. Inside, the space is sufficient to turn around comfortably, and a pop bench seat is included for safety.
Conclusion
The SunTracker Party Barge 24XP3 lives up to its name as an outstanding entertainment platform for families and groups. Its well-thought-out seating arrangements, durable construction, and solid performance make it a versatile and enjoyable pontoon boat. The optional 200-horsepower engine provides strong acceleration and cruising capabilities, while the onboard amenities support comfort and convenience. Overall, this model offers a balanced combination of social space, performance, and practical features suitable for a variety of recreational boating activities.
Overview from around the web 2016 Sun Tracker Party Barge 24 XP3
Customers praise the 2016 Sun Tracker Party Barge 24 XP3 for its spacious and comfortable design, making it ideal for entertaining family and friends on the water
Many highlight its smooth handling and reliable performance, noting that the triple pontoons provide excellent stability. Users also appreciate the quality of the materials and the thoughtful layout, which includes ample seating and convenient storage options. Overall, owners find it to be a well-built, fun, and versatile pontoon boat that delivers great value for recreational boating.
The Biggest Pros and Cons
The 2016 Sun Tracker Party Barge 24 XP3 is a popular pontoon boat known for its spacious design and family-friendly features. Here are some pros and cons to consider:
Pros
Spacious Layout: The 24-foot length provides ample seating and room for entertaining, making it ideal for parties and family outings.
Durable Construction: Built with high-quality materials, including aluminum pontoons, ensuring longevity and reliability.
Powerful Performance: Equipped with a reliable outboard motor option that delivers smooth and efficient cruising.
Comfort Features: Includes plush seating, a bimini top for shade, and convenient storage compartments.
Versatility: Suitable for various water activities such as cruising, fishing, and relaxing on the water.
Cons
Fuel Efficiency: Larger size and powerful engine may result in higher fuel consumption compared to smaller pontoons.
Maneuverability: Due to its size, it may be less agile in tight spots or narrow waterways.
Basic Electronics: Some models might come with limited electronic features, which could require aftermarket upgrades for advanced navigation or entertainment.
Weight: The boat’s substantial weight requires a suitable towing vehicle and trailer for transport.
Made For
The 2016 Sun Tracker Party Barge 24 XP3 is perfect for boating enthusiasts who love entertaining family and friends on the water. Its spacious layout and comfortable seating make it ideal for hosting parties, relaxing cruises, and fun-filled days on lakes or calm rivers. Whether you're looking to enjoy leisurely afternoons with loved ones or celebrate special occasions afloat, this pontoon boat is designed to provide a versatile and enjoyable experience for groups of all sizes.
