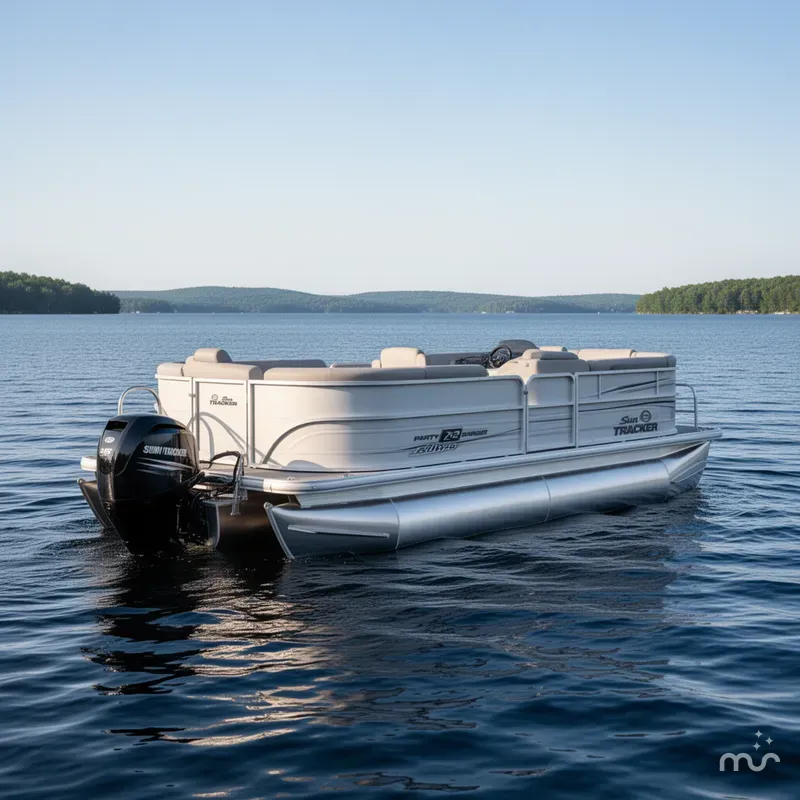

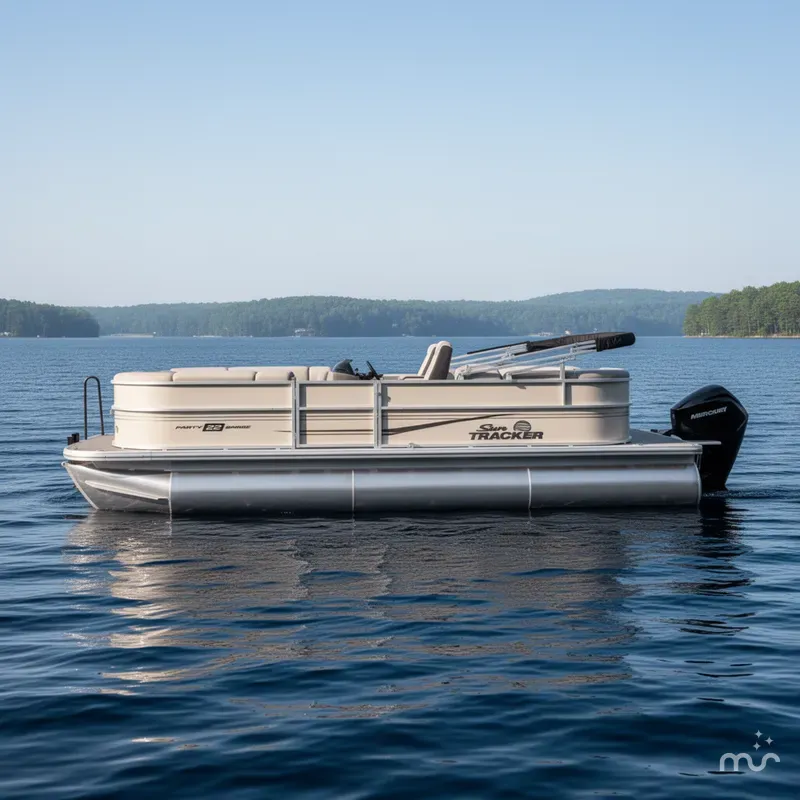

2026 Sun Tracker Party Barge 22 XP3 Sold Boat in Springfield, IL 62711 US
Built in 2026
Party Barge 22 XP3
1 Engine (MERCURY MARINE)
24.2 feet
--
Aluminum
Boats For Sale in Illinois, United States Similar to the 2026 Sun Tracker Party Barge 22 XP3
Compare with similar boats and find the perfect one for you.
 2026 Sun Tracker Party Barge 22 XP3 | ||||||
|---|---|---|---|---|---|---|
| Price | $62,515 | $62,765 | $63,562 | $61,302 | $63,971 | $64,500 |
| Location | Springfield | Antioch | Antioch | Antioch | Antioch | Pana |
| Nominal Length | 24' | 23' | 22' | 23' | 23' | - |
| Engine Make | MERCURY MARINE | MERCURY | MERCURY | MERCURY | MERCURY | - |
| Total Engine Power | 150 hp | 150 hp | 150 hp | 150 hp | 150 hp | - |
| Days on Market | 363 | 183 | 349 | 183 | 125 | 5 |
| Get in touch |
Other 2026 Sun Tracker Party Barge 22 XP3 For Sale in Illinois, United States
Other Sun Tracker Party Barge 22 XP3 boats for sale in Illinois, United States
Other Sun Tracker boats for sale in Illinois, United States
Just when you thought the PARTY BARGE® couldn't get better, the 2026 SUN TRACKER® PARTY BARGE 22 XP3 adds a third log with lifting strakes to create increased strength and performance. To top it off, it has the same fully equipped, party-ready deck as its two-logged sibling.
This year's 22 XP3 has an all-new interior has some exciting new features, including backrest cubbies that increase storage space and add extra cupholders that can keep larger bottles out of the way. The couches have bright accents that match the fence colors for an extra splash of style. The driver's console also got a big facelift with upgraded tech, making the PARTY BARGE the best-looking pontoon on the lake.
The 22 DLX's immense list of features mixed with the stability and performance of a third log makes the 22 XP3 a pontoon ready to take your summer to new heights.
Length:24' 2"
Deck Length: 22' 1"
Deck Width: 8' 6"
Max. Recommended HP: 200 HP
Fuel Capacity: 52 gal.
Pontoon Log Length: 22' 3"
Pontoon Log Diameter: 26"
Pontoon Log Material: 0.1 5052 marine alloy
Max. Person Capacity: 11 persons
Max. Person Weight: 1600 lbs.
Max. Person, Motor & Gear Weight: 2400 lbs.
Interior Depth: 27.25"
Average Dry Weight: 2980 lbs.
Average Package Weight: 4975 lbs.
Package Height: 8' 11"
Package Width: 8' 6"
Towing Length: 32' 4"
Storage Length: 32' 4"
Comfort, Convenience & Peace of Mind
10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty
NMMA® certified
10' (3.05 m) Black SUN TRACKER® QuickLift™ Bimini top w/LED courtesy lights, storage pockets & protective boot
NEW integrated LED docking lights
Integrated LED navigation & anchor lights
4 folding mooring cleats & starboard side tie-off mooring eye
Port wheelchair-accessible gate
Rear boarding platform w/NEW wider 4-step telescoping boarding ladder & grab rails
Aft receptacle base for optional ski tow pylon
Motor-stop safety lanyard
Fire extinguisher
Horn
Console
NEW console design & color
Driver console w/integrated storage, drink holders, built-in footrest & ergonomically-positioned controls
SUN TRACKER FLARE™ touchscreen gauge display w/NEW integrated GPS & NEW stereo control
NEW 12-button switch panel location
Tilt hydraulic steering w/deluxe soft-touch steering wheel
4 Wet Sounds® 6.5" (16.51 cm) upholstery speakers, strategically located & shielded within the seat bases
Master power on/off switch
Recessed mobile phone cubbies
USB charging receptacle
Interior
Patented built-in STOW MORE™ seat-back storage system for all couches
Bow port couch w/STOW MORE™, underseat storage & armrest w/drink holder
Bow starboard console couch w/STOW MORE™ & underseat storage
NEW integrated drink holders w/storage area
Midship port side drink holder
Removable table w/4 molded-in drink holders; NEW color-coordinated, soft-touch mat; & NEW tailored table location per dealer (dealer installed)
In-floor lighted storage compartment — 88" (2.24 m) long, 23" (58.42 cm) deep — w/bilge pump in center log
Reclining, high-back swiveling port & helm bucket seats w/self-leveling armrests
Aft port couch w/STOW MORE™ & underseat storage
Aft starboard couch w/STOW MORE™ & underseat, lockable storage
Interior courtesy lighting
Full-width aft swim deck
NEW woven 16-oz. (.45 kg) marine-grade flooring throughout
NEW marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
Performance
Three 26" (66.04 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs
XP3 performance strakes & wave-deflecting nose cone for maximum performance
Full-length, 1-piece longitudinal M-bracket deck supports
Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets
Heavy-duty aluminum U-channel reinforcement behind bow deck trim
Reinforced bow & stern structures
NEW all-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
All-aluminum box-beam transom for strength & longevity
Factory-installed underpinning (under-deck shielding) for improved performance
Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails
Sound- & vibration-deadening fence insulation for a quiet ride
Extruded & anodized aluminum deck edging w/polished aft corner covers
Precision fit & finish via plasma & laser-cut parts & robotically-welded construction
Rotomolded storage, furniture & console for superior strength & longevity
Nylon gate latches & heavy-duty hinges that open inward
Stainless or coated corrosion-resistant fasteners
Factory-matched aluminum propeller
Exterior
Color: NEW Heritage Red, NEW Pearl White, NEW Sky Blue or NEW Starlite Black fencing
NEW graphics
Patent-pending TRACK FORMED® fence design w/high-sheen finish for long-lasting cosmetics
NEW redesigned fencing, gates & color
NEW full-height, elevated fence panels for deck drainage & ventilation
Electrical
500 GPH (1,893 LPH) Ultima automatic bilge pump
Battery disconnect switch
Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
Protective abrasion-resistant wire wrap
Water-resistant connectors
Price History
| Date | Event | Price |
|---|---|---|
| 9/13/25 | Initial price | $62,515 |
2026 Sun Tracker Party Barge 22 XP3 Video Tours
Sun Tracker Party Barge 22 XP3: BoatTEST Review
Overview
The SunTracker Party Barge 22XP3 is a pontoon boat designed primarily for social enjoyment and recreational activities on the water. It offers spacious accommodations and thoughtful features aimed at maximizing comfort and convenience for up to 10 passengers. This model emphasizes accessibility, entertainment, and ease of handling, making it a versatile platform for gatherings and leisurely cruising.
Exterior Design and Deck Layout
The Party Barge 22XP3 features three access points to facilitate boarding: an 18-inch wide entry at the aft, a 24-inch bow entry, and a notably wide 32-inch port side entry suitable for wheelchair access. The railings stand at a standard height of 26 inches, ensuring safety without obstructing views. The aft door is uniquely angled to extend deck space near the reboarding ladder. The engine is mounted on a separate pod that also houses the fuel tank, with two side steps providing a secure area for engine maintenance and daily checks. A padded aft sun deck offers a comfortable spot to relax while remaining engaged with activities on the swim platform and in the water. Beneath this sun pad is a pop-up changing room, spacious enough for changing out of wet swimwear, which opens easily and secures with a latch. Additionally, lifting this section reveals a well-secured battery and extra storage space.
Seating and Entertainment Areas
Forward of the helm, the boat provides two primary gathering areas. To port, an L-shaped lounger includes rotocast molded storage compartments beneath each seat and a lockable aluminum-covered storage box with internal compartments. The helm console offers open storage space beneath, suitable for a cooler, though securing rails would be beneficial to prevent movement underway. Entertainment is supported by a Jensen AM-FM stereo system featuring MP3 connectivity, Bluetooth, and four directional speakers, allowing guests to enjoy music both onboard and while swimming off the stern. The helm itself is a single fiberglass module finished in an off-color to reduce glare, with a faux burl wood gauge panel housing three chrome-bezeled gauges. The hydraulic steering wheel is tilt-adjustable, and the engine control is mounted vertically. The captain's seat includes flip-up armrests and a pedestal base that allows swiveling to join conversations in the adjacent L-shaped seating. Further forward, two large couches face each other port and starboard, upholstered in UV-resistant vinyl with soft, multi-density foam cushions. A standard pedestal table can be positioned between these couches, creating an intimate social space. Storage compartments are located beneath all seating. The deck is covered with sculptured marine-grade carpet, with an optional vinyl cockpit flooring available. A color-matched 9-foot polyester BEMEDE top with LED courtesy lighting provides full sun protection.
Power and Performance
The Party Barge 22XP3 measures 22 feet 2 inches in length overall with a beam of 8 feet 6 inches. It has an empty weight of 2,840 pounds. During testing, with 20 gallons of fuel, two people aboard, and test equipment, the total weight was approximately 3,835 pounds. Powered by a 150-horsepower Mercury four-stroke engine driving a 15x15 inertia propeller, the boat achieved a top speed of 38.7 miles per hour at 5,600 rpm. At this speed, fuel consumption was 14.2 gallons per hour, yielding a range of 86 miles. The most efficient cruise speed was found at 3,000 rpm, producing 17.3 miles per hour while burning 3.85 gallons per hour. This allowed for an extended range of 141 miles with a 10% fuel reserve, equating to over eight hours of cruising. The boat planes quickly, reaching planing speed in 2.6 seconds, 20 mph in 4.7 seconds, and exceeding 30 mph in 8.6 seconds. Optimal fuel economy and ride comfort are achieved by trimming the bow up to a higher cruising attitude, which also contributes to a dry ride over waves. Handling characteristics include a stable, flat attitude during slow turns and a slight lean into performance turns. The helm response is precise, with a small turning radius consistent across speeds, and power adjustments near docks do not cause stern swing. When power is reduced, the boat settles back into a level position.
Conclusion
The SunTracker Party Barge 22XP3 successfully combines accessibility, comfort, and performance in a pontoon boat designed for social boating. Its multiple access points, spacious seating arrangements, and convenient features such as the pop-up changing room and ample storage enhance onboard enjoyment. The powertrain delivers strong acceleration, efficient cruising, and responsive handling, while the design maximizes usable space for up to ten passengers. Overall, this model presents a well-executed platform for entertaining and leisurely outings on the water.
Overview from around the web 2026 Sun Tracker Party Barge 22 XP3
Customers are raving about the 2026 Sun Tracker Party Barge 22 XP3, highlighting its spacious design and versatility for all-day fun on the water
The powerful performance of the Tri-Toon design is praised, allowing for smooth rides even in choppy waters, making it perfect for family outings or parties with friends. Many appreciate the ample seating and comfortable lounge areas, which create a welcoming environment for socializing or relaxing under the sun. The modern amenities, including the well-equipped helm and innovative storage solutions, contribute to overall convenience and enjoyment. Users often commend the boat's stylish aesthetics, with its sleek lines and vibrant color options adding to its appeal. Additionally, the easy-to-use features and reliability have made it a favorite among first-time boat owners and seasoned enthusiasts alike. Overall, customers express satisfaction with their investment, noting that the 2026 Sun Tracker Party Barge 22 XP3 truly delivers on fun, functionality, and family-friendly enjoyment.
The Biggest Pros and Cons
2026 Sun Tracker Party Barge 22 XP3 Overview The 2026 Sun Tracker Party Barge 22 XP3 offers an unparalleled boating experience, designed specifically for those who love to entertain on the water. With its spacious layout, practical features, and reliable performance, this pontoon boat is perfect for family outings, gatherings with friends, or a relaxing day on the lake.
Pros
Spacious Design: The Party Barge 22 XP3 boasts generous seating capacity, accommodating up to 13 passengers. This makes it ideal for larger groups looking to enjoy quality time together.
Comfort Features: Equipped with plush seating, lounge areas, and ample storage, the boat ensures that everyone enjoys a comfortable experience, whether lounging, picnicking, or simply enjoying the view.
Smooth Performance: Featuring a powerful engine option, this boat delivers excellent speed and maneuverability, allowing for smooth cruising and effortless handling on the water.
Entertainment Ready: The built-in Bluetooth sound system and ample space for onboard games and activities create a vibrant atmosphere for entertaining guests.
Durability: Constructed with high-quality materials and featuring a reliable hull design, the 2026 Party Barge 22 XP3 is built to withstand the rigors of regular use while providing long-lasting enjoyment.
Safety Features: The boat includes various safety features such as grab handles, non-slip surfaces, and ample railings, ensuring a safe and secure experience for all passengers.
Cons
Weight: With its larger size and additional features, the Party Barge 22 XP3 can be heavier than smaller models, which may affect towing requirements and maneuverability when launching or retrieving.
Fuel Consumption: While the powerful engine offers great performance, it may also lead to increased fuel consumption compared to smaller, less powerful pontoon boats.
Storage Space: Although there is ample seating, the boat's design may limit the amount of dedicated storage space for larger equipment or supplies needed for extended outings.
Initial Cost: The price point may be higher than basic models, which can be a consideration for those on a tight budget, but this often reflects the enhanced features and performance capabilities.
Maintenance: Like all boats, the Party Barge will require regular maintenance to keep it in top shape, which includes winterizing, cleaning, and checking mechanical components.
Made For
The 2026 Sun Tracker Party Barge 22 XP3 is designed for families and friends looking to create unforgettable memories on the water. Perfect for those who crave adventure and relaxation, this pontoon boat caters to enthusiastic boaters who enjoy entertaining, swimming, and leisurely cruising. With spacious seating arrangements and ample deck space, it's ideal for social gatherings, picnic outings, or simply lounging in the sun. Whether you’re planning a fun-filled day with the kids, a romantic sunset cruise, or a lively get-together with friends, the Party Barge 22 XP3 provides the perfect platform for all your aquatic adventures. This model is also well-suited for novice boaters and seasoned captains alike, offering ease of handling and maneuverability. If you’re looking to enhance your time on the water with comfort and style, the 2026 Sun Tracker Party Barge 22 XP3 is your ultimate companion.
