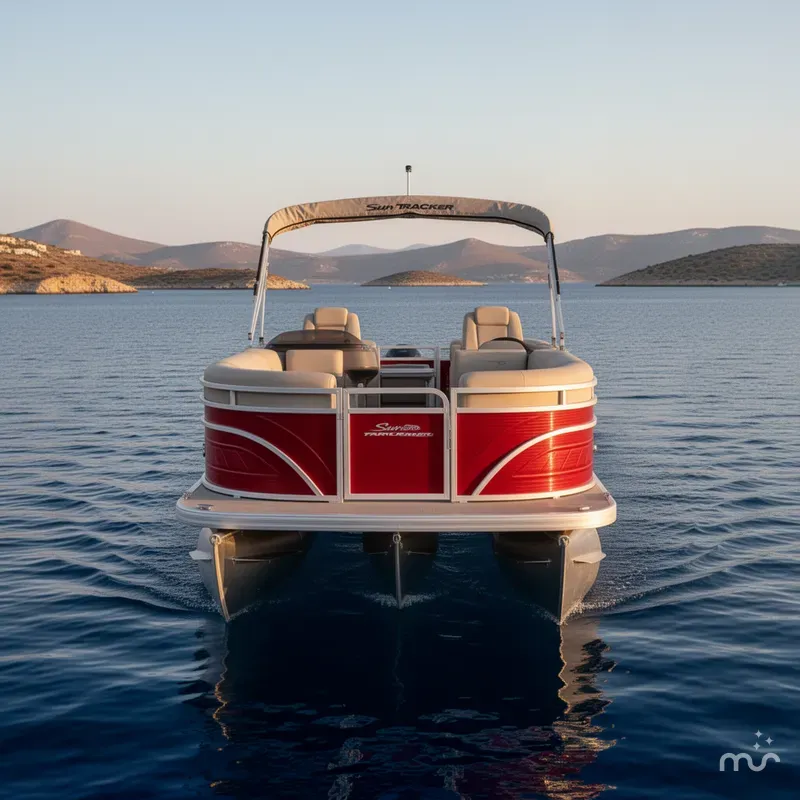

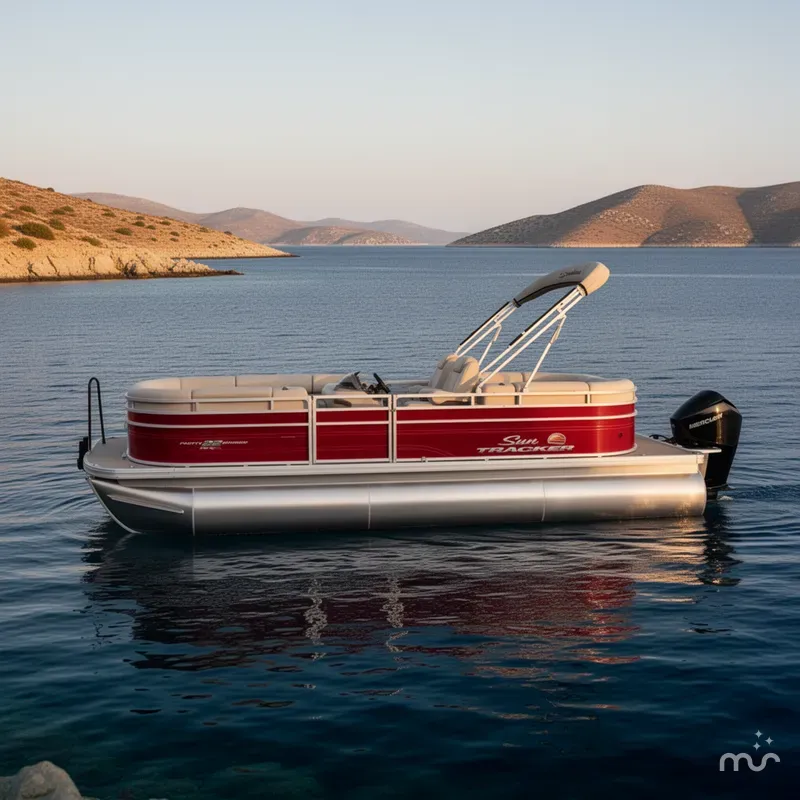

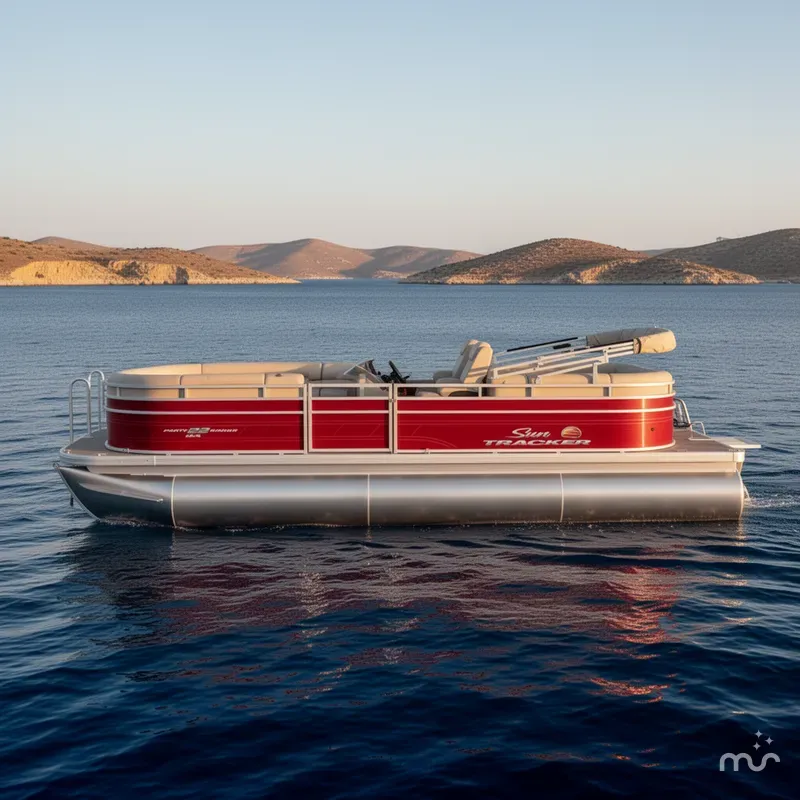

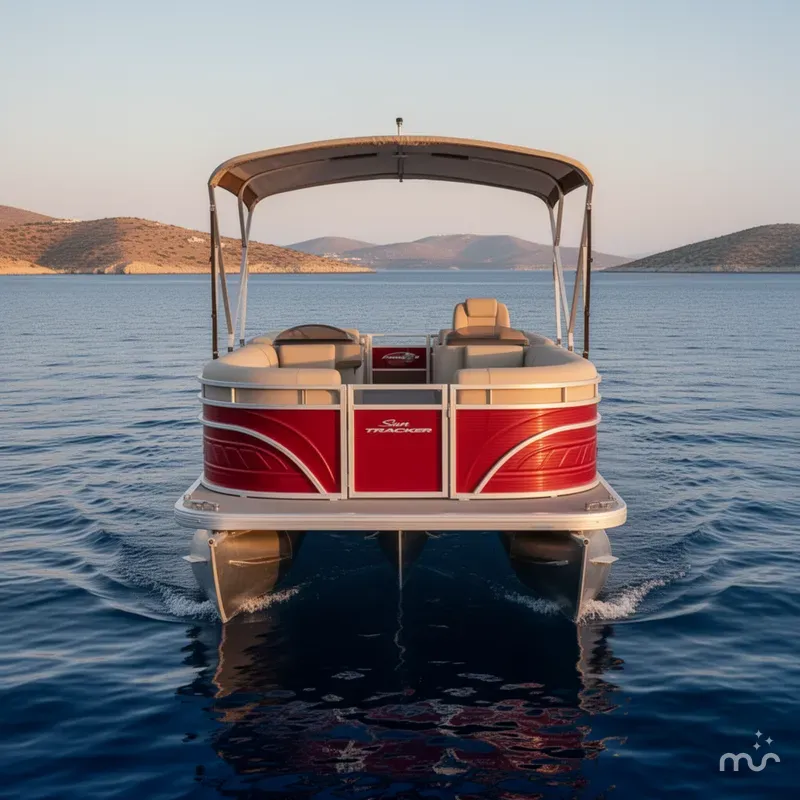

2025 Sun Tracker Party Barge 22 XP3 Boat in Raymond, ME 04071 US
Built in 2025
Party Barge 22 XP3
1 Engine (MERCURY MARINE)
24.2 feet
--
Aluminum
Why settle for 2 when you can get 3? The 2025 PARTY BARGE® 22 XP3 is the luxury tritoon boat that's going to turn your lake adventures up to 11!
Speaking of 11-that's how big a crew this spacious SUN TRACKER® holds! And there's room for everyone to relax in this pontoon boat thanks to 4 corner lounges and 2 captain's chairs. Stash and secure plenty of gear in the in-deck storage compartment and the STOW MORE™ system, which puts hidden storage spaces under the lounges' seats and behind the seat backs.
Access the PARTY BARGE® via the 3 inward-swinging gates, which includes a wheelchair-accessible port gate. The 10' QuickLift® bimini top extends out to provide plenty of shade on sunny days. The standard Wet Sounds® stereo is Bluetooth®-compatible and boasts 4 upholstery speakers. 2 in-floor anchor points allow you to customize your space with the included moveable table and optional ski-tow pylon.
This pontoon gets increased performance with the addition of a third pontoon log, as well as lifting strakes, underpinning, and hydraulic steering. The PARTY BARGE® 22 XP3 comes standard with a 150hp Mercury® L FourStroke outboard motor and has a recommended maximum 200hp rating.
-
Length:24' 2"
-
Deck Length: 22' 1"
-
Deck Width: 8' 6"
-
Max. Recommended HP: 200 HP
-
Fuel Capacity: 52 gal.
-
Pontoon Log Length: 22' 3"
-
Pontoon Log Diameter: 26"
-
Pontoon Log Material: 0.1 5052 marine alloy
-
Max. Person Capacity: 11 persons
-
Max. Person Weight: 1600 lbs.
-
Max. Person, Motor & Gear Weight: 2400 lbs.
-
Interior Depth: 29.5"
-
Average Dry Weight: 2980 lbs.
-
Average Package Weight: 4975 lbs.
-
Package Height: 8' 11"
-
Package Width: 8' 6"
-
Towing Length: 32' 4"
-
Storage Length: 32' 4"
Comfort, Convenience & Peace of Mind
-
10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty
-
NMMA® certified
-
10' (3.05 m) SUN TRACKER® QuickLift™ Bimini top w/LED courtesy lights, storage pockets & protective boot (color-coordinated Black w/Charcoal fencing or Sand w/Copper Red fencing)
-
Built-in LED docking lights
-
Built-in LED navigation & anchor lights
-
4 folding mooring cleats & starboard side tie-off mooring eye
-
Port wheelchair-accessible gate
-
Rear boarding platform w/4-step telescoping boarding ladder & grab rails
-
Aft receptacle base for optional ski tow pylon
-
Motor-stop safety lanyard
-
Fire extinguisher
-
Horn
Console
-
Driver console w/integrated storage, drink holders, built-in footrest & ergonomically-positioned controls
-
SUN TRACKER FLARE™ touchscreen gauge display & 12-button switch panel
-
Tilt hydraulic steering w/deluxe soft-touch steering wheel
-
Wet Sounds® stereo w/Bluetooth® & four 6.5" (16.51 cm) speakers, strategically located & shielded within the seat bases
-
Master power on/off switch
-
Recessed mobile phone cubbies
-
USB charging receptacle
Interior
-
Patented built-in STOW MORE™ seat-back storage system for all couches
-
Bow port couch w/STOW MORE™, underseat storage & armrest w/drink holder
-
Bow starboard console couch w/STOW MORE™ & underseat storage
-
2 movable drink holders/armrests for couch seating
-
Midship port side drink holder
-
Removable table w/soft-touch insert; 4 molded-in drink holders; & 2 pedestal base locations
-
In-floor lighted storage compartment — 88" (2.24 m) long, 23" (58.42 cm) deep — w/bilge pump in center log
-
Reclining, high-back swiveling port & helm bucket seats w/self-leveling armrests
-
Aft port couch w/STOW MORE™ & underseat storage
-
Aft starboard couch w/STOW MORE™ & underseat, lockable storage
-
Interior courtesy lighting
-
Full-width aft swim deck
-
Woven 16-oz. (.45 kg) marine-grade flooring throughout
-
Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
Construction & Performance
-
Three 26" (66.04 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs
-
XP3 performance strakes & wave-deflecting nose cone for maximum performance
-
Full-length, 1-piece longitudinal M-bracket deck supports
-
Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets
-
Heavy-duty aluminum U-channel reinforcement behind bow deck trim
-
Reinforced bow & stern structures
-
All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
-
All-aluminum box-beam transom for strength & longevity
-
Factory-installed underpinning (under-deck shielding) for improved performance
-
Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
-
1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails
-
Sound- & vibration-deadening fence insulation for a quiet ride
-
Extruded & anodized aluminum deck edging w/polished aft corner covers
-
Precision fit & finish via plasma & laser-cut parts & robotically-welded construction
-
Rotomolded storage, furniture & console for superior strength & longevity
-
Nylon gate latches & heavy-duty hinges that open inward
-
Stainless or coated corrosion-resistant fasteners
-
Factory-matched aluminum propeller
Exterior
-
Color: Charcoal or Copper Red fencing
-
TRACK FORMED™ fence design w/high-sheen finish for long-lasting cosmetics
-
Exterior styling w/XP3 graphics package
-
Elevated fence panels for deck drainage & ventilation
Electrical
-
500 GPH (1892.71 LPH) Ultima automatic bilge pump
-
Battery disconnect switch
-
Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
-
Protective abrasion-resistant wire wrap
-
Water-resistant connectors
Price History
| Date | Event | Price |
|---|---|---|
| 9/4/25 | Initial price | $64,365 |
2025 Sun Tracker Party Barge 22 XP3 Video Tours
Boattest.com Review
Overview
The SunTracker Party Barge 22XP3 is a pontoon boat designed primarily for social enjoyment and recreational activities on the water. It offers spacious accommodations and thoughtful features aimed at maximizing comfort and convenience for up to 10 passengers. This model emphasizes accessibility, entertainment, and ease of handling, making it a versatile platform for gatherings and leisurely cruising.
Exterior Design and Deck Layout
The Party Barge 22XP3 features three access points to facilitate boarding: an 18-inch wide entry at the aft, a 24-inch bow entry, and a notably wide 32-inch port side entry suitable for wheelchair access. The railings stand at a standard height of 26 inches, ensuring safety without obstructing views. The aft door is uniquely angled to extend deck space near the reboarding ladder. The engine is mounted on a separate pod that also houses the fuel tank, with two side steps providing a secure area for engine maintenance and daily checks. A padded aft sun deck offers a comfortable spot to relax while remaining engaged with activities on the swim platform and in the water. Beneath this sun pad is a pop-up changing room, spacious enough for changing out of wet swimwear, which opens easily and secures with a latch. Additionally, lifting this section reveals a well-secured battery and extra storage space.
Seating and Entertainment Areas
Forward of the helm, the boat provides two primary gathering areas. To port, an L-shaped lounger includes rotocast molded storage compartments beneath each seat and a lockable aluminum-covered storage box with internal compartments. The helm console offers open storage space beneath, suitable for a cooler, though securing rails would be beneficial to prevent movement underway. Entertainment is supported by a Jensen AM-FM stereo system featuring MP3 connectivity, Bluetooth, and four directional speakers, allowing guests to enjoy music both onboard and while swimming off the stern. The helm itself is a single fiberglass module finished in an off-color to reduce glare, with a faux burl wood gauge panel housing three chrome-bezeled gauges. The hydraulic steering wheel is tilt-adjustable, and the engine control is mounted vertically. The captain's seat includes flip-up armrests and a pedestal base that allows swiveling to join conversations in the adjacent L-shaped seating. Further forward, two large couches face each other port and starboard, upholstered in UV-resistant vinyl with soft, multi-density foam cushions. A standard pedestal table can be positioned between these couches, creating an intimate social space. Storage compartments are located beneath all seating. The deck is covered with sculptured marine-grade carpet, with an optional vinyl cockpit flooring available. A color-matched 9-foot polyester BEMEDE top with LED courtesy lighting provides full sun protection.
Power and Performance
The Party Barge 22XP3 measures 22 feet 2 inches in length overall with a beam of 8 feet 6 inches. It has an empty weight of 2,840 pounds. During testing, with 20 gallons of fuel, two people aboard, and test equipment, the total weight was approximately 3,835 pounds. Powered by a 150-horsepower Mercury four-stroke engine driving a 15x15 inertia propeller, the boat achieved a top speed of 38.7 miles per hour at 5,600 rpm. At this speed, fuel consumption was 14.2 gallons per hour, yielding a range of 86 miles. The most efficient cruise speed was found at 3,000 rpm, producing 17.3 miles per hour while burning 3.85 gallons per hour. This allowed for an extended range of 141 miles with a 10% fuel reserve, equating to over eight hours of cruising. The boat planes quickly, reaching planing speed in 2.6 seconds, 20 mph in 4.7 seconds, and exceeding 30 mph in 8.6 seconds. Optimal fuel economy and ride comfort are achieved by trimming the bow up to a higher cruising attitude, which also contributes to a dry ride over waves. Handling characteristics include a stable, flat attitude during slow turns and a slight lean into performance turns. The helm response is precise, with a small turning radius consistent across speeds, and power adjustments near docks do not cause stern swing. When power is reduced, the boat settles back into a level position.
Conclusion
The SunTracker Party Barge 22XP3 successfully combines accessibility, comfort, and performance in a pontoon boat designed for social boating. Its multiple access points, spacious seating arrangements, and convenient features such as the pop-up changing room and ample storage enhance onboard enjoyment. The powertrain delivers strong acceleration, efficient cruising, and responsive handling, while the design maximizes usable space for up to ten passengers. Overall, this model presents a well-executed platform for entertaining and leisurely outings on the water.
Overview from around the web 2025 Sun Tracker Party Barge 22 XP3
Customers are raving about the 2025 Sun Tracker Party Barge 22 XP3 for its spacious and comfortable design, making it perfect for entertaining family and friends on the water
Many highlight the smooth ride and reliable performance, praising the powerful engine that delivers both efficiency and fun. The modern features and quality craftsmanship stand out, with users appreciating the versatile seating arrangements and ample storage. Overall, owners love how this pontoon boat combines style, functionality, and durability, creating an exceptional boating experience for all ages.
The Biggest Pros and Cons
The 2025 Sun Tracker Party Barge 22 XP3 offers a range of features that make it a popular choice for boating enthusiasts. Here are some of the pros and cons to consider:
Pros
Spacious Design: The Party Barge 22 XP3 provides ample deck space, making it ideal for entertaining and family outings.
Comfortable Seating: Multiple seating areas with plush cushions enhance comfort for all passengers.
Powerful Performance: Equipped with a reliable outboard engine option that delivers smooth and efficient cruising.
Durability: Built with high-quality materials and a sturdy aluminum hull, ensuring longevity and resilience.
Versatility: Suitable for various activities including fishing, cruising, and watersports.
Modern Features: Includes updated amenities such as a Bluetooth stereo system, LED lighting, and a convenient bimini top for shade.
Cons
Price Point: The 2025 model may be priced higher than some competing pontoon boats with similar specs.
Limited Storage: While offering good seating, onboard storage space may be somewhat limited for longer trips.
Size Constraints: At 22 feet, it’s ideal for small to medium groups but may feel cramped with larger parties.
Fuel Efficiency: Depending on the engine choice, fuel consumption might be higher compared to smaller pontoons.
Made For
The 2025 Sun Tracker Party Barge 22 XP3 is perfect for families and friends who love spending time on the water in style and comfort. Designed for those who enjoy leisurely cruising, entertaining, and water activities, this pontoon boat offers spacious seating, modern amenities, and a smooth ride, making it ideal for social gatherings, fishing trips, or relaxing days on the lake. Whether you're hosting a party or enjoying a peaceful getaway, the Party Barge 22 XP3 caters to anyone looking for versatility and fun on the water.
