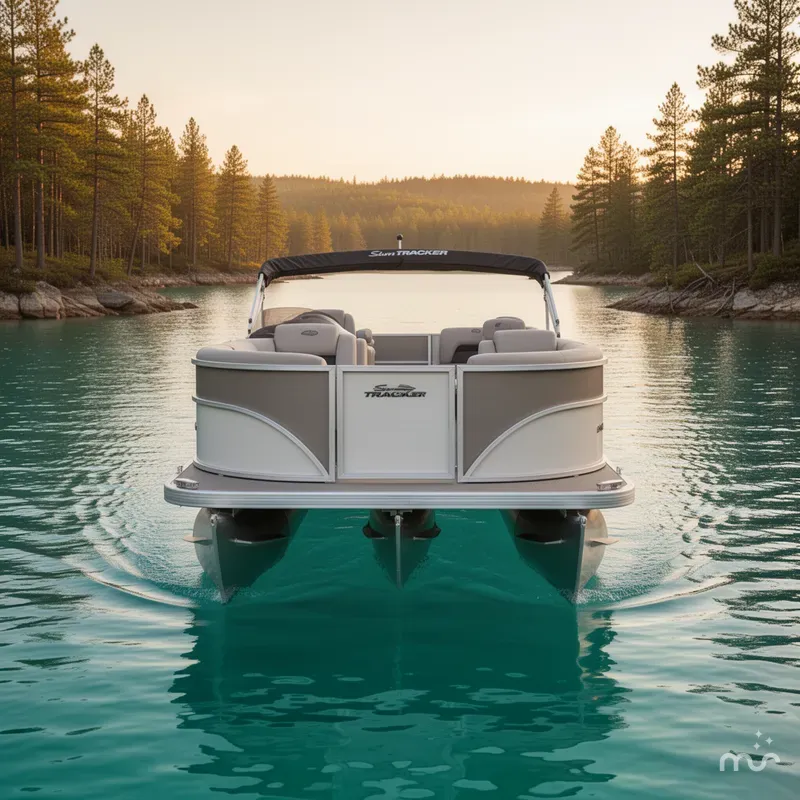

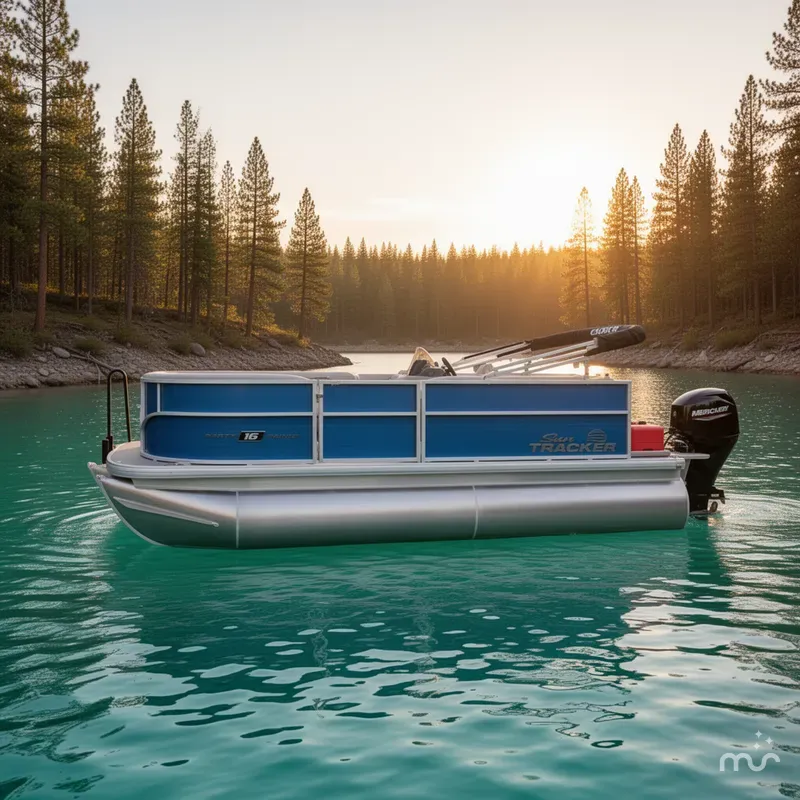

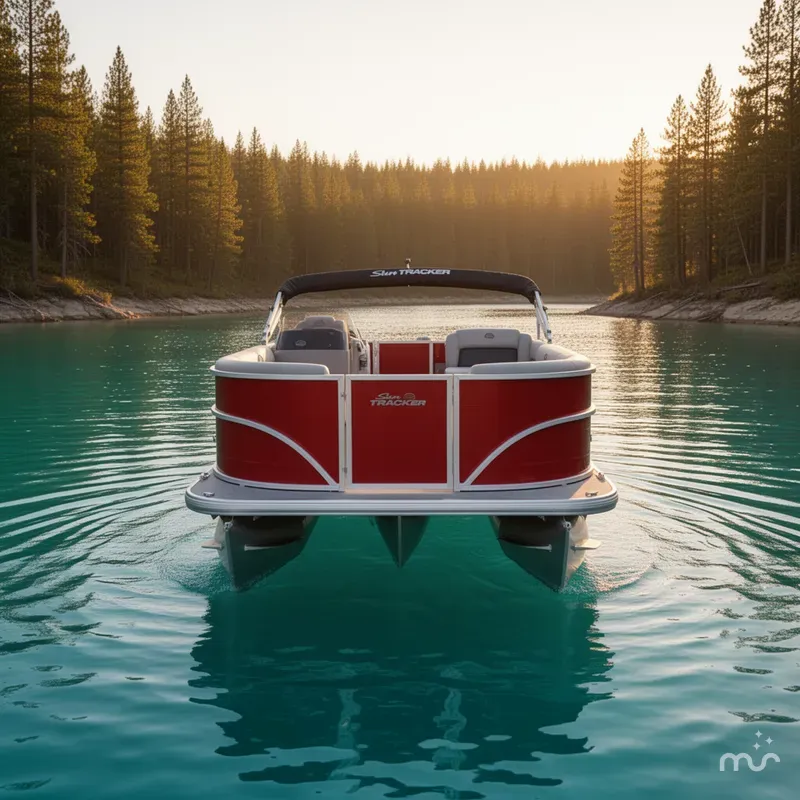

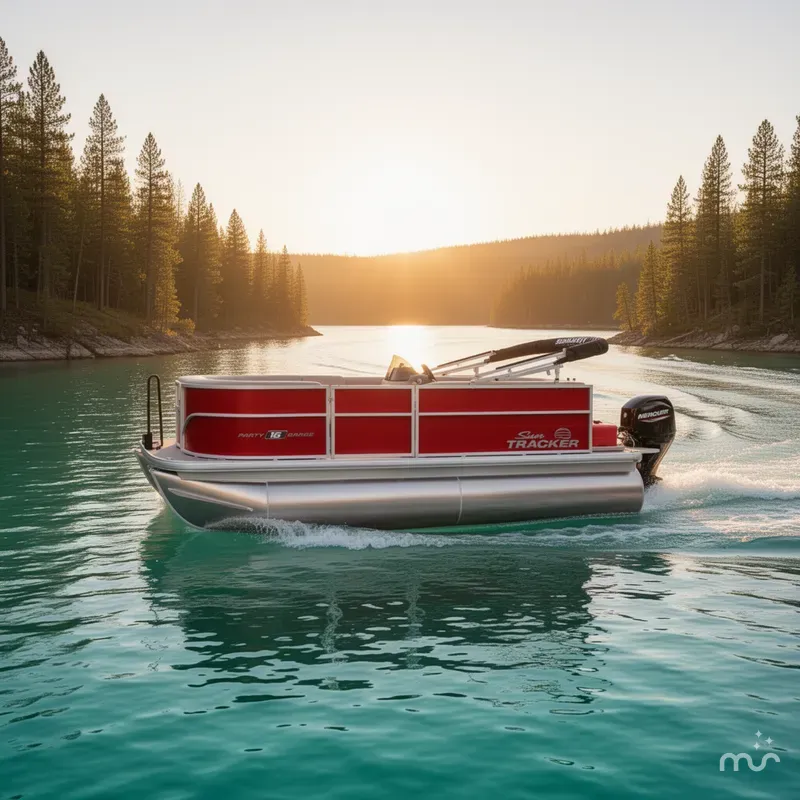

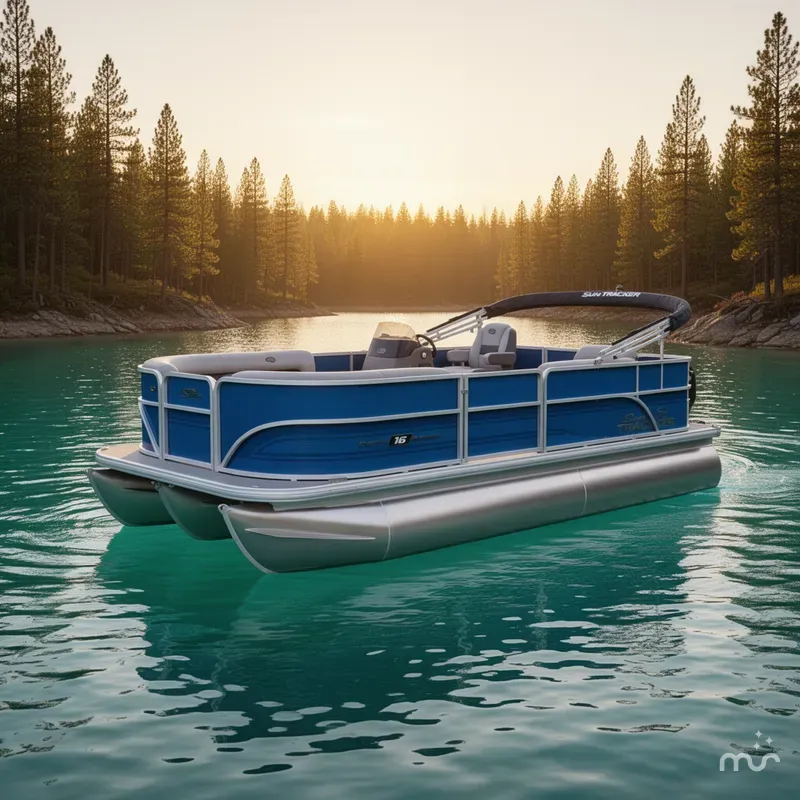

2026 Sun Tracker Party Barge 16 DLX

• Length:18' 5"

• Deck Length: 16' 0"

• Deck Width: 8' 0"

• Max. Recommended HP: 50 HP

• Fuel Capacity: 9 gal.

• Pontoon Log Length: 16' 7"

• Pontoon Log Diameter: 24"

• Pontoon Log Material: 0.08 5052 marine alloy

• Max. Person Capacity: 8 persons

• Max. Person Weight: 1150 lbs.

• Max. Person, Motor & Gear Weight: 1600 lbs.

• Interior Depth: 27.25"

• Average Dry Weight: 1310 lbs.

• Average Package Weight: 2430 lbs.

• Package Height: 8' 8"

• Package Width: 8' 3"

• Towing Length: 25' 1"

• Storage Length: 24' 10"

Comfort, Convenience & Peace of Mind

• 10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty

• NMMA® certified

• 7' (2.13 m) Black polyester Bimini top w/easy-adjusting straps, trailering-position arms & protective boot

• Easy-to-use, manual Bimini top deployment system

• NEW integrated LED docking lights

• Integrated LED navigation & anchor lights

• 4 stainless steel mooring cleats

• Port wheelchair-accessible gate

• Fore & rear boarding platforms w/NEW wider rear 4-step telescoping boarding ladder & grab rails

• Motor-stop safety lanyard

• Fire extinguisher

• Horn

Console

• Wraparound tinted windscreen

• NEW console design & color

• Driver console w/integrated storage, drink holders & side-mounted controls

• 4:2 ratio no-feedback steering w/sport steering wheel

• Wet Sounds® stereo w/Bluetooth® & two 6.5" (16.51 cm) upholstery speakers

• Illuminated tachometer & fuel gauge

• Rocker switches

• USB charging receptacle

• Below-console storage space w/curtain

Interior

• Bow port & starboard couches w/underseat storage

• Aft L-lounge couches w/underseat storage

• Adjustable & swiveling helm bucket seat

• Interior courtesy lighting

• NEW woven 16-oz. (.45 kg) marine-grade flooring throughout

• NEW marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam

Performance

• 24" (60.96 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs

• Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets

• Heavy-duty aluminum U-channel reinforcement behind bow deck trim

• Reinforced bow structure

• All-aluminum box-beam transom for strength & longevity

• Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty

• 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails

• Sound- & vibration-deadening fence insulation for a quiet ride

• Extruded & anodized aluminum deck edging w/polished aft corner covers

• Precision fit & finish via plasma & laser-cut parts & robotically-welded construction

• Rotomolded storage & furniture for superior strength & longevity

• Gate latches & heavy-duty hinges that open inward

• Stainless or coated corrosion-resistant fasteners

• Factory-matched aluminum propeller

Exterior

• Color: NEW Heritage Red, NEW Pearl White or NEW Sky Blue fencing

• NEW graphics

• NEW redesigned fencing w/high-sheen finish for long-lasting cosmetics

• NEW full-height, elevated fence panels for deck drainage & ventilation

Electrical

• Easy-access marine-grade automotive-style fuse panel w/latching fuse block door

• Protective abrasion-resistant wire wrap

• Water-resistant connectors

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice. All sales are final. No returns accepted.

-Custom Cover
