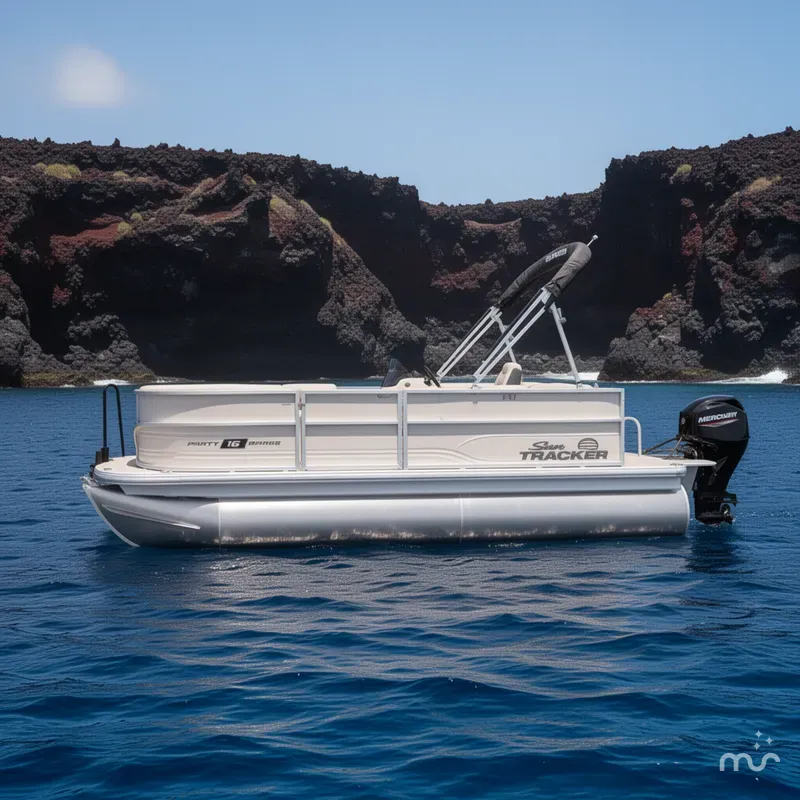

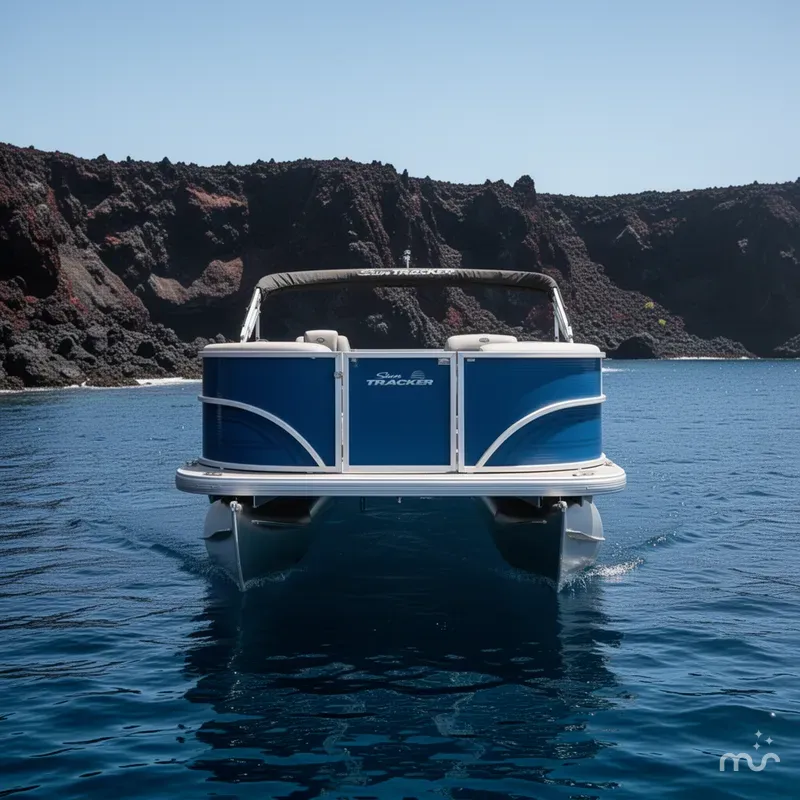

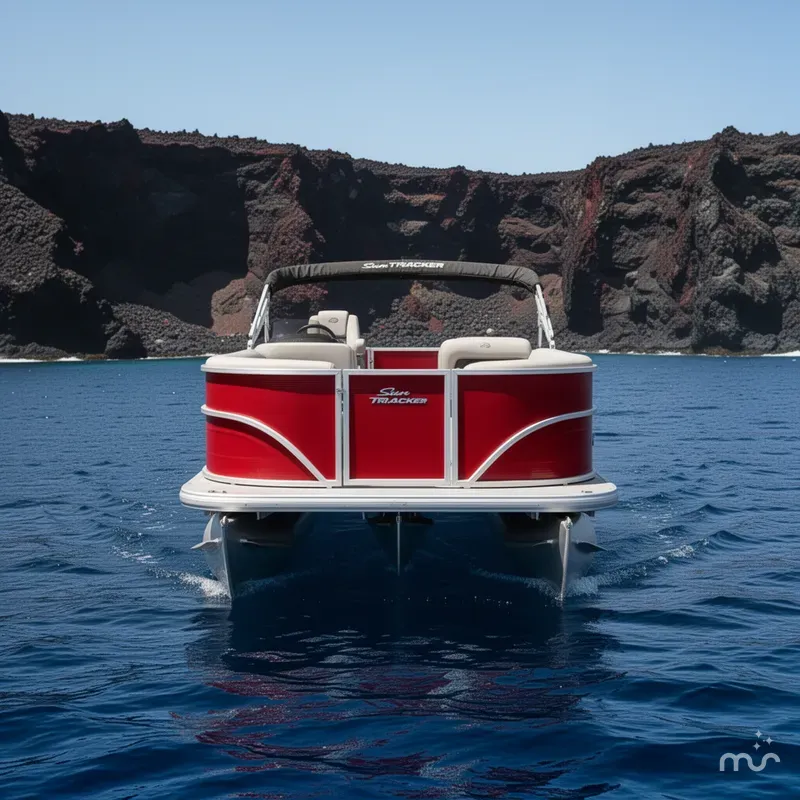

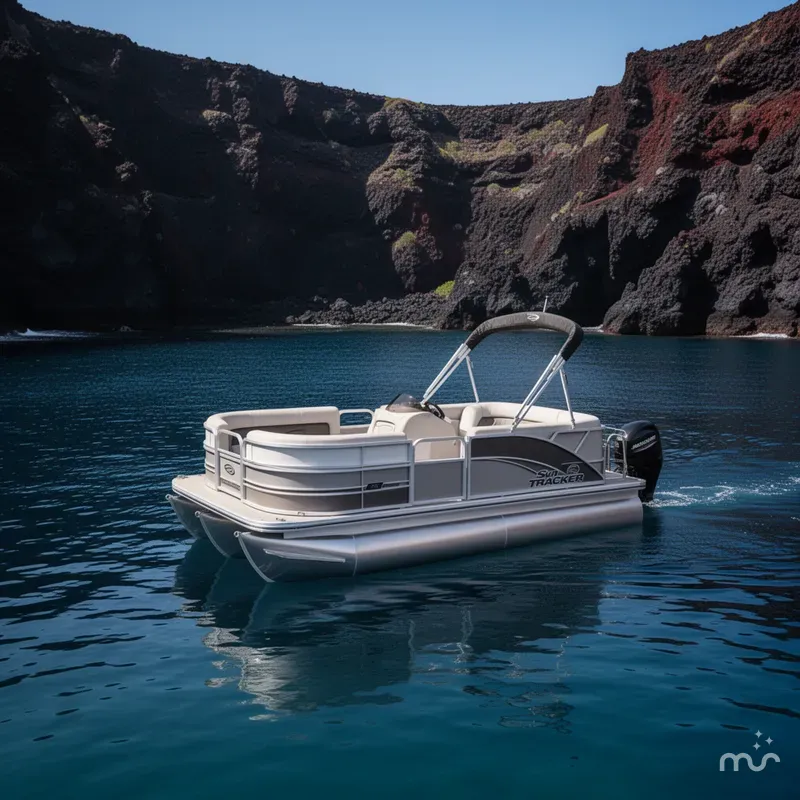

2026 Sun Tracker Party Barge 16 DLX

• Length:18' 5"

• Deck Length: 16' 0"

• Deck Width: 8' 0"

• Max. Recommended HP: 50 HP

• Fuel Capacity: 9 gal.

• Pontoon Log Length: 16' 7"

• Pontoon Log Diameter: 24"

• Pontoon Log Material: 0.08 5052 marine alloy

• Max. Person Capacity: 8 persons

• Max. Person Weight: 1150 lbs.

• Max. Person, Motor & Gear Weight: 1600 lbs.

• Interior Depth: 27.25"

• Average Dry Weight: 1310 lbs.

• Average Package Weight: 2430 lbs.

• Package Height: 8' 8"

• Package Width: 8' 3"

• Towing Length: 25' 1"

• Storage Length: 24' 10"

Comfort, Convenience & Peace of Mind

• 10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty

• NMMA® certified

• 7' (2.13 m) Black polyester Bimini top w/easy-adjusting straps, trailering-position arms & protective boot

• Easy-to-use, manual Bimini top deployment system

• NEW integrated LED docking lights

• Integrated LED navigation & anchor lights

• 4 stainless steel mooring cleats

• Port wheelchair-accessible gate

• Fore & rear boarding platforms w/NEW wider rear 4-step telescoping boarding ladder & grab rails

• Motor-stop safety lanyard

• Fire extinguisher

• Horn

Console

• Wraparound tinted windscreen

• NEW console design & color

• Driver console w/integrated storage, drink holders & side-mounted controls

• 4:2 ratio no-feedback steering w/sport steering wheel

• Wet Sounds® stereo w/Bluetooth® & two 6.5" (16.51 cm) upholstery speakers

• Illuminated tachometer & fuel gauge

• Rocker switches

• USB charging receptacle

• Below-console storage space w/curtain

Interior

• Bow port & starboard couches w/underseat storage

• Aft L-lounge couches w/underseat storage

• Adjustable & swiveling helm bucket seat

• Interior courtesy lighting

• NEW woven 16-oz. (.45 kg) marine-grade flooring throughout

• NEW marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam

Performance

• 24" (60.96 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs

• Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets

• Heavy-duty aluminum U-channel reinforcement behind bow deck trim

• Reinforced bow structure

• All-aluminum box-beam transom for strength & longevity

• Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty

• 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails

• Sound- & vibration-deadening fence insulation for a quiet ride

• Extruded & anodized aluminum deck edging w/polished aft corner covers

• Precision fit & finish via plasma & laser-cut parts & robotically-welded construction

• Rotomolded storage & furniture for superior strength & longevity

• Gate latches & heavy-duty hinges that open inward

• Stainless or coated corrosion-resistant fasteners

• Factory-matched aluminum propeller

Exterior

• Color: NEW Heritage Red, NEW Pearl White or NEW Sky Blue fencing

• NEW graphics

• NEW redesigned fencing w/high-sheen finish for long-lasting cosmetics

• NEW full-height, elevated fence panels for deck drainage & ventilation

Electrical

• Easy-access marine-grade automotive-style fuse panel w/latching fuse block door

• Protective abrasion-resistant wire wrap

• Water-resistant connectors
