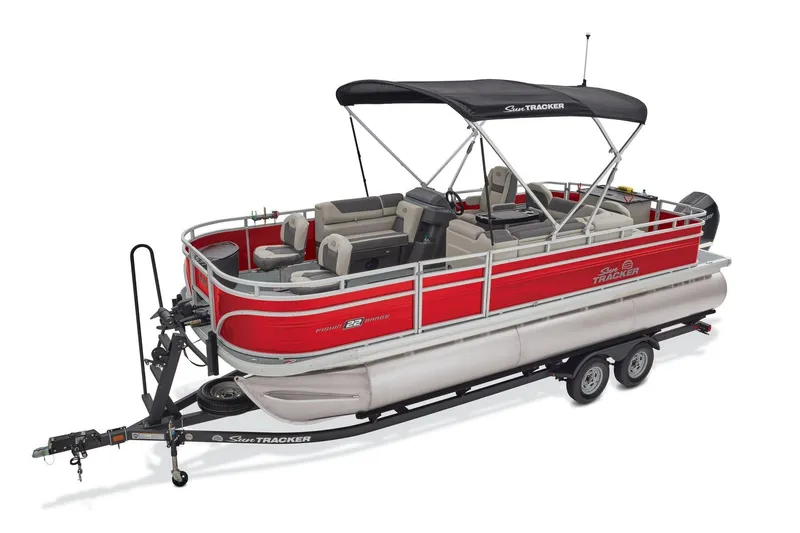

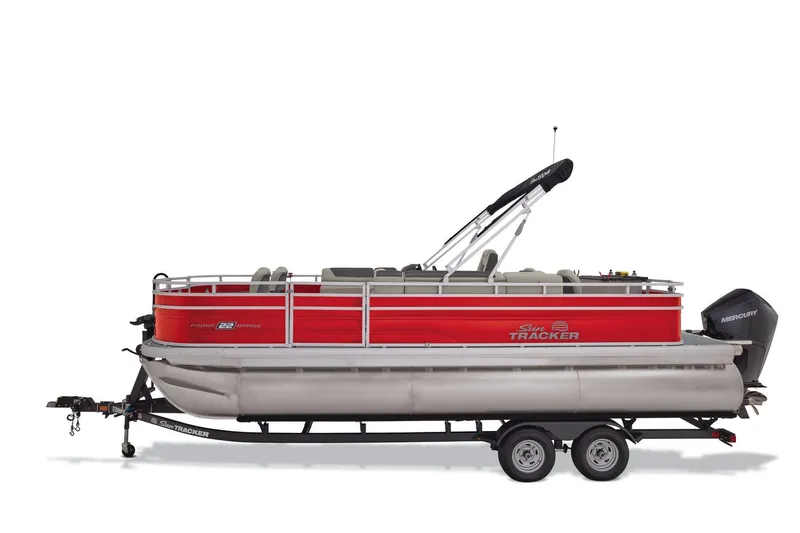

2027 Sun Tracker Fishin' Barge 22 XP3 Boat in Grapevine, TX 76051 US
Built in 2027
Fishin' Barge 22 XP3
1 Engine (MERCURY MARINE)
24.2 feet
--
Aluminum

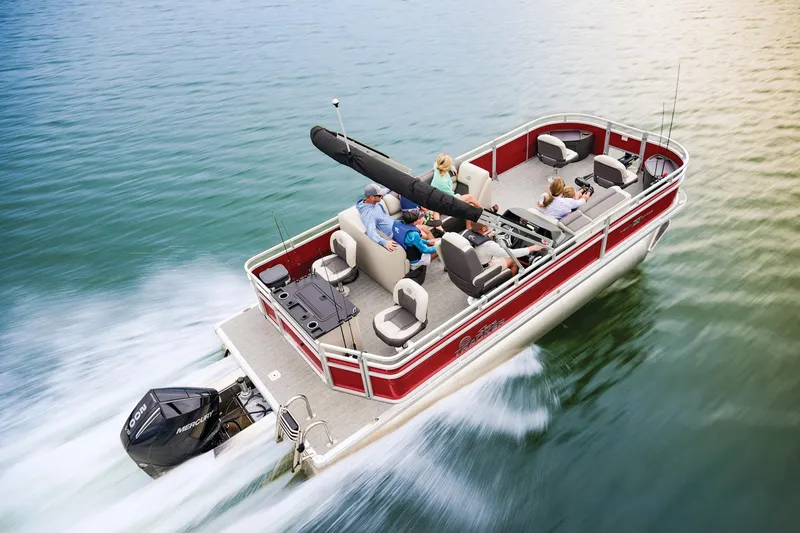

The 2027 SUN TRACKER® FISHIN' BARGE® 22 XP3's third pontoon, lifting strakes, and hydraulic steering let it operate like a fiberglass boat with the stability only a pontoon can offer. Captains can control it all with the SUN TRACKER FLARE™ touch-screen gauge display. Set up the 10' bimini top, grab your rod out of the lockable rod box, and post up in one of the two fishing decks-each of which sports a 16-gal. aerated livewell-and two swiveling fishing chairs next to rod and tool holders. The dual lounges or aft bench with hidden storage are ready for relaxation. The lounges' all-new open section in the backrest increases accessible storage and even has extra cupholders. 2027 also brings a wider, ergonomic boarding ladder.
The FISHIN' BARGE 22 XP3 is the most equipped fishing pontoon in the SUN TRACKER lineup. If you're looking for the best, you've found it.
Length:24' 2"
Deck Length: 22' 1"
Deck Width: 8' 6"
Max. Recommended HP: 200 HP
Fuel Capacity: 52 gal.
Pontoon Log Length: 22' 3"
Pontoon Log Diameter: 26"
Pontoon Log Material: 0.1 5052 marine alloy
Max. Person Capacity: 11 persons
Max. Person Weight: 1575 lbs.
Max. Person, Motor & Gear Weight: 2350 lbs.
Interior Depth: 27.25"
Average Dry Weight: 2880 lbs.
Average Package Weight: 4875 lbs.
Package Height: 9' 2"
Package Width: 8' 6"
Towing Length: 32' 4"
Storage Length: 32' 4"
Comfort, Convenience & Peace of Mind
10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty
NMMA® certified

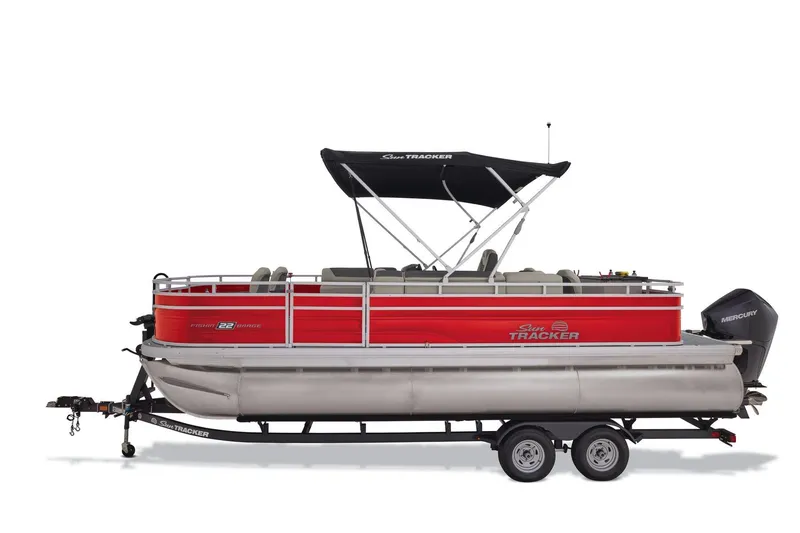

10' (3.05 m) Black SUN TRACKER® QuickLift™ Bimini top w/LED courtesy lights, storage pockets & protective boot

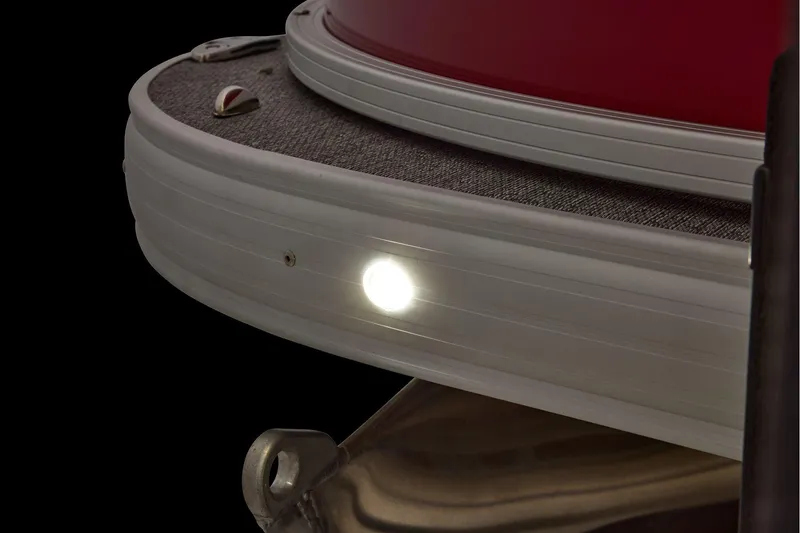

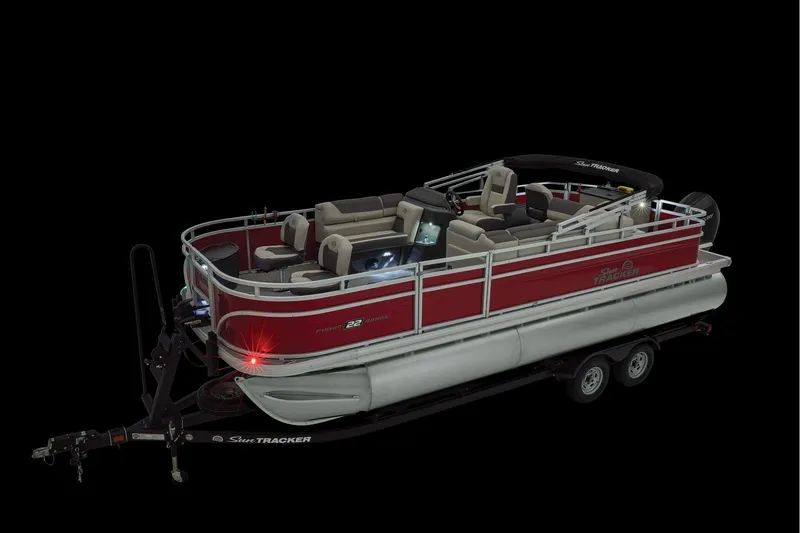

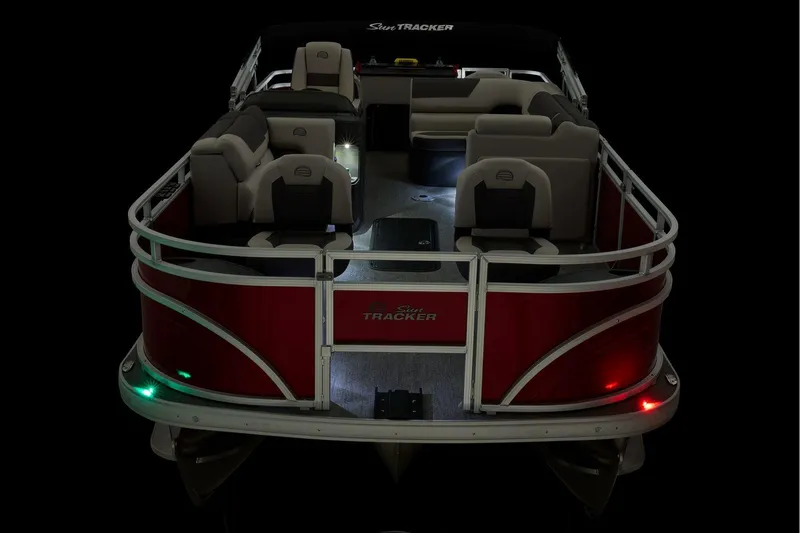

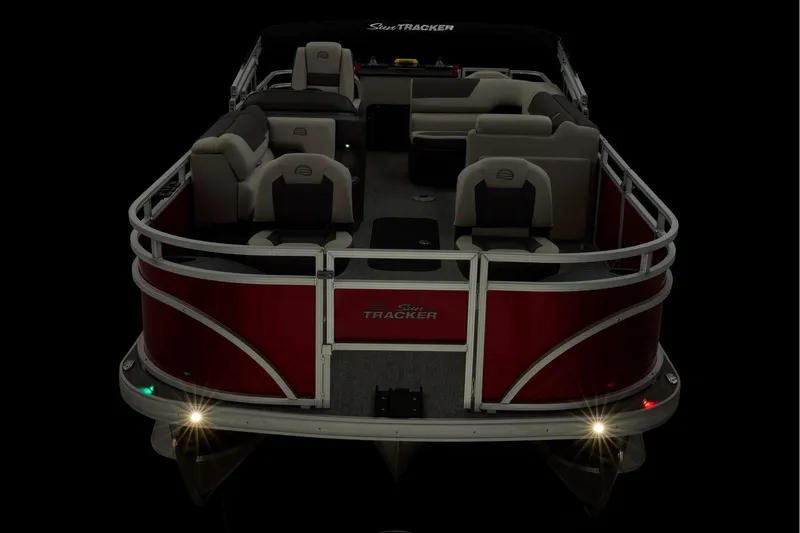

Integrated LED docking lights

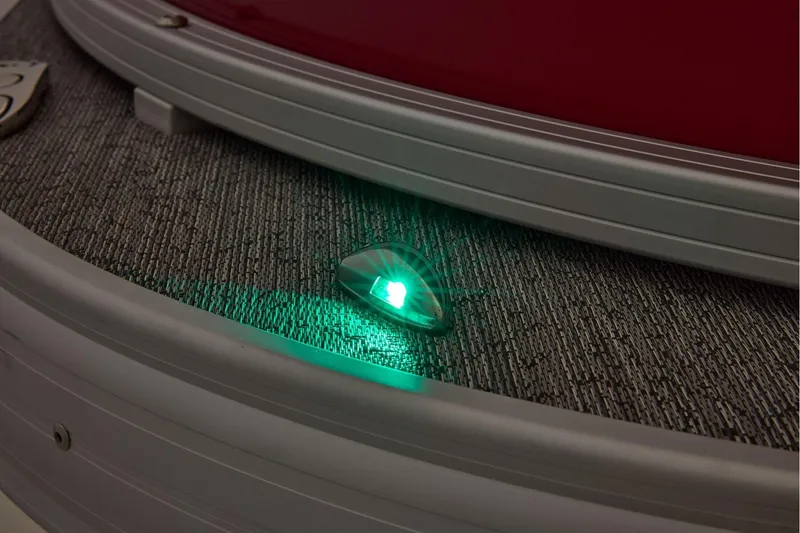

Integrated LED navigation & anchor lights
4 folding mooring cleats & starboard side tie-off mooring eye
Port wheelchair-accessible gate

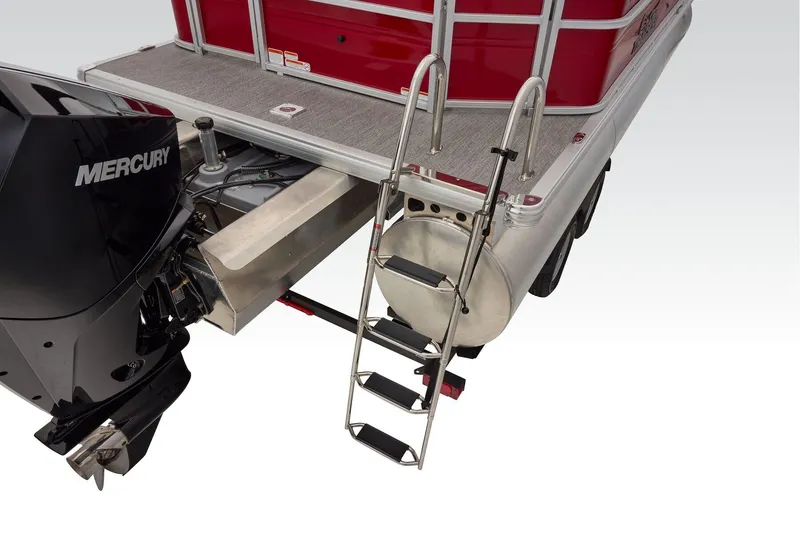

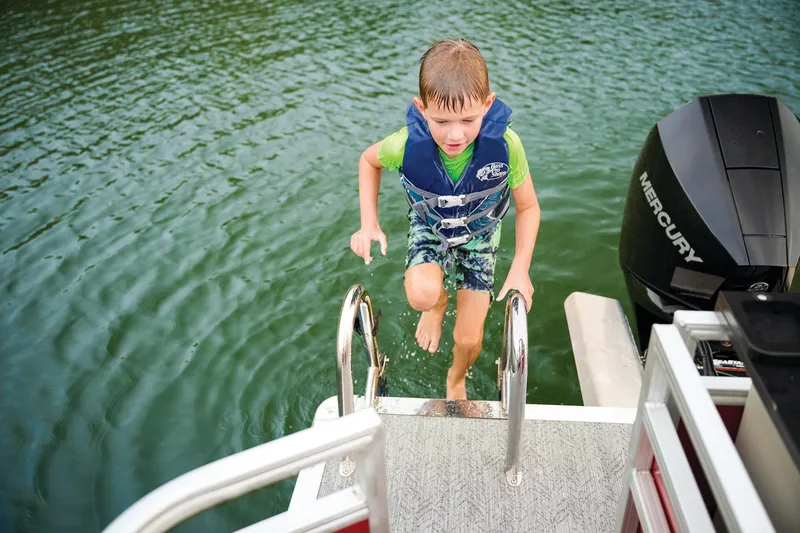

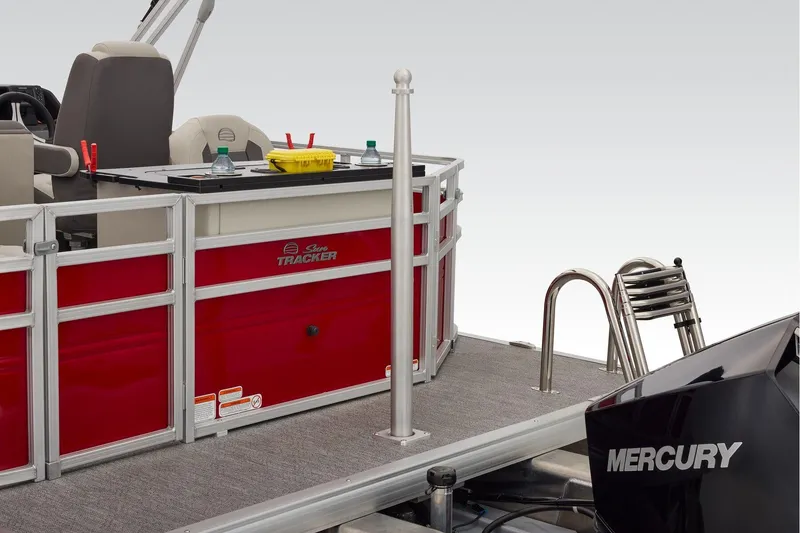

Rear boarding platform w/wide 4-step telescoping boarding ladder & grab rails
Aft receptacle base for optional ski tow pylon
Motor-stop safety lanyard
Fire extinguisher
Horn
Livewell System

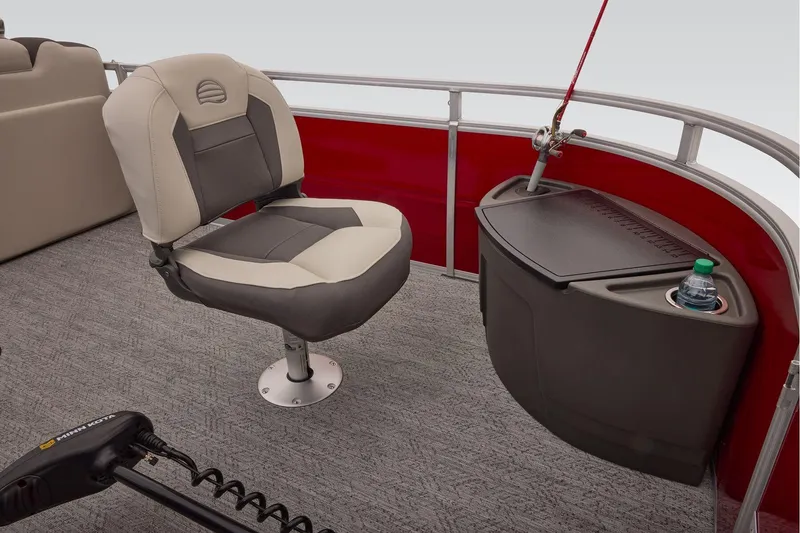

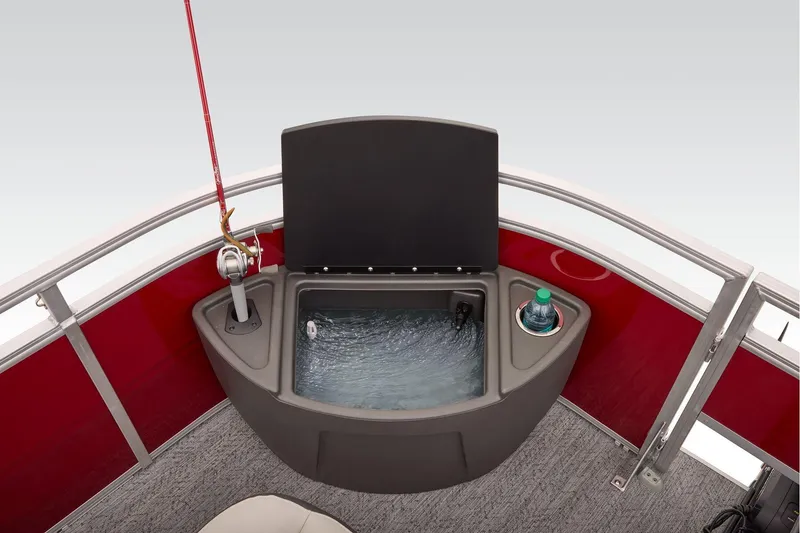

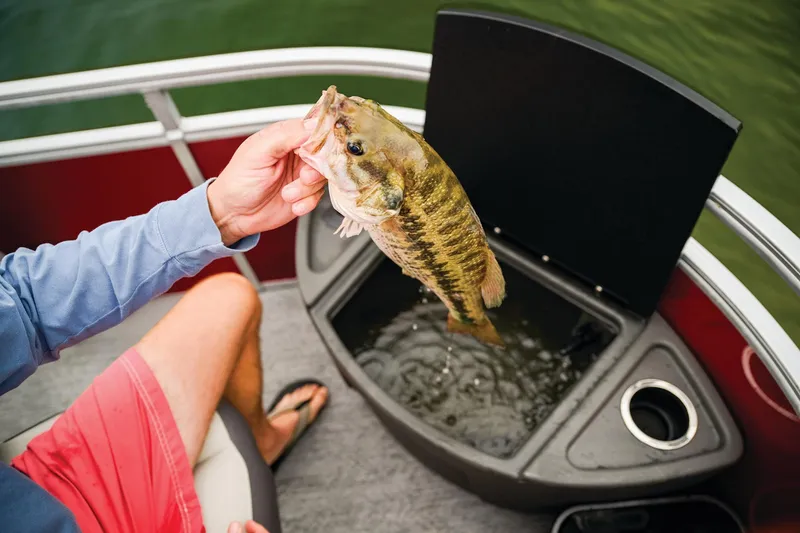

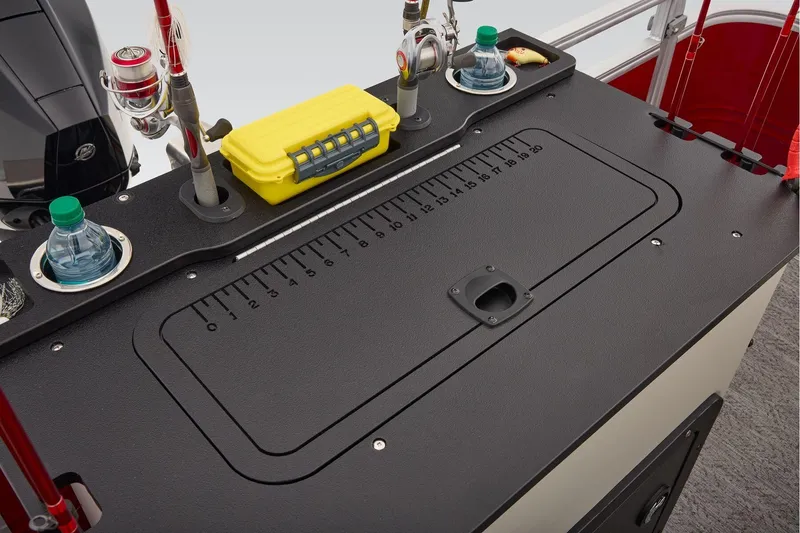

Bow 16-gal. (60.57 L) aerated livewell w/shutoff valve, drink holder, rod holder & composite lid w/fish ruler

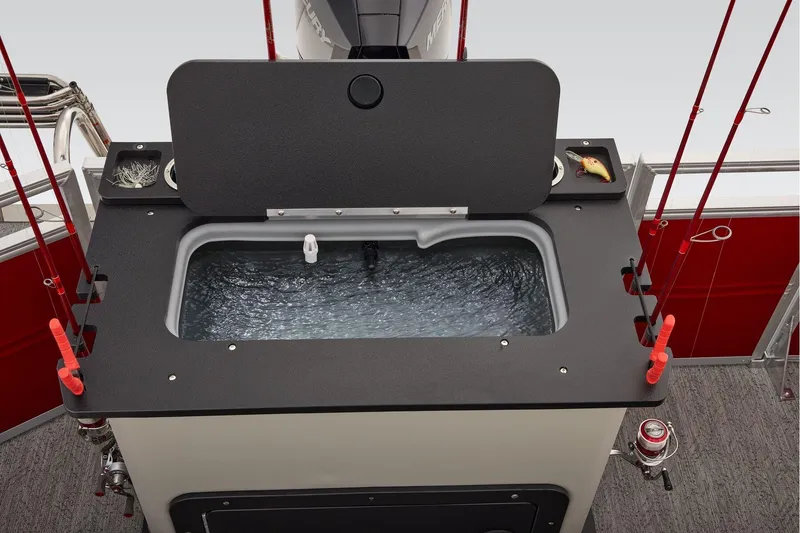

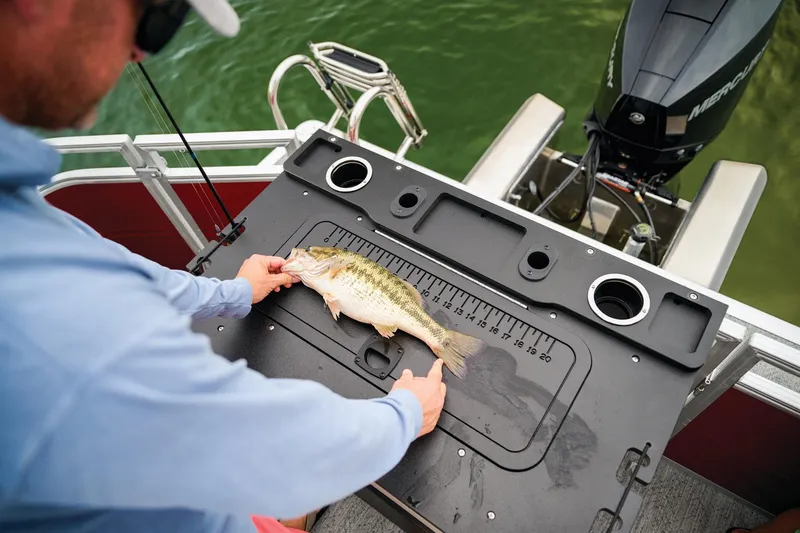

Aft 15-gal. (56.78 L) aerated livewell/baitwell w/shutoff valve, drink holder, rod holder & composite lid w/fish ruler
Console

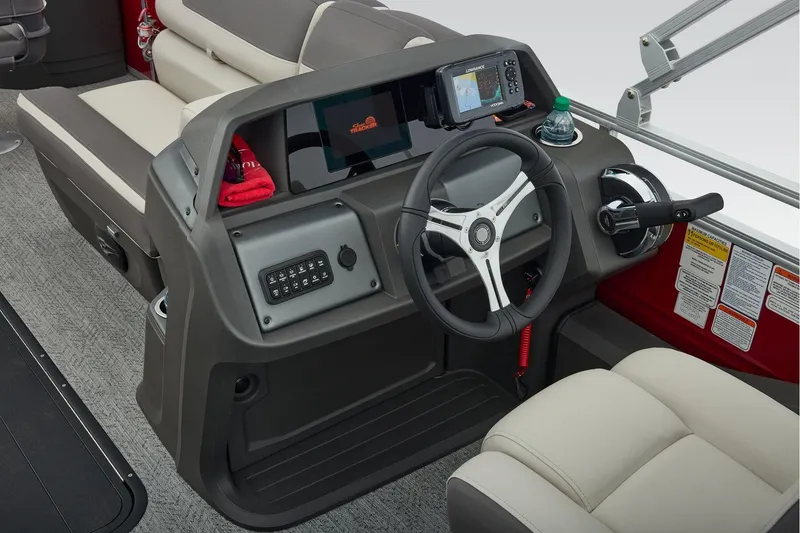

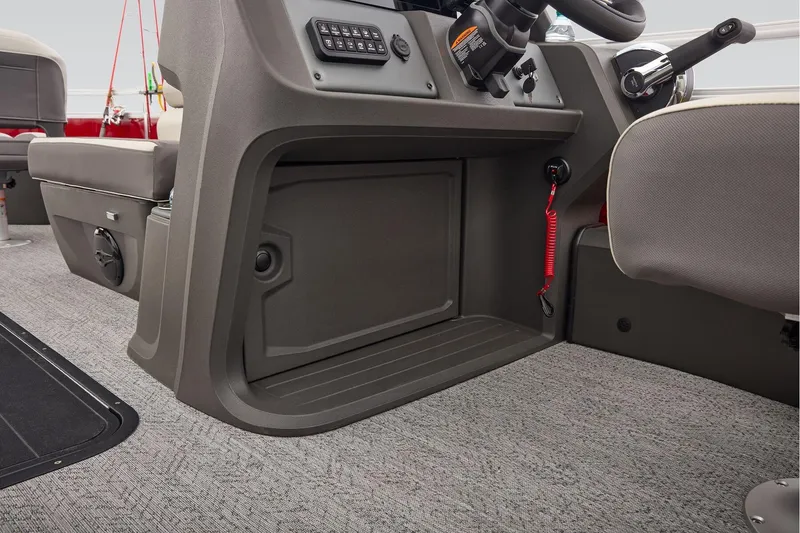

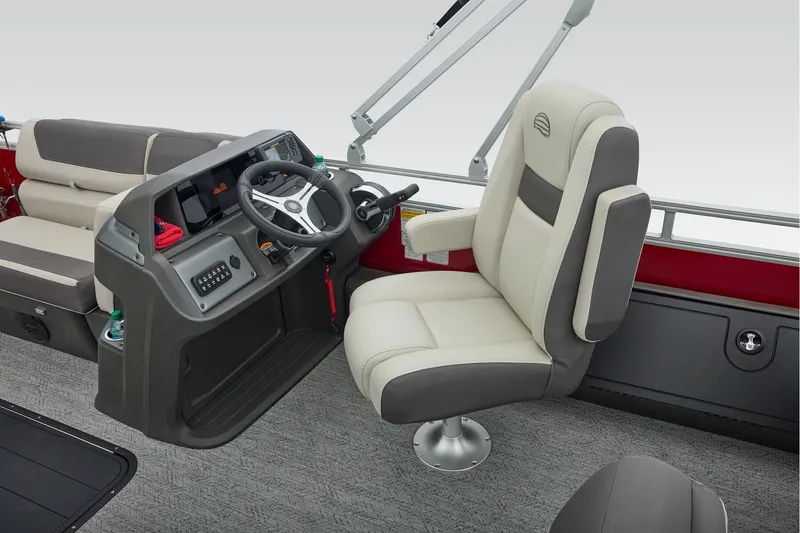

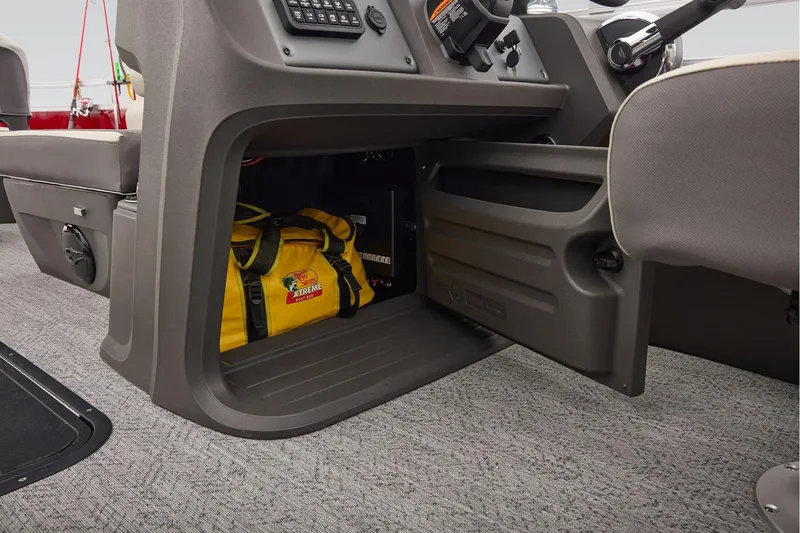

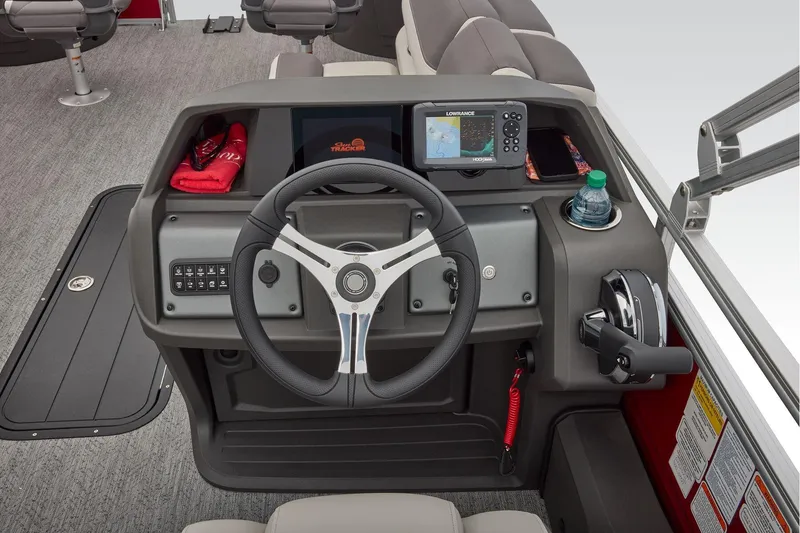

Driver console w/integrated storage, drink holders, built-in footrest & ergonomically-positioned controls

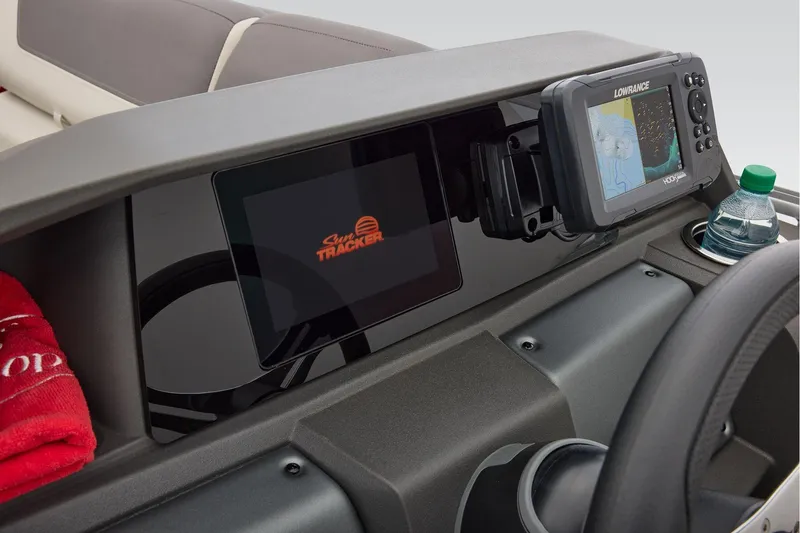

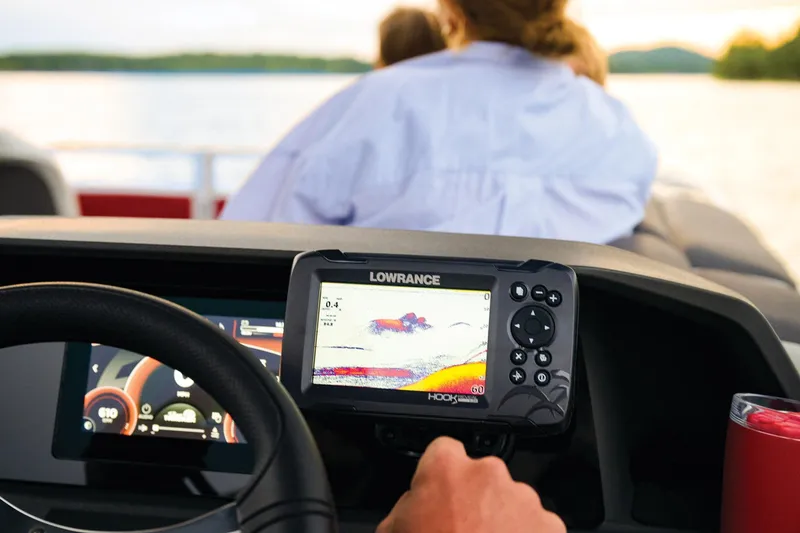

SUN TRACKER FLARE™ touchscreen gauge display w/integrated GPS, stereo control, screen protector & upgraded Bluetooth®
NEW PARTYMORE™ broadcast audio mode integrated into FLARE™ touchscreen for easy music sharing

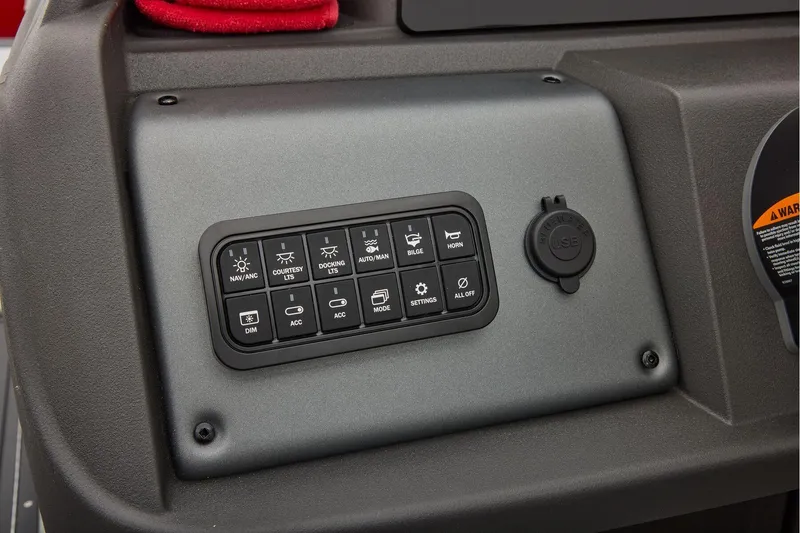

12-button switch panel

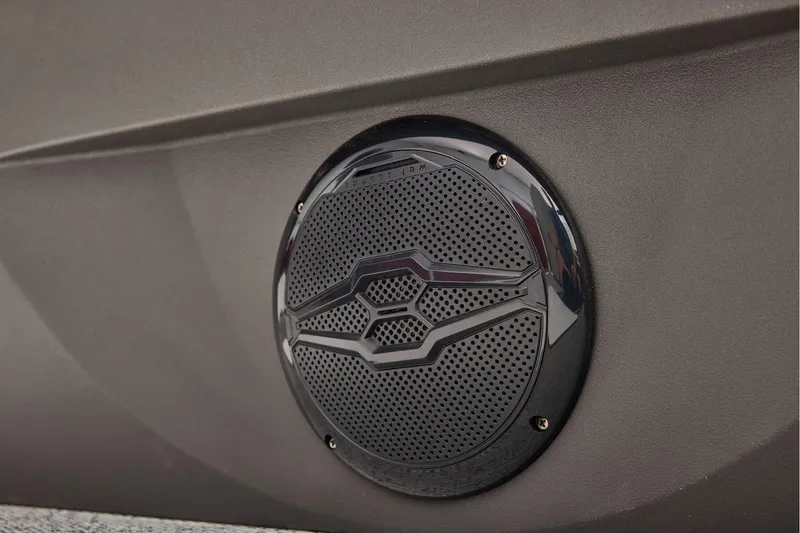

NEW Wet Sounds® Scout pre-tuned speakers, strategically located & shielded within the seat bases
Master power on/off switch
Recessed mobile phone cubbies
USB type A & C receptacle at helm for convenient charging of multiple mobile device models
Interior

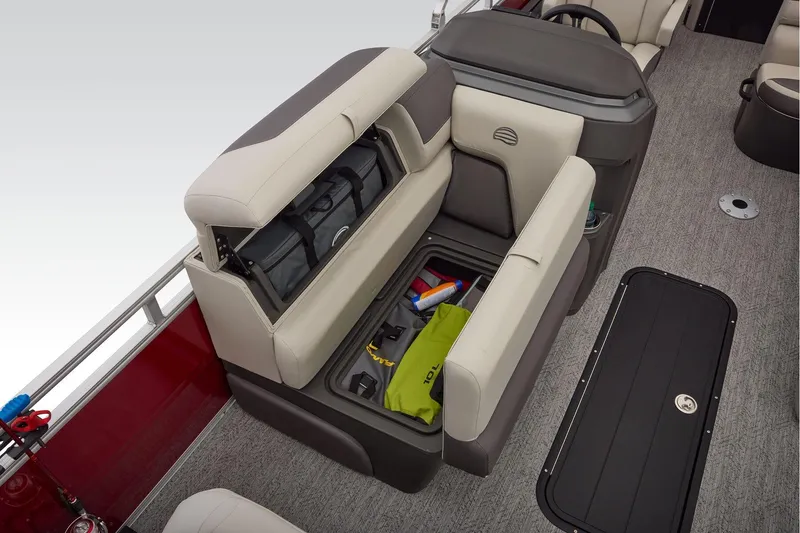

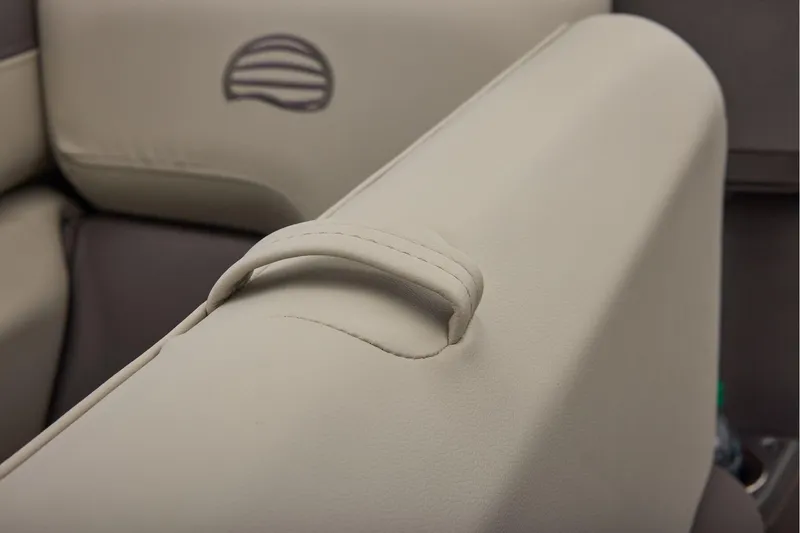

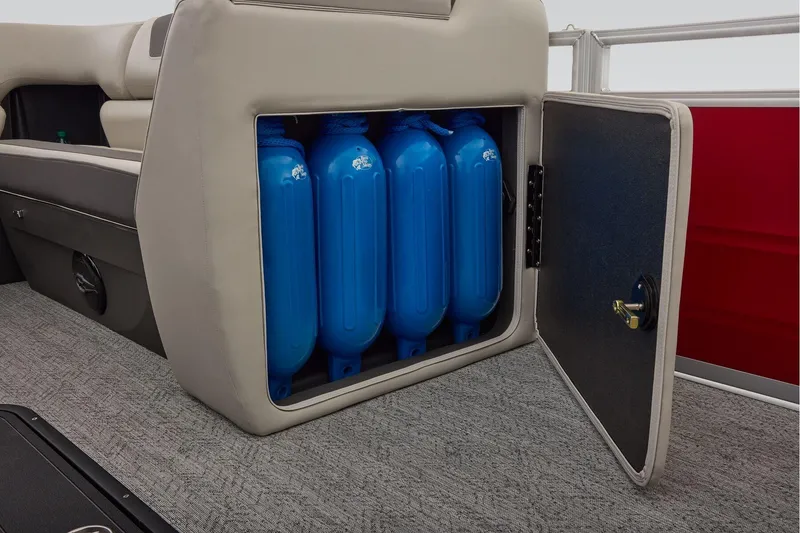

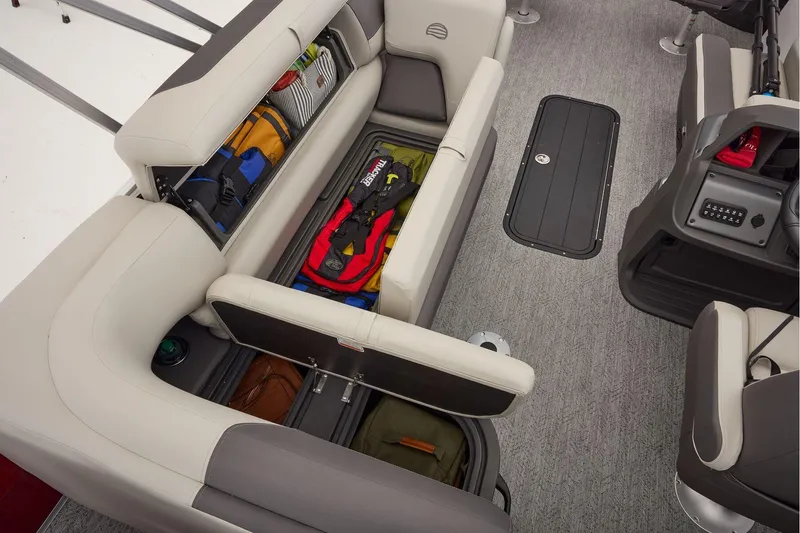

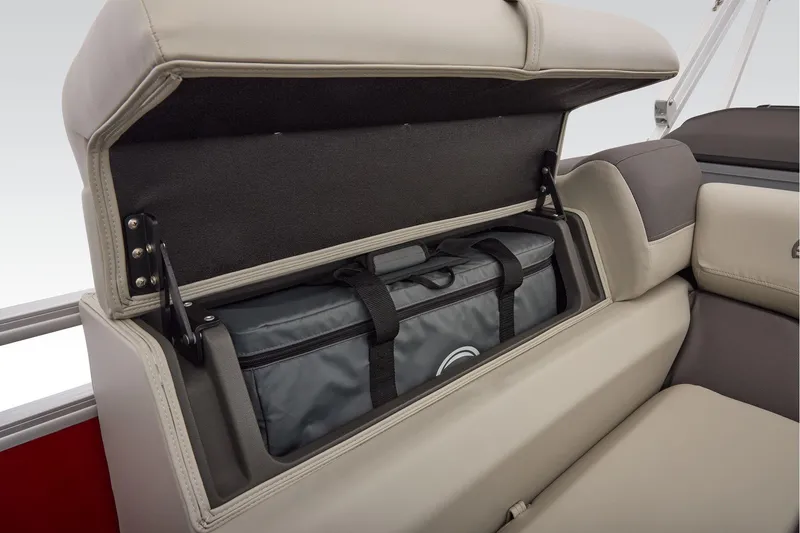

Patented built-in STOW MORE™ seat-back storage system for all couches & lounges

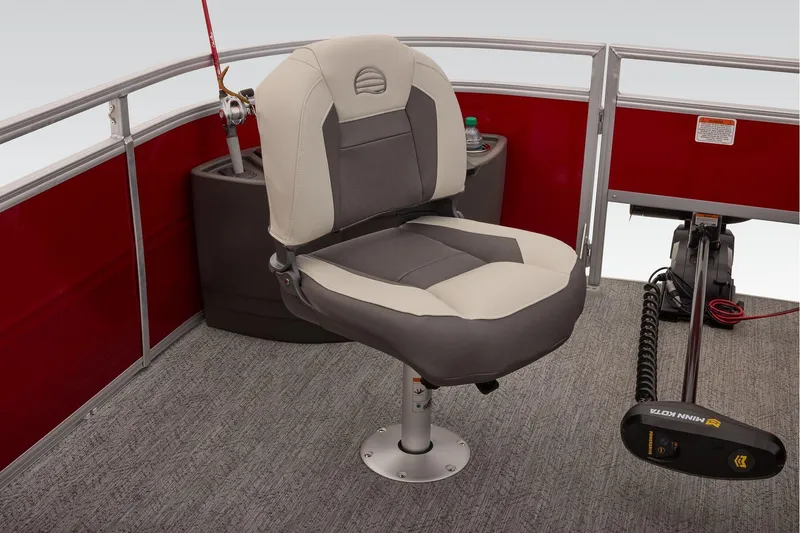

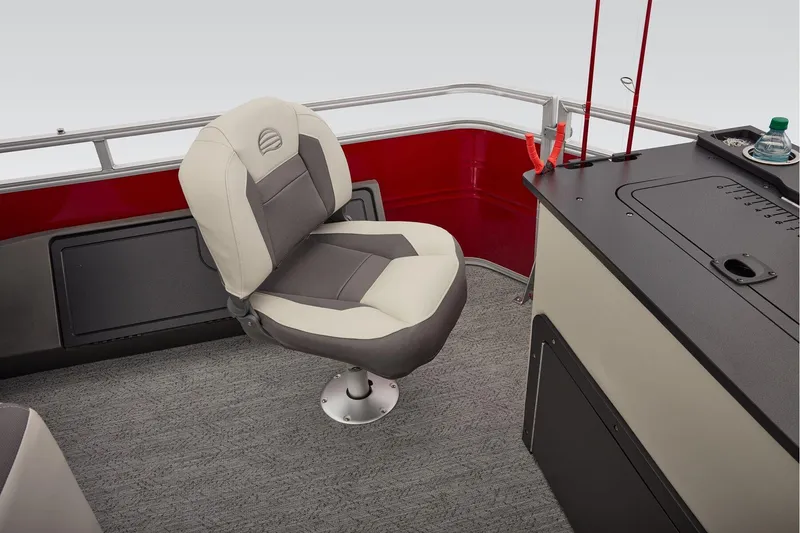

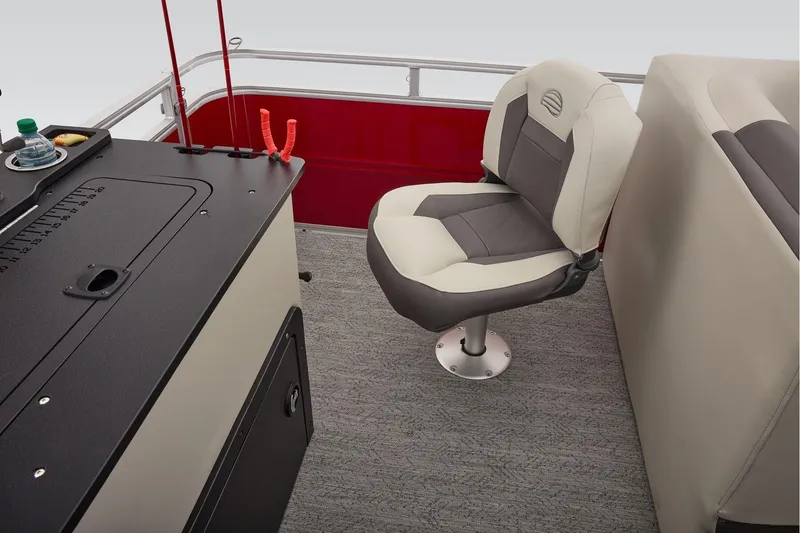

4 removable & folding fishing chairs w/heavy-duty 2-3/8" (6 cm) diameter pedestals

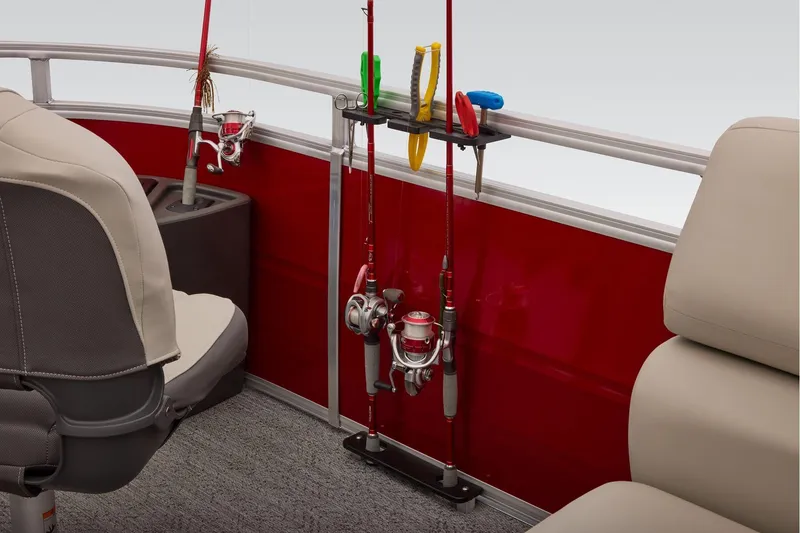

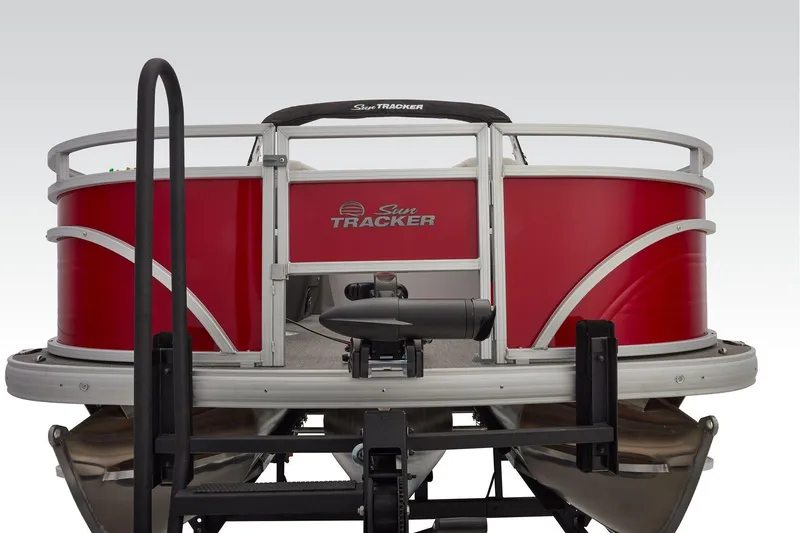

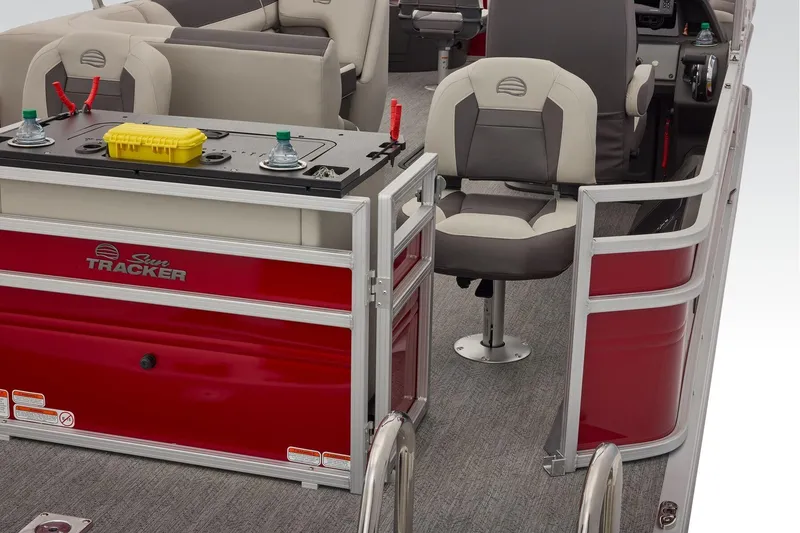

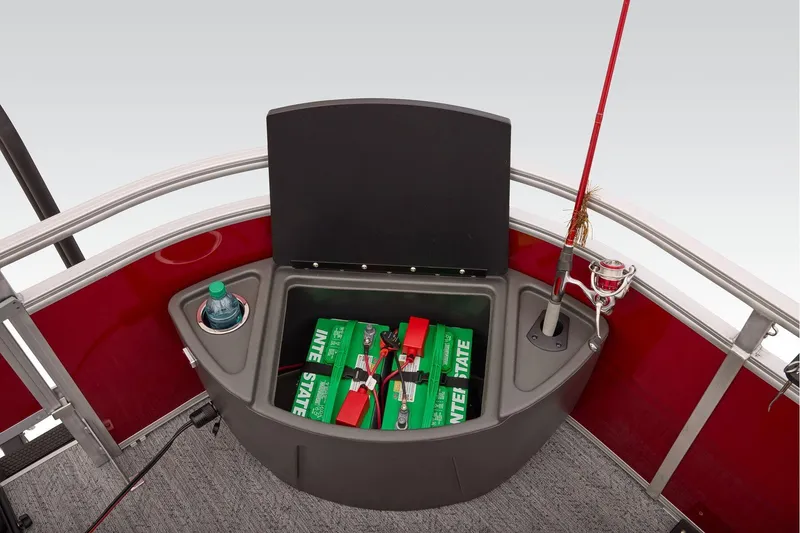

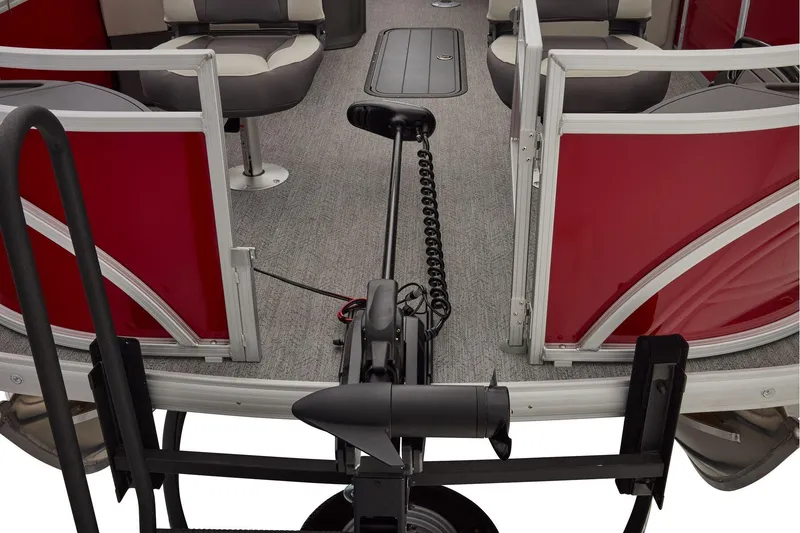

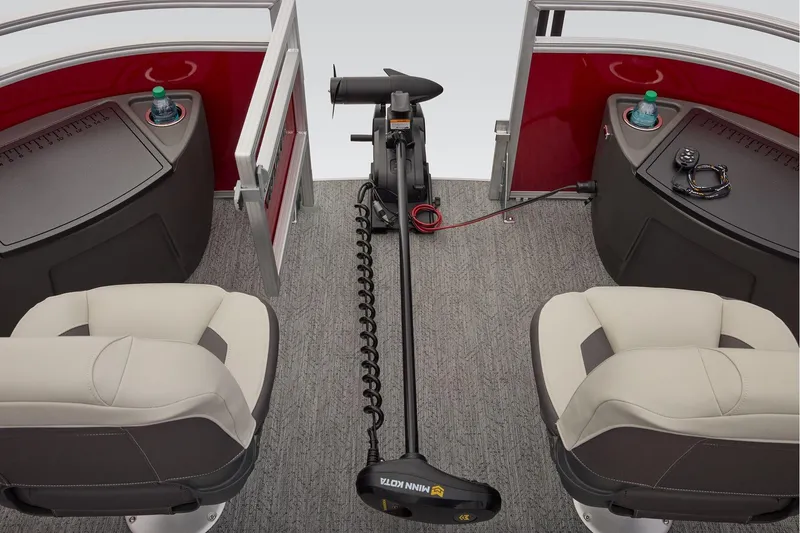

Front fishing station w/2 pedestal seat base locations; rail-mounted rod & tool holders; & bow starboard storage compartment w/drink holder, rod holder & composite lid w/fish ruler

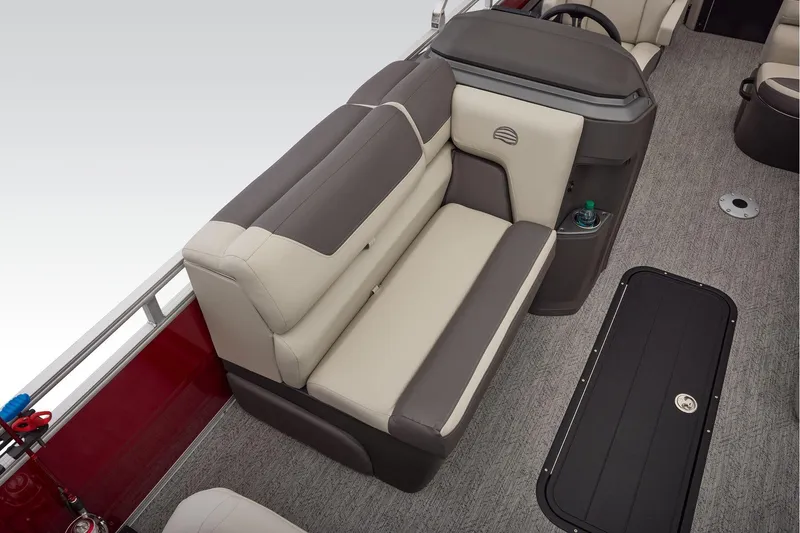

Bow starboard console couch w/underseat, lockable storage

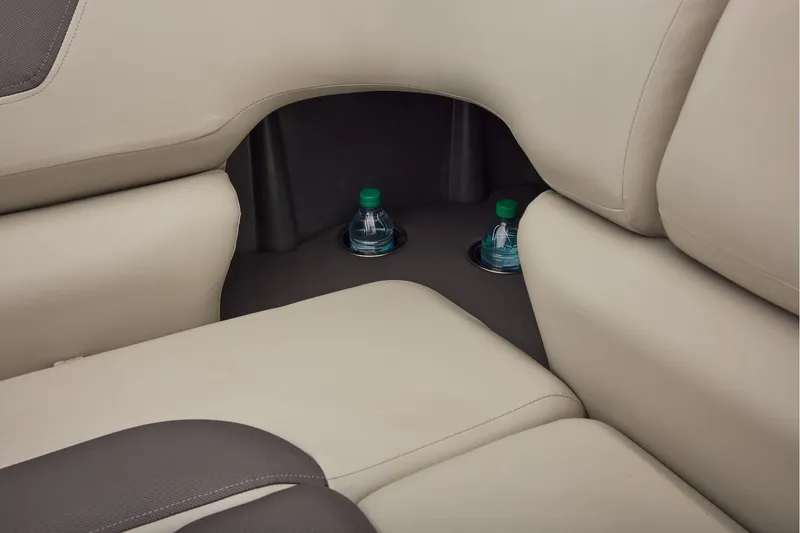

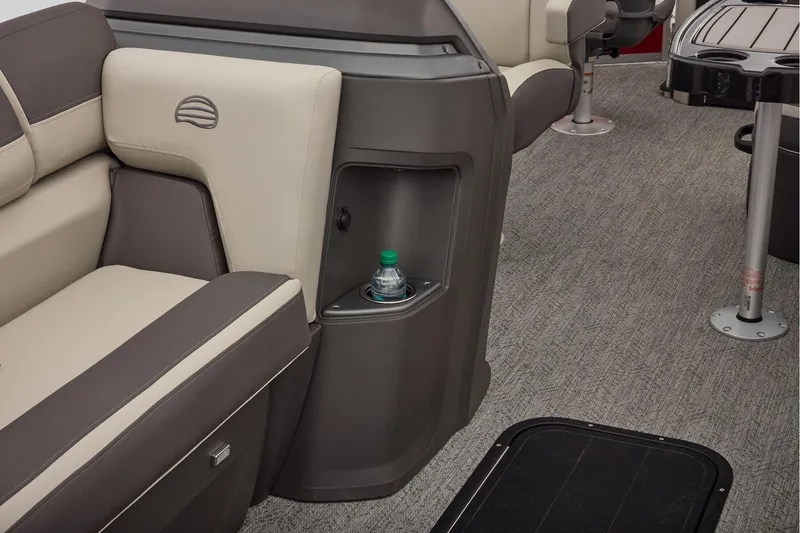

Integrated drink holders w/storage area

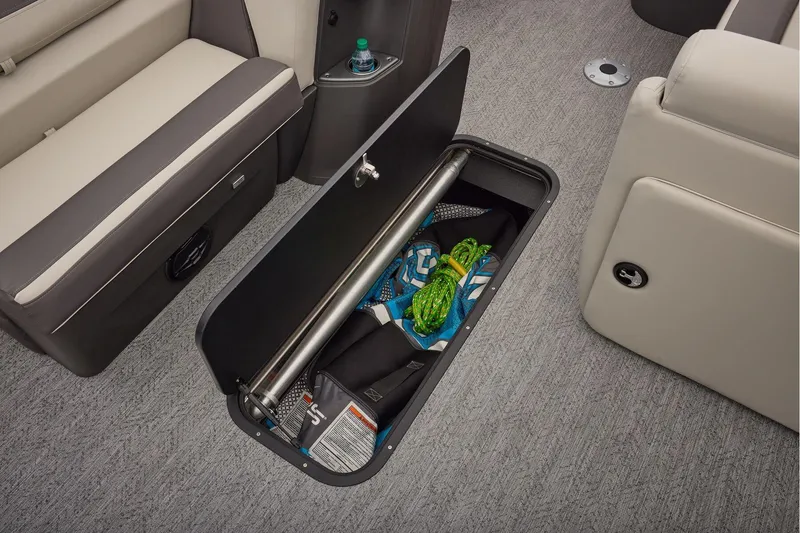

In-floor lighted storage compartment — 88" (2.24 m) long, 23" (58.42 cm) deep — w/bilge pump in center log

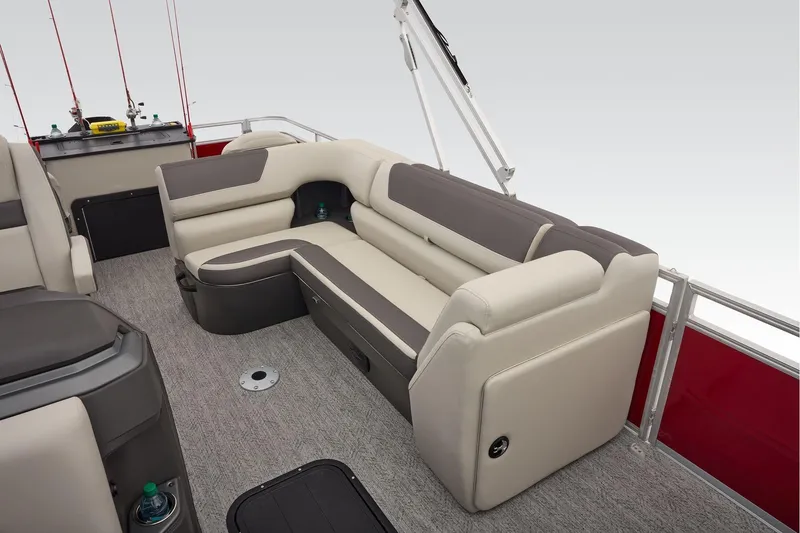

Aft L-lounge couches w/underseat storage

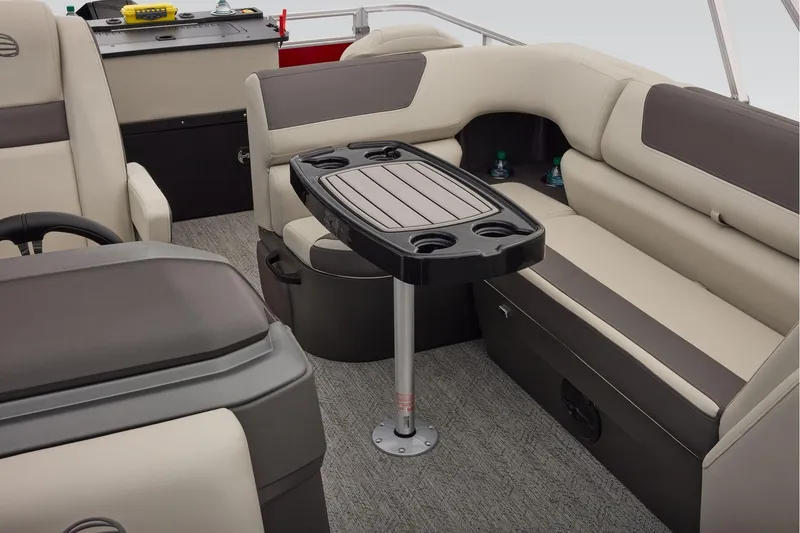

Removable table w/4 molded-in drink holders; color-coordinated, soft-touch mat; & tailored table location per dealer (dealer installed)

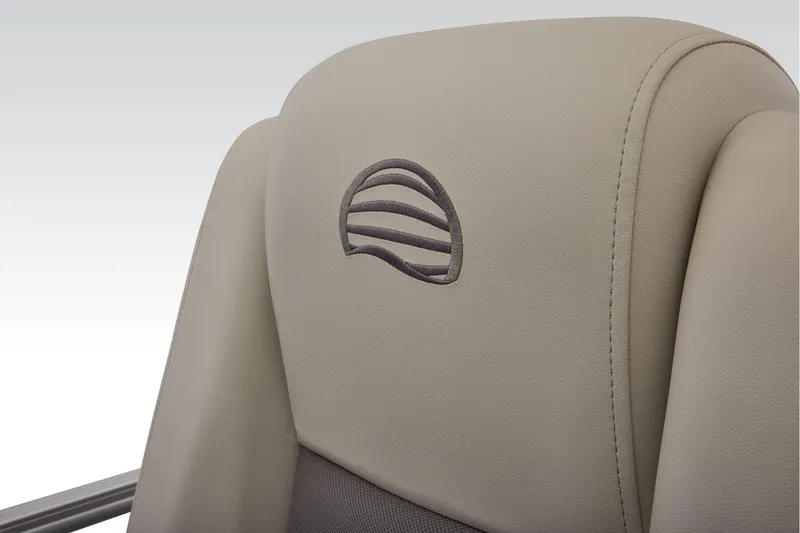

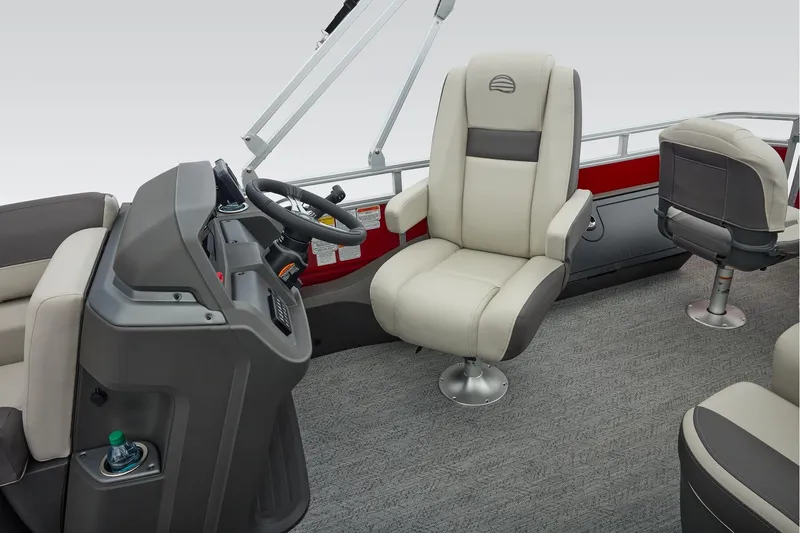

Reclining, high-back swiveling helm bucket seat w/self-leveling armrests

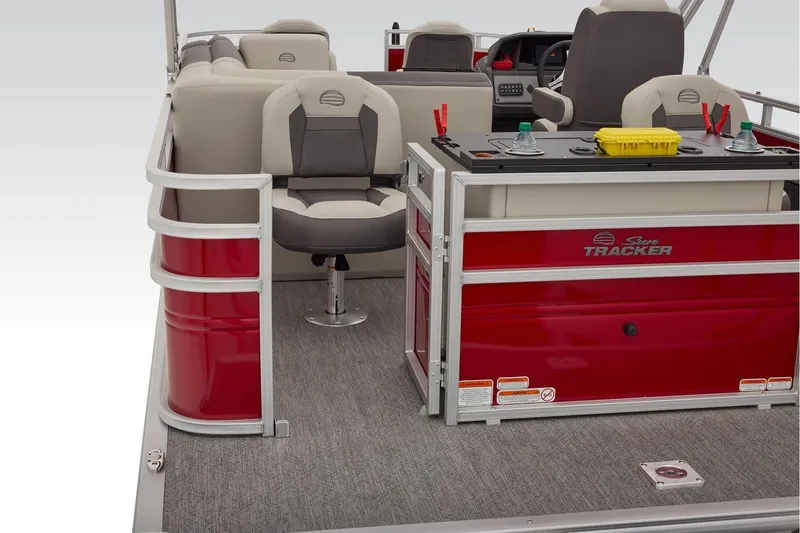

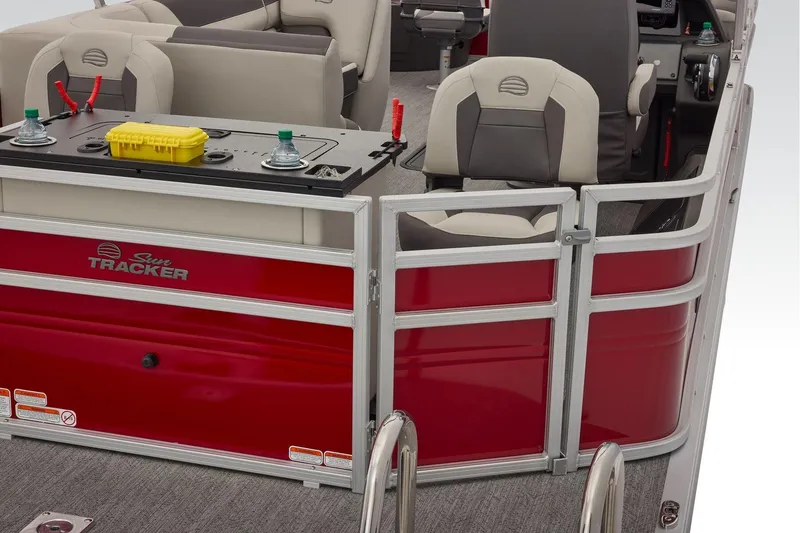

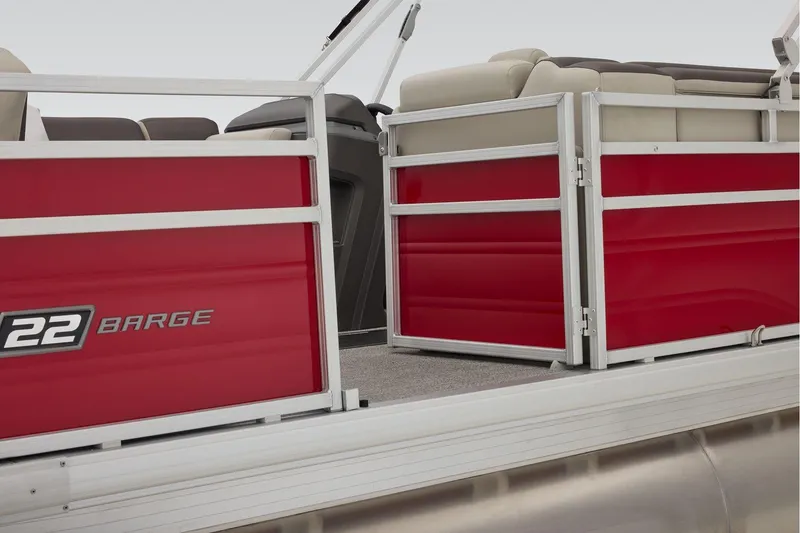

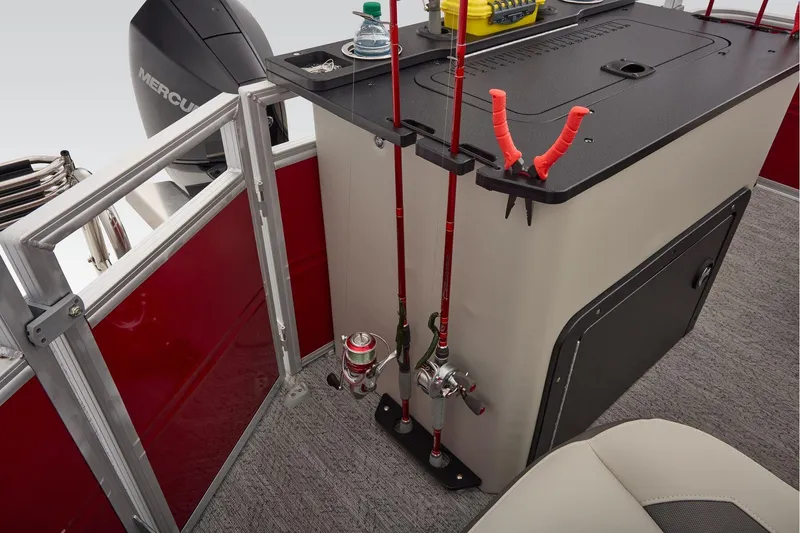

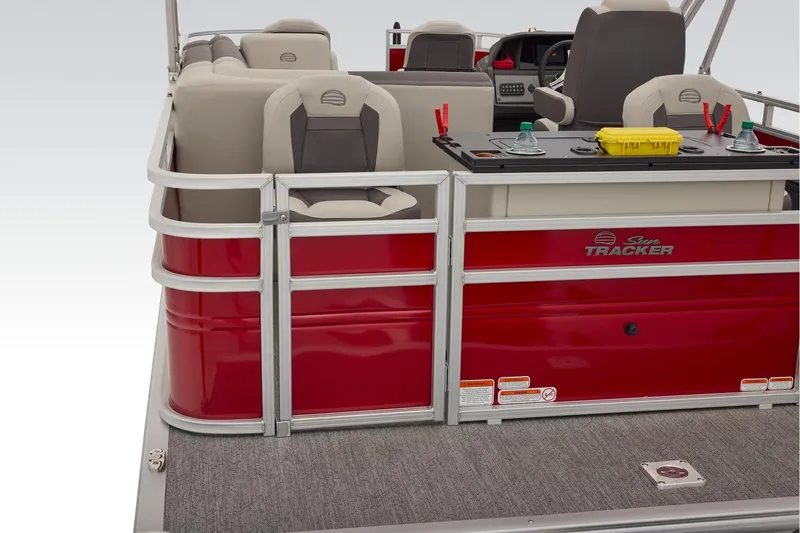

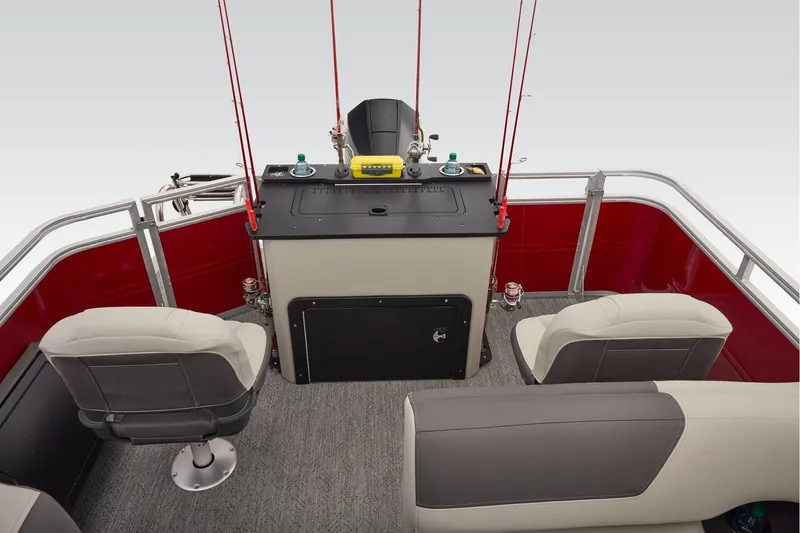

Aft fishing station w/dual gates & aft platform; 2 pedestal seat base locations; & incorporated rod & tool holders

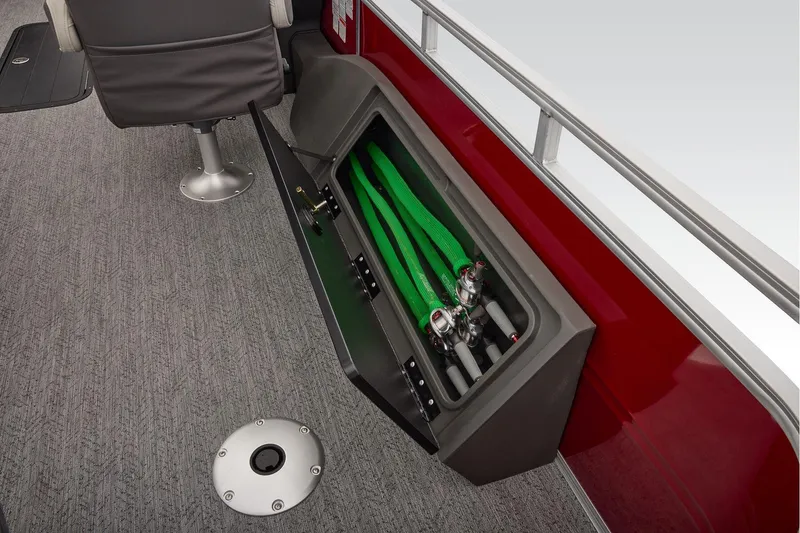

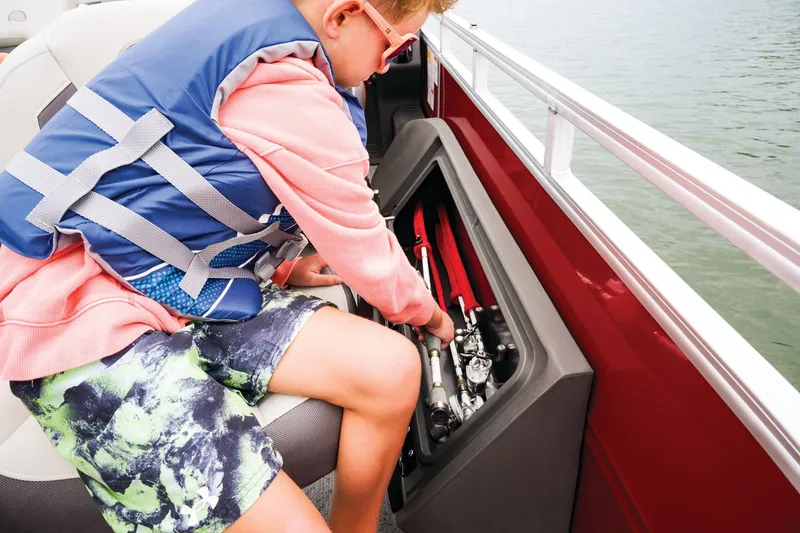

Aft starboard lockable rod box for 6 rods to 7' 6" (2.29 m) w/lid, rod tube holders & organizer
Interior courtesy lighting

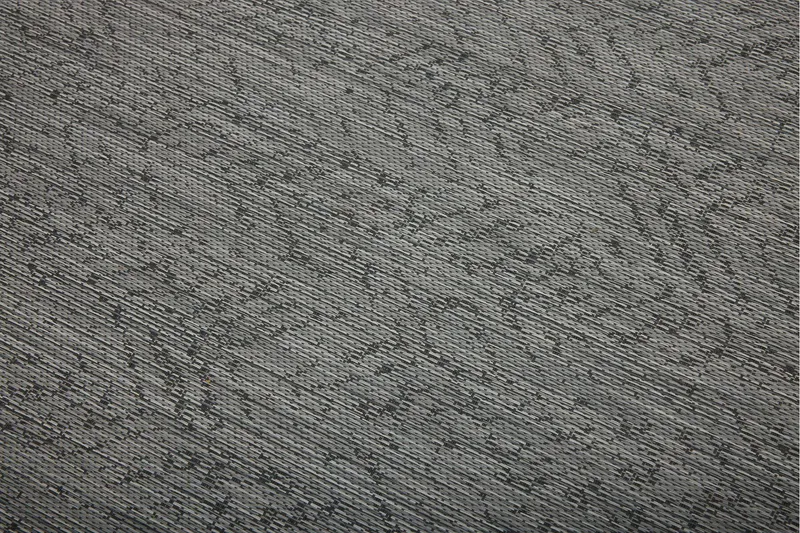

Woven 16-oz. (.45 kg) marine-grade flooring throughout

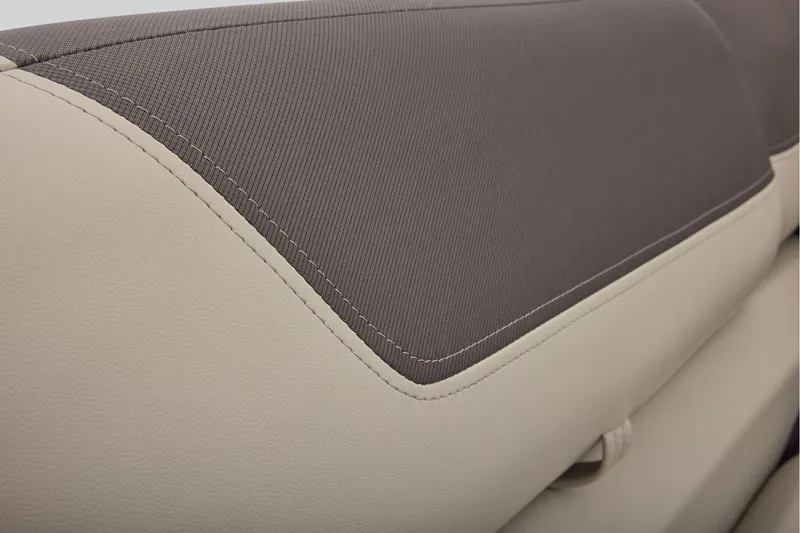

Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
Performance

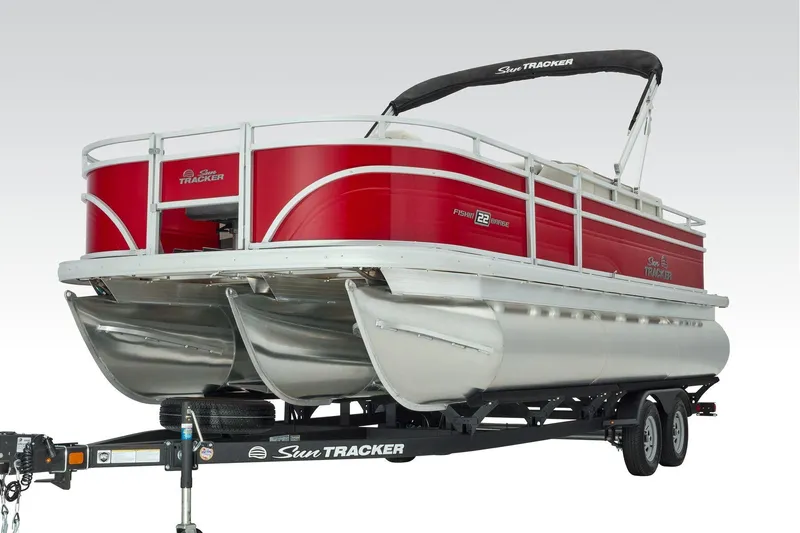

Three 26" (66.04 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs
XP3 performance strakes & wave-deflecting nose cone for maximum performance
Full-length, 1-piece longitudinal M-bracket deck supports
Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets
Heavy-duty aluminum U-channel reinforcement behind bow deck trim

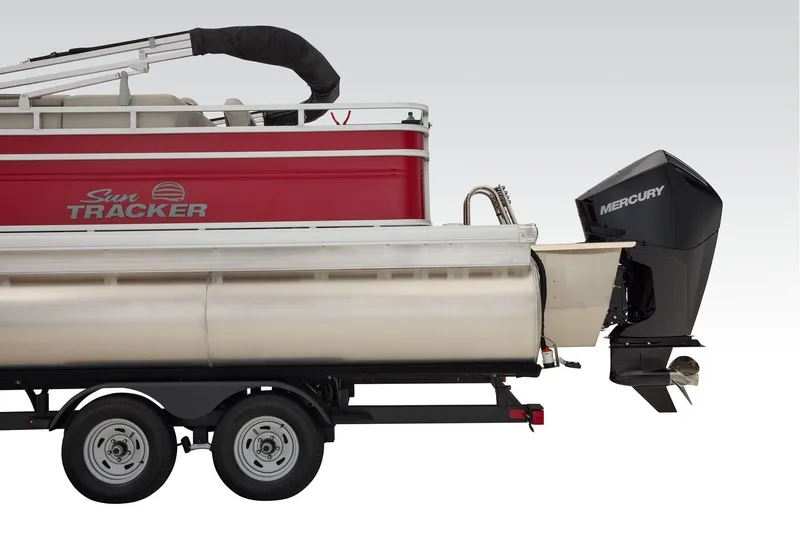

All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
All-aluminum box-beam transom for strength & longevity
Factory-installed underpinning (under-deck shielding) for improved performance
Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
1-1/4" (3.18 cm), .090" (.23 cm) anodized aluminum fence rails
Sound- & vibration-deadening fence insulation for a quiet ride
Extruded & anodized aluminum deck edging w/polished aft corner covers
Precision fit & finish via plasma & laser-cut parts & robotically-welded construction
Rotomolded storage, furniture & console for superior strength & longevity
Nylon gate latches & heavy-duty hinges that open inward
Stainless or coated corrosion-resistant fasteners
Factory-matched aluminum propeller
Exterior
Colors available:

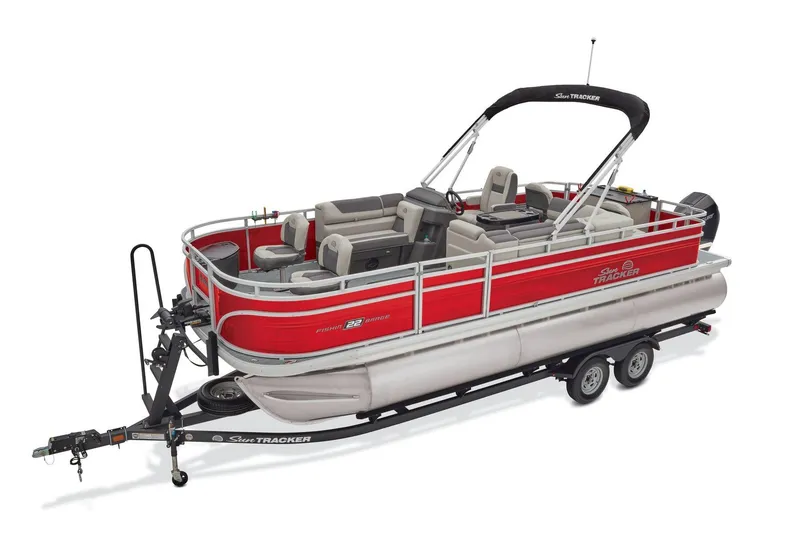

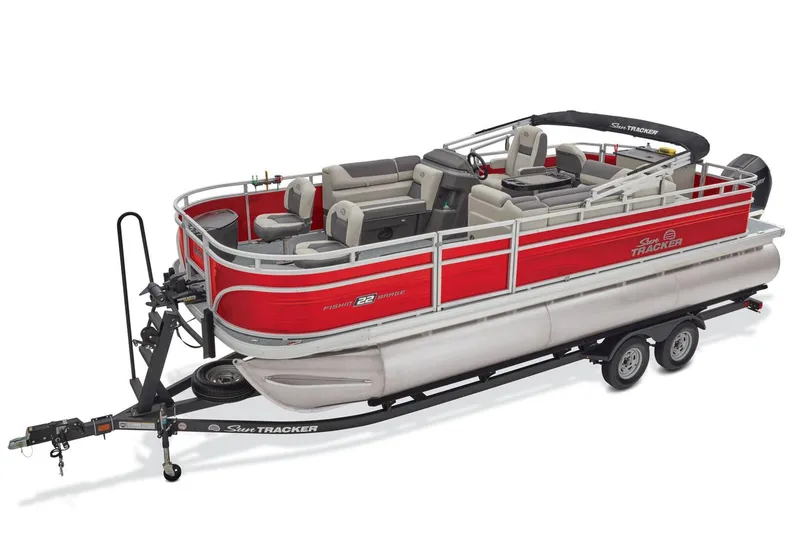

• Heritage Red fencing
• NEW Matte Olive Green fencing

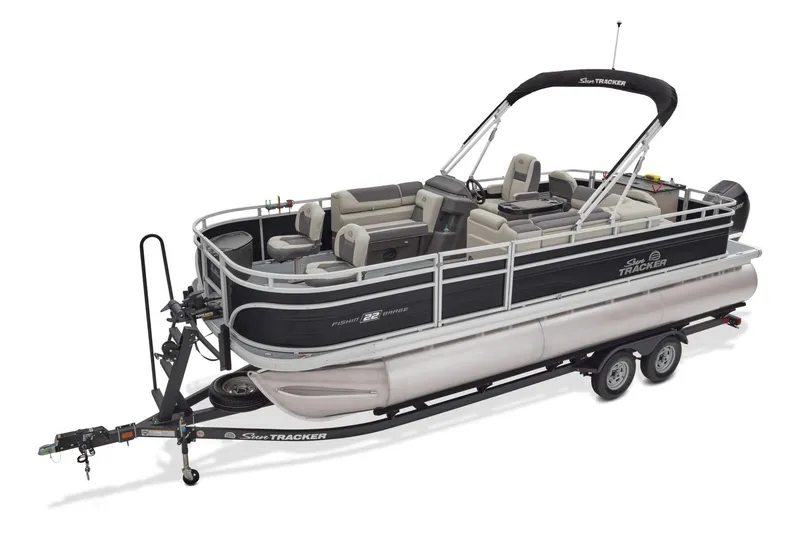

• Starlite Black fencing

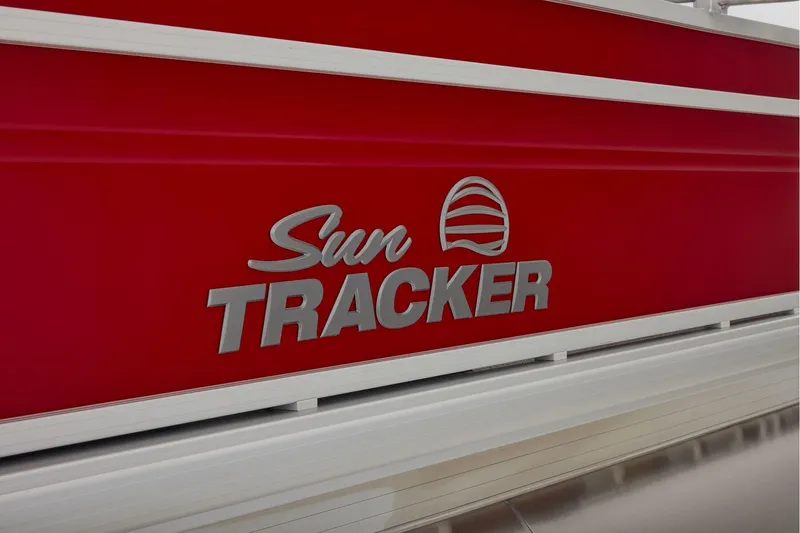

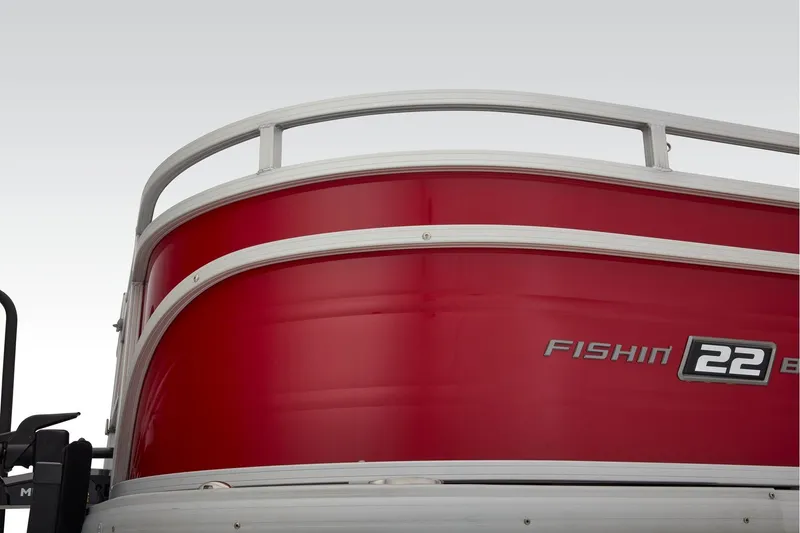

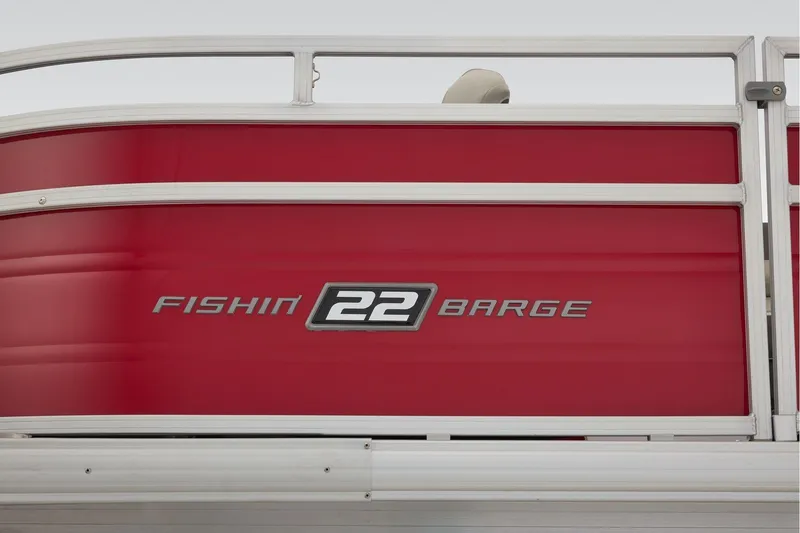

Patent-pending TRACK FORMED® fence design w/high-sheen finish for long-lasting cosmetics
Elevated fence panels for deck drainage & ventilation
Electrical
500 GPH (1,893 LPH) Ultima automatic bilge pump
Battery disconnect switch
Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
Protective abrasion-resistant wire wrap
Water-resistant connectors

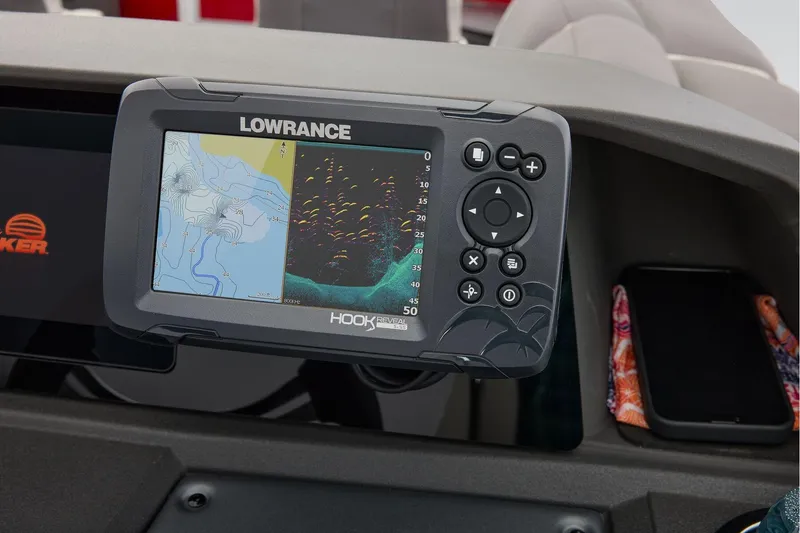

Pre-wired for optional fishing package
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice. All sales are final. No returns accepted.
Price History
| Date | Event | Price |
|---|---|---|
| 10/16/26 | Initial price | $62,900 |
2027 Sun Tracker Fishin' Barge 22 XP3 Video Tours
Overview from around the web 2027 Sun Tracker Fishin' Barge 22 XP3
Customers are raving about the 2027 Sun Tracker Fishin' Barge 22 XP3, highlighting its spacious layout that effortlessly accommodates family and friends while offering plenty of storage for fishing gear
Many appreciate the comfortable seating and the high-quality materials used in its construction, ensuring a durable and enjoyable experience on the water. The powerful performance is another common point of praise, with users noting the efficiency and reliability of the engine, making it perfect for both leisurely cruising and serious fishing trips. The innovative features, such as the integrated fishing stations and large, convenient livewells, allow for seamless transitions between relaxing and angling. Families love the safety measures incorporated into the design, making it a great choice for those with children. The overall aesthetic of the boat, coupled with the versatility it offers for both fishing and social gatherings, have made it a popular choice among boating enthusiasts. In summary, the 2027 Sun Tracker Fishin' Barge 22 XP3 is celebrated for its combination of comfort, functionality, and performance, making it a top contender for anyone looking to enjoy quality time on the water.
The Biggest Pros and Cons
Pros
Spacious Design: The Fishin' Barge 22 XP3 features a roomy layout, providing ample seating and storage space, making it perfect for family outings or fishing trips with friends.
Versatile Fishing Features: Equipped with multiple fishing amenities, including rod holders, livewells, and seating designed to enhance your fishing experience, this pontoon is a dedicated angler's dream.
Triple Toon Performance: The XP3 model includes a triple-tube configuration, offering improved stability, performance, and handling even in choppy waters, making it ideal for various water conditions.
Comfortable Seating: Plush lounge furniture with high-quality upholstery ensures that all passengers can relax in comfort, whether cruising or casting lines.
Enhanced Engine Capability: Designed to accommodate more powerful outboard engines, providing greater speed and agility on the water for those who like to navigate swiftly.
Durable Construction: Built with a robust aluminum frame and high-quality materials, the Fishin' Barge 22 XP3 is designed to withstand the elements and provide longevity.
Stylish Design: With modern aesthetics and color options, this pontoon boat combines functionality with contemporary style, making it visually appealing.
Cons
Size & Maneuverability: While spacious, the larger size may make it challenging to maneuver in tight spaces or narrow waterways compared to smaller boats.
Weight: The added weight from the triple tube setup can require a more powerful tow vehicle for transportation and may limit launching options.
Price Point: As a feature-rich model, the Fishin' Barge 22 XP3 may come with a higher price tag than some entry-level pontoons, potentially exceeding some budgets.
Storage Limitations: While it offers comprehensive storage options, the size and layout might not accommodate extensive gear for serious fishing enthusiasts.
Maintenance Needs: As with any boat, regular maintenance, especially with multiple features and components, is necessary to keep it in optimal condition, which may require a time commitment. Choosing the 2027 Sun Tracker Fishin' Barge 22 XP3 means weighing these pros and cons to find the perfect fit for your boating and fishing lifestyle. Whether you're a novice angler or a seasoned pro, this pontoon promises a delightful experience on the water.
Made For
The 2027 Sun Tracker Fishin' Barge 22 XP3 is designed for anglers, families, and leisure seekers who value fun on the water without compromising comfort and functionality. This versatile pontoon boat is perfect for fishing enthusiasts who enjoy casting lines and reeling in the big one, while also catering to families looking to spend quality time together. With ample space for up to 12 passengers, the Fishin' Barge 22 XP3 is ideal for group outings, whether it’s a day of fishing, swimming, or simply cruising the lake. Its spacious layout includes fishing amenities, comfortable seating, and plenty of storage for gear, making it well-suited for both serious anglers and casual explorers. Equipped with powerful performance features and innovative design elements, the Fishin' Barge 22 XP3 is perfect for those seeking a reliable and enjoyable boat that enhances every water adventure, whether you are battling the big catch or enjoying a leisurely day with loved ones aboard.
